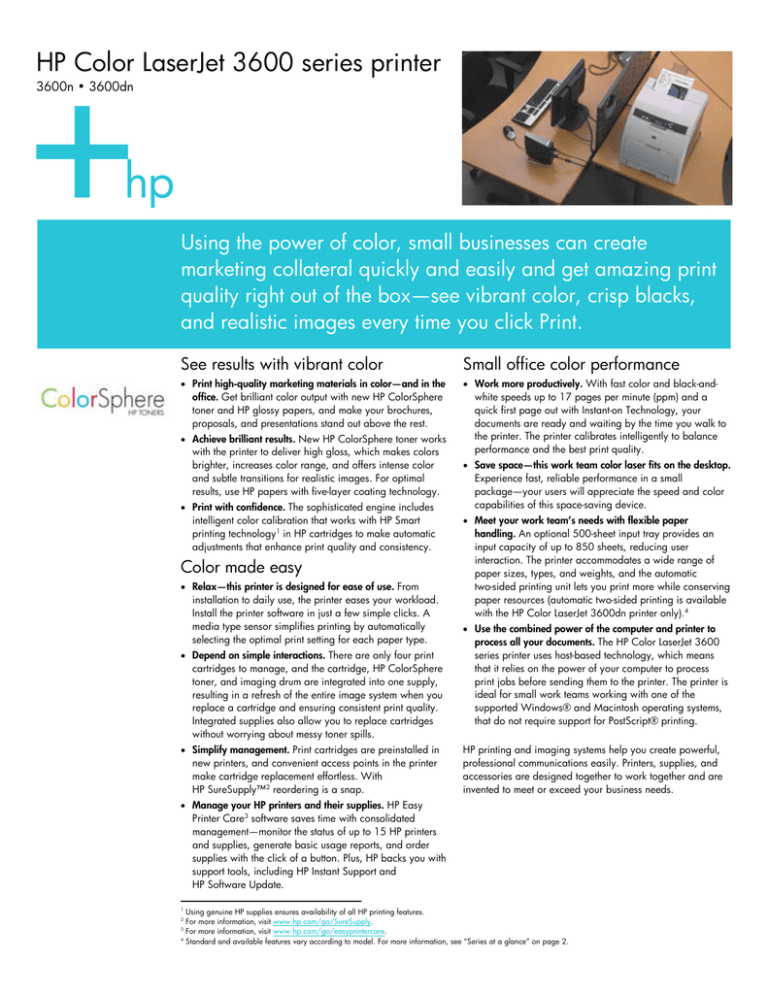

HP Color LaserJet 3600 series printer

HP Color LaserJet 3600 series printer
HP Color LaserJet 3600 series printer
3600n • 3600dn
Using the power of color, small businesses can create
marketing collateral quickly and easily and get amazing print
quality right out of the box—see vibrant color, crisp blacks,
and realistic images every time you click Print.
See results with vibrant color
Small office color performance
• Print high-quality marketing materials in color—and in the
office. Get brilliant color output with new HP ColorSphere
toner and HP glossy papers, and make your brochures,
proposals, and presentations stand out above the rest.
• Work more productively. With fast color and black-andwhite speeds up to 17 pages per minute (ppm) and a
quick first page out with Instant-on Technology, your
documents are ready and waiting by the time you walk to
the printer. The printer calibrates intelligently to balance
performance and the best print quality.
• Achieve brilliant results. New HP ColorSphere toner works
with the printer to deliver high gloss, which makes colors
brighter, increases color range, and offers intense color
and subtle transitions for realistic images. For optimal
results, use HP papers with five-layer coating technology.
• Print with confidence. The sophisticated engine includes
intelligent color calibration that works with HP Smart
printing technology1 in HP cartridges to make automatic
adjustments that enhance print quality and consistency.
Color made easy
• Relax—this printer is designed for ease of use. From
installation to daily use, the printer eases your workload.
Install the printer software in just a few simple clicks. A
media type sensor simplifies printing by automatically
selecting the optimal print setting for each paper type.
• Depend on simple interactions. There are only four print
cartridges to manage, and the cartridge, HP ColorSphere
toner, and imaging drum are integrated into one supply,
resulting in a refresh of the entire image system when you
replace a cartridge and ensuring consistent print quality.
Integrated supplies also allow you to replace cartridges
without worrying about messy toner spills.
• Simplify management. Print cartridges are preinstalled in
new printers, and convenient access points in the printer
make cartridge replacement effortless. With
HP SureSupply™2 reordering is a snap.
• Save space—this work team color laser fits on the desktop.
Experience fast, reliable performance in a small
package—your users will appreciate the speed and color
capabilities of this space-saving device.
• Meet your work team’s needs with flexible paper
handling. An optional 500-sheet input tray provides an
input capacity of up to 850 sheets, reducing user
interaction. The printer accommodates a wide range of
paper sizes, types, and weights, and the automatic
two-sided printing unit lets you print more while conserving
paper resources (automatic two-sided printing is available
with the HP Color LaserJet 3600dn printer only).4
• Use the combined power of the computer and printer to
process all your documents. The HP Color LaserJet 3600
series printer uses host-based technology, which means
that it relies on the power of your computer to process
print jobs before sending them to the printer. The printer is
ideal for small work teams working with one of the
supported Windows® and Macintosh operating systems,
that do not require support for PostScript® printing.
HP printing and imaging systems help you create powerful,
professional communications easily. Printers, supplies, and
accessories are designed together to work together and are
invented to meet or exceed your business needs.
• Manage your HP printers and their supplies. HP Easy
Printer Care3 software saves time with consolidated
management—monitor the status of up to 15 HP printers
and supplies, generate basic usage reports, and order
supplies with the click of a button. Plus, HP backs you with
support tools, including HP Instant Support and
HP Software Update.
Using genuine HP supplies ensures availability of all HP printing features.
For more information, visit www.hp.com/go/SureSupply.
For more information, visit www.hp.com/go/easyprintercare.
Standard and available features vary according to model. For more information, see “Series at a glance” on page 2.
HP Color LaserJet 3600 series printer
1 Intuitive, two-line
display with a built-in
help function
HP Color LaserJet 3600dn shown
2 250-sheet top output
bin with long paper
3 One-door access to the
preinstalled, easy-toreplace print cartridges
4 100-sheet multipurpose
tray enables automatic
and manual feeding for
specialty papers
5 250-sheet input tray for
350-sheet total
standard input capacity
6 Built-in automatic
two-sided printing
7 On/off switch
8 USB Hi Speed port
provides simple
9 128 MB SDRAM
memory and a powerful
360 MHz processor
10 HP Jetdirect Fast
Ethernet embedded
print server for easy
network sharing
Series at a glance
HP Color LaserJet 3600n printer
HP Color LaserJet 3600dn printer
• 100-sheet multipurpose tray and 250-sheet input
3600n model, plus:
tray for a total of 350-sheet input capacity
• 64 MB RAM (not upgradeable)
• HP Jetdirect Fast Ethernet embedded print server
• Additional 64 MB RAM for a total of 128 MB RAM
• Built-in automatic two-sided printing
Promote your business—simply and effectively.
Vivid color and powerful performance
New HP ColorSphere toner
If you want brilliant print quality that exceeds your
expectations every time you print, but you don’t want to
make a lot of adjustments or sacrifice fast printing speed,
then the HP Color LaserJet 3600 series printer is just what
you’ve been looking for.
Your prints will shine with uniform gloss and a dynamic
range of color. The new HP ColorSphere toner features
gloss levels that are significantly improved over previous
HP color toners when printing on glossy paper. Improved
melting and fusing technologies work in sync with the
new HP ColorSphere toner to enable superior toner
release and flow. The result is brilliant, intense colors and
excellent photo quality output for your business
Building on 20 years of laser experience, HP improves its
award-winning color laser printing products with every
generation. HP’s out-of-the-box color laser print quality
leads the industry. Without bothering with printer settings,
you’ll get great results each time you click Print. And
because performance and print quality work hand-inhand with this printer, you’ll enjoy fast printing speeds
that won’t slow you down.
In-house color marketing
Print short-run color collateral in-house, quickly and
affordably. When you print materials in-house, you have
control over the process: you ensure that printing is
effective, efficient, and affordable, and that any private
company information stays safe. Printing frequently
updated materials on-demand means that you can make
changes at a moments notice and never waste printed
material due to obsolete information. You also save the
time and cost of inventory management.
Plus, in-house marketing is easy with HP Marketing
Assistant Software. With professionally designed
templates, step-by-step instructions, and an online portal
with tips, success stories, and training classes, you’ll be
whipping up dazzling documents in no time.5
Companies ranging from small to large report that HP’s
affordable, best-in-class color solutions deliver money to
their bottom line. Some ways, such as improving your
image and adding impact to marketing publications, are
indirect, while others are direct and measurable, such as
productivity gains and tangible cost savings with in-house
color printing.
Award-winning HP support
HP’s new color toner enables a wider range of colors
because each toner particle conforms to an extremely
consistent size and shape. This consistency allows toner
particles to be placed on the page with the precision
needed to produce a wide range of colors with the most
subtle differences of shade.
HP ColorSphere toner is also designed to enable faster
printing time. The toner particles are chemically grown
around an optimally sized wax core, producing particle
sizes that are designed to work with HP’s fusing
technology for faster printing without sacrificing quality.
HP printer management tools
Who says you can’t do it all? With a little help, HP
knows you can. HP makes printer management and
supplies reordering trouble-free.
• View printer and supplies status, perform simple
troubleshooting, and manage printing functions for an
individual printer from your computer, rather than the
printer control panel or through the print driver
Services tab (for end users).
• Manage groups of printers from a single access point.
For IT professionals, HP Web Jetadmin helps you
install, configure, and remotely manage all of your
network peripherals through a simple Web interface.
For end users and office managers, HP Easy Printer
Care Software helps you manage up to 15 HP printers
from your computer to keep them running at their best.
HP’s expert knowledge will help you make the most of
your printer and ensure your equipment is running at
peak efficiency. Start with a one-year, next day, on-site,
limited hardware warranty, backed by free telephone
and Web support from the award-winning HP Customer
Care (warranty and availability vary according to
region). To further guarantee trouble-free operation,
upgrade with service and support options such as
installation, network configuration, and extended
warranty support.
North America only. A 90-day trial version ships with the printer; the software is available in retail stores and for download at www.hp.com.
HP Color LaserJet 3600 series printer
Technical specifications
Print speed6
First page out
Image enhancement, resolution
Memory, standard
Memory, maximum
Recommended monthly volume
Maximum monthly duty cycle
Duplex printing
Network connectivity
Client operating systems
Network operating systems8
Network protocols supported8
Dimensions (w by d by h)
Weight (includes print cartridge)
What’s in the box
HP Color LaserJet 3600n printer (Q5987A)
HP Color LaserJet 3600dn printer (Q5988A)
Up to 17 ppm
Less than 14 seconds
HP ImageREt 3600, 600 by 600 dpi
360 MHz Fujitsu FR555 FRV
64 MB SDRAM (not customer upgradeable)
1,000 to 3,000 pages
50,000 pages
100-sheet multipurpose tray and 250-sheet tray 2 for a total of 350 sheets, optional 500-sheet tray 3
250-sheet top output bin
Manual two-sided printing
Built-in automatic two-sided printing
Multipurpose tray: 3 by 5 to 8.5 by 14 in (76 by 127 to 216 by 356 mm); letter, legal, executive, envelopes;
Tray 2 and optional tray 3: letter, legal, executive; automatic two-sided printing: letter, legal
Multipurpose tray: 16 to 42 lb bond (60 to 160 g/m2) Automatic two-sided printing unit, 250-sheet and 500-sheet input trays: 16 to 32 lb bond (60 to 120 g/m 2)
Paper (plain, preprinted, letterhead, prepunched, bond, recycled, tough, color, gloss, rough), transparencies, labels, envelopes, cardstock, user-defined
USB 2.0 Hi-Speed port
HP Jetdirect Fast Ethernet embedded print server, optional 802.11b/g Wireless LAN and other networking accessories
Note: Networking accessories must be added via an external unit
HP JetReady 4.2 (for HP postscript emulation printing HP recommends the HP Color LaserJet 3800 series printer)
Not applicable (Based on installed typefaces on host computer. Print engine only has fonts for internal pages and ASCII.)
Microsoft Windows® 2000, XP Home, XP Professional, Server 2003; Certified for Windows Vista®; Mac OS X version 10.2.8, 10.3 and 10.4 and higher
Via HP Jetdirect print servers: Microsoft Windows 2000, XP Home, XP Professional, Server 2003; Mac OS X version 10.2.8, 10.3 and 10.4 and higher;
Red Hat Linux® 6.x and later
Via HP Jetdirect print servers: DHCP, Auto IP, BOOTP, SLP, WINS, RARP, Telnet, TFTP, TCP/IPv4, UDP, LPD, Port9100, SNMP v1, DNS, CUPS/Linux
15.7 by 20.07 by 15.7 in (400 by 450 by 400 mm)
15.7 by 20.07 by 16.7 in (400 by 450 by 423 mm)
59.6 lb (27.1 kg)
61.6 lb (28 kg)
HP Color LaserJet 3600n printer, 100-sheet multipurpose tray, 250-sheet tray, power
HP Color LaserJet 3600dn printer, 100-sheet multipurpose tray, 250-sheet tray, power
cable, driver and documentation CD, in-box documentation (Getting Started Guide),
cable, drivers and documentation CD, in-box documentation (Getting Started Guide),
preinstalled, full-capacity 6,000-page black and 4,000-page cyan, magenta, and
preinstalled, full-capacity 6,000-page black and 4,000-page cyan, magenta, and
yellow HP Color LaserJet print cartridges with HP ColorSphere Toner9, HP Jetdirect
yellow HP Color LaserJet print cartridges with HP ColorSphere Toner9, HP Jetdirect
Fast Ethernet embedded print server
Fast Ethernet embedded print server, built-in automatic two-sided printing
Ordering information
Environmental ranges
Operating temperature
Relative humidity
Required input voltage
Operating: 50 to 81 degrees F (10 to 27 degrees C)
Recommended: 63 to 77 degrees F (17 to 25 degrees C)
Storage: 32 to 95 degrees F (0 to 35 degrees C)
Operating: 10 to 70 percent
Recommended: 20 to 60 percent
Non-operating: 10 to 90 percent
0 to 8530 ft (0 to 2600 m)
Power: active: 6.9 B(A); Ready: 5.3 B(A)
Pressure (bystander): active: 55 dB(A), standby: 39 d(B)A
110 to 127 V (±10 percent), 50/60 Hz (±2 Hz)
220 to 240 V (±10 percent), 50/60 Hz (±2 Hz)
Power consumption10
335 watts
48 watts
15 watts
0.5 watts
Typical Electricity Consumption (TEC): 3.601 kWh/Week
ENERGY STAR qualified models; see: www.hp.com/go/energystar
EMC: CISPR 22: 1993/EN 55022: 1994 Class B, EN 61000-3-2: 2000, EN
Power certifications
61000-3-3: 1995, EN 55024: 1998, FCC Title 47 CFR, Part 15 Class B (US),
ICES-003, Issue 4 (Canada), GB9254-1998, other EMC approvals as required
by individual countries
Safety: IEC 60950-1 (International), IEC 60825-1, UL/cUL Listed (US/Canada),
EN 60825-1 Class 1, 21 CFR Ch. 1/SubCh. J (Class 1 Laser/LED Device)
GB4943-2001, other safety approvals as required by individual countries.
One-year, next day, on-site limited hardware warranty with phone and e-mail
To learn more, please visit www.hp.com/go/SureSupply
HP SureSupply enabled
Exact speed varies depending on the system configuration, software application, driver, and document complexity.
For optimum results, HP recommends the use of HP media designed for HP Color LaserJet printers between the weights of 75 g/m2 to
120 g/m2. For lighter weight or heavier weight paper (60 g/m2 to 74 g/m2 and 121 to 220 g/m2), paper jam rate and optimal print quality
performance may be impacted. Use the correct driver and tray settings for best results. Test all paper before purchasing large volumes.
Not all protocol and operating system combinations are supported. For more information, go to: www.hp.com/support/net_printing.
All print cartridge page yields are based on five percent page coverage.
Values subject to change. See www.hp.com/support/clj3600 for current information. Power reported is the highest value measured using all
standard voltages.
© Copyright 2005-2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. Linux is a U.S. registered trademark of Linus Torvalds. HP and the
invent signature are trademarks of the Hewlett-Packard Company. Microsoft, Windows, and Windows XP are U.S. registered trademarks of
Microsoft Corporation. PostScript is a trademark of Adobe Systems Incorporated. Windows Vista is either a registered trademark or trademark
of Microsoft Corporation in the United States and/or other countries.
Printed in U.S.A.
For more information, visit our website at www.hp.com
4AA0-1437ENUC, November 2007, Rev. 5.4
HP Color LaserJet 3600n printer
HP Color LaserJet 3600dn printer
HP Jetdirect en1700 USB 2.0 Print Server
HP Jetdirect 175x Fast Ethernet external print server (USB)
HP Jetdirect en3700 Fast Ethernet external print server (USB Hi Speed)
HP Jetdirect ew2400 802.11g Wireless and Fast Ethernet external
print server (USB Hi Speed)
500-sheet paper input feeder and tray
HP Color LaserJet Print Cartridges with HP ColorSphere Toner9
Black Print Cartridge (6,000 pages)
Cyan Print Cartridge (4,000 pages)
Yellow Print Cartridge (4,000 pages)
Magenta Print Cartridge (4,000 pages)
USB Hi-speed printer cable (2-meter [6.5-foot] standard)
Service and support
On-site installation and network configuration
3-year, next day onsite
3-year, 9x5 same day on-site
3-year, 13x5 same day on-site
North America: www.hp.com/go/everydaypapers
USA: 1-800-477-5010,
Printer software
HP Easy Printer Care Software: www/hp.com/go/easyprintercare
HP Install Network Printer Wizard: www.hp.com/go/inpw_sw
Third-party solutions
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
