model number 917.259572

model number 917.259572

MODEL NUMBER 917.259572

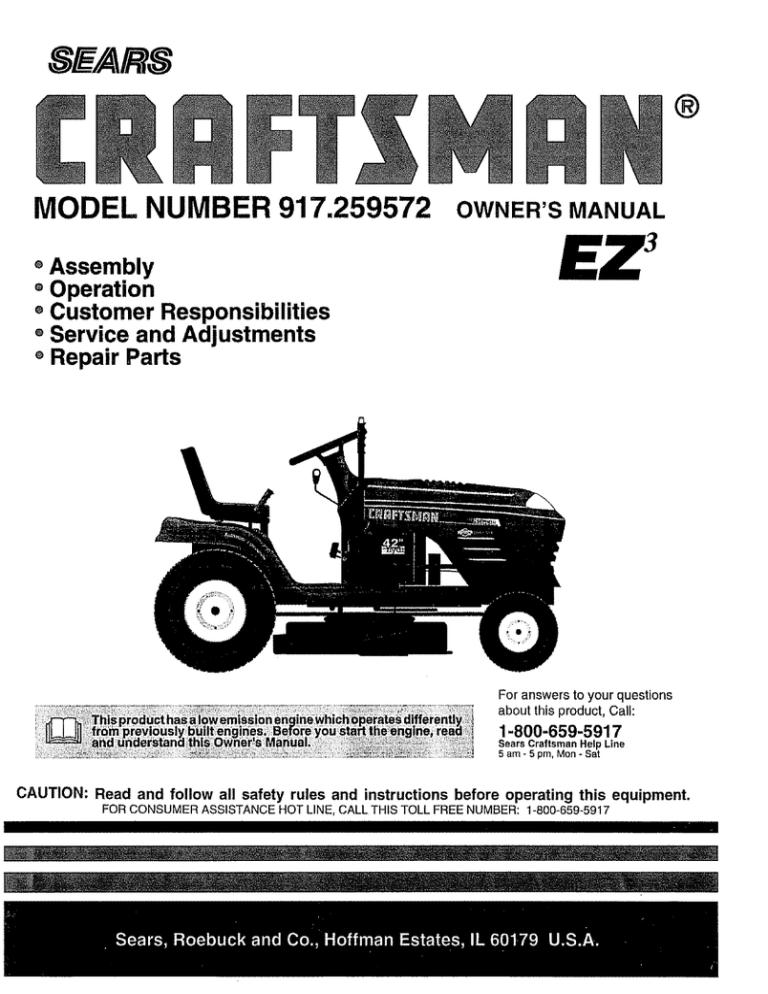

OWNER'S MANUAL

e Assembly

®Operation

Customer Responsibilities

e Service and Adjustments

®Repair Parts

®

For answers to your questions about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mort - Sat

CAUTION:

Read

and follow

all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER:

1-800-659-5917

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

&

IMPORTANT:

THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

III. CHILDREN

I.

GENERAL OPERATION

Read, understand, and foIiow ali instructions in the manual and on the machine before starting.

°

,

-

,

= Only aflow responsible adults, who are familiar with the

instructions, to operate the machine

Clear the area of objects such as rocks, toys, wire, etc,

which could be picked up and thrown by the blade

Be sure the area isclear of other people before mowing. Stop machine if anyone enters the area

,

Never carry passengers

Do not mow in reverse unless absolutely necessary Aiways look down and behind before and while backing.

Be aware of the mower discharge direction and do not point

it at anyone Do not operate the mower without either the

entire grass catcher or the guard in place

Slow down before turning

Never leave a running machine unattended.

Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

-

° Turn off blades when not mowing,

° Stop engine before removing grass catcher or unc]ogging chute.

Mow only in daylight or good artificial light,

Do not operate the machine while under the influence of alcohol or drugs.

° Watch for traffic when operating near or crossing roadways,

Use extra care when loading or unloading the machine into a trailer or truck,

I1.

SLOPE OPERATION

Slopes are a major

factor

related to loss_of-control and tipover accidents, which can result in severe injury or death, All slopes require extra caution, If you cannot back up the slope or if you feel uneasy on it, do not mow iL

DO:

,, Mow up and down slopes, not across.

= Remove obstacles such as rocks, tree limbs, etc..

Watch for holes, ruts, or bumps.

Uneven terrain coutd overturn the machine

Tall grass can hide obstacles.

° Use slow speed._ Choose a low gear so that you wil! not have to stop or shift while on the slope,.

Follow tire manufacturer's recommendations weights or counterweights to improve stability.

for wheel

°

Use extra care with grass catchers or other attachments.

These can change the stability of the machine.

Keep all movement on the slopes slow and gradual, Do not make sudden changes in speed or direction,

°

Avoid starting or stopping on a slope.

If tires lose traction, disengage the blades and proceed slowly straight down the slope.

DO NOT;

= Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible_

° Do not mow near drop-otis, ditches, or embankments.

The mower could suddenty turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in.

Do not mow on wet grass. Reduced traction could cause sliding.

Donottrytostabilizethemachinebyputtingyourfootonthe

g_ound,

Do not use grass catcher on steep slopes.

Tragic accidents can occur if the operator is not alert to the presence of children.

Children are often attracted to the machine and the mowing activity_

Never

assume that children will remain where you last saw them.

= Keep children out of the mowing area and under the watchful care of another responsible adult.

Be aled and turn machine off if children enter the area

°

Before and when backing, took behind and down for small children

= Never carry children They may fall off and be seriously

injured or interfere with safe machine operation.

Never allow children to operate the machine.

Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure vision_

IV.

SERVICE

Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosiv&

Use only an approved container

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling..

Do not smoke.

Never refuel the machine indoors.

Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

Never run a machine inside a closed area..

° Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good condition.

°

Never tamper with safely devices..

Check their proper operation regularly°

Keep machine free of grass, leaves, or other debds build-upo

Clean oil or fuel spillage, Allow machine to cool before storing

o

Stop and inspect the equipment if you strike an object,

Repair, if necessary, before restarting.

o

• Never make adjustments or repairs with the engine running,

Grass catcher components are subject to wear, damage, and deterioration, which could expose moving parts or aIIow objects to be thrown.

Frequently check components and replace with manufacturer's recommended parts, when necessary,

Mower blades are sharp and can cut Wrap the blade(s) or' wear gloves, and use extra caution when servicing them.

°

Check brake operation frequently.

Adjust and service as

!

require&

i

......

Look for this symbo! to point out important

safety

CAUTIONI!t

precautions.

BECOME

It

ALERTIII means

YOUR

SAFETY IS INVOLVED.

iiiiiii1,,,

CAUTION: Always disconnect spark plug spark plug in order to prevent accidental starting when setting up, transporting, adjusting

or making repairs_

WARNING &

Theengineexhaust fromthis product contains chemicals

known to the State of California

to cause cancer, birth defects, or other reproductive harm.

CONGRATULATIONS on your purchase of a Sears

Tractor.

It has been designed, engineered and manufactured to give you the best possible dependability and performance°

Should you experience any problem you cannot easily remedy, please contact your nearest Sears Authorized

Service Center/Department Department_ We have competent, well-trained technicians and the proper tools to service or repair this tractor.

Please read and retain this manual.

The instructions will enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

MODEL

NUMBER

SERIAL

NUMBER

DATEOFPURCHASE

917.259572

THE MODELAND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT°

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MAINTENANCE

AGREEMENT

A Sears Maintenance Agreement is available on this producL Contact your nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

° Read and observe the safety rules.

° Follow a regutar schedule in maintaining, caring for and using your tractor.

= Follow the instructions under"Customer Responsibilities" and "Storage" sections of this owner's manual

WARNING:

This tractor is equipped with an

internal

combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-coy-

PRODUCT

SPECIRCATIONS

HORSEPOWER: 19..5

GASOLINE CAPACITY

AND TYPE:

3.5 GALLONS

UNLEADED REGULAR

OIL TYPE (AP]-SF/SG/SH): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG:

(GAP: °030")

VALVE CLEARANCE:

CHAMPION RJ19LM

GROUND

TIRE PRESSURE:

CHARGING

BATTERY:

SPEED (MPH):

SYSTEM:

INTAKE: 004"006"

EXHAUST: .007" -..009"

FORWARD: 0 - 55

REVERSE: 0-2.4

FRONT: 14 PSI

REAR: 10 PSi

3 AMPS BATTERY

5 AMPS HEADLIGHTS

AMP/HR:

MIN CCA:

30

240

CASE SIZE: U1R

30-35 FT. LBS.

BLADE BOLT TORQUE: ered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws

(if any).

If a spark arrester is used, it should be maintained in effective working order by the operator°

In the state of California the above is required by law

(Section 4442 of the California Public ResOurces Code).

Other states may have similar laws.

Federal laws apply on federal lands.

A spark arrester for the muffler is available through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual).

LiMiTED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according to the instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in material or workmanship.

This Warranty does not cover:

,, Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, belts, etc

Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass.

Repairs necessary because of operator abuse, negligence, imp(oper storage or accident or the failure to maintain the equipment according to the instructions contained in the owner's manual.

o

Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE.

PLEASE CONTACT YOUR NEAREST SERVICE CENTER.

AFTER 30 DAYS FROM

THE DATE OF PURCHASE, WARRANTY SERVICE IS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIPMENT TO

YOUR NEAREST SEARS SERVICE CENTER.

(IN-HOME WARRANTY SERVICE WILL STILL BE AVAILABLE AFTER 30 DAYS

FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY) THIS WARRANTY APPLIES ONLY

WHILE THIS PRODUCT IS IN THE UNITED STATES

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

,m .....

i,,i,i i , ....................

TABLE OF CONTENTS

SAFETY RULES ............................................................

2

PRODUCT SPECIFICATIONS

......................................

3

CUSTOMER RESPONSIBILITIES

..................... 3, 17-20

WARRANTY

..................................................................

3

TABLE OF CONTENTS

................................................

4

INDEX ............................................................................

4

TRACTOR ACCESSORIES

..........................................

5

ASSEMBLY ..............................................................

7-10

OPERATION ...........................................................

t1-16

MAINTENANCE SCHEDULE

...... ...............................

17

SERVICE AND ADJUSTMENTS ............................

21-27

STORAGE

.............................................

,.....................

28

TROUBLESHOOTING ............................................

29-30

REPAIR PARTS - TRACTOR .................................

32.47

REPAIR PARTS - ENGINE ....................................

48-53

PARTS ORDERING/SERVICE °:.,-,;;_.......... BACK PAGE
