Solarflare® Server Adapter User Guide

Solarflare® Server Adapter User Guide
Solarflare Server Adapter
User Guide

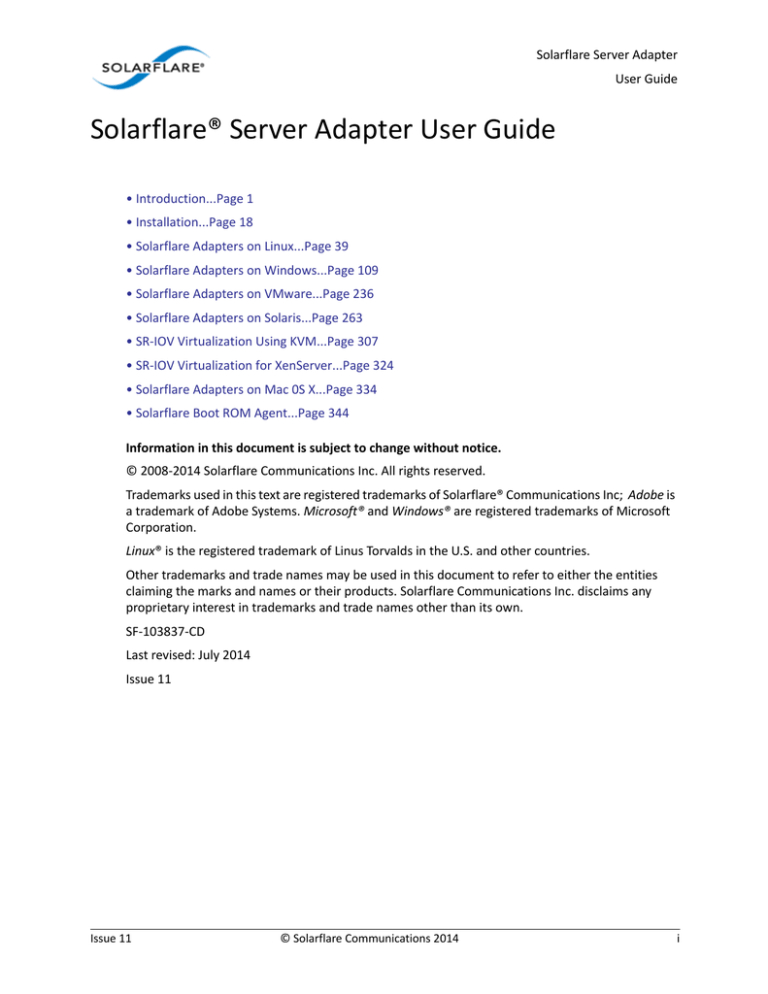

Solarflare® Server Adapter User Guide
• Introduction...Page 1
• Installation...Page 18
• Solarflare Adapters on Linux...Page 39
• Solarflare Adapters on Windows...Page 109
• Solarflare Adapters on VMware...Page 236
• Solarflare Adapters on Solaris...Page 263
• SR-IOV Virtualization Using KVM...Page 307
• SR-IOV Virtualization for XenServer...Page 324
• Solarflare Adapters on Mac 0S X...Page 334
• Solarflare Boot ROM Agent...Page 344
Information in this document is subject to change without notice.
© 2008-2014 Solarflare Communications Inc. All rights reserved.
Trademarks used in this text are registered trademarks of Solarflare® Communications Inc; Adobe is
a trademark of Adobe Systems. Microsoft® and Windows® are registered trademarks of Microsoft
Corporation.
Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Solarflare Communications Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
SF-103837-CD
Last revised: July 2014
Issue 11
Issue 11
© Solarflare Communications 2014
i
Solarflare Server Adapter
User Guide
Table of Contents
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Virtual NIC Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Software Driver Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.4 Solarflare AppFlex™ Technology Licensing.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.5 Open Source Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.6 Support and Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.7 Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.8 Regulatory Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 2: Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.1 Solarflare Network Adapter Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.2 Fitting a Full Height Bracket (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.3 Inserting the Adapter in a PCI Express (PCIe) Slot . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.4 Attaching a Cable (RJ-45) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.5 Attaching a Cable (SFP+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6 Supported SFP+ Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.7 Supported SFP+ 10G SR Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.8 Supported SFP+ 10G LR Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.9 QSFP+ Transceivers and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
2.10 Supported SFP 1000BASE-T Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.11 Supported 1G Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.12 Supported Speed and Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.13 Configure QSFP+ Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.14 LED States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.15 Solarflare Mezzanine Adapters: SFN5812H and SFN5814H. . . . . . . . . . . . . . . . . . 34
2.16 Solarflare Mezzanine Adapter SFN6832F-C61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.17 Solarflare Mezzanine Adapter SFN6832F-C62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.18 Solarflare Precision Time Synchronization Adapters . . . . . . . . . . . . . . . . . . . . . . . 38
2.19 Solarflare SFA6902F ApplicationOnload™ Engine . . . . . . . . . . . . . . . . . . . . . . . . . 38
Chapter 3: Solarflare Adapters on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.2 Linux Platform Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.3 Solarflare RPMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3.4 Installing Solarflare Drivers and Utilities on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.5 Red Hat Enterprise Linux Distributions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.6 SUSE Linux Enterprise Server Distributions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.7 Unattended Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.8 Unattended Installation - Red Hat Enterprise Linux . . . . . . . . . . . . . . . . . . . . . . . . . 47
Issue 11
© Solarflare Communications 2014
ii
Solarflare Server Adapter
User Guide
3.9 Unattended Installation - SUSE Linux Enterprise Server . . . . . . . . . . . . . . . . . . . . . 48
3.10 Hardware Timestamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.11 Configuring the Solarflare Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
3.12 Setting Up VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
3.13 Setting Up Teams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.14 Running Adapter Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3.15 Running Cable Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
3.16 Linux Utilities RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
3.17 Configuring the Boot ROM with sfboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
3.18 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.19 License Install with sfkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
3.20 Performance Tuning on Linux. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
3.21 Module Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
3.22 Linux ethtool Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Chapter 4: Solarflare Adapters on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
4.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
4.2 Windows Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
4.3 Installing the Solarflare Driver Package on Windows. . . . . . . . . . . . . . . . . . . . . . . 112
4.4 Adapter Drivers Only Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
4.5 Full Solarflare Package Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
4.6 Install Drivers and Options From a Windows Command Prompt . . . . . . . . . . . . . 119
4.7 Unattended Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
4.8 Managing Adapters with SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
4.9 Managing Adapters Remotely with SAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
4.10 Using SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
4.11 Using SAM to Configure Adapter Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
4.12 Segmentation Offload. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
4.13 Using SAM to Configure Teams and VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
4.14 Using SAM to View Statistics and State Information . . . . . . . . . . . . . . . . . . . . . . 153
4.15 Using SAM to Run Adapter and Cable Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 154
4.16 Using SAM for Boot ROM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
4.17 Managing Firmware with SAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
4.18 Configuring Network Adapter Properties in Windows. . . . . . . . . . . . . . . . . . . . . 167
4.19 Windows Command Line Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
4.20 Sfboot: Boot ROM Configuration Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
4.21 Sfupdate: Firmware Update Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
4.22 Sfteam: Adapter Teaming and VLAN Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
4.23 Sfcable: Cable Diagnostics Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
4.24 Sfnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
4.25 Completion codes (%errorlevel%) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
4.26 Teaming and VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
4.27 Performance Tuning on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
4.28 Windows Event Log Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Issue 11
© Solarflare Communications 2014
iii
Solarflare Server Adapter
User Guide
Chapter 5: Solarflare Adapters on VMware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
5.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
5.2 VMware Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
5.3 Installing Solarflare Drivers and Utilities on VMware. . . . . . . . . . . . . . . . . . . . . . . 238
5.4 Configuring Teams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
5.5 Configuring VLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
5.6 Running Adapter Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
5.7 Configuring the Boot ROM with Sfboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
5.8 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
5.9 Performance Tuning on VMware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Chapter 6: Solarflare Adapters on Solaris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
6.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
6.2 Solaris Platform Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
6.3 Installing Solarflare Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
6.4 Unattended Installation Solaris 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
6.5 Unattended Installation Solaris 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
6.6 Configuring the Solarflare Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
6.7 Setting Up VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
6.8 Solaris Utilities Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
6.9 Configuring the Boot ROM with sfboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
6.10 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
6.11 Performance Tuning on Solaris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
6.12 Module Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
6.13 Kernel and Network Adapter Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Chapter 7: SR-IOV Virtualization Using KVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
7.1 Supported Platforms and Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
7.2 Linux KVM SR-IOV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
7.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311
7.4 Configuration Red Hat 6.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
7.5 Configuration Red Hat 6.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
7.6 Performance Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
7.7 Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Chapter 8: SR-IOV Virtualization for XenServer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
8.1 Supported Platforms and Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324
8.2 XenServer6 SR-IOV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325
8.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
8.4 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
8.5 Performance Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Issue 11
© Solarflare Communications 2014
iv
Solarflare Server Adapter
User Guide
Chapter 9: Solarflare Adapters on Mac 0S X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
9.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
9.2 Supported Hardware Platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
9.3 Mac 0S X Platform Feature Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
9.4 Thunderbolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
9.5 Driver Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
9.6 Interface Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
9.7 Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
9.8 Driver Properties via sysctl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
9.9 Firmware Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
9.10 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
Chapter 10: Solarflare Boot ROM Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
10.1 Configuring the Solarflare Boot ROM Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
10.2 PXE Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
10.3 iSCSI Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
10.4 Configuring the iSCSI Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
10.5 Configuring the Boot ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
10.6 DHCP Server Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
10.7 Installing an Operating System to an iSCSI target. . . . . . . . . . . . . . . . . . . . . . . . . 358
10.8 Default Adapter Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368
Issue 11
© Solarflare Communications 2014
v
Solarflare Server Adapter
User Guide
Chapter 1: Introduction
This is the User Guide for Solarflare® Server Adapters. This chapter covers the following topics:
• Virtual NIC Interface...Page 1
• Advanced Features and Benefits...Page 2
• Product Specifications...Page 4
• Software Driver Support on page 12
• Solarflare AppFlex™ Technology Licensing....Page 12
• Open Source Licenses...Page 13
• Support and Download...Page 14
• Regulatory Information...Page 14
• Regulatory Approval...Page 15
NOTE: Throughout this guide the term Onload refers to both OpenOnload® and EnterpriseOnload®
unless otherwise stated. Users of Onload should refer to the Onload User Guide, SF-104474-CD,
which describes procedures for download and installation of the Onload distribution, accelerating
and tuning the application using Onload to achieve minimum latency and maximum throughput.
1.1 Virtual NIC Interface
Solarflare’s VNIC architecture provides the key to efficient server I/O and is flexible enough to be
applied to multiple server deployment scenarios. These deployment scenarios include:
• Kernel Driver – This deployment uses an instance of a VNIC per CPU core for standard operating
system drivers. This allows network processing to continue over multiple CPU cores in parallel.
The virtual interface provides a performance-optimized path for the kernel TCP/IP stack and
contention-free access from the driver, resulting in extremely low latency and reduced CPU
utilization.
• Accelerated Virtual I/O – The second deployment scenario greatly improves I/O for virtualized
platforms. The VNIC architecture can provide a VNIC per Virtual Machine, giving over a
thousand protected interfaces to the host system, granting any virtualized (guest) operating
system direct access to the network hardware. Solarflare's hybrid SR-IOV technology, unique to
Solarflare Ethernet controllers, is the only way to provide bare-metal I/O performance to
virtualized guest operating systems whilst retaining the ability to live migrate virtual machines.
• OpenOnload™ – The third deployment scenario aims to leverage the host CPU(s) to full
capacity, minimizing software overheads by using a VNIC per application to provide a kernel
bypass solution. Solarflare has created both an open-source and Enterprise class highperformance application accelerator that delivers lower and more predictable latency and
higher message rates for TCP and UDP-based applications, all with no need to modify
applications or change the network infrastructure. To learn more about the open source
Issue 11
© Solarflare Communications 2014
1
Solarflare Server Adapter
User Guide
OpenOnload project or EnterpriseOnload, download the Onload user guide (SF-104474-CD) or
contact your reseller.
Advanced Features and Benefits
Virtual NIC support
The core of Solarflare technology. Protected VNIC interfaces can
be instantiated for each running guest operating system or
application, giving it a direct pipeline to the Ethernet network.
This architecture provides the most efficient way to maximize
network and CPU efficiency. The Solarflare Ethernet controller
supports up to 1024 vNIC interfaces per port.
On IBM System p servers equipped with Solarflare adapters,
each adapter is assigned to a single Logical Partition (LPAR)
where all VNICS are available to the LPAR.
PCI Express
Implements PCI Express 3.0.
High Performance
Support for 40G Ethernet interfaces and a new internal
datapath micro architecture.
Hardware Switch Fabric
Full hardware switch fabric in silicon capable of steering any
flow based on Layer 2, Layer 3 or application level protocols
between physical and virtual interfaces. Supporting an open
software defined network control plane with full PCI-IOV
virtualization acceleration for high performance guest operating
systems and virtual applications.
Improved flow processing
The addition of dedicated parsing, filtering, traffic shaping and
flow steering engines which are capable of operating flexibly
and with an optimal combination of a full hardware data plane
with software based control plane.
TX PIO
Transmit Programmed input/output is the direct transfer of data
to the adapter without CPU involvement. As an alternative to
the usual bus master DMA method, TX PIO improves latency
and is especially useful for smaller packets.
Multicast Replication
Received multicast packets are replicated in hardware and
delivered to multiple receive queues.
Sideband management
NCSI RMII interface for base board management integration.
SMBus interface for legacy base board management integration.
Issue 11
© Solarflare Communications 2014
2
Solarflare Server Adapter
User Guide
PCI Single-Root-IOV, SR-IOV,
capable
127 Virtual functions per port.
Flexible deployment of 1024 channels between Virtual and
Physical Functions.
Support Alternate Routing ID (ARI).
SR-IOV is not supported for Solarflare adapters on IBM System p
servers.
10-gigabit Ethernet
Supports the ability to design a cost effective, high performance
10 Gigabit Ethernet solution.
Receive Side Scaling (RSS)
IPv4 and IPv6 RSS raises the utilization levels of multi-core
servers dramatically by distributing I/O load across all CPUs and
cores.
Stateless offloads
Through the addition of hardware based TCP segmentation and
reassembly offloads, VLAN, VxLAN and FCOE offloads.
Transmit rate pacing (per
queue)
Provides a mechanism for enforcing bandwidth quotas across all
guest operating systems. Software re-programmable on the fly
to allow for adjustment as congestion increases on the network.
Jumbo frame support
Support for up to 9216 byte jumbo frames.
MSI-X support
1024 MSI-X interrupt support enables higher levels of
performance.
Can also work with MSI or legacy line based interrupts.
Ultra low latency
Cut through architecture. < 7μs end to end latency with
standard kernel drivers, < 3μs with Onload drivers.
Remote boot
Support for PXE boot 2.1 and iSCSI Boot provides flexibility in
cluster design and diskless servers (see Solarflare Boot ROM
Agent on page 344).
Network boot is not supported for Solarflare adapters on IBM
System p servers.
MAC address filtering
Enables the hardware to steer packets based on the MAC
address to a VNIC.
Hardware timestamps
The Solarflare Flareon™ SFN7000 series adapters can support
hardware timestamping for all received network packets including PTP.
The SFN5322F and SFN6322F adapters can generate hardware
timestamps of PTP packets.
Issue 11
© Solarflare Communications 2014
3
Solarflare Server Adapter
User Guide
1.2 Product Specifications
Solarflare Flareon™ Network Adapters
Solarflare Flareon™ Ultra SFN7142Q Dual-Port 40GbE QSFP+ PCIe 3.0 Server I/O Adapter
Part number
SFN7142Q
Controller silicon
SFC9140
Power
13W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes (factory enabled)
PTP and hardware timestamps
Enabled by installing AppFlex license.
1PPS
Optional bracket and cable assembly - not factory installed.
SR-IOV
Yes
Network ports
2 x QSFP+ (40G/10G)
Solarflare Flareon™ Ultra SFN7322F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter
Issue 11
Part number
SFN7322F
Controller silicon
SFC9120
Power
5.9W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes (factory enabled)
PTP and hardware timestamps
Yes (factory enabled)
1PPS
Optional bracket and cable assembly - not factory installed.
SR-IOV
Yes
Network ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
4
Solarflare Server Adapter
User Guide
Solarflare Flareon™ Ultra SFN7122F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter
Part number
SFN7122F
Controller silicon
SFC9120
Power
5.9W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes (factory enabled)
PTP and hardware timestamps
AppFlex™ license required
1PPS
Optional bracket and cable assembly - not factory installed.
SR-IOV
Yes
Network ports
2 x SFP+ (10G/1G)
Solarflare Flareon™ SFN7002F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter
Issue 11
Part number
SFN7002F
Controller silicon
SFC9120
Power
5.9W typical
PCI Express
8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
AppFlex™ license required
PTP and hardware timestamps
AppFlex™ license required
1PPS
Optional bracket and cable assembly - not factory installed.
SR-IOV
Yes
Network ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
5
Solarflare Server Adapter
User Guide
Solarflare Onload Network Adapters
Solarflare SFN5121T Dual-Port 10GBASE-T Server Adapter
Part number
SFN5121T
Controller silicon
SFL9021
Power
12.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes
Network ports
2 x 10GBASE-T (10G/1G/100M)
Solarflare SFN5122F Dual-Port 10G SFP+ Server Adapter
Part number
SFN5122F
Controller silicon
SFC9020
Power
4.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes
Network ports
2 x SFP+ (10G/1G)
Solarflare SFN6122F Dual-Port 10GbE SFP+ Server Adapter
Issue 11
Part number
SFN6122F
Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes1
© Solarflare Communications 2014
6
Solarflare Server Adapter
User Guide
Network ports
2 x SFP+ (10G/1G)
Regulatory Product Code
S6102
1. SR-IOV is not supported for Solarflare adapters on IBM System p servers.
Issue 11
© Solarflare Communications 2014
7
Solarflare Server Adapter
User Guide
Solarflare SFN6322F Dual-Port 10GbE SFP+ Server Adapter
Part number
SFN6122F
Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes
Network ports
2 x SFP+ (10G/1G)
Solarflare SFA6902F Dual-Port 10GbE SFP+ ApplicationOnload™ Engine
Issue 11
Part number
SFA6902F
Controller silicon
SFC9020
Power
25W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes
Network ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
8
Solarflare Server Adapter
User Guide
Solarflare Performant Network Adapters
Solarflare SFN5161T Dual-Port 10GBASE-T Server Adapter
Part number
SFN5161T
Controller silicon
SFL9021
Power
12.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s)
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
No
SR-IOV
Yes
Network ports
2 x 10GBASE-T (10G/1G/100M)
Solarflare SFN5162F Dual-Port 10G SFP+ Server Adapter
Part number
SFN5162F
Controller silicon
SFC9020
Power
4.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s)
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
No
SR-IOV
Yes1
Network ports
2 x SFP+ (10G/1G)
1. SR-IOV is not supported for Solarflare adapters on IBM System p servers.
Issue 11
© Solarflare Communications 2014
9
Solarflare Server Adapter
User Guide
Solarflare Mezzanine Adapters
Solarflare SFN5812H Dual-Port 10G Ethernet Mezzanine Adapter
Part number
SFN5812H
Controller silicon
SFC9020
Power
3.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes
Ports
2 x 10GBASE-KX4 backplane transmission
Solarflare SFN5814H Quad-Port 10G Ethernet Mezzanine Adapter
Part number
SFN5814H
Controller silicon
2 x SFC9020
Power
7.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes
Ports
4 x 10GBASE-KX4 backplane transmission
Solarflare SFN6832F Dual-Port 10GbE SFP+ Mezzanine Adapter
Part number
SFN6832F-C61 for DELL PowerEdge C6100 series
SFN6832F-C62 for DELL PowerEdge C6200 series
Issue 11
Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
© Solarflare Communications 2014
10
Solarflare Server Adapter
User Guide
SR-IOV
Yes
Ports
2 x SFP+ (10G/1G)
Regulatory Product Code
S6930
Solarflare SFN6822F Dual-Port 10GbE SFP+ FlexibleLOM Onload Server Adapter
Issue 11
Part number
SFN6822F
Controller silicon
SFC9020
Power
5.9W typical
PCI Express
8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port
Virtual NIC support
1024 vNIC interfaces per port
Supports OpenOnload
Yes
SR-IOV
Yes
Ports
2 x SFP+ (10G/1G)
© Solarflare Communications 2014
11
Solarflare Server Adapter
User Guide
1.3 Software Driver Support
• Windows 7.
• Windows 8 and 8.1.
• Windows® Server 2008 R2 release.
• Windows® Server 2012 - including R2 release.
• Microsoft® Hyper-V™ Server 2008 R2.
• Linux® 2.6 and 3.x Kernels (32 bit and 64 bit) for the following distributions: RHEL 5, 6, 7 and
MRG. SLES 10, 11 and SLERT.
• VMware® ESX™ 5.0 and ESXi™ 5.1, vSphere™ 4.0 and vSphere™ 4.1.
• Citrix XenServer™ 5.6, 6.0 and Direct Guest Access.
• Linux® KVM.
• Solaris™ 10 updates 8, 9 and 10 and Solaris™ 11 (GLDv3).
• Mac OS X Snow Leopard 10.6.8 (32 bit and 64 bit), OS X Lion 10.7.0 and later releases, OS X
Mountain Lion 10.8.0 and later, OS X Mavericks 10.9.
Solarflare SFN5162F and SFN6122F adapters are supported on the IBM POWER architecture (PPC64)
running RHEL 6.4 on IBM System p servers.
The Solarflare accelerated network middleware, OpenOnload and EnterpriseOnload, is supported
on all Linux variants listed above, and is available for all Solarflare Onload network adapters.
Solarflare are not aware of any issues preventing OpenOnload installation on other Linux variants
such as Ubuntu, Gentoo, Fedora and Debian variants.
1.4 Solarflare AppFlex™ Technology Licensing.
Solarflare AppFlex technology allows Solarflare server adapters to be selectively configured to
enable on-board applications. AppFlex licenses are required to enable selected functionality on the
Solarflare Flareon™ adapters and the AOE ApplicationOnload™ Engine.
Customers can obtain access to AppFlex applications via their Solarflare sales channel by obtaining
the corresponding AppFlex authorization code. The authorization code allows the customer to
generate licenses at the MyAppFlex page at https://support.solarflare.com/myappflex.
The sfkey utility application is used to install the generated license key file on selected adapters. For
detailed instructions for sfkey and license installation refer to License Install with sfkey on page 75.
Issue 11
© Solarflare Communications 2014
12
Solarflare Server Adapter
User Guide
1.5 Open Source Licenses
1.4.1 Solarflare Boot Manager
The Solarflare Boot Manager is installed in the adapter's flash memory. This program is free
software; you can redistribute it and/or modify it under the terms of the GNU General Public License
as published by the Free Software Foundation; either version 2 of the License, or (at your option)
any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without
even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
The latest source code for the Solarflare Boot Manager can be download from https://
support.solarflare.com/. If you require an earlier version of the source code, please e-mail
[email protected]
1.4.2 Controller Firmware
The firmware running on the SFC9xxx controller includes a modified version of libcoroutine. This
software is free software published under a BSD license reproduced below:
Copyright (c) 2002, 2003 Steve Dekorte
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or other materials provided with the
distribution.
Neither the name of the author nor the names of other contributors may be used to endorse or
promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT
SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY
WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Issue 11
© Solarflare Communications 2014
13
Solarflare Server Adapter
User Guide
1.6 Support and Download
Solarflare network drivers, RPM packages and documentation are available for download from
https://support.solarflare.com/.
Software and documentation for OpenOnload is available from www.openonload.org.
1.7 Regulatory Information
Warnings
Do not install the Solarflare network adapter in hazardous areas where highly combustible or
explosive products are stored or used without taking additional safety precautions. Do not expose
the Solarflare network adapter to rain or moisture.
The Solarflare network adapter is a Class III SELV product intended only to be powered by a certified
limited power source.
The equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. The equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by Solarflare Communications, the party
responsible for FCC compliance, could void the user's authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Underwriters Laboratory Inc ('UL') has not tested the performance or reliability of the security or
signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in
the UL's Standard for Safety UL 60950-1. UL Certification does not cover the performance or
reliability of the security or signaling aspects of this product. UL makes no representations,
warranties or certifications whatsoever regarding the performance or reliability of any security or
signaling related functions of this product.
Issue 11
© Solarflare Communications 2014
14
Solarflare Server Adapter
User Guide
Laser Devices
The laser safety of the equipment has been verified using the following certified laser device module
(LDM):
Manufactuer
Model
Avago Technologies
Finisar Corporation
AFBR-703SDZ
FTLX8571D3BCL
CDRH Accession
No
9720151-072
9210176-094
Mark of
conformity
TUV
TUV
File No
R72071411
R72080250
When installed in a 10Gb ETHERNET NETWORK INTERFACE CARD FROM THE Solarflare SFN5000,
SFN6000 or SFN7000 SERIES, the laser emission levels remain under Class I limits as specified in the
FDA regulations for lasers, 21 CFR Part 1040.
The decision on what LDMs to use is made by the installer. For example, equipment may use one of
a multiple of different LDMs depending on path length of the laser communication signal. This
equipment is not basic consumer ITE.
The equipment is installed and maintained by qualified staff from the end user communications
company or subcontractor of the end user organization. The end product user and/or installer are
solely responsible for ensuring that the correct devices are utilized in the equipment and the
equipment with LDMs installed complies with applicable laser safety requirements.
1.8 Regulatory Approval
The information in this section is applicable to SFN5121T, and SFN5162F Solarflare network
adapters:
Category
Specification
Europe
EMC
Safety1
RoHS
US
Canada
Europe
US
Canada
CB
Europe
Details
BS EN 55022:2006
BS EN 55024:1998 +A1:2001 +A2:2003
FCC Part 15 Class B
ICES 003/NMB-003 Class B
BS EN 60950-1:2006 +A11:2009
UL 60950-1 2nd Ed.
CSA C22.2 60950-1-07 2nd Ed.
IEC 60950-1:2005 2nd Ed.
Complies with EU directive 2002/95/EC
1. The safety assessment has been concluded on this product as a component/sub-assembly only.
Additional Regulatory Information for SFN5122F, SFN6122F, SFN6322F ,
SFA6902F, SFN7002F, SFN7122F, SFN7322F and SFN7142Q adapters.
ሶቯቒ㍔⫀⑵䚕孔函䷘榊㽱椫⹂呹⃊尞Ⓟ◣巿↩᧤9&&,᧥ቑ㲨䄥቎⪉ቈሲኌ዆ኖ $ ㍔⫀㔏
嫢孔函ቊሼᇭሶቑ孔函ት⹅ㄼ䜿⬒ቊ∎䞷ሼቮቋ榊㽱ⰷ⹂ትㆤሰ怆ሶሼሶቋሯሥቭቡሼᇭ
ቀቑቫሩቍ椫⹂ሯ䤉䞮ሺቂ椪ᇬ∎䞷劔ቒ拸⒖ቍ⺍㉫ሯ㉔尐ቋቍቮ⫃⚗ሯሥቭቡሼ
Issue 11
© Solarflare Communications 2014
15
Solarflare Server Adapter
User Guide
巵⛙∎䞷劔᧶
抨㢾䟁櫭䤓彖岙䞱❐᧨⦷⻔⇞䤓䜿⬒₼∎䞷㣑᧨♾厌㦒抯㒟⺓櫊㄁㞍᧨⦷抨䲽㍔㽐ₚ᧨∎
䞷劔㦒嬺尐㻑㘰♥㩟K拸䠅䤓⺜䷥
$ 鞾韥韥 꽺ꓩ끞ꗞꭖ뭪겕韥韥 넩韥韥鱉꽺ꓩ끞 $ 鞾 냱ꈑ놹녅볁놶뼞麦ꈒ냹뼑
韥韥넩꿙鱽 볅ꎙ녅 鿅鱉 ꩡ끞녅鱉 넩 뇅냹 늱넍뼍겑韥 ꗉꄱꐥ 閵뇊뀭넍 덵꾢꾅꫑ ꩡ끞뼍鱉
阸냹ꑞ놶냱ꈑ뼞鱽鲙
Category
Specification
Europe
EMC
Safety1
RoHS
US
Canada
Taiwan
Japan
South Korea
Australia
Europe
US
Canada
CB
Europe
Details
BS EN 55022:2010 + A1:2007
BS EN 55024:1998 +A1:2001 +A2:2003
FCC Part 15 Class B
ICES 003/NMB-003 Class B
CNS 13438:2006 Class B
VCCI Regulations V-3:2010 Class B
KCC KN-22, KN-24
AS/NZS CISPR 22:2009
BS EN 60950-1:2006 +A11:2009
UL 60950-1 2nd Ed.
CSA C22.2 60950-1-07 2nd Ed.
IEC 60950-1:2005 2nd Ed.
Complies with EU directive 2011/65/EU
1. The safety assessment has been concluded on this product as a component/sub-assembly only.
Additional Regulatory Information for SFN5812H, SFN5814H and SFN6832F
adapters.
ሶቯቒ㍔⫀⑵䚕孔函䷘榊㽱椫⹂呹⃊尞Ⓟ◣巿↩᧤9&&,᧥ቑ㲨䄥቎⪉ቈሲኌ዆ኖ $ ㍔⫀㔏
嫢孔函ቊሼᇭሶቑ孔函ት⹅ㄼ䜿⬒ቊ∎䞷ሼቮቋ榊㽱ⰷ⹂ትㆤሰ怆ሶሼሶቋሯሥቭቡሼᇭ
ቀቑቫሩቍ椫⹂ሯ䤉䞮ሺቂ椪ᇬ∎䞷劔ቒ拸⒖ቍ⺍㉫ሯ㉔尐ቋቍቮ⫃⚗ሯሥቭቡሼ
巵⛙∎䞷劔᧶
抨㢾䟁櫭䤓彖岙䞱❐᧨⦷⻔⇞䤓䜿⬒₼∎䞷㣑᧨♾厌㦒抯㒟⺓櫊㄁㞍᧨⦷抨䲽㍔㽐ₚ᧨∎
䞷劔㦒嬺尐㻑㘰♥㩟K拸䠅䤓⺜䷥
Issue 11
© Solarflare Communications 2014
16
Solarflare Server Adapter
User Guide
Category
Specification
Europe
EMC
Safety1
RoHS
US
Canada
Taiwan
Japan
Australia
Europe
US
Canada
CB
Europe
Details
BS EN 55022:2006
BS EN 55024:1998 +A1:2001 +A2:2003
FCC Part 15 Class B
ICES 003/NMB-003 Class B
CNS 13438:2006 Class A
VCCI Regulations V-3:2010 Class A
AS/NZS CISPR 22:2009
BS EN 60950-1:2006 +A11:2009
UL 60950-1 2nd Ed.
CSA C22.2 60950-1-07 2nd Ed.
IEC 60950-1:2005 2nd Ed.
Complies with EU directive 2002/95/EC
1. The safety assessment has been concluded on this product as a component/sub-assembly only.
Issue 11
© Solarflare Communications 2014
17
Solarflare Server Adapter
User Guide
Chapter 2: Installation
This chapter covers the following topics:
• Solarflare Network Adapter Products...Page 19
• Fitting a Full Height Bracket (optional)...Page 20
• Inserting the Adapter in a PCI Express (PCIe) Slot...Page 21
• Attaching a Cable (RJ-45)...Page 22
• Attaching a Cable (SFP+)...Page 23
• Supported SFP+ Cables...Page 25
• Supported SFP+ 10G SR Optical Transceivers...Page 26
• Supported SFP+ 10G LR Optical Transceivers on page 27
• Supported SFP 1000BASE-T Transceivers...Page 29
• Supported 1G Optical Transceivers...Page 30
• Supported Speed and Mode...Page 30
• Configure QSFP+ Adapter...Page 31
• LED States...Page 33
• Solarflare Mezzanine Adapters: SFN5812H and SFN5814H...Page 34
• Solarflare Mezzanine Adapter SFN6832F-C61...Page 35
• Solarflare Mezzanine Adapter SFN6832F-C62...Page 37
• Solarflare Precision Time Synchronization Adapters...Page 38
• Solarflare SFA6902F ApplicationOnload™ Engine...Page 38
CAUTION: Servers contain high voltage electrical components. Before removing the server cover,
disconnect the mains power supply to avoid the risk of electrocution.
Static electricity can damage computer components. Before handling computer components,
discharge static electricity from yourself by touching a metal surface, or wear a correctly fitted antistatic wrist band.
Issue 11
© Solarflare Communications 2014
18
Solarflare Server Adapter
User Guide
2.1 Solarflare Network Adapter Products
Solarflare Flareon™ adapters
- Solarflare Flareon Ultra SFN7142Q Dual-Port 40GbE PCIe 3.0 QSFP+ Server Adapter
- Solarflare Flareon Ultra SFN7322F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter
- Solarflare Flareon Ultra SFN7122F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter
- Solarflare Flareon SFN7002F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter
Solarflare Onload adapters
- Solarflare SFN6322F Dual-Port 10GbE Precision Time Stamping Server Adapter
- Solarflare SFN6122F Dual-Port 10GbE SFP+ Server Adapter
- Solarflare SFA6902F Dual-Port 10GbE ApplicationOnload™ Engine
- Solarflare SFN5122F Dual-Port 10G SFP+ Server Adapter
- Solarflare SFN5121T Dual-Port 10GBASE-T Server Adapter
Solarflare Performant network adapters
- Solarflare SFN5161T Dual-Port 10GBASE-T Server Adapter
- Solarflare SFN5162F Dual-Port 10G SFP+ Server Adapter
Solarflare Mezzanine adapters
- Solarflare SFN5812H Dual-Port 10G Ethernet Mezzanine Adapter for IBM BladeCenter
- Solarflare SFN5814H Quad-Port 10G Ethernet Mezzanine Adapter for IBM BladeCenter
- Solarflare SFN6832F-C61 Dual-Port 10GbE SFP+ Mezzanine Adapter for DELL PowerEdge
C6100 series servers.
- Solarflare SFN6832F-C62 Dual-Port 10GbE SFP+ Mezzanine Adapter for DELL PowerEdge
C6200 series servers.
- Solarflare SFN6822F Dual-Port 10GbE SFP+ FlexibleLOM Onload Server Adapter
Solarflare network adapters can be installed on Intel/AMD x86 based 32 bit or 64 bit servers. The
network adapter must be inserted into a PCIe x8 OR PCIe x 16 slot for maximum performance. Refer
to PCI Express Lane Configurations on page 226 for details.
Solarflare SFN5162F and SFN6122F adapters are supported on the IBM POWER architecture (PPC64)
running RHEL 6.4 on IBM System p servers.
Issue 11
© Solarflare Communications 2014
19
Solarflare Server Adapter
User Guide
2.2 Fitting a Full Height Bracket (optional)
Solarflare adapters are supplied with a low-profile bracket fitted to the adapter. A full height bracket
has also been supplied for PCIe slots that require this type of bracket.
To fit a full height bracket to the Solarflare adapter:
1
From the back of the adapter, remove the screws securing the bracket.
2
Slide the bracket away from the adapter.
3
Taking care not the overtighten the screws, attach the full height bracket to the adapter.
Issue 11
© Solarflare Communications 2014
20
Solarflare Server Adapter
User Guide
2.3 Inserting the Adapter in a PCI Express (PCIe) Slot
1
Shut down the server and unplug it from the mains. Remove the server cover to access the
PCIe slots in the server.
2
Locate an 8-lane or 16-lane PCIe slot (refer to the server manual if necessary) and insert the
Solarflare card.
3
Secure the adapter bracket in the slot.
4
Replace the cover and restart the server.
5
After restarting the server, the host operating system may prompt you to install drivers for the
new hardware. Click Cancel or abort the installation and refer to the relevant chapter in this
manual for how to install the Solarflare adapter drivers for your operating system.
Issue 11
© Solarflare Communications 2014
21
Solarflare Server Adapter
User Guide
2.4 Attaching a Cable (RJ-45)
Solarflare 10GBASE-T Server Adapters connect to the Ethernet network using a copper cable fitted
with an RJ-45 connector (shown below).
RJ-45 Cable Specifications
Table 1 below lists the recommended cable specifications for various Ethernet port types.
Depending on the intended use, attach a suitable cable. For example, to achieve 10 Gb/s
performance, use a Category 6 cable. To achieve the desired performance, the adapter must be
connected to a compliant link partner, such as an IEEE 802.3an-compliant gigabit switch.
Table 1: RJ-45 Cable Specification
Issue 11
Port type
Connector
Media Type
Maximum
Distance
10GBASE-T
RJ-45
Category 6A
100m (328 ft.)
Category 6 unshielded twisted pairs (UTP)
55m (180 ft.)
Category 5E
55m (180 ft.)
1000BASE-T
RJ-45
Category 5E, 6, 6A UTP
100m (328 ft.)
100BASE-TX
RJ-45
Category 5E, 6, 6A UTP
100m (328 ft.)
© Solarflare Communications 2014
22
Solarflare Server Adapter
User Guide
2.5 Attaching a Cable (SFP+)
Solarflare SFP+ Server Adapters can be connected to the network using either an SFP+ Direct Attach
cable or a fiber optic cable.
Attaching the SFP+ Direct Attach Cable:
1
Turn the cable so that the connector retention tab and gold fingers are on the same side as the
network adapter retention clip.
Push the cable connector straight in to the adapter socket until it clicks into place.
Removing the SFP+ Direct Attach Cable:
1
Pull straight back on the release ring to release the cable retention tab. Alternatively, you can
lift the retention clip on the adapter to free the cable if necessary.
2
Slide the cable free from the adapter socket.
Attaching a fiber optic cable:
WARNING
Do not look directly into the fiber transceiver or cables
as the laser beams can damage your eyesight.
1
Remove and save the fiber optic connector cover.
2
Insert a fiber optic cable into the ports on the network adapter bracket as shown. Most
connectors and ports are keyed for proper orientation. If the cable you are using is not keyed,
Issue 11
© Solarflare Communications 2014
23
Solarflare Server Adapter
User Guide
check to be sure the connector is oriented properly (transmit port connected to receive port
on the link partner, and vice versa).
Removing a fiber optic cable:
WARNING
Do not look directly into the fiber transceiver or cables
as the laser beams can damage your eyesight.
1
Remove the cable from the adapter bracket and replace the fiber optic connector cover.
2
Pull the plastic or wire tab to release the adapter bracket.
3
Hold the main body of the adapter bracket and remove it from the adapter.
Issue 11
© Solarflare Communications 2014
24
Solarflare Server Adapter
User Guide
2.6 Supported SFP+ Cables
Table 2 is a list of supported SFP+ cables that have been tested by Solarflare. Solarflare is not aware
of any issues preventing the use of other brands of SFP+ cables (of up to 5m in length) with Solarflare
network adapters. However, only cables in the table below have been fully verified and are therefore
supported.
Table 2: Supported SFP+ Direct Attach Cables
Issue 11
Manufacturer
Product Code
Cable Length
Arista
CAB-SFP-SFP-1M
1m
Arista
CAB-SFP-SFP-3M
3m
Cisco
SFP-H10GB-CU1M
1m
Cisco
SFP-H10GB-CU3M
3m
Cisco
SFP-H10GB-CU5M
5m
HP
J9283A/B Procurve
3m
Juniper
EX-SFP-10GE-DAC-1m
1m
Juniper
EX-SFP-10GE-DAC-3m
3m
Molex
74752-1101
1m
Molex
74752-2301
3m
Molex
74752-3501
5m
Molex
74752-9093
1m
37-0960-01 / 0K585N
Molex
74752-9094
3m
37-0961-01 / 0J564N
Molex
74752-9096
5m
37-0962-01 / 0H603N
Panduit
PSF1PXA1M
1m
Panduit
PSF1PXA3M
3m
Panduit
PSF1PXD5MBU
5m
Siemon
SFPP30-01
1m
Siemon
SFPP30-02
2m
Siemon
SFPP30-03
3m
Siemon
SFPP24-05
5m
Tyco
2032237-2 D
1m
Tyco
2032237-4
3m
© Solarflare Communications 2014
Notes
25
Solarflare Server Adapter
User Guide
The Solarflare SFA6902F adapter has been tested and certified with direct attach cables up to 3m in
length.
2.7 Supported SFP+ 10G SR Optical Transceivers
Table 3 is a list of supported SFP+10G SR optical transceivers that have been tested by Solarflare.
Solarflare is not aware of any issues preventing the use of other brands of 10G SR transceivers with
Solarflare network adapters. However, only transceivers in the table below have been fully verified
and are therefore supported.
Table 3: Supported SFP+ 10G Optical SR Transceivers
Issue 11
Manufacturer
Product Code
Notes
Avago
AFBR-703SDZ
10G
Avago
AFBR-703SDDZ
Dual speed 1G/10G optic.
Avago
AFBR-703SMZ
10G
Arista
SFP-10G-SR
10G
Finisar
FTLX8571D3BCL
10G
Finisar
FTLX8571D3BCV
Dual speed 1G/10G optic.
HP
456096-001
Also labelled as 455883-B21 and
455885-001
Intel
AFBR-703SDZ
10G
JDSU
PLRXPL-SC-S43-22-N
10G
Juniper
AFBR-700SDZ-JU1
10G
MergeOptics
TRX10GVP2010
10G
Solarflare
SFM-10G-SR
10G
© Solarflare Communications 2014
26
Solarflare Server Adapter
User Guide
2.8 Supported SFP+ 10G LR Optical Transceivers
Table 4 is a list of supported SFP+10G LR optical transceivers that have been tested by Solarflare.
Solarflare is not aware of any issues preventing the use of other brands of 10G LR transceivers with
Solarflare network adapters. However, only transceivers in the table below have been fully verified
and are therefore supported.
Table 4: Supported SFP+ 10G LR Optical Transceivers
Manufacturer
Product Code
Notes
Avago
AFCT-701SDZ
10G single mode fiber
Finisar
FTLX1471D3BCL
10G single mode fiber
2.9 QSFP+ Transceivers and Cables
The following tables identify QSFP+ transceiver modules and cables tested by Solarflare with the
SFN7000 QSP+ adapters. Solarflare are not aware of any issues preventing the use of other brands
of QSFP+ 40G transceivers and cables with Solarflare SFN7000 QSFP+ adapters. However, only
products listed in the tables below have been fully verified and are therefore supported
Supported QSFP+ 40GBASE-SR4 Transceivers
The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ 40GBASESR4 optical transceiver modules.
Table 5: Supported QSFP+ SR4 Transceivers
Issue 11
Manufacturer
Product Code
Arista
AFBR-79E4Z
Avago
AFBR-79EADZ
Avago
AFBR-79EIDZ
Avago
AFBR-79EQDZ
Avago
AFBR-79EQPZ
Finisar
FTL410QE2C
JDSU
JQP-04SWAA1
JDSU
JDSU-04SRAB1
Solarflare
SFM-40G-SR4
Notes
Standard 100m (OM3 Multimode fiber) range.
© Solarflare Communications 2014
27
Solarflare Server Adapter
User Guide
Supported QSFP+ 40G Active Optical Cables (AOC)
The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ Active
Optical Cables (AOC).
Table 6: Supported QSFP+ Active Optical Cables
Manufacturer
Product Code
Avago
AFBR-7QER05Z
Finisar
FCBG410QB1C03
Finisar
FCBN410QB1C05
Notes
Supported QSFP+ 40G Direct Attach Cables
The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ Direct
Attach Cables (DAC).
Table 7: Supported QSFP+ Direct Attach Cables
Manufacturer
Product Code
Notes
Arista
CAB-Q-Q-3M
3m
Arista
CAB-Q-Q-5M
5m
FCI
10093084-3030LF
3m
Molex
74757-1101
1m
Molex
74757-2301
3m
Siemon
QSFP30-01
1m
Siemon
QSFP30-03
3m
Siemon
QSFP30-05
5m
Supported QSFP+ to SFP+ Breakout Cables
Solarflare QSFP+ to SFP+ breakout cables enable users to connect Solarflare SFN7142Q dual-port
QSFP+ server I/O adapters to work as a quad-port SFP+ server I/O adapters. The breakout cables
offer a cost-effective option to support connectivity flexibility in high-speed data center
applications.
These high performance direct-attach assemblies support 2 lanes of 10 Gb/s per QSFP+ port and are
available in lengths of 1 meters and 3 meters. The SOLR-QSFP2SFP-1M, -3M copper DAC cables are
fully tested and compatible with the Solarflare SFN7142Q server I/O adapter. These cables are
compliant with the SFF-8431, SFF-8432, SFF-8436, SFF-8472 and IBTA Volume 2 Revision 1.3
specifications.
Issue 11
© Solarflare Communications 2014
28
Solarflare Server Adapter
User Guide
Table 8: Supported QSFP+ to SFP+ Breakout Cables
Manufacturer
Product Code
Solarflare
SOLR-QSFP2SFP-1M
Solarflare
SOLR-QSFP2SFP-3M
Notes
2.10 Supported SFP 1000BASE-T Transceivers
Table 9 is a list of supported SFP 1000BASE-T transceivers that have been tested by Solarflare.
Solarflare is not aware of any issues preventing the use of other brands of 1000BASE-T transceivers
with the Solarflare network adapters. However, only transceivers in the table below have been fully
verified and are therefore supported.
Table 9: Supported SFP 1000BASE-T Transceivers
Issue 11
Manufacturer
Product Code
Arista
SFP-1G-BT
Avago
ABCU-5710RZ
Cisco
30-1410-03
Dell
FCMJ-8521-3-(DL)
Finisar
FCLF-8521-3
Finisar
FCMJ-8521-3
HP
453156-001
453154-B21
3COM
3CSFP93
© Solarflare Communications 2014
29
Solarflare Server Adapter
User Guide
2.11 Supported 1G Optical Transceivers
Table 10 is a list of supported 1G transceivers that have been tested by Solarflare. Solarflare is not
aware of any issues preventing the use of other brands of 1G transceivers with Solarflare network
adapters. However, only transceivers in the table below have been fully verified and are therefore
supported.
Table 10: Supported 1G Transceivers
Manufacturer
Product Code
Type
Avago
AFBR-5710PZ
1000Base-SX
Cisco
GLC-LH-SM
1000Base-LX/LH
Finisar
FTLF8519P2BCL
1000Base-SX
Finisar
FTLF8519P3BNL
1000Base-SX
Finisar
FTLF1318P2BCL
1000Base-LX
Finisar
FTLF1318P3BTL
1000Base-LX
HP
453153-001
453151-B21
1000Base-SX
2.12 Supported Speed and Mode
Solarflare network adapters support either QSFP+, SFP, SFP+ or Base-T standards.
On Base-T adapters three speeds are supported 100Mbps, 1Gbps and 10Gbps. The adapters use
auto negotiation to automatically select the highest speed supported in common with the link
partner.
On SFP+ adapters the currently inserted SFP module (transceiver) determines the supported speeds,
typically SFP modules only support a single speed. Some Solarflare SFP+ adapters support dual
speed optical modules that can operate at either 1Gbps or 10Gbps. However, these modules do not
auto-negotiate link speed and operate at the maximum (10G) link speed unless explicitly configured
to operate at a lower speed (1G).
Issue 11
© Solarflare Communications 2014
30
Solarflare Server Adapter
User Guide
2.13 Configure QSFP+ Adapter
QSFP+ adapters can operate as 2 x 10Gbps per QSFP+ port or as 1 x 40Gbps per QSFP+ port. A
configuration of 1 x 40G and 2 x 10G ports is not supported.
Figure 1: QSFP+ Port Configuration
The Solarflare 40G breakout cables have only 2 physical cables - for details refer to Supported QSFP+
to SFP+ Breakout Cables on page 28. Breakout cables from other suppliers may have 4 physical
cables. When connecting a third party breakout cable into the Solarflare 40G QSFP+ cage (in 10G
mode), only cables 1 and 3 will be active.
The sfboot utility from the Solarflare Linux Utilities package (SF-107601-LS) can be used to configure
the adapter for 10G or 40G operation.
# sfboot port-mode=40G
Issue 11
© Solarflare Communications 2014
31
Solarflare Server Adapter
User Guide
The tables below summarizes the speeds supported by Solarflare network adapters.
Table 11: SFN5xxx,SFN6xxx and SFN7xxx SFP+ QSFP+ Adapters
Supported Modes
Auto neg speed
Speed
Comment
QSFP+ direct attach cables
No
10G or 40G
SFN7142Q
QSFP+ optical cables
No
10G or 40G
SFN7142Q
SFP+ direct attach cable
No
10G
SFP+ optical module (10G)
No
10G
SFP optical module (1G)
No
1G
SFP+ optical module (10G/1G)
No
10G or 1G
Dual speed modules run at
the maximum speed (10G)
unless explicitly configured to
the lower speed (1G)
SFP 1000BASE-T module
No
1G
These modules support only
1G and will not link up at
100Mbps
Table 12: SFN5121T, SFN5151T, SFN5161T 10GBASE-T Adapters
Supported Modes
Auto neg speed
Speed
Comment
100Base-T
Yes
100Mbps
1000Base-TX
Yes
1Gbps
10GBase-T
Yes
10Gbps
Typically the interface is set
to auto negotiation speed
and automatically selects the
highest speed supported in
common with it’s link partner.
If the link partner is set to
100Mbps, with no autoneg,
the adapter will use “parallel
detection” to detect and
select 100Mbps speed. If
needed any of the three
speeds can be explicitly
configured
100Base-T in a Solarflare adapter back-to-back (no intervening switch) configuration will not work
and is not supported.
Issue 11
© Solarflare Communications 2014
32
Solarflare Server Adapter
User Guide
2.14 LED States
There are two LEDs on the Solarflare network adapter transceiver module. LED states are as follows:
Table 13: LED States
Adapter Type
LED Description
State
QSFP+, SFP/SFP+
Link
Green (solid) at all speeds
Activity
Flashing green when network traffic is present
LEDs are OFF when there is no link present
BASE-T
Speed
Green (solid) 10Gbps
Yellow (solid) 100/1000Mbps
Activity
Flashing green when network traffic is present
LEDs are OFF when there is no link present
Issue 11
© Solarflare Communications 2014
33
Solarflare Server Adapter
User Guide
2.15 Solarflare Mezzanine Adapters: SFN5812H and SFN5814H
The Solarflare SFN5812H Dual-Port and SFN5814H Quad-Port are 10G Ethernet Mezzanine Adapters
for the IBM BladeCenter.
Solarflare mezzanine adapters are supported on the IBM BladeCenter E, H and S chassis, HS22,
HS22V and HX5 servers. The IBM BladeCenter blade supports a single Solarflare mezzanine adapter.
1
The blade should be extracted from the BladeCenter in order to install the mezzanine adapter.
2
Remove the blade top cover and locate the two retaining posts towards the rear of the blade (Figure 2). Refer to the BladeCenter manual if necessary.
Figure 2: Installing the Mezzanine Adapter
3
Issue 11
Hinge the adapter under the retaining posts, as illustrated, and align the mezzanine port
connector with the backplane connector block.
© Solarflare Communications 2014
34
Solarflare Server Adapter
User Guide
4
Lower the adapter, taking care to align the side positioning/retaining posts with the recesses in
the adapter. See Figure 3.
Figure 3: In position mezzanine adapter
5
Press the port connector gently into the connector block ensuring that the adapter is firmly
and correctly seated in the connector block.
6
Replace the blade top cover.
7
When removing the adapter raise the release handle (shown on Figure 3) to ease the adapter
upwards until it can be freed from the connector block.
2.16 Solarflare Mezzanine Adapter SFN6832F-C61
The Solarflare SFN6832F-C61 is a Dual-Port SFP+ are 10GbE Mezzanine Adapters for the DELL
PowerEdge C6100 series rack server. Each DELL PowerEdge node supports a single Solarflare
mezzanine adapter.
1
Issue 11
The node should be extracted from the rack server in order to install the mezzanine adapter.
Refer to the PowerEdge rack server manual if necessary.
© Solarflare Communications 2014
35
Solarflare Server Adapter
User Guide
Figure 4: SFN6832F-C61 - Installing into the rack server node
2
Secure the side retaining bracket as shown in Figure 5 (top diagram)
3
Fit riser PCB card into the slot as shown in Figure 5 (top diagram). Note that the riser card only
fits one way.
4
Offer the adapter to the node and ensure it lies underneath the chassis cover.
5
Lower the adapter into position making sure to connect the adapter slot with the to of the PCB
riser card.
6
Secure the adapter using the supplied screws at the positions shown in the diagram.
Issue 11
© Solarflare Communications 2014
36
Solarflare Server Adapter
User Guide
2.17 Solarflare Mezzanine Adapter SFN6832F-C62
The Solarflare SFN6832F-C61 is a Dual-Port SFP+ are 10GbE Mezzanine Adapters for the DELL
PowerEdge C6200 series rack server. Each DELL PowerEdge node supports a single Solarflare
mezzanine adapter.
1
The node should be extracted from the rack server in order to install the mezzanine adapter.
Refer to the PowerEdge rack server manual if necessary.
Figure 5: SFN6832F-C62 - Installing into the rack server node
2
Fit the PCB riser card to the underside connector on the adapter.
3
Offer the adapter to the rack server node ensuring it lies underneath the chassis cover.
4
Lower to adapter to connect the riser PCB card into the slot in the node.
5
Secure the adapter with the supplied screws at the points shown in the diagram.
Issue 11
© Solarflare Communications 2014
37
Solarflare Server Adapter
User Guide
2.18 Solarflare Precision Time Synchronization Adapters
The Solarflare SFN7142Q1, SFN7122F1, SFN7322F and SFN6322F adapters can generate hardware
timestamps for PTP packets in support of a network precision time protocol deployment compliant
with the IEEE 1588-2008 specification.
Customers requiring configuration instructions for these adapters and Solarflare PTP in a PTP
deployment should refer to the Solarflare Enhanced PTP User Guide SF-109110-CD.
1. Requires an AppFlex™ license - refer to Solarflare AppFlex™ Technology Licensing. on page 12.
2.19 Solarflare SFA6902F ApplicationOnload™ Engine
The ApplicationOnload™ Engine (AOE) SFA6902F is a full length PCIe form factor adapter that
combines an ultra-low latency adapter with a tightly coupled ’bump-in-the-wire’ FPGA.
For details of installation and configuring applications that run on the AOE refer to the Solarflare AOE
User’s Guide (SF-108389-CD). For details on developing custom applications to run on the FPGA refer
to the AOE Firmware Development Kit User Guide (SF-108390-CD).
Issue 11
© Solarflare Communications 2014
38
Solarflare Server Adapter
User Guide
Chapter 3: Solarflare Adapters on Linux
This chapter covers the following topics on the Linux® platform:
• System Requirements...Page 39
• Linux Platform Feature Set...Page 40
• Solarflare RPMs...Page 41
• Installing Solarflare Drivers and Utilities on Linux...Page 43
• Red Hat Enterprise Linux Distributions...Page 43
• SUSE Linux Enterprise Server Distributions...Page 44
• Unattended Installations...Page 45
• Unattended Installation - Red Hat Enterprise Linux...Page 47
• Unattended Installation - SUSE Linux Enterprise Server...Page 48
• Hardware Timestamps...Page 49
• Configuring the Solarflare Adapter...Page 49
• Configuring Receive/Transmit Ring Buffer Size...Page 50
• Setting Up VLANs...Page 51
• Setting Up Teams...Page 52
• Running Adapter Diagnostics...Page 53
• Running Cable Diagnostics...Page 54
• Transmit Packet Steering...Page 89
• Configuring the Boot ROM with sfboot...Page 56
• Upgrading Adapter Firmware with Sfupdate...Page 70
• License Install with sfkey...Page 75
• Performance Tuning on Linux...Page 79
• Module Parameters...Page 99
• Linux ethtool Statistics...Page 101
3.1 System Requirements
Refer to Software Driver Support on page 12 for supported Linux Distributions.
NOTE: SUSE Linux Enterprise Server 11 includes a version of the Solarflare network adapter Driver.
This driver does not support the SFN512x family of adapters. To update the supplied driver, see
SUSE Linux Enterprise Server Distributions on page 44
Issue 11
© Solarflare Communications 2014
39
Solarflare Server Adapter
User Guide
NOTE: Red Hat Enterprise Linux versions 5.5 and 6.0 include a version of the Solarflare adapter
driver. This driver does not support the SFN512x family of adapters. Red Hat Enterprise Linux 5.6
and 6.1 includes a version of the Solarflare network driver for the SFN512x family of adapters. To
update the supplied driver, see Installing Solarflare Drivers and Utilities on Linux on page 43
3.2 Linux Platform Feature Set
Table 14 lists the features supported by Solarflare adapters on Red Hat and SUSE Linux distributions.
Table 14: Linux Feature Set
Fault diagnostics
Support for comprehensive adapter and cable fault diagnostics
and system reports.
• See Running Adapter Diagnostics on page 53
Firmware updates
Support for Boot ROM, Phy transceiver and adapter firmware
upgrades.
• See Upgrading Adapter Firmware with Sfupdate on page 70
Hardware Timestamps
Solarflare Flareon SFN7122F1 SFN7142Q1 and SFN7322F
adapters support the hardware timestamping of all received
packets - including PTP packets.
The Linux kernel must support the SO_TIMESTAMPING socket
option (2.6.30+) to allow the driver to support hardware packet
timestamping. Therefore hardware packet timestamping is not
available in RHEL 5.
1. Requires an AppFlex license - for details refer to Solarflare AppFlex™
Technology Licensing. on page 12.
Jumbo frames
Support for MTUs (Maximum Transmission Units) from
1500 bytes to 9216 bytes.
• See Configuring Jumbo Frames on page 51
PXE and iSCSI booting
Support for diskless booting to a target operating system via
PXE or iSCSI boot.
• See Configuring the Boot ROM with sfboot on page 56
• See Solarflare Boot ROM Agent on page 344
PXE or iSCSI boot are not supported for Solarflare adapters on
IBM System p servers.
Receive Side Scaling (RSS)
Support for RSS multi-core load distribution technology.
• See Receive Side Scaling (RSS) on page 85
Issue 11
© Solarflare Communications 2014
40
Solarflare Server Adapter
User Guide
Table 14: Linux Feature Set
Receive Flow Steering (RFS)
Improve latency and reduce jitter by steering packets to the
core where a receiving application is running.
See Receive Flow Steering (RFS) on page 87.
SR-IOV
Support for XenServer6 PCIe Single Root-IO Virtualization and
Linux KVM SR-IOV.
• See SR-IOV Virtualization for XenServer on page 324
• See SR-IOV Virtualization Using KVM on page 307
SR-IOV is not supported for Solarflare adapters on IBM System
p servers.
Standby and Power
Management
Solarflare adapters support Wake On LAN on Linux. These
settings are only available if the adapter has auxiliary power
supplied by a separate cable.
Task offloads
Support for TCP Segmentation Offload (TSO), Large Receive
Offload (LRO), and TCP/UDP/IP checksum offload for improved
adapter performance and reduced CPU processing
requirements.
• See Configuring Task Offloading on page 50
Teaming
Improve server reliability and bandwidth by combining physical
ports, from one or more Solarflare adapters, into a team,
having a single MAC address and which function as a single port
providing redundancy against a single point of failure.
• See Setting Up Teams on page 52
Virtual LANs (VLANs)
Support for multiple VLANs per adapter.
• See Setting Up VLANs on page 51
Transmit Packet Steering
(XPS)
Supported on Linux 2.6.38 and later kernels. Selects the
transmit queue when transmitting on multi-queue devices.
Refer to Transmit Packet Steering on page 89 for details.
3.3 Solarflare RPMs
Solarflare supply RPM packages in the following formats:
• DKMS
• Source RPM
Issue 11
© Solarflare Communications 2014
41
Solarflare Server Adapter
User Guide
DKMS RPM
Dynamic Kernel Module Support (DKMS) is a framework where device driver source can reside
outside the kernel source tree. It supports an easy method to rebuild modules when kernels are
upgraded.
Execute the command dkms --version to determine whether DKMS is installed.
To install the Solarflare driver DKMS package execute the following command:
rpm -i sfc-dkms-<version>.noarch.rpm
Building the Source RPM
These instructions may be used to build a source RPM package for use with Linux distributions or
kernel versions where DKMS or KMP packages are not suitable.
NOTE: RPMs can be installed for multiple kernel versions.
1
First, the kernel headers for the running kernel must be installed at /lib/modules/
<kernel-version>/build. On Red Hat systems, install the appropriate kernel-smpdevel or kernel-devel package. On SUSE systems install the kernel-source package.
2
To build a source RPM for the running kernel version from the source RPM, enter the following
at the command-line:
rpmbuild --rebuild <package_name>
Where package_name is the full path to the source RPM (see the note below).
3
To build for a different kernel to the running system, enter the following command:
rpmbuild --define 'kernel <kernel version>' --rebuild <package_name>
4
Install the resulting RPM binary package, as described in Installing Solarflare Drivers and
Utilities on Linux.
NOTE: The location of the generated RPM is dependent on the distribution and often the version
of the distribution and the RPM build tools.
The RPM build process should print out the location of the RPM towards the end of the build
process, but it can be hard to find amongst the other output.
Typically the RPM will be placed in /usr/src/<dir>/RPMS/<arch>/, where <dir> is
distribution specific. Possible folders include Red Hat, packages or extra. The RPM file will be
named using the same convention as the Solarflare provided pre-built binary RPMs.
The command: find /usr/src -name "*sfc*.rpm” will list the locations of all Solarflare
RPMs.
Issue 11
© Solarflare Communications 2014
42
Solarflare Server Adapter
User Guide
3.4 Installing Solarflare Drivers and Utilities on Linux
• Red Hat Enterprise Linux Distributions...Page 43
• SUSE Linux Enterprise Server Distributions...Page 44
• Building the Source RPM...Page 42
Linux drivers for Solarflare are available in DKMS and source RPM packages. The source RPM can be
used to build binary RPMs for a wide selection of distributions and kernel variants. This section
details how to install the resultant binary RPM.
Solarflare recommend using DKMS RPMs if the DKMS framework is available. See DKMS RPM on
page 42 for more details.
NOTE: The Solarflare adapter should be physically installed in the host computer before installing
the driver. The user must have root permissions to install the adapter drivers.
3.5 Red Hat Enterprise Linux Distributions
These instructions cover installation and configuration of the Solarflare network adapter drivers on
Red Hat Enterprise Linux Server. Refer to Software Driver Support on page 12 for details of
supported Linux distributions.
Refer to Building the Source RPM on page 42 for directions on creating the binary RPM.
1
Install the RPMs:
[[email protected]]# rpm -ivh kernel-module-sfc-RHEL6-2.6.32279.el6.x86_64-3.3.0.6262-1.x86_64.rpm
2
There are various tools that can be used for configuring the Solarflare Server Adapter:
a) The NetworkManager service and associated GUI tools. For more information about his
refer to https://wiki.gnome.org/NetworkManager.
3
b) Solarflare recommend using the Network Administration Tool (NEAT) to configure the new
network interface. NEAT is a GUI based application and therefore requires an X server to run.
c) Alternatively the command line program Kudzu can be used. However, you may find when
kudzu is run that you are NOT presented with an option to configure the new network
interface. If this occurs, carefully clear details of the Solarflare Server Adapter from the
hardware database by removing all entries with “vendor id: 1924” in the /etc/
sysconfig/hwconf file. Running kudzu again should now provide an option to configure
the newly added network interface.
Apply the new network settings:
a) NEAT provides an option to Activate the new interface. The new network interface can
then be used immediately (there is no need to reboot or restart the network service).
b) If you are not using NEAT you will need to reboot, or alternatively restart the networking
service, by typing the following before the new Solarflare interface can be used:
[[email protected]]# service network restart
Issue 11
© Solarflare Communications 2014
43
Solarflare Server Adapter
User Guide
3.6 SUSE Linux Enterprise Server Distributions
These instructions cover installation and configuration of the Solarflare Network Adapter drivers on
SUSE Linux Enterprise Server. Refer to Software Driver Support...Page 12 for details of supported
distributions.
Refer to Building the Source RPM on page 42 for directions on creating the binary RPM.
1
The Solarflare drivers are currently classified as 'unsupported' by SUSE Enterprise Linux 10
(SLES10). To allow unsupported drivers to load in SLES10, edit the following file:
/etc/sysconfig/hardware/config
find the line:
LOAD_UNSUPPORTED_MODULES_AUTOMATICALLY=no
and change no to yes.
For SLES 11, edit the last line in /etc/modprobe.d/unsupported-modules to:
allow_unsupported_modules 1
2
Install the RPMs:
[[email protected]]# rpm -ivh kernel-module-sfc-2.6.5-7.244-smp-2.1.01110.sf.1.SLES9.i586.rpm
3
Run YaST to configure the Solarflare Network Adapter. When you select the Ethernet
Controller, the Configuration Name will take one of the following forms:
a) eth-bus-pci-dddd:dd:dd.N where N is either 0 or 1.
b) eth-id-00:0F:53:XX:XX:XX
Once configured, the Configuration Name for the correct Ethernet Controller will change to
the second form, and an ethX interface will appear on the host. If the incorrect Ethernet
Controller is chosen and configured, then the Configuration Name will remain as eth-buspci-dddd:dd:dd.1 after configuration by YaST, and an ethX interface will not appear on
the system. In this case, you should remove the configuration for this Ethernet Controller, and
configure the other Ethernet Controller of the pair.
Issue 11
© Solarflare Communications 2014
44
Solarflare Server Adapter
User Guide
3.7 Unattended Installations
Building Drivers and RPMs for Unattended Installation
Linux unattended installation requires building two drivers:
• A minimal installation Solarflare driver that only provides networking support. This driver is
used for network access during the installation process.
• An RPM that includes full driver support. This RPM is used to install drivers in the resultant Linux
installation.
Figure 6: Unattended Installation RPM
Figure 6 shows how the unattended installation process works.
1
Build a minimal Solarflare driver needed for use in the installation kernel (Kernel A in the
diagram above). This is achieved by defining “sfc_minimal” to rpmbuild. This macro disables
hardware monitoring, MTD support (used for access to the adapters flash), I2C and debugfs.
This results in a driver with no dependencies on other modules and allows networking support
from the driver during installation.
# as normal user
$ mkdir -p /tmp/rpm/BUILD
$ rpm -i sfc-<ver>-1.src.rpm
$ rpmbuild -bc -D 'sfc_minimal=1' -D 'kernel=<installer kernel>' \
/tmp/rpm/SPECS/sfc.spec
2
The Solarflare minimal driver sfc.ko can be found in /tmp/rpm/BUILD/sfc-<ver>/
linux_net/sfc.ko. Integrate this minimal driver into your installer kernel, either by
creating a driver disk incorporating this minimal driver or by integrating this minimal driver
into initrd.
3
Build a full binary RPM for your Target kernel and integrate this RPM into your Target (Kernel
B).
Issue 11
© Solarflare Communications 2014
45
Solarflare Server Adapter
User Guide
Driver Disks for Unattended Installations
Solarflare are preparing binary driver disks to help avoid the need to build the minimal drivers
required in unattended installations. Please contact Solarflare support to obtain these driver disks
Table 15 shows the various stages of an unattended installation process:
Table 15: Installation Stages
Issue 11
In Control
Stages of Boot
Setup needed
BIOS
PXE code on the adapter
runs.
Adapter must be in PXE boot mode.
See PXE Support on page 345.
SF Boot ROM (PXE)
DHCP request from PXE (SF
Boot ROM).
DHCP server filename and nextserver options.
SF Boot ROM (PXE)
TFTP request for filename to
next-server, e.g. pxelinux.0
TFTP server.
pxelinux
TFTP retrieval of pxelinux
configuration.
pxelinux configuration on TFTP
server.
pxelinux
TFTP menu retrieval of Linux
kernel image initrd.
pxelinux configuration
Linux kernel/installer
Installer retrieves kickstart
configuration, e.g. via HTTP.
Kickstart/AutoYaST configuration.
Target Linux kernel
kernel reconfigures network
adapters.
DHCP server.
Kernel, kernel command, initrd
© Solarflare Communications 2014
46
Solarflare Server Adapter
User Guide
3.8 Unattended Installation - Red Hat Enterprise Linux
Documentation for preparing for a Red Hat Enterprise Linux network installation can be found at:
http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/5/html/Installation_Guide/s1begininstall-perform-nfs-x86.html
http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/6/html/Installation_Guide/
index.html
The prerequisites for a Network Kickstart installation are:
• Red Hat Enterprise Linux installation media.
• A Web server and/or FTP Server for delivery of the RPMs that are to be installed.
• A DHCP server for IP address assignments and to launch PXE Boot.
• A TFTP server for download of PXE Boot components to the machines being kickstarted.
• The BIOS on the computers to be Kickstarted must be configured to allow a network boot.
• A Boot CD-ROM or flash memory that contains the kickstart file or a network location where the
kickstart file can be accessed.
• A Solarflare driver disk.
Unattended Red Hat Enterprise Linux installations are configured with Kickstart. The documentation
for Kickstart can be found at:
http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/5/html/Installation_Guide/chredhat-config-kickstart.html
http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/6/html/Installation_Guide/chkickstart2.html
To install Red Hat Enterprise you need the following:
1
A modified initrd.img file with amended modules.alias and modules.dep which
incorporates the Solarflare minimal driver for the installation kernel.
To modules.alias, add the following entries:
2
alias:
pci:v00001924d00000813sv*sd*bc*sc*i*
alias:
pci:v00001924d00000803sv*sd*bc*sc*i*
alias:
pci:v00001924d00000710sv*sd*bc*sc*i*
alias:
pci:v00001924d00000703sv*sd*bc*sc*i*
Identify the driver dependencies using the modinfo command:
modinfo ./sfc.ko | grep depends
depends:
i2c-core,mii,hwmon,hwmon-vid,i2c-algo-bit mtdcore mtdpart
All modules listed as depends must be present in the initrd file image. In addition the user
should be aware of further dependencies which can be resolved by adding the following lines
to the modules.dep file:
Issue 11
© Solarflare Communications 2014
47
Solarflare Server Adapter
User Guide
sfc: i2c-core mii
i2c-algo-bit:
mtdpart:
hwmon
hwmon-vid
i2c-algo-bit
mtdcore
mtdpart *
i2c-core
mtdcore
*For Red Hat Enterprise Linux from version 5.5 add mdio to this line.
3
A configured kickstart file with the Solarflare Driver RPM manually added to the %Post
section. For example:
%post
/bin/mount -o ro <IP Address of Installation server>:/<path to
location directory containing Solarflare RPM> /mnt
/bin/rpm -Uvh /mnt/<filename of Solarflare RPM>
/bin/umount /mnt
3.9 Unattended Installation - SUSE Linux Enterprise Server
Unattended SUSE Linux Enterprise Server installations are configured with AutoYaST. The
documentation for AutoYaST can be found at:
http://www.suse.com/~ug/autoyast_doc/index.html
The prerequisites for a Network AutoYaST installation are:
• SUSE Linux Enterprise installation media.
• A DHCP server for IP address assignments and to launch PXE Boot.
• A NFS or FTP server to provide the installation source.
• A TFTP server for the download of the kernel boot images needed to PXE Boot.
• A boot server on the same Ethernet segment.
• An install server with the SUSE Linux Enterprise Server OS.
• An AutoYaST configuration server that defines rules and profiles.
• A configured AutoYast Profile (control file).
Further Reading
• SUSE Linux Enterprise Server remote installation:
http://www.novell.com/documentation/sles10/sles_admin/?page=/documentation/sles10/
sles_admin/data/cha_deployment_remoteinst.html
• SUSE install with PXE Boot:
http://en.opensuse.org/SuSE_install_with_PXE_boot
Issue 11
© Solarflare Communications 2014
48
Solarflare Server Adapter
User Guide
3.10 Hardware Timestamps
The Solarflare Flareon SFN7000 series adapters can support hardware timestamping for all received
network packets.
The Linux kernel must support the SO_TIMESTAMPING socket option (2.6.30+) therefore hardware
packet timestamping is not supported on RHEL 5.
For more information about using the kernel timestamping API, users should refer to the Linux
documentation: http://lxr.linux.no/linux/Documentation/networking/timestamping.txt
3.11 Configuring the Solarflare Adapter
Ethtool is a standard Linux tool that you can use to query and change Ethernet adapter settings,
including those for Solarflare adapters. Ethtool can be downloaded from http://sourceforge.net/
projects/gkernel/files/ethtool/.
The general command for ethtool is as follows:
ethtool <-option> <ethX>
Where X is the identifier of the interface. Note that root access will be required to configure adapter
settings. Refer to the Linux online manual (man ethtool) for details of the options that are
available for ethtool.
Configuring Speed and Modes
Solarflare adapters by default automatically negotiate the connection speed to the maximum
supported by the link partner. On the 10GBASE-T adapters “auto” instructs the adapter to negotiate
the highest speed supported in common with it’s link partner. On SFP+ adapters, “auto” instructs the
adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE-T and
SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities
of the link partner, which may result in an inability to establish the link. Dual speed SFP+ modules
operate at their maximum (10G) link speed unless explicitly configured to operate at a lower speed
(1G).
The following commands demonstrate ethtool to configure the network adapter Ethernet settings.
Identify interface configuration settings:
ethtool ethX
Set link speed:
ethtool -s ethX speed 1000|100
To return the connection speed to the default auto-negotiate, enter:
ethtool -s <ethX> autoneg on
Configure auto negotiation:
ethtool -s ethX autoneg [on|off]
Set auto negotiation advertised speed 1G:
Issue 11
© Solarflare Communications 2014
49
Solarflare Server Adapter
User Guide
ethtool -s ethX advertise 0x20
Set autonegotiation advertised speed 10G:
ethtool -s ethX advertise 0x1000
Set autonegotiation advertised speeds 1G and 10G:
ethtool -s ethX advertise 0x1020
Identify interface auto negotiation pause frame setting:
ethtool -a ethX
Configure auto negotiation of pause frames:
ethtool -A ethX autoneg on [rx on|off] [tx on|off]
Configuring Task Offloading
Solarflare adapters support transmit (Tx) and receive (Rx) checksum offload, as well as TCP
segmentation offload. To ensure maximum performance from the adapter, all task offloads should
be enabled, which is the default setting on the adapter. For more information, see Performance
Tuning on Linux on page 79.
To change offload settings for Tx and Rx, use the ethtool command:
ethtool --offload <ethX> [rx on|off] [tx on|off]
Configuring Receive/Transmit Ring Buffer Size
By default receive and transmit ring buffers on the Solarflare adapter support 1024 descriptors. The
user can identify and reconfigure ring buffer sizes using the ethtool command.
To identify the current ring size:
ethtool -g ethX
To set the new transmit or receive ring size to value N
ethtool -G ethX [rx N| tx N]
The ring buffer size must be a value between 128 and 4096. On the SFN7000 series adapters the
maximum TX buffer size is restricted to 2048. Buffer size can also be set directly in the
modprobe.conf file or add the options line to a file under the /etc/modprobe.d directory e.g.
options sfc
rx_ring=4096
Using the modprobe method sets the value for all Solarflare interfaces. Then reload the driver for
the option to become effective:
modprobe -r sfc
modprobe sfc
Issue 11
© Solarflare Communications 2014
50
Solarflare Server Adapter
User Guide
Configuring Jumbo Frames
Solarflare adapters support frame sizes from 1500 bytes to 9216 bytes. For example, to set a new
frame size (MTU) of 9000 bytes, enter the following command:
ifconfig <ethX> mtu 9000
To make the changes permanent, edit the network configuration file for <ethX>; for example,
/etc/sysconfig/network-scripts/ifcfg-eth1 and append the following configuration
directive, which specifies the size of the frame in bytes:
MTU=9000
Standby and Power Management
Solarflare adapters support Wake on LAN and Wake on Magic Packet setting on Linux. You need to
ensure that Wake on LAN has been enabled on the BIOS correctly and your adapter has auxiliary
power via a separate cable before configuring Wake on LAN features.
In SUSE Linux Enterprise Server, you can use the YaST WOL module to configure Wake on LAN or you
can use the ethtool wol g setting.
In Red Hat Enterprise Linux you can use the ethtool wol g setting.
3.12 Setting Up VLANs
VLANs offer a method of dividing one physical network into multiple broadcast domains. In
enterprise networks, these broadcast domains usually match with IP subnet boundaries, so that
each subnet has its own VLAN. The advantages of VLANs include:
• Performance
• Ease of management
• Security
• Trunks
• You don't have to configure any hardware device, when physically moving your server to
another location.
To set up VLANs, consult the following documentation:
• To configure VLANs on SUSE Linux Enterprise Server, see:
http://www.novell.com/support/viewContent.do?externalId=3864609
• To configure tagged VLAN traffic only on Red Hat Enterprise Linux, see:
http://kbase.redhat.com/faq/docs/DOC-8062
• To configure mixed VLAN tagged and untagged traffic on Red Hat Enterprise Linux, see:
http://kbase.redhat.com/faq/docs/DOC-8064
Issue 11
© Solarflare Communications 2014
51
Solarflare Server Adapter
User Guide
3.13 Setting Up Teams
Teaming network adapters (network bonding) allows a number of physical adapters to act as one,
virtual adapter. Teaming network interfaces, from the same adapter or from multiple adapters,
creates a single virtual interface with a single MAC address.
The virtual adapter or virtual interface can assist in load balancing and providing failover in the event
of physical adapter or port failure.
Teaming configuration support provided by the Linux bonding driver includes:
• 802.3ad Dynamic link aggregation
• Static link aggregation
• Fault Tolerant
To set up an adapter team, consult the following documentation:
General:
http://www.kernel.org/doc/Documentation/networking/bonding.txt
RHEL 5:
http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/5.4/html/Deployment_Guide/s2modules-bonding.html
RHEL6:
http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/6/html/Deployment_Guide/s2networkscripts-interfaces-chan.html
SLES:
http://www.novell.com/documentation/sles11/book_sle_admin/data/
sec_basicnet_yast.html#sec_basicnet_yast_netcard_man
Issue 11
© Solarflare Communications 2014
52
Solarflare Server Adapter
User Guide
3.14 Running Adapter Diagnostics
You can use ethtool to run adapter diagnostic tests. Tests can be run offline (default) or online.
Offline runs the full set of tests, which can interrupt normal operation during testing. Online
performs a limited set of tests without affecting normal adapter operation.
As root user, enter the following command:
ethtool --test ethX offline|online
The tests run by the command are as follows:
Table 16: Adapter Diagnostic Tests
Diagnostic Test
Purpose
core.nvram
Verifies the flash memory ‘board configuration’ area by
parsing and examining checksums.
core.registers
Verifies the adapter registers by attempting to modify the
writable bits in a selection of registers.
core.interrupt
Examines the available hardware interrupts by forcing the
controller to generate an interrupt and verifying that the
interrupt has been processed by the network driver.
tx/rx.loopback
Verifies that the network driver is able to pass packets to
and from the network adapter using the MAC and Phy
loopback layers.
core.memory
Verifies SRAM memory by writing various data patterns
(incrementing bytes, all bit on and off, alternating bits on
and off) to each memory location, reading back the data
and comparing it to the written value.
core.mdio
Verifies the MII registers by reading from PHY ID registers
and checking the data is valid (not all zeros or all ones).
Verifies the MMD response bits by checking each of the
MMDs in the Phy is present and responding.
chanX eventq.poll
Verifies the adapter’s event handling capabilities by
posting a software event on each event queue created by
the driver and checking it is delivered correctly.
The driver utilizes multiple event queues to spread the
load over multiple CPU cores (RSS).
phy.bist
Issue 11
Examines the PHY by initializing it and causing any
available built-in self tests to run.
© Solarflare Communications 2014
53
Solarflare Server Adapter
User Guide
3.15 Running Cable Diagnostics
Cable diagnostic data can be gathered from the Solarflare 10GBASE-T adapters physical interface
using the ethtool -t command which runs a comprehensive set of diagnostic tests on the
controller, PHY, and attached cables. To run the cable tests enter the following command:
ethtool -t ethX [online | offline]
Online tests are non-intrusive and will not disturb live traffic.
The following is an extract from the output of the ethtool diagnostic offline tests:
phy
phy
phy
phy
phy
phy
phy
phy
cable.pairA.length
cable.pairB.length
cable.pairC.length
cable.pairD.length
cable.pairA.status
cable.pairB.status
cable.pairC.status
cable.pairD.status
9
9
9
9
1
1
1
1
Cable length is the estimated length in metres. A length value of 65535 indicates length not
estimated due to pair busy or cable diagnostic routine not completed successfully.
The cable status can be one of the following values:
0 - invalid, or cable diagnostic routine did not complete successfully
1 - pair ok, no fault detected
2 - pair open or Rt > 115 ohms
3 - intra pair short or Rt < 85 ohms
4 - inter pair short or Rt < 85 ohms
9 - pair busy or link partner forces 100Base-Tx or 1000Base-T test mode.
Issue 11
© Solarflare Communications 2014
54
Solarflare Server Adapter
User Guide
3.16 Linux Utilities RPM
The Solarflare Utilities RPM for Linux contains:
• A boot ROM utility. Configuring the Boot ROM with sfboot...Page 56
• A flash firmware update utility. Upgrading Adapter Firmware with Sfupdate...Page 70
• A license key install utility. License Install with sfkey...Page 75
The RPM package, is supplied as 64bit and 32bit binaries compiled to be compatible with GLIBC
versions for all supported distributions.
The Solarflare utilities RPM file can be downloaded from the following location:
https://support.solarflare.com/
• SF-104451-LS is a 32bit binary RPM package.
• SF-107601-LS is a 64bit binary RPM package.
Download and copy the zipped binary RPM package to the required directory. Unzip and install
(64bit package example):
1
Unzip the package:
# unzip SF-107601-LS-20_Solarflare_Linux_Utilities_RPM_64bit.zip
2
Install the binary RPM:
# rpm -Uvh sfutils-4.0.1.6605-1.x86_64.rpm
Preparing...
1:sfutils
3
########################################### [100%]
########################################### [100%]
Check that the RPM installed correctly:
# rpm -q sfutils
sfutils-4.0.1.6605-1.x86_64
Directions for the use of the utility programs are explained in the following sections:
Issue 11
© Solarflare Communications 2014
55
Solarflare Server Adapter
User Guide
3.17 Configuring the Boot ROM with sfboot
• Sfboot: Command Usage...Page 56
• Sfboot: Command Line Options...Page 56
• Sfboot: Examples...Page 66
Sfboot is a command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI
booting. Using sfboot is an alternative to using Ctrl + B to access the Boot Rom agent during server
startup.
See Configuring the Solarflare Boot ROM Agent on page 344 for more information on the Boot Rom
agent.
PXE and iSCSI network boot is not supported for Solarflare adapters on IBM System p servers.
Sfboot: SLES 11 Limitation
Due to limitations in SLES 11 using kernel versions prior to 2.6.27.54 it is necessary to reboot the
server after running the sfboot utility.
Sfboot: Command Usage
The general usage for sfboot is as follows (as root):
sfboot [--adapter=eth<N>] [options] [configurable parameters]
Note that without --adapter, the sfboot command applies to all adapters that are present in the
target host.
The format for the parameters are:
<parameters>=<value>
Sfboot: Command Line Options
Table 17 lists the options for sfboot and Table 18 lists the available options.
Table 17: Sfboot Options
Issue 11
Option
Description
-?-h, --help
Displays command line syntax and provides a
description of each sfboot option.
-V, --version
Shows detailed version information and exits.
-v, --verbose
Shows extended output information for the
command entered.
© Solarflare Communications 2014
56
Solarflare Server Adapter
User Guide
Table 17: Sfboot Options
Option
Description
-s, --quiet
Suppresses all output, except errors; no user
interaction. You should query the completion code to
determine the outcome of commands when
operating silently (see Performance Tuning on
Windows on page 221).
Aliases: --silent
Lists all available Solarflare adapters. This option
shows the ifname and MAC address.
-l --list
Note: this option may not be used in conjunction
with the any other option. If this option is used with
configuration parameters, those parameters will be
silently ignored.
-i, --adapter =<ethX>
Performs the action on the identified Solarflare
network adapter. The adapter identifier ethX can be
the ifname or MAC address, as output by the --list
option. If --adapter is not included, the action will
apply to all installed Solarflare adapters.
-c --clear
Resets all adapter options except boot-image to
their default values. Note that --clear can also be
used with parameters, allowing you to reset to
default values, and then apply the parameters
specified.
The following parameters in Table 18 are used to control the configurable parameters for the Boot
ROM driver when running prior to the operating system booting.
Table 18: Sfboot Parameters
Issue 11
Parameter
Description
bootimage=<all|optionrom|uefi|di
sabled>
Specifies which boot firmware images are served-up
to the BIOS during start-up. This parameter can not
be used if the --adapter option has been specified.
This option is not reset if --clear is used.
© Solarflare Communications 2014
57
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
linkspeed=<auto|10g|1g|100m>
Specifies the network link speed of the adapter used
by the Boot ROM - the default is auto. On the
10GBASE-T adapters “auto” instructs the adapter to
negotiate the highest speed supported in common
with it’s link partner. On SFP+ adapters, “auto”
instructs the adapter to use the highest link speed
supported by the inserted SFP+ module. On
10GBASE-T and SFP+ adapters, any other value
specified will fix the link at that speed, regardless of
the capabilities of the link partner, which may result
in an inability to establish the link.
auto Auto-negotiate link speed (default)
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Specifies the delay (in seconds) the adapter defers its
first connection attempt after booting, allowing time
for the network to come up following a power failure
or other restart. This can be used to wait for
spanning tree protocol on a connected switch to
unblock the switch port after the physical network
link is established. The default is 5 seconds.
banner-delay=<seconds>
Specifies the wait period for Ctrl-B to be pressed to
enter adapter configuration tool.
seconds = 0-256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to
skip adapter booting.
seconds = 0-256
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type.
pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System
Interface) booting
disabled – Disable adapter booting
Issue 11
© Solarflare Communications 2014
58
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the
adapter by the Boot ROM except for the Initiator IQN
(see initiator-iqn-dhcp). This option is only
valid if iSCSI booting is enabled (boottype=iscsi).
If initiator-DHCP is set to disabled, the following
options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed:
gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
Issue 11
© Solarflare Communications 2014
59
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) of the Primary DNS to be used by the adapter
when initiator-dhcp is disabled.
This option is only valid if iSCSI booting is enabled
(boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Enables or disables use of DHCP for the initiator IQN
only.
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used
by the adapter when initiator-iqn-dhcp is
disabled. The IQN is a symbolic name in the “.”
notation form; for example:
iqn.2009.01.com.solarflare, and is a maximum of 223
characters long.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts
to access and login to the Logical Unit Number (LUN)
on the iSCSI Target before failing. Note that this
option is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot lun-retry-count=3
Issue 11
© Solarflare Communications 2014
60
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI
target parameters on the adapter.
If target-dhcp is disabled, you must specify the
following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example - Enable the use of DHCP to configure iSCSI
Target settings:
sfboot boot-type=iscsi targetdhcp=enabled
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address
to be used by the adapter when target-dhcp is
disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI
target when target-dhcp is disabled. The default
Port number is Port 3260.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using
a non-standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used
by the iSCSI target when target-dhcp is disabled.
The default LUN is 0.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Issue 11
© Solarflare Communications 2014
61
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Note that if there are spaces contained in <IQN>,
then the IQN must be wrapped in double quotes (“”).
Example:
sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Specifies the device vendor ID to be advertised to the
DHCP server. This must match the vendor id
configured at the DHCP server when using DHCP
option 43 to obtain the iSCSI target.
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake
Protocol (CHAP) to authenticate the iSCSI
connection.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
To be valid, this option also requires the following
sub-options to be specified:
username=<initiator username>
secret=<initiator password>
Example:
sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
Issue 11
© Solarflare Communications 2014
62
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
username=<username>
Specifies the CHAP initiator username (maximum 64
characters).
Note that this option is required if either CHAP or
Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username
Specifies the CHAP initiator secret (minimum 12
characters, maximum 20 characters).
secret=<secret>
Note that this option is valid if either CHAP or Mutual
CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when
iSCSI booting is enabled.
This option also requires the following sub-options to
be specified:
target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example:
sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
Issue 11
© Solarflare Communications 2014
63
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
target-username=<username>
Specifies the username that has been configured on
the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the
iSCSi target (minimum 12 characters; maximum 20
characters).
Note: This option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the
adapter. This option is only valid for iSCSI booting
over multi-port adapters, where it can be used to
establish adapter port priority. The range is 1- 255,
with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will try and use
each port in turn to login to the iSCSI target before
failing.
msix-limit=
Specifies the maximum number of MSI-X interrupts
the specified adapter will use. The default is 32.
<8|16|32|64|128|256|512|1024>
Note: Using the incorrect setting can impact the
performance of the adapter. Contact Solarflare
technical support before changing this setting.
Issue 11
pfiov=<enabled|disabled>
Enable PF-IOV support. This allows switching of
traffic between any PFs. When disabled traffic is
switched only between a PF and related VFs.
pf-count=<pf count>
This is the number of available PCIe PFs per physical
network port. This setting is applied to all ports on
the adapter. MAC address assignments may change
after altering this setting.
sriov=<enabled|disabled>
Enable SR-IOV support for operating systems that
support this.
© Solarflare Communications 2014
64
Solarflare Server Adapter
User Guide
Table 18: Sfboot Parameters
Parameter
Description
vf-count=<vf count>
The number of virtual functions (VF) advertised to
the operating system. The Solarflare SFC9000 family
of controllers support a total limit of 127 virtual
functions per port and a total 1024 interrupts.
Depending on the values of msix-limit and vf-msixlimit, some of these virtual functions may not be
configured.
Enabling all 127 VFs per port with more than one
MSI-X interrupt per VF may not be supported by the
host BIOS - in which case you may get 127 VFs on one
port and none on others. Contact your BIOS vendor
or reduce the VF count.
The sriov parameter is implied if vf-count is greater
than zero.
vf-msixlimit=<1|2|4|8|16|32|64|128|
256>
The maximum number of interrupts a virtual
function may use.
port-mode=(default|10G|40G>
Configure the port mode to use. This is for SFC9140family adapters only. MAC address assignments may
change after altering this setting.
The default mode will select 40G mode.
firmware-variant=<fullfeature|ultra-lowlatency|capture-packedstream |auto>
For SFN7000 series adapters only.
The ultra-low-latency variant produces best latency
without support for TX VLAN insertion or RX VLAN
stripping (not currently used features). It is
recommended that Onload customers use the ultralow-latency variant.
Default value = auto - means the driver will select
ultra-low-latency by default.
insecurefilters=<enabled|disabled>
Issue 11
If enabled bypass filter security on non-privileged
functions. This is for SFC9100-family adapters only.
This reduces security in virtualized environments.
The default is disabled.
© Solarflare Communications 2014
65
Solarflare Server Adapter
User Guide
Sfboot: Examples
• Show the current boot configuration for all adapters:
sfboot
Solarflare boot configuration utility [v3.0.3]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
eth1:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
PXE
32
eth2:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
PXE
32
• List all Solarflare adapters installed on the localhost:
sfboot --list
Solarflare boot configuration utility [v3.0.2]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
eth4 - 00-0F-53-01-3C-AC, eth5 - 00-0F-53-01-3C-AD, eth6 - 00-0F-53-013C-A4, eth7 - 00-0F-53-01-3C-A5
Issue 11
© Solarflare Communications 2014
66
Solarflare Server Adapter
User Guide
• Enable iSCSI booting on adapter eth4. Implement default iSCSI settings:
sfboot --adapter=eth4 boot-type=iscsi
Solarflare boot configuration utility [v3.0.2]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
eth4:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
Mutual CHAP authentication
MPIO priority
MPIO boot attempts
MSI-X interrupt limit
Issue 11
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Enabled
Enabled
2
Enabled
SFCgPXE
Disabled
Disabled
0
3
32
© Solarflare Communications 2014
67
Solarflare Server Adapter
User Guide
• iSCSI enable adapter eth2. Disable DHCP. Specify adapter IP address and netmask:
sfboot boot-type=iscsi --adapter=eth2 initiator-dhcp=disabled initiatorip=192.168.0.1 netmask=255.255.255.0
Solarflare boot configuration utility [v3.0.2]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
eth2:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Initiator IP address
Initiator netmask
Initiator default gateway
Initiator primary DNS
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
Mutual CHAP authentication
MPIO priority
MPIO boot attempts
MSI-X interrupt limit
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Disabled
192.168.0.1
255.255.255.0
0.0.0.0
0.0.0.0
Enabled
2
Enabled
SFCgPXE
Disabled
Disabled
0
3
32
• Enable PXE boot
sfboot boot-image=option rom boot-type=pxe
• Enable SR-IOV
sfboot sriov=enabled vf-count=16 vf-msix-limit=1
Issue 11
© Solarflare Communications 2014
68
Solarflare Server Adapter
User Guide
• SFN7000 Series - Firmware Variant
sfboot firmware-variant=full-feature
Solarflare boot configuration utility [v4.0.0]
Copyright Solarflare Communications 2006-2013, Level 5 Networks 2002-2005
eth4:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Issue 11
Option ROM only
Negotiated automatically
7 seconds
3 seconds
6 seconds
PXE
32
0
1
full feature / virtualization
© Solarflare Communications 2014
69
Solarflare Server Adapter
User Guide
3.18 Upgrading Adapter Firmware with Sfupdate
• Sfupdate: Command Usage...Page 70
• Sfupdate: Command Line Options...Page 73
• Sfupdate: Examples...Page 74
Sfupdate is a command line utility to manage and upgrade the Solarflare adapter Boot ROM, Phy and
adapter firmware. Embedded within the sfupdate executable are firmware images for various
Solarflare adapters - the exact updates available via sfupdate depend on the adapter.
See Configuring the Solarflare Boot ROM Agent on page 344 for more information on the Boot Rom
agent.
NOTE: All Applications accelerated with OpenOnload should be terminated before updating the
firmware with sfupdate.
Sfupdate: Command Usage
The general usage for sfupdate is as follows (as root):
sfupdate [--adapter=eth<N>] [options]
where:
ethN is the interface name (ifname) of the Solarflare adapter to be upgraded.
option is one of the command options listed in Table 19.
The format for the options are:
<option>=<parameter>
Running the command sfupdate with no additional parameters will show the current firmware
version for all Solarflare adapters and identifies whether the firmware within sfupdate is more up to
date. To update the firmware for all Solarflare adapters run the command sfupdate --write
Solarflare recommend the following procedure:
1
Run sfupdate to check that the firmware on all adapters is up to date.
2
Run sfupdate --write to update the firmware on all adapters.
Sfupdate: Linux MTD Limitations
The driver supplied "inbox" within RedHat and Novell distributions has a limitation on the number
of adapters that sfupdate can support. This limitation is removed from RHEL 6.5 onwards. The
Solarflare supplied driver is no longer subject to this limitation on any distro/kernel.
Linux kernel versions prior to 2.6.20 support up to 16 MTD (flash) devices. Solarflare adapters are
equipped with 6 flash partitions. If more than two adapters are deployed within a system a number
of flash partitions will be inaccessible during upgrade.
The limit was raised to 32 in Linux kernel version 2.6.20 and removed altogether in 2.6.35.
Issue 11
© Solarflare Communications 2014
70
Solarflare Server Adapter
User Guide
If issues are encountered during sfupdate, the user should consider one of the following options
when upgrading firmware on systems equipped with more than two Solarflare adapters:
• Upgrade two adapters at a time with the other adapters removed.
• Upgrade the kernel.
• Rebuild the kernel, raising the value of MAX_MTD_DEVICES in include/linux/mtd/mtd.h.
• Request bootable utilities from [email protected]
Overcome Linux MTD Limitations
An alternative method is available to upgrade the firmware without removing the adapters.
1
Unbind all interfaces from the drivers:
# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\
> /sys/bus/pci/devices/${bdf}/driver/unbind; done
2
ifconfig -a will not discover any Solarflare interfaces.
3
Identify the bus/device/function for all Solarflare interfaces:
# lspci -D -d 1924:
4
Output similar to the following will be produced (5 NICs installed in this example):
# lspci -D -d 1924:
0000:02:00.0 Ethernet
[Solarstorm]
0000:02:00.1 Ethernet
[Solarstorm]
0000:03:00.0 Ethernet
[Solarstorm]
0000:03:00.1 Ethernet
[Solarstorm]
0000:04:00.0 Ethernet
[Solarstorm]
0000:04:00.1 Ethernet
[Solarstorm]
0000:83:00.0 Ethernet
[Solarstorm]
0000:83:00.1 Ethernet
[Solarstorm]
0000:84:00.0 Ethernet
[Solarstorm]
0000:84:00.1 Ethernet
[Solarstorm]
Issue 11
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFL9021
controller: Solarflare Communications SFL9021
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
controller: Solarflare Communications SFC9020
© Solarflare Communications 2014
71
Solarflare Server Adapter
User Guide
5
#
#
#
#
There are enough resources to upgrade two NICs at a time, so re-bind interfaces in groups of
four (2x2NICs):
echo
echo
echo
echo
6
-n
-n
-n
-n
"0000:02:00.0"
"0000:02:00.1"
"0000:03:00.0"
"0000:03:00.1"
>
>
>
>
/sys/bus/pci/drivers/sfc/bind
/sys/bus/pci/drivers/sfc/bind
/sys/bus/pci/drivers/sfc/bind
/sys/bus/pci/drivers/sfc/bind
Run sfupdate to update these NICs (command options may vary):
# sfupdate --write --yes --force
7
Run the command to unbind the interfaces again, there will be failures reported because some
of the interfaces aren’t bound:
# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\
> /sys/bus/pci/devices/${bdf}/driver/unbind; done
8
Repeat the process for the other interfaces (0000:04:00.x; 0000:83:00.x and 0000:84:00.x)
doing so in pairs until all the NICs have been upgraded.
9
Rebind all interfaces, doing so en-mass and ignoring errors from those already bound:
# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\
> /sys/bus/pci/drivers/sfc/bind; done
10 Alternatively reload the sfc driver:
# onload_tool reload
or:
# modprobe -r sfc
# modprobe sfc
11 Run ifconfig -a again to find that all the interfaces are reported and all have been
firmware upgraded without having to physically touch the server or change the kernel.
Sfupdate: SLES 11 Limitation
Due to limitations in SLES 11 using kernel versions prior to 2.6.27.54 it is necessary to reboot the
server after running the sfupdate utility to upgrade server firmware.
Issue 11
© Solarflare Communications 2014
72
Solarflare Server Adapter
User Guide
Sfupdate: Command Line Options
Table 19 lists the options for sfupdate.
Table 19: Sfupdate Options
Option
Description
-h, --help
Shows help for the available options and command line
syntax.
-i, --adapter=ethX
Specifies the target adapter when more than one
adapter is installed in the localhost.
ethX = Adapter ifname or MAC address (as obtained
with --list).
--list
Shows the adapter ID, adapter name and MAC address of
each adapter installed in the localhost.
--write
Re-writes the firmware from the images embedded in
the sfupdate tool. To re-write using an external image,
specify --image=<filename> in the command.
--write fails if the embedded image is the same or a
previous version. To force a write in this case, specify -force in the command.
Issue 11
--force
Force the update of all firmware, even if the installed
firmware version is the same as, or more recent then,
the firmware embedded in sfupdate.
--image=(filename)
Update the firmware using the binary image from the
given file rather than from those embedded in the utility.
-y, --yes
Prompts for user confirmation before writing the
firmware to the adapter.
-v, --verbose
Verbose mode.
-s, --silent
Suppress output while the utility is running; useful when
the utility is used in a script.
-V --version
Display version information and exit.
© Solarflare Communications 2014
73
Solarflare Server Adapter
User Guide
Sfupdate: Examples
• Display firmware versions for all adapters:
sfupdate
Solarstorm firmware update utility [v3.0.3]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
eth1 - MAC: 00-0F-53-01-39-70
Firmware version:
v3.0.3
PHY type:
QT2025C
PHY version:
v2.0.2.5
Controller type:
Solarflare SFC4000
Controller version: v3.0.3.2127
BootROM version:
v3.0.3.2127
The PHY firmware is up to date
The BootROM firmware is up to date
The controller firmware is up to date
eth2 - MAC: 00-0F-53-01-39-71
Firmware version:
v3.0.2
PHY type:
QT2025C
PHY version:
v2.0.2.5
The PHY firmware is up to date
Issue 11
© Solarflare Communications 2014
74
Solarflare Server Adapter
User Guide
3.19 License Install with sfkey
The sfkey utility is distributed with the Linux Utilities RM package. This utility is used to install
Solarflare AppFlex™ licenses and enable selected on-board services for Solarflare adapters. For more
information about license requirements see Solarflare AppFlex™ Technology Licensing. on page 12.
sfkey: Command Usage
# sfkey [--adapter=eth<N>] [options]
If the adapter option is not specified, operations will be applied to all installed adapters.
• To view all sfkey options:
# sfkey --help
• To list (by serial number) all adapters that support licensing:
# sfkey --inventory
• To display an adapter serial number and installed license keys:
# sfkey --adapter=eth4 --report
2-port adapter:
eth4, eth5
Product name:
Solarflare SFN7122F SFP+ Server Adapter
Part number:
SFN7122F
Serial number:
712200205071133867100441
MAC addresses:
00-0F-53-21-9B-B0, 00-0F-53-22-8B-B1
Installed keys:
Onload, PTP, SolarCapture Pro, SolarSecure Filter
Engine,
Active keys:
Onload, PTP, SolarCapture Pro, SolarSecure Filter Engine
Blacklisted keys:
0
Invalid keys:
0
Unverifiable keys: 0
Inapplicable keys: 0
• To install a license:
Copy the license key data to a .txt file on the target server. All keys can be in the same key file and
the file applied on multiple servers. The following example uses a license key file called key.txt
created on the local server.
# sfkey --adapter=eth<N> --install key.txt
sfkey firmware update utility: v3.3.3.6330
Copyright Solarflare Communications 2006-2013, Level 5 Networks 2002-2005
Reading keys...
Writing keys to eth1...
Adapter: eth1
Issue 11
© Solarflare Communications 2014
75
Solarflare Server Adapter
User Guide
Product name: Solarflare SFN7122F SFP+ Adapter
Part number: SFN7122F
Serial number: 712200205071133867100591
MAC address: 00-0F-53-21-9B-B0
Installed keys: OpenOnload, PTP, SolarCapture Pro
Active keys: OpenOnload, PTP, SolarCapture Pro
Blacklisted keys: 0
Invalid keys: 0
License Inventory
Use the combined --inventory and --keys options to identify the licenses installed on an adapter.
sfkey --adapter=eth4 --inventory --keys
eth4, eth5: 712200205071133867100441 (Flareon), $ONL, PTP, SCP, SSFE, !PM,
License information is displayed in [Prefix] [Acronym] [Suffix] format.
Prefix:
(may be omitted)
Acronym:
Suffix:
Issue 11
$
!
Factory-fitted,
Not present.
LNA
Line Arbitration,
ONL
Onload,
PCAP
Packet Capture,
PM
Performance Monitor,
PTP
Precision Time Protocol,
RSE
Resilient Ethernet,
SCP
SolarCapture Pro,
SSFE
SolarSecure Filter Engine,
An
Application unknown to this version of sfkey
('n' is a placeholder for the application id).
<none> Licensed,
+
Site licensed,
~
Evaluation license,
*
Inactive license,
@
Inactive site license,
No state available.
© Solarflare Communications 2014
76
Solarflare Server Adapter
User Guide
sfkey Options
Table 20 describes all sfkey options.
Table 20: sfkey options
Option
Description
--backup
Output a report of the installed keys in all adapters. The
report can be saved to file and later used with the -install option.
--install <filename>
Install license keys from the given file and report the
result. To read from stdin use "-" in place of filename.
Keys are installed to an adapter, so if an adapter’s ports
are eth4 and eth5, both ports will be affected by the keys
installed.
sfc driver reload is required after sfkey installs a PTP
license.
To reload the sfc driver:
# modprobe -r sfc; modprode sfc
or when Onload is installed:
# onload_tool reload
Issue 11
--inventory
List by serial number all adapters that support licensing.
By default this will list adapters that support licenses. To
list all adapters use the --all option. To list keys use the -keys option.
--keys
Include keys in --inventory output - see License Inventory
above.
--noevaluationupdate
Do not update evaluation keys.
-a --all
Apply sfkey operation to all adapters that support
licensing.
-c --clear
Delete all existing license keys from an adapter - except
factory installed keys.
-h, --help
Display all sfkey options.
-i --adapter
identify specific adapter to apply sfkey operation to.
© Solarflare Communications 2014
77
Solarflare Server Adapter
User Guide
Table 20: sfkey options
Option
Description
-r --report
Display an adapter serial number and current license
status (see example above).
Use with --all or with --adapter.
If an installed or active key is reported as ’An’ (where n is
a number), it indicates a license unknown to this version
of sfkey - use an updated sfkey version.
Issue 11
-s --silent
Silent mode, output errors only.
-v --verbose
Verbose mode.
-V --version
Display sfkey version and exit.
-x --xml
Report format as XML.
© Solarflare Communications 2014
78
Solarflare Server Adapter
User Guide
3.20 Performance Tuning on Linux
• Introduction...Page 79
• Tuning settings...Page 80
• Other Considerations...Page 94
Introduction
The Solarflare family of network adapters are designed for high-performance network applications.
The adapter driver is pre-configured with default performance settings that have been chosen to
give good performance across a broad class of applications. In many cases, application performance
can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter:
• Throughput
• Latency
• CPU utilization
Different applications may be more or less affected by improvements in these three metrics. For
example, transactional (request-response) network applications can be very sensitive to latency
whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this guide is to highlight adapter driver settings that affect the performance metrics
described. This guide covers the tuning of all Solarflare adapters.
In addition to this guide, the user should consider other issues influencing performance such as
application settings, server motherboard chipset, additional software installed on the system, such
as a firewall, and the specification and configuration of the LAN. Consideration of such issues is not
within the scope of this guide.
Issue 11
© Solarflare Communications 2014
79
Solarflare Server Adapter
User Guide
Tuning settings
Adapter MTU (Maximum Transmission Unit)
The default MTU of 1500 bytes ensures that the adapter is compatible with legacy 10/100Mbps
Ethernet endpoints. However if a larger MTU is used, adapter throughput and CPU utilization can be
improved. CPU utilization is improved because it takes fewer packets to send and receive the same
amount of data. Solarflare adapters support frame sizes up to 9216 bytes (this does not include the
Ethernet preamble or frame-CRC).
Since the MTU should ideally be matched across all endpoints in the same LAN (VLAN), and since the
LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than
default MTU requires careful consideration. It is recommended that experimentation with MTU be
done in a controlled test environment.
The MTU is changed dynamically using ifconfig, where ethX is the interface name and size is the
MTU size in bytes:
# /sbin/ifconfig <ethX> mtu <size>
Verification of the MTU setting may be performed by running ifconfig with no options and
checking the MTU value associated with the interface. The change in MTU size can be made to
persist across reboots by editing the file /etc/sysconfig/network-scripts/ifcfg-ethX
and adding MTU=<mtu> on a new line.
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation controls the number of interrupts generated by the adapter by adjusting the
extent to which receive packet processing events are coalesced. Interrupt moderation may coalesce
more than one packet-reception or transmit-completion event into a single interrupt.
By default, adaptive moderation is enabled. Adaptive moderation means that the network driver
software adapts the interrupt moderation setting according to the traffic and workload conditions.
Before adjusting the interrupt interval, it is recommended to disable adaptive moderation:
ethtool -C <ethX> adaptive-rx off
Interrupt moderation can be changed using ethtool, where ethX is the interface name and
interval is the moderation setting in microseconds (μs). An interval value of zero (0) will turn
interrupt moderation off.
To set RX interrupt moderation:
ethtool –C <ethX> rx-usecs <interval> rx-frames 0
or
ethtool –C <ethX> rx-usecs 0 rx-frames 1
The above example also sets the transmit interrupt moderation interval unless the driver module
parameter separate_tx_channels is enabled. Normally packet RX and TX completions will share
interrupts so RX and TX interrupt moderation intervals must be equal, then the adapter driver
automatically adjusts tx-usecs to match rx-usecs. Refer to Table 25: Driver Module Parameters.
Issue 11
© Solarflare Communications 2014
80
Solarflare Server Adapter
User Guide
To set TX interrupt moderation, if separate_tx_channels is enabled:
ethtool –C <ethX> tx-usecs 0 tx-frames 0
or
ethtool –C <ethX> tx-usecs 0 tx-frames 1
Interrupt moderation settings can be checked using ethtool –c .
The interrupt moderation interval is critical for tuning adapter latency:
• Increasing the moderation value will increase latency, but reduce CPU utilization and improve
peak throughput, if the CPU is fully utilized.
• Decreasing the moderation value or turning it off will decrease latency at the expense of CPU
utilization and peak throughput.
For many transaction request-response type network applications, the benefit of reduced latency to
overall application performance can be considerable. Such benefits may outweigh the cost of
increased CPU utilization.
NOTE: The interrupt moderation interval dictates the minimum gap between two consecutive
interrupts. It does not mandate a delay on the triggering of an interrupt on the reception of every
packet. For example, an interrupt moderation setting of 30μs will not delay the reception of the
first packet received, but the interrupt for any following packets will be delayed until 30μs after the
reception of that first packet.
TCP/IP Checksum Offload
Checksum offload moves calculation and verification of IP Header, TCP and UDP packet checksums
to the adapter. The driver by default has all checksum offload features enabled. Therefore, there is
no opportunity to improve performance from the default.
Checksum offload is controlled using ethtool:
Receive Checksum:
# /sbin/ethtool –K <ethX> rx <on|off>
Transmit Checksum:
# /sbin/ethtool –K <ethX> tx <on|off>
Verification of the checksum settings may be performed by running ethtool with the –k option.
Solarflare recommend you do not disable checksum offload.
Issue 11
© Solarflare Communications 2014
81
Solarflare Server Adapter
User Guide
TCP Segmentation Offload (TSO)
TCP Segmentation offload (TSO) offloads the splitting of outgoing TCP data into packets to the
adapter. TCP segmentation offload benefits applications using TCP. Non TCP protocol applications
will not benefit (but will not suffer) from TSO.
Enabling TCP segmentation offload will reduce CPU utilization on the transmit side of a TCP
connection, and so improve peak throughput, if the CPU is fully utilized. Since TSO has no effect on
latency, it can be enabled at all times. The driver has TSO enabled by default. Therefore, there is no
opportunity to improve performance from the default.
TSO is controlled using ethtool:
# /sbin/ethtool –K <ethX> tso <on|off>
Verification of the TSO settings may be performed by running ethtool with the –k option.
Solarflare recommend you do not disable TSO.
TCP Large Receive Offload (LRO)
TCP Large Receive Offload (LRO) is a feature whereby the adapter coalesces multiple packets
received on a TCP connection into a single call to the operating system TCP Stack. This reduces CPU
utilization, and so improves peak throughput when the CPU is fully utilized.
LRO should not be enabled if you are using the host to forward packets from one interface to
another; for example if the host is performing IP routing or acting as a layer2 bridge. The driver has
LRO enabled by default.
Issue 11
© Solarflare Communications 2014
82
Solarflare Server Adapter
User Guide
.
NOTE: It has been observed that as RHEL6 boots the libvirtd daemon changes the default
forwarding setting such that LRO is disabled on all network interfaces. This behaviour is undesirable
as it will potentially lower bandwidth and increase CPU utilization - especially for high bandwidth
streaming applications.
To determine if LRO is enabled on an interface:
ethtool -k ethX
If IP forwarding is not required on the server, Solarflare recommends either:
Disabling the libvirtd service (if this is not being used),
Or, as root before loading the Solarflare driver:
sysctl -w net.ipv4.conf.default.forwarding=0
(This command can be loaded into /etc/rc.local),
Or, after loading the Solarflare driver, turn off forwarding for only the Solarflare interfaces
and re-enable LRO:
sysctl -w net.ipv4.conf.ethX.forwarding=0
ethtool -K ethX lro on
(where X is the id of the Solarflare interface).
Disabling the libvirtd service is a permanent solution, whereas the other recommendations are
temporary and will not persist over reboot.
LRO should not be enabled if IP forwarding is being used on the same interface as this could result
in incorrect IP and TCP operation.
LRO can be controlled using the module parameter lro. Add the following line to /etc/
modprobe.conf or add the options line to a file under the /etc/modprobe.d directory to
disable LRO:
options sfc lro=0
Then reload the driver so it picks up this option:
rmmod sfc
modprobe sfc
The current value of this parameter can be found by running:
cat /sys/module/sfc/parameters/lro
Issue 11
© Solarflare Communications 2014
83
Solarflare Server Adapter
User Guide
LRO can also be controlled on a per-adapter basis by writing to this file in sysfs:
/sys/class/net/ethX/device/lro
To disable LRO:
echo 0 > /sys/class/net/ethX/device/lro
To enable LRO:
echo 1 > /sys/class/net/ethX/device/lro
To show the current value of the per-adapter LRO state:
cat /sys/class/net/ethX/device/lro
Modifying this file instantly enables or disables LRO, no reboot or driver reload is required. This
setting takes precedence over the lro module parameter
Current LRO settings can be identified with Linux ethtool .e.g.
ethtool -k ethX
Issue 11
© Solarflare Communications 2014
84
Solarflare Server Adapter
User Guide
TCP Protocol Tuning
TCP Performance can also be improved by tuning kernel TCP settings. Settings include adjusting send
and receive buffer sizes, connection backlog, congestion control, etc.
For Linux kernel versions, including 2.6.16 and later, initial buffering settings should provide good
performance. However for earlier kernel versions, and for certain applications even on later kernels,
tuning buffer settings can significantly benefit throughput. To change buffer settings, adjust the
tcp_rmem and tcp_wmem using the sysctl command:
Receive buffering:
sysctl net.ipv4.tcp_rmem="<min> <default> <max>"
Transmit buffering:
sysctl net.ipv4.tcp_wmem="<min> <default> <max>"
(tcp_rmem and tcp_wmem can also be adjusted for IPV6 and globally with the net.ipv6 and net.core
variable prefixes respectively).
Typically it is sufficient to tune just the max buffer value. It defines the largest size the buffer can
grow to. Suggested alternate values are max=500000 (1/2 Mbyte). Factors such as link latency,
packet loss and CPU cache size all influence the affect of the max buffer size values. The minimum
and default values can be left at their defaults minimum=4096 and default=87380.
Receive Side Scaling (RSS)
Solarflare adapters support Receive Side Scaling (RSS). RSS enables packet receive-processing to
scale with the number of available CPU cores. RSS requires a platform that supports MSI-X
interrupts. RSS is enabled by default.
When RSS is enabled the controller uses multiple receive queues into which to deliver incoming
packets. The receive queue selected for an incoming packet is chosen in such a way as to ensure that
packets within a TCP stream are all sent to the same receive queue – this ensures that packetordering within each stream is maintained. Each receive queue has its own dedicated MSI-X
interrupt which ideally should be tied to a dedicated CPU core. This allows the receive side TCP
processing to be distributed amongst the available CPU cores, providing a considerable performance
advantage over a conventional adapter architecture in which all received packets for a given
interface are processed by just one CPU core. RSS can be restricted to only process receive queues
on the NUMA node local to the Solarflare adapter. To configure this the driver module option
rss_numa_local should be set to 1.
By default the drivers enables RSS and configures one RSS Receive queue per CPU core. The number
of RSS Receive queues can be controlled via the driver module parameter rss_cpus. The following
options are supported:
Issue 11
© Solarflare Communications 2014
85
Solarflare Server Adapter
User Guide
Table 21: rss_cpus Options
Option
Description
Interrupt Affinity (MSI-X)
<num_cpus>
Indicates the number of RSS
queues to create.
A separate MSI-X interrupt for a receive
queue is affinitized to each CPU.
packages
An RSS queue will be created for
each multi-core CPU package.
The first CPU in the package will
be chosen.
A separate MSI-X interrupt for a receive
queue, is affinitized to each of the
designated package CPUs.
cores
An RSS queue will be created for
each CPU. The first hyperthread
instance (If CPU has
hyperthreading) will be chosen.
A separate MSI-X interrupt for a receive
queue, is affinitized to each of the
CPUs.
The default option.
hyperthreads
An RSS queue will be created for
each CPU hyperthread
(hyperthreading must be
enabled).
A separate MSI-X interrupt for a receive
queue, is affinitized to each of the
hyperthreads.
Add the following line to /etc/modprobe.conf file or add the options line to a user created file
under the /etc/modprobe.d directory. The file should have a .conf extension:
options sfc rss_cpus=<option>
To set rss_cpus equal to the number of CPU cores:
options sfc rss_cpus=cores
Sometimes, it can be desirable to disable RSS when running single stream applications, since all
interface processing may benefit from taking place on a single CPU:
options sfc rss_cpus=1
NOTE: The association of RSS receive queues to a CPU is governed by the receive queue's MSI-X
interrupt affinity. See Interrupt and Irqbalance Service on page 91 for more details.
The driver must be reloaded to enable option changes:
rmmod sfc
modprobe sfc
Issue 11
© Solarflare Communications 2014
86
Solarflare Server Adapter
User Guide
NOTE: The rss_cpus parameter controls the number of MSI-X interrupts used by each Solarflare
port. Unfortunately, some older Linux version have a bug whereby the maximum number of MSI-X
interrupts used by a PCI function is fixed at the first driver load. For instance, if the drivers are first
loaded with rss_cpus=1, all subsequent driver loads will always use rss_cpus=1.
Red Hat Enterprise Linux 5 update 2 (and above), and SUSE Enterprise Linux 11 are not affected by
this issue.
To workaround this issue, you must reboot the host after modifying rss_cpus.
NOTE: RSS also works for UDP packets. For UDP traffic the Solarflare adapter will select the Receive
CPU based on IP source and destination addresses. Solarflare adapters support IPv4 and IPv6 RSS
except the SFN4xxx adapters which only supports IPv4 RSS.
Receive Flow Steering (RFS)
RFS will attempt to steer packets to the core where a receiving application is running. This reduces
the need to move data between processor caches and can significantly reduce latency and jitter.
Modern NUMA systems, in particular, can benefit substantially from RFS where packets are
delivered into memory local to the receiving thread.
Unlike RSS which selects a CPU from a CPU affinity mask set by an administrator or user, RFS will
store the application's CPU core identifier when the application process calls recvmsg() or
sendmsg().
• A hash is calculated from a packet’s addresses or ports (2-tuple or 4-tuple) and serves as the
consistent hash for the flow associated with the packet.
• Each receive queue has an associated list of CPUs to which RFS may enqueue the received
packets for processing.
• For each received packet, an index into the CPU list is computed from the flow hash modulo the
size of the CPU list.
There are two types of RFS implementation; Soft RFS and Hardware (or Accelerated) RFS.
Soft RFS is a software feature supported since Linux 2.6.35 that attempts to schedule protocol
processing of incoming packets on the same processor as the user thread that will consume the
packets.
Accelerated RFS requires Linux kernel version 2.6.39 or later, with the Linux sfc driver or Solarflare
v3.2 network adapter driver.
RFS can dynamically change the allowed CPUs that can be assigned to a packet or packet stream and
this introduces the possibility of out of order packets. To prevent out of order data, two tables are
created that hold state information used in the CPU selection.
Issue 11
© Solarflare Communications 2014
87
Solarflare Server Adapter
User Guide
• Global_flow_table: Identifies the number of simultaneous flows that are managed by RFS.
• Per_queue_table: Identifies the number of flows that can be steered to a queue. This holds
state as to when a packet was last received.
The tables support the steering of incoming packets from the network adapter to a receive queue
affinitized to a CPU where the application is waiting to receive them. The Solarflare accelerated RFS
implementation requires configuration through the two tables and the ethtool -K command.
The following sub-sections identify the RFS configuration procedures:
Kernel Configuration
Before using RFS the kernel must be compiled with the kconfig symbol CONFIG_RPS enabled.
Global Flow Count
Configure the number of simultaneous flows that will be managed by RFS. The suggested flow count
will depend on the expected number of active connections at any given time and may be less than
the number of open connections. The value is rounded up to the nearest power of two.
# echo 32768 > /proc/sys/net/core/rps_sock_flow_entries
Per Queue Flow Count
For each adapter interface there will exist a ’queue’ directory containing one ’rx’ or ’tx’ subdirectory
for each queue associated with the interface. For RFS only the receive queues are relevant.
# cd /sys/class/net/eth3/queue
Within each ’rx’ subdirectory, the rps_flow_cnt file holds the number of entries in the per- queue
flow table. If only a single queue is used then rps_flow_cnt will be the same as
rps_sock_flow_entries. When multiple queues are configured the count will be equal to
rps_sock_flow_entries/N where N is the number of queues, for example:
rps_sock_flow_entries = 32768 and there are 16 queues then rps_flow_cnt for each queue
will be configured as 2048.
# echo 2048 > /sys/class/net/eth3/queues/rx-0/rps_flow_cnt
# echo 2048 > /sys/class/net/eth3/queues/rx-1/rps_flow_cnt
Disable RFS
To turn off RFS using the following command:
# ethtool -K <devname> ntuple off
Issue 11
© Solarflare Communications 2014
88
Solarflare Server Adapter
User Guide
Transmit Packet Steering
Transmit Packet Steering (XPS) is supported in Linux 2.6.38 and later. XPS is a mechanism for
selecting which transmit queue to use when transmitting a packet on a multi-queue device.
XPS is configured on a per transmit queue basis where a bitmap of CPUs identifies the CPUs that may
use the queue to transmit.
Kernel Configuration
Before using XPS the kernel must be compiled with the kconfig symbol CONFIG_XPS enabled.
Configure CPU/Hyperthreads
Within in each /sys/class/net/eth3/queues/tx-N directory there exists an ’xps_cpus’ file
which contains a bitmap of CPUs that can use the queue to transmit. In the following example
transmit queue 0 can be used by the first two CPUs and transmit queue 1 can be used by the
following two CPUs:
# echo 3 > /sys/class/net/eth3/queues/tx-0/xps_cpus
# echo c > /sys/class/net/eth3/queues/tx-0/xps_cpus
If hyperthreading is enabled, each hyperthread is identified as a seperate CPU, for example if the
system has 16 cores but 32 hyperthreads then the transmit queues should be paired with the
hyperthreaded cores:
# echo 30003 > /sys/class/net/eth3/queues/tx-0/xps_cpus
# echo c000c > /sys/class/net/eth3/queues/tx-0/xps_cpus
XPS - Example Configuration
System Configuration:
• Single Solarflare adapter
• 2 x 8 core processors with hyperthreading enabled to give a total of 32 cores
• rss_cpus=8
• Only 1 interface on the adapter is configured
• The IRQ Balance service is disabled
Issue 11
© Solarflare Communications 2014
89
Solarflare Server Adapter
User Guide
Identify interrupts for the configured interface:
# cat /proc/interrupts | grep ’eth3\ | CPU’
> cat /proc/irq/132/smp_affinity
00000000,00000000,00000000,00000001
> cat /proc/irq/133/smp_affinity
00000000,00000000,00000000,00000100
> cat /proc/irq/134/smp_affinity
00000000,00000000,00000000,00000002
[...snip...]
> cat /proc/irq/139/smp_affinity
00000000,00000000,00000000,00000800
The output identifies that IRQ-132 is the first queue and is routed to CPU0. IRQ-133 is the second
queue routed to CPU8, IRQ-134 to CPU2 and so on.
Map TX queue to CPU
Hyperthreaded cores are included with the associated physical core:
>
>
>
>
>
>
>
>
echo
echo
echo
echo
echo
echo
echo
echo
110011
11001100
220022
22002200
440044
44004400
880088
88008800
>
>
>
>
>
>
>
>
/sys/class/net/eth3/queues/tx-0/xps_cpus
/sys/class/net/eth3/queues/tx-1/xps_cpus
/sys/class/net/eth3/queues/tx-2/xps_cpus
/sys/class/net/eth3/queues/tx-3/xps_cpus
/sys/class/net/eth3/queues/tx-4/xps_cpus
/sys/class/net/eth3/queues/tx-5/xps_cpus
/sys/class/net/eth3/queues/tx-6/xps_cpus
/sys/class/net/eth3/queues/tx-7/xps_cpus
Configure Global and Per Queue Tables
• The flow count (number of active connections at any one time) = 32768
• Number of queues = 8 (rss_cpus)
• So the flow count for each queue will be 32768/8
>
>
>
>
>
>
>
>
>
Issue 11
echo
echo
echo
echo
echo
echo
echo
echo
echo
32768 > /proc/sys/net/core/rps_sock_flow_entries
4096 > /sys/class/net/eth3/queues/rx-0/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-1/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-2/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-3/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-4/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-5/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-6/rps_flow_cnt
4096 > /sys/class/net/eth3/queues/rx-7/rps_flow_cnt
© Solarflare Communications 2014
90
Solarflare Server Adapter
User Guide
Interrupt and Irqbalance Service
Interrupt affinity describes the set of host cpus that may service a particular interrupt.
This affinity therefore dictates the CPU context where received packets will be processed and where
transmit packets will be freed once sent. If the application can process the received packets in the
same CPU context by being affinitized to the relevant CPU, then latency and CPU utilization can be
improved. This improvement is achieved because well tuned affinities reduce inter-CPU
communication.
Tuning interrupt affinity is most relevant when MSI-X interrupts and RSS are being used. The
irqbalance service, which typically runs by default in most Linux distributions, is a service that
automatically changes interrupt affinities based on CPU workload.
In many cases the irqbalance service hinders rather than enhances network performance. It is
therefore necessary to disable it and then set interrupt affinities.
To disable irqbalance permanently, run:
/sbin/chkconfig -level 12345 irqbalance off
To see whether irqbalanace is currently running, run:
/sbin/service irqbalance status
To disable irqbalance temporarily, run:
/sbin/service irqbalance stop
Once the irqbalance service has been stopped, the Interrupt affinities can be configured manually.
NOTE: The Solarflare driver will evenly distribute interrupts across the available host CPUs (based
on the rss_cpus module parameter).
To use the Solarflare driver default affinities (recommended), the irqbalance service must be
disabled before the Solarflare driver is loaded (otherwise it will immediately overwrite the affinity
configuration values set by the Solarflare driver).
Example 1:
How affinities should be manually set will depend on the application. For a single streamed
application such as Netperf, one recommendation would be to affinitize all the Rx queues and the
application on the same CPU. This can be achieved with the following steps:
1
Determine which interrupt line numbers the network interface uses. Assuming the interface is
eth0, this can be done with:
# cat /proc/interrupts | grep eth0-
Issue 11
123:
13302
0
0
0
PCI-MSI-X
eth0-0
131:
0
24
0
0
PCI-MSI-X
eth0-1
139:
0
0
32
0
PCI-MSI-X
eth0-2
147:
0
0
0
21
PCI-MSI-X
eth0-3
© Solarflare Communications 2014
91
Solarflare Server Adapter
User Guide
This output shows that there are four channels (rows) set up between four cpus (columns).
2
Determine the CPUs to which these interrupts are assigned to:
# cat /proc/irq/123/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
01
# cat /proc/irq/131/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
02
# cat /proc/irq/139/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
04
# cat /proc/irq/147/smp_affinity
00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000
08
This shows that RXQ[0] is affinitized to CPU[0], RXQ[1] is affinitized to CPU[1], and so on.
With this configuration, the latency and cpu utilization for a particular TCP flow will be
dependant on that flow’s RSS hash, and which CPU that hash resolves onto.
NOTE: Interrupt line numbers and their initial CPU affinity are not guaranteed to be the same
across reboots and driver reloads. Typically, it is therefore necessary to write a script to query these
values and apply the affinity accordingly.
3
Set all network interface interrupts to a single CPU (in this case CPU[0]):
#
#
#
#
echo
echo
echo
echo
1
1
1
1
>
>
>
>
/proc/irq/123/smp_affinity
/proc/irq/131/smp_affinity
/proc/irq/139/smp_affinity
/proc/irq/147/smp_affinity
NOTE: The read-back of /proc/irq/N/smp_affinity will return the old value until a new
interrupt arrives.
Set the application to run on the same CPU (in this case CPU[0]) as the network interface’s
interrupts:
# taskset 1 netperf
# taskset 1 netperf
Issue 11
-H <host>
© Solarflare Communications 2014
92
Solarflare Server Adapter
User Guide
NOTE: The use of taskset is typically only suitable for affinity tuning single threaded, single traffic
flow applications. For a multi threaded application, whose threads for example process a subset of
receive traffic, taskset is not suitable. In such applications, it is desirable to use RSS and Interrupt
affinity to spread receive traffic over more than one CPU and then have each receive thread bind to
each of the respective CPUs. Thread affinities can be set inside the application with the
shed_setaffinity() function (see Linux man pages). Use of this call and how a particular
application can be tuned is beyond the scope of this guide.
If the settings have been correctly applied, all interrupts from eth0 are being handled on CPU[0].
This can be checked:
# cat /proc/interrupts | grep eth0123:
13302
0
1278131
0
PCI-MSI-X
eth0-0
131:
0
24
0
0
PCI-MSI-X
eth0-1
139:
0
0
32
0
PCI-MSI-X
eth0-2
147:
0
0
0
21
PCI-MSI-X
eth0-3
Example 2:
An example of affinitizing each interface to a CPU on the same package:
First identify which interrupt lines are servicing which CPU and IO device:
# cat /proc/interrupts | grep eth0123:
13302
0
1278131
# cat /proc/interrupts | grep eth1131:
0
24
0
0
PCI-MSI-X
eth0-0
0
PCI-MSI-X
eth1-0
Find CPUs on same package (have same ‘package-id’):
# more /sys/devices/system/cpu/cpu*/topology/physical_package_id
::::::::::::::
/sys/devices/system/cpu/cpu0/topology/physical_package_id
::::::::::::::
1
::::::::::::::
/sys/devices/system/cpu/cpu10/topology/physical_package_id
::::::::::::::
1
::::::::::::::
/sys/devices/system/cpu/cpu11/topology/physical_package_id
::::::::::::::
0
…
Having determined that cpu0 and cpu10 are on package 1, we can assign each ethX interface’s MSIX interrupt to its own CPU on the same package. In this case we choose package 1:
Issue 11
© Solarflare Communications 2014
93
Solarflare Server Adapter
User Guide
# echo 1 > /proc/irq/123/smp_affinity
# echo 400 > /proc/irq/131/smp_affinity
1hex is bit 0 = CPU0
400hex is bit 10 = CPU10
Buffer Allocation Method
The Solarflare driver has a single optimized buffer allocation strategy. This replaces the two different
methods controlled with the rx_alloc_method driver module parameter which were available
using 3.3 and previous drivers.
The net driver continues to expose the rx_alloc_method module option, but the value is ignored
and it only exists to not break existing customer configurations.
TX PIO
PIO (programmed input/output) describes the process where data is directly transferred by the CPU
to or from an I/O device. It’s is an alternative technique to the I/O device using bus master DMA to
transfer data without CPU involvement.
Solarflare 7000 series adapters support TX PIO, where packet s on the transmit path can be “pushed”
to the adapter directly by the CPU. This improves the latency of transmitted packets but can cause a
very small increase in CPU utilisation. TX PIO is therefore especially useful for smaller packets.
The TX PIO feature is enabled by default for packets up to 256 bytes. The maximum packet size that
can use PIO can be configured with the driver module option piobuf_size.
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different
widths. This is independent of the physical slot size used to connect the adapter. The possible widths
are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen 1, 5.0 Gbps for PCIe Gen 2 and 8.0
Gbps for PCIe Gen 3) in each direction. Solarflare Adapters are designed for x8 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including
slots that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots,
Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will warn
if it detects the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes.
Adapters which require a PCIe Gen 2 or Gen 3 slot for optimal operation will issue a warning if they
are installed in a PCIe Gen 1 slot. Warning messages can be viewed in dmesg from /var/log/
messages.
Issue 11
© Solarflare Communications 2014
94
Solarflare Server Adapter
User Guide
The lspci command can be used to discover the currently negotiated PCIe lane width and speed:
lspci -d 1924: -vv
02:00.1 Class 0200: Unknown device 1924:0710 (rev 01)
...
Link: Supported Speed 2.5Gb/s, Width x8, ASPM L0s, Port 1
Link: Speed 2.5Gb/s, Width x8
NOTE: The Supported speed may be returned as 'unknown', due to older lspci utilities not
knowing how to determine that a slot supports PCIe Gen. 2.0/5.0 Gb/s or PCIe Gen 3.0/8,0 Gb/s.
CPU Speed Service
Most Linux distributions will have the cpuspeed service running by default. This service controls the
CPU clock speed dynamically according to current processing demand. For latency sensitive
applications, where the application switches between having packets to process and having periods
of idle time waiting to receive a packet, dynamic clock speed control may increase packet latency.
Solarflare recommend disabling the cpuspeed service if minimum latency is the main consideration.
The service can be disabled temporarily:
/sbin/service cpuspeed stop
The service can be disabled across reboots:
/sbin/chkconfig –level 12345 cpuspeed off
Memory bandwidth
Many chipsets use multiple channels to access main system memory. Maximum memory
performance is only achieved when the chipset can make use of all channels simultaneously. This
should be taken into account when selecting the number of DIMMs to populate in the server.
Consult the motherboard documentation for details.
Intel® QuickData
Intel® QuickData Technology allows recent Linux distributions to data copy by the chipset instead of
the CPU, to move data more efficiently through the server and provide fast, scalable, and reliable
throughput.
Enabling QuickData
• On some systems the hardware associated with QuickData must first be enabled (once
only) in the BIOS
• Load the QuickData drivers with modprobe ioatdma
Server Motherboard, Server BIOS, Chipset Drivers
Tuning or enabling other system capabilities may further enhance adapter performance. Readers
should consult their server user guide. Possible opportunities include tuning PCIe memory controller
(PCIe Latency Timer setting available in some BIOS versions).
Issue 11
© Solarflare Communications 2014
95
Solarflare Server Adapter
User Guide
Tuning Recommendations
The following tables provide recommendations for tuning settings for different applications.
Throughput - Table 22
Latency - Table 23
Forwarding - Table 24
Recommended Throughput Tuning
Table 22: Throughput Tuning Settings
Tuning Parameter
How?
MTU Size to maximum
supported by network
/sbin/ifconfig <ethX> mtu <size>
Interrupt moderation
Leave at default
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Leave at default for 2.6.16 and later kernels.
For earlier kernels:
sysctl net.core.tcp_rmem 4096 87380 524288
sysctl net.core.tcp_wmem 4096 87380 524288
Receive Side Scaling (RSS)
Application dependent
Interrupt affinity & irqbalance
service
Interrupt affinity application dependent
Stop irq balance service:
/sbin/service irqbalance stop
Reload the drivers to use the driver default interrupt
affinity.
Buffer Allocation Method
Leave at default. Some applications may benefit from
specific setting.
The Solarflare driver now supports a single optimized
buffer allocation strategy and any value set by the
rx_alloc_method parameter is ignored.
Issue 11
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads
back as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Speed Service (cpuspeed)
Leave enabled
© Solarflare Communications 2014
96
Solarflare Server Adapter
User Guide
Table 22: Throughput Tuning Settings
Tuning Parameter
How?
Memory bandwidth
Ensure Memory utilizes all memory channels on system
motherboard
Intel QuickData (Intel chipsets
only)
Enable in BIOS and install driver:
modprobe ioatdma
Recommended Latency Tuning
Table 23: Latency Tuning Settings
Tuning Parameter
How?
MTU Size to maximum
supported by network
Leave at default
Interrupt moderation
Disable with:
ethtool -C <ethX> rx-usecs-irq 0
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Disable using sysfs:
echo 0 > /sys/class/net/ethX/device/lro
TCP Protocol Tuning
Leave at default, but changing does not impact latency.
Receive Side Scaling
Application dependent
Interrupt affinity & irqbalance
service
Stop irq balance service:
/sbin/service irqbalance stop
Interrupt affinity settings are application dependent
Buffer Allocation Method
The Solarflare driver now supports a single optimized buffer
allocation strategy and any value set by the rx_alloc_method
parameter is ignored.
PCI Express Lane
Configuration
Ensure current speed (not the supported speed) reads back
as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Speed Service (cpuspeed)
Disable with:
/sbin/service cpuspeed stop
Memory bandwidth
Issue 11
Ensure Memory utilizes all memory channels on system
motherboard
© Solarflare Communications 2014
97
Solarflare Server Adapter
User Guide
Table 23: Latency Tuning Settings
Tuning Parameter
How?
Intel QuickData (Intel chipsets
only)
Enable in BIOS and install driver:
modprobe ioatdma
Recommended Forwarding Tuning
Table 24: Forwarding Tuning Settings
Tuning Parameter
How?
TCP Large Receive Offload
Disable using sysfs:
echo 0 > /sys/class/net/ethX/device/lro
TCP Protocol Tuning
Can leave at default for 2.6.16 and later.
For earlier kernels:
sysctl net.core.tcp_rmem 4096 87380 524288
sysctl net.core.tcp_wmem 4096 87380 524288
Receive Side Scaling (RSS)
Set to 1 CPU by adding rss_cpus to following line to /etc/
modprobe.conf file or add the options line to a file under
the /etc/modprobe.d directory:
options sfc rss_cpus=1
Then reload drivers to use new configuration.
/sbin/modprobe -r sfc
/sbin/modprobe sfc
Interrupt affinity & irqbalance
service
Stop irqbalance service:
/sbin/service irqbalance stop
Interrupt affinity. Affinitize each ethX interface to its own CPU
(if possible select CPU's on the same Package). Refer to
Interrupt and Irqbalance Service...Page 91
Buffer Allocation Method
Issue 11
The Solarflare driver now supports a single optimized buffer
allocation strategy and any value set by the rx_alloc_method
parameter is ignored.
© Solarflare Communications 2014
98
Solarflare Server Adapter
User Guide
3.21 Module Parameters
Table 25 lists the available parameters in the Solarflare Linux driver module (modinfo sfc):
Table 25: Driver Module Parameters
Parameter
Description
piobuf_size
Identify the largest packet size that can
use PIO.
Possible
Value
Default
Value
uint
256 bytes
uint
AVN(0)
new
kernels.
Setting this to zero effectively disables
PIO
rx_alloc_method
Allocation method used for RX buffers.
The Solarflare driver now supports a
single optimized buffer allocation
strategy and any value set by the
rx_alloc_method parameter is ignored.
PAGE(2)
old
kernels
See “Buffer Allocation Method” on
page 94.
Issue 11
rx_refill_threshold
RX descriptor ring fast/slow fill threshold
(%).
uint
90
lro_table_size1
Size of the LRO hash table. Must be a
power of 2.
uint
128
lro_chain_max1
Maximum length of chains in the LRO
hash table.
uint
20
lro_idle_jiffies1
Time (in jiffies) after which an idle
connection's LRO state is discarded.
uint
101
lro_slow_start_packets1
Number of packets that must pass inorder before starting LRO.
uint
20000
lro_loss_packets1
Number of packets that must pass inorder following loss before restarting
LRO.
uint
20
rx_desc_cache_size
Set RX descriptor cache size.
int
64
tx_desc_cache_size
Set TX descriptor cache size.
int
16
rx_xoff_thresh_bytes
RX fifo XOFF threshold.
int
-1 (auto)
rx_xon_thresh_bytes
RX fifo XON threshold.
int
-1 (auto)
lro
Large receive offload acceleration
int
1
separate_tx_channels
Use separate channels for TX and RX
uint
0
© Solarflare Communications 2014
99
Solarflare Server Adapter
User Guide
Table 25: Driver Module Parameters
Possible
Value
Default
Value
Number of CPUs to use for Receive-Side
Scaling, or 'packages', 'cores' or
'hyperthreads'
uint or
string
<empty>
irq_adapt_enable
Enable adaptive interrupt moderation
uint
1
irq_adapt_low_thresh
Threshold score for reducing IRQ
moderation
uint
10000
irq_adapt_high_thresh
Threshold score for increasing IRQ
moderation
uint
20000
irq_adapt_irqs
Number of IRQs per IRQ moderation
adaptation
uint
1000
napi_weight
NAPI weighting
uint
64
rx_irq_mod_usec
Receive interrupt moderation
(microseconds)
uint
60
tx_irq_mod_usec
Transmit interrupt moderation
(microseconds)
uint
150
allow_load_on_failure
If set then allow driver load when online
self-tests fail
uint
0
onload_offline_selftest
Perform offline self-test on load
uint
1
interrupt_mode
Interrupt mode (0=MSIX, 1=MSI,
2=legacy)
uint
0
falcon_force_internal_sr
am
Force internal SRAM to be used
int
0
rss_numa_local
Constrain RSS to use CPU cores on the
numa node local the Solarflare adapter.
0|1
0
Parameter
Description
rss_cpus
Set to 1 to restrict, 0 otherwise.
1. Check OS documentation for availability on SUSE and RHEL versions.
Issue 11
© Solarflare Communications 2014
100
Solarflare Server Adapter
User Guide
3.22 Linux ethtool Statistics
The Linux command ethtool will display an extensive range of statistics originated from the MAC on
the Solarflare network adapter. To display statistics use the following command:
ethtool -S ethX
(where X is the ID of the Solarflare interface)
Table 26 lists the complete output from the ethtool -S command. Note ethtool -S output depends
on the features supported by the adapter type.
Table 26: Ethtool -S Output
Issue 11
Field
Description
tx_bytes
Number of bytes transmitted.
tx_good_bytes
Number of bytes transmitted with correct FCS. Does not
include bytes from flow control packets. Does not include
bytes from packets exceeding the maximum frame length.
tx_bad_bytes
Number of bytes transmitted with incorrect FCS.
tx_packets
Number of packets transmitted.
tx_bad
Number of packets transmitted with incorrect FCS.
tx_pause
Number of pause frames transmitted with valid pause
op_code.
tx_control
Number of control frames transmitted. Does not include
pause frames.
tx_unicast
Number of unicast packets transmitted. Includes packets
that exceed that maximum length.
tx_multicast
Number of multicast packets transmitted. Includes flow
control packets.
tx_broadcast
Number of broadcast packets transmitted.
tx_lt64
Number of frames transmitted where the length is less than
64 bytes.
tx_64
Number of frames transmitted where the length is exactly
64 bytes.
tx_65_to_127
Number of frames transmitted where the length is between
65 and 127 bytes
tx_128_to_255
Number of frames transmitted where the length is between
128 and 255 bytes
© Solarflare Communications 2014
101
Solarflare Server Adapter
User Guide
Table 26: Ethtool -S Output
Field
Description
tx_256_to_511
Number of frames transmitted where the length is between
256 and 511 bytes
tx_512_to_1023
Number of frames transmitted where length is between
512 and 1023 bytes
tx_1024_to_15xx
Number of frames transmitted where the length is between
1024 and 1518 bytes (1522 with VLAN tag).
tx_15xx_to_jumbo
Number of frames transmitted where length is between
1518 bytes (1522 with VLAN tag) and 9000 bytes.
tx_gtjumbo
Number of frames transmitted where the length is greater
than 9000 bytes.
tx_collision
Number of collisions incurred during transmission attempts.
This should always be zero as Solarflare adapters operate in
full duplex mode.
tx_single_collision
Number of occurrences when a single collision delayed
immediate transmission of a packet.
tx_multiple_collision
Number of packets successfully transmitted after being subject to multiple collisions.
tx_excessive_collision
Number of packets not transmitted due to excessive collisions. Excessive collisions occur on network under heavy
load or when too many devices contend for the collision
domain. After 15 retransmission attempts + the original
transmission attempt the counter is incremented and the
frame is discarded.
tx_deferred
The number of packets successfully transmitted after the
network adapter defers transmission at least once when the
medium is busy.
tx_late_collision
A sending device may detect a collision as it attempts to
transmit a frame or before it completes sending the entire
frame. If a collision is detected after the device has completed sending the entire frame, the device will assume that
the collision occurred because of a different frame. Late collisions can occur if the length of the network segment is
greater than the standard allowed length.
Collision occurred beyond the collision window (512 bit
times).
This should always be zero as Solarflare adapters operate in
full duplex mode.
Issue 11
© Solarflare Communications 2014
102
Solarflare Server Adapter
User Guide
Table 26: Ethtool -S Output
Issue 11
Field
Description
tx_excessive_deferred
Number of frames for which transmission is deferred for an
excessive period of time.
tx_non_tcpudp
Number of packets, being neither TCP or UDP, dropped by
the adapter when non_TCP/UDP drop is enabled.
tx_mac_src_error
Number of packets discarded by the adapter because the
source address field does not match the MAC address of the
port. Counts only those packets dropped when MAC
address filtering is enabled.
tx_ip_src_error
Number of packets discarded by the adapter because the
source IP address does not match any IP address in the filter
table. Counts only those packets dropped when IP address
filtering is enabled.
tx_pushes
Number of times a packet descriptor is ’pushed’ to the
adapter from the network adapter driver.
tx_pio_packets
Number of packets sent using PIO.
tx_tso_bursts
Number of times when outgoing TCP data is split into packets by the adapter driver. Refer to TCP Segmentation
Offload (TSO) on page 82.
tx_tso_long_headers
Number of times TSO is applied to packets with long headers.
tx_tso_packets
Number of physical packets produced by TSO.
rx_bytes
Number of bytes received. Not include collided bytes.
rx_good_bytes
Number of bytes received without errors. Excludes bytes
from flow control packets.
rx_bad_bytes
Number of bytes with invalid FCS. Includes bytes from packets that exceed the maximum frame length.
rx_packets
Number of packets received.
rx_good
Number of packets received with correct CRC value and no
error codes.
rx_bad
Number of packets received with incorrect CRC value.
rx_pause
Number of pause frames received with valid pause
op_code.
rx_control
Number of control frames received. Does not include pause
frames.
© Solarflare Communications 2014
103
Solarflare Server Adapter
User Guide
Table 26: Ethtool -S Output
Issue 11
Field
Description
rx_unicast
Number of unicast packets received.
rx_multicast
Number of multicast packets received.
rx_broadcast
Number of broadcasted packets received.
rx_lt64
Number of packets received where the length is less than
64 bytes.
rx_64
Number of packets received where the length is exactly 64
bytes.
rx_65_to_127
Number of packets received where the length is between
65 and 127 bytes.
rx_128_to_255
Number of packets received where the length is between
128 and 255 bytes.
rx_256_to_511
Number of packets received where the length is between
256 and 511 bytes.
rx_512_to_1023
Number of packets received where the length is between
512 and 1023 bytes.
rx_1024_to_15xx
Number of packets received where the length is between
1024 and 1518 bytes (1522 with VLAN tag).
rx_15xx_to_jumbo
Number of packets received where the length is between
1518 bytes (1522 with VLAN tag) and 9000 bytes.
rx_gtjumbo
Number of packets received where the length is greater
than 9000 bytes.
rx_bad_lt64
Number of packets received with incorrect CRC value and
where the length is less than 64 bytes.
rx_bad_64_to_15xx
Number of packets received with incorrect CRC value and
where the length is between 64 bytes and 1518 bytes (1522
with VLAN tag).
rx_bad_15xx_to_jumbo
Number of frames received with incorrect CRC value and
where the length is between 1518 bytes (1522 with VLAN
tag) and 9000 bytes.
rx_bad_gtjumbo
Number of frames received with incorrect CRC value and
where the length is greater than 9000 bytes.
rx_overflow
Number of packets dropped by receiver because of FIFO
overrun.
© Solarflare Communications 2014
104
Solarflare Server Adapter
User Guide
Table 26: Ethtool -S Output
Field
Description
rx_missed
Number of packets missed (not received) by the receiver.
Normally due to internal error condition such as FIFO overflow.
rx_false_carrier
Count of the instances of false carrier detected. False carrier
is activity on the receive channel that does not result in a
packet receive attempt being made.
rx_symbol_error
Count of the number of times the receiving media is nonidle (the time between the Start of Packet Delimiter and the
End of Packet Delimiter) for a period of time equal to or
greater than minimum frame size, and during which there
was at least one occurrence of an event that causes the PHY
to indicate Receive Error on the MII.
rx_align_error
Number of occurrences of frame alignment error.
rx_length_error
Number of packets received of length 64-1518 bytes (1522
with VLAN tag) bytes not matching the number of actual
received bytes.
rx_internal_error
Number of frames that could not be received due to a MAC
internal error condition. e.g. frames not received by the
MAC due to FIFO overflow condition.
rx_nodesc_drop_cnt
Number of packets dropped by the network adapter
because of a lack of RX descriptors in the RX queue.
rx_nodesc_drops
Packets can be dropped by the NIC when there are
insufficient RX descriptors in the RX queue to allocate to the
packet. This problem occurs if the receive rate is very high
and the network adapter receive cycle process has
insufficient time between processing to refill the queue with
new descriptors.
A number of different steps can be tried to resolve this issue:
1. Disable the irqbalance daemon in the OS
2. Distribute the traffic load across the available CPU/cores
by setting rss_cpus=cores. Refer to Receive Side Scaling
section
3. Increase receive queue size using ethtool.
rx_pm_trunc_bb_overflow
Issue 11
Overflow of the packet memory burst buffer - should not
occur.
© Solarflare Communications 2014
105
Solarflare Server Adapter
User Guide
Table 26: Ethtool -S Output
Field
Description
rx_pm_trunc_vfifo_full
Number of packets truncated or discarded because there
was not enough packet memory available to receive them.
Happens when packets cannot be delivered as quickly as
they arrive due to:
- packet rate exceeds maximum supported by the adapter.
- adapter is inserted into a low speed or low width PCI slot –
so the PCIe bus cannot support the required bandwidth.
- packets are being replicated by the adapter and the
resulting bandwidth cannot be handled by the PCIe bus.
- host memory bandwidth is being used by other devices
resulting in poor performance for the adapter.
rx_pm_discard_vfifo_full
Count of the number of packets dropped because of a lack
of main packet memory on the adapter to receive the
packet into.
rx_pm_trunc_qbb
Not currently supported.
rx_pm_discard_qbb
Not currently supported.
rx_pm_discard_mapping
Number of packets dropped because they have an 802.1p
priority level configured to be dropped
rx_dp_q_disabled_packets
Increments when the filter indicates the packet should be
delivered to a specific rx queue which is currently disabled
due to configuration error or error condition.
rx_dp_di_dropped_packets
Number of packets dropped because the filters indicate the
packet should be dropped. Can happen because:
- the packet does not match any filter.
- the matched filter indicates the packet should be dropped.
Issue 11
rx_dp_streaming_packets
Number of packets directed to RXDP streaming bus which is
used if the packet matches a filter which directs it to the
MCPU. Not currently used.
rx_dp_emerg_fetch
Count the number of times the adapter descriptor cache is
empty when a new packet arrives, for which the adapter
must do an emergency fetch to replenish the cache with
more descriptors.
© Solarflare Communications 2014
106
Solarflare Server Adapter
User Guide
Table 26: Ethtool -S Output
Field
Description
rx_dp_emerg_wait
Increments each time the adapter has done an emergency
fetch which has not yet completed.
tx_merge_events
The number of TX completion events where more than one
TX descriptor was completed.
tx_tso_bursts
The number of times a block of data (up to 64Kb) was
accepted to be sent via TSO.
tx_tso_long_headers
Number of times the header in the TSO packet was
>tx_copybreak limit.
tx_tso_packets
The number of packets formed and sent by TSO.
tx_pushes
Number of transmit packet descriptors ’pushed’ to the
adapter - rather than the adapter having to fetch the
descriptor before transmitting the packet.
tx_pio_packets
Number of packets sent using Programmed Input/Output
(PIO).
rx_reset
0
rx_tobe_disc
Number of packets marked by the adapter to be discarded
because of one of the following:
• Mismatch unicast address and unicast promiscuous
mode is not enabled.
• Packet is a pause frame.
• Packet has length discrepancy.
• Due to internal FIFO overflow condition.
• Length < 60 bytes.
Issue 11
rx_ip_hdr_chksum_err
Number of packets received with IP header Checksum error.
rx_tcp_udp_chksum_err
Number of packets received with TCP/UDP checksum error.
rx_eth_crc_err
Number of packets received whose CRC did not match the
internally generated CRC value.
rx_mcast_mismatch
Number of unsolicited multicast packets received.
Unwanted multicast packets can be received because a connected switch simply broadcasts all packets to all endpoints
or because the connected switch is not able or not configured for IGMP snooping - a process from which it learns
which endpoints are interested in which multicast streams.
© Solarflare Communications 2014
107
Solarflare Server Adapter
User Guide
Table 26: Ethtool -S Output
Issue 11
Field
Description
rx_frm_trunc
Number of frames truncated because an internal FIFO is full.
As a packet is received it is fed by the MAC into a 128K FIFO.
If for any reason the PCI interface cannot keep pace and is
unable to empty the FIFO at a sufficient rate, the MAC will
be unable to feed more of the packet to the FIFO. In this
event the MAC will truncate the frame - marking it as such
and discard the remainder. The driver on seeing a 'partial'
packet which has been truncated will discard it.
rx_char_error_lane0
0
rx_char_error_lane1
0
rx_char_error_lane2
0
rx_char_error_lane3
0
rx_disp_error_lane0
0
rx_disp_error_lane1
0
rx_disp_error_lane2
0
rx_disp_error_lane3
0
rx_match_fault
0
© Solarflare Communications 2014
108
Solarflare Server Adapter
User Guide
Chapter 4: Solarflare Adapters on Windows
This chapter covers the following topics on the Microsoft Windows® platform:
• System Requirements...Page 109
• Windows Feature Set...Page 110
• Installing the Solarflare Driver Package on Windows...Page 112
• Adapter Drivers Only Installation...Page 113
• Full Solarflare Package Installation...Page 115
• Install Drivers and Options From a Windows Command Prompt...Page 119
• Unattended Installation...Page 123
• Managing Adapters with SAM...Page 128
• Managing Adapters Remotely with SAM...Page 129
• Using SAM...Page 130
• Configuring Network Adapter Properties in Windows...Page 167
• Windows Command Line Tools...Page 172
• Completion codes (%errorlevel%)...Page 207
• Teaming and VLANs...Page 209
• Performance Tuning on Windows...Page 221
• Windows Event Log Error Messages...Page 233
4.1 System Requirements
• Refer to Software Driver Support on page 12 for details of supported Windows versions.
• Microsoft.NET Framework 3.5 is required if installing Solarflare Adapter Manager on any
platform.
Issue 11
© Solarflare Communications 2014
109
Solarflare Server Adapter
User Guide
4.2 Windows Feature Set
Table 27 lists the features supported by Solarflare adapters on Windows.
Users should refer to Microsoft documentation to check feature availability and support on specific
Windows OS versions.
Table 27: Solarflare Windows Features
Jumbo frames
Solarflare adapters support MTUs (Maximum Transmission Units)
from 1500 bytes to 9216 bytes.
• See Ethernet Frame Length on page 143
• See Configuring Network Adapter Properties in Windows on
page 167
Task offloads
Solarflare adapters support Large Segmentation Offload (LSO),
Large Receive Offload (LRO), and TCP/UDP/IP checksum offload for
improved adapter performance and reduced CPU processing
requirements.
• See Segmentation Offload on page 142
• See Configuring Network Adapter Properties in Windows on
page 167
Receive Side Scaling (RSS)
Solarflare adapters support RSS multi-core load distribution
technology.
• See Using SAM to View Statistics and State Information on
page 153
• See Configuring Network Adapter Properties in Windows on
page 167
Interrupt Moderation
Solarflare adapters support Interrupt Moderation to reduce the
number of interrupts on the host processor from packet events.
• See RSS and Interrupts on page 139
• See Configuring Network Adapter Properties in Windows on
page 167
Teaming and or Link
Aggregation
Improve server reliability and bandwidth by bonding physical
ports, from one or more Solarflare adapters, into a team, having a
single MAC address and which function as a single port providing
redundancy against a single point of failure.
• See Using SAM to Configure Teams and VLANs on page 145
• See Sfteam: Adapter Teaming and VLAN Tool on page 193
• See Teaming and VLANs on page 209
Issue 11
© Solarflare Communications 2014
110
Solarflare Server Adapter
User Guide
Table 27: Solarflare Windows Features
Virtual LANs (VLANs)
Support for multiple VLANs per adapter:
• See Using SAM to Configure Teams and VLANs on page 145
• See Sfteam: Adapter Teaming and VLAN Tool on page 193
• See Teaming and VLANs on page 209
PXE and iSCSI booting
Solarflare adapters support PXE and iSCSI booting, enabling
diskless systems to boot from a remote target operating system.
• See Using SAM for Boot ROM Configuration on page 159
• See Sfboot: Boot ROM Configuration Tool on page 174
• See Solarflare Boot ROM Agent on page 344
Fault diagnostics
Solarflare adapters provide comprehensive adapter and cable
fault diagnostics and system reports.
• See Using SAM to Run Adapter and Cable Diagnostics on
page 154
• See Sfcable: Cable Diagnostics Tool on page 200
Firmware updates
Solarflare adapters support adapter firmware upgrades.
• See Sfupdate: Firmware Update Tool on page 189
State and statistics
analysis
Solarflare adapters provide comprehensive state and statistics
information for data transfer, device, MAC, PHY and other adapter
features.
• See Using SAM to View Statistics and State Information
• See Sfteam: Adapter Teaming and VLAN Tool for teaming
statistics.
• See Sfnet for per interface statistics.
VMQ
Solarflare drivers support static VMQ for Windows Server 2008 R2
and Dynamic VMQ on Windows Server 2012
See Virtual Machine Queue on page 144.
Issue 11
© Solarflare Communications 2014
111
Solarflare Server Adapter
User Guide
4.3 Installing the Solarflare Driver Package on Windows
• Adapter Drivers Only Installation...Page 113
• Full Solarflare Package Installation...Page 115
• Repair, Remove and Change Drivers and Utilities...Page 118
NOTE: The Solarflare adapter should be physically inserted before installing the drivers. See
Installation on page 18.
The user must have administrative rights to install adapter drivers and may be prompted to enter
an administrator user name and password.
If Windows attempts to install the drivers automatically, cancel the Windows New Hardware
Found wizard and follow the instructions below.
Solarflare does not recommend installing drivers via Remote Desktop Protocol (RDP). For
example via Terminal Services.
The drivers install package is named after the Solarflare document part number e.g.
SF-107785-LS-2_Solarflare_Windows_x86_64-bit_Driver_Package.exe
This can be renamed e.g. setup.exe before use.
Issue 11
© Solarflare Communications 2014
112
Solarflare Server Adapter
User Guide
4.4 Adapter Drivers Only Installation
The steps below describe how to install only the Solarflare adapter drivers in Windows. To install the
drivers from the command line, see Install Drivers and Options From a Windows Command Prompt
on page 119.
1
Double-click the supplied Setup.exe. to start the Solarflare Driver Package Setup wizard. If
prompted, confirm your administrator privileges to continue installing the drivers.
Figure 7: Solarflare Driver Package Setup
Issue 11
© Solarflare Communications 2014
113
Solarflare Server Adapter
User Guide
2
From the Custom Setup screen, select the Install Solarflare® device drivers option only.
Figure 8: Solarflare Custom Setup
3
Issue 11
Click Finish to close the wizard. Restart Windows if prompted to do so.
© Solarflare Communications 2014
114
Solarflare Server Adapter
User Guide
4.5 Full Solarflare Package Installation
This section cover the following topics:
Prerequisites...Page 115
Solarflare Package Installation Procedure...Page 116
Solarflare Package Installation Procedure...Page 116
Repair, Remove and Change Drivers and Utilities...Page 118
Prerequisites
• The Solarflare Adapter Manager Utility (SAM) requires Microsoft .NET Framework 3.5
assemblies. These are available by installing .NET version 3.5 and may also be available in
version 4.x with backward compatibility for 3.5.
To install the required components from Powershell prompt (Windows Server editions only):
Install-WindowsFeature NET-Framework-Core
Issue 11
© Solarflare Communications 2014
115
Solarflare Server Adapter
User Guide
Solarflare Package Installation Procedure
The steps below describe how to install the complete Solarflare installation package. To install this
from the command line, see Install Drivers and Options From a Windows Command Prompt on
page 119.
1
Double-click the supplied Setup.exe. The Solarflare Driver Package Setup wizard starts.
Figure 9: Solarflare Driver Package Setup
If prompted, confirm your administrator privileges to continue installing the drivers.
2
Follow the setup instructions in the wizard to complete the driver installation procedure. See
Figure 10 and Table 28 for a list of setup options.
3
Click Finish to close the wizard. Restart Windows if prompted to do so.
To confirm the drivers installed correctly, do either of the following:
• Open the Windows Device Manager and check the Solarflare adapter is present under Network
Adapters.
• Start Solarflare Adapter Manager (Start > All Programs > Solarflare Drivers > Solarflare Adapter
Manager). If the Solarflare adapter is installed and working correctly, it will be shown in the
SAM main screen, along with any other adapters, as in Table 12 on page 129.
Issue 11
© Solarflare Communications 2014
116
Solarflare Server Adapter
User Guide
Figure 10: Solarflare Driver Package Custom Setup
Table 28: Solarflare Custom Setup
Option
Description
Install Solarflare device drivers
Installs Solarflare NDIS drivers for Windows.
The Solarflare drivers are installed by default.
Install Solarflare command line tools
Installs the following Solarflare Windows command
line tools:
sfboot.exe – Boot ROM configuration tool
sfupdate.exe – Firmware update tool
sfteam.exe – Adapter teaming tool
sfcable.exe – Cable diagnostics tool
sfnet.exe – Adapter configuration tool
See Windows Command Line Tools on page 172.
These tools are installed by default.
Issue 11
© Solarflare Communications 2014
117
Solarflare Server Adapter
User Guide
Table 28: Solarflare Custom Setup
Option
Description
Install Solarflare Adapter Manager
Installs Solarflare Adapter Manager (SAM) for easy
access to adapter configuration options, wizards for
teaming and VLAN setup, adapter statistics, and
diagnostic tools. See Managing Adapters with SAM
on page 128 for more details.
SAM is installed by default.
Note: If this option is grayed out, you need to exit the
Solarflare installer and then install Microsoft .NET
Framework 3.5 before re-running the Solarflare
installer.
Install Solarflare management tools
notification area icon
Installs a Solarflare notification area icon for
launching Solarflare Adapter Manager (SAM) locally
or for a remote computer.
The icon is not installed by default.
Repair, Remove and Change Drivers and Utilities
From the Control Panel > Programs > Programs and Features, select the Solarflare Driver Package
then select Uninstall, Change or Repair from the menu bar above the program list.
Issue 11
© Solarflare Communications 2014
118
Solarflare Server Adapter
User Guide
4.6 Install Drivers and Options From a Windows Command Prompt
This section covers the following subjects:
Command Line Usage...Page 119
Using ADDLOCAL...Page 121
Command Line Usage
To view command line options available, run the setup-<release>.exe /? command to extract files
using the Solarflare Setup Bootstrapper. When this has completed the Solarflare Driver Package
Setup Window will be displayed.
Figure 11: Command Line Install.
Installing from the Windows command line allows scripted, silent and unattended installation of the
core Solarflare drivers and package utilities. The drivers install package is named after the Solarflare
document part number e.g.
SF-107785-LS-2_Solarflare_Windows_x86_64-bit_Driver_Package.exe
This can be renamed e.g setup.exe before invoking from the command line.
The following example will install default package options silently with no message output:
setup.exe /Quiet /Install
Table 29 lists other command line examples. Note that command line options are case insensitive,
so /install and /INSTALL are the same.
Table 29: Solarflare Installation Options
Issue 11
Example
Action
setup.exe /Admininstall <path>
Allows an administrator to unpack and
install the package to a network share and
to specify which features of the package can
be installed by users.
setup.exe /Extract <path>
Extracts the contents of setup.exe to the
specified path.
setup.exe /ExtractDrivers <path>
Extract the adapter driver to the specified
path.
© Solarflare Communications 2014
119
Solarflare Server Adapter
User Guide
Table 29: Solarflare Installation Options
Issue 11
Example
Action
setup.exe /Filename <filename>
Log all output to the specified file.
setup.exe /Force
Allow passive or quiet mode to replace an
existing installation with an earlier version.
setup.exe /Help
Shows a help screen and exits.
setup.exe /Install
Installs or configures the package.
setup.exe /Install /Log <filename>
Install the drivers and logs messages to the
specified file.
setup.exe /Install /Package
<packagefilename>
Installs the drivers and utilities specified in
packagefilename.
setup.exe /Install /Passive
Performs an unattended installation of the
drivers and utilities, rebooting the host to
complete the installation as required.
setup.exe /Install /Quiet
Performs a silent installation of the drivers
and utilities.
setup.exe /Reinstall
Reinstalls the drivers and utilities.
setup.exe /Uninstall
Removes the drivers and utilities from the
host operating system.
setup.exe /Install /Verbose
Performs a verbose installation of the
drivers and utilities, outputting details for
each stage of the installation procedure.
setup.exe /Package
<PackageFilename>
Identify the package file to use for the
operation.
setup.exe /Version
Shows version information for the drivers.
setup.exe /Quiet /Install
ADDLOCAL=NetworkAdapterManager
Silently installs the drivers and Solarflare
Adapter Manager only (other utilities will
not be installed). See, Using ADDLOCAL on
page 121.
<PROPERTY>=<Value>
Specify one or more install properties.
© Solarflare Communications 2014
120
Solarflare Server Adapter
User Guide
Using ADDLOCAL
ADDLOCAL is a standard Windows Installer property that controls which features are installed via
the command line. For Solarflare adapters, the following features can be installed from the
command line:
• CoreDrivers – Installs the core adapter drivers
• NetworkAdapterManager – Installs Solarflare Adapter Manager (SAM)
• CommandLineTools – Installs Solarflare command line tools: sfboot.exe, sfupdate.exe,
sfcable.exe, sfteam.exe, sfnet.exe.
• Launcher – Installs the Solarflare system tray icon, providing easy access to the Solarflare
Adapter Manager (SAM).
Multiple features may be installed by separating each feature with a comma (spaces are not
allowed).
ADDLOCAL cannot prevent Launcher from being installed if either NetworkAdapterManager or
CommandLineTools are not installed or are still being installed.
ADDLOCAL Examples:
Install the package interactively with the default installation options selected (equivalent to
Setup.exe or Setup.exe /Install).
Setup.exe /Install ADDLOCAL=CoreDrivers,
NetworkAdapterManager,CommandLineTools,Launcher
Install the package without any management tools. Displays a limited user interface with status and
progress only.
Setup.exe /Quiet /Install ADDLOCAL=CoreDrivers
Install Solarflare Adapter Manager (SAM) only. This command shows no user interface during
installation and will restart the host system if required.
Setup.exe /Quiet /Install ADDLOCAL=NetworkAdapterManager
Install Solarflare Adapter Manager (SAM) only but suppress the auto-restart.
Setup.exe /Quiet /Install ADDLOCAL=NetworkAdapterManager REBOOT=Suppress
Issue 11
© Solarflare Communications 2014
121
Solarflare Server Adapter
User Guide
Extract Solarflare Drivers
If it is necessary to extract the Solarflare Windows drivers, e.g. before WDS installs, this can be done
from the Windows command line.
1
From the Command prompt, navigate to the directory where the installation package is
located.
2
Enter the following command:
Setup.exe /Extract <DestinationDirectory>
The Destination Directory will list the following sub-directory structure - The actual folders/files
displayed will depend on the Solarflare driver package installed:
Table 30 lists the drivers supplied with the Solarflare Driver installation package:
Table 30: Solarflare Drivers
Issue 11
Folder
Where Used
WIN7
Driver to install Windows 7 or 2008R2 directly to an iSCSI
target.
WIN8
Driver to install Windows 8/2012 directly to an iSCSI target.
WINBLUE
Driver to install Windows 8.1or 2008R2 directly to an iSCSI
target.
SETUP
Launch the Solarflare Driver Package Setup window.
SETUPPKG
Package file listings.
© Solarflare Communications 2014
122
Solarflare Server Adapter
User Guide
4.7 Unattended Installation
This section covers the following subjects:
• Windows Driver Locations...Page 123
• Unattended Installation using WDS...Page 123
• Adding Solarflare Drivers to the WDS Boot Image...Page 124
• Create Custom Install Image...Page 125
• Create the WDSClientUnattend.xml File...Page 126
• Create the AutoUnattend.xml File...Page 127
• Further Reading...Page 127
Windows Driver Locations
The following steps use drivers extracted from the Solarflare installation package. Refer to Table 30
for driver folder locations.
Unattended Installation using WDS
Windows Deployment Services (WDS) enables the deployment of Windows over a network (from a
WDS server), avoiding the need to install each operating system directly from a CD or DVD.
• This guide assumes you have installed and are familiar with WDS. For more information on WDS,
see Further Reading on page 127.
• You should also be familiar with PXE booting over Solarflare adapters. See PXE Support on
page 345 for more information.
The following steps are an example of how to set up an unattended installation using the WDS
interface:
Add a Boot Image
1
From the left hand pane of the WDS MMC snap in, right-click the Boot Images node and select
Add Boot Image.
2
Specify a name for the image group and click Add Boot Image.
3
Select the boot.wim file from the Windows installation DVD (in the \Sources folder). The
Boot.wim file contains the Windows PE and the Windows Deployment Services client.
4
Click Open, then click Next.
5
Follow the instructions in the wizard to add the boot image.
Issue 11
© Solarflare Communications 2014
123
Solarflare Server Adapter
User Guide
Add an Install Image
1
From the left hand pane of the WDS MMC snap in, right-click the Install Images node and
select Add Install Image.
2
Specify a name for the image group and click Add Install Image.
3
Select the install.wim file from your installation DVD (in the \Sources folder), or create
your own install image. Consult the WDS documentation for details on creating custom install
images.
4
Click Open, then click Next.
5
Follow the instructions in the wizard to add the image.
Adding Solarflare Drivers to the WDS Boot Image
These steps describe how to add the Solarflare drivers into the Boot Image.
Modifying the Boot Image
You next need to modify the boot image to include the Solarflare Drivers extracted from the setup
package. Table 30 identifies drivers required for the target operating system. To modify the boot
image Solarflare recommends using the ImageX tool supplied with the Windows Automated
Installation Kit (AIK).
1
Within WDS, expand the server where the boot image is located and select the boot image
you want to modify. From the right-click menu, select Disable.
2
Create a Windows PE customization working directory (in this example c:\windowspe-x86).
Within a command prompt, from:
C:\program files\windows aik\tools\petools\
and enter the following command:
copype.cmd x86 c:\windowspe-x86
3
Enter the following ImageX commands from the PE customization working directory:
imagex /info <Drive>:\remoteinstall\boot\x86\images\<boot.wim>
NOTE: <Drive> is the path where the remoteinstall folder is located. <boot.wim> is the
name of your boot image.
4
Mount the boot image with the following command from your PE customization working
directory:
imagex /mountrw <Drive>:\remoteinstall\boot\x86\images\<boot.wim> 2 mount
5
Issue 11
Copy the contents of the appropriate Solarflare driver folder (see Table 30) to a subdirectory
within your PE customization working directory (in this example c:\windowspex86\drivers).
© Solarflare Communications 2014
124
Solarflare Server Adapter
User Guide
6
Add the Solarflare VBD driver to the image by entering the following command from your PE
customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFB*.inf mount\windows
7
Add the Solarflare NDIS driver to the image by entering the following command from your PE
customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFN6*.inf mount\windows
8
Unmount the image, using the following command from your PE customization working
directory:
imagex /unmount /commit mount
9
From WDS, expand the server where the boot image is located and select the boot image you
have modified. From the right-click menu, select Enable.
Create Custom Install Image
These steps describe how to add the Solarflare drivers into the Custom Install Image. These are the
same Solarflare drivers added to the boot image.
Preparing the Custom Install Image
1
From WDS, locate the install image from the Install Images folder on your server.
2
Right-click the image and select Export Image from the menu.
3
Export the image to a location where it can be mounted. Solarflare recommend using the
Windows PE customization working directory as this saves creating a second directory. In this
example: c:\windowspe-x86.
Modifying the Install Image
1
Mount the install image with the following command from your PE customization working
directory:
imagex /mountrw <Drive>:\<path>\<install.wim> 1 mount
NOTE: <Drive> is the path where the remoteinstall folder is located. <boot.wim> is the
name of your boot image.
2
Copy the contents of the appropriate Solarflare driver folder in Table 30 to a sub-directory in
your PE customization working directory (in this example c:\windowspe-x86\drivers). If
you are using the same directory as for the boot image, this directory should already be
present.
3
Add the Solarflare VBD driver to the image by entering the following command from your PE
customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFB*.inf mount\windows
Issue 11
© Solarflare Communications 2014
125
Solarflare Server Adapter
User Guide
4
Add the Solarflare NDIS driver to the image by entering the following command from your PE
customization working directory:
peimg /inf=c:\windowspe-x86\drivers\netSFN6*.inf mount\windows
5
Unmount the image, using the following command from your PE customization working
directory:
imagex /unmount /commit mount
Import the Custom Image to WDS
1
From WDS, select the Image group you want to add the image to. Right-click and select Import
Image.
2
Browse to the location of the custom image, and click Next.
3
Follow the instructions in the wizard to import the image.
Create the WDSClientUnattend.xml File
The WDSClientUnattend.xml file is used by the Windows PE boot environment to configure settings
including the language, credentials for connecting to the WDS server, the partitioning of the disk and
which image to deploy.
NOTE: You can use the Windows System Image Manager (Part of the Windows Automated
Installation Kit) to create the WDSClientUnattend.xml file.
To associate your WDSClientUnattend.xml file with your modified boot image:
1
Copy the WDSClientUnattend.xml file to the following folder in the RemoteInstall
folder: RemoteInstall\WDSClientUnattend.
2
Open the Windows Deployment Services MMC snap-in, right-click the server that contains the
Windows Server 2008, 2008 R2 or Windows 7 boot image with which you want to associate
the file, and then select Properties.
3
On the Client tab, select Enable unattended installation, browse to the
WDSClientUnattend.xml file, then click Open.
4
Click OK to close the Properties page.
Issue 11
© Solarflare Communications 2014
126
Solarflare Server Adapter
User Guide
Create the AutoUnattend.xml File
The AutoUnattend.xml file is used during the installation of Windows Server 2008, 2008 R2 and
Windows 7 to automatically populate the various configuration settings.
NOTE: You can use the Windows System Image Manager (Part of the Windows Automated
Installation Kit) to create the AutoUnattend.xml file.
To associate your AutoUnattend.xml file with your custom install image:
1
Copy the AutoUnattend.xml file to the following folder in the RemoteInstall folder:
RemoteInstall\WDSClientUnattend.
2
Open the Windows Deployment Services MMC snap-in, select the custom install image with
which you want to associate the file, right-click and then select Properties.
3
Select the Allow image to install in unattend mode option.
4
Click Select File and browse to your AutoUnattend.xml file.
Further Reading
• Installing and configuring Windows Deployment Services (WDS) :
http://technet.microsoft.com/en-us/library/cc771670%28WS.10%29.aspx
• Windows PE Customization:
http://technet.microsoft.com/en-us/library/cc721985%28WS.10%29.aspx
• Getting Started with the Windows AIK:
http://technet.microsoft.com/en-us/library/cc749082%28WS.10%29.aspx
• Performing Unattended Installations:
http://technet.microsoft.com/en-us/library/cc771830%28WS.10%29.aspx
• How to add network driver to WDS boot image:
http://support.microsoft.com/kb/923834
• Windows Deployment Services Getting Started Guide for Windows Server 2012
http://technet.microsoft.com/en-us/library/jj648426.aspx
Issue 11
© Solarflare Communications 2014
127
Solarflare Server Adapter
User Guide
4.8 Managing Adapters with SAM
• Introduction...Page 128
• Managing Adapters Remotely with SAM...Page 129
• Using SAM...Page 130
• Using SAM to Configure Adapter Features...Page 135
• Using SAM to Configure Teams and VLANs...Page 145
• Using SAM to View Statistics and State Information...Page 153
• Using SAM to Run Adapter and Cable Diagnostics...Page 154
• Using SAM for Boot ROM Configuration...Page 159
NOTE: The Windows dialog boxes displayed by SAM will appear differently on different Microsoft
Windows OS versions.
Introduction
The Solarflare Adapter Manager (SAM) is a Microsoft Management Console (MMC) plug-in for
managing Solarflare adapters, teams and VLANs. SAM identifies information for all adapters
installed on the server, as well as the standard MMC plug-in Actions pane.
Issue 11
© Solarflare Communications 2014
128
Solarflare Server Adapter
User Guide
Using SAM, you can easily configure Ethernet and task offloading settings, set up teams and VLANs,
configure the Boot ROM for PXE or iSCSI booting, and upgrade the adapter firmware.
Figure 12: SAM Main Screen - Windows Server 2012
SAM’s diagnostics utilities allow you to run tests on the adapter, and on 10GBASE-T adapters, on the
cable to discover any potential issues which may be affecting adapter performance. Also, SAM’s
detailed statistics and state information can be used to view data transfer figures, sent and received
packet types, as well as other traffic-related details.
SAM is included with the Solarflare drivers installation package.
4.9 Managing Adapters Remotely with SAM
SAM can be used to administer Solarflare adapters on your server from a remote computer. SAM can
be used remotely to administer adapters on any supported Windows platform, including a Windows
Server Core Installation. Remote Administration provides access to all SAM features.
Issue 11
© Solarflare Communications 2014
129
Solarflare Server Adapter
User Guide
To allow SAM to remotely administer your server, you need to add a Computer Management snapin to the computer Microsoft Management Console (MMC).
4.10 Using SAM
Starting SAM
There are various ways of starting SAM.
To manage a local computer:
• If the Solarflare notification area icon is installed, right-click the icon and select Manage
network adapters on this computer.
OR
• Click Start > All Programs > Solarflare Network Adapters > Manage network adapters on this
computer.
OR
• Click Start > Administrative Tools > Computer Management > System Tools >Network
Adapters.
Figure 13: SAM Desktop Icons
NOTE: You may be asked for permission to continue by the User Account Control when starting
SAM. You must run SAM as an administrator to make any changes.
To manage a remote computer:
• Click Start > All Programs > Solarflare Network Adapters > Manage network adapters on a
remote computer.
• If the Solarflare notification area icon is installed, you can right-click the icon and select Manage
network adapters on a remote computer.
Issue 11
© Solarflare Communications 2014
130
Solarflare Server Adapter
User Guide
Viewing Adapter Details
SAM lists all available network adapters installed in the server, regardless of manufacturer or
adapter type
Figure 14: Solarflare Adapter Manager (SAM)
For each adapter, SAM provides the following details:
• Name and network interface
• IP address (IPv4 and IPv6, if available)
• MAC address
• Transmit load
• Receive load
For Solarflare adapters only, SAM also lists any teams or VLANs that have been configured, along
with details that allow you to quickly check performance and status.
Issue 11
© Solarflare Communications 2014
131
Solarflare Server Adapter
User Guide
Viewing Performance Graphs
To view Solarflare performance graphs, Right-click on an adapter and select Show graphs from the
menu. By default, SAM shows the load, transmitted packets and received packets graphs only. To
view other available graphs, Select Graphs from the right-click menu, or from the Actions Pane/
Action menu. For non-Solarflare adapters only the load graph is displayed.
Issue 11
© Solarflare Communications 2014
132
Solarflare Server Adapter
User Guide
Configuring Options in SAM
SAM allows you to change the units used to display data, enable separators when displaying large
numbers and disable/enable warning messages.
To configure SAM options:
1
Start SAM.
2
From the Actions pane, click Options, or choose Action > Options.
Figure 15: SAM - Actions > Options
3
Issue 11
In the Configuration window, select required options (seeTable 31).
© Solarflare Communications 2014
133
Solarflare Server Adapter
User Guide
4
Click OK to save your options or Cancel to retain the existing settings.
Table 31: SAM Configuration Options
Tab
Options
Description
Values
Display values using SI units
Displays values using international
standard units (K, M, G, T, P, E), for
example 2.3M. Enabled by default.
This can be useful when dealing
with the large Tx/Rx numbers that
can accumulate with 10Gb
networking.
Note: The Transmit and Receive
bytes columns ignore this setting.
Values
Use separators in large values
Use separators with large numbers,
for example 2,341,768. Enabled by
default.
Values
Load/bandwidth units
Use bits per second (default
setting), or bytes per second when
displaying data transfer figures.
Warnings
Warnings displayed before a major
action takes place
Warnings for the following actions
can be enabled or disabled in SAM:
• Deleting a VLAN or removing a
network adapter from a team
• Deleting a team
Working with Third-Party Adapters
Third-party adapters installed in the server are also listed in the SAM’s Network Adapters list, along
with the Solarflare adapters and any teams and VLANs which have been set up on the server.
SAM provides some options for working with third-party adapters. The available actions for third
party adapters are shown in the Action pane.
Issue 11
© Solarflare Communications 2014
134
Solarflare Server Adapter
User Guide
4.11 Using SAM to Configure Adapter Features
SAM allows you to configure the following features on Solarflare adapters:
• Accessing Adapter Feature Settings...Page 136
• Checksum Offload...Page 138
• RSS and Interrupts...Page 139
• Segmentation Offload...Page 142
• Ethernet Link Speed...Page 142
• Ethernet flow control...Page 142
• Ethernet Frame Length...Page 143
NOTE: Changing the value of an Adapter feature can negatively impact the performance of the
adapter. You are strongly advised to leave them at their default values.
NOTE: Before making any changes to your Solarflare adapter features, read the Performance
Tuning on Windows section on page 221 first.
Issue 11
© Solarflare Communications 2014
135
Solarflare Server Adapter
User Guide
Accessing Adapter Feature Settings
Use one of the following methods to access the Adapter Features Dialog:
From SAM, right-click on an adapter and select Configuration > Configure Offload tasks, Ethernet
and other features
From SAM, select an adapter and from the Action menu, select Configure Offload tasks, Ethernet
and other features.
Issue 11
© Solarflare Communications 2014
136
Solarflare Server Adapter
User Guide
The Adapter Features dialog box will be displayed:
Figure 16: Solarflare Adapter Manager Adapter Features
Click Apply or OK when changes to Adapter Features are modified.
Issue 11
© Solarflare Communications 2014
137
Solarflare Server Adapter
User Guide
Checksum Offload
Checksum offloading is supported on IP, TCP and UDP packets. Before transmitting a packet, a
checksum is generated and appended to the packet. At the receiving end, the same checksum
calculation is performed against the received packet. By offloading the checksum process to the
network adapter, the load is decreased on the server CPU.
By default, Solarflare adapters are set up to offload both the calculation and verification of TCP, IP
and UDP checksums. The following Checksum Offload options are supported:
Table 32: Checksum Offloads
Check box
selected
Transmit and Receive
Transmit checksums are generated and
received checksums are enabled. This is the
default setting.
Check selected
but selection
greyed out
Transmit Only or Receive
Only
For either transmit or received checksum
only.
Check box
cleared
Disabled
NOTE: The Transmit or Receive Only states
can only be set from the Advanced tab of
the Driver Properties. See Configuring
Network Adapter Properties in Windows
on page 167 for more details.
Disabled. Data will be checksummed by the
host processor for both transmitted and
received data.
You can also configure Checksum offload settings from the network adapter properties. See
Configuring Network Adapter Properties in Windows on page 167 for more details.
NOTE: Changing the checksum offload settings can impact the performance of the adapter.
Solarflare recommend that these remain at the default values. Disabling checksum offload
disables TCP segmentation offload.
Issue 11
© Solarflare Communications 2014
138
Solarflare Server Adapter
User Guide
RSS and Interrupts
Solarflare network adapters support RSS (Receive Side Scaling) and interrupt moderation. Both are
enabled by default and can significantly improve the performance of the host CPU when handling
large amounts of network data.
RSS attempts to dynamically distribute data processing across the available host CPUs in order to
spread the workload. Interrupt moderation is a technique used to reduce the number of interrupts
sent to the CPU. With interrupt moderation, the adapter will not generate interrupts closer together
than the interrupt moderation interval. An initial packet will generate an interrupt immediately, but
if subsequent packets arrive before the interrupt moderation interval, interrupts are delayed.
You can also configure RSS and interrupts settings from the network adapter properties. See
Configuring Network Adapter Properties in Windows on page 167 for more details.
NOTE: Changing the RSS and Interrupt Moderation settings can impact the performance
of the adapter. You are strongly advised to leave them at their default values.
Issue 11
© Solarflare Communications 2014
139
Solarflare Server Adapter
User Guide
RSS and Interrupts Options
Table 33:
Displayed (supported) options will differ between Windows OS versions and different
Solarflare drivers.
RSS
Disabled - RSS is disabled. (Enabled by default).
Closest Processor - use cores from a single NUMA node (default behaviour)
Closest Processor Static - Network traffic is distributed across
available CPUs from a single NUMA node, but there is no
dynamic load balancing.
NUMA Scaling - CPUs are assigned on a round-robin basis across
every NUMA node.
NUMA Scaling Static - As for NUMA Scaling but without dynamic
load balancing.
Conservative Scaling - RSS will use as few processors as possible
to sustain the current network load. This helps to reduce the
number of interrupts..
Max. RSS processors
Set the number of processors to be used by RSS.
If this is greater than or equal to the number of logical
processors in the system then all processors are used.
Interrupt moderation
Adaptive - adjusts the interrupt rates dynamically, depending on
the traffic type and network usage.
Disabled - interrupt moderation is disabled.
Enabled - interrupt moderation is enabled.
Issue 11
Max (microseconds)
This setting controls the value for the interrupt moderation
time. The default value is 60 microseconds and can be changed
for deployments requiring minimal latency.
Base RSS processor
The base processor to be used by RSS. The value is specified as a
group (range 0-9) and CPU number (range 0-63).
Max. RSS processor
The maximum processor available to RSS. The value is specified
as a group (range 0-9) and CPU number (range 0-63).
Max. RSS processors
The maximum number of processors to be used by RSS. The
value is in the range 0-256.
Max. RSS queues
The maximum number of receive queues created per interface.
The value is in the range 0-64.
© Solarflare Communications 2014
140
Solarflare Server Adapter
User Guide
Table 33:
NUMA node id
The NUMA node id drop down list box is displayed on Windows
platforms that support NUMA architectures. This constrains the
set of CPU cores used for RSS to the specified NUMA node.
Solarflare recommend you leave this at the default setting of
All. The adapter will attempt to use only processors from the
specified NUMA node for RSS. If this is set to ALL or it is greater
than or equal to the number of NUMA nodes in the system, all
NUMA nodes are used.
Further Reading
For more information on Windows RSS profiles and options refer to http://msdn.microsoft.com/enus/library/windows/hardware/ff570864%28v=vs.85%29.aspx
Issue 11
© Solarflare Communications 2014
141
Solarflare Server Adapter
User Guide
4.12 Segmentation Offload
Solarflare adapters offload the tasks of packet segmentation and reassembly to the adapter
hardware, reducing the CPU processing burden and improving performance.
LRO is a Solarflare proprietary mechanism similar to the Windows Receive Side Coalescing feature.
When enabled the adapter will coalesce multiple received TCP packets on a TCP connection into a
single call to the TCP/IP stack. This reduces CPU use and improves peak performance. However LRO
can increase latency and should not be used if a host is forwarding received packets from one
interface to another. LRO is disabled by default.
You can also configure LSO and LRO settings from the NDIS properties. See Configuring Network
Adapter Properties in Windows on page 167 for more details.
Ethernet Link Speed
Generally, it is neither necessary or desirable to configure the link speed of the adapter. The adapter
by default will negotiate the link speed dynamically, connecting at the maximum, supported speed.
However, if the adapter is unable to connect to the link partner, you may wish to try setting a fixed
link speed. For further information see ’Link Speed’ in Table 43 on page 168
Ethernet flow control
Ethernet flow control allows two communicating devices to inform each other when they are being
overloaded by received data. This prevents one device from overwhelming the other device with
network packets. For instance, when a switch is unable to keep up with forwarding packets between
ports. Solarflare adapters allow flow control settings to be auto-negotiated with the link partner.
You can also configure ethernet flow control from the network adapter properties. See Table 43 on
page 168 for more details.
Issue 11
© Solarflare Communications 2014
142
Solarflare Server Adapter
User Guide
Table 34: Ethernet Flow Control Options
Option
Description
Auto-negotiate
Flow control is auto-negotiated between the devices. This is
the default setting preferring Generate and respond if they
line partner is capable.
Generate and respond
Adapter generates and responds to flow control messages.
Respond only
Adapter responds to flow control messages but is unable to
generate messages if it becomes overwhelmed.
Generate only
Adapter generates flow control messages but is unable to
respond to incoming messages and will keep sending data to
the link partner.
None
Ethernet flow control is disabled on the adapter. Data will
continue to flow even if the adapter or link partner is
overwhelmed.
Ethernet Frame Length
The maximum Ethernet frame length used by the adapter to transmit data is (or should be) closely
related to the MTU (maximum transmission unit) of your network. The network MTU determines
the maximum frame size that your network is able to transmit across all devices in the network.
NOTE: For optimum performance set the Ethernet frame length to your network MTU.
If the network uses Jumbo frames, SAM supports frames up to a maximum of 9216 bytes.
Issue 11
© Solarflare Communications 2014
143
Solarflare Server Adapter
User Guide
Virtual Machine Queue
Solarflare adapters support VMQ to offload the classification and delivery of network traffic
destined for Hyper-V virtual machines to the network adapter thereby reducing the CPU load on
Hyper-V hosts.
Windows Server 2008 R2 allows the administrator user to statically configure the number of CPUs
available to process interrupts for VMQ. Interrupts are spread across the specified cores, however
the static configuration does not provide best performance when the network load varies over time.
Dynamic VMQ, supported in Windows Server 2012 and later, will dynamically distribute received
network traffic across available CPUs while adjusting for network load by, if necessary, bringing in
more processors or releasing processors under light load conditions.
VMQ supports the following features:
• Classification of received network traffic in hardware by using the destination MAC address (and
optionally also the VLAN identifier) to route packets to different receive queues dedicated to
each virtual machine.
• Can use the network adapter to directly transfer received network traffic to a virtual machine’s
shared memory avoiding a potential software-based copy from the Hyper-V host to the virtual
machine.
• Scaling to multiple processors by processing network traffic destined for different virtual
machines on different processors.
Table 35: VMQ Mode Options
Issue 11
Enabled
VMQ is enabled by default.
Enabled (no VLAN filtering)
VMQ uses the VLAN identifier from the
Ethernet MAC header for filtering traffic to
the intended Hyper-V virtual machine.
VMQ VLAN filtering is enabled by default.
When this option is disabled only the
destination MAC address is used for
filtering.
Enabled (MAC address filtering)
VMQ uses the Ethernet MAC header for
filtering traffic to the intended Hyper-V
virtual machine. VMQ VLAN filtering is
enabled by default.
Disabled
VMQ is disabled.
© Solarflare Communications 2014
144
Solarflare Server Adapter
User Guide
4.13 Using SAM to Configure Teams and VLANs
• About Teaming...Page 145
• Setting Up Teams...Page 146
• Reconfiguring a Team...Page 147
• Adding Adapters to a Team...Page 149
• Deleting Teams...Page 150
• Setting up Virtual LANs (VLANs)...Page 151
• Deleting VLANs...Page 152
About Teaming
NOTE: To set up teams and VLANS in Windows using the sfteam command line tool, see Sfteam:
Adapter Teaming and VLAN Tool...Page 193
Solarflare adapters support the following teaming configurations:
• IEEE 802.3ad Dynamic link aggregation
• Static link aggregation
• Fault tolerant teams
Teaming allows the user to configure teams consisting of all Solarflare adapter ports on all installed
Solarflare adapters or might consist of only selected adapter ports e.g. from a dual port Solarflare
adapter, the first port could be a member of team A and the second port a member of team B or
both ports members of the same team.
NOTE: Adapter teaming and VLANs are not supported in Windows for iSCSI remote boot enabled
Solarflare adapters. To configure load balancing and failover support on iSCSI remote boot enabled
adapters, use Microsoft MultiPath I/O (MPIO), which is supported on all Solarflare adapters.
This section is only relevant to teams of Solarflare adapters. Solarflare adapters can be used in multivendor teams when teamed using the other vendor’s teaming driver.
CAUTION
Windows 2012 introduced native support for teaming. Windows teaming and Solarflare teaming configuration should not be mixed in the same server.
Issue 11
© Solarflare Communications 2014
145
Solarflare Server Adapter
User Guide
Setting Up Teams
SAM’s Create a Team setup wizard will guide you through setting up an adapter team, automatically
assigning the active adapter, key adapter and standby adapter.
To create a team:
1
Before creating a team, Solarflare strongly recommend taking the server offline to avoid
disrupting existing services as the team is being configured.
2
Start SAM and select a Solarflare adapter in the Network Adapter list.
3
From the Action menu, select Create a Team. The Solarflare Create a team Wizard starts.
Figure 17: Team Create Wizard
4
The wizard will guide you through the process of creating a team and optionally adding VLANs
to your team (see Table 37 on page 152 for help when selecting VLAN options).
5
Bring the server back online.
Issue 11
© Solarflare Communications 2014
146
Solarflare Server Adapter
User Guide
6
After creating a team, you can use the Configure this Team option from the Actions pane to
change team settings, such as the Ethernet frame length, key adapter assignment, and adapter
priorities within the team.
CAUTION: Before physically removing an adapter from a server, first check it is not the key
adapter. You must reassign the key adapter if you want to remove it from the team to avoid
duplicating the MAC address on your network. See Table 36 on page 148 for details on
reassigning the key adapter.
Reconfiguring a Team
When setting up teams, SAM assigns the key, active and standby adapters, and specifies the
Ethernet frame length for the team. To change any of these settings, use the Configure this Team
option, as described below.
To change team settings:
NOTE: Changing team settings can disrupt network traffic flow to and from services running on the
server. Solarflare recommend only changing network settings when disruption to the services can
be tolerated.
1
Start SAM and, from the Network Adapter list, select the team you want to reconfigure.
2
From the Action menu, select Configure this Team. The Configure a Team dialog box displays.
Figure 18: Configure aTeam
Issue 11
© Solarflare Communications 2014
147
Solarflare Server Adapter
User Guide
By default, all teamed adapters are given an equal priority (indicated by the grouped number 1). The
current active adapter is indicated by the green active symbol. The key adapter is indicated with the
key symbol. Adapters in standby are indicated by the yellow standby symbol. For link aggregated
teams there may be more than one active adapter.
Figure 19: Prioritized Adapters
Figure 19 shows the active adapter with the highest priority, with the second adapter being second
priority. :
Table 36: Configure a Team Options
To change the key adapter:
Select the new key adapter, then click the key button.
Note: Before physically removing an adapter from a
server, first check it is not the key adapter. You must
reassign the key adapter if you want to remove it from
the team to avoid duplicating the MAC address on your
network.
To change adapter priority:
By default, all adapters have equal priority. Select an
adapter and use the up or down buttons to promote or
demote the adapter priority as required.
Note: For Fault-Tolerant Teams, the highest priority
adapter in a team becomes the active adapter, passing
all network traffic for the team.
To specify a new active adapter:
For Fault -Tolerant Teams only. Set your preferred
active adapter to the highest prioritized adapter in the
team. The highest prioritized adapter becomes the
active adapter in the team after you apply your
changes.
To change adapter priority, use the up and down
buttons.
Issue 11
© Solarflare Communications 2014
148
Solarflare Server Adapter
User Guide
Table 36: Configure a Team Options
To specify the Ethernet frame
length/MTU:
Specify a value between 1514 and 9216 bytes. Check
your network supports the new frame length before
setting the new value.
Note: This setting affects all adapters in the team, and
will override any individual adapter settings made
from the Configure Offload tasks, Ethernet and other
features window. See Using SAM to Configure Adapter
Features on page 135 for more details.
3
After making your changes, click Set and then click Close.
Adding Adapters to a Team
If additional Solarflare adapters are installed in your server, you can add them to an existing team to
increase the overall resilience or performance (aggregation) of the server connection.
To add adapters to a team:
NOTE: Changing team settings can disrupt current services running on the server. Solarflare
recommend only changing network settings when disruption to the services can be tolerated.
1
Start SAM and select a Solarflare adapter team from the Network Adapter list.
2
From the Actions list, click Add one or more adapters, or choose Actions > Add one or more
adapters. The Available Network Adapters dialog box is displayed:
Figure 20: Available Adapters
Issue 11
© Solarflare Communications 2014
149
Solarflare Server Adapter
User Guide
3
Select the adapter(s) to add to the team. Click OK to add the selected adapters and close the
dialog box.
Deleting Teams
You can delete a team by selecting Delete this team in SAM. Once a team has been deleted, all of its
adapters are returned to their original configuration settings and become available on the server
once again. Any VLANs set up for the team will be deleted when the team is deleted.
To delete a team:
NOTE: Changing team settings can disrupt current services running on the server. Solarflare
recommend only changing network settings when disruption to network services can be tolerated.
1
Start SAM and select a Solarflare adapter team from the Network Adapter list.
2
From the Action menu, select Delete this team. Alternatively, to delete all teams and VLANs
on the server, select Delete all teams and VLANs. The Confirm Action Dialog box is displayed.
Figure 21: Confirm Action
3
Confirm the deletion when prompted.
NOTE: Delete all teams and VLANs will cause a display refresh which may take some time to
complete, depending on the number of teams and VLANs being deleted.
Issue 11
© Solarflare Communications 2014
150
Solarflare Server Adapter
User Guide
Setting up Virtual LANs (VLANs)
SAM allows you to add up to 64 VLANs per team or adapter. Each VLAN is a virtual network adapter,
visible in the Windows Device Manager, through which the operating system is able to receive data
tagged with the correct VLAN ID (VID). You may assign one VLAN to accept VLAN 0 or untagged
traffic, which allows the interface to communicate with devices that do not support VLAN tagging,
or that are sending traffic on VLAN 0.
To create VLANs:
NOTE: Creating VLANs can disrupt current services running on the server. Solarflare recommend
only changing network settings when disruption to network services can be tolerated.
1
Start SAM and select the adapter or adapter team from the Network Adapter list.
2
From the Actions list, click Add one or more VLANs, or choose Actions > Add one or more
VLANs to display the VLAN Setup Wizard.
Figure 22: Create VLANs
Issue 11
© Solarflare Communications 2014
151
Solarflare Server Adapter
User Guide
Table 37: VLAN Options
Option
Description
Name
An optional name for the VLAN network adapter.
This option will not be available when remotely
administering the server.
Supports the handling of priority
traffic
Enables the handling of traffic that is tagged as
priority.
Supports untagged and VLAN 0 traffic
Restricts the VLAN to handling packets that are
untagged or with VID 0.
This option allows the interface to communicate
with devices which don’t support VLAN tagging.
Supports traffic solely on this VLAN
Restricts the network interface to traffic that is
tagged with the specified VLAN.
Deleting VLANs
VLANs can be removed from a team or single adapter when no longer required.
To delete VLANs:
NOTE: Deleting VLANs can disrupt current processes and applications running on the server.
Solarflare recommend only changing network settings when disruption to network services can be
tolerated.
1
Start SAM.
2
In the Network adapter list, select the VLAN to delete. If necessary, expand the team if the
VLAN is attached to a team then select the VLAN.
3
From the Actions list, click Delete this VLAN, or choose Action > Delete this VLAN.
4
Confirm the deletion in the Confirm Action Dialog box.
Issue 11
© Solarflare Communications 2014
152
Solarflare Server Adapter
User Guide
4.14 Using SAM to View Statistics and State Information
SAM’s Network Adapter list provides an overview of the adapters installed in the host computer. For
a more detailed view of the adapter device settings, data transfer statistics, and other features, you
can use the adapter Statistics and State.
Figure 23: Solarflare Adapter Statistics and State
To view Solarflare statistics and state information:
1
Start SAM and select a Solarflare adapter from the Network Adapter list.
2
From the Actions list, click Statistics and State. The Details from <adapter name> dialog box is
displayed.
NOTE: The tabs displayed will differ, dependent on whether an adapter, VLAN or Team is
selected.
3
Click each tab to see the various adapter statistics and state information that is available for
the adapter. Note that statistics are collated from the start of the current session. To reset the
statistics, see Resetting Adapter Statistics on page 154.
4
When you have finished viewing statistics, click Close.
Issue 11
© Solarflare Communications 2014
153
Solarflare Server Adapter
User Guide
Resetting Adapter Statistics
Statistics for data transfer and the MAC layer are reset, either following a system restart or installing
of the adapter drivers. If necessary, you can reset the adapter statistics to restart the accumulated
data values at any time.
1
Start SAM and select a Solarflare adapter from the Network Adapter list.
2
From the Actions list, click Statistics and State, or choose Actions > Statistics and State. The
Details from <adapter name> dialog box is displayed.
3
In the General tab, click the Reset button to reset statistics.
4
Click Close.
4.15 Using SAM to Run Adapter and Cable Diagnostics
You can verify the Solarflare adapter, driver and cable by running SAM’s built-in diagnostic tools
(Solarflare 10GBASE-T adapter only).
The tools provide a simple way to verify that the adapter and driver are working correctly, and that
the cable has the correct characteristics for high-speed data transfer.
The diagnostics tools also include an option to flash the LEDs (useful for identifying the adapter in a
server room). Both options are available from Actions > Adapter Diagnostics.
NOTE: Running of these tests will cause traffic to be halted on the selected adapter, and all of
its VLANs, unless part of a fault-tolerant team. Diagnostics tests are not available when the
adapter is running in iSCSI boot mode.
NOTE: The full system report cannot be generated when remotely administering a server.
Issue 11
© Solarflare Communications 2014
154
Solarflare Server Adapter
User Guide
Running Driver and Adapter Diagnostics
SAM’s driver diagnostics enable you to test the adapter and driver are functioning correctly,
returning a simple pass or fail for each test run.
Figure 24: Adapter and Driver Diagnostics Window
1
Start SAM and select a Solarflare adapter from the Network Adapter list.
2
From the Action menu, select Adapter Diagnostics. The Diagnostics for <adapter name>
window is displayed.
3
Select the test you want to run (no tests are selected by default). See Table 38 for a description
of the tests that are available.
4
To stop as soon as a failure is detected, select Stop on first test failure.
5
To run all the tests more than once, change the value in the Test iterations box.
6
Click Start to begin testing. The results of each test will be displayed in the Diagnostics window,
along with an entry in the Completion Message column describing the reason any particular
test has failed.
CAUTION: The adapter will stop functioning while the tests are being run. Solarflare recommend
only running diagnostics tests when disruption to network services can be tolerated.
Issue 11
© Solarflare Communications 2014
155
Solarflare Server Adapter
User Guide
NOTE: You can click Abort to abandon running tests at any time. This may take a while to complete,
dependent on the test being run at the time.
The available tests depend on the installed adapter type.
Table 38: Adapter Diagnostic Tests
Diagnostic Test
Purpose
LED
Flashes the LEDs for 5 seconds.
NVRAM
Verifies the flash memory board configuration area by
parsing and examining checksums.
Registers
Verifies the adapter registers by attempting to modify the
writable bits in a selection of registers.
Interrupts
Examines the available hardware interrupts by requesting
the controller to generate an interrupt and verifying that
the interrupt has been processed by the network driver.
MAC loopback
Verifies that the network driver is able to pass packets to
and from the network adapter using the MAC loopback
layer.
PHY loopback
Verifies that the network driver is able to pass packets to
and from the network adapter using the PHY loopback
layer.
Memory
Verifies SRAM memory by writing various data patterns
(incrementing bytes, all bit on and off, alternating bits on
and off) to each memory location, reading back the data
and comparing it to the written value.
MDIO
Verifies the MII registers by reading from PHY ID registers.
Event
Verifies the adapter’s event handling capabilities by
posting a software event on each event queue created by
the driver and checking it is delivered correctly.
The driver creates an event queue for each CPU.
Issue 11
PHY BIST
Examines the PHY by initializing it and starting any
available built-in self tests to run.
Bootrom
Verifies the Boot ROM configuration and image checksum.
Will warn if no Boot ROM is present.
© Solarflare Communications 2014
156
Solarflare Server Adapter
User Guide
Running Cable Diagnostics
With high-speed data networking, the suitability of the cable in achieving maximum transfer rates is
especially important. SAM’s cable diagnostic tool can be used to verify the attached cable, reporting
its condition, measured length and electrical characteristics for each cable pairing.
NOTE: Cable diagnostics are only available on Solarflare 10GBASE-T Adapters. For these
adapters, Solarflare recommend using good quality Category 6, 6a or 7 cable up to the
maximum length as determined by the cable category.
Figure 25: Cable Diagnostics Window
1
Start SAM and select a Solarflare adapter from the Network Adapter list.
2
From the Action menu, click Diagnostics then Cable Diagnostics. The Cable Diagnostics for
<adapter name> dialog box is displayed.
3
Click Run offline test or Run online test. Offline testing produce more detailed results, but at
the expense of disrupting the connection while tests are running.
CAUTION: The offline tests will cause the network link to momentarily drop and disrupt data flow.
Solarflare recommend only running diagnostics tests when disruption to your services can be
tolerated.
Issue 11
© Solarflare Communications 2014
157
Solarflare Server Adapter
User Guide
4
The results of the testing will be displayed in the diagnostics dialog box. For analysis of the
cable pair results, see Table 39.
Table 39: Cable Pair Diagnostic Results
Result
Meaning
OK
Cable is operating correctly.
Length measured = …, SNR margin = …
The range is ±13dB (approximately). The SNR
should be positive.
Error
A short circuit has been detected at the
indicated length.
Pair short at …
The cable or the connector is faulty and must
be replaced.
Issue 11
Error
An open circuit has been detected.
Pair is open circuit
The cable or the connector is faulty and must
be replaced.
© Solarflare Communications 2014
158
Solarflare Server Adapter
User Guide
4.16 Using SAM for Boot ROM Configuration
For booting of diskless systems, Solarflare adapters support Preboot Execution Environment (PXE)
and iSCSI booting.
When booting the server directly from an iSCSI target, you will first need to enable iSCSI booting and
configure the iSCSI initiator, target and user authentication to match your network and target
settings, or rely on DHCP to configure the settings dynamically when the adapter initializes (this is
the default setting for all iSCSI options).
Using SAM, you can access the adapter Boot ROM to configure your firmware settings for adapter
booting, as described below.
Configuring the Boot ROM for PXE or iSCSI Booting
For more information on configuring the iSCSI target and DHCP settings from the Solarflare Boot
Configuration Utility, and how to install an operating system that is enabled for remote iSCSI booting
over a Solarflare adapter, See Solarflare Boot ROM Agent on page 344.
To configure PXE or iSCSI booting on the Solarflare Boot ROM:
1
Start SAM and select a Solarflare adapter from the Network Adapter list.
From the Action menu, select the Configure Boot ROM option. The Configure Boot ROM window
displays with the General tab selected.
Figure 26: BootROM Configuration
Issue 11
© Solarflare Communications 2014
159
Solarflare Server Adapter
User Guide
2
From the Boot Type panel, select either PXE or iSCSI booting as required. You can also
configure the types of Boot Firmware, the maximum number of MSI-X Interrupts supported
and start-up configuration used by the Boot ROM utility. For more details on these options see
Sfboot: Boot ROM Configuration Tool on page 174.
NOTE: iSCSI booting will not be available if the adapter is a member of a team or has VLANs.
NOTE: Solarflare recommend not changing the MSI-X Interrupts setting.
3
If necessary, from the Link tab, change the Link Speed option depending on your link
requirement. Note that Auto-negotiated is correct for most links and should not be changed
unless advised. The Link Speed options will vary depending on the installed
Figure 27: Link tab
4
The Link up delay specifies a wait time before the boot device will attempt to make a
connection. This allows time for the network to start following power-up. The default setting is
5 seconds, but can be set from 0–255 seconds. This can be used to wait for spanning tree
protocol on a connected switch to unblock the switch port after the physical network link is
established.
5
If you selected PXE as the boot type, click OK to finish the setup procedure.
Issue 11
© Solarflare Communications 2014
160
Solarflare Server Adapter
User Guide
If you selected iSCSI booting as the boot type, click the iSCSI Initiator tab and continue with
the following steps.
Figure 28: iSCSI Initiator tab
6
If using DHCP to configure the adapter’s network settings at boot time, ensure Use DHCP to
get iSCSI Initiator settings is selected. Otherwise, clear this option and enter network details
for the adapter, as described in Table 40.
Table 40: iSCSI Initiator Options
Option
Description
IPv4 Address
An IPv4 address to assign to the adapter. Ensure this address is
unique.
Subnet mask
Subnet mask. For example 255.255.255.0
Default Gateway
IPv4 address of your network router.
Primary DNS
IPv4 address of your Primary DNS server.
7
If you are not using DHCP to get the initiator name, clear Use DHCP to get the initiator name
and enter a iSCSI Qualified Name (IQN) in the Initiator name field.
8
DHCP vendor Id specifies the device vendor ID to be advertised to the DHCP server. This
setting is always enabled and not affected by any of the other DHCP options. See DHCP Server
Setup on page 356 for more details on this and other DHCP options.
Issue 11
© Solarflare Communications 2014
161
Solarflare Server Adapter
User Guide
9
Click the iSCSI Target tab.
Figure 29: iSCSI Target tab
10 If using DHCP to discover the iSCSI target details, ensure Use DHCP to get iSCSI target settings
is selected. Otherwise, clear the option and enter details for the iSCSI target, as described in
Table 41.
Table 41: iSCSI Target Options
Issue 11
Option
Description
Target server name
Target server network address in the form of a dotted quad
(i.e. 10.1.2.3) IPv4 address or fully qualified domain name
(FQDN), such as
mytarget.myorg.mycompany.com
TCP port
ISCSI port number that has been configured on the target.
Default is 3260.
Target device name
The iSCSI Qualified Name (IQN) of the target server, which will
look something like: iqn:2009-01.com.solarflare.
© Solarflare Communications 2014
162
Solarflare Server Adapter
User Guide
Table 41: iSCSI Target Options
Issue 11
Option
Description
Boot LUN
Logical unit number which has been set up on the server. The
system will attempt to attach to this LUN on boot up and
attempt to load the target operating system from it.
LUN retry count
Specifies the number of times the boot device will attempt to
connect to the target LUN (logical unit number) before failing.
The default setting is 2 retries, but can be set from 0–255. This
setting is enabled, even if using DHCP is being used.
© Solarflare Communications 2014
163
Solarflare Server Adapter
User Guide
11 Click the iSCSI Authentication tab.
Figure 30: iSCSI Authentication tab
12 By default Challenge Handshake Application Protocol (CHAP) authentication is disabled. You
have the following options:
- CHAP authentication - this is target initiated or one way authentication
- Mutual authentication - both the target and the initiator will authenticate the connection.
If CHAP authentication is configured on the iSCSI target, enter the correct settings to allow
access to the target.
Table 42: CHAP Options
Issue 11
Option
Description
Target user name
Name of the target server, as set on the iSCSI target CHAP
settings.
Target secret
Target password.
Initiator user name
Name of this initiator (as set on the target). A minimum of 9
characters. Used for Mutual authentication only
Initiator secret
Password of this initiator (as set on the target). A minimum of
12 characters. Used for Mutual authentication only.
© Solarflare Communications 2014
164
Solarflare Server Adapter
User Guide
13 Select the iSCSI MPIO tab
Figure 31: iSCSI MPIO tab
For iSCSI booting in multi-adapter environments, you can set the priority of each adapter. By default,
all iSCSI enabled adapters are given an equal priority. The setting is used to determine how traffic is
re-routed in case of one adapter entering a failed state.
14 When you have finished configuring the iSCSI settings, click OK or Apply to save your settings
to the Boot ROM.
Disabling Adapter Booting
You can stop the adapter from attempting to initiate either a PXE or iSCSI boot after a restart.
1
Start SAM and select the Solarflare adapter from the Network Adapter list.
2
From the Action menu, click the Configure Boot ROM option. The Configure Boot ROM dialog
box displays with the BIOS tab selected.
3
From the Boot Type panel, select Disabled.
4
Click OK or Apply to save your settings to the Boot ROM.
Issue 11
© Solarflare Communications 2014
165
Solarflare Server Adapter
User Guide
4.17 Managing Firmware with SAM
SAM allows you to monitor the firmware (PHY, Boot ROM and Adapter) for your Solarflare adapters.
Either select Manage firmware from the Actions pane, or from the Action menu. The firmware
update window is displayed:
Figure 32: Solarflare firmware update window
If the firmware is up to date, the window will contain the OK button. If the firmware is out of date,
the OK button is replaced with an Update and Cancel button. To update the firmware, click Update.
You can also use the sfupdate command line tool to manage the firmware on your Solarflare
adapters. See Sfupdate: Firmware Update Tool on page 189 for more details.
Issue 11
© Solarflare Communications 2014
166
Solarflare Server Adapter
User Guide
4.18 Configuring Network Adapter Properties in Windows
Network adapter properties for the Solarflare adapter are available through the Windows Device
Manager entry for the relevant network adapter. You can also access the adapter properties using
SAM.
NOTE: If SAM is open, any changes made in the adapter properties will not be reflected in SAM until
you close the Advanced Properties page.
To configure network adapter properties:
1
From the Control Panel, select System.
2
Select Device Manager from the left hand menu.
3
Expand the Network adapters.
4
Right-click the on the Solarflare adapter, and then click Properties to display the properties
dialog box.
Figure 33: Adapter Properties Dialog
Issue 11
© Solarflare Communications 2014
167
Solarflare Server Adapter
User Guide
5
Click the Advanced tab to view and edit the NDIS properties. See Table 43 for a list of the
available properties.
NOTE: Changing these properties may impact the performance of your Solarflare adapter. You
are strongly advised to leave them at their default values.
NOTE: Before making any changes to your Solarflare adapter features, read the Performance
Tuning on Windows section on 221 first.
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Adaptive Interrupt
Moderation
Enabled
This setting is dependent on the Interrupt
Moderation setting. If Interrupt Moderation is
enabled, Adaptive Interrupt Moderation allows the
adapter to vary it’s interrupt moderation
automatically, according to network traffic
demands.
Disabled
If Adaptive Interrupt Moderation is disabled,
interrupt moderation interval is fixed at the setting
specified in Interrupt Moderation Time.
Default setting: Enabled
Flow Control
Auto Negotiation
Disabled
Rx & Tx Enbled
Rx Enabled
Tx Enabled
Ethernet flow control (802.3x) is a way for a network
device to signal to a sending device that it is
overloaded, such as when a device is receiving data
faster than it can process it.
The adapter does this by generating a ‘pause frame’
to request the sending device to temporarily stop
transmitting data. Conversely, the adapter can
respond to pause frames by suspending data
transmission, allowing time for the receiving device
to process its data.
Default setting: Auto Negotiation.
Issue 11
© Solarflare Communications 2014
168
Solarflare Server Adapter
User Guide
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Interrupt
Moderation
Enabled
Interrupt moderation is a technique used to reduce
the number of interrupts sent to the CPU. With
interrupt moderation, the adapter will not generate
interrupts closer together than the interrupt
moderation time. An initial packet will generate an
interrupt immediately, but if subsequent packets
arrive before the interrupt moderation time period,
interrupts are delayed.
Disabled
Default setting: Enabled
Interrupt
Moderation Time
1–1000 us
Specifies the interrupt moderation period when
Interrupt Moderation is enabled.
The default setting (60μs) has been arrived at by
lengthy and detailed system analysis, balancing the
needs of the operating system against the
performance of the network adapter.
Default setting: 60μs
IPv4 Checksum
Offload
Disabled
Rx & Tx Enabled
Rx Enabled
Tx Enabled
IP checksum offload is a hardware offload
technology for reducing the load on a CPU by
processing IP checksums in the adapter hardware.
Offload IP Checksum is enabled by default for
transmitted and received data.
Default setting: Rx & Tx Enabled.
Large Receive
Offload (IPv4 and
IPv6)
Enabled
Disabled
Large Receive Offload (LRO) is an offload technology
for reducing the load on a CPU by processing TCP
segmentation for received packets in the adapter.
Default setting: Disabled
Large Send Offload
Version 2 (IPv4 and
IPv6)
Enabled
Disabled
Large Send Offload (LSO) is an offload technology
for reducing the load on a CPU by processing TCP
segmentation for transmitted packets in the
adapter.
Caution: Disabling LSO may reduce the performance
of the Solarflare adapter.
Default setting: Enabled
Issue 11
© Solarflare Communications 2014
169
Solarflare Server Adapter
User Guide
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Locally
Administered
Address
Value: (MAC
address)
Assigns the specified MAC address to the adapter,
overriding the permanent MAC address assigned by
the adapter's manufacturer.
Not Present
Addresses are entered as a block of six groups of
two hexadecimal digits separated by hyphens (-), for
example: 12-34-56-78-9A-BC
Note: To be a valid address, the second most
significant digit must be a 2, 6, A or E, as in the
above example.
Check the System Event Log for any configuration
issues after setting this value.
Default setting: Not Present.
Max Frame Size
1514–9216
Specifies the maximum Ethernet frame size
supported by the adapter.
Note: Devices will drop frames if they are unable to
support the specified frame size, so ensure the
value you set here is supported by other devices on
the network.
Default settings:
Solarflare adapter: 1514 bytes
Teamed adapter: 1518 bytes
Note: The setting must be a multiple of 2.
Maximum number
of RSS Processors
1-256
Maximum number of processors that can be used by
RSS. Default value is 16.
Maximum umber of
RSS Queues
1-64
Specify the number of RSS receive queues are
created by the adapter driver. Default is 8.
Preferred Numa
Node
All
The adapter attempts to use only the CPUs from the
specified NUMA node for RSS. If this is set to All or is
greater than or equal to the number of NUMA
nodes in the system all NUMA nodes are used.
1 to 9
Default setting: All
Issue 11
© Solarflare Communications 2014
170
Solarflare Server Adapter
User Guide
Table 43: Solarflare Network Adapter Properties
Property Name
Values
Description
Receive Side Scaling
(RSS)
Enabled
Receive Side Scaling (RSS) is a technology that
enables packet receive processing to scale with the
number of available processors (CPUs), distributing
the processing workload across the available
resources.
Disabled
Default setting: Enabled
Speed & Duplex
100 Mpbs Full
Duplex
Configure the adapter speed. Default is Auto
Negotiation.
1.0 Gbps Full
Duplex
10.0 Gbps Full
Duplex
40.0 Gbps Full
Duplex
Auto Negotiation
TCP Checksum
Offload (IPv4 and
IPv6)
Disabled
Rx & Tx Enabled
Rx Enabled
TCP checksum offload is a hardware offload
technology for reducing the load on a CPU by
processing TCP checksums in the adapter hardware.
Default setting: Rx & Tx Enabled.
Tx Enabled
UDP Checksum
Offload (IPv4 and
IPv6)
Disabled
Rx & Tx Enabled
Rx Enabled
UDP checksum offload is a hardware offload
technology for reducing the load on a CPU by
processing UDP checksums in the adapter hardware.
Default setting: Rx & Tx Enabled.
Tx Enabled
Virtual Machine
Queues
Enabled
Disabled
VMQ is supported in Windows Server 2008 R2 and
later versions. This offloads classification and
delivery of network traffic destined for Hyper-V
virtual machines to the network adapter, reducing
CPU utilization on Hyper-V hosts.
Default setting: Enabled.
VMQ VLAN Filtering
Enabled
Disabled
VLAN filtering allows the adapter to use the VLAN
identifier for filtering traffic intended for Hyper-V
virtual machines. When disabled only the
destination MAC address is used for filtering.
Default setting: Enabled.
Issue 11
© Solarflare Communications 2014
171
Solarflare Server Adapter
User Guide
4.19 Windows Command Line Tools
The command line tools (see Table 44) provide an alternative method of managing Solarflare
network adapters to SAM. They are especially useful on a Windows Server Core installation, where
SAM cannot be run locally. As with SAM, you can run the command line tools remotely. The tools
can also be scripted.
The command line tools are installed as part of the drivers installation on Windows. See Installing
the Solarflare Driver Package on Windows on page 112.
Table 44: List Available Command Line Utilities
Issue 11
Utility
Description
sfboot.exe
A tool for configuring adapter Boot ROM options for PXE and iSCSI
booting. See Sfboot: Boot ROM Configuration Tool on page 174.
sfupdate.exe
A tool for updating adapter Boot ROM and PHY firmware. See Sfupdate:
Firmware Update Tool on page 189.
sfteam.exe
A tool for managing fault-tolerant adapter teams and VLANs. See Sfteam:
Adapter Teaming and VLAN Tool on page 193.
sfcable.exe
A tool for that runs cable diagnostics for Solarflare 10GBASE-T server
adapters. See Sfcable: Cable Diagnostics Tool on page 200.
sfnet.exe
Allows you to display and/or set the offload, Ethernet, RSS, interrupt
moderation and VMQ features of any one adapter, VLAN or Team. See
Sfnet on page 203.
© Solarflare Communications 2014
172
Solarflare Server Adapter
User Guide
To start a command line tool, open a Command Line Interface windows and enter the command
tool.exe:
Figure 34: Windows console to run Solarflare command line tools.
NOTE: For all the utilities, the options are documented with the forward slash (/) prefix. You can
also use a single dash (--) or a double dash (--) as a prefix.
NOTE: Utilities must be run as an administrator to make any changes. When run as a non
administrator, an error message will be displayed.
Issue 11
© Solarflare Communications 2014
173
Solarflare Server Adapter
User Guide
4.20 Sfboot: Boot ROM Configuration Tool
• Sfboot: Command Usage...Page 174
• Sfboot: Command Line Options...Page 175
• Sfboot: Examples...Page 184
Sfboot is a Windows command line utility for configuring the Solarflare adapter Boot ROM for PXE
and iSCSI booting. Using sfboot is an alternative to using Ctrl+B to access the Boot Rom agent during
server startup.
See Configuring the Solarflare Boot ROM Agent on page 344 for more information on the Boot Rom
agent.
Sfboot: Command Usage
1
Login with an administrator account.
2
Click Start > All Programs > Solarflare Network Adapters > Command Line Interface for
Network Adapters.
3
From the Command Prompt, enter the command using the following syntax:
sfboot [/Adapter <Identifier>] [options] [parameters]
where:
Identifier is the name or ID of the adapter that you want to manage. Specifying the
adapter is optional - if it is not included the command is applied to all Solarflare adapters in the
machine.
option is the option you want to apply. See Sfboot: Command Line Options for a list of
available options.
If using sfboot in a configuration script, you can include the environment variable %SFTOOLS%
to set the path to the Solarflare tools. For example:
SET PATH=%PATH%;%SFTOOLS%
Issue 11
© Solarflare Communications 2014
174
Solarflare Server Adapter
User Guide
Sfboot: Command Line Options
Table 45 lists the options for sfboot.exe and Table 46 lists the available parameters. Note that
command line options are case insensitive and may be abbreviated.
NOTE: Abbreviations in scripts should be avoided, since future updates to the application may
render abbreviated scripts invalid.
Table 45: Sfboot Options
Option
Description
/Help
Displays command line syntax and provides a
description of each sfboot option.
/Version
Shows detailed version information and exits.
/Nologo
Hide the version and copyright message at startup.
/Verbose
Shows extended output information for the
command entered.
/Quiet
Suppresses all output, including warnings and errors;
no user interaction. You should query the completion
code to determine the outcome of commands when
operating silently.
Aliases: /Silent
/Log <Filename>
Logs output to the specified file in the current folder
or an existing folder. Specify /Silent to suppress
simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on a specified remote
computer. Administrator rights on the remote
computer is required.
/List
Lists all available Solarflare adapters. This option
shows the adapter’s ID number, ifname and MAC
address.
Note: this option may not be used in conjunction
with the any other option. If this option is used with
configuration parameters, those parameters will be
silently ignored.
/Adapter =<Identifier>
Issue 11
Performs the action on the identified Solarflare
network adapter. The adapter identifier can be the
adapter ID number, ifname or MAC address, as
output by the /List option. If /Adapter is not
included, the action will apply to all installed
Solarflare adapters.
© Solarflare Communications 2014
175
Solarflare Server Adapter
User Guide
Table 45: Sfboot Options
Option
Description
/Clear
Resets all adapter options except boot-image to
their default values. Note that /Clear can also be
used with parameters, allowing you to reset to
default values, and then apply the parameters
specified.
The following parameters in Table 46 are used to control the options for the Boot ROM driver when
running prior to the operating system booting.
Table 46: Sfboot Parameters
Parameter
Description
bootimage=<all|optionrom|uefi|di
sabled>
Specifies which boot firmware images are served-up
to the BIOS during start-up. This parameter can not
be used if the /Adapter option has been specified.
This option is not reset if /Clear is used.
linkspeed=<auto|40g|10g|1g|100m>
Specifies the network link speed of the adapter used
by the Boot ROM the default is auto. On the
10GBASE-T adapters “auto” instructs the adapter to
negotiate the highest speed supported in common
with it’s link partner . On QSFP+, SFP+ adapters,
“auto” instructs the adapter to use the highest link
speed supported by the inserted SFP+ module. On
10GBASE-T and SFP+ adapters, any other value
specified will fix the link at that speed, regardless of
the capabilities of the link partner, which may result
in an inability to establish the link
auto Auto-negotiate link speed (default)
40G 40g bit/sec
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Issue 11
Specifies the delay (in seconds) the adapter defers its
first connection attempt after booting, allowing time
for the network to come up following a power failure
or other restart. This can be used to wait for
spanning tree protocol on a connected switch to
unblock the switch port after the physical network
link is established. The default is 5 seconds.
© Solarflare Communications 2014
176
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
banner-delay=<seconds>
Specifies the wait period for Ctrl+B to be pressed to
enter adapter configuration tool.
seconds = 0-256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to
skip adapter booting.
seconds = 0-256
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type.
pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System
Interface) booting
disabled – Disable adapter booting
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the
adapter by the Boot ROM except for the Initiator IQN
(see initiator-iqn-dhcp). This option is only
valid if iSCSI booting is enabled (boottype=iscsi).
If initiator-DHCP is set to disabled, the following
options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed:
gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
Issue 11
© Solarflare Communications 2014
177
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) of the Primary DNS to be used by the adapter
when initiator-dhcp is disabled.
This option is only valid if iSCSI booting is enabled
(boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Issue 11
Enables or disables use of DHCP for the initiator IQN
only.
© Solarflare Communications 2014
178
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used
by the adapter when initiator-iqn-dhcp is
disabled. The IQN is a symbolic name in the “.”
notation form; for example:
iqn.2009.01.com.solarflare, and is a maximum of 223
characters long.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts
to access and login to the Logical Unit Number (LUN)
on the iSCSI Target before failing. Note that this
option is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot lun-retry-count=3
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI
target parameters on the adapter.
If target-dhcp is disabled, you must specify the
following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example - Enable the use of DHCP to configure iSCSI
Target settings:
sfboot boot-type=iscsi targetdhcp=enabled
Issue 11
© Solarflare Communications 2014
179
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address
to be used by the adapter when target-dhcp is
disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI
target when target-dhcp is disabled. The default
Port number is Port 3260.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using
a non-standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used
by the iSCSI target when target-dhcp is disabled.
The default LUN is 0.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Note that if there are spaces contained in <IQN>,
then the IQN must be wrapped in double quotes (“”).
Example:
sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Issue 11
Specifies the device vendor ID to be advertised to the
DHCP server. This must match the vendor id
configured at the DHCP server when using DHCP
option 43 to obtain the iSCSI target .
© Solarflare Communications 2014
180
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake
Protocol (CHAP) to authenticate the iSCSI
connection.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
To be valid, this option also requires the following
sub-options to be specified:
username=<initiator username>
secret=<initiator password>
Example:
sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
username=<username>
Specifies the CHAP initiator username (maximum 64
characters).
Note that this option is required if either CHAP or
Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username
secret=<secret>
Specifies the CHAP initiator secret (minimum 12
characters, maximum 20 characters).
Note that this option is valid if either CHAP or Mutual
CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
Issue 11
© Solarflare Communications 2014
181
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when
iSCSI booting is enabled.
This option also requires the following sub-options to
be specified:
target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example:
sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
target-username=<username>
Specifies the username that has been configured on
the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the
iSCSi target (minimum 12 characters; maximum 20
characters).
Note: This option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
Issue 11
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the
adapter. This option is only valid for iSCSI booting
over multi-port adapters, where it can be used to
establish adapter port priority. The range is 1- 255,
with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will try and use
each port in turn to login to the iSCSI target before
failing.
© Solarflare Communications 2014
182
Solarflare Server Adapter
User Guide
Table 46: Sfboot Parameters
Parameter
Description
pfiov=<enabled|disabled>
Enable switching of traffic between any PFs. When
disabled traffic is switched only between a PF and
related VFs.
pf-count=<pf count>
Specify the (per port) number of available PCIe
physical functions in the range 1-8. Default value is 1.
The setting is applied to all ports on an adapter and
MAC address assignments may change follows
changes with this setting.
port-mode=<Default|10G|40G>
Configure the port mode. This is for SFN714xQ
adapters only. MAC address assignments may change
follows changes with this setting. It may be necessary
to change the number of physical functions after
changing the port mode.
Default is 40G.
msixlimit=<8|16|32|64|128|128|25
6|512|1024>
Specifies the maximum number of MSI-X interrupts
the specified adapter will use. The default is 32.
sriov=<enabled|disabled>
Enable SR-IOV support for the operating systems that
support it.
Note: Using the incorrect setting can impact the
performance of the adapter. Contact Solarflare
technical support before changing this setting.
SR-IOV is not supported by Solarflare adapters on
Windows Hyper-V servers.
Issue 11
vf-count=<vf count>
The number of virtual functions advertised to the
operating system. The Solarflare SFC9000 series
device has a limit of 1024 interrupts. Depending on
the value of msix-limit and vf-msix-limit, some of
these virtual functions my not be usable.
vf-msix-limit=<1|2|4|8>
Maximum number of MSI-X interrupts a virtual
function may use.
firmware-variant=<fullfeatured | ultra-low-latency
| capture-packed-stream |
auto>
Identify the firmware variant to use on SFN7000
series adapters only. The default is auto.
insecurefilters=<enabled|disabled>
If enabled, bypass filter security on non-privileged
functions. This is required for some applications, but
reduces security in virtualized environments.
© Solarflare Communications 2014
183
Solarflare Server Adapter
User Guide
Sfboot: Examples
• Show the current boot configuration for all adapters:
sfboot
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter - MAC: 00:0F:53:21:9B:B1
Boot image
Option ROM only
Link speed
Negotiated automatically
Link-up delay time
5 seconds
Banner delay time
2 seconds
Boot skip delay time
5 seconds
Boot type
Disabled
PFIOV
Disabled
Number of Physical Functions
2
MSI-X interrupt limit
32
Number of Virtual Functions
0
VF MSI-X interrupt limit
8
Firmware variant
full feature / virtualization
Insecure filters
Disabled
Solarflare SFN7122F SFP+ Server Adapter #2 - MAC: 00:0F:53:21:9B:B0
Boot image
Option ROM only
Link speed
Negotiated automatically
Link-up delay time
5 seconds
Banner delay time
2 seconds
Boot skip delay time
5 seconds
Boot type
Disabled
PFIOV
Disabled
Number of Physical Functions
2
MSI-X interrupt limit
32
Number of Virtual Functions
0
VF MSI-X interrupt limit
8
Firmware variant
full feature / virtualization
Insecure filters
Disabled
Issue 11
© Solarflare Communications 2014
184
Solarflare Server Adapter
User Guide
• List all Solarflare adapters installed on the localhost:
sfboot /List
Sample console output:
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Network adapters in this computer:
1 : Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
2 : Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
• List adapters installed on the remote host named “Mercutio”:
sfboot /Computer Mercutio /List
• Sample console output (remote host has two adapters present):
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Network adapters in Mercutio:
1 : Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
2 : Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
• Enable iSCSI booting on adapter 2. Implement default iSCSI settings:
sfboot /Adapter 2 boot-type=iscsi
Issue 11
© Solarflare Communications 2014
185
Solarflare Server Adapter
User Guide
Sample console output:
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
MPIO priority
MPIO boot attempts
PFIOV
Number of Physical Functions
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
Issue 11
- MAC: 00:0F:53:21:9B:B1
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Enabled
Enabled
2
Enabled
SFCgPXE
Disabled
0
3
Disabled
2
32
0
8
full feature / virtualization
Disabled
© Solarflare Communications 2014
186
Solarflare Server Adapter
User Guide
• Enable iSCSI booting on adapter 1 with the following options:
- Disable DHCP for the Initiator.
- Specify adapter (iSCSI initiator) IP address 192.168.0.1 and netmask 255.255.255.0.
sfboot /Adapter 1 boot-type=iscsi initiator-dhcp=disabled initiatorip=192.168.0.1 netmask=255.255.255.0
Sample console output:
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Initiator IP address
Initiator netmask
Initiator default gateway
Initiator primary DNS
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
User name
Secret
Mutual CHAP authentication
MPIO priority
MPIO boot attempts
PFIOV
Number of Physical Functions
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
Issue 11
- MAC: 00:0F:53:21:9B:B1
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Disabled
192.168.0.1
255.255.255.0
0.0.0.0
0.0.0.0
Enabled
2
Enabled
SFCgPXE
Enabled
user1
*************
Disabled
0
3
Disabled
2
32
0
8
full feature / virtualization
Disabled
© Solarflare Communications 2014
187
Solarflare Server Adapter
User Guide
• On adapter 1, set the following CHAP options:
- User name “user1”
- Secret “password12345”
sfboot /Adapter 1 boot-type=iscsi chap=enabled username=user1
secret=password12345
Sample output:
Solarflare boot ROM configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
Solarflare SFN7122F SFP+ Server Adapter
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
Use DHCP for Initiator
Use DHCP for Initiator IQN
LUN busy retries
Use DHCP for Target
DHCP Vendor Class ID
CHAP authentication
User name
Secret
Mutual CHAP authentication
MPIO priority
MPIO boot attempts
PFIOV
Number of Physical Functions
MSI-X interrupt limit
Number of Virtual Functions
VF MSI-X interrupt limit
Firmware variant
Insecure filters
Issue 11
- MAC: 00:0F:53:21:9B:B1
Option ROM only
Negotiated automatically
5 seconds
2 seconds
5 seconds
iSCSI
Enabled
Enabled
2
Enabled
SFCgPXE
Enabled
user1
*************
Disabled
0
3
Disabled
2
32
0
8
full feature / virtualization
Disabled
© Solarflare Communications 2014
188
Solarflare Server Adapter
User Guide
4.21 Sfupdate: Firmware Update Tool
• Sfupdate: Command Usage...Page 189
• Sfupdate: Command Line Options...Page 190
• Sfupdate: Examples...Page 191
Sfupdate is a Windows command line utility used to manage and upgrade the Solarflare adapter
Boot ROM, PHY and adapter firmware. Embedded within the sfupdate executable are firmware
images for various Solarflare adapters - the exact updates available via sfupdate are therefore
depend on your adapter.
Sfupdate: Command Usage
1
Login with an administrator account.
2
Click Start > All Programs > Solarflare Network Adapters > Command Line Interface for
network adapters. If you installed the Solarflare system tray icon, you can right-click the icon
and choose Command-line tools instead.
3
In the Command Prompt window, enter your command using the following syntax:
sfupdate [/Adapter <Identifier>] [options]
where:
Identifier is the name or ID of the adapter that you want to manage. Specifying the
adapter is optional - if it is not included the command is applied to all Solarflare adapters in the
machine.
options is the option to apply. See Sfupdate: Command Line Options for a list of available
options.
Running the command sfupdate with no additional parameters will show the current firmware
version for all Solarflare adapters and whether the firmware within sfupdate is more up to date. To
update the firmware for all Solarflare adapters run the command sfupdate /Write
Solarflare recommend that you use sfupdate in the following way:
1
Run sfupdate to check that the firmware on all your adapters are up to date.
2
Run sfupdate /write to update the firmware on all adapters.
Issue 11
© Solarflare Communications 2014
189
Solarflare Server Adapter
User Guide
Sfupdate: Command Line Options
Table 47 lists the command options for sfupdate. Note that command line options are case
insensitive and may be abbreviated.
NOTE: Abbreviations in scripts should be avoided, since future updates to the application may
render your abbreviated scripts invalid.
See Sfupdate: Examples on page 191 for example output.
Table 47: Sfupdate Options
Option
Description
/Help or /H or /?
Displays command line syntax and provides a description
of each sfboot option.
/Version
Shows detailed version information and exits.
/Nologo
Hides the version and copyright message at startup.
/Verbose
Shows extended output information for the command
entered.
/Quiet
Suppresses all output, including warnings and errors; no
user interaction. You should query the completion code
to determine the outcome of commands when operating
silently.
Aliases: /Silent
Issue 11
/Log <Filename>
Logs output to the specified file in the current folder or
an existing folder. Specify /Silent to suppress
simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote
computer. Administrator rights on the remote host
computer is required.
/Adapter <Identifier>
Performs the action on the identified Solarflare network
adapter. The identifier can be the adapter ID number,
name or MAC address.
/Force
Forces a firmware update. Can be used to force an
update to an older revision of firmware when used with
/Write.
© Solarflare Communications 2014
190
Solarflare Server Adapter
User Guide
Table 47: Sfupdate Options
Option
Description
/Write
Writes the updated firmware to the adapter.
If the /Image option is not specified, /Write will write
the embedded image from sfupdate to the hardware.
The update will fail if the image on the adapter is current
or newer; to force an update, specify /Force in the
command line.
/Yes
Update without prompting for a final confirmation. This
option may be used with the /Write and /Force
options, but is not required with the /Quiet option.
/Image <ImageFileName>
Sources firmware image from an external file.
/NoWarning
Suppress update warnings.
Sfupdate: Examples
• Display firmware versions for all adapters:
sfupdate
Sample output from a host with a single SFN5122F adapter installed:
Solarflare firmware update utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
1: Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
Firmware:
v4.1.0
- update to v4.1.4?
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000?
Adapter:
v4.1.0.6732
- update to v4.1.1.1020?
2: Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
Firmware:
v4.1.0
- update to v4.1.4?
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000?
Adapter:
v4.1.0.6732
- update to v4.1.1.1020?
Issue 11
© Solarflare Communications 2014
191
Solarflare Server Adapter
User Guide
• Update all adapters to latest version of PHY and Boot ROM firmware:
sfupdate /Write
Sample output:
Solarflare firmware update utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
1: Solarflare SFN7122F SFP+ Server Adapter
MAC address: 00:0F:53:21:9B:B1
Firmware:
v4.1.0
- update to v4.1.4
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000
Adapter:
v4.1.0.6732
- update to v4.1.1.1020
2: Solarflare SFN7122F SFP+ Server Adapter #2
MAC address: 00:0F:53:21:9B:B0
Firmware:
v4.1.0
- update to v4.1.4
Boot ROM: v4.1.0.6723
- update to v4.2.0.1000
Adapter:
v4.1.0.6732
- update to v4.1.1.1020
Issue 11
© Solarflare Communications 2014
192
Solarflare Server Adapter
User Guide
4.22 Sfteam: Adapter Teaming and VLAN Tool
• Sfteam: Command Usage...Page 193
• Sfteam: Command Line Options...Page 193
• Sfteam: Examples...Page 198
Sfteam is a Windows command line utility used to configure and manage the teaming and VLAN
features of the Solarflare adapters. You may find it easier to create and manage teams and VLANs
with SAM, Solarflare’s graphical adapter manager. As an alternative, or where SAM is not available,
sfteam provides a method of creating teams and VLANs from the command line or configuration
script.
For general information on teaming and VLANs, see Teaming and VLANs on page 209.
Sfteam: Command Usage
1
Login with an administrator account.
2
Click Start > All Programs > Solarflare Network Adapters > Command Line Interface for
network adapters. If you installed the Solarflare system tray icon, you can right-click the icon
and choose Command-line tools instead.
3
In the Command Prompt window, enter your command using the following syntax:
sfteam [option]
where:
option is the command to apply. See Table 48 for a list of available options.
If using sfteam in a configuration script, you can include the environment variable %SFTOOLS%
to set the path to the Solarflare tools. For example:
SET PATH=%PATH%;%SFTOOLS%
or refer to sfteam as:
%SFTOOLS%\sfteam
Sfteam: Command Line Options
Table 48 lists the command line options sfteam. Note that command line options are case
insensitive and may be abbreviated.
NOTE: Abbreviations in scripts should be avoided, since future updates to the application may
render your abbreviated scripts invalid.
Issue 11
© Solarflare Communications 2014
193
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Help or /? or /H
Displays command line syntax and provides a description
of each sfteam option.
/Version
Shows detailed version information and exits.
/Nologo
Hides the version and copyright message at startup.
/Verbose
Shows extended output information for the command
entered.
/Quiet
Suppresses all output, including warnings and errors; no
user interaction. You should query the completion code
to determine the outcome of commands when operating
silently.
Aliases: /Silent
/Log <Filename>
Logs output to the specified file in the current folder or
an existing folder. Specify /Silent to suppress
simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote
computer. Administrator rights on the remote host
computer is required.
/List
Lists all available Solarflare adapters and any teams and
VLANs. This options shows the adapter’s ID number,
name and MAC address.
/Create
Creates a team or VLAN. To be valid, this option must be
used with the /Adapter option for each adapter that
you want to add to the team.
To specify a name for the team, include the /Name
option. To add VLANs to a team, include the /Vlan
option.
Note that once a team has been created, sfteam does
not allow you to change its adapters, VLANs or team
name. Either delete the team and set it up again, or use
SAM instead to configure the team.
Issue 11
/Delete <team name or
vlan group>
Deletes the identified team or group. The team identity
can be specified as the team name or group ID. This
option cannot be used to delete VLANs.
/Clear
Deletes all teams and VLANS.
© Solarflare Communications 2014
194
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Adapter <Adapter_id>
Specifies the adapter to add to the team. Repeat this
option for each adapter that you want to include in the
team.
This option must be used when a team is first created. It
cannot be applied to a team once it has been setup.
Issue 11
© Solarflare Communications 2014
195
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Vlan <VLAN
tag[,priority[,name[,DHC
P|addr,mask[,gateway]]]>
Creates a VLAN with the specified ID and sets priority
traffic handling option.
P – Handles priority traffic
N - Does not handle priority traffic
This option must be used when a team is first created. It
cannot be applied to a team once it has been setup.
If you specify an IP address, you must specify a netmask
as well.
If the IP address is specified, then DHCP is assured. You
can also use tag, priority,name,DHCP to be
explicit.
Formats: <tag>
e.g. 2 (assumes no priority)
"<tag>,<priority>"
e.g. "2,p"
"<tag>,<priority>,<name>"
e.g. "2,p,my name"
"<tag>,<priority>,DHCP"
e.g. "2,p,my name,DHCP"
"<tag>,<priority>,<name>,<addr>,<mask>"
e.g. "2,p,my name,10.1.2.3,255.255.255.0"
"<tag>,<priority>,<name>,<addr>,<mask>,<gateway>"
e.g. "2,p,my name,10.1.2.3,255.255.255.0,10.1.2.1"
Tag: 0 to 4094
Priority: either P (priority supported) or N (no priority)
DHCP: may be omitted, and will be assumed, if it's the
last field
IP Addresses: IPv4, dotted-quad format
note that <mask> must be present if <addr> is present
Issue 11
© Solarflare Communications 2014
196
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Name <Team_name>
Specifies a name for the adapter team.
This option must be used when a team is first created. It
cannot be applied to a team once it has been setup.
/DebugId <adapter_id>
Debug-only. Identify an adapter id to treat as being as
iSCSI boot device.
/DebugIscsi
Debug-only. Pretend the adapter is configured for iSCSI
booting.
/Type <team_type>
Defines what kind of team is being created. The options
are:
• tolerant (default)
• dynamic
• static
See Teaming and VLANs on page 209 for an explanation
on the different teaming types.
Specifies how the driver will select adapters to be part of
the link aggregation. The option is only relevant when
the /Type option is either dynamic or static. The options
are:
/Mode <mode>
• auto (default)
• faulttolerant
• bandwidth
• key adapter
See Teaming and VLANs on page 209 for an explanation
of the different teaming modes.
/Distribution <type>
Specify how the driver distributes conversations across
dynamic or static link aggregation team members. The
available types are:
• auto (default)
• activeadapter
• layer2hash
• layer3hash
• layer4hash
Issue 11
© Solarflare Communications 2014
197
Solarflare Server Adapter
User Guide
Table 48: Sfteam Options
Option
Description
/Statistics
Display adapter and link-aggregation statistics
/Detailed
Display detailed configuration statistics
Sfteam: Examples
• Create TeamA with adapter ID 1 and adapter ID 2:
sfteam /Create /Adapter 1 /Adapter 2 /Name Team_A
Sample output:
Solarflare teaming configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014 Level 5 Networks 2002-2005
Creating team done (new id=2F)
Setting team name "Team_A" ... done
Adding adapter 1 ... done
Adding adapter 2 ... done
Creating network interface
- Using DHCP
- Waiting for the new VLAN device ..
- Waiting for the new LAN interface
- Waiting for access to the IP stack
- Using DHCP done
• Create a VLAN to adapter #2 with VLAN tag 4 and priority traffic handling enabled:
sfteam /Create /Adapter 2 /Vlan 4,P
Issue 11
© Solarflare Communications 2014
198
Solarflare Server Adapter
User Guide
Sample output:
Solarflare teaming configuration utility [v4.1.4]
Copyright Solarflare Communications 2006-2014 Level 5 Networks 2002-2005
Creating VLAN group done (new id=4V)
Setting VLAN group name (using default name "Group 4V") ...
Adding adapter 2 ... done
Creating VLAN
- id=4, priority, unnamed
- Using DHCP
- Waiting for the new VLAN device ..
- Waiting for the new LAN interface
- Waiting for access to the IP stack
- Using DHCP done
Issue 11
© Solarflare Communications 2014
done
199
Solarflare Server Adapter
User Guide
4.23 Sfcable: Cable Diagnostics Tool
• Sfcable: Command Usage...Page 200
• Sfcable: Command Line Options...Page 200
• Sfcable: Sample Commands...Page 202
Sfcable is a Windows command line utility to run cable diagnostics on the Solarflare 10GBASE-T
server adapters. A warning will be given if the adapter is not a 10GBASE-T adapter.
Sfcable: Command Usage
1
Login with an administrator account.
2
Click Start > All Programs > Solarflare Drivers > Command Line Tools. If you installed the
Solarflare system tray icon, you can right-click the icon and choose Command-line tools
instead.
3
In the Command Prompt window, enter the following command:
sfcable [/Adapter <Identifier>] [options]
where:
Identifier is the name or ID of the adapter that you want to manage. Specifying the
adapter is optional - if it is not included the command is applied to all Solarflare adapters in the
machine.
option is the option you to apply. See Table 49 for a list of available options.
Sfcable: Command Line Options
Table 49 lists the command options for sfcable. Note that command line options are case insensitive
and may be abbreviated.
NOTE: Abbreviations in scripts should be avoided, since future updates to the application may
render your abbreviated scripts invalid.
Table 49: Sfcable Options
Issue 11
Options
Description
/Help or /? or /H
Displays command line syntax and provides a description
of each sfcable option.
/Version
Shows detailed version information and exits.
/Nologo
Hides the version and copyright message at startup.
© Solarflare Communications 2014
200
Solarflare Server Adapter
User Guide
Table 49: Sfcable Options
Options
Description
/Verbose
Shows extended output information for the command
entered.
/Quiet
Suppresses all output, including warnings and errors.
User should query the completion code to determine the
outcome of commands when operating silently (see,
Performance Tuning on Windows on page 221).
Aliases: /Silent
/Log <Filename>
Logs output to the specified file in the current folder or
an existing folder. Specify /Silent to suppress
simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote
computer. Administrator rights on the remote host
computer is required.
/Adapter <Identifier>
Performs the action on the identified Solarflare network
adapter. The identifier can be the adapter ID number,
name or MAC address, as given by the /List option.
/List
Lists all available Solarflare adapters. This options shows
the adapter’s ID number, name and MAC address.
/Offline
Stops network traffic while the diagnostic tests are
running. Running tests offline will produce more detailed
results.
Caution: The offline tests will disrupt data flow. It is not
recommended that the tests are run on a live system.
/DebugId (adapter_id>
Issue 11
Debug-only. Identify an adapter to treat as being an iSCSI
boot device.
© Solarflare Communications 2014
201
Solarflare Server Adapter
User Guide
Sfcable: Sample Commands
• Run tests offline
sfcable /Offline
Sample output from a computer with two Solarflare adapters installed:
C: sfcable /Offline
Solarflare cable diagnostics utility [v4.1.4]
Copyright Solarflare Communications 2006-2014, Level 5 Networks 2002-2005
1 : Solarflare SFN5121T 10GBASE-T Server Adapter
MAC address:
00:0F:53:01:40:8C
Link state:
Up
Link speed:
10 Gbps
Pair 1:
OK, length=9m
Pair 2:
OK, length=9m
Pair 3:
OK, length=9m
Pair 4:
OK, length=9m
2 : Solarflare SFN5121T 10GBASE-T Server Adapter #2
MAC address:
00:0F:53:01:40:8D
Link state:
Up
Link speed:
10 Gbps
Pair 1:
OK, length=9m
Pair 2:
OK, length=9m
Pair 3:
OK, length=9m
Pair 4:
OK, length=9m
Issue 11
© Solarflare Communications 2014
202
Solarflare Server Adapter
User Guide
4.24 Sfnet
• Sfnet: Command Usage...Page 203
• Sfnet: Command Line Options...Page 204
• Completion codes (%errorlevel%)...Page 207
Sfnet is a Windows command line utility to configure the physical or virtual adapter settings, such
as checksum offloading, RSS, VMQ and Power Management.
NOTE: Changing these settings may significantly alter the performance of the adapter. You should
contact Solarflare technical support before changing any of these settings.
Sfnet: Command Usage
1
Login with an administrator account.
2
Click Start > All Programs > Solarflare Network Adapter > Command Line Interface for
network adapters. If you installed the Solarflare system tray icon, you can right-click the icon
and choose Command-line tools instead.
3
In the Command Prompt window, enter your command using the following syntax:
sfnet [/Adapter Identifier] [options]
where:
Identifier is the name or ID of the adapter that you want to manage. Specifying the
adapter is optional - if it is not included the command is applied to all Solarflare adapters in the
machine.
option is the option to apply. See Sfnet: Command Line Options for a list of available options.
To see all adapters installed on the computer and their current options and parameter settings
use the sfnet /List option.
If using sfnet in a configuration script, you can include the environment variable %SFTOOLS%
to set the path to the Solarflare tools. For example:
SET PATH=%PATH%;%SFNET%
or refer to sfnet as:
%SFTOOLS%\sfnet
Issue 11
© Solarflare Communications 2014
203
Solarflare Server Adapter
User Guide
Sfnet: Command Line Options
Table 50 lists the command options for sfnet. Note that command line options are case insensitive
and may be abbreviated.
NOTE: Abbreviations in scripts should be avoided, since future updates to the application may
render your abbreviated scripts invalid.
Table 50: Sfnet Options
Options
Description
/Help or /? or /H
Displays command line syntax and provides a description
of each sfnet option.
/Version
Shows detailed version information and exits.
/Nologo
Hides the version and copyright message at startup.
/Verbose
Shows extended output information for the command
entered.
/Quiet
Suppresses all output, including warnings and errors; no
user interaction. You should query the completion code
to determine the outcome of commands when operating
silently.
Aliases:
Issue 11
/Silent
/Log <Filename>
Logs output to the specified file in the current folder or
an existing folder. Specify silent to suppress
simultaneous output to screen, if required.
/Computer <ComputerName>
Performs the operation on the identified remote host.
Administrator rights on the remote host computer is
required.
/Adapter <Identifier>
Perform the action on the identified Solarflare physical
or virtual network adapter.
/List
Lists all available Solarflare adapters, options and current
parameter settings.
/Id
List output is limited to one line, containing the Id and
name, per adapter.
/StopOnWarning
Exit the utility if a warning is output.
/Statistics
Display adapter statistics and configuration settings for
Solarflare interfaces.
© Solarflare Communications 2014
204
Solarflare Server Adapter
User Guide
Table 51: Supported Key Value Parameter
Issue 11
Parameter
Description
ipoffload=<enabled|disabled>
Specify whether IPv4 checksum offload is enabled.
tcpoffload=<enabled|disabled>
Specify whether TCP checksum offload is enabled.
Configures TCPv4 and TCPv6 where applicable.
udpoffload=<enabled|disabled>
Specify whether UDP checksum offload is enabled.
Configures UDPv4 and UDPv6 where applicable.
lso=<enabled|disabled>
Specify whether large send offload (LSO) is enabled.
Configures LSOv4 and LSOv6 where applicable.
lro=<enabled|disabled>
Specify whether large receive offload (LRO) is
enabled. Configures LROv4 and LROv6 where
applicable.
flowcontrol=<auto|enabled|gene
rate|respond|disabled>
Specify Ethernet flow control. This option covers
the "Flow Control" and "Flow Control
Autonegotiation" device driver advanced
properties.
speed=<auto|40g|10g|1g|100m>
Specify the Ethernet link speed.
mtu=<MTU length>
Specify the maximum Ethernet frame length. From
1518 to 9216 bytes (even values only).
rss=<disabled|optimized|system
|closest|closeststatic|numa|nu
mastatic|conservative>
Specify the receive side scaling (RSS) mode.
rssbaseprocessor=<group>:<numb
er>
The base processor available for RSS. If a value is
given it must formated as <group>:<number>
where group is in the range 0-9 and number in the
range 0 to 63.
rssmaxprocessor=<group>:<numbe
r>
The maximum number of processors available for
RSS. If a value is given it must formated as
<group>:<number> where group is in the range 0-9
and number in the range 0 to 63.
maxrssprocessors=<count>
The maximum number of processors available for
RSS. If count is specified it must be in the range 1256. Support for this option is independent of the
version of the operating system and networking
stack.
© Solarflare Communications 2014
205
Solarflare Server Adapter
User Guide
Table 51: Supported Key Value Parameter
Parameter
Description
rssqueuecount=<balanced|count>
Specify the maximum number of receive queues to
use for RSS. If set to balanced the network adapter
will choose the number of queues based on the
system processor topology. If specified, count must
be one of 1|2|4|8|12|16|24|32|48|64.
Support for this option is independent of the
version of the operating system and networking
stack.
numanode=<all|value>
The preferred NUMA node used by RSS. If a value is
given, it must be in the range 0-15. Support for this
option is independent of the version of the
operating system and networking stack.
moderation=<disabled|value>
Specify interrupt moderation time (in microseconds). If a value is given it must be in the range 1
to 1000. NOTE: this option covers the device driver
advanced properties "interrupt moderation time"
and "interrupt moderation".
adaptive=<enabled|disabled>
Allows the adapter to vary interrupt moderation
automatically if interruptmoderation is
enabled.
wake=<enabled|disabled>
Specify whether Wake-on-LAN is enabled.
sleep=<enabled|disabled>
Specify whether the operating system can put the
device to sleep when the physical link goes down.
vmq=<enabled|nosplit|novlan|ba
sic|disabled>
enabled = VMQ enabled.
nosplit = VMQ enabled without lookahead split.
novlan = VMQ enabled without VLAN filtering.
basic = VMQ enabled MAC address filtering only.
disabled = VMQ disabled.
Issue 11
© Solarflare Communications 2014
206
Solarflare Server Adapter
User Guide
4.25 Completion codes (%errorlevel%)
Table 52 lists the completion codes returned by the command line utilities. The code may be
determined by inspecting %errorlevel%
Table 52: Completion Codes
Error code
Description
0
Success.
1
The application was invoked with /? or /help.
3
The application was invoked with /version.
16
Application cancelled (user probably pressed CTRL-C).
17
Application has requested a reboot.
18
Reboot is necessary to complete the action.
19
Incomplete team creation.
Team has been created and whatever adapters that could be added
have been, and the VLANs (if any) have been created. Some adapters
were not able to be added.
32
Application failed initialization.
33
Access denied.
Either the remote host refused a connection on the basis of account
privileges, or a file could not be opened.
34
Cannot connect.
The remote host could not be found or refused the connection
because the WMI service was inaccessible (either because the service
is not running or because there is a firewall or security policy
preventing it being accessed remotely).
35
WMI classes exposed by the Solarflare drivers missing.
Usually this means that either the driver have not been installed, no
Solarflare adapters are present, or adapters have been disabled.
36
Failed to obtain driver lock.
The application has tried to take the Solarflare driver lock because it
wants to do something that must not be interrupted by another utility
(or SAM) and failed to do so.
37
Adapter not found.
Cannot find the adapter specified by /adapter.
Issue 11
© Solarflare Communications 2014
207
Solarflare Server Adapter
User Guide
Table 52: Completion Codes
Error code
Description
38
Adapter not specified.
Command line is missing the /adapter option.
39
Later version already installed.
128
User entered an invalid command line.
129
Could not open log file.
130
A general WMI error occurred.
Can occur when the connection is lost.
131
Missing prerequisite.
The application needs something that is not present in the system.
Issue 11
132
Not supported.
133
Platform/System not supported.
255
General exit failure.
© Solarflare Communications 2014
208
Solarflare Server Adapter
User Guide
4.26 Teaming and VLANs
About Teaming
Solarflare adapters support the following teaming configurations:
• IEEE 802.1AX (802.3ad) Dynamic link aggregation
• Static link aggregation
• Fault tolerant teams
Teaming allows the user to configure teams consisting of all Solarflare adapter ports on all installed
Solarflare adapters or might consist only of selected ports e.g. from a dual port Solarflare adapter,
the first port could be a member of team A and the second port a member of team B or both ports
members of the same team.
This section is only relevant to teams of Solarflare adapters. Solarflare adapters can be used in multivendor teams when teamed using another vendor’s teaming driver.
NOTE: Adapter teaming and VLANs are not supported in Windows for iSCSI remote boot enabled
Solarflare adapters. To configure load balancing and failover support on iSCSI remote boot enabled
adapters, you can use Microsoft MultiPath I/O (MPIO), which is supported on all Solarflare
adapters.
NOTE: Windows Server 2012 has native Windows teaming support. The user can elect to use native
windows driver of the Solarflare teaming, but the two methods should not be mixed.
Creating Teams and VLANs
To set up teams and VLANs in Windows using SAM, see Using SAM to Configure Teams and VLANs
on page 145.
To set up teams and VLANs in Windows using the sfteam command line tool, see Sfteam: Adapter
Teaming and VLAN Tool on page 193.
Link Aggregation
Link aggregation is a mechanism for supporting load balancing and fault tolerance across a team of
network adapters and their associated switch. Link aggregation is a partner teaming mode that
requires configuration at both ends of the link. Once configured, all links in the team are bonded into
a single virtual link with a single MAC address.
Two or more physical links are used to increase the potential throughput available between the link
partners, and also improve resilience against link failures. To be aggregated, all links in the team must
be between the same two link partner and each link must be full-duplex. Traffic is distributed evenly
to all links connected to the same switch. In case of link failover, traffic on the failed link will be redistributed to the remaining links.
Link aggregation offers the following functionality:
Issue 11
© Solarflare Communications 2014
209
Solarflare Server Adapter
User Guide
• Teams can be built from mixed media (i.e. UTP and Fibre).
• All protocols can be load balanced without transmit or receive modifications to frames.
• Multicast and broadcast traffic can be load balanced.
• Short recovery time in case of failover.
• Solarflare supports up to 64 link aggregation port groups per system.
• Solarflare supports up to 64 ports and VLANs in a link aggregation port group.
There are two methods of link aggregation, dynamic and static.
Dynamic Link Aggregation
Dynamic link aggregation uses the Link Aggregation Control Protocol (LACP) as defined in the IEEE
802.1AX standard (previously called 802.3ad) to negotiate the ports that will make up the team.
LACP must be enabled at both ends of the link for a team to be operational.
LACP will automatically determine which physical links can be aggregated, and will then perform the
aggregation.
An optional LACP marker protocol provides functionality when adding and removing physical links
ensuring that no frames are lost, reordered or duplicated.
Dynamic link aggregation offers both fault tolerance and load balancing.
Standby links are supported, but are not considered part of a link aggregation until a link within the
aggregation fails.
VLANs are supported within 802.1AX teams.
In the event of failover, the load on the failed link is redistributed over the remaining links.
NOTE: Your switch must support 802.1AX (802.3ad) dynamic link aggregation to use this method of
teaming.
Figure 35 shows a 802.1AX Team configuration.
Issue 11
© Solarflare Communications 2014
210
Solarflare Server Adapter
User Guide
Figure 35: 802.1AX Team
Figure 36 shows a 802.1AX team with a failed link. All traffic is re-routed and shared between the
other team links.
Figure 36: 802.1AX with Failed Link
Issue 11
© Solarflare Communications 2014
211
Solarflare Server Adapter
User Guide
Static Link Aggregation
Static link aggregation is a switch assisted teaming mode that requires manual configuring of the
ports at both ends of the link. Static link aggregation is protocol independent and typically interoperates with common link aggregation schemes such as Intel Link Aggregation, Cisco Fast
EtherChannel and Cisco Gigabit EtherChannel.
With static link aggregation, all links share the traffic load and standby links are not supported. Static
link aggregation offers both fault tolerance and load balancing. In the event of failover, the load on
the failed link is redistributed over the remaining links.
Figure 37: Static Link Aggregation Team
Figure 38: Static Link Team with Failed Link
Issue 11
© Solarflare Communications 2014
212
Solarflare Server Adapter
User Guide
Fault-Tolerant Teams
Fault tolerant teaming can be implemented on any switch. It can also be used with each network link
connected to separate switches.
A fault-tolerant team is a set of one or more network adapters bound together by the adapter driver.
A fault-tolerant team improves network availability by providing standby adapters. At any one
moment no more than one of the adapters will be active with the remainder either in standby or in
a fault state. In Figure 39, Adapter 1 is active and all data to and from the switch passes through it.
NOTE: All adapters in a fault-tolerant team must be part of the same broadcast domain.
Figure 39: Fault Tolerant Team
Failover
The teaming driver monitors the state of the active adapter and, in the event that its physical link is
lost (down) or that it fails in service, swaps to one of the standby adapters. In Figure 40 the
previously active adapter has entered a failed state and will not be available in the standby list while
the failed state persists.
Issue 11
© Solarflare Communications 2014
213
Solarflare Server Adapter
User Guide
Figure 40: Adapter 1 Failure
Note that, in this example, Adapter 3 is now active. The order in which the adapters are used is
determined by a number of factors, including user-definable rank.
VLANs
VLANs offer a method of dividing one physical network into multiple broadcast domains.
Figure 41: VLANs routing through Solarflare adapter
Issue 11
© Solarflare Communications 2014
214
Solarflare Server Adapter
User Guide
VLANs and Teaming
VLANs are supported on all Solarflare adapter teaming configurations.
VLANs with Fault Tolerant Teams
Figure 42 shows a fault tolerant team with two VLANs.
Figure 42: Fault Tolerant VLANs
Failover works in the same way regardless of the number of VLANs, as show in Figure 43.
Issue 11
© Solarflare Communications 2014
215
Solarflare Server Adapter
User Guide
Figure 43: Failover in Fault Tolerant Team VLAN
Issue 11
© Solarflare Communications 2014
216
Solarflare Server Adapter
User Guide
VLANs with Dynamic or Static Link Aggregation Teams
VLANs work in the same way with either Dynamic or Static Link Aggregation teaming
configurations.Figure 44 shows how VLANs work with these teams.
Figure 44: VLAN with Dynamic or Static Link Team
In case of link failure, all traffic is distributed over the remaining links, as in Figure 45.
Figure 45: VLAN with Failed Dynamic or Static Team Link
Issue 11
© Solarflare Communications 2014
217
Solarflare Server Adapter
User Guide
Key Adapter
Every team must have a key adapter. Figure 46 shows Adapter 1 as both the Key and the active
adapter. in a Fault-Tolerant Team.
Figure 46: Key Adapter in Fault Tolerant Team
The key adapter must be a member of a team. However, it does not need to be the active adapter.
It doesn't even need to be in the list of standby adapters but it must physically be within its host. The
Key Adapter defines the team's RSS support (see Receive Side Scaling (RSS) on page 225) and
provides the MAC Address that will be used for all traffic sent and received by the team.
When a link failure occurs in the active adapter (for example the physical link is lost) the driver will
select another adapter to become active but it will not re-assign the Key Adapter. In Figure 47,
Adapter 1 has failed and the team is now using Adapter 2 for all traffic.
Issue 11
© Solarflare Communications 2014
218
Solarflare Server Adapter
User Guide
Figure 47: Failover Key Adapter
Note that although the Key Adapter (Adapter 1) has a link failure, the integrity of the team is not
affected by this failure.
Dynamic and Static Link Aggregation Teams
The assignment of key adapters is supported in both dynamic and static link aggregated teams, and
works in the same way for both.
Issue 11
© Solarflare Communications 2014
219
Solarflare Server Adapter
User Guide
Any link failure on the key adapter does not affect the redistribution of traffic to the other links in
the team.
Issue 11
© Solarflare Communications 2014
220
Solarflare Server Adapter
User Guide
4.27 Performance Tuning on Windows
• Introduction...Page 221
• Tuning Settings...Page 222
• Other Considerations...Page 226
• Benchmarks...Page 230
Introduction
The Solarflare family of network adapters are designed for high-performance network applications.
The adapter driver is pre-configured with default performance settings that have been designed to
give good performance across a broad class of applications. Occasionally, application performance
can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter:
• Throughput
• Latency
• CPU utilization
Different applications may be more or less affected by improvements in these three metrics. For
example, transactional (request-response) network applications can be very sensitive to latency
whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this section is to highlight adapter driver settings that affect the performance metrics
described. This guide covers the tuning of all Solarflare adapters.
Latency will be affected by the type of physical medium used: 10GBase-T, twinaxial (direct-attach),
fiber or KX4. This is because the physical media interface chip (PHY) used on the adapter can
introduce additional latency.
This section is designed for performance tuning Solarflare adapters on Microsoft Windows. This
should be read in conjunction with the reference design board errata documents and the following
Microsoft performance tuning guides:
• Performance Tuning Guidelines for Windows Server 2008 R2
http://msdn.microsoft.com/en-us/library/windows/hardware/gg463392.aspx
• Performance Tuning Guidelines for Windows Server 2012
http://msdn.microsoft.com/en-us/library/windows/hardware/dn529133.
In addition, you may need to consider other issues influencing performance, such as application
settings, server motherboard chipset, CPU speed, Cache size, RAM size, additional software installed
on the system, such as a firewall, and the specification and configuration of the LAN. Consideration
of such issues is not within the scope of this guide.
Issue 11
© Solarflare Communications 2014
221
Solarflare Server Adapter
User Guide
Tuning Settings
Tuning settings for the Solarflare adapter are available through the Solarflare Adapter Manager
(SAM) utility, or via the Advanced tab in the Windows Device Manager (right-click the adapter and
select Properties). See Using SAM to Configure Adapter Features on page 135 and Configuring
Network Adapter Properties in Windows on page 167 for more details.
Table 53 lists the available tuning settings for Solarflare adapters on Windows.
Table 53: Tuning Settings
Setting
Supported on
Windows Server 2008 R2/Windows 7 /Windows 8
Windows Server 2012
Adaptive Interrupt Moderation
Yes
Interrupt moderation
Yes
Interrupt Moderation Time
Yes
Large receive offload (IPv4)
Yes
Large Receive Offload (IPv6)
Yes
Large send offload (IPv4)
version 2
Yes
Large send offload (IPv6)
version 2
Yes
Max Frame Size
Yes
Offload IPv4 checksum
Yes
Offload TCP checksum (IPv4)
Yes
Offload TCP checksum (IPv6)
Yes
Offload UDP checksum (IPv4)
Yes
Offload UDP checksum (IPv6)
Yes
Receive Side Scaling (RSS)
Yes
RSS Interrupt Balancing
Yes
RSS Numa Node
Yes
Maximum Frame Size
The default maximum frame size ensures that the adapter is compatible with legacy 10/100Mbps
Ethernet endpoints. However if a larger maximum frame size is used, adapter throughput and CPU
utilization can be improved. CPU utilization is improved, because it takes fewer packets to send and
Issue 11
© Solarflare Communications 2014
222
Solarflare Server Adapter
User Guide
receive the same amount of data. Solarflare adapters supports maximum frame sizes up to 9216
bytes (this does not include CRC).
NOTE: The maximum frame size setting should include the Ethernet frame header. The Solarflare
drivers support 802.1p. This allows Solarflare adapters on Windows to optionally transmit packets
with 802.1p tags for QOS applications. It requires an Ethernet frame header size of 18bytes
(6bytes source MAC address, 6bytes destination MAC. 2bytes ethertype and 4bytes priority tag.
The default maximum frame size is therefore: 1518 bytes.
Since the maximum frame size should ideally be matched across all endpoints in the same LAN
(VLAN) and the LAN switch infrastructure must be able to forward such packets, the decision to
deploy a larger than default maximum frame size requires careful consideration. It is recommended
that experimentation with maximum frame size be done in an application test environment.
The maximum frame size is changed by changing the Max Frame Size setting in the Network
Adapter’s Advanced Properties Page.
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation reduces the number of interrupts generated by the adapter by coalescing
multiple received packet indications and/or transmit completion events together into a single
interrupt. The amount of time the adapter waits after the first event until the interrupt is generated
is the interrupt moderation interval.
Solarflare adapters, by default, use an adaptive algorithm where the interrupt moderation delay is
automatically adjusted between zero (no interrupt moderation) and 60 microseconds. The adaptive
algorithm detects latency sensitive traffic patterns and adjusts the interrupt moderation interval
accordingly. The adaptive algorithm can be disabled to reduce jitter and the moderation interval set
higher/lower as required to suit conditions.
For lowest latency, interrupt moderation should be disabled. This will increase the number of
interrupts generated by the network adapter and as such increase CPU utilization.
Interrupt moderation settings are critical for tuning adapter latency. Increasing the moderation
time may increase latency, but reduce CPU utilization and improve peak throughput, if the CPU is
fully utilized. Decreasing the moderation time value or turning it off will decrease latency at the
expense of CPU utilization and peak throughput. However, for many transaction request-response
type network applications, the benefit of reduced latency to overall application performance can be
considerable. Such benefits typically outweigh the cost of increased CPU utilization.
Interrupt moderation can be disabled by setting the Interrupt Moderation setting to disabled in the
Network Adapter’s Advanced Properties Page. The interrupt moderation time value can also be
configured from the Network Adapter’s Advanced Properties Page.
Interrupt Moderation Interval
The interrupt moderation interval is measured in microseconds. When the interval expires the
adapter will generate a single interrupt for all packets received since the last interrupt and/or for all
transmit complete events since the last interrupt.
Increasing the interrupt moderation interval will:
Issue 11
© Solarflare Communications 2014
223
Solarflare Server Adapter
User Guide
• generate less interrupts
• reduce CPU utilization (because there are less interrupts to process)
• increase latency
• improve peak throughput
Decreasing the interrupt moderation interval will:
• generate more interrupts
• increase CPU utilization (because there are more interrupts to process)
• decrease latency
• reduce peak throughput
TCP/IP Checksum Offload
Checksum offload defers the calculation and verification of IP Header, TCP and UDP packet
checksums to the adapter. The driver has all checksum offload features enabled by default.
Therefore, there is no opportunity to improve performance from the default.
Checksum offload configuration is changed by changing the Offload IP checksum, Offload UDP
checksum and Offload TCP checksum settings in the Network Adapter’s Advanced Properties Page.
Large Send Offload (LSO)
Large Send offload (LSO; also known as TCP Segmentation Offload/TSO) offloads the splitting of
outgoing TCP data into packets to the adapter. LSO benefits applications using TCP. Applications
using protocols other than TCP will not be affected by LSO.
Enabling LSO will reduce CPU utilization on the transmit side of a TCP connection and improve peak
throughput, if the CPU is fully utilized. Since LSO has no affect on latency, it can be enabled at all
times. The driver has LSO enabled by default.
LSO is changed by changing the Large Send Offload setting in the Network Adapter’s Advanced
Properties Page. TCP and IP checksum offloads must be enabled for LSO to work.
NOTE: Solarflare recommend that you do not disable this setting.
Issue 11
© Solarflare Communications 2014
224
Solarflare Server Adapter
User Guide
Large Receive Offload (LRO)
TCP Large Receive Offload (LRO) is a feature whereby the adapter coalesces multiple packets
received on a TCP connection into a single larger packet before passing this onto the network stack
for receive processing. This reduces CPU utilization and improves peak throughput when the CPU is
fully utilized. The effectiveness of LRO is bounded by the interrupt moderation delay and in itself,
enabling LRO does not negatively impact latency. LRO is a Solarflare proprietary mechanism similar
to the Windows Receive Side Coalescing feature. LRO is disabled by default and should not be
enabled if the host is forwarding received packets from one interface to another.
LRO is set by changing the Large Receive Offload settings in the Network Adapter’s Advanced
Properties Page. TCP /IP checksum offloads must be enabled for LRO to work. The Solarflare network
adapter driver does not enable LRO by default..
NOTE: LRO should NOT be enabled when using the host to forward packets from one
interface to another. For example, if the host is performing IP routing.
Receive Side Scaling (RSS)
Receive Side Scaling (RSS) was first supported as part of the scalable networking pack for Windows
Server 2003 and has been improved with each subsequent operating system release. RSS is enabled
by default and will be used on network adapters that support it. Solarflare recommend that RSS is
enabled for best networking performance.
For further information about using RSS on Windows platforms see the Microsoft white paper
"Scalable Networking: Eliminating the Receive Processing Bottleneck—Introducing RSS"
This is available from:
http://download.microsoft.com/download/5/D/6/5D6EAF2B-7DDF-476B-93DC-7CF0072878E6/
NDIS_RSS.doc
On Windows Server 2008 R2 and Windows 7, specific RSS parameters can be tuned on a per-adapter
basis. For details see the Microsoft white paper "Networking Deployment Guide: Deploying HighSpeed Networking Features" available from:
http://download.microsoft.com/download/8/E/D/8EDE21BC-0E3B-4E14-AAEA-9E2B03917A09/
HSN_Deployment_Guide.doc
Solarflare network adapters optimize RSS settings by default on Windows operating systems and
offer a number of RSS interrupt balancing modes via the network adapter's advanced property page
in Device Manager and Solarflare's adapter management tools.
RSS NUMA Node
The adapter driver chooses a subset of the available CPU cores to handle transmit and receive
processing. The RSS NUMA Node setting can be used to constrain the set of CPU cores considered
for processing to those on the given NUMA Node.
Issue 11
© Solarflare Communications 2014
225
Solarflare Server Adapter
User Guide
To force processing onto a particular NUMA Node, change the RSS NUMA Node setting on the
Network Adapter's Advanced Properties Page.
NOTE: Solarflare recommend that you do not change this setting.
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different
speeds and widths. This is independent of the physical slot size used to connect the adapter. The
possible widths are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen 1, 5.0 Gbps for
PCIe Gen 2 and 8.0Gbps for PCIe Gen 3) in each direction. Solarflare adapters are designed for x8
or x16 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including
those that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots,
Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will
insert a warning in the Windows Event Log if it detects that the adapter is plugged into a PCIe slot
which electrically has fewer than x8 lanes.
For SFN5xxx and SFN6xxx Solarflare adapters, which require a PCIe Gen 2 x8 slot for optimal
operation. Solarflare SFN7xxx series adapters require a PCIe Gen 3 x8 or x16 slot for optimal
performance. A warning will be issued when the Solarflare adapter is placed in a sub-optimal slot.
In addition, the latency of communications between the host CPUs, system memory and the
Solarflare PCIe adapter may be PCIe slot dependant. Some slots may be “closer” to the CPU, and
therefore have lower latency and higher throughput. Please consult your server user guide for more
information.
Memory bandwidth
Many chipsets use multiple channels to access main system memory. Maximum memory
performance is only achieved when the chipset can make use of all channels simultaneously. This
should be taken into account when selecting the number of memory modules (DIMMs) to populate
in the server. Consult the motherboard documentation for details, however it’s likely that populating
all DIMM slots will be needed for optimal memory bandwidth in the system.
Issue 11
© Solarflare Communications 2014
226
Solarflare Server Adapter
User Guide
BIOS Settings
DELL Systems
Refer to the BIOS configuration guidelines recommended by Dell's white paper "Configuring LowLatency Environments on Dell PowerEdge Servers" available from:
http://i.dell.com/sites/content/business/solutions/whitepapers/en/Documents/configuring-dellpoweredge-servers-for-low-latency-12132010-final.pdf
HP Systems
Refer to the BIOS configuration guidelines recommended by HP's white paper "Configuring the HP
ProLiant Server BIOS for Low-Latency Applications" available from:
http://h20000.www2.hp.com/bc/docs/support/SupportManual/c01804533/c01804533.pdf
Although targeted at tuning for real-time operating systems, the recommendations equally apply to
Windows Server platforms.
Other system vendors may publish similar recommendations. In general any BIOS settings guidelines
that are targeted at increasing network performance whilst minimizing latency and jitter are
applicable to all operating systems.
Intel® QuickData / NetDMA
On systems that support Intel I/OAT (I/O Acceleration Technology) features such as QuickData (a.k.a
NetDMA), Solarflare recommend that these are enabled as they are rarely detrimental to
performance.
Using Intel® QuickData Technology allows data copies to be performed by the system and not the
operating system. This enables data to move more efficiently through the server and provide fast,
scalable, and reliable throughput.
To enable NetDMA the EnableTCPA variable must be set to 1 in the Tcpip\Parameters registry
key. Locate the following key in the registry:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters
The EnableTCPA value must be created if it is not present and set to 1:
EnableTCPA = 1
Intel Hyper-Threading Technology
On systems that support Intel Hyper-Threading Technology users should consider benchmarking or
application performance data when deciding whether to adopt hyper-threading on a particular
system and for a particular application. Solarflare have identified that hyper-threading is generally
beneficial on systems fitted with Core i5, Core i7 and Xeon (Nehalem or later) CPUs when used in
conjunction with Windows Server 2008 or later.
Issue 11
© Solarflare Communications 2014
227
Solarflare Server Adapter
User Guide
TCP/IP Options
On Windows Server 2008 R2 and later platforms, TCP timestamps, window scaling and selective
acknowledgments are enabled by default and include receive window tuning and congestion control
algorithms that automatically adapt to 10 gigabit connections.
Server Power Saving Mode
Modern processors utilize design features that enable a CPU core to drop into low power states
when instructed by the operating system that the CPU core is idle. When the OS schedules work on
the idle CPU core (or when other CPU cores or devices need to access data currently in the idle CPU
core’s data cache) the CPU core is signaled to return to the fully on power state. These changes in
CPU core power states create additional network latency and jitter. Solarflare recommend to
achieve the lowest latency and lowest jitter that the "C1E power state" or "CPU power saving mode"
is disabled within the system BIOS.
In general the user should examine the system BIOS settings and identify settings that favor
performance over power saving. In particular look for settings to disable:
• C states / Processor sleep/idle states
• C1E
• Any deeper C states (C3 through to C6)
• P states / Processor throttling
• Ultra Low Power State
• PCIe Active State Power Management
• ASPM
• Processor Turbo mode
• Unnecessary SMM/SMI features
Issue 11
© Solarflare Communications 2014
228
Solarflare Server Adapter
User Guide
The latency can be improved by selecting the “Optimum Performance” power plan. This is
configured From the Control Panel > Hardware > Power Options:
Windows Firewall
Depending on the system configuration, the built-in Windows (or any third-party) Firewall may have
a significant impact on throughput and CPU utilization. Where high throughput is required on a
particular port, the performance will be improved by disabling the firewall on that port.
NOTE: The Windows (or any third party) Firewall should be disabled with caution. The network
administrator should be consulted before making any changes.
Issue 11
© Solarflare Communications 2014
229
Solarflare Server Adapter
User Guide
Benchmarks
Throughput Benchmark using Ntttcp
The following example shows results from running Microsoft’s ntttcp. On Windows Server 2008,
2008 R2 and Windows 7 it is suggested that first, Large Receive Offload (LRO) is enabled via the
Network Adapter's Advanced Properties Page.
1
On client and server install drivers via the MSI installer.
2
On Windows Server 2008, 2008 R2 and Windows 7 enable “Large Receive Offload” in
advanced driver properties
3
On server run ntttcpr:
ntttcpr.exe -rb 500000 -a 24 -n 100000 -l 524288 -m
1,1,<server_adapter_IP_interface>
4
On client run ntttcps test:
ntttcps.exe -rb 500000 -a 24 -n 100000 -l 524288 -m
1,1,<server_adapter_IP_interface>
C:\ > ntttcps.exe -rb 500000 -a 24 -n 100000 -l 524288 -m 1,1,<server
adapter IP interface>
Copyright Version 2.4
Network activity progressing...
Thread Realtime(s) Throughput(KB/s) Throughput(Mbit/s)
====== =========== ================
0 44.767 1170961.007 9367.688
Total Bytes(MEG) Realtime(s) Average Frame Size Total Throughput(Mbit/s)
================ =========== ==================
52420.411392 44.767 1459.846 9367.688
Total Buffers Throughput(Buffers/s) Pkts(sent/intr) Intr(count/s) Cycles/
Byte
============= =====================
99984.000 2233.431 27 29187.48 0.8
Packets Sent Packets Received Total Retransmits Total Errors Avg. CPU %
============ ================ =================
Issue 11
© Solarflare Communications 2014
230
Solarflare Server Adapter
User Guide
Tuning Recommendations
The following tables provide recommendations for tuning settings for different application
characteristics.
Throughput - Table 54
Latency - Table 55
Table 54: Throughput Tuning Settings
Tuning Parameter
How?
Adaptive Interrupt
Moderation
Leave at default (Enabled).
Interrupt Moderation
Leave at default (Enabled).
Interrupt Moderation Time
Leave at default (Enabled 60μs).
Large Receive Offloads
Enable in Network Adapter Advanced Properties.
Large Send Offloads
Leave at default (Enabled).
Max Frame Size
Configure to maximum supported by network in Network
Adapter's Advanced Properties.
Offload Checksums
Leave at default.
Receive Side Scaling (RSS)
Leave at default.
RSS NUMA Node
Leave at default (All).
TCP Protocol Tuning
Leave at default (install with “Optimize Windows TCP/IP
protocol settings for 10G networking” option selected).
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads
back as “x8 and 5Gb/s” Or “x8 and Unknown”.
Power Saving Mode
Leave at default.
Memory bandwidth
Ensure Memory utilizes all memory channels on system
motherboard.
Intel QuickData (Intel chipsets
only)
Enable in BIOS and configure as described in guide.
Table 55: Latency Tuning Settings
Issue 11
Tuning Parameter
How?
Adaptive Interrupt
Moderation
Leave at default (Enabled).
© Solarflare Communications 2014
231
Solarflare Server Adapter
User Guide
Table 55: Latency Tuning Settings
Issue 11
Tuning Parameter
How?
Interrupt Moderation
Disable in Network Adapter’s Advanced Properties.
Interrupt Moderation Time
Set to 0uS in Network Adapter’s Advanced Properties.
Large Receive Offloads
Disable in Network Adapter’s Advanced Properties.
Large Send Offloads
Leave at default (Enabled).
Max Frame Size
Configure to maximum supported by network in Network
Adapter's Advanced Properties.
Offload Checksums
Leave at default (Enabled).
TCP/IP Checksum Offload
Leave at default
Receive Side Scaling
Application dependent
RSS NUMA Node
Leave at default (All).
TCP Protocol Tuning
Leave at default (install with “Optimize Windows TCP/IP
protocol settings for 10G networking” option selected).
PCI Express Lane
Configuration
Ensure the adapter is in x8 Gen 2 slot.
Power Saving Mode
Disable C1E and other CPU sleep modes to prevent OS from
putting CPUs into lowering power modes when idle.
Memory bandwidth
Ensure Memory utilizes all memory channels on system
motherboard.
Intel QuickData (Intel chipsets
only)
Enable in BIOS and configure as described in guide.
© Solarflare Communications 2014
232
Solarflare Server Adapter
User Guide
4.28 Windows Event Log Error Messages
The following tables list the various error messages that can be added to the event log, along with a
description and action that should be taken.
Driver Status Codes
Table 56: Driver Status Codes
Issue 11
Value
Error Message
Severity
Description
Notes
0x60000001L
BUS_STATUS_DRIVER_VERSION
Informational
The driver version
information.
No action required.
0x60000002L
BUS_STATUS_DRIVER_LOAD_FAILU
RE
Informational
The driver failed to
load.
0xA0000004L
BUS_STATUS_DRIVER_NOT_ADDIN
G_DEVICE
Warning
The driver can’t add a
device due to the
system being started
in safe mode
(SAFEMODE_MINIMA
L).
0xA0000005L
BUS_STATUS_DRIVER_NUMA_ALLO
CATION_FAILED
Warning
The driver could not
allocate memory on a
specific NUMA node.
© Solarflare Communications 2014
For maximum
performance all
NUMA nodes
should be
populated. Install
additional memory.
233
Solarflare Server Adapter
User Guide
Device Status Codes
Table 57: Device Status Codes
Issue 11
Value
Error Message
Severity
Description
Action
0xE0010002L
BUS_STATUS_DEVICE_PHY_ZOMBIE
Error
PHY firmware has
failed to start.
Possible PHY
firmware
corruption. Run
sfupdate or SAM to
update.
0xA0010004L
BUS_STATUS_DEVICE_LINK_WIDTH
Warning
The device does not
have sufficient PCIe
lanes to reach full
bandwidth.
Move the adapter
into a PCIe slot with
more lanes. See PCI
Express Lane
Configurations on
page 226.
0xE0010005L
BUS_STATUS_DEVICE_ADD_FAILUR
E
Error
The device could
not be added to the
system.
0xE0010006L
BUS_STATUS_DEVICE_INIT_INTERR
UPTS_DISABLED_FAILURE
Error
The device could
not be initialized
with interrupts
disabled.
0xE0010007L
BUS_STATUS_DEVICE_INIT_INTERR
UPTS_ENABLED_FAILURE
Error
The device could
not be initialized
with interrupts
enabled.
0xE0010008L
BUS_STATUS_DEVICE_START_FAILU
RE
Error
The device could
not be started.
0xE0010009L
BUS_STATUS_DEVICE_RESET_FAILU
RE
Error
The device could
not be reset.
0xE001000AL
BUS_STATUS_DEVICE_EFX_FAILURE
Error
There was an EFX
API failure.
0x6001000BL
BUS_STATUS_DEVICE_MTU_CHANG
E
Informational
The MTU on the
device was
changed.
0xA001000CL
BUS_STATUS_DEVICE_TX_WATCHD
OG
Warning
The transmit
watchdog fired
0xA001000D
L
BUS_STATUS_DEVICE_UNEXPECTED
_EVENT
Warning
An unexpected
event was received
from the device.
0xA0010010L
BUS_STATUS_DEVICE_WRONG_RX_
EVENT
Warning
A non-contiguous
RX event was
received from the
device.
© Solarflare Communications 2014
No action required.
No action required.
234
Solarflare Server Adapter
User Guide
Table 57: Device Status Codes
Issue 11
Value
Error Message
Severity
Description
Action
0xA0010011L
BUS_STATUS_DEVICE_TEMPERATUR
E_WARNING
Warning
The device has
exceeded the
maximum
supported
temperature limit.
Improve the server
cooling.
0xE0010012L
BUS_STATUS_DEVICE_TEMPERATUR
E_ERROR
Error
The device has
exceeded the
critical temperature
limit.
Improve the server
cooling.
0xA0010013L
BUS_STATUS_DEVICE_COOLING_ER
ROR
Warning
The device cooling
has failed.
0xA0010014L
BUS_STATUS_DEVICE_VOLTAGE_W
ARNING
Warning
One of the device
voltage supplies is
outside of the
supported voltage
range.
The adapter or
server maybe
faulty.
0xE0010015L
BUS_STATUS_DEVICE_VOLTAGE_ER
ROR
Error
One of the device
voltage supplies is
outside of the
critical voltage
range.
The adapter or
server maybe
faulty.
0xE0010016L
BUS_STATUS_DEVICE_UNKNOWN_
SENSOREVT
Error
A non-specified
hardware monitor
device has reported
an error condition.
0xA0010017L
BUS_STATUS_DEVICE_MCDI_ERR
Warning
Hardware MCDI
communication
suffered an error.
None required.
0xE0010018L
BUS_STATUS_DEVICE_MCDI_TIMEO
UT
Error
Hardware MCDI
communication
timed out.
None required.
0xA0010019L
BUS_STATUS_DEVICE_MCDI_BOOT
_ERROR
Warning
Hardware MCDI
boot from nonprimary flash.
Possible flash
corruption.
Run sfupdate or
update via SAM.
0x6001001BL
BUS_STATUS_DEVICE_MCDI_VERSI
ON
Informational
Hardware MCDI
version
None required.
© Solarflare Communications 2014
235
Solarflare Server Adapter
User Guide
Chapter 5: Solarflare Adapters on VMware
This chapter covers the following topics on the VMware® platform:
• System Requirements...Page 236
• VMware Feature Set...Page 237
• Installing Solarflare Drivers and Utilities on VMware...Page 238
• Configuring Teams...Page 239
• Configuring VLANs...Page 239
• Running Adapter Diagnostics...Page 241
• Configuring the Boot ROM with Sfboot...Page 242
• Upgrading Adapter Firmware with Sfupdate...Page 252
• Performance Tuning on VMware...Page 255
5.1 System Requirements
Refer to Software Driver Support on page 12 for supported VMware host platforms.
Issue 11
© Solarflare Communications 2014
236
Solarflare Server Adapter
User Guide
5.2 VMware Feature Set
Table 58 lists the features available from the VMware host. The following options can also be
configured on the guest operating system:
• Jumbo Frames
• Task Offloads
• Virtual LANs (VLANs)
Table 58: VMware Host Feature Set
Jumbo frames
Support for MTUs (Maximum Transmission Units) from
1500 bytes to 9000 bytes.
• See Adapter MTU (Maximum Transmission Unit) on
page 258
Task offloads
Support for TCP Segmentation Offload (TSO), Large Receive
Offload (LRO), and TCP/UDP/IP checksum offload for improved
adapter performance and reduced CPU processing
requirements.
• See TCP/IP Checksum Offload on page 260
• See TCP Segmentation Offload (TSO) on page 260
NetQueue
Support for NetQueue, a performance technology that
significantly improves performance in 10 Gigabit Ethernet
virtualized environments.
• See VMware ESX NetQueue on page 256
Teaming
Improve server reliability by creating teams on either the host
vSwitch, Guest OS or physical switch to act as a single adapter,
providing redundancy against single adapter failure.
• See Configuring Teams on page 239
Virtual LANs (VLANs)
Support for VLANs on the host, guest OS and virtual switch.
• See Configuring VLANs on page 239
PXE booting
Support for diskless booting to a target operating system via PXE
boot.
• See Sfboot: Command Line Options on page 242
• See Solarflare Boot ROM Agent on page 344
Fault diagnostics
Support for comprehensive adapter and cable fault diagnostics
and system reports.
• See Running Adapter Diagnostics on page 241
Issue 11
© Solarflare Communications 2014
237
Solarflare Server Adapter
User Guide
Table 58: VMware Host Feature Set
Firmware updates
Support for Boot ROM and Phy transceiver firmware upgrades
for in-field upgradable adapters.
• See Upgrading Adapter Firmware with Sfupdate on page 252
5.3 Installing Solarflare Drivers and Utilities on VMware
• Using the VMware ESX Service Console...Page 238
• Installing on VMware ESXi 5.0 and 5.1...Page 238
• Installing on VMware vSphere 4.0 and 4.1...Page 238
• Granting access to the NIC from the Virtual Machine...Page 238
Using the VMware ESX Service Console
The service console is the VMware ESX Server command-line interface. It provides access to the
VMware ESX Server management tools, includes a command prompt for direct management of the
Server, and keeps track of all the virtual machines on the server as well as their configurations.
Installing on VMware vSphere 4.0 and 4.1
The Solarflare adapter drivers are provided as an iso image file. Copy the .iso image to a CD-ROM
and refer to the VMware install instructions in the VMware NIC Device Driver Configuration Guide
available from http://www.vmware.com/support/pubs/.
Installing on VMware ESXi 5.0 and 5.1
To install or update the .VIB through the CLI:
esxcli software vib install -v <absolute PATH to the .vib>
To install or update the offline bundle
esxcli software vib install -d <absolute PATH to the .zip>
To install through the Update Manager
Import the package in to the Update Manager and add to a baseline, then follow the normal update
process. To install a new package on to a host deploy the package as part of a Host Extension type
baseline rather than a Host Upgrade type.
Granting access to the NIC from the Virtual Machine
To allow guest operating systems access to the Solarflare NIC, you will need to connect the device to
a vSwitch to which the guest also has a connection. You can either connect to an existing vSwitch, or
create a new vSwitch for this purpose. To create a new vSwitch:
Issue 11
© Solarflare Communications 2014
238
Solarflare Server Adapter
User Guide
1
Log in to the VMware Infrastructure Client.
2
Select the host from the inventory panel.
3
Select the Configuration tab.
4
Choose Networking from the Hardware box on the left of the resulting panel.
5
Click Add Networking on the top right.
6
Select Virtual Machine connection type and click Next.
7
Choose Create a Virtual Switch or Use vSwitchX as desired.
8
Follow the remaining on-screen instructions.
5.4 Configuring Teams
A team allows two or more network adapters to be connected to a virtual switch (vSwitch). The main
benefits of creating a team are:
• Increased network capacity for the virtual switch hosting the team.
• Passive failover in the event one of the adapters in the team fails.
NOTE: The VMware ESX host only supports NIC teaming on a single physical switch or stacked
switches.
To create a team
1
From the host, select the Configuration tab.
2
Select Networking from the Hardware section.
3
Select Properties for the Virtual Switch you want to create the team for.
4
Select the vSwitch from the dialog box and click Edit.
5
Select NIC Teaming.
You can configure the following settings:
• Load Balancing
• Network Failover Detection
• Notify Switches
• Failover
• Failover Order
5.5 Configuring VLANs
There are three methods for creating VLANs on VMware ESX:
1
Issue 11
Virtual Switch Tagging (VST)
© Solarflare Communications 2014
239
Solarflare Server Adapter
User Guide
2
External Switch Tagging (EST)
3
Virtual Guest Tagging (VGT)
For EST and VGT tagging, consult the documentation for the switch or for the guest OS.
To Configure Virtual Switch Tagging (VST)
With vSwitch tagging:
• All VLAN tagging of packets is performed by the virtual switch, before leaving the VMware ESX
host.
• The host network adapters must be connected to trunk ports on the physical switch.
• The port groups connected to the virtual switch must have an appropriate VLAN ID specified.
NOTE: VMware recommend that you create or amend VLAN details from the physical console of
the server, not via the Infrastructure Client, to prevent potential disconnections.
1
From the host, select the Configuration tab.
2
Select Networking from the Hardware section.
3
Select Properties for the Virtual Switch you want to create the team for.
4
Select a Port Group and click Edit.
5
Enter a valid VLAN ID (0 equals no VLAN).
6
Click OK.
Further Reading
• NIC teaming in VMware ESX Server:
http://kb.vmware.com/selfservice/microsites/
search.do?cmd=displayKC&docType=kc&externalId=1004088&sliceId=1&docTypeID=DT_KB_1_1&
dialogID=40304190&stateId=0%200%2037866989
• VMware ESX Server host requirements for link aggregation:
http://kb.vmware.com/selfservice/microsites/
search.do?language=en_US&cmd=displayKC&externalId=1001938
• VLAN Configuration on Virtual Switch, Physical Switch, and virtual machines:
http://kb.vmware.com/selfservice/microsites/
search.do?language=en_US&cmd=displayKC&externalId=1003806
Issue 11
© Solarflare Communications 2014
240
Solarflare Server Adapter
User Guide
5.6 Running Adapter Diagnostics
You can use Ethtool to run adapter diagnostic tests. Tests can be run offline (default) or online.
Offline runs the full set of tests, possibly causing normal operation interruption during testing.
Online performs a limited set of tests without affecting normal adapter operation.
As root user, enter the following command:
ethtool --test vmnicX offline|online
The tests run by the command are as follows:
Table 59: Adapter Diagnostic Tests
Diagnostic Test
Purpose
core.nvram
Verifies the flash memory 'board configuration' area by
parsing and examining checksums.
core.registers
Verifies the adapter registers by attempting to modify the
writable bits in a selection of registers.
core.interrupt
Examines the available hardware interrupts by forcing the
controller to generate an interrupt and verifying that the
interrupt has been processed by the network driver.
tx/rx.loopback
Verifies that the network driver is able to pass packets to
and from the network adapter using the MAC and Phy
loopback layers.
core.memory
Verifies SRAM memory by writing various data patterns
(incrementing bytes, all bit on and off, alternating bits on
and off) to each memory location, reading back the data
and comparing it to the written value.
core.mdio
Verifies the MII registers by reading from PHY ID registers
and checking the data is valid (not all zeros or all ones).
Verifies the MMD response bits by checking each of the
MMDs in the Phy is present and responding.
chanX eventq.poll
Verifies the adapter’s event handling capabilities by
posting a software event on each event queue created by
the driver and checking it is delivered correctly.
The driver utilizes multiple event queues to spread the
load over multiple CPU cores (RSS).
phy.bist
Issue 11
Examines the PHY by initializing it and causing any
available built-in self tests to run.
© Solarflare Communications 2014
241
Solarflare Server Adapter
User Guide
5.7 Configuring the Boot ROM with Sfboot
• Sfboot: Command Usage...Page 242
• Sfboot: Command Line Options...Page 242
• Sfboot: Examples...Page 250
Sfboot is a command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI
booting. Using sfboot is an alternative to using Ctrl+B to access the Boot Rom agent during server
startup.
See Configuring the Solarflare Boot ROM Agent on page 344 for more information on the Boot Rom
agent.
Sfboot: Command Usage
Log in to the VMware Service Console as root, and enter the following command:
sfboot [--adapter=vmnicX] [options] [parameters]
Note that without --adapter, the sfboot command applies to all adapters that are present in the
target host.
The format for the parameters are:
<parameter>=<value>
Sfboot: Command Line Options
Table 60 lists the options for sfboot.exe and Table 61 lists the available parameters.
Table 60: Sfboot Options
Option
Description
-?-h, --help
Displays command line syntax and provides a
description of each sfboot option.
-V, --version
Shows detailed version information and exits.
--nologo
Hide the version and copyright message at startup.
-v, --verbose
Shows extended output information for the
command entered.
-s, --quiet
Suppresses all output, including warnings and errors;
no user interaction. You should query the completion
code to determine the outcome of commands when
operating silently (see Performance Tuning on
Windows on page 221).
Aliases: --silent
Issue 11
© Solarflare Communications 2014
242
Solarflare Server Adapter
User Guide
Table 60: Sfboot Options
Option
Description
--log <filename>
Logs output to the specified file in the current folder
or an existing folder. Specify --silent to suppress
simultaneous output to screen, if required.
--computer <computer_name>
Performs the operation on a specified remote
computer. Administrator rights on the remote
computer is required.
--list
Lists all available Solarflare adapters. This option
shows the ifname and MAC address.
Note: this option may not be used in conjunction
with the any other option. If this option is used with
configuration parameters, those parameters will be
silently ignored.
-i, --adapter =<vmnicX>
Performs the action on the identified Solarflare
network adapter. The adapter identifier vmnicX can
be the name or MAC address, as output by the -list option. If --adapter is not included, the
action will apply to all installed Solarflare adapters.
--clear
Resets all adapter options except boot-image to
their default values. Note that --clear can also be
used with parameters, allowing you to reset to
default values, and then apply the parameters
specified.
The following parameters in Table 61 are used to control the options for the Boot ROM driver when
running prior to the operating system booting.
Table 61: Sfboot Parameters
Issue 11
Parameter
Description
bootimage=<all|optionrom|uefi|di
sabled>
Specifies which boot firmware images are served-up
to the BIOS during start-up. This parameter can not
be used if the --adapter option has been specified.
This option is not reset if --clear is used.
© Solarflare Communications 2014
243
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
linkspeed=<auto|10g|1g|100m>
Specifies the network link speed of the adapter used
by the Boot ROM the default is auto. On the
10GBASE-T adapters “auto” instructs the adapter to
negotiate the highest speed supported in common
with it’s link partner . On SFP+ adapters, “auto”
instructs the adapter to use the highest link speed
supported by the inserted SFP+ module. On
10GBASE-T and SFP+ adapters, any other value
specified will fix the link at that speed, regardless of
the capabilities of the link partner, which may result
in an inability to establish the link
auto Auto-negotiate link speed (default)
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Specifies the delay (in seconds) the adapter defers its
first connection attempt after booting, allowing time
for the network to come up following a power failure
or other restart. This can be used to wait for
spanning tree protocol on a connected switch to
unblock the switch port after the physical network
link is established. The default is 5 seconds.
banner-delay=<seconds>
Specifies the wait period for Ctrl-B to be pressed to
enter adapter configuration tool.
seconds = 0-256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to
skip adapter booting.
seconds = 0-256
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type.
pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System
Interface) booting
disabled – Disable adapter booting
Issue 11
© Solarflare Communications 2014
244
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the
adapter by the Boot ROM except for the Initiator IQN
(see initiator-iqn-dhcp). This option is only
valid if iSCSI booting is enabled (boottype=iscsi).
If initiator-DHCP is set to disabled, the following
options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed:
gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
Issue 11
© Solarflare Communications 2014
245
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) of the Primary DNS to be used by the adapter
when initiator-dhcp is disabled.
This option is only valid if iSCSI booting is enabled
(boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Enables or disables use of DHCP for the initiator IQN
only.
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used
by the adapter when initiator-iqn-dhcp is
disabled. The IQN is a symbolic name in the “.”
notation form; for example:
iqn.2009.01.com.solarflare, and is a maximum of 223
characters long.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts
to access and login to the Logical Unit Number (LUN)
on the iSCSI Target before failing. Note that this
option is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot lun-retry-count=3
Issue 11
© Solarflare Communications 2014
246
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI
target parameters on the adapter.
If target-dhcp is disabled, you must specify the
following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example - Enable the use of DHCP to configure iSCSI
Target settings:
sfboot boot-type=iscsi targetdhcp=enabled
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address
to be used by the adapter when target-dhcp is
disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI
target when target-dhcp is disabled. The default
Port number is Port 3260.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using
a non-standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used
by the iSCSI target when target-dhcp is disabled.
The default LUN is 0.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Issue 11
© Solarflare Communications 2014
247
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Note that if there are spaces contained in <IQN>,
then the IQN must be wrapped in double quotes (“”).
Example:
sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Specifies the device vendor ID to be advertised to the
DHCP server. This must match the vendor id
configured at the DHCP server when using DHCP
option 43 to obtain the iSCSI target .
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake
Protocol (CHAP) to authenticate the iSCSI
connection.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
To be valid, this option also requires the following
sub-options to be specified:
username=<initiator username>
secret=<initiator password>
Example:
sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
Issue 11
© Solarflare Communications 2014
248
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
username=<username>
Specifies the CHAP initiator username (maximum 64
characters).
Note that this option is required if either CHAP or
Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username
Specifies the CHAP initiator secret (minimum 12
characters, maximum 20 characters).
secret=<secret>
Note that this option is valid if either CHAP or Mutual
CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when
iSCSI booting is enabled.
This option also requires the following sub-options to
be specified:
target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example:
sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
Issue 11
© Solarflare Communications 2014
249
Solarflare Server Adapter
User Guide
Table 61: Sfboot Parameters
Parameter
Description
target-username=<username>
Specifies the username that has been configured on
the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the
iSCSi target (minimum 12 characters; maximum 20
characters).
Note: This option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the
adapter. This option is only valid for iSCSI booting
over multi-port adapters, where it can be used to
establish adapter port priority. The range is 1- 255,
with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will try and use
each port in turn to login to the iSCSI target before
failing.
msix-limit=<32|1024>
Specifies the maximum number of MSI-X interrupts
the specified adapter will use. The default is 32.
Note: Using the incorrect setting can impact the
performance of the adapter. Contact Solarflare
technical support before changing this setting.
Sfboot: Examples
• Show the current boot configuration for all adapters:
Issue 11
© Solarflare Communications 2014
250
Solarflare Server Adapter
User Guide
Sfboot
Solarflare boot configuration utility [v3.0.3]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
Issue 11
eth1:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
32
eth2:
Boot image
Link speed
Link-up delay time
Banner delay time
Boot skip delay time
Boot type
MSI-X interrupt limit
Option ROM and UEFI
Negotiated automatically
5 seconds
2 seconds
5 seconds
Disabled
32
© Solarflare Communications 2014
251
Solarflare Server Adapter
User Guide
5.8 Upgrading Adapter Firmware with Sfupdate
• Sfupdate: Command Usage...Page 252
• Sfupdate: Command Line Options...Page 252
• Sfupdate: Examples...Page 254
Sfupdate is a command line utility used to manage and upgrade the Solarflare adapter Boot ROM,
Phy and adapter firmware. Embedded within the sfupdate executable is firmware images for various
Solarflare adapters - the exact updates available via sfupdate are therefore depend on your adapter.
Sfupdate: Command Usage
Log in to the VMware Service Console as root, and enter the following command:
sfupdate [--adapter=vmnicX] [options]
where:
vmnicX is the interface name of the Solarflare adapter you want to upgrade. Specifing the adapter
is optional - if it is not included the command is applied to all Solarflare adapters in the machine.
option is one of the command options listed in Table 62.
The format for the options are:
<option>=<parameter>
Running the command sfupdate with no additional parameters will show the current firmware
version for all Solarflare adapters and whether the firmware within sfupdate is more up to date. To
update the firmware for all Solarflare adapters run the command sfupdate --write
Solarflare recommend that you use sfupdate in the following way:
1
Run sfupdate to check that the firmware on all your adapters are up to date.
2
Run sfupdate --write to update the firmware on all adapters.
Sfupdate: Command Line Options
Table 62 lists the options for sfupdate.
Table 62: Sfupdate Options
Issue 11
Option
Description
-h, --help
Shows help for the available options and command line
syntax.
-v, --verbose
Verbose output mode.
-s, --silent
Suppress all output except errors. Useful for scripting.
-V, --version
DIsplay version number information and exit.
© Solarflare Communications 2014
252
Solarflare Server Adapter
User Guide
Table 62: Sfupdate Options
Option
Description
-i, --adapter=vmnicX
Specifies the target adapter when more than one
adapter is installed in the local host.
vmnicX = Adapter interface name or MAC address (as
obtained with --list).
--list
Shows the adapter ID, adapter name and MAC address of
each adapter installed in the local host, or on the target
when --computer is specified.
--write
Writes the firmware from the images embedded in
sfupdate. To use an external image, specify -image=<filename> in the command.
--write fails if the embedded image is the same or a
previous version to that in the adapter. To force a write in
this case, specify --force in the command.
--force
Force update of all firmware, even if the installed
firmware version is the same or more recent.
If required, use this option with --write.
--image=<filename>
Specifies a specific firmware image.
This option is not normally required and is only
necessary if you need to provide writing the sfupdate
embedded image file.
-y, --yes
Issue 11
Prompts for user confirmation before writing the
firmware.
© Solarflare Communications 2014
253
Solarflare Server Adapter
User Guide
Sfupdate: Examples
• List all Solarflare adapters installed on the host with the installed firmware:
sfupdate
Solarflare firmware update utility [v3.0.3]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
eth1 - MAC: 00-0F-53-01-39-70
Firmware version:
v3.0.3
PHY type:
QT2025C
PHY version:
v2.0.2.5
Controller type:
Solarflare SFC4000
Controller version: v3.0.3.2127
BootROM version:
v3.0.3.2127
The PHY firmware is up to date
The BootROM firmware is up to date
The controller firmware is up to date
eth2 - MAC: 00-0F-53-01-39-71
Firmware version:
v3.0.2
PHY type:
QT2025C
PHY version:
v2.0.2.5
The PHY firmware is up to date
Issue 11
© Solarflare Communications 2014
254
Solarflare Server Adapter
User Guide
5.9 Performance Tuning on VMware
• Introduction...Page 255
• Tuning Settings...Page 255
• Other Considerations...Page 261
Introduction
The Solarflare family of network adapters are designed for high-performance network applications.
The adapter driver is pre-configured with default performance settings that have been designed to
give good performance across a broad class of applications. In many cases, application performance
can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter:
• Throughput
• Latency
• CPU utilization
Different applications may be more or less affected by improvements in these three metrics. For
example, transactional (request-response) network applications can be very sensitive to latency
whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this section is to highlight adapter driver settings that affect the performance metrics
described. This guide covers the tuning of all members of the Solarflare family of adapters.
Performance between adapters should be identical, with the exception of latency measurements.
Latency will be affected by the type of physical medium used: CX4, XFP, 10GBase-T or SFP+. This is
because the physical media interface chip (PHY) used on the adapter can introduce additional
latency.
Tuning Settings
Install VMware Tools in the Guest Platform
Installing VMware tools will give greatly improved networking performance in the guest. If VMware
Tools are not installed, ESX emulates a PC-Lance device in the guest. If VMware Tools are installed,
the guest will see a virtual adapter of type vmxnet.
To check that VMware Tools are installed:
1
From the VMware Infrastructure Client, power on the virtual machine and click the Summary
tab.
2
In the General panel, check the status of VMware Tools.
To install VMware Tools:
1
Power on the virtual machine
2
From the Inventory > Virtual Machine menu, select Install/Upgrade VMware Tools.
Issue 11
© Solarflare Communications 2014
255
Solarflare Server Adapter
User Guide
This will mount a virtual CD-ROM in the guest OS. If the guest OS is Windows, it can autorun the CD
and install tools (if not, navigate to the CD-ROM device and run the setup program yourself). If the
guest is a Linux OS, you must mount the CD, install the tools, and configure them. For example, if the
guest is Red Hat:
# mount /dev/cdrom /mnt
# rpm –i /mnt/VMwareTools*.rpm
# vmware-tools-config.pl
VMware ESX NetQueue
Solarflare adapters supports VMware’s NetQueue technology, which accelerates network
performance in 10 Gigabit Ethernet virtualized environments. NetQueue is enabled by default in
VMware versions. There is usually no reason not to enable NetQueue.
NOTE: VMware NetQueue accelerates both receive and transmit traffic.
Issue 11
© Solarflare Communications 2014
256
Solarflare Server Adapter
User Guide
Binding NetQueue queues and Virtual Machines to CPUs
Depending on the workload, NetQueue can show improved performance if each of the queues’
associated interrupt and the virtual machine are pinned to the same CPU. This is particularly true of
workloads where sustained high bandwidth is evenly distributed across multiple virtual machines
(such as you might do when benchmarking). To pin a Virtual Machine to one or more CPUs:
1
Log in to the VMware Infrastructure Client.
2
Expand the host and select the virtual machine to pin from the inventory panel.
3
Select the Summary tab for that virtual machine.
4
Click Edit Settings.
5
From the resulting dialog box select the Resources tab
6
Click Advanced CPU on the left.
7
Select the CPU(s) to which the virtual machine is to be bound (on the right hand side of the
dialog box).
To bind a queue’s interrupt to a CPU, from the VMware ESX console OS enter:
# echo move $IRQVEC $CPU > /proc/vmware/intr-tracker
(Where $IRQVEC is the interrupt vector in hex, and $CPU is the CPU number in decimal.)
To determine the value for $IRQVEC enter:
# cat /proc/vmware/interrupts
Locate the interrupts associated with the Solarflare adapter (e.g. vmnic2). Interrupts are listed in
order: the first interrupt will be for the default queue, the second interrupt for the queue dedicated
to the first virtual machine to have been started, the third interrupt for the queue dedicated to the
second virtual machine to have been started, and so on.
If there are more virtual machine’s than CPUs on the host, optimal performance is obtained by
pinning each virtual machine and associated interrupt to the same CPU. If there are fewer virtual
machines than CPUs, optimal results are obtained by pinning the virtual machine and associated
interrupt respectively to two cores which share an L2 cache.
Issue 11
© Solarflare Communications 2014
257
Solarflare Server Adapter
User Guide
Adapter MTU (Maximum Transmission Unit)
The default MTU of 1500 bytes ensures that the adapter is compatible with legacy 10/100Mbps
Ethernet endpoints. However if a larger MTU is used, adapter throughput and CPU utilization can be
improved. CPU utilization is improved because it takes fewer packets to send and receive the same
amount of data. Solarflare adapters support frame sizes up to 9216 bytes (this does not include the
Ethernet preamble or frame-CRC).
Since the MTU should ideally be matched across all endpoints in the same LAN (VLAN), and since the
LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than
default MTU requires careful consideration. It is recommended that experimentation with MTU be
done in a controlled test environment.
To change the MTU of the vSwitch, from the VMware Console OS enter:
# esxcfg-vswitch --mtu <size> <vSwitch>
To verify the MTU settings, as well as obtaining a list of vSwitches installed on the host, enter:
# esxcfg-vswitch --list
The change in MTU size of the vSwitch will persist across reboots of the VMware ESX host.
Issue 11
© Solarflare Communications 2014
258
Solarflare Server Adapter
User Guide
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation controls the number of interrupts generated by the adapter by adjusting the
extent to which receive packet processing events are coalesced. Interrupt moderation may coalesce
more than one packet-reception or transmit-completion event into a single interrupt.
By default, adaptive moderation is enabled. Adaptive moderation means that the network driver
software adapts the interrupt moderation setting according to the traffic and workloads it sees.
Alternatively, you can set the moderation interval manually. You would normally only do this if you
are interested in reducing latency. To do this you must first disable adaptive moderation with the
following command, where vmnicX is the interface name.
ethtool -C <vmnicX> adaptive-rx off
NOTE: adaptive-rx may already have been disabled. Consult your VMware documentation for
details.
Interrupt moderation can be changed using ethtool, where vmnicX is the interface name and
interval is the moderation setting in microseconds (μs). Specifying 0 as the interval parameter will
turn interrupt moderation off:
ethtool –C <vmnicX> rx-usecs-irq <interval>
Verification of the moderation settings may be performed by running ethtool –c
This parameter is critical for tuning adapter latency. Increasing the moderation value will increase
latency, but reduce CPU utilization and improve peak throughput, if the CPU is fully utilized.
Decreasing the moderation value or turning it off will decrease latency at the expense of CPU
utilization and peak throughput. However, for many transaction request-response type network
applications, the benefit of reduced latency to overall application performance can be considerable.
Such benefits may outweigh the cost of increased CPU utilization.
NOTE: The interrupt moderation time dictates the minimum gap between two consecutive
interrupts. It does not mandate a delay on the triggering of an interrupt on the reception of every
packet. For example, an interrupt moderation setting of 30μs will not delay the reception of the
first packet received, but the interrupt for any following packets will be delayed until 30μs after the
reception of that first packet.
Issue 11
© Solarflare Communications 2014
259
Solarflare Server Adapter
User Guide
TCP/IP Checksum Offload
Checksum offload moves calculation and verification of IP Header, TCP and UDP packet checksums
to the adapter. The driver by default has all checksum offload features enabled. Therefore, there is
no opportunity to improve performance from the default.
Checksum offload is controlled using ethtool:
Receive Checksum:
# /sbin/ethtool –K <vmnicX> rx <on|off>
Transmit Checksum:
# /sbin/ethtool –K <vmnicX> tx <on|off>
Verification of the checksum settings may be performed by running ethtool with the –k option.
Solarflare recommend you do not disable checksum offload.
For advice on configuring checksum offload in the guest, consult the relevant Solarflare section for
that guest, or the documentation for the guest operating system.
TCP Segmentation Offload (TSO)
TCP Segmentation offload (TSO) offloads the splitting of outgoing TCP data into packets to the
adapter. TCP segmentation offload benefits applications using TCP. Non TCP protocol applications
will not benefit (but will not suffer) from TSO.
Enabling TCP segmentation offload will reduce CPU utilization on the transmit side of a TCP
connection, and so improve peak throughput, if the CPU is fully utilized. Since TSO has no effect on
latency, it can be enabled at all times. The driver has TSO enabled by default. Therefore, there is no
opportunity to improve performance from the default.
NOTE: TSO cannot be controlled via the host on VMware ESX. It can only be controlled via the guest
Operating System.
TCP Large Receive Offload (LRO)
TCP Large Receive Offload (LRO) is a feature whereby the adapter coalesces multiple packets
received on a TCP connection into a single call to the operating system TCP Stack. This reduces CPU
utilization, and so improves peak throughput when the CPU is fully utilized.
LRO should not be enabled if you are using the host to forward packets from one interface to
another; for example if the host is performing IP routing or acting as a layer2 bridge.
LRO is supported, and enabled by default, on VMware versions later than ESX 3.5.
Issue 11
© Solarflare Communications 2014
260
Solarflare Server Adapter
User Guide
TCP Protocol Tuning
TCP Performance can also be improved by tuning kernel TCP settings. Settings include adjusting send
and receive buffer sizes, connection backlog, congestion control, etc.
Typically it is sufficient to tune just the max buffer value. It defines the largest size the buffer can
grow to. Suggested alternate values are max=500000 (1/2 Mbyte). Factors such as link latency,
packet loss and CPU cache size all influence the affect of the max buffer size values. The minimum
and default values can be left at their defaults minimum=4096 and default=87380.
For advice on tuning the guest TCP stack consult the documentation for the guest operating system.
Receive Side Scaling (RSS)
Solarflare adapters support Receive Side Scaling (RSS). RSS enables packet receive-processing to
scale with the number of available CPU cores. RSS requires a platform that supports MSI-X
interrupts. RSS is enabled by default.
When RSS is enabled the controller uses multiple receive queues into which to deliver incoming
packets. The receive queue selected for an incoming packet is chosen in such a way as to ensure that
packets within a TCP stream are all sent to the same receive queue – this ensures that packetordering within each stream is maintained. Each receive queue has its own dedicated MSI-X
interrupt which ideally should be tied to a dedicated CPU core. This allows the receive side TCP
processing to be distributed amongst the available CPU cores, providing a considerable performance
advantage over a conventional adapter architecture in which all received packets for a given
interface are processed by just one CPU core.
RSS will be enabled whenever NetQueue is not and Solarflare recommend using NetQueue on
VMware ESX hosts.
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different
widths. This is independent of the physical slot size used to connect the adapter. The possible widths
are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen. 1, 5.0 Gbps for PCIe Gen. 2) in
each direction. Solarflare Adapters are designed for x8 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including
ones that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots,
Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will warn
you if it detects the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes.
For SFN5xxxx adapters, which require a PCIe Gen. 2 slot for optimal operation, a warning will be
given if they are installed in a PCIe Gen. 1 slot. Warning messages can be viewed in dmesg from /
var/log/messages.
Memory bandwidth
Many chipsets/CPUs use multiple channels to access main system memory. Maximum memory
performance is only achieved when the server can make use of all channels simultaneously. This
Issue 11
© Solarflare Communications 2014
261
Solarflare Server Adapter
User Guide
should be taken into account when selecting the number of DIMMs to populate in the server.
Consult your motherboard documentation for details.
Intel® QuickData
Intel® QuickData Technology allows VMware ESX to data copy by the chipset instead of the CPU, to
move data more efficiently through the server and provide fast, scalable, and reliable throughput.
I/O AT can be enabled on the host and on guest operating systems. For advice on enabling I/OAT in
the guest, consult the relevant Solarflare section for that guest, or the documentation for the guest
operating system. I/OAT must be enabled on the host if it is to be used in the guests.
To enable I/OAT on the VMware ESX host:
On some systems the hardware associated with I/OAT must first be enabled in the BIOS
Log in to the ConsoleOS on the VMware ESX host, and enter:
# esxcfg-advcfg -s 1 /Net/TcpipUseIoat
Reboot the VMware ESX host
To verify I/OAT is enabled, from the ConsoleOS enter:
# vmkload_mod -l | grep -i ioat
NOTE: The following VMware KB article should be read when enabling I/OAT.
http://kb.vmware.com/selfservice/microsites/
search.do?language=en_US&cmd=displayKC&externalId=1003712
Server Motherboard, Server BIOS, Chipset Drivers
Tuning or enabling other system capabilities may further enhance adapter performance. Readers
should consult their server user guide. Possible opportunities include tuning PCIe memory controller
(PCIe Latency Timer setting available in some BIOS versions).
Issue 11
© Solarflare Communications 2014
262
Solarflare Server Adapter
User Guide
Chapter 6: Solarflare Adapters on Solaris
This chapter covers the following topics on the Solaris platform:
• System Requirements...Page 263
• Solaris Platform Feature Set...Page 264
• Installing Solarflare Drivers...Page 265
• Unattended Installation Solaris 10...Page 266
• Unattended Installation Solaris 11...Page 267
• Setting Up VLANs...Page 270
• Solaris Utilities Package...Page 270
• Configuring the Boot ROM with sfboot...Page 270
• Upgrading Adapter Firmware with Sfupdate...Page 281
• Performance Tuning on Solaris...Page 284
• Module Parameters...Page 292
• Kernel and Network Adapter Statistics...Page 294
6.1 System Requirements
Refer to Software Driver Support on page 12 for details of supported Solaris distributions.
Solarflare drivers for Solaris support the GLDv3 API, but do not support the Crossbow API
framework.
Issue 11
© Solarflare Communications 2014
263
Solarflare Server Adapter
User Guide
6.2 Solaris Platform Feature Set
Table 63 lists the features supported by Solarflare adapters on Solaris.
Table 63: Solaris Feature Set
Jumbo frames
Support for MTUs (Maximum Transmission Units) to
9000 bytes.
• See Configuring Jumbo Frames on page 269
Task offloads
Support for TCP Segmentation Offload (TSO), Large Receive
Offload (LRO), and TCP/UDP/IP checksum offload for improved
adapter performance and reduced CPU processing
requirements.
• See Configuring Task Offloading on page 269
Receive Side Scaling (RSS)
Support for RSS multi-core load distribution technology.
• See Receive Side Scaling (RSS) on page 287
Virtual LANs (VLANs)
Support for multiple VLANs per adapter.
• See Setting Up VLANs on page 270
PXE and booting
Support for diskless booting to a target operating system via
PXE or iSCSI boot.
• See Configuring the Boot ROM with sfboot on page 270
• See Solarflare Boot ROM Agent on page 344
Firmware updates
Support for Boot ROM, PHY transceiver and adapter firmware
upgrades.
• See Upgrading Adapter Firmware with Sfupdate on
page 281
Issue 11
© Solarflare Communications 2014
264
Solarflare Server Adapter
User Guide
6.3 Installing Solarflare Drivers
The Solaris drivers for Solarflare are available in a binary package for both 32 and 64 bit platforms.
• A driver package (pkg format) is available for Solaris 10.8, 10.9 and 10.10.
• A driver package (pkg format) is available for Solaris 11.0.
NOTE: The Solarflare adapter should be physically installed in the host computer before you
attempt to install drivers. You must have root permissions to install the adapter drivers.
1
As a root user enter:
pkgadd -d SFCsfxge_sol10_i386_<version>.pkg SFCsfxge
or
pkgadd -d SFCsfxge_sol11_i386_<version>.pkg SFCsfxge
Output similar to the following will be displayed:
Solarflare 10GE NIC Driver(i386) <DRIVER VERSION>
<LICENSE INFO>
This package contains scripts which will be executed with super-user
permission during the process of installing this package.
Do you want to continue with the installation of <SFCsfxge> [y,n,?]
2
Enter 'y'. The installation will continue.
3
The following information will be displayed:
Installing Solarflare 10GE NIC Driver as <SFCsfxge>
## Installing part 1 of 1.
/kernel/drv/amd64/sfxge
/kernel/drv/sfxge
[ verifying class <none> ]
## Executing postinstall script.
Installation of <SFCsfxge> was successful.
Issue 11
© Solarflare Communications 2014
265
Solarflare Server Adapter
User Guide
6.4 Unattended Installation Solaris 10
Unattended installations of Solaris 10 are done via JumpStart. For general information on JumpStart
see:
http://www.oracle.com/technetwork/articles/servers-storage-admin/installjumpstartons11ex219229.html
The process for using JumpStart is as follows:
• Create a JumpStart installation server
• Create the client configuration files
• Share the client tftpboot files
• Configure and run the DHCP Server
• Perform a hands-off JumpStart installation
These processes are documented here:
http://docs.oracle.com/cd/E19253-01/819-6397/819-6397.pdf
NOTE: The Solarflare server adapter can be used to PXE boot the installer, but as there is no driver,
the adapter can not be used during installation.
To install the Solarflare Solaris package as part of an unattended installation, it must be added using
the package command to the JumpStart machine profile. The package can reside on a local disk or
on a HTTP or NFS server. For more information, see:
http://search.oracle.com/sear ch/
search?start=1&search_p_main_operator=all&q=package+command&group=Technology+Networ
The following are example lines for a JumpStart profile:
package SFCsfxge add local_device <device> <path> <file_system_type>
package SFCsfxge add http://<server_name>[:<port>] <path> [<options>]
package SFCsfxge add nfs://<server_name>:/<path> [retry <n>]
Issue 11
© Solarflare Communications 2014
266
Solarflare Server Adapter
User Guide
Table 64 shows an example time line for an unattended installation.
Table 64: Installation Stages
In Control
Stages of Boot
Setup needed
BIOS
PXE code on the adapter
runs.
Adapter must be in PXE boot mode.
See PXE Support on page 345.
SF Boot ROM (PXE)
DHCP request from PXE (SF
Boot ROM).
Jumpstart server must be installed
and configured.
SF Boot ROM (PXE)
TFTP request for filename to
next-server, e.g. pxegrub.0
pxegrub
TFTP retrieval of grub
configuration.
pxegrub
TFTP menu retrieval of
Solaris kernel image.
Solaris kernel/installer
Installer retrieves
configuration.
Installation occurs
Machine reboots
Target Solaris kernel
kernel reconfigures network
adapters.
DHCP server.
6.5 Unattended Installation Solaris 11
Please refer to the Oracle Solaris 11 documentation for details of transitioning from Solaris 10 to 11
or for details of the Automated Installer feature for Solaris 11.
https://blogs.oracle.com/unixman/entry/how_to_get_started_with
https://blogs.oracle.com/unixman/entry/migrating_from_jumpstart_to_automated
Issue 11
© Solarflare Communications 2014
267
Solarflare Server Adapter
User Guide
6.6 Configuring the Solarflare Adapter
NOTE: The examples below demonstrate the Solaris 10.x configuration command. Solaris 11 users
should refer to Solaris documentation for the equivalent Solaris 11 configuration commands.
The drivers will be loaded as part of the as part of the installation. However the adapter will not be
plumbed (implement the TCP/IP stack) or configured (adding IP address and netmask).
Each Solarflare network adapter interface will be named sfxge<x> where <x> is a unique identifier.
There will be one interface per physical port on the Solarflare adapter.
To plumb an interface enter the following:
ifconfig sfxge<x> plumb
You then need to configure the interface and bring it up to allow data to pass. Enter the following:
ifconfig sfxge<x> <IPv4 address> netmask <netmask> up
This configures the interface and initializes it with the up command.
NOTE: This method of plumbing and configuring is temporary. If you reboot your computer the
settings will be lost. To make these settings permanent, create the configuration files as described
below.
Using IPv6
To plumb and configure using IPv6, enter the following:
ifconfig sfxge<x> inet6 plumb
ifconfig sfxge<x> inet6 up
Then create an IPv6 interface sfxge<x> interface with a link local IPv6 address by entering:
ifconfig sfxge<x> inet6 addif <IPv6 address>/<ipv6 prefix length> up
This will give an IPv6 interface name of sfxge<x>:1
Using Configuration Files with IPv4
There are three options when using a configuration file with IPv4:
1
Using a static IPv4 address. To use this option, add <IPv4 address> <netmask> to:
/etc/hostname.sfxge<x>
2
Using a static IPv4 hostname. To use this option, add <hostname> to:
/etc/hostname.sfxge<x>
And modify /etc/hosts and /etc/netmasks
3
Using DHCP. To use this option, enter:
touch /etc/hostname.sfxge<4> and
Issue 11
© Solarflare Communications 2014
268
Solarflare Server Adapter
User Guide
touch /etc/dhcp.sfxge<4>
Using Configuration files with IPv6
To make the interface settings permanent, you need to create the following file per interface:
/etc/hostname6.sfxge<x>
This enables the interface to be plumbed and configured when the computer is booted. For example:
touch /hostname6.sfxge<x>
For a static IP address, add your IPv6 address to /etc/hostname6.sfxge<x>.
Or add your hostname to /etc/hostname6.sfxge<x> and edit the following:
/etc/hosts
DHCP and IPv6
Unlike for IPv4, no file is required for DHCP in. The DHCP Daemons are automatically started. Consult
the man dhcp pages for more details.
Configuring Task Offloading
Solarflare adapters support IPv4 TCP and UDP transmit (Tx) and receive (Rx) checksum offload, as
well as TCP segmentation offload. To ensure maximum performance from the adapter, all task
offloads should be enabled, which is the default setting on the adapter. For more information, see
Performance Tuning on Solaris on page 284.
Configuring Jumbo Frames
The maximum driver MTU size can be set in sfxge.conf. This setting is applied across all Solarflare
adapters. The default setting in sfxge.conf is 1500.
Solarflare adapters support frame sizes from 1500 bytes to 9000 bytes. For example, to set a new
frame size (MTU) of 9000 bytes, enter the following command:
$ ifconfig sfxge<x> mtu 9000
To view the current MTU, enter:
$ ifconfig sfxge<x>
sfxge0: flags=1001000843<UP,BROADCAST,RUNNING,MULTICAST,IPv4> mtu 9000
If you want to have an MTU configure when the interface is brought up add mtu to the single line of
configuration data in /etc/hostname.sfxge<X>. For example:
[<IP address>] mtu <size>
Issue 11
© Solarflare Communications 2014
269
Solarflare Server Adapter
User Guide
6.7 Setting Up VLANs
VLANs offer a method of dividing one physical network into multiple broadcast domains. In
enterprise networks, these broadcast domains usually match with IP subnet boundaries, so that
each subnet has its own VLAN. The advantages of VLANs include:
• Performance
• Ease of management
• Security
• Trunks
• You don't have to configure any hardware device, when physically moving your server to
another location.
To have a single interface exist on multiple VLANs (if the port on the connected switch is set to
“trunked” mode) see the “How to Configure a VLAN” section in the following documentation:
http://docs.oracle.com/cd/E19253-01/816-4554/fpdga/index.html
6.8 Solaris Utilities Package
The Solarflare Solaris Utilities package, supplied as a 32 bit SVR package and available from https://
support.solarflare.com/ contains the following utilities:
Table 65: Utilities Package
Utility File
Description
sfupdate
A command line utility that contains an adapter firmware version
which can update Solarflare adapter firmware.
sfboot
A command line utility to configure the Solarflare adapter Boot ROM
for PXE and iSCSI booting.
sfreport
A command line utility that generates a diagnostic log file providing
diagnostic data about the server and Solarflare adapters.
Once installed (pkgadd -d SFCutils_i386_v<version>.pkg), by default, utility files are
located in the /opt/SFCutils/bin directory.
6.9 Configuring the Boot ROM with sfboot
• Sfboot: Command Usage...Page 271
• Sfboot: Command Line Options...Page 272
• Sfboot: Examples...Page 280
Issue 11
© Solarflare Communications 2014
270
Solarflare Server Adapter
User Guide
Sfboot is a command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI
booting. Using sfboot is an alternative to using Ctrl + B to access the Boot Rom agent during server
startup.
See Configuring the Solarflare Boot ROM Agent on page 344 for more information on the Boot Rom
agent.
Sfboot: Command Usage
The general usage for sfboot is as follows (as root):
sfboot [--adapter=sfxge<x>] [options] [parameters]
Note that without --adapter, the sfboot command applies to all adapters that are present in the
target host.
The format for the parameters are:
<parameter>=<value>
Issue 11
© Solarflare Communications 2014
271
Solarflare Server Adapter
User Guide
Sfboot: Command Line Options
Table 66 lists the options for sfboot and Table 67 lists the available parameters.
Table 66: Sfboot Options
Option
Description
-h, --help
Displays command line syntax and provides a
description of each sfboot option.
-V, --version
Shows detailed version information and exits.
-v, --verbose
Shows extended output information for the
command entered.
-s, --silent
Suppresses all output, including warnings and errors;
no user interaction. You should query the completion
code to determine the outcome of commands when
operating silently (see Performance Tuning on
Windows on page 221).
--log <filename>
Logs output to the specified file in the current folder
or an existing folder. Specify --silent to suppress
simultaneous output to screen, if required.
--computer <computer_name>
Performs the operation on a specified remote
computer. Administrator rights on the remote
computer is required.
--list
Lists all available Solarflare adapters. This option
shows the adapter’s ID number, ifname and MAC
address.
Note: this option may not be used in conjunction
with the any other option. If this option is used with
configuration parameters, those parameters will be
silently ignored.
Issue 11
-d, --adapter =<sfxge<N>>
Performs the action on the identified Solarflare
network adapter. The adapter identifier sfxge can
be the adapter ID number, ifname or MAC address,
as output by the --list option. If --adapter is not
included, the action will apply to all installed
Solarstorm adapters.
--clear
Resets all adapter options except boot-image to
their default values. Note that --clear can also be
used with parameters, allowing you to reset to
default values, and then apply the parameters
specified.
© Solarflare Communications 2014
272
Solarflare Server Adapter
User Guide
The following parameters in Table 67 are used to control the options for the Boot ROM driver when
running prior to the operating system booting.
Table 67: Sfboot Parameters
Parameter
Description
boot-image
=<all|optionrom|uefi|disable
d>
Specifies which boot firmware images are served-up
to the BIOS during start-up. This parameter can not
be used if the --adapter option has been specified.
This option is not reset if --clear is used.
link-speed=
Specifies the network link speed of the adapter used
by the Boot ROM the default is auto. On the
10GBASE-T adapters “auto” instructs the adapter to
negotiate the highest speed supported in common
with it’s link partner . On SFP+ adapters, “auto”
instructs the adapter to use the highest link speed
supported by the inserted SFP+ module. On
10GBASE-T and SFP+ adapters, any other value
specified will fix the link at that speed, regardless of
the capabilities of the link partner, which may result
in an inability to establish the link
<auto|10g|1g|100m>
auto Auto-negotiate link speed (default)
10G 10G bit/sec
1G 1G bit/sec
100M 100M bit/sec
linkup-delay=<seconds>
Specifies the delay (in seconds) the adapter defers its
first connection attempt after booting, allowing time
for the network to come up following a power failure
or other restart. This can be used to wait for
spanning tree protocol on a connected switch to
unblock the switch port after the physical network
link is established. The default is 5 seconds.
banner-delay=<seconds>
Specifies the wait period for Ctrl-B to be pressed to
enter adapter configuration tool.
seconds = 0-256
bootskip-delay=<seconds>
Specifies the time allowed for Esc to be pressed to
skip adapter booting.
seconds = 0-256
Issue 11
© Solarflare Communications 2014
273
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
boottype=<pxe|iscsi|disabled>
Sets the adapter boot type.
pxe – PXE (Preboot eXecution Environment) booting
iscsi – iSCSI (Internet Small Computer System
Interface) booting
disabled – Disable adapter booting
initiatordhcp=<enabled|disabled>
Enables or disables DHCP address discovery for the
adapter by the Boot ROM except for the Initiator IQN
(see initiator-iqn-dhcp). This option is only
valid if iSCSI booting is enabled (boottype=iscsi).
If initiator-DHCP is set to disabled, the following
options will need to be specified:
initiator-ip=<ip_address>
netmask=<subnet>
The following options may also be needed:
gateway=<ip_address>
primary-dns=<ip_address>
initiator-ip=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) to be used by the adapter when initiatordhcp is disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>
netmask=<ipv4 subnet>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0
Issue 11
© Solarflare Communications 2014
274
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
gateway=<ipv4 address>
Specifies the IPv4 subnet mask (in standard “.”
notation form) to be used by the adapter when
initiator-dhcp is disabled. Note that this option
is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10
primary-dns=<ipv4 address>
Specifies the IPv4 address (in standard “.” notation
form) of the Primary DNS to be used by the adapter
when initiator-dhcp is disabled.
This option is only valid if iSCSI booting is enabled
(boot-type=iscsi).
Example:
sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3
initiator-iqndhcp=<enabled|disabled>
Enables or disables use of DHCP for the initiator IQN
only.
initiator-iqn=<IQN>
Specifies the IQN (iSCSI Qualified Name) to be used
by the adapter when initiator-iqn-dhcp is
disabled. The IQN is a symbolic name in the “.”
notation form; for example:
iqn.2009.01.com.solarflare, and is a maximum of 223
characters long.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot initiator-iqn-dhcp=disabled
initiatoriqn=iqn.2009.01.com.solarflare
adapter=2
lun-retry-count=<count>
Specifies the number of times the adapter attempts
to access and login to the Logical Unit Number (LUN)
on the iSCSI Target before failing. Note that this
option is only valid if iSCSI booting is enabled (boottype=iscsi).
Example:
sfboot lun-retry-count=3
Issue 11
© Solarflare Communications 2014
275
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
targetdhcp=<enabled|disabled>
Enables or disables the use of DHCP to discover iSCSI
target parameters on the adapter.
If target-dhcp is disabled, you must specify the
following options:
target-server=<address>
target-iqn=<iqn>
target-port=<port>
target-lun=<LUN>
Example - Enable the use of DHCP to configure iSCSI
Target settings:
sfboot boot-type=iscsi targetdhcp=enabled
target-server=<DNS name or
ipv4 address>
Specifies the iSCSI target’s DNS name or IPv4 address
to be used by the adapter when target-dhcp is
disabled.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2
target-port=<port_number>
Specifies the Port number to be used by the iSCSI
target when target-dhcp is disabled. The default
Port number is Port 3260.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Example:
sfboot boot-type=iscsi targetdhcp=disabled target-port=3262
This option should only be used if your target is using
a non-standard TCP Port.
target-lun=<LUN>
Specifies the Logical Unit Number (LUN) to be used
by the iSCSI target when target-dhcp is disabled.
The default LUN is 0.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Issue 11
© Solarflare Communications 2014
276
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
target-iqn=<IQN>
Specifies the IQN of the iSCSI target when targetdhcp is disabled. Maximum of 223 characters.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
Note that if there are spaces contained in <IQN>,
then the IQN must be wrapped in double quotes (“”).
Example:
sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare
adapter=2
vendor-id=<dhcp_id>
Specifies the device vendor ID to be advertised to the
DHCP server. This must match the vendor id
configured at the DHCP server when using DHCP
option 43 to obtain the iSCSI target .
chap=<enabled|disabled>
Enables or disables the use of Challenge Handshake
Protocol (CHAP) to authenticate the iSCSI
connection.
Note that this option is only valid if iSCSI booting is
enabled (boot-type=iscsi).
To be valid, this option also requires the following
sub-options to be specified:
username=<initiator username>
secret=<initiator password>
Example:
sfboot boot-type=iscsi chap=enabled
username=initiatorusername
secret=initiatorsecret
Issue 11
© Solarflare Communications 2014
277
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
username=<username>
Specifies the CHAP initiator username (maximum 64
characters).
Note that this option is required if either CHAP or
Mutual CHAP is enabled (chap=enabled,
mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username
Specifies the CHAP initiator secret (minimum 12
characters, maximum 20 characters).
secret=<secret>
Note that this option is valid if either CHAP or Mutual
CHAP is enabled (chap=enabled, mutualchap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
Example:
sfboot boot-type=iscsi chap=enabled
username=username secret=veryverysecret
mutualchap=<enabled|disabled>
Enables/disables Mutual CHAP authentication when
iSCSI booting is enabled.
This option also requires the following sub-options to
be specified:
target-username=<username>
target-secret=<password>
username=<username>
secret=<password>
Example:
sfboot boot-type=iscsi mutualchap=enabled username=username
secret=veryverysecret targetusername=targetusername targetsecret=anothersecret
Issue 11
© Solarflare Communications 2014
278
Solarflare Server Adapter
User Guide
Table 67: Sfboot Parameters
Parameter
Description
target-username=<username>
Specifies the username that has been configured on
the iSCSI target (maximum 64 characters).
Note that this option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in
<username>, then it must be wrapped in double
quotes (“”).
target-secret=<secret>
Specifies the secret that has been configured on the
iSCSi target (minimum 12 characters; maximum 20
characters).
Note: This option is necessary if Mutual CHAP is
enabled on the adapter (mutual-chap=enabled).
Note that if there are spaces contained in <secret>,
then it must be wrapped in double quotes (“”).
Issue 11
mpio-priority=<MPIO
priority>
Specifies the Multipath I/O (MPIO) priority for the
adapter. This option is only valid for iSCSI booting
over multi-port adapters, where it can be used to
establish adapter port priority. The range is 1- 255,
with 1 being the highest priority.
mpio-attempts=<attempt
count>
Specifies the number of times MPIO will tryand use
each port in turn to login to the iSCSI target before
failing.
msixlimit=<8|16|32|64|128|256|51
2|1024>
Specifies the maximum number of MSI-X interrupts
the specified adapter will use. The default is 32.
sriov=<enabled|disabled>
Enable SR-IOV support for OS system that support it.
vf-count=<vf_count>
Number of Virtual Functions advertised to the OS.
Solarflare adapters support 1024 interrupts.
Depending on the value of msix-limit and vf-msiclimit, some of these Virtual Functions may not be
useable.
vf-msix-limit=<1|2|4|8>
Maximum number of MSI-X interrupts a Virtual
Function can have.
Note: Using the incorrect setting can impact the
performance of the adapter. Contact Solarflare
technical support before changing this setting.
© Solarflare Communications 2014
279
Solarflare Server Adapter
User Guide
Sfboot: Examples
• Show the current boot configuration for all adapters:
sfboot
Solarflare boot configuration utility [v3.0.5]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
sfxge0:
Boot image
MSI-X interrupt limit
Disabled
32
sfxge1:
Boot image
MSI-X interrupt limit
Disabled
32
• List all Solarflare adapters installed on the localhost:
sfboot --list
Solarflare boot configuration utility [v3.0.5]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
sfxge0 - 00-0F-53-01-38-40
sfxge1 - 00-0F-53-01-38-41
Issue 11
© Solarflare Communications 2014
280
Solarflare Server Adapter
User Guide
6.10 Upgrading Adapter Firmware with Sfupdate
To Update Adapter Firmware
As a root user enter:
pkgadd -d SFCutils_i386_v<version>.pkg
Once installed, by default, utility tools are located in the /opt/SFCutils/bin directory.
Sfupdate: Command Usage
The general usage for sfupdate is as follows (as root):
sfupdate [--adapter=sfxge<x>] [options]
where:
sfgxe<x> is the interface name of the Solarflare adapter you want to upgrade.
option is one of the command options listed in Table 68.
The format for the options are:
--<option>=<parameter>
Running the command sfupdate with no additional parameters will show the current firmware
version for all Solarflare adapters and whether the firmware within sfupdate is more up to date. To
update the firmware for all Solarflare adapters run the command sfupdate --write
Solarflare recommend that you use sfupdate in the following way:
1
Run sfupdate to check that the firmware on all your adapters are up to date.
2
Run sfupdate --write to update the firmware on all adapters.
Sfupdate: Command Line Options
Table 68 lists the options for sfupdate.
Table 68: Sfupdate Options
Issue 11
Option
Description
-h, --help
Shows help for the available options and command line
syntax.
-v, --verbose
Enable verbose output mode.
-s, --silent
Suppress all output except for errors. Useful for scripts.
-V, --version
Display version information and exit.
© Solarflare Communications 2014
281
Solarflare Server Adapter
User Guide
Table 68: Sfupdate Options
Option
Description
-i, --adapter=sfxge<x>
Specifies the target adapter when more than one
adapter is installed in the machine.
sfxge<x> = Adapter ifname or MAC address (as
obtained with --list).
--list
Shows the adapter ID, adapter name and MAC address of
each adapter installed in the machine.
--write
Re-writes the firmware from the images embedded in
the sfupdate tool. To re-write using an external image,
specify
--image=<filename> in the command.
--write fails if the embedded image is the same or a
previous version. To force a write in this case, specify the
option --force.
Issue 11
--force
Force update of all firmware, even if the installed
firmware version is the same or more recent than the
images embedded in the utility.
--image=(filename)
Update the firmware using the image contained in the
specified file, rather than the image embedded in the
utility. Use with the --write and, if needed, --force
options.
-y, --yes
Prompts for user confirmation before re-writing the
firmware.
© Solarflare Communications 2014
282
Solarflare Server Adapter
User Guide
Sfupdate: Examples
• Display firmware versions for all adapters:
sfupdate
sfupdate: Solarflare Firmware Update Utility [v3.0.5.2164]
Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005
Network adapter driver version: v3.0.5.2163
sfxge0 - MAC: 00:0F:53:01:38:90
Firmware
version: v3.0.5
Boot ROM
version: v3.0.5.2163
PHY
version: v2.0.2.5
Controller version: v3.0.5.2161
The Boot ROM firmware is up to date
The PHY firmware is up to date
The image contains a more recent version of the Controller [v3.0.5.2163]
vs [v3.0.5.2161]
Use the -w|--write option to perform an update
sfxge1 - MAC: 00:0F:53:01:38:91
Firmware
version: v3.0.5
Boot ROM
version: v3.0.5.2163
PHY
version: v2.0.2.5
Controller version: v3.0.5.2161
The Boot ROM firmware is up to date
The PHY firmware is up to date
The image contains a more recent version of the Controller [v3.0.5.2163]
vs [v3.0.5.2161]
Use the -w|--write option to perform an update
Issue 11
© Solarflare Communications 2014
283
Solarflare Server Adapter
User Guide
6.11 Performance Tuning on Solaris
• Introduction...Page 284
• Tuning settings...Page 285
• Other Considerations...Page 288
Introduction
The Solarflare family of network adapters are designed for high-performance network applications.
The adapter driver is pre-configured with default performance settings that have been chosen to
give good performance across a broad class of applications. In many cases, application performance
can be improved by tuning these settings to best suit the application.
There are three metrics that should be considered when tuning an adapter:
• Throughput
• Latency
• CPU utilization
Different applications may be more or less affected by improvements in these three metrics. For
example, transactional (request-response) network applications can be very sensitive to latency
whereas bulk data transfer applications are likely to be more dependent on throughput.
The purpose of this guide is to highlight adapter driver settings that affect the performance metrics
described. This guide covers the tuning of all of the Solarflare family of adapters.
In addition to this guide, you may need to consider other issues influencing performance such as
application settings, server motherboard chipset, additional software installed on the system, such
as a firewall, and the specification and configuration of the LAN. Consideration of such issues is not
within the scope of this guide.
Issue 11
© Solarflare Communications 2014
284
Solarflare Server Adapter
User Guide
Tuning settings
Adapter MTU (Maximum Transmission Unit)
The default MTU of 1500 bytes ensures that the adapter is compatible with legacy 10/100Mbps
Ethernet endpoints. However if a larger MTU is used, adapter throughput and CPU utilization can be
improved. CPU utilization is improved because it takes fewer packets to send and receive the same
amount of data. Solarflare adapters support frame sizes up to 9000 bytes (this does not include the
Ethernet preamble or frame-CRC).
Since the MTU should ideally be matched across all endpoints in the same LAN (VLAN), and since the
LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than
default MTU requires careful consideration. It is recommended that experimentation with MTU be
done in a controlled test environment.
The MTU can be changed dynamically using ifconfig if the maximum MTU size has been set in the
sxfge_conf file (see Configuring Jumbo Frames on page 269 ), where sfxge<X> is the interface
name and size is the MTU size in bytes:
$ ifconfig sfxge<X> mtu <size>
Verification of the MTU setting may be performed by running $ ifconfig sfxge<X> with no
options and checking the MTU value associated with the interface. If you want to have an MTU
configure when the interface is brought up, add mtu to the single line of configuration data in:
/etc/hostname.sfxge<X>
For example:
[<IP address>] mtu <size>
Interrupt Moderation (Interrupt Coalescing)
Interrupt moderation controls the number of interrupts generated by the adapter by adjusting the
extent to which receive packet processing events are coalesced. Interrupt moderation may coalesce
more than one packet-reception or transmit-completion event into a single interrupt.
This parameter is critical for tuning adapter latency. Increasing the moderation value will increase
latency, but reduce CPU utilization and improve peak throughput, if the CPU is fully utilized.
Decreasing the moderation value or turning it off will decrease latency at the expense of CPU
utilization and peak throughput. However, for many transaction request-response type network
applications, the benefit of reduced latency to overall application performance can be considerable.
Such benefits may outweigh the cost of increased CPU utilization.
NOTE: The interrupt moderation time dictates the minimum gap between two consecutive
interrupts. It does not mandate a delay on the triggering of an interrupt on the reception of every
packet. For example, an interrupt moderation setting of 30μs will not delay the reception of the
first packet received, but the interrupt for any following packets will be delayed until 30μs after the
reception of that first packet.
Issue 11
© Solarflare Communications 2014
285
Solarflare Server Adapter
User Guide
TCP/IP Checksum Offload
Checksum offload moves calculation and verification of IP Header, TCP and UDP packet checksums
to the adapter. The driver by default has all checksum offload features enabled. Therefore, there is
no opportunity to improve performance from the default.
TCP Segmentation Offload (TSO)
TCP Segmentation offload (TSO) offloads the splitting of outgoing TCP data into packets to the
adapter. TCP segmentation offload benefits applications using TCP. Non TCP protocol applications
will not benefit (but will not suffer) from TSO.
The Solaris TCP/IP stack provides a large TCP segment to the driver, which splits the data into MSS
size, each with adjusted sequence space and a hardware calculated checksum.
TCP Large Receive Offload (LRO) / RX Coalescing
LRO (called rx coalescing on Solaris) is a feature whereby the adapter coalesces multiple packets
received on a TCP connection into a single call to the operating system TCP Stack. This reduces CPU
utilization, and so improves peak throughput when the CPU is fully utilized.
LRO should not be enabled if you are using the host to forward packets from one interface to
another; for example if the host is performing IP routing or acting as a layer2 bridge. The driver has
LRO disabled by default.
TCP Protocol Tuning
TCP Performance can also be improved by tuning kernel TCP settings. Settings include adjusting send
and receive buffer sizes, connection backlog, congestion control, etc.
The transmit and receive buffer sizes may already be explicitly controlled by an application calling
setsockopt() to set SO_SNDBUF or SO_RCVBUF.
ndd -set /dev/tcp tcp_xmit_hiwat 524288
ndd -set /dev/tcp tcp_recv_hiwat 524288
The following settings may help if there are a large number of connections being made:
ndd -set /dev/tcp tcp_time_wait_interval 1000 # 1 sec for time-wait (min)
ndd -set /dev/tcp tcp_conn_req_max_q 4096 # increase accept queue
ndd -set /dev/tcp tcp_conn_req_max_q0 4096 # increase accept queue
ndd -set /dev/tcp tcp_conn_req_min 1024 # increase minimum accept queue
ndd -set /dev/tcp tcp_rst_sent_rate_enabled 0 # disable rst rate limiting
See the Internet Protocol Suite Tunable Parameters chapter of the Tunable Parameters Reference
Guide for more details:
http://docs.oracle.com/cd/E19082-01/819-2724/6n50b07lr/index.html
NOTE: You can also add these settings to /etc/system
Issue 11
© Solarflare Communications 2014
286
Solarflare Server Adapter
User Guide
Receive Side Scaling (RSS)
Solarflare adapters support Receive Side Scaling (RSS). RSS enables packet receive-processing to
scale with the number of available CPU cores. RSS requires a platform that supports MSI-X
interrupts.
When RSS is enabled the controller uses multiple receive queues into which to deliver incoming
packets. The receive queue selected for an incoming packet is chosen in such a way as to ensure that
packets within a TCP stream are all sent to the same receive queue – this ensures that packetordering within each stream is maintained. Each receive queue has its own dedicated MSI-X
interrupt which ideally should be tied to a dedicated CPU core. This allows the receive side TCP
processing to be distributed amongst the available CPU cores, providing a considerable performance
advantage over a conventional adapter architecture in which all received packets for a given
interface are processed by just one CPU core.
RSS is enabled by default in the sfxge driver. To limit or disable RSS:
Uncomment the following line in: /kernel/drv/sfxge.conf
rx_scale_count=<number of MSI-X interrupts requested>
Limitations of Solaris MSI-X interrupt allocation are:
1
2
All network drivers share 32 MSI-X interrupts.
A single NIC can only use 2 MSI-X interrupts (this restriction can be lifted with the
ddi_msix_alloc_limit setting below).
To lift the restriction of 2 MSI-X interrupts, add the following line to /etc/system and reboot.
set ddi_msix_alloc_limit=8
If no MSI/MSI-X interrupts are available then the driver will fall-back to use a single legacy interrupt.
RSS will be unavailable for that port.
Other RSS Settings
You should add the following lines to /etc/system:
set pcplusmp:apic_intr_policy=1
This sets the interrupt distribution method to round robin.
set ip:ip_squeue_fanout=1
This determines the mode for associating TCP/IP connections with queues. For details refer to the
following:
http://docs.oracle.com/cd/E19082-01/819-2724/chapter4-7/index.html
NOTE: RSS also works for UDP packets. For UDP traffic the Solarflare adapter will select the Receive
CPU based on IP source and destination addresses. SFN5xxx adapters support IPv4 and IPv6 RSS,
while SFN4xxx adapters support just IPv4 RSS.
Issue 11
© Solarflare Communications 2014
287
Solarflare Server Adapter
User Guide
Other Considerations
PCI Express Lane Configurations
The PCI Express (PCIe) interface used to connect the adapter to the server can function at different
widths. This is independent of the physical slot size used to connect the adapter. The possible widths
are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen 1, 5.0 Gbps for PCIe Gen 2) in each
direction. Solarflare Adapters are designed for x8 lane operation.
On some server motherboards, choice of PCIe slot is important. This is because some slots (including
ones that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots,
Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will warn
you if it detects the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes.
For SFN5xxxx adapters, which require a PCIe Gen 2 slot for optimal operation, a warning will be given
if they are installed in a PCIe Gen 1 slot.
CPU Power Management
This feature monitors CPU utilization and lowers the CPU frequency when utilization is low. This
reduces the power consumption of the CPU. For latency sensitive applications, where the
application switches between having packets to process and having periods of idle time waiting to
receive a packet, dynamic clock speed control may increase packet latencies. There therefore can be
a benefit to disabling the service.
The service can be disabled temporarily with the configuration in /etc/power.conf file and
restarting the service. For example:
cpupm disable
system-threshold always-on
cpu-threshold always-on
cpu_deep_idle disable
The service can be disabled across reboots with:
svcadm disable
svc:/system/power:default
See http://docs.oracle.com/cd/E19253-01/817-0547/gfgmu/index.html
Memory bandwidth
Many chipsets use multiple channels to access main system memory. Maximum memory
performance is only achieved when the chipset can make use of all channels simultaneously. This
should be taken into account when selecting the number of DIMMs to populate in the server.
Consult the motherboard documentation for details.
Server Motherboard, Server BIOS, Chipset Drivers
Tuning or enabling other system capabilities may further enhance adapter performance. Readers
should consult their server user guide. Possible opportunities include tuning PCIe memory controller
(PCIe Latency Timer setting available in some BIOS versions).
Issue 11
© Solarflare Communications 2014
288
Solarflare Server Adapter
User Guide
Tuning Recommendations
The following tables provide recommendations for tuning settings for different applications.
Throughput - Table 69
Latency - Table 70
Forwarding - Table 71
Recommended Throughput Tuning
Table 69: Throughput Tuning Settings
Issue 11
Tuning Parameter
How?
MTU Size to maximum
supported by network
ifconfig sfxge<x> mtu <size>
Interrupt moderation
Leave at default
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Leave at default
Receive Side Scaling (RSS)
Application dependent
Buffer Allocation Method
Leave at default. Some applications may benefit from
specific setting.
PCI Express Lane Configuration
Ensure current speed (not the supported speed) reads
back as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Power Management
Leave enabled
Memory bandwidth
Ensure Memory utilizes all memory channels on system
motherboard
© Solarflare Communications 2014
289
Solarflare Server Adapter
User Guide
Recommended Latency Tuning
Table 70: Latency Tuning Settings
Tuning Parameter
How?
MTU Size to maximum
supported by network
Leave at default
Interrupt moderation
Disable with:
sfxge.conf
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Leave at default, but changing does not impact latency
Receive Side Scaling
Application dependent
Buffer Allocation Method
Leave at default
PCI Express Lane
Configuration
Ensure current speed (not the supported speed) reads back
as “x8 and 5Gb/s” Or “x8 and Unknown”
CPU Power Management
Disable with:
/etc/power.conf
Memory bandwidth
Ensure Memory utilizes all memory channels on system
motherboard
Recommended Forwarding Tuning
Table 71: Forwarding Tuning Settings
Issue 11
Tuning Parameter
How?
MTU Size to maximum
supported by network
ifconfig sfxge<X> mtu <size>
Interrupt moderation
Leave at default
TCP/IP Checksum Offload
Leave at default
TCP Segmentation Offload
Leave at default
TCP Large Receive Offload
Leave at default
TCP Protocol Tuning
Can leave at default
Receive Side Scaling (RSS)
sfxge.conf
Buffer Allocation Method
Leave at default
© Solarflare Communications 2014
290
Solarflare Server Adapter
User Guide
Table 71: Forwarding Tuning Settings
Issue 11
Tuning Parameter
How?
PCI Express Lane
Configuration
Ensure current speed (not the supported speed) reads back as
“x8 and 5Gb/s” Or “x8 and Unknown”
CPU Speed service (cpuspeed)
Leave enabled
Memory bandwidth
Ensure Memory utilizes all memory channels on system
motherboard
© Solarflare Communications 2014
291
Solarflare Server Adapter
User Guide
6.12 Module Parameters
The normal syntax when using parameters is param=<value>.
Table 72 lists the available parameters in the Solarflare Solaris driver module (sfxge.conf):
Table 72: Driver Module Parameters
Parameter
Description
rx_scale_count
Maximum number of RSS channels to
use per port. The actual number may be
lower due to availability of MSI-X
interrupts. There is a maximum of 32
MSI-X interrupts across all network
devices. To use more than 2 MSI-X
interrupts you need to add e.g.
Values
Default
128
set ddi_msix_alloc_limit=8 in
/etc/system.
rx_coalesce_mod
e
Coalesce RX packets (Large Receive
Offload).
0 = off
0
1 = on
2 = on, respecting
TCP PSH
boundaries.
intr_moderation
Interrupt moderation in μs. Decreasing
this reduces latency but increases
interrupt rate and therefore CPU usage.
mtu
Maximum MTU of an sfxge interface in
bytes (excludes ethernet framing)
1500 - 9000
1500
rxq_size
Number of descriptors in the receive
queue descriptor ring
512 - 4096
1024
rx_pkt_mem_max
Issue 11
Per port memory limit for receive packet
buffers
© Solarflare Communications 2014
30
must be a power
of 2 value
64Mb
292
Solarflare Server Adapter
User Guide
Table 72: Driver Module Parameters
Parameter
Description
Values
Default
action_on_hw_er
r
Controls the action taken on hardware
error.
0 - recover
adapter to a
working state.
0
1- do not advertise
to the kernel that
the link is down
during the reset.
2. reset the
hardware, but do
not use it again useful for failover
mechanisms to
ensure this
adapter does not
become the active
link again.
rx_prealloc_pkt
_buffers
Issue 11
Number of pkt buffers to allocate at start
of a receive queue and maintain a free
pkt pool of at least this many buffers.
© Solarflare Communications 2014
limited by
available system
memory.
512
293
Solarflare Server Adapter
User Guide
6.13 Kernel and Network Adapter Statistics
Statisitical data originating from the MAC on Solarflare network adapters can be gathered using the
Solaris Kernel Statistics command (kstat). The following tables identify kernel and adapter
statistics returned from the kstat command:
# kstat -m sfxge
To read individual classes use the -c option or by name use the -n option, for example:
# kstat -m sfxge -c net
# kstat -m sfxge -n mac
The kstats statistics are listed by ’names’ in the following tables
• Name mac...Page 294
• Name sfxge_cfg on page 299
• Name sfxge_mac...Page 299
• Name sfxge_ndd...Page 303
• Name sfxge_rss...Page 304
• Name sfxge_rxq0000...Page 305
• Name sfxge_txq0000...Page 305
• Name sfxge_vpd...Page 305
Table 73: Name mac
Parameter
Description
adv_cap_1000fdx
Advertise 1000 Mbps full duplex capacity 1 = true, 0 = false.
adv_cap_1000hdx
Advertise 1000 Mbps half duplex capacity 1 = true, 0 =
false.
adv_cap_100fdx
Advertise 100 Mbps full duplex capacity 1 = true, 0 = false.
adv_cap_100hdx
Advertise 100 Mbps half duplex capacity 1 = true, 0 = false.
adv_cap_10fdx
Advertise 10 Mbps full duplex capacity 1 = true, 0 = false.
adv_cap_10hdx
Advertise 10 Mbps half duplex capacity 1 = true, 0 = false.
adv_cap_asmpause
Advertise asymmetric pause capability 1 = true, 0 = false.
adv_cap_autoneg
Advertise auto-negotiation capability when autonegotiation is enabled.
When set to zero, the highest priority speed and duplex
mode is used for forced mode.
Issue 11
© Solarflare Communications 2014
294
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
adv_cap_pause
Depends on the value of adv_cap_asmpause.
If adv_cap_asmpause = 1 then:
1 = send pause frames when there is receive congestion.
0 = pause transmission when a pause frame is received.
If adv_cap_asmpause = 0 then:
1 = send pause frames when there is receive congestion
and pause transmission when a pause frame is received.
0 = pause capability is not available in either direction.
align_errors
Number of occurrences of frame alignment error.
brdcstrcv
Number of broadcast packets received.
brdcstxmt
Number of broadcast packets transmitted.
cap_1000fdx
Capable of 1000 Mbps full duplex 1 = true, 0 = false.
cap_1000hdx
Capable of 1000 Mbps half duplex 1 = true, 0 = false.
cap_100fdx
Capable of 100 Mbps full duplex 1 = true, 0 = false.
cap_100hdx
Capable of 100 Mbps half duplex 1 = true, 0 = false.
cap_10fdx
Capable of 10 Mbps full duplex 1 = true, 0 = false.
cap_10hdx
Capable of 10 Mbps half duplex 1 = true, 0 = false.
cap_asmpause
Asymmetric pause capability 1 = true, 0 = false. This
determines action taken by the cap_pause parameter - see
below.
cap_autoneg
Capable of auto negotiation 1= true, 0 = false.
cap_pause
Direction depends on value of cap_asmpause.
If cap_asmpause = 1 then:
0 = pause transmission when a pause frame is received.
1 = send pause frames when there is receive congestion.
If cap_asmpause = 0 then:
0 = pause capability is not available in either direction.
1 = send pause frames when there is receive congestion
and pause transmission when a pause frame is received.
Issue 11
collisions
Number of collisions detected when attempting to send.
crtime
Timestamp when samples were taken.
© Solarflare Communications 2014
295
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
defer_xmts
Number of packets successfully transmitted after the
network adapter defers transmission at least once when
the medium is busy.
ex_collsions
Number of packets not transmitted due to excessive
collisions which can occur on networks under heavy load or
when too many devices contend for the collision domain.
After 15 retransmission attempts plus the original
transmission attempt the counter is incremented and the
packet is dropped.
fcs_errors
Number of frames received which FCS errors.
first_collisions
0
ierrors
0
ifspeed
Adapter interface speed.
ipackets
Number of packets received (32 bit counter).
ipackets64
Number of packets received (64 bit counter).
link_asmpause
When adv_*pause_cap and lp_*pause_cap are compared
following auto-negotiation, the flow control mechanism for
the link depends on what is most meaningful:
0 = flow control in both directions when link_pause is set to
one.
1 = flow control in one direction.
link_autoneg
Auto-negotiation, 0 = not enabled, 1 = enabled.
link_duplex
0 = down, 1 = half duplex, 2 = full duplex.
link_pause
Depends on link_asmpause.
If link_asmpause = 1 then:
1 = flow control in both directions is available.
0 = no flow control on the link.
If link_asmpause = 0 then:
1 = the local host will honour received pause frames by
temporarily suspending transmission of further frames.
0 = in the event of receive congestion, the local host will
transmit pause frames to the peer.
Issue 11
link_state
link status 0 = link down, 1 = link up.
link_up
1 =link is up, 0 = link is down.
© Solarflare Communications 2014
296
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
lp_cap_1000fdx
Link partner advertises 1000 Mbps full duplex capability.
lp_cap_1000hdx
Link partner advertises 1000 Mbps half duplex capability.
lp_cap_100fdx
Link partner advertises 100 Mbps full duplex capability.
lp_cap_100hdx
Link partner advertises 100 Mbps half duplex capability.
lp_cap_10fdx
Link partner advertises 10 Mbps full duplex capability.
lp_cap_10hdx
Link partner advertises 10 Mbps half duplex capability.
lp_cap_asmpause
Asymmetric pause capability. 1 = true, 0 = false. This
determines action taken by the lp_cap_pause parameter see below.
lp_cap_autoneg
Link partner advertises auto-negotiation capability.
lp_cap_pause
Depends on value of lp_cap_asmpause.
If lp_cap_asmpause = 1 then:
1 = send pause frames when there is receive congestion.
0 = pause transmission when a pause frame is received.
If lp_cap_asmpause = 0 then:
1 = send pause frames when there is receive congestion
and pause transmission when a pause frame is received.
0 = pause capability is not available in either direction.
Issue 11
macrcv_errors
Count the number of frames for which reception on a
particular interface fails due to internal MAC error. Does
not include too long frames, alignment error frames or FCS
errors.
macxmt_errors
Count the number of frames for which transmission fails
due to internal MAC error. Does not include failures due to
late collisions, excessive collisions or carrier sense errors.
multi_collisions
Count the number of frames for which transmission fails
due to multiple collisions.
multircv
Number of multicast packets received.
multixmt
Number of multicast packets transmitted.
norcvbuf
0
noxmtbuf
0
obytes
Number of bytes output (32 bit counter).
© Solarflare Communications 2014
297
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
obytes64
Number of bytes output (64 bit counter).
oerrors
Number of outbound packets not transmitted due to error.
opackets
Number of outbound packets (32 bit counter).
opackets64
Number of outbound packets (64 bit counter)
promisc
Promiscuous Mode, 0 = not enabled, 1 = enabled
rbytes
Number of bytes received (32 bit counter)
rbytes64
Number of bytes received (64 bit counter)
snaptime
178761.398854604
sqe_errors
Count of number of times the SQE_TEST_ERROR message is
generated for an interface.
toolong_errors
Count the number of frames received that exceed the
maximum permitted frame size.
tx_late_collsions
A sending device may detect a collision as it attempts to
transmit a frame or before it completes sending the entire
frame. If a collision is detected after the device has completed sending the entire frame, the device will assume
that the collision occurred because of a different frame.
Late collisions can occur if the length of the network segment is greater than the standard allowed length.
Collision occurred beyond the collision window (512 bit
times).
This should always be zero as Solarflare adapters operate in
full duplex mode.
Issue 11
unknowns
0
xcvr_addr
MII address in the 0-31 range of the physical layer device in
use for a given Ethernet device.
xcvr_id
MII transceiver manufacturer and device ID.
© Solarflare Communications 2014
298
Solarflare Server Adapter
User Guide
Table 73: Name mac
Parameter
Description
xcvr_inuse
MII transceiver type:
0 = undefined
1 = none, MII present but nothing connected
2 = 10 Mbps Manchester encoding
3 = 100BaseT4, 100 Mbps 8B/6T
4 = 100BaseX, 100 Mbps 4B/5B
5 = 100BaseT2 100 Mbps PAM5X5
6 = 1000BaseT, 1000 Mbps 4D-PAM5
Table 74: Name sfxge_cfg
Parameter
Description
crtime
Timestamp when samples were taken.
mac
Adapter hardware address.
version
Solarflare sfxge driver version
Table 75: Name sfxge_mac
Issue 11
Parameter
Description
crtime
Timestamp when samples were taken.
link_duplex
0 = down, 1 = half duplex, 2 = full duplex.
link_speed
10000 (Mbps).
link_up
1 = link is up, 0 = link is down.
rx_1024_to_15xx_pkts
Number of packets received where the length is between
1024 and 15xx bytes. 1518(non VLAN), 1522(VLAN).
rx_128_to_255_pkts
Number of packets received where the length is between
128 and 255 bytes.
rx_256_to_511_pkts
Number of packets received where the length is between
256 and 511 bytes.
rx_512_to_1023_pkts
Number of packets received where the length is between
512 and 1023 bytes.
rx_65_to_127_pkts
Number of packets received where the length is between
65 and 127 bytes.
© Solarflare Communications 2014
299
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Issue 11
Parameter
Description
rx_align_errors
Number of occurrences of frame alignment error.
rx_brdcst_pkts
Number of broadcast packets received.
rx_drop_events
Number of packets dropped by adapter driver.
rx_errors
Number of packet received with bad FCS.
rx_false_carrier_errors
Count of the instances of false carrier detected. False
carrier is activity on the receive channel that does not
result in a packet receive attempt being made.
rx_fcs_errors
Number of packets received with FCS errors - these are
dropped by the Solarflare driver.
rx_ge_15xx_pkts
Number of packets received with payload size greater than
1518 bytes (1522 bytes VLAN).
rx_internal_errors
Number of frames that could not be received due to a MAC
internal error condition. e.g. frames not received by the
MAC due to FIFO overflow condition.
rx_lane0_char_err
0
rx_lane0_disp_err
0
rx_lane1_char_err
0
rx_lane1_disp_err
0
rx_lane2_char_err
0
rx_lane2_disp_err
0
rx_lane3_char_err
0
rx_lane3_disp_err
0
rx_le_64_pkts
Number of packets received where the length is exactly 64
bytes.
rx_match_fault
Number of packets received which did not match a filter.
rx_multicst_pkts
Number of multicast packets received.
© Solarflare Communications 2014
300
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Parameter
Description
rx_nodesc_drop_cnt
Number of packets dropped by the network adapter
because of a lack of RX descriptors in the RX queue.
Packets can be dropped by the NIC when there are
insufficient RX descriptors in the RX queue to allocate to the
packet. This problem can occur if the receive rate is very
high and the network adapter is not able to allocate
memory and refill the RX descriptor ring quickly enough to
keep up with the incoming packet rate.
A number of different steps can be tried to resolve this
issue:
1. Disable the irqbalance daemon in the OS.
2. Distribute the traffic load across the available CPU/cores
by setting rss_cpus=cores. Refer to Receive Side Scaling
section.
3. Increase receive queue size using ethtool.
Issue 11
rx_octets
Total number of octets received.
rx_pause_pkts
Number of pause packets received with valid pause
op_code.
rx_pkts
Total number of packets received.
rx_symbol_errors
Count of the number of times the receiving media is nonidle (the time between the Start of Packet Delimiter and
the End of Packet Delimiter) for a period of time equal to
or greater than minimum frame size, and during which
there was at least one occurrence of an event that causes
the PHY to indicate Receive Error on the MII.
rx_unicst_pkts
Number of unicast packets received.
tx_1024_to_15xx_pkts
Number of packets transmitted where the length is
between 1024 and 15xx bytes. 1518(non VLAN),
1522(VLAN).
tx_128_to_255_pkts
Number of packets transmitted where the length is
between 128 and 255 bytes.
tx_256_to_511_pkts
Number of packets transmitted where the length is
between 256 and 511 bytes.
tx_512_to_1023_pkts
Number of packets transmitted where the length is
between 512 and 1023 bytes.
© Solarflare Communications 2014
301
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Parameter
Description
tx_65_to_127_pkts
Number of packets transmitted where the length is
between 65 and 127 bytes.
tx_brdcst_pkts
Number of broadcast packets transmitted.
tx_def_pkts
The number of packets successfully transmitted after the
network adapter defers transmission at least once when
the medium is busy.
tx_errors
Number of packets transmitted with incorrect FCS.
tx_ex_col_pkts
Number of packets not transmitted due to excessive
collisions. Excessive collisions occur on a network under
heavy load or when too many devices contend for the
collision domain. After 15 retransmission attempts + the
original transmission attempt the counter is incremented
and the packet is discarded.
tx_ex_def_pkts
Number of packets for which transmission is deferred for
an excessive period of time.
tx_ge_15xx_pkts
Number of packets transmitted where length is between
15xx and 9000 bytes. 1518(non VLAN), 1522(VLAN).
tx_late_col_pkts
A sending device may detect a collision as it attempts to
transmit a frame or before it completes sending the entire
frame. If a collision is detected after the device has completed sending the entire frame, the device will assume
that the collision occurred because of a different frame.
Late collisions can occur if the length of the network segment is greater than the standard allowed length.
Collision occurred beyond the collision window (512 bit
times).
This should always be zero as Solarflare adapters operate
in full duplex mode.
Issue 11
tx_le_64_pkts
Number of frames transmitted where the length is less
than 64 bytes.
tx_mult_col_pkts
Number of packets transmitted after being subject to
multiple collisions.
tx_multicst_pkts
Number of multicast packets transmitted. Includes flow
control packets.
tx_octets
Number of octets transmitted.
tx_pause_pkts
Number of pause packets transmitted.
© Solarflare Communications 2014
302
Solarflare Server Adapter
User Guide
Table 75: Name sfxge_mac
Parameter
Description
tx_pkts
Number of packets transmitted.
tx_sgl_col_pkts
Number of occurrences when a single collision delayed
immediate transmission of a packet.
tx_unicst_pkts
Number of unicast packets transmitted. Includes packets
that exceed that maximum length.
Table 76: Name sfxge_ndd
Parameter
Description
adv_cap_1000fdx
adv_cap_1000hdx
adv_cap_100fdx
adv_cap_100hdx
adv_cap_10fdx
adv_cap_10gfdx
adv_cap_10hdx
adv_cap_asm_pause
adv_cap_autoneg
adv_cap_pause
cap_1000fdx
cap_1000hdx
cap_100fdx
cap_100hdx
Refer to the corresponding field in the MAC statistics in
Table 73 above. The adv_cap_* parameters represent a
mirror image of the mac adv_*_cap parameter list for an
Ethernet device. The parameters are also a subset of the
cap_* statistics. If the cap_* value is 0, the corresponding
adv_cap_* must also be 0, except for adv_cap_asmpause
and adv_cap_pause parameters.
cap_10fdx
cap_10gfdx
cap_10hdx
cap_asm_pause
cap_autoneg
cap_pause
Issue 11
© Solarflare Communications 2014
303
Solarflare Server Adapter
User Guide
Table 76: Name sfxge_ndd
Parameter
Description
crtime
Timestamp when samples were taken.
fcntl_generate
Flow control. When 1 generate pause frames.
fcntl_respond
Flow control -When 1 - pause transmission on receipt of
pause frames.
intr_moderation
Interrupt moderation interval (microseconds) maximum
value 20000 μs
lp_cap_1000fdx
lp_cap_1000hdx
lp_cap_100fdx
lp_cap_100hdx
lp_cap_10fdx
lp_cap_10gfdx
lp_cap_10hdx
Refer to the corresponding link partner field in the MAC
statistics in Table 73 above. The adv_cap_* parameters
represent a mirror image of the mac adv_*_cap parameter
list for an Ethernet device. The parameters are also a
subset of the cap_* statistics. If the cap_* value is 0, the
corresponding adv_cap_* must also be 0, except for
adv_cap_asmpause and adv_cap_pause parameters.0
lp_cap_asm_pause
lp_cap_autoneg
lp_cap_pause
rx_coalesce_mode
Large Receive Offload. 0 = disabled (default), 1 = enabled, 2
= enabled - respecting TCP PSH boundaries.
rx_scale_count
Number of RSS channels to use per port. Default is 128,
Minimum is 1.
Table 77: Name sfxge_rss
Issue 11
Parameter
Description
crtime
Timestamp when samples were taken.
evq0000_count
Number of RSS table entries for this event queue.
scale
Actual number of MSI-X interrupts.
© Solarflare Communications 2014
304
Solarflare Server Adapter
User Guide
Table 78: Name sfxge_rxq0000
Parameter
Description
crtime
Timestamp when samples were taken.
dma_alloc_fail
Memory allocation failure.
dma_alloc_nomem
Memory allocation failure.
dma_bind_fail
Memory allocation failure.
dma_bind_nomem
Memory allocation failure.
kcache_alloc_nomem
Memory allocation failure.
rx_pkt_mem_limit
Per interface memory limit for RX packet buffers.
rxq_empty_discard
Number of times the RX descriptor ring was empty causing
a received packet to be discarded.
Table 79: Name sfxge_txq0000
Parameter
Description
crtime
Timestamp when samples were taken.
post
Number of packets posted to the transmit queue.
dpl_get_full_count
Number of times the Deferred Packet List limit was reached.
dpl_get_pkt_limit
Deferred Packet max packet limit
dpl_put_full_count
Number of times the Deferred Packet List limit was reached
dpl_put_pkt_limit
Deferred Packet max packet limit.
unaligned_split
Always 0.
Table 80: Name sfxge_vpd
Issue 11
Parameter
Description
crtime
Timestamp when samples were taken.
EC
Engineering change data.
ID
Solarflare adapter type.
PN
Solarflare adapter part number.
© Solarflare Communications 2014
305
Solarflare Server Adapter
User Guide
Table 80: Name sfxge_vpd
Issue 11
Parameter
Description
SN
Solarflare adapter serial number.
VD
Adapter firmware version.
© Solarflare Communications 2014
306
Solarflare Server Adapter
User Guide
Chapter 7: SR-IOV Virtualization Using KVM
This chapter describes Solarflare’s unified approach to SR-IOV Virtualization using Linux KVM and
identifies supported KVM guests. Solarflare SR-IOV enables accelerated cut-through performance
while maintaining full compatibility with hypervisor based services and management tools.
• Supported Platforms and Adapters...Page 307
• Linux KVM SR-IOV...Page 308
• Installation...Page 311
• Configuration Red Hat 6.1 on page 314
• Configuration Red Hat 6.2 on page 317
• Performance Tuning...Page 320
• Migration...Page 322
7.1 Supported Platforms and Adapters
Solarflare KVM SR-IOV acceleration currently supports:
Host
• Red Hat Enterprise Linux 6.0, 6.1 and 6.2 KVM
Guest VM
• Red Hat Enterprise Linux 5.5, 5.6 and 5.7
• Red Hat Enterprise Linux 6.0, 6.1 and 6.2
Adapters
• All Solarflare SFN5xxx and SFN6xxx series adapters. Solarflare adapters support 127 VFs per port
and 1024 vNICs each with a dedicated MSI-X interrupt.
Acceleration of guest VMs running other (non-Linux) operating systems is not currently supported
although Solarflare are considering accelerating Windows guests in the longer term.
The hardware supports different configurations of (a) the number VFs exposed and (b) the number
of vNICs (and therefore MSI-X interrupts) to give to each VF. This can be configured with the sfboot
utility.
Currently the default configuration is 127 VFs each allocated 1 vNIC.
Issue 11
© Solarflare Communications 2014
307
Solarflare Server Adapter
User Guide
7.2 Linux KVM SR-IOV
Traditional Virtualization (without SR-IOV)
Traditional KVM networking involves bridging a physical network device to tap devices, which qemu
connects to either emulated hardware (e1000, rtl8139), or to virtio devices. The guest operating
system then uses the appropriate drivers to consume the emulated hardware.
Figure 48: Guest to Guest Connectivity
The bridge establishes guest to guest connectivity. Unfortunately performance is poor, requiring
data to be copied between the guest and KVM host, and between user level and kernel within the
KVM host.
Issue 11
© Solarflare Communications 2014
308
Solarflare Server Adapter
User Guide
Typical Virtualization (with SR-IOV)
In emerging SR-IOV solutions a PCIe hardware VF is passed-through to the guest operating system.
A network driver binds directly to this PCIe VF.
Figure 49: Direct Guest Access to NIC Hardware
This approach solves many of the performance limitations of traditional virtualized networking
providing direct access to the network adapter from the guest VM.
However, the major downside of this approach is the guest VM now relies on the physical VF of the
adapter for networking. If this VF changes in anyway then the guest VM completely loses networking
access.
For example, this solution makes migration close to impossible to support as both the source and
destination machine must be identical in every respect to the networking adapter. That is, not only
identical at a hardware level (same adapter, same slot) but, also the same VF index must be available
on the identical destination machine. For example, if VF 5 is being used by the VM at the source
machine then for migration to succeed VF 5 must be free at the destination machine. This means
that for migration to be possible VFs cannot be allocated on demand but assigned to fixed VMs
across the complete cluster. Therefore, for deployments with more than a handful of VMs across the
complete cluster this SR-IOV solution prevents the user from migrating VMs.
It is also worth noting that the networking interface in this model is now a vendor supplied driver
and creation/configuration of networking interfaces must be done via this vendor driver and not the
standard KVM network drivers.
Issue 11
© Solarflare Communications 2014
309
Solarflare Server Adapter
User Guide
Solarflare Plug-in Model
The Solarflare model for SR-IOV support is a hybrid of the traditional and typical approaches. The
Solarflare "plugin" maintains the traditional (software) data path through virtio frontend to the KVM
host (and then through the Linux bridge to the PF of the network driver). However, there is also an
alternative (accelerated) data path through the VF driver directly to the network adapter from the
guest. Packets can be received on either data path transparently to the guest VM's network stack.
On transmit the loaded and enabled plugin decides whether to use the software path or accelerated
path.
Figure 50: Solarflare Plug-in Model
A VM can be created/cloned using traditional tools and networking to/from the VM initially uses the
standard software network path. If a VF on the network adapter is then passed-through into the
guest, the guest sees new hardware has been "hot-plugged" and binds the Solarflare plugin driver
to this VF. This plugin driver automatically registers with the virtio driver as an accelerated network
plugin. Once the VF driver has registered, subsequent traffic to/from the guest uses the accelerated
data path accessing the adapter directly from the guest. If the VF is hot "unplugged" (i.e. removed
from the guest), the plugin de-registers with the virtio front end and the networking traffic reverts
to the software data path.
This approach means there is no dependency on the VF or its driver for the networking data path of
the VM. Acceleration can be disabled at any time if needed without losing network connectivity.
Migration is fully supported in this model - between hosts with identical network adapters AND also
between non-identical hosts. For example, migration is still possible between hosts containing
network adapters from differing vendors (even if one of the adapters does not support SR-IOV).
When migrating a VM the typical operations are:
• Hot-unplug any network VF in the guest (to remove any hardware knowledge from the guest,
networking in the guest VM falls back to the standard software data path).
• Migrate the guest VM to a new machine
Issue 11
© Solarflare Communications 2014
310
Solarflare Server Adapter
User Guide
• Optionally, allocate and hot-plug a new VF into the guest at the destination machine (the plugin
loads, automatically registers with the virtio driver and the networking path uses the
accelerated path).
Benefits of Solarflare's SR-IOV solution
• Maximum performance. Using SR-IOV reduces CPU utilization, increases bandwidth and lowers
latency. Performance returns to near native (non-virtualized) levels.
• Full support of migration. Ability to migrate VMs accelerated with the SR-IOV solution - either
to a machine also supporting the same SR-IOV solution or to a KVM machine with a nonSolarflare adapter.
• Large number of VFs. Solarflare adapters support 127 VFs per port - far more than other SR-IOV
capable adapters. This allows up to 127 VMs per 10G port to be accelerated per host.
• RSS support in guest VMs. Solarflare adapters support up to 1024 vNICs per port. Multiple
vNICs can be exposed through a single VF to a guest VM. This allows a guest VM to have multiple
transmit and receive queues. The Solarflare plugin model fully supports intelligently spreading
network traffic over multiple queues to scale performance over the available CPUs. This is
termed receive side scaling (RSS) and is typically used in non-virtualized environments (Linux/
Windows) to improve network performance. With the Solarflare plugin model when VMs are
deployed to run on multiple (virtual) CPUs, each CPU can be given a dedicated transmit and
receive queue so that network performance scales over the available CPU cores.
7.3 Installation
Platform support
To use SR-IOV, platform support for hardware virtualization must be enabled. Refer to Enabling
Virtualization Extensions for more information. Take care to enable VT-d as well as VT on an Intel
platform. To verify that the extensions have been correctly enabled refer to Verifying Virtualization
Extensions.
On an Intel platform, the IOMMU must be explicitly enabled by appending intel_iommu=on to the
kernel line in the /boot/grub/grub.conf file. Refer to PCI Passthrough for more information.
AMD systems only require that the IOMMU is enabled in the BIOS. The system is ready for PCI
passthrough once the IOMMU is enabled.
Step 1: Download and install host drivers
Download the Solarflare Linux drivers from support.solarflare.com:
• For RHEL 6.0, 6.1 - part number SF-100785-LS (minimum version 3.1.0.4088).
• For RHEL 6.2 - part number SF-103848-LS (minimum version 3.2.1.6090).
Issue 11
© Solarflare Communications 2014
311
Solarflare Server Adapter
User Guide
Install the sfc network drivers using the source rpm sfc-3.<version>.src.rpm. Full instructions
for using a source rpm can be found in the Solarflare RPMs...Page 41. Reload the sfc driver to start
using the new version.
NOTE: Ensure that VFs are NOT in use when you unload the sfc driver. This is particularly relevant if
you are upgrading from a previous alpha version of the Solarflare KVM SR-IOV package.
Step 2: Update adapter firmware and enable SR-IOV
Download the Solarflare Linux Utilities SF-104451-LS from support.solarflare.com:
1
Install the Solarflare Linux Utilities in dom0 using the rpm provided in this package:
# rpm -Uvh sfutils-<version>.rpm
2
Identify the current firmware version on the adapter:
# sfupdate
3
Upgrade the adapter firmware with sfupdate:
# sfupdate --write
4
Use sfboot to enable SR-IOV and enable 16 VFs:
# sfboot sriov=enabled vf-count=16
A reboot is required for the changes to take effect. After the reboot the sfc driver will initialize the
VFs, and they will appear in lspci:
# lspci -d 1924:
06:00.0 Ethernet
[Solarstorm]
06:00.1 Ethernet
[Solarstorm]
06:00.2 Ethernet
06:00.4 Ethernet
06:00.6 Ethernet
06:01.0 Ethernet
06:01.2 Ethernet
06:01.4 Ethernet
06:01.6 Ethernet
06:02.0 Ethernet
controller: Solarflare Communications SFL9021
controller: Solarflare Communications SFL9021
controller:
controller:
controller:
controller:
controller:
controller:
controller:
controller:
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Communications
Communications
Communications
Communications
Communications
Communications
Communications
Communications
Device
Device
Device
Device
Device
Device
Device
Device
1813
1813
1813
1813
1813
1813
1813
1813
Table 81 identifies sfboot SR-IOV configurable options.
Table 81: sfboot - SR-IOV options
Issue 11
Option
Default Value
Description
sriov=<enabled | disabled>
disabled
enable/disable hardware SR-IOV
vf-count=<n>
127
number of virtual functions advertised
vf-msix-limit=<n>
1
number of MSI-X interrupts per VF
© Solarflare Communications 2014
312
Solarflare Server Adapter
User Guide
NOTE: Enabling all 127 VFs per port with more than one MSI-X interrupt per VF may not be
supported by the host BIOS and you may get 127 VFs on one port with no VFs on the other port.
Contact your BIOS vendor for a BIOS upgrade or reduce the VF count.
Step 3: Install libvirt and virt-manager with SR-IOV support
Libvirt and virt-manager have been enhanced to support SR-IOV acceleration. It is suggested to
upgrade libvrt components with the components in the supplied package.
To upgrade an existing libvirt/virt-manager installation on Red Hat 6.1 do the following:
# rpm -e libvirt-java-devel-0.4.7-1.el6.noarch
# rpm -e libvirt-java-0.4.7-1.el6.noarch
# rpm -Uvh python-virtinst-0.500.5-3.el6.sf2.noarch.rpm
# rpm -Uvh libvirt-0.8.7-18.el6.sf1.x86_64.rpm \
libvirt-client-0.8.7-18.el6.sf1.x86_64.rpm \
libvirt-python-0.8.7-18.el6.sf1.x86_64.rpm
# rpm -Uvh virt-manager-0.8.6-4.el6.sf2.noarch.rpm
To upgrade an existing libvirt/virt-manager installation on Red Hat 6.2 do the following:
# rpm –Uvh libvirt-0.9.4-23.el6.sf3.x86_64.rpm \
libvirt-client-0.9.4-23.el6.sf3.x86_64.rpm \
libvirt-python-0.9.4-23.el6.sf3.x86_64.rpm \
libvirt-devel-0.9.4-23.el6.sf3.x86_64.rpm \
libvirt-lock-sanlock-0.9.4-23.el6.sf3.x86_64.rpm \
virt-manager-0.9.0-7.sf1.el6.x86_64.rpm
Guest Drivers
The Solarflare accelerated driver package is currently supplied as a tarball. It contains two drivers:
an upgraded virtio-net driver (backported from 2.6.37), and xnap, the PCI driver for Solarflare VFs.
To install drivers on Red Hat 6.1:
# tar xvfz sfc-xnap-virtio-v1_0_0_0012.tgz
# make -C sfc-xnap-virtio-v1_0_0_0012/ modules_install
Restart the guests to start using the new drivers.
To install drivers on Red Hat 6.2:
The virtio kernel module must be rebuilt and installed before the xnap module can be rebuilt and
installed.
1
As any user
rpmbuild --rebuild virtio-2.6.37-1.0.0.0016-1.el6.sf.src.rpm
Issue 11
© Solarflare Communications 2014
313
Solarflare Server Adapter
User Guide
2
As root install the binary rpm indicated by the "Wrote:" lines from rpmbuild
rpm -Uvh RPMS/x86_64/kmod-virtio-2.6.37-1.0.0.0016-1.el6.sf.x86_64.rpm
3
As any user
rpmbuild --rebuild xnap-1.0.0.0016-1.el6.src.rpm
4
As root install the binary rpm indicated by the "Wrote:" lines from rpmbuild
rpm -Uvh RPMS/x86_64/kmod-xnap-1.0.0.0016-1.el6.x86_64.rpm
7.4 Configuration Red Hat 6.1
Host Network Configuration
As previously described, Solarflare SR-IOV support uses a plugin model, whereby virtual functions
accelerate virtio network adapters. This section presents an overview of how to configure virtio
based networking.
• Configure Bridged networking on the hosts, creating a bridge for each Solarflare network device
and attach the physical network device to the bridge. The instructions to configure bridging can
be found at Redhat: Bridged networking with libvirt.
• Assign an IP address to the bridge. Verify network connectivity between the hosts over the
Solarflare network drivers using ping (or a similar tool).
• For each guest on the host, create virtio network adapters attached to the newly created
bridges. You can enable SR-IOV acceleration of each virtio adapter as described below.
XML Format for SR-IOV
A virtio interface onto a bridge "br1" could be implemented using the following XML fragment:
<interface type='bridge'>
<mac address='00:50:56:3e:86:29'/>
<source bridge='br1'/>
<model type='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x0a'
function='0x0'/>
</interface>
To accelerate this virtio adapter by using VFs provided by "eth4" modify the fragment as shown,
adding the vf-hotplug element with hybrid=yes.
<interface type='bridge'>
<mac address='00:50:56:3e:86:29'/>
<source bridge='br1'/>
<model type='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x0a'
function='0x0'/>
Issue 11
© Solarflare Communications 2014
314
Solarflare Server Adapter
User Guide
<vf-hotplug source='eth4' hybrid='yes'/>
</interface>
If "br1" is on a vlan then add a vlan attribute as shown:
<interface type='bridge'>
<mac address='00:50:56:3e:86:29'/>
<source bridge='br1'/>
<model type='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x0a'
function='0x0'/>
<vf-hotplug source='eth4' hybrid='yes' vlan='123' />
</interface>
Virt-manager configuration for SR-IOV: Adding a new interface
A virt-manager GUI tool is supplied with the Solarflare driver distribution package. To run the GUI
tool as root use the following command:
# /usr/bin/virt-manager
Alternatively, virt-manager can be on another host and connect to the KVM host via “File”- >”Add
Connection”. Virt-manager has been extended to make SR-IOV configuration much easier. When
adding a new interface there will be a new "SR-IOV Acceleration" combo box. It will default to "No"
for new interfaces:
Issue 11
© Solarflare Communications 2014
315
Solarflare Server Adapter
User Guide
Figure 51: Virt-Manager GUI tool
To enable SR-IOV acceleration of the virtio adapter change the "SR-IOV acceleration mode" to
"Hybrid", and the "Device model" to virtio.
Virt-manager configuration for SR-IOV: Modifying an existing adapter
It is also possible to change the "SR-IOV Acceleration mode" for existing adapters:
Figure 52: Change SR-IOV on Existing Adapter
Verifying SR-IOV
As described above, libvirt will manage VFs for interfaces with a vf-hotplug attribute. If there are
spare VFs available when the VM is started then one (or more) VFs will be attached into the running
guest. If the guest OS has the Solarflare VF drivers, and the interface is a virtio interface, then the
virtio interface will be accelerated.
NOTE: Red Hat Enterprise Linux 5 Update 5 and Update 6 guests require the acpiphp module to be
loaded before PCI hotplug will work:
# echo "modprobe acpiphp" >> /etc/rc.modules
# chmod +x /etc/rc.modules
# modprobe acpiphp
Issue 11
© Solarflare Communications 2014
316
Solarflare Server Adapter
User Guide
a. Once the VM has started, examine lspci to verify that a VF is present.
# lspci
00:08.0 Ethernet controller: Solarflare Communications Device 1803
00:09.0 Ethernet controller: Solarflare Communications Device 1803
b. The interface is only accelerated once it's brought up, after the interface is bought up use dmesg
to verify that a VF is accelerating a virtio adapter:
# dmesg | grep -i xnap
xnap 0000:00:0a.0: accelerated eth2
7.5 Configuration Red Hat 6.2
Host Network Configuration
As previously described, Solarflare SR-IOV support uses a plugin model, whereby virtual functions
accelerate virtio network adapters. These virtio network adapters are attached to the physical
network device via a macvtap interface.
XML Format for SR-IOV
A virtio interface onto a macvtap interface could be implemented using the following XML fragment:
Network XML:
<network>
<name>sfc-network</name>
<uuid> 81ff0d90-c91e-6742-64da-4a736edb9a8f</uuid>
<forward mode='vepa'>
<interface dev='eth2'/>
</forward>
</network>
Domain XML:
<interface type='network'>
<source network='sfc-network'/>
<mac address='00:50:56:3e:86:29'/>
<model type='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x0a'
function='0x0'/>
</interface>
To accelerate this virtio adapter by using VFs provided by “eth2”, modify the fragment as shown using
the pci-passthrough-hybrid mode.
Network XML:
<network>
Issue 11
© Solarflare Communications 2014
317
Solarflare Server Adapter
User Guide
<name>sfc-network</name>
<uuid> 81ff0d90-c91e-6742-64da-4a736edb9a8f</uuid>
<forward mode='pci-passthrough-hybrid'>
<pf dev='eth2'/>
</forward>
</network>
Domain XML:
<interface type='network'>
<source network='sfc-network'/>
<mac address='00:50:56:3e:86:29'/>
<model type='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x0a'
function='0x0'/>
</interface>
To create the macvtap interface on a vlan eth2.123 add a vlan attribute as shown:
Network XML:
<network>
<name>sfc-network</name><uuid> 81ff0d90-c91e-6742-64da-4a736edb9a8f</
uuid>
<forward mode='pci-passthrough-hybrid'>
<pf dev='eth2.123' vlan='123'/>
</forward>
</network>
Domain XML:
<interface type='network'>
<source network='sfc-network'/>
<mac address='00:50:56:3e:86:29'/>
<model type='virtio'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x0a'
function='0x0'/>
</interface>
Virt-manager configuration for SR-IOV: Adding a new interface
This Solarflare driver distribution includes an updated version of virt-manager - a GUI tool for
managing VMs (refer to Virt-manager configuration for SR-IOV: Adding a new interface on page 315
for details). This can be used as an alternative method to configure VMs for SR-IOV rather than
working directly with the XML definitions.
To run the GUI tool as root use the following command:
# /usr/bin/virt-manager
Issue 11
© Solarflare Communications 2014
318
Solarflare Server Adapter
User Guide
Alternatively, virt-manager can be on another host and connect to the KVM host via “File”- >”Add
Connection”.
Creating an SR-IOV network
1
Select “Connection Details” from virt-manager’s “Edit” menu, and open the “Virtual
Networks” tab
2
Click the “+” button in the bottom-left to open the network creation wizard
3
Choose a name for your network
4
On the address space page, untick the “Create address space” button. On the next page the
“Enable
5
DHCP” button will be grayed out as it’s not applicable without an address space
6
On the next page, select “Forwarding to physical network”
7
In the “Destination” box, choose the “Phyiscal device X” that corresponds to the Solarflare
interface you wish to use
8
In the “Mode” box, select “Hybrid VF/macvtap”
Assigning an existing VM to an SR-IOV network
1
In the main virt-manager window, double-click the VM to manage it
2
Open the hardware tab by clicking the “(i)” button on the toolbar
3
Select the NIC you wish to use with SR-IOV from the list on the left
4
Update the “Source device” entry to use your SR-IOV network
Verifying SR-IOV
As described above, libvirt will manage VFs for interfaces with a new mode pci-passthrough-hybrid.
If there are spare VFs available when the VM is started then one (or more) VFs will be attached into
the running guest. If the guest OS has the Solarflare VF drivers, and the interface is a virtio interface,
then the virtio interface will be accelerated.
Once the VM has started, examine lspci to verify that a VF is present:
$ lspci
00:08.0 Ethernet controller: Solarflare Communications Device 1803
00:09.0 Ethernet controller: Solarflare Communications Device 1803
The interface is only accelerated once it’s brought up, after the interface is bought up USE dmesg TO
verify that a VF is accelerating a virtio adapter:
$ dmesg | grep –i xnap
xnap 0000:00:0a.0: accelerated eth2
Issue 11
© Solarflare Communications 2014
319
Solarflare Server Adapter
User Guide
7.6 Performance Tuning
The guest drivers have been tuned for optimized bandwidth and CPU utilization with a variety of high
bandwidth streaming tests. Some applications may perform better by changing the default values.
Table 82 describes the tuning parameters and suggests values for streaming and latency dominated
applications.
Table 82: Tuning Parameters
Parameter
Linux
Streaming
Latency
Receive ring size
rx_ring
Default
Default
Interrupt Moderation
rx_irq_mod_usecs
Default
0
To modify these settings:
1. Edit /etc/modprobe.conf, inserting a line like this:
options xnap rx_irq_mod_usec=<value> rx_ring=<value>
2. Reload the xnap driver
# modprobe -r xnap
# modprobe xnap
Performance Configuration
• Equipment Configuration
Performance tests were conducted between two (back to back) Dell PowerEdge C6100: 4 x Xeon
X5600, 48G RAM. Host and Guest are configured on each machine.
• Host
- Host OS: RHEL 6.2 64 bit.
- The irqbalance service is stopped.
• Guest
- The guest VM was running RHEL6.1 64bit.
- The irqbalance service was stopped in the guest VM.
- Benchmarking tool: Netperf.
Issue 11
© Solarflare Communications 2014
320
Solarflare Server Adapter
User Guide
Performance Results
Table 83 records bandwidth figures for 4 TCP streams per port, per direction, between each pair of
VMs on the two servers (message size of 65535 bytes).
Table 83: Linux KVM Performance
Issue 11
Number of
10G ports
Traffic
Number
of VMs
Baseline (no
SR-IOV)
Accelerated
(SR-IOV plug-in)
1
Unidirectional
1
6.64 Gbps
9.37 Gbps
1
Bidirectional
1
6.74 Gbps
11.5 Gbps
2
Bidirectional
1
7.37 Gbps
11.2 Gbps
© Solarflare Communications 2014
321
Solarflare Server Adapter
User Guide
7.7 Migration
Libvirt has been extended to fully support migrating a guest VM using SR-IOV acceleration between
two KVM hosts.
Consider migrating a VM from host A to host B (Figure 53). Before migration libvirt will remove all
VFs from the VM. Once the VM reaches host B VFs will be allocated, initialized and attached as
previously described. If there are no VFs free then the VM will no longer be accelerated. If the
migration fails for whatever reason then the VM will remain on host A, and the VFs will be
reattached to the VM.
Figure 53: Migrating a guest - KVM
Limitations
• Virt-manager will support bridges on top of vlan interfaces but the vlan interface should be
named as ethx.<vlan_id>.
• RHEL 6.1 driver - Libvirt will not configure VFs manually added to a VM configuration (via virtmanager or virsh edit). Only VFs attached via the vf-hotplug XML element will be configured.
• RHEL 6.2 driver - Libvirt will not configure VFs manually added to a VM configuration (via virtmanager or virsh edit). Only VFs attached via the pci_passthrough-hybrid forward mode
and pf dev XML element will be configured.
Issue 11
© Solarflare Communications 2014
322
Solarflare Server Adapter
User Guide
Known Issues
• Some hardware platforms are unable to support 127 VFs on both ports simultaneously. The
current workaround is to reduce the number of VFs exposed by the adapter using “sfboot”.
• When a Redhat Enterprise Linux 6 guest is migrated, occasionally the guest kernel fails to notice
either the VF unplug before migration or the VF hotplug after migration. This issue is believed to
be a Redhat kernel bug and is under investigation.
• Reloading the sfc driver while VFs are in use will result in a kernel panic. This is an upstream
kernel bug that Solarflare are working to address.
• There is a known issue when using LRO with macvtap interfaces. This issue can be worked
around by disabling LRO on the host machine. This issue does not affect the SRIOV accelerated
datapath.
• There is a known issue whereby the user tries to PXE boot one KVM guest off another KVM
guest, on the same host, over a macvtap interface the client does not receive the tftp packets
sent by the server and the connection times out. Solarflare are following up this issue with
RedHat. A workaround for this issue is disabling tx-checksumming on the PXE server VM.
Issue 11
© Solarflare Communications 2014
323
Solarflare Server Adapter
User Guide
Chapter 8: SR-IOV Virtualization for XenServer
This chapter describes Solarflare’s unified approach to SR-IOV Virtualization using XenserverTM 6
supporting Windows and Linux guests. Solarflare SR-IOV enables accelerated cut-through
performance while maintaining full compatibility with hypervisor based services and management
tools.
• Supported Platforms and Adapters...Page 324
• XenServer6 SR-IOV...Page 325
• Installation...Page 328
• Configuration...Page 329
• Performance Tuning...Page 330
8.1 Supported Platforms and Adapters
Solarflare XenServer6 SR-IOV acceleration currently supports:
• XenServer 6.0, 6.1.
• Intel platforms supporting VT-d.
• AMD platforms supporting AMD-Vi.
• Guest VM - Win2k8r2 and RHEL 6.
• All Solarflare SFN5xxx and SFN6xxx series adapters.
The hardware supports different configurations of (a) the number VFs exposed and (b) the number
of vNICs (and therefore MSI-X interrupts) to give to each VF. This can be configured with the sfboot
utility.
Currently the default configuration is 127 VFs each allocated 1 vNIC.
NOTE: Solarflare’s hybrid SR-IOV solution is no longer supported by Citrix and is limited to
XenServer 6.0. Further, this solution is limited to supporting Windows guests and Linux guests
running RHEL 6.1 (or earlier). Attempting to use this SR-IOV solution with guest VMs running a
newer version of RHEL may expose a hypervisor bug that prevents network traffic passing.
Issue 11
© Solarflare Communications 2014
324
Solarflare Server Adapter
User Guide
8.2 XenServer6 SR-IOV
Traditional Virtualization (without SR-IOV)
Traditional Xen paravirtualized networking involves bridging (paravirtualized) Netback devices to
physical network devices in dom0. The Netback driver interfaces with the Netfront driver running in
the guest, facilitating guest to guest connectivity.
Figure 54: Guest to Guest Connectivity
As a result of hardware virtualization, data copies between the Netfront driver in the guest and the
Netback driver in dom0 within the XenServer host become the bottleneck to the performance of this
implementation.
Typical Virtualization (with SR-IOV)
In emerging SR-IOV solutions PCIe hardware virtual functions (VF) allow a single network hardware
device to appear as multiple virtualized network devices to dom0. These virtualized network devices
operate independently of one another and present characteristics of actual physical devices to
dom0.
Using SR-IOV, a VF is passed-through to the guest operating system, and the guest network driver
binds directly to this PCIe VF, allowing the guest to bypass dom0 and providing direct access to the
network adapter from the guest VM. Direct access to the network hardware means that overheads
associated with dom0-based networking (virtualization, data copies, etc.) are eliminated, providing
significantly improved performance, see Figure 55.
However, a significant downside of this approach is that XenServer blocks migration of a VM when
a VF is present, which significantly reduces the functionality of server virtualization.
Issue 11
© Solarflare Communications 2014
325
Solarflare Server Adapter
User Guide
Figure 55: Direct Guest Access to NIC Hardware
It is also worth noting that the networking interface in this model is now a vendor supplied driver
and creation or configuration of networking interfaces must be done via the vendor's driver and not
the standard XenServer network drivers.
Solarflare Plug-in Model
Solarflare, in a collaborated development with Citrix, has implemented a unique unified approach to
SR-IOV that enables accelerated cut-through performance while maintaining full compatibility with
hypervisor-based services and management tools. Solarflare's 254 VFs enable highly scalable
workload consolidation for large data center environments and virtual desktop infrastructure (VDI)
deployments. Unlike other adapters, each Solarflare VF can use multiple DMA channels that enable
the VF to scale over vCPUs using RSS and/or RFS. Solarflare's 2048 DMA channels provide the most
scalable virtualized network I/O solution available in the market.
Solarflare's SR-IOV implementation uses a plug-in approach that maintains the traditional (software)
data path through the XenServer paravirtualized drivers, and then through the vSwitch to the
physical device network driver. In addition, there is an alternative (accelerated) data path through
the VF driver directly to the network adapter from the guest. Packets are received on either data
path transparently to the guest VM's network stack. For transmitted data, the enabled plug-in makes
the decision on whether or not to use the accelerated path. Refer to Figure 56.
With this approach a VM can be created/cloned using traditional tools, and networking to/from the
VM can initially use the standard software network path. Citrix XenServer6 will pass-through a VF
from the network adapter into the guest. The guest identifies that new hardware has been hot
plugged and binds the Solarflare plug-in driver to this VF. This plug-in driver automatically registers
with the Netfront driver as an accelerated network plug-in. Once the VF driver has registered,
subsequent traffic to/from the guest uses the accelerated data path accessing the adapter directly
Issue 11
© Solarflare Communications 2014
326
Solarflare Server Adapter
User Guide
from the guest. If the VF is hot unplugged (i.e. removed from the guest), the plug-in deregisters with
the Netfront driver and the networking traffic reverts to the software data path.
Figure 56: Network Plug-in Model
This approach means there is no dependency on the VF or its driver for the networking data path of
the VM. Acceleration can be disabled at any time if needed without losing network connectivity, and
migration is fully supported in this model. When a VM is being migrated, XenServer hot unplugs the
VF from the VM and the network path reverts to the software path, and after migration is complete
XenServer hot plugs a new VF from an adapter on the destination machine back to the VM and the
networking path is again accelerated. Solarflare's unique approach also removes the limitations
imposed by typical SR-IOV implementations, enabling VMs to be moved between non-identical
hosts. For example, if a guest is migrated to a host containing a different vendor's NIC, then the hot
plug event provides the opportunity to bind a new VF driver within the guest and re-establish
accelerated networking. Equally, if the new host does not contain suitable hardware, then no
accelerated path is established, yet networking will continue using the original (or traditional)
paravirtualized architecture.
Benefits of Solarflare's SR-IOV solution
• Maximum performance. Using SR-IOV reduces CPU utilization, increases bandwidth and lowers
latency. Performance returns to near native (non-virtualized) levels.
• Full support of migration. Ability to migrate VMs accelerated with the SR-IOV solution - either
to a machine also supporting the same SR-IOV solution or to a XenServer system with a nonSolarflare adapter.
• Large number of VFs. Solarflare adapters support 127 VFs per port - far more than other SR-IOV
capable adapters. This allows up to 127 VMs per 10G port to be accelerated per host.
• RSS support in guest VMs. Solarflare adapters support up to 1024 vNICs per port. Multiple
vNICs can be exposed through a single VF to a guest VM. This allows a guest VM to have multiple
Issue 11
© Solarflare Communications 2014
327
Solarflare Server Adapter
User Guide
transmit and receive queues. The Solarflare plugin model fully supports intelligently spreading
network traffic over multiple queues to scale performance over the available CPUs. This is
termed receive side scaling (RSS) and is typically used in non-virtualized environments (Linux/
Windows) to improve network performance. With the Solarflare plugin model when VMs are
deployed to run on multiple (virtual) CPUs, each CPU can be given a dedicated transmit and
receive queue so that network performance scales over the available CPU cores.
8.3 Installation
Platform support
To use SR-IOV, platform support for hardware virtualization must be enabled. Refer to Enabling
Virtualization Extensions for more information. On an Intel platform, the Xen hypervisor will, by
default, use the Intel IOMMU if it is enabled in the BIOS.
On an AMD platform the Xen hypevisor command line must be modified to enable the IOMMU.
Append the following statements to the hypervisor line in /boot/extlinux.conf
amd_iommu=on
iommu=amd-iommu-perdev-intremap
Install XenServer6 with SR-IOV supplemental pack
1
Burn the supplemental pack (xs-SR-IOV-1.1.7-sfc.iso) to a CD.
2
Insert the CD when prompted to do so by the XenServer6 installation.
Update adapter firmware and enable SR-IOV
1
Download the Solarflare Linux Utilities (SF-104451-LS) from support.solarflare.com.
2
Install the Linux Utilities in dom0 using the rpm provided in this package:
# rpm -Uvh sfutils-<version>.rpm
3
Display the current firmware version on the adapter:
# sfupdate
4
Upgrade the adapter firmware with sfupdate:
# sfupdate --write
5
Use sfboot to enable SR-IOV and enable 16 VFs:
# sfboot sriov=enabled vf-count=16
6
A reboot is required for the changes to take effect. After the reboot the sfc driver will initialize
the VFs, and they will appear in lspci:
# lspci -d 1924:
06:00.0 Ethernet
[Solarstorm]
06:00.1 Ethernet
[Solarstorm]
06:00.2 Ethernet
06:00.4 Ethernet
06:00.6 Ethernet
Issue 11
controller: Solarflare Communications SFL9021
controller: Solarflare Communications SFL9021
controller: Solarflare Communications Device 1813
controller: Solarflare Communications Device 1813
controller: Solarflare Communications Device 1813
© Solarflare Communications 2014
328
Solarflare Server Adapter
User Guide
06:01.0
06:01.2
06:01.4
06:01.6
06:02.0
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
controller:
controller:
controller:
controller:
controller:
Solarflare
Solarflare
Solarflare
Solarflare
Solarflare
Communications
Communications
Communications
Communications
Communications
Device
Device
Device
Device
Device
1813
1813
1813
1813
1813
Table 84 identifies sfboot SR-IOV configurable options.
Table 84: sfboot - SR-IOV options
Option
Default Value
Description
sriov=<enabled | disabled>
disabled
enable/disable hardware SR-IOV
vf-count=<n>
127
number of virtual functions advertised
vf-msix-limit=<n>
1
number of MSI-X interrupts per VF
NOTE: Enabling all 127 VFs per port with more than one MSI-X interrupt per VF may not be
supported by the host BIOS and you may get 127 VFs on one port with no VFs on the other port.
Contact your BIOS vendor for a BIOS upgrade or reduce the VF count.
Install the XenTools drivers
Install the XenTools drivers (xensetup.exe) included with XenServer6. This applies to both
Windows and Linux guests.
Install the Solarflare SR-IOV drivers
For Linux Guests:
# tar xvfz sfc-xnap-netfront-v1_0_0_0012.tgz
# make -C sfc-xnap-netfront-v1_0_0_0012/ modules_install
For Windows Guests:
Install the Solarflare acceleration driver into the Windows guest using xnapsetup.exe.
8.4 Configuration
Acceleration
The SR-IOV supplemental pack manages all VF configuration. SR-IOV acceleration is configured on a
per Virtual Interface (VIF) basis allowing the administrator to control which VMs are accelerated on
a per network basis.
To enable SR-IOV acceleration of a VIF enable the other-config:sriov parameter:
# xe vif-param-set uuid=<vif uuid> other-config:sriov=true
Issue 11
© Solarflare Communications 2014
329
Solarflare Server Adapter
User Guide
The vif-uuid is the VIF based on VM and Network:
# xe vif-list network-name-label=<network label> vm-name-label=<vm
label>
Consult the XenServer6 documentation for more information on enumerating VIFs. To disable
acceleration, remove the other-config:sriov parameter:
# xe vif-param-remove uuid=<vif uuid> param-name=other-config paramkey=sriov
Once the VM is rebooted (or started) VFs will be allocated, configured, and PCI hotplugged into the
running guest.
Guest configuration
Check that the correct number of VF's are pushed into the guest using the following commands on
DOM0.
# xl list
Name
Domain-0
dibenchvm080
dibenchvm020
# xl
Vdev
09.0
0a.0
ID
Mem VCPUs State
0
729
4 r----1
0
1 ---s-d
2 2047
1 -b----
Time(s)
130.4
17.8
18.1
pci-list <domain ID>
Device
0000:07:00.6
0000:07:00.7
8.5 Performance Tuning
The guest drivers have been tuned for optimized bandwidth and CPU utilization with a variety of high
bandwidth streaming tests. Some applications may perform better by changing the default values.
Table 85 describes the tuning parameters and suggests values for streaming and latency dominated
applications.
Table 85: Tuning Parameters
Parameter
Name
Application
Windows
Linux
Streaming
Latency
Receive ring size
rx_ring
rx_ring
Default
Default
Interrupt Moderation
irq_usecs
rx_irq_mod_use
cs
Default
0
Windows Guests
1
Install the Solarflare SR-IOV guest drivers for Windows.
2
Create the following registry key:
Issue 11
© Solarflare Communications 2014
330
Solarflare Server Adapter
User Guide
HKLM\SYSTEM\CurrentControlSet\services\XNAP\Parameters\
3
Create any of the following registry values under the XNAP\Parameters key.
irq_usecs REG_DWORD <value>
rx_ring REG_DWORD <value>
4
Reboot the VM.
Linux Guests
1
Edit /etc/modprobe.conf, inserting the following entry:
options xnap rx_irq_mod_usec=<value> rx_ring=<value>
2
Reload the xnap driver:
# modprobe -r xnap
# modprobe xnap
Performance Results
• Equipment Configuration
Performance tests were conducted between two (back to back) Dell PowerEdge C6100: 4 x Xeon
X5600, 48G RAM.
• Host
Host Virtualization plan used was XenServer6.
• Guest
A number of guest VMs running Windows Server 2008 R2 (64bit) were started on each server. The
benchmarking tool used was IXIA Chariot (HighPerf test script) for measure bandwidth.
Windows Guest Bandwidth
Table 86 identifies bandwidth figures recorded for 5 TCP streams per port, per direction, between
each pair of VMs on the two servers (message size of 65535 bytes, each VM was configured with 4
vCPUs).
Table 86: Windows Guest Bandwidth
Issue 11
Number of
10G ports
Traffic
Number
of VMs
Baseline (no
SR-IOV)
Accelerated
(SR-IOV plug-in)
1
Unidirectional
1
1.66 Gbps
3.49 Gbps
1
Bidirectional
1
2.52 Gbps
3.88 Gbps
2
Bidirectional
1
2.71 Gbps
4.20 Gbps
1
Unidirectional
4
4.85 Gbps
9.39 Gbps
1
Bidirectional
4
5.99 Gbps
17.9 Gbps
© Solarflare Communications 2014
331
Solarflare Server Adapter
User Guide
Table 86: Windows Guest Bandwidth
Number of
10G ports
Traffic
Number
of VMs
Baseline (no
SR-IOV)
Accelerated
(SR-IOV plug-in)
2
Bidirectional
4
6.64 Gbps
19.3 Gbps
Linux Guest Bandwidth
Table 87 identifies bandwidth figures recorded for 5 TCP streams per port, per direction, between
each pair of VMs on the two servers (message size of 65535 bytes, each VM was configured with 4
vCPUs).
Table 87: Linux Guest Bandwidth
Issue 11
Number of
10G ports
Traffic
Number
of VMs
Baseline (no
SR-IOV)
Accelerated
(SR-IOV plug-in)
1
Unidirectional
1
2.23 Gbps
9.25 Gbps
1
Bidirectional
1
1.91Gbps
15.3 Gbps
2
Bidirectional
1
3.65 Gbps
30.7 Gbps
1
Unidirectional
4
4.80 Gbps
9.31 Gbps
1
Bidirectional
4
5.80 Gbps
14.9 Gbps
2
Bidirectional
4
6.24 Gbps
32.8 Gbps
© Solarflare Communications 2014
332
Solarflare Server Adapter
User Guide
Limitations
• The Citrix XenTools bundled with XenServer6 do not support RSS. Therefore the Solarflare SRIOV accelerated drivers currently do not support RSS on Windows.
Known Issues
• Some hardware platforms are unable to support 127 VFs on both ports simultaneously. The
current workaround is to reduce the number of VFs exposed by the adapter using sfboot.
• VFs no longer appear in xl pci-list after a VM is rebooted. The VFs will be visible using
lspci/device manager. This is a Citrix XenServer 6 toolstack issue that will be addressed in future
XenServer versions.
• Migrating a Windows VM disables GSO (Generic Segmentation Offload), thereby reducing VMVM bandwidth between VMs on the same host. This is a XenTools bug in the version released
with Citrix XenServer 6, and should be resolved in a future Citrix hotfix.
• Do not reload the dom0 sfc driver when VFs are in use. This is an upstream Linux kernel bug.
• When a Red Hat Enterprise Linux 6 guest is migrated, occasionally the guest kernel fails to notice
either the VF unplug before migration or the VF hotplug after migration. This issue is believed to
be a Red Hat kernel bug and is under investigation. This issue is not seen on Windows guests.
• VF PCI-passthrough when using RHEL6.2 or newer guests fails due to loss of interrupt to the VF
by the hypervisor. This issue is seen only when the VF is passed through to the guest. This issue
does not exist on RHEL6.1 guests. This is an issue in the XenServer hypervisor.
• The Xen-tools rpm does not work on a RHEL6.0 guest. This is a Citrix bug.
• The xs-sriov-accel patch is overwritten after the hotfixes are applied to XenServer6. To get
around this issue reapply changes using the following command line:
cd / && patch -p1 < /var/xapi/patches/qemu.patch
For reference the patch file is:
diff -rup a/opt/xensource/libexec/qemu-dm-wrapper
b/opt/xensource/libexec/qemu-dm-wrapper
--- a/opt/xensource/libexec/qemu-dm-wrapper2011-08-12
18:03:28.000000000+0100
+++ b/opt/xensource/libexec/qemu-dm-wrapper2011-08-12
18:04:01.000000000+0100
@@ -82,6 +82,7 @@ def main(argv):
qemu_dm = '/usr/lib/xen/bin/qemu-dm'
domid = int(argv[1])
qemu_args = ['qemu-dm-%d'%domid] + argv[2:]
+
qemu_args.append("-priv")
if is_sdk() is True:
return fake_dm(domid)
Issue 11
© Solarflare Communications 2014
333
Solarflare Server Adapter
User Guide
Chapter 9: Solarflare Adapters on Mac 0S X
This chapter covers the following topics on the Mac 0S X® platform:
• System Requirements...Page 334
• Supported Hardware Platforms...Page 334
• Mac 0S X Platform Feature Set...Page 335
• Thunderbolt...Page 335
• Driver Install...Page 335
• Interface Configuration...Page 338
• Tuning...Page 339
• Driver Properties via sysctl...Page 339
• Firmware Update...Page 340
• Performance...Page 342
9.1 System Requirements
• Refer to Software Driver Support on page 12 for supported Mac OS X Distributions.
• Solarflare Mac OS X drivers are supported for all Solarflare SFN5xxx AND SFN6xxx series
adapters.
• Driver package SF-107120-LS supports OS X 10.8 and earlier versions.
• Driver package SF-111621-LS supports OSX 10.9 and later versions.
9.2 Supported Hardware Platforms
The following Apple hardware platforms are supported:
• Mac Pro
• Mac Pro Server
• X-Serve (supported but not routinely tested by Solarflare)
Issue 11
© Solarflare Communications 2014
334
Solarflare Server Adapter
User Guide
9.3 Mac 0S X Platform Feature Set
The following table lists the features supported by Solarflare adapters on Mac OS X distributions.
Table 88: Mac OS X Feature Set
Large Receive Offload
TCP receive frame coalescing to reduce CPU utilization and
improve TCP throughput
TCP Segmentation Offload
TCP transmit segmentation to reduce CPU utilization and
improve TCP throughput
RMON
Statistics counters
Checksum offloads
IPv4, TCP and UDP
MSI Interrupts
MTU
Standard 1500 byte and jumbo 9000 byte MTU
9.4 Thunderbolt
The Solarflare adapter driver provides basic support for Thunderbolt. When a network adapter is
connected to a Thunderbolt-capable system e.g. via a Thunderbolt-to-PCIe chassis, the interfaces
can be configured in the usual way.
Due to limitations in the Thunderbolt connection performance may be worse compared to using the
Solarflare adapter in a PCIe slot.
Full support for Thunderbolt, including plugging and unplugging the Thunderbolt cable is planned
for a future release.
9.5 Driver Install
Uninstall Previous Driver
An installed Solarflare network adapter driver MUST BE UNINSTALLED before upgrading to a new
driver release.
1
Open System Preferences > Network.
2
Disable the service for all ports of the driver:
- choose an active driver service in the list
Issue 11
© Solarflare Communications 2014
335
Solarflare Server Adapter
User Guide
- click on the gear icon and choose ’Make Service Inactive’’
Figure 57: Disable Driver Services
3
Repeat above steps for all ports of the driver.
4
Double-click SF-107120-LS.dmg in Finder to mount the disk image. Invoke the Solarflare driver
uninstall script in Terminal as root (replacing <version> with the version number of the install
package that is being used)
/Volumes/Solarflare10GbE-<version>/uninstall.sh
Issue 11
© Solarflare Communications 2014
336
Solarflare Server Adapter
User Guide
Download and Install the Mac OS X Driver
1
Download SF-107120-LS.dmg into a convenient working directory.
2
Double click SF-107120-LS.dmg in Finder to mount the disk image.
3
Run the Solarflare10GbE.pkg install package and follow the install instructions.
Figure 58: Install Solarflare Driver Window
Issue 11
© Solarflare Communications 2014
337
Solarflare Server Adapter
User Guide
9.6 Interface Configuration
With the adapter driver installed, the network interface can be configured using the network
interface settings menu:
Figure 59: Solarflare Adapter Interface Configuration
Issue 11
© Solarflare Communications 2014
338
Solarflare Server Adapter
User Guide
9.7 Tuning
System Tuning
For many applications (including file serving) tuning the Mac OS X network stack for 10G operation
can improve network performance. Therefore, for such applications it is possible to tune the Mac OS
X kernel and network stack by applying the following settings in the /etc/sysctl.conf file.
Settings added to /etc/sysctl.conf are effective following a machine reboot.
kern.ipc.maxsockbuf=4194304
net.inet.tcp.sendspace=2097152
net.inet.tcp.recvspace=2097152
net.inet.tcp.delayed_ack=2
Settings can also be updated using the following method - but these are non-persistent and will
return to default values following a reboot:
sudo sysctl -w <name>=<value>
Optional Driver Tuning
The driver's default configuration has been chosen to provide optimal performance over a wide
range of applications. It is recommended to only change the driver settings if advised to do so by
Solarflare support.
9.8 Driver Properties via sysctl
Driver properties are also made visible via the sysctl program. Changes made via sysctl calls are
applied immediately, and are not persistent (i.e. the changes are lost when the driver is unloaded or
after a reboot). To make persistent changes to sysctl values, edit the file /etc/sysctl.conf.
Changes made via sysctl apply to a single driver interface, using the BSD name of the network
interface. The BSD name of a network interface is shown by the ifconfig command line tool, and in
the Network Utility application. For Ethernet interfaces, the BSD name starts with en followed by a
number.
Table 89 identifies currently supported driver sysctl values.
Table 89: Mac OS X sysctl driver values
Issue 11
sysctl name
R/W
Value
net.sfxge.version
RO
Driver version string
net.sfxge.<enX>.mac
RO
MAC address
net.sfxge.<enX>.moderation
RW
0
>0
© Solarflare Communications 2014
Description
Disable interrupt moderation
interrupt moderation (microsecs)
339
Solarflare Server Adapter
User Guide
Table 89: Mac OS X sysctl driver values
sysctl name
R/W
Value
Description
net.sfxge.<enX>.rx_ring_size
RW
512
1024
2048
4096
Hardware receive ring entries
net.sfxge.<enX>.tx_ring_size
RW
512
1024
2048
4096
Hardware transmit ring entries
net.sfxge.<enX>.ipv4lro
RW
0
1
IPv4 LRO disabled
IPv4 LRO enabled
net.sfxge.<enX>.ipv6lro
RW
0
1
IPv6 LRO disabled
IPv6 LRO enabled
net.sfxge.<enX>.ipv4tso
RO
0
1
IPv4 TSO disabled
IPv4 TSO enabled
net.sfxge.<enX>.ipv6tso
RO
0
1
IPv6 TSO disabled
IPv6 TSO enabled
9.9 Firmware Update
The Solarflare driver package for Apple Mac OS X also includes the firmware update utility program
sfupdate.
When the driver package is installed the sfupdate binary is installed into /Library/Application
Support/Solarflare10GbE directory and a symbolic link placed in /usr/local/bin/
sfupdate.
When upgrading or installing the network adapter driver it is recommended to upgrade the adapter
firmware.
sfupdate: Command Usage
The general usage for sfupdate is as follows (as root):
sfupdate [--adapter=enX] [options]
where:
enX is the interface name of the Solarflare adapter to be upgraded.
option is one of the command options listed in Sfupdate Options on page 341.
The format for the options are <option>=<parameter>
Issue 11
© Solarflare Communications 2014
340
Solarflare Server Adapter
User Guide
Running the command sfupdate with no additional parameters will display the current firmware
version for all Solarflare adapters and identifies whether the firmware within sfupdate is more up to
date.
sfupdate: All Solarflare adapters
1
Run sfupdate to check that the firmware on all adapters is up to date.
2
Run sfupdate --write to update the firmware on all adapters.
sfupdate: Command Line Options
Table 90 lists the options for sfupdate.
Table 90: Sfupdate Options
Option
Description
-h, --help
Display help for the available options and command line
syntax.
-i, --adapter=enX
Specifies the target adapter when more than one
adapter is installed in the localhost.
enX = Adapter ifname or MAC address (as obtained with
--list).
--list
Shows the adapter ID, adapter name and MAC address of
each adapter installed in the localhost.
--write
Re-writes the firmware from the images embedded in
the sfupdate tool. To re-write using an external image,
specify --image=<filename> in the command.
--write fails if the embedded image is the same or a
previous version. To force a write in this case, specify -force in the command.
Issue 11
--force
Force the update of all firmware, even if the installed
firmware version is the same as, or more recent then,
the firmware embedded in sfupdate.
--image=(filename)
Update the firmware using the binary image from the
given file rather than from those embedded in the utility.
-y, --yes
Prompts for user confirmation before writing the
firmware to the adapter.
-v, --verbose
Verbose mode.
-s, --silent
Suppress output while the utility is running; useful when
the utility is used in a script.
© Solarflare Communications 2014
341
Solarflare Server Adapter
User Guide
Table 90: Sfupdate Options
Option
Description
-V --version
Display version information and exit.
9.10 Performance
The following section is an overview of benchmark tests results measured by Solarflare to provide
an indication of expected performance with current drivers.
Performance tests were conducted on Mac OS X 10.7.2 on a pair of Mac Pro servers configured backto-back. The Mac OS X network stack was tuned for 10G operation as described in Tuning on
page 339.
Reference System Specification
• MacPro5,1, 3GB memory (all channels populated)
• Processor: Single Quad-Core Intel Xeon @ 2.8 GHz L2 Cache (per core): 256 KB, L3 Cache: 8 MB
Throughput (Netperf TCP_STREAM)
Results using Netperf IPv4 TCP_STREAM at 1500 MTU:
Table 91: Throughput Results
Message size
No. of streams
Bandwidth
64Kbyte
1
9.26 Gb/s
64Kbyte
1 bidirectional
17.8 Gb/s
Latency (Netperf TCP_RR)
Latency measured using Netperf IPv4 TCP_RR will depend on the interrupt moderation settings and
the type of SFN5xxx adaptor used (10GBaseT cards have higher latency). Latency as measured on
SFN5122F at the standard 1500 MTU is as follows:
• Interrupt moderation at 40μs : 45.7 μs RTT/2
• Interrupt moderation disabled: 18.2 μs RTT/2
File System Benchmarks (AJA System Test)
The AJA System Test benchmark provides some indication of likely network file system performance
for video applications.
Issue 11
© Solarflare Communications 2014
342
Solarflare Server Adapter
User Guide
System Setup:
• 2.25GB ramdisk on file-system ‘target’ server. The test consisted of writing and then reading a
1.0GB file to and from this ramdisk
• SFN5122F SFP+ back-to-back configuration
• To configure a ramdisk for the test (of size 4500000 x 512k sectors):
$ sudo diskutil eraseVolume HFS+ "ramdisk" `hdiutil attach -nomount
ram://4500000`
Table 92: File System Benchmark Test Results
Protocol
AFP
SMB
Issue 11
1500 MTU
9000 MTU Jumbo
Frame size
Read MB/s
Write MB/s
Read MB/s
Write MB/s
720 X 468, 8 bit
439.5
547.6
433.0
574.4
1920 x 1080, 10 bit
509.3
728.3
502.3
770.1
4096 x 2160, 10 bit-RGB
521.3
807.0
516.0
849.5
1920 X 1080, 10 bit
312.7
255.7
370.0
291.3
© Solarflare Communications 2014
343
Solarflare Server Adapter
User Guide
Chapter 10: Solarflare Boot ROM Agent
Solarflare adapters support PXE and iSCSI booting, enabling diskless systems to boot from a remote
target operating system. Solarflare adapters comply with PXE 2.1. This chapter covers the following
topics:
Solarflare adapters are shipped with boot Rom support ’exposed’, that is the Boot ROM Agent runs
during the machine bootup stage allowing the user to enter the setup screens (via Ctrl+B) and
enable PXE support when this is required. The Boot ROM Agent can also be invoked using the
Solarflare supplied sfboot utility - For instructions on the sfboot method refer to the sfboot
commands in the relevant OS section of this user guide. PXE boot is supported on all Solarflare
adapters.
Some Solarflare distributors are able to ship Solarflare adapters with PXE boot enabled. Customers
should contact their distributor for further information.
PXE and iSCSI network boot is not supported for Solarflare adapters on IBM System p servers.
• Configuring the Solarflare Boot ROM Agent...Page 344
• PXE Support...Page 345
• iSCSI Boot...Page 349
• Configuring the iSCSI Target...Page 349
• Configuring the Boot ROM...Page 349
• DHCP Server Setup...Page 356
• Installing an Operating System to an iSCSI target...Page 358
• Default Adapter Settings...Page 367
10.1 Configuring the Solarflare Boot ROM Agent
Updating Firmware
Before configuring the Boot ROM Agent, Solarflare recommend that servers are running the latest
adapter firmware which can be updated as follows:
• From a Windows environment you can use the supplied Command Line Tool sfupdate.exe. See
Sfupdate: Firmware Update Tool on page 189 for more details.
• From a Linux environment, you can update the firmware via sfupdate. See Upgrading Adapter
Firmware with Sfupdate on page 70.
• From a VMware environment, you can update the firmware via sfupdate. See Upgrading
Adapter Firmware with Sfupdate on page 252.
NOTE: The Solarflare firmware supports both PXE and iSCSI.
Issue 11
© Solarflare Communications 2014
344
Solarflare Server Adapter
User Guide
Configuring the Boot ROM Agent
The Boot ROM Agent can be configured in the following ways:
• On server startup, press Ctrl+B when prompted during the boot sequence.
• From a Windows Environment, via SAM. See Using SAM for Boot ROM Configuration on
page 159. Alternatively you can use the supplied Command Line Tool sfboot. See Sfboot: Boot
ROM Configuration Tool on page 174.
• From a Linux environment, via sfboot. See Configuring the Boot ROM with sfboot on page 56.
• From a VMware environment, via sfboot. See Configuring the Boot ROM with Sfboot on
page 242.
10.2 PXE Support
Solarflare Boot ROM agent supports the PXE 2.1 specification. PXE requires DHCP and TFTP Servers,
the configuration of these servers depends on the deployment service used.
Linux
For Red Hat Enterprise and SUSE Linux Enterprise Server, please consult your Linux documentation.
See Unattended Installation - Red Hat Enterprise Linux on page 47 and Unattended Installation SUSE Linux Enterprise Server on page 48 for more details of unattended installation on Linux
Configuring the Boot ROM Agent for PXE
This section describes configuring the adapter via the Ctrl+B option during server startup. For
alternative methods of configuring PXE see Configuring the Boot ROM Agent on page 345.
NOTE: If the BIOS supports console redirection, and you enable it, then Solarflare recommends that
you enable ANSI terminal emulation on both the BIOS and your terminal. Some BIOSs are known to
not render the Solarflare Boot Manager properly when using vt100 terminal emulation.
Issue 11
© Solarflare Communications 2014
345
Solarflare Server Adapter
User Guide
1
Issue 11
On starting or re-starting the server, press Ctrl+B when prompted. The Solarflare Boot
Configuration Utility is displayed.
© Solarflare Communications 2014
346
Solarflare Server Adapter
User Guide
2
Issue 11
Use the arrow keys to highlight the adapter you want to boot via PXE and press Enter. The
Adapter Menu is displayed.
© Solarflare Communications 2014
347
Solarflare Server Adapter
User Guide
3
From the Boot Mode option, press the arrow keys to change the Boot Image and/or the Boot
Type.
4
From the Boot Type, press Space until PXE is selected.
5
Solarflare recommend leaving the Adapter Options and BIOS Options at their default values.
For details on the default values for the various adapter settings, see Table 94 on page 367.
Issue 11
© Solarflare Communications 2014
348
Solarflare Server Adapter
User Guide
10.3 iSCSI Boot
Introduction
Solarflare adapters support diskless booting to a target operating system over Internet Small
Computer System Interface (iSCSI). iSCSI is a fast, efficient method of implementing storage area
network solutions.
The Boot ROM in the Solarflare adapter contains an iSCSI initiator allowing the booting of an
operating system directly from an iSCSI target.
NOTE: Adapter teaming and VLANs are not supported in Windows for iSCSi remote boot enabled
Solarflare adapters. To configure load balancing and failover support on iSCSI remote boot enabled
adapters, you can use Microsoft MultiPath I/O (MPIO), which is supported on all Solarflare
adapters.
10.4 Configuring the iSCSI Target
To the server (iSCSI initiator), the iSCSI target represents the hard disk from where the operating
system is booted from. To enable connections from the server, you will need to allocate and
configure a logical unit number (LUN) on an iSCSI target. The server (iSCSI initiator) will see the LUN
as a logical iSCSI device and will attempt to establish a connection with it. You may need to enter
details of the Solarflare adapter ID (MAC address) and other details to validate the connection.
Refer to the iSCSI target documentation for details on how to configure your target.
10.5 Configuring the Boot ROM
The server (iSCSI initiator) needs to contain at least one Solarflare network adapter. To enable the
adapter for iSCSI booting, you will need to configure the Boot ROM with the correct initiator, target
and authentication details. This can also be configured via the sfboot command line tool on all
platforms, and through SAM on Windows.
For Windows, see Sfboot: Boot ROM Configuration Tool on page 174
For Linux, see Configuring the Boot ROM with sfboot on page 56
For VMware, see Configuring the Boot ROM with Sfboot on page 242
For SAM, see Using SAM for Boot ROM Configuration on page 159
Issue 11
© Solarflare Communications 2014
349
Solarflare Server Adapter
User Guide
1
Start or re-start the iSCSI initiator server and when prompted, press Ctrl+B. The Solarflare Boot
Configuration Utility will display.
NOTE: If the BIOS supports console redirection, and you enable it, then Solarflare recommends that
you enable ANSI terminal emulation on both the BIOS and your terminal. Some BIOSs are known to
not render the Solarflare Boot Manager properly when using vt100 terminal emulation.
2
Issue 11
Highlight the adapter to configure and Press Enter. The Adapter Menu is displayed.
© Solarflare Communications 2014
350
Solarflare Server Adapter
User Guide
Issue 11
© Solarflare Communications 2014
351
Solarflare Server Adapter
User Guide
3
Issue 11
From the BootROM Mode option, press the space bar to change the Boot Image and or the
Boot Type.
© Solarflare Communications 2014
352
Solarflare Server Adapter
User Guide
From the Boot Type, press Space until iSCSI is selected.
Press Enter. The iSCSI Initiator options are displayed.
Issue 11
© Solarflare Communications 2014
353
Solarflare Server Adapter
User Guide
Use DHCP for Initiator is selected as default. This instructs the adapter to use a DHCP server to
obtain the relevant details to configure the Solarflare Boot ROM iSCSI initiator. See DHCP
Server Setup on page 356. If you are not using DHCP, press enter and add the following details:
IP address: IP address of the Solarflare adapter to use at boot time.
Netmask: IP address subnet mask.
Gateway: Network gateway address. A gateway address may be required if the iSCSI target is
on a different subnet from the initiator.
Primary DNS: Address of a primary DNS server.
Use DHCP initiator IQN is selected as default. This instructs the adapter to obtain the iSCSI
initator IQN from the DHCP server via option 43.203 or if this is not available to construct an
iSCSI initator IQN from option 12. See DHCP Server Setup on page 356 for more details
Initiator IQN: The iSCSI initiator IQN of the Solarflare adapter if you are not using DHCP to
obtain the iSCSI initiator IQN.
DHCP Vendor Class ID: If you are using DHCP to obtain the iSCSI initiator IQN, the adapter
will use DHCP option 43 to try and obtain this information from the DHCP server. DHCP
option 43 is described as “vendor specific information” and requires that the vendor id
(DHCP option 60) configured at the DHCP server matches the vendor id configured in the
Boot ROM. See DHCP Option 60, Vendor ID on page 357 for more details. Solarflare strongly
recommend leaving this setting as “SFCgPXE”.
Press Esc to return to the Adapter Menu.
4
Highlight iSCSI Target and press Enter.
By default, the adapter uses DHCP to obtain details about the iSCSI target. See DHCP Server
Setup on page 356 for details of how to enter this information into your DHCP server. If you
are not using DHCP, press Enter and enter the following details:
Target IQN: Name of the iSCSI Target. The format of this is usually IQN or EUI: refer to your
iSCSI Target documentation for details of how to configure this setting.
Target Server: IP address or DNS name of the target server.
Issue 11
© Solarflare Communications 2014
354
Solarflare Server Adapter
User Guide
TCP port: The TCP Connection port number to connect to on the iSCSI target (required).
Default: 3260.
Boot LUN: Logical unit number (LUN) of the iSCSI Target (required). Default: 0. Values: 0-255.
The following settings can also be configured:
LUN busy retry count: Number of times the initiator will attempt to connect to the iSCSI
target. Default: 2. Range: 0-255.
Press Esc to return to the Adapter Menu.
5
If CHAP authentication is required, highlight iSCSI CHAP and press Enter.
Enter User Name and Secret information.
If Mutual CHAP is required as well as CHAP, hIghlight this option and press Enter.
Enter Target user name and Target secret information.
Press Esc to return to the Adapter Menu.
6
MPIO can be configured to provide alternative paths to the iSCSI target to increase the
resilience to network outages. The MPIO priority defines the order the configured adapters are
used to attempt to connect to the iSCSI target.
You can use the MPIO option to configure the MPIO rank for all adapters. Ensure all adapters
to be used for MPIO are correctly configured for iSCSI boot. Highlight iSCSI MPIO and press
Enter.
Issue 11
© Solarflare Communications 2014
355
Solarflare Server Adapter
User Guide
Note that you can set the MPIO rank for all Solarflare adapters from the configuration menus
of any of the available adapters.
Press Esc to return to the Adapter menu.
7
When you have finished, select Save and exit.
10.6 DHCP Server Setup
If your network has a DHCP server, the adapter Boot ROM can be configured so the adapter is able
to dynamically retrieve iSCSI initiator and target configurations from it on startup.
DHCP Option 17, Root Path
The root path option can be used to describe the location of the iSCSI target. This information is used
in Step 4 on page 354.
The iSCSI root path option configuration strings uses the following format:
”iscsi:“<server name or IP
address>”:“<protocol>”:“<port>:<LUN>”:“<targetname>
• Server name: FQDN or IP address of the iSCSI target.
• Protocol: Network protocol used by iSCSI. Default is TCP (6).
• Port: Port number for iSCSI. Default is 3260.
• LUN: LUN ID configured on the ISCSI target. Default is zero.
• Target name: iSCSI target name to uniquely identify the iSCSI target in IQN format. Example:
iqn.2009-01.com.solarflare.
Issue 11
© Solarflare Communications 2014
356
Solarflare Server Adapter
User Guide
DHCP Option 12, Host Name
If the adapter is configured to obtain its iSCSI initiator IQN via DHCP and option 43.203 is not
configured on your DHCP server, then the adapter will use the DHCP host name option to construct
an iSCSI initiator IQN.
DHCP Option 3, Router List
If the iSCSI initiator and iSCSI target are on different subnets, configure option 3 with the default
gateway or router IP address.
DHCP Option 43, Vendor Specific Information
Option 43 provides sub-options that can be used to specify the iSCSI initiator IQN and the iSCSI target
IQN.
• Option 43.201 provides an alternative to option 17 to describe the location of the iSCSI target.
The format for the iSCSI target IQN is the same as described for DHCP option 17
• Option 43.203 provides a method of completely defining the iSCSI initiator IQN via DHCP.
Table 93: DHCP Option 43 Sub-Options
Sub-Option
Description
201
First iSCSI target information in the standard root path format
“iscsi:”<servername>”:”<protocol>”:”<port>”:”<LUN>”:”<targetname>
202
Secondary target IQN. This is Not supported.
203
iSCSI initiator IQN
NOTE: If using Option 43, you will also need to configure Option 60.
DHCP Option 60, Vendor ID
When using DHCP option 43 you must also configure option 60 (Vendor id). DHCP option 43 is
described as “vendor specific information” and requires that the vendor id (DHCP option 60)
configured at the DHCP server matches the vendor id configured in the Boot ROM. By default the
Boot ROM uses the vendor id SFCgPXE.
Issue 11
© Solarflare Communications 2014
357
Solarflare Server Adapter
User Guide
10.7 Installing an Operating System to an iSCSI target
Introduction
This section contains information on setting up the following operating systems for iSCSI booting:
• Installing Windows Server 2008 R2...Page 358
• Installing SUSE Linux Enterprise Server...Page 359
• Installing Red Hat Enterprise Linux...Page 363
Installing Windows Server 2008 R2
To install Windows Server 2008 R2 (with or without a local drive present):
Prerequisites
• Configure the iSCSI target and Solarflare adapter Boot ROM, as described in Configuring the
iSCSI Target on page 349 and Configuring the Boot ROM on page 349.
• Copy the correct Solarflare driver files to a floppy disk or USB flash drive. Refer to
Steps to Install
1
Insert the Windows Server 2008 R2 DVD and restart the server. The Windows Server setup
program will start.
2
Click Load Driver and browse to Solarflare drivers folder on the floppy or USB driver. Load the
Solarflare VBD driver (if needed locate the INF file netSFB*.inf).
3
Click Load Driver a second time and browse to Solarflare drivers folder on the floppy or USB
driver. Load the Solarflare NDIS driver (if needed locate the INF file netSFN*.inf).
4
After loading the drivers, click Refresh to refresh the list of available partitions.
5
Select the target partition that is located on the iSCSI target and continue installing Windows
on the target.
6
Remove the Solarflare drivers disk.
Issue 11
© Solarflare Communications 2014
358
Solarflare Server Adapter
User Guide
Installing SUSE Linux Enterprise Server
For complete installation instructions, consult the relevant Novell documentation:
http://www.novell.com/documentation/
Prerequisites
• Ensure you have all your iSCSI configuration information for the iSCSI target and iSCSI initiator.
You will need to enter these details during the installation process.
• Ensure that the Solarflare Boot ROM is configured for iSCSI boot and can login to the selected
iSCSI target.
• You will need the appropriate Solarflare driver disk. See Driver Disks for Unattended
Installations on page 46 for more details.
Installation Process
1
Boot from your DVD.
2
From the first installation screen, press F5 Driver and select Yes. Press Return.
3
Highlight Installation and enter the following Boot Option: withiscsi=1
Issue 11
© Solarflare Communications 2014
359
Solarflare Server Adapter
User Guide
4
If you see a Driver Updates added screen for a Solarflare driver disk, click OK.
5
When prompted for further driver updates, click Back to return to the installer.
6
Select the network device. To check which is the Solarflare network adapter, press Ctrl+Alt+F4.
To return to the Installation screen, press Ctrl+Alt+F1.
7
Select Yes from the Automatic configuration via DHCP? option.
8
Follow the install steps until you reach the Disk Activation stage.
9
From the Disk Activation > iSCSI Initiator Overview stage, click the Service tab.
Issue 11
© Solarflare Communications 2014
360
Solarflare Server Adapter
User Guide
10 Note the SUSE auto generated Initiator Name, or replace this with your own.
11 Click the Connected Targets tab. The target should be listed.
12 Ensure the Start-Up mode is correct for your installation. For SUSE Enterprise Linux Server 10,
it should be automatic. For SUSE Enterprise Linux Server 11, it should be onboot. Click Next to
continue.
13 From the Installation Settings screen, select the Expert tab, then click the Booting hyperlink.
Select the Boot Loader installation tab.
Issue 11
© Solarflare Communications 2014
361
Solarflare Server Adapter
User Guide
14 Select Boot from Master Boot Record as well as Boot from Boot Partition. Click Finish.
15 When you reach the Installation Summary screen, select Partitioning to verify the installation
device. Ensure that the desired iSCSI target is selected for the installation target. Click Next.
16 When the first stage of the install is complete, the system will reboot. Continue to the
Configure Boot Device Order to add the iSCSI target and continue the installation process.
Following the server reboot, check that the iSCSI disk is in an appropriate place in the BIOS boot
order. It may be displayed as 'Solarflare Boot Manager' or 'Hard drive C:', as there is no physical hard
disk in the system.
If you don’t see either of the above options, check the messages output from the Solarflare Boot
ROM during the boot process for DHCP or iSCSI login failures indicating a Boot ROM or DHCP
configuration issue.
Issue 11
© Solarflare Communications 2014
362
Solarflare Server Adapter
User Guide
Installing Red Hat Enterprise Linux
For complete installation instructions, consult the relevant Red Hat documentation:
http://www.redhat.com/docs/manuals/enterprise/
Prerequisites
• Ensure you have all your iSCSI configuration information for the iSCSI target and iSCSI initiator.
You will need to enter these details during the installation process.
• Ensure that Solarflare Boot ROM is configured for iSCSI boot and can login to the selected iSCSI
target.
• You will need the appropriate Solarflare driver disk. See Driver Disks for Unattended
Installations on page 46 for more details.
Installation Process
1
Boot from your DVD.
2
From the first installation screen, enter linux dd. Press Return.
3
When asked if you have a driver disk, select Yes.
4
A Driver Disk Source window is displayed. Select the source and select Yes.
Issue 11
© Solarflare Communications 2014
363
Solarflare Server Adapter
User Guide
5
You will then be prompted to Insert your driver disk into the source specified in step 4.
6
You will be prompted to load more driver disks. Select No.
7
A CD Found screen will prompt you to test the CD before installation. Select Skip.
8
When an Enable network interface screen displays, select the Solarflare adapter interface.
Ensure that Use dynamic IP configuration (DHCP) is selected.
9
Follow the standard Red Hat installation steps until you reach the Disk Partitioning Setup
menu.
Issue 11
© Solarflare Communications 2014
364
Solarflare Server Adapter
User Guide
10 From the Disk Partitioning menu, select Advanced storage configuration to add the iSCSI
target.
11 In the Advanced Storage Options window, select iSCSI and click Add iSCSI target.
12 In the Configure iSCSI Parameters dialog box, enter your Target IP Address.
13 Click Add target to continue.
Issue 11
© Solarflare Communications 2014
365
Solarflare Server Adapter
User Guide
14 Click Next from the screen in step 10. A warning is displayed regarding the removal of all
partitions. As the assumption is made that this is a clean install, click Yes.
If the drive(s) used for installation is displaying the correct device for the iSCSI LUN you configured,
proceed with the rest of the installation. If the device configuration displayed is incorrect, check your
details.
Following the server reboot, check that the iSCSI disk is in an appropriate place in the BIOS boot
order. It may be displayed as 'Solarflare Boot Manager' or as 'Hard drive C:', as there is no physical
hard disk in the system.
If you don’t see either of the above options, check the messages output from the Solarflare Boot
ROM the boot process for DHCP or iSCSI login failures indicating a Boot ROM or DHCP configuration
issue.
Issue 11
© Solarflare Communications 2014
366
Solarflare Server Adapter
User Guide
10.8 Default Adapter Settings
Table 94 lists the various adapter settings and their default values. These are the values used if you
select Reset to Defaults from the Boot Configuration Utility, or click Default from SAM.
Table 94: Default Adapter Settings
Issue 11
Setting
Default Value
Boot Image
Disabled
Link speed
Auto
Link up delay
5 seconds
Banner delay
2 seconds
Boot skip delay
5 seconds
Boot Type
PXE
Initiator DHCP
Enabled
Initiator-IQN-DHCP
Enabled
LUN busy retry count
2 seconds
Target-DHCP
Enabled
TCP port
3260
Boot LUN
0
DHCP Vendor
SFCgPXE
MPIO attempts
3
MSIX Limit
32
© Solarflare Communications 2014
367
Solarflare Server Adapter
User Guide
Index
Configure segmentation offload 81
Configuring adapter 48
Configuring checksum offload 81
Running adapter diagnostics on Linux 52
Running adapter diagnostics on VMware 240
A
Accelerated Virtual I/O 1
Extract Solarflare Drivers 122
B
F
Boot Firmware
Configuring 159
Fault tolerant teams
see also Teaming 212
Failover 213
Boot ROM Agent
Default adapter settings 366
iSCSI Boot ROM 348
PXE boot ROM 345
Fiber Optic Cable
Attaching 22
Buffer Allocation Method
Tuning on Linux 93
I
Inserting the adapter 20
C
Intel QuickData
On Linux 95
On VMware 262
Checksum offload
Configure on Linux 81
Configure on Solaris 285
Configure on VMware 259
Configure with SAM 137
Interrupt and Irqbalance
Tuning on Linux 87
Interrupt Moderation
Configure with SAM 138
Tuning on Windows 223
Completion codes 220
Configure 31
Configure MTU
Solaris 285
iSCSI
Installing Red Hat Enterprise Linux 362
Installing Windows Server 2008 358
CPU Speed Service
Tuning on Linux 95
Tuning on Solaris 288
J
Jumbo Frames
Configuring on Linux 50
D
DHCP Setup for Boot ROM 356
K
Dynamic link aggregation
see also Teaming 210
Kernel Driver 1
Kernel Module Packages (KMP) 42
E
L
Ethernet Link Speed
Configure with SAM 142
Ethtool
Configure Interrupt moderation on Linux 80,
285
Configure Interrupt moderation on VMware
258
Issue 11
Large Receive Offload (LRO)
Configure on Linux 82
Configure on Solaris 286
Configure on VMware 260
Configure on Windows Server 2008 224
Large Send Offload (LSO)
© Solarflare Communications 2014
368
Solarflare Server Adapter
User Guide
S
Configure on Windows 224
LED 30
SAM
see also Configure via Boot ROM agent 345
Boot ROM BIOS settings 159
Boot ROM configuration 158
Boot ROM iSCSI Authentication settings 164
Boot ROM iSCSI Initiator settings 161
Boot ROM iSCSI MPIO settings 165
Boot ROM Link settings 160
Disable adapter booting 165
Driver and cable diagnostics 154
Viewing adapter statistics 152
License 75
Link aggregation 209
Linux 51
Configure MTU 80, 96
M
Maximum Frame Size
Tuning on Windows 222
Memory bandwidth
On VMware 261
On Windows 226
Tuning on Linux 95
Segmentation offload
Configure on Linux 81
Configure on Solaris 286
Configure on VMware 260
N
Server Power Saving Mode
On Windows 227
Network Adapter Properties
Configuration 166
sfboot
On VMware 241
On Windows 173
O
OpenOnload 1
sfcable 199
sfnet 202
P
sfteam
On Windows 192
PCI Express Lane Configuration
On Linux 94
On Solaris 288
On VMware 261
On Windows 226
sfupdate
On Linux 280
On VMware 251
On Windows 188
PXE
Configure with the Boot ROM agent 345
R
Receive 87
Receive Side Scaling (RSS)
Configure with SAM 138
Tuning on Linux 85
Tuning on VMware 261
Red Hat
Installing on 43
RJ-45 cable
Attaching 21
Specifications 22
Issue 11
Solarflare AppFlex™ Technology Licensing 12
Standby and power management 51
Configure with SAM 143
Static link aggregation
see also Teaming 211
SUSE
Installing on 43
System Requirements
Linux 39
Solaris 263
VMware 236
Windows 109
© Solarflare Communications 2014
369
Solarflare Server Adapter
User Guide
T
Using ADDLOCAL 119
Windows Command Line Utilities 168
TCP Protocol Tuning
On Linux 84
On VMware 260
On Windows 225
Windows event log error messages 232
Teaming
see also sfteam on Windows 192
Adding adapters to with SAM 149
Configure on VMware 239
Deleting from SAM 150
Key adapter 217
Reconfiguring with SAM 147
Setting up on Linux 51
VLANs 214
Tuning Recommendations
On Linux 95, 288
On Windows 230
U
Unattended Installation
Driver disks 45
SUSE 48
Windows 121
Unattended Installation Solaris 11 267
V
Virtual NIC support 2
VLAN
Deleting from SAM 152
Setting up on Linux 51
Setting up with SAM 150
VMware
Access to NIC from virtual machine 238
Configure MTU 257
ESX Service Console 238
NetQueue 256
VMware Tools 255
W
Windows
Installing from the Command Prompt 118
Installing on 110
Repairing and modifying installation 117
Issue 11
© Solarflare Communications 2014
370
