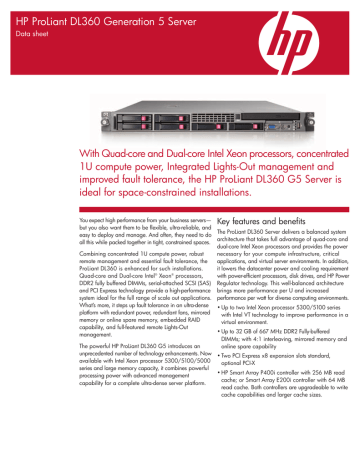

HP ProLiant DL360 Generation 5 Server
Data sheet
With Quad-core and Dual-core Intel Xeon processors, concentrated
1U compute power, Integrated Lights-Out management and
improved fault tolerance, the HP ProLiant DL360 G5 Server is
ideal for space-constrained installations.
You expect high performance from your business servers— Key features and benefits
but you also want them to be flexible, ultra-reliable, and
The ProLiant DL360 Server delivers a balanced system
easy to deploy and manage. And often, they need to do
architecture that takes full advantage of quad-core and
all this while packed together in tight, constrained spaces.
dual-core Intel Xeon processors and provides the power
Combining concentrated 1U compute power, robust
necessary for your compute infrastructure, critical
remote management and essential fault tolerance, the
applications, and virtual server environments. In addition,
ProLiant DL360 is enhanced for such installations.
it lowers the datacenter power and cooling requirement
Quad-core and Dual-core Intel® Xeon® processors,
with power-efficient processors, disk drives, and HP Power
DDR2 fully buffered DIMMs, serial-attached SCSI (SAS) Regulator technology. This well-balanced architecture
and PCI Express technology provide a high-performance brings more performance per U and increased
system ideal for the full range of scale out applications. performance per watt for diverse computing environments.
What’s more, it steps up fault tolerance in an ultra-dense • Up to two Intel Xeon processor 5300/5100 series
platform with redundant power, redundant fans, mirrored
with Intel VT technology to improve performance in a
memory or online spare memory, embedded RAID
virtual environment.
capability, and full-featured remote Lights-Out
• Up to 32 GB of 667 MHz DDR2 Fully-buffered
management.
DIMMs; with 4:1 interleaving, mirrored memory and
The powerful HP ProLiant DL360 G5 introduces an
online spare capability
unprecedented number of technology enhancements. Now • Two PCI Express x8 expansion slots standard,
available with Intel Xeon processor 5300/5100/5000
optional PCI-X
series and large memory capacity, it combines powerful
• HP Smart Array P400i controller with 256 MB read
processing power with advanced management
cache; or Smart Array E200i controller with 64 MB
capability for a complete ultra-dense server platform.
read cache. Both controllers are upgradeable to write
cache capabilities and larger cache sizes.
Companies around the world build
their server infrastructures on HP
ProLiant servers and management
software—for total control, increased
flexibility and tangible savings.
Deployment versatility in a 1U form factor
Loads of embedded functionality and expansion for a
1U server make this the most flexible ultra-dense server
available. The embedded Lights-Out technology provides
dependable remote console and control plus an optional
graphical remote console and virtual media functionality.
High performance Smart Array and NIC improve I/O
performance. Two PCI Express slots and six SAS drive
bays provide expanded configuration and deployment
options.
• Two expansion slots—Two PCI Express slots allow for
configuration options, such as redundant HBAs or NICs
for additional levels of uptime.
• Choice of Smart Array RAID controllers—Choose
either the Smart Array P400i controller for performance
and six disk drive support or the Smart Array E200i
controller for value. Each controller uses a dedicated
slot to keep the PCI Express slots open for other uses.
Improved fault tolerance
• Six serial SCSI drive bays—Enterprise-ready small
Engineering excellence provides unsurpassed reliability in
form factor serial SCSI drives offer improved drive
a 1U form factor. The ProLiant DL360 offers redundant
reliability, increased performance and lower power.
fans and optional redundant power supplies to meet
• Integrated Lights-Out management—High-speed
demanding availability requirements of corporate
remote graphical management reduces the need to be
datacenters. Memory protection, optional transportable
physically present to address unexpected server issues.
battery-backed write cache, advanced RAID levels and
ProLiant reliability facilitate more effective server uptime. • Embedded multifunction gigabit network adapters
with TCP/IP offload engine—Embedded NICs support
• Fan redundancy standard—Allows for continued
TCP/IP, iSCSI, Wake On LAN (WOL) and PXE for
operation until maintenance can be scheduled to
additional management functionality.
replace a failed fan assembly.
• System insight display—A rugged slide-out system
• Hot plug power supply with optional redundancy—
diagnostics display saves administrators time with
Hot plug redundancy means no downtime to repair
easy-to-find troubleshooting information at the front of
failure; each power supply has its own power cord
the server.
so redundant power to the rack can be supported.
• Lower power processors, disk drives and HP power
• Smart Array RAID controller—Transportable batteryregulator technology—Get more performance per U
backed write cache improves disk performance and
and greater performance per watt.
can be moved to another server to recover data stored
in the cache in the event of a system failure. Optional Delivering trusted server infrastructure
RAID 6 offers protection from multiple disk failures.
Companies around the world build their server
infrastructures on HP ProLiant servers and management
• Advanced ECC memory—Four-bit memory errors that
software. We deliver trusted server management through
occur within a single DRAM chip on the DIMM are
Systems Insight Manager and SmartStart, which ship with
corrected.
every ProLiant server and ProLiant Essentials software.
• Mirrored and online spare memory—Mirrored memory
Advanced tools to further enhance IT staff efficiency and
is protection against uncorrectable memory errors
server availability are also available.
without degrading performance of the memory system.
Online spare offers a failover bank which is brought
online when single bit errors reach a critical
threshold.
2
Technical specifications
Processors supported
HP ProLiant DL360 Generation 5 Server
Quad-Core Intel Xeon processors:
X5355: 2.66 GHz, 1333 MHz Front Side Bus (FSB)
E5345: 2.33 GHz, 1333 MHz FSB
E5335: 2.0 GHz, 1333 MHz FSB
E5320: 1.86 GHz, 1066 MHz FSB
L5320: 1.86 GHz, 1066 MHz FSB low voltage
5310: 1.60 GHz, 1066 MHz FSB
Dual-Core Intel Xeon processors:
5160: 3.00 GHz, 1333 FSB
5150: 2.66 GHz, 1333 FSB
5148: 2.66 GHz, 1333 FSB low voltage
5140: 2.33 GHz, 1333 FSB
5130: 2.00 GHz, 1333 FSB
5120: 1.86 GHz, 1066 FSB
5110: 1.60 GHz, 1066 FSB
NOTE: Intel Xeon Processor 5100 series is 64-bit, Dual-Core, 4 MB L2 cache, and supports Intel VT technology.
Processor cores
Quad and dual
Number of processors
1-2
Cache
8 MB L2 (2 x 4 MB) (5300 series) or 4 MB L2 (1 x 4 MB) (5100 series)
Memory type
PC2-5300 fully buffered DIMMs (DDR2-667)
Standard/maximum memory
1 GB/32 GB
Advanced memory protection
Advanced ECC mirrored memory online spare
Number of disk drives
Up to 6
Maximum internal storage
6 hot plug SFF SAS 876 GB (6 x 146 GB); or 6 hot plug SFF SATA 720 GB (6 x 120 GB)
Removable media bays
1 (DVD/CD-RW, DVD, CD and floppy drives supported)
Storage controller
Smart Array P400i Controller* with 256 MB cache ( RAID 0, 1, 5); optional battery upgrade enables write cache and RAID 6.
Smart Array P400i optional upgrade to 512 MB cache (RAID 0, 1, 5, 6) includes battery enabling write cache.
Smart Array E200i Controller with 64 MB cache (RAID 0, 1); optional upgrade to 128 MB cache (RAID 5) includes battery enabling write cache.
Form factor
1U rack
Networking
Embedded Dual NC373i Multifunction Gigabit Network Adapters with TCP/IP offload engine
Remote management
Integrated Lights-Out 2
Redundant power supply
Optional
Redundant fans
Standard
Warranty
3-years parts, 3-years labor, 3-years onsite
* The P400i requires an optional 13-in mini-SAS cable to support six hard drives (high performance models ship with this cable).
3
Total control—Take complete control of your server
infrastructure from away from your desk.
Financial Services
• Enhance server availability and performance levels
to exacting requirements through pre-failure alerting
and hardware performance bottleneck analysis.
For more information
HP Financial Services provides innovative financing
• Monitor the health of your entire ProLiant server
and financial asset management programs to help you
infrastructure, including SAN-attached storage, through cost-effectively acquire, manage and ultimately retire
one simple management interface.
your HP solutions. For more information, contact your
• Remotely operate ProLiant servers independent of OS local HP representative, or visit:
state with dependable, built-in Lights-Out management. www.hp.com/go/hpfinancialservices.
• Detect server security vulnerabilities and update
software in concert, all from a centralized location.
Improved flexibility—Be responsive to the needs of
your organization, efficiently and precisely.
• Transparently manage physical and virtual resources
across their entire lifecycle, with your choice of virtual
machine technology.
• Fine-tune resource allocation by quickly migrating
workloads across physical and virtual infrastructure.
• Easily integrate ProLiant infrastructure management
into existing management solutions and manage
non-HP devices through broadly adopted industry
standards.
Tangible savings—Make the most of every dollar you
invest in server assets, IT staff and facilities.
• Rapidly deploy and inventory new IT assets with less
effort, dramatically reducing server build times and
decreasing the need for costly manual asset tracking.
• Efficiently manage the growing thermal and energy
impact of server infrastructure with power regulator
technology built into your ProLiant server.
• Raise the scalability of scarce IT talent with tools that
improve efficiency, cut down on human error, and
anticipate and prevent unplanned downtime.
To find out more about the HP ProLiant DL360 G5
Server contact your local HP representative, or visit:
www.hp.com/servers/proliantdl360.
HP Services
HP Services offers comprehensive services to help design, deploy,
manage and support your IT environment and business processes. Our
69,000 skilled professionals and network of partners deliver global
capabilities across the IT lifecycle, including consulting, integration,
outsourcing and support.
HP Care Pack Services deliver continuous care
Cost-effectively upgrade or extend your standard warranty with easyto-buy, easy-to-use support packages. With support levels that range
from basic to mission-critical, HP Care Pack Services are available for
purchase with your ProLiant DL360 server.
Recommended service offerings:
Enhanced Care options provide a baseline service level to achieve
optimum server availability.
ProLiant DL360 Server—3-year, 13x5, 4-hour response same-businessday hardware support.
Continuous Care options deliver a recommended support level with
committed same day response or fix times.
ProLiant DL360 Server—3-year, 24x7, 4-hour call-to-repair hardware
support
Total Care service options are designed to provide round-the-clock
response and complex problem resolution through integrated
hardware and software support.
ProLiant DL360 Server—3-year, 24x7, Support Plus support.
Deployment Services include HP Installation and Startup services
designed to take the time, risk and worry out of the deployment of
ProLiant servers.
HP ProLiant DL360 Server—Installation and startup of a ProLiant
DL360 server and Microsoft® or Linux operating system
For a complete list of services, visit:
www.hp.com/services/proliantservices
www.hp.com/go/proliant/carepack
© Copyright 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Intel and Xeon are
trademarks or registered trademarks of Intel Corporation or its subsidiaries in the Untied States and other countries.
Microsoft is a U.S. registered trademark of Microsoft Corporation. Linux is a U.S. registered trademark of Linus Torvalds.
To learn more, visit www.hp.com/servers/proliantdl360
4AA0-6375ENW Rev. 1, February 2007
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
