GEAppliances.ca

Safety Instructions

. . . . . . . . . . . .2, 3

Installation Instructions

. . . . . . . . 4

Operating Instructions

Control Settings . . . . . . . . . . . . . . . . . . .5, 6

Care and Cleaning

. . . . . . . . . . . .7, 8

Plug Buttons or screws

Hinge Cover

Troubleshooting Tips

. . . . . . . 9, 10

Consumer Support

Product Registration . . . . . . . . . . . . . . . .11

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .13

Consumer Support . . . . . . . . . . . . . . . . .14

Top

Hinge

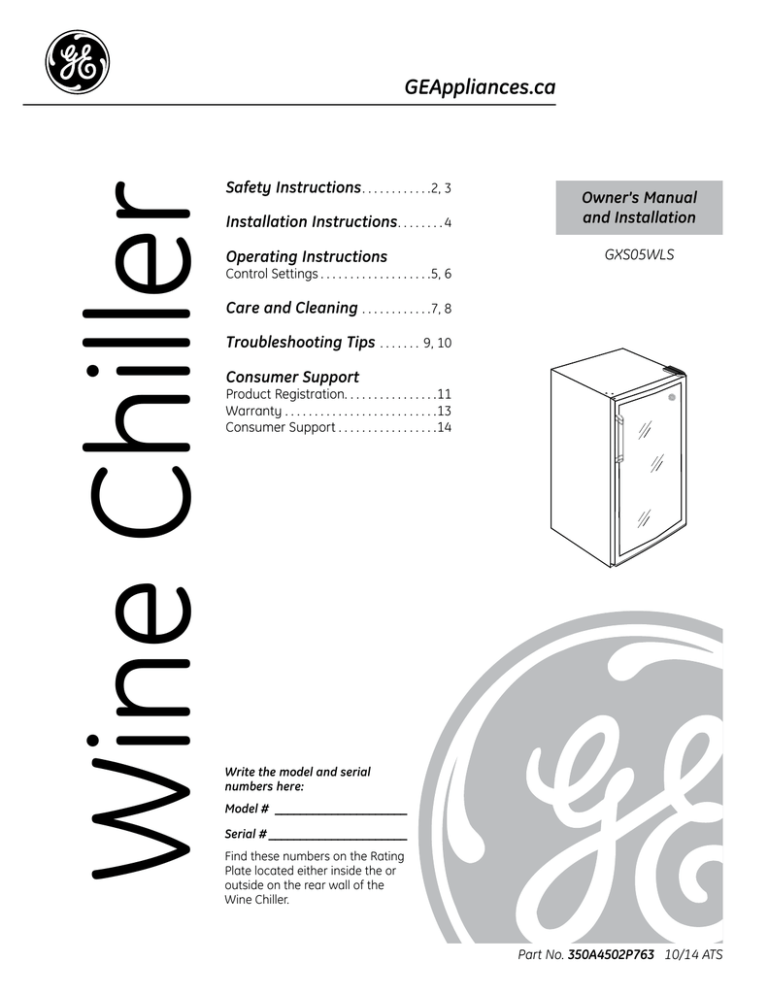

Owner’s Manual and Installation

GXS05WLS

Bottom

Hinge

Write the model and serial numbers here:

Model # _____________________

Serial # ______________________

Find these numbers on the Rating

Plate located either inside the or

MED

outside on the rear wall of the

Wine Chiller .

RED

WHITE

RED WHITE

MAX

0

MIN

C

SET

7

6

1

2

5

3

4

TEMPERATURE

CONTROL

7 IS COLDEST

15W MAX

Part No.

350A4502P763 10/14 ATS

3

2

1

Installation Instructions

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

Use this appliance only for its intended purpose as described in this Owner’s Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

This wine chiller must be properly installed and located in accordance with these instructions before it is used .

Do not allow children to climb, stand or hang on the shelves in the wine chiller . They could damage the wine chiller and seriously injure themselves .

Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small .

Be careful closing doors when children are in the area .

Unplug the wine chiller before cleaning and making repairs .

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance .

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

Do not store or install this appliance outdoors .

DANGER! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE WINE CHILLER

Child entrapment and suffocation are not problems of the past . Junked or abandoned refrigeration products are still dangerous… even if they will sit for “just a few days .”

If you are getting rid of your old appliance, please follow the instructions below to help prevent accidents .

Before You Throw Away Your Old

Refrigeration Product:

Take off the doors .

Leave the shelves in place so that children may not easily climb inside .

CFC Disposal

Your old refrigerator has a cooling system that used CFCs (chlorofluorocarbons) . CFCs are believed to harm stratospheric ozone .

If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified servicer . If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation .

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be CSA certified, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts .

2

GEAppliances.ca

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance .

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded .

If you have only a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded

3-prong wall outlet .

The wine chiller should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate .

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires .

Never unplug your wine chiller by pulling on the power cord . Always grip plug firmly and pull straight out from the outlet .

Repair or replace immediately all power cords that have become frayed or otherwise damaged .

Do not use a cord that shows cracks or abrasion damage along its length or at either end .

When moving the wine chiller away from the wall, be careful not to roll over or damage the power cord .

USE OF ADAPTER PLUGS

Adapter plugs are not permitted in Canada.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

3

Installation Instructions

4

Installing the wine chiller.

To raise the wine chiller

Removing the Packaging

Before using the wine chiller, be sure all packing materials and tape have been removed, including any protective film covering the control and any film protecting the cabinet.

If you are discarding an old refrigeration product, remove the doors to reduce the danger of children being trapped inside.

Installation Guidelines

The wine chiller must be freestanding .

Allow the following clearances for ease of installation, proper air circulation and electrical connections:

Each side 2" (51 mm)

Top

Back

2" (51 mm)

3" (51 mm)

Before connecting the appliance to the power source, let it stand upright for approximately 2 hours . This will reduce the possibility of a malfunction in the cooling system from handling during transporation .

Installation of Handle

The handle should be found inside the wine chiller .

Do not install the wine chiller where the temperature will go below 55°F (13°C) or above 90°F (32°C) .

Install it on a level floor .

Do not install the wine chiller where it will be subject to direct sunlight, heat or moisture .

Do not store or install this appliance outdoors .

The following models must be installed on the floor: GWS04, GCS04 .

Handle mounting screws (2)

(located on the handle)

Handle mounting pins (2)

Allen key

2 . Tighten down the 2 mounting screws of the handle with the Allen key .

1 . Set the handle on the 2 mounting pins .

Leveling Legs

Adjustable legs

at the front corners of the wine chiller should be set so the wine chiller is firmly positioned on the floor, with a 1/8"

(3 mm) tilt to the back to help the door closure .

To adjust the leveling legs,

turn the legs clockwise to raise the wine chiller,

counterclockwise to lower

it .

Interior Light (available on some Models)

You can turn the light ON or OFF by pushing the light switch located on the right side of the control panel housing . If the interior light is left on, the temperature will be higher .

Loading the Wine

As with any refrigeration product, there is a slight temperature variance at different locations within each compartment . The lower shelves provide a slightly cooler temperature than the upper shelves .

About the controls and settings.

Setting the Temperature Control

Display Panel

GEAppliances.ca

When the Wine Chiller is Plugged In

After plugging in the wine chiller and making your temperature selection, allow the wine chiller to reach the set temperature before loading your wine . This may take up to 12 hours to completely stabilize .

After loading the wine, you may notice a rise in the temperature . Allow adequate time for the temperature to return back to the set temperature . This may take up to 12 hours to completely stabilize .

On some models, if there is no key operation for 30 seconds, the display screen will turn off .

The display screen will turn on again, if you touch any key .

When powering on, the temperature of the zones will be adjusted according to the factory pre-set .

By pressing the Temperature-rise key , the temperature will increase 1°C (or °F) .

By pressing the Temperature-drop key , the temperature will decrease 1°C (or °F) .

The upper zone temperature range is 5~12°C, the lower zone temperature range is 12~18°C .

The factory pre-set temperature is 8/15°C

(upper/lower zones) .

Switching of the Fahrenheit temperature and Celsius temperature

Press the Light key and the Power key at the same time for 3 seconds to switch between Celsius temperature and Fahrenheit temperature; the screen will display the

Fahrenheit temperature or Celsius temperature under the current mode .

NOTE: WHEN MIXING ANY COMPARTMENT FOR BOTH RED WINE AND WHITE WINE STORAGE,

WE RECOMMEND THAT YOU PLACE RED WINE BOTTLES ON TOP SHELF AND WHITE WINE ON

BOTTOM SHELF.

Interior Light

On some models, after the power is on for

3 seconds, the lighting turns on by default for

30 seconds . If the lighting key is not operated within 30 seconds, the lighting will automatically turn off .

Press the Light key to turn on or turn off the light .

5

Installation Instructions

About the controls and settings.

Important:

In order to extend the compressor life, please restart wine cooler after waiting 3 minutes .

Memory Function:

The cooler has a power off memory function . When power comes on again, the wine cooler will operate according to the setting mode before the power went off .

Fault Indication:

• If there is failure on the sensor, the screen may display failure codes, such as: “E” and “F” .

When the screen displays these errors, please do not disassemble it or check by yourself . You should contact an authorized service person for repair .

• If the temperature in the cooler is too low, it will display “L” .

• When the temperature in the cooler is too high, the screen will display “H” and will flash . Under this state, the buzzer will buzz once every second for 30 seconds; This will repeat one minute later, the buzzer will continue to give alarm for another 30 seconds; After the alarm is given three times, it will not give alarm any more . You can press any key to cancel the alarm sound .

Call for service if any of the above error messages show .

You should touch the temperature control panel softly as the panel is touch screen control . Please protect the touch control panel carefully to avoid scratching,keep far away from strong magnetic fields and high humidity, or it can cause wine cooler to not work properly .

During the operation of the wine chiller, the back wall of the chilling chamber can form water balls or frost . This is normal . You do not need to defrost or wipe off water drops because the back wall will defrost automatically . The defrosted water will be collected into a discharge channel and the water will flow to the water receiver above the compressor and will evaporate there .

When there is too much frost at the back of inner side of cabinet, please turn off the power

until the defrosting is finished.

Due to the air circulation in the wine cooler, some areas with different temperatures are generated:

• The upper area has the highest temperature.

• The lower area has the lowest temperature.

Placement of Beverage

Please store different wines according to the following sequence from top to bottom:

• Strong red wine

• Rose wine and gentle red wine

• White wine

• Champaign and light sparkling wine

We recommend you store wines at the following temperatures:

Wine Type

Bordeaux red

Burgundy red/Bordeaux red

Port

Young Burgundy red

Young red wine

All white wines with little residual sugar

Old white wines/Chardonnay

Sherry

Young white wines from late vintage

White wines

Drinking Temperature

18°C

16°C

15°C

14°C

12°C

11°C

10°C

9°C

8°C

7°C

6

Care and cleaning.

GEAppliances.ca

Cleaning the Outside

IMPORTANT: Unplug the wine chiller before cleaning.

Keep the outside clean.

The cabinet can be washed with mild soap and water . Rinse thoroughly with clear water .

Never use abrasive scouring powders .

Use a glass cleaner or mild soap and water and a soft cloth to clean the glass door . Do not use any abrasive powders .

Wipe the control panel with a damp cloth .

Dry thoroughly . Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects on the panel—they can damage it . Some paper towels can also scratch the control panel .

Do not wipe the wine chiller with a soiled dishcloth or towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Stainless steel.

Regularly clean and polish the stainless steel areas (on some models) with a commercially available stainless steel cleaner such as Gleem-it

®

to preserve and protect the fine finish . Gleem-it

®

is available at leading hardware stores . It is also available through our website,

GEAppliances .ca, or call 1 .888 .261 .3055 .

Order part number WX10X15 .

Do not use appliance wax or polish on the stainless steel .

Protect the paint finish.

The finish on the outside of the wine chiller is a high-quality, baked-on paint finish .

With proper care, it will stay new-looking and rust-free for years . Apply a coat of kitchen/appliance wax when the wine chiller is new, and then at least twice a year .

Cleaning the Inside

IMPORTANT: Unplug the wine chiller before cleaning.

To clean the inner liner and racks, use a warm water and baking soda solution— about one tablespoon (15 mL) of baking soda to a quart (1 liter) of water . This both cleans and neutralizes odors .

Rinse and wipe dry .

Defrosting

Defrost whenever frost on the inside surfaces of the storage area becomes 1/8"

(3 mm) thick.

Never use a heater of any kind, scraper or sharp instrument to remove frost as it

may damage the wine chiller.

To defrost,

unplug the wine chiller . Remove the contents and wipe inside surfaces and

The vinyl door gasket may be cleaned with mild soap and water or a baking soda solution . Rinse well .

Do not use detergents, scouring powders, spray cleaners or other harsh chemicals to clean the interior.

racks with a clean towel . If frost does not come off easily, allow the frost to melt somewhat and wipe off .

After defrosting,

make sure inside surfaces are dry; then return the contents to the wine chiller and set the temperature control to the desired setting .

In the Event of a Power Failure

If the power fails, open the door as infrequently as possible to maintain the temperature . A gradual rise in temperature should not have any adverse effect on the wine .

If it is extremely hot, you may want to unload the wine from the wine chiller and move the wine to a cooler location until power is restored .

When power is restored, the controls automatically are set to the Factory

Setting

50°F (10°C) . If needed, reset the controls to the desired setting .

7

Installation Instructions

Care and cleaning.

Vacation Time

Short vacations: Leave the Wine/

Beverage Cooler operating during vacations of less than three weeks .

Long vacations: If the appliance will not be used for several months, remove all items and unplug the power cord .

Clean and dry the interior thoroughly .

To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary .

Preparing to Move

Unload the wine, then secure the racks and door by taping them in place to prevent damage .

Turn the adjustable leveling legs up to the base to avoid damage .

Be sure the wine chiller stays in an upright position during the move.

Energy Saving Tips

The Wine/Beverage Cooler should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight .

Try not to open the door too often, especially when the weather is wet or hot . Once you open the door, mind to close it as soon as possible .

This appliance is intended to be used exclusively for the storage wine .

Every now and then check if the appliance is sufficiently ventilated

(adequate air circulation behind the appliance) .

For wine storage appliances, please arrange the temperature following the instruction: SPARKLE: 41-45°F (5-7°C),

WHITE: 46-54°F (8-12°C), RED: 55-65°F

(13-18°C) .

LED Refrigerator Lights

An authorized technician will need to replace the LED light

8

Before you call for service…

Troubleshooting Tips

Save time and money! Review the charts on the following pages first and you may not need to call for service.

GEAppliances.ca

Problem Possible Causes What To Do

Wine chiller does not

is blank

Wine chiller is unplugged.

the fuse is blown.

• Push the plug completely into the outlet.

operate and the display The circuit breaker is tripped/ • Replace fuse or reset the breaker.

Vibration or rattling

(slight vibration is normal)

Wine chiller is on an

uneven surface.

The Wine/Beverage

The rattling noise may come

Cooler seems to make

from the flow of the refrigerant,

too much noise.

which is normal.

• See the Leveling Legs section .

As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine/

Beverage Cooler.

Contraction and expansion of the inside walls may cause popping and crackling noises.

The Wine/Beverage Cooler is not level.

Motor operates for

Normal when wine chiller

long periods or cycles

is first plugged in.

• Wait 12 hours for the wine chiller to completely

cool down .

• This is normal. Often occurs when large

amounts of wine are placed

in wine chiller.

Door left open. • Door is not self-closing. Always make sure that the

door is closed after opening .

• Check to see if a bottle is holding door open.

• This is normal. Hot weather or frequent

door openings.

Temperature control set

at the coldest setting.

• See About the control and settings .

Wine chiller is too close

to the wall.

Wine chiller too warm

Normal when wine chiller

is first plugged in.

Often occurs when large

amounts of wine are placed

in wine chiller.

Temperature control

not set cold enough.

Warm weather or frequent

door openings.

Wine chiller is too close

to the wall.

• See the Installation Guidelines section for the

correct clearances .

• Wait 12 hours for the wine chiller to completely

cool down .

• This is normal.

• See About the control and settings .

• Set the temperature control one step colder.

See About the control and settings .

• See the Installation Guidelines section for the

correct clearances .

9

Before you call for service…

Installation Instructions

Problem Possible Causes What To Do

Wine chiller too warm

Door left open. • Door is not self-closing. Always make sure that the

door is closed after opening .

• Check to see if a bottle is holding door open.

If the temperature setting is • When the power came back on, the wine chiller

not showing what you last selected, a power outage may have occurred.

returned to the default setting, which is 50°F (10°C) .

Reset the control to the desired setting .

Wine chiller has odor

Interior needs cleaning. • See Care and cleaning .

Moisture forms on

Not unusual during periods • Wipe surface dry.

outside of wine chiller

of high humidity.

Moisture collects inside

Too frequent or too long

(in humid weather,

door openings.

air carries moisture into wine chiller when door is opened)

Wine bottles touching

the back wall.

Frost forms on interior

This is normal.

surfaces of wine chiller Door left open.

Wine chiller too cold

Temperature control

is set too cold.

• Reposition bottles.

• See the Defrosting section .

• Excessive frost may form if the door is left open.

See the Defrosting section .

• Door is not self-closing. Always make sure that the

door is closed after opening .

• Check to see if a bottle is holding door open.

• See About the control and settings .

If the temperature setting is

not showing what you last selected, a power outage may have occurred.

• When the power came back on, the wine chiller

returned to the default setting, which is 50°F (10°C) .

Reset the control to the desired setting .

Temperature in the display is not the temperature that was just set.

The room temperature where • For proper operation, the room temperature should

the wine chiller is located is

be equal to or greater than the set temperature of the

too cold.

wine chiller .

This is normal.

Condensation on front

Wine chiller is located in a

of door

high humidity environment.

• After you set the temperature, the display will go

back to showing the actual temperature .

• Wipe off the condensation with a clean, dry cloth.

• Locate the wine chiller in a lower humidity

environment .

Water on floor behind

Door left open.

wine chiller

• Door is not self-closing. Always make sure that the

door is closed after opening .

• Check to see if a bottle is holding door open.

The door will not close properly

The Wine/Beverage Cooler is

not level.

The door was reversed and not properly installed.

The gasket is dirty.

The shelves are out of position.

10

Please place in envelope and mail to:

Veuillez mettre dans une enveloppe et envoyez à :

OWNERSHIP REGISTRATION

P.O. BOX 1780

MISSISSAUGA, ONTARIO

L4Y 4G1

(FOR CANADIAN CONSUMERS ONLY -

POUR RÉSIDENTS CANADIENS SEULEMENT)

11

For Canadian

Customers

Pour les consommateurs canadiens

OWNERSHIP REGISTRATION CERTIFICATE – FICHE D’INSCRIPTION DU PROPRIÉTAIRE

Please register your product to enable us to contact you in the remote event a safety notice is issued for this product and to allow for efficient communication under the terms of

Veuillez enregistrer votre produit afin de nous permettre de communiquer avec vous si jamais un avis de sécurité concernant our warranty, should the need arise.

REGISTER ON-LINE:

ENREGISTREMENT SUR INTERNET À :

www.geappliances.ca

MR. / M. MRS. / MME

MISS/MLLE MS.

FIRST NAME / PRÉNOM ce produit était émis et de communiquer facilement avec vous en vertu de votre garantie, si le besoin s’en fait sentir.

MAIL TO:

P.O. BOX 1780, MISSISSAUGA

POSTEZ À : ONTARIO, L4Y 4G1

LAST NAME / NOM

STREET NO / N O RUE STREET NAME / RUE APT.NO/APP./RR#

CITY / VILLE

PROVINCE POSTAL CODE/CODE POSTAL

AREA CODE/ IND. RÉG.

TELEPHONE/TÉLÉPHONE E-MAIL/COURRIEL

DID YOU PURCHASE A SERVICE CONTRACT FOR THIS APPLIANCE?

AVEZ-VOUS ACHETÉ UN CONTRAT DE SERVICE POUR CET APPAREIL ?

NAME OF SELLING DEALER / NOM DU MARCHAND

INSTALLATION DATE / DATE D’INSTALLATION

Y/A M D/J

CORRESPONDENCE

CORRESPONDANCE

ENGLISH

FRANÇAIS

I do not wish to receive any promotional offers regarding this product.

Je ne désire pas recevoir d’offres promotionnelles concernant ce produit

.

YES/OUI

NO/NON

IF YES/SI OUI : EXPIRATION

Y/A

MODEL / MODÈLE

M

SERIAL / SÉRIE

D/J

12

Wine Chiller Warranty.

All warranty service provided by our Factory Service Centers, or an authorized

Customer Care

®

technician. For service call 1-800-561-3344.

Proof of the original purchase date is needed to obtain service under warranty.

GEAppliances.ca

For The Period Of:

One Year

From the date of the original purchase

Mabe Will Replace:

Any part

of the wine chiller which fails due to a defect in materials or workmanship . During this limited one-year warranty, Mabe will also provide, free of charge, all labour and service to replace the defective part .

What Mabe Will Not Cover:

Service trips to your home to teach you how to use the product .

Improper installation .

Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially .

Loss of wine due to spoilage .

Replacement of house fuses or resetting of circuit breakers

Damage to the product caused by accident, fire, floods or acts of God .

In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide .

Incidental or consequential damage to personal property caused by possible defects with this appliance .

Please read your Use & Care Material:

If you then have any questions about operating the product, please contact your dealer or our Consumer

Affairs office at the address below, or call toll free:

MC Commercial Inc .

1-800-561-3344

Consumer Information Service

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. If the product is located in an area where service by a Mabe Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Mabe

Service location.

Some provinces do not allow the exclusion or limitation of consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office.

Warrantor: MC Commercial Inc.

If further help is needed concerning this warranty, write;

Consumer Relations Manager - MC Commercial Inc.

1 Factory Lane, Suite 310, Moncton NB E1C 9M3

13

Installation Instructions

Service Telephone Numbers

In-Home Repair Service

1-800-561-3344

Expert Mabe repair service is only a phone call away .

Parts and Accessories

1-800-263-0686

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes .

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Service Satisfaction

If you are not satisfied with the service you receive from Mabe, follow these steps . First, contact the people who serviced your appliance . Next, if you are still not pleased, write all the details–including your phone number–to:

Manager, Consumer Relations,

MC Commercial Inc ., Suite 310, 1 Factory Lane,

Moncton (N .-B .) E1C 9M3

14

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
