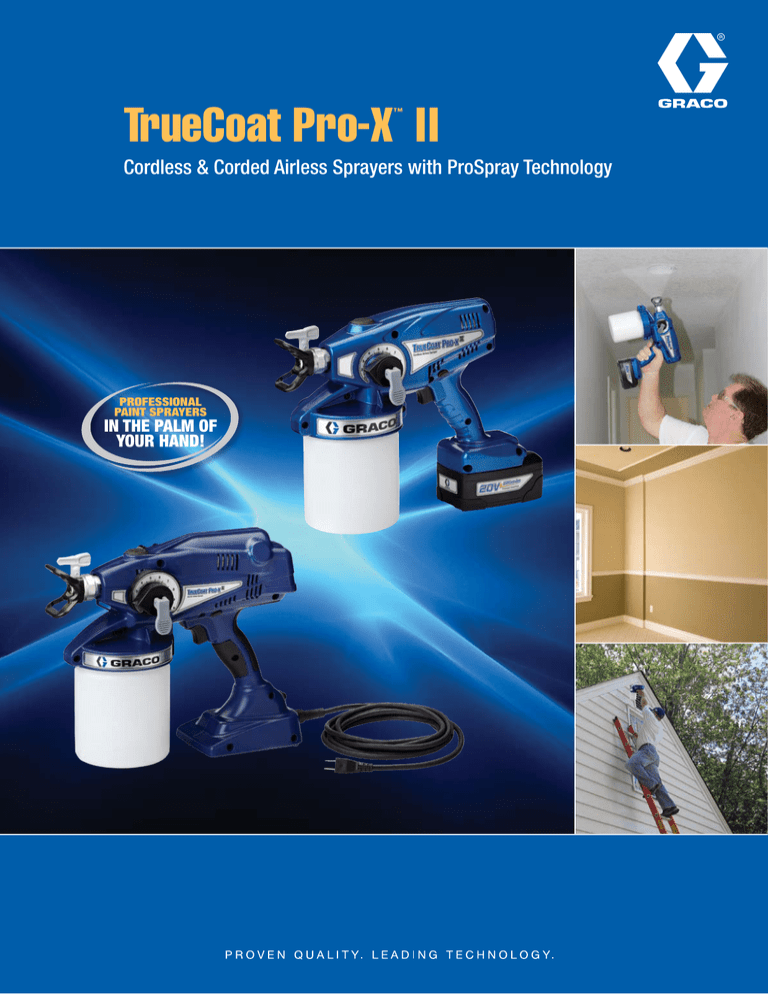

TrueCoat Pro-X II
™
Cordless & Corded Airless Sprayers with ProSpray Technology
professional
paint sprayers
in the palm of
your hand!
TrueCoat Pro-X II Cordless & Corded
TRUECOAT PRO-X FINE FINISH
TrueCoat Pro-X II
Cordless
FAMILY OF SPRAYERS
TrueCoat Pro-X II
Corded
TrueCoat Pro-X
fine finish*
The TrueCoat Pro-X II and TrueCoat Pro-X Fine Finish airless paint sprayers deliver an entirely
new way to airless spray! These sprayers are the industry’s first professional, cordless &
corded airless sprayers with ProSpray Technology. ProSpray Technology delivers Graco’s
professional piston-pump design into the palm of your hand – giving you the power and
freedom to spray wherever you want!
Graco TrueCoat Pro-X sprayers can spray a wide variety of coatings – with no thinning
required. The TrueCoat Pro-X II airless sprayer is ideal for interior and exterior applications
spraying most coatings at a high production rate but water based material only. TrueCoat
Pro-X Fine Finish sprays solvent based coatings for fine finish applications. Using both of
these sprayers will cover ALL of your small projects and touch-up painting needs.
TrueCoat Pro-X FAMILY advantages
 Ultimate portability to move around on the job
 Ready to spray in seconds
†
 Patented ProSpray Technology
TRUECOAT PRO-X II
 Fully Repairable
 Pressure/ Flow Control
Walls, Ceilings, Doors, Siding, Garage Doors, Fences,
Shutters, Decks
Trim, Cabinets, Bookcases,
Moulding, Doors, Furniture,
Stair Railings
Water-based Interior/Exterior Latex Paints, Stains, Enamels
Lacquers, Varnishes,
Urethanes, Sealers,
Stains and Enamels
Material and
Solvent
Compatibility
Most coatings that can be cleaned with water.
Not compatible with solvent-based coatings
Sprays solvent-based
coatings
and coatings described as
“flammable”
by the manufacturer **
Performance
.011 – .017 Tips
.008 – .012 Tips
Airless Tips
Included
TrueCoat Pro-X Reversible Tip
515
(2) Fine Finish Reversible Tips
210 & 312
Pressure
Control
Yes
Adjustable
1000-2000 psi
[69 bar – 138 bar]
Yes
Adjustable from
500 psi – 1500 psi
[32 bar – 97 bar]
Airless Tip
Sizes
Available
211, 411, 213, 413,
315, 515, 517
208, 308, 210, 310,
410, 312, 412
Paint Cup
32 oz [.95 L] Tilt-N-Spray™ Cup with Pendulum Design
24 oz [.70 L] Multi-Spray Cup
with Flexible Suction Tube
Typical
Applications
Typical
Coatings
Sprayed
 Tilt-N-Spray Pendulum Suction Tube Design
 20V Lithium Ion Power Pack Battery
TrueCoat Pro-X fine finish
 Ideal for fine finish applications
 ProControl allows user to spray the full range of
fine finish materials – from stains to lacquers to enamels
™
 Brushless DC motor and totally enclosed design
allows user to spray solvent-based materials
TrueCoat accessories
HECHO EN EE. UU. CON
COMPONENTES GLOBALES
 A wide assortment of accessories including
ProPack, extensions and tips and guards
Power Supply
Reparability
(2) 20V Lithium Ion
Power Packs
15 Feet (4.6 m) Electric Cord
Fully Repairable
(2) 18V Lithium Ion SlimLine
Power Pack Batteries
Fully Repairable
* Please refer to “TrueCoat Pro-X Fine Finish” brochure for details.
HECHO EN EE. UU. CON
COMPONENTES GLOBALES
1
** Please refer to the instruction manual for more detail about which coatings can be used with this product.
2
TrueCoat Pro-X II
CORDLESS & CORDED AIRLESS SPRAYER
TRUECOAT PRO-X II CORDLESS
PART NO:
16N669
TRUECOAT PRO-X II CORDED
PART NO:
16N667
The TrueCoat Pro-X II paint sprayer is designed specifically for small interior, exterior
and specialty projects. The true advantages of the TrueCoat Pro-X II sprayer are the
professional spray finish, ultimate portability on the job and that it is ready to spray in
seconds. Painting contractors can easily spray those small jobs without having to startup their larger airless sprayer. Start-up, spray and clean-up the job in minutes!
The TrueCoat Pro-X II Cordless & Corded now includes a ProControl Pressure Control
System that allows you to adjust the pressure to spray a wider variety of applications.
You’ll get maximum performance, reliability and finish quality that you’d expect from a
Graco sprayer.
Patented ProSpray
Technology delivers:
 S ame Pro Quality Finish as Graco’s
professional airless sprayers
Sprays material as designed by the
paint manufacturer – no thinning
required!
 Consistent, even spray pattern for
one-pass coverage
Tilt-N-Spray Pendulum Suction Tube
 Full range of motion of spraying up and down without losing
prime – just like a contractor gun
 Suction tube swings freely to evacuate virtually all of the material
from the cup – fewer refills means more productive spray time!
specifications:
TIP SUPPORT:.011 – .017
MATERIAL CUP (OZ/LITER):
32 (.95)
WORKING PRESSURE PSI (BAR):
1000-2000 (69-138)
includes:
• 515 Reversible Tip
• 32 oz (.95 l) Cup with Cover
and 5 Cup Liners
• Pump Armor Storage/Start-up
Tool
ProControl Pressure
Control System
 Achieve the best spray finish with thin and thick materials by simply adjusting the pressure
 Expands the type of jobs that can be
sprayed with a wider range of materials
More control and reduced overspray at lower fluid pressure
 Graduated ProControl label
allows repeatable settings for
common applications
• Sprayer Storage Case
Low Pressure
Improves quality
of finish and less
overspray with
thin materials
High Pressure
High production rate
with thick materials
Spray Up...
Spray Down...
and even Sideways!
Pump Armor
Storage/Start-up Tool
 Protects pump from corrosion
 Clears intake valve at startup
to provide reliable priming
every time
“Whether I am spraying
latex or stain, there’s no
difference in finish between
my airless rig and my
TrueCoat Pro-X II.”
Larry Werner
Mountain View Painting
Phoenix, AZ
Fully Repairable
 Ability to replace all parts of the sprayer with simple,
modular components to extend the life of the sprayer
Lightweight, Compact Design
 Smaller, compact design is ideal spraying in tight
areas with ease
Powerful 20V Lithium-Ion
Battery Packs
Sprayer Storage Case
 Extra room for tips, rags,
filters and paint supplies
 Convenient carrying
from job-to-job
 Durable all-in-one storage
case protects all components
inside
 Exclusive, reliable high performance
15 Feet (4.6 Meter) SuperFlex Power Cord
 No need for an extension cord for small projects
battery pack delivers maximum
pump performance
 Able to spray up to 1 gal (3.78 l) with
each battery charge
 Allows for ultimate portability – an airless
sprayer in the palm of your hand!
“The TrueCoat Pro-X II sprayer
is great because it’s a
compact sprayer that I can
break out on small jobs like
front doors and trim.”
Andy Bass
Bass Brothers Production
Sarasota, FL
2 Batteries Included
3
4
TrueCoat Pro-X II
TrueCoat Pro-X II REVERSIBLE TIPS
TrueCoat Pro-X II RAC Spray Tips are a uniquely
designed tip and guard combination that is optimized
for use with ProSpray Technology.
Available in narrow and wide
fan sizes for thin to heavy,
unthinned coatings.
TrueCoat Pro-X II COATINGS & Tip Sizes
Thin
Medium
Heavy
Stains
Enamels,
Thin Latex
213, 413
Heavy Latex
211, 411
315, 515, 517
Use with water-based coatings that can be cleaned with water
MATERIAL CUPS AND LINERS to complete the job faster.
Extend your capabilities by adding accessories
MATERIAL CUPS AND LINERS
For larger applications and less cup fills purchase additional cups. Each cup
includes a cover for storage or to shake it for fast clean-up without a cup liner.
16D560 32 oz (.95 l) Material Cup and Cover
16D561 48 oz (1.42 l) Material Cup and Cover
16D562 Material Cup Liners – 10 Pack
 Fits 32 oz, 48 oz cups; disposable cup liners make cleanup fast and easy
20V LITHIUM-ION BATTERIES & CHARGER
3 EASY start-up and clean-up steps
Ready to spray within seconds! Simply pour the paint in the cup, prime the pump and you’re ready to go.
Add another battery to spray larger than 2 gallon (7.57 l) jobs. One fully charged
battery is able to spray up to 1 gallon (3.78 l) for continuous spraying. Charge time
for 80% performance is 45 minutes. (Compatible with TrueCoat Pro-X, TrueCoat Pro-X II
and TrueCoat Pro-X Fine Finish)
16D558
16G615
16F628
1. Fill cup with paint.
2. Attach cup to sprayer.
Accessories
3. Prime the sprayer.
124783
20V Lithium-Ion Power Pack
240V Charger with Asia Adapter
 Add a charger to reduce down time by charging two batteries at once. Light
indicators monitors and displays charging process. (Compatible with TrueCoat
Pro-X, TrueCoat Pro-X II and TrueCoat Pro-X Fine Finish) power source.
Portable Battery Charger
 Plugs directly into a 12V port and charges your battery on the way to the job
site! Charges when the electrical power is not available. Great for emergency
situations as a back up power source.
Asia Adapter for Charger
TrueCoat Pro-X II Reversible Tips*
Clean-up is easy with disposable cup liners. Just empty the liner and throw it away. Fill the cup with water,
flush it through the pump and you’re ready for the next job!
PST211/ PST411/ PST213/ PST413/ PST315/ PST515/ PST517
TIP FILTERS
 Threads directly into the guard and filters paint for less tip plugs.
24E376 60 Mesh – 1 Pack
24F039 60 Mesh – 3 Pack
MISCELLANEOUS
243103 Pump Armor – 1qt (.94 l)
16M816 Pump Armor Storage/Startup Kit
Cleans intake valve at startup to provide reliable priming
®
1. T hrow away disposable
cup liner.
2. Fill cup with water.
3. Reverse tip and flush.
Pump Armor protects the airless pump during storage. Fill sprayer with Pump Armor
and leave it until you use it again.
* Use with TrueCoat Pro-X II sprayer only. Do not use with TrueCoat Pro-X Fine Finish sprayer.
5
6
TrueCoat Pro-X II Accessories
PACK
E xpands your ability to spray small projects without interruptions.
Longer spray times with less refills and less wait!
PORTABLE SPRAY PACK
24F893
ProPack Portable Spray Pack – For use with TrueCoat Pro-X and TrueCoat Pro-X II sprayers only.
Removable 1 gal (3.78 l) Paint Container
 Makes filling and cleaning simple and easy
 Includes disposable liners to reduce clean-up time
 Holds up to 1 gal (3.78 l) of material for continuous spray with one battery charge
Spray In Any Direction
 Separates the gun from the cup to spray at any angle – ceilings, walls and floors
 Suction tube positioned to draw virtually all paint from bottom of container
when spraying at an angle
Comfortable, Ergonomic Backpack
 Remove the weight of the material from your hand to spray a longer period of time
with less fatigue
 Evenly distributes the weight on your back
 Extra large pockets for storing tips, batteries and tools
 Softback design rests comfortably on your back
 Ability to power flush the hose and gun with direct hook-up to a utility sink or garden hose
 Entire system cleans-up in less than 10 minutes
24H365 1 Gallon (3.67 l) Reservoir and Cover
24H366 ProPack 1 Gallon (3.78 l) Liners – 5 Pack
Quick Clean-up
The Spray Extensions not only extend your reach but they allow you to keep the TrueCoat Pro-X
horizontal while spraying ceilings and floors to use virtually all of the material in the cup before refilling.
A patented integrated needle shuts the fluid off at the tip for a crisp pattern with no spitting.
FIXED extensions – For use with TrueCoat Pro-X and TrueCoat Pro-X II sprayers only.
24F727
24F728
12 in (30 cm) Fixed Spray Extension
24 in (60 cm) Fixed Spray Extension
 Exclusive, two-way pivot point design allows you to angle the pole 180° to
spray ceilings, walls and floors with a consistent, even spray pattern.
Tip and guard not included.
FLEXIBLE extension – For use with TrueCoat Pro-X and TrueCoat Pro-X II sprayers only.
24F729
12 in (30 cm) Flexible Spray Extension
 Articulating extension can easily flex in any
direction for hard-to-reach areas and small
projects with many angles. Tip and guard not included.
ASIA PACIFIC
AUSTRALIA
Tel: 61 3 9468 8500 Fax: 61 3 9468 8599
CHINA
Tel: 86 21 6495 0088 Fax: 86 21 6495 0077
INDIA
Tel: 91 124 435 4208 Fax: 91 124 435 4001
JAPAN
Tel: 81 45 593 7300 Fax: 81 45 593 7301
KOREA
Tel: 82 31 476 9400 Fax: 82 31 476 9801
www.graco.com
©2012 Graco Inc. 342354A 09/2012 Printed in China
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
Blue is a trademark of Graco Inc. for Contractor Equipment Sprayers.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
