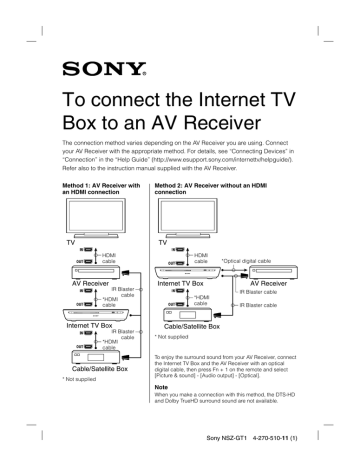

To connect the Internet TV Box to an AV Receiver

To connect the Internet TV Box to an AV Receiver
To connect the Internet TV
Box to an AV Receiver
The connection method varies depending on the AV Receiver you are using. Connect
your AV Receiver with the appropriate method. For details, see “Connecting Devices” in
“Connection” in the “Help Guide” (http://www.esupport.sony.com/internettv/helpguide/).
Refer also to the instruction manual supplied with the AV Receiver.
Method 1: AV Receiver with
an HDMI connection
TV
Method 2: AV Receiver without an HDMI
connection
TV
HDMI
cable
AV Receiver
IR Blaster
cable
*HDMI
cable
Internet TV Box
IR Blaster
cable
*HDMI
cable
Cable/Satellite Box
* Not supplied
HDMI
cable
Internet TV Box
*Optical digital cable
AV Receiver
IR Blaster cable
*HDMI
cable
IR Blaster cable
Cable/Satellite Box
* Not supplied
To enjoy the surround sound from your AV Receiver, connect
the Internet TV Box and the AV Receiver with an optical
digital cable, then press Fn + 1 on the remote and select
[Picture & sound] - [Audio output] - [Optical].
Note
When you make a connection with this method, the DTS-HD
and Dolby TrueHD surround sound are not available.
Sony NSZ-GT1 4-270-510-11 (1)
When pictures from the
Cable/Satellite Box are not
displayed
If you are using an AV Receiver, pictures from the Cable/Satellite Box may not be displayed
properly during the Initial Setup or Setting screen even though the Cable/Satellite Box is
connected to the Internet TV Box.
Initial Setup screen*
Video input settings screen in the
Settings menu*
There is no picture.
* The illustrations may differ from the actual display.
In this case, try the following.
 Make
sure that HDMI cables are connected securely to the Cable/Satellite Box and to the
Internet TV Box.
 Turn
the Cable/Satellite Box off, then turn it on again.
When the Internet TV Box and TV are connected with HDMI cables via an AV Receiver,
pictures may not be displayed even if you try the steps suggested above. In this case,
try reconnecting the Internet TV Box directly to the HDMI input of the TV. (Refer to
Method 2 on the front side of this sheet.)
Pictures may not be displayed properly because of the copyright protection feature of some
Cable/Satellite Boxes when the Internet TV Box and TV are connected with HDMI cables via
an AV Receiver. In this case, contact your Cable/Satellite TV Operators.
4-270-510-11(1)
© 2010 Sony Corporation
Printed in China
Sony NSZ-GT1 4-270-510-11 (1)
