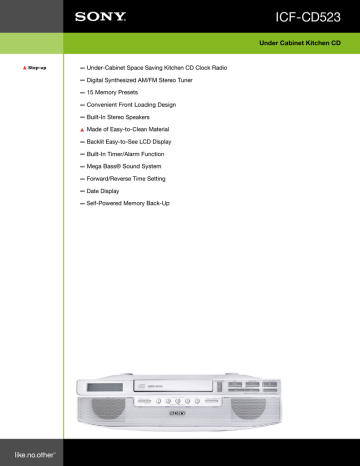

ICF-CD523
ICF-CD523
Under Cabinet Kitchen CD
Step-up
Under-Cabinet Space Saving Kitchen CD Clock Radio
Digital Synthesized AM/FM Stereo Tuner
15 Memory Presets
Convenient Front Loading Design
Built-In Stereo Speakers
Made of Easy-to-Clean Material
Backlit Easy-to-See LCD Display
Built-In Timer/Alarm Function
Mega Bass® Sound System
Forward/Reverse Time Setting
Date Display
Self-Powered Memory Back-Up
ICF-CD523
Under Cabinet Kitchen CD
Features
Slim Design Under-Cabinet Space Saving Kitchen CD Clock
Radio brings a multi-media entertainment center into the kitchen,
mounting under a cabinet so it takes up none of your precious counter
space
Digital Synthesized AM/FM Stereo Tuner makes tuning-in a
desired station simple and precise with accurate drift-free tuning of AM
and FM radio stations
Format(s) Supported: CD-R
Sound Enhancer: Mega Bass® Sound System
Station Preset(s): 10 (5 AM, 5 FM)
Tuning: 5 Direct Access Buttons
Convenience
Timer Clock: Yes
Alarm: Yes
Date/Time Stamp: Date Display
Hardware
PLL Quartz Digital Frequency Synthesized Tuning is an
extremely accurate method of tuning with optimum stability which
reduces station drift
Display: Backlit LCD
Power
15 Station Memory Presets lets you quickly and easily tune in to your
choice of up to 15 AM or FM radio stations
Power Requirements: AC 120V, 60Hz
Output Power: 1.2W + 1.2W (at 10% harmonic distortion)
Power Back-up: Self Power back-up
Convenient Front Loading Design with slide-out mechanism for
fast, easy access to the compact disc
Speaker
Built-In Stereo Speakers enhances realistic listening effect with
separate left- and right-channel speakers
Made of Easy-to-Clean Material so you can keep this special
entertainment appliance as neat and clean as the kitchen itself
Backlit Easy-to-See LCD Display shows time, mode, selected radio
band, CD track, and other information with large LCD numerals that are
easy to see from across the kitchen, even in the dark
Built-In Timer/Alarm Function acts as a built-in timer for food
preparation or other uses, and automatically alerts you to a particular time
which you set
Mega Bass® Sound System reproduces the rich, powerful bass
tones for a more enjoyable listening experience
Date Display on front panel is clear and easy to read, to keep you up to
date as well as up to the minute
Speaker Dimensions: 2 5/8" (66mm)
Speaker Type: Stereo, Built-In
Dimensions
Weight: 7 lbs. 2 oz (3.2kg)
Measurements: 14 1/2" x 4 1/4" x 9 5/8" (368 x 108 x 244mm)
Color: White
UPC Code: 027242682191
©2005 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measuresn are
approximate.
©2006 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Dream Machine,
Mega Bass, and like.no.other are trademarks of Sony.
Forward/Reverse Time Setting for easy, speedy and efficient time
and alarm settings
Self-Powered Memory Back-Up needs no additional battery to
maintain clock and alarm settings and operation in event of a temporary
power failure
Specifications
General
Design: Under Cabinet Kitchen
Day/Night Function: Time: 12 hour system
Audio
Frequency Range: AM: 530-1710kHz; FM: 87.5-108MHz
Antenna System: AM: Built-in Ferrite Bar Antenna; FM: Power cord
antenna
Tuner Type: Digital
CD Play Mode(s): Shuffle, Shuffle-Repeat, Repeat-1, Repeat All
Please visit the Dealer Network for current information at www.sony.com/dn
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 03/02/2006
