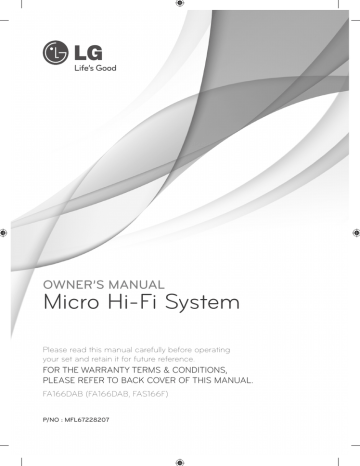

OWNER’S MANUAL

Micro Hi-Fi System

Please read this manual carefully before operating your set and retain it for future reference.

FOR THE WARRANTY TERMS & CONDITIONS,

PLEASE REFER TO BACK COVER OF THIS MANUAL.

FA166DAB (FA166DAB, FAS166F)

P/NO : MFL67228207

2 Getting Started

1

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning fl ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a confi ned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.

Use of controls, adjustments or the performance of procedures other than those specifi ed herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specifi cation page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.

Any of these conditions could result in electric shock or fi re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Getting Started 3

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the

battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fi re or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects fi lled with liquids, such as vases, shall be placed on the apparatus.

POWER: This unit operates on a mains supply of

200-240V~, 50/60Hz.

WIRING: This unit is supplied with a BSI 1363 approved 13 amp mains plug, fused at 5 amp.

When replacing the fuse always use a 5 amp BS

1362, BSI or ASTA approved type. Never use this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your dealer. If the type of plug supplied is not suitable for the mains sockets in your home, then the plug should be removed and a suitable type fi tted. Please refer to the wiring instructions below:

WIRING: A mains plug removed from the mains lead of this unit must be destroyed. A mains plug with bared wires is hazardous if inserted in a mains socket. Do not connect either wire to the earth pin, marked with the letter E or with the earth symbol or coloured green or green and yellow. If any other plug is fi tted, use a 5 amp fuse, either in the plug, or at the distribution board.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following codes:

- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires in the mains lead of this unit may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter

N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the

European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, disposal service or the shop where you purchased the product.

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive

2004/108/EC, 2006/95/EC, and

2009/125/EC.

European representative :

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327 AE Almere, The

Netherlands (Tel : +31–(0)36–547–8888)

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.

(Mastered/ Live File System : Disc format system for

Windows Vista)

1

4 Table of Contents

Table of Contents

3 Operating

13 – CD/ USB Operations

6 Accesories

6 – Compatible USB Devices

6 – USB device requirement

2 Connecting

11 Connecting to speakers

11 – Attaching the speakers to the unit

11 Optional Equipment Connection

11 – PORT. IN Connection

(ID3 TAG)

13 – Turn off the sound temporarily

14 – Listening to the radio

14 – Presetting the Radio Stations

14 – Deleting all the saved stations

14 – Improving poor FM reception

14 – Seeing information about a Radio station

15 – Listening to the DAB

15 – Aligning the service names

15 – Deleting all of the saved DAB scan stations

15 – Setting the surround mode

16 Setting the Clock

16 – Using your player as an alarm clock

17 – Playing the iPod

18 – Listening to music from your external device

19 – Recording to USB

19 – To select recording bit rate and speed

4 Troubleshooting

20 Troubleshooting

5 Appendix

21 Trademarks and Licenses

22 Specifi cations

23 Maintenance

23 – Notes on Discs

23 – Handling the Unit

6 Warranty

24 Warranty

Table of Contents 5

3

4

5

6

1

2

6 Getting Started

1

Unique Features

USB Direct Recording

Records music to your USB device.

Portable In

Listens to music from your portable device. (MP3,

Notebook, etc)

Accessories

Please check and identify the supplied accessories.

FM Antenna (1)

Battery (1)

Remote Control (1)

Stereo miniplug cable (1) which creates an ISO 9660 fi le system.

Compatible USB Devices

• MP3 Player : Flash type MP3 player.

• USB Flash Drive :

Devices that support USB2.0 or USB1.1.

• The USB function of this unit does not support all USB devices.

USB device requirement

• Devices which require additional program installation when you have connected it to a computer, are not supported.

• Do not extract the USB device while in operation.

• For a large capacity USB, it may take longer than a few minute to be searched.

• To prevent data loss, back up all data.

• If you use a USB extension cable or USB hub, the

USB device is not recognized.

• Using NTFS fi le system is not supported. (Only

FAT(16/ 32) fi le system is supported.)

• This unit is not supported when the total number of fi les is 1 000 or more.

• External HDD, Card readers, Locked devices, or hard type USB devices are not supported.

• USB port of the unit cannot be connected to

PC. The unit cannot be used as a storage device.

Playable fi le

Requirement

MP3/ WMA music fi le requirement

MP3/ WMA fi le compatibility with this unit is limited as follows :

• Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA)

• Bit rate : within 32 to 320 kbps (MP3),

40 to 192 kbps (WMA)

• Maximum fi les : Under 999

• File extensions : “.mp3”/ “.wma”

• CD-ROM fi le format : ISO9660/ JOLIET

• We recommend that you use Easy-CD Creator,

Getting Started 7

Remote control

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert one (size AAA) battery with

4 and 5 matched correctly

• • • • • • a • • • • • •

1 (POWER): Switches the unit

ON or OFF.

SLEEP: Sets the system to turn off automatically at a specifi ed time.

(Dimmer : The display window will be darkening by half.)

B (OPEN/CLOSE): Ejects or insert the disc from slot loader.

F (FUNCTION): Selects the fuction and input source.

SOUND EFFECT: Chooses sound impressions.

INFO: Checks information about your music. MP3 fi les often come with tags. The tag gives the Title,

Artist, Album or Time information.

• • • • • • c • • • • • •

FOLDER · PRESET w/s: Searches for a folder of MP3/ WMA fi les.

When a CD/ USB containing MP3/

WMA fi les in several folders is being played, press

FOLDER · PRESET w/s selects to the folder you want to play.

Choose a ‘preset number’ for a radio station.

PROGRAM/MEMO.:

- For storing radio stations if you have saved radio stations using

PROGRAM/MEMO. , you can scroll through them and select one.

- Listens to your tracks in any order.

@ (MUTE): Mutes the sound.

VOL +/-: Adjusts speaker volume.

• • • • • • b • • • • • •

REPEAT /MENU:

- Listens to your tracks repeatedly or randomly.

- Move to the previous menu(iPod).

TUNING -/+: Selects the radio station.

C/V (Skip/Search):

-Skips Fast backward or Forward.

- Searches for a section within a track.

d/M (Play/Pause): Starts or pauses playback.

Z ENTER: Stops playback or recording.

• • • • • • d • • • • • •

RDS/ PTY : RDS (Radio Data

System)/ Searches radio stations by radio type.

X REC: USB direct recording.

DAB INFO.:

- Search radio stations RDS (Radio

Data System) or DAB radio type.

- Changes the display information of DAB channel.

SORT/SCAN:

- Searches radio stations by radio type.

- Aligning the service names DAB band scanning.

1

1

8 Getting Started

Front panel

Getting Started 9

a Disc Slot b iPod dock c 1/! (POWER)

Switches the unit ON or OFF.

d Display window

Shows the current status of the unit.

e FUNC. (FUNCTION)

Changes the input source or function.

f USB Port

Connects an USB device.

g EQ

You can choose fi xed sound impression.

- Confi rms the setting./ RDS (Radio Data

System).

- Show DEMO.

TIMER

With the TIMER function you can turn USB, CD play and TUNER reception on or off at a desired time.

CLOCK

For setting the clock and checking the time.

h B (OPEN/CLOSE)

Ejects or insert the disc from slot loader.

i C/V (Skip/Search):

Goes to next or previous fi le/track.

Searches backward or forward (Press and hold)

Tunes in the desired radio station.

d/M (PLAY / PAUSE)

Starts playback.

Pauses playback temporarily, press again to exit pause mode. j -/+ (VOLUME)

Adjusts speaker volume.

Z (STOP)

Stops playback.

k USB REC.

Recoding to USB.

l PORT. IN

Connects to a portable player with audio outputs.

PHONES

Headphone jack

1

1

10 Getting Started

Rear panel

a Antenna Connector

DAB - Connects the DAB antenna.

b ANTENNA (FM) c Speaker terminal d Cooling fan e Power cord

Optional Equipment

Connection

Connecting 11

Connecting to speakers

Attaching the speakers to the unit

To connect the cable to the unit, press each plastic fi nger pad to open the connection terminals on the unit. Insert the wire and release the fi nger pad.

Connect the black stripe of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).

PORT. IN Connection

Connect an output of portable device (MP3 or PMP etc) to the AUDIO (PORT. IN) input connector.

2

MP3 player, etc...

>

Caution

 The speakers contain magnet parts, so color irregularity may occur on the TV screen or

PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

 Make sure to install the speaker with other people in order to prevent it from falling and causing injuries to the installer.

2

12 Connecting

USB Connection

Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.

Antenna Connection

Connect the supplied FM antenna for listening to the radio.

Connect the FM Wire antenna to the FM antenna connector.

,

Note

 Removing the USB Device from the unit

1. Choose a diff erent function/ mode or press Z ENTER twice in a row.

2. Remove the USB device from the unit

 You can only recharge your iPod through

USB port. To listen to music on iPod, refer to the page 17.

,

Note

Be sure to fully extend the FM wire antenna.

After connecting the FM wire antenna, keep it as horizontal as possible.

Basic Operations

Operating 13

Other Operations

CD/ USB Operations

1. Insert the disc by pressing B (OPEN/CLOSE) or connect the USB device to the USB port.

2. Select the CD or USB function by pressing

F (FUNCTION) on the remote control or FUNC. on the unit.

3. Select a fi le (or track) you want to play by pressing C/V.

To

Stop Press Z ENTER

Playback Press d/M

Pause Press d/M

Skipping to the next/ previous track/ fi le

Do this

During playback, press C/V to go to the next track/ fi le or to return to the beginning of the current track/ fi le.

Press C twice briefl y to step back to the previous track/ fi le.

Searching for a section within a track

Press and hold C/V during playback and release it at the point you want to listen to.

Searching for a section within a folder

Press FOLDER · PRESET w/s and then d/M.

Playing repeatedly or randomly

Press REPEAT on the remote control repeatedly, the display change in the following order,

RPT1 -> RPT DIR (only MP3/ WMA)

-> RPT ALL -> RANDOM -> OFF

Programmed Playback

The program function enables you to store your favorite fi les from any disc or USB device.

A program can contain 20 tracks.

1. Insert a CD or USB and wait for it to be order.

2. Press PROGRAM/MEMO. on the remote control in stop status.

control in stop satus.

select a next track.

6. To clear your selection, press Z ENTER,

PROGRAM/MEMO. and then Z ENTER.

,

Note

The programs are also cleared when the disc or USB device is removed, the unit is powered off or the function is switched to others.

Displaying fi le information

(ID3 TAG)

While playing an MP3 fi le containing fi le information, you can display the information by pressing INFO.

Turn off the sound temporarily

Press @ (MUTE) to mute your unit.

You can mute your unit, for example, to answer the telephone, the “q” is displayed in the display window.

3

3

14 Operating

DEMO

In the power off state, it demonstrates the function on display window by pressing DEMO. To cancel the DEMO, press it again.

,

Note

 While DEMO, this unit will keep DEMO status even if you unplug the power cord connection.

 You can enjoy other functions during the DEMO. Then the DEMO will pause to temporary.

- Without input key in 10 sec, the DEMO will play back automatically.

Radio Operations

Be sure that FM aerial is connected.

(Refer to the page 12)

Listening to the radio

display window.

The last received station is tuned in.

2. Press and hold TUNING -/+ for about two seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station.

Or

- In DAB function, press d/M to start.

3. Adjust the volume by pressing -/+ on the unit or by pressing VOL +/- on the remote control repeatedly.

Presetting the Radio Stations

You can preset 50 stations for FM .

Before tuning, make sure to turn down the volume.

display window.

2. Select the desired frequency by pressing

TUNING -/+.

- In DAB function, press d/M to start.

fl ash in the display window.

FOLDER · PRESET w/s to select the preset number you want.

6. Repeat steps 2 to 5 to store other stations.

7. To listen a preset station, press

FOLDER · PRESET w/s.

Deleting all the saved stations

1. Press and hold PROGRAM/MEMO. for two seconds. “ERASE ALL” will fl ash up on the unit display. radio stations.

Improving poor FM reception

Press d/M on the unit or d/M on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

Seeing information about a

Radio station

The FM tuner is supplied with the RDS (Radio Data

System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types. :

PS

PTY

RT

CT

(Programme Service Name)

The name of the channel will appear in the display

(Programme Type Recognition)

The programme type (e.g. Jazz or News) will appear in the display.

(Radio Text)

A text message contains special information from the broadcast station.

This text may scroll across the display.

(Time controlled by the channel)

This shows the time and date as broadcast by the station.

You can search the radio stations by programme type by pressing RDS. The display will show the last

PTY in use. Press PTY one or more times to select your preferred programme type. Press and hold

C/V. The tuner will search automatically.

When a station is found the search will stop.

Operating 15

Listening to the DAB

You can change the display information of the currently broadcasting DABchannel. Press

DAB INFO. on the remote control repeatedly, the display changes in the following order,

SERVICE -> PTY NAME -> FREQ -> DLS -> QUALITY

-> ENSEMBLE

Select a display mode and then press C/V, the initials of the servicename are displayed.

SERVICE

Displays the Name of the channel for the current broadcast.

PTY NAME

Displays the Type of the channel for the current broadcast.

FREQ Displays the frequency of the channel for the current broadcast.

channel which is selected.

broadcast signal in Bar form.

for the current broadcast.

Aligning the service names

Press SORT/SCAN on the remote control to display the sorting mode of DAB broadcastings. Then, press the button once again to change the mode.

Default sort: The service names are aligned in a scanning order.

Name sort: The service names are aligned in an alphabetical order.

DAB scan

Press SORT/SCAN on the remote control for longer than 3 seconds, all ofthe DAB bands are scanned.

Then press it again, scanning will be cancelled.

Deleting all of the saved DAB scan stations

Press and hold DAB INFO. on the remote control for 3 seconds. “DAB INIT” will be displayed. Press

DAB INFO. to erase all the saved stations.

Sound adjustment

Setting the surround mode

This system has a number of pre-set surround sound fi elds. You can select a desired sound mode by using SOUND EFFECT on the remote control or

EQ on the unit.

The displayed items for the Equalizer may be diff erent depending on sound sources and eff ects.

On Display

NATURAL

Description

You can enjoy comfortable and natural sound.

Local

Specialization equalizer

Regionally optimized sound eff ect. (FORRO/ FUNK/

SERTANEJO/ DANGDUT/

ARABIC/ PERSIAN/ INDIA/

REGUETON/ MERENGUE/ SALSA/

SAMBA/ CUMBIA/ AFRO)

AUTO EQ

POP

CLASSIC

JAZZ

ROCK

MP3 -- OPT

BASS BLAST

LOUDNESS

VIRTUAL

BYPASS

Realizes the sound equalizer that is the most similar to the genre of which is included in the MP3

ID3 tag of song fi les.

This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock pop, jazz or classic concert.

This function is optimized for compressible MP3 fi le. It improves the treble sound.

Reinforces the treble, bass and surround sound eff ect.

Improves the bass and treble sound.

You can enjoy more virtual surround sound.

You can enjoy the sound without equalizer eff ect.

3

3

16 Operating

,

Note

 On some speakers, sound may not be heard or heard in low sound depending on the sound mode.

 Maybe you need reset the surround mode, after switching the input, sometimes even after the sound track changed.

Setting the Clock

1. Turn the unit on.

3. Choose time mode by pressing C/V.

- AM 12:00 (for an AM and PM display) or 0:00

(for a 24 hour display)

5. Select the hours by pressing C/V.

7. Select the minutes by pressing C/V.

Using your player as an alarm clock

1. Turn the unit on.

woken by is showing.

4. “ON TIME” will be displayed. This is your desired time to unit turns on. Press C/V to change the hours and minutes and press SET to save.

5. The “OFF TIME” will be displayed. This is your desired time to unit turns off .

minutes and press SET to save.

press SET to save. The clock icon "(“ shows that the alarm is set.

setting status.

,

Note

 If you set the clock time, you can check the time by pressing CLOCK even when the player is turned off .

 If you set the clock time and alarm, you can check the alarm icon “(“ by pressing

CLOCK even when the player is turned off .

 If you set the clock time and alarm, you can check the alarm icon “(“ and setting informaiton by pressing TIMER even when the unit is turned off . Then this function will working in everyday.

Operating 17

Sleep Timer Setting

Press SLEEP repeatedly to select delay time between 10 and 180 minutes. After the delay time, unit will turn off .

To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press

SLEEP once again while “SLEEP 10” is displayed.

,

Note

 You can check the remaining time before the unit turns off .

 Press SLEEP. The remaining time appears in the display window.

 Sleep function will working after dimmer.

Advanced Operations

Playing the iPod

You can enjoy the sound with your iPod. For details about iPod, refer to the iPod User Guide.

1. Connect the iPod fi rmly.

Dimmer

Press SLEEP once. The display window will be darkening by half. To cancel it, press SLEEP repeatedly until dim off . If touch the buttons in

Sleep Timer mode, the buttons will be lightening for 5 seconds and darkening again.

If you turn this unit on, your iPod is automatically turned on and recharging starts.

the remote control to select iPod function. You can operate your iPod through an iPod’s display by using the supplied remote control and also control on your iPod.

3

3

18 Operating

To

ON UNIT

Do this

ON REMOTE

d/M d/M

Pauses or restart

Skip C/V C/V

Search

Press and hold

C/V

Press and hold

C/V

Move to the previous menu

-

REPEAT

/MENU

Move to the desired item

-

FOLDER

PRESET

w/s

Z ENTER

Chooses a item

I

Compatible iPod

 We recommend installing the latest software version.

 The unit supports the models as follows: iPod nano 1 G, 2 G, 3 G, 4 G, 5 G, 6 G/ iPod classic/ iPod 4 G, 5 G/ iPod touch 2 G, 3 G, 4 G/ iPhone 3 G, 4.

For some models, the unit may not operate depending on the fi rmware version.

 Depending on your iPod’s software version, you may not control your iPod from the player.

,

Note

 If this unit displays an error message, follow the message. An error message “ERROR”.

- Your iPod is not connected fi rmly.

- This unit recognizes your iPod as an

unknown device.

- Your iPod is exceptionally low in power.

/ The battery needs to be charged.

/ If you charge the battery while iPod is extremely low in power, it may take longer to be charged.

 iPod does not support recording function when connected.

 Depending on your iPod’s software version, it may not be possible to control your iPod from this unit. We recommed installing the latest software version.

 If you use an application, make a call, or send and receive SMS text message, etc. on iPod touch or iPhone, disconnect it from iPod dock of this unit and then use it.

 If you have a problem with your iPod, please visit www.apple.com/support/ipod.

Listening to music from your external device

The unit can be used to play the music from many types of external device.

(Refer to the page 11)

1. Connect the external device to the PORT. IN connector of the unit.

2. Turn the power on by pressing 1/! (Power).

3. Select the PORTABLE function by pressing

FUNC. on the unit or F (FUNCTION) on the remote control.

4. Turn the external device and start it playing.

Recording to USB

1. Connect the USB device to the unit.

2. Select a function by pressing FUNC. on the unit or F (FUNCTION) on the remote control.

One track recording - You can record to USB after playing a fi le you want.

All tracks recording - You can recording to USB after stop.

Program list recording - After showing the programmed list, you can record it to USB.

3. Start the recording by pressing USB REC. on the unit or X REC on the remote control.

4. To stop recording, press Z on the unit or

Z ENTER on the remote control.

Pausing recording

During recording, press USB REC. on the unit or

X REC on the remote control to pause recording.

Press it again to restart recording. (Only Radio/

Portable)

To select recording bit rate and speed

remote control for longer than 3 seconds.

select the bit rate.

remote control again to select the recording speed.

control to select a desired recording speed;

(Only AUDIO CD)

X1 SPEED

- You can listen to music while recording it.

X2 SPEED

- You can just record the music fi le. remote control to fi nish the setting.

,

Note

 You can check the recording percentage rate for the USB record on the display window during the recording. (MP3/ WMA

CD Only)

 During recording MP3/ WMA, there is no sound.

 When you stop recording during playback, the fi le that has been recorded at that time will be stored. (AUDIO CD Only)

 Do not remove the USB device or turn off the unit during USB recording. If not, an incomplete fi le may be made and not deleted on PC.

 If USB recording does not work, the message like “NO USB”, “ERROR”, “FULL” or “NO

REC” is displayed on the display window.

 Multi card reader device or External HDD can not be used for USB recording.

 A fi le is recorded by about 512 Mbyte when you record for a long term.

 When you stop recording during playback, the fi le will not be stored.

 You may not store more than 999 fi les.

 It’ll be stored as follows.

AUDIO CD MP3/ WMA

* : TUNER, Portable and the like.

Operating 19

The other source*

The making of unauthorized copies of copyprotected material, including computer programs, fi les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal off ense.

This equipment should not be used for such purposes.

Be responsible

Respect copyrights

3

20 Troubleshooting

Troubleshooting

4

General

Problem

No Power.

No sound.

Cause & Correction

 The power cord is not plugged in. Plug in the power cord.

 Check whether electricity failed. Check the condition by operating other electronic devices.

 Check whether you select right function. Press F (FUNCTION) and check the selected function.

 If not, connect speaker cables correctly. Speaker cables connected correctly.

The unit does not start playback.

 An unplayable disc is inserted. Insert a playable disc.

 No disc is inserted. Insert a disc.

 The disc is dirty. Clean the disc. (Refer to the 23 page)

Radio stations cannot be tuned in properly.

 The antenna is positioned or connected poorly. Connect the antenna securely.

 The signal strength of the radio station is too weak. Tune to the station manually.

 No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels). Preset some radio stations, see page

14 for details.

The remote control does not work properly.

 The remote control is too far from the unit. Operate the remote control within about 23 ft (7 m).

 There is an obstacle in the path of the remote control and the unit. Remove the obstacle.

 The batteries in the remote control are exhausted. Replace the batteries with new ones.

iPod does not work.

 Check whether the player is connected to the unit correctly. Connect it to the unit correctly.

Trademarks and

Licenses

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifi cally to iPod or iPhone respectively, and has been certifi ed by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone may aff ect wireless performance.

Appendix 21

5

22 Appendix

Specifi cations

5

General

Power requirements

Power consumption

Dimensions (W x H x D)

Net Weight (Approx.)

Operating temperature

Operating humidity

Bus Power Supply

200 - 240 V , 50/ 60 Hz

45 W

135 X 295 X 315 mm

3.45 kg

5 °C to 35 °C (41 °F to 95 °F)

5 % to 90 %

USB DC 5 V 0 500 mA iPod DC 5 V 0 1 A

Inputs/ Outputs

PORT. IN

Tuner

FM Tuning Range

0.5Vrms (3.5 mm stereo jack)

87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Amplifi er

Stereo mode

CD

Frequency Response

Signal-to-noise ratio

Dynamic range

80 W + 80 W (4Ω at 1kHz)

40 to 20 000 Hz

75 dB

80 dB

Front Speaker

Type

Impedance Rated

Input Power

Max. Input Power

Net Dimensions (W x H x D)

Net Weight

3 Way 4 speaker

4 Ω

80 W

160 W

126 X 295 X 315 mm

3.62 kg

 Design and specifi cations are subject to change without notice.

Appendix 23

Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit.

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

For details, please contact your nearest authorized service center.

5

24 Warranty

6

Technology with the human touch

GUARANTEE

• LG Electronics U.K. Ltd. will provide the following services in order toexpedite this Guarantee.

1. All faulty components which fail due to defective manufacture will be replaced free of charge for a period of 12 months from the original date of purchase.

2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the original date of purchase. These claims must be made in accordance with the published scale of service charges and relevant claims procedure.

PLEASE NOTE:

A. The dealer may restrict the guarantee to the original purchaser.

B. The dealer is not obliged to carry out service under guarantee if unauthorized modifi cations are made to the apparatus, or if non standard components are used or if the serial number of the apparatus is removed, defaced, misused, or altered.

C. Any claims made under guarantee must be directed to the dealer from whom the equipment was originally purchased. The dealer may, before carrying out service under guarantee, require a receipted account as evidence of the date of purchase.

D. We respectfully point out that your dealer is not obligated to replace batteries if they become exhausted or worn in use.

E. Aerial alignment and consumer control adjustments are not covered by this guarantee.

This guarantee does not aff ect your statutory rights.

• REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:

RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE SURRENDERED

AT THE TIME GUARANTEE SERVICE IS PROVED.

• Product Registration Card :

It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This will enable LG to assist you in the future should you lose your receipt, your units be stolen, or should modifi cations be necessary.

• To obtain information or assistance: Call 0870 873 5454 Monday-Friday 9.00am-4.30pm

MODEL NO.* SERIAL NO.* DATE OF PURCHASE.*

LGEUK Website : www.lge.co.uk

( service website : www.lgelectronics.co.uk )

Warranty 25

6

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
