HP Compaq 2230s Notebook PC

HP Compaq 2230s Notebook PC

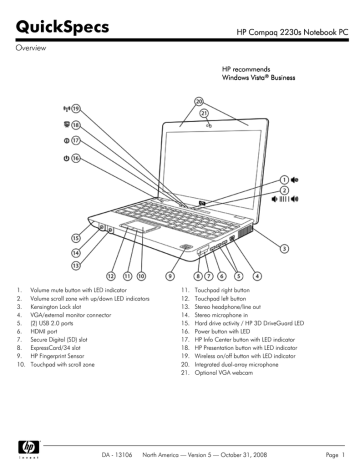

QuickSpecs

Overview

1.

Volume mute button with LED indicator

2.

Volume scroll zone with up/down LED indicators

3.

Kensington Lock slot

4.

VGA/external monitor connector

5.

(2) USB 2.0 ports

6.

HDMI port

7.

Secure Digital (SD) slot

8.

ExpressCard/34 slot

9.

HP Fingerprint Sensor

10. Touchpad with scroll zone

11. Touchpad right button

12. Touchpad left button

13. Stereo headphone/line out

14. Stereo microphone in

15. Hard drive activity / HP 3D DriveGuard LED

16. Power button with LED

17. HP Info Center button with LED indicator

18. HP Presentation button with LED indicator

19. Wireless on/off button with LED indicator

20. Integrated dual-array microphone

21. Optional VGA webcam

DA - 13106 North America — Version 5 — October 31, 2008 Page 1

QuickSpecs

Overview

1.

Battery charging LED

2.

Power connector

3.

RJ-45/Ethernet port

4.

RJ-11/modem port

5.

USB 2.0 ports

6.

Optical drive

1.

Battery bay

2.

Battery release latch

3.

WLAN module compartment (select models)

4.

Hard Drive and Memory bay

DA - 13106 North America — Version 5 — October 31, 2008 Page 2

QuickSpecs

Overview

Genuine Windows Vista Business 32, Genuine Windows Vista Business with downgrade to Windows XP Professional custom installed, Genuine Windows Vista Home Basic 32, or FreeDOS (select countries)

Thin lightweight design starting at 4.07 lb/1.85 kg and 1.1 inch/28mm thin at front

Widescreen 12.1-inch diagonal display with optional BrightView

Flexible wireless connectivity options:

Integrated 802.11 a/b/g/n draft 2.0, a/b/g, b/g wireless LAN module

Bluetooth® 2.0

Intel® Core™2 Duo processors

Integrated optical drive

Integrated SD/MMC Media Card Reader

Enhanced security features including HP ProtectTools Security Manager and HP Fingerprint Sensor

Optional integrated VGA webcam

Up to 320 GB 5400 rpm user-removable hard drive with HP 3D DriveGuard protection

Up to 8 GB of 800-MHz DDR2 SDRAM, dual channel memory support

Touch-sensitive controls for HP Info Center, HP Presentation button, wireless on/off, mute, and volume up, volume down

Intel Mobile Chipset Family with integrated graphics

Marvell Gigabit Ethernet Controller (10/100/1000 NIC)

Touchpad with scroll zone

DA - 13106 North America — Version 5 — October 31, 2008 Page 3

QuickSpecs

Standard Features

Intel Core 2 Duo Processor T9600 (2.8 GHz, 6 MB L2 cache, 1066 MHz FSB) *

Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB) *

Intel Core 2 Duo Processor P9500 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB) *

Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB) *

Intel Core 2 Duo Processor P8400 (2.26 GHz, 3 MB L2 cache, 1066 MHz FSB) *

Intel Core 2 Duo Processor P7370 (2.0 GHz, 3 MB L2 cache, 1066 MHz FSB) *

Intel Core 2 Duo Processor T5870 (2.0 GHz, 2 MB L2 cache, 800 MHz FSB) *

Intel Core 2 Duo Processor T5670 (1.8 GHz, 2 MB L2 cache, 800 MHz FSB) *

Intel Pentium Dual-Core Processor T3400 (2.16 GHz, 1 MB L2 cache, 667 MHz FSB)

Intel Pentium Dual-Core Processor T3200 (2.0 GHz, 1 MB L2 cache, 667 MHz FSB)

Intel Dual-Core Celeron Processor T1700 (1.83 GHz, 1 MB L2 cache, 667 MHz FSB)

Intel Dual-Core Celeron Processor T1600 (1.66 GHz, 1 MB L2 cache, 667 MHz FSB)

Intel Celeron Processor 585 (2.16 GHz, 1 MB L2 cache, 667 MHz FSB) *

Intel Celeron Processor 575 (2.00 GHz, 1 MB L2 cache, 667 MHz FSB) *

* Intel's numbering is not a measurement of higher performance.

battery optimization mode.

Genuine Windows Vista Business 32 *

Genuine Windows Vista Business 32 with downgrade to Windows XP

Professional custom installed *

Genuine Windows Vista Home Basic 32 *

FreeDOS

Genuine Windows XP Professional

SuSe Linux Enterprise Desktop 10

* Certain Windows Vista product features require advanced or additional hardware. See http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit http://www.windowsvista.com/upgradeadvisor .

Windows Vista Business disk also included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order at least 25 customer systems with the same custom image.

Mobile Intel GM45 Express Chipset ICH9M-Enhanced, 1066 MHz front side bus (models with integrated graphics)

Mobile Intel GL40 Express Chipset, 667 MHz front side bus (models with integrated graphics)

Mobile Intel Graphics Media Accelerator 4500MHD, up to 384 MB of shared system memory

Microsoft DirectX10 capable

DA - 13106 North America — Version 5 — October 31, 2008 Page 4

QuickSpecs

Standard Features

12.1-inch diagonal WXGA anti-glare (1280 x 800 resolution)

12.1-inch diagonal WXGA BrightView (1280 x 800 resolution)

Up to 32-bit per pixel color depth resolutions at up to 100 Hz to 1920 x 1080 resolution and 7-channel audio with one convenient cable

(not included) and color depth settings.

800 MHz DDR2 SDRAM; two slots supporting dual channel memory

1024 MB or 2048 MB

Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64bit or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

Marvell Ethernet (10/100/1000 NIC) *

56K V.92 modem **

* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for

Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

** Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.

DA - 13106 North America — Version 5 — October 31, 2008 Page 5

QuickSpecs

Standard Features

Support for a broad range of secure, integrated wireless LAN options featuring support for the latest industry standards. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN options.

Wi-Fi certified *

Cisco Compatible Extensions support

Wired Equivalent Privacy (WEP) support up to 128-bit keys

Wi-Fi Protected Access (WPA) and WPA2 support

802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,

PEAP-MSCHAPv2, and LEAP

Advanced Encryption Standard (AES) support

Dual antennas integrated in the display enclosure

Integrated support for 802.11a, b, g, and n draft 2.0

*

Up to 300 mbps data rate

Integrated support for 802.11a, b, g, and n draft 2.0

*

Up to 300 mbps data rate

Integrated support for 802.11 b and g

Up to 54 mbps data rate

Bluetooth Specification v2.0 compliant

Works with a wide range of Bluetooth devices

* The specifications for 802.11n draft 2.0 are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices. In countries where n draft 2.0 is not allowed, this capability is not enabled.

The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys. US and International key layouts are available. Other features include an integrated numeric keypad, hotkeys for instant access to power conservation, brightness, and other features, 19 mm x 19 mm key pitch (center-to-center spacing), 2.5 mm stroke, and comfort-dished keycaps.

Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP Info Center, HP Presentation button, wireless on/off, mute, and volume up, volume down

Touchpad with scroll zone, two pick buttons

Supports ExpressCard/34 (34 mm x 75 mm x 5 mm) card sizes

Secure Digital (SD) slot Supports SD (Secure Digital), MMC (MultiMedia Card) cards

DA - 13106 North America — Version 5 — October 31, 2008 Page 6

QuickSpecs

Standard Features

120/160/250/320 GB 5400 rpm SMART SATA

Up to 10 GB is reserved for the system recovery software.

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

DVD-ROM Drive

DVD/CD-RW Combo Drive

DVD+/-RW SuperMulti DL LightScribe Drive

One

One – VGA

One

One

One

One

One

One – 1.3 compliant

Three

One

Thirteen

High Definition Audio support w/24-bit DAC

Integrated stereo speakers

Integrated dual array digital microphone

Touch-sensitive controls for volume up, volume down, and mute

Stereo headphone/line out

Stereo microphone in

Optional VGA webcam

DA - 13106 North America — Version 5 — October 31, 2008 Page 7

QuickSpecs

Standard Features

PDF Complete

HP Recovery Manager

HP Help and Support Center

HP Universal Print Driver

HP ProtectTools Security Manager:

BIOS Configuration for HP ProtectTools

Credential Manager for HP ProtectTools

Drive Encryption for HP ProtectTools

HP Quick Launch Buttons

HP Wireless Assistant

Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition

(select models)

Roxio Creator Business (for optional DVD+/-RW and DVD/CDRW drives

Synaptics Touchpad Driver

McAfee Total Protection

Intervideo WinDVD – DVD Player

Microsoft Windows Live Messenger (select models)

HP SoftPaq Download Manager

HP Client Manager Software

HP Client Management Solutions

* 60 day trial period for McAfee Total Protection for Small Business software.

Internet access required to receive updates. First update included.

Subscription required for updates thereafter.

HP Recovery Manager Each unit is shipped with HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 10 GB of the hard drive is reserved for the system recovery software.

System Management BIOS, previously known as DMI BIOS, is used to store system management information.

HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP

ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules. Modules currently available are:

BIOS Configuration for HP ProtectTools

Credential Manager for HP ProtectTools

Drive Encryption for HP ProtectTools

File Sanitizer for HP ProtectTools

Set-up Wizard for HP ProtectTools

DA - 13106 North America — Version 5 — October 31, 2008 Page 8

QuickSpecs

Standard Features

HP ProtectTools Security Manager

Enhanced Pre-Boot Security

HP SpareKey

One-Step Logon

HP Fingerprint Sensor

Configuration Control Hardware

Memory Change Alert

Ownership Tag

Setup Password

Power-On Password

HP Disk Sanitizer

HP 3D DriveGuard

Kensington Lock Slot

Support for Computrace / LoJack for Laptops (must be purchased separately)

For more information on HP security solutions refer to: http://www.hp.com/go/security .

External 65-watt Smart AC adapter

6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66

meter).

HP Fast Charge *

*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off.

4-cell (37 WHr) Lithium-Ion battery

8-cell (73 WHr) Lithium-Ion battery

Up to 3.5 hours Up to 8 hours

Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used by the customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.

Up to 1 week

Supports enhanced Intel SpeedStep technology with Intel Core 2 Duo processors (allows Battery

Optimized Mode, Maximum Performance Mode, or Automatic mode)

Intel Display Power Saving technology

Hibernation

Standby

ACPI compliance

N/A

DA - 13106 North America — Version 5 — October 31, 2008 Page 9

QuickSpecs

Standard Features

Limited1-year warranty; 1-year limited warranty on primary battery. Warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool . Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack .

http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

.

KS057UT#ABA

Smart Buy

Intel® Core™2 Duo Processor T5670 (1.80 GHz, 800 MHz FSB, 2 MB L2 cache)

Genuine Windows Vista® Business with downgrade to Windows XP

Professional custom installed w/MS Office (Trial)

1024MB 800MHz DDR2 SDRAM (1 DIMM)

120GB 5400rpm SATA Hard Drive

DVD+/-RW SuperMulti DL LightScribe Drive

12.1 inch diagonal, WXGA, BrightView (1280 × 800)

Mobile Intel® Graphics Media Accelerator 4500MHD, up to 384 MB of shared memory

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n)

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

Touchpad with scroll zone, two pick buttons

4-cell (37 WHr) Lithium-Ion battery

External 65W adapter

Limited 1 year standard parts and labor warranty

DA - 13106 North America — Version 5 — October 31, 2008 Page 10

QuickSpecs

Standard Features

KS058UT#ABA

Smart Buy

KS059UT#ABA

Smart Buy

Intel® Core™2 Duo Processor P8400 (2.26 GHz, 1066 MHz FSB, 3 MB L2 cache)

Genuine Windows Vista® Business with downgrade to Windows XP

Professional custom installed w/MS Office (Trial)

2048MB 800MHz DDR2 SDRAM (1 DIMM)

160GB 5400rpm SATA Hard Drive

DVD+/-RW SuperMulti DL LightScribe Drive

12.1 inch diagonal, WXGA, BrightView (1280 × 800)

Mobile Intel® Graphics Media Accelerator 4500MHD, up to 384 MB of shared memory

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n)

HP Integrated Module with Bluetooth® Wireless Technology

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

Touchpad with scroll zone, two pick buttons

4-cell (37 WHr) Lithium-Ion battery

External 65W adapter

Limited 1 year standard parts and labor warranty

Intel® Core™2 Duo Processor T9400 (2.53 GHz, 1066 MHz FSB, 6 MB L2 cache)

Genuine Windows Vista® Business with downgrade to Windows XP

Professional custom installed w/MS Office (Trial)

3072MB 800MHz DDR2 SDRAM (2 DIMM)

250GB 5400rpm SATA Hard Drive

DVD+/-RW SuperMulti DL LightScribe Drive

12.1 inch diagonal, WXGA, Anti-Glare (1280 × 800)

Mobile Intel® Graphics Media Accelerator 4500MHD, up to 384 MB of shared memory

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n)

HP Integrated Module with Bluetooth® Wireless Technology

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

Touchpad with scroll zone, two pick buttons

DA - 13106 North America — Version 5 — October 31, 2008 Page 11

QuickSpecs

Standard Features

KS060UA#ABA

KS061UA#ABA

4-cell (37 WHr) Lithium-Ion battery

External 65W adapter

Limited 1 year standard parts and labor warranty

Intel® Core™2 Duo Processor T5870 (2.00 GHz, 800 MHz FSB, 2 MB L2 cache)

Genuine Windows Vista® Business with downgrade to Windows XP

Professional custom installed w/MS Office (Trial)

2048MB 800MHz DDR2 SDRAM (1 DIMM)

160GB 5400rpm SATA Hard Drive

DVD+/-RW SuperMulti DL LightScribe Drive

12.1 inch diagonal, WXGA, BrightView (1280 × 800)

Mobile Intel® Graphics Media Accelerator 4500MHD, up to 384 MB of shared memory

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n)

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

Touchpad with scroll zone, two pick buttons

4-cell (37 WHr) Lithium-Ion battery

External 65W adapter

Limited 1 year standard parts and labor warranty

Intel® Core™2 Duo Processor P8600 (2.40 GHz, 1066 MHz FSB, 3 MB L2 cache)

Genuine Windows Vista® Business with downgrade to Windows XP

Professional custom installed w/MS Office (Trial)

2048MB 800MHz DDR2 SDRAM (1 DIMM)

250GB 5400rpm SATA Hard Drive

DVD+/-RW SuperMulti DL LightScribe Drive

12.1 inch diagonal, WXGA, Anti-Glare (1280 × 800)

Mobile Intel® Graphics Media Accelerator 4500MHD, up to 384 MB of shared memory

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

DA - 13106 North America — Version 5 — October 31, 2008 Page 12

QuickSpecs

Standard Features

KS062UA#ABA

Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n)

HP Integrated Module with Bluetooth® Wireless Technology

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

Touchpad with scroll zone, two pick buttons

4-cell (37 WHr) Lithium-Ion battery

External 65W adapter

Limited 1 year standard parts and labor warranty

Intel® Core™2 Duo Processor T9400 (2.53 GHz, 1066 MHz FSB, 6 MB L2 cache)

Genuine Windows Vista® Business with downgrade to Windows XP

Professional custom installed w/MS Office (Trial)

3072MB 800MHz DDR2 SDRAM (2DIMM)

320GB 5400rpm SATA Hard Drive

DVD+/-RW SuperMulti DL LightScribe Drive

12.1 inch diagonal, WXGA, Anti-Glare (1280 × 800)

Mobile Intel® Graphics Media Accelerator 4500MHD, up to 384 MB of shared memory

ADI High Definition CODEC

Stereo headphone/line out and microphone in

Integrated microphone

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem

Intel® WiFi Link 5100AGN (802.11a/b/g/draft-n)

HP Integrated Module with Bluetooth® Wireless Technology

Drive Encryption for HP ProtectTools

HP Fingerprint Sensor

Touchpad with scroll zone, two pick buttons

4-cell (37 WHr) Lithium-Ion battery

External 65W adapter

Limited 1 year standard parts and labor warranty

DA - 13106 North America — Version 5 — October 31, 2008 Page 13

QuickSpecs

Options

HP 1 GB (DDR2 800 MHz) SODIMM

HP 2 GB (DDR2 800 MHz) SODIMM

HP 4 GB (DDR2 800 MHz) SODIMM

HP Notebooks USB Diskette Drive

HP 65W Smart AC Adapter

HP 90W Smart Auto Adapter

HP 65W AC/Auto/Air Combo Smart Adapter

HP 4-cell Primary Battery

HP Value Nylon Case

HP Basic Carrying Case

HP Universal Nylon Case

HP Executive Leather Case

HP Deluxe Nylon Backpack

HP Universal Messenger Bag

HP Deluxe Roller Case

HP/Kensington MicroSaver Security Lock

HP USB Keyboard & Mouse Bundle

HP USB Optical Travel Mouse

KT292AA

KT293AA

KT293AA

DC361B

ED494AA#xxx

ED493AA

ED993AA#xxx

TBD

RR314AA

AJ078AA

RR315AA

RR316AA

RR317AA

GD404AA

GD405AA

PC766A

RC465AA#xxx

RH304AA

DA - 13106 North America — Version 5 — October 31, 2008 Page 14

QuickSpecs

Memory

Support for up to 8192 MB of 667/800-MHz DDR2 SDRAM

Two DIMM slots supporting dual channel memory

DIMM sizes supported: 1024 MB, 2048 MB, and 4096 MB

1024 MB (1024 MB x 1)

2048 MB (2048 MB x 1 or 1024 MB x 2)

3072 MB (2048 MB x 1024 MB)

4096 MB (2048 MB x 2)

Support for up to 8192 MB of memory is available (with the installation of optional DDR2 SDRAM memory kits). Both memory slots are user accessible. Please refer to the Hardware and Software Guide for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

1024 MB

2048 MB

3072 MB

4096 MB

8192 MB

1024 MB

1024 MB

2048 MB

2048 MB

4096 MB

Empty

1024 MB

1024 MB

2048 MB

4096 MB party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires Windows Vista

Business 64-bit or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

HP 1 GB (DDR2 800 MHz) SODIMM

HP 2 GB (DDR2 800 MHz) SODIMM

HP 4 GB (DDR2 800 MHz) SODIMM

KT292AA

KT293AA

KT293AA

DA - 13106 North America — Version 5 — October 31, 2008 Page 15

QuickSpecs

Storage

DVD-ROM

DVD/CD-RW Combo Drive

DVD+/-RW SuperMulti DL Drive

Blu-ray ROM DVD+/-RW SuperMulti DL

Drive

One

One

One

One

120-GB 5400 rpm SMART SATA II Hard

Drive

160-GB 5400 rpm SMART SATA II Hard

Drive

250-GB 5400 rpm SMART SATA II Hard

Drive

320-GB 5400 rpm SMART SATA II Hard

Drive

160-GB 7200 rpm SMART SATA II Hard

Drive

One

One

One

One

One

Fixed optical drive bay

Fixed optical drive bay

Fixed optical drive bay

Fixed optical drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

DA - 13106 North America — Version 5 — October 31, 2008 Page 16

QuickSpecs

Technical Specifications

1.10 in (at front) x 11.57 in x 8.90 in

28 mm (at front) x 294 mm x 226 mm

Starting at 4.07 lb (1.85 kg) by configuration and components. Weight includes 4-cell battery, hard drive and optical drive. Weight varies by configuration and components.

Nominal Operating

Voltage

18.5 V

(AC Power)

Average Operating Power 16.9 W

Max Operating Power < 65 W

Operating

Non-operating

Operating

Non-operating

32° to 95° F (0° to 35° C) (not writing optical)

41° to 95° F (5° to 35° C) (writing optical)

–4° to 140° F (–20° to 60° C)

10% to 90%, non-condensing

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

125 G, 2 ms, half-sine Operating

Non-operating

Operating

Non-operating

Operating

200 G, 2 ms, half-sine

0.75 grms

1.50 grms

–50 to 10,000 ft (–15.24 to 3,048 m)

(unpressurized)

Non-operating

Australia & New Zealand

– A-tick/C-tick

–50 to 40,000 ft (–15.24 to 12,192 m)

Yes

China – CCC safety/EMC Yes

Hong Kong – HP DoC (CE

DoC)

Yes

Korea – MIC, eK

Thailand

Taiwan – BSMI

Japan VCCI

Yes

Yes

Yes

Yes

UL

FCC

CB

GreenMark for Taiwan

WEEE

Energy Star

EPEAT

Singapore – PSB

China CECP

Yes

Yes

Yes

Yes

Yes

Yes

Silver

Yes

Yes

DA - 13106 North America — Version 5 — October 31, 2008 Page 17

QuickSpecs

Technical Specifications

4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)

0.62 lb (280 g)

100 to 240 VAC

Input Efficiency

Input frequency range

Input AC current

Output power 65W

83% min at 115 VAC

47 to 63 Hz

1.7 A at 90 VAC, 0.85 A at 180 VAC

65W

DC output

Hold-up time

18.5V

5 msec at 115 VAC inputOutput current limit

Output current limit <11A, Over voltage protection- 29V max automatic shutdown

3 pin/grounded, mates with interchangeable cords

Operating temperature 32° to 104° F (0° to 40° C)

Non-operating (storage) temperature

–4° to 149° F (–20° to 65° C)

Altitude

Humidity

0 to 10,000 ft (0 to 3,048 m)

20% to 80%

Storage Humidity 10% to 90%

CE Mark – full compliance with LVD and EMC directives; Worldwide safety standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B,

CISPR22 Class B, CCC, NOM-1 NYCE; MTBF – over 200,000 hours at

25°C ambient condition.

Dimensions 0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)

0.55 lb (0.249 kg)

4-cell Lithium-Ion

Watt-hour Capacity

Operating (Charging)

37 WHr

32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (–10° to 60° C)

Non-operating –4° to 140° F (–20° to 60° C)

2.5 hours Battery Re-Charge Time System in OFF mode or

Standby

System ON

HP Fast Charge

Technology

3 to 5 hours (depending on system power consumption)

Charges the battery up to 90% within 90 minutes when system is OFF

DA - 13106 North America — Version 5 — October 31, 2008 Page 18

QuickSpecs

Technical Specifications

10.3 x 6.4 in (26.1 x 16.3 cm)

12.1 in (30.7 cm)

Anti-glare

300:1 (typical)

60 Hz

200 nit (typical)

0.204 mm

1280 x 800

RGB Stripe

CCFL

125

±45° Horizontal, ±25° Vertical (typical)

10.3 x 6.4 in (26.1 x 16.3 cm)

12.1 in (30.7 cm)

BrightView

300:1 (typical)

60 Hz

200 nit (typical)

0.204 mm

1280 x 800

RGB Stripe

CCFL

125

±45° Horizontal, ±25° Vertical (typical)

DA - 13106 North America — Version 5 — October 31, 2008 Page 19

QuickSpecs

Technical Specifications

(typical reads, including settling)

0.22 lb (101 g)

320 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous 150 MB/s (Drive Capability)

2 ms

12 ms

22 ms

5400 rpm

488,397,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

ATA Security

(typical reads, including settling)

0.22 lb (101 g)

250 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous 100 MB/s (Drive Capability)

3 ms

13ms

24 ms

5400 rpm

488,397,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

ATA Security

DA - 13106 North America — Version 5 — October 31, 2008 Page 20

QuickSpecs

Technical Specifications

(typical reads, including settling)

0.22 lb (101 g)

160 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous 100 MB/s (Drive Capability)

3 ms

13ms

24 ms

5400 rpm

312,581,808

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

ATA Security

(typical reads, including settling)

0.22 lb (101 g)

120 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous 100 MB/s (Drive Capability)

3 ms

13ms

24 ms

5400 rpm

234,441,648

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

ATA Security

DA - 13106 North America — Version 5 — October 31, 2008 Page 21

QuickSpecs

Technical Specifications

Random

Max Data Transfer Rate 24X CD-ROM

8X DVD

UDMA Mode 5

<116 ms CD (typical)

<125 ms DVD (typical)

3,600 KB/s

10,800 KB/s

Gen 1 SATA

Supported Media CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD

(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-

ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,

DVD+RW, DVD-RAM

Supported Media None

4.7 GB

(read)

Tray loading

Random

Max Data Transfer Rate 24X CD-ROM

8X DVD

24X CD-R

24X CD-RW

UDMA Mode 5

Gen 1 SATA

<110 ms CD

<130 ms DVD

3,600 KB/s

10,800 KB/s

3,600 KB/s

3,600 KB/s

Supported Media CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD

(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-

ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,

DVD+RW

Supported Media CD-R, CD-RW

8.5 GB

(read)

700 MB

(write)

Tray loading

DA - 13106 North America — Version 5 — October 31, 2008 Page 22

QuickSpecs

Technical Specifications

Random

Max Data Transfer Rate 24X CD-ROM

8X DVD

24X CD-R

16X CD-RW

8X DVD+R

<175 ms CD

<230 ms DVD

3,600 KB/s

10,800 KB/s

3,600 KB/s

2,400 KB/s

10,800 KB/s

4X DVD+RW

8X DVD-R

4X DVD-RW

2.4X DVD+R(9)

5,400 KB/s

10,800 KB/s

5,400 KB/s

2,700 KB/s

6,750 KB/s 5X DVD-RAM

UDMA Mode 5

Gen 1 SATA

Supported Media CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD

(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-

ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,

DVD+RW, DVD-RAM

Supported Media CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,

LightScribe

8.5 GB

(read)

8.5 GB

(write)

Tray Loading

3.0V–3.6V Single Supply

Operating Temperature 32° – 158°F (0° – 70°C)

Less than 70 mA peak imaging and scrolling

Less than 25 mA hardware finger detection

Advanced Power Management

IEC 61000-4-2 Level 4 (±15KV)

192 x 16 Pixels

9.7 mm x 0.81 mm

500 ppi High-Resolution Images

DA - 13106 North America — Version 5 — October 31, 2008 Page 23

QuickSpecs

Technical Specifications

ADI1984AJCPZ High Definition CODEC

Volume up, volume down, and mute

Yes

Yes

Stereo

Stereo

Integrated Microphone Yes

20 Hz – 20 kHz

>85 dB

-110 dB

8 kHz – 48kHz

16, 20 or 24-bit

16 or 20-bit

1.5 Watts

4 Ohms

MDC 1.5 Daughtercard

APM Revision 1.2, ACPI

UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part

15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE

Mark, Other Countries

Data Mode Capabilities V.92 data

V.8bis

V.80

V44, V.42bis, MNP5 (Compression)

V.42 (LAPM, MNP2-4) (Error Correction)

2800, 3429

Asymmetric Symbol rates

DA - 13106 North America — Version 5 — October 31, 2008 Page 24

QuickSpecs

Technical Specifications

3600, 31200

Automatic rate re-negotiation

V.34

V.32bis

V.32

V.23

V.22bis

V.22

V.21

Bell 212A

Bell 103J

Fax Mode Capabilities TIA/EIA-578-B (Class 1)

T.30, T.4 (Group 3)

V.17

V.29

V.27ter

V.21 Channel 2

V.250 (Partial)

TIA-602

Identification: +GMI, +GMM, +GMR

Port control: +IPR, +ICF, +IFC, +ILRR

Modulation: +MS, +MR, +MA

Error control: +ES, +ER, +EB, +ESR, +ETBM

Data compression: +DS, +DR

V.251

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (draft 2.0)

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

Tested with wireless access points from several major manufacturers

(details at: http://www.hp.com/go/notebooks/WLAN/draft-n )

Security

1

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft) specification

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES

(support for key sizes of 128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet

DA - 13106 North America — Version 5 — October 31, 2008 Page 25

QuickSpecs

Technical Specifications

infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Multinational support with frequency bands and channels compliant to local regulations.

Media Access Protocol CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Output Power (for CCK)

2

IEEE 802.11 compliant roaming between access points

15 dBm

15 dBm power varies by data rate)

2

Receiver Sensitivity

4

Transmit: 2.3 Watts (average, with one spatial streams)

Receive: 1.9 Watts (average with two receive chains)

Idle mode

3

: 30 mW (average)

Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm

Configuration Utility

5

3 U.FL type connectors, 50 ohm nominal impedance

802.11 a – Typical

(@6 Mbps)

600 feet – Outdoor Open Area

150 feet – Indoor, Office environment

802.11 b – Typical

(@1 Mbps)

802.11 g – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

PCI-Express MiniCard

0.013 lb (6 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3V +/- 9%, 1.5V +/- 5%

Operating

Non-operating

Operating

Non-operating

32° to 176° F (0° to 80° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 90% (non-condensing)

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Intel PROSet for Microsoft Windows XP (required for Cisco Compatible

Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager.

Intel IHV extensions for Windows Vista available to support Cisco

DA - 13106 North America — Version 5 — October 31, 2008 Page 26

QuickSpecs

Technical Specifications

1.

2.

3.

4.

5.

Compatible Extensions.

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

In Power Save Polling mode and on battery power.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

Wireless LAN Standards IEEE 802.11b

IEEE 802.11g

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

Tested with wireless access points from several major manufacturers

(details at: http://www.hp.com/go/notebooks/WLAN/draft-n )

Security

1

2.4 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-

MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Multinational support with frequency bands and channels compliant to local regulations.

Media Access Protocol CSMA/CA (Collision Avoidance) with ACK

Output Power (for CCK)

2

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

17 dBm

15 dBm power varies by data rate)

2

Idle associated: 250 mW

Idle unassociated: 150 mW

Transmit: 2.0 W (max)

Receive: 2.0 W (max)

DA - 13106 North America — Version 5 — October 31, 2008 Page 27

QuickSpecs

Technical Specifications

Receiver Sensitivity

3

Configuration Utility

4

ACPI compliant power management

802.11 compliant power saving mode

54 Mbps: -71 dBm, 11 Mbps: -85 dBm , 1 Mbps: -95 dBm

High efficiency dual band antenna with spatial diversity, mounted in the display enclosure

802.11 b – Typical

(@1 Mbps)

802.11 g – Typical

(@1 Mbps)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

PCI-Express MiniCard

0.026 lb (12 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3v +/- 10%

Operating

Non-operating

Operating

Non-operating

14° to 149° F (–10° to 65° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Broadcom Wireless Configuration Utility (required for Cisco

Compatible Extensions support)

Microsoft Windows Vista

1.

2.

3.

4.

Microsoft Windows Vista Wireless Network Connection Manager

Broadcom IHV extensions for Windows Vista available to support

Cisco Compatible Extensions.

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (draft 2.0)

DA - 13106 North America — Version 5 — October 31, 2008 Page 28

QuickSpecs

Technical Specifications

Security

1

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

Tested with wireless access points from several major manufacturers

(details at: http://www.hp.com/go/notebooks/WLAN/draft-n )

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39,

40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135,

162, 216, 243, 270, 300 Mbps

20 MHz: 2.4 GHz and 5 GHz bands

40 MHz: 2.4 GHz and 5 GHz band

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-

MSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Multinational support with frequency bands and channels compliant to local regulations.

Media Access Protocol CSMA/CA (Collision Avoidance) with ACK

Output Power (for CCK)

2

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

17 dBm

15 dBm power varies by data rate)

2

Receiver Sensitivity

3

Idle associated: 250 mW

Idle unassociated: 150 mW

Transmit/Receive 20 MHz channel: 2.0 W (max)

Transmit/Receive 40 MHz channel: 2.0 W (max)

ACPI compliant power management

802.11 compliant power saving mode

270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps: -

85 dBm , 1 Mbps: -94 dBm

High efficiency dual band antenna with spatial diversity, mounted in the display enclosure

802.11 a – Typical

(@6 Mbps)

802.11 b – Typical

(@1 Mbps)

600 feet – Outdoor Open Area

150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

DA - 13106 North America — Version 5 — October 31, 2008 Page 29

QuickSpecs

Technical Specifications

Configuration Utility

4

802.11 g – Typical

(@1 Mbps)

PCI-Express MiniCard

0.026 lb (12 g)

1200 feet – Outdoor Open Area

300 feet – Indoor, Office environment

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3v +/- 10%

Operating

Non-operating

Operating

Non-operating

14° to 149° F (–10° to 65° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Broadcom Wireless Configuration Utility (required for Cisco

Compatible Extensions support)

Microsoft Windows Vista

1.

2.

3.

4.

Microsoft Windows Vista Wireless Network Connection Manager

Broadcom IHV extensions for Windows Vista available to support

Cisco Compatible Extensions.

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

Bluetooth Specification 2.0 Compliant

1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)

2402 to 2480 MHz

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or

1306.9 kbps symmetric

-6 dBm to 4 dBm (Bluetooth Class II)

Better than -80 dBM at 0.1 % raw bit error rate

DA - 13106 North America — Version 5 — October 31, 2008 Page 30

QuickSpecs

Technical Specifications

Peak (Tx) 264 mW

Peak (Rx) 231 mW

Sleep <1 mW

Internally integrated within module

Up 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Microsoft Windows XP Professional and Home

Microsoft Windows 2000

Broadcom Bluetooth for Windows

Microsoft Windows XP Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Operating

Non-operating

Operating

–4° to 158° F (–20° to 70° C)

–40° to 176° F (–40° to 80° C)

10% to 90%

Non-operating

Operating

5% to 95%

15,000 ft (4,572 m)

Non-operating 40,000 ft (12,192 m)

(with Bluetooth for Windows 4.0 software)

Serial Port Profile (SPP)*

Dial-Up Networking (DUN)*

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)*

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)*

Personal Area Networking Profile (PAN)*

Human Interface Device Profile (HID)*

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

DA - 13106 North America — Version 5 — October 31, 2008 Page 31

QuickSpecs

Technical Specifications

* indicates the profile is also supported by Microsoft Windows XP SP2

Eco-Label Certifications This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

Normal Operation

Sleep (Energy Star low

power mode)

Off

US Energy Star

Taiwan Green Mark

IT ECO declaration

EPEAT – Silver

Korea ECO label

The configuration used for the Energy Consumption and Declared Noise

Emissions data for the Convertible Mini tower Desktop model is based on a

“Typically Configured Notebook”

115 VAC

11.83 W

1.137 W

230 VAC

12.09 W

1.182 W

100 VAC

11.55 W

1.127 W

Heat Dissipation *

Normal Operation

Sleep

Off

0.835 W

115 VAC

0.862 W

230 VAC

0.817 W

100 VAC

41 BTU/hr

4 BTU/hr

41 BTU/hr

4 BTU/hr

40 BTU/hr

4 BTU/hr

3 BTU/hr 3 BTU/hr 3 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.

System Fan Off

Idle

Sound Power

(LWAd, bels)

3.1

Fixed Disk

(random writes)

3.1

System fan is usually off except when charging the battery

This product complies with ISO standards:

EU Directive 91/ 157/ EEC

EU Directive 93/ 86/ EEC

EU Directive 98/ 101/ EEC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Sound Pressure

(LpAm, decibels)

23.8

23.5

DA - 13106 North America — Version 5 — October 31, 2008 Page 32

QuickSpecs

Technical Specifications

Lead greater than 4000 ppm by weight.

The battery type and chemistry used in the product is:

CR2032 (coin cell), Lithium

8-cell high capacity Lithium-Ion battery

This product is in compliance with the Restrictions of Hazardous Substances

(RoHS) directive – 2002/95/EC.

This HP product is designed to comply with the Waste Electrical and

Electronic Equipment (WEEE) Directive – 2002/96/EC.

This product is in compliance with California Proposition 65 (State of

California; Safe Drinking Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the

Silver level, see: www.epeat.net

Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and

ISO/IEC 15412

Input devices of this product comply with ISO 9241, part 9.

Plastics parts weighing over 25 grams used in the product are marked per

ISO 11469 and ISO1043.

This product contains 0% recycled materials (by wt.)

This product is greater than 99% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

CANON bags – several layers – 15 g

Corrugated carton – 440g

Cardboard & misc. – 245g

Internal:

EPE-Expanded Polyethylene – 80 g

The EPE foam packaging material is made from 100% recycled content.

The corrugated paper packaging materials contains at least 100% recycled content.

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

DA - 13106 North America — Version 5 — October 31, 2008 Page 33

QuickSpecs

Technical Specifications

Maximize the use of post-consumer recycled content materials in packaging materials.

Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and

DIN 6120 standards.

This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General

Specification of the

Environment ( http://www.hp.com/hpinfo/globalcitizenship/environment/ supplychain/gen_specifications.html

):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel– finishes must not be used on the external surface designed to be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

For more information about HP's commitment to the environment:

DA - 13106 North America — Version 5 — October 31, 2008 Page 34

QuickSpecs

Technical Specifications

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Environment website http://www.hp.com/environment

Eco-label certifications http://www.hp.com/hpinfo/globalcitizenship/environment/ productdesign/ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/ operations/envmanagement.html

Copyright © 2008 Hewlett-Packard Development Company, L.P.

All rights reserved. Microsoft, Windows, Windows Vista, and Windows XP are registered trademarks or trademarks of Microsoft

Corporation in the U.S. and/or other countries. Core 2 Duo and Celeron are registered trademarks or trademarks of Intel

Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13106 North America — Version 5 — October 31, 2008 Page 35

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
