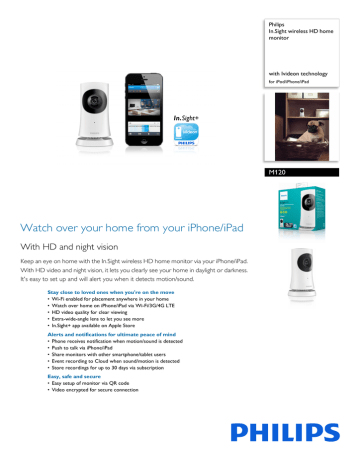

M120/10 Philips In.Sight wireless HD home monitor

M120/10 Philips In.Sight wireless HD home monitor
In.Sight wireless HD home
with Ivideon technology
for iPod/iPhone/iPad
Watch over your home from your iPhone/iPad
With HD and night vision
Keep an eye on home with the In.Sight wireless HD home monitor via your iPhone/iPad.
With HD video and night vision, it lets you clearly see your home in daylight or darkness.
It's easy to set up and will alert you when it detects motion/sound.
Stay close to loved ones when you're on the move
• Wi-Fi enabled for placement anywhere in your home
• Watch over home on iPhone/iPad via Wi-Fi/3G/4G LTE
• HD video quality for clear viewing
• Extra-wide-angle lens to let you see more
• In.Sight+ app available on Apple Store
Alerts and notifications for ultimate peace of mind
• Phone receives notification when motion/sound is detected
• Push to talk via iPhone/iPad
• Share monitors with other smartphone/tablet users
• Event recording to Cloud when sound/motion is detected
• Store recordings for up to 30 days via subscription
Easy, safe and secure
• Easy setup of monitor via QR code
• Video encrypted for secure connection
In.Sight wireless HD home monitor
with Ivideon technology for iPod/iPhone/iPad
Wi-Fi enabled
Extra-wide-angle lens
adjustable motion and sound detection. You
will be notified automatically when sound or
motion is detected.
Easy set-up via QR code
The In.Sight wireless monitor is a Wi-Fi
enabled monitor. It uses your home wireless
network to stream live video and audio with
monitors that you can set up anywhere you
Philips In.Sight wireless HD home monitor
M120 boasts a viewing angle of 102 degrees
that shows you more of the room at once,
letting you see a lot more than other monitors.
Free Apple app
Watch your home via Wi-Fi/3G/4G
Setup is simple with the In.Sight+ app. The app
will generate a QR code for your home Wi-Fi
settings. With the QR code, the monitor will
automatically pair with your Wi-Fi network,
easily and instantly.
Ivideon video recording
Once you have set up your In.Sight wireless
home monitor, you can access the video
stream from your iPhone/iPad anywhere via
Wi-Fi, 3G or 4G LTE networks. There's no
limit to where and how you view your video.
You can watch over your home wherever you
HD video quality
The In.Sight monitor is an app-based wireless
monitor that lets you see and hear what's
happening at home, from anywhere in the
world. The dedicated In.Sight+ app can be
downloaded from the Apple App Store. Simply
type Philips In.Sight+ in the search bar.
Push to talk
With the In.Sight monitor, not only can you
keep an eye on your home, but you can also
talk to your loved ones. Simply press "talk" on
your iPhone/iPad and communicate at once.
What a great way to say hello!
Motion/sound notifications
In.Sight monitor allows you to see everything
in detail. View videos in high definition 720p
quality. The "720" refers to the number of
horizontal lines of resolution on the screen.
The "p" stands for progressive scan or the
sequential appearance of the lines in each
frame. With 720p resolution, videos are
sharper and more true-to-life.
It's impossible to predict when something
might happen. In.Sight keeps watching with
With the event recording feature of the
In.Sight with Ivideon Cloud, video recording is
so easy. The In.Sight monitor can be set to
automatically start recording when sound or
motion is detected. All recorded videos are
then stored as events in the cloud, and a
notification will be sent to your smartphone or
tablet. The event recording is available in the
Silver Plan (7-day storage) or Gold Plan (30day storage), to meet your different needs.
In.Sight wireless HD home monitor
with Ivideon technology for iPod/iPhone/iPad
Lens and Sensor
Sensor: HD 720p
Focus mode: Fixed
View angle: 102 degrees
Focus range: 0.8 M to infinity
Ambient light sensor: Yes, day/night mode
Night mode: Infra-Red
Video Quality
HD/VGA/QVGA streaming
Formats: H.264 video compression
White Balance: Automatic white balance
Exposure: Automatic exposure control
Wi-Fi: 802.11 b/ g/ n (2.4 GHz)
Motion detection
Noise detection
LED indicator
Base: Direction adjustable
Reset button
• Installation: via App
• Automatic App update
• System supported: iOS6 or above
• iPad compatibility: iPad 3, iPad 2, iPad mini, iPad
with Retina display
• iPhone compatibility: iPhone 5, iPhone 4S
• iPod compatibility: iPod Touch 4th generation and
Accessories included
USB power adapter: 1
USB cable: Yes, 3m
Wall mount
Screws/wall anchors: 2
Quick Start Guide
Input and Output
• Microphone: Highly sensitive, Mono
• USB: Mini-USB port
• Speaker: Built-in
• Packaging dimensions (W x H x D):
158 x 160 x 78 mm
• Product dimensions (W x H x D):
65 x 114 x 65 mm
Issue date 2014-05-24
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 3.2.8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 001 02363
EAN: 08 71258 16852 25
