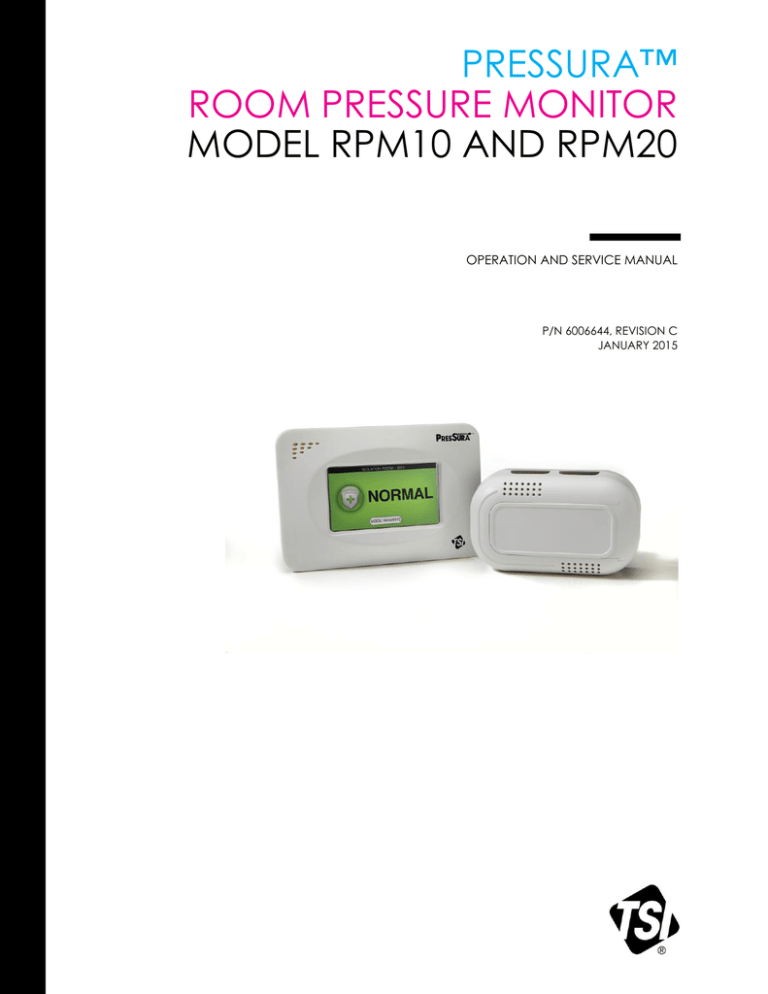

Pressura Room Pressure Monitor Model RPM10 and RPM20

Pressura Room Pressure Monitor Model RPM10 and RPM20
PRESSURA™
ROOM PRESSURE MONITOR
MODEL RPM10 AND RPM20
OPERATION AND SERVICE MANUAL
P/N 6006644, REVISION C
JANUARY 2015
PRESSURA™
ROOM PRESSURE CONTROLLER
MODEL RPM10 AND RPM20
OPERATION AND SERVICE MANUAL
P/N 6006644, REVISION C
JANUARY 2015
U.S. AND CANADA
Sales & Customer Service:
(800) 874-2811/(651) 490-2811
Fax:
(651) 490-3824
SHIP/MAIL TO:
TSI Incorporated
ATTN: Customer Service
500 Cardigan Road
Shoreview, MN 55126
USA
OTHER COUNTRIES
Sales & Customer Service:
(001 651) 490-2811
Fax:
(001 651) 490-3824
E-MAIL
[email protected]
WEB SITE
www.tsi.com
Copyright  TSI Incorporated / 2013-2015 / All rights reserved.
Part number 6006644 / January 2015
Limitation of Warranty and Liability (effective April 2014)
(For country-specific terms and conditions outside of the USA, please visit www.tsi.com.)
Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in
the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the
length of time specified in the operator's manual, from the date of shipment to the customer. This warranty
period is inclusive of any statutory warranty. This limited warranty is subject to the following exclusions and
exceptions:
a. Hot-wire or hot-film sensors used with research anemometers, and certain other components when
indicated in specifications, are warranted for 90 days from the date of shipment;
b.
Pumps are warranted for hours of operation as set forth in product or operator’s manuals;
c.
Parts repaired or replaced as a result of repair services are warranted to be free from defects in
workmanship and material, under normal use, for 90 days from the date of shipment;
d.
Seller does not provide any warranty on finished goods manufactured by others or on any fuses, batteries or
other consumable materials. Only the original manufacturer's warranty applies;
e.
This warranty does not cover calibration requirements, and seller warrants only that the instrument or
product is properly calibrated at the time of its manufacture. Instruments returned for calibration are not
covered by this warranty;
f.
This warranty is VOID if the instrument is opened by anyone other than a factory authorized service center
with the one exception where requirements set forth in the manual allow an operator to replace
consumables or perform recommended cleaning;
g.
This warranty is VOID if the product has been misused, neglected, subjected to accidental or intentional
damage, or is not properly installed, maintained, or cleaned according to the requirements of the manual.
Unless specifically authorized in a separate writing by Seller, Seller makes no warranty with respect to, and
shall have no liability in connection with, goods which are incorporated into other products or equipment, or
which are modified by any person other than Seller.
The foregoing is IN LIEU OF all other warranties and is subject to the LIMITATIONS stated herein. NO OTHER
EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR PARTICULAR PURPOSE OR MERCHANTABILITY
IS MADE. WITH RESPECT TO SELLER’S BREACH OF THE IMPLIED WARRANTY AGAINST
INFRINGEMENT, SAID WARRANTY IS LIMITED TO CLAIMS OF DIRECT INFRINGEMENT AND
EXCLUDES CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS. BUYER’S EXCLUSIVE
REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE DISCOUNTED FOR REASONABLE WEAR
AND TEAR OR AT SELLER’S OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING
GOODS.
TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR BUYER, AND
THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES, INJURIES, OR DAMAGES
CONCERNING THE GOODS (INCLUDING CLAIMS BASED ON CONTRACT, NEGLIGENCE, TORT,
STRICT LIABILITY OR OTHERWISE) SHALL BE THE RETURN OF GOODS TO SELLER AND THE
REFUND OF THE PURCHASE PRICE, OR, AT THE OPTION OF SELLER, THE REPAIR OR
REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE
DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE
SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS
INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES.
SELLER SHALL NOT BE RESPONSIBLE FOR INSTALLATION, DISMANTLING OR REINSTALLATION
COSTS OR CHARGES. No Action, regardless of form, may be brought against Seller more than 12 months
after a cause of action has accrued. The goods returned under warranty to Seller's factory shall be at Buyer's
risk of loss, and will be returned, if at all, at Seller's risk of loss.
Buyer and all users are deemed to have accepted this LIMITATION OF WARRANTY AND LIABILITY, which
contains the complete and exclusive limited warranty of Seller. This LIMITATION OF WARRANTY AND
LIABILITY may not be amended, modified or its terms waived, except by writing signed by an Officer of Seller.
i
Service Policy
Knowing that inoperative or defective instruments are as detrimental to TSI as they are to our customers, our
service policy is designed to give prompt attention to any problems. If any malfunction is discovered, please
contact your nearest sales office or representative, or call TSI's Customer Service department at (800) 8742811 or (651) 490-2811.
Trademarks
TSI and TSI logo are registered trademarks of TSI Incorporated. PresSura is a trademark of TSI
Incorporated. BACnet is a trademark of ASHRAE. Modbus is a registered trademark of Modicon, Inc.
LonWorks is a registered trademark of Echelon® Corporation.
ii
CONTENTS
HOW TO USE THIS MANUAL ...................................................................................................... 1
Safety Information ................................................................................................ 1
Description of Caution Symbol .......................................................................... 1
Access Code / Passcode .................................................................................. 1
PART ONE ..................................................................................................................................... 3
User Basics .......................................................................................................... 3
The Instrument ..................................................................................................... 3
Useful User Information .................................................................................... 3
Operator Panel ..................................................................................................... 3
Display Screen .................................................................................................. 4
Room Indicator Colors ...................................................................................... 4
Operator Keys ................................................................................................... 4
USB Port ........................................................................................................... 5
Alarms................................................................................................................... 5
Visual Alarm ...................................................................................................... 5
Audible Alarms .................................................................................................. 5
Alarm Relays ..................................................................................................... 6
Before Calling TSI ................................................................................................ 6
PART TWO..................................................................................................................................... 7
Technical Section ................................................................................................. 7
Software Programming ......................................................................................... 8
Changing Room Mode ...................................................................................... 8
Entering Menus ................................................................................................. 9
Menus and Menu Items ..................................................................................... 9
Entering Data .................................................................................................... 9
Programming Example .................................................................................... 11
Menu and Menu Items ........................................................................................ 12
Configure Menu ............................................................................................... 15
ALARM CONSTRAINTS ................................................................................. 25
Alarm Config Menu ......................................................................................... 27
Interface Menu ................................................................................................ 28
Diagnostics Menu ............................................................................................ 33
Calibration .......................................................................................................... 59
Room Pressure Calibration ............................................................................. 59
Flow Calibration............................................................................................... 60
Maintenance and Repair Parts ........................................................................... 63
System Component Inspection ....................................................................... 63
Pressure Sensor Cleaning .............................................................................. 64
Display Screen Cleaning ................................................................................. 64
Replacement Parts .......................................................................................... 64
Troubleshooting Section ..................................................................................... 64
Hardware Test ................................................................................................. 65
Troubleshooting Chart..................................................................................... 67
iii
APPENDIX A ................................................................................................................................ 71
Specifications* .................................................................................................... 71
APPENDIX B ................................................................................................................................ 73
Network Communications .................................................................................. 73
Modbus® Communications ................................................................................. 73
Unique to TSI .................................................................................................. 73
Network Points RAM Variables ....................................................................... 74
XRAM Variables .............................................................................................. 75
RPM10 Variable List ....................................................................................... 75
RPM20 Variable List ....................................................................................... 77
RPM20 Variable List ....................................................................................... 80
RPM20 Variable List ....................................................................................... 81
LonWorks® Object .............................................................................................. 83
Node Object Network Variables ...................................................................... 83
Room Pressure Monitor Object Network Variables ........................................ 83
Description of LON SNVTs ............................................................................. 84
Model RPM10 and RPM20 BACnet® MS/TP Protocol Implementation
Conformance Statement .................................................................................... 85
BACnet® MS/TP Object Set................................................................................ 88
RPM10 PresSura Monitor ............................................................................... 88
RPM20 PresSura Monitor ............................................................................... 90
APPENDIX C ................................................................................................................................ 95
Wiring Information .............................................................................................. 95
Back Panel Wiring ........................................................................................... 95
APPENDIX D .............................................................................................................................. 107
Access Codes / Passcode................................................................................ 107
iv
How to Use This Manual
The Operation and Service Manual describes how to operate, configure, calibrate, maintain and
troubleshoot the Model RPM10 and RPM20 Room Monitors. The manual is divided into two
parts. Part one describes the unit and how to interface with the device. This section should be
read by users, facilities staff, and anyone who requires a basic understanding of how the device
operates.
Part two describes the technical aspects of the product which include operation, configuration,
calibration, maintenance and troubleshooting. Part two should be read by personnel
programming or maintaining the unit. TSI recommends thoroughly reading this manual
before changing any software items.
NOTE: This operation and service manual assumes that the monitor has been properly installed.
Refer to the Installation Instructions if there is any question as to whether the monitor has
been installed properly.
Safety Information
This section gives instructions to promote safe and proper handling of Model RPM10 and RPM20
Room Monitors.
There are no user-serviceable parts inside the instrument. Opening the instrument case will void
the warranty. Refer all service of the unit to a qualified technician.
Description of Caution Symbol
C a u t i o n
Caution indicates:
 Equipment may be damaged if procedures are not followed.
 Improper settings may result in loss of containment.
 Important information about unit operation.
Access Code / Passcode
Model RPM10 and RPM20 Room Monitors have access codes to limit unauthorized access to
the room mode or complete menu system. The access codes can be turned on or off through the
Passcode menu item. When the units ship from TSI, they are configured with the access code
off. Refer to Appendix D, Passcode, for instructions on entering the access code.
1
(This page intentionally left blank)
2
Part One
User Basics
This section is designed to provide a brief but thorough overview of the product installed. These
few pages explain the purpose (The Instrument) and the operation (Useful user information,
Operator panel, Alarms) of the product. Technical product information is available in Part Two of
the manual.
The Instrument
The Model RPM10 and RPM20 Monitors are designed to measure and report room pressure
differential in health-care facilities and other critical environments. They also can measure other
parameters, such as supply flow, exhaust flow, relative humidity, and room temperature.
Useful User Information
The display of the monitor is colored gray, green, or red. Green indicates the room pressure
differential and other configured measurements are adequate. The display turns red to indicate
alarm status when the room pressure differential or another configured measurement has risen
above or dropped below a safe level. The display provides additional information depending on
the configuration of the unit. Gray indicates that the room is in no isolation mode and will not
alarm if room pressure differential is not maintained.
Operator Panel
The Model RPM10 and RPM20 Room Monitors are easy to use. Normal vs. alarm condition and
room modes are always shown on the display. In addition, the displayed can be configured to
show the room pressure differential or all measurements. Specific details about the front panel
display and controls are described on the following pages. The front panel, shown in Figure 1 and
Figure 2 identifies the important features on the display:
Figure 1. Single Room Screen
User Basics
3
Figure 2. Two Room Screen
Display Screen
The LCD display is highly configurable and can display various critical information including
pressure differential, flow rate, alarm status, menu options, and error messages. In addition, the
LCD display is used for programming the unit. When programming the unit, the display will show
menus, menu items, and current value of the menu item, depending on the specific programming
function being performed.
Room Indicator Colors
Green
The screen icon is colored green (NORMAL) when the room pressure and/or other
configured measurements are adequate. This light indicates the room is operating
safely. If a set point cannot be maintained or an alarm limit has been reached, the
green light turns off and the red alarm light turns on.
Red
The room icon is colored red (ALARM) when the room pressure and/or other
configured measurements are not within alarm limits. This light indicates the room is
not operating safely. The display screen will also indicate the type of alarm or an
emergency message.
Gray
The room icon is colored gray to indicate No Isolation mode. In No Isolation mode
the Model RPM10 and RPM20 will not alarm.
Operator Keys
The following keys appear on the display of the Model RPM10 and RPM20 room monitor:
MUTE key
The MUTE key silences an audible alarm. The alarm remains silent until the
MUTE TIME value has been reached or the unit returns to control set point.
ACKNOWLEDGE key
The ACKNOWLEDGE key clears alarms when the Model RPM10 and RPM20
have been set latched alarms under the ALARM RESET item.
4
Part One
USB Port
There is a USB port on the case. This USB port can be used with TSI’s Configuration Software.
Figure 3. USB Port Location
Alarms
The Model RPM10 and RPM20 monitors have visual (red light) and audible alarms to inform you
of changing room conditions. The alarm levels (set points) are determined by facilities staff, which
could be Engineering, Industrial Hygiene, or a facilities group depending on how the safety staff
is organized.
The audible and visual alarms will activate whenever the field configured alarm level is reached.
The alarms will activate if the room pressure differential is low or inadequate, high or too great, or
when the airflow is too low or too high (need optional flow device installed). When the room is
operating safely, no alarms will sound.
Example: The low alarm is preset to activate when the room pressure differential falls below 0.01 in H2O (closer to neutral). When the room pressure drops to -0.005 in H2O, for
example, the audible and visual alarms activate. The alarms turn off (when set to
unlatched) when the unit returns to the safe range, which is defined as 0.001 in H2O
greater than alarm set point (-0.01 in H2O).
Visual Alarm
The display of the monitor turns red to indicate an alarm condition. The icon turns continuously
red for all alarm conditions.
Audible Alarms
The audible alarm is continuously on in all low and high alarm conditions. The audible alarm can
be silenced by pressing the
key.
If the audible alarm has been muted, the alarm is silenced for a configurable period of time (see
menu item MUTE TIME) or the measurement returns to the safe range. The safe range is
0.001 in H2O (50 cfm) above the low alarm set point and 0.001 in H2O (50 cfm) below the high
alarm set point.
User Basics
5
The audible and visual alarms can be programmed to either automatically turn off when the unit
returns to the safe range or to stay in alarm until the
ALARM RESET).
key is pressed (See menu item
Alarm Relays
The PresSura monitors feature 2 alarm relays. The alarm relays can be field configured to either
open or close to indicate an alarm condition, although they will close on loss of power.
Relay 1 functions as the low alarm relay, and will activate after the alarm delay for low pressure,
low flow, low temperature and low RH alarms. Relay 1 will trigger without waiting for the alarm
delay to indicate a LOM alarm, or low pressure drop across a venturi valve, if a flow input is
configured for venturi valves.
Relay 2 is field-configurable to function as a high alarm relay or to indicate the room status. Refer
to the Relay 2 Out item in the Alarm Config menu for details on this operation.
Before Calling TSI
This manual should answer most questions and resolve most problems you may encounter. If
you need assistance or further explanation, contact your local TSI representative or TSI. TSI is
committed to providing high quality products backed by outstanding service.
Please have the following information available prior to contacting your authorized TSI
Manufacturer’s Representative or TSI:
- Model number of unit*
RPM10 and RPM20
- Type of room pressure sensor (TSI Through-the-wall sensor or pressure transducer)
- Software revision level*
- Facility where unit is installed
* Can be determined by entering the Diagnostics menu.
Due to the different configurations of the Model RPM10 and RPM20 monitor available, the above
information is needed to accurately answer your questions.
For the name of your local TSI representative or to talk to TSI service personnel, please call TSI
at (800) 874-2811 (U.S. and Canada) or (001 651) 490-2811 (other countries).
Prior to shipping any components to TSI for service or repair, please utilize our convenient
Return Material Authorization (RMA) Form, which is available online at
https://secure.tsi.com/rma/intro.aspx.
6
Part One
Part Two
Technical Section
The PresSura™ Room Pressure Monitor is
ready to use after being properly installed and
configured. The TSI through-the-wall sensor is
factory calibrated, as are most pressure
transducers. Figure 4 shows the Digital Interface
Module (DIM) which is programmed with a
default configuration that can be easily modified
to fit your application.
The technical section is separated into five parts
that cover all aspects of the unit. Each section is
written as independently as possible to minimize
flipping back and forth through the manual for
an answer.
Figure 4. PresSura Room Pressure Monitor
The Software Programming section explains the programming keys on the DIM. In addition, the
programming sequence is described, which is the same regardless of the menu item being
changed. At the end of this section is an example of how to program the DIM.
The Menu and Menu Items section lists all of the software items available to program and
change. The items are grouped by menu which means all set points are in one menu, control
signal items in another, etc. The menu items and all related information is provided including;
programming name, description of menu item, range of programmable values, and how the unit
shipped from the factory (default value).
The Calibration section describes the required procedure to calibrate the controller. This section
explains how to compare the controller’s reading to a portable thermal anemometer and then
adjust the span to establish an accurate calibration. This section also describes how to zero a
TSI flow station transducer (if installed).
The Maintenance and Repair Parts section covers all routine maintenance of equipment, along
with a list of repair parts.
The Troubleshooting section is split into two areas: mechanical operation of the unit and system
performance. Many external variables will affect how the unit functions so it is critical to first
determine if the system is having mechanical problems—i.e., no display on unit, alarms do not
function, , etc. If no mechanical problems exist, look for performance problems (i.e., does not
seem to read correctly, display fluctuates, etc.). The first step is to determine that the system is
mechanically operating correctly, followed by modifying the configuration to eliminate the
performance problems.
Technical Section
7
Software Programming
Programming the PresSura Model RPM10/RPM20 monitor is quick and easy if the proper
keystroke procedure is followed. The programming keys are defined first, followed by the
required keystroke procedure. At the end of this section is a programming example.
NOTE: It is important to note that the unit is always operating when programming. When a menu
item value is changed, the new value takes effect immediately after saving the change,
not when the unit returns to normal operating mode.
This section covers programming the instrument through the keypad and display. If
programming through network communications (see Appendix B), use the host
computer’s procedure. The changes take place immediately upon saving data in the
instrument.
Changing Room Mode
1. Press the Room Mode button for the room on the touchscreen.
Figure 5. Main Running Screen
2. Select the desired room mode by pressing on the desired room mode button at the bottom of
the screen.
NOTE: If a room mode is not selected, the PresSura monitor will return to the main running
screen after a short delay,
Figure 6. Room Mode Selection Screen
8
Part Two
Entering Menus
Swipe across the display, from the top right corner to the bottom left corner, to access the
menu system.
Figure 7. Swipe to access menu system
Menus and Menu Items
After accessing a menu, the screen will change to show the items associated with that menu.
Refer to the Menu and Menu Items section for a list of the menus and their associated items.
Entering Data
After entering a menu item, the Model RPM10/RPM20 monitor display will change to select items.
Some items have pre-defined choices selected through a drop-down menu; others allow numeric
setpoints. Not all menus will be available on all models.
Figure 8. Menu System
Technical Section
9
Drop-Down Selection
It is easy to view available choices and make a selection from drop-down items. Touch the item
displayed in the drop-down box to view all available options. Then, touch the item desired. Touch
the Save button to save your selection and exit the item or touch the Cancel button to exit the
item without saving.
Figure 9. Using a Drop-Down Selection
Numeric Setpoints
It is easy to enter new numeric setpoints on the PresSura Model RPM10/RPM20 monitor. On a
numeric setpoint screen, the current setpoint is displayed in a box at the top left of the screen.

Use the numeric keypad to enter a new setpoint.

The value entered must be between the min and max listed on-screen.

The measurement units are displayed as units. The <- button deletes the last digit.

The Clr button clears the entire setpoint.

The Save button saves your selection and exits the item.

The Cancel button exits the item without saving changes.
Figure 10. Entering Numeric Setpoints
10
Part Two
Programming Example
The following example demonstrates the keystroke sequence. In this example the negative low
alarm set point for Room 1 will be changed from -0.01000 in H2O to -0.01300 in H2O.
 Unit is in normal operation.
 Swipe from the top right corner to the
bottom left corner to access the menu
system.
 The menu screen is displayed.
 Select the Rm1 Alarm menu.
 Select the Neg Low Alm item.
Technical Section
11

Enter the new setpoint of 0.01300 in H2O. Save the new setting.

Touch the Exit button in the Rm1 Alarm menu and again in the main menu to
return to the main running screen.
Menu and Menu Items
The PresSura Model RPM10 and RPM20 monitors are very versatile devices which can be
configured to meet your specific application. This section lists all of the menu items available to
program and change (except diagnostics menu). Changing items is accomplished by using the
touchscreen or through communications with the Building Automation System. If you are
unfamiliar with the keystroke procedure please see Software Programming section for a detailed
explanation. This section provides the following information:

Complete list of menus and all menu items.

Gives the menu or programming name.

Defines each menu item’s function; what it does, how it does it, etc.

Gives the range of values that can be programmed.

Gives default item value (how it shipped from factory).
The menus covered in this section are divided into groups of related items to ease programming.
As an example all set points are in one menu, alarm information in another, etc. The manual
follows the menus as programmed in the controller. The menu items are always grouped by
menu and then listed in menu item order, not alphabetical order.
Figure 11 and Figure 12 show the PresSura Model RPM10 and RPM20 monitor menu items.
12
Part Two
Configure
# of Rooms
Press Modes
Rm1 Label
Display Meas
Display Avg
Units
Passcode
Num Format
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Rm1 Alarm
Room Mode
Neg Low Alm
Neg Hi Alm
Pos Low Alm
Pos Hi Alm
Exh Low Alm
Sup Low Alm
Alarm Enable
ACH Duct
Room 1 Vol
Diagnostics
View Inputs
View Outputs
Relay Outputs
Analog Outpt
Touch Cal
Reset
Alarm Config
Alarm Reset
Audible Alm
Alarm Delay
Mute Time
Door Delay
Relay 2 Out
Relay 1 Dir
Relay 2 Dir
Interface
Comm Type
Address
MAC ID
Baud Rate
Nurse Address
AO1 Sig Type
AO2 Sig Type
AO2 Sig Rnge
AO2 Out Type
AO3 Sig Type
Input 4 Configure
See menu for items.
Input 1 Configure
See menu for items.
Input 2 Configure
See menu for items.
Input 3 Configure
See menu for items.
Input 5 Configure
See menu for items.
Input 6 Configure
See menu for items.
Input 7 Configure
See menu for items.
Figure 11. Menu Items – Model RPM10 Monitor
Technical Section
13
Configure
# of Rooms
Rm1 Label
AnteRm Label
Rm2 Label
Display Meas
Display Avg
Units
Passcode
Num Format
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Alarm Config
Alarm Reset
Audible Alm
Alarm Delay
Mute Time
Door Delay
Relay 2 Out
Relay 1 Dir
Relay 2 Dir
Rm1 Alarm
Room Mode
Neg Low Alm
Neg Hi Alm
Pos Low Alm
Pos Hi Alm
Exh Low Alm
Sup Low Alm
Temp Low Alm
Temp Hi Alm
ACH Duct
Room1 Vol
RH Low Alm
RH High Alm
Alarm Enable
AnteRm Alarm
Room Mode
Neg Low Alm
Neg Hi Alm
Pos Low Alm
Pos Hi Alm
Alarm Enable
Rm2 Alarm
Room Mode
Neg Low Alm
Neg Hi Alm
Pos Low Alm
Pos Hi Alm
Alarm Enable
Diagnostics
View Inputs
View Outputs
Relay Outputs
Analog Outpt
Touch Cal
Reset
Interface
Comm Type
LON
Address
MAC ID
Baud Rate
Nurse Address
AO1 Sig Type
AO2 Sig Type
AO2 Sig Rnge
AO2 Out Type
AO3 Sig Type
AO3 Sig Rnge
AO3 Out Type
Input 1 Configure
See menu for items.
Input 2 Configure
See menu for items.
Input 3 Configure
See menu for items.
Input 4 Configure
See menu for items.
Input 5 Configure
See menu for items.
Input6 Configure
See menu for items.
Input 7 Configure
See menu for items.
Figure 12. Menu Items – Model RPM20 Monitor
14
Part Two
Technical Section
Configure Menu
MENU ITEM
Monitor/
Controller
Number of Rooms
Monitored
SOFTWARE
NAME
# of Rooms
RPM10 and
RPM20
Number of
Pressure Mode
Selections
Press Modes
ITEM DESCRIPTION
The # of Rooms item selects the number of rooms the
Model RPM10 and RPM20 monitor will monitor and
control.
The Press Modes item determines the room modes
available for selection when the user presses the Room
Mode button on the main running screen.
Press Mode
2 Buttons
RPM10 and
RPM20
3 Buttons
ITEM RANGE
DEFAULT VALUE
RPM10: 1 Room
1 Room
RPM20: 1 Room,
1 Room with
Anteroom, 2 Rooms
with Anteroom
2 Buttons, 3 Buttons
2 Buttons
Room Mode Selections on Screen
Positive / No Isolation
Or
Negative / No Isolation
(based on Room Mode item in
respective Alarm menu)
Negative / No Isolation / Positive
WARNING
Codes and Standards in the US and many other areas of
the world do not allow a room to be switched from Positive
to Negative Isolation. Consult local authorities before
setting Press Modes to 3 Buttons.
Label for Room 1
Rm1 Label
The Rm1 Label item allows the user to set the room
number or other designator for room 1.
13 characters of text
ROOM 1
Rm2 Label
The Rm2 Label item allows the user to set the room
number or other designator for room 2.
13 characters of text
ROOM 2
RPM10 and
RPM20
Label for Room 2
RPM20
NOTE: Rm2 Label is only active if the # of Rooms item
is set to 2 Rooms with Anteroom.
15
16
Configure Menu
MENU ITEM
Monitor/
Controller
SOFTWARE
NAME
Label for Anteroom
AnteRm Label
RPM20
Measurements
Displayed
ITEM DESCRIPTION
The AnteRm Label item allows the user to set the room
number or other designator for the anteroom.
ITEM RANGE
DEFAULT VALUE
13 characters of text
ANTEROOM
Room Status,
Room Pressure, All
Room Status
1, 2, 3, 5, 10, 20, or
40 seconds
20 seconds
in H2O, cfm, F
Pa, l/s, C
Pa, cmh, C
in H2O, cfm
NOTE: AnteRm Label is only active if the # of Rooms
item is set to 1 Room with Anteroom or
2 Rooms with Anteroom.
Display Meas
RPM10 and
RPM20
The Display Meas item selects which measurements will
be presented on the display during normal operating
mode. Use the Units item to choose the units of measure:
ROOM STATUS displays the room mode as negative,
positive or no isolation.
ROOM PRESSURE displays the room mode and the
current measurement of room pressure differential.
ALL displays the room mode and all currently connected
measurements. Only functions when # of Rooms is set to
1 Room
NOTE: Measurements will still enable alarms if not on the
display. The measurement will not appear on the
display
Display Average
Display Avg
The Display Avg item selects the display’s running
average period. The display-averaging period is the length
of time the face velocity has been averaged before being
displayed. The Display Avg item value may be set
between 0.5 and 40 seconds. The higher the averaging
value, the more stable the display.
Units
The Units item selects the unit of measure that the
monitor displays all values (except calibration span).
These units display for all menu items setpoints, alarms,
flows, etc.
RPM10 and
RPM20
Display Units
RPM10 and
RPM20
Part Two
Technical Section
Configure Menu
MENU ITEM
Monitor/
Controller
Configure INPUT1
SOFTWARE
NAME
Input 1
RPM10 and
RPM20
Configure INPUT2
ITEM DESCRIPTION
The Input 1 item selects the desired input type for Input1,
the room pressure sensor for Room 1
ITEM RANGE
DEFAULT VALUE
TSI Sensor, Pressure
Transducer
TSI Sensor
TSI Sensor, Pressure
Transducer, None
None
RPM10: Supply
Pressure Flow
Supply Linear Flow,
Supply Venturi Flow,
Supply Switch, None
None
Go to the Input 1 menu to adjust parameters such as
sensor range associated with Input1.
Input 2
RPM20
The Input 2 item selects the desired input type for Input2,
the room pressure sensor for the AnteRm.
Go to the Input2 menu to adjust parameters such as
sensor range associated with Input2.
The Input 2 item is only active if the # of Rooms item is
set to 1 ROOM WITH ANTEROOM.
The Input 2 item is not functional on the Model RPM10
Monitor. It is only active on the Model RPM20 Monitor.
Configure INPUT3
Input 3
RPM10 and
RPM20
The Input 3 item selects the desired input type for Input3.
Go to the Input 3 menu to adjust parameters such as
sensor range associated with Input3.
The Model RPM10 Monitor cannot be set to TSI Sensor or
Pressure Transducer.
Input 3 can only be set to TSI Sensor or Pressure
Transduce if the # of Rooms item is set to 2 Rooms with
Anteroom.
Configure INPUT4
RPM10 and
RPM20
Input 4
The Input 4 item selects the desired input type for Input4.
Go to the Input 4 menu to adjust parameters such as
sensor range associated with Input4.
RPM20: Supply
Pressure Flow
Supply Linear Flow,
Supply Venturi Flow,
Supply Switch
TSI Sensor, Pressure
Transducer, None
None,
Room1 Door Switch,
Room 1 Occupancy
Sensor
None
17
18
Configure Menu
MENU ITEM
Monitor/
Controller
Configure INPUT5
SOFTWARE
NAME
Input 5
RPM10 and
RPM20
ITEM DESCRIPTION
The Input 5 item selects the desired input type for Input5.
Go to the Input 5 menu to adjust parameters such as
sensor range associated with Input5.
The Model RPM10 Monitor cannot be set to Relative
Humidity Sensor.
Configure INPUT6
Input 6
RPM20
The Input 6 item selects the desired input type for Input6.
Go to the Input 6 menu to adjust parameters such as
sensor range associated with Input6.
ITEM RANGE
DEFAULT VALUE
RPM10: None,
Room1 Key Switch
None
RPM20: None,
Room1 Key Switch,
Relative Humidity
Sensor
None, Room1 Temp
Sensor, Room 2
Occupancy Sensor,
Room 2 Door Switch
None
RPM10: Exhaust
Pressure Flow,
Exhaust Linear Flow,
Exhaust Venturi
Flow, Exhaust
Switch, None
None
The Input 6 item is not functional on the Model RPM10
Monitor. It is only active on the Model RPM20 Monitor.
Configure INPUT7
Input 7
RPM10 and
RPM20
The Input 7 item selects the desired input type for Input7.
Go to the Input 7 menu to adjust parameters such as
sensor range associated with Input7.
Input 7 can only be set to Room 2 Key Switch if the # of
Rooms item is set to 2 Rooms With Anteroom.
The Model RPM10 Monitor cannot be set to Room 2
Key Switch.
Number Format
RPM10 and
RPM20
Num Format
The Num Format menu item selects the way that
numbers are displayed.
RPM20: Exhaust
Pressure Flow,
Exhaust Linear Flow,
Exhaust Venturi
Flow, Exhaust
Switch, Room 2
Key Switch, None
Period
Comma
Period
Part Two
Technical Section
Configure Menu
MENU ITEM
Monitor/
Controller
Enable Access
Codes
SOFTWARE
NAME
Passcode
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT VALUE
The Passcode item selects whether an access code
(pass code) is required to enter the menu items. The
Passcode item prevents unauthorized access to a menu.
If the Passcode item is:
OFF
no code is required to enter the room
mode or menu screens.
ROOM MODE
access code is required to enter the
room mode screens but not the menu
screens
MENUS
access code is required to enter the
menu screens but not the room mode
screens
ALL
access code is required to enter the
room mode and menu screens.
Off
Room Mode
Menus
All
Menus
ITEM DESCRIPTION
ITEM RANGE
DEFAULT VALUE
Positive
Negative
Negative
Enabled
Disabled
Low Alarms
Enabled
Rm1 Alarm Menu
MENU ITEM
Mode of Room 1
SOFTWARE
NAME
Room Mode
RPM10 and
RPM20
Room 1 Alarm
Enable
RPM10 and
RPM20
The Room Mode item selects the room pressure
direction. This item enables all related alarms, for
pressure direction selected.
NOTE: No Isolation Room Mode can be selected from the
main running screen.
Alarm Enable
The Alarm Enable item enables the low and high alarm
functions. When this item is entered, the monitor will show
buttons for Low Alarms and High Alarms. Press the button
to toggle between enabling and disabling the alarms.
NOTE: The Alarm Enable item enables or disables
pressure, flow, temperature and humidity alarms.
High Alarms
Disabled
19
20
Rm1 Alarm Menu
MENU ITEM
Room 1 Negative
Low Alarm
SOFTWARE
NAME
Neg Low Alm
RPM10 and
RPM20
ITEM DESCRIPTION
The Neg Low Alm item sets the negative low pressure
alarm setpoint. A low alarm condition is defined as when
the magnitude of the room pressure falls below the Neg
Low Alm setpoint.
This item is active when the TSI key switch is in negative
room pressure position or when NEGATIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
Room 1 Negative
High Alarm
Neg Hi Alm
RPM10 and
RPM20
Room 1 Positive
Low Alarm
This item is active when the TSI key switch is in negative
room pressure position or when NEGATIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
Pos Low Alm
RPM10 and
RPM20
Room 1 Positive
High Alarm
RPM10 and
RPM20
The Neg Hi Alm item sets the negative high pressure
alarm setpoint. A high alarm condition is defined as when
the room is more negative than the Neg Hi Alm setpoint.
The Pos Low Alm item sets the positive low pressure
alarm setpoint. A low alarm condition is defined as when
the room is less positive than the Pos Low Alm setpoint.
This item is active when the TSI key switch is in positive
room pressure position or when POSITIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
Pos Hi Alm
The Pos Hi Alm item sets the positive high pressure
alarm setpoint. A high alarm condition is defined as when
the magnitude of the room pressure rises above the Pos
Hi Alm setpoint.
This item is active when the TSI key switch is in positive
room pressure position or when POSITIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
ITEM RANGE
DEFAULT VALUE
-0.19500 in H2O to
+0.19500 in H2O
-0.01000 in H2O
Note: Neg Low Alm
cannot be set
more negative
than the Neg Hi
Alm
-0.19500 in H2O to
+0.19500 in H2O
-0.10000 in H2O
Note: Neg Hi Alm
cannot be set
less negative
than the Neg
Lo Alm
-0.19500 in H2O to
+0.19500 in H2O
+0.01000 in H2O
Note: Pos Low Alm
cannot be set
more positive
than the Pos Hi
Alm
-0.19500 in H2O to
+0.19500 in H2O
Note: Pos Hi Alm
cannot be set
less positive
than the Pos
Lo Alm
+0.10000 in H2O
Part Two
Technical Section
Rm1 Alarm Menu
MENU ITEM
Room 1 Low
Exhaust Flow
Alarm
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT VALUE
Exh Low Alm
The Exh Low Alm item sets the minimum exhaust flow
alarm setpoint. A minimum flow alarm is defined as when
the exhaust flow is less than the Exh Low Alm setpoint.
0 to 30,000 cfm
0 cfm
Sup Low Alm
The Sup Low Alm item sets the minimum supply flow
alarm setpoint. A minimum flow alarm is defined as when
the supply flow is less than the Sup Low Alm setpoint.
0 to 30,000 cfm
0 cfm
Temp Low
Alm
The Temp Low Alm item sets the minimum room
temperature alarm setpoint.
50 to 100°F
50°F
Temp Hi Alm
The Temp Hi Alm item sets the maximum room
temperature alarm setpoint.
RPM10 and
RPM20
Room 1 Low
Supply Flow Alarm
RPM10 and
RPM20
Room 1 Low Room
Temperature Alarm
RPM20
High Room
Temperature Alarm
RPM20
Low Relative
Humidity Alarm
RH Low Alm
The RH Low Alm item sets the minimum relative humidity
alarm setpoint.
RPM20
High Relative
Humidity Alarm
RPM20
RH Hi Alm
The RH Hi Alm item sets the maximum relative humidity
alarm setpoint.
Note: Temp Low Alm
cannot be set
greater than the
Temp Hi Alm
50 to 100°F
100°F
Note: Temp Hi Alm
cannot be set
less than the
Temp Low Alm
0 to 100%
0%
Note: RH Low Alm
cannot be set
greater than the
RH Hi Alm
0 to 100%
Note: RH Hi Alm
cannot be set
less than the
RH Low Alm
100%
21
22
Rm1 Alarm Menu
MENU ITEM
Duct for Air
Changes per Hour
Calculation
SOFTWARE
NAME
ITEM RANGE
DEFAULT VALUE
OFF
SUPPLY
EXHAUST
OFF
0 to 20,000 ft3
0 ft3
ITEM DESCRIPTION
ITEM RANGE
DEFAULT VALUE
The Room Mode item selects the room pressure
direction. This item enables all related alarms, for
pressure direction selected. Selecting ROOM1 means that
the Room Mode will follow the Room Mode of Room 1.
Positive
Negative
Room1
Negative
Enabled
Disabled
Low Alarms:
Enabled
ACH Duct
The ACH Duct item sets the duct to be used for ACH
calculations:
SUPPLY
is normally used for positive rooms
EXHAUST is normally used for negative rooms
OFF
is used if the ACH calculation is not
desired
Room1 Vol
The Room1 Vol item sets the room volume for the ACH
calculation.
RPM10 and
RPM20
Room Volume
ITEM DESCRIPTION
RPM10 and
RPM20
AnteRm Alarm Menu
MENU ITEM
Mode of Anteroom
SOFTWARE
NAME
Room Mode
RPM20
NOTE: No Isolation Room Mode can be selected from the
main running screen.
Anteroom Alarm
Enable
Alarm Enable
RPM20
Anteroom Negative
Low Alarm
RPM20
Neg Low Alm
The Alarm Enable item enables the low and high alarm
functions. When this item is entered, the monitor will show
buttons for Low Alarms and High Alarms. Press the button
to toggle between enabling and disabling the alarms.
The Neg Low Alm item sets the negative low pressure
alarm setpoint. A low alarm condition is defined as when
the magnitude of the room pressure falls below the Neg
Low Alm setpoint.
Part Two
This item is active when the TSI key switch is in negative
room pressure position or when NEGATIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
High Alarms:
Disabled
-0.19500 in H2O to
+0.19500 in H2O
Note: Neg Low Alm
cannot be set
more negative
than the Neg Hi
Alm
-0.01000 in H2O
Technical Section
AnteRm Alarm Menu
MENU ITEM
Anteroom Negative
High Alarm
SOFTWARE
NAME
Neg Hi Alm
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT VALUE
The Neg Hi Alm item sets the negative high pressure
alarm setpoint. A high alarm condition is defined as when
the room is more negative than the Neg Hi Alm setpoint.
-0.19500 in H2O to
+0.19500 in H2O
-0.10000 in H2O
This item is active when the TSI key switch is in negative
room pressure position or when NEGATIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
Anteroom Positive
Low Alarm
Pos Low Alm
RPM20
The Pos Low Alm item sets the positive low pressure
alarm setpoint. A low alarm condition is defined as when
the room is less positive than the Pos Low Alm setpoint.
This item is active when the TSI key switch is in positive
room pressure position or when POSITIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
Anteroom Positive
High Alarm
RPM20
Pos Hi Alm
The Pos Hi Alm item sets the positive high pressure
alarm setpoint. A high alarm condition is defined as when
the magnitude of the room pressure rises above the
Pos Hi Alm setpoint.
This item is active when the TSI key switch is in positive
room pressure position or when POSITIVE is selected in
ROOM MODE item. However, it is always accessible
through the menu system.
Note: Neg Hi Alm
cannot be set
less negative
than the Neg
Lo Alm
-0.19500 in H2O to
+0.19500 in H2O
0.01000 in H2O
Note: Pos Low Alm
cannot be set
more positive
than the Pos Hi
Alm
-0.19500 in H2O to
+0.19500 in H2O
Note: Pos Hi Alm
cannot be set
less positive
than the Pos
Lo Alm
0.10000 in H2O
23
24
Rm2 Alarm Menu
MENU ITEM
Mode of Room 2
SOFTWARE
NAME
Room Mode
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT VALUE
The Room Mode item selects the room pressure
direction. This item enables all related alarms, for
pressure direction selected. Selecting ROOM1 means that
the Room Mode will follow the Room Mode of Room 1.
Positive
Negative
Room1
Negative
Enabled
Disabled
Low Alarms
Enabled
NOTE: No Isolation Room Mode can be selected from the
main running screen.
Room 2 Alarm
Enable
Alarm Enable
RPM20
Room 2 Negative
Low Alarm
Neg Low Alm
RPM20
The Alarm Enable item enables the low and high alarm
functions. When this item is entered, the monitor will show
buttons for Low Alarms and High Alarms. Press the button
to toggle between enabling and disabling the alarms.
The Neg Low Alm item sets the negative low pressure
alarm setpoint. A low alarm condition is defined as when
the magnitude of the room pressure falls below the Neg
Low Alm setpoint.
This item is enabled when the TSI key switch is in
negative room pressure position or when NEGATIVE is
selected in Room Mode item.
Room 2 Negative
High Alarm
Neg Hi Alm
RPM20
The Neg Hi Alm item sets the negative high pressure
alarm setpoint. A high alarm condition is defined as when
the room is more negative than the Neg Hi Alm setpoint.
This item is enabled when the TSI key switch is in
negative room pressure position or when NEGATIVE is
selected in Room Mode item.
Room 2 Positive
Low Alarm
RPM20
Pos Low Alm
The Pos Low Alm item sets the positive low pressure
alarm setpoint. A low alarm condition is defined as when
the room is less positive than the Pos Low Alm setpoint.
Part Two
This item is enabled when the TSI key switch is in positive
room pressure position or when POSITIVE is selected in
Room Mode item.
High Alarms
Disabled
-0.19500 in H2O to
+0.19500 in H2O
-0.01000 in H2O
Note: Neg Low Alm
cannot be set
more negative
than the Neg Hi
Alm
-0.19500 in H2O to
+0.19500 in H2O
-0.10000 in H2O
Note: Neg Hi Alm
cannot be set
less negative
than the Neg
Lo Alm
-0.19500 in H2O to
+0.19500 in H2O
Note: Pos Low Alm
cannot be set
more positive
than the Pos Hi
Alm
0.01000 in H2O
Technical Section
Rm2 Alarm Menu
MENU ITEM
Room 2 Positive
High Alarm
SOFTWARE
NAME
Pos Hi Alm
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT VALUE
The Pos Hi Alm item sets the positive high pressure
alarm setpoint. A high alarm condition is defined as when
the magnitude of the room pressure rises above the Pos
Hi Alm setpoint.
-0.19500 in H2O to
+0.19500 in H2O
0.10000 in H2O
This item is enabled when the TSI key switch is in positive
room pressure position or when POSITIVE is selected in
Room Mode item.
Note: Pos Hi Alm
cannot be set
less than
positive the
Pos Lo Alm
ALARM CONSTRAINTS
There are a number of constraints that prohibit you from incorrectly adjusting the set points. These are as follows:
1. Room mode. The positive pressure alarms are only active when positive control is selected. Negative pressure alarms are only active
when negative control is selected. In no isolation mode all alarms are turned off.
2. The PresSura monitor is programmed with deadbands between alarm setpoints to prevent the controller from cycling between high and
low alarms due to normal fluctuations. Setpoint deadbands are:

Pressure = 0.001 in H2O

Flow = 50 cfm

Temperature = 1°F

Relative Humidity = 1%

Position = 1% Open
Example: The control NEG LOW ALM is set at -0.01” H2O. The NEG HI ALM cannot be set less negative than -0.011” H2O.
3. Alarms do not terminate until the room pressure slightly exceeds the alarm setpoint.
4. The ALARM RESET item selects how the alarms will terminate when the controller returns to the safe range. The pressure and flow
alarms all terminate the same; they are either latched or unlatched. If unlatched is selected the alarms automatically turn off when the
value slightly exceeds the alarm setpoint. If latched is selected, the alarms will not terminate until the pressure or flow exceeds the alarm
setpoint and the
key is pressed.
5. There is a programmable ALARM DELAY that determines how long to delay before activating the alarms. This delay affects all alarms,
pressure and flow.
6. The MUTE TIME item temporarily turns the audible alarm off for all pressure and flow alarms.
25
26
7. The display can only show one alarm message. Therefore, the monitor has an alarm priority system, with the highest priority alarm being
displayed. If multiple alarms exist, the lower priority alarms will not display until after the highest priority alarm has been eliminated. The
alarm priority is as follows:
Room 1 pressure sensor – low alarm
Room 1 pressure sensor – high alarm
Room 1 – minimum exhaust flow
Room 1 – minimum supply flow
Room 1 – temperature alarms
Room 1 – relative humidity alarms
Room 1 – supply venturi (low static pressure) alarm
Room 1 – exhaust venturi (low static pressure) alarm
Anteroom pressure sensor – low alarm
Anteroom pressure sensor – high alarm
Room 2 pressure sensor – low alarm
Room 2 pressure sensor – high alarm
Room 1 – supply airflow-proving switch
Room 1 – exhaust airflow-proving switch
8. The low and high alarms are absolute values. The chart below shows how the values must be programmed in order to operate correctly.
-0.2 inches H2O
Min Transducer Reading
(maximum negative)
High
Negative
Alarm
Low
Negative
Alarm
Low
Positive
Alarm
+0.2 inches H2O
Max Transducer Reading
(maximum positive)
High
Positive
Alarm
The value of each setpoint or alarm is unimportant (except for small dead band) in graph above. It is important to understand that the high
alarm is a greater negative (positive) value than the low alarm.
Part Two
Technical Section
Alarm Config Menu
MENU ITEM
Alarm Reset
SOFTWARE
NAME
Alarm Reset
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
The Alarm Reset item selects how the alarms terminate
after the unit returns to control set point. The Alarm Reset
affects the audible alarm, visual alarm, and relay output,
which means all are latched or unlatched.
Latched, Unlatched
DEFAULT
VALUE
Unlatched
On, Off
Off
LATCHED requires the staff to press the
alarms.
key to clear
UNLATCHED (alarm follow) automatically resets the
alarm when the room pressure is:
 0.001 in H2O ft/min greater than the low alarm set
point, or 0. 001 in H2O below the high alarm set point
 50 cfm greater than the low alarm setpoint for flow
alarms
 0.3 °F for temperature
 0.5% RH
Enable Sound
Audible Alm
The Audible Alm item enables the beeper on the
PresSura monitor.
Alarm Delay
The Alarm Delay item sets the period of time the room
pressure differential, flow or temperature must be above
the high alarm set point or below the low alarm set point
before the controller enters alarm mode. Use the Alarm
Delay function to avoid momentary, nuisance alarms.
20 to 600 seconds
20 seconds
Door Delay
The Door Delay item sets the period of time the room
pressure differential, flow or temperature must be above
the high alarm set point or below the low alarm set point
before the monitor enters alarm mode when the door is
open. Use the Door Delay function to avoid momentary,
nuisance alarms.
20 to 600 seconds
60 seconds
RPM10 and
RPM20
Alarm Delay
RPM10 and
RPM20
Door Delay
RPM10 and
RPM20
27
NOTE: Input4 Config or Input6 Config must be set to
DOOR SWITCH for the Door Delay to take
effect. Door Delay can be configured even if
Input 4 or Input 6 is not set to DOOR SWITCH.
28
Alarm Config Menu
MENU ITEM
Mute Timeout
SOFTWARE
NAME
ITEM RANGE
DEFAULT
VALUE
Mute Time
The Mute Time item sets the length of time the audible
alarm will be silenced if the mute button is pressed. The
Mute Time can be set from 1 to 60 minutes.
1 to 60 Minutes
5 Minutes
Relay 2 Out
The Relay 2 Out item sets desired alarm output to be
used with Relay 2. If set to:
High Alarm
Negative Room
Positive Room
High Alarm
RPM10 and
RPM20
Relay2 Output
Signal
ITEM DESCRIPTION
RPM10 and
RPM20
HIGH ALARM the PresSura monitor will activate the relay
if a high alarm condition exists.
NEGATIVE ROOM the PresSura monitor will activate the
relay when the mode for Room 1 is Negative.
POSITIVE ROOM the PresSura monitor will activate the
relay when the mode for Room 1 is Positive.
Relay 2 Output
Direction
Relay 2 Dir
The Relay 2 Dir item sets desired signal output to be
used with Relay 2.
If Relay 2 Out is set to HIGH ALARM
OK = OPEN
OK = CLOSED
OK = OPEN
If Relay 2 Out is set to NEGATIVE ROOM or
POSITIVE ROOM:
NO ISO = OPEN
NO ISO = CLOSED
NO ISO = OPEN
Interface Menu
MENU ITEM
Network
Communications
Protocol
RPM10 and
RPM20
SOFTWARE
NAME
Comm Type
ITEM DESCRIPTION
ITEM RANGE
The Comm Type item selects the communications protocol
used to interface with the building management system.
RPM10: Modbus®
BACnet®
RPM20: Modbus®
BACnet®
LON
NOTE: LON can only be selected on Model RPM20
monitors with LONworks.
Modbus and BACnet will only appear on
Model RPM20 monitors without LON and on all
Model RPM10 monitors.
DEFAULT
VALUE
Modbus
Part Two
Technical Section
Interface Menu
MENU ITEM
Network Address
SOFTWARE
NAME
Address
RPM10 and
RPM20
ITEM DESCRIPTION
The Address item sets the main network address of the
room pressure monitor. Each unit on the network must
have its own unique address.
ITEM RANGE
DEFAULT
VALUE
Modbus: 1 to 247
BACnet: 1 to 127
1
1 to 999
606
Modbus: 9600
BACnet: 9600,
19200, 38400,
76800, AutoBaud
Modbus: 9600
BACnet:
AutoBaud
NOTE: The Address item is only functional when
Comm Type is set to MODBUS or BACNET.
NOTE: Changes to the Address may take up to 1 minute
to take effect when using BACnet
communications.
MAC ID
MAC ID
RPM10 and
RPM20
The MAC ID item combines with the MAC ADDRESS to
form the Device ID. The Device ID is the 3 digits of the
MAC ID*1000 plus the 3 digits of the MAC ADDRESS. For
example, if the MAC ID is 865 and the MAC ADDRESS is
1, then the Device ID is 865001.
NOTE: The MAC ID item is only functional when
Comm Type is set to BACNET.
NOTE: Changes to the MAC ID may take up to 1 minute
to take effect when using BACnet
communications.
Baud Rate
RPM10 and
RPM20
Baud Rate
The Baud Rate item sets the communication speed of the
PresSura monitor when using Modbus or BACnet
communications.
NOTE: Changes to the Baud Rate may take up to
1 minute to take effect when using BACnet
communications.
Baud Rate is not configurable when Comm Type
is set to Modbus.
29
30
Interface Menu
MENU ITEM
Network Address
for Nurse’s Station
SOFTWARE
NAME
Nurse
Address
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
The Nurse Address item sets the main network address of
the room pressure monitor when communicating with the
Nurse’s Station Monitor. Each unit on the network must
have its own unique address.
1 to 8
1
Service Pin
Go Unconfigured
N/A
NOTE: PresSura Model RPM10 and RPM20 monitors will
have rooms displayed on the Nurse’s Station
Monitor in order of the Nurse Address. The
PresSura monitor with the lowest Nurse Address
will be displayed at the top-left of the Nurse’s
Station Monitor screen. If a PresSura monitor is
configured for more than 1 room, then the rooms
will be displayed on the Nurse’s Station in order of
Room 1, Room 2, and Anteroom.
LON Configuration
RPM20
LON
When the SERVICE PIN option is selected, the Model
RPM20 sends a broadcast message containing its Neuron
ID and program ID. This is required to install the Model
RPM20 on the LonWorks® network, or to reinstall the
Model RPM20 after using the GO UNCONFIGURED
command.
Selecting the GO UNCONFIGURED option resets the
Model RPM20 monitor’s authentication key. This is
required in the event a foreign network tool inadvertently
acquires a Model RPM20 and installs it with network
management authentication. The Model RPM20 monitor’s
owner will then be unable to reclaim the Model RPM20
over the network.
NOTE: The LON item is only functional when
Comm Type is set to LON.
Part Two
Technical Section
Interface Menu
MENU ITEM
Analog Output
Signal Type
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
AO1 Sig
Type
The AO1 Sig Type item selects the measurement that the
analog output signal will represent.
None
None
AO2 Sig
Type
The AO2 Sig Type item selects the measurement that the
analog output signal will represent.
Room 1 Pressure
Exhaust Flow
None
None
AO2 Out
Type
The AO2 Out Type item selects the analog output (not
control output signal).
0 to 10 VDC
4-20 mA
0 to 10 VDC
AO2 Sig
Rnge
The AO2 Sig Rnge item selects the full scale range that
the analog output signal will represent. If the room pressure
sensor is set to:
PRESSURE:
-1.00 in H2O
to
+1.00 in H2O
PRESSURE:
0.10 in H2O
RPM10 and
RPM20
Analog Output
Signal Type
RPM10 and
RPM20
Analog Output
Signal
RPM10 and
RPM20
Analog Output Full
Scale
RPM10 and
RPM20
AO2 SIGNAL TYPE
(SENSOR)
ROOM 1
PRESSURE (TSI)
ROOM 1
PRESSURE
(PRESSURE
TRANSDUCER;
SENSOR MIN=0)
ROOM 1
PRESSURE
(PRESSURE
TRANSDUCER;
SENSOR MIN≠0)
EXHAUST FLOW
0 V / 4 mA
- AO2 Sig Rnge
10 V / 20 mA
+ AO2 Sig Rnge
0
AO2 Sig Rnge
- AO2 Sig Rnge
+ AO2 Sig Rnge
0
AO2 Sig Rnge
NOTE: Do not set AO2 Sig Rnge to a value greater than
the sensor input.
FLOW: 0 to
30,000 CFM
FLOW:
1000 CFM
31
32
Interface Menu
MENU ITEM
Analog Output
Signal Type
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
AO3 Sig
Type
The AO3 Sig Type item selects the measurement that the
analog output signal will represent.
AO3 Out
Type
The AO3 Out Type item selects the analog output (not
control output signal).
AO3 Sig
Rnge
The AO3 Sig Rnge item selects the full scale range that
the analog output signal will represent. If the room pressure
sensor is set to:
RPM20
Analog Output
Signal
DEFAULT
VALUE
Room 2 Pressure
Supply Flow
Exhaust Flow
None
None
0 to 10 VDC or
4-20 mA
0 to 10 VDC
PRESSURE:
-1.00 in H2O
to
+1.00 in H2O
FLOW: 0 to
30,000 CFM
PRESSURE:
0.10 in H2O
FLOW:
1000 CFM
RPM20
Analog Output Full
Scale
RPM20
AO3 SIGNAL
TYPE (SENSOR)
ROOM 2
PRESSURE
(TSI)
ROOM 1
PRESSURE
(PRESSURE
TRANSDUCER;
SENSOR MIN=0)
ROOM 1
PRESSURE
(PRESSURE
TRANSDUCER;
SENSOR MIN≠0)
SUPPLY FLOW
EXHAUST
FLOW
0 V / 4 mA
-AO3 Sig Rnge
10 V / 20 mA
+ AO3 Sig Rnge
0
AO3 Sig Rnge
-AO3 Sig Rnge
+ AO3 Sig Rnge
0
0
AO3 Sig Rnge
AO3 Sig Rnge
NOTE: Do not set AO3 Sig Rnge to a value greater than
the sensor input.
Part Two
Technical Section
Diagnostics Menu
MENU ITEM
View Measurement
Inputs
SOFTWARE
NAME
View Inputs
The View Inputs item allows the user to view the measurements for all 7 inputs on one screen.
View Outputs
The View Outputs item allows the user to view the current output signals, in units of V or mA.
Relay
Outputs
The Relay Outputs item allows the user to view and manually control the 2 relay outputs.
Analog Outpt
The Analog Outpt item allows the user to manually control the Analog Outputs.
Touch Cal
The Touch Cal item starts the touchscreen recalibration process. While recalibrating the touchscreen,
the PresSura monitor will direct the user to touch the screen in various places.
ITEM DESCRIPTION
RPM10 and
RPM20
View Output
Signals
RPM10 and
RPM20
Control Relay
Outputs
RPM10 and
RPM20
Manually Adjust
Analog Outputs
RPM10 and
RPM20
Recalibrate
Touchscreen
RPM10 and
RPM20
Reset to Default
RPM10 and
RPM20
NOTE: Recalibrating the touchscreen is best accomplished using a stylus, pen, or similar object.
Reset
The Reset item resets all parameters to factory default.
33
34
Input1 Config Menu
TSI Sensor
MENU ITEM
Set Sensor Zero
Calibration
SOFTWARE
NAME
Sensor Zero
ITEM DESCRIPTION
ITEM RANGE
The Sensor Zero item is used to re-zero the TSI Sensor
zero calibration point.
None
Sensor Span
The Sensor Span item is used to match or calibrate the
PresSura TSI sensor to the average room pressure velocity
as measured by a portable air velocity meter.
None
Elevation
The Elevation item is used to enter the elevation of the
sensor above sea level. The pressure value needs to be
corrected due to changes in air density at different
elevations.
RPM10 and
RPM20
Set Sensor Span
Calibration
RPM10 and
RPM20
Set Sensor
Elevation
RPM10 and
RPM20
DEFAULT
VALUE
Unit is factory
calibrated and
should not need
adjustment.
Unit is factory
calibrated and
should not need
adjustment.
0 to 10,000 feet
above sea level
0
None
N/A
While this number can be entered in increments of 1 foot,
the density adjustments are in 1,000 foot increments. For
example, if the PresSura will interpret Elevation settings
between 0 and 999 feet as 0 feet, settings between 1000
and 1999 feet as 1000 feet, etc.
Reset Calibration
RPM10 and
RPM20
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing field calibration adjustments. When this
menu item is entered, the monitor will prompt the user to
verify that they want to do this by displaying the message
“Are You Sure.” Entering YES resets the Sensor Zero,
Sensor Span and Elevation items to defaults. Entering NO
will cancel the reset.
Part Two
Technical Section
Input1 Config Menu
TSI Sensor
MENU ITEM
Check Sensor
Status
SOFTWARE
NAME
Check Status
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
The Check Status item is used to check the communication
status of the sensor. After pressing the button, the PresSura
unit will respond with:
None
N/A
COMM ERROR -
DIM cannot communicate with
sensor. Check all wiring and the
pressure sensor address.
SENS ERROR -
Physical damage to pressure sensor
circuitry. Unit is not field-repairable.
Send to TSI for repair.
CAL ERROR
Calibration data lost. Send to TSI for
calibration.
-
DATA ERROR -
Problem with sensor EEPROM, field
calibration or analog output. Check all
data configured and confirm unit is
functioning correctly.
Input1 Config Menu
Press Trans
MENU ITEM
Set Minimum
Sensor Pressure
Output
SOFTWARE
NAME
Sensor Min
RPM10 and
RPM20
Set Maximum
Sensor Pressure
Output
RPM10 and
RPM20
Sensor Max
The Sensor Min item is used to set the minimum reading
of a pressure transducer used to measure room pressure
differential. For example, if the pressure transducer has a
range of -0.25 in H2O to +0.25 in H2O (-62.5 to +62.5 Pa),
the Sensor Min should be set to -0.25 in H2O (-62.5 Pa).
-1.00 to + 1.00 in H2O
DEFAULT
VALUE
0
The Sensor Max item is used to set the maximum reading
of a pressure transducer used to measure room pressure
differential. For example, if the pressure transducer has a
range of -0.25 in H2O to +0.25 in H2O (-62.5 to +62.5 Pa),
the Sensor Max should be set to +0.25 in H2O (+62.5 Pa).
-1.00 to + 1.00 in H2O
0
ITEM DESCRIPTION
ITEM RANGE
35
36
Input1 Config Menu
Press Trans
MENU ITEM
Set Minimum
Sensor Voltage
Output
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
Signal Min
The Signal Min item is used to set the minimum output
signal when a pressure transducer is used to measure
room pressure differential.
0 to 5 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal when a pressure transducer is used to measure
room pressure differential.
1 to 10 V
10 V
Sensor Zero
The Sensor Zero item is used to re-zero the pressure
transducer zero calibration point.
None
N/A
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the monitor will prompt
the user to verify that they want to do this by displaying the
message “Are You Sure.” Entering YES resets the Sensor
Zero factor for this sensor to defaults. Entering NO will
cancel the reset.
None
N/A
RPM10 and
RPM20
Set Maximum
Sensor Voltage
Output
RPM10 and
RPM20
Set Sensor Zero
Calibration
RPM10 and
RPM20
Reset Calibration
RPM10 and
RPM20
Part Two
Technical Section
Input2 Config Menu
TSI Sensor
MENU ITEM
Set Sensor Zero
Calibration
SOFTWARE
NAME
Sensor Zero
ITEM DESCRIPTION
ITEM RANGE
The Sensor Span item is used to re-zero the TSI Sensor
zero calibration point.
None
Sensor Span
The Sensor Span item is used to match or calibrate the
PresSura monitor TSI sensor to the average room pressure
velocity as measured by a portable air velocity meter.
None
Elevation
The Elevation item is used to enter the elevation of the
sensor above sea level. The pressure value needs to be
corrected due to changes in air density at different
elevations.
RPM20
Set Sensor Span
Calibration
RPM20
Set Sensor
Elevation
RPM20
DEFAULT
VALUE
Unit is factory
calibrated and
should not
need
adjustment.
Unit is factory
calibrated and
should not
need
adjustment.
0 to 10,000 feet
above sea level
0
None
N/A
While this number can be entered in increments of 1 foot,
the density adjustments are in 1,000 foot increments. For
example, if the PresSura will interpret Elevation settings
between 0 and 999 feet as 0 feet, settings between 1000
and 1999 feet as 1000 feet, etc.
Reset Calibration
RPM20
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing field calibration adjustments. When this
menu item is entered, the controller will prompt the user to
verify that they want to do this by displaying the message
“Reset Settings to Factory Default?” Entering YES resets
the Sensor Zero, Sensor Span and Elevation items to
defaults. Entering NO will cancel the reset.
37
38
Input2 Config Menu
TSI Sensor
MENU ITEM
Check Sensor
Status
RPM20
SOFTWARE
NAME
Check Status
ITEM DESCRIPTION
The Check Status item is used to check the
communication status of the sensor. After pressing the
button, the PresSura unit will respond with:
COMM ERROR -
DIM cannot communicate with
sensor. Check all wiring and the
pressure sensor address.
SENS ERROR -
Physical damage to pressure sensor
circuitry. Unit is not field-repairable.
Send to TSI for repair.
CAL ERROR
-
Calibration data lost. Send to TSI for
calibration.
DATA ERROR -
Problem with sensor EEPROM, field
calibration or analog output. Check
all data configured and confirm unit
is functioning correctly.
ITEM RANGE
DEFAULT
VALUE
None
N/A
Part Two
Technical Section
Input2 Config Menu
Press Trans
MENU ITEM
Set Minimum
Sensor Pressure
Output
SOFTWARE
NAME
DEFAULT
VALUE
The Sensor Min item is used to set the minimum reading
of a pressure transducer used to measure room pressure
differential. For example, if the pressure transducer has a
range of -0.25 in H2O to +0.25 in H2O (-62.5 to +62.5 Pa),
the Sensor Min should be set to -0.25 in H2O (-62.5 Pa).
-1.00 to + 1.00 in H2O
0
Sensor Max
The Sensor Max item is used to set the maximum reading
of a pressure transducer used to measure room pressure
differential. For example, if the pressure transducer has a
range of -0.25 in H2O to +0.25 in H2O (-62.5 to +62.5 Pa),
the Sensor Max should be set to +0.25 in H2O (+62.5 Pa).
-1.00 to + 1.00 in H2O
0
Signal Min
The Signal Min item is used to set the minimum output
signal when a pressure transducer is used to measure
room pressure differential.
0 to 5 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal when a pressure transducer is used to measure
room pressure differential.
1 to 10 V
10 V
Sensor Zero
The Sensor Zero item is used to re-zero the pressure
transducer zero calibration point.
None
N/A
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing field calibration adjustments. When this
menu item is entered, the controller will prompt the user to
verify that they want to do this by displaying the message
“Reset Settings to Factory Default?” Entering YES resets
the Sensor Zero item to defaults. Entering NO will cancel
the reset.
None
N/A
RPM20
Set Minimum
Sensor Voltage
Output
ITEM RANGE
Sensor Min
RPM20
Set Maximum
Sensor Pressure
Output
ITEM DESCRIPTION
RPM20
Set Maximum
Sensor Voltage
Output
RPM20
Set Sensor Zero
Calibration
RPM20
Reset Calibration
RPM20
39
40
Input3 Config Menu
Sup Pres Flow
MENU ITEM
Set Flow Station
Duct Area
SOFTWARE
NAME
Duct Area
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
The Duct Area item is used to program the cross sectional
area of the duct where the flow station is mounted. Since
the flow station is used to measure duct velocity, the
Duct Area is necessary to calculate the duct air flow.
0 to 50.00 ft2
(0 to 4.6450 m2)
0.00 ft2
(0.0000 m2)
0.01 to 10.00
1.00
NOTE: The DIM does not compute duct area. The area
must be first calculated and then entered into the
unit.
Use the following equations to calculate the duct area
(in ft2).
For round ducts
For rectangular ducts
W A R N IN G
If the proper Duct Area is not programmed into the
Model RPM10 and RPM20, the flow measurement will be
incorrect. Thus, all the other information that uses the flow
measurement, such as the flow alarms, will also be
incorrect.
Set Flow K-Factor
Adjustment
RPM10 and
RPM20
K-Factor
The K-Factor menu item sets the “K” factor for the flow
signal. The flow signal is multiplied by the K-Factor so that
the flow measurement matches the actual flow, determined
with a pitot tube traverse or other reference measurement.
Part Two
NOTE: K-Factor modifies the entire range of the
calibrated flow, not just a single point.
Technical Section
Input3 Config Menu
Sup Pres Flow
MENU ITEM
Set Flow Station
Zero Calibration
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
Sensor Zero
The Sensor Zero item is used to re-zero the pressure
transducer zero calibration point.
NONE
Sensor Max
The Sensor Max item is used to set the maximum reading
of a flow station and pressure transducer used to measure
supply air flow. For example, if the pressure transducer has
a range of 0 in H2O to +0.25 in H2O 0 to +62.5 Pa), the
Sensor Max should be set to +0.25 in H2O (+62.5 Pa).
0 to 1.00 in H2O
1.00 in H2O
Signal Min
The Signal Min item is used to set the minimum output
signal when a flow station and pressure transducer is used
to supply flow.
0 to 10 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal when a flow station and pressure transducer is used
to measure supply flow.
1 to 10 V
10 V
Low Cal
The Low Cal menu item enters the Low Cal Submenu.
See Flow Calibration
High Cal
The High Cal menu item enters the High Cal Submenu.
See Flow Calibration
RPM10 and
RPM20
Set Maximum
Sensor Pressure
Output
RPM10 and
RPM20
Set Minimum
Sensor Voltage
Output
RPM10 and
RPM20
Set Maximum
Sensor Voltage
Output
RPM10 and
RPM20
Flow Station Low
Calibration
RPM10 and
RPM20
Flow Station High
Calibration
RPM10 and
RPM20
41
42
Input3 Config Menu
Sup Pres Flow
MENU ITEM
Reset Calibration
RPM10 and
RPM20
SOFTWARE
NAME
Reset Cal
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the Low Cal, High Cal and K-Factor factors
for this sensor to defaults. Entering NO will cancel the
reset.
None
N/A
(continued on next page)
Part Two
Technical Section
Input3 Config Menu
Sup Lin Flow
MENU ITEM
Set Flow Station
Duct Area
SOFTWARE
NAME
Duct Area
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
The Duct Area item is used to program the cross sectional
area of the duct where the flow station is mounted. Since
the flow station is used to measure duct velocity, the Duct
Area is necessary to calculate the duct air flow.
0 to 50.00 ft2
(0 to 4.6450 m2)
DEFAULT
VALUE
0.00 ft2
(0.0000 m2)
0.01 to 10.00
1.00
NOTE: The DIM does not compute duct area. The area
must be first calculated and then entered into the
unit.
Use the following equations to calculate the duct area
(in ft2).
For round ducts
For rectangular ducts
W A R N IN G
If the proper Duct Area is not programmed into the
Model RPM10 and RPM20, the flow measurement will be
incorrect. Thus, all the other information that uses the flow
measurement, such as the flow alarms, will also be
incorrect.
Set Flow K-Factor
Adjustment
RPM10 and
RPM20
K-Factor
The K-Factor menu item sets the “K” factor for the flow
signal. The flow signal is multiplied by the K-Factor so that
the flow measurement matches the actual flow, determined
with a pitot tube traverse or other reference measurement.
NOTE: K-Factor modifies the entire range of the
calibrated flow, not just a single point.
43
44
Input3 Config Menu
Sup Lin Flow
MENU ITEM
Set Maximum
Sensor Output
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
Sensor Max
The Sensor Max item is used to set the maximum reading
of a flow station used to measure supply air flow. The
Sensor Max item has increments of 1000 fpm.
0 to 10,000 fpm
0
Signal Min
The Signal Min item is used to set the minimum output
signal when a flow station and pressure transducer is used
to supply air flow.
0 to 10 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal when a flow station and pressure transducer is used
to supply air flow.
1 to 10 V
10 V
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the K-Factor for this sensor to defaults.
Entering NO will cancel the reset.
None
N/A
RPM10 and
RPM20
Set Minimum
Sensor Voltage
Output
RPM10 and
RPM20
Set Maximum
Sensor Voltage
Output
RPM10 and
RPM20
Reset Calibration
RPM10 and
RPM20
Part Two
Technical Section
Input3 Config Menu
Sup Venturi
MENU ITEM
Minimum Flow
SOFTWARE
NAME
Min Flow
RPM10 and
RPM20
ITEM DESCRIPTION
The Min Flow item sets the flow rate through the venturi
valve when it is fully closed. The display will indicate a
volumetric flow rate. Adjust the displayed value to match
the flow through the venturi valve.
0 to 10000 cfm
DEFAULT
VALUE
0 cfm
0 to 10000 cfm
0 cfm
0.01 to 10.00
1.00
ITEM RANGE
NOTE: The flow information can be obtained from the
label on the TSI Venturi Valve or by closing the
venturi valve using the Flow Control item in the
DIAGNOSTICS menu and performing a pitot tube
traverse of the duct.
The Min Flow menu item must be completed before
moving on to the Max Flow menu item.
Maximum Flow
Max Flow
RPM10 and
RPM20
The Max Flow item sets the flow rate through the venturi
valve when it is fully open. The display will indicate a
volumetric flow rate. Adjust the displayed value to match
the flow through the venturi valve.
NOTE: The flow information can be obtained from the
label on the TSI Venturi Valve or by closing the
venturi valve using the Flow Control item in the
DIAGNOSTICS menu and performing a pitot tube
traverse of the duct.
The Min Flow menu item must be completed before
moving on to the Max Flow menu item.
Set Flow K-Factor
Adjustment
RPM10 and
RPM20
K-Factor
The K-Factor menu item sets the “K” factor for the flow
signal. The flow signal is multiplied by the K-Factor so that
the flow measurement matches the actual flow, determined
with a pitot tube traverse or other reference measurement.
NOTE: K-Factor modifies the entire range of the
calibrated flow, not just a single point.
45
46
Input3 Config Menu
Sup Venturi
MENU ITEM
Reset Calibration
SOFTWARE
NAME
Reset Cal
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the K-Factor factor for this sensor to defaults.
Entering NO will cancel the reset.
None
N/A
ITEM DESCRIPTION
ITEM RANGE
The Low Flow Sig item sets the signal the Model RPM10
or RPM20 Room Pressure Monitor will receive to indicate a
low supply flow condition.
Open, Closed
ITEM DESCRIPTION
ITEM RANGE
Input3 Config Menu
Supply Switch
MENU ITEM
Low Flow Alarm
Signal
SOFTWARE
NAME
Low Flow Sig
RPM10 and
RPM20
DEFAULT
VALUE
Closed
Input3 Config Menu
TSI Sensor
MENU ITEM
Set Sensor Zero
Calibration
SOFTWARE
NAME
Sensor Zero
The Sensor Span item is used to re-zero the TSI Sensor
zero calibration point.
None
The Sensor Span item is used to match or calibrate the
PresSura monitor TSI sensor to the average room
pressure velocity as measured by a portable air velocity
meter.
None
RPM20
Set Sensor Span
Calibration
RPM20
Sensor Span
DEFAULT
VALUE
Unit is factory
calibrated and
should not
need
adjustment.
Part Two
Unit is factory
calibrated and
should not
need
adjustment.
Technical Section
Input3 Config Menu
TSI Sensor
MENU ITEM
Set Sensor
Elevation
SOFTWARE
NAME
Elevation
RPM20
ITEM DESCRIPTION
The Elevation item is used to enter the elevation of the
sensor above sea level. The pressure value needs to be
corrected due to changes in air density at different
elevations.
ITEM RANGE
0 to 10,000 feet
above sea level
DEFAULT
VALUE
0
While this number can be entered in increments of 1 foot,
the density adjustments are in 1,000 foot increments. For
example, if the PresSura will interpret Elevation settings
between 0 and 999 feet as 0 feet, settings between 1000
and 1999 feet as 1000 feet, etc.
Reset Calibration
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing field calibration adjustments. When
this menu item is entered, the controller will prompt the
user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the Sensor Zero, Sensor Span and Elevation
items to defaults. Entering NO will cancel the reset.
None
N/A
Check Status
The Check Status item is used to check the communication
status of the sensor. After pressing the button, the
PresSura unit will respond with:
None
N/A
RPM20
Check Sensor
Status
RPM20
COMM ERROR - DIM cannot communicate with sensor.
Check all wiring and the pressure
sensor address.
SENS ERROR
- Physical damage to pressure sensor
circuitry. Unit is not field-repairable.
Send to TSI for repair.
CAL ERROR
- Calibration data lost. Send to TSI for
calibration.
DATA ERROR
- Problem with sensor EEPROM, field
calibration or analog output. Check all
data configured and confirm unit is
functioning correctly.
47
48
Input3 Config Menu
Press Trans
MENU ITEM
Set Minimum
Sensor Pressure
Output
SOFTWARE
NAME
Sensor Min
The Sensor Min item is used to set the minimum reading
of a pressure transducer used to measure room pressure
differential. For example, if the pressure transducer has a
range of -0.25 in H2O to +0.25 in H2O (-62.5 to +62.5 Pa),
the Sensor Min should be set to -0.25 in H2O (-62.5 Pa).
-1.00 to + 1.00 in H2O
DEFAULT
VALUE
0
Sensor Max
The Sensor Max item is used to set the maximum reading
of a pressure transducer used to measure room pressure
differential. For example, if the pressure transducer has a
range of -0.25 in H2O to +0.25 in H2O (-62.5 to +62.5 Pa),
the Sensor Max should be set to +0.25 in H2O (+62.5 Pa).
-1.00 to + 1.00 in H2O
0
Signal Min
The Signal Min item is used to set the minimum output
signal when a pressure transducer is used to measure
room pressure differential.
0 to 5 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal when a pressure transducer is used to measure
room pressure differential.
1 to 10 V
10 V
Sensor Zero
The Sensor Zero item is used to re-zero the pressure
transducer zero calibration point.
None
N/A
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing field calibration adjustments. When this
menu item is entered, the controller will prompt the user to
verify that they want to do this by displaying the message
“Reset Settings to Factory Default?” Entering YES resets
the Sensor Zero item to defaults. Entering NO will cancel
the reset.
None
N/A
RPM20
Set Maximum
Sensor Pressure
Output
RPM20
Set Minimum
Sensor Voltage
Output
ITEM DESCRIPTION
ITEM RANGE
RPM20
Set Maximum
Sensor Voltage
Output
RPM20
Set Sensor Zero
Calibration
RPM20
Reset Calibration
RPM20
Part Two
Technical Section
Input4 Config Menu
Rm1 Dr Sw
MENU ITEM
Signal to Indicate
Open Door
SOFTWARE
NAME
Dr Open Sig
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
The Dr Open Sig item sets the signal the Model RPM10 or
RPM20 Room Pressure Controller will receive to indicate a
door is open.
Open, Closed
ITEM DESCRIPTION
ITEM RANGE
The Unocc Sig item is used to set the signal that indicates
the room is unoccupied.
Open, Closed
DEFAULT
VALUE
Closed
Input4 Config Menu
Rm1 Occ Sen
MENU ITEM
Room Unoccupied
Signal
SOFTWARE
NAME
Unocc Sig
DEFAULT
VALUE
Closed
RPM10 and
RPM20
Input5 Config Menu
Rm1 Key Switch
ITEM DESCRIPTION
The Model RPM10 or RPM20 will display a message “Nothing to Configure” when Input 5 is set to Rm1 Key Switch and the user enters the
Input5 Config menu.
49
50
Input5 Config Menu
RH
MENU ITEM
Set Minimum
Sensor Output
SOFTWARE
NAME
Sensor Min
The Sensor Min item is used to set the minimum reading
of the relative humidity sensor.
0 to 100% RH
DEFAULT
VALUE
0% RH
Sensor Max
The Sensor Max item is used to set the maximum reading
of the relative humidity sensor.
0 to 100% RH
100% RH
Signal Min
The Signal Min item is used to set the minimum output
signal of the relative humidity sensor.
0 to 10 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal of the relative humidity sensor.
1 to 10 V
10 V
Sensor Span
The Sensor Span item is used to adjust the calibration of
the relative humidity sensor. The Sensor Span is an offset
adjustment and can only be adjusted by ±10% RH.
-10% to +10% RH
0% RH
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the Sensor Span factor for this sensor to
defaults. Entering NO will cancel the reset.
None
N/A
ITEM DESCRIPTION
ITEM RANGE
RPM20
Set Maximum
Sensor Output
RPM20
Set Minimum
Sensor Voltage
Output
RPM20
Set Maximum
Sensor Voltage
Output
RPM20
Adjust Sensor
Calibration
RPM20
Reset Calibration
RPM20
Part Two
Technical Section
Input6 Config Menu
Rm1 Temp
MENU ITEM
Adjust Sensor
Calibration
SOFTWARE
NAME
Sensor Span
The Sensor Span item is used to adjust the calibration of
the temperature sensor.
-10F to +10°F
DEFAULT
VALUE
0°F
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the Sensor Span factor for this sensor to
defaults. Entering NO will cancel the reset.
None
N/A
ITEM DESCRIPTION
ITEM RANGE
The Unocc Sig item is used to set the signal that indicates
the room is unoccupied.
Open, Closed
ITEM DESCRIPTION
ITEM RANGE
ITEM DESCRIPTION
ITEM RANGE
RPM20
Reset Calibration
Reset Cal
RPM20
Input6 Config Menu
Rm2 Occ Sen
MENU ITEM
Signal to Indicate
Room Unoccupied
SOFTWARE
NAME
Unocc Sig
DEFAULT
VALUE
Closed
RPM20
Input6 Config Menu
Rm2 Dr Sw
MENU ITEM
Signal to Indicate
Open Door
RPM20
SOFTWARE
NAME
Dr Open Sig
The Dr Open Sig item sets the signal the Model RPM20
Room Pressure Monitor will receive to indicate a door is
open.
Open, Closed
DEFAULT
VALUE
Closed
51
52
Input7 Config Menu
Exh Pres Flow
MENU ITEM
Set Flow Station
Duct Area
SOFTWARE
NAME
Duct Area
RPM 10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
The Duct Area item is used to program the cross sectional
area of the duct where the flow station is mounted. Since
the flow station is used to measure duct velocity, the Duct
Area is necessary to calculate the duct air flow.
0 to50.00 ft2
(0 to 4.6450 m2)
DEFAULT
VALUE
0.00 ft2
(0.0000 m2)
0.01 to 10.00
1.00
NOTE: The DIM does not compute duct area. The area
must be first calculated and then entered into the unit.
Use the following equations to calculate the duct area
(in ft2).
For round ducts
For rectangular ducts
W A R N IN G
If the proper Duct Area is not programmed into the Model
RPM10 and RPM20, the flow measurement will be
incorrect. Thus, all the other information that uses the flow
measurement, such as the flow alarms, will also be
incorrect.
Set Flow K-Factor
Adjustment
RPM 10 and
RPM20
K-Factor
The K-Factor menu item sets the “K” factor for the flow
signal. The flow signal is multiplied by the K-Factor so that
the flow measurement matches the actual flow, determined
with a pitot tube traverse or other reference measurement.
NOTE: K-Factor modifies the entire range of the calibrated
flow, not just a single point.
Part Two
Technical Section
Input7 Config Menu
Exh Pres Flow
MENU ITEM
Set Flow Station
Zero Calibration
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
Sensor Zero
The Sensor Zero item is used to re-zero the pressure
transducer zero calibration point.
NONE
Sensor Max
The Sensor Max item is used to set the maximum reading
of a flow station and pressure transducer used to measure
exhaust air flow. For example, if the pressure transducer
has a range of 0 in H2O to +0.25 in H2O 0 to +62.5 Pa), the
Sensor Max should be set to +0.25 in H2O (+62.5 Pa).
0 to +1.00 in H2O
1.00 in H2O
Signal Min
The Signal Min item is used to set the minimum output
signal when a flow station and pressure transducer is used
to measure exhaust flow
0 to 10 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal when a flow station and pressure transducer is used
to measure exhaust flow.
1 to 10 V
10 V
Low Cal
The Low Cal menu item enters the Low Cal Submenu.
See Flow Calibration
High Cal
The High Cal menu item enters the High Cal Submenu.
See Flow Calibration
RPM 10 and
RPM20
Set Maximum
Sensor Pressure
Output
RPM10 and
RPM20
Set Minimum
Sensor Voltage
Output
RPM10 and
RPM20
Set Maximum
Sensor Voltage
Output
RPM10 and
RPM20
Flow Station Low
Calibration
RPM10 and
RPM20
Flow Station High
Calibration
RPM10 and
RPM20
53
54
Input7 Config Menu
Exh Pres Flow
MENU ITEM
Reset Calibration
RPM10 and
RPM20
SOFTWARE
NAME
Reset Cal
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the Low Cal, High Cal and K-Factor factors
for this sensor to defaults. Entering NO will cancel the
reset.
None
N/A
(continued on next page)
Part Two
Technical Section
Input7 Config Menu
Exh Lin Flow
MENU ITEM
Set Flow Station
Duct Area
SOFTWARE
NAME
Duct Area
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
The Duct Area item is used to program the cross sectional
area of the duct where the flow station is mounted. Since
the flow station is used to measure duct velocity, the Duct
Area is necessary to calculate the duct air flow.
0 to 50.00 ft2
(0 to 4.6450 m2)
DEFAULT
VALUE
0.00 ft2
(0.0000 m2)
0.01 to 10.00
1.00
NOTE: The DIM does not compute duct area. The area
must be first calculated and then entered into the
unit.
Use the following equations to calculate the duct area
(in ft2).
For round ducts
For rectangular ducts
W A R N IN G
If the proper Duct Area is not programmed into the
Model RPM10 and RPM20, the flow measurement will be
incorrect. Thus, all the other information that uses the flow
measurement, such as the flow alarms, will also be
incorrect.
Set Flow K-Factor
Adjustment
RPM10 and
RPM20
K-Factor
The K-Factor menu item sets the “K” factor for the flow
signal. The flow signal is multiplied by the K-Factor so that
the flow measurement matches the actual flow, determined
with a pitot tube traverse or other reference measurement.
NOTE: K-Factor modifies the entire range of the
calibrated flow, not just a single point.
55
56
Input7 Config Menu
Exh Lin Flow
MENU ITEM
Set Maximum
Sensor Output
SOFTWARE
NAME
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
Sensor Max
The Sensor Max item is used to set the maximum reading
of a flow station used to measure exhaust air flow. The
Sensor Max item has increments of 1000 fpm.
0 to 10,000 fpm
0
Signal Min
The Signal Min item is used to set the minimum output
signal when a flow station and pressure transducer is used
to measure exhaust air flow
0 to 10 V
0V
Signal Max
The Signal Max item is used to set the maximum output
signal when a flow station and pressure transducer is used
to measure exhaust air flow.
1 to 10 V
10 V
Reset Cal
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the K-Factor factor for this sensor to defaults.
Entering NO will cancel the reset.
None
N/A
RPM10 and
RPM20
Set Minimum
Sensor Voltage
Output
RPM10 and
RPM20
Set Maximum
Sensor Voltage
Output
RPM10 and
RPM20
Reset Calibration
RPM10 and
RPM20
Part Two
Technical Section
Input7 Config Menu
Exh Venturi
MENU ITEM
Minimum Flow
SOFTWARE
NAME
Min Flow
RPM10 and
RPM20
ITEM DESCRIPTION
The Min Flow item sets the flow rate through the venturi
valve when it is fully closed. The display will indicate a
volumetric flow rate. Adjust the displayed value to match
the flow through the venturi valve.
0 to 10000 cfm
DEFAULT
VALUE
0 cfm
0 to 10000 cfm
0 cfm
0.01 to 10.00
1.00
ITEM RANGE
NOTE: The flow information can be obtained from the
label on the TSI Venturi Valve or by closing the
venturi valve using the Flow Control item in the
DIAGNOSTICS menu and performing a pitot tube
traverse of the duct.
The Min Flow menu item must be completed before
moving on to the Max Flow menu item.
Maximum Flow
Max Flow
RPM10 and
RPM20
The Max Flow item sets the flow rate through the venturi
valve when it is fully open. The display will indicate a
volumetric flow rate. Adjust the displayed value to match
the flow through the venturi valve.
NOTE: The flow information can be obtained from the
label on the TSI Venturi Valve or by closing the
venturi valve using the Flow Control item in the
DIAGNOSTICS menu and performing a pitot tube
traverse of the duct.
The Min Flow menu item must be completed before
moving on to the Max Flow menu item.
Set Flow K-Factor
Adjustment
RPM10 and
RPM20
K-Factor
The K-Factor menu item sets the “K” factor for the flow
signal. The flow signal is multiplied by the K-Factor so that
the flow measurement matches the actual flow, determined
with a pitot tube traverse or other reference measurement.
NOTE: K-Factor modifies the entire range of the
calibrated flow, not just a single point.
57
58
Input7 Config Menu
Exh Venturi
MENU ITEM
Reset Calibration
SOFTWARE
NAME
Reset Cal
RPM10 and
RPM20
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
The Reset Cal item is used to return to the factory default
calibration, undoing any field calibration adjustments.
When this menu item is entered, the controller will prompt
the user to verify that they want to do this by displaying the
message “Reset Settings to Factory Default?” Entering
YES resets the K-Factor factor for this sensor to defaults.
Entering NO will cancel the reset.
None
N/A
ITEM DESCRIPTION
ITEM RANGE
DEFAULT
VALUE
Open, Closed
Close
Input7 Config Menu
Exh Switch
MENU ITEM
Low Flow alarm
Signal
SOFTWARE
NAME
Low Flow Sig
RPM10 and
RPM20
The Low Flow Sig item sets the signal the Model RPM10
and RPM20 Room Pressure Controller will receive to
indicate a low exhaust flow condition.
Input7 Config Menu
Room 2 Key Switch
ITEM DESCRIPTION
The Model RPM20 will display a message “Nothing to Configure” when Input 7 is set to Room 2 Key Switch and the user enters the Input7
Config menu.
Part Two
Calibration
The calibration section explains how to calibrate the controller and how to zero a TSI flow station
pressure transducer (optional). The Model RPM10/RPM20 Monitor will warn the user with a
display message if it has not been calibrated.
NOTE: This section assumes that the appropriate sensor has been correctly installed. Inaccurate
readings may be detected if sensor is not installed correctly. Review the Installation
Instructions and verify that the sensor is installed correctly (usually only a problem on
initial set up).
Reference measurements, such as from a Portable Air Velocity Meter like the TSI VelociCalc®
Model 9565 or a capture hood like the Alnor® Balometer® Model EBT731, are required to
calibrate the PresSura monitors.
WARNING
The monitor is disabled during calibration. Alarms will not function to warn of
unsafe conditions.
To begin the calibration process, enter the appropriate INPUT# CONFIGURE menu (see
Software Programming if not familiar with keystroke procedure).
Room Pressure Calibration
Room pressure can be measured using either a TSI through-the-wall sensor or a pressure
transducer.
TSI (Through-the-Wall) Sensor Calibration
NOTE: The TSI through-the-wall sensor is calibrated at the factory and does not normally need
adjustment when installed.
1. Select SENSOR SPAN item.
2. Position a thermal anemometer or other instrument configured to measure air velocity in the
door opening to obtain a velocity reading. Take a measurement of the air velocity
entering/exiting the door.
3. Input the reference measurement from step 3 into the PresSura monitor.
4. Save the reading and exit the menu system.
Pressure Transducer Calibration
NOTE: This calibration process is to configure the PresSura monitor to match the reading from
the pressure transducer. If the pressure transducer itself needs to be calibrated, refer to
the instructions that come with the pressure transducer.
1. Write down the output signal range and pressure range of the pressure transducer. As an
example for these instructions, we will assume the pressure transducer has an output signal
range of 0 to 10V and a pressure range of -0.25 to +0.25 in H2O.
2. Select the SENSOR MIN item and enter the minimum pressure range of the transducer. In
this example, you would enter -0.25 in H2O.
3. Select the SENSOR MAX item and enter the maximum pressure range of the transducer. In
this example, you would enter +0.25 in H2O.
59
4. Select the SIGNAL MIN item and enter the minimum output signal of the transducer. In this
example, you would enter 0 V.
5. Select the SIGNAL MAX item and enter the maximum output signal of the transducer. In this
example, you would enter 10 V.
6. To zero the pressure transducer:
a. Mark the high pressure tubing going to the high port of the transducer.
b. Remove the tubing from the high and low ports of the transducer.
c.
Enter the PRESSURE ZERO item on the PresSura monitor.
d. Reconnect tubing to the high and low ports of the pressure transducer, using the mark to
connect the high pressure tubing to the high port.
Flow Calibration
Flow can be measured using a Pressure Flow Station, Linear Flow Station, or Venturi valve with
feedback
Pressure Flow Station Calibration
NOTE: Flow stations are optional and may not be installed in your system.
1. Set DUCT AREA item to the duct area where the flow is measured.
2. To Zero the flow station:
a. Mark the high pressure tubing going to the high port of the transducer.
b. Remove the tubing from the high and low ports of the transducer.
c.
Enter the Sensor Zero item on the PresSura monitor.
d. Reconnect tubing to the high and low ports of the pressure transducer, using the mark to
connect the high pressure tubing to the high port.
3. Enter the LOW CAL item to perform the low flow calibration submenu with the following
items:
VOLTAGE INPUT
UNCALIBRATED FLOW
ZERO VOLTAGE
CALIBRATED FLOW
Current voltage from pressure transducer
Current flow rate
Voltage from pressure transducer during Flow Station
Pressure Transducer Zero
Input actual flow as measured with reference instrument here
a. Adjust the flow to its minimum volume. Observe the VOLTAGE INPUT displayed on the
screen, or use a voltmeter to read the voltage at the pressure input terminals on the back
of the controller.
b. Slowly increase the flow until the VOLTAGE INPUT (pressure transducer output) shows
the first noticeable increase in voltage from the minimum flow. A general rule-of-thumb is
that the voltage change should occur with the damper between approximately 10% to
30% open.
c.
For reference only, the UNCALIBRATED FLOW item will display the default measured
flow based on the current settings of the flow station (duct area, etc.).
d. Determine the actual flow with a duct traverse or other reference measurement.
e. Enter the actual flow measurement under the CALIBRATED FLOW menu item.
f.
60
Press the Save key to save the flow data.
Part Two
g. The low flow calibration is complete.
4. Enter the HIGH CAL item to perform the high flow calibration submenu with the following
items:
VOLTAGE INPUT
UNCALIBRATED FLOW
ZERO VOLTAGE
CALIBRATED FLOW
Current voltage from pressure transducer
Current flow rate
Voltage from pressure transducer during Flow Station
Pressure Transducer Zero
Input actual flow as measured with reference instrument here
a. Adjust the flow to its maximum volume. Observe the VOLTAGE INPUT displayed on the
screen, or use a voltmeter to read the voltage at the pressure input terminals on the back
of the controller.
b. Slowly decrease the flow until the VOLTAGE INPUT (pressure transducer output) shows
the first noticeable decrease in voltage from the minimum flow.
c.
For reference only, the UNCALIBRATED FLOW item will display the default measured
flow based on the current settings of the flow station (duct area, etc.).
d. Determine the actual flow with a duct traverse or other reference measurement.
e. Enter the actual flow measurement under the CALIBRATED FLOW menu item.
f.
Press the Save key to save the flow data.
g. The high flow calibration is complete.
NOTE: Use Balance Flow to verify flow station calibration and adjust the K-FACTOR.
Linear Flow Station Calibration
NOTE: Flow stations are optional and may not be installed in your system.
1. Set DUCT AREA to the duct area at the linear flow station location.
2. Set SENSOR MAX to match the range of the linear flow station used.
3. Set SIGNAL MIN to match the minimum voltage output (0 to 10 V) of the linear flow
station used. This is typically 0 V.
4. Set SIGNAL MAX to match the maximum voltage output (0 to 10 V) of the linear flow
station used. This is typically 10 V.
5. Linear flow station calibration should be complete. Exit the menu.
NOTE: Use Balance Flow to verify flow station calibration and adjust the K-FACTOR.
Venturi with Feedback Calibration
NOTE: LOM Venturi Valves are optional and may not be installed in your system.
1. Obtain the venturi valve minimum and maximum flow, either by reading the label on the
venturi valve or by performing duct traverses when the venturi valve is fully closed and fully
opened.
2. Set MIN FLOW to the minimum venturi valve flow.
3. Set MAX FLOW to the maximum venturi valve flow.
4. Venturi with Feedback calibration is now complete. Exit the menu.
NOTE: Use Balance Flow to verify Venturi with Feedback calibration and adjust the
K-FACTOR.
Technical Section
61
Supply/Exhaust Switch Calibration
NOTE:
Flow switches are optional and may not be installed in your system.
Flow switches do not actually measure the flow, but are designed to
provide an open or closed signal to indicate the presence or absence
of flow.
1. Set the LOW FLOW SIG to match the low flow indication from the switch. OPEN means the
switch will open to indicate low flow. CLOSED means the switch will close to indicate low
flow.
Door Switch Configuration
NOTE:
Door switches are optional and may not be installed in your system.
1. Set the DR OPEN SIGN to match the door open indication from the switch. OPEN means the
switch will open to indicate the door is open. CLOSED means the switch will close to indicate
the door is open.
Temperature Sensor Configuration
NOTE:
Temperature sensors are optional and may not be installed in your
system.
1. Adjust the SENSOR SPAN so the displayed temperature matches a reference measurement.
Use the RESET CAL item to reset the SENSOR SPAN back to the factory default.
Relative Humidity Sensor Configuration
NOTE:
Relative Humidity sensors are optional and may not be installed in
your system.
1. Set the SENSOR MIN to the minimum reading of the relative humidity sensor. This is
usually 0%.
2. Set the SENSOR MAX to the maximum reading of the relative humidity sensor. This is
usually 100%.
3. Set the SIGNAL MAX to the minimum output voltage of the relative humidity sensor. This is
usually 0 V.
4. Set the SIGNAL MAX to the maximum output voltage of the relative humidity sensor. This is
usually 10 V.
5. Adjust the SENSOR SPAN so the displayed relative humidity matches a reference
measurement.
Use the RESET CAL item to reset the SENSOR SPAN back to the factory default.
62
Part Two
Occupancy Sensor Configuration
NOTE:
Occupancy switches are optional and may not be installed in your
system.
1. Set the UNOCC SIG to match the occupancy indication from the switch. OPEN means the
switch will open to indicate the room is unoccupied. CLOSED means the switch will close to
indicate the room is unoccupied.
Maintenance and Repair Parts
The Model RPM10 and RPM20 PresSura Room Pressure Monitors require minimal maintenance.
Periodic inspections of system components as well as an occasional pressure sensor cleaning
are all that are needed to ensure that the PresSura monitor is operating properly.
System Component Inspection
It is recommended that the pressure sensor be periodically inspected for accumulation of
contaminants. The frequency of these inspections is dependent upon the quality of the air being
drawn across the sensor. Quite simply, if the air is dirty, the sensors require more frequent
inspection and cleaning.
Visually inspect the pressure sensor by sliding open the sensor housing door (Figure 13). The air
flow orifice should be free of obstructions. The small ceramic coated sensors protruding from the
orifice wall should be white and free of accumulated debris.
Figure 13: Pressure sensor door slid open
Periodically inspect the other system components for proper performance and physical signs of
excessive wear.
Technical Section
63
Pressure Sensor Cleaning
Accumulations of dust or dirt can be removed with a dry soft-bristled brush (such as an artist's
brush). If necessary, water, alcohol, acetone, or trichlorethane may be used as a solvent to
remove other contaminants.
Use extreme care when cleaning the velocity sensors. The ceramic sensor may break if
excessive pressure is applied, if sensor is scraped to remove contaminants, or if the cleaning
apparatus abruptly impacts the sensor.
WARNING
If you are using a liquid to clean the sensor, turn off power to the RPM10 /
RPM20 PresSura Monitor.
Do not use compressed air to clean the velocity sensors.
Do not attempt to scrape contaminants from the velocity sensors. The velocity
sensors are quite durable; however, scraping may cause mechanical damage
and possibly break the sensor. Mechanical damage due to scraping voids the
pressure sensor warranty.
Display Screen Cleaning
Accumulations of dust or dirt can be removed with a dry soft cloth. If necessary, Isopropyl, or
Ethyl Alcohol may be used to remove other contaminants.
Replacement Parts
All components of the Room Pressure Monitor system are field replaceable. Contact TSI or your
nearest TSI Manufacturer's Representative for replacement part pricing and delivery.
Part Number
Description
Found on back of unit
Model RPM10/RPM20 PresSura Room Pressure
Monitor
800243
Pressure Sensor
800248
Sensor Cable
800414
Transformer Cable
Troubleshooting Section
The Model RPM10 and RPM20 Room Pressure Monitors are designed to be trouble free.
However, installation problems or interaction with other HVAC components may cause system
problems. The system is easy to troubleshoot if an organized approach to evaluate the system is
taken. Troubleshooting is broken down into hardware (mechanical) and software problems.
Hardware problems deal with the physical installation of the device. Hardware problems include
wiring problems, incorrectly installed equipment, and add-ons or non-TSI equipment. Software
problems include control problems, configuration problems, or interaction problems with the
HVAC system.
The hardware test described in this section determines that all TSI mechanical components are
functioning correctly. The hardware test requires the diagnostics menu items to be accessed. If
you are unfamiliar with the controller menus, see Software Programming for keystroke procedure.
Troubleshooting the majority of problems is usually quick if the hardware test is followed.
64
Part Two
Software and hardware problems are covered in the troubleshooting chart. Pick the problem that
most closely resembles your problem and review the possible symptoms and corrective action.
Software or system performance problems can and are affected by the supply air system,
exhaust air system, or physical configuration of the room. Separating TSI system problems from
the laboratory HVAC system can sometimes be difficult. TSI recommends confirming all
hardware is operating correctly before troubleshooting software problems.
Hardware Test
Three tests need to be performed in order to determine all hardware is functioning correctly. The
tests are broken down into:
 Confirming wiring is correct.
 Confirming physical installation is correct.
 Verifying mechanical components.
Confirming wiring is correct
The most common problem with installed hardware equipment is incorrect wiring. This problem
usually exists on initial installation, or when modifications to the system take place. The wiring
should be very closely checked to verify it exactly matches the wiring diagram. Wiring diagrams
are located in Appendix C of this manual. Wiring associated with non-TSI components should be
closely checked for correct installation. If non-TSI components are installed, consider
disconnecting them for testing purposes.
Confirming physical installation is correct
All of the hardware components need to be installed properly. Review the installation instructions
and verify components are installed properly at the correct location. This is easily done when the
wiring is checked.
Verifying mechanical components
Verifying all TSI components are operating correctly requires following a simple procedure. The
fastest procedure to confirm all equipment is operating is to first test the Digital Interface Module
(DIM), and then go into the diagnostic menu to test each component.
NOTE:
These tests require power to the units, so if unit has no power, refer to
hardware troubleshooting chart to eliminate power problem.
Test – Analog Outputs
Enter the Analog Outpt item in the Diagnostics menu to manually manipulate the analog outputs.
Figure 14. Analog Outputs screen in Diagnostics menu
Technical Section
65

Touch the Output 1, Output 2, Output 3 button to manually set the output signal.
Test – Relay Outputs
Enter the Relay Outputs item in the Diagnostics menu to manually manipulate the relay outputs.
Figure 15. Relay Outputs screen in Diagnostics menu

Touch the Relay 1 Toggle or Relay 2 Toggle button to manually open or close the relay.
Test - View Inputs
Enter the View Inputs item to view all inputs with real-time updates.
Figure 16. View Inputs screen in Diagnostics menu

66
The Model RPM10/RPM20 monitor will display “Unconfigured” for any inputs that have not
been configured. Go to the Configure menu to configure these inputs appropriately.
Part Two
Test - View Outputs
Enter the View Outputs item to view all output signals with real-time updates.
Figure 17. View Outputs screen in Diagnostics menu
If the monitor passes each of the tests, the mechanical piece parts are all functioning correctly.
Troubleshooting Chart
Symptom
Display is blank.
Possible Cause
Fuse is blown.
Corrective Action
Measure voltage at pins 1 and 2 on DIM 2-pin connector.
The voltage should nominally be 24 VAC.
If correct voltage is measured, internal DIM fuse is probably
blown. Unplug 2-pin connector from DIM for 2 minutes. The
internal fuse will automatically reset. Plug unit back in and
check display. If display is still blank, check all wiring, etc.
Verify circuit breaker is on.
Verify transformer primary measures 110 VAC.
Verify transformer secondary measures 24 to 30 VAC.
DIM is defective.
Cannot access
menu
If proper voltage is found between pins 1 and 2 of the DIM,
all wiring has been checked, fuses have been reset, and
screen is still blank, the DIM is probably defective. Replace
DIM.
Slide finger across the screen diagonally from upper right to
lower left corner.
Need to display
model number
and firmware
revision
--
Enter the DIAGNOSTICS menu.
Measurements
in Diagnostics
mode read “Not
Configure”
Inputs not
configured.
Enter the Configure menu to appropriately configure inputs.
Technical Section
67
Symptom
Sensor does not
calibrate.
Possible Cause
Incorrect
pressure sensor
address.
Corrective Action
Rm1 pressure sensor must have address of 1. Anteroom
sensor must have address of 2. Rm2 sensor must have
address of 3. Check pressure sensor DIP switches 5 & 6
and verify address is correct (7 to 12 must be OFF).
Figure 18: Pressure Sensor DIP Switch
Sensor
communications
not working.
Check SENSOR STAT item in diagnostics menu. If
NORMAL is displayed, sensor is okay. If COMM ERROR is
displayed, check wiring, pressure sensor address, and that
DIP switch 1 & 2 are ON (Figure 18).
Problem with
sensor (slow
uniform blink).
Check SENSOR STAT and confirm NORMAL is displayed.
If ERROR is displayed, correct error.
Communication
(fast burst of
non-uniform
blinking).
Unit is communicating with DIM. This is normal.
Red LED is
constantly on.
This is normal when no problems exist or when no
communication is occurring.
DIM always
displays 0.200
inches H2O.
Incorrect
pressure sensor
output.
Pressure sensor must be set for 0 to 10 volt output, not
4-20 mA (do not confuse this output with DIM analog
output). Check pressure sensor DIP switch 3 and make
sure it is OFF (see Figure 18).
DIM displays
opposite
pressure signal.
Sensor direction
is incorrect.
Pressure sensor must have DIP switch correctly set for
proper sign display. Verify DIP switch 4 is ON when sensor
is mounted in isolation room (controlled space), and OFF
when sensor is mounted in reference space (see
Figure 18).
Pressure
sensor red LED
is blinking
(Figure 18).
68
Part Two
Symptom
Positive/
negative/
neutral key
switch does not
work.
Possible Cause
Incorrect wiring.
Corrective Action
Verify wiring is correct between key switch and DIM.
Inputs not
configured for
key switch
Go to Configure menu, Input 5 item (for Room 1 key switch)
or Input 7 item (for Room 2 key switch). Verify item is set to
Room 1 Key Switch or Room 2 Key Switch.
Defective switch
/ defective DIM.
Go into DIAGNOSTICS menu, VIEW INPUTS item.
Key Switch inputs should read negative in negative position,
positive in positive position, and no isolation in neutral
position. If display changes correctly, switch and switch
input is good. If display does not change:
Disconnect key switch wires from Input 4, pins 17 & 18 for
Room 1, or Input 7, pins 23 and 24 for Room 2. Measure
the resistance of the switch:
 Negative position should be open (infinite).
 Neutral position should read approximately 273 kOhms.
 Positive position should be closed (short).
If room mode is correct and resistance check is good, DIM
key input is probably defective. Replace DIM.
DIM does not
respond to
network
communications.
Technical Section
Network
protocol is
incorrect.
Go into INTERFACE menu, COMM TYPE item. The
protocol must match host system. Select correct interface.
Incorrect
network
address.
The network address at the building automation system and
at the DIM must match. The network address must be
unique for each DIM.
Incorrect MAC
ID (BACnet
MS/TP only)
The MAC ID and network address at the building
automation system and at the DIM must match. The
MAC ID and network Address must be unique for each
DIM.
Incorrect baud
rate (BACnet
MS/TP only)
The baud rate of the building automation system and the
DIM must match. Reset the BAUD RATE item in the
Interface menu to match the building automation system.
Incorrect
polarity.
Verify and/or change polarity of RS-485 A and B wires.
Incompatible
software.
Data sent to DIM may be in form that the monitor cannot
recognize.
LonWorks®
board not
installed.
Contact factory for further assistance.
Bad LonWorks®
board.
Contact factory for assistance.
Foreign network
acquired
monitor.
(LonWorks®
only)
Go into Interface menu, LON item. Select GO UNCONFIG
option, press the SELECT key. Return to the LON item,
select the SERVICE PIN option and press the SELECT key.
Selecting GO UNCONFIG will reset the PresSura monitor’s
authentication key, allowing the SERVICE PIN to install or
reclaim the PresSura monitor to the LonWorks® network.
69
Symptom
Alarm relays do
not work.
Displayed room
pressure or flow
wildly
fluctuating.
Analog output
does not work
properly.
Possible Cause
Alarms are
turned off.
Corrective Action
Enter the Rm1 Alarm, AnteRm Alarm or Rm2 Alarm menu.
Verify that the Alarm Enable item is set to enable the high
or low alarms as desired.
Incorrect wiring.
Check the wiring from DIM relay output to the device that is
connected to the relays.
Relay may be
defective.
Disconnect the wiring (terminals 9 to 12) from relay
contacts. Go into DIAGNOSTICS menu, Relay Outputs
item. Connect an ohm-meter to relay terminals to verify
contact open and closes. Press the Relay1 Toggle or
Relay 2 Toggle button to manually trip the relay.

If relay responds (contact opens and closes), the
device connected is incompatible or defective.

If relay does not respond, relay is defective (may be
caused by incompatible device). Replace DIM.
Supply air is
affecting the
sensor.
Check location of supply air diffusers. They should be
located as far from the pressure sensor as is realistic,
10 feet preferred with 6 feet minimum. Supply diffuser
terminal throw velocity must be less than 10 ft/min at the
sensor. Relocate supply or exhaust as needed.
Display
averaging is
very short.
Lengthen the time constant by entering the
CONFIGURATION menu, DISPLAY AVG item, and
increase the average time.
Monitor needs
calibration.
Calibrate monitor.
Monitor is
connected to
incompatible
equipment.
Enter the DIAGNOSTICS menu, Analog Outpt item. Use
Output 1, Output 2 or Output 3 button to adjust the output.
Change the output value while measuring the output with a
multimeter. If the voltage (current) changes, the monitor is
functioning properly.
If the voltage (current) does not change, disconnect the
analog out device and repeat the above procedure. If
voltage now changes, the monitor is good, and the external
device is defective. If no change occurs, DIM is defective.
Displayed
velocity does
not match
measured
velocity.
Pressure sensor
is dirty.
See Maintenance and Repair Parts.
Monitor is not
calibrated.
See Calibration.
Monitor does
not
communicate
with TSI
Configuration
Software
Defective cable
Replace cable with TSI P/N 700036
70
Part Two
Appendix A
Specifications*
Digital Interface Module
Display
Range ........................................
-0.20000 to +0.20000 in H2O (-50 to +50 Pa): TSI Sensor
-1.00 to +1.00 in H2O (-250 to +250 Pa): Pressure
Transducer
Resolution .................................
5% of reading or 0.00001 in H2O (0.0025 Pa): TSI Sensor
5% of reading or 0.001 in H2O (0.25 Pa): Pressure
Transducer
Low Alarm Range ......................
-0.19500 to +0.19500 in H2O
0 to 10,000 cfm (0 to 4,720 l/s, 0 to 16,990 m3/hr)
High Alarm Range .....................
80 to 1,000 ft/min (0.41 to 5.08 m/s)
0 to 10,000 cfm (0 to 4,720 l/s, 0 to 16,990 m3/hr)
Communications Protocols ........
Modbus® RTU 9600 baud
BACnet® MS/TP 76.8k, 38.4k, 19.2k, 9600 baud
LonWorks® (Optional)
Operating Temperature .............
32 to 120°F (0 to 50C)
Input Power................................
24 VAC, 50/60 Hz
15 to 40 VDC
5 Watt maximum (50 VA with TSI Actuator)
Dimensions ................................
7.0 in x 4.875 in x 1.75 in
(17.8 cm x 12.4 cm x 4.4 cm)
0.625 in (1.6 cm) protrusion
Weight........................................
14 oz (0.40 kg)
Velocity Sensor
Inputs–Seven (7) Total
Input 1 ........................................
TSI Sensor or Pressure Transducer (0 to 10 VDC)
Input 2 ........................................
TSI Sensor or Pressure Transducer (0 to 10 VDC)
Input 3 ........................................
Supply Flow, TSI Sensor or Pressure Transducer
(0 to 10 VDC)
Input 4 ........................................
Door Switch or Occupancy Sensor (Relay In)
Input 5 ........................................
Room 1 Key Switch (Relay In) or RH (0 to 10 VDC)
Input 6 ........................................
Room 2 Door Switch or Occupancy Sensor (Relay In)
Room 1 Temperature (1000 Ω Platinum RTD)
Input 7 ........................................
Room 2 Key Switch (Relay In)
Exhaust Flow (0 to 10 VDC)
Supply Air Temperature (1000 Ω Platinum RTD)
71
Outputs–Three (3)Total
Output 1 .....................................
None
Output 2 .....................................
Room 1 Pressure Out, Exhaust Flow Out (0 to 10 VDC /
4-20 mA)
Output 3 .....................................
Room 2 Pressure Out, Exhaust Flow Out, Supply Flow Out
(0 to 10 VDC / 4-20 mA)
Alarm Contacts ..........................
Relay1: Low Alarm
Relay 2: High Alarm or Room Mode
SPST, 60 W max
2A @ 30 VDC Nominal
Contacts field-configurable to open or close in alarm
condition.
Contacts close on loss of power.
TSI Through-the-Wall Sensor
Temperature Compensation
Range ........................................
55 to 95°F
Power Dissipation ......................
0.16 watts at 0 inches H2O,
0.20 watts at 0.00088 inches H2O
Dimensions (D x H) ...................
5.58 in. x 3.34 in. x 1.94 in.
(84.8 x 141.7 x 49.3 mm)
Weight........................................
0.2 lb.
*Specifications are subject to change without notice.
72
Appendix A
Appendix B
Network Communications
Network communications are available on the PresSura room monitors. The PresSura room
monitors can communicate with a building management system through Modbus®, LonWorks® or
BACnet® MS/TP protocols. Please refer to the appropriate section below for more detailed
information.
Modbus® Communications
Modbus® communications are installed in the PresSura room monitors. This document provides
the technical information needed to communicate between the host DDC system and the
PresSura room monitors. This document assumes the programmer is familiar with Modbus®
protocol. Further technical assistance is available from TSI if your question is related to TSI
interfacing to a DDC system. If you need further information regarding Modbus® programming in
general, please contact:
Modicon Incorporated (a division of Schneider-Electric)
One High Street
North Andover, MA 01845
Phone (800) 468-5342
The Modbus® protocol utilizes the RTU format for data transfer and Error Checking. Check the
Modicon Modbus® Protocol Reference Guide (PI-Mbus-300) for more information on CRC
generation and message structures.
The messages are sent at 9600 baud with no start bit, 8 data bits, and 2 stop bits. Do not use the
parity bit. The system is set up as a master slave network. The TSI units act as slaves and
respond to messages when their correct address is polled.
Blocks of data can be read from each device. Using a block format will speed up the time for the
data transfer. The size of the blocks is limited to 255 bytes. This means the maximum message
length that can be transferred is 255 bytes. The typical response time of the device is around
0.05 seconds with a maximum of 0.1 seconds.
Unique to TSI
The list of variable addresses shown below skips some numbers in the sequence due to internal
PresSura room monitors functions. This information is not useful to the DDC system and is
therefore deleted. Skipping numbers in the sequence will not cause any communication
problems. If a variable is not used by the particular PresSura room monitors, it will be reported
with a value of -1.
All variables are outputted in English units: ft/min, and cfm. If the DDC system is to display
different units, the DDC system needs to make the conversion.
Modbus is a registered trademark of Modicon, Inc.
73
Network Points
RAM Variables
RAM variables use the Modbus command 04 Read Input Registers. RAM variables are read only
variables that correspond to what is shown on Digital Interface Module (DIM) display. TSI offers a
number of different models, so if a feature is not available on a unit, the variable is set to 0.
Variable Name
Variable
Address
Information Provided to Master
System
Room 1 Pressure
0
Room 1 Pressure
Supply Flow
1
Supply Flow Rate
ACH
2
Air Changes per Hour
RH
(RPM20 only)
Temperature
(RPM20 only)
3
Relative Humidity
4
Temperature for Room 1
Exhaust Flow
Room 1 Door
Status
Anteroom
Pressure
(RPM20 only)
6
7
Exhaust Flow Rate
Room 1 Door Status
8
Anteroom Pressure
Room 2 Pressure
(RPM20 only)
10
Room 2 Pressure
Room 2 Door
Status
(RPM20 only)
Room 1
Occupancy
Room 2
Occupancy
(RPM20 only)
12
Room 2 Door Status
13
Room 1 Occupancy
15
Room 2 Occupancy
Integer DDC system receives
Displayed in inches H2O.
Host DDC system must
divide value by 100,000 to
report pressure correctly
Displayed in CFM.
Displayed in number per hour.
Host DDC system must
divide value by 10 to report
ACH correctly.
Displayed in %RH
Displayed in °F
Host DDC system must
divide value by 10 to report
temperature correctly
Displayed in CFM.
1 Door Closed (Normal)
2 Door Open
Displayed in inches H2O.
Host DDC system must
divide value by 100,000 to
report pressure correctly
Displayed in inches H2O
Host DDC system must
divide value by 100,000 to
report pressure correctly
1 Door Closed (Normal)
2 Door Open
1 Occupied (Normal)
2 Unoccupied
1 Occupied (Normal)
2 Unoccupied
EXAMPLE of 04 Read Input Registers function format
This example reads variable addresses 0 (Pressure).
QUERY
Field Name
Slave Address
Function
Starting Address Hi
Starting Address Lo
No. of Points Hi
No. of Points Lo
Error Check (CRC)
74
RESPONSE
Example # 2
(Hex)
01
04
00
00
00
01
--
Field Name
Slave Address
Function
Byte Count
Data Hi Addr0
Data Lo Addr0
Example # 1
(Hex)
01
04
02
00
64 (0.00100 “H2O)
Appendix B
Modbus Communications (continued)
XRAM Variables
These variables can be read using Modbus® command 03 Read Holding Registers. They can
be written to using Modbus® command 06 Write Single Register. Many of these variables are
the same “menu items” that are configured from the monitor keypad. The calibration and control
items are not accessible from the DDC system. This is for safety reasons since each room is
individually setup for maximum performance.
RPM10 Variable List
Variable
Address
Variable Name
Number of Rooms
Devices Controlled
Measurements
Displayed
0
1
2
Read/Write
Read
Read
Read/Write
Display Average
3
Read
Units
4
Read/Write
Access Codes
5
Read/Write
Relay 2
Configuration
6
Read
Input 1
Configuration
Input 2
Configuration
Input 3
Configuration
7
Read
8
Read
9
Read
Input 4
Configuration
10
Read
Input 5
Configuration
Input 6
Configuration
11
Read
12
Read
Network/Modbus® Communications
Integer DDC system receives
1 1 Room
1 None
1 Room Status
2 Room Status and Pressure
3 All Measurements
1 1 second
2 2 seconds
3 3 seconds
4 5 seconds
5 10 seconds
6 20 seconds
7 40 seconds
1 in H2O, cfm, F
2 Pa, lps, C
3 Pa, m3/hr, C
1 Off
2 Room Mode
3 Menus
4 Room Mode and Menus
1 High Alarm
2 Negative Room Mode
3 Positive Room Mode
1 TSI Sensor
2 Pressure Transducer
4 None
1
2
3
4
7
1
2
3
1
3
6
Supply Pressure Flow
Supply Linear Flow
Supply Venturi
Supply Switch
None
Room 1 Door Switch
Room 1 Occupancy Sensor
None
Room 1 Key Switch
None
None
75
RPM10 Variable List
Variable
Address
13
Read/Write
Read
Room 1 Mode
14
Read/Write
Room 1 Low Alarm
Enable
Room 1 High Alarm
Enable
Room 1 Negative
Low Alarm Setpoint
15
Read/Write
16
Read/Write
17
Read/Write
Room 1 Negative
High Alarm Setpoint
18
Read/Write
Room 1 Positive
Low Alarm Setpoint
19
Read/Write
Room 1 Positive
High Alarm Setpoint
20
Read/Write
Low Exhaust Alarm
Low Supply Alarm
Alarm Reset
21
22
61
Read/Write
Read/Write
Read/Write
Audible Alarm
Enable
Alarm Delay
Mute Timeout
Door Delay
Modbus Address
Output 1 Signal
Type
Output 2 Signal
Type
62
Read/Write
63
64
65
66
67
Read/Write
Read/Write
Read/Write
Read
Read
71
Read
Output 2 Range
72
Read
Output 2 Signal
73
Read
Output 2 Value
74
Read
Variable Name
Input 7
Configuration
76
Integer DDC system receives
2 Exhaust Pressure Flow
3 Exhaust Linear Flow
4 Exhaust Venturi
5 Exhaust Switch
8 None
1 Positive
2 Negative
3 No Isolation
1 Disabled
2 Enabled
1 Disabled
2 Enabled
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in cfm
Displayed in cfm
1 Latched
2 Unlatched
1 On
2 Off
Displayed in seconds
Displayed in minutes
Displayed in seconds
1
None
1 None
2 Room 1 Pressure Output
3 Room 1 Exhaust Flow Output
If Pressure: Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
If Flow: Displayed in cfm
1 4-20 mA
2 0 to10 VDC
0 to 100%
Appendix B
Modbus Communications (continued)
RPM10 Variable List
Variable
Address
75
Read/Write
Read
Integer DDC system receives
1 None
76
Read
Output 3 Signal
77
Read
Output 3 Value
Status Index
78
79
Read
Read
If Pressure: Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
If Flow: Displayed in cfm
1 4-20 mA
2 0 to 10 VDC
0 to 100%
1
Normal
2
Room 1 Negative Low Alarm
3
Room 1 Negative High Alarm
4
Room 1 Positive Low Alarm
5
Room 1 Positive High Alarm
6
Low Exhaust Alarm
7
Low Supply Alarm
2
Data Error
0
Room 1 Label
Room 2 Label
Anteroom Label
80 to 86
87 to 93
94 to 100
Read
Read
Read
Variable Name
Output 3 Signal
Type
Output 3 Range
RPM20 Variable List
Variable Name
Number of Rooms
Variable
Address
0
Read/Write
Read
Devices Controlled
Measurements
Displayed
1
2
Read
Read/Write
Display Average
3
Read
Units
4
Read/Write
Access Codes
5
Read/Write
Network/Modbus® Communications
Integer DDC system receives
1 1 Room
2 1 Room
3 2 Rooms with Anteroom
1 None
1 Room Status
2 Room Status and Pressure
3 All Measurements
1 1 second
2 2 seconds
3 3 seconds
4 5 seconds
5 10 seconds
6 20 seconds
7 40 seconds
1 in H2O, cfm, F
2 Pa, lps, C
3 Pa, m3/hr, C
1 Off
2 Room Mode
3 Menus
4 Room Mode and Menus
77
RPM20 Variable List
Variable Name
Relay 2
Configuration
Variable
Address
6
Read/Write
Read
Input 1
Configuration
Input 2
Configuration
7
Read
8
Read
Input 3
Configuration
9
Read
Input 4
Configuration
10
Read
Input 5
Configuration
11
Read
Input 6
Configuration
12
Read
Input 7
Configuration
13
Read
Room 1 Mode
14
Read/Write
Room 1 Low Alarm
Enable
Room 1 High Alarm
Enable
Room 1 Negative
Low Alarm Setpoint
15
Read/Write
16
Read/Write
17
Read/Write
Room 1 Negative
High Alarm Setpoint
18
Read/Write
Room 1 Positive
Low Alarm Setpoint
19
Read/Write
78
Integer DDC system receives
1 High Alarm
2 Negative Room Mode
3 Positive Room Mode
1 TSI Sensor
2 Pressure Transducer
1 TSI Sensor
2 Pressure Transducer
4 None
1 Supply Pressure Flow
2 Supply Linear Flow
3 Supply Venturi
4 Supply Switch
5 TSI Sensor
6 Pressure Transducer
7 None
1 Room 1 Door Switch
2 Room 1 Occupancy Sensor
3 None
1 Room 1 Key Switch
2 Relative Humidity
3 None
1 Room 1 Temperature
3 Room 2 Occupancy Sensor
4 Room 2 Door Switch
6 None
2 Exhaust Pressure Flow
3 Exhaust Linear Flow
4 Exhaust Venturi
5 Exhaust Switch
6 Room 2 Key Switch
8 None
1 Positive
2 Negative
3 No Isolation
1 Disabled
2 Enabled
1 Disabled
2 Enabled
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Appendix B
Modbus Communications (continued)
RPM20 Variable List
Variable
Address
20
Read/Write
Read/Write
Low Exhaust Alarm
Low Supply Alarm
Room 1 Low
Temperature Alarm
21
22
23
Read/Write
Read/Write
Read/Write
Room 1 High
Temperature Alarm
24
Read/Write
Room 1 Low RH
Alarm
Room 1 High RH
Alarm
Anteroom Mode
25
Read/Write
Integer DDC system receives
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in cfm
Displayed in cfm
Displayed in °F
Host DDC system must divide value by 10
to report temperature correctly
Displayed in °F
Host DDC system must divide value by 10
to report temperature correctly
Displayed in %RH
26
Read/Write
Displayed in %RH
47
Read/Write
Anteroom Low
Alarm Enable
Anteroom High
Alarm Enable
Anteroom Negative
Low Alarm Setpoint
48
Read/Write
49
Read/Write
50
Read/Write
Anteroom Negative
High Alarm Setpoint
51
Read/Write
Anteroom Positive
Low Alarm Setpoint
52
Read/Write
Anteroom Positive
High Alarm Setpoint
53
Read/Write
Room 2 Mode
54
Read/Write
Room 2 Low Alarm
Enable
55
Read/Write
Room 2 High Alarm
Enable
56
Read/Write
1
Positive
2
Negative
3
No Isolation
6
Anteroom not configured
1
Disabled
2
Enabled
1
Disabled
2
Enabled
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
1
Positive
2
Negative
3
No Isolation
6
Room 2 not configured
1
Disabled
2
Enabled
1
Disabled
2
Enabled
Variable Name
Room 1 Positive
High Alarm Setpoint
Network/Modbus® Communications
79
RPM20 Variable List
Variable
Address
57
Read/Write
Read/Write
Room 2 Negative
High Alarm Setpoint
58
Read/Write
Room 2 Positive
Low Alarm Setpoint
59
Read/Write
Room 2 Positive
High Alarm Setpoint
60
Read/Write
Alarm Reset
61
Read/Write
Audible Alarm
Enable
Alarm Delay
Mute Timeout
Door Delay
Modbus Address
Output 1 Signal
Type
Output 1 Range
62
Read/Write
63
64
65
66
67
Read/Write
Read/Write
Read/Write
Read
Read
68
Read
Output 1 Signal
69
Read
Output 1 Value
Output 2 Signal
Type
70
71
Read
Read
Output 2 Range
72
Read
Output 2 Signal
73
Read
Output 2 Value
Output 3 Signal
Type
74
75
Read
Read
Output 3 Range
76
Read
Variable Name
Room 2 Negative
Low Alarm Setpoint
80
Integer DDC system receives
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
1 Latched
2 Unlatched
1 On
2 Off
Displayed in seconds
Displayed in minutes
Displayed in seconds
1 None
2 Room 1 Pressure (RPM20)
Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
1 4-20 mA
2 0 to 10 VDC
0 to 100%
1 None
2 Room 1 Pressure Output
3 Room 1 Exhaust Flow Output
If Pressure: Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
If Flow: Displayed in cfm
1 4-20 mA
2 0 to 10 VDC
0 to 100%
1 None
2 Room 1 Supply Flow Output (RPM20)
3 Room 1 Exhaust Flow Output (RPM20)
4 Room 2 Pressure Output (RPM20)
If Pressure: Displayed in inches H2O.
Host DDC system must divide value by
100,000 to report pressure correctly
If Flow: Displayed in cfm
Appendix B
Modbus Communications (continued)
RPM20 Variable List
Variable Name
Output 3 Signal
Variable
Address
77
Read/Write
Read
Output 3 Value
Status Index
78
79
Read
Read
Room 1 Label
Room 2 Label
Anteroom Label
80 to 86
87 to 93
94 to 100
Read
Read
Read
Integer DDC system receives
4-20 mA
0 to 10 VDC
0 to 100%
1
Normal
2
Room 1 Negative Low Alarm
3
Room 1 Negative High Alarm
4
Room 1 Positive Low Alarm
5
Room 1 Positive High Alarm
6
Low Exhaust Alarm
7
Low Supply Alarm
8
Low Temperature Alarm
9
High Temperature Alarm
10
Low RH Alarm
11
High RH Alarm
12
Anteroom Negative Low Alarm
13
Anteroom Negative High Alarm
14
Anteroom Positive Low Alarm
15
Anteroom Positive High Alarm
16
Room 2 Negative Low Alarm
17
Room 2 Negative High Alarm
18
Room 2 Positive Low Alarm
19
Room 2 Positive High Alarm
20
Data Error
EXAMPLE of 06 Write Single Register function format:
This example changes the normal low face velocity alarm set point to 60 ft/min.
QUERY
RESPONSE
Field Name
(Hex)
Field Name
(Hex)
Slave Address
01
Slave Address
01
Function
06
Function
06
Starting Address Hi
00
Starting Address Hi
00
Starting Address Lo
16
Starting Address Lo
16
Data Value (High)
00
Error Check (CRC)
-Data Value (Low)
3C
Error Check (CRC)
--
Network/Modbus® Communications
81
EXAMPLE of 03 Read Holding Registers function format:
This example reads the face velocity and current face velocity set point.
QUERY
RESPONSE
Field Name
(Hex)
Field Name
(Hex)
Slave Address
01
Slave Address
01
Function
03
Function
03
Starting Address Hi
00
Byte Count
04
Starting Address Lo
00
Data Hi
00
No. Of Registers Hi
00
Data Lo
64 (100 ft/min)
No. Of Registers Lo
02
Data Hi
00
Error Check (CRC)
-Data Lo
64 (100 ft/min)
Error Check (CRC)
82
Appendix B
LonWorks® Object
The Model RPM20-LON supports LonWorks communications. Contact TSI if you have a model RPM20
without LonWorks and you need LonWorks communications.
Node Object Network Variables
SNVT
Number
0
1
2
3
Bit
Description
4
5
6
7
SNVT Name
SNVT Type
nciLocation
nciOutInHt
nciIndex
nciVersion
SCPTLocation
SCTPalrmInbT
SCPTdevMajVer
SCPTdvMinVer
nviRequest
nviTimeSet
nvoStatus
nvoAlarm
SNVT_obj_request
SNVT_time_stamp
SNVT_obj_status
SNVT_alarm
Room Pressure Monitor Object Network Variables
SNVT
Number
Bit
Description
SNVT Name
SNVT Type
17
Room Mode
nviRoomMode
SNVT_char_ascii
18
Room 1 Pressure Differential
nvoRm1Press
SNVT_press_f
19
Anteroom Pressure Differential
nvoAntePress
SNVT_press_f
20
Room 2 Pressure Differential
nvoRm2Press
SNVT_press_f
21
Supply Flow
nvoSupplyFlow
SNVT_flow
22
Exhaust Flow
nvoExhaustFlow
SNVT_flow
23
Room Temperature
nvoTempMeas
SNVT_temp_p
24
Relative Humidity
nvoRHMeas
SNVT_lev_percent
25
Status
nvoUnitState
SNVT_state
1
Room 1 Low Pressure Alarm
2
Room 1 High Pressure Alarm
3
Anteroom Low Pressure Alarm
4
Anteroom High Pressure Alarm
5
Low Exhaust Flow Alarm
6
Low Supply Flow Alarm
7
Low Room Temperature Alarm
8
High Room Temperature Alarm
9
Low Relative Humidity Alarm
10
High Relative Humidity Alarm
26
Door Mode
nvoDoorMode
SNVT_char_ascii
27
Room 1 Mode
nvoRoomMode
SNVT_char_ascii
28
Number of Rooms
nvoNumRooms
SNVT_char_ascii
LonWorks® Object
83
SNVT
Number
8
9
10
11
12
13
14
15
16
Bit
Description
Maximum Time Without Sending
Update
Minimum Time Before Sending
Update
Room 1 Pressure Minimum Update
Change
Anteroom Pressure Minimum
Update Change
Room 2 Pressure Minimum Update
Change
Exhaust Flow Minimum Update
Change
Supply Flow Minimum Update
Change
Room Temperature Minimum
Update Change
Relative Humidity Minimum Update
Change
SNVT Name
SNVT Type
nciMaxSendTime
SCPTmaxSendTime
nciMinSendTime
SCPTminSendTime
nciSndDeltaP1
SCPTsndDelta
nciSndDeltaP2
nciSndDeltaP2
nciSndDeltaFl1
nciSndDeltaFl2
nciSndDeltaT1
nciSndDeltaRH
SCPTsndDelta
SCPTsndDelta
SCPTsndDelta
SCPTsndDelta
SCPTsndDelta
SCPTsndDelta
Description of LON SNVTs
SNVT
nviRoomMode
nvoRoomMode
Command Supported
0
1
2
Action
Negative Mode
Positive Mode
No Isolation Mode
SNVT
nviRequest
object_request
Value Sent / Received
CLEAR_ALARM
Action
Clears alarm (See SNVT nvoAlarm)
84
Appendix B
Model RPM10 and RPM20 BACnet® MS/TP Protocol Implementation
Conformance Statement
Date: March 5, 2013
Vendor Name: TSI Incorporated
Product Name: PresSura
Product Model Number: RPM10 and RPM20
Application Software Version: 1.00
Firmware Revision: 1.00.00
BACnet Protocol Revision: Version 1, Revision 8
Product Description:
TSI's PresSura monitors are designed to maintain the room pressure differential of isolation rooms,
operating rooms and other critical environments. These models are capable of acting as a stand-alone
devices or as part of a building automation system via BACnet® MS/TP protocol.
BACnet Standardized Device Profile (Annex L):
 BACnet Operator Workstation (B-OWS)
 BACnet Building Controller (B-BC)
 BACnet Advanced Application Controller (B-AAC)
 BACnet Application Specific Controller (B-ASC)
 BACnet Smart Sensor (B-SS)
 BACnet Smart Actuator (B-SA)
All BACnet Interoperability Building Blocks Supported (Annex K):
Application Service
Data Sharing – ReadProperty - B
Data Sharing – WriteProperty - B
Data Sharing – ReadPropertyMultiple - B
Device Management – Dynamic Device Binding - B
Device Management – Dynamic Object Binding - B
Device Management – DeviceCommunicationsControl - B
Device Management – ReinitializeDevice - B
Segmentation Capability:
 Segmented requests supported
 Segmented responses supported
Standard Object Types Supported:
Analog Input Object
Dynamically Create:
Dynamically Delete:
Optional Properties:
Writable properties:
Proprietary Properties:
Property Range Restrictions:
Data Type:
®
Designation
DS-RP-B
DS-WP-B
DS-RPM-B
DM-DDB-B
DM-DOB-B
DM-DCC-B
DM-RD-B
Window Size: 480
Window Size: 480
Yes  No
Yes  No
Reliability
Present_Value when Out_Of_Service is true,
Out_Of_Service
None
None
Real
Model RPM10 and RPM20 BACnet MS/TP Protocol Implementation Conformance Statement
85
86
Analog Value Object
Dynamically Create:
Dynamically Delete:
Optional Properties:
Writable properties:
Proprietary Properties:
Property Range Restrictions:
Data Type:
Yes  No
Yes  No
Reliability
Present_Value, Out_Of_Service
None
None
Real
Binary Input Object
Dynamically Create:
Dynamically Delete:
Optional Properties:
Writable properties:
Proprietary Properties:
Property Range Restrictions:
Data Type:
Yes  No
Yes  No
Reliability, Active_Text, Inactive_Text
Present_Value when Out_Of_Service is true, Out_Of_Service
None
None
Enumerated
Binary Value Object
Dynamically Create:
Dynamically Delete:
Optional Properties:
Writable properties:
Proprietary Properties:
Property Range Restrictions:
Data Type:
Yes  No
Yes  No
Reliability, Active_Text, Inactive_Text
Present_Value, Out_Of_Service
None
None
Enumerated
Device Object
Dynamically Create:
Dynamically Delete:
Optional Properties:
Writable properties:
Proprietary Properties:
Property Range Restrictions:
Data Type:
Yes  No
Yes  No
Max_Master, Max_Info_Frames
Max_Master
None
None
Unsigned Int
Multistate Input Object
Dynamically Create:
Dynamically Delete:
Optional Properties:
Writable properties:
Proprietary Properties:
Property Range Restrictions:
Data Type:
Yes  No
Yes  No
Reliability, State_Text
Present_Value when Out_Of_Service is true, Out_Of_Service
None
None
Unsigned Int
Multistate Value Object
Dynamically Create:
Dynamically Delete:
Optional Properties:
Writable properties:
Proprietary Properties:
Property Range Restrictions:
Data Type:
Yes  No
Yes  No
Reliability, State_Text
Present_Value, Out_Of_Service
None
None
Unsigned Int
Appendix B
Data Link Layer Options:
 BACnet IP, (Annex J)
 BACnet IP, (Annex J), Foreign Device
 ISO 8802-3, Ethernet (Clause 7)
 ANSI/ATA 878.1, 2.5 Mb. ARCNET (Clause 8)
 ANSI/ATA 878.1, RS-485 ARCNET (Clause 8), baud rate(s) ____________
 MS/TP master (Clause 9), baud rate(s): 9600, 19200, 38400, 76800
 MS/TP slave (Clause 9), baud rate(s):
 Point-To-Point, EIA 232 (Clause 10), baud rate(s):
 Point-To-Point, modem, (Clause 10), baud rate(s):
 LonTalk, (Clause 11), medium: __________
 Other:
Device Address Binding:
Is static device binding supported?
Yes
Networking Options:
 Router, Clause 6 - List all routing configurations, e.g., ARCNET-Ethernet, Ethernet-MS/TP, etc.
 Annex H, BACnet Tunneling Router over IP
 BACnet/IP Broadcast Management Device (BBMD)
Does the BBMD support registrations by Foreign Devices?
 Yes
 No
 No
Character Sets Supported:
Indicating support for multiple character sets does not imply that they can all be supported
simultaneously.
 ANSI X3.4
 IBM/Microsoft DBCS
 ISO 8859-1
 ISO 10646 (UCS-2)
 ISO 10646 (UCS-4)
 JIS C 6226
®
Model RPM10 and RPM20 BACnet MS/TP Protocol Implementation Conformance Statement
87
BACnet® MS/TP Object Set
RPM10 PresSura Monitor
Object Type
Analog Input
Analog Input
Analog Input
Device
Instance
1
2
3
Analog Input
Analog Input
6
10
cfm, l/s, m3/hr
Analog Value
1
in H2O, Pa
Analog Value
2
in H2O, Pa
Analog Value
3
in H2O, Pa
Analog Value
4
in H2O, Pa
Analog Value
5
cfm, l/s, m3/hr
Analog Value
Analog Value
Analog Value
Analog Value
Analog Value
Analog Value
11
39
40
41
42
43
ft3, m3
Binary Input
1
Room 1 Door Switch
Binary Input
4
Room 1 Occupancy
Binary Value
1
Room 1 High Alarm
Binary Value
2
Room 1 Low Alarm
Multi-State
Value
3
Passcode Enable
Multi-State
Value
4
Input 1
Configuration
88
*Units
in H2O, Pa
cfm, l/s, m3/hr
Description
Room1 Pressure
Supply Flow Rate
Air Changes Per
Hour
Exhaust Flow Rate
Room 1 Label
Room 1 Neg Low
Alarm
Room 1 Neg High
Alarm
Room 1 Pos Low
Alarm
Room 1 Pos High
Alarm
Room 1 Low
Exhaust Alarm
Room 1 Volume
Alarm Delay
Mute Timeout
Door Delay
Address
MAC ID
Writable
Object
Value
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Notes and Range
Writing to Object name will
change Rm1 Label item.
Room 1 Label object has not
applicable in H2O units.
Updating Room 1 Label
Object name will not
affect other Room 1
Object names.
-0.19500 to + 0.19500
in H2O
-0.19500 to + 0.19500
in H2O
-0.19500 to + 0.19500
in H2O
-0.19500 to + 0.19500
in H2O
0 to 30,000 cfm
0 to 20,000
20 to 600 seconds
1 to 60 minutes
20 to 600 seconds
1 to 127
0 to 999
Device ID =
1000*MAC ID + Address
0
Door Closed (Normal)
1
Door Open
0
Occupied (Normal)
1
Unoccupied
0
Disable
1
Enable
0
Disable
1
Enable
1
No Password
2
Room Mode Password
3
Menu Password
4
Menu & Room Mode
Passwords
1
TSI Sensor
2
Pressure Transducer
Appendix B
RPM10 PresSura Monitor
Device
Instance
5
Object Type
Multi-State
Value
Multi-State
Value
6
*Units
Description
Input 2
Configuration
Input 3
Configuration
Multi-State
Value
7
Input 4
Configuration
Multi-State
Value
Multi-State
Value
Multi-State
Value
8
Input 5
Configuration
Input 6
Configuration
Input 7
Configuration
9
10
Writable
Object
Value
4
1
2
3
4
7
1
2
3
1
3
6
Multi-State
Value
11
Room 1 Mode
Y
Multi-State
Value
12
ACH Duct
Y
Multi-State
Value
16
Status Index
2
3
4
5
8
1
2
3
1
2
3
1
2
6
7
20
3
1
2
3
in H2O, cfm
Pa, lps
Pa, m3/hr
4
5
17
Device Type
18
Units Value
Y
Supply Pressure Flow
Supply Linear Flow
Supply Venturi Flow
Supply Switch
None
Room 1 Door Switch
Room 1 Occupancy
Sensor
None
Room 1 Key Switch
None
None
Exhaust Pressure Flow
Exhaust Linear Flow
Exhaust Venturi Flow
Exhaust Switch
None
Positive
Negative
No Isolation
Supply
Exhaust
Off
Normal
Room 1 Negative Low
Alarm
Room 1 Negative High
Alarm
Room 1 Positive Low
Alarm
Room 1 Positive High
Alarm
Low Exhaust Alarm
Low Supply Alarm
Data Error
RPM10
3
Multi-State
Value
Multi-State
Value
Notes and Range
None
*The units are based on the value of the Units Value object. When the Units Value is set to 1 or 3, the units are in
English form. When the Units Value is set to 2 or 4, the units are metric. English is the default value.
**The device instance is 010000, summed with the MAC address of the device.
®
BACnet MS/TP Object Set
89
RPM20 PresSura Monitor
Object Type
Analog Input
Analog Input
Analog Input
Device
Instance
1
2
3
*Units
in H2O, Pa
cfm, l/s, m3/hr
Analog Input
Analog Input
Analog Input
Analog Input
4
5
6
7
% RH
°F, °C
cfm, l/s, m3/hr
in H2O, Pa
Analog Input
8
in H2O, Pa
Analog Input
Description
Room1 Pressure
Supply Flow Rate
Air Changes Per
Hour
Relative Humidity
Room Temperature
Exhaust Flow Rate
Anteroom Pressure
Writable
Object
Value
Y
Y
Room 2 Pressure
Y
10
Room 1 Label
Y
Analog Input
11
Anteroom Label
Y
Analog Input
12
Room 2 Label
Y
Analog Value
1
in H2O, Pa
Analog Value
2
in H2O, Pa
Analog Value
3
in H2O, Pa
Analog Value
4
in H2O, Pa
Analog Value
5
cfm, l/s, m3/hr
Analog Value
6
cfm, l/s, m3/hr
90
Room 1 Neg Low
Alarm
Room 1 Neg High
Alarm
Room 1 Pos Low
Alarm
Room 1 Pos High
Alarm
Room 1 Low
Exhaust Alarm
Room 1 Low
Supply Alarm
Notes and Range
Y
1 Room with Anteroom or
2 Room with Anteroom
configurations only
2 Room with Anteroom
configuration only
Writing to Object name will
change Rm1 Label item.
Room 1 Label object has not
applicable in H2O units.
Updating Room 1 Label
Object name will not
affect other Room 1
Object names.
Writing to Object name will
change AnteRm Label
item.
Anteroom Label object has
not applicable in H2O
units.
Updating Anteroom Label
Object name will not
affect other Anteroom
Object names.
Writing to Object name will
change Rm2 Label item.
Room 2 Label object has not
applicable in H2O units.
Updating Room 2 Label
Object name will not
affect other Room 2
Object names.
-0.19500 to + 0.19500 in H2O
Y
-0.19500 to + 0.19500 in H2O
Y
-0.19500 to + 0.19500 in H2O
Y
-0.19500 to + 0.19500 in H2O
Y
0 to 30,000 cfm
Y
0 to 30,000 cfm
Appendix B
RPM20 PresSura Monitor
Writable
Object
Value
Y
Object Type
Analog Value
Device
Instance
7
*Units
°F, °C
Analog Value
8
°F, °C
Analog Value
9
% RH
Analog Value
10
% RH
Analog Value
Analog Value
11
31
ft3, m3
in H2O, Pa
Analog Value
32
in H2O, Pa
Anteroom Neg High
Alarm
Y
Analog Value
33
in H2O, Pa
Anteroom Pos Low
Alarm
Y
Analog Value
34
in H2O, Pa
Anteroom Pos High
Alarm
Y
Analog Value
35
in H2O, Pa
Room 2 Neg Low
Alarm
Y
Analog Value
36
in H2O, Pa
Room 2 Neg High
Alarm
Y
Analog Value
37
in H2O, Pa
Room 2 Pos Low
Alarm
Y
Analog Value
38
in H2O, Pa
Room 2 Pos High
Alarm
Y
Analog Value
Analog Value
Analog Value
Analog Value
Analog Value
39
40
41
42
43
Alarm Delay
Mute Timeout
Door Delay
Address
MAC ID
Y
Y
Y
Y
Y
Binary Input
1
Binary Input
3
Binary Input
4
Room 1 Door
Switch
Room 2 Door
Switch
Room 1 Occupancy
®
BACnet MS/TP Object Set
Description
Room 1 Low
Temperature Alarm
Room 1 High
Temperature Alarm
Room 1 Low RH
Alarm
Room 1 High RH
Alarm
Room 1 Volume
Anteroom Neg Low
Alarm
Notes and Range
50 to 100 °F
Y
50 to 100 °F
Y
0 to 100
Y
0 to 100
Y
Y
0 to 20,000
-0.19500 to + 0.19500 in H2O
1 Room with Anteroom or
2 Room with Anteroom
configurations only
-0.19500 to + 0.19500 in H2O
1 Room with Anteroom or
2 Room with Anteroom
configurations only
-0.19500 to + 0.19500 in H2O
1 Room with Anteroom or
2 Room with Anteroom
configurations only
-0.19500 to + 0.19500 in H2O
1 Room with Anteroom or
2 Room with Anteroom
configurations only
-0.19500 to + 0.19500 in H2O
2 Room with Anteroom
configuration only
-0.19500 to + 0.19500 in H2O
2 Room with Anteroom
configuration only
-0.19500 to + 0.19500 in H2O
2 Room with Anteroom
configuration only
-0.19500 to + 0.19500 in H2O
2 Room with Anteroom
configuration only
20 to 600 seconds
1 to 60 minutes
20 to 600 seconds
1 to 127
0 to 999
Device ID =
1000*MAC ID + Address
0
Door Closed (Normal)
1
Door Open
0
Door Closed (Normal)
1
Door Open
0
Occupied (Normal)
1
Unoccupied
91
RPM20 PresSura Monitor
Writable
Object
Value
Object Type
Binary Input
Device
Instance
6
Binary Value
1
Room 1 High Alarm
Y
Binary Value
2
Room 1 Low Alarm
Y
Binary Value
3
Y
Binary Value
4
Binary Value
5
Anteroom High
Alarm
Anteroom Low
Alarm
Room 2 High Alarm
Binary Value
6
Room 2 Low Alarm
Y
Multi-State Value
1
Number of Rooms
Multi-State Value
3
Passcode Enable
Multi-State Value
4
Multi-State Value
5
Input 1
Configuration
Input 2
Configuration
Multi-State Value
6
Input 3
Configuration
Multi-State Value
7
Input 4
Configuration
1
2
1
2
4
1
2
3
4
5
6
7
1
2
Multi-State Value
8
Input 5
Configuration
3
1
2
Multi-State Value
9
Input 6
Configuration
3
1
3
*Units
Description
Room 2 Occupancy
Y
Y
Y
0
1
0
1
0
1
0
1
0
1
0
1
0
1
1
2
3
1
2
3
4
4
6
92
Notes and Range
Occupied (Normal)
Unoccupied
Disable
Enable
Disable
Enable
Disable
Enable
Disable
Enable
Disable
Enable
Disable
Enable
1 Room
1 Room with Anteroom
2 Rooms with Anteroom
No Password
Room Mode Password
Menu Password
Menu & Room Mode
Passwords
TSI Sensor
Pressure Transducer
TSI Sensor
Pressure Transducer
None
Supply Pressure Flow
Supply Linear Flow
Supply Venturi Flow
Supply Switch
TSI Sensor
Pressure Transducer
None
Room 1 Door Switch
Room 1 Occupancy
Sensor
None
Room 1 Key Switch
Room 1 Relative
Humidity
None
Room 1 Temp Sensor
Room 2 Occupancy
Sensor
Room 2 Door Switch
None
Appendix B
RPM20 PresSura Monitor
Writable
Object
Value
Object Type
Multi-State Value
Device
Instance
10
Multi-State Value
11
Room 1 Mode
Y
Multi-State Value
12
ACH Duct
Y
Multi-State Value
14
Anteroom Mode
Y
Multi-State Value
15
Room 2 Mode
Y
Multi-State Value
16
Status Index
*Units
Description
Input 7
Configuration
2
3
4
5
6
8
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
®
BACnet MS/TP Object Set
Notes and Range
Exhaust Pressure Flow
Exhaust Linear Flow
Exhaust Venturi Flow
Exhaust Switch
Room 2 Key Switch
None
Positive
Negative
No Isolation
Supply
Exhaust
Off
Positive
Negative
No Isolation
Positive
Negative
No Isolation
Normal
Room 1 Negative Low
Alarm
Room 1 Negative High
Alarm
Room 1 Positive Low
Alarm
Room 1 Positive Low
Alarm
Low Exhaust Flow
Alarm
Low Supply Flow Alarm
Low Temperature Alarm
High Temperature
Alarm
Low RH Alarm
High RH Alarm
Anteroom Negative Low
Alarm
Anteroom Negative
High Alarm
Anteroom Positive Low
Alarm
Anteroom Positive High
Alarm
Room 2 Negative Low
Alarm
Room 2 Negative High
Alarm
Room 2 Positive Low
Alarm
Room 2 Positive High
Alarm
Data Error
93
RPM20 PresSura Monitor
Object Type
Multi-State Value
Multi-State Value
Device
Instance
17
18
*Units
Description
Device Type
Units Value
Writable
Object
Value
Y
2
1
2
3
Notes and Range
RPM20
in H2O, cfm, F
Pa, lps, C
Pa, m3/hr, C
*The units are based on the value of the Units Value object. When the Units Value is set to 1, the units are in English
form. When the Units Value is set to 2 or 3, the units are metric. English is the default value.
**The Device Instance defaults 606,The device index is the Device Instance multiplied by 1000 plus the MAC Address The
default device index is therefore 606001.
94
Appendix B
Appendix C
Wiring Information
Back Panel Wiring
Input / Output
/ Comm
PIN #
Signal
Description
Output
24 VAC/DC
24 V
Power in Digital Interface Module (DIM).
Power for TSI Pressure Sensors 24 VAC
Input
0 to 10 VDC
Input 1
7, 8
Comm
RS-485
9, 10
Output
Open / Closed
Communications between DIM and TSI Pressure
Sensors
Relay 1 Output (Low Alarm)
11, 12
Output
Open / Closed
Relay 2 Output (High Alarm or Room Mode)
13, 14
Input
0 to 10 VDC
Input 2
15, 16
Input
0 to 10 VDC
Open / Closed
Input 3
17, 18
Input
Open / Closed
Input 4
19, 20
Input
0 to 10 VDC
Resistance
Input 5
21, 22
Input
Resistance
Open / Closed
Input 6
23, 24
Input
0 to 10 VDC
Resistance
Input 7
25, 26
Output
0 to 10 VDC
Analog Out 1
27, 28
Output
0 to 10 VDC
4-20 mA
Analog Out 2
29, 30
Output
0 to 10 VDC
4-20 mA
Analog Out 3
31, 32, 33
Comm
RS-485
Nurse Station Display
31: B
32: A
33: Ref
34, 35, 36
Comm
Modbus / Bacnet
MS/TP / LON
BAS Communications
34: B
35: A
36: Ref (Modbus / BAcnet MS/TP only)
1, 2
Input
3, 4
5, 6
95
WARNING:
Monitor must be wired exactly as wire diagram shows. Making modifications to
the wiring may severely damage the unit.
Figure 19: Wiring Diagram –Through-The-Wall Sensors Wiring to Model RPM10/RPM20
NOTE: Model RPM10 does not support Room 2 or Anteroom Through-The-Wall
Sensors.
NOTE: Number of sensors will vary per application.
96
Appendix C
Figure 20. Pressure Transducer Sensors Wiring to Model RPM10/RPM20
NOTE: Model RPM10 does not support Room 2 or Anteroom Pressure Transducer
Sensors.
NOTE: Number of sensors will vary per application.
Wiring Information
97
Figure 21. Optional Supply / Exhaust Flow Switch Wiring to Model RPM10/RPM20
Figure 22. Optional Supply/Exhaust Pressure-Based Flow Station Wiring to
Model RPM10/RPM20
98
Appendix C
Figure 23. Optional Supply/Exhaust Linear Flow Station Wiring to Model RPM10/RPM20
Figure 24. Optional Supply/Exhaust Thermal Flow Station Wiring to Model RPM10/RPM20
Wiring Information
99
Figure 25. Optional Supply/Exhaust Venturi Valve Wiring to Model RPM10/RPM20
Figure 26. Optional Door Switch Wiring to Model RPM10/RPM20
NOTE: Model RPM10 does not support Room 2 Door Switch.
100
Appendix C
Figure 27. Optional Occupancy Sensor Wiring to Model RPM10/RPM20
NOTE: Model RPM10 does not support Room 2 Occupancy Sensor.
Figure 28. Optional Temperature Sensor Wiring to Model RPM20
NOTE: Model RPM10 does not support Temperature Sensor.
Wiring Information
101
Figure 29. Optional Key Switch Wiring to Model RPM10/RPM20
NOTE: Model RPM10 does not support Room 2 Key Switch.
102
Appendix C
Figure 30. Optional Key Switch with Remote Alarm Wiring to Model RPM10/RPM20
NOTE: Model RPM10 does not support Room 2 Key Switch with remote alarm.
Wiring Information
103
Figure 31. Optional Relative Humidity Sensor Wiring to Model RPM20
NOTE: Model RPM10 does not support Relative Humidity Sensor.
Figure 32. Optional Nurses Station Communications Wiring to Model RPM10/RPM20
104
Appendix C
Figure 33. Optional Modbus and BACnet MS/TP Communications Wiring to
Model RPM10/RPM20
Figure 34. Optional LONworks Communications Wiring to Model RPM20-LON
Wiring Information
105
(This page intentionally left blank)
106
Appendix C
Appendix D
Access Codes / Passcode
The Model RPM10 and RPM20 Room Monitors may prompt you to enter an access code to
change the room mode or to enter the menu system. The access code screen is shown below in
Error! Reference source not found.. To enter the access code, type in the 4-digit passcode
shown below and press Save.
The PresSura room monitors and controllers feature two levels of passcode access:

To change the room mode, use the passcode 0317.

To access the menu system, use the passcode 2887.
Figure 35. Access Code Screen
107
(This page intentionally left blank)
108
Appendix C
TSI Incorporated – Visit our website www.tsi.com for more information.
USA
UK
France
Germany
Tel: +1 800 874 2811
Tel: +44 149 4 459200
Tel: +33 1 41 19 21 99
Tel: +49 241 523030
P/N 6006644 Rev. C
India
China
Singapore
©2015 TSI Incorporated
Tel: +91 80 67877200
Tel: +86 10 8219 7688
Tel: +65 6595 6388
Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
