2014audio sc-hte80

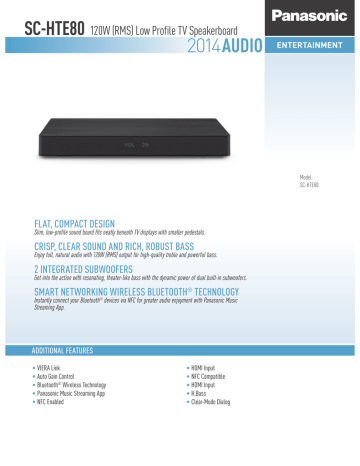

SC-HTE80 120W (RMS) Low Profile TV Speakerboard
2014AUDIO
ENTERTAINMENT
Model:
SC-HTE80
FLAT, COMPACT DESIGN
Slim, low-profile sound board fits neatly beneath TV displays with smaller pedestals.
CRISP, CLEAR SOUND AND RICH, ROBUST BASS
Enjoy full, natural audio with 120W (RMS) output for high-quality treble and powerful bass.
2 INTEGRATED SUBWOOFERS
Get into the action with resonating, theater-like bass with the dynamic power of dual built-in subwoofers.
SMART NETWORKING WIRELESS BLUETOOTH® TECHNOLOGY
Instantly connect your Bluetooth® devices via NFC for greater audio enjoyment with Panasonic Music
Streaming App.
ADDITIONAL FEATURES
• VIERA Link
• Auto Gain Control
• Bluetooth® Wireless Technology
• Panasonic Music Streaming App
• NFC Enabled
• HDMI Input
• NFC Compatible
• HDMI Input
• H.Bass
• Clear-Mode Dialog
2014AUDIO
SC-HTE80
EW-DL91-W
ENTERTAINMENT
AUDIO SYSTEM
Output Channel
Power Output
2.1ch
Home Theater Mode (RMS)
Power Output
Home Theater Mode (FTC)
Total Power
120W
Front/ Center
30W/ch (1kHz, 6ohms, 10% THD)
Subwoofer
60W (100Hz, 3ohms, 10% THD)
Total Power
60W
Front/ Center
16W/ch (170Hz-20kHz, 6ohms, 1% THD)
Subwoofer
28W (45Hz-170Hz, 3ohms, 1% THD)
Dolby® Digital
•
Dolby® Pro Logic® II/ Dolby® Virtual Speaker
•
DTSTM Digital Surround
•
HIGH QUALITY PICTURE
FULL HD 3D Compatible
•
1080p Output (x.v.Color, Deep Color)
•
HIGH QUALITY SOUND
Clear-mode Dialog
•
Dialog Level Control
•
H.Bass
•
Sound Mode (Standard, Stadium, Music, Cinema, News, Stereo)
•
Up to 7.1ch Linear PCM Input via HDMI
•
Aero Stream Port x 2
•
Dual Integrated Subwoofer
•
EASY OPERATION
Auto Gain Control
•
ARC (Audio Return Channel)*1
•
VIERA LinkTM (HDAVI Control 5)
•
Display
FL (Dot matrix)
SMART NETWORKING
Bluetooth® Wireless Technology
•
NFC (One-Touch Connection)*2
•
Panasonic Music Streaming App*3
•
SPEAKER SYSTEM
Front
Subwoofer
Configuration
1-way 1 speaker, Bass-reflex
Speaker Unit [Approx.]
Full range: 1-1/2 x 3-17/32” (3.8 x 9 cm) Cone Type x 2
Configuration
1-way 2 speakers, Bass-reflex
Speaker Unit [Approx.]
Woofer: 3-5/32” (8 cm) Cone Type x 2
TERMINAL
HDMI Output
• (TV)
HDMI Input
• (BD/ DVD)
Digital Audio Input
Analog Audio Input (AUX)
• (TV)
Pin Jack
•
3.5 mm Jack
-
OTHERS
Power Supply
Power Consumption [Approx.]
AC 120V, 60Hz
Normal Use [Approx.]
27W
Standby [Approx.]
0.2W*4
DIMENSIONS, WEIGHT
Dimensions (W x H x D) [Approx.]
18-1/8 x 2-3/8 x 11-1/32 inch (460 x 60 x 280 mm)
Weight [Approx.]
7.1 lbs. (3.2 kg)
Maximum Loading Weight [Approx.]
66 lbs. (30 kg)
*1 ARC compatible TV is required.
*2 The installation of the Panasonic Music Streaming App is required, before using the NFC with the smartphone and tablet.
OS Version 2.3.3 or later, AndroidTM device compatible with NFC only.
*3 App is available on the App StoreSM. App is available on Google Play™.
*4 The other connected devices have to be turned off. Standby (Bluetooth standby on) power consumption approximately 1.5W.
Specifications are subject to change without notice.
TRADEMARK NOTICE:
Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
DTS, DTS-HD, the Symbol & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
“Google Play” and “Android” are trademarks of Google Inc.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
04/14 Specifications subject to change without notice.
April 9, 2014 v1
