The Reference Manual includes part names and functions, detailed descriptions and procedures that will help you take full advantage of the POCKETRAK CX, and troubleshooting information.

Copyrights

• Copying of the commercially available musical data is strictly prohibited except for your personal use.

• This Reference Manual is the exclusive copyrights of Yamaha Corporation.

• Windows is a registered trademark of Microsoft

Corporation in the United States and other countries.

• Apple, Mac and Macintosh are trademarks of Apple Inc., registered in the U.S. and other countries.

• Eneloop

is a registered trademark of SANYO Electric Co., Ltd.

• The microSD and microSDHC logos are trademarks.

• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

* The illustrations and LCD screens shown in this manual are for instructional purposes only and may appear somewhat different from those on your instrument.

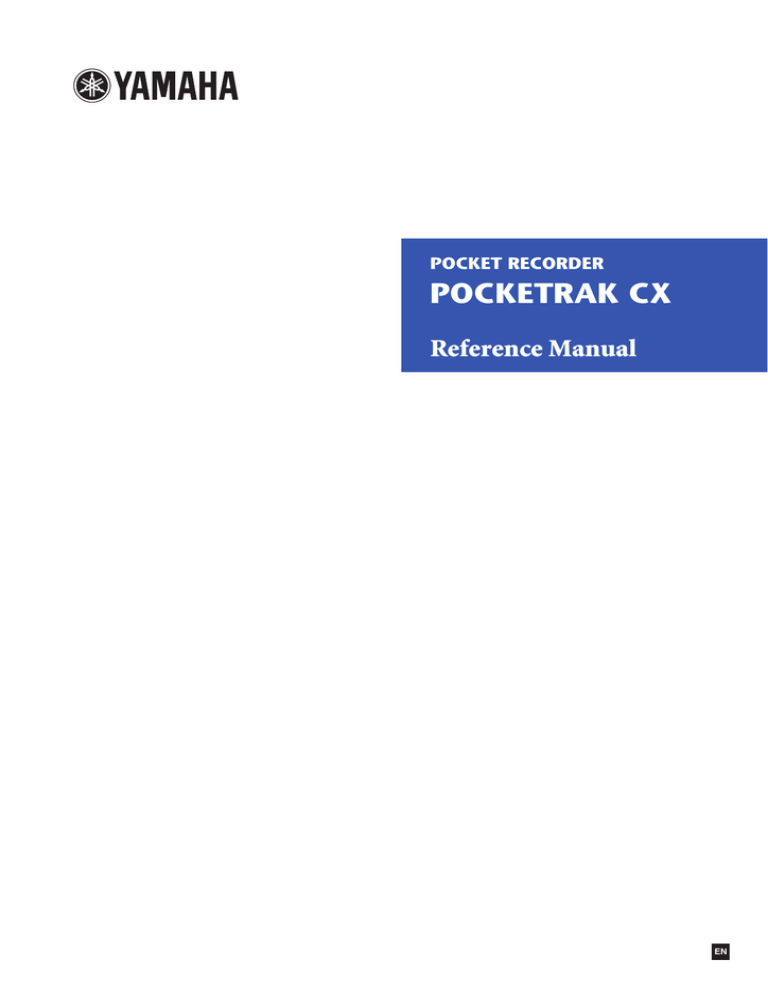

POCKETRAK CX Reference Manual

Starting Up

Starting Up

Part names and functions

Front, side and back panels

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

9 e r t y u i o

0 q w p a s d f g h

LCD screen

Starts or pauses recording.

Stops recording or playback. Press this button during the menu setting operation to return to the previous screen or setting.

[VOL +] button

Increases the volume of playback or recording monitoring. Also, it moves the cursor upward during menu operation or file selection.

[VOL -] button

Decreases the volume of playback or recording monitoring. Also, it moves the cursor downward during menu operation or file selection.

[ ] button

Fast reverse button. Also, use this button to return to the previous screen during the menu setting operation or while the list screen is displayed, move the cursor to the left, or set the recording level.

[ ] button

Fast forward button. Also, use this button to proceed to the next screen during the menu setting operation or while the list screen is displayed, move the cursor to the right, or set the recording level.

[MENU/ENTER] button

While the main screen is displayed, press and hold down this button for at least two

(2) seconds to display the menu screen. During the menu setting operation or while the list screen is displayed, press this button once to confirm the item selection or the operation.

Built-in stereo microphone

The recorder features a high-performance X-Y stereo microphone.

POCKETRAK CX Reference Manual

Starting Up

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

9 e r t y u i o

0 q w p a s d f g h

LED indicator

Lights up as a “recording or playback indicator” during recording or playback, as a

“peak indicator” if the level of the recording input source is too high, and as a

“charging indicator” while the battery is being charged.

☞

Changing the LED setting (page 25)

Starts playback or changes the playback speed in stages.

☞

Playback (page 26)

☞

Changing the playback speed (page 29)

w e r t y

External stereo microphone/line level input socket. Select [MIC] for the

[REC SELECT] menu item when you connect an external microphone. Select [LINE] when you connect and record from an external audio device.

☞

Using an external microphone (page 10)

☞

Recording from an external audio device (such as a CD player) (page 14)

[POWER] button

Turns the power to the POCKETRAK CX on or off. Press the button once briefly to turn the power on. Press and hold down the button for at least two (2) seconds to turn the power off.

[FOLDER/A-B REPEAT] button

Press this button to select a folder or to use the A-B Repeat or Clear Voice function.

[LIST/INDEX] button

To display a list of files in the selected folder, press this button while the recorder is stopped.

Press this button during recording or playback to insert index marks (playback position locators).

☞

Inserting index marks (page 40)

[EDIT/PHRASE] button

Use this button to edit a file. Alternatively, use this button to perform Phrase playback (the playback point will be moved back by the specified number of seconds).

☞

Editing Files (page 37)

☞

Using the Phrase playback function (page 31)

POCKETRAK CX Reference Manual

Starting Up

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

9 e r t y u i o

0 q w u

[DEL] button

Deletes files, folders, or index marks. It also recalls the Recycle Bin menu while the

Recycle Bin folder is selected.

☞

Deleting (page 42)

i microSD card slot

Insert a microSD card here.

USB terminal

Connect this terminal to a computer using the included USB cable.

[HOLD/CHARGE] switch

To engage the Hold function (to avoid accidental operation), slide the switch in the direction of the arrow.

To start recharging the eneloop battery, slide the switch in the direction of the arrow after you connect the recorder to a computer.

☞

Recharging the eneloop (page 71)

Headphones socket

Connect inner-ear headphones or other types of headphones here.

[ALC ON/OFF] switch

Set this switch to ON to automatically adjust the recording level in accordance with the source level to optimize the dynamics of the resulting recording.

☞

Turning the ALC (Auto Level Control) on and off (page 17)

[MIC SENS HIGH/LOW] switch

Switches the microphone sensitivity to high or low in accordance with the recording environment.

Speaker g

Battery cover h

Threaded socket for attaching a tripod or a microphone stand adapter

Use this socket to attach a tripod or a microphone stand adapter.

☞

Attaching the recorder to a tripod or a microphone stand (page 11)

☞

Page 9 of the included Owner’s Manual

p a s d f g h

POCKETRAK CX Reference Manual

Starting Up

LCD screen

Bit rate

(for recording and playing back MP3 files and playing back WMA files)

Frequency (for PCM recording and playback)

Remaining battery power microSD card

External recording mode (MIC, LINE)

VAS (Voice Activated System)

Timer/Alarm

Auto Divide

Recording level

(with ALC off)

Battery setting

e: eneloop

A: Alkaline battery

File format

Microphone sensitivity

High Pass Filter

Folder name File number/

Total number of files

Information indicators

(Remaining recording time, elapsed recording time, track name, file name, artist name, total playback time, elapsed playback time, operation status, file type, current time and date, etc.)

Skip playback

Playback speed

Sound EQ

Repeat playback

Hint:

What is Linear PCM (Pulse Code Modulation) recording?

Linear PCM (LPCM) recording is a digital recording method that samples analog audio signals at a certain frequency and saves them as digital signals without compression.

Music CDs (CD-DA – CD digital Audio) use PCM recording (sampling rate of 44.1kHz, bit depth of 16-bit samples, bit rate of 1,411kbps, and frequency response from 20 to

20kHz).

PCM recordings are digitally-recorded unprocessed audio, and are supposed to be of the highest sound quality. “WAVE” format is used to import these PCM recording files into a computer. The WAVE file extension is “.WAV”. MP3 and WMA format files are created by compressing the LPCM data.

POCKETRAK CX Reference Manual

Starting Up

About the screens

[Main screen]

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

[Menu screen]

MENU

ENTER

Appears when you press and hold down the [MENU/

ENTER] button for at least two (2) seconds while the main screen is displayed.

This screen enables you to change Recording mode, set the date and time, initialize the recorder, and make various other settings.

Appears when the power to the unit is turned on.

[List screen]

LIST

Appears when you press the

[LIST/INDEX] button while the main screen is displayed.

The files stored on the microSD card will be displayed in a tree structure.

Hint:

· To go back to the main screen, press the [STOP/ESC ] button.

· Press the [STOP/ESC ] button repeatedly to select one of the indicators for the file in the following order (if the playback file exists).

[REC REMAIN TIME]

→[DATE & TIME]→[TOTAL TIME]→[REC DATE & TIME]

Navigating the list screen

This section explains how to select a file from the list screen and play it back.

Press the [LIST/INDEX] button while the main screen is displayed and the recorder is stopped.

The recorder displays the list screen.

Press the [VOL +/-] buttons to select the file you wish to play.

Selected folder

Files in the folder

To select a different folder, press the [ ]/[ ] buttons, or the [FOLDER/A-B

REPEAT] button repeatedly to scroll through the folders.

Hint:

· For more information on the folders, refer to “Folder structure” on

page 59

Press the [PLAY/SPEED ] button.

The recorder starts to play the file.

Press the [STOP/ESC ] button.

The recorder stops playback.

POCKETRAK CX Reference Manual

Starting Up

Setting the current date and time

After you set the date and time, the POCKETRAK CX will automatically record the recording date and time with each file.

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU], then press the [MENU/ENTER] button.

MENU

ENTER

MENU

ENTER

VOL at least two (2) seconds

Press the [VOL +/-] buttons to select [DATE & TIME], then press the [MENU/

ENTER] button.

MENU

ENTER

VOL

Press the [VOL +/-] buttons to select the year, then press the [ ] button.

VOL

In the same way, select the month, day, 24/12-hour indication (24H or AM/

PM), hour and minute, then press the [MENU/ENTER] button.

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

POCKETRAK CX Reference Manual

Recording

Recording

Before recording

Attaching the wind screen (protection against wind and sibilance)

The built-in stereo microphone is highly sensitive. Therefore, a slight breeze or breath

— even a weak air conditioning breeze that hits the microphones directly — will be recorded as noise. To reduce the level of wind and other environmental noise,

Yamaha recommends that you use the recorder with the wind screen attached to the microphones. Also, to further minimize the noise level, Yamaha recommends that you turn on the High Pass Filter via menu item [HPF] (see

page 21 ).

Selecting a Recording mode

The POCKETRAK CX records audio in the MP3 or PCM (WAV) format. As a rule of thumb, select “PCM 44.1kHz” (better sound quality) for Recording mode to record a musical performance. Select “MP3 128kbps” (smaller data size) to record musical practice sessions or conference meetings (see

page 16 ).

Turning the ALC (Auto Level Control) function on or off

Auto Level Control function automatically adjusts the recording level in response to the input source level to optimize the dynamics of the resulting recording (see

page 17 ).

Feature

Application

ALC OFF

The recording will accurately represent the original sound and maintain the original sound dynamics.

Musical performance and nature recordings

ALC ON

The recording dynamics will be adjusted.

Louder sounds will be quieter and softer sounds will be louder. This setting will reduce distortion and is better for dictation.

Musical practice, conference meeting and interview recordings

Setting the microphone sensitivity

You can set the microphone sensitivity level to high or low to accommodate the input volume. If the volume level is too high, set the [MIC SENS] (microphone sensitivity) switch on the left side of the unit to [LOW]. If the volume level is too low, set the switch to [HIGH].

Using an external microphone

You can use an external microphone for recording, instead of using the built-in stereo microphone.

Select [MIC] for menu item [REC SELECT], then connect an external microphone to the MIC/LINE socket located on the right side of the unit.

Yamaha recommends that you use a microphone with the following specifications as an external microphone.

Type

Impedance

Power

Plug

Electret condenser microphone that features plug-in power operation

Ω

Guaranteed operation at 1.3V

Mini plug (3.5mm)

POCKETRAK CX Reference Manual

Recording

Attaching the recorder to a tripod or a microphone stand

You can attach the recorder to a commercially-available camera or camcorder tripod using the threaded socket on the unit. You can also attach the recorder to a microphone stand using the included microphone stand adapter. In this way, you can set up the recorder in the optimum position. This can be useful for recording musical performances. (Please refer to page 9 of the included Owner’s Manual.)

Recording a musical performance

Before recording, set the [ALC] switch to [OFF] and the [MIC SENS] (microphone sensitivity) switch to [LOW].

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

Press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder into which to record.

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

Hint:

· Pressing the [FOLDER/A-B REPEAT] button repeatedly will scroll through the folders.

Select a folder from folders A-D.

Press the [REC/PAUSE ] button.

The unit enters recording [STANDBY] mode. (Recording has not yet started.)

Level meter

Note:

· The level meter will move left or right in response to the sound level from the microphone.

POCKETRAK CX Reference Manual

Recording

Press the [ ]/[ ] buttons to adjust the MIC LEVEL (recording level).

Adjust the recording level while playing music, speaking, etc.

Note:

Setting the recording peak limiter

When the recording peak limiter is set to ON, the recorder reduces sound distortion by automatically adjusting excessive peaks. It is recommended that you set the limiter to ON when you are recording audio.

To set the recording peak limiter to ON, press and hold down the [MENU/ENTER] button for at least two seconds, then select [REC MENU]

→ [REC LIMITER] → [ON].

The peak limiter is available only when the ALC is set to OFF.

Adjusting the recording level

• Setting an appropriate recording level

Adjust the recording level so that at the loudest source volume the level meter will move as far to the right as possible without deflecting all the way (and the recording

LED will not turn off).

• If the recording level is too low:

Press the [ ] button to adjust the recording level so that the level meter will move moderately to the right.

Note:

· If an appropriate recording level cannot be achieved even if you raise the level to “40,” slide the [MIC SENS] switch to [HIGH].

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

• If the recording level is too high:

The level meter frequently moves all the way to the right and the recording LED turns off. The appears on the screen.

indicator

Press the [ ] button to lower the recording level.

Press the [REC/PAUSE ] button again.

The LED lights up in red and recording begins.

POCKETRAK CX Reference Manual

Recording

• Indicators displayed during recording

Recording LED

Folder name

Recording mode

File number

PAUSE

REC

ESC

STOP

SPEED

PLAY

Recording level

Elapsed recording time

Level meter

ENTER

VOL

Available recording time

(Recording remaining time)

Recording-in-progress indicator

Press the [STOP/ESC ] button to stop recording.

The LED will turn off, and the REC REMAIN TIME indicator will be displayed on the screen.

Simple recording (musical practice, meeting, etc.)

Before recording, set the [ALC] switch to [ON] and the [MIC SENS] (microphone sensitivity) switch to [HIGH].

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

Press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder into which to record.

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

Hint:

· Pressing the [FOLDER/A-B REPEAT] button repeatedly will scroll through the folders.

Select a folder from folders A-D.

POCKETRAK CX Reference Manual

Recording

Press the [REC/PAUSE ] button.

The LED lights up in red and recording begins.

Hint:

· If the recording level is too high (see

page 12 ), set

the [MIC SENS] (microphone sensitivity) switch to

[LOW].

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

Press the [STOP/ESC ] button to stop recording.

The LED will turn off and the REC REMAIN TIME indicator will be displayed on the screen.

Recording from an external audio device (such as a CD player)

You can record line input sources from an external audio device (such as a CD player or MD player).

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [REC MENU]

→

[REC SELECT], then press the [MENU/ENTER] button.

Press the [VOL +/-] buttons to select [LINE], then press the [MENU/ENTER] button.

MENU

ENTER

VOL

Note:

· Please note that you cannot adjust the recording level on the unit if [LINE] has been selected.

Connect the recorder’s [MIC/LINE] socket to the audio output connector on the external device.

POCKETRAK CX Reference Manual

Recording

Use a commercially-available audio cable (stereo mini plug, 3.5mm, with no resistance).

To the external input socket

Audio device

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

To audio output headphones socket or LINE OUT

(Recording) socket

Adjust the volume level of the external audio device while playing the recording source.

Hint:

· Try a test recording to find an appropriate recording level.

Press the [FOLDER/A-B REPEAT] button to select the “L” folder.

Folder L

Note:

· The ALC function is automatically turned off during recording to the “L” folder.

Play the recording source on the external audio device and press the

Recording starts.

Note:

· A recording mode of “MP3:192kbps” will be selected automatically. You cannot select any other mode option.

· While you are recording audio through the line input from the connected external device, no audio will be heard from the speaker. Use the headphones to listen to the audio being recorded.

Press the [STOP/ESC ] button to stop recording.

Stop playback on the external device.

POCKETRAK CX Reference Manual

Recording Settings

Recording Settings

Changing the Recording mode (Selecting a sound quality)

The POCKETRAK CX enables you to record audio in MP3 or PCM (WAV) format. In PCM mode, non-compressed audio data will be recorded. In MP3 mode, compressed audio data will be recorded. With the better sound quality, the data size will be larger and available recording time will be shorter. Refer to the table below to select a Recording mode that will suit your purpose.

Recording mode and application examples

Recording format

Sampling frequency or bit rate

48 kHz

PCM

44.1 kHz

File extension

.WAV

320 kbps

Application examples

Recording a musical performance, creating a master recording, creating a CD, and recording other original sound sources

High-quality recording of musical practice sessions, conference meetings, etc. compressed into a smaller size file

192 kbps

Higher sound quality

MP3

128 kbps

.MP3

Standard sound quality

64 kbps

Recordings for which extended duration is more important than sound quality

(“32kbps” indicates a monaural recording.)

32 kbps

Longer recording time

Available recording time (with the included microSD card)

Recording mode

PCM 48 kHz

PCM 44.1 kHz

MP3 320 kbps

MP3 192 kbps

MP3 128 kbps

MP3 64 kbps

MP3 32 kbps

Available recording time (estimated)

About 2 hours 50 minutes

About 3 hours 5 minutes

About 13 hours 35 minutes

About 22 hours 45 minutes

About 34 hours 5 minutes

About 68 hours 15 minutes

About 136 hours 30 minutes

• If you record multiple files, the total available recording time will be shorter than the times estimated above.

• If you are using a 2GB or larger microSD card, the largest available recording space

(for continuous recording in one file) is 2GB.

POCKETRAK CX Reference Manual

Recording Settings

Changing Recording mode

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [REC MENU]

→

[REC MODE], then press the [MENU/ENTER] button.

Press the [VOL +/-] buttons to select the desired Recording mode option, then press the [MENU/ENTER] button.

MENU

ENTER

VOL

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

ESC

STOP

Turning the ALC (Auto Level Control) on and off

Note:

· You can turn the ALC function on or off when recording audio to folders A – D.

• Turning the ALC function on

Slide the [ALC] switch located on the side panel of the unit to “ON.”

The recording level will automatically be adjusted in response to the input level.

ALC ON

• Turning the ALC function off

Slide the [ALC] switch (located on the side panel of the unit) to “OFF.”

You can change the recording level in increments (see

page 12 ).

ALC OFF

(The recording level will be displayed.)

Note:

· You cannot adjust the recording level when you are recording audio from a connected external device (see

page 14 ).

POCKETRAK CX Reference Manual

Recording Settings

Setting the recording EQ (equalizer)

Setting the recording EQ enables to record the audio of the desired tonal quality by boosting the lower or higher frequency ranges.

You can use the recording EQ only when recording audio to folders A – D and when the ALC function is turned off.

About recording EQ options

The POCKETRAK CX offers eight recording EQ presets and one USER recording EQ option (that enables you to customize by cutting and boosting five EQ bands individually). The recording EQ presets include RECOMMENDED, FLAT, SUPER BASS, BASS,

MIDDLE, BASS&TREBLE, TREBLE, and SUPER TREBLE.

Features of each recording EQ preset

RECOMMENDED FLAT SUPER BASS BASS

This preset is recommended for recording via the built-in microphone.

No EQ is used for recording.

MIDDLE BASS&TREBLE

This preset significantly boosts the lower frequency range.

TREBLE

This preset mildly boosts the lower frequency range.

SUPER TREBLE

This preset boosts the mid frequency range.

This preset mildly boosts the lower and higher frequency ranges.

This preset mildly boosts the higher frequency range.

This preset significantly boosts the higher frequency range.

Note:

· You cannot change the parameters of these eight recording EQ presets. Select the USER recording EQ option if you wish to customize the recording EQ.

POCKETRAK CX Reference Manual

Recording Settings

Selecting a recording EQ option

Set the [ALC] switch to “OFF.”

Press the [FOLDER/A-B REPEAT] button repeatedly to select a folder into which to record.

Select a folder from folders A-D.

Press the [REC/PAUSE ] button.

The unit displays the [STANDBY] indicator.

Press and hold down the [MENU/ENTER] button for at least two (2) seconds while the [STANDBY] indicator is displayed.

The unit displays the recording EQ screen.

Press the [ ]/[ ] buttons to select the desired recording EQ option.

You can select from eight recording EQ presets and one USER recording EQ

(which enables you to customize the EQ settings).

Hint:

· For information on how to customize the USER recording EQ option, refer to “Customizing the recording EQ” on

page 20 .

Press the [MENU/ENTER] button.

The selection of the recording EQ is confirmed. Adjust the recording level, then press the [REC/PAUSE ] button again to start recording (see

page 12 ).

Note:

· To cancel the operation, press the [STOP/ESC ] button.

POCKETRAK CX Reference Manual

Recording Settings

Customizing the recording EQ

The USER recording EQ enables you to customize the level of five EQ bands.

Select “USER” while the recording EQ screen is displayed.

Refer to steps 1-5 in the “Selecting a recording EQ option” section on

page 19 .

Press the [VOL -] button.

The 150Hz band will be selected and displayed as a black bar.

Press the [ ]/[ ] buttons to select a frequency band that you wish to cut or boost.

The selected frequency band will be displayed as a black bar.

Press the [VOL +/-] buttons to boost or cut the level of the selected frequency band.

You can boost the level by as much as +12dB or cut the level by as much as -12dB in 1dB steps. The larger value will raise the recording level and boost the frequency band.

Note:

· To adjust the level of other frequency bands, repeat steps 3 and 4.

· To cancel the operation, press the [STOP/ESC ] button.

Press the [MENU/ENTER] button.

The USER recording EQ is now customized. Adjust the recording level, then press the [REC/PAUSE ] button again to start recording (see

page 12 ).

Note:

· The USER recording EQ setting is retained when you turn the power off or change the battery. However, the setting will be lost if you change the battery without first turning the power off.

POCKETRAK CX Reference Manual

Recording Settings

Setting the recording peak limiter

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, select [REC MENU]

→ [REC

LIMITER]

→ [ON], then press the [MENU/ENTER] button.

To cancel the recording peak limiter, select [OFF].

Setting the High Pass Filter (HPF)

You can cut the low frequency range by switching the High Pass Filter on. The filter reduces the level of chatting voices, wind and other noise in the recording environment and enables you to record clearer audio.

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, select [REC MENU]

→ [HPF

(High Pass Filter)]

→ [ON], then press the [MENU/ENTER] button.

To cancel the High Pass Filter, select [OFF].

Setting Stereo Wide recording

Recording with the STEREO WIDE option set to ON will enhance and widen the stereo image of the recorded sound.

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, select [REC MENU]

→ [STE-

REO WIDE]

→ [ON], then press the [MENU/ENTER] button.

To cancel the stereo wide setting, select [OFF].

POCKETRAK CX Reference Manual

Recording Settings

VAS (Voice Activated System) recording

When the VAS recording function is turned on, if the unit is in recording pause mode, the unit will automatically start to record as soon as it detects audio at a level above a certain threshold.

The unit will pause recording when the detected audio level falls below the threshold. VAS recording is available only when ALC is set to ON.

Note:

· Audio at a level below a certain threshold will be undetected and will not be recorded. If you are planning to record important audio, set the VAS recording to OFF.

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, select [REC

MENU]

→ [VAS] → [ON], then press the [MENU/ENTER]

button.

Press the [STOP/ESC ] button twice.

“VAS” will appear on the main screen.

Press the [REC/PAUSE ] button.

As soon as the unit detects audio, recording begins.

If the unit does not detect any audio, the elapsed recording time indicator and the VAS indicator will flash, and the unit will enter Recording Pause mode.

VAS indicator

Note:

· If the recorder does not detect any audio or does not pause recording, adjust the threshold by following the procedure in the “Setting the voice sensing level (VAS value)” section below.

· If you start recording while the VAS function is turned on, the first two seconds or so will be recorded with no exception.

Setting the voice sensing level (VAS value)

You can adjust the voice sensing level in five steps (1-5) to accommodate the source volume level. A larger value will increase the voice activation sensitivity so recording will be triggered by lower-level audio. If the value is too small, the recorder may not detect audio. Set the microphone sensitivity (see

page 10 ) in accordance with the

source input level so that the VAS function can work more effectively.

Procedure:

To adjust the voice sensing level, press the [ ]/[ while recording with the VAS function turned on.

] buttons

VAS value

Note:

· If the High Pass Filter is turned on, the filter will cut the low range, and recording may not start. In this case, set the VAS function to Off.

POCKETRAK CX Reference Manual

Recording Settings

Setting the Auto Divide function (AUTO DIVIDE)

If you turn the Auto Divide function on when recording a line source, such as tracks from a CD player, the unit automatically detects a silent pause between tracks and records each track as an individual file. More specifically, when the recorder detects a silent pause of two seconds or longer, it pauses recording, thus storing the audio data up to the silent pause as one file. In this way, the unit will record the first track as file 1, the second track as file 2, and so on.

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, select [REC

MENU]

→ [AUTO DIVIDE] → [ON], then press the

[MENU/ENTER] button.

Press the [STOP/ESC ] button twice.

The unit displays the main screen, including the

Divide) indicator.

(Auto

To cancel the Auto Divide function, select [OFF] in step 1.

Auto Divide indicator

Note:

· The function will not work if the recorder does not detect a silence of two seconds between tracks on a live CD or similar source. In this case, use the Divide File function

(see

page 37 ) to manually divide the files.

· If the unit detects silence for 15 seconds or more, recording stops automatically.

POCKETRAK CX Reference Manual

Recording Settings

Recording with the self timer

You can specify the time duration from the press of the [REC/PAUSE ] button until the start of recording. This function is useful when you need some time to prepare. For example, you may wish to practice your musical instrument until the actual recording starts.

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, select [REC MENU]

→ [SELF TIMER], then press the

[MENU/ENTER] button.

Press the [VOL +/-] buttons to select a self timer value of 5, 10 or 30 seconds, then press the [MENU/ENTER] button.

MENU

ENTER

VOL

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

Press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder into which to record.

Press the [REC/PAUSE ] button.

The recorder displays the self timer standby screen, then starts counting down for the duration specified in step 2. (The LED indicator flashes.)

Note:

· If the [ALC] switch is set to OFF, the unit enters recording standby mode. Adjust the recording level, then press the [REC/PAUSE ] button again.

After the time specified in step 2 expires, recording begins.

Note:

· Once self timer recording begins, the self timer recording setting turns off automatically.

Hint:

· To cancel self timer recording, press the [STOP/ESC ] button during countdown.

POCKETRAK CX Reference Manual

Recording Settings

Changing the LED setting

During recording or playback, the LED indicator lights up in red or green by default (the REC/

PLAY option). However, you can set the LED indicator so that it will not light up during recording or playback (the OFF option). Alternatively, you can set the indicator to function as a recording peak LED (the PEAK/PLAY option), in which case the LED indicator will light up in red during excessive peaks.

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, select [COMMON MENU]

→ [REC/PLAY LED], then press

the [MENU/ENTER] button.

Press the [VOL +/-] buttons to select [OFF], [REC/PLAY] or [PEAK/PLAY], then press the [MENU/ENTER] button.

MENU

ENTER

VOL

[OFF]

[REC/PLAY]

[PEAK/PLAY]

The LED indicator remains off during recording and playback.

The LED indicator lights up in red during recording and in green during playback. It turns off during excessive recording peaks.

The LED indicator lights up in red during excessive recording peaks. The

LED indicator is off during normal recording. The LED indicator lights up in green during playback.

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

POCKETRAK CX Reference Manual

Playback

Playback

Playing back files

The POCKETRAK CX plays back MP3 and WMA format files in addition to WAV format files recorded on the unit. To play back a file recorded on the unit, select a folder from the VOICE (A-

D) folders or the LINE (L) folder. To play back a file transferred from a computer, select the MUSIC

(M) folder.

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder from which to play back a file.

PAUSE

REC

ESC

STOP

SPEED

PLAY

ENTER

VOL

Hint:

· Pressing the [FOLDER/A-B REPEAT] button repeatedly will scroll through the folders.

Press the [ ]/[ ] buttons to select the desired file number.

File number

Total number of files

Press the [PLAY/SPEED ] button.

The recorder starts playing back the file.

File number/

Total number of files

Elapsed playback time

Total playback time

Press the [VOL +/-] buttons to set the proper playback volume level.

The level can be set in 21 steps (0-20).

POCKETRAK CX Reference Manual

Press the [STOP/ESC ] button to stop playback.

Press the [PLAY/SPEED ] button again to resume playback.

Hint:

· You can play the files in each folder from the list screen (see

page 8 ).

Playing back tracks from the Playlist

Hint:

· For information on creating a Playlist, refer to

page 66 .

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select the M (MUSIC) folder.

Press the [ ]/[ ] buttons to select the desired Playlist, then press the

[MENU/ENTER] button.

Press the [PLAY/SPEED ] button.

The recorder starts playing the tracks in the sequence specified in the Playlist.

Playback

Playlist indicator

To resume normal playback, press the [FOLDER/A-B REPEAT] button while the unit is stopped.

Note:

· The unit will not play the tracks from a Playlist if the Playlist contains an error in the drive name, folder name, file name, etc.

Indicators displayed during playback

• VOICE (A-D) folders and LINE (L) folder

Bit rate (MP3, WMA), frequency (PCM)

File format

Total playback time

Playback speed

File number/Total number of files

Elapsed playback time

Status indicator

Repeat play

Skip play

POCKETRAK CX Reference Manual

Playback

• MUSIC (M) folder

File format

Playlist/folder playback indicator

: Playing back tracks from a folder located one hierarchy level below the M folder

: Playing back tracks from a folder located two hierarchy levels below the M folder

: Playing back from the Playlist

Sound EQ

Playback speed

Bit rate (MP3, WMA), frequency (PCM)

File number/

Total number of files

Elapsed playback time

Status indicator

Track/file name

Repeat play

Skip play

Note:

· With some files, the indicated elapsed playback time may not match the actual elapsed time. Also, the names of certain artists or tracks stored in the unit may not be displayed.

Fast forwarding and fast reversing

■

Fast forwarding and fast reversing

Press and hold down the [

] button during playback to fast forward the currentlyplaying file. Press and hold down the [

] button during playback to fast reverse the currently-playing file.

Release the button at the point from which you wish to play. Playback will resume immediately from that point.

■

Locating the file to play back

Press the [

] button once briefly while the unit is playing or stopped to locate the beginning of the next file.

Press the [

] button once briefly to locate the beginning of the previous file.

■

Locating the index

While the unit is playing back a file that contains index marks, press the [

] button once briefly to skip to the next index mark.

Press the [

] button once briefly to locate the previous index mark.

Hint:

· For information on inserting index marks, refer to

page 40 .

Using headphones

Use headphones if you do not want sound to be output from the speaker or if the sound from the speaker is difficult to hear. Connect the headphones to the headphones socket located on the side panel of the unit.

You can listen to music and enjoy better sound quality by using the headphones and setting the

Sound EQ function (see

page 34 ).

Note:

· The Sound EQ function is effective only for playback through headphones.

POCKETRAK CX Reference Manual

Playback Settings

Playback Settings

Changing the playback speed

You can decrease or increase the playback speed, if necessary. This is useful if you want to listen carefully to complex musical parts or to skip quickly through unimportant parts of a recorded meeting.

During playback, press the [PLAY/SPEED ] button.

Each press of the button will cycle through three playback speeds: PLAY (normal),

SLOW and FAST. The corresponding playback speed indicator appears on the screen.

Playback speed (FAST)

The playback speed varies with the file format as follows:

Indicator

MP3

WMA

PLAY (normal)

none

100%

SLOW

70%

FAST

150%

120%

The recorder remembers the changed playback speed after the playback is stopped, and will use that speed for the next playback operation. However, the playback speed will be reset to “normal” when the power is turned off.

Note:

· You can change the speed only for playback of MP3 and WMA files. You cannot change the speed for playback of PCM (WAV) files.

· Some files may not play correctly when the playback speed is changed.

POCKETRAK CX Reference Manual

Playback Settings

Playing back specific sections of a track

You can specify and quickly locate a desired section of a track in three ways. This can be useful if you want to skip unimportant parts during playback or to repeat playback of a particular portion of the file. The POCKETRAK CX features three special playback functions: Skip playback (locating the playback point immediately), A-B Repeat playback (playing a specified part repeatedly), and

Phrase playback (moving the playback point back by a specified number of seconds).

Using the Skip playback function

You can skip forward or back by a specific amount of time. This function is useful when you want to locate a desired playback point immediately.

During playback, press the [ ]/[ ] buttons.

Playback will skip ahead or back by the specified amount of time.

Note:

· The playback point will not skip to the next or previous folder. The function is effective only within one folder.

· If the distance between the current point and an index mark or the beginning of the next file is shorter than the distance between the current point and the skip point, the recorder will locate the index mark or the beginning of the next file.

■

Setting the amount of time for Skip playback

Press the [MENU/ENTER] button for at least two

(2) seconds while the main screen is displayed, select [PLAY MENU]

→ [SKIP PLAY], then press the

[MENU/ENTER] button.

Press the [VOL +/-] buttons to select a skip time value of “30 sec,” “1 min,” “10 min” or “30 min,” then press the [MENU/ENTER] button.

Press the [STOP/ESC ] button twice.

The unit displays the main screen, including the

indicator in the lower-right corner.

Hint:

· You can set the skip time value by displaying the menu screen during playback.

POCKETRAK CX Reference Manual

Playback Settings

Using the A-B Repeat playback function

During playback, you can specify a part of a file that you want to play repeatedly

(from point A to point B).

During playback, press the [FOLDER/A-B REPEAT] button at the desired start point (A) for A-B Repeat playback.

The start point indicator lights up.

Start point indicator

Press the [FOLDER/A-B REPEAT] button at the desired end point (B) for A-B

Repeat playback.

The end point is set, and the unit starts playing back the part between A and B repeatedly until you cancel the A-B Repeat function.

A-B Repeat indicator

To cancel A-B Repeat playback, do one of the following operations during A-B

Repeat playback:

• Press the [FOLDER/A-B REPEAT] button again.

• Press the [STOP/ESC ] button.

• Press the [ ]/[ ] buttons.

Note:

· If the duration between point A and B is too short, you will be unable to set up A-B

Repeat playback.

· If you set point A, but not point B, the end of the file will automatically become point B.

Using the Phrase playback function

You can move back the playback point in the currently-playing file by a specified number of seconds. This function is useful if you want to listen again to a short phrase in a piece of music or an important piece of audio.

During playback, press the [EDIT/PHRASE] button.

The playback point will move back by the specified number of seconds and playback will resume.

POCKETRAK CX Reference Manual

Playback Settings

Note:

· During A-B Repeat playback, the Phrase playback function remains effective between points A and B.

· If the specified number of seconds exceeds the time between the current playback point and the beginning of the file, the unit will play back from the beginning of the file.

· The playback point can be moved back to the beginning of the file, but no further. It cannot jump into the previous file.

■

Setting the amount of time for Phrase playback.

Press the [MENU/ENTER] button for at least two

(2) seconds while the main screen is displayed, select [PLAY MENU]

→ [PHRASE PLAY], then press

the [MENU/ENTER] button.

Press the [VOL +/-] buttons to select the amount of time to move back the playback point (5, 10 or 15 seconds), then press the [MENU/ENTER] button.

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

Hint:

· You can specify the amount of time for Phrase playback by displaying the menu screen during playback.

Playing back the same track repeatedly

You can play back the same track repeatedly (Repeat playback). The Repeat playback function features various Repeat playback modes, such as playing back the same file repeatedly, playing files in a folder in normal or random sequence, etc.

■

Setting the Repeat playback mode

Press the [MENU/ENTER] button for at least two

(2) seconds while the main screen is displayed, select [PLAY MENU]

→ [REPEAT], then press the

[MENU/ENTER] button.

Press the [VOL +/-] buttons to select a Repeat playback mode from [OFF], [ONE], [ALL] or [RANDOM], then press the [MENU/ENTER] button.

[OFF]

[ONE]

[ALL]

[RANDOM]

No repeat

Repeats only the currently-selected file.

Repeats all files in the current folder. (The unit will not perform Repeat playback across folders.)

Repeats all files in the current folder in random sequence. (The unit will not perform Random playback across folders.)

POCKETRAK CX Reference Manual

Playback Settings

Press the [STOP/ESC ] button twice.

The unit displays the main screen with the Repeat mode indicator in the lowerright corner.

ONE

ALL

RANDOM

Press the [PLAY/SPEED ] button.

The unit will perform the selected Repeat playback.

To cancel Repeat playback, select [OFF] as the Repeat playback mode.

Hint:

· You can select a Repeat playback mode by displaying the menu screen during playback.

Playing back with less noise (Clear Voice)

The Clear Voice function makes audio playback less static or noisy and easier to listen to. You can use this function for the files in the VOICE (A-D) folders. This function is not effective on files in the LINE (L), MUSIC (M) and Recycle Bin ( ) folders.

During playback, press and hold down the [FOLDER/A-B REPEAT] button located on the side panel for at least two (2) seconds.

The Clear Voice function turns on.

Press and hold down the [FOLDER/A-B REPEAT] button again for at least two (2) seconds to turn off the function.

Note:

· This function is especially effective on the playback of files recorded in PCM 48/44.1kHz or MP3 320/192/128kbps mode.

· Depending on how the audio was originally recorded, the noise may not be reduced.

POCKETRAK CX Reference Manual

Playback Settings

Setting the sound EQ (equalizer) (applicable only to the

M and L folders)

You can set the sound EQ to adjust the overall tone of music. The function is available only when you play back files in the LINE (L) or MUSIC (M) folder through the headphones.

About the sound EQ options

The POCKETRAK CX offers six sound EQ presets and one USER EQ option (which enables you to cut and boost five bands individually to suit your preference). The sound EQ presets include FLAT, BASS1, BASS2, POP, ROCK and JAZZ.

Features of each sound EQ preset

FLAT BASS1 BASS2

No EQ is used. The original sound will be played as is.

POP

This preset mildly boosts the lower frequency range.

This preset significantly boosts the lower frequency range.

ROCK JAZZ

This preset significantly boosts the higher frequency range.

This preset mildly boosts the lower and higher frequency ranges.

This preset boosts the mid frequency range.

Note:

· You cannot change the parameters of the six sound EQ presets. Use the USER EQ option if you wish to adjust the sound EQ to suit your preference.

POCKETRAK CX Reference Manual

Playback Settings

Selecting a sound EQ option

Press the [MENU/ENTER] button for at least two

(2) seconds while the main screen is displayed, select [PLAY MENU]

→ [SOUND EQ], then press the

[MENU/ENTER] button.

Press the [ ]/[ ] buttons to select the desired sound EQ option.

Select from six sound EQ presets and one USER EQ option (which enables you to customize the EQ settings).

Hint:

· For information on how to customize the USER EQ option, refer to “Customizing the sound EQ option” on

page 36

Press the [MENU/ENTER] button.

The selection of the sound EQ option is confirmed.

Press the [STOP/ESC ] button.

The recorder displays the main screen.

Hint:

· You can select a sound EQ option by displaying the menu screen during playback.

POCKETRAK CX Reference Manual

Customizing the sound EQ option

The USER sound EQ option enables you to adjust the level of five EQ bands.

Select “USER” as the sound EQ.

Refer to steps 1 and 2 in the “Selecting a sound EQ option” section on

page 35 .

Playback Settings

Press the [VOL -] button.

The 150Hz band will be selected and displayed as a black bar.

Press the [ ]/[ ] buttons to select the frequency band to cut or boost.

The selected frequency band will be displayed as a black bar.

Press the [VOL +/-] buttons to boost or cut the level of the selected frequency band.

You can boost the level by as much as +12dB or cut the level by as much as -12dB in 1dB steps. The larger value will raise the playback level and boost the frequency band.

Note:

· To adjust the level of other frequency bands, repeat steps 3 and 4.

· To cancel the operation, press the [STOP/ESC ] button.

Press the [MENU/ENTER] button.

The USER sound EQ option is now customized.

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

POCKETRAK CX Reference Manual

Editing Files

Editing Files

Dividing files

You can divide any file recorded and stored in the VOICE (A-D) folders or LINE (L) folder into two pieces. This feature enables you to remove an unwanted part of a recording while retaining the part you wish to keep.

IMPORTANT

Once a file is divided in two, the pieces cannot be rejoined. Be sure to backup important files on a computer or other device before you divide any file.

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder that contains the file you want to divide.

Press the [ ]/[ ] buttons to select the desired file number, then press the [PLAY/SPEED ] button.

The recorder starts playing back the file.

Press the [STOP/ESC ] button at the point at which you wish to divide the file.

The recorder stops playback.

Press the [EDIT/PHRASE] button located on the side panel, press the [VOL +/-] buttons to select

[DIVIDE], then press the [MENU/ENTER] button.

Press the [ ]/[ ] buttons to select [YES], then press the [MENU/ENTER] button.

The recorder displays the message “DIVIDING…,” then “DIVIDE COMPLETED!” and the file division operation is complete.

When a file is divided, the number of files in the folder increases by one.

Note:

· You can divide only MP3 or WAV files recorded on the unit.

· If the file length is too short, the unit displays the message “CANNOT DIVIDE AT THIS

POINT!” and the file will not be divided. This function is not effective on files in the

MUSIC (M) and Recycle Bin folders.

· If you divide a file that contains index marks (see

page 40 ), the index marks will be

deleted.

POCKETRAK CX Reference Manual

Editing Files

■

File names after division

Before division

Dividing a file The file name is automatically changed.

After division

For example, if you divide a file named “IC_A_001.MP3”, a new file named

“IC_A_002.MP3” will be created. If the new file has the same name as a file that already exists in the folder, the new file will keep the name, and the existing file will be renamed automatically.

■

Overlap time and minimum file length required for division

The two pieces created by a file division overlap each other at the division point as shown in the table below. To be divided successfully, a file must be twice the overlap time or longer in duration.

Recording mode

32 kbps

64 kbps

MP3

PCM

128 kbps

192 kbps

320 kbps

44.1 kbps

48 kbps

Overlap time

About 8 seconds

About 4 seconds

About 2 seconds

About 1 second or shorter

Required length

About 16 seconds or longer

About 8 seconds or longer

About 4 seconds or longer

About 2 seconds or longer

POCKETRAK CX Reference Manual

Editing Files

Using the fade in and fade out effects

The POCKETRAK CX enables you to apply fade in and fade out effects to the files recorded in

PCM (WAV) format. The fade in effect raises gradually the volume level of the first four seconds of the file. The fade out effect reduces gradually the volume level of the last four seconds of the file.

IMPORTANT

Once you apply the fade in/fade out effects, you cannot remove the effect. Be sure to backup important files on a computer or other external device before applying effects.

Applying the fade in effect

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder that contains the file to which you want to apply the fade in effect.

Press the [ ]/[ ] buttons to select the desired file number, then press the [EDIT/PHRASE] button located on the side panel.

Press the [VOL +/-] buttons to select [FADE IN], then press the [MENU/ENTER] button.

Press the [VOL +/-] buttons to select [YES], then press the [MENU/ENTER] button.

The unit displays the message “FADE IN EXECUT-

ING…”.

Note:

· If you have selected any file other than a PCM file recorded on the unit, or if you have selected a file of four seconds or less, the unit will display the message “CANNOT FADE

IN!”.

When the unit displays “COMPLETED”, press the

[VOL +/-] buttons to select [AUDITION], then press the [MENU/ENTER] button.

The unit will play back the file with the fade in effect.

[AUDITION]

[SAVE]

(Overwrite)

[CANCEL]

You can audition up to about 10 seconds at the beginning of the file with the fade in effect.

The file with the fade in effect will be saved.

You cannot revert the file to its original status.

(That is, you cannot undo the fade in effect.)

The fade in effect will not be applied.

POCKETRAK CX Reference Manual

Editing Files

If you are satisfied with the file after auditioning and wish to save it, press the [VOL +/-] buttons to select [SAVE], then press the [MENU/ENTER] button.

The file with the fade in effect will overwrite the original file.

If you do not wish to overwrite the original file, select [CANCEL], then press the

[MENU/ENTER] button.

Note:

· If the microSD card does not have sufficient free space, you will be unable to apply the fade in and out effects to the file.

Applying the fade out effect

The basic procedure is the same as that for the fade in effect. Please refer to the “Applying the fade in effect”

section on page 39 . Please note that you must select

[FADE OUT] instead of [FADE IN] in step 3 to apply the fade out effect.

Inserting and deleting index marks

Inserting index marks in a file enables you to locate the playback point immediately during the fast forward, fast reverse, or playback operation. You can insert index marks only in the files in the

VOICE (A-D) folders.

Inserting index marks

During recording or playback, press the [LIST/INDEX] button (located on the side panel) at the point where you want to insert an index mark.

The unit displays the message “INDEX SETTING…” and the index mark is inserted.

Note:

· Recording or playback continues after you insert an index mark. Repeat the same steps to continue inserting more index marks in the file, if necessary.

· You can insert up to 36 index marks in each file. If you try to insert more than 36 index marks, the unit displays “INDEX FULL!” and no more index marks will be recorded.

· If you divide a file that contains index marks, the index marks will be deleted.

Deleting index marks

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder that contains a file from which you want to delete index marks.

Press the [DEL] button located on the side panel.

Press the [VOL +/-] buttons to select [INDEX], then press the [MENU/ENTER] button.

POCKETRAK CX Reference Manual

Editing Files

Press the [ ]/[ ] buttons to select the file from which you want to delete index marks, then press the [MENU/ENTER] button.

The selected file number flashes.

Press the [VOL +/-] buttons to select [YES], then press the [MENU/ENTER] button.

The unit displays the message “DELETING…” and the index marks are deleted.

Note:

· Deleting index marks will not delete the audio recording.

· You cannot delete index marks individually. All index marks in a file will be deleted.

· If you delete a file that contains index marks, the index marks will be deleted even if the

Recycle Bin function (see

page 42 ) is turned on. If you move the file from the Recycle Bin

back to the original folder, no index marks will be left in the file.

POCKETRAK CX Reference Manual

Deleting

Deleting

Managing the Recycle Bin

If you delete a file on the recorder while the Recycle Bin function is active, the file will be moved to the Recycle Bin ( ) folder temporarily so that you can restore it later if necessary. If you delete a file or folder on the recorder while the Recycle Bin function is turned off, the file will be deleted completely and you will be unable to restore it. It is recommended that you turn the

Recycle Bin function on to avoid accidental erasure.

Note:

· The Recycle Bin folder can accommodate up to 500 files. If the Recycle Bin folder is full and you cannot move any more files to the Recycle Bin, move some files from the Recycle Bin folder to the original folder (see

page 43

) or empty the Recycle Bin folder (see

page 44 ).

Activating the Recycle Bin function

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [RECYCLE BIN] → [ON], then press the [MENU/

ENTER] button.

The Recycle Bin function is turned on.

Press the [STOP/ESC ] button twice to go back to the main screen.

Note:

· You can move files to the Recycle Bin folder only from the VOICE (A-D) folders and LINE

(L) folder. You cannot move files from the MUSIC (M) folder to the Recycle Bin folder, regardless of whether the Recycle Bin function is on or off. These files will be deleted completely by the delete operation.

· If you initialize a microSD card, all files on the card will be deleted (and will not be moved to the Recycle Bin folder). All files previously moved from the card to the Recycle

Bin folder will also be deleted.

· If you move files to the Recycle Bin folder, the index marks in those files will be deleted automatically.

· If the Recycle Bin function is active, deleting the files will not increase the available recording time.

Displaying the Recycle Bin folder

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select the Recycle Bin ( ) folder.

• The Recycle Bin folder contains no files.

POCKETRAK CX Reference Manual

Deleting

• The Recycle Bin folder contains files.

File number/Total number of files in the Recycle Bin folder

Original folder that contained the file prior to deletion

File number prior to deletion

The files moved into the Recycle Bin will be renamed automatically (see

page 59 ).

Playing back a file in the Recycle Bin folder

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select the Recycle Bin ( ) folder.

Press the [ ]/[ ] buttons to select the desired file to play, then press the [PLAY/SPEED ] button.

The selected file will play.

Restoring a file from the Recycle Bin folder

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select the Recycle Bin ( ) folder.

Press the [DEL] button located on the side panel.

Press the [VOL +/-] buttons to select [RESTORE], then press the [MENU/ENTER] button.

When the Restore screen is displayed, press the

[ ]/[ ] buttons to select the desired file, then press the [MENU/ENTER] button.

The selected file number flashes.

Press the [VOL +/-] buttons to select [YES], then press the [MENU/ENTER] button.

The recorder will display the message “RESTOR-

ING…”, then “RESTORED TO THE BOTTOM OF " (if the file previously belonged to folder A), and the file will move back to its original folder.

POCKETRAK CX Reference Manual

Deleting

Note:

· A file restored from the Recycle Bin will be renamed automatically and added to the end of the file list in the original folder (see

page 38 ).

· If the recorder displays the message “FOLDER FULL!,” the original folder contains the maximum number of files allowed. In this case, delete some files to clear some space.

Press the [MENU/ENTER] button again.

The recorder displays the main screen.

Emptying the Recycle Bin folder

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select the Recycle Bin ( ) folder.

Press the [DEL] button located on the side panel.

Press the [VOL +/-] buttons to select [EMPTY], then press the [MENU/ENTER] button.

IMPORTANT

Emptying the Recycle Bin will permanently delete all files in the Recycle Bin and the same files from the microSD card. You will be unable to restore those files. Be sure to backup important files on a computer or other external device before emptying the Recycle Bin.

Press the [VOL +/-] buttons to select [YES], then press the [MENU/ENTER] button.

The recorder displays the message “EMPTYING…”, then “NO DATA!”, and the Recycle Bin is emptied.

Note:

· If the Recycle Bin folder contains many files, the recorder’s operation may slow down.

Empty the Recycle Bin regularly.

POCKETRAK CX Reference Manual

Deleting

Deleting a selected file

You can delete a single file from a folder.

IMPORTANT

• If you delete a file while the Recycle Bin function is turned off (see

page 42 ), you will be

unable to restore it. Be sure to check the content of a file before you delete it.

• Before you proceed, make sure that the battery power is sufficient.

While the main screen is displayed, press the [FOLDER/A-B REPEAT] button located on the side panel repeatedly to select a folder from which to delete a file.

Press the [DEL] button located on the side panel.

Press the [VOL +/-] buttons to select [FILE], then press the [MENU/ENTER] button.

When the File Delete screen is displayed, press the

[ ]/[ ] buttons to select a file to delete, then press the [MENU/ENTER] button.

The selected file number flashes.

Press the [VOL +/-] buttons to select [YES], then press the [MENU/ENTER] button.

The unit displays the message “DELETING…” and the file is deleted.

Note:

· If you decide not to execute the delete operation, select

[CANCEL], then press the [MENU/ENTER] button.

· You cannot cancel the delete operation if the recorder has already started the operation.

If the Recycle Bin function is active, the file will move to the Recycle Bin. When the recorder displays

“MOVED TO RECYCLE BIN,” select [OK], then press the [MENU/ENTER] button.

Note:

· If the recorder displays the message “RECYCLE BIN FULL!,” the Recycle Bin folder is full. Empty the Recycle Bin, then delete the file.

POCKETRAK CX Reference Manual

Deleting

Deleting all files from a folder

You can delete all files from a selected folder.

IMPORTANT

• If you delete all files from the selected folder while the Recycle Bin function is turned off (see

page 42 ), you will be unable to restore them. Be sure to check the

contents of a folder before you delete the files.

• Before you proceed, make sure that the battery power is sufficient.

The procedure is similar to that for deleting a file. Please refer to the “Deleting a selected file” section on

page 45 . Please note that you must select [FOLDER] instead of [FILE] in step 3 to

delete all files from the folder.

Note:

· You cannot delete any sub-folders in the MUSIC (M) folder (see pages

58 and

59 ) by

using this function. To delete these sub-folders, connect the recorder to a computer and delete the sub-folders by using the computer.

Formatting a microSD card (Deleting all data)

Formatting a microSD card will delete all files on the card, regardless of whether the Recycle Bin function is turned on or off.

You must also format a commercially available microSD card before you use the card for the first time.

IMPORTANT

• If you delete files from the microSD card, you will be unable to restore those files.

Be sure to check the file contents before you delete a file.

• Be sure to backup important files on a computer or other external device.

• Before you proceed, make sure that the battery power is sufficient.

Press the [MENU/ENTER] button for at least two

(2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON

MENU]

→ [FORMAT], then press the [MENU/

ENTER] button.

Press the [VOL +/-] buttons to select [YES], then press the [MENU/ENTER] button.

The unit displays the message “FORMATTING…”, then “FORMAT COMPLETED!”, and all data is deleted from the microSD card.

Note:

· If you decide not to execute the operation, select [CANCEL], then press the [MENU/

ENTER] button.

· You cannot cancel the formatting operation if the recorder has already started the operation.

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

POCKETRAK CX Reference Manual

Using the Timer Functions

Using the Timer Functions

Programming Timer recording

Timer recording enables you to set the recorder so that it will start recording at the specified time. Before you proceed, make sure that the current date and time on the unit have been set correctly (see

page 9 ).

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [TIMER & ALARM], then press the [MENU/ENTER]

button.

Press the [VOL +/-] buttons to select [TIMER REC], then press the [MENU/ENTER] button.

The recorder displays the timer indicator.

Timer indicator

Specify the recording start time ([START TIME]).

Press the [ ]/[ ] buttons to select the hour or minute, use the [VOL +/-] buttons to set the value, then press the [MENU/ENTER] button.

Note:

· You can program the time up to 24 hours ahead.

Specify the recording time duration ([REC TIME]).

Press the [ ]/[ ] buttons to select the desired recording time duration from “30m,” “1h,” “2h” or

“MAX” (recording continues until the available space used up). Then press the [MENU/ENTER] button.

Recording time

When the unit displays [SELECT FOLDER], press the

[ ]/[ ] buttons to select the desired folder into which to record, then press the [MENU/ENTER] button.

Timer recording is now programmed. At the programmed time, the recorder automatically starts to record, and a new file is created in the specified folder. (The timer indicator ( ) will flash during Timer recording.

Note:

· You cannot select the LINE (L), MUSIC (M) or Recycle Bin ( ) folders for Timer recording.

POCKETRAK CX Reference Manual

Using the Timer Functions

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

Note:

· The crossed-out timer indicator ( ) means that Timer recording is unavailable due to one of the following reasons:

- There is no available recording time.

- The specified folder contains 199 files.

- The unit is currently playing back.

- The unit is currently recording.

- You are currently setting menu items.

· To remove the timer indicator ( ), cancel the programmed Timer recording.

· Timer recording will be cancelled once the programmed Timer recording has been executed.

· You cannot program Timer recording if the alarm has already been programmed, and vice versa.

■

Canceling Timer recording

Select [CANCEL] as in step 2 of the “Programming Timer recording” procedure, then press the [MENU/ENTER] button.

Programming the alarm

If you program the alarm, it will sound at the specified time. You can specify your favorite song as the alarm sound instead of a beep. Before you proceed, make sure that the date and time on the unit have been set correctly (see

page 9 ).

Press the [MENU/ENTER] button for at least two

(2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON

MENU]

→ [TIMER & ALARM], then press the

[MENU/ENTER] button.

Press the [VOL +/-] buttons to select [ALARM], then press the [MENU/ENTER] button.

The recorder displays the alarm indicator.

Alarm indicator

POCKETRAK CX Reference Manual

Using the Timer Functions

Specify the alarm time ([ALARM TIME]).

Press the [ ]/[ ] buttons to select the hour or minute, use the [VOL +/-] buttons to set the value, then press the [MENU/ENTER] button.

Press the [VOL +/-] buttons to select [BEEP] or

[MUSIC] as the alarm sound, then press the

[MENU/ENTER] button.

[BEEP]

[MUSIC]

Beep sound

A music file in the ALARM folder will be played.

Note:

· If you wish to use your favorite song as the alarm instead of a beep, first connect the recorder to a computer, then place your favorite MP3 or WMA music file in the ALARM folder (see

page 58 ). Then select [MUSIC]. If there is no file in the ALARM folder, a beep

will sound instead of music. Make sure that the recorder’s volume level is set appropriately. If the volume level is set to “0,” you will not hear the alarm at the programmed time.

Press the [STOP/ESC ] button twice.

The alarm is now programmed.

At the programmed time, the alarm will go off. If you selected “BEEP,” a beep will sound for about 10 seconds. If you selected “MUSIC,” the music file (the entire song) in the ALARM folder will be played back.

Note:

· The alarm indicator ( ) will flash while the alarm is sounding.

· Press the [STOP/ESC ] button to stop the alarm.

· You can program the time up to 24 hours ahead.

· The alarm will be cancelled once the programmed alarm has sounded.

· You cannot program Timer recording if the alarm has already been programmed, and vice versa.

■

Canceling the alarm

Select [CANCEL] in step 2 of the “Programming the alarm” procedure, then press the [MENU/ENTER] button.

The alarm indicator ( ) disappears.

POCKETRAK CX Reference Manual

About the Menu Settings

About the Menu Settings

Menu and menu item list

Menu items are categorized into three main menus: [REC MENU] (Recording settings), [PLAY

MENU] (Playback settings) and [COMMON MENU] (Global settings).

■

[REC MENU] (Recording settings)

Menu items

[REC MODE]

[REC LIMITER]

[HPF]

[STEREO WIDE]

[REC SELECT]

[AUTO DIVIDE]

[SELF TIMER]

[VAS]

Description

Sets the recording quality.

Turns the Recording peak limiter on or off.

Turns the High Pass (Low Cut) filter on or off.

Turns the Stereo wide recording on or off.

Selects a source connected to the external input jack.

Divides the file automatically after a certain period of silence during recording.

Sets the time for the Self Timer recording.

Turns the VAS (Voice activated system) on or off.

Reference page

■

[PLAY MENU] (Playback settings)

Menu items

[REPEAT]

[PHRASE PLAY]

[SKIP PLAY]

[SOUND EQ]

Description

Sets the Repeat playback mode.

Sets the Phrase playback time (by the number of seconds the playback point will be moved back).

Sets the Skip playback time (by the amount of time the playback point will skip).

Adjusts the tone.

Reference page

■

[COMMON MENU] (Global settings)

Menu items

[BEEP SOUND]

[REC/PLAY LED]

Reference page

[DATE & TIME]

[TIMER & ALARM]

[BATTERY SET]

[AUTO OFF]

[BACKLIGHT]

[CONTRAST]

[RECYCLE BIN]

[FORMAT]

[MENU RESET]

[VERSION]

Description

Turns the beep sound on or off.

Turns the recording/playback indicator on or off, and also sets the recording peak LED.

Sets the calendar (date and time).

Sets up Timer recording and alarm.

Selects the eneloop or alkaline battery.

Turns the Auto Power Off function on or off.

Turns the LCD backlight on or off.

Adjusts the LCD contrast.

Turns the Recycle Bin function on or off.

Formats a microSD card (deletes all data)

Initializes the menu settings.

Indicates the firmware version information.

POCKETRAK CX Reference Manual

About the Menu Settings

Setting the menu options

The following section explains how to set the menu items. The example here explains how to select “MP3 128kbps” for the Recording mode.

Press and hold down the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed.

Press the [VOL +/-] buttons to select [REC MENU], then press the [MENU/

ENTER] button.

MENU

ENTER

VOL

Press the [VOL +/-] buttons to select [REC MODE], then press the [MENU/ENTER] button.

Press the [VOL +/-] buttons to select [MP3 128kbps], then press the [MENU/ENTER] button.

Press the [STOP/ESC ] button twice.

The recorder displays the main screen.

Selecting the battery type

Select “eneloop” or “alkaline” depending on the battery type you plan to use.

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [BATTERY SET], select [eneloop] or [ALKALINE], then press the [MENU/ENTER] button.

[eneloop]

Eneloop battery (included)

[ALKALINE]

Alkaline battery

POCKETRAK CX Reference Manual

About the Menu Settings

Turning the beep sound on or off

You can set the recorder so that it will make a beep sound when you operate the buttons or if you make an operational error.

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [BEEP SOUND] → [ON], then press the [MENU/ENTER] button.

To cancel the beep sound, select [OFF].

Activating the Auto Power Off function

If this function is turned on and you leave the recorder turned on for about 15 minutes without using it, the recorder will automatically turn off (except during recording, VAS recording standby mode, or playback).

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [AUTO OFF] → [ON], then press the [MENU/ENTER] button.

To cancel the Auto Power Off function, select [OFF].

Setting the Backlight function

When the Backlight function is turned on, the LCD backlight lights up for about 10 seconds each time you press a button or switch on the unit.

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [BACKLIGHT] → [ON], then press the [MENU/ENTER] button.

To cancel the Backlight function, select [OFF]. (The backlight will not light up.)

Note:

· If the battery power is insufficient, the backlight will not light up.

POCKETRAK CX Reference Manual

Adjusting the LCD contrast

You can adjust the LCD contrast on a scale of ten (10).

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL

+/-] buttons to select [COMMON MENU]

→ [CON-

TRAST], then press the [MENU/ENTER] button.

Press the [ ]/[ ] buttons to adjust the contrast, then press the [MENU/ENTER] button.

L (low): 1 – H (high): 10

About the Menu Settings

Initializing the menu settings

Initializing the recorder settings will restore all menu settings (excluding the date and time setting) to the factory default.

Note:

· Initializing the recorder settings will not delete any data on the microSD card. For information on initializing a microSD card, refer to

page 46 .

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [MENU RESET] → [YES], then press the [MENU/ENTER] button.

If you decide not to initialize the settings, select [CANCEL].

Checking the firmware version

You can check the version number of the recorder’s firmware by following the procedure below.

Procedure:

Press the [MENU/ENTER] button for at least two (2) seconds while the main screen is displayed, press the [VOL +/-] buttons to select [COMMON MENU]

→ [VERSION], then press the

[MENU/ENTER] button.

The firmware version will be displayed.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

Using the POCKETRAK CX with a

Computer

You can transfer audio files stored on the microSD card to a computer by connecting the recorder to the computer via an included USB cable. Transferred files are compatible for playback with Windows Media Player and iTunes, and can be edited using the included “Cubase AI” DAW software. You can also transfer audio files from a computer to the recorder for playback.

Computer system requirements

■

Windows

Computer: Windows-based computer with built-in USB interface

OS: Windows Vista, XP Professional/Home Edition

■

Macintosh

Computer: Macintosh computer with built-in USB interface

OS: Mac OS X 10.4, 10.5

Note:

· The menu items and buttons displayed on your computer may not exactly match those shown in this manual, depending on the OS version of your computer. This manual uses Windows XP and Widows Media Player 11 as examples.

Please visit the website below for the latest information on included software and system requirements.

http://www.yamahasynth.com/

Connecting the recorder to your computer

Start the computer.

Make sure that the recorder is turned off, and then connect the included USB cable.

Insert in the correct orientation.

To the USB terminal

IMPORTANT

Use only the USB cable included with the recorder. The use of an improper cable may damage the terminal and result in a malfunction.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

Once the recorder is recognized by the computer, the following display appears on the screen.

Connected to PC

Transmitting to/ from PC

Precautions when using the USB terminal

Be sure to observe the following points when connecting the recorder to a computer's USB interface.

If you do not observe these points, you risk freezing the computer, corrupting the data, and losing the data. If the computer or the recorder freezes, restart the operating system or application software such as Windows Media Player.

IMPORTANT

• Never disconnect the USB cable while data is being transferred.

• Be sure to wake the computer from sleep/suspended/standby mode before making a connection to the computer's USB terminal.

• Quit all applications running on the computer before connecting or disconnecting the USB cable.

Disconnecting the recorder from your computer

■

Windows:

Click on the taskbar at the bottom right of the Windows screen, then click [Safely remove

USB Mass Storage Device].

After the computer displays the message shown on the right, remove the USB cable.

■

Macintosh:

Drag and drop the drive icon (“NO NAME”) of the recorder on the desktop to the Trash Can.

After the drive icon (“NO NAME”) disappears from the desktop, remove the

USB cable.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

Troubleshooting (Windows Vista/XP)

If the recorder is not recognized by the computer, refer to the information below:

■

Windows Vista

While the recorder remains connected to the computer, follow the steps below:

From the [Start] menu, right-click [Computer] to display the pop-up menu, then select [Properties] to open the “System” window.

Click [Device Manager] to open the user account control window. In this window, click [Continue] to open the “Device Manager” window.

Expand “Disk drives” and “Universal Serial Bus controllers.” “Disk drives” must include “Yamaha Pocketrak USB Device” and “Universal Serial Bus controllers” must include the device name for the USB Mass Storage Device.

■

Windows XP

While the recorder remains connected to the computer, follow the steps below:

From the [Start] menu or on the desktop, right-click [My Computer] to display the pop-up menu, then select [Properties] to open the “System Property” window.

Click the [Hardware] tab, then click [Device Manager] to open the “Device

Manager” window.

Expand “Disk drives” and “Universal Serial Bus controllers.” “Disk drives” must include “Yamaha Pocketrak USB Device” and the “Universal Serial Bus controllers” must include the device name for the USB Mass Storage Device.

If the “Device Manager” window does not display the correct items:

Follow the steps below.

Exit (quit) all running applications.

Disconnect all external USB devices (excluding a properly working mouse and keyboard), then connect only the recorder.

If the computer features multiple USB terminals, use a different USB terminal to connect the recorder.

If the recorder is connected via a bus-powered USB hub, remove the hub, then use the included USB cable to connect the recorder directly to the computer's USB terminal.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

About files and folders

From a connected computer, you can manage the recorder’s files that are stored in folders.

You can also transfer audio files from the recorder to a computer to save them, or from a computer to the recorder for playback.

Connect the recorder to a computer.

Make sure that a microSD card is inserted in the unit.

Click to open [My Computer] from the [Start] menu.

Double-click [Removable Disk].

The system displays the recorder’s folders.

Note:

· If the system displays the “What do you want

Windows to do?” panel, click to select [Open folder to view files], then click [OK]. The system will display the recorder’s folders.

Select

Click

■

Files are stored in the following folders on the microSD card.

• VOICE (A-D)

These folders store audio files (in MP3 or WAV format) recorded by the unit. The

VOICE folder contains sub-folders A-D.

Note:

· Do not move the files to a different folder. For example, do not move a file in the A folder to the B folder. Otherwise, you will be unable to play the file.

· Also, please note that if you change the name of an MP3 or WAV file (originally recorded on the unit) on the computer, then move the file back to the VOICE (A-D) folder, you will be unable to play the file on the unit. To play the file, first rename the file following the file naming rules, or move the file to the MUSIC (M) folder (see

page 59

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

• MUSIC

This folder stores music and other audio files transferred from a connected computer.

To play back the transferred files, the files must be in MP3 or WMA format or WAV files that were recorded on the unit. There are no naming rules that apply to these files.

Note:

· The playback sequence may change if you add files to the MUSIC folder.

· You can create sub-folders (up to two hierarchies) inside the MUSIC folder to organize the music files by albums or musicians (see

page 59 ).

· Please note that if the MUSIC (M) folder contains a file with the same name as that of the audio file you are transferring from the computer, the file in the MUSIC folder will be overwritten by the one transferred from the computer.

• DATA

This folder stores data files (of MS Excel, MS Word, etc.), and enables you to use the recorder as a USB flash drive.

Note:

· The recorder will not play back any audio or music files that are placed in this folder.

· This folder will be recognized only by a connected computer. The recorder will not display this folder on its screen.

• LINE

This folder stores files recorded from external devices via the line connection.

Please note that if you change the name of an MP3 file (originally recorded on the unit) on the computer, then move the file back to the LINE (L) folder, you will be unable to play the file on the unit. To play the file, first rename the file following the file naming rules, or move the file to the MUSIC (M) folder (see

page 59 ).

• RECYCLE

This is the Recycle Bin folder. While the Recycle Bin function is active, files deleted on the recorder will move to this folder. You can restore files from the Recycle Bin folder, which can be a life saver if you delete a file accidentally.

• ALARM

This folder stores MP3 or WMA files, or WAV files recorded on the unit. Any of these files can be played as an alarm. Only one file at a time can be played as an alarm.

Note:

· If this folder contains no files, the beep sound will be used as the alarm, regardless of the Alarm timer setting.

· This folder will be recognized only by the connected computer. The recorder will not display this folder on its screen.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

■

Folder structure of the POCKETRAK CX

VOICE (A-D) folders: Store audio files recorded on the unit.

Each folder accommodates up to

199 files.

LINE (L) folder: Stores files recorded via the line input.

Accommodates up to 199 files.

MUSIC (M) folder: Stores music files for playback.

Each sub-folder accommodates up to 999 files.

Recycle Bin ( ) folder:

Accommodates up to 500 files.

Folder

File

About the file naming rules

The POCKETRAK CX automatically names the recorded files, following the file naming rules as shown below:

IC_A_001.MP3

1 2 3

Folder name (Variable with a folder that contains the file.)

File number (Each recording will be numbered sequentially, e.g., 001, 002, 003, etc.)

Extension (File format. MP3 for an MP3 recording file, and WAV for a PCM recording file.)

Files moved into the Recycle Bin will be renamed as follows:

001_IC_A_001.MP3

1 2 3 4

File number in the Recycle Bin (Each file will be numbered sequentially based on when the file was moved to the Recycle Bin (e.g., 001, 002, 003, etc.)

Folder name (The folder that originally contained the file before it was moved to the

Recycle Bin.)

File number (The original number of the file before it was moved to the Recycle Bin.)

Extension (File format. MP3 for an MP3 recording file, and WAV for a PCM recording file.)

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

Transferring audio files from the recorder to a computer

■

Windows:

Connect the recorder to a computer.

Open [My Computer] from the [Start] menu.

Double-click [Removable Disk].

Double-click the “VOICE” folder.

Double-click the folder (A-D) that contains the file that you wish to load to your computer.

Copy the file to the desired location.

■

Macintosh:

Connect the recorder to a computer.

Double-click the drive icon (“NO NAME”) of the recorder on the desktop.

Double-click “VOICE” folder.

Double-click the folder (A-D) that contains the file that you wish to load to your computer.

Copy the file to the desired location.

Hint:

· Transferring audio files from the computer to the recorder

Drag and drop the audio file to the MUSIC (M) folder on the computer desktop in the

Removable Disk icon (Windows) or recorder drive icon (Macintosh). Before transferring audio files to the VOICE (A-D) folders or LINE (L) folder, rename the files following the file naming rules (see

page 59 ). The unit will not play files that do not comply with the

file naming rule, unless they are in the MUSIC (M) folder.

Copying audio files to a CD-R

You can copy audio files (that were recorded on the POCKETRAK CX) to a CD-R disc by using

Windows Media Player.

Please visit the Microsoft website for information on how to obtain Windows Media Player. http://www.microsoft.com/windows/windowsmedia/

Note:

· This section uses Windows XP and Widows Media Player 11 as examples.

· To copy audio files to a CD-R disc, you must have a CD writer, such as a CD-R/RW drive.

From the [Start] menu, select [All Programs], then click [Windows Media

Player] to start Windows Media Player.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX with a Computer

Right-click [Burn] in the menu bar, then select [Audio CD] or [Data CD].

[Audio CD]

[Data CD]

Audio files are converted to CD-DA format and copied to a CD-R/RW disc.

You can play the disc on a CD-R compatible CD player in your home or car.

Audio files (MP3 or PCM) are copied to a CD-R/RW disc without conversion.

You can play the disc on a computer, but not on an audio CD player.

Right-click

Burn List

Click

Insert a new CD-R/RW disc into the CD-R/RW drive.

Drag and drop the audio files you wish to copy to the Burn List pane in the

Windows Media Player panel.

Click [Start Burn] to start copying the files to the CD-R/RW disc.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX as a Music Player

Using the POCKETRAK CX as a Music

Player

If you install Windows Media Player or iTunes on your computer and transfer music files to the connected POCKETRAK CX, you can use the unit as a music player.

Please visit the Microsoft website for information on how to obtain Windows Media Player.

http://www.microsoft.com/windows/windowsmedia/

Note:

· This section uses Windows XP and Widows Media Player 11 as examples.

· Copying commercially-available music data is strictly prohibited except for your personal use.

· Yamaha makes no representations or warranties with regard to the content of files, and cannot be held responsible for the failure of transfers or downloads, or for damage or erasure of music files due to malfunction of the unit or your computer.

Ripping CDs (Creating compatible music files from music

CDs)

You can import music files from music CDs into your computer and convert them to MP3 or

WMA files so that they can be played on the POCKETRAK CX.

From the [Start] menu, select [All Programs], then click [Windows Media

Player] to start Windows Media Player.

Right-click [Rip] in the menu bar, then select [Format]

→ [mp3].

Right-click

POCKETRAK CX Reference Manual

Click [Rip] in the menu bar.

Click

Check

Using the POCKETRAK CX as a Music Player

Click

Insert a music CD into the computer’s CD-ROM drive.

Note:

· If your computer has access to the Internet, the system will automatically obtain and display music information related to the CD.

Check the box for each song that you wish to rip to your computer, then click

[Start Rip].

The system starts ripping the CD.

Note:

· You can also set Windows Media Player so that inserting a music CD will automatically start ripping.

POCKETRAK CX Reference Manual

Using the POCKETRAK CX as a Music Player

Transferring music files to the POCKETRAK CX (Sync function)

You can transfer audio files (ripped from a music CD to a computer) to the recorder for playback.

For information on how to rip a music CD, refer to the “Ripping CDs (Creating compatible music files from music CDs)” on

page 62 .

From the [Start] menu, select [All Programs], then click [Windows Media

Player] to start Windows Media Player.

Click [Sync] in the menu bar.

Connect the recorder to the computer.

Note:

· If the system displays the “Device Setup” window, click [Finish].

Right-click [Sync] in the menu bar, then select [Pocketrak]

→ [Advanced

Options…].

Check the box for “Create folder hierarchy on device” on the [Sync] tab, then click [OK].

Check

Note:

· If the box has already been checked by default, the folder may not be created. Remove the check from the box, then check the box again, and then click [OK].

POCKETRAK CX Reference Manual

Using the POCKETRAK CX as a Music Player

Drag and drop the desired music files from the Library pane in the left column of the window to the Sync List pane in the right column of the window.

Click [Start Sync].

The files will be transferred to the POCKETRAK CX.

Click

POCKETRAK CX Reference Manual

Using the POCKETRAK CX as a Music Player

Playing back tracks in a specific sequence

Creating a Playlist

You can create a Playlist to play back tracks in a desired sequence.

The recorder supports playlist files that are in M3U format with the extension “.m3u”.

An M3U format file stores multimedia playlists that specify the location of media files

(such as MP3 files).

From the [Start] menu, select [All Programs]

→ [Accessories], then click to

open [Notepad].

Enter the file names included in the MUSIC (M) folder into the Playlist in the desired sequence.

Enter the file names into the Playlist in the following format: “Drive name:\Folder name\File name”. See the example below.

Drive name Folder name File name

From the [File] menu, select [Save As…], then name the file

“xxx(file name).m3u” to save the Playlist.

Transfer the saved Playlist file to the MUSIC (M) folder on the recorder

(see page 58 ).

Be sure to transfer the Playlist file directly to the root level of the MUSIC (M) folder.

Note:

· You must place the Playlist file at the root level of the MUSIC (M) folder, NOT in any sub-folder inside the MUSIC folder.

Disconnect the recorder from the computer (see

page 55

Hint:

· For information on how to play tracks from the Playlist, refer to

page 27 .

POCKETRAK CX Reference Manual

Importing Audio Files into Cubase AI

Importing Audio Files into Cubase AI

The POCKETRAK CX ships with a DVD disc that contains the DAW software “Cubase AI.” You can use this software to edit and mix audio files. This section explains how to install Cubase AI and import audio files. For more information on using Cubase AI, refer to the PDF manual supplied with the Cubase AI software.

Step 1. Installing Cubase AI

IMPORTANT

Since the End-User Software License Agreement (EUSLA) displayed on your computer when you install the DAW software is superseded by the agreement in the included Owner’s Manual

(printed version), you should disregard the EUSLA. Please read the Software License Agreement in the included Owner’s Manual carefully, and install the software if you agree to it.

Start the computer and log on to the Administrator account.

Insert the included DVD-ROM into the computer's DVD-ROM drive.

Double-click the “CubaseAI4.msi” icon in the “Cubase AI 4 for Windows” folder (for Windows users), or double-click the “CubaseAI4.mpkg” in the

“Cubase AI 4 for MacOS X” (for Macintosh users).

Follow the on-screen instructions to install the Cubase AI software.

Note:

· To continue to use Cubase AI and be eligible to receive support and other benefits, you will need to register the software and activate your software license by starting the software while the computer is connected to the Internet. Click the “Register Now” button that is displayed when the software is started, then fill in all fields required for registration. If you do not register the product, you will be unable to use the application after a limited period of time expires. For a detailed registration procedure of Cubase AI, refer to the web site below.

<http://service.steinberg.de/goto.nsf/show/register_cubase_ai_4_gb>

Step 2. Connecting the recorder to your computer

Connect the recorder directly to your computer using the included USB cable.

POCKETRAK CX Reference Manual

Importing Audio Files into Cubase AI

Step 3. Importing audio data into Cubase AI

Launch Cubase AI.

Windows:

Click [Start]

→ [All Program] → [Steinberg Cubase AI 4] → [Cubase AI 4] to launch the program.

Note:

· If the “ASIO Multimedia” dialog window appears, click [Yes].

Macintosh:

Double-click the [Application]

→ [Cubase AI 4].

Note:

· If you specified a file destination when installing the Cubase AI software, launch the application from that location.

· Create a Cubase AI shortcut or alias on your desktop so that you can easily launch the program when required.

Select [New Project] from the [File] menu to create a new project file.

The new project dialog window will open. For this example select [CAI4 - 4 Stereo

8 Mono Audio Track Recorder] and click [OK].

Note:

· Recorded Cubase AI data is stored as a “project file.”

POCKETRAK CX Reference Manual

Importing Audio Files into Cubase AI

When the directory selection dialog window appears, select the folder to which the project and audio files for the project are to be stored, and click

[OK].

An empty project window with 4 stereo and 8 monaural tracks will appear.

Project window

Mixer window

Transport panel

Click in the track list (the area in which the track names are displayed) to select a track into which to import audio data.

Various settings for the selected track are available in the Inspector on the left side of the display.

Inspector Track list

POCKETRAK CX Reference Manual

Importing Audio Files into Cubase AI

Go to [File] menu

→ [Import] → [Audio File] → [My Computer] → “Remov-

able Disk”, then click [Open].

Select an audio file to import from the folder, then click [Open].

Note:

· If the “Import Options” dialog box appears, select the desired options, then click [OK].

To save the project file, select [Save] from the [File] menu, enter a file name, then save the file.

Save your project file frequently to avoid losing unsaved data in case a problem occurs.

Hint:

· For further instructions such as adding effects or mixing, refer to the PDF manual provided with the software.

POCKETRAK CX Reference Manual

Recharging the eneloop

Recharging the eneloop

WARNING

• Recharge the eneloop at an ambient temperature of between 5 and 35 degrees Celsius (41 and 95 degrees Fahrenheit).

• Be sure to close the battery cover before you start recharging.

Make sure that the eneloop battery is inserted in the recorder.

DANGER

• Do not attempt the recharge operation with an alkaline or other battery installed in the recorder. Otherwise, the battery liquid may leak or the recorder may malfunction.

From the main screen, press and hold down the [MENU/

ENTER] button for at least two seconds to access the

[COMMON MENU]

→ [BATTERY SET], then make sure

that “eneloop” is selected.

Connect the recorder to a computer (see

page 54 ).

Make sure that the LCD screen on the recorder indicates that the unit is connected to the computer, then set the [HOLD/

CHARGE] switch to [HOLD

The LED lights up green, and recharging starts.

To cancel the recharge operation, revert the [HOLD/CHARGE] switch setting.

When recharging is complete, the

LED turns off.

Back of unit

[HOLD/CHARGE] switch

Note:

· Recharging a completely exhausted eneloop battery takes approximately

Set to [HOLD

220 minutes.

· You can recharge an eneloop battery during data transfer. However, the battery may be exhausted more quickly.

Disconnect the recorder from your computer.

Note:

· The battery may become warm during recharge, but this is normal.

· The battery life has come to an end if the battery is exhausted relatively quickly even after being fully recharged. Replace it with a new eneloop AA Ni-MH rechargeable battery.

· The battery may not be recharged under the following conditions:

- When the computer is in sleep mode

- While the computer is being restarted

· The crossed-out battery icon ( ) means that the recharging operation did not start for one of the following reasons:

- A non-eneloop battery has been loaded.

- There is no battery in the unit.

- The unit is overheated.

(Disconnect the unit from the computer, leave the unit with the power turned off for a while, then connect the unit to the computer again.)

POCKETRAK CX Reference Manual

Appendix

Appendix

Error messages

The following table explains the error messages that you may see during operation of the POCK-

ETRAK CX.

Unit status or function

Low battery

Error message

LOW BATTERY!

REPLACE BATTERY

LOW BATTERY!

CHARGE BATTERY!

MEMORY FULL!

Recording

FILE FULL!

Playback

Editing (Index)

Editing

(File division)

NO DATA!

CANNOT CHANGE

PLAYBACK SPEED!

INDEX FULL!

CANNOT DIVIDE!

FOLDER FULL!

CANNOT DIVIDE!

MEMORY FULL!

CANNOT DIVIDE!

REC TIME

TOO SHORT !

CANNOT DIVIDE!

AT THIS POINT

Description

The alkaline battery is exhausted. Replace the battery with a new one.

The eneloop is exhausted. Recharge the eneloop.

The microSD card does not have sufficient free space for recording.

You attempted to record more files than the maximum number of files allowed for the selected folder.

You pressed the [PLAY/SPEED ] button but the selected folder contains no files.

You attempted to change the playback speed while playing back a PCM recording.

You cannot change the playback speed of

PCM (WAV) files.

You attempted to insert more index marks than the maximum number (36) of index marks allowed per file. No more index marks will be recorded.

You attempted to divide a file when the corresponding folder contains the maximum number of files allowed.

The microSD card does not have sufficient free space to divide a file.

The recording is too short in duration to divide.

You cannot divide the file at the current point.

POCKETRAK CX Reference Manual

Unit status or function

Error message

CANNOT FADE IN!

FILE TOO SHORT!

CANNOT

FADE OUT!

FILE TOO SHORT!

Editing

(Fade in/fade out)

CANNOT FADE IN!

READ-ONLY FILE!

CANNOT

FADE OUT!

READ-ONLY FILE!

MEMORY FULL!

Editing (General)

CANNOT EDIT!

READ-ONLY MODE!

List screen NO FILE

CANNOT EDIT!

READ-ONLY MODE!

FOLDER FULL!

Recycle Bin

RECYCLE BIN FULL!

microSD card

NO MEDIA!

SD CARD

ACCESS ERROR!

INSERT AGAIN!

SD CARD

WRITE SPEED

TOO SLOW!

Appendix

Description

The file is too short in duration (four seconds or less) to apply the fade in effect.

The file is too short in duration (four seconds or less) to apply the fade out effect.

You attempted to apply the fade in effect to a file other than a PCM (WAV) file. You cannot apply the fade in effect to any files other than PCM (WAV) files.

You attempted to apply the fade out effect to a file other than a PCM (WAV) file. You cannot apply the fade out effect to any files other than PCM (WAV) files.

The microSD card does not have sufficient free space for applying the fade in or out effect.

You pressed the [EDIT/PHRASE] button to edit a file in the MUSIC folder.

The selected folder does not contain any files that can be played on the unit.

You pressed the [EDIT/PHRASE] button to edit a file in the Recycle Bin folder.

You cannot move the file from the Recycle

Bin to its original folder because the folder contains the maximum number of files allowed.

You attempted to delete a file while the

Recycle Bin function was turned on and the

Recycle Bin folder contained the maximum number of files allowed (500 files).

You attempted to record or play back a file with no microSD card inserted inserted.

Insert a microSD card.

The recorder did not recognize the inserted microSD card, or the card is broken. Try inserting the card again.

PCM recording was incomplete or the data was not written correctly.

POCKETRAK CX Reference Manual

Appendix

Troubleshooting

The unit does not operate.

Possible cause

Corrective action

Battery is not inserted properly or is exhausted.

Reinsert the battery correctly.

Recharge the eneloop or replace with a new alkaline battery (see page 71 ).

Buttons do not work.

Possible cause

The Hold function is set.

Corrective action

Set the [HOLD/CHARGE] switch (located on the rear panel of the unit) to its original position to cancel the Hold function.

Possible cause

Corrective action

The USB terminal is still connected to the computer.

Disconnect the unit from the computer (see

page 55 ).

The eneloop cannot be recharged from the connected computer.

Possible cause

Corrective action

The BATTERY SET is set to “ALKALINE.”

Set the BATTERY SET to “eneloop” (see

page 51 ).

Possible cause

Corrective action

The [HOLD/CHARGE] switch is not set correctly.

Set the [HOLD/CHARGE] switch to [HOLD w

Icon " “ appeared when you attempted to recharge the battery.

Possible cause

Corrective action

• You attempted to recharge a battery other than the eneloop.

• You attempted to recharge the battery, but no battery was inserted.

• The eneloop is not inserted correctly.

Insert the eneloop battery into the unit.

Possible cause

Corrective action

The unit is overheated.

Disconnect the unit from the PC, let the unit cool down for a while, then try to recharge again.

The unit does not recognize the inserted microSD card.

Possible cause

The microSD card is not inserted correctly.

Corrective action

Turn off the power to the unit, then insert the microSD card correctly.

Possible cause

Corrective action

The microSD card was formatted on a computer or device other than the recorder.

Use the POCKETRAK CX to format the microSD card (see

page 46 ).

POCKETRAK CX Reference Manual

Appendix

No sound.

Possible cause

Corrective action

The volume is turned down too low.

Use the [VOL +/-] button to adjust the volume level.

Files in the VOICE (A-D) folders cannot be played.

Possible cause

The file name is wrong.

Corrective action

If you change the file name on a computer, then move the file back to the

VOICE (A-D) folder, you cannot play the file on the unit. Transfer the file to the MUSIC (M) folder to play it.

Possible cause

Corrective action

The audio file is not in the type of WAV format that is supported by the unit.

The unit will not play back a WAV file that was not recorded on the unit.

Files in the MUSIC (M) folder cannot be played (correctly or at all).

Possible cause

The file is not in a playable format.

Corrective action

Use MP3 or WMA files.

Possible cause

Corrective action

Possible cause

Corrective action

Possible cause

Corrective action

Possible cause

Corrective action

The audio file is not in the type of PCM (WAV) format that is supported by the unit.

The unit will not play back a WAV file that was not recorded on the unit.

The file was transferred to an incorrect destination.

The unit will not play files that were transferred from a computer to a folder other than the MUSIC (M) folder. Be sure to transfer the file to the

MUSIC (M) folder on the Removable Disk.

The file is not compatible with the unit.

Create a file using different MP3/WMA encoder software.

The files listed in the Playlist are missing from the MUSIC (M) folder.

Delete the file names from the Playlist. Alternatively, transfer the missing files to the MUSIC (M) folder.

Possible cause

Corrective action

A different transfer method was used.

Files protected by copyright cannot be played if they are transferred via

Explorer. Use Windows Media Player to transfer the files (see

page 64 ).

POCKETRAK CX Reference Manual

Appendix

A file cannot be divided.

Possible cause

The microSD card may have insufficient free space.

Corrective action

Erase unnecessary files (see

page 45 ).

Possible cause

Corrective action

The file is too short to divide.

The minimum file length required for the file division operation varies with the recording mode (see

page 38 ).

A file cannot be erased.

Possible cause

The attribute of the file is set to “read only.”

Corrective action

Connect the unit to a computer and change the file attribute or erase the file using the computer. Alternatively, format the microSD card (see

page 46 ).

The Removable Disk icon does not appear when you connect the unit to the computer.

Possible cause

The unit is not connected to the computer correctly.

Corrective action

Make sure that the USB cable is securely and correctly connected to the

unit and to the computer (see page 54

Possible cause

Corrective action

Power supplied from the computer to the unit is insufficient.

If the recorder is connected via a bus-powered USB hub, remove the hub, then use the included USB cable to connect the recorder directly to the computer’s USB terminal. Alternatively, use a self-powered USB hub (with the power adapter). If the computer features multiple USB terminals, use a

different USB terminal to connect the recorder (see page 54 ).

Possible cause

Corrective action

A network drive has been assigned.

If a network drive has been assigned, the drive letter (an alphabet letter used as the drive name) is already taken. In this case, the Removable Disk icon may not be created. Change the network drive assignment, then reconnect the unit.

Consult your network administrator regarding how to reassign the network drive.

Possible cause

Corrective action

The connected computer does not recognize the recorder.

If the computer does not recognize the unit, try connecting it again. If you connect the unit to any computer other than those supported by the unit, Yamaha will not guarantee the operation of the unit (see

page 54 ).

The file transfer speed (from the computer to the unit) is slow.

Possible cause

The unit is connected to a USB1.1 terminal on the computer.

Corrective action

Connect the unit to a USB2.0 High Speed terminal.

POCKETRAK CX Reference Manual

Appendix

When the unit is connected to the computer, the unit does not display the “Connected” icon.

Possible cause

The unit is not connected to the computer correctly.

Corrective action

In some cases, the unit may not display the “Connected” icon or may not be recognized when it is connected to a computer. Disconnect the unit from the computer, then reconnect it.

The recorded audio sounds noisy.

Possible cause

Wind noise has been recorded.

Corrective action

The built-in stereo microphone is highly sensitive. Therefore, a slight breeze or breath — even a weak air conditioning breeze that hits the microphones directly — will be recorded as noise. To reduce the level of wind and other environmental noise:

• Use the recorder with the wind screen (protection against wind and sibilance) attached to the built-in stereo microphones.

• Turn on the High Pass Filter via menu item [HPF] (see

page 21 ).

• Set the [MIC SENS] (microphone sensitivity) switch to [LOW].

The recorded sound is distorted.

Possible cause

The microphone sensitivity level may not be appropriately set.

Corrective action

• Set the [MIC SENS] (microphone sensitivity) switch to [LOW]. If you still hear distortion, set the High Pass Filter to ON and attach the windscreen to the recorder (see

page 21 ).

• If the ALC function is turned off, set the recording peak limiter to ON

(see

page 21 ).

The recorded sound skips.

Possible cause

• The microSD card was formatted not on the recorder, but on a computer or other device.

• The microSD card may be fragmented significantly.

Corrective action

Use the recorder to format the microSD card (see

page 46 ).

The date and time are displayed incorrectly.

Corrective action

Set the correct date and time (see

page 9 ).

Deleting files does not increase the amount of free space.

Possible cause

The Recycle Bin function is turned on.

Corrective action

Empty the Recycle Bin (see page 44

POCKETRAK CX Reference Manual

Appendix

FAQ

Q: May I use a manganese battery ?

A: Do not use a manganese battery or NiCad battery. You may use an oxyride battery, but

Yamaha will not guarantee the operation. (The battery life would be about the same as that of alkaline batteries.)

Q: Why do I hear a rustling noise in the recordings?

A: A rustling noise may be recorded if you move the unit during recording, or even if you move your fingers while holding the unit when recording. If possible, try not to move the unit during recording.

Q: How can I transfer the recordings onto tapes or MDs?

A: Use a standard audio cable (with 3.5mm mini plugs) to connect the unit to your tape recorder or MD recorder, then dub the recordings to a tape or MD.

Stereo headphone socket

Microphone/

Line input socket

Standard audio cable

External recorder

Compatible audio cable

Socket on the external recorder

Microphone input

Line input

Audio cable

3.5-mm mini plug, with resistance

3.5-mm mini plug, without resistance

* Use a stereo audio cable.

* Before dubbing the recordings, adjust the dubbing level on the unit.

* You can also dub the recordings from your tape player or MD player to the unit (see

page 14 ).

Q: Are there any tips to making a good recording?

A: Try a test recording to set the optimum recording mode and sensitivity (see

page 10 ), since

the recording condition varies with the location and circumstances.

Q: Does the available recording time specified in the manual apply to each file?

A: No, it refers to the available recording time on a microSD card. The available recording time in each recording mode refers to the total time available for one continuous recording without changing the recording mode, and assumes that no recorded files exist on the microSD card. Therefore, if you record one file until the microSD card is full, you cannot record further even if you change the file or folder.

POCKETRAK CX Reference Manual

Appendix

Q: I cannot play a recorded file that was stored on the computer and transferred back to the unit.

A: You may have changed the file name on the computer. If you change the file name, the file will not play, even if it is transferred back into the VOICE or LINE folder. However, you will be able to play the file if you transfer it into the MUSIC folder.

POCKETRAK CX Reference Manual

Appendix

Specifications

Supported OS

Supported media

Recording mode and available recording time (with the included

2GB microSD card)

Recording format

Playback format

Frequency response (recording with an external microphone)

Frequency response (recording with the built-in microphone)

Frequency response (playback)

Sampling frequency

Bit rate (playback)

Connectors

Operating temperature

Output (headphones)

Power supply

Windows Vista, XP Professional/Home Edition

Mac OS X 10.4, 10.5

microSD/SDHC card

PCM 48 kHz: Approx. 2hr.50min.

PCM 44.1 kHz: Approx. 3hr.5min.

MP3 320 kbps: Approx. 13hr.35min.

MP3 192 kbps: Approx. 22hr.45min.

MP3 128 kbps: Approx. 34hr.5min.

MP3 64 kbps: Approx. 68hr.15min.

MP3 32 kbps: Approx. 136hr.30min.

MP3, PCM (WAV)

MP3 (MPEG1 LAYER3, MPEG2 LAYER3), WMA

PCM (Only files recorded on this unit are supported.)

40–23,000Hz (PCM 48kHz, 16bit)

40–21,000Hz (PCM 44.1kHz, 16bit)

40–20,000Hz (MP3 320kbps)

40–20,000Hz (MP3 192kbps)

40–15,000Hz (MP3 128kbps)

40–7,500Hz (MP3 64kbps)

40–6,500Hz (MP3 32kbps)

60–20,000Hz (PCM recording)

* The high end frequency response varies with the recording mode that was selected for recording with an external microphone.

The low end response is 60Hz in all MP3 recording modes.

20–23,000Hz

16kHz–48kHz

16–320kbps (MP3)

32–192kbps (WMA)

* Some files may not be played back correctly.

USB mini, Stereo headphones 3.5-mm mini, Stereo microphone (line input)

3.5-mm mini, microSD card slot

+5˚C – +35˚C (+41˚F – +95˚F)

10mW + 10mW (at 16

Ω load)

Eneloop AA Ni-MH rechargeable battery (1)

Or, “AA/LR6” alkaline battery (1)

POCKETRAK CX Reference Manual

Appendix

Battery life for recording (with the included 2GB microSD card)

Battery life for playback through headphones (with the included 2GB microSD card)

Battery life for playback through the speaker (with the included 2GB microSD card)

Dimensions

Weight

Included accessories

Alkaline battery: MP3 Approx. 54 hours, PCM Approx. 22 hours

Eneloop: MP3 Approx. 44 hours, PCM Approx.

21.5 hours (Recording condition: Recording LED off, backlight off, no recording monitoring, ALC on)

Alkaline battery: MP3 Approx. 58.5 hours, PCM Approx.

25 hours

Eneloop: MP3 Approx. 48 hours, PCM Approx. 23 hours (Playback condition: Playback LED off, backlight off, no recording monitoring, FLAT sound EQ)

Alkaline battery: MP3 Approx. 38 hours, PCM Approx.

19.5 hours

Eneloop: MP3 Approx. 32 hours, PCM Approx.

19.5 hours (Playback condition: Playback

LED off, backlight off, no recording monitoring, FLAT sound EQ)

Approx. 46.5(W) x 129.5(H) x 17.5(D) mm

Approx. 91g (including “eneloop”)

Eneloop AA Ni-MH rechargeable battery (1)

2GB microSD memory card (1)

Earphones (1)

Carrying bag (1)

Microphone stand adapter (1)

Windscreen (1)

DVD-ROM (1)

USB cable (1)

Owner’s Manual (1)

• Battery life varies depending on the type and manufacturer of the battery/ microSD-card, storage conditions, usage, ambient temperature, etc. The battery life values listed above are estimates and are not guaranteed. Yamaha will not guarantee operation if you use any battery other than an alkaline battery or a rechargeable battery specified by Yamaha (eneloop).

• Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.

POCKETRAK CX Reference Manual

Appendix

Index

Symbols

button

...................................

button

...................................

A-B Repeat playback

...........................

Alarm

..............................................

ALC (Auto Level Control)

ALC ON/OFF switch

.....................

............................

Audio cable

................................

Audio files

........................................

Auto Divide

......................................

Auto Power Off

.................................

Available recording time

......................

Backlight

.........................................

Battery cover

.....................................

Battery setting

...................................

Beep sound

......................................

Bit rate

........................................

Built-in stereo microphone

....................

...........................................

CD player

........................................

Clear Voice

.......................................

Computer

........................................

Contrast

..........................................

Cubase AI

........................................

Date

................................................

DEL button

........................................

Deleting

Deleting a selected file

.....................

Deleting all data

............................

Deleting all files from a folder

............

Dividing files

.....................................

EDIT/PHRASE button

............................

Editing Files

Eneloop

.....................................

..........................................

EQ (equalizer)

..............................

Error messages

..................................

External audio device

.........................

External microphone

..........................

Fade in

Fade out

...........................................

.........................................

FAQ

...............................................

Fast forwarding

.................................

Fast reversing

File

...................................

................................................

File names

..................................

Folder

.............................................

Folder structure

.................................

FOLDER/A-B REPEAT button

..............

Formatting a microSD card

..................

Frequency

.............................

Headphones

.....................................

Headphones socket

..............................

High Pass Filter (HPF)

..........................

HOLD/CHARGE switch

..........................

Index marks

.....................................

Indicators displayed during playback

......

Indicators displayed during recording

.....

Initializing the menu settings

................

LCD screen

....................................

LED

.............................................

Level meter

.................................

Linear PCM

........................................

List screen

.........................................

LIST/INDEX button

..........................

Locating the file to play back

................

Locating the index

.............................

POCKETRAK CX Reference Manual

Main screen

.......................................

Manual

.............................................

................................................

..............................................

Menu item list

...................................

Menu screen

......................................

MENU/ENTER button

........................

MIC LEVEL (recording level)

..................

MIC SENS HIGH/LOW switch

.................

Microphone

............................

.....................................

Microphone sensitivity

........................

Microphone stand (adapter)

.............

microSD card

................................

MP3

......................................

Music

..............................................

PCM (WAV)

.............................

Playback

.........................

..........................................

Playing back files

............................

Playing back tracks from the Playlist

....

Repeat playback

.............................

Using the A-B Repeat playback function

.....................................

Using the Phrase playback function

.....

Using the Skip playback function

........

Playback speed

..................................

Playlist

.............................................

POWER button

...................................

..........................

Recharging

.......................................

Recording

Recording from an external audio device (such as a CD player)

...........

Recording musical performance

.........

Simple recording

............................

Recording EQ (equalizer)

.....................

Recording level

..................................

Recording mode

..........................

Recording peak limiter

Repeat playback

..................

Recycle Bin

.......................................

..........................

Appendix

Screens

.............................................

Self timer

.........................................

Skip playback

...................................

Sound EQ (equalizer)

..........................

Sound quality

...................................

Speaker

.............................................

Specifications

...................................

STANDBY mode

................................

Stereo mini plug

...............................

Stereo wide recording

........................

............................

Sync

...............................................

Threaded socket for attaching a tripod

......

Time

................................................

Timer recording

................................

Tripod

............................................

Troubleshooting

...........................

USB terminal

.................................

USER

.........................................

VAS (Voice Activated System)

...............

Version

...........................................

Voice sensing level (VAS value)

.............

VOL + / - button

.................................

Volume

.............................................

Wind screen

.....................................

Windows Media Player

........................

POCKETRAK CX Reference Manual

U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation

904IP-C0

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Marantz PMD660 Quick Start Manual

Yamaha W24 User manual

Yamaha PocketrakCX - POCKETRAK CX 2 GB Digital Player Specifications

Yamaha W24 Owner's manual

Yamaha C24 Specification

Yamaha POCKETRAK 2G Owner's Manual

Coredy CD-B5 Help Manual

Polaroid PDR500 Instruction Manual

Yamaha C24 Owner's manual

Yamaha Pocket Recorder Owner's Manual

Philips VTR6900/93 Voice Tracer 数码录音笔 User manual

POCKETRAK 2G Specifications System Requirements

User Manual 4GB Digital Voice Recorder XC-0383

Zoom H1n Handy Recorder Operation Manual

Yamaha POCKETRAK_CX Owner's Manual

POCKETRAK 2G Update Guide

User Manual Digital Voice Recorder

Panasonic RRXR800E Operating Instructions

Yamaha POCKETRAK C24 dictaphone Datasheet

Radio Shack Pocketrak 2G User's Manual

Yamaha POCKETRAK PR7 Data Sheet

Download PDF
