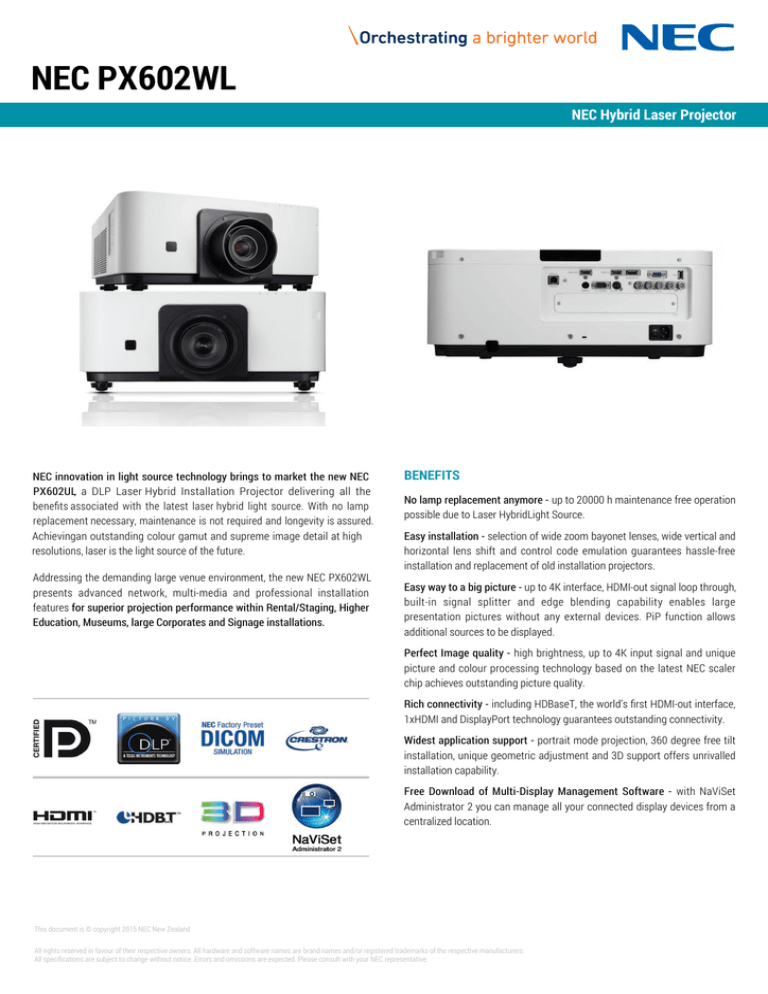

NEC PX602WL
NEC Hybrid Laser Projector
NEC
NEC innovation
innovation in
in light
light source
source technology
technology brings
brings to
to market
market the
the new
new NEC
NEC
a
DLP
Laser
Hybrid
Installation
Projector
delivering
all the
PX602UL,
PX602WL, a DLP Laser Installation Projector delivering all the benefits
benefits
associated
thelaser
latestlight
lasersource.
hybrid With
light no
source.
no lamp
associated
with thewith
latest
lampWith
replacement
replacementmaintenance
necessary, maintenance
is not
is assured.
necessary,
is not required
andrequired
longevityand
is longevity
assured. Achieving
Achievingan
outstanding
colour
gamut
and
supreme
detail
at high
an outstanding colour gamut and supreme image detail at high resolutions,
resolutions,
laser
is
the
light
source
of
the
future.
laser is the light source of the future.
Addressing the demanding large venue environment, the new NEC PX602WL
presents advanced network, multi-media and professional installation
features for superior projection performance within Rental/Staging, Higher
Education, Museums, large Corporates and Signage installations.
BENEFITS
No lamp replacement anymore - up to 20000 h maintenance free operation
possible due to Laser HybridLight Source.
Easy installation - selection of wide zoom bayonet lenses, wide vertical and
horizontal lens shift and control code emulation guarantees hassle-free
installation and replacement of old installation projectors.
Easy way to a big picture - up to 4K interface, HDMI-out signal loop through,
built-in signal splitter and edge blending capability enables large
presentation pictures without any external devices. PiP function allows
additional sources to be displayed.
Perfect Image quality - high brightness, up to 4K input signal and unique
picture and colour processing technology based on the latest NEC scaler
chip achieves outstanding picture quality.
Rich connectivity - including HDBaseT, the world’s first HDMI-out interface,
1xHDMI and DisplayPort technology guarantees outstanding connectivity.
Widest application support - portrait mode projection, 360 degree free tilt
installation, unique geometric adjustment and 3D support offers unrivalled
installation capability.
Free Download of Multi-Display Management Software - with NaViSet
Administrator 2 you can manage all your connected display devices from a
centralized location.
This document is © copyright 2015 NEC New Zealand
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers.
All specifications are subject to change without notice. Errors and omissions are expected. Please consult with your NEC representative.
NEC PX602WL - Technical Specification
Projection Technology
1.65cm (0.65") Chip - DLP™ Technology
Native Resolution
1280 x 800 (WXGA)
Contrast Ratio 1
10000:1
Brightness 1
6000 Lumen, with std. optional lense
Lamp
Solid State Light Source - Hybrid Laser
Lamp Life [hrs]
20000
Lens
5 optional bayonet lenses
Projection Factor
depending on lens selection
Projection Distance [m]
1.02 – 19.39
Screen Size (diagonal) [cm] / [inch]
Maximum: 760 / 300"; Minimum: 127 / 50"
Zoom
Motorized
Focus Adjustment
Motorized
Supported Resolutions
4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60;
1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50
Frequency
Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz
RGB (analog)
Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin
Digital
Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP
Output: 1 x HDMI supporting HDCP
Video
Input: 1 x BNC R Share
S-Video
Input: 1 x BNC G/B Share
Control
Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x Ethernet shared with HDBaseT
Option Slot
Input: 1 x Slot for optional OPS modules
USB
1 x Type A (USB 2.0 high speed for mouse support)
3D Sync
Output: 1 x Mini DIN 3pin
Video Signals
NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
Input:
1 x 3.5 mm Stereo Mini Jack
Remote Control
Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select;
Illuminated Buttons; Input Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP Function; Power (On-OFF); Select
(up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
530 Normal Mode
Dimensions (W x H x D) [mm]
484 x 195 x 509 (without lens and feet)
Weight [kg]
18.5
Fan Noise [dB (A)]
38
Colour Versions
White
ERGONOMICS
Safety and Ergonomics
CE; ErP; RoHS; TÜV GS, CISPR 22
ADDITIONAL FEATURES
Special Characteristics
4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality;
Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt;
Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0,5 max/-0,5
max, horizontal ± 0,15 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet
Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI
- Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control
GREEN FEATURES
Energy Efficiency
Solid State Light Source
Ecological Materials
100% recyclable packaging; Downloadable manuals
Ecological Standards
ErP compliant
WARRANTY
Projectors
3 years conditional warranty
SHIPPING CONTENT
Shipping Contents
IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Stacking Holder; Users Manual on
CD-ROM; Utility software
OPTIONAL ACCESSORIES
Optional Accessories
Portrait Mode Cover (NP07CV);Ceiling Mount Kits (PROJBUN1L/2L/3L)
Lenses
NP33ZL (0.75-95:1) available from 04/2015; NP34ZL (0.95-1.22:1); NP35ZL (1.22-1.53:1); NP37ZL (1.52-2.92:1); NP38ZL (2.9-5.5:1)
OPS Slot-in Modules
Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs
CONNECTIVITY
REMOTE CONTROL
ELECTRICAL
MECHANICAL
