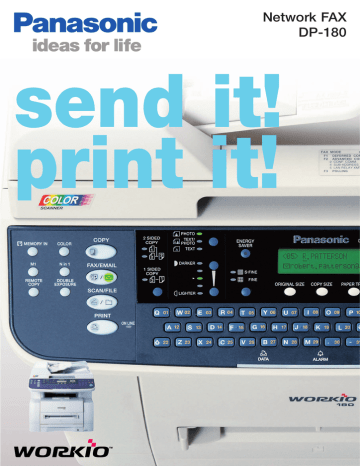

Network FAX DP-180
Network FAX
DP-180
send it!
print it!
Send it, print it,
scan it or copy it.
Stable, reliable
performance
assured
every time
A Super G3 fax with JBIG
compression for enhanced faxing
efficiency, the DP-180 is also the ultimate
all-round document management tool for
corporate offices.
In addition to its 50-sheet automatic document
feeder, the DP-180 is equipped with a colour
flatbed scanner that allows you to easily scan
magazines or books and convert them into a
TIFF/JPEG or PDF file.
The DP-180 also comes standard with Ethernet
network connectivity, as well as a USB Interface,
so it can be used as a high-speed 18-ppm network
printer with features like duplex printing and 2-in-1
or 4-in-1 printing.
For security, a built-in User Authentication*1
function prevents unauthorised access for Faxing,
Scanning and/or Copying.
From faxing and copying to printing and colour
scanning, the DP-180 is virtually all you need.
*1 Requires Active Directory environment on the network.
This function is not available in certain destinations.
send it!
Network Colour Scanner
print it!
Network Printer
Super G3 Fax and Email
Super G3 Fax / Email
Directory Search
In addition to its Super G3 Fax capability,
the DP-180 is equipped with a Scan-toEmail function that lets you convert
documents to TIFF, JPEG or PDF and
send them as email attachments to PCs.
Directory Search allows you to enter multiple letters via the QWERTY
keyboard to narrow down the search and quickly find the name
you’re looking for in a large database such as an LDAP*3
(Lightweight Directory Access Protocol) server or the optional 1,000station Auto-Dialler*4. The DP-180
retrieves email addresses from the LDAP
server’s directory, so you can easily
programme them into the Auto-Dialler.
Maximum 1,000-Station Auto-Dialler
For quick dialling, you can store up to 200 phone numbers/email
addresses from the QWERTY keyboard, or programme the AutoDialler and import a listing from an existing PC file*2 using the
standard Address Book Editor Software on your PC. Auto-Dialler
capacity can be expanded to a maximum of 1,000 stations with the
optional Hard Disk Drive Unit.
*3 Requires LDAP server on the network.
This is not available in certain destinations.
*4 Optional Hard Disk Drive Unit is required.
*2 CSV/Comma-Delimited text file.
Quick Name Search
Simply key in the first letter of the recipient’s name on the QWERTY
keyboard and press it repeatedly to scroll through the listings that
appear on the display. When you find the name you’re looking for,
just select it. It’s that simple!
Select the initial letter...
Scroll to search through
the list...
And send.
Network Colour Scanner
Network Scanner
You can scan and send documents in either
colour or monochrome to a PC or an FTP
server as a PDF or TIFF/JPEG file. The
flatbed scanner also allows you to scan a
variety of media such as books as well as
smaller items like ID and insurance cards.
Results of the investigation
29
Results of the investigation
23
19
35
12
30
35
25
20
15
10
5
0
red
blue
yellow
white
pink
1994
1995
1996
1997
1998
1999
2000
2001
2002
2003
red
blue
yellow
Green
pink
0
5
10
15
20
25
30
35
DP-180
TIFF
PDF
Document Workflow with
Document Management System
Software
Panasonic Document Management System
Software streamlines your document
workflow, allowing you to manage and
control all processes right from your PC
desktop. All you have to do is drag and
drop the thumbnail picture of the scanned
document onto an icon of the preprogrammed PC application such as OCR,
Email or image editing software.
Remote Copy
When users press the Remote Copy key,
the DP-180 automatically sends the
scanned data through the PC to a preselected network printer. This allows users
to easily make colour copies of a colour
document when a colour printer is
connected to the LAN.
Colour
Original
Colour
Copy
DP-180
KX-CL500
LAN
29
The
Internet
23
19
35
12
30
35
25
20
15
10
red
blue
yellow
white
pink
5
0
red
blue
yellow
Green
pink
0
5
10
15
20
25
30
35
PC
Internet Fax
(TIFF)
Email Client
Colour: JPEG, PDF
Black & White: TIFF, PDF
Standard Network Printer
High Resolution of 1,200 dpi
equivalent x 600 dpi
Built-in Network
Printing Capability
In addition to standard 600 x 600 dpi print
resolution, you can increase print resolution
to 1,200 dpi equivalent x 600 dpi (in
PCL/PS mode) by adding an optional
printer controller. This gives crisp, clean
prints with superior legibility and halftone
gradations — even with very tiny characters
or complex images.
The DP-180 comes standard
with a built-in Ethernet LAN
interface, so users can set it up
as a network printer that can be
used by any PC on the LAN. In
addition, the unit’s standard
USB interface allows direct connection to a
dedicated PC.
Standard Duplex and 2-in-1/4in-1 Printing
Mailbox Print/
Secure Mailbox Print*5
For added productivity, the
DP-180 comes standard with
an automatic duplex printing
capability that allows the
users to print on both sides
of the paper. For added cost
savings, double-sided
printing can also be used
with 2-in-1/4-in-1 printing to
greatly reduce your paper
expenses and save on filing
space.
Security is a topic of concern in today’s
office environments. Security print for up to
100 users is available. Simply print directly
to the Security Print Mailbox*5 and the
DP-180 stores the print file until the user
retrieves it at the machine by entering a
mailbox ID and password. This is especially
useful when generating sensitive or
confidential documents. Mailbox Print
allows print jobs to be stored without a
password for convenience.
Easy Print Driver Installation,
User-Friendly Graphical
Interface.
*5 Optional Hard Disk Drive Unit is required.
Advanced Digital Copier
50-sheet ADF
Digital SkyShot
Why wait? With the 50-page Automatic
Document Feeder (ADF), you can fax, copy,
scan and email multi-page documents at
the touch of a button and be on your way.
Panasonic’s Digital SkyShot is especially
convenient for copying small-sized originals
like cheques or ID cards. Users can even
reproduce documents with unusual shapes
— round, oval, etc. — without generating
any unnecessary black areas simply by
making a copy with the platen cover open.
Double Exposure for Double
Savings
By selecting the Double Exposure key
located on the control panel, users can
make quality copies of small double-sided
documents on a single sheet of paper
without the black borders — even if the
platen cover is open. This is especially
convenient for copying small double-sided
originals such as ID and insurance cards,
cheques, and receipts.
Scanning Area
First Pass-Image#1
Scanning Area
Second Pass-Image#2
Print
Preventing Data Leakage
User
Authentication*6
The DP-180 also supports network-based User Authentication in a Windows
ServerTM environment. Users must be authenticated before they can use the
machine for copying, faxing and/or scanning. Additionally, the DP-180 also
supports sending documents via a RightFax® Server*6,*7. The combination of
User Authentication and your RightFax Server can help to prevent unauthorised
fax transmissions.
User
Friendly
Easy Front Operation
Everything is easily managed
from the front of the unit: paper
loading, fax, copy and printer
output.
*6 Requires Active Directory environment on the network. This function is not available in
certain destinations.
*7 Requires RightFax® Ver.8.0 or later.
Network Accounting Manager software*8
Panasonic’s Network Accounting Manager software gathers the DP-180’s copy,
print, scan and fax history. This data is presented in an easy-to-use web-based
interface. This data can be used to track cost as well as usage of the unit. This
data can also be exported in CSV (comma-separated value) or XML (extensible
Markup Language) format. When used in combination with the Job Tracking*6
function, The Network Accounting Manger lets you track faxes and scans
including images of sent items!
*8 Optional Hard Disk Drive Unit and Image Memory are required.
Extended Reliability
Maintenance Support
The Check & Call function automatically reports low
toner status and certain mechanical problems to a
service centre while the Remote Diagnostic
System*9 enables expert technicians to quickly troubleshoot and
provide solutions via a telephone line or the Internet.
*9 This is not available in certain destinations.
Printer/Network Printer
Options
Flash Memory
4MB Flash Memory UE-410047
8MB Flash Memory UE-410048
Consumables
PCL Printer Controller
Module
DA-PC188
Expansion Board
DA-EM600
(Optional expansion
board is not required in
certain destinations)
PS/PCL Multi-Page
Description Language
Controller Module
DA-MC188
Image Memory
Handset Kit UE-403172
(Not available in certain
destinations)
550-sheet
2nd Paper
Feed
Module
DA-DS188
Toner
Cartridge
DQ-UG26H
Image Memory
(16MB)
DA-SM16B
(64MB)
DA-SM64B
(128MB)
DA-SM28B
(Not available in certain destinations)
Hard Disk Drive Unit
Hard Disk Drive Unit
DA-HD19
Drum Unit
DQ-UH34H
Software
Accounting Software
DA-WA10
DP-180 Specifications
General Functions
Type
Print Process
Developing Process
Automatic Document Feeder
Paper Feed
Desktop
Laser Indirect Electrostatic
Dry Single Component
50 sheets (A4, 75 g/m2)
Standard 250-sheet paper tray unit x 1 + 1-sheet bypass
Maximum 800 sheets with option
Paper Weight
Paper Tray:
60 to 105 g/m2
Bypass:
60 to 165 g/m2
Power Requirements
AC 220 - 240 V, 50/60 Hz
Power Consumption
Maximum Power: 1 kW
Power Saver Mode: Approximately 20 Wh
Sleep Mode:
Approximately 12 Wh
Dimensions*1 (Excluding optional equipment)
462 x 506 x 523 mm (W x D x H)
Weight*1 (Excluding optional equipment)
Approximately 22 kg
G3 Fax Functions
Compatibility
Modem Speed
Coding Scheme
Transmission Speed*2
Scanning Speed*3
Scanning Resolution
Standard:
Fine:
Super Fine:
600 dpi:
Effective Scanning Width
Recording Resolution
Standard Memory*4
Optional Memory*4,*5
No. of Auto Diallers
Digital Copier Functions
First Copy Time
Resolution
Gray Scale
Multi Copy Speed*6
Maximum Original Size
Copy Size
Copy Ratio
Enlargement (fixed)
Reduction (fixed)
Zoom (variable)
Multiple Copy
Exposure Controller
Image Memory
Standard
for Sorting
Optional*5
ITU-T Group 3, ECM
33.6 kbps - 2.4 kbps with automatic fallback
JBIG/MMR/MR/MH
Approximately 2.9 seconds
2.9 seconds (A4 portrait in Standard, Fine, SuperFine and 600
dpi mode)
203 dots/inch x 98 lines/inch (8 dots/mm x 3.85 lines/mm)
203 dots/inch x 196 lines/inch (8 dots/mm x 7.7 lines/mm)
406 dots/inch x 391 lines/inch (16 dots/mm x 15.4 lines/mm)
600 x 600 dpi
207 mm
Maximum 600 x 600 dpi
2 MB (approximately 120 pages)
Base memory plus 4 MB (320 pages)/ 8 MB (640 pages)
200 (Maximum 1,000 with optional HDD)
Approximately 10 seconds (A4)
600 x 600 dpi
256 steps
Up to 18 cpm
A4, Foolscap*7
A4 - A5*8 / Foolscap*7
141%, 137%
97%, 90%, 71%, 64%
50% – 200% (in 1% increments)
1 to 999, Automatic reset to 1
Text, Text/Photo, Photo
16 MB
Base Memory plus 16 MB/64 MB/128 MB
12 GB (with optional HDD)
Network Printer Functions
Printer Interface
Local Printer Interface
Printer Language
Standard
Option
Printing Speed*2
Paper Size
Printing Resolution
Ethernet 10Base-T/100Base-TX
USB1.1
Panasonic Printing System for Windows®
PCL 6 Emulation*9, Adobe® PostScript®3™*10
18 ppm
A4 - A5*8 / Foolscap*8, Envelope*8
1,200 dpi equivalent x 600 dpi (PCL, PS)
600 dpi x 600 dpi, 300 dpi x 300 dpi (GDI, PCL, PS)
20MB
Windows® XP/2000/Server 2003/98/Me, Windows NT® 4.0
Mac OS 8.6 – 10.3 (PS only)
Printer Memory
Compatible Operating Systems
Scan-to-Email / Internet Fax Functions
Compatibility
Communication Protocol
Network Connectivity
Data Format*11
IETF RFC 3965, ITU-T T.37
TCP/IP, SMTP, POP3, LDAP*5
Ethernet 10BASE-T /100BASE-TX (IEEE802.3)
TIFF-FX (Profile S/F/J), PDF, JPEG
Notes
*1 Dimensions and weight are approximate.
*2 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between the same models at maximum modem
speed. Transmission time may vary in actual usage. Usually public telephone lines can only support communication speeds of 28.8 kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*3 Scanning speed applies to the feeding process from the top to the end of a single page test chart. The time for the feeding process does not include the
time that it takes for the top edge of the page to reach the scanning point and page ejection. Time for entire storing process is not applied.
*4 Based on ITU-T Image No.1 scanned in Standard resolution mode.
*5 May not be available in certain destinations.
*6 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
*7 From ADF only.
*8 Bypass only.
*9 PS/PCL Multi-Page Description Language Controller Module or PCL Printer Controller Module is required.
*10 PS/PCL Multi-Page Description Language Controller Module is required.
*11 Internet Fax only supports TIFF-FX format.
Design and specification are subject to change without notice.
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®3™, PDF and PostScript logo® are trademarks of Adobe Systems, Inc.
PCL is either trademark or registered trademark of Hewlett-Packard Company and/or its subsidiaries.
WORKiO™ is a trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product names are the property of their respective holders.
Dimensions
As an ENERGYSTAR® partner, Panasonic has
determined that this product meets the
ENERGYSTAR® guidelines for
energy efficiency.
523 mm
ISO 9001 Quality Management System
663 mm
Our business processes which produce document, information and network
products, from manufacturing to marketing, conform to ISO 9001 Quality
Management Systems standard. Design, development, manufacture, installation,
repair and maintenance of document, information and network products, their
associated devices
and consumables. In
addition, the plants
outside Japan have
acquired ISO 9001
certification.
506 mm
462 mm
Network Scanner Functions
Network Scanner Interface
Scanning Size
Scanning Resolution
Colour:
Black & White:
Scanning Speed*3
Colour:
Black & White:
Coding Scheme
Colour:
Black & White:
Data Format
Colour:
Black & White:
Ethernet 10Base-T/100Base-TX
A4 - A5*8 / Foolscap*7
75 x 75 dpi, 150 x 150 dpi, 300 x 300 dpi
150 x 150 dpi, 300 x 300 dpi, 600 x 600 dpi
Approximately 12 seconds (A4)
Approximately 2.9 seconds (A4)
JPEG
JBIG/MMR/MR/MH
JPEG, PDF
TIFF, PDF
MG-C471EE 0603 Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
