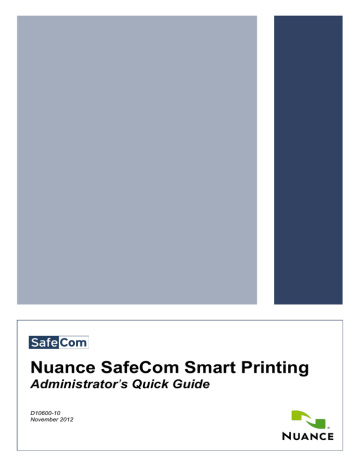

Nuance SafeCom Smart Printing

Nuance SafeCom Smart Printing

Nuance SafeCom Smart Printing

Administrator

s Quick Guide

D10600-10

November 2012

Trademarks: Nuance, the Nuance logo, SafeCom, SafeCom Go, SafeCom

P:Go, SafeCom ePay and the SafeCom logo are trademarks of Nuance

Communications, Inc. or its affiliates in the United States and/or other countries.

All other trademarks referred to herein are the property of their respective owners. Nuance Communications, Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to products and documentation without prior notification.

Third Party Software: This software may contain third party software which requires notices and/or additional terms and conditions. Such required third party software notices and/or additional terms and conditions are located in the

SafeCom Third Party Notice document.

Patent: Nuance Communications, Inc. has received the following British patent

GB 2350 713 B, US patent US 6,952,780 B2 and Europe EUR EP1 120 701.

© Copyright 1995 - 2012 Nuance Communications, Inc. All rights reserved

D10600-10

Nuance Communications, Inc.

Lautrupvang 12

DK-2750 Ballerup

Denmark

Phone: +45 4436 0240

E-mail: [email protected]

Web: safecom.eu

2

Table of contents

1 Introduction ............................................................................................4

1.1

1.2

1.3

Audience ..................................................................................... 4

Overview ..................................................................................... 4

1.2.1

1.2.2

1.2.3

1.2.4

Technical background ..................................................... 4

Planning ...................................................................... 5

Installation .................................................................. 5

Reporting .................................................................... 5

1.2.5

Uninstall ..................................................................... 6

Additional documentation ................................................................ 6

2 Installation..............................................................................................7

2.1

2.2

2.3

2.4

2.5

Install SafeCom G4 software on the server ............................................ 7

2.1.1

Windows Firewall - Ports that must be opened ....................... 7

Login to SafeCom Administrator ......................................................... 7

Getting started with SafeCom Assistant ............................................... 8

Add a SafeCom Pull Printer ............................................................ 11

SafeCom Port Configurator ............................................................. 12

3 Reporting ............................................................................................. 13

3.1

3.2

3.3

Install SafeCom Reports ................................................................. 13

Start SafeCom Reports .................................................................. 13

Generate a report ........................................................................ 13

D10600-10

3

1 Introduction

Thank you for choosing to use SafeCom Smart Printing. This manual applies to

SafeCom G4 Server version S82 070.500*01.

1.1 Audience

This manual is intended for people with working experience installing programs and adding printers in the Windows environment as well as those responsible for their organization’s print solution.

1.2 Overview

Before you jump ahead and install the software we suggest you READ THIS

SECTION FIRST

as it provides technical background (1.2.1) as to how the

product works and outlines how to proceed with:

Planning (1.2.2)

Installation (1.2.3)

Reporting (1.2.4)

Uninstall (1.2.5)

1.2.1 Technical background

Think of the SafeCom product as a Swiss army knife with a multitude of useful and flexible functions that can be applied on a need-to-use basis to help your organization save costs, optimize your print solution and benefit the environment.

Our customer base includes the world’s largest bank, universities, hospitals and corporate businesses conscious about staying ahead in an increasingly competitive world.

This Quick Guide explains how to perform a basic installation of the SafeCom

G4 server software and add one or two printers to the SafeCom solution.

The SafeCom product offers two methods of printing:

Pull Print

Documents follow users to their choice of device. User login at the device by means of a personal ID card and/or code. The SafeCom Pull Port is used for printing.

Push Print

Documents are printed directly to the device, similar to using a standard

TCP/IP port. By using the SafeCom Push Port it is possible to have the

SafeCom solution track what users are printing and optionally charge for this and/or apply SafeCom Rule Based Printing.

D10600-10

4

The SafeCom G4 Server Software comes with the SQL Server 2008 R2 Express database for storing user and tracking information. Users are added to the database the first time they print, but they can also be imported from, for example, the Active Directory.

The SafeCom Administrator is used to configure and administrate your

SafeCom solution.

The SafeCom Port Configurator is used to conveniently convert direct TCP/IP printers on your print server to Push printers and thus allow tracking of documents sent directly to devices. The printers can be reverted back to

TCP/IP printers if required.

1.2.2 Planning

The SafeCom G4 Server Software needs to be installed on a Windows 2008 or

2003 SP2 server with at least 1.4 GHz CPU and 2 GB RAM. Microsoft SQL Server

2008 R2 Express is distributed with the software and REQUIRES Microsoft .Net

Framework 3.5 SP1 and Windows Installer 4.5. Please visit microsoft.com to download and install these prior to the installation of SafeCom G4.

These are questions you should address in the planning phase:

Who will be responsible?

What server is to be used for installation?

What device will be used for initial testing?

Which devices do you want to collect data from?

1.2.3 Installation

When you have identified an appropriate server you can install the SafeCom G4 server software on it. After installation the SafeCom Assistant will guide you through a 3-step process to make printers and multifunction printers (MFPs) part of the SafeCom solution.

The embedded license allows for 1 SafeCom Controller, 1 SafeCom Go and 1

SafeCom Go High-end with all device features enabled and a total of 10 tracking licenses for a 30-day trial period starting from the time of installation.

Refer to chapter 2 Installation.

1.2.4 Reporting

Install and use SafeCom Reports (free) to generate reports when tracking data has been collected over a period of time, for example a week or a month.

Refer to chapter 3 Reporting.

D10600-10

5

1.2.5 Uninstall

To uninstall you must first use SafeCom Port Configurator to restore printers converted to SafeCom Push back to their original TCP/IP settings.

Then use Programs and Features (or Add/Remove Programs) to uninstall

SafeCom G4, SafeCom Reports and Microsoft SQL Server 2008 R2.

To completely remove SQL Server 2008 R2 Express delete SafeCom SQL database files (sc*.mdf and sc*.ldf) in the folder:

C:\Program Files\

Microsoft SQL Server\MSSQL10_50.SAFECOMEXPRESS\

MSSQL\DATA

1.3 Additional documentation

Your SafeCom 30-day embedded or trial license key code allows you to explore beyond what is covered in this Quick Guide. For additional information you should consult SafeCom G4 Administrator’s Manual D60650 to try:

SafeCom Tracking (Chapter 9)

SafeCom Tracking makes it possible to track print and MFP usage and costs on a per printer/MFP and user basis.

SafeCom Rule Based Printing (Chapter 10)

SafeCom Rule Based Printing makes it possible to gain cost savings by offering management a method of enforcing policies for printing.

SafeCom Client Billing (Chapter 11)

SafeCom Client Billing module makes it possible to register billing codes with any job that is tracked by the SafeCom solution.

SafeCom Pay (Chapter 12)

SafeCom Pay provides total print cost management. In addition to the

SafeCom Tracking it can be used to prevent a user from printing if the balance of his account goes below a specified low limit.

D10600-10

6

2 Installation

2.1 Install SafeCom G4 software on the server

Note: Microsoft SQL Server 2008 R2 Express is distributed with the software

and

REQUIRES

Microsoft .Net Framework 3.5 SP1 and Windows Installer 4.5.

Please visit microsoft.com to download and install these prior to the

installation of SafeCom G4.

1. Insert the SafeCom CD or download the safecom_g4_xxx_32bit.exe or safecom_g4_xxx_64bit.exe file from the link supplied to you. The installation must be Run as administrator. When the installation program is launched click Next.

2. Read and accept the end-user license agreement. Click Next.

3. Click Basic server installation. Click Next.

4. Current settings are displayed. Click Install to accept and start the installation. The Microsoft SQL Server 2008 R2 Express is also installed.

The Print Spooler is restarted at the end of this process.

5. Click Finish to launch SafeCom Administrator.

6.

If Windows Firewall is on, then open ports as specified (2.1.1).

To start SafeCom Administrator later on:

Click Start, point to All Programs, SafeCom G4 and click SafeCom

Administrator.

2.1.1 Windows Firewall - Ports that must be opened

If Windows Firewall is enabled it may prevent the SafeCom solution from working. Disable the firewall or run the script below.

1. Browse to the SafeCom installation folder.

2. Right-click open_firewall_safecom.cmd. The command file must be Run

as administrator. In the file you can see what TCP and UDP ports will be opened.

Note: If users are to be imported from Active Directory you will need to add

TCP port 389 (or 636 if the import is to be secure via SSL/LDAPS).

2.2 Login to SafeCom Administrator

1. In SafeCom Administrator click on the server to login.

2. Enter User logon (default is ADMIN) and Password (default is nimda).

D10600-10

7

2.3 Getting started with SafeCom Assistant

When you login to SafeCom Administrator it will present the SafeCom

Assistant.

The SafeCom Assistant will guide you through a 3-step process to make your devices part of the SafeCom solution. You can jump between the steps by clicking on the title, for example 2 Add SafeCom Pull Printer.

1.

Devices

Select device type

Click the type of SafeCom device: SafeCom Go (Canon, Fuji Xerox,

HP, Konica Minolta, Kyocera, Lexmark, Océ, Ricoh, Samsung, Sharp,

Xerox, …) or SafeCom Controller (Other).

D10600-10

8

Download device manuals and software

Download is required if the manuals and device_software subfolders does not contain the required files. Click Next.

Open device manual (and install device hardware etc.)

The relevant device manual appears. Open the manual, as you may need to consult it in order to install device hardware and/or send software to the device. The manual is in PDF format and requires

Adobe Reader. Click Next.

D10600-10

9

2. Add a SafeCom Pull Printer

Add a SafeCom Pull printer

Click Windows Add Printer Wizard to add a shared printer to be used for Pull printing. Follow the instructions in the device manual.

If a SafeCom Pull Printer is already added this step is not necessary.

D10600-10

Add device

Click Add device to add the physical device to the SafeCom solution. On SafeCom Go HP, SafeCom Go Lexmark and SafeCom Go

Ricoh you also need to send software to the device. Follow the steps in the device manual.

3.

Add a SafeCom Push Printer

Open SafeCom Port Configurator

If you have an existing TCP/IP printer and wish to convert it to a

SafeCom Push printer in order to track documents that are printed directly. Click Close and follow the steps in SafeCom Port

Configurator (2.5).

10

2.4 Add a SafeCom Pull Printer

1. Click Start, Settings and Printers.

2. Double-click Add Printer. The Add Printer Wizard appears.

3. On Windows 2008: Click Add a local printer.

On Windows 2003: Click Next. Select Local printer and clear

Automatically detect and install my Plug and Play printer. Click Next.

Note: If you have already created a printer that uses the SafeCom Pull

Port, you should use this port instead of creating a new one (as described

in step 4, 5 and 6).

4. Choose Create a new port and select SafeCom Pull Port from the dropdown list. Click Next.

5. Enter a unique name of your choice for the port in Port Name. Click OK.

6. The Configure Pull Port dialog allows you to enter the IP address or host name of the SafeCom server. Select Use network logon as method of

User authentication.

D10600-10

7. Click OK. The Authorize port configuration dialog appears. Enter User

logon and Password of a user that has SafeCom Administrator or

Technician rights. Click OK.

11

8. Click Have Disk to install the files from the printer manufacturer's installation disk (or downloaded the files from the manufacturer's web site). Click Next.

9. Enter a Printer name and choose whether or not this printer should be your default Windows printer. Click Next.

10. Select Share this printer and enter Share name. Click Next.

11. On Windows 2008: Click Print a test page to verify the system. Click OK when prompted to confirm that the test page printed correctly. Click

Finish.

On Windows 2003: Select Yes to print a test page to verify the system.

Click Next. Click OK when prompted to confirm that the test page printed correctly. Click Finish.

Note: In SafeCom Administrator the Test page will appear as a pending

print job under the user you are logged in as (Administrator).

Check the Properties of the printer:

1. Right-click the printer and click Printer properties.

2. On the Device Settings tab check settings, such as paper size in the trays and installable options.

3. On the Advanced tab check Start printing after last page is spooled as this allows faster spooling.

4. Click OK.

For high load systems you can minimize the wait for documents to be processed and transferred to the SafeCom server by checking Enable printer pooling on the Ports tab and add multiple identically configured SafeCom Pull Ports. In our experience 1-4 ports is sufficient and no more than 12 ports should be added.

2.5 SafeCom Port Configurator

If you have an existing TCP/IP print queue you can convert this into a Push print queue.

1. Check Convert to Push. Click Next.

2. The Convert to Push dialog appears with one or more servers, including

Local Machine.

3. Check the printers to be converted from TCP/IP to Push. Click Next.

4. Leave default choices as is (normal). Click Next.

5. Check Printer not registered in SafeCom server (normal). Click Next.

6. A dialog appears with information about the number of converted printers. Click OK.

7. The Continue dialog appears. Make your choices. Click Next.

To start SafeCom Port Configurator later on:

Click Start, point to All Programs, SafeCom G4 and click SafeCom Port

Configurator.

Please refer to SafeCom G4 Administrator’s Manual D60650 for detailed information on SafeCom Port Configurator.

D10600-10

12

3 Reporting

3.1 Install SafeCom Reports

1. Download the software from the link supplied to you.

The installation must be Run as administrator.

2. When the SafeCom Reports Setup Wizard appears, click Next.

3. Select the location for the SafeCom Report files. Optionally click Disk

Cost… to check the available disk drives for required disk space. Check

Everyone to install SafeCom Reports so everyone who uses the computer can use it. Click Next.

4. Click Next to start the installation. A progress bar appears.

5. Click Close when the installation has completed.

Refer to: SafeCom Reports Administrator’s Manual D60609

The default installation location is:

C:\Program Files\SafeCom\SafeCom Reports

3.2 Start SafeCom Reports

1. Click Start, point to Programs and click SafeCom Reports.

2. Enter SafeCom Server (hostname or IP address) or click the SafeCom

Server button to broadcast for available SafeCom servers. Enter User

(default is ADMIN) and Password (default is nimda).

3. Click Login.

3.3 Generate a report

1. Once you are logged into SafeCom Reports you will be able to generate a report. Select a report type in in the Report column, for example Device

usage or Largest Print Users.

2. Click Extract New Data for Report.

3. In most reports you need to specify the time periods Date of first record and Date of last record.

4. Click OK to generate the report. In the Exporting Records dialog you can monitor the progress as records are being exported.

Note: At the end of each report there is a description of the report. It is

possible to exclude this description.

Popular reports:

Device Usage

Job List

Largest Print Users

Detail User Print Summary

D10600-10

13

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
