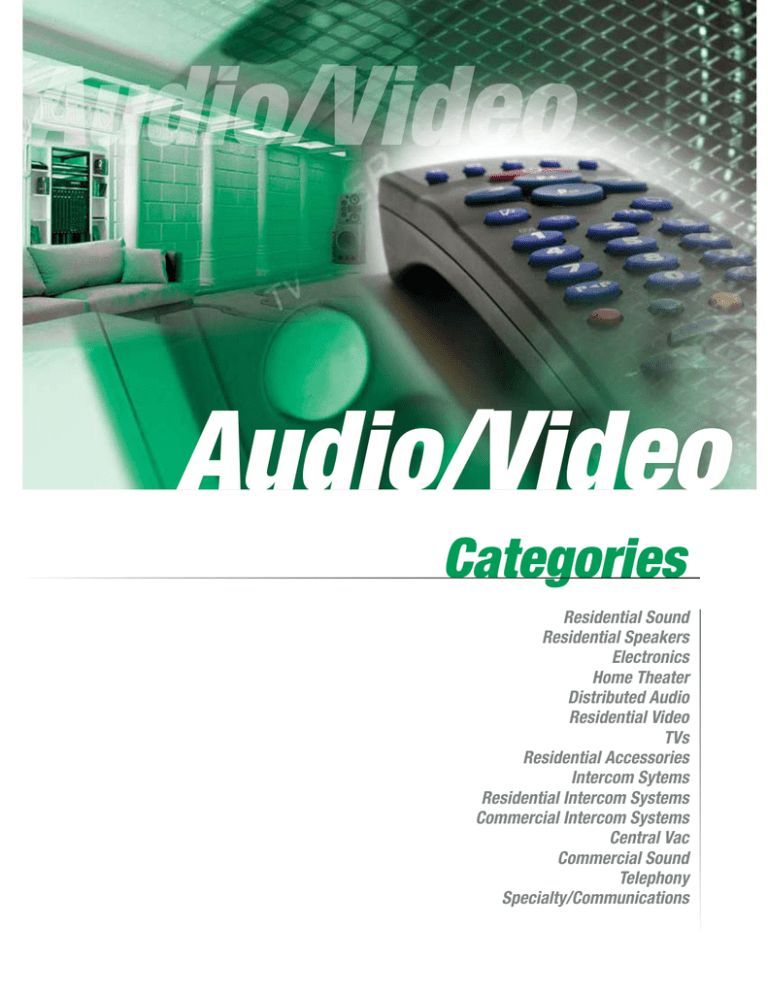

Audio/Video
A
Audio/Video
Categories
Residential Sound
Residential Speakers
Electronics
Home Theater
Distributed Audio
Residential Video
TVs
Residential Accessories
Intercom Sytems
Residential Intercom Systems
Commercial Intercom Systems
Central Vac
Commercial Sound
Telephony
Specialty/Communications
Residential Speakers
In-Wall Passive Subwoofers
In-Ceiling LCR Speaker
UI-AW8SW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 8", 100 Watts
UI-AS10SW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 10", 150 Watts
UI-ASLCR6C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 25-150 watt in-ceiling LCR speaker
• 6.5" mineral filled mid bass driver with 15° angle
• 1.0" soft dome tweeter
• The UI-ASLCR6C can be used in a left, center, right (LCR)
configuration, as stereo pairs, rear channel speakers
or anywhere high quality sounds need to be directed from
the ceiling
• Sold individually (shipping master of 3)
Audio/Video
•
•
•
•
240
Carbon Polypropylene Woofers
8" sub includes standard Dog Ear Mounting system
10" Sub features easy in mounting bracket
Both packaged as each
HT Center Channel Speaker
On-Wall Satellite Speakers
UI-AST220C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $77.99/3
• Charcoal Gray extruded all metal aluminum housing with
metal grills
• Dual 4.25" Poly Mid bass drivers
• 1.0" parachute soft dome tweeter
• Magnetically shielded, perfect for Plasma or LCD TV/Monitors
• Includes both a wall mounting bracket or rubber isolation
pads for shelf mounting option
• Dimensions: 3.5" D x 20" W x 5" H
• Sold individually
UI-AST220S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Dual 4" mid bass drivers
• 1.0" parachute silk soft dome tweeters
• Charcoal Gray all metal extruded aluminum housings
• Magnetically shielded, perfect for Plasma or LCD TV/Monitors
• Optional mounting base for table top setting
• Creates perfectly matched LCR set when combined with
UI-AST220C Center channel speaker
• Dimensions: 3.5" D x 20" H x 5" W
• Includes wall mounting brackets
100 Watt Powered Subwoofer
In-Ceiling Speakers
UI-PSW100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $96.99/3
• 10" down firing powered subwoofer with front port
• True 100 Watt RMS internal power amplifier
• Level control and Low Pass Frequency adjustment
80 Hz to 200 Hz
• Flat matte finish
• Dimensions: 11.5" D x 14" H x 11" W
7B-PC520 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $68.99/3
• 5" 2-way round speaker
7B-PC620 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $91.99/3
• 6" 2-way round speaker
7B-PC640T2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $91.99/3
• 6" 2-way dual tweeter round
7B-PC645 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $206.99/3
• High performance 6 ohm speaker
7B-PC843LCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $229.99/3
• 8" 3-way round speaker
In-Wall Speakers
Voyager Rock Speakers
7B-PW620 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $88.99/3
• 6" 2-way rectangular speaker
7B-PW543LCR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $183.99/3
• Dual 5" woofers and
• Kortec tweeter
7B-PW820 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $220.00/3
• 8" 2-way rectangular speaker
7B-VOYARK5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
7B-VOYARK6T2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
7B-VOYARK8T2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Outdoor Rock Speaker
• Weatherproof
• Optional 70/100 Volt transformer for use in commercial
applications
• Sold as individuals
• Available in New England Granite, River Rock, and Sandstone
Voyager Outdoor Speaker
XB Subwoofers
7B-VOYAGER4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $114.99/3
7B-VOYAGER5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $150.99/3
7B-VOYAGERM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Indoor/outdoor speaker
• Easy to mount
• Protected by powder coated aluminum grille
• UV resistant polypropylene cabinet
• Heavy duty aluminum C-brackets included
• Sold in pairs
• Available in black or white
7B-XB2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $153.99/3
7B-XB4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $200.99/3
• Powered subwoofer with vented enclosure and front firing
Deep Channel™ woofer
• Speaker level inputs
• Bass Trac® circuitry eliminates distortion
Surround Loudspeakers
Surround Loudspeakers
JB-HKS6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $71.99/3
• 2-way satellite speakers
• 3" midrange
• 1/2" high-frequency driver
• Upgrade to 7.1 speaker system
• Includes wall mount brackets, upgraded shelf stands
& cables
• Use with optional JB-HTFS2 floor stands
• Black-lacquer finish
• Sold in pairs
JB-HKS9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $91.99/3
• 2-way satellite speakers
• Dual 3" midrange
• 3/4" high-frequency driver
• Upgrade to 7.1 speaker system
• Includes wall mount brackets, upgraded shelf stands
& cables
• Use with optional JB-HTFS2 floor stands
• Black-lacquer finish
• Sold in pairs
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
Residential Speakers
242
6-Pc. Home Theater Speaker System
6-Pc. Home Theater Speaker System
JB-HKTS15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $372.99/3
• 100-watt bass-reflex powered subwoofer with 10" driver
• 4 satellite speakers with 3" midrange and
1/2" high-frequency driver
• Voice matched dual-midrange center channel speaker
with 3/4" dome tweeter
• Trigger input for auto turn-on
• Video shielded (except subwoofer)
• Black-lacquer finish
JB-HKTS18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $496.99/3
• 200-watt bass-reflex powered subwoofer with 10" driver
• 4 satellite speakers with 3" dual midranges and
1/2" high-frequency driver
• Voice matched dual-midrange center channel speaker
with 3/4" dome tweeter
• Trigger input for auto turn-on
• Video shielded (except subwoofer)
• Black-lacquer finish
Floor Stands
2-Way 6-1/2" In-Ceiling Loudspeaker
JB-HTFS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $74.99/3
• Slim profile, aluminum extrusion columns
• Wire management system
• Compatible with JB-HKS6, JB-HKS9, JB-HKTS11,
JB-HKTS15 and JB-HKTS18 satellite speakers
• Available in silver & black-lacquer finish
JB-L226C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $137.99/3
• Low-frequency driver 6-1/2" (165mm) aluminum cone
• High-frequency driver 1" (25mm) Titanium-laminate
• Frequency Response 30Hz - 20kHz (±6dB)
• Recommended amplifier power range 10 - 125 watts
• Sensitivity (2.83V @ 1m) 89dB • Nominal Impedance 8 ohms
• Crossover frequency 2,500Hz; 24dB/octave
• Dimensions (H x W x D) Diameter: 9-3/16" (233mm)
• Mounting depth 4-1/8" (104mm)
• Cut-out diameter 7-7/8" (200mm)
• Weight 3.5 lb (1.6kg)
2-Way 6-1/2" In-Wall Loudspeaker
2-Way 8" In-Ceiling Loudspeaker
JB-L226W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $137.99/3
• Low-frequency transducer 61/2" (165mm) aluminum cone
• High-frequency transducer 1" (25mm) Titaium-laminate
• Frequency response 30Hz-20kHz(+-6dB)
• Recommended amplifier power range: 10-125 watts
• Sensitivity ([email protected]):89dB • Nominal impedance: 8 ohms
• High-frequency level control
• Dimensions (H x W x D) 8-1/2" x 11" (216mm x 279mm)
Mounting depth 3-9/16" (90mm)
Cutout dimensions (H x W) 7”x 9-1/2” (178mmx241mm)
• Weight: 3.5lb (1.6kg)
JB-L228C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $183.99/3
• Low-frequency driver 8" (200mm) aluminum cone
• High-frequency driver 1" (25mm) Titanium-laminate
• Crossover frequency 2,500Hz; 18dB/octave
• Frequency response 28Hz - 20kHz (±6dB)
• Recommended amplifier power range 10 - 135 watts
• Sensitivity (2.83V @ 1m) 90dB • Nominal Impedance 8 ohms
• Dimensions: (H x W x D) Diameter: 10-7/8" (276mm)
• Mounting Depth 4-5/8" (104mm)
• Cut-Out Diameter 9-1/2" (241mm)
• Weight 5.8 lb (2.6kg)
2-Way 6-1/2" In-Ceiling Loudspeaker
2-Way 6-1/2" In-Wall Loudspeaker
JB-LS326C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $214.99/4
• Low-frequency driver 6-1/2" (165mm) aluminum cone
• High-frequency driver 1" (25mm) Pure-Titanium
• Frequency response 30Hz - 30kHz (±6dB)
• Recommended amplifier power range 10 - 135 watts
• Sensitivity (2.83V @ 1m) 89dB • Nominal Impedance 8 ohms
• Crossover Frequency 2,500Hz; 18dB/octave
• Dimensions (H x W x D) Diameter: 9-3/16" (233mm)
• Mounting depth 4-1/8" (104mm)
• Cut-out diameter 7-7/8" (200mm)
• Weight 3.5 lb (1.6kg)
JB-LS326W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $240.99/3
• Low-frequency driver 6-1/2" (165mm) aluminum cone
• High-frequency driver 1" (25mm) Pure-Titanium
• Frequency response 30Hz - 30kHz (±6dB)
• Recommended amplifier power range 10 - 135 watts
• Sensitivity (2.83V @ 1m) 89dB • Nominal Impedance 8 ohms
• Crossover frequency 3,000Hz; 24dB/octave
• Dimensions (H x W x D) 8-1/2" x 11" (216mm x 241mm)
Mounting Depth 3-9/16" (90mm)
Cutout Dimensions (H x W) 7" x 9-1/2" (178mm x 241mm)
• Weight
2-Way 8" In-Ceiling Loudspeaker
Venue™ Series Arena
JB-LS328C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $275.99/3
• Low-frequency driver 8" (200mm) aluminum cone
• High-frequency driver 1" (25mm) Pure-Titanium
• Frequency response 28Hz - 30kHz (±6dB)
• Recommended amplifier power range 10 - 150 watts
• Sensitivity (2.83V @ 1m) 90dB • Nominal Impedance 8 ohms
• Crossover frequency 2,500Hz; 18dB/octave
• Dimensions (H x W x D) Diameter: 10-7/8" (276mm)
• Mounting depth 4-5/8" (117mm)
• Cut-out diameter 9-1/2" (241mm)
• Weight 5.8 lb (2.6kg)
JB-ARENA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $150.99/3
• 2-way bookshelf speaker
• 6" PolyPlas™ woofer and 3/4" Titanium-laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide ensures superior frequencies
throughout room
• Sold in pairs
Venue™ Series Balcony
Venue™ Series Monitor
JB-BALCONY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $108.99/3
• 2-way on-wall speaker
• 2-way bookshelf/on-wall satellite speaker
• 4" PolyPlas™ woofer and
• 3/4" Titanium laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide
• Sold in pairs
JB-MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103.99/3
• 2-way bookshelf speaker
• 5" PolyPlas™ woofer and 3/4" Titanium-laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide ensures superior frequencies
throughout room
• Sold in pairs
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Speakers
Venue™ Series Stage
JB-STADIUM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $179.99/3
• 3-way floorstanding speaker
• 8" PolyPlas™ woofer, 4" PolyPlas™ midrange
and 3/4" Titanium-laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide ensures superior frequencies
throughout room
• Sold individually
JB-STAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $115.99/3
• 3-way floorstanding speaker
• 6" PolyPlas™ woofer,
• 4" PolyPlas™ midrange and 3/4" Titanium-laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide ensures superior frequencies
throughout room
• Sold individually
Venue™ Series Tour
Venue™ Series Voice
JB-TOUR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $100.99/3
• 2-way bookshelf/on-wall satellite speaker
• 4" PolyPlas™ woofer and 3/4" Titanium-laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide
• Sold in pairs
JB-VOICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $98.99/3
• 2-way center channel speaker
• Dual 5" PolyPlas™ woofer and 3/4" Titanium-laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide
• Sold individually
3-Way, Bookshelf Loudspeaker
4-Way, Floorstanding Speaker
JB-L830. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 6" PolyPlas™ woofer, 1" Pure-Titanium tweeter
• 3/4" ultrahigh-frequency driver
• Extended high frequencies to 40kHz;
Perfect for high-definition sources
• Cast-aluminum woofer with HeatScape™ technology delivers
tight, deep bass and high power handling
• Proprietary EOS™ waveguide ensures superior high
frequencies throughout the listening room
• Available in black, beech or cherry wood-grain
• Sold in pairs
JB-L880. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $360.99/3
• 6" PolyPlas™ woofer, 1" Pure-Titanium tweeter
• 3/4" ultrahigh-frequency driver
• Extended high frequencies to 40kHz;
Perfect for high-definition sources
• Cast-aluminum woofer with HeatScape™ technology delivers
tight, deep bass and high power handling
• Proprietary EOS™ waveguide ensures superior high
frequencies throughout the listening room
• Available in black, beech or cherry wood-grain
• Sold individually
12" High-Performance Powered Subwoofer
Cinema Sound™ 2-Way Center Channel Speaker
JB-L8400P. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $712.99/3
• 12", 600-Watt Powered Subwoofer with 1,200-Watt peak
dynamic power
• Add bass impact and excitement to all your favorite music
and movie soundtracks
• PolyPlas™ driver delivers cleaner, more realistic low
frequencies
• LFE/Line and speaker level inputs for maximum connection
flexibility
• Adjustable crossover and phase switch
• Sold individually
JB-CSC55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $177.99/3
• 5" PolyPlas™ woofer and 3/4" Titanium-laminate tweeter
• Magnetically shielded PolyPlas™ woofer with
HeatScape™ technology
• Proprietary EOS™ waveguide
• Sold in pairs
Cinema Sound™ 10" Powered Subwoofer
Cinema Sound™ 2-Way Floorstanding Speaker
JB-CSS10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $253.99/3
• 10", 150 watt powered subwoofer with 300 watt peak
dynamic power
• PolyPlas™ driver delivers cleaner,
more realistic low frequencies
• LFE/Line inputs for maximum connection flexibility
• Adjustable crossover & phase switch
• Sold individually
JB-CST55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $206.99/3
• 5” PolyPlas™ woofer and 3/4" Titanium-laminate tweeter
• Magnetically shielded
• PolyPlas™ woofer with HeatScape™ technology
• Proprietary EOS™ waveguide
• Sold in pairs
Dual 5" 2-Way LCR In-Wall Speaker
6.5" In-Wall Speaker
JB-HTI55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $115.99/3
• Dual 5" polymer-coated, aluminum cone woofers
with rubber surrounds
• 1" Pure-Titanium dome swivel mounted tweeter in
EOS waveguide
• Long excursion, low frequency driver design
• Rear mounted woofers
• Paintable
• Sold individually
JB-HTI6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $235.99/3
• 6.5" black anodized aluminum alloy woofers
• 1" Pure-Titanium dome tweeters
• 1.25" woofer voice coil
• Rear-mounted woofers
• Butyl-rubber, half-round woofer surround
• Rough-in frames available
• Sold in pairs
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
Venue™ Series Stadium
243
Audio/Video
Residential Speakers
244
6.5" 2-Way Round Ceiling Speaker
8" In-Wall Speaker
JB-HTI6C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $151.99/3
• 6.5" polymer coated aluminum cone woofers with
rubber surrounds
• 1" Pure-titanium dome swivel-mounted tweeters
• Magnet structure with extended pole piece
• Rear mounted woofers
• Rough-in frames available
• Sold in pairs
JB-HTI8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $294.99/3
• 8" polymer-coated aluminum cone woofers
• 1" Pure-titanium dome tweeter in EDS WaveGuide
• 120W power handling
• Rear-mounted woofers
• Butyl-rubber, half-round woofer surround
• Rough-in frames available
• Sold in pairs
3-Way, 5 1/4" Bookshelf Loudspeaker
4-Way, Bookshelf Wall-Mount Speaker
JB-L810. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $317.99/3
• 5-1/4" PolyPlas™ woofer, 1" Pure-Titanium tweeter
• 3/4" ultrahigh-frequency driver
• Extended high frequencies to 40kHz;
Perfect for high-definition sources
• Cast-aluminum woofer with HeatScape™ technology delivers
tight, deep bass and high power handling.
• Proprietary EOS™ waveguide ensures superior
high frequencies throughout the listening room
• Beautifully finished in black, beech or cherry wood-grain
JB-L820. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $386.99/3
• 6" PolyPlas™ woofer, 4" PolyPlas™ midrange
• 1" Pure-Titanium tweeter
• 3/4" ultrahigh-frequency driver
• Extended high frequencies to 40kHz.
Perfect for high-definition sources
• Cast-aluminum woofer with HeatScape™ technology delivers
tight, deep bass and high power handling.
• Proprietary EOS™ waveguide ensures superior high
frequencies throughout the listening room
• Available in black, beech or cherry wood-grain
4-Way, Floorstanding Speaker
3-Way Center Channel Speaker
JB-L890. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $404.99/3
• Dual 8" PolyPlas™ woofer, 1" Pure-Titanium tweeter
• 3/4" ultrahigh-frequency driver
• Extended high frequencies to 40kHz.
Perfect for high-definition sources
• Cast-aluminum woofer with HeatScape™ technology delivers
tight, deep bass and high power handling.
• Proprietary EOS™ waveguide ensures superior high
frequencies throughout the listening room
• Available in black, beech or cherry wood-grain
• Sold individually
JB-LC1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $236.99/3
• Dual 5-1/4" PolyPlas™ woofers
• 1" titanium tweeter and 3/4" ultrahigh-frequency
• Extended high frequencies to 40kHz.
Perfect for natural music and film sound reproduction
• Proprietary EOS™ waveguide ensures superior high
frequencies throughout the listening room
• Cast-aluminum woofer with HeatScape™ technology delivers
tight, deep bass and high power handling.
• Available in black, beech or cherry wood-grain finish with
black grilles
4-Way, Wall-Mountable Center Channel
6” Weather-Resistant Bookshelf Speaker
JB-LC2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $306.99/3
• Dual 6" PolyPlas™ woofers,
• 1" titanium tweeter and 3/4" ultrahigh-frequency driver
• Extended high frequencies to 40kHz;
Perfect for natural music and film sound reproduction
• Proprietary EOS™ waveguide ensures superior high
frequencies throughout the listening room
• Cast-aluminum woofer with HeatScape™ technology delivers
tight, deep bass and high power handling
• Available in black, beech or cherry wood-grain finish with
black grilles
JB-N26AWII. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $152.99/3
• 2-way speaker
• Weather-resistant
• Off-white finish
• Sold in pairs
Weather-Resistant Bookshelf Speakers
6-Piece Home Cinema System
JB-S36AWII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $272.99/3
• 3-way 6" horizontal/vertical
• Wall-mountable, weather-resistant
• 1" Pure-titanium dome with rubber surround,
shielded; elliptical oblate spheroidal (EOS™) waveguide
• 150W, 8 ohms, 90dB, 60Hz-20Hz
• Sold in pairs
JB-SCS1455S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Complete 6-piece home cinema system
(5) satellites: 100 watts
(1) Subwoofer: 100 watts RMS
(1) center channel: 2-way with dual woofers
LCR On-Wall Speakers
8-Piece Home Cinema System
C1-F400SLVR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $222.99/3
C1-F400BLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $222.99/3
• One on-wall LCR for use with plasma and LCD flat panel
video displays
• Dual 4" graphite woofers • 1" pivoting aluminum dome tweeter
• ±3dB bass & treble contour switches
• Power Handling: 100 watts • Freq. Response: 62Hz - 20kHz
• Impedance: 4 ohm • Sensitivity: 86dB 1W/1m
• Surface mount bracket included
• Dimensions (H x W x D): 24" x 7-1/2" x 4"
• Sold individually
JB-SCS3005 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $352.99/3
• Complete 5.1 channel music & home theater loudspeaker
system
* (5) satellites: 100 watts
* (1) subwoofer: 150 watts RMS
* (1) center channel: 2-way with dual woofers
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Speakers
6.5" 2-Channel Dual Tweeter
JB-SP6CII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $114.99/3
• 6.5" woofer delivers deep, tight bass
• 80W power handling, 8 ohms
• 1" Titanium-laminate tweeter reproduces high frequencies
with extreme clarity
• 8 ohm
• Rough-in frames available
• Sold in pairs
JB-SP6CSII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $97.99/3
• 6.5" Titanium-laminate polypropylene woofer
• Dual .75" Titanium-laminated dome,
swivel mounted tweeters
• Long excursion, low frequency driver design
• Rear mounted woofer
• 100W power handling (50W PC)
• 8 ohms impedance
• Sold individually
8" 2-Way Round Ceiling Speaker
5.25" 2-Way In-Wall Speaker
JB-SP8CII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $179.99/3
• 8" woofer
• 1" Titanium-laminate tweeter
• Low-diffraction, swivel tweeter mounting system
• 100W power handling, 8 ohms flush mounted
• Integrated dog-ear brackets for retrofit applications
• Rough-in frames available
• Sold in pairs
JB-SP5II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $114.99/3
• 5.25" woofer, 1" tweeter, 60W
• 88dB sensitivity, flush mount
• Rough-in frames available
• Sold in pairs
6.5" 2-Way In-Wall Speaker
8" 2-Way In-Wall Speaker
JB-SP6II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $160.99/3
• 6" woofer
• 1" tweeter
• Flush mounted
• 88dB sensitivity
• Rough-in frames available
• Sold in pairs
JB-SP8II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $195.99/3
• 8 ohm, 100W power handling
• Low-diffraction, swivel tweeter mounting system
• 8 ohms impedance
• Flush mounted
• Integrated dog-ear brackets for retrofit applications
• Rough-in frames available
• Sold in pairs
Venue™ Series Sub10
Venue™ Series Sub12
JB-SUB10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $190.99/3
• 10", 150 watt powered subwoofer with 300 watt peak
dynamic power
• PolyPlas™ driver delivers cleaner,
more realistic low frequencies
• LFE/Line inputs for maximum connection flexibility
• Adjustable crossover & phase switch
• Sold individually
JB-SUB12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $254.99/3
• 12", 250 watt powered subwoofer with 500 watt peak
dynamic power
• PolyPlas™ driver delivers cleaner,
more realistic low frequencies
• LFE/Line inputs for maximum connection flexibility
• Adjustable crossover & phase switch
• Sold individually
Leviton/Spec-Grade Sound™ In-Ceiling Speaker
Leviton/Spec-Grade Sound™
In-Wall Loudspeakers
LV-SGC6500W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $96.99/3
• Designer sound without the price tag
• Composite Kevlar® cone low-frequency transducer
• 0.5" Aero-nylon dome high-frequency transducer
• 2-way balanced precision crossover network with
AutoSurge circuit protection
Audio/Video
6.5" 2-Way Ceiling Speaker
LV-SGI6500W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $96.99/3
LV-SGI8000W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $146.99/3
• 6.5" and 8" models
• Designer sound without the price tag
• Composite Kevlar® cone, low-frequency transducer
• Aero-nylon dome hi-frequency transducer with phase/time
alignment guide
• 2-way balanced precision crossover network with
AutoSurge circuit protection
Leviton/Spec-Grade Sound™ Outdoor Loudspeakers
Outdoor Rock Speakers
LV-SGO9900W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $135.99/3
• Outdoor/Utility 2-way loudspeakers
• Designer sound without the price tag
• 5.25" Silicate-fiber cone, low-frequency transducer
• 0.5" Polydome hi-frequency transducer
• AutoSurge circuit protection
MU-ROCK8G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $110.00/3
• Granite finish
MU-ROCK8R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $116.99/3
• Rust Finish
•
•
•
•
8" woofer with 2.5" tweeter
100W max. power, 8 ohm impedance
100Hz to 20kHz frequency response
Sold individually
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
245
Audio/Video
Residential Speakers
246
WG Series Ceiling Speakers
WG Series In-Wall Speakers
MU-WG100C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $175.99/3
• 100 watt pair
• 6.5" Kevlar woofer with aluminum dome asymmetric tweeter
• 50Hz to 20kHz (+/-3dB)
MU-WG150C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $219.99/3
• 150 watt pair
• 8" Kevlar woofer with aluminum dome asymmetric tweeter
• 35Hz to 20kHz (+/-3dB)
MU-WG100W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $186.99/3
• 100 watt pair
• 6.5" Kevlar woofer w/aluminum dome asymmetric tweeter
• 50Hz to 20kHz (+/-3dB)
MU-WG150W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $225.99/1
• 150 watt pair
• 8" Kevlar woofer w/aluminum dome asymmetric tweeter
• 35Hz to 20kHz (+/-3dB)
Outdoor Speakers
evoQ™ 3000 Series Speakers
MU-WS5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $152.99/3
• 5-1/4" woofer with 1" titanium dome tweeter
• 70W max. power
• Aluminum grill
• Aluminum hanger bracket with hardware
• Sold in pairs
H4-36465402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 6.5" in-ceiling speakers
• High efficiency speaker with low distortion provides a crisp,
clear sound
• Excellent sound quality at low volumes
• Suitable for moisture-rich environments
• Easy installation
• Sold in pairs
evoQ™ 5000 Series Speakers
evoQ™ 7000 Series Speakers
H4-36466301. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 8" in-wall speaker
• Features polywoofers and UFLC soft dome tweeters to
provide excellent power for a strong, deep sound
• Designed for superior performance in home theater
applications
• Easy installation
H4-36466501. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 6.5" in-ceiling speakers
• Fully adjustable treble easily tailors the sound to any taste
• High-grade advanced crossover allows for optimal frequency
distortion
• High-power handling and adjustment capabilities ensure
ultimate in-home sound
4" Indoor/Outdoor Speakers
5.25" Single Stereo Indoor/Outdoor Speaker
C1-AW400WHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $73.99/3
C1-AW400BLK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $73.99/3
• 4" polypropylene woofers
• 3/4" Supernil soft dome tweeters
• Power Handling: 100 watts
• Frequency Response: 55Hz - 20kHz
• Impedance: 8 ohm • Sensitivity: 87dB 1W/1m
• Includes swivel mounting brackets
• Dimensions (H x W x D): 7-3/4" x 5-1/2" x 5-1/2"
• Order in white or black
• Sold in pairs
C1-AW500TTWH . . . . . . . . . . . . . . . . . . . . . . . . . . . . $96.99/3
C1-AW500TTBK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $96.99/3
• 5-1/4" dual voice coil polypropylene woofer
• Two 1" pivoting Supernil soft dome tweeters
• Weather-resistant ABS housing, powder coated aluminum grille
• Power Handling: 100 watts
• Frequency Response: 38Hz - 20kHz
• Impedance: 4 ohm • Sensitivity: 89dB 1W/1m
• Includes swivel mounting bracket
• Dimensions (H x W x D): 11" x 7" x 6-1/4"
• Order in white or black
5-1/4" Indoor/Outdoor Speakers
6.5" Single Stereo Indoor/Outdoor Speakers
C1-AW525WHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $95.99/3
C1-AW525BLK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $95.99/3
• 5-1/4" polypropylene woofers
• 1" pivoting Supernil soft dome tweeters
• Includes swivel mounting brackets
• Power Handling: 125 watts
• Frequency Response: 45Hz - 20kHz
• Impedance: 8 ohm • Sensitivity: 88dB 1W/1m
• Dimensions (H x W x D): 9-3/16" x 6-1/2" x 6-3/8"
• Order in white or black
• Sold in pairs
C1-AW600TTWH . . . . . . . . . . . . . . . . . . . . . . . . . . . $128.99/3
C1-AW600TTBK. . . . . . . . . . . . . . . . . . . . . . . . . . . . $128.99/3
• 6-1/2" dual voice coil polypropylene woofer
• Two 1" pivoting Supernil soft dome tweeters
• Weather-resistant ABS housing, powder coated aluminum grille
• Includes swivel mounting bracket
• Power Handling: 125 watts
• Frequency Response: 35Hz - 20kHz
• Impedance: 4 ohm • Sensitivity: 91dB 1W/1m
• Dimensions (H x W x D): 12" x 7" x 8"
• Order in white or black
8" Single Stereo Indoor/Outdoor Speaker
6-1/2" Indoor/Outdoor Speakers
C1-AW800TTWH . . . . . . . . . . . . . . . . . . . . . . . . . . . $167.99/3
C1-AW800TTBL . . . . . . . . . . . . . . . . . . . . . . . . . . . . $167.99/3
• 8" dual voice coil polypropylene woofer
• Two 1-1/4" pivoting aluminum dome tweeters
• Weather-resistant ABS housing, powder coated aluminum grille
• Includes swivel mounting bracket
• Power Handling: 150 watts
• Frequency Response: 40Hz - 20kHz
• Impedance: 4 ohm • Sensitivity: 89dB 1W/1m
• Dimensions (H x W x D): 16" x 9" x 9"
• Order in white or black • Sold individually
C1-AW650 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $105.99/3
C1-AW650BLK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $180.99/3
• 6-1/2" polypropylene woofers
• 1" pivoting Supernil soft dome tweeters
• Power Handling: 150 watts
• Frequency Response: 37Hz - 20kHz
• Impedance: 8 ohm • Sensitivity: 89dB 1W/1m
• Includes swivel mounting brackets
• Dimensions (H x W x D): 11" x 7" x 6-1/4"
• Order in white or black
• Sold in pairs
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Speakers
Center Channel Speaker
C1-AW830WHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . $250.99/3
C1-AW830BLK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $250.99/3
• 8" polypropylene woofers
• 3" graphite midrange
• 1" pivoting soft dome tweeters
• Power Handling: 175 watts
• Frequency Response: 35Hz - 20kHz
• Impedance: 8 ohm • Sensitivity: 89dB 1W/1m
• Includes swivel mounting brackets
• Dimensions (H x W x D): 15-3/4" x 8-3/4" x 8-3/4"
• Order in white or black • Sold in pairs
C1-CC400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $31.99/3
• One bookshelf center channel speaker
• Two 4" polypropylene woofers
• 1" aluminum dome tweeter
• Power Handling: 85 watts
• Frequency Response: 80Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 89dB 1W/1m
• Dimensions (H x W x D): 5-1/2" x 20" x 7-1/4"
Center Channel Speaker
Center Channel Speaker
C1-CC540 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $109.99/3
• One bookshelf center channel speaker
• Two 5-1/4" graphite woofers
• 3" graphite midrange
• 1" aluminum dome tweeter
• Power Handling: 100 watts
• Frequency Response: 70Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 89dB 1W/1m
• Dimensions (H x W x D): 6-3/4" x 20-1/2" x 8-3/4"
C1-CC550 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $160.99/3
• One bookshelf center channel speaker
• Two 5-1/4" Kevlar® woofers
• 3" Kevlar® midrange
• 1" aluminum dome tweeter
• Power Handling: 125 watts
• Frequency Response: 40Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 88dB 1W/1m
• Dimensions (H x W x D): 6-3/4" x 20-1/2" x 8-3/4"
6-1/2" Single Stereo Ceiling Speaker
8" Single Stereo Ceiling Speaker
C1-C600TT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $64.99/3
• 6-1/2" dual voice coil polypropylene woofer
• Twin non-pivoting 1/2" hard dome tweeters
• Power Handling: 75 watts
• Frequency Response: 36Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 9-1/4" x 3-5/8"
• Ceiling Cut Out: -81/4"
• Sold individually
C1-C800TT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $106.99/3
• 8" dual voice coil graphite woofer
• Twin pivoting 1" aluminum dome tweeters
• +3dB bass & treble contour switches
• Power Handling: 150 watts
• Frequency Response: 28Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 11-1/8" x 4-1/4"
• Ceiling Cut Out: 9-7/8"
• Sold individually
8" Single Stereo Ceiling Speaker
5-1/4" Ceiling Speakers
C1-C850TT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $160.99/3
• 8" dual voice coil Kevlar® woofer with cast magnesium
woofer basket
• Twin pivoting 1" aluminum dome tweeters
• ±3dB bass & treble contour switches
• Power Handling: 175 watts
• Frequency Response: 28Hz - 22kHz
• Impedance: 8 ohm • Sensitivity: 92dB 1W/1m
• Diameter x Depth: 11-1/8" x 4-1/4"
• Ceiling Cut Out: 9-7/8"
• Sold individually
C1-C500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $64.99/3
• 5-1/4" polypropylene woofers
• 1/2" pivoting polyamide hard dome tweeters
• Power Handling: 75 watts
• Frequency Response: 40Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 90dB 1W/1m
• Diameter x Depth: 7-3/4" x 3-1/4"
• Ceiling Cut Out: 6-11/16"
• Sold in pairs
6-1/2" Ceiling Speakers
6-1/2" Ceiling Speakers
C1-C605. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $58.99/3
• 6-1/2" polypropylene woofers
• 3/4" fixed soft dome tweeters
• Power Handling: 75 watts
• Frequency Response: 45Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 90dB 1W/1m
• Diameter x Depth: 9-1/4" x 3-5/8"
• Ceiling Cut Out: 8-1/4"
• Sold in pairs
C1-C610. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $74.99/3
• 6-1/2" polypropylene woofers
• 1" pivoting soft dome tweeters
• Power Handling: 85 watts
• Frequency Response: 40Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 91dB 1W/1m
• Diameter x Depth: 9-1/4" x 3-5/8"
• Ceiling Cut Out: 8-1/4"
• Sold in pairs
6-1/2" Ceiling Speakers
6-1/2" Ceiling Speakers
C1-C620. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $122.99/3
• 6-1/2" polypropylene woofers
• 1" pivoting silk dome tweeters
• Power Handling: 100 watts
• Frequency Response: 36Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 91dB 1W/1m
• Diameter x Depth: 9-1/4" x 3-5/8"
• Ceiling Cut Out: 8-1/4"
• Sold in pairs
C1-C640. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $155.99/3
• 6-1/2" graphite woofers
• 1" pivoting aluminum dome tweeters
• +3dB bass & treble contour switches
• Power Handling: 125 watts
• Frequency Response: 32Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 9-1/4" x 3-5/8"
• Ceiling Cut Out: 8-1/4"
• Sold in pairs
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
8" Indoor/Outdoor Speakers
247
Audio/Video
Residential Speakers
248
6-1/2" Ceiling Speakers
6-1/2" LCR Ceiling Speakers
C1-C645. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $187.99/3
• 6-1/2" Kevlar® woofers with cast magnesium woofer baskets
• 1" pivoting aluminum dome tweeters
• +3dB bass & treble contour switches
• Power Handling: 150 watts
• Frequency Response: 32Hz - 22kHz
• Impedance: 8OHM
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 9-1/4" x 3-5/8"
• Ceiling Cut Out: 8-1/4"
• Sold in pairs
C1-C650. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $64.99/3
• 6-1/2" polypropylene woofer
• 1" pivoting silk dome tweeter
• Woofer and tweeter bridge fixed at a 15° angle
• Power Handling: 100 watts
• Frequency Response: 40Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 91dB 1W/1m
• Diameter x Depth: 9-1/4" x 4-9/16"
• Ceiling Cut Out: 8-1/4"
• Sold individually
6-1/2" LCR Ceiling Speakers
8" Ceiling Speakers
C1-C660. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $106.99/3
• Woofer and tweeter bridge fixed at a 15° angle
• 6-1/2" graphite woofer
• 1" pivoting aluminum dome tweeter
• Power Handling: 125 watts
• Frequency Response: 36Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 9-1/4" x 4-9/16"
• Ceiling Cut Out: 8-1/4"
C1-C790. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $106.99/3
• 8" polypropylene woofers
• 1" pivoting soft dome tweeters
• Power Handling: 125 watts
• Frequency Response: 36Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 11-1/8" x 4-1/4"
• Ceiling Cut Out: 9-7/8"
• Sold in pairs
8" Ceiling Speakers
8" Ceiling Speakers
C1-C800. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $187.99/3
• 8" graphite woofers
• 1" pivoting aluminum dome tweeters
• +3dB bass & treble contour switches
• Power Handling: 150 watts
• Frequency Response: 28Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 11-1/8" x 4-1/4"
• Ceiling Cut Out: 9-7/8"
• Sold in pairs
C1-C850. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $235.99/3
• 8" Kevlar® woofers with cast magnesium woofer baskets
• 1" pivoting aluminum dome tweeters
• ±3dB bass & treble contour switches
• Power Handling: 175 watts
• Frequency Response: 28Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 11-1/8" x 4-1/4"
• Ceiling Cut Out: 9-7/8"
• Sold in pairs
8" LCR Ceiling Speaker
10" LCR Ceiling Speaker
C1-C870. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $160.99/3
• Woofer and tweeter bridge fixed at a 15° angle
• 8" Kevlar® woofer
• 1" pivoting aluminum dome tweeter
• ±3dB bass & treble contour switches
• Power Handling: 175 watts
• Frequency Response: 28Hz - 22kHz
• Impedance: 8 ohm y• Sensitivity: 92dB 1W/1m
• Diameter x Depth: 11-1/8" x 5-7/8"
• Ceiling Cut Out: 9-7/8"
• Sold individually
C1-C1030. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 10" Kevlar® woofer
• 3" pivoting Kevlar® midrange
• 1" pivoting aluminum dome tweeter
• Woofer and midrange/tweeter bridge fixed at a 15° angle
• ±3dB bass & treble contour switches
• Power Handling: 200 watts
• Frequency Response: 26Hz - 22kHz
• Impedance: 8 ohm • Sensitivity: 92dB 1W/1m
• Diameter x Depth: 13-3/8" x 7-5/8" • Ceiling Cut Out: 11-7/8"
• Sold individually
LCR On-Wall Speakers
10" In-Wall Subwoofer
C1-F400SLVR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $222.99/3
C1-F400BLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $222.99/3
• One on-wall LCR for use with plasma and LCD flat panel
video displays
• Dual 4" graphite woofers • 1" pivoting aluminum dome tweeter
• ±3dB bass & treble contour switches
• Power Handling: 100 watts • Freq. Response: 62Hz - 20kHz
• Impedance: 4 ohm • Sensitivity: 86dB 1W/1m
• Surface mount bracket included
• Dimensions (H x W x D): 24" x 7-1/2" x 4"
• Sold individually
C1-IWS10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $374.99/3
• One inwall passive subwoofer
• 10" long excursion treated paper cone woofer
• Inverted neodymium magnet structure
• Power Handling: 250 watts
• Frequency Response: 36Hz - 150Hz
• Baffle Dimensions (H x W): 13-5/8" x 13-5/8"
• Wall Cut Out (H x W): 12-1/16" x 12-1/16"
• For new construction, use the C1-BB-WS10 MDF back box
• The companion M3 amp/crossover available Q2 2007
LCR In-Wall Speakers
LCR In-Wall Speaker
C1-IW525. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $106.99/3
• One in-wall LCR speaker
• Two 5-1/4" graphite woofers
• 1" pivoting aluminum dome tweeter
• ±3dB bass & treble contour switches
• Power Handling: 100 watts
• Frequency Response: 45Hz - 20kHz
• Impedance: 8 ohm • Sensitivity: 88dB 1W/1m
• Dimensions (H x W x D): 8" x 15-15/16" x 3-7/16"
• Wall Cut Out (H x W): 6-3/16" x 14-1/2"
• Sold individually
C1-IW550. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $160.99/3
• One in-wall LCR speaker
• Two 5-1/4" Kevlar® woofers
• 1" pivoting aluminum dome tweeter
• ±3dB bass & treble contour switches
• Power Handling: 150 watts
• Frequency Response: 40Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 88dB 1W/1m
• Dimensions (H x W x D): 8" x 15-15/16" x 3-7/16"
• Wall Cut Out (H x W): 6-3/16" x 14-1/2"
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Speakers
Book Shelf Speakers
C1-NFM5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $128.99/3
• One pair of bookshelf two-way speakers
• 5-1/4" polypropylene woofers
• 1" aluminum dome tweeters
• Power Handling: 125 watts
• Frequency Response: 45Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 88dB 1W/1m
• Dimensions (H x W x D): 11-1/2" x 6-1/4" x 8-5/8"
C1-NFM6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $171.99/3
• One pair of bookshelf two-way speakers
• 6-1/2" polypropylene woofers
• 1" aluminum dome tweeters
• Power Handling: 150 watts
• Frequency Response: 37Hz - 22kHz
• Impedance: 8 ohms
• Sensitivity: 89dB 1W/1m
• Dimensions (H x W x D): 14-1/4" x 8" x 12-1/8"
Book Shelf Speakers
6-1/2" Small Cube Subwoofer
C1-NFM8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $213.99/3
• One pair of bookshelf two-way speakers
• 8" polypropylene woofers
• 1" aluminum dome tweeters
• Power Handling: 175 watts
• Frequency Response: 33Hz - 20kHz
• Impedance: 4 ohm
• Sensitivity: 90dB 1W/1m
• Dimensions (H x W x D): 16-5/8" x 9-1/2" x 13-1/4"
C1-S66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $213.99/3
• Two 6-1/2" long excursion treated paper cone woofers
• Side-by-side woofer array helps bass loading with side walls
• Power Handling: 150 watts
• Frequency Response: 40Hz - 120Hz
• Dimensions (H x W x D): 9-1/8" x 9-9/16" x 10-3/4"
• Sold individually
8" Small Cube Subwoofer
8" Floor-Standing Subwoofer
C1-S88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $320.99/3
• Two 8" long excursion treated paper cone woofers
• User-accessible fuse
• Woofers are positioned to couple with adjacent walls and
maximize bass loading into media room
• Power Handling: 250 watts
• Frequency Response: 30Hz - 180Hz
• Dimensions (H x W x D): 11-27/32" x 12-1/2" x 13-1/2"
• Sold individually
C1-S8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $160.99/3
• 8" long excursion treated paper cone woofer
• User-accessible fuse
• Twin front-firing ports to eliminate vent noise and distortion
• Power Handling: 80 watts
• Frequency Response: 45Hz - 200Hz
• Dimensions (H x W x D): 13" x 9-7/8" x 15-1/4"
• Sold individually
10" Floor-Standing Sub
12" Floor-Standing Subwoofer
C1-S10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $213.99/3
• 10" long excursion treated paper cone woofer
• User-accessible fuse
• Twin front-firing ports to eliminate vent noise and distortion
• Power Handling: 120 watts
• Frequency Response: 32Hz - 200Hz
• Dimensions (H x W x D): 14-1/2" x 11-1/2" x 16-3/4"
• Sold individually
C1-S12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $267.99/3
• 12" long excursion treated paper cone woofer
• User-accessible fuse
• Twin front-firing ports to eliminate vent noise and distortion
• Power Handling: 250 watts
• Frequency Response: 28Hz - 200Hz
• Dimensions (H x W x D): 17-3/4" x 14" x 17-13/16"
• Sold individually
6-1/2" In-Wall Speakers
6-1/2" In-Wall Speakers
C1-W665 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $58.99/3
• 6-1/2" polypropylene woofers
• 3/4" fixed soft dome tweeters
• Power Handling: 75 watts
• Frequency Response: 45Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 90dB 1W/1m
• Dimensions (H x W x D): 12-1/4" x 8-3/16" x 3-3/16"
• Wall Cut Out (H x W): 10-7/8" x 6-3/4"
• Sold in pairs
C1-W670 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $122.99/3
• 6-1/2" polypropylene woofers
• 1" pivoting silk dome tweeters
• Power Handling: 100 watts
• Frequency Response: 36Hz - 20kHz
• Impedance: 8 ohm
• Sensitivity: 91dB 1W/1m
• Dimensions (H x W x D): 12-1/4" x 8-3/16" x 3-1/8"
• Wall Cut Out (H x W): 10-7/8" x 6-3/4"
• Sold in pairs
6-1/2" In-Wall Speakers
6-1/2" In-Wall Speakers
C1-W680 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $155.99/3
• 6-1/2" graphite woofers
• 1" pivoting aluminum dome tweeters
• +3dB bass & treble contour switches
• Power Handling: 125 watts
• Frequency Response: 32Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Dimensions (H x W x D): 12-1/4" x 8-3/16" x 3-3/16"
• Wall Cut Out (H x W): 10-7/8" x 6-3/4"
• Sold in pairs
C1-W690 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $187.99/3
• 6-1/2" Kevlar® woofers with cast magnesium woofer baskets
• 1" pivoting aluminum dome tweeters
• +3dB bass & treble contour switches
• Power Handling: 150 watts
• Frequency Response: 32Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Dimensions (H x W x D): 12-1/4" x 8-3/16" x 3-3/16"
• Wall Cut Out (H x W): 10-7/8" x 6-3/4"
• Sold in pairs
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
Book Shelf Speakers
249
Residential Speakers - Electronics
8" In-Wall Speakers
8" In-Wall Speakers
C1-W800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 8" graphite woofers
• 1" pivoting aluminum dome tweeters
• +3dB bass & treble contour switches
• Power Handling: 150 watts
• Frequency Response: 28Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Dimensions (H x W x D): 14-7/8" x 10-1/8" x 3-3/4"
• Wall Cut Out (H x W): 13-5/8" x 8-3/4"
• Sold in pairs
C1-W850 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $235.29/3
• 8" Kevlar® woofers with cast magnesium woofer baskets
• 1" pivoting aluminum dome tweeters
• ±3dB bass & treble contour switches
• Power Handling: 175 watts
• Frequency Response: 28Hz - 22kHz
• Impedance: 8 ohm
• Sensitivity: 92dB 1W/1m
• Dimensions (H x W x D): 14-7/8" x 10-1/8" x 3-3/4"
• Wall Cut Out (H x W): 13-5/8" x 8-3/4"
• Sold in pairs
Complement Subwoofers
OutBack Rock Speakers
RD-R8DT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $166.99/3
• 8" down firing, 60W RMS
RD-R10DT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $249.99/3
• 10” front firing, 120W RMS
RD-R12DT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $360.99/3
• 12" front firing, 200W RMS
RD-OBR6G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $147.99/3
• Gray Granite
RD-OBR6F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $147.99/3
• Fieldstone
RD-OBR6W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $147.99/3
• White Sandstone
• Dual Port tuning allows for music and Home Theater use
• Optimized for outdoor audio performance and to be the most
realistic looking and best sounding at their price point
• Power handling: 10-100W
LCR7 On-Wall LCR Speakers
RD-LCR7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $276.99/3
• Black cabinet with black/silver grille
RD-LCR7S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $276.99/3
• Silver cabinet with black/silver grille
Audio/Video
•
•
•
•
•
•
•
250
6 - 3.5" woofers & 1 - 1" tweeter
Rated for amplifiers up to 150W per channel
Patented Super Bessel Array provides broad, even coverage throughout the entire listening area
Magnetically shielded • Styled to compliment flat panel televisions
Sturdy aluminum cabinet with integrated mounting bracket
Includes both black and silver grilles
Sold individually
5.1-Channel Audio/Video Receiver
5.1-Channel Audio/Video Receiver
JB-AVR146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $260.99/3
• 30W x 5, 40W x 2 stereo
• The Bridge-ready for audio/video iPod® connectivity
• Dolby® Digital, Dolby Pro Logic® II, DTS® Neo:6®,
DTS 96/24® and Logic 7®
• On-screen menus & A/V sync delay
• 2 assignable 100MHz component video inputs
• 2-input HDMI™ switching with 1080p pass-through
JB-AVR147 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $315.99/3
• 40W x 5, 50W x 2 stereo
• The Bridge-ready for audio/video iPod® connectivity
• Dolby® Digital, Dolby Pro Logic® II, DTS® Neo:6®,
DTS 96/24® and Logic 7®
• XM Ready®, on-screen menus & A/V sync delay
• 2 assignable 100MHz component video inputs
• 2-input HDMI™ switching w/1080p pass-through
• EzSet/EQ™ Auto System Setup & Room EQ
7.1-Channel Audio/Video Receiver
7.1-Channel Audio/Video Receiver
JB-AVR247 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $395.99/3
• 50W x 7, 65W x 2 stereo
• The Bridge-ready for audio/video iPod® connectivity
• Full Dolby® & DTS® modes and Logic 7®
• XM Ready®, multi-room with assignable SB amps
• 3 assignable 100MHz component video inputs
• 2-input HDMI™ switching w/1080p pass-through;
transcodes analog video & upscales to 720p
• EzSet/EQ™ Auto System Setup & Room EQ
JB-AVR347 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $613.99/3
• 55W x 7, 70W x 2 stereo
• The Bridge-ready for audio/video iPod® connectivity
• Full Dolby® & DTS® modes and Logic 7®
• XM Ready®; multiroom w/A-BUS® & assignable SB amps
• 3 assignable 100MHz component video inputs
• 2-input HDMI™ switching w/1080p pass-through;
transcodes analog video & upscales to 720p
• EzSet/EQ™ Auto System Setup & Room EQ
7.1-Channel Audio/Video Receiver
7.1-Channel Audio/Video Receiver
JB-AVR445 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 65W x 7, 80W x 2 stereo
• The Bridge-ready for iPod® connectivity
• Full Dolby® and DTS® modes and Logic 7®
• XM-Ready®
• Assignable, 60MHz component video switching
• S- and composite-to-component video cross-conversion
• HDMI™ 1.1 switching, USB input
• EzSet/EQ™ Auto System Setup & Room EQ
JB-AVR645 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $996.99/3
• 75W x 7, 90W x 2 stereo
• The Bridge-ready for iPod® connectivity
• Full Dolby® and DTS® modes and Logic 7®
• EzSet/EQ™ Auto System Setup & Room EQ
• HDMI™ 1.1 w/audio processing, USB input
• Assignable, 60MHz component video switching
• Multiroom with A-BUS® & assignable SB amps
• S- and composite-to-component video cross-conversion
• XM-Ready®
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Electronics
5.1-Channel Home Theater System
JB-AVR745 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $2192.99/3
• 85W x 7, 100W x 2 stereo
• The Bridge-ready for iPod® connectivity
• Full Dolby® and DTS® modes and Logic 7®
• DCDi by Faroudja® Video Processing
• EzSet/EQ™ II Auto System Setup & Room EQ
• HDMI™ 1.1 w/audio & video processing, USB input
• Assignable, 100MHz component video switching
• XM-Ready®
JB-CP60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 923.99/3
• Complete home theater system
* JB-DVD38 Progressive Scan DVD-Audio/Video player
with HDMI™
* JB-AVR247 audio/video receiver
* JB-HTKS15 6-piece speaker system
* JB-RCP6 programmable system remote
5.1-Channel Home Theater System
DVD-Audio/Video Player
JB-CP55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $771.99/3
• Complete home theater system
* JB-DVD38 Progressive Scan DVD-Audio/Video player
with HDMI™
* JB-AVR146 audio/video receiver
* JB-HTKS15 6-piece speaker system
* JB-RCP5 programmable system remote with EzSet®
JB-DVD38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $174.99/3
• Plays DVD-Audio, DVD, DVD-R/RW, DVD+R/RW, VCD,
CD, CD-R/RW, MP3, Windows Media® WMA, JPEG
• Video upscaling to 720p or 1080i
• Built-in Dolby® Digital/MLP Decoder with Bass Management
• Component, S- and Composite video outputs
• HDMI™ output
5.1-Channel Home Theater System
DVD-Audio/Video and SACD™ Player
JB-CP65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1242.99/3
• Complete home theater system
* JB-DVD48 ProgressiveScan DVD-Audio/Video/SACD™ player
with HDMI™
* JB-AVR347 audio/video receiver
* JB-HTKS18 6-piece speaker system
* JB-RCP7 programmable system remote
JB-DVD48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $287.99/3
• Plays DVD-Audio, SACD™, DVD, DVD-R/RW, DVD+R/RW, VCD,
CD, CD-R/RW, MP3, Windows Media® WMA, JPEG
• Video upscaling to 720p, 1080i or 1080p
• Built-in Dolby® Digital/MLP Decoder with Bass Management
• Component, S- and Composite video outputs
• HDMI™ output
5-Disc Carousel CD Changer
Stereo Receiver
JB-FL8385. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $193.99/3
• 5-disc changer with Play/Exchange
• Plays HDCD® compact discs
• Dual 20-Bit Burr Brown™ 1702 DACs
• Coaxial digital output
• Random play with single and all CDs
• Headphones jack
JB-HK3485 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $310.99/3
• 2 x 120W @ 8 ohms
• High current, ultrawide bandwidth
• Features 4 video inputs with Record output, Phono input,
dual subwoofer outputs, dimmable fluorescent display,
pre-out/main-in jacks & sleep timer
• Multi-component system remote control included
• A/V cable included to connect iPod® or other portable players
Stereo Receiver
iPod® Docking Station
JB-HK3385 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $242.99/3
• 2 x 80W @ 8 ohms
• High current, ultrawide bandwidth
• Features 4 video inputs with Record output, Phono input,
dual subwoofer outputs, dimmable fluorescent display,
pre-out/main-in jacks & sleep timer
• Multi-component system remote control included
• A/V cable included to connect iPod® or other portable players
JB-THEBRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $53.99/3
• Audio/Video Playback & navigation control of iPod®
(not included; video capability depends on iPod and AVR
models)
• Single-cable connection to The Bridge-ready AVR
• Displays iPod® menus on screen
• Charges iPod® while docked
• Compatible with all iPod® models equipped with
docking connector
5.1-Channel Integrated Home Theater System
Multi-Format DivX Certified DVD Player
JB-HS300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $706.99/3
• Slim profile 35W x 5 Progressive Scan DVD/receiver
• Plays DVD-Audio, DVD-Video CD, CD-R/RW, DVD-R/RW,
DVD+R/RW, MP3, WMA, VCD, SVCD
• 2 USB inputs for camera, flash or hard drive
• Component, S- & composite video outputs; HDMI™ output
6P-DV300K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $60.99/3
• PureCinema 2:3 Progressive Scan
• DivX Video Playback
• WMA/MP3 Compatible
• JPEG Photoviewer
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
7.2-Channel Audio/Video Receiver
251
Electronics
5.1 Home Theater System
Multi-Format DVD Player with HDMI
6P-HTP2900 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $198.99/3
• 860W Total System Power (RMS)
• High-Power 5.1 multi-channel receiver & 5.1 speaker package
• Basic Phase Control
• Sound Retriever
• Front Mini-Jack Input
6P-DV400VK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $54.99/3
• HDMI Upscaling (to view on 1080p)
• PureCinema 2:3 Progressive Scan
• DivX Video Playback, WMV/WMA/MP3 Compatible
• USB Input for Compressed Music Playback
• JPEG Photoviewer
5-Channel A/V Receiver
5.1-Channel Home Theater System
6P-VSX517K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Black
6P-VSX517S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Silver
6P-HTS570 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $287.99/3
• New PureVision Plasma Bezel Finish Design
• Subwoofer / Receiver 5.1 Surround
• New Front Stage Surround Advanced
• New Dual Center Speaker Design
• MCACC with Microphone
• Sound Retriever
• Separate LED display
•
•
•
•
•
7.1 Channel A/V Receiver
7.1 Channel A/V Receiver
6P-VSX917VK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $312.99/3
• Black
6P-VSX917VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $312.99/3
• Silver
6P-VSX817K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242.99/3
• Black
6P-VSX817K/S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242.99/3
• Silver
•
•
•
•
•
Audio/Video
110 Watts x 5 Hybrid II Amplification
14 Mode Advanced Surround Sound with Sound Retriever
Basic Phase Control
Front Stage Surround Advanced
Component Video Inputs x 3, Digital Inputs x 3
110 Watts x 7 Hybrid II Amplification
HDMI™ 1080P Pass-through x 2
Component Video Conversion
Sirius & XM-HD Ready w/ OSD
Auto MCACC with 5 band EQ (microphone included)
•
•
•
•
110 watts x 7 Hybrid II Amplification
Sirius & XM-HD Ready with OSD
Auto MCACC with 5 band EQ (microphone included)
Phase Control, Sound Retreiver, & Front Stage Surround
Advanced
• Front Bi-Amp
7.1 Channel A/V Receiver with HDMI™
7.1 Channel A/V Receiver with HDMI™
6P-VSX1017TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . $376.99/3
• 130W x 7 Direct Energy Amplification
• THX Select
• HDMI™ Video Switching
• Advanced MCACC with 3-D Calibration (microphone included)
• Made for iPod® with Photo and Video
• Sirius & XM-HD Ready with OSD
6P-VSX9110TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . $663.99/3
• 110 watts x 7
• 2 HDMI™ inputs, 1 HDMI™ output 1080p/DVD-A/SACD Compatible
• Multi Room/Multi Source
• RS-232C interface, 12V trigger
• XM-HD Surround with OSD
• iPod® Connection (cable included)
• MCACC with microphone
BXAUDIO4x4 4-Zone/Source+Speakers
VO-BXAUDI4X4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Xantech BXAUDIO4X4
• Complete 4 zone, 4 source Audio Distribution System with 4 zones of speakers
• Includes:
* (4) keypads,
* (4) remote controls
* (4) emitters
and your choice of (4) 6.5" speaker models:
XC65W wall, XC65C ceiling, XC65CS stereo ceiling
• 50 watt stereo (4 ohm) amplifiers for 4 stereo zones
252
Wired and Wireless iPod Dock
2.1 DVD Systems
DO-ASD3N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $148.99/3
• iPod command and control
• Internet Radio
• PC music file AAC/WMA/MP3/FLAC/WAVE
• GUI browsing with album images
• Remote Control
• 2-way control for Denon FY07 Receivers
DO-ASD3W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $190.99/3
• Wi-Fi Version
DO-S102 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $689.99/3
• 2.1 DVD Home Entertainment System
DO-S302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1328.99/3
• 2.1 Executive DVD Home Entertainment System
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Electronics
7.1 Channel Home Theater Receiver
7.1 Channel Home Theater Receiver
DO-AVR688 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $372.99/3
• 75W x 7 Channel
• 2/1 1080p HDMI™ 1.3 Switcher
• 2S/2Zone
• XM Ready
• Audyssey Mic Setup
• Video Conversion
• Audio signal delay
DO-AVR788 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $454.99/3
• 85W x 7 Channel
• 2/1 1080p HDMI™ 1.3 Repeater
• 2S/2Zone
• XM Ready
• Audyssey Mic Setup
• Video Conversion
• Audio signal delay
7.1 Channel Home Theater Receiver
7.1 Channel Home Theater Receiver
DO-AVR888 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $619.99/3
• 100W x 7 Channel
• 2/1 1080p HDMI™ 1.3 Repeater
• 2S/2Zone
• XM Ready
• Audyssey MultEQ Setup
• Video Conversion
• Audio signal delay
DO-AVR988 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $915.99/3
• 110W x 7 Channel
• 2/1 1080p HDMI™ 1.3 Repeater
• 2S/2Zone
• XM Ready
• Audyssey MultEQ XT Setup
• Video Conversion
• Auto Lip-Sync
Premium DVD Player
Multi-Disc DVD Changer
DO-DVD758 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $319.99/3
• DVD/DVD-A/SACD/CD Player
• HDMI™ 1.1
• 1080p Scaling Output
• DCDI Faroudja
• RS-232
DO-DVM745. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $244.99/3
• 5-Disc Progressive Scan DVD Player
• HDMI™ 1.1
• 1080p Scaling Output
• RS-232
Audio/Video
!
"#
!$ %& ' "
!
(#)**+)*+)) !,!
) *) )
+-. "
) +)) !/*"
"
, "0
/ ", "
")
! /
+*!
)*"
+
'"*"
"+) ,1
* )2
,!
) +*!+-
0) *) )-!
+
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
253
Audio/Video
Home Theater - Distributed Audio
254
Modular Mono Block Power Amp
Modular Mono Block Power Amp
UI-AMP51A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $126.99/3
• Powerful high current (4 ohm stable) mono block amplifier
with Auto-on Sensing
• 75 Watt x 1 channel (8 ohm)
• 100 Watt x 1 channel (4 ohm)
• Front controls for easy accessibility and internal fan cooled
• Subsonic filter, Polarity Phase switch and front panel
monitor jacks
• A choice of balanced (XLR) or unbalanced (RCA) Inputs
• Can be mounted in an optional chassis mount amp rack
(AMCA) or stand alone (holds six AMP5.1a)
UI-AMP53A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $209.99/3
• Powerful high current (4 ohm stable) Mono Block Amplifier
with Auto-on Sensing
• 150 Watt x 1 Channel (8 ohm)
• 250 Watt x 1 Channel (4 ohm)
• Front Controls for easy accessibility and internal fan cooled
• Subsonic Filter, Polarity Phase switch and
front panel monitor jacks
• A choice of balanced (XLR) or unbalanced (RCA) Inputs
• Can be mounted in an optional chassis mount amp rack
(AMCA) or stand alone (holds six AMP5.1a)
Power Amplifier
High Current Power Amplifier
UI-AMP100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $89.99/3
• Automatic source switcher (Lo level only)
• 100 watt power amplifier max power
• 50 watts per channel (8 ohm stereo)
• 100 watt bridged mono (8 Ohm)
• 2 pair of stereo low level inputs with
Automatic - Priority Switching
• Switchable Auto-On Sensing
• A & B Speaker Switching
UI-AMP200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $243.99/3
• Two channel high current power amplifier
• High current 80 watts x 2 channel (4 ohm stable)
• 250 watts x 1 channel (8 ohm Mono)
• Automatic Source Switching 2 stereo inputs (Hi or Lo Level) with priority override
• Three turn on/off choices:
Power-on, Auto Sensing and 12 volt trigger
• Rear mounted level controls
• CE approved 110 VAC / 220 VAC operation
High Current Power Amplifier
Music Distribution System
UI-AMP300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $405.99/3
• Two channel high current power amplifier
• High current 150 watts x 2 channel (4 ohm stable)
• 470 watts x 1 channel (8 ohm Mono)
• Automatic Source Switching 2 Stereo inputs (Hi or Lo Level) with priority override
• Three turn on/off choices:
Power-on, Auto Sensing and 12 volt trigger
• Rear Mounted Level Controls
• CE approved 110 VAC / 220 VAC operation
CS-MDS6AKIT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . $1254.99/3
• Kit includes:
(1) MDS-6A music distribution system, (4) MCS-1A keypads,
(2) MCS-2A keypads, (6) 2171 IR emitters
CS-MDS6AKIT2 . . . . . . . . . . . . . . . . . . . . . . . . . . . $1159.99/3
• Kit includes:
(1) MDS-6A music distribution system, (6) MCS-1A keypads
(6) 2171 IR emitters
Speaker Selectors
Decora® Strauss™
Transformer-Free Volume Controls
RD-SS62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $87.99/3
• 6 pair speaker selector
• 70W RMS @ 4 ohms power handling
• Impedance bypass switch
• Other models available - consult Russound catalog
• Music distribution system that selectively switches six audio
sources to six speaker zones, 40 watts per channel
• The MCS-1A and MCS-2A keypads provide flexible control
over the MDS-6A and connected music sources
LV-SGVST00W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $48.50/3
• Transformer-Free™ Volume Control
LV-SGVSM00W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $53.99/3
• Transformer-Free™ Impedance Matching Volume Control
• Decora® slide control with precision 12-position switch
• Frequency response: 20Hz-20kHz +/- 1dB
• Power handling: 200W peak/100W RMS
4-Room A-BUS® Expansion Hub
In-Wall Amplified A-BUS® Module
JB-ABH4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $172.99/3
• Compatible with JB-AB1 or other A-BUS® modules
• Requires Harman Kardon® A-BUS/READY® receiver
or any source device with standard analog outputs
JB-AB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $114.99/3
• Compatible with any Harman Kardon® A-BUS/READY®
receiver or any receiver or source product connected to a
JB-ABH4 or JB-ABH4000
• Connected via Cat 5/5e cable
• Powers 6-or 8-ohm speakers w/sensitivity >88dB
• IR sensor for pass-through of remote commands
4-Zone/8-Room A-BUS® Expansion Hub
In-Wall Amplified A-BUS® Module
JB-ABH4000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $438.99/3
• Distributes up to 4 sources to separate zones
• Up to 2 rooms per zone, expandable when used with
JB-ABH4
• Requires Harman Kardon® A-BUS/READY® receiver or any
source device with standard analog outputs
• Compatible with JB-AB1, JB-AB2 or other A-BUS® modules
JB-AB2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $197.99/3
• 4 direct-access source buttons when used with
Harman Kardon® A-BUS/READY® receiver or JB-ABH4000
• Transport & tuner controls
• Powers 6- or 8-ohm speakers
• IR sensor for pass-through of remote commands
• Customizable key caps
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Distributed Audio
Hi-Fi by HAI 4-Zone, 4-Source Kit
for Structured Wiring Enclosures
2H-62A002 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $839.99/3
• Main board assembly with 4-zone amplifier cards
on universal mounting plate
• 4 remote input modules
• 4 volume & source controls
• Expandable to 8-zone, 6-source
• Power supply, remote control, cable for HAI controllers
• Also available in enclosure (2H-62A001)
Shown with WG100C ceiling speakers
Hi-Fi by HAI 4-Zone 4-Source Main Assembly
2H-62A011 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $407.99/3
• The board & amplifier-only version of the 2H-62A002
• Hi-Fi main assembly
• 4 installed zone amplifier cards
Programmable Remote Control
Hi-Fi Expansion Kit (to 8-zone 6-source)
2H-62A061 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $27.50/3
• Remote control for volume and source select with
programmable source control functions
2H-62A121 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $665.99/3
• 4-zone amplifier cards
• 4 volume source controls
• 2 remote input modules
• Power supply, manuals
• Must be used with 2H-62A001 or 2H-62A002
Xtreme Digital Music System
Impedance Matching Volume Control
MU-XDM4600KT . . . . . . . . . . . . . . . . . . . . . . . . . . $1727.99/3
• Expandable 4 zone/6 source distributed audio system that
offers communications throughout the home
• Each zone contains a Class D amplifier delivering incredible
listening power at 30 watts a channel
• Kit contains
* (4) MU-XDM46K Keypads
* (1) MU-XDM46R Universal Remote
* (1) MU-XDM46CC Central Controller
* (6) MU-XDMIRE IR Emitters
* (1) MU-DS3B2 Door Station
MU-IM1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $25.99/3
• White standard
MU-IM1D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $26.50/3
• White Decora
MU-IM1DA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $26.50/3
• Almond Decora
VSS Speaker Selectors
DSSM Speaker Selectors
PH-IHVSS2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $103.99/3
PH-IHVSS4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $172.99/3
• Dual source speaker selectors with volume controls
• Individual A/B source switches per zone
• Internal 100 watt impedance matching volume control
per zone
• Available in two and four zone boxes
• Removable input/output connectors
• Custom tooled black brushed aluminum face plates
PH-IHDSSM4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $66.99/3
PH-IHDSSM6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $81.99/3
PH-IHDSSM8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $94.99/3
• Dual source resistor based speaker selectors
• Individual A/B source switch per zone
• Four, six and eight zone boxes available
• Maunual protection switch strategically located on back panel
• 70 watts w/protection enabled, 140 watts w/protection disabled
• Boxes feature removable Input/output connectors
• Custom tooled black brushed aluminum face Plate
• Label kit included for slotted on/off buttons
IM Volume Controls
Speaker Selectors
PH-VMT100W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $18.99/3
• 100 watt with 12 positions, 39 dB of attenuation
• Selectable impedance matching: 1x, 2x, 4x and 8x settings
• Removable input/output solderless speaker terminals for
easy termination
• Includes color coded knob, Decora metal/plastic insert and
screws
PH-ISM4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $37.99/3
PH-ISM6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $48.99/3
PH-ISM8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59.99/3
• Single source resistor based speaker selectors
• Four, six and eight zone boxes available
• Manual protection switch strategically located on back panel
• 70 Watts with protection enabled, 140 watts with protection
disabled
• All three boxes feature thru outputs for daisy chain capability
• Black powder coated finish
• Label kit included for slotted on/off buttons
Slider Type Volume Controls
Distributed Audio/Video
PH-VSL125 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• “Slider Style” Decora insert volume control
• 125 watt impedance matching volume control with
39 dB of Attenuation
• Selectable Impedance matching: 1x, 2x, 4x and 8x settings
• Removable right angle solder less speaker terminals with
easy top termination
• Includes 3 color wall plates and matching sliders:
white, almond and bone in a single display package
C1-CATY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Facilitates connection of multiple Master Keypads to a
single zone, on an M Series Controller
• This ‘Y’ adapter can be located at the zone connection on the
controller, or at a keypad location within the zone.
• Requires the use of a RJA-1.1 Adapter if located at the
keypad
• MAXIMUM of four Master keypads on a zone
• U/M 2 adaptors
• 75W max power
• Controls up to 8 pairs of 8-ohm speakers
| www.adilink.com
Audio/Video
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
255
The Ultimate
e Control Freak
Distributed Audio
Distributed Audio/Video
C1-M4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1069.99/3
• Audio controller with four zones and six sources
• 8-channel digital amp with 30 watts per channel
• Keypads feature installer-configurable buttons.
• Program the M4 via Proficient Editor software
• Includes bolt-on rack ears
• Keypads include white, bone and almond plates, inserts and
extra buttons
• Expandable to 16 zones and 6 sources
• Four zone audio controller
• Six source inputs
•
•
•
•
•
•
•
•
Power: 30 watts x 8 channels
Doorbell & telephone paging mute
All digital amplification
Includes four PMKIR master keypads w/IR
Includes six IR Single Flashers
Includes Proficient Editor software
Includes USB-3.5mm adaptor cable
Dimensions (H x W x D): 5-13/16" x 17-1/8" x 15-1/2"
•
•
•
•
•
•
•
•
Power: 30 watts x 12 channels
Doorbell & telephone paging mute
All digital amplification
Includes six PMKIR master keypads w/IR
Includes six IR Single Flashers
Programmable via Proficient Editor software
Dimensions (H x W x D): 5-13/16" x 17-1/8" x 15-1/2"
Weight: 26 lbs
Distributed Audio/Video
Audio/Video
C1-M6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1692.99/3
• Audio controller with six zones, dual tuners and six sources
• 12 channel digital amp with 30 watts per channel
• Keypads feature installer-configurable buttons
• Both AM/FM tuners have 10 presets per zone
• Program the M6 via Proficient Editor software
• Includes bolt-on rack ears
• Expandable to 24 zones and eight sources
• Six zone audio controller
• Six source inputs + 2 AM/FM Tuners
258
Mono Amp/Crossover
Distributed Audio/Video
C1-M3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $381.99/3
• High-current mono amp with built-in crossover network.
• Crossover adjustments for subwoofer fine-tuning to room
acoustics.
• Includes bolt-on rack ears.
• Recommended for use with the IWS10 inwall subwoofer.
• Power: 180 watts single channel
• Variable low pass crossover 35Hz - 150Hz
• LFE Input, Pass Through Output, Phase switch
• Remote power-on via signal sensing
• Dims (H x W x D): 4" x 17-1/8" x 12-5/8"
C1-COMMANDIN . . . . . . . . . . . . . . . . . . . . . . . . . . . $109.99/3
• Designed to work with Proficient Editor software available
via download from proficientaudio.com
• Must be connected to a PC or laptop computer
• Provides the ability to capture and learn IR signals
• Built-in IR blaster for testing IR commands
• Includes USB to DB9 adapter cable
• Includes 6' DB9 to quad 3.5mm plug transfer cable
• Includes power supply
• Sold as each
Distributed Audio/Video
Distributed Audio/Video
C1-PMK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $56.99/3
• Single-gang Master keypad
• 8 source select buttons
• 7 source buttons can be programmed for function control
(one of the 8 must be for source selection)
• 5 additional buttons can be programmed for any function
excluding source selection
• Includes extra buttons for custom configuration
• Includes white, bone and almond plates & inserts
• MUST be connected to a Proficient Audio Controller
• Sold as each
C1-PFK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $28.50/3
• Function keypad must be connected to a PMKIR or PMK
Master keypad
• 14 custom configurable buttons
• Includes extra buttons with text & icons to customize any job
• Includes ribbon cable for connection to PMKIR or PMK
Master keypads
• Includes white, bone and almond inserts
• Sold as each
Distributed Audio/Video
Distributed Audio/Video
C1-PNK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $2850/3
• Numeric keypad must be connected to a PMKIR or PMK
Master keypad
• 16 custom configurable buttons: 10 numeric and 6 function
• Includes extra buttons with text & icons to customize any job
• Includes ribbon cable for connection to PMKIR or PMK
Master keypads
• Includes white, bone and almond inserts
• Sold as each
C1-PMKIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $67.99/3
• Single-gang Master keypad • Built-In IR Receiver
• 8 source select buttons
• 7 source buttons can be programmed for function control
(one of the 8 must be for source selection)
• 4 additional buttons can be programmed for any function
excluding source selection
• Includes extra buttons for custom configuration
• Includes white, bone and almond plates & inserts
• MUST be connected to a Proficient Audio Controller
• Sold as each
Distributed Audio/Video
Distributed Audio/Video
C1-USB35ADPTR. . . . . . . . . . . . . . . . . . . . . . . . . . . . $44.50/3
• Use to connect a PC to M Series Controllers for programming
and software/firmware update purposes.
• Contains one 6' DB9 to mini-quad transfer cable for Serial
port connection and one USB to Serial adapter for USB port
connection.
• Includes USB to DB9 adapter cable
• Includes 6' DB9 to quad 3.5mm plug transfer cable
• Sold as each
C1-RJA11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $27.50/3
• For use when RJ-45 terminated connection is preferred to
bare wire connection to Proficient Master Keypads
• Connects data, power and IR signals between the keypad
and the M Series controller.
• U/M 6 adaptors
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Distributed Audio
8-Pair Speaker Selector
C1-SS4P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $66.99/3
• Four-pair resistor-based on/off speaker selector
• Provides quick, convenient access for up to four stereo pairs
• 125 watts power handling per channel
• Frequency Response: 20Hz - 20kHz
• Protection: Front mounted switch & rear override
• Suction feet for stable operation
• Includes area labels
• Dimensions (H x W x D): 2-3/16" x 8-3/8" x 6-13/32"
• Sold as each
C1-SS8P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $104.99/3
• Eight-pair resistor-based on/off speaker selector
• Provides quick, convenient access for up to eight stereo pairs
• 125 watts power handling per channel,
• Frequency Response: 20Hz - 20kHz
• Protection: Front mounted switch & rear override
• Suction feet for stable operation
• Includes Area Labels
• Dimensions (H x W x D): 2-3/16" x 17" x 6-13/32"
• Sold as each
45-Watt Impedance-Balancing Volume Control
Stereo Volume Control
C1-VC45i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $16.50/3
• 45-watt impedance-balancing volume control w/autoformer
• Features removable wire block terminal for easy connection
• Fits in most single-gang J-boxes and plaster rings
• Includes white, bone and almond plates, inserts and knobs
• Power Handling: 45 watts cont., 90 watts peak music power
• Frequency Response: 20Hz - 20kHz
• Steps: 10 (make before break)
• Total Attenuation: 42dB (max)
• Depth: 2-1/2" behind plate
• Sold as each
C1-VCS60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $20.50/3
• 60-watt stereo volume control with autoformer
• Features quick & secure wire connecting system
• Fits in most single-gang J-boxes and plaster rings
• Includes white, bone and almond plates, inserts and knobs
• Power Handling: 60 watts cont., 120 watts peak music power
• Frequency Response: 20Hz - 20kHz
• Steps: 12 (make before break)
• Total Attenuation: 42dB (max)
• Depth: 2-1/2" behind plate
• Sold as each
60-Watt Impedance-Balancing Volume Control
Outdoor Volume Control
C1-VC60i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $27.99/3
• 60-watt impedance-balancing volume control w/autoformer
• Features quick & secure wire connecting system
• Fits in most single-gang J-boxes and plaster rings
• Includes white, bone and almond plates, inserts and knobs
• Power Handling: 60 watts cont., 120 watts peak music power
• Frequency Response: 20Hz - 20kHz
• Steps: 12 (make before break)
• Total Attenuation: 42dB (max)
• Depth: 2-1/2" behind plate
• Sold as each
C1-VC60AW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $39.50/3
• 60-watt weather-resistant volume control sealed against
dust and moisture
• Fits onto 3/4" conduit or can be surface mounted
• Power Handling: 60 watts cont., 120 watts peak music power
• Frequency Response: 20Hz - 20kHz
• Steps: 12 (make before break)
• Total Attenuation: 42dB (max)
• Dimensions (H x W x D): H 4-1/2" x W 2-3/4" x D 3-1/2"
• Sold as each
Slider Volume Control
Slider Volume Control with IR Receiver
C1-VC60SL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $26.50/3
• 60-watt slider stereo volume control with removable screw
down wire terminal design
• Fits in most single-gang J-boxes and plaster rings
• Power Handling: 60 watts cont., 120 watts peak music power
• Frequency Response: 20Hz - 20kHz
• Steps: 12 (make before break)
• Total Attenuation: 42dB (max)
• Includes white, bone and almond plates, inserts and sliders
• Dimensions (H x W x D): 4" x 1-5/8" x 3-1/16"
• Sold as each
C1-VC60SIRW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $48.50/3
C1-VC60SIRB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $48.50/3
C1-VC60SIRA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $48.50/3
• 60-watt slider stereo volume control with built-in IR receiver,
removable screw down wire terminal
• Fits in most single-gang J-boxes and plaster rings
• Power Handling: 60 watts cont., 120 watts peak music power
• Frequency Response: 20Hz - 20kHz
• Steps: 12 (make before break) • Total Attenuation: 42dB (max)
• Dimensions (H x W x D): 4" x 1-5/8" x 3-1/16"
• Order in white, bone or almond • Sold as each
VM1 Video Matrix
Complete 4-Room System Single Source Kit
RD-VM14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1211.99/3
• The VM1 Video Matrix works with a multiroom audio system
to distribute High Definition component video.
• Video signals can be routed to as many as eight zones, each
using a single CAT-5e cable, to locations up to 300' away.
• Seamless integration with Russound CAM, CAV and CAA66.
Can also be integrated with other systems using RS-232
serial commands.
• Optional format up-converter for converting composite and
S-video signals to component video.
RD-ABK12A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $536.99/3
RD-ABK12W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Kit includes
* (1) RD-AH4D 4-zone A-BUS single source hub
* (4) RD-AKP2 amplified keypads (no wall plates)
* (1) RD-AKPRC remote control
* (1) RD-1584.1 IR emitters
* (1) RD-APS power supply
* (1) punchdown tool
• In-wall mount
• Available in almond or white
A-BUS 4-Room Multisource Kit
A-BUS Structured Wiring Panel Mount Kit
RD-AMK401A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $813.99/3
RD-AMK401W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $813.99/3
• Kit includes
* (1) RD-AH484 4-source/4-zone A-BUS hub mount
* (4) RD-AKP2 amplified keypads (no wall plates)
* (1) RD-ALRC1 learning/pre-programmed remote
* (1) RD-ALC2 local source input
* (4) RD-845.1 single micro IR emitters
* (1) RD-APS power supply
* (1) punchdown tool
• Surface mount • Available in almond or white
RD-ABK406W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $675.99/3
RD-ABK406A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $675.99/3
• Kit includes
* (1) RD-AH1 1 input A-BUS audio interface hub
* (4) RD-AKP2 amplified keypads (no wall plates)
* (1) RD-ALRC1 learning/pre-programmed remote
* (1) RD-AHP4 4-zone hub panel
* (1) RD-1584.1 IR emitters
* (1) RD-APS power supply
* (1) punchdown tool
• Available in almond or white
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
4-Pair Speaker Selector
259
Distributed Audio
iBridge Dock Kit
iBridge Bay Kit
RD-BGK1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $367.99/3
• Allows IR or RNET control Can be installed as part of ANY audio system
• With RNET (CAV/CAM6.6) systems, keypads display song
information, and with the UNO-TS2, select your music as if
the iPod was in your hands
• Dock can be located anywhere in the home with easy CAT5
connection
RD-BGK2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $382.99/3
• Allows RNET multiroom system to access iTunes® music
and video, DVDs and photos stored on Apple Mac® computers
with Intel Core Duo Processors and OSX 10.4 or higher
• Kit includes
* RD-BGB2 iBridge Bay
* RD-RAVD1 RNET A/V Decoder,
* 12 VDC 1A power supply * (2) RJ-45 patch cables,
* USB cable *Composite video cable
* Stereo mini patch cable * Stereo RCA patch cable
CAA66 Controller/Amplifier Kits
CAM6.6 Controller/Amplifier Kit
RD-CAA66L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Includes RD-KPL keypads
RD-CAA66KA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1207.99/3
• Includes RD-KP6 keypads
RD-CAM66S1W . . . . . . . . . . . . . . . . . . . . . . . . . . . $1934.99/3
• White
RD-CAM66S1A . . . . . . . . . . . . . . . . . . . . . . . . . . . $1934.99/3
• Almond
•
•
•
•
• Kit includes:
* (1) 6-source, 6-zone controller * (6) UNO-S1 keypads
• Russound RNET sources deliver song titles, artist,
and other metadata to keypads
• More kits available in other configurations
(internal tuner, UNO-S2 keypads) • Consult Russound catalog
CAS44 Controller/Amplifier Kits
CAV6.6 Controller/Amplifier Kit
RD-CAS44L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Includes RD-KPL keypads
RD-CAS44K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Includes RD-KP4 keypads
RD-CAV66S2W . . . . . . . . . . . . . . . . . . . . . . . . . . . $2330.99/3
• White
RD-CAV66S2A . . . . . . . . . . . . . . . . . . . . . . . . . . . . $2330.99/3
• Almond
•
•
•
•
Audio/Video
6-zone, 6-source audio controller
Built-in IR library with learning
Controllable via RS-232
Link port for connection to additional controllers and
Russound sources
4-zone, 4-source audio controller
Controllable via RS-232
Can link up to 2 controllers for an 8-zone, 4-source system
Kits available in 2 keypad styles in white or almond
• Kit includes:
* (1) 6-source, 6-zone controller w/audio/video switching and
* (6) UNO-S2 keypads
• Russound RNET sources deliver song titles, artist, and other
metadata to keypads
• Easy expansion via A-BUS and buffered loop outputs
2-Channel Local Source Switching Amp
2-Channel High Current Power Amplifer
RD-R235LS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $189.99/3
• 35W x 2 @ 8 ohms,
50W x 2 @ 4 ohms,
100W x 1 @ 8 ohms bridged
• Automatic local source switching with adjustable delay
• Built-in protection against damage caused by shorts and
other faults
• Ultra-compact chassis for easy placement
RD-R275HC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $330.99/3
• 75W x 2 @ 8 ohms,
80W x 2 @ 4 ohms,
200W x 1 @ 8 ohms bridged
• Auto sensing line level input
• Built-in protection against damage caused by shorts and
other faults
• High current design & low frequency cutoff switch makes
this amplifier ideal for use with autoformer volume controls
• Rack ears included (2U)
Multi-Channel Power Amplifiers
SMS3 Smart Media Server
RD-R850MC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $721.99/3
• 4-zone, 8-channel
RD-R1250MC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $956.99/3
• 6-zone, 12-channel
RD-SMS3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $2142.99/3
• 160GB capacity
RD-SMS3250. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $2384.99/4
• 250GB capacity
• 50W x 2 @ 8 ohms, 80W x 2 @ 4 ohms,
140W x 1 @ 8 ohms bridged (per zone)
• Built-in protection against damage caused by shorts and
other faults
• Auto sensing line level input
• Rack ears included (3U)
• 3 independent music streams
• Personal Media Assistant organizes your media automatically
• User interfaces include TV, web browser, and UNO keypads
via RNET
• Can also be used with any other multi-room audio system
Family of RNET Dual Tuners
UNO Smart Color Touch Screens
RD-ST2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $417.99/3
• Dual AM/FM tuners
RD-ST2XM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $683.99/3
• AM/FM and XM tuner
RD-ST2XM2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $909.99/3
• Dual XM tuners
RD-ST2S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $795.99/3
• AM/FM and Sirius tuner
RD-UNOTS2D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1235.99/3
RD-UNOTS23N. . . . . . . . . . . . . . . . . . . . . . . . . . . . $1059.99/3
• Integrates with any RNET® controller/amplifier
• 3.75" LCD displays metadata from RNET sources like the
RD-SMS3, RD-iBridge, and RD-ST2 Series tuners
• Minimal programming required
• Available as a desktop mount or 2-gang in-wall
• RNET delivers feedback including station info and metadata
to UNO keypads
• Controlled via RNET, RS-232 or IR
260
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Access
Music. Videos. Photos.
Russound iBridge Bay
Russound harnesses the power of iTunes®
iTunes Integration
Designed to fit snugly beneath a Mac mini,
the iBridge Bay turns any Mac computer with
iTunes into a media server when integrated
with a Russound RNET multiroom system.
The iBridge Bay delivers the best of both worlds – rich iTunes
content plus the convenience and performance of a Russound
multiroom system. By integrating iTunes media from a Mac®
computer with a Russound RNET® system, the iBridge Bay creates
a server that provides access to all iTunes content – music, movies,
TV shows, podcasts, and internet radio – via Russound RNET
touchscreens and keypads. Users can enjoy audio in any zone;
in zones equipped with a display, the Russound SRC2 remote
lets users search through music, videos, photos and DVDs via the
Apple® Front Row interface. iTunes content from other networked
Macs or PCs can also be accessed. The iBridge Bay works with
any Intel® Core™ Duo processor-based Mac.
All you need to know…
multiroom | keypads | sources | amplifiers | speakers | integration
Experience the interactive product demos on our website
www.russound.com | tel 800.638.8055
©2007 Russound, Newmarket, NH. *June, 2005 and June, 2006 studies by EH Research.
Mac, Apple, and iTunes are trademarks of Apple Computer, Inc., registered in the U.S.
and other countries. Intel and Intel Core are trademarks or registered trademarks of
Intel Corporation or its subsidiaries in the U.S. and other countries.
Distributed Audio - Residential Video
8-Zone/Source Audio Distribution System
12-Channel Power Amplifier with IR Control
VO-MRAUDIO88. . . . . . . . . . . . . . . . . . . . . . . . . . . $1374.99/3
• 6-zone built-in amplified @ 70 watts x 2-ch. (@ 4 ohms)
• Expandable to 8-source/16-zone system
• RS-232 and IR control to work with virtually any home theater
equipment or system
• Great sound quality and control capability
VO-PA1235 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $982.99/3
• 35 watts/channel
• Selectable channel modes
• IR controlled level, balance, mute
• Local or Common buss
• IR & DC voltage controlled
• Low impedance capability
• Auto protection
• Rack mountable
RF Amplifier
RF Distribution Amplifiers
CS-DA500A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $48.50/3
• 50MHz to 1GHz bandwidth
• 18dB fixed gain
• Includes grid mounting ears for 2619 rackmount grid
• Ideal for residential cable systems or as antenna
preamplifiers
• DTV compatible
CS-DA550HHR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $162.99/3
• High-headroom amplifier for antenna applications
CS-DA550BID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $166.99/3
• For cable modem and pay-per-view applications
• Bi-directional amplifier
RF Distribution Amplifiers
s-Video Distribution System
CS-DA8200HHR . . . . . . . . . . . . . . . . . . . . . . . . . . . . $174.99/3
• High-headroom amplifier for antenna applications
CS-DA8200BID . . . . . . . . . . . . . . . . . . . . . . . . . . . . $170.00/3
• For cable modem and pay-per-view applications
• Bi-directional amplifier
CS-SVC10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $200.99/3
• Up to 1,000 CAT5 between transmitter and receiver
• S & Composite video inputs
• Digital, optical digital 5.1 & analog stereo inputs
• Auto termination loop-through
• Auto optical to coax digitial audio conversion
• IR emitter & RJ-45 outputs
• Adjustable picture compensation for length of wire run
• 19" rack mountable (1 space)
• Includes SVC10R receiver
Audio/Video
•
•
•
•
2 inputs for modulated signals
Outputs for up to 8 TVs
Built-in IR engine - 5 volt IR
DTV compatible
2 inputs for modulated signals
Outputs for up to 8 TVs
Built-in IR engine - 12volt IR
DTV compatible
S-Video Stereo Modulators
Audio/Video Modulators
CS-SVM22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 2-Channel
CS-SVM24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 4-Channel
CS-3015. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $58.99/3
• Modulate a single audio/video source to a custom TV channel
• Distribute antenna/CATV to 4 locations
• 40MHz-1000MHz forward only
• DTV compatible
CS-3025. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $81.99/3
• Modulate 2 audio/video sources to 2 custom TV channels
• Distribute antenna/CATV to five locations with 5V IR control
• 40MHz-1000MHz forward only
• DTV compatible
•
•
•
•
Transmits S-video or composite video
Maintains full MTS stereo sound - integrated IR control
Compatible with 12V or 5V IR systems
19" rack mountable (1 space)
Video Modulators
Video Modulators with Integrated IR
CS-5415. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $56.99/3
• 1-Channel
CS-5425. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $89.99/3
• 2-Channel
CS-5435. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $117.99/3
• 3-Channel
CS-5445. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $144.99/3
• 4-Channel
CS-5515. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $76.99/3
• 1-Channel
CS-5525. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $125.99/3
• 2-Channel
CS-5545. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $200.99/3
• 4-Channel
• 25dBmV maximum output
• UHF: 14-64 CATV: 65-125 (excluding 95-99)
262
•
•
•
•
• UHF 14-64, CATV65-125 (excluding 95-99)
• Compatible with 12V or 5V IR systems
• Remotely power DA-550 or DA-8200 series distribution
amplifiers, up to 75 ft away
• Local loop output • Integrated IR
Audio/Video Modulator Kits
RF Distribution Kit
CS-5555BID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $485.99/3
• Bi-directional RF distribution kit with 12V IR system
• Kit contains (1) DA-550BID amplifier, (1) 5545 modulator,
(3) 2100A interfaces, (2) 2172 dual-head IR emitters,
(5) 2501 DC blocking capacitors
• DTV compatible
CS-5555HHR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $480.99/3
• High-headroom RF distribution kit with 12V IR system
• Kit contains (1) DA-550HHR amplifier, (1) 5545 modulator,
(3) 2100A interfaces, (2) 2172 dual-head IR emitters,
(5) 2501 DC blocking capacitors
• DTV compatible
CS-5557HHR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $318.99/3
• High-headroom kit for antenna applications
CS-5557BID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $327.99/3
• Bi-directional kit for cable modem and
pay-per-view applications
• RF distribution kit with 5V IR system
• Kit contains (1) DA-8200 amplifier, (1) 5525 modulator,
(2) 2133 IR targets, (1) 2172 dual-head IR emitter
• DTV compatible
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Video
RF Distribution Kit
Multi-Sat Multiswitch
CS-5558HHR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $552.99/3
• High-headroom kit for antenna applications
CS-5558BID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $485.99/3
• Bi-directional kit for cable modem and
pay-per-view applications
UA-DMS51602N . . . . . . . . . . . . . . . . . . . . . . . . . . . $493.99/3
• This multiswitch is for DirecTV or
Dish Network DishPro systems
• Terrestrial input is available
• RF distribution kit with 5V IR system
• Kit contains (1) DA-8200 amplifier, (1) 5545 modulator,
(3) 2133 IR targets, (2) 2172 dual-head IR emitters
• DTV compatible
Satellite Signal Meter
Universal Plasma Ceiling Mount
UA-SSM2500F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• This meter:
* Holds all satellites and all their transponders
* Zip code entry provides antenna azimuth and
vertical angle settings
* Tunable to individual transponders
* Controls multi-LNBs/switches with 22kHz/DiSEqC
commands
V8-PDMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $141.99/3
• Silver Powder Coat Finish
V8-PDMCB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $140.99/3
• Black finish
Universal Plasma Articulating Wall Mount
Universal Yokeless Projector Mount
V8-PDMW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $367.99/3
• Holds most 37" - 63" plasma displays
• Mounting rails adjust from 8" - 39"
• Mounting Rail Length - 18.5"
• Rotates 45° and has adjustable -5° to +20° tilt
• Depth 4" (arms fully collapsed);
Depth 24" (arms fully extended)
• Load Capacity 180 lbs.
• Silver Powder Coat finish
V8-PM3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $96.99/3
• Silver Powder Coat Finish
V8-PM3B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $96.99/3
• Black finish
•
•
•
•
•
Holds most 37" - 63" plasma displays
Mounting rails adjust from 8.5" - 35" (Left-Right)
Mast telescopes 18" - 30" from ceiling
Rotates 360º and has adjustable 0º - 15º tilt
Load Capacity - 180 lbs.
•
•
•
•
Adjustable Tilt - ± 20°; Adjustable Pitch - ± 15°
Adjustable Yaw (Rotation) - ± 180° (360°)
Fits most projectors with mounting holes inside 14.5" dia.
Mast telescopes 18" - 30" from ceiling;
flush mount plate included
• Load Capacity 75 lbs.
Onyx Series
DF-253287. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $875.99/3
• Onyx 92" diagonal HDTV, M1300 viewing surface, Vel-Tex frame
DF-253288. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1194.99/3
• Onyx 106" diagonal HDTV, M1300 viewing surface, Vel-Tex frame
DF-253342VT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $948.99/3
• Onyx 92" diagonal HDTV, HiDef Grey viewing surface, Vel-Tex frame
DF-253343. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1155.99/3
• Onyx 106" diagonal HDTV, HiDef Grey viewing surface, Vel-Tex frame
•
•
•
•
•
•
Premium fixed wall screen
Front or rear projection screen installs on the wall in about 15 minutes
Rigid 4" beveled frame is finished in black
Side and corners interconnect with tool provided
Optional Vel-Tex velvety textile frame cover highly recommended
Available in 16:9 HDTV Format sizes 65" - 161" diagonal
Audio/Video
Onyx Projection Screen
Salara Projection Screen
Salara Series
DF-136103. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $755.99/3
• Salara/Plug & Play 92" diagonal HDTV, matt white viewing surface
DF-136104. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $769.99/3
• Salara/Plug & Play 106" diagonal HDTV, matt white viewing surface
DF-136107. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $773.99/3
• Salara/Plug & Play 92" diagonal HDTV, High Contrast Grey viewing surface
DF-136108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $789.99/3
• Salara/Plug & Play 106" diagonal HDTV, High Contrast Grey viewing surface
• The Salara’s small, elliptical case and domed endcaps are finished in solid white
• Available in hard wired and Plug & Play version
• Plug & Play version allows you to hang the screen in just 10 minutes no electrician required
• Includes built-in receiver and hand held IR transmitter
• Available in 16:9 HDTV Format 65" - 106" diagonal
Clarion Projection Screen
Clarion Series
DF-252087. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Clarion 92" diagonal HDTV format, M1300 viewing surface, Vel-Tex frame
DF-252088. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Clarion 106" diagonal HDTV format, M1300 viewing surface, Vel-Tex frame
DF-252151. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $910.99/3
• Clarion 92" diagonal HDTV, HiDef Grey viewing surface, Vel-Tex frame
DF-252152. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1136.99/3
• Clarion 106" diagonal HDTV, HiDef Grey viewing surface, Vel-Tex frame
• The Clarion is designed for simple installation
• The Clarion’s aluminum frame forms a 2" border,
for a clean, theatre-like appearance
• The beveled, extruded black aluminum frame interconnects on site
• The fabric attaches to the frame without snaps or tools,
forming a smooth viewing surface
• Acoustically transparent (AT) fabrics and new CinemaScope (2.35:1) sizes available
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
263
Audio/Video
Residential Video - TV - Residential Accessories
4-Zone / Source HD Video Distribution
60" PureVision HD Plasma TV
VO-HD44CC5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $997.99/3
• Sends high definition 1080i video & digital audio to be sent
up to 1000 ft. over CAT5 cable with virtually no loss in signal
quality
• 4-source, 4-zone High-Definition matrix video switcher with
SD video capability
• Controllable through IR and RS-232 commands
• Bandwidth supports resolutions of 1080p, 1080i, 720p,
480p and 480i
6P-PDP6070HD . . . . . . . . . . . . . . . . . . . . . . . . . . . $3794.99/3
• Advanced PureCinema with 3:3 Pulldown
• First-Surface Pure Color Filter for improved contrast
• Built-in tuners: NTSC x 2, ATSC, DCR
• USB for home gallery & 2 HDMI inputs
• One body design, easy hook-up
• Easy remote with TV Guide Control
RF Programmable Remote
RF Remote Receiver
DO-RC7000CI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $228.99/3
• Pre-programmed IR Remote Control
• PC programmable for total customisation
• 2-way communication for media browsing capability (*1)
• Wireless RF multi-room control (*1)
• Built-in USB connector
• Web-updateable IR codes via USB
• Upgradable Firmware
DO-RC7001CI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $152.99/3
• IR to RF Base Station - No need for line-of-sight IR control
• Enables 2-way communication with DO-RC7000CI and
select Denon products
• RF and IR Addressable
• Multi-room operation is possible by adding the DO-RC7000CI
or DO-RC7001CI
• The addition of the DO-RC7001RCI can extend the distance of
RF communication
Multi-Media Surge with Power Filtering
External Infrared Remote Sensor
EL-SP6TVN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $75.99/3
• HEAVY DUTY
• Peak Surge: 39,000A
• Response Time < .5 ns Normal mode
• Rated Output 15 A
• 60db Maximum Power Noise Filtering
• RJ45 Data, RJ11, 2 CATV Ports
• External Ground Lug
• Repositionable outlets
• UL 1449 Listed
JB-HE1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $63.99/3
• Ideal for use with remote-controlled products hidden inside
cabinets
• Compatible with Harman Kardon® or other products with
“IR Remote In” jack
• Includes power supply, connecting block & connecting cable
HDMI-Digital A/V Assemblies
7I-7000NS01 . . . . . . . . . . . . . . . . . . . . . . . $16.50/3
• .5 meter Male to Male HDMI Cable
7I-70003P01. . . . . . . . . . . . . . . . . . . . . . . . $46.50/3
• .5 meter Male to Male HDMI Cable 3 pack
7I-7001NS01 . . . . . . . . . . . . . . . . . . . . . . . $23.99/3
• 1 meter Male to Male HDMI Cable
7I-70013P01. . . . . . . . . . . . . . . . . . . . . . . . $69.99/3
• 1 meter Male to Male HDMI Cable 3 pack
7I-7002NS01 . . . . . . . . . . . . . . . . . . . . . . . $32.50/3
• 2 meter Male to Male HDMI Cable
7I-70023P01 . . . . . . . . . . . . . . . . . . . . . . . $94.99/3
• 2 meter Male to Male HDMI Cable 3 pack
7I-7003NS01 . . . . . . . . . . . . . . . . . . . . . . . $37.50/3
• 3 meter Male to Male HDMI Cable
7I-7005NS01 . . . . . . . . . . . . . . . . . . . . . . . $65.99/3
• 5 meter Male to Male HDMI Cable
7I-7007NS01 . . . . . . . . . . . . . . . . . . . . . . $109.99/3
• 7 meter Male to Male HDMI Cable
7I-7010NS01 . . . . . . . . . . . . . . . . . . . . . . $150.99/3
• 10 meter Male to Male HDMI Cable
7I-7015NS01 . . . . . . . . . . . . . . . . . . . . . . $215.99/3
• 15 meter Male to Male HDMI Cable
7I-7030NS01 . . . . . . . . . . . . . . . . . . . . . . $628.99/3
• 30 meter Male to Male HDMI Cable
7I-7203NS01 . . . . . . . . . . . . . . . . . . . . . . . $55.99/3
• 3 meter DVI Male to HDMI Male Cable
7I-7801NS01 . . . . . . . . . . . . . . . . . . . . . . . . $6.39/3
• 1 meter TOSLink Cable
7I-7802NS01 . . . . . . . . . . . . . . . . . . . . . . . . $7.79/3
• 2 meter TOSLink Cable
7I-7804NS01 . . . . . . . . . . . . . . . . . . . . . . . $10.50/3
• 4 meter TOSLink Cable
7I-7806NS01 . . . . . . . . . . . . . . . . . . . . . . . $14.50/3
• 6 meter TOSLink Cable
7I-79013P01. . . . . . . . . . . . . . . . . . . . . . . . $46.50/3
• Pony Tail Adapter DVI Male to HDMI Female 3 pack
7I-7901NS01 . . . . . . . . . . . . . . . . . . . . . . . $16.50/3
• Pony Tail Adapter DVI Male to HDMI Female
7I-79023P01. . . . . . . . . . . . . . . . . . . . . . . . $46.50/3
• Pony Tail Adapter DVI Female to HDMI Male 3 pack
7I-7902NS01 . . . . . . . . . . . . . . . . . . . . . . . $16.50/3
• Pony Tail Adapter DVI Female to HDMI Male
DVI-Digital Video Assemblies
7I-7101NS01 . . . . . . . . . . . . . . . . . . . . . . . $23.99/3
• 1 meter Male to Male DVI Cable
7I-7102NS01 . . . . . . . . . . . . . . . . . . . . . . . $34.50/3
• 2 meter Male to Male DVI Cable
7I-7103NS01 . . . . . . . . . . . . . . . . . . . . . . . $55.99/3
• 3 meter Male to Male DVI Cable
7I-7201NS01 . . . . . . . . . . . . . . . . . . . . . . . $23.99/3
• 1 meter DVI Male to HDMI Male Cable
7I-7202NS01 . . . . . . . . . . . . . . . . . . . . . . . $34.50/3
• 2 meter DVI Male to HDMI Male Cable
Crystal Series Assemblies
Analog Assemblies
7I-7301NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $5.99/3
• 1 meter Male to Male RCA Digital Coax Cable
7I-7302NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $9.29/3
• 2 meter Male to Male RCA Digital Coax Cable
7I-7303NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 3 meter Male to Male RCA Digital Coax Cable
7I-7405NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $15.50/3
• 5 meter Male to Male RCA Subwoofer Cable
264
7I-7410NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $23.99/3
• 10 meter Male to Male RCA Subwoofer Cable
7i-7501NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $8.79/3
• 1.5 meter Male to Male RCA Audio Cable
7i-7503NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $11.99/3
• 3 meter Male to Male RCA Audio Cable
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Accessories
Analog Assemblies
7I-7601NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $13.50/3
• 1 meter Male to Male RCA Component Video Cable
7I-76013P01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $41.99/3
• 1 meter Male to Male RCA Component Video Cable 3 Pack
7I-7602NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $20.99/3
• 2 meter Male to Male RCA Component Video Cable
7I-76023P01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $57.99/3
• 2 meter Male to Male RCA Component Video Cable 3 Pack
7I-7603NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $22.50/3
• 3 meter Male to Male RCA Component Video Cable
7I-76033P01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $64.99/3
• 3 meter Male to Male RCA Component Video Cable 3 Pack
7I-7703NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $63.99/3
• 3 meter Male to Male BNC RGBHV Video Cable
7I-7705NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $43.50/3
• 5 meter Male to Male BNC RGBHV Video Cable
7I-7710NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $70.99/3
• 10 meter Male to Male BNC RGBHV Video Cable
7I-7715NS01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $97.99/3
• 15 meter Male to Male BNC RGBHV Video Cable
Slim Devices Squeezebox Network Music Player
3H-915000002. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $105.99/3
• Simple one-button activity control
• Maximum control - sound and picture convenience buttons
• IR communication
• Computer-based set up
• Controls over 5000 brands
3H-930000009. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Black
3H-930000029. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Silver
• Access virtually any internet radio anywhere in your home,
even without a computer
• Plays WMA, MP3, WAV, FLAC, Ogg and AAC music files
• Clock with Alarm
• True 802.11g wireless connection
• Custom infrared remote
Slim Devices Transporter Network Music Player
RF Wireless Extender
3H-930000011. . . . . . . . . . . . . . . . . . . . . . . . . . . . $1407.99/3
• Black
3H-93000012. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1407.99/3
• Silver
• Access virtually any internet radio anywhere in your home,
even without a computer
• Streams digital music with the highest sound quality
• Quality professional grade connectors for balanced and
unbalance analog signals
• Precision analog signals
• True 802.11g wireless connection • Custom infrared remote
3H-966195040. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $93.99/3
• Wireless RF controls inside cabinets, through walls and floors
• Wireless Range of up to 100 ft.
• Compatible with Harmony 890Pro, 890 and Harmony 1000
only
890Pro Advanced Universal Remote
880Pro Advanced Universal Remote
3H-966196040. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $275.99/3
• Simple one-touch activity control
• IR and RF communication
• Compatible with Z-Wave™ wirless home controls
• Customizable large color display
• Rechargeable Li-Ion battery with recharging docking station
• Maximum control - sound and picture convenience buttons
• Computer-based set up
• Controls over 5000 brands
• Account management via the Pro-Intaller Website
3H-966198040. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $183.99/3
• Simple one-touch activity control
• Optimized for HDTV and DVR control
• Customizable large color display
• Rechargeable Li-Ion battery with recharging docking station
• Maximum control - sound and picture convenience buttons
• IR communication
• Computer-based set up
• Controls over 5000 brands
• Account management via the Pro-Intaller Website
1000 Advanced Universal Remote
Leviton/Spec-Grade Sound™
Pre-Construction Brackets™
3H-966230040. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $351.99/3
• One-touch activity control
• 3.5" touch screen
• IR and RF communication
• Rechargeable Li-Ion battery with sleek recharging docking
station
• Computer-based set up
• Controls over 5000 brands
Audio/Video
670 Advanced Universal Remote
LV-PCC55KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• For LV-SGC65 in-ceiling speaker
LV-PCI65KIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $21.50/3
• For LV-SGI65 in-wall speaker
LV-PCI80KIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $27.50/3
• For LV-SGI80 in-wall speaker
• Pre-construction brackets
• Designed to save time during the rough-in and
trim-out phases
• Built-in wire management loops
Home Theater and Audio Wallplate
Universal Projector Ceiling Mount
LV-AEHTK000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $78.99/3
LV-AEMRK000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $27.50/3
• Convenience of ready-made plate with pre-configured wiring
terminations
• High-Quality “audiophile-grade” connectors
• Two QuickPort openings for adding other connectors
• Designed for easy installation of cables
• AEHTK accommodates from 5.1 to 7.1 channel
surround-sound
3O-PROPJT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $80.99/3
• Legs adjustable to 19" diagonally for small to large projectors
• Built-in pitch/tilt adjustment controls
• Universal adjustable mounting pattern
• Tamper-proof hardware
• 40 lbs. (18.1 kg) maximum weight capacity
• Easy to install
• Available in Black or Silver
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
265
Residential Accessories
Small Flat Panel Cantilever Mount
Medium Flat Panel Cantilever Mount
3O-17ARMB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $82.99/3
• Black
3O-17ARMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $54.99/3
• Silver
3O-37ARMB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $120.99/3
• Black
3O-37ARMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $120.99/3
• Silver
•
•
•
•
•
Optimum viewing: swivel, pan, tilt and articulation
30 lbs. (13.6 kg) maximum weight capacity
Low profile design folds flat against wall
Includes complete Grade 5 hardware kit and
VESA compliant: 75/100
Medium Flat Panel Cantilever Mount
3O-37FBFB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $47.99/3
• Black
3O-37FBFS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $47.99/3
• Silver
3O-37HDARMB . . . . . . . . . . . . . . . . . . . . . . . . . . . . $149.99/3
• Black
3O-37HDARMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . $149.99/3
• Silver
Lift n’ Lock™ for easy installation
80 lbs. (36.3 kg) maximum weight capacity
Sliding lateral on-wall adjustment
Open architecture for trim out
Universal and VESA compliant: 75/100/200
Incl. - complete Grade 5 hardware kit & security hardware
•
•
•
•
•
•
•
Lift n’ Lock™ for easy installation
80 lbs. (36.3 kg) maximum weight capacity
Portrait or landscape viewing
Integrated cable management
Optimum viewing: swivel, pan, tilt and articulation
VESA compliant: 100/200
Incl. - complete Grade 5 hardware kit & installation template
48 Articulated Retractable Mount
54 Fastback Tilt Mount
3O-48ARMUAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . $239.99/3
• Black
3O-48ARMUAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . $239.99/3
• Silver
3O-54FBTB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $78.99/3
• Black
3O-54FBTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $76.99/3
• Silver
Lift n’ Lock™ for easy installation
125 lbs. (56.7 kg) maximum weight capacity
Low profile design folds flat against wall
Lateral arm adjustment • Built-in screen leveling
Includes 18” & 25” universal mounting rails to fit the widest
variety of flat panel sizes • Universal and VESA compliant
• Double-stud mounting • Incl. complete Grade 5 hardware kit
•
•
•
•
•
Audio/Video
Optimum viewing swivel, pan, tilt and articulation
80 lbs. (36.3 kg) maximum weight capacity
Low profile design folds flat against wall
Built-in screen leveling
VESA compliant: 75/100/200
Includes complete Grade 5 hardware kit
Medium Flat Panel Fixed Mount
•
•
•
•
•
•
•
•
•
•
•
•
•
Lift n’ Lock™ for easy installation
175 lbs. (79.4 kg) maximum weight capacity
Fits most 37"- 60" flat panels
Tilts up to +15° • Sliding lateral on-wall adjustment
Double-stud mounting • Open architecture for trim out
Universal and VESA compliant: 75/100/200/400
Includes complete Grade 5 hardware kit
54 HD Articulated Retractable Mount
63 Fastback HD Tilt Mount
3O-54HDARMB . . . . . . . . . . . . . . . . . . . . . . . . . . . . $209.99/3
• Black
3O-54HDARMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . $209.99/3
• Silver
3O-63FBHDTB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $149.99/3
• Black
3O-63FBHDTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $144.99/3
• Silver
•
•
•
•
•
•
•
Lift n’ Lock™ for easy installation
125 lbs. (56.7 kg) maximum weight capacity
Fits most 32"- 50" flat panels • Sliding lateral on-wall adjust.
Portrait or landscape viewing • Integrated cable management
Dual j-box openings for A/V and electrical connections
Incl. complete Grade 5 hardware kit & installation template
Double-stud mounting • Universal and VESA compliant
•
•
•
•
•
•
•
Lift n’ Lock™ for easy installation
200 lbs. (90.7 kg) maximum weight capacity
Tilts -5° to +15° • Sliding lateral on-wall adjustment
Universal and VESA compliant: 400x600
Double-stud mounting • Locking system for added safety
Incl. - complete Grade 5 hardware kit & installation template
Includes extension rods and rails for large panels
63 HD Articulated Retractable Mount
Pronto Universal Remote Control
3O-63HDARMB . . . . . . . . . . . . . . . . . . . . . . . . . . . . $239.99/3
• Black
3O-63HDARMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . $239.99/3
• Silver
PB-TSU3500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Extensive infrared code database for any device or brand
• New high-contrast monochrome LCD touchscreen
• One-touch convenience allows single touch control of
multiple functions
•
•
•
•
•
•
•
266
•
•
•
•
•
•
Lift n’ Lock™ for easy installation
200 lbs (90.7 kg) maximum weight capacity
Dual arm design • Double-stud mounting
Dual j-box openings for AV and electrical connections
Integrated cable management • Includes universal adapter
Includes complete Grade 5 hardware kit
Universal and VESA compliant
Pronto Universal Remote Control
Pronto Control Solution
PB-TSU7500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Single control solution for any device, any brand
• Advanced graphical capabilities
• Color LCD touchscreen display
• 48MB of Flash memory
• Universal IR code database plus learning functionality
PB-TSU9600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $861.99/3
• Designed by Installers, Made by Philips
• An integrated control solution for conventional home theater,
on-line multimedia content and lighting
• The 3.7" touch-screen display has an amazing 640 x 480
pixel VGA display, giving it a higher pixel density than any
current touch-screen home control unit
• Easier to Program-The editor comes with built-in wizards for
guided basic programming and macro creation
• Pronto is proud to introduce full 2-way communication!
Known as ProntoScript, this advanced editing capability provides you live status feedback from the entire system includ-
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Accessories
Platinum Level HDMI Interconnects
PH-HDMX900 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Simply the best HDMI; High Definition Multimedia Interconnects available!
• Quad shielded 24 gauge Silver treated OFC internal conductors
• Supports HDMI1.3a 1080P up to 25 feet (7.5 meters)
• HDMX.915 (5 ft.) and HDMX.930 (10 ft.) are HDMI1.3a 1080P Category 2 supporting “Deep Color”
• Simplay Certified: (HDMX.915, HDMX.930 and HDMX.950)
• Dual Ferrite in-line filter cores
• Custom shileded metal barrel connectors
• HDMI 1.3a supports 1080P up to 25 feet 7.5 meter (HDMX.975)
• Simplay Certified: 1.5, 3 and 5 meter (HDMX.915, HDMX.930 and HDMX.959)
• New lengths, HDMX.915 (1.5 meters) and HDMX.975 (7.5 meters)
• All 900 Series HDMI are CL-3 rated approved for in-wall Residential and Commercial installation
• Popular 30 ft. and 50 ft. (9.0 and 15.0 meter) available today
• New longer lengths packaged with Active repeater (model HD.REP-FF)
• HDMX.99-20R (20 meter - 65 ft.), HDMX.99-25R (25 meter - 82 ft.) and
HDMX.99-36R (36 meter - 118 ft.) supports 1080P with repeater
(packaged with all 3 long lengths
• *Note: Repeater is added at end of the long cable run then a shorter cable no more than 10 ft.
is used to connect to the TV/Monitor
• The HDMX.900 ATC Series features the new Mini HDMI to standard HDMI adaptor cable
• The HDMX.900 ATC Series 1 and 2 meter versions are HDMI1.3a 1080P Category 2 supporting
“Deep Color”
Ceiling Tile Brackets
PH-HDMX500 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 28 gauge triple shielded OFC internal copper conductors
• High Definition Multimedia Interface cables
• HDMI™ 1.3a supports 1080p Category 2 (deep color) up to
3.0 meter (10 ft.) 5.0 and new 7.5 meter are HDMI™
1.3a supports 1080p categoty 1
• Simply HD Verified 1, 2 and 3 meter
• CL-3 Rated outer jacket approved for in-wall installation
• Custom tooled molded connectors
• Available 1, 2, 3, 5 and 7.5 meter versions
C1-CTBC600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $20.50/3
• Ceiling Tile Bracket used in drop ceiling and T-bar type
ceiling applications.
• Fits C1-C605, C1-C610, C1-C620, C1-C640, C1-C645,
C1-C650, C1-C660 and C1-C600TT ceiling speakers
• Sold as each
IR Dual Flasher
Ceiling Tile Brackets
C1-IRDUALFL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $8.50/3
• LEDs flash red to indicate operation
• Docking ports allow quick installation of IR Flashers on
components and easy removal of IR Flashers
• Dual IR Flasher splits to two 8’ wires for easy hookup to IR
Router
• Sold as each
C1-CTBC800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $20.50/3
• Ceiling Tile Bracket used in drop ceiling and T-bar type
ceiling applications.
• Fits C790, C800, C850, C870, C800TT and C850TT ceiling
speakers.
• Sold as each
IR Fish Eye Receiver
Subwoofer Back Box
C1-IRFISHEYE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $66.99/3
• Flush-mount IR receiver • Ambient Noise Suppression
• LEDs indicate system status and IR activity
• Includes four color bezels (white, black, almond, and bone)
• Includes two Ambient Light Restrictor (ALR) bezels for severe
plasma or CFL environments
• IR Terminal included for easy, no-cut connection
• Dimensions (Dia x L) : 15/32" x 2-5/8"
• Color Bezel (Dia x L): 47/64" x 1/8"
• ALR Bezel (Dia x L): 47/64" x 23/64"
• Sold as each
C1-BBIWS10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $106.99/3
• Medium Density Fiberboard (MDF) back box for the
C1-IWS10 subwoofer
• Designed to fit any standard 16" stud bay
• Cuts down on translational energy vibration between adjacent
walls
• The C1-IWS10 subwoofer is tuned to the C1-BBIWS10
back box
• Sold individually
IR Fish Eye Kit
IR Shelf Top ALR Receiver
C1-FSHEYEKIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $136.99/3
• Contains all components needed for a one room system setup.
Includes the following IR components:
* (1) IR Fish Eye Receiver
* (4) IR Single Flashers
* (1) IR Router
* (1) IR Power Supply-200mA
C1-IRSHLFALR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $37.50/3
• Shelf-top IR receiver
• Ambient Light Restrictor (ALR)
• ALR minimizes interference from plasma and CFL
environments
• LEDs indicate system status and IR activity
• IR Terminal included for easy, no-cut connection
• Dimensions (L x W x D): 1-1/8" x 3-3/16" x 1-1/16"
• Sold as each
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
Silver Level HDMI Cables
267
Audio/Video
Residential Accessories
268
IR J-Box Receiver - White / Bone / Almond
IR Plasma Kit
C1-IRJBOXWH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
C1-IRJBBOXBN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
C1-IRJBOXAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• In-wall IR receiver
• Ambient Noise Suppression
• LEDs indicate system status and IR activity
• Quick-Connect terminal design
• Decor-matching wall plate included
• Fits in a standard J-Box
• Order in white, bone or almond
• Sold as each
C1-IRPLASKIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $146.99/3
• Contains all components needed for a one room system setup.
Includes the following IR components:
* (1) IR Plasma Receiver
* (1) IR Router
* (1) IR Power Supply-200mA
* (4) IR Single Flashers
IR Mini-wht Kit
IR Mini-blk Kit
C1-IRMINIKITW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Contains all components needed for a one room system
setup. Includes the following IR components:
* (1) IR Mini Receiver-wht
* (1) IR Router
* (1) IR Power Supply-200mA
* (4) IR Single Flashers
C1-IRMINIKITB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Contains all components needed for a one room system
setup. Includes the following IR components:
* (1) IR Mini Receiver-black
* (1) IR Router
* (1) IR Power Supply-200mA
* (4) IR Single Flashers
IR Mini Receiver - White / Black
IR Router
C1-IRMINIWHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $63.99/3
C1-IRMINIBLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $63.99/3
• Surface-mount mini IR receiver
• Ambient Noise Suppression
• LEDs indicate system status and IR activity
• IR Terminal included for easy, no-cut connection
• Dimensions (L x W x D): 2-9/16" x 17/32" x 9/16"
• Order in white or black
• Sold as each
C1-IRROUTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $35.50/3
• Central router for all Proficient IR systems
• Controls IR receivers and IR Flashers
• Equipped with 3.5mm mini jacks for quick connection of
IR Receivers and Flashers
• Multiple IR Routers can be cascaded for additional IR Flasher
output jacks
• Sold as each
IR Plasma Receiver
IR Single Flasher
C1-IRPLASMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $81.99/3
• Super small, surface-mount IR plasma receiver
• Two-piece design separates the receiver from the “Smart
Circuit” electronics package for clean looking installation
• The “Smart Circuit” blocks interference from plasmas or CFLs
• LEDs indicate systemstatus and IR activity
• IR Terminal included for easy, no-cut connection
• Sold as each
C1-IRSINGFL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $5.39/3
• LED flashes red to indicate operation
• Docking port allows quick installation of IR Flasher on a
component and easy removal of IR Flasher
• Includes an 8' wire for painless hookup to IR Router
• Sold as each
IR Shelf Top Receiver
IR Shelf Top Kit
C1-IRSHLFTOP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $37.50/3
• Shelf-top IR receiver
• Ambient Noise Suppression
• LEDs indicate system status and IR activity
• IR Terminal included for easy, no-cut connection
• Dimensions (L x W x D): 1-1/8" x 3-3/16" x 1-1/16"
• Sold as each
C1-IRTOPKIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $88.99/3
• Contains all components needed for a one room system
setup. Includes the following IR components:
* (1) IR Shelf Top Receiver
* (1) IR Router
* (1) IR Power Supply-200mA
* (4) IR Single Flashers
IR Power Supply - 1.2A
IR Power Supply-200mA
C1-IRPS12A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $27.99/3
• 12V DC, 1.2 Amp regulated power supply
• Designed for use in larger IR systems
• Powers the IR Receivers, IR Router and IR Flashers
• Sold as each
C1-IRPS200MA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $6.39/3
• 12V DC, 200mA regulated power supply
• Designed for use in small to moderate IR systems
• Powers the IR Receivers, IR Router, IR Hub and IR Flashers
• Sold as each
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Accessories
7.1 Home Theater Plate
RD-IRJ2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $113.99/3
• All Russound IR receivers are CFL friendly
• Kit includes:
* (1) RD-862EYE flush-mount IR receiver
* (1) RD-857 IR Connecting block
* (1) RD-846C power supply
* (4) 845.1 IR emitters
• Also available in a Plasma Friendly version: RD-IRJ2P
RD-HTP2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $36.50/3
• Heavy duty, rugged ABS plate
• Gold-plated, 5-way binding posts accepts pins, spade lugs
and single or double banana plugs
• Fits standard double gang box
WALTx Outdoor Volume Control
ALTX Impedance Matching Volume Controls
RD-WALTX2D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Outdoor weatherproof volume control in self-sealing gray box
with connection for 3/4" PVC conduit
• Autoformer based impedance matching
(2/4/8x configurations)
• Uses same VC core as the legendary Russound ALTX Series
volume controls
• Limited lifetime warranty
RD-ALTX2D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Autoformer based impedance matching
(2/4/8X configurations)
• Peak power handling of 126W
• Legendary performance backed by Russound’s Gold
Guarantee - Free replacements on defective units for life!
• Available in both Decora and standard wall plates in 5 colors
• New! Now includes:
white, almond and bone in one package
Addressable, Modular RF Base Station
Addressable RF Base Station
UT-MRF300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $120.99/3
• From Universal Remote Control, Inc.
• Advanced RF receiving circuitry provides longer range
and minimizes interference providing for reliable system
operation
• Includes detached RF Receiver (RFX-150) which enables
flexibility in placement for optimum reception
• Adjustable and buffered IR outputs for up to 6 components
enables quick and trouble-free installation for components
with or without rear-panel IR imports
UT-MRF250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $54.99/3
• From Universal Remote Control, Inc.
• Advanced RF receiving circuitry provides longer range
and minimizes interference providing for reliable system
operation
• Integrated antenna provides 50~100 feet of range
(depending upon the environment) which is sufficient for
any single zone in a home or as a standalone system
• Includes IR outputs for up to 6 components
• Each unit is addressable enabling simultaneous control
IR/RF PC Programmable Remote Control
IR/RF Remote Control with LCD
UT-MX850 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $225.99/3
• From Universal Remote Control, Inc.
• Customized control for home theaters and systems
with up to 20 components.
• High-capacity memory allows optimum customization and
automation of home theater systems and simple
whole-house systems
• Controls up to 20 components located anywhere in the home
with optional RF base station
• Up to 5 character labeling enables intuitive button naming
• Crisp, back-lit LCD display
UT-MX650 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $163.99/3
• From Universal Remote Control, Inc.
• The optimum control for simple home theaters and
whole-house A/V systems.
• High-capacity memory allows optimum customization
and automation of home theater systems and simple
whole-house systems
• Controls up to 20 components located anywhere in the home
with optional RF base station
• Up to 5 character labeling enables intuitive button naming
• Crisp, back-lit LCD display
PC Programmable Table Top IR/RF Remote
RF to IR Converter for XTR39 Remote
UT-TX1000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $285.99/3
• From Universal Remote Control, Inc.
• PC programmable, tablet-style, tabletop IR/RF remote control
with addressable RF
• Extra large, easy-to-read monochrome LCD display
• Touch screen and hard button interface
• Flexible memory architecture
VO-RF2IR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $106.99/3
• Complete package includes:
* (4) emitters,
* (1) power supply
* (1) RS-232 cable
• No more pointing the remote
• Plasma proof, LCD proof, WORRY proof
• 100 ft. range
• 4 IR ports - 1 RS-232 port
IR Ready Kit (for 4 sources)
IR Ready Kit (for 10 sources)
VO-IRDY4KTRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $54.99/3
• Every system requires these basic components!
Includes:
* (4) VO-283M emitters,
* (1) VO-781RG power supply,
* (1) VO-78944 connecting block
• IR receiver sold separately!
VO-IRDY1KITR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $101.99/3
• Every system requires these basic components!
Includes:
* (10) VO-283M emitters,
* (1) VO-781RG power supply,
* (1) VO-79144 connecting block
• IR receiver sold separately!
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
SaphIR Kit
269
Residential Accessories
Shelf-Top Style IR Receivers
IR Over Coax Video Cable Kit
VO-29195. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $159.99/3
• Desktop style Plasma Proof style
VO-29180. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $72.99/3
• Desktop style LCD proof
VO-29110RP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $35.99/3
• Desktop style IR receiver
VO-17294RP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $56.99/3
• Enables IR control over existing coax cable
• Easily retrofits in existing homes
• Easy to connect using existing coax
• Everything needed in one convenient package
• Choose the right receiver for the job
• Use with VO-IRDY4KIT for a complete IR system
Standard Shelf-Top IR Receiver Kit
Emitter Multi-Packs
VO-291KITRP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $69.99/3
• The Price Performance Leader
• From the inventors of IR
• Perfect for installations with low level IR interference
• Includes broadband shelf-top style IR receiver
• Everything needed in one convenient package:
(1) Standard Shelf-Top IR Receiver, (4) emitters,
(1) power supply, (1) connecting block
• Easy to connect & install
VO-282M10PK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $72.99/3
• IR Mouse Emitter
VO-283M10PK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $73.99/3
• Blink-IRT Mouse Emitter
VO-284M10PK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $84.99/3
• Dual IR Mouse Emitter
VO-286M10PK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $94.99/3
• Dual Blink-IR Mouse Emitter
Plasma Proof Shelf-Top IR Receiver Kit
New IR Emitters
VO-29195KTRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . $191.99/3
• Complete system solution in one package
• Includes:
* (1) shelf top Plasma Proof IR receiver,
* (4) emitters,
* (1) power supply,
* (1) connecting block
• Proprietary Xantech Plasma noise filter eliminates
interference
VO-282TP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $9.29/3
• Twin plug mouse emitter allows control of single source by
(2) IR systems
• Great for integrating home theater in multi-zone system
VO-283TP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $9.29/3
• Twin plug Blink-IR mouse emitter
VO-282X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $8.00/3
• No shell emitter
• Save up to 10% on 5 & 10 packs of IR & Blink IR,
Dual & Dual Blink IR Mouse emitters
Audio/Video
• Hide emitter inside equipment for cleanest appearance
Standard Dinky Link IR Receiver Kit
Plasma Proof Dinky Link IR Receiver Kit
VO-480BKIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $108.99/3
• Miniature design is easy to hide
• Perfect for installations with low level IR interference
• Complete system in one convenient package
• Save by buying a complete system
• Easy to connect IR system
• Color: Black
VO-48095BKRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Black
VO-48095SKRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Silver
LCD/CFL Proof Dinky Link IR Receiver Kit
Standard Peep-Hole IR Receiver Kit
VO-48085BKRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Black
VO-48085SKRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Silver
VO-490KITRP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $102.99/3
• Perfect for installations with low level IR interference
• Includes broadband peephole style IR receiver
• Everything needed in one convenient package
• Easy to connect & install
• LCD/CFL Proof Dinky Link style IR receiver kit
• Complete system solution in one package
• Includes (1) LCD/CFL Dinky Link IR receiver, (4) emitters,
(1) power supply, (1) connecting block
• Proprietary Xantech LCD/CFL noise filter eliminates
interference
• Exclusive adjustable IR carrier frequency
J-Box Style IR Receivers
Plasma Proof Peep-Hole IR Receiver Kit
VO-78095. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $162.99/3
• Plasma Proof style J-box IR receiver
VO-78080. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $72.99/3
• LCD proof J-box IR receiver
VO-78010RP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $56.99/3
• Standard J-box IR receiver
VO-49095KTRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . $191.99/3
• Plasma Proof peephole style IR receiver
• Complete system solution in one package
• Includes:
* (4) emitters,
* (1) power supply,
* (1) connecting block and
* (3) bezels (brass, black & white)
• Proprietary Xantech Plasma noise filter eliminates
interference
• Choose the right receiver for the job
• Use with VO-IRDY4KIT for a complete IR system
270
• Plasma Proof Dinky Link style IR receiver kit
• Complete system solution in one package
• Includes (1) Plasma Dinky Link IR receiver,
(4) emitters, (1) power supply, (1) connecting block
• Proprietary Xantech Plasma noise filter eliminates
interference
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Residential Accessories - Residential Intercom Systems
50 Watt Rotary Volume Control
100 Watt Rotary Volume Control
VO-XVCD50
• Power handling: 50W/channel RMS
• Adjustable impedance matching for up to 8 speaker pairs
(1,2,4, 8 pairs)
• RoHS compliant
• Almond, black, ivory & white Decora inserts & knobs
included in box
• UL Listed
VO-XVCD100
• Power handling: 100W/channel RMS
• Adjustable impedance matching for up to 8 speaker pairs
(1,2,4, 8 pairs)
• RoHS compliant
• Almond, black, ivory & white Decora inserts & knobs
included in box
• UL Listed
5.7" Color LCD Touchpanel Controller Kit
LCD Touchscreen Remote Control
VO-TS57LCD
• Complete IR touchpanel control system in one package
• Standalone device to output IR and/or RS-232 commands
• Fully customizable display graphics
• Package includes 5.7" panel, emitter, connecting block and
power supply
VO-XTR39
• 3.9" LCD touchscreen remote
• RF & IR capable
• Completely customizable
• Can control any home system
Residential Intercom Kit
LV-470000MBK
• Leviton Residential Intercom System with Main Controller
Board and Interface Board with 1 Outdoor Station
• For Cat5 Structured Media Installations
LV-470000D1
• Outdoor Station
LV-470000W1
• White Indoor Station
LV-470000E1
• Black Indoor Station
LV-47000PRT
• Interface Board with 4 additional ports
LV-47000CHM
• Door Chime Module
LV-47000STR
• Door Strike Module
MU-DMC10H
• Intercom system hub
MU-DMC10RS
• Intercom room station
MU-DMC10PS
• Intercom patio station
MU-MC10DS
• Intercom door station
MU-DMC10KIT
• Intercom Kit, contains:
(1) DMC10H, (4) DMC10RS, & (1) DMC10DS
•
•
•
•
•
•
Type 110 punch -down for all room stations and hub
Fits standard 2-gang box
Easy-To-Use functions
Contemporary design stations with blue LED backlighting
Hands free communications from all stations
Supports any mix of up to 8 room, patio, or door stations.
(Up to 16 with additional hub connection)
• Room station faceplates are available in 4 packs to match any decor
(white, almond and black)
• Door & patio station faceplates are available in 4 packs
(white, bright brass, satin, nickel, and antique brass)
Music/Communication System
Music/Communication System
MU-DMC1
• Master station - white
MU-DMC1RS
• Remote scan room station
MU-DMC1CD
• Multi-disc CD player
MU-MC960PA
• Power amp for stereo
MU-DMC34
• Retrofit master
MU-DMC3RS
• 3-wire room station
MU-DMC4RS
• 4-wire room station
MU-DMCFM
• Finishout frame master only
MU-DMCFR
• Finishout frame room station
• CAT5 wiring • Upgradable to stereo
• Privacy feature
• 30% smaller design
GH Series Multi-Tenant Color Video Entry
AJ-GHVDES
• Video Entrance Panel kit with Digital Display
AJ-GHADES
• Audio only Entrance Panel kit with Digital Display
AJ-GH1KD
• Open Voice, color video master station
AJ-GH1AD
• Audio only master station
AJ-GHMK
• Security Guard Station
Audio/Video
Intercom System
GH Series
• The GH Series offers simple, hands-free tenant stations,
provides unparalled reliability & is backed by the best support
in the industry.
• Up to 16 entrance panels, 500 tenant stations and 4 security
stations
• Quick & Easy set-up - 1 pair of wire for audio, 1 pair for video
• Easy programming
• Alpha-numeric digital displays
• Entrance station calls can be forwarded to concierge station
for screening
• Hard wired system - NO monthly phone bill expenses!
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
271
Residential Intercom Systems - Commercial Intercom Systems
Premium Video Doorphone Camera
Video Door Intercom Monitor
PA-VLGC001AN
• Gold
PA-VLGC001AS
• Silver
PA-VLGM301A
• 3.5" Color video monitor
• Video output jack (RCA jack)
• 3-step ringer control
• Wall mountable
• Adjustable pinhole cameras
• Illuminated button
• Compatible with PA-VLGM301A or PA-VLGM201A
ComPoint Intercom System
Basic Systems:
RD-ISB4
• 4 room system with 1 door station
RD-ISB6
• 6 room system with 1 door station
Advanced Systems:
RD-ISA6
• 6 room system with 1 door station
RD-ISA62
• 6 room system with 2 door stations
•
•
•
•
Point-to-point or whole house paging
Use with any multiroom audio system or with the RD-ISSP in-wall speaker
System offers Hands-free reply, Do Not Disturb, Listen Mode
2 keypads:
* Basic (RD-ISK1) up to 6 zones and
* Advanced (RD-ISK2) for up to 36 zones
• Up to 2 door stations (RD-ISK3) with optional Door Strike Release (RD-ISDR1)
• Other kits available - consult Russound catalog
AX Series Integrateble Audio/Video Security
Audio/Video
•
•
•
•
•
Add communication to your security system!
AX Series integrates with CCTV systems, CO Lines and Access Control devices
Cat-5e wired!
Up to 8 master stations & 120 remote stations
PC Programmable for system customization
AJ-AX8MV
• Master station with color monitor
AJ-AX8M
• Master station - audio only
AJ-AX16SW
• 16-call Add on selector
AJ-AXDV
• Door station, aluminum die cast, surface mount
AJ-AXDVP
• Door station, aluminum die cast, surface mount with HID®
embedded card reader
AJ-AXDVF
• Door station, stainless steel flush mount
AJ-AXDVFP
• Door station, stainless steel flush mount with HID®
embedded card reader
AJ-AX084C
• Central Exchange Unit (CEU) for 8 doors, 4 masters
AJ-AX248C
• CEU for 24 doors and 8 masters
AJ-AX320C
• Add-on exchange unit for 32 doors
AJ-PS2420UL
• Power supply
AN-8000 Series IP Network Intercom
•
•
•
•
Exchanges, masters and subs can be distributed over a data communications network
Can be connected to an existing local area network (LAN) or wide area network (WAN)
Dedicated software program for setting up system configuration and features
Superior sound quality utilizing full duplex acoustic echo cancelling technology
AJ-AN8500MS
• IP Addressable master station with handset & display
AJ-AN8540DS
• IP Addressable door station, flush mount
AJ-AN8000MS
• Master station with handset & display
AJ-AN8010MS
• Master station with handset
AJ-AN8011MS
• Master station with open voice
AJ-AN8020MS
• Industrial master station
272
AJ-AN8031MS
• Master station, flush mount
AJ-AN8050DS
• Door station, flush mount
AJ-AN8050DSW
• Door station, flush mount, weather resistant
AJ-AN8000EX
• Network intercom exchange unit
AJ-AN8000MI
• Network intercom multi-interface unit
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Commercial Intercom Systems
JF Series Enhanced Boxed Sets
JF Series Color Video - Enhanced
• Boxed sets features include:
* Picture memory to record visitors at entrance
* Voice memo allows users to record a voice memo at master station
* Entrance messaging to pre-record messages for playback on door station
* Audio/video door station with HID® embedded card readers available (JF-DVFHID)
AJ-JFS2AED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $775.99/3
• Includes: Master station, JF-DA plastic surface mount door station and p/s
AJ-JFS2AEDV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $839.99/3
• Includes: Master station, JF-DV zinc die cast surface mount door station and p/s
AJ-JFS2AEDF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $839.99/3
• Includes: Master station, JF-DVF stainless steel flush mount door station and p/s
JF Series Standard Boxed Sets
• Quick & Easy to install - only 2 wires!
• Boxed sets contain door station, master station and power supply
for simple install!
• Keep locked doors locked identify visitors without having to open door
• No handset to pick-up
• Door release
• Compact, attractive design
• Extend warranty by an additional 1 year when Aiphone wire installed
JF Series Color Video - Standard
AJ-JFS1AD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $399.99/3
• Set includes: master station, JF-DA plastic surface mount door station, p/s
AJ-JFS1ADV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $438.99/3
• Set includes: master station, JF-DV zinc die cast surface mount door station, p/s
AJ-JFS1ADF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $438.99/3
• Set includes: master station, JF-DVF stainless steel flush mount door station, p/s
AJ-JFDVFHID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $461.99/3
• Stainless steel flush mount door station with embedded HID® card reader
• Quick & Easy to install - only 2 wires!
• Boxed sets contain door station, master station and power supply
for simple install!
• Keep locked doors locked identify visitors without having to open door
• No handset to pick-up
• Door release
• Compact, attractive design
• Extend warranty by an additional 1 year when Aiphone wire installed
IP-EWST-IP Addressable Intercom Adaptor
KB Series Color Video System
AJ-IPEWST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $323.99/3
• Ethernet adaptor, includes separate power supply
AJ-IPEWSTPOE. . . . . . . . . . . . . . . . . . . . . . . . . . . . $373.99/3
• Ethernet adaptor, supports power-over-ethernet
AJ-LEDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $51.99/3
• Plastic surface mount audio door station
AJ-IEJA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $53.99/3
• Stainless steel faceplate flush mount door station
AJ-IPEWST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $323.99/3
• 1 Boxed Set: includes (1) IP-EWST, (1) LE-D, p/s
AJ-KB3MRD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $748.99/3
• Master station with color video monitor
AJ-KBDAR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $526.99/3
• Video door station, plastic suface mount
AJ-KB3HRD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $670.99/3
• Sub station with color video monitor
AJ-KB3SD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $270.99/3
• Audio only sub station
AJ-PS2420UL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $79.99/3
• Power supply
Audio/Video
• Calls from remote stations ring to one computer
• Up to 3 color video inside stations and 5 door stations
LEF Series Selective Call System
Door Stations with Built-in CCTV Camera
AJ-LEF3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $112.99/3
• 3-call master station
AJ-LEF5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $162.99/3
• 5-call master station with selective door release
AJ-LEF10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $184.99/3
• 10-call master station with selective door release
AJ-LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $20.50/3
• Plastic surface mount door station
AJ-LEDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Stainless steel faceplate flush mount door station
AJ-IESSV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $420.99/3
• Use with AX, IE, TC-M or TD-H Series
AJ-NESSV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $350.99/3
• Use with NEM, NDR or NDRM systems
AJ-LESSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $350.99/3
• Use with AP-M, LAF-C, LEF, LEM or MP-S systems
MK Series - B&W PanTilt Video Sentry
MK Series - B&W Wide Angle Video Sentry
AJ-MKS2MCD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . $719.99/3
• Incl. master station, plastic surface mount door station & p/s
AJ-MK2HCD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $304.99/3
• Video sub station
AJ-MK2SD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $110.99/3
• Audio only sub station
AJ-MKWM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $197.99/3
• CCTV input module
AJ-MKDGC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Aluminum panel, surface mount door station
AJ-MKS1GD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $356.99/3
• Master station, plastic surface mount door station, p/s
AJ-MKS1GDV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $470.99/3
• Master station, zinc die cast surface mount door station, p/s
AJ-MKS1GDVF . . . . . . . . . . . . . . . . . . . . . . . . . . . . $497.99/3
• Master station, stainless steel flush mount door station, p/s
AJ-MK1HD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $231.99/3
• Video sub master
•
•
•
•
Flush mount, stainless steel, 2-gang door station
Audio intercom & CCTV Camera all-in-one!
Weather & Vandal resistant
Choose model to work with any Aiphone System!
• Quick & Easy to install!!
• 1 door and up to 3 inside stations • Door release
• Identify visitors without having to open the door
Nurse Call Systems
EN-900500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Tone Visual Annunciators and AV Masters
• Visual and AV Room Patient Stations
• Pull Cord and Push Button Emergency Stations
• Dome Lights
• Call Cords
• Duty and Staff Stations
• See complete line at www.eeiusa.com
274
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Commercial Intercom Systems - Central Vacuum
2 Inlet Kit in a Box
EE-EE508VIF
EE-EE532EXP
EE-EE515PWA
• Integrates with Security, Access control systems or operates
independently, PC input capable
• 8 to 80 channels, Max 32 min Rec time with auto sequence
• +/-; NO/NC; momentary/latch trigger selectable
• Mic/Line-in/out and 2 W AMP on-board drive to multiple
speakers (EE-EE668SPK / EE-EE518SPK)
4B-040350
• (2) mounting brackets, (2) floor mounting adaptors,
(4) nail guards, (7) 2" couplers,
(6) hangers, (4) 45° elbows,
(7) sweep 90’s, (2) dual 90’s,
(2) plastic guards for plastic mounting brackets,
swept 90, 55' of CVAC pipe, 80' low volt wire,
PVC cement, wire nuts & instruction sheet
Starter Cleaning Set
3 Inlet Kit in a Box
4B-099272
• Electric power brush
• adjusts automatically to any carpet height
• 30' x 1.25" crushproof, electric hose
• Attachment set includes * 2 plastic wands * Wall & bare floor brush
* Round dusting brush * Upholstery nozzle
* Crevice tool * Slip-on brush
* 3-tool caddy * Hose rack
4B-040351
• (3) white inlets, (3) mounting brackets,
(3) floor mounting adaptors, (6) nail guards,
(10) 2" couplers, (8) hangers,
(6) 45° elbows, (10) sweep 90’s, (3) dual 90’s,
(3) plastic guards for plastic mounting brackets,
(2) swept 90, 80' of CVAC pipe, 100' low volt wire,
PVC cement, wire nuts & instruction sheet
Elite Electric Cleaning Set
Select Electric Cleaning Set
4B-099278
• Electric power brush adjusts to most carpet heights
• No-slip cogged drive belt
• 30' x 1.25" crushproof, total control electric hose
• Convertible corded hose
• Deluxe attachment set
4B-099277
• Electric power brush adjusts to any carpet height
• 30' x 1.25" crushproof,total control electric hose
• Convertible corded hose
• Attachment set includes * 2 plastic wands * Wall & bare floor brush
* Round dusting brush * Upholstery nozzle
* Crevice tool * Slip-on brush 3-tool caddy * Hose rack
C-Vac Pack VII
Dust Driver
4B-099279
• Electric power brush with height adjustment
• No-slip cogged drive belt
• 30' x 1.25" crushproof, total control hose
• Convertible corded hose
• Contains standard attachments
4B-060818
• Includes 30 ft. rugged hose
• Adjustable height wand
• 20" wide utility floor brush
• Hose hanger/4-piece attachment set
VacPan
Car Care Kit
4B-016925001
• Black
4B-016927
• White
4B-016940
• Bisque
4B-060009
• Lightweight 30 ft. hose
• Upholstery brush, dusting brush, crevice tool & hose hanger
• Now with mesh storage bag
Audio/Video
eVOXCON Multiplex Voice Annunciator
• The VacPan is a floor level automatic dustpan operated
by a toe touch switch
Dust Mop
Hose Sock
4B-045046
• Dust Mop
4B-170328
• Blue
4B-170329
• Gray
4B-170330
• Beige
• 30 ft./35 ft. ultra stretch hose sock
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
275
Central Vacuum - Commercial Sound
Quiet Clean
Cleaning Set
4E-CS3000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $441.99/1
• Ultra quiet
• 3-position height adjustment
• LED headlight
• 30 ft. Total Control hose with convertible cuff
• Quitled hose sock
4E-PU3900. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $569.99/3
• 640 Air watts
• Homes up to 12,000 sq. ft.
• LCD panel-intuitive Maintenance Display
• CleanStream™ HEPA filter
Red & Platinum Series
Power Unit Dimensions
Audio/Video
•
•
•
•
•
40" High x 14" Diameter
All units can be exhausted to the outdoors
All units are UL and UL-Canada Listed
Shipping containers exceed all ISTA packaging standards
CFM is measured at 2” open orifice,
water lift is at sealed condition
Platinum Series (Disposable Bag)
Red Series (Bagless)
MU-AVP3000 . . . . . $373.99/3 MU-AVP12000 . . . . $508.99/3
MU-AVP7500 . . . . . $432.99/3 MU-AVP24000 . . . . $498.99/3
• Unit features:
* High efficiency, 2-stage filtration
* High air watt rating while maintaining low operating noise
* Power unit exhausts outside living area so dirt does not
recirculate
* Hose can plug directly into vacuum at port for local cleaning
• 4-color segmented display shows bag debris level
• 2-color status indicator shows power & motor life
• Slide-gate collar bag • 10 year warranty
MU-AVR3000. . . . . $293.99/3 MU-AVR12000. . . . $391.99/3
MU-AVR7500. . . . . $332.99/3 MU-AVR24000. . . . $407.99/3
• Power indicator
• Bagless design with debris bucket, no bag to replace
• Unit features:
* High efficiency, 2-stage filtration
* High air watt rating while maintaining low operating noise
* Power unit exhausts outside the living area so dirt does not
recirculate
* Hose can plug directly into vacuum at port for local cleaning
• Five year warranty
Air-Driven Turbo System Package
Standard Electric Accessory Package
MU-VM1200S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $172.99/3
• Low-voltage crush-proof swivel hose with on/off switch
(MU-V400S)
• Air-driven 12" turbo carpet brush (MU-VM179B)
• Deluxe horsehair tools
• Telescopic wand
• Hose rack & cloth caddy bag for tools
MU-VM2200DS . . . . . . . . . . . . . . . . . . . . . . . . . . . . $282.99/3
• Crushproof, direct-connect swivel hose with on/off switch
(MU-V510PS)
• Deluxe 14", self-adjusting electric carpet brush with
headlight (MU-VM458)
• Deluxe horsehair tools
• MU-VMTC - the telescopic wand with cord management
adjust to fit you
• Hose rack & cloth caddy bag for tools
Deluxe SuperSystem Accessory Package
Commercial Satellite Audio Receiver
MU-VM4200DS . . . . . . . . . . . . . . . . . . . . . . . . . . . . $303.99/3
• Deluxe direct-connect crush-proof hi/low voltage
swivel hose with 3-position switch (MU-V610PS)
• Deluxe 14" self-adjusting electric carpet brush
with headlight (MU-VM458)
• MU-VMTC - the telescopic wand with cord management
adjust to fit you
• Hose rack & cloth caddy bag for tools
• Deluxe horsehair tools
9W-XM100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Designed especially for retail, restaurant and commercial
environments
• Up to 99 user programmable forced tune events (dayparting)
per day
• Adjustable line level output for component matching
• Front Panel Lockout & channel blocking to prevent tampering
• Backlit LCD displays song, title, and artist information
• Stereo and mono RCA outputs
• Available rack-mounting panel (2RU)
• Bi-directional RS-232 serial data port
CP700 Power Amplifier
AT-CP700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $598.99/3
• A professional grade audio power amplifier specifically
designed for demanding contractor applications, the CP700
features esoteric grade toroidal power supply and output
transformers. These transformers were chosen for their
outstanding reliability as well as extended frequency
response (-3dB @ 30Hz / 70.7V output through the
transformers). Whether your application is a large
distributed constant voltage sound system or a high SPL
sound reinforcement system, the Atlas Sound CP700 is the
perfect answer for high power/low cost amplification needs.
276
Need help finding your way through
a maze of systems challenges?
Call 1-800-234-7971 (ADI-SYS1) and let ADI’s Systems
Sales & Support team help you with pre-sales
applications and product compatibilities.
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Commercial Sound
AP Series High Efficiency Paging Horns
AT-AP15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $55.99/3
• 15 Watt, 8-ohm paging horn
AT-AP15T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $67.99/3
• 15 Watt, 70.7V (1W to 15W taps)
AT-AP30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $72.99/3
• 30 Watt, 8-ohm paging horn
AT-AP30T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $79.99/3
• 30 Watt, 70.7V (2W to 30W taps)
• Atlas Sound AP Series double re-entrant loudspeakers are
available in 15 and 30 Watt versions for medium and
high-powered sound distribution. 25/70.7/100 Volt
transformer models include screwdriver-adjust power tap
selection for a variety of sound and signaling applications.
All include the Omni- Purpose® bracket for vertical/horizontal
positioning and have provisions for surface/strap mounting
to pillars and I-beams. Grey baked epoxy finish.
AA120 & AA240 Mixer Amplifiers
AT-AA120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $367.99/3
• 120 Watt, 6-channel mixer amp with MOH & VCA
AT-AA240. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $543.99/3
• 240 Watt, 6-channel mixer amp with MOH & VCA
AT-AARMK20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $16.50/3
• Rack mount kit for AA120, AA120M, AA240 (2 RU)
AT-AAVCC5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 5 pc. security cover kit (replaces knobs on front panel)
AT-AAVC10K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 10K Decora remote control for VCA, white & ivory inserts
• This powerful mixer amp series was engineered with unique
features to assist the contractor or installer in today’s
commercial business audio environment. These 6 input units
features extensive muting and output options along with
a very unique bridge in/out feature to allow combining of
multiple amplifiers in ballroom applications without the need
for external relays. VCA control is included which may be
assigned to the BGM input or globally for the entire amplifier.
AA35 Mixer Amplifier
AT-AA35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $146.99/3
• 35 Watt, 3 channel mixer amp with MOH
AT-AAIT600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Optional 600 ohm input transformer for telco applications
AT-AARMK25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $20.50/3
• Rack mount kit for one or two AA35 (2RU)
AT-AAVCC5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 5 pc. security cover kit (replaces knobs on front panel)
Audio/Video
• The Atlas Sound AA35, a 3 input channel mixer amplifier designed for distributed business
paging and background music (BGM) systems, small to medium speech privacy systems and
in applications where music on hold (MOH) plus paging is required. With 1 microphone input
and (2) stereo line inputs the AA35 will accommodate a variety of input sources including paging
microphones, CD players and digital music receivers. A dip switch selectable matrix allows the
creation of a zone 2 mix from any or all of the input sources for music or messaging on hold
applications. 25V, 70.7V and 8 Ohm outputs are provided. The 35 Watts of output power will
match nicely with Atlas Sound FAP, SM, SD, and GD series loudspeakers. In fact, in a 11' ceiling
application, the AA35 will provide power for up to 117 SD72W loudspeakers tapped at .25 Watts
each.
AA120M Mixer Amplifier
AT-AA120M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $412.99/3
• 120 Watt, 6-channel mixer amp with module input, MOH & VCA
AT-AATG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 3-tone chime generator module for AA120M
AT-AAML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $53.99/3
• Mic/line input module with VCA for AA120M
AT-SMG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Analog sound masking module for AA120M
AT-AARMK20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $16.50/3
• Rack mount kit for AA120, AA120M, AA240 (2 RU)
AT-AAVCC5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 5 pc. security cover kit (replaces knobs on front panel)
AT-AAVC10K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 10K Decora remote control for VCA, white & ivory inserts
• Atlas Sound’s AA120M is possibly the most versatile mixer/amplifier on the market today.
True 3-zone matrixing (main 120W output, 1W output and line level output), 24VDC output with
relay sync to the mute bus, bridge in/out with built in relay control, (1) industry standard module
input with direct to mix bus or direct to amp assignment, global or BGM input VCA control and
multiple mute bus configuration options round out the unit’s extensive feature set.
The AA120M is ideal for applications such as sound masking, industrial paging, retail and BGM,
commercial PA, priority volume control applications and hotel ballrooms/meeting rooms just to
name a few.
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
277
Commercial Sound
Strategy Series In-Ceiling Loudspeaker System
AT-FAP40T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $42.50/3
• 4" ultra compact full range system, 70.7V (1W to 16W taps) plus 8 ohm (FAP42T-B Black bezel)
AT-FAP42T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $63.99/3
• 4" coaxial full range system, 70.7V (1W to 16W taps) plus 8 ohm
AT-FAP42TC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $63.99/3
• 4" low profile enclosure version of FAP42T (4.25" overall depth)
AT-FAP62T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $84.99/3
• 6" coaxial full range system, 70.7V (2W to 32W taps) plus 8 ohm
AT-FAP82T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $113.99/3
• 8" coaxial full range system, 70.7V (2W to 60W taps) plus 8 ohm
AT-FAPSUB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $174.99/3
• 8" ceiling sub system with passive crossover, 70.7V (7.5W to 60W taps plus 8 ohm)
AT-FAP8CXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Includes 8CXT60 driver for high ceiling applications
• The Strategy Series Premium 70.7/100V/8 Ohm tuned & ported coaxial ceiling speaker
packages will satisfy the needs of owners, architects, contractors, and consultants by delivering
true, high fidelity sound reproduction in an attractive and easy-to-install system.
These high performance systems are perfectly suited for many business music and public
address applications. Compact profile enclosures and a wide variety of dispersion patterns
make the Strategy Series a perfect choice for most any ceiling height.
Models range from 4" full range to 8" coaxial models plus a very efficient ceiling subwoofer
system. All units include mounting accessories for acoustic ceiling tile.
Optional new construction rings also available. White Bezel & grills.
Audio/Video
Economy Series Ceiling Speaker Package
AT-SD72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $11.50/3
• 8", 10 oz. dual cone, 70.7V/25V xfmr (.25 to 5W taps)
AT-SD72W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $15.50/3
• 8", 10 oz. dual cone, 70.7V/25V xfmr (.25 to 5W taps) 12.75" white steel grill
AT-SD72WV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $19.50/3
• 8", 10 oz. dual cone, 70.7V/25V xfmr (.25 to 5W taps), 12.75" white steel grill,
center mounted 5K ohm volume control
AT-GD87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $28.50/3
• 8", 10 oz. coaxial speaker, 70.7V xfmr (1W to 8W taps)
AT-GD87W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $33.50/3
• 8", 10 oz. coaxial speaker, 70.7V xfmr (1W to 8W taps) 12.75" white steel grill
AT-958 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $9.79/3
• Enclosure system for Series - use with 81-8R or 76-8E2
• Atlas SD/GD speaker packages are the next generation of Atlas Sound high performance cone
loudspeakers with identical specifications to the preceding C Series speakers.
The similarity in the sonic qualities ensures that contractors and designers who have worked
with the C Series (C10A, C803A) in the past will know exactly what to expect when they
purchase a SD or GD package. Choose speaker/transformer assembly only or complete
system with white steel grills. SD Series also includes a model with grill and center mounted
volume control (AT-SD72WV)
Strategy Series Surface Mount Loudspeaker Series
AT-SM42T* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 4" 2-way SM system, 70.7V (2W to 16W taps) plus 8 ohm
AT-SM52T* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 5.25" 2-way SM system, 70.7V (1W to 30W taps)
AT-SM52* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 5.25" 2-way SM system, 8 ohm, 100W RMS
AT-SM82T* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 8" 2-way SM system, 70.7V (2W to 60W taps)
AT-SM82* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• 8" 2-way SM system, 8 ohm, 150W RMS
* B for Black, W for White
• Use surface-mount Atlas Sound Series surface mount loudspeaker systems for commercial,
professional and residential applications or where versatility and high-fidelity sound is desired.
These systems are ideal for indoor and outdoor installation, in monaural and stereo foreground
or background music systems, video systems in conference rooms & classrooms, boutiques/
shops, restaurants/cafes, leisure, recreation/sports centers, and houses of worship. All models
are constructed of weather resistant materials: UV-resistant, talc impregnated, polypropylene
injection molded cabinets; polypropylene or treated woofer cones; powder coated aluminum
grilles and all brass hardware. A multi-position, C-shaped mounting bracket is included with
each model at no additional cost. Optional ball mount model SM ball mount - b/w available for
applications where concealed mounting hardware is required.
278
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
!"! ###$$%
Commercial Sound
CP700 Power Amplifier
Commercial Audio Mixers
AT-CP700
• A professional grade audio power amplifier specifically
designed for demanding contractor applications, the CP700
features esoteric grade toroidal power supply and output
transformers. These transformers were chosen for their
outstanding reliability as well as extended frequency
response (-3dB @ 30Hz / 70.7V output through the
transformers). Whether your application is a large
distributed constant voltage sound system or a high SPL
sound reinforcement system, the Atlas Sound CP700 is the
perfect answer for high power/low cost amplification needs.
5C-14M
• 4 input/1 output channel
5C-28M
• 8 input/2 output channel
Commercial Audio Amplifiers
Music & Paging Mixer/Amplifier
5C-180A
• 80 watt output channel
5C-280A
• (2) 80 watt output channels
5C-1160A
• 160 watt output channel
5C-140MPA
• 40 watt mixer amplifier with 4 inputs
• Tel/Mic input for voice activated paging
• Music on hold output (1V and 1W)
• 4 ohm/25V/70V outputs
• Remote volume control capable
•
•
•
•
Mic/Line switchable inputs
Bass & Treble tone controls on every input
Auto ducking for paging
3 year no fault warranty
Audio/Video
• 4 ohm/25V/70V outputs
• Remote volume control capable
• 3 year no fault warranty
XM Radio Mixer/Amplifier
Commercial Audio Mixer/Amplifiers
5C-180MAX
• 80 watt amplifier with integrated
• XM Radio receiver
• XM antenna and remote control included
• Tel/Mic input for voice activated paging
• Music on hold output
• 4 ohm/25V/70V outputs
• 2 additional audio source inputs
5C-180MA
• 4 input with (1) 80 watt output channel
5C-280MA
• 8 input with (2) 80 watt output channels
eAmp-Power PA Amplifier
with DC Power Supply
Crown/JBL 180 MaxPack
EE-EE515PWA
• PA-Amp (30W), w/Mic x1, Line-in x2
• For Background Music, Paging/Phone/Intercom,
Group audio control & audible annunciation systems
• Aux power output: 12VDC/1.5A
• Power source from 12-24V in DC or AC
• Battery back-up capable
• Standard settings & compact in size
RCA and Phoenix connectors on every input
Bass & treble tone controls on every input
Mic or line selectable
Auto-ducking for paging
Line out/amp
3 year no fault warranty
5C-180MAXPAK
• Complete business music system
* 80 watt amplifier with integrated XM Radio receiver
* (4) JBL Pro Control 1ST loudspeakers
• XM antenna and remote control included
• Tel/Mic input for voice activated paging
• Music on hold output
Surface Mount Loudspeakers
Subwoofers
JF-23
JF-23T
• Most compact, 3.5" woofer, 1/2" tweeter,
50W, 8 ohm (23) or 5W @ 70V (23T)
JF-25
JF-25T
• Compact, 5.25" woofer, 3/4" tweeter,
150W, 8 ohm (25) or 30W @ 70V (25T)
JF-28
JF-C28T60WH
• High output, 8” woofer, 1" tweeter,
175W, 8 ohm (28) or 60W @ 70V (28T-60)
JF-19CS
• 8" In-ceiling subwoofer, 8 ohm
JF-19CST
• 8" In-ceiling subwoofer, 70V
JF-CNTRLSB2
• Stereo, satellite outputs, 10" driver, indoor/black only
JF-SB210
• Powerhouse stereo/mono subwoofer, 2 x 10", 800W
In-Ceiling Loudspeakers
In-Ceiling Loudspeakers
JF-24CMICRO
• 8 ohms
JF-24CTMICRO
• 8W multi-tap @ 70V
JF-24C
• 16 ohms, SonicGuard® overload protection
JF-24CT
• 30W multi-tap @ 70V
• Background music, 4.5" woofer & 1/2" tweeter, 30W
• Shallow 4" depth, wide coverage
• Wide, smooth coverage. Complete with backcan and tile rail
280
•
•
•
•
•
•
• Available black or white (add -WH)
• Ask about MTC-210-SAT crossover and
MTC-210T 70V input modules for SB210
• Background or foreground,
Coaxial 4" woofer & 3/4" tweeter, 80W
• Wide, smooth coverage. Complete with backcan and tile rail
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Commercial Sound
Premium Surface Mount Loudspeakers
In-Ceiling Loudspeakers
JF-25AV
• Best fidelity, shielded, 5" woofer & 3/4" tweeter,
200W, 8 ohm and 70V selectable
JF-29AV1
• Very high output, 8" woofer & compression driver,
300W, 8 ohm and 110W @ 70V selectable
JF-30
• Very smooth 3-way, 10" woofer,
500W, 4 ohm and 150W @ 70V selectable
• SonicGuard® overload protection
Theft-resistant InvisiBall mounting included
• Outdoor IP-55 rated. All available black or white (add -WH)
JF-26C
• 16 ohms, SonicGuard® overload protection
JF-26CT
• 60W tap at 70V
Conditioned Power Distributor
UHF-3 Wireless System
ND-CPD1006L
• Professional power conditioners with RFI/EMI filtering
and surge protection
• 10 AC sockets:
2 unfiltered front panel and 8 conditioned rear panel
• Six-step delayed sequence turn-on / off
• Extremely accurate system voltage meter with
3-digit LED display
• Retractable, rotating, 6 LED lamp for front rack illumination
ND-UHF3
• UHF wireless sigle channel system available in hand-held,
lavalier, & headset configurations
• 6 systems available to work in a single location
• Clear audio with up to 250 feet of range (line of sight)
• Half-rack design for two system racking capability
Quad Receiver VHF Rackmount System
Sequenced Power Controller
ND-401XQUAD
• 4-channel VHF wireless systems in one rack space system
• Front pannel antennas and individual channel level controls
• Balanced XLR outputs on each channel and RF mutes
• Included 1/4" RF combined mix out of all channels
• Available in hand-held, lavalier, and headset systems
or any combination
• High output, 6.5" woofer & 3/4" tweeter, 150W
• Complete with backcan and tile rails
ND-SC100
• 8 AC socket sequenced power controller
• 1U, eight 3-prong AC outlets on rear panel with
sequenced On/Off
• Power conditioning and voltage protection
• Key lock turn On/Off with bypass switch for secure
operation
UHF Wireless System
ND-WPM1V
• VHF wireless podium microphone system
• Total of 8 systems possible in a single location
• Up to 200 feet of clear line of site range
• Microphone mute (on/off) and transmitter on/off are both
provided
ND-UWS1K
• 1000 channel selectable UHF wireless system
• Available in hand-held, lavalier, and headset systems
• Download of frequency sent via infrared to transmitter
• Balance XLR and unbalanced 1/4” outputs
• Up to 500 feet range (line of site)
Stereo Microphone Mixer
Desktop Gooseneck Microphone
SB-SCM262
• Designed for Restaurants, Aerobics/Health Clubs,
Corporate Training, & Classrooms
• Defeatable “ducking” to reduce music when a microphone
is in use
• Two XLR mic inputs
• Three stereo input channels
• One unbalanced stereo output and one balanced stereo
mic/line output
• 12V phantom power for condenser microphones
• All in a half-rack chassis
SB-MX412DC
• Wide dynamic range and frequency response
for accurate sound reproduction
• Balanced, transformerless output for increased immunity
to noise over long cable runs
• Snap-fit foam windscreen
• Attached desktop base
• Attached 10’ XLR cable
• Programmable on/off switch and LED on/off indicator
• Requires 11 to 52 VDC phantom power
Gooseneck Microphone
PGX Wireless Microphone
SB-515SBG18X
• Frequency response optimized for announcing, narration,
and paging applications
• Cardioid pickup pattern symmetrical about axis
• Neodymium magnet for high signal-to-noise ratio
• Shock-mounted cartridge for quiet operation
and low stand/handling noise
• Tough diecast locking grille and handle
• Built-in push-to-talk button controls microphone circuit
and relay or control circuit
• Gooseneck and mounting flange supplied
SB-PGX24SM58
• Automatic channel selection
• Infrared auto setup of transmitter frequency
• Simultaneous operation of up to 12 units
• Low interference UHF transmission
• Functional range up to 300 ft.
• Superior sound quality with Audio Reference Companding
• Durable carrying case included
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Audio/Video
VHF Wireless Podium Microphone System
281
Commercial Sound - Telephony
Desktop Microphone
SB-SM58S
• Frequency response tailored for vocals,
• Uniform cardioid pickup pattern minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter
which rotates 180°
• Handheld microphone with on/off switch
• Low impedance XLR connector for low noise
• Legendary Shure quality, ruggedness, and reliability
SB-550L
• Low-impedance operation
• Crisp, natural, high-intelligibility voice response
• Fingertip control bar actuates microphone circuit and
external relay or control circuit
• Long-life switch meets rigorous requirements of
communications and paging systems
• Sturdy, high-impact ARMO-DUR base and microphone case
resists corrosion
• Reliability under all operating conditions
• Neoprene feet prevent microphone slipping
Handheld Microphone
WideBand Ka/Ku Multiswitches
SB-527B
• Rugged handheld microphone for all operating conditions
• Non-locking, long life switch
• Omni-directional dynamic construction
• Clear response tailored for voice communications
• Low susceptibility to RF interference & hum
• “Million-Cycle” leaf-type switch
UA-WBS41602N
• NEW multiswitch for the 5 LNB system offered by DirecTV
• This is compatible with Ka/Ku Band sa
IR/RF Remote Control with LCD
IR Remote Control with LCD
UT-MX350
• From Universal Remote Control, Inc.
• A great control for simple home theatres or simple
whole-house systems
• Controls up to 10 components located anywhere in the home
with optional RF base station
• Up to 5 character labeling enables intuitive button naming
• Crisp, back-lit LCD display delivers optimum readability
even in low light
• On-board programming provides programming ease for
simple systems
UT-MX500
• From Universal Remote Control, Inc.
• Easy to read back-lit LCD
• Preprogrammed and Learning Capabilities
• Easy joystick operation
• Controls up to 10 components
DSX Support Website
DSX 22-Button Display Telephone
•
•
•
•
•
•
•
DSX Support Website www.necdsx.com
Free On-demand Web-based Technical Training
Free Software Updates
Free PC Programming Software
Download Brochures, User Guides, Manuals
Download System Configurator/Quote Spreadsheet
Reseller Technical Forum
QY-1090020
• Black
QY-1090025
• White
•
•
•
•
•
•
•
DSX-22 Button Display Telephone
3 Line Display
4 Interactive Softkeys
10 One Touch Keys
12 Programmable Feature Keys
Built-in wall mount
Built-in headset jack
DSX 34-Button Display Telephone
DSX 34-Button Super Display Telephone
QY-1090021
• Black
QY-1090026
• White
QY-1090030
• Black
QY-1090031
• White
•
•
•
•
•
•
•
3 Line Display (BACKLIT!)
Illuminated Dial Pad
4 Interactive Softkeys
10 One Touch Keys
24 Programmable Feature Keys
Built-in wall mount
Built-in headset jack
•
•
•
•
•
•
•
9 Line Display (BACKLIT!)
Illuminated Dial Pad
12 Interactive Softkeys
10 One Touch Keys
24 Programmable Feature Keys
Built-in wall mount
Built-in headset jack
DSX IntraMail Voice Mail/Auto Attendant
DSX-80 Common Equipment Kit
QY-1091011
• 4 Port 8 Hour
QY-1091013
• 8 Port 16 Hour
QY-1091022
• 8 Lines
• 16 Digital Stations
• 2 Expansion Slots (80 Port Maximum)
• DSX-160 KSU Available for Larger Applications
• USB & Ethernet Ports for PC Programming
• 128 Subscriber Mailboxes
• Flexible Answer Schedules
• Multiple Line Greetings
* House Line, Office Line, Kid’s Line
* Company A, Company B
• Remote Notification
Audio/Video
Handheld Vocal Microphone
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
283
Telephony
Conference Phones
DSX-40 Expansion Boards
QY-750073. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $360.99/3
• Conference Max*
QY-750156. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $300.99/3
• Conference Max Expansion (3 max.)
QY-750074. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $428.99/3
• Conference Max Plus (cordless)
QY-1091001. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $89.99/3
• 4 Port CO/Line Expansion
QY-1091002. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $79.99/3
• 8 Port Digital Station Expansion
QY-1091003. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $169.99/3
• 8 Port Analog Station Expansion
•
•
•
•
High performance, *Expandable
Premium, full-duplex audio
Background noise cancellation
Automatic audio balance level controls
• See www.necdsx.com for Configuration Guidelines and
Maximum Capacities
DSX Analog Door Chime Box
DESI Telephone Labels
• Specially designed DESI Labels for customizing and printing
key data
• Blank DESI labels for customizing background and
importing Images onto telephone labels (DESI Preprint)
• DESI labeling software is included with each DSX System
• Contact ADI for P/Ns and color options
QY-922450. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $80.99/3
• Self-contained intercom unit typically used to monitor
an entrance door
• Connects to DSX-40 via built-in doorbox ports (2)
• Connects to DSX-80/160 via DSX 2PGDAD Module
(p/n QY-0891027)
DSX-40 System Kit
Voice Processing System
QY-1091015. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $599.99/3
• Residential or Commercial Applications
• Kit Includes:
* 4 CO x 8 DIG. STA x 2 SLT
* 2 Door Box Ports with Relays
* (3) 22-Button Display Phones (QY-1090020)
• Expandable to 8 CO x 26 STA
• Built-in 2 Port Auto Attendant & Caller ID
• USB & Ethernet Ports for PC Programming
PA-KXTVA50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $461.99/3
• 2 ports, 4-hour expandable system
• 64 Mailboxes
• Windows based programming
• USB port
Audio/Video
Advanced Hybrid Telephone Systems
PA-KXTA824 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $394.99/3
• 3CO and 8 Extension system, expandable to 8x24
PA-KXTA824PK . . . . . . . . . . . . . . . . . . . . . . . . . . . . $592.99/3
• Includes KSU and 3 pieces of KX-T7731-B telephones
PA-KXTAW848 . . . . . . . . . . . . . . . . . . . . . . . . . . . . $552.99/3
• 4CO and 4 extension systems, expandable to 8x48
• PA-KXTAW848 uses multiple wireless proprietary handsets (KX-TD7680/7690)
• PA-KXTD7680 and KX-TD7690 require PA-KXT0141 2-channel cell station(s)
KX-T7700 Series Telephones
PA-KXT7737B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $174.99/3
• Talking CID, 3-line backlit display, speakerphone
PA-KXT7736B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $158.99/3
• 3-line backlit display, speakerphone
PA-KXT7731B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $123.99/3
• 1-line backlit display, speakerphone
StarPlus 2800 Series
StarPlus STS Telephone Accessories
VV-2801XX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Single Line phone w/message waiting, flash, redial, & data jack.
VV-2802XX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Single Line phone with 2801-XX features plus speakerphone,
hold, mute, & 10 service buttons
VV-280300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $39.50/3
• Two-Line guest room phone with 2802-XX features plus a
hidden program button and hi/lo ringer switch.
VV-350201. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $292.99/3
• Expansion KSU - To 24 X 48 X 2
VV-353105. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $145.99/3
• 4-port CO Card - 6 max. per system
VV-353200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $109.99/3
• 8-port digital card - 6 max. per system
VV-353300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $165.99/3
• 4-port Analog card - 5 max. per system
VV-353151. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1048.99/3
• T1/PRI Combo Kit with CSU - 1 max. per system
• Vertical Vodavi StarPlus 2800 Series One & Two Line Phones
• Three models available in either off-white or black.
• Features five (5) year warranty!
284
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
Telephony - Specialty Communications
Vertical Xcelerator IP
VV-750000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $477.99/3
The Xcelerator IP is a new complete business communications solution in one device
•
•
•
•
•
•
•
•
IP Phone System
Full Voicemail
Auto Attendant
Firewall
Wireless Access Point (WAP)
Music On Hold
Integrated Fax Detection
Powerful Web Admin tool for easy setup and programming
The IP 2007 is the SIP endpoint supported on the Xcelerator IP system.
This full featured attractive SIP speakerphone features:
* Graphical call status and feature display
* 4 interactive soft keys and navigation button
* Robust voicemail feature support
* Conference support
* 400-entry phone book
* Automatic plug and play registration
* 2-port Ethernet switch to allow connection to the LAN
* Support for Power over Ethernet (PoE)
* Desk or wall-mountable options
StarPlus STS In-Skin Voice Mail
StarPlus STS Telephone System
VV-353400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $677.99/3
• 8-port In-Skin Flash Voice Mail Card
• 3 hours of storage
VV-353401. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $196.99/3
• 6 hour Memory Expansion - Flash
VV-353500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $1360.99/3
• 8-port In-Skin HDD Voice Mail Card
• 200 hours of storage
VV-350100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $288.99/3
• The Vertical Vodavi StarPlus STS is perfect economical
solution for your small business:
• Perfect for small businesses requiring less than 48 digital
stations
• Optional built-in flash-based or hard drive voice mail
• Full or fractional T1 or PRI capability
• Modem unit enables remote programming
• Caller ID is standard
• Basic KSU capacity is 4 CO stations X 2 SLT to 12 X 24 X 2
• Expandable to 24 X 48 X 2
• Vertical Vodavi StarPlus STS In-Skin Voice Mail
• The StarPlus STS Voice Mail plugs directly into the KSU
• Vertical Vodavi StarPlus STS Telephones
VV-3515(XX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Digital Telephones
• Speakerphone with 24 flex buttons
• 3 soft keys and a 2 X 24 LCD
VV-3515(XX)8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Digital telephone - 8 pack
VV-3516-(XX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Backlit display telephone
VV-3516(XX)8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Backlit display - 8 pack
Stand-Alone Emergency Call Kits
CALL!
CALL!
AY-EK117. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $41.50/3
• Without built-in buzzer
AY-EK117B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $79.99/3
• With built-in buzzer
• Ideal for “Toilet Alarm” or other stand-alone applications
• Easy bulb replacement ( no tools needed)
• Safe - Low voltage wiring
CALL!
Audio/Video
Starplus STS Telephones
CALL!
Single Bulb Corridor Dome Light
“Area of Refuge” System
AY-LI381 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $14.50/3
• Fits on standard double gang electrical box
• Works on 24VAC or 24VDC voltages
• High Impact plastic lens
• Bulb changes easily
• Also available with built-in AC or DC buzzer
AY-NC150R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $652.99/3
• Audible and visual annunciation
• Voice communication and monitoring
• Aluminum or Stainless Steel remotes available
• Meets ADA requirements
Micro Processor Nurse Call System
Emergency Pull Cord/ Push Station
AY-NC300II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CALL!
• Calls shown by priority levels
• 256 or 256 point capacity per CPE
• Multiplexed loop wire method
• Up to 8 Master stations per CPE
• Can interface to printer, pocket pagers or phone
AY-SF155B. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . $21.50/3
• 6' long pull cord and red push lever
• Built-in LED Call-placed indicator
• Resets only at point of origination
• Single gang mount - white plastic
• Activates with a Push or Pull
• (NOTE: May require special braille or other indicator signs,
check your local codes for full compliance information)
For Orders, Call: 1-800-233-6261 | For Systems Sales And Support, Call 1-800-234-7971
| www.adilink.com
285
WHO SAYS YOU CAN’T HAVE IT ALL?
AT ADI, WE MAKE OUR MARK WITH MORE THAN ONE COLOR
Create your own masterpiece.
Ask about our full palette of custom solutions.
C O M M I T M E N T. S E R V I C E . P E O P L E .
Visit us on the web at http://www.adilink.com • Call 1-800-233-6261 for your nearest ADI location
Intrusion | Fire | CCTV | Access Control | Residential & Commercial A/V | Networking | Telephony | Wire & Structured Cabling | Tools & Hardware | IP
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
