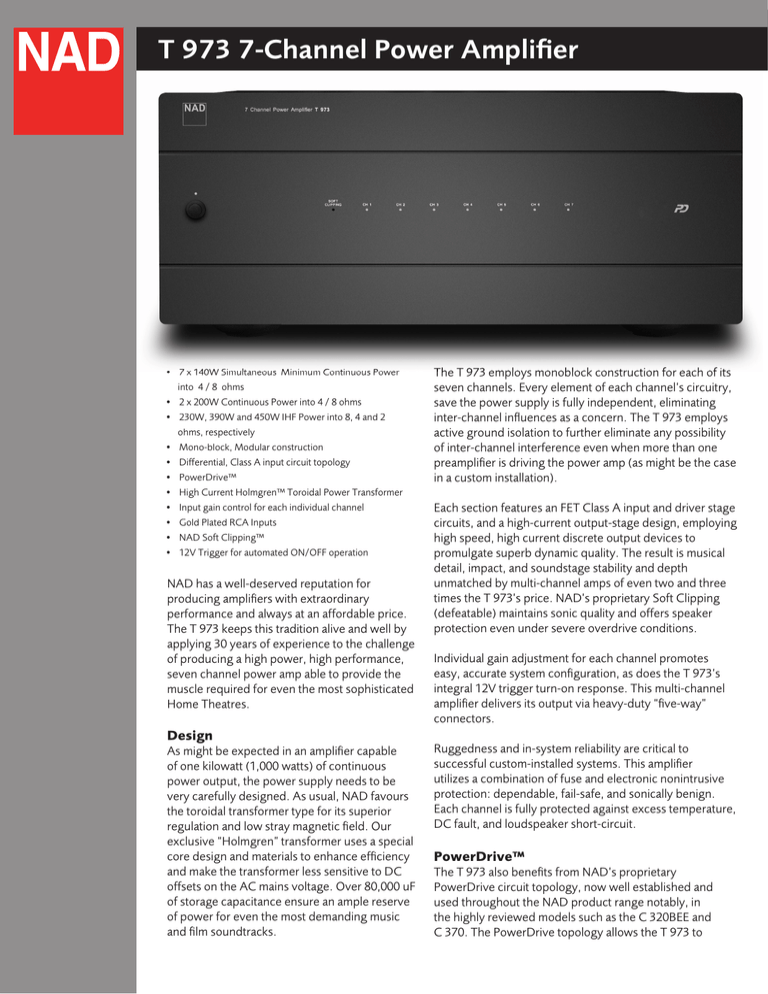

T 973 7-Channel Power Amplifier
• 7 x 140W Simultaneous Minimum Continuous Power
into 4 / 8 ohms
• 2 x 200W Continuous Power into 4 / 8 ohms
• 230W, 390W and 450W IHF Power into 8, 4 and 2
ohms, respectively
• Mono-block, Modular construction
• Differential, Class A input circuit topology
• PowerDrive™
• High Current Holmgren™ Toroidal Power Transformer
• Input gain control for each individual channel
• Gold Plated RCA Inputs
• NAD Soft Clipping™
• 12V Trigger for automated ON/OFF operation
NAD has a well-deserved reputation for
producing amplifiers with extraordinary
performance and always at an affordable price.
The T 973 keeps this tradition alive and well by
applying 30 years of experience to the challenge
of producing a high power, high performance,
seven channel power amp able to provide the
muscle required for even the most sophisticated
Home Theatres.
Design
As might be expected in an amplifier capable
of one kilowatt (1,000 watts) of continuous
power output, the power supply needs to be
very carefully designed. As usual, NAD favours
the toroidal transformer type for its superior
regulation and low stray magnetic field. Our
exclusive “Holmgren” transformer uses a special
core design and materials to enhance efficiency
and make the transformer less sensitive to DC
offsets on the AC mains voltage. Over 80,000 uF
of storage capacitance ensure an ample reserve
of power for even the most demanding music
and film soundtracks.
The T 973 employs monoblock construction for each of its
seven channels. Every element of each channel’s circuitry,
save the power supply is fully independent, eliminating
inter-channel influences as a concern. The T 973 employs
active ground isolation to further eliminate any possibility
of inter-channel interference even when more than one
preamplifier is driving the power amp (as might be the case
in a custom installation).
Each section features an FET Class A input and driver stage
circuits, and a high-current output-stage design, employing
high speed, high current discrete output devices to
promulgate superb dynamic quality. The result is musical
detail, impact, and soundstage stability and depth
unmatched by multi-channel amps of even two and three
times the T 973’s price. NAD’s proprietary Soft Clipping
(defeatable) maintains sonic quality and offers speaker
protection even under severe overdrive conditions.
Individual gain adjustment for each channel promotes
easy, accurate system configuration, as does the T 973’s
integral 12V trigger turn-on response. This multi-channel
amplifier delivers its output via heavy-duty “five-way”
connectors.
Ruggedness and in-system reliability are critical to
successful custom-installed systems. This amplifier
utilizes a combination of fuse and electronic nonintrusive
protection: dependable, fail-safe, and sonically benign.
Each channel is fully protected against excess temperature,
DC fault, and loudspeaker short-circuit.
PowerDrive™
The T 973 also benefits from NAD’s proprietary
PowerDrive circuit topology, now well established and
used throughout the NAD product range notably, in
the highly reviewed models such as the C 320BEE and
C 370. The PowerDrive topology allows the T 973 to
deliver maximum performance under virtually any circumstance,
independent of the loudspeakers it is driving. The circuitry
automatically senses the impedance characteristics of the
loudspeaker and will then adjust its power supply settings to best
cope with that specific load. PowerDrive topology is a practical
approach to enable an amplifier to easily deal with musical dynamics
and difficult speaker loads. Thus we have the highly desirable
characteristics of high dynamic power and low impedance drive
capability in one affordable package.
NAD also takes a stand against the meaningless “brochure power”
touted by many of our competitors by offering Full Disclosure
power specs. We specify minimum continuous power, across the
Continuous Power, 20Hz-20kHz, all channels
7 x 140W (21.5dBW)
driven simultaneously at 4/8Ω
Rated Distortion (THD 20Hz-20kHz)
Clipping Power (0.1% THD)
IHF dynamic headroom at 8Ω
entire audible range of frequencies, at rated distortion, for both 8
and 4 ohms with all channels driven simultaneously. Perhaps even
more importantly, we also specify Dynamic Power at 8, 4, and even
2 ohms, which better describes the way the amplifier will perform in
the real world, with musical signals and reactive loudspeaker loads.
But even the most carefully reported specs cannot fully describe the
sonic performance of an amplifier.
Only your own ears can finally judge our achievement. We urge you
to listen and compare NAD to other products in its price range, and
even higher. We don’t think you’ll find anything that comes close
to offering the T 973’s overall musical satisfaction, well-rounded
performance, and stellar value for money.
Voltage Gain
Frequency Response
0.03%
170W (22.1dBW)
2Hz - 100kHz -3dB
Signal/Noise Ratio
+1.4dB
IHF dynamic power at 8Ω
230W (24dBW)
IHF dynamic power at 4Ω
390W (26dBW)
IHF dynamic power at 2Ω
450W (26.5dBW)
Damping Factor
ref. 8Ω, 50Hz >300
Input Impedance
50K
Input Sensitivity
1.1V
29.0dB
20Hz - 20kHz +0, -0.2dB
ref. 1W 95 dB
ref. rated power 125dB
Dimensions (W x H x D)
17 1/8 x 7 x 17 7/8”
(435 x 180 x 453mm)
Net Weight
68 lbs (31kg)
Shipping Weight
72 lbs (33kg)
NAD Electronics International reserves the right to change specifications or features without notice. NAD is a registered trademark of NAD Electronics
International. All r
permission of NAD Electronics International. © 10/03 NAD Electronics International.
www.NADelectronics.com
