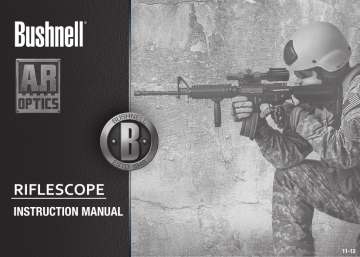

RIFLESCOPE

INSTRUCTION MANUAL

11-12

2

Congratulations

on your choice of a Bushnell

®

AR Optics riflescope. It is a precision instrument constructed of the finest materials and assembled by highly skilled craftsmen for a lifetime of trouble-free use under the most demanding conditions. This booklet will help you achieve optimum performance by explaining how to use its various features and how to care for it. Read the instructions carefully before mounting and using your scope. The accompanying photographs are guides to the nomenclature and location of the riflescope parts mentioned throughout this text.

Fast Focus Eyepiece

One Piece Tube Construction

Side Parallax Adjustment

Target Turrets

FMC Lenses

EYEPIECE FOCUSING

This adjusts the focus so that the reticle (cross hairs) appears sharp to your eyes. All Bushnell riflescopes are focused at the factory for 20/20 or corrected vision. If the reticle appears sharp, no adjustment is needed. If the reticle appears unsharp, adjust as follows.

FAST FOCUS EYEPIECE DESIGN

The eyepiece is designed to provide a precise fast focus. Simply look at a distant object for several seconds without using your scope. Then, shift your vision quickly, looking though the scope at a plain background. Turn the fast-focus eyepiece clockwise or counter clockwise until the reticle pattern is sharp and clear.

WARNING: Never look at the sun through the riflescope (or any other optical instrument). It may permanently damage your eye.

MOUNTING

To achieve the best accuracy from your rifle, your Bushnell scope must be mounted properly. (We strongly recommend that those unfamiliar with proper procedures have the scope mounted by a qualified gunsmith).

Should you decide to mount it yourself:

1. Use a high-quality mount with bases designed to fit your particular rifle. The scope should be mounted as low as possible without touching either the barrel or the receiver.

2. Carefully follow the instructions packed with the scope mounts you have selected.

3. Before tightening the mount rings, look through the scope in your normal shooting position. Adjust the scope (either forward or backward) until you find the furthest point forward (to insure maximum eye relief) that allows you to see a full field of view.

WARNING: If the scope is not mounted far enough forward, its rearward motion may injure the shooter when the rifles recoils.

3

4

4. Rotate the scope in the rings until the reticle pattern is perpendicular to the bore and the elevation adjustment is on top.

5. Tighten the mounting screws as tight as possible.

BORE SIGHTING

Bore sighting is a preliminary procedure to achieve proper alignment of the scope with the rifle bore. It is best done using a Bushnell Bore

Sighter. If a bore sighter is not available, it can be done as follows: Remove the bolt and sight through the gun barrel at a 100 yard target.

Then sight through the scope and bring the crosshairs to the same point on the target. Certain mounts have integral windage adjustments and, when bore sighting, these should be used instead of the scope’s internal adjustments. If major elevation adjustments are needed, they should be accomplished by shimming the mount base.

ZEROING

Final sighting-in of your rifle should be done with live ammunition, based on your expected shooting distance. If most of your shots will be at short range, zero-in at 100 yards. But, for long-range shooting at big game, most experienced shooters zero-in about three inches high at

100 yards. Three-shot groups are useful for averaging the point of impact.

ELEVATION AND WINDAGE ADJUSTMENT

Your Bushnell ® AR Optics scope features finger-adjustable, audible-click elevation and windage adjustments.

Grasp the top of the target turret and turn it in the appropriate direction (elevation turret has marked “Up” direction, windage turret has marked “R” for right direction). Each “click” or increment on the Adjustment Scale Ring will change the bullet impact 1/4”, 1/2”, or .1 Mil, depending on the model. The adjustment value for your scope is clearly marked on its target turrets.

REALIGNING THE TARGET TURRETS

This step is optional. After sighting in your scope, you may want to realign the zero marks on the removable turret cap with the index dots.

1. Using the included Allen wrench, remove the hex screw on the target turret. Pull the turret straight up and off.

2. Realign the zero marking on the target turret with the index mark on your scope. Seat the target turret cap. Take care not to disturb your zero by “losing” a click or two when loosening the screw.

3. Replace and retighten the hex head screw in the top of the turret cap.

VARIABLE POWER ADJUSTMENTS

To change magnification, simply rotate the Power Selector Ring to align the desired number on the power scale with the Index Dot. Lower powers provide a wider field of view. Higher powers should be reserved for precise long-range shots. The Drop Zone BDC reticle is calibrated for use at the highest power setting on your scope.

A scope should never be used as a substitute for either a binocular or spotting scope. It may result in your inadvertently pointing the gun at another person.

USING THE SIDE PARALLAX FOCUS CONTROL (SELECT MODELS ONLY)

You may have noticed that placing your eye at different positions behind the scope’s eyepiece causes the reticle crosshairs to appear to move around to different points on your target. This is called “parallax error” (target and reticle are not in the same focal plane), and it becomes more noticeable (and more of a problem) at shorter distances and/or when the scope is set to higher powers. Your riflescope may provide an adjustment for parallax compensation, which works by moving an optical element until the target (based on its distance) appears in the

5

6 same plane of focus as the reticle. Instead of the typical parallax compensation design which adjusts the objective lens at the front of the scope (“adjustable objective” or “AO”), your scope uses an movable lens back near the reticle, so the adjustment can be more easily made with a “side focus” knob placed next to the windage and elevation adjustments. Just line up the estimated distance to your target with the index dot on the body of the scope, and you will eliminate the aiming errors caused by parallax. After setting the side focus, you can double check by moving your head around from side to side behind the eyepiece-the point of aim should not shift if the side focus is correctly set.

An alternative method is to look through the scope and turn the Side focus knob until the target, at whatever range, is sharply focused.

USING YOUR AR OPTICS RETICLE

The AR Optics Drop Zone BDC (Bullet Drop Compensation) reticles give shooters a series of aiming points that correspond to different types of ammunition. These aiming points allow shooters to expand their effective range. Bushnell would like to stress that these tools are only as good as the time spent practicing with them. Nothing can replace quality firing range time and becoming comfortable shooting at each of the prescribed yardages, while noting bullet placement. It is imperative for the shooter to spend time at the range, gaining familiarity with the reticle and how it works with their firearm and bullet load. Ballistic performance can vary depending upon a number of factors, including barrel length, powder type, bullet type, and numerous weather/atmosphere related variables.

THE DROP ZONE-22 RIMFIRE BALLISTIC RETICLE

Scopes with the DROP ZONE-22 Rimfire Reticle are designed to be sighted-in at 50 yds, with aiming points every 25 yds, out to 125 yds.

This reticle is calibrated for use with .22 Long Rifle high velocity ammunition. The scope must also be set to the highest magnification for the reticle’s ballistic feature to function properly. In the case of the 2-7x 32mm model, the power change ring must be set at 7x for the ballistic function to work correctly.

How To Use the Reticle:

1. Sight in at 50 yds on any magnification setting.

2. Determine distance to target. For the best accuracy in determining distance, utilize a Bushnell Laser Rangefinder (Scout DX 1000

ARC, G Force 1300 ARC).

3. Set the scope’s magnification to 7x (7 power).

4. Place the appropriate aiming point on the desired target. If the target was determined to be at 115 yds, hold directly between the 100 yd aiming point and the 125 yd aiming point.

Based on a 50-yard zero and the ballistics of .22 Long Rifle high velocity ammunition.

75 YARDS

100 YARDS

125 YARDS

7

8

THE DROP ZONE-223 RIMFIRE BALLISTIC RETICLE

Scopes with the DROP ZONE-223 Reticle are designed to be sighted-in at 100 yds, with aiming points every 100 yds, out to 500 yds. The top of the reticle’s bottom post represent approximately 600 yds. This reticle is calibrated for use with 223 Rem/5.56 ammunition loaded with

55-62 grain bullets. The scope must also be set to the proper magnification for the reticle’s ballistic feature to function properly. In the case of the 3-9x 40mm model, the power change ring must be set at 9x for the ballistic function to work correctly.

How To Use the Reticle:

1. Sight in at 100 yds on any magnification setting.

2. Determine distance to target. For the best accuracy in determining distance, utilize a Bushnell Laser Rangefinder (Scout DX 1000 ARC, G Force 1300 ARC).

3. Set the scope’s magnification to its highest power.

4. Place the appropriate aiming point on the desired target. If the target was determined to be at 350 yds, hold directly between the 300 yd aiming point and the 400 yd aiming point.

200 YARDS

300 YARDS

400 YARDS

500 YARDS

THE BTR-1 TACTICAL RETICLE

Scopes with the BTR-1 Tactical Reticle are designed to be sighted-in at 100 yds, with aiming points every 100 yds, out to 500 yds. This reticle is calibrated for use with 223 Rem/5.56 ammunition loaded with 55-62 grain bullets. Because the BTR-1 reticle is located in the first focal plane (FFP) position within the scope, it will be accurate for all targets at any magnification setting.

How To Use the Reticle:

1. Sight in at 100 yds on any magnification setting.

2. Determine distance to target. For the best accuracy in determining distance, utilize a

Bushnell Laser Rangefinder (Scout DX 1000 ARC, G Force 1300 ARC).

3. Place the appropriate aiming point on the desired target. If the target was determined to be at 350 yds, hold directly between the 300 yd aiming point and the 400 yd aiming point.

Illuminated Reticle and Throwdown PCL Features

200 YARDS

300 YARDS The BTR-1 reticle is illuminated. The “third knob” along with elevation and windage turrets is a brightness adjustment control (not a side focus knob), numbered from 0 to 11

(see

Fig. 1, next page). To increase the brightness, set the control to a higher number (opposite the white index dot). To turn off the illumiination and when storing the scope, set the dial to “0”. To replace the battery, remove the cap on the brightness adjustment control knob using a coin, and insert a CR2032 battery with the “+” mark facing up (Fig. 2). The

AR Optics scope with the BTR-1 reticle also features Bushnell’s folding Throwdown PCL

(Power Change Lever), allowing rapid changes to the scope’s magnification level (Fig. 3).

400 YARDS

500 YARDS

9

Fig. 1 Fig. 2

Fig. 3

10

MAINTENANCE

Your Bushnell AR Optics riflescope, though amazingly tough, is a precision instrument that deserves reasonably cautious care.

1. When cleaning the lenses, first blow away any dry dirt and dust, or use a soft lens brush. Fingerprints and lubricants can be wiped off with lens tissue, or a soft clean cloth, moistened with lens cleaning fluid. Unnecessary rubbing or use of a coarse cloth may cause permanent damage to the lens coatings.

2. All moving parts of the scope are permanently lubricated. Do not try to lubricate them.

3. No maintenance is needed on the scope’s outer surface, except to occasionally wipe off dirt or fingerprints with a soft cloth.

4. Use lens covers whenever it is convenient.

STORAGE

Avoid storing the scope in hot places, such as the passenger compartment of a vehicle on a hot day. The high temperature could adversely affect the lubricants and sealants. A vehicle’s trunk, a gun cabinet or a closet is preferable. Never leave the scope where direct sunlight can enter either the objective or the eyepiece lens. Damage may result from the concentration (burning glass effect) of the sun’s rays.

AR OPTICS LIFETIME LIMITED WARRANTY

We are so proud of our Bushnell AR Optics Riflescopes that their materials and workmanship are warranted to be free of defects for the life of the riflescope. The warranty is available to any owner of an AR Optics Riflescope. No receipt or warranty card is required. This warranty does not cover damages caused by misuse or improper handling, installation or maintenance of the riflescope. At our option, we will repair or replace any defective

AR Optics Riflescope, which shall be your sole remedy under this warranty. In no event shall we be liable for transportation costs to us, costs of removal or reinstallation of the riflescope, or incidental or consequential damages. Some states do not allow the exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. No agent, representative, dealer or unauthorized employee of

Bushnell has the authority to increase or alter the obligation of this warranty.

Any return made under this warranty must be accompanied by the items listed below:

1. Name and address for product return

2. An explanation of the defect

3. You are responsible for transport of the defective product, but we will pay for shipping the repaired or replacement product back to you anywhere in the continental United States.

4. Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, to the address listed below:

IN U.S.A. Send To: IN CANADA Send To:

Bushnell Outdoor Products

Attn.: Repairs

Bushnell Outdoor Products

Attn.: Repairs

9200 Cody

Overland Park, Kansas 66214

25A East Pearce Street, Unit 1

Richmond Hill, Ontario L4B 2M9

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2012 Bushnell Outdoor Products

11

For further questions or additional information please contact:

Bushnell Outdoor Products

9200 Cody, Overland Park, Kansas 66214

(800) 423-3537 www.bushnell.com

©2012 Bushnell Outdoor Products
