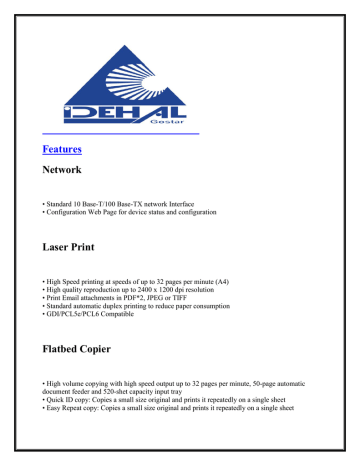

Features Network Laser Print Flatbed Copier

Features Network Laser Print Flatbed Copier
Features
Network
• Standard 10 Base-T/100 Base-TX network Interface
• Configuration Web Page for device status and configuration
Laser Print
• High Speed printing at speeds of up to 32 pages per minute (A4)
• High quality reproduction up to 2400 x 1200 dpi resolution
• Print Email attachments in PDF*2, JPEG or TIFF
• Standard automatic duplex printing to reduce paper consumption
• GDI/PCL5e/PCL6 Compatible
Flatbed Copier
• High volume copying with high speed output up to 32 pages per minute, 50-page automatic
document feeder and 520-shet capacity input tray
• Quick ID copy: Copies a small size original and prints it repeatedly on a single sheet
• Easy Repeat copy: Copies a small size original and prints it repeatedly on a single sheet
• Separate N-in-1 copy: Separates each page from a 2 or 4-in-1 document and prints each page
onto individual sheets
Colour Scan
• Colour scanning from document flatbed or ADF
• High resolution scanning up to 9600 x 9600 dpi (Interpolated) with up to 600 x 2400 dpi
optical resolution (Flatbed)
• Scan and send documents via Email or store them on an FTP server
• High speed network colour scanning capability
Laser Fax
• Efficient fax transmission at speeds up to 33.6 kbps
• Preview received faxes without printing them first
• Built-in document memory up to 450 pages*1
• Caller ID compatible*4
5-in-1 Laser B&W AIO
Print, Copy, Color Scan, Fax and Network
32ppm Laser Printing (A4)
KX-MB3020CX
GENERAL
PRINTER
COPIER
Printing Process
Paper Handling
Paper Capacity
Automatic Document
Feeder (ADF)
LCD Display
Supported OS
Memory Size
Print Speed (Mono /
Colour)
Print Resolution
Duplex Print
Supported OS
Copy Speed (Mono /
Colour)
Scanning Resolution
Multi-copy
Reduce / Enlargement
Duplex Copy
Copy Functions
SCANNER
Scan Resolution
FAX
Compatibility
Memory Size
Transmission Speed
Phonebook
Duplex Fax
One-Touch Dial
Local
Network
Dimension (W x D x
H)
Weight
INTERFACES
DIMENSION /
WEIGHT
CONSUMABLES
OPTIONAL
ACCESSORIES
Toner
Drum Cartridge
Optional Paper Tray
Laser
A4 / Letter / Legal
520 Sheets (Max. 1040 Sheets with Option)
50 Sheets
16 Digits / 2 Lines
64 MBMicrosoft® Windows® 98 / Me /
2000 / XP / Windows Vista®
64MB
Up to 32ppm (A4)
2400 x 1200 dpi (Enhanced)
Microsoft® Windows® 98 / Me / 2000 / XP
/ Windows Vista®, Mac OS 10.2-10.5 *1
Up to 32cpm (A4) *2
600 x 600 dpi (ADF / Flatbed)
99 Pages
25% - 400% (1% Step)
Quick ID, Easy Repeat, Separate N-in-1,
Poster
600 x 2400 dpi (Optical) / 9600 x 9600 dpi
(Interpolated)
33.6 kbps Super G3
6MB (Approx. 450 Pages *3)
Approx. 4-second Per Page *3
300 Stations
10 Stations
High-speed USB 2.0
10 Base-T / 100 Base-TX Ethernet
533mm x 459mm x 478mm *4
Approx. 22.3 kg (Excluding Toner & Drum)
*4
KX-FAT401E (5000 Pages / ISO / IEC
19752 Standard)
KX-FAD402E (15000 Pages)
KX-FAP106E (520 Pages / A4 / Letter /
Legal)
NOTE
*1 Printer driver for Mac OS is provided by
web download.
*2 Continuous copy of a single original.
*3 Based on ITU-T No.1 test chart in
standard resolution with original mode.
*4 Dimension and weight are approximate /
excluding toner and drum.
*Design and specifications are subject to
change without notice.
