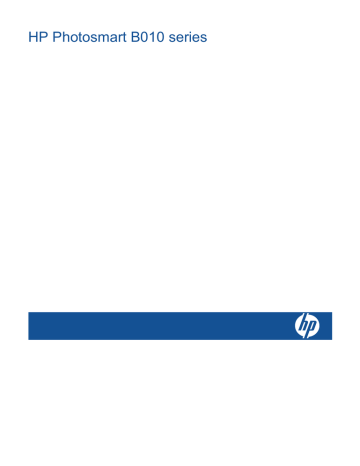

HP Photosmart B010 series

Contents

1 HP Photosmart B010 series Help......................................................................................................................................3

2 Get to know the HP Photosmart

Printer parts..........................................................................................................................................................................5

Control panel features..........................................................................................................................................................6

3 How do I?............................................................................................................................................................................7

4 Print

Tips for print success..........................................................................................................................................................11

5 Copy and scan

Scan to a computer............................................................................................................................................................13

Copy text or mixed documents...........................................................................................................................................14

Tips for copy and scan success.........................................................................................................................................16

6 Work with cartridges

Check the estimated ink levels...........................................................................................................................................17

Clean printhead automatically............................................................................................................................................17

Replace the cartridges.......................................................................................................................................................18

Order ink supplies..............................................................................................................................................................20

Cartridge warranty information...........................................................................................................................................20

Tips for working with ink.....................................................................................................................................................21

8 HP support

Get more help.....................................................................................................................................................................25

HP support by phone..........................................................................................................................................................25

Additional warranty options................................................................................................................................................26

9 Technical information

Notice.................................................................................................................................................................................27

Specifications.....................................................................................................................................................................27

Environmental product stewardship program.....................................................................................................................28

Regulatory notices..............................................................................................................................................................32

Index........................................................................................................................................................................................37

1

2

1 HP Photosmart B010 series Help

For information about the HP Photosmart, see:

Get to know the HP Photosmart on page 5

How do I? on page 7

Print on page 9

Copy and scan on page 13

Work with cartridges on page 17

Technical information on page 27

HP support by phone on page 25

HP Photosmart B010 series Help 3

Chapter 1

4 HP Photosmart B010 series Help

2 Get to know the HP Photosmart

Printer parts

Control panel features

Printer parts

• Front and top views of the HP Photosmart

1 Display

2 Control panel

3 On button

4 Paper tray

5 Paper tray extender (also referred to as the tray extender)

6 Glass

7 Lid-backing

8 Lid

9 Cartridge door

10 Cartridge access area

11 Model number location

12 Printhead assembly

• Rear view of the HP Photosmart

Get to know the HP Photosmart 5

Chapter 2

13 Rear door

14 Rear USB port

15 Power connection (Use only with the power adapter supplied by HP.)

Control panel features

Control panel features

1 Back: Returns to the previous screen.

2 Cancel: Stops the current operation, restores default settings.

3 Setup: Opens the Setup menu where you can print status report, set language and region.

4 Quick Forms: From the Home screen, opens the Quick Forms menu. When viewing screens other than the Home screen, selects options related to the current display.

5 Scan: From the Home screen, launches the HP software scan, based on the computer connected to the printer. When viewing screens other than the Home screen, selects options related to the current display.

6 Copy: From the Home screen, opens the Copy menu. When viewing screens other than the Home screen, selects options related to the current display.

6 Get to know the HP Photosmart

3 How do I?

This section contains links to commonly performed tasks, such as printing photos, scanning, and making copies.

Scan to a computer on page 13

Copy text or mixed documents on page 14

Clear the paper jam from the rear access door on page 26

Replace the cartridges on page 18

Load media on page 23

Get more help on page 25

How do I?

7

Chapter 3

8 How do I?

4 Print

Print documents on page 9

Print photos on page 9

Print envelopes on page 10

Related topics

Load media on page 23

Tips for print success on page 11

Print documents

Most print settings are automatically handled by the software application. You need to change the settings manually only when you change print quality, print on specific types of paper or transparency film, or use special features.

To print from a software application

1.

Make sure you have paper loaded in the paper tray.

2.

On the File menu in your software application, click Print.

3.

Make sure the product is the selected printer.

4.

If you need to change settings, click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup,

Printer, or Preferences.

NOTE:

When printing a photo, you must select options for the specific photo paper and photo enhancement.

5.

Select the appropriate options for your print job by using the features available in the Advanced, Printing

Shortcuts, Features, and Color tabs.

TIP:

You can easily select the appropriate options for your print job by choosing one of the predefined print tasks on the Printing Shortcuts tab. Click a type of print task in the Printing Shortcuts list. The default settings for that type of print task are set and summarized on the Printing Shortcuts tab. If necessary, you can adjust the settings here and save your custom settings as a new printing shortcut. To save a custom printing shortcut, select the shortcut and click Save As. To delete a shortcut, select the shortcut and click

Delete.

6.

Click OK to close the Properties dialog box.

7.

Click Print or OK to begin printing.

Related topics

Load media on page 23

Tips for print success on page 11

Print photos

Print photos saved on your computer on page 10

Print 9

Chapter 4

Print photos saved on your computer

To print a photo on photo paper

1.

Remove all paper from the paper tray.

2.

Place the photo paper print side down on the right side of the paper tray.

3.

Slide the paper-width guide inward until it stops at the edge of the paper.

4.

On the File menu in your software application, click Print.

5.

Make sure the product is the selected printer.

6.

Click the button that opens the Properties dialog box.

Depending on your software application, this button might be called Properties, Options, Printer Setup,

Printer, or Preferences.

7.

Click the Features tab.

8.

In the Basic Options area, from the Paper Type drop-down list, select More. Then, select the appropriate photo paper type.

9.

In the Resizing Options area, from the Size drop-down list, select More. Then, select the appropriate paper size.

If the paper size and paper type are not compatible, the printer software displays an alert and allows you to select a different type or size.

10.

(Optional) Select the Borderless printing check box if it is not already checked.

If the borderless paper size and paper type are not compatible, the product software displays an alert and allows you to select a different type or size.

11.

In the Basic Options area, select a high print quality, such as Best, from the Print Quality drop-down list.

NOTE:

To achieve the highest dpi resolution, you can use the Maximum dpi setting with supported types of photo paper. If Maximum dpi is not listed in the Print quality drop-down list, you can enable it from the

Advanced tab.

12.

In the HP Real Life Technologies area, click the Photo fix drop-down list and select from the following options:

Off: applies no HP Real Life Technologies to the image.

Basic: enhances low-resolution images; moderately adjusts image sharpness.

13.

Click OK to return to the Properties dialog box.

14.

Click OK, and then click Print or OK in the Print dialog box.

NOTE:

Do not leave unused photo paper in the paper tray. The paper might start to curl, which could reduce the quality of your printout. For best results, do not allow printed photos to stack up in the paper tray.

Related topics

Load media on page 23

Tips for print success on page 11

Print envelopes

With the HP Photosmart, you can print on a single envelope, a group of envelopes, or label sheets designed for inkjet printers.

10 Print

To print a group of addresses on labels or envelopes

1.

Print a test page on plain paper first.

2.

Place the test page on top of the label sheet or envelope, and hold both up to the light. Check the spacing for each block of text. Make adjustments as needed.

3.

Load the labels or envelopes into the paper tray.

CAUTION:

Do not use envelopes with clasps or windows. They can get stuck in the rollers and cause paper jams.

4.

Slide the paper-width guide inward against the stack of labels or envelopes until the guide stops.

5.

If you are printing on envelopes, do the following:

a. Display the print settings, and click the Features tab.

b. In the Resizing Options area, click the appropriate envelope size in the Size list.

6.

Click OK, and then click Print or OK in the Print dialog box.

Related topics

Load media on page 23

Tips for print success on page 11

Tips for print success

Use the following tips to print successfully.

Print tips

• Use genuine HP cartridges. Genuine HP cartridges are designed for and tested with HP printers to help you produce great results, time after time.

• Make sure the cartridges have sufficient ink. You can check the ink levels in Printer Toolbox from the software.

• Load a stack of paper, not just one page. Use clean and flat paper of the same size. Make sure only one type of paper is loaded at a time.

• Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure the paper-width guide does not bend the paper in the input tray.

• Set the print quality and paper size settings according to the type and size of paper loaded in the input tray.

• Use print preview to check margins. Do not let the margin settings for the document exceed the printable area of the printer.

Tips for print success 11

Chapter 4

12 Print

5 Copy and scan

Scan to a computer

Copy text or mixed documents

Tips for copy and scan success

Scan to a computer

NOTE:

In order to scan, the printer needs to be connected to a computer that has scanning software installed.

If you disable HP Digital Imaging software, the Scan button on the printer display does not open HP scanning software. Instead, you can use the HP Solution Center to start scanning software.

To scan to a computer

1.

Load original.

a. Lift lid on product.

b. Load original print side down on right front corner of glass.

c. Close lid.

2.

Start scan.

NOTE:

Before starting scan, make sure the printer is connected to your computer through the USB cable.

a. On the Home screen, press the button next to Scan.

b. When the HP Scanning preview window is displayed on your computer, adjust the selected image, as required. Then click Finish.

Copy and scan 13

Chapter 5

Related topics

Tips for copy and scan success on page 16

Copy text or mixed documents

Copy text or mixed documents

1.

Do one of the following:

Make a black and white copy

a. Load paper.

Load full-size paper in paper tray.

b. Load original.

Lift lid on product.

TIP:

To make copies of thick originals, such as books, you can remove the lid.

Load original print side down on right front corner of glass.

14 Copy and scan

Close lid.

c. Select Copy.

On the Home screen, press the button next to Copy.

Press the button next to Black Copy.

Press the button next to Black Copy again to increase the number of copies.

d. Start copy.

Wait for two seconds. Then it starts to copy.

Make a color copy

a. Load paper.

Load full-size paper in paper tray.

b. Load original.

Lift lid on product.

TIP:

To make copies of thick originals, such as books, you can remove the lid.

Load original print side down on right front corner of glass.

Close lid.

Copy text or mixed documents 15

Chapter 5

c. Select Copy.

On the Home screen, press the button next to Copy.

Press the button next to Color Copy.

Press the button next to Color Copy again to increase the number of copies.

d. Start copy.

Wait for two seconds. Then it starts to copy.

2.

View the animation for this topic.

Related topics

Tips for copy and scan success on page 16

Tips for copy and scan success

Use the following tips to copy and scan successfully:

• Keep the glass and the back of the lid clean. The scanner interprets anything it detects on the glass as part of the image.

• Load your original, print side down, on the right front corner of the glass.

• To copy or scan a book or other thick originals, remove the lid.

• To make a large copy of a small original, scan the original into the computer, resize the image in the scanning software, and then print a copy of the enlarged image.

• To avoid incorrect or missing scanned text, make sure the brightness is set appropriately in the software.

• If the document to be scanned has a complex layout, select framed text as the scan document setting in the software. With this setting, the text layout and formatting are retained.

• If the scanned image is incorrectly cropped, turn off the autocropping feature in the software and crop the scanned image manually.

• Before starting a scan, make sure your printer is connected to a computer that has scanning software installed.

• Besides the HP Scanning software, you can start a scan directly from a TWAIN-compliant program or Windows

Image Acquisition (WIA) program, such as Microsoft Word. For more information on how to start a scan from these programs, see the documentation for these programs or HP Photosmart Software Help.

16 Copy and scan

6 Work with cartridges

Check the estimated ink levels

Clean printhead automatically

Replace the cartridges

Order ink supplies

Cartridge warranty information

Tips for working with ink

Check the estimated ink levels

You can easily check the ink supply level to determine how soon you might need to replace a cartridge. The ink supply level shows an estimate of the amount of ink remaining in the cartridges.

NOTE: 1

If you have installed a refilled or remanufactured cartridge, or a cartridge that has been used in another printer, the ink level indicator might be inaccurate or unavailable.

NOTE: 2

Ink level warnings and indicators provide estimates for planning purposes only. When you receive a low-ink warning message, consider having a replacement cartridge available to avoid possible printing delays.

You do not have to replace the cartridges until the print quality is unacceptable.

NOTE: 3

Ink from the cartridges is used in the printing process in a number of different ways, including in the initialization process, which prepares the product and cartridges for printing, and in printhead servicing, which keeps print nozzles clear and ink flowing smoothly. In addition, some residual ink is left in the cartridge after it is used. For more information, see www.hp.com/go/inkusage .

To check the ink levels from the HP Photosmart Software

1.

In the HP Solution Center, click Settings, point to Print Settings, and then click Printer Toolbox.

NOTE:

You can also open the Printer Toolbox from the Print Properties dialog box. In the Print

Properties dialog box, click the Features tab, and then click the Printer Services button.

The Printer Toolbox appears.

2.

Click the Estimated Ink Level tab.

The estimated ink levels for the ink cartridges appear.

Related topics

Order ink supplies on page 20

Tips for working with ink on page 21

Clean printhead automatically

To clean the printhead from the HP Photosmart Software

NOTE:

The printhead only needs to be cleaned if print quality is unacceptable.

1.

Load letter, A4, or legal unused plain white paper into the paper tray.

2.

In the HP Solution Center, click Settings.

3.

In the Print Settings area, click Printer Toolbox.

NOTE:

You can also open the Printer Toolbox from the Print Properties dialog box. In the Print

Properties dialog box, click the Features tab, and then click Printer Services.

The Printer Toolbox appears.

4.

Click the Device Services tab.

Work with cartridges 17

Chapter 6

5.

Click Clean the printhead.

6.

Follow the prompts until you are satisfied with the quality of the output, and then click Done.

There are two stages of cleaning. Each stage lasts about two minutes, uses one sheet of paper, and uses an increasing amount of ink. After each stage, review the quality of the printed page. You should only initiate the next phase of cleaning if the print quality is poor.

If print quality still seems poor after you complete both stages of cleaning, try aligning the printer. If print quality problems persist after cleaning and aligning, contact HP support.

After cleaning the printhead, print a print quality report. Evaluate the print quality report to see if the print quality problem still exists.

Related topics

Order ink supplies on page 20

Tips for working with ink on page 21

Replace the cartridges

To replace the cartridges

1.

Check that power is on.

2.

Remove cartridge.

a. Open cartridge access door.

Wait for print carriage to move to center of product.

b. Press tab on cartridge, then remove it from slot.

3.

Insert new cartridge.

a. Remove cartridge from packaging.

18 Work with cartridges

b. Twist orange cap to snap it off. A forceful twist may be required to remove cap.

c. Match color icons, then slide cartridge into slot until it clicks into place.

d. Close cartridge door.

Replace the cartridges 19

Chapter 6

4.

View the animation for this topic.

Related topics

Order ink supplies on page 20

Tips for working with ink on page 21

Order ink supplies

To learn which HP supplies work with your product, order supplies online, or create a printable shopping list, open

HP Solution Center, and select the online shopping feature.

Cartridge information and links to online shopping also appear on ink alert messages. In addition, you can find cartridge information and order online by visiting www.hp.com/buy/supplies .

NOTE:

Ordering cartridges online is not supported in all countries/regions. If it is not supported in your country/ region, contact a local HP reseller for information about purchasing cartridges.

Cartridge warranty information

The HP cartridge warranty is applicable when the product is used in its designated HP printing device. This warranty does not cover HP ink products that have been refilled, remanufactured, refurbished, misused, or tampered with.

During the warranty period the product is covered as long as the HP ink is not depleted and the end of warranty date has not been reached. The end of warranty date, in YYYY/MM format, may be found on the product as indicated:

For a copy of the HP Limited Warranty Statement, see the printed documentation that came with the product.

20 Work with cartridges

Tips for working with ink

Use the following tips to work with ink cartridges:

• Use the correct ink cartridges for your printer. For a list of compatible ink cartridges, see the printed documentation that came with the printer. Alternatively, look in Printer Toolbox in the software.

• Insert the ink cartridges into the correct slots. Match the color and icon of each cartridge to the color and icon for each slot. Make sure all cartridges snap down into place.

• Use genuine HP ink cartridges. Genuine HP ink cartridges are designed for and tested with HP printers to help you produce great results, time after time.

• Consider getting replacement ink cartridges when you receive an ink alert message. This avoids possible printing delays. You do not need to replace the ink cartridges until print quality becomes unacceptable.

• If print quality is unacceptable, make sure the printhead is clean. Follow the instructions from Tools menu on the printer display. Alternatively, look in Printer Toolbox in the software.

Tips for working with ink 21

Chapter 6

22 Work with cartridges

7 Paper basics

Load media

1.

Do one of the following:

Load small-size paper

a. Lower paper tray.

Slide paper-width guide outwards.

b. Load paper.

Insert stack of photo paper into paper tray with short edge forward and print side down.

Slide stack of paper forward until it stops.

NOTE:

If the photo paper you are using has perforated tabs, load photo paper so that tabs are closest to you.

Slide paper-width guide inward until it stops at edge of paper.

Paper basics 23

Chapter 7

Load full-size paper

a. Lower paper tray.

Slide paper-width guide outwards.

b. Load paper.

Insert stack of paper into paper tray with short edge forward and print side down.

Slide stack of paper forward until it stops.

Slide paper-width guide inward until it stops at edge of paper.

2.

View the animation for this topic.

24 Paper basics

8 HP support

Get more help

HP support by phone

Additional warranty options

Get more help

You can find more information and help about your HP Photosmart by entering a keyword in the Search field in the top left of the help viewer. Titles of related topics -- for both local and online topics -- will be listed.

To contact HP Support, click here to go online.

HP support by phone

Phone support options and availability vary by product, country/region, and language.

This section contains the following topics:

Phone support period

Placing a call

After the phone support period

Phone support period

One year of phone support is available in North America, Asia Pacific, and Latin America (including Mexico). To determine the duration of phone support in Europe, the Middle East, and Africa, go to www.hp.com/support .

Standard phone company charges apply.

Placing a call

Call HP support while you are in front of the computer and the product. Be prepared to provide the following information:

• Product name (HP Photosmart B010 series)

• Serial number (located on the back or bottom of the product)

• Messages that appear when the situation occurs

• Answers to these questions:

◦ Has this situation happened before?

◦ Can you re-create it?

◦ Did you add any new hardware or software to your computer at about the time that this situation began?

◦ Did anything else occur prior to this situation (such as a thunderstorm, product was moved, etc.)?

For the list of support phone numbers, visit www.hp.com/support .

After the phone support period

After the phone support period, help is available from HP at an additional cost. Help may also be available at the

HP online support Web site: www.hp.com/support . Contact your HP dealer or call the support phone number for your country/region to learn more about support options.

HP support 25

Chapter 8

Additional warranty options

Extended service plans are available for the HP Photosmart at additional costs. Go to www.hp.com/support , select your country/region and language, then explore the services and warranty area for information about the extended service plans.

Clear the paper jam from the rear access door

To clear a paper jam from the rear access door

1.

Turn off product.

2.

Remove rear door.

3.

Remove jammed paper.

4.

Replace rear door.

5.

Turn on product.

6.

Try printing again.

7.

View the animation for this topic.

26 HP support

9 Technical information

The technical specifications and international regulatory information for the HP Photosmart are provided in this section.

For additional specifications, see the printed documentation that came with the HP Photosmart.

This section contains the following topics:

Notice

Specifications

Environmental product stewardship program

Regulatory notices

Notice

Specifications

Technical specifications for the HP Photosmart are provided in this section. For complete product specifications, see the Product Data Sheet at www.hp.com/support .

System requirements

Software and system requirements are located in the Readme file.

For information about future operating system releases and support, visit the HP online support Web site at www.hp.com/support .

Environmental specifications

• Recommended operating temperature range: 15 ºC to 32 ºC (59 ºF to 90 ºF)

• Allowable operating temperature range: 5 ºC to 40 ºC (41 ºF to 104 ºF)

• Humidity: 20% to 80% RH non-condensing (recommended); 25 ºC maximum dewpoint

• Non-operating (Storage) temperature range: -40 ºC to 60 ºC (-40 ºF to 140 ºF)

• In the presence of high electromagnetic fields, it is possible the output from the HP Photosmart may be slightly distorted

• HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize injected noise due to potential high electromagnetic fields

Paper specifications

Type

Plain paper

Legal paper

Index cards

Hagaki cards

Paper weight

Up to 20 lb. (up to 75 gsm)

Up to 20 lb. (up to 75 gsm)

110 lb. index max (200 gsm)

110 lb. index max (200 gsm)

Paper tray

*

Up to 125 (20 lb. paper)

Up to 125 (20 lb. paper)

Up to 40

Up to 40

Technical information 27

Chapter 9

(continued)

Type

Envelopes

5 x 7 inch (13 x 18 cm) Photo paper

4 x 6 inch (10 x 15 cm) Photo paper

8.5 x 11 inch (216 x 279 mm) Photo paper

Paper weight

20 to 24 lb. (75 to 90 gsm)

145 lb.

(236 gsm)

145 lb.

(236 gsm)

145 lb.

(236 gsm)

Paper tray

*

Up to 15

Up to 40

Up to 40

Up to 40

* Maximum capacity.

NOTE:

For a complete list of supported media sizes, see the printer driver.

Print specifications

• Print speeds vary according to the complexity of the document

• Panorama-size printing

• Method: drop-on-demand thermal inkjet

• Language: PCL3 GUI

Scan specifications

• Image editor included

• Twain-compliant software interface

• Resolution: up to 1200 x 2400 ppi optical; 19200 ppi enhanced (software)

For more information about ppi resolution, see the scanner software.

• Color: 48-bit color, 8-bit grayscale (256 levels of gray)

• Maximum scan size from glass: 21.6 x 29.7 cm (8.5 x 11.7 inches)

Copy specifications

• Digital image processing

• Maximum number of copies varies by model

• Copy speeds vary according to the complexity of the document and model

• Maximum copy enlargement ranging from 200-400% (depends on model)

• Maximum copy reduction ranging from 25-50% (depends on model)

Cartridge yield

Visit www.hp.com/go/learnaboutsupplies for more information on estimated cartridge yields.

Print resolution

To find out about the printer resolution, see the printer software.

Environmental product stewardship program

Hewlett-Packard is committed to providing quality products in an environmentally sound manner. Design for recycling has been incorporated into this product. The number of materials has been kept to a minimum while ensuring proper functionality and reliability. Dissimilar materials have been designed to separate easily. Fasteners and other connections are easy to locate, access, and remove using common tools. High priority parts have been designed to access quickly for efficient disassembly and repair.

For more information, visit HP’s Commitment to the Environment Web site at: www.hp.com/hpinfo/globalcitizenship/environment/index.html

This section contains the following topics:

Eco-Tips

Paper use

28 Technical information

Plastics

Material safety data sheets

Power consumption

Recycling program

HP inkjet supplies recycling program

Disposal of waste equipment by users in private households in the European Union

Chemical Substances

Battery disposal in the Netherlands

Battery disposal in Taiwan

Attention California users

EU battery directive

Eco-Tips

HP is committed to helping customers reduce their environmental footprint. HP has provided the Eco-Tips below to help you focus on ways to assess and reduce the impact of your printing choices. In addition to specific features in this product, please visit the HP Eco Solutions web site for more information on HP’s environmental initiatives.

www.hp.com/hpinfo/globalcitizenship/environment/

Your product's Eco features

Smart Web printing: The HP Smart Web Printing interface includes a Clip Book and Edit Clips window where you can store, organize, or print clips you have gathered from the Web.

Energy Savings information: To determine the ENERGY STAR® qualification status for this product, see

Power consumption on page 29 .

Recycled Materials: For more information regarding recycling of HP products, please visit: www.hp.com/hpinfo/globalcitizenship/environment/recycle/

Paper use

This product is suited for the use of recycled paper according to DIN 19309 and EN 12281:2002.

Plastics

Plastic parts over 25 grams are marked according to international standards that enhance the ability to identify plastics for recycling purposes at the end of product life.

Material safety data sheets

Material safety data sheets (MSDS) can be obtained from the HP Web site at: www.hp.com/go/msds

Power consumption

Hewlett-Packard printing and imaging equipment marked with the ENERGY STAR® logo is qualified to the U.S.

Environmental Protection Agency’s ENERGY STAR specifications for imaging equipment. The following mark will appear on ENERGY STAR qualified imaging products:

Additional ENERGY STAR qualified imaging product model information is listed at: www.hp.com/go/energystar

Environmental product stewardship program 29

Chapter 9

Recycling program

HP offers an increasing number of product return and recycling programs in many countries/regions, and partners with some of the largest electronic recycling centers throughout the world. HP conserves resources by reselling some of its most popular products. For more information regarding recycling of HP products, please visit: www.hp.com/hpinfo/globalcitizenship/environment/recycle/

HP inkjet supplies recycling program

HP is committed to protecting the environment. The HP Inkjet Supplies Recycling Program is available in many countries/regions, and lets you recycle used print cartridges and ink cartridges free of charge. For more information, go to the following Web site: www.hp.com/hpinfo/globalcitizenship/environment/recycle/

Disposal of waste equipment by users in private households in the European Union

30 Technical information

Chemical Substances

HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European

Parliament and the Council). A chemical information report for this product can be found at: www.hp.com/go/ reach .

Battery disposal in the Netherlands

Battery disposal in Taiwan

Attention California users

The battery supplied with this product may contain perchlorate material. Special handling may apply. For more information, go to the following Web site: www.dtsc.ca.gov/hazardouswaste/perchlorate

Environmental product stewardship program 31

Chapter 9

EU battery directive

Regulatory notices

The HP Photosmart meets product requirements from regulatory agencies in your country/region.

This section contains the following topics:

32 Technical information

Regulatory model identification number

FCC statement

VCCI (Class B) compliance statement for users in Japan

Notice to users in Japan about the power cord

Notice to users in Korea

Notice to users in Germany

Noise emission statement for Germany

HP Photosmart B010 series declaration of conformity

Regulatory model identification number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model

Number for your product is SNPRH-0903. This regulatory number should not be confused with the marketing name

(HP Photosmart B010 series, etc.) or product numbers (CN255B, etc.).

FCC statement

VCCI (Class B) compliance statement for users in Japan

Regulatory notices 33

Chapter 9

Notice to users in Japan about the power cord

Notice to users in Korea

Notice to users in Germany

Noise emission statement for Germany

34 Technical information

HP Photosmart B010 series declaration of conformity

Regulatory notices 35

Chapter 9

36 Technical information

Index

Symbols/Numerics

10 x 15 cm photo paper

specifications 27

A

after the support period 25

B

buttons, control panel 6

C

control panel

buttons 6 features 6

copy

specifications 28

customer support

warranty 26

E

envelopes

specifications 27

environment

Environmental product stewardship

program 28

environmental specifications 27

L

labels

specifications 27

legal paper

specifications 27

letter paper

specifications 27

P

paper

specifications 27

phone support 25

phone support period

period for support 25

photo paper

specifications 27

print

specifications 28

R

recycle

ink cartridges 30

regulatory notices regulatory model identification

number 33

S

scan

scan specifications 28

system requirements 27

T

technical information

copy specifications 28

environmental specifications 27 paper specifications 27

print specifications 28 scan specifications 28

system requirements 27

transparencies

specifications 27

W

warranty 26

37

38

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
