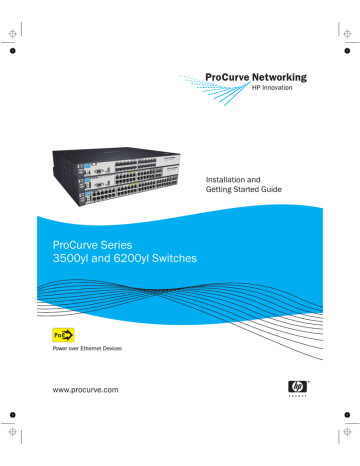

ProCurve Series

3500yl and 6200yl Switches

Installation and

Getting Started Guide

PoE

Power over Ethernet Devices

www.procurve.com

ProCurve Series 3500yl and 6200yl

Switches

Installation and Getting Started Guide

© Copyright 2005 Hewlett-Packard Development Company,

L.P. The information contained herein is subject to change without notice.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent of Hewlett-Packard.

Publication Number

5991-3781

December 2005

Applicable Products

ProCurve Switch 3500yl-24G-PWR Intelligent Edge (J8692A)

ProCurve Switch 3500yl-48G-PWR Intelligent Edge (J8693A)

ProCurve Switch 6200yl-24G mGBIC Premium Edge

(J8992A)

ProCurve Switch 3500yl 2p 10GbE X2 + 2p CX4 Module

(J8694A)

ProCurve 10-GbE X2 SR-SC Xcvr (J8436A)

ProCurve 10-GbE X2 LR-SC Xcvr (J8437A)

ProCurve 10-GbE X2 ER-SC Xcvr (J8438A)

ProCurve 10-GbE CX4 Media Converter (J8439A)

ProCurve 10-GbE X2 CX4 Xcvr (J8440A)

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO THIS MATERIAL,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warranty

See the Customer Support/Warranty booklet included with the product.

A copy of the specific warranty terms applicable to your

Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer.

Trademark Credits

Windows®, and MS Windows® are US registered trademarks of Microsoft Corporation.

Safety

Before installing and operating these products, please read the “Installation Precautions” in chapter 2, “Installing the

Switch”, and the safety statements in appendix C, “Safety and EMC Regulatory Statements”.

Hewlett-Packard Company

8000 Foothills Boulevard, m/s 5552

Roseville, California 95747-5552

http://www.procurve.com

Contents

1 Introducing the Switch

Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . . . . . 1-7

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Expansion Module LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

yl Module Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

RPS and EPS Input Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Installation Precautions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2. (Optional) Install or Remove a yl Module . . . . . . . . . . . . . . . . . . . . . 2-7

3. (Optional) Install or Remove a Transceiver . . . . . . . . . . . . . . . . . . . 2-8

To remove the transceiver: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

4. (Optional) Install or Remove mini-GBICs . . . . . . . . . . . . . . . . . . . . . 2-9

5. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

LED Behavior: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

6. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Rack Mounting the Switch 3500yl-48G . . . . . . . . . . . . . . . . . . . . . 2-14

Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

iii

iv

7. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-15

8. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Connecting Cables to mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Connecting a fiber cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Connecting a copper cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

9.(Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . . . 2-18

Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Sample Network Topologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

As a Desktop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

As a Segment Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Connecting to a Backbone Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

Stacking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24

3 Getting Started With Switch Configuration

Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Using the Console Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

To Recover from a Lost Manager Password . . . . . . . . . . . . . . . . . . . . . 3-4

Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-5

Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

4 Replacing Components

Replacing the fan tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Installing a New Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

5 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Testing Switch-to-Device Network Communications . . . . . . . . . . . . 5-10

Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 5-10

Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 5-11

Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

A Specifications

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Acoustic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Lasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

B Switch Ports and Network Cables

Switch Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Twisted-Pair Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Note on 1000Base-T Cable Requirements . . . . . . . . . . . . . . . . B-1

Mode Conditioning Patch Cord for Gigabit-LX . . . . . . . . . . . . . . . . . . . . . B-3

Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Recommended Patch Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Auto-MDIX Feature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Other Wiring Rules: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Straight-Through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . B-6

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

v

vi

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . . B-7

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Straight-Through Twisted-Pair Cable for

1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

C Safety and EMC Regulatory Statements

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Informations concernant la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

Hinweise zur Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Considerazioni sulla sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

Consideraciones sobre seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Safety Information (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Safety Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-10

D Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . D-1

Index

1

Introducing the Switch

The ProCurve Switches 3500yl and 6200yl are multiport switches that can be used to build high-performance switched networks. These switches are storeand-forward devices offering low latency for high-speed networking. The

3500yl switches also support Redundant Power Supply and Power over

Ethernet technologies. The 6200yl switch supports Redundant Power Supply only.

ProCurve Switch 3500yl-24G-PWR (J8692A)

PoE-Integrated 10/100/1000Base-T Ports (1 - 24T) — Ports are IEEE Auto MDI/MDI-X

7 9 11 Link 13 Mode 15 17 19

Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M)

21

T

23

T

Link 21

M

Mode 23

M

Power

Fault

Locator

ProCurve Switch

3500yl-24G

J8692A

PoE

Status

PoE

LED

Mode

Tmp

Fan

Test

Reset Clear

Act

FDx

Spd

PoE

*

Usr

Mdl EPS RPS

Status of the Back

Console

*

Spd mode: off = 10 Mbps

flash = 100 Mbps

on = 1000 Mbps

Link 1 Mode 3

Auxiliary Port Link 2 Mode 4 6

5

8 10 12 Link 14 Mode 16 18 20 22 T 24 T Link 22 M Mode 24 M

ProCurve Switch 3500yl-48G-PWR (J8693A)

Power

Fault

Locator

ProCurve Switch

3500yl-48G

J8692A

PoE

Mdl

Link 1

EPS

Mode

RPS Status of the Back

3 5

Status

PoE

Tmp

LED

Mode

Fan

Test

Act

FDx

Spd *

PoE

Usr

Reset Clear

Link 2 Mode 4 6

*

Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps

7 9 11 Link 13 Mode 15

8 10 12 Link 14 Mode 16

17

PoE-Integrated 10/100/1000Base-T Ports (1 - 48T) — Ports are IEEE Auto MDI/MDI-X

19 21 23 Link 25 Mode 27 29 31 33

18 20 22 24 Link 26 Mode 28 30 32 34

35

36

Link 37 Mode 39 41 43

Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M)

45 T 47 T Link 45 M Mode 47 M

Link 38 Mode 40 42 44 46

T

48

T

Link 46

M

Mode 48

M

ProCurve Switch 6200yl-24G mGBIC (J8992A)

Power

Fault

Locator

Throughout this manual, this switch will be abbreviated as the Switch 3500yl-

24G, Switch 3500yl-48G or Switch 6200yl-24G.

1-1

Introducing the Switch

The Switch 3500yl-24G and Switch 3500yl-48G have respectively, 24 or 48, auto-sensing 10/100/1000Base-TX RJ-45 ports, four dual-personality ports— either auto-sensing 10/100/1000Base-T RJ-45 or mini-GBIC, and one slot is provided in the back of the device to support a four port (two fixed CX4 ports and two X2 transceiver ports) 10 Gigabit per second Ethernet (10-GbE) module to provide box connectivity to other switch boxes, to a 10 Gigabit per second concentrator or to any Ethernet compatible uplink.

The Series 3500yl Switches are also designed to support Power over Ethernet

(PoE) technology. The switches support 802.3af standard devices and some pre-standard PoE devices. For a list of these devices, see the FAQs for your switch model. This feature is the default and you must disable it if you do not want to use it. (Refer to the Management and Configuration Guide that came with your switch.)

The dual-personality ports have either auto-sensing 10/100/1000Base-T RJ-45, or mini-GBIC connectivity. The mini-GBIC ports do not support PoE. If any of the mini-GBIC ports are used the corresponding RJ-45 port will not be supplied with PoE power and will be disabled. For more information regarding the PoE capabilities of the Series 3500yl Switches, see the ProCurve Power over

Ethernet (PoE) for zl and yl Products Planning and Implementation Guide

(5991-2175).

The Series 3500yl Switches can be connected to a ProCurve Redundant/

External Power Supply (RPS/EPS (to be released in the future)) and receive redundant power from that unit. If the internal power supply in the switch fails, the RPS/EPS unit will immediately provide all the power necessary to keep the switch running.

These switches are designed to be used primarily as a high-density wiring closet or desktop switch. These switches can directly connect computers, printers, and servers to provide dedicated bandwidth to those devices, and can build a switched network infrastructure by connecting the switch to hubs, other switches, or routers. In addition, the Series 3500yl Switches offer full network management capabilities.

This chapter describes the Series 3500yl and 6200yl Switches, including:

Front and back of the switches

Switch features

1-2

Introducing the Switch

Front of the Switch

Front of the Switch

Power,

Fault, and

Locator

LEDs

PoE, Temp, Fan, and

Test Status LEDs

Module, EPS, and

RPS, Status LEDs

Auxiliary port and LED*

Switch port LEDs

ProCurve Switch 3500yl-24G

Power

Fault

Locator

ProCurve Switch

3500yl-24G

J8692A

PoE

Status

PoE

Tmp

LED

Mode

Fan

Test

Reset

Act

FDx

Spd

PoE

Usr

*

Clear

Mdl EPS RPS Status of the Back

Console

*

Spd mode: off = 10 Mbps

flash = 100 Mbps

on = 1000 Mbps

Auxiliary Port

Link

1

Mode

3

Link

2

Mode

4

5

6

PoE-Integrated 10/100/1000Base-T Ports (1 - 24T) — Ports are IEEE Auto MDI/MDI-X

7 9 11

Link

13

Mode

15 17 19

Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M)

21

T

23

T Link

21

M Mode

23

M

8 10 12

Link

14

Mode

16 18 20 22

T

24

T Link

22

M Mode

24

M

Reset and Clear buttons

Console port*

10/100/1000Base-T RJ-45

Dual-personality ports

(1000Base-T* or mini-GBIC)

Port LED Mode select button and indicator LEDs

*On the 3500yl-48G switch, the Console and Auxiliary ports are located on the back of the unit.

Power,

Fault, and

Locator

LEDs

PoE, Temp, Fan, and

Test Status LEDs

Module, EPS, and

RPS, Status LEDs

ProCurve Switch 3500yl-48G

Switch port LEDs

Power

Fault

Locator

ProCurve Switch

3500yl-48G

J8692A

PoE

Mdl

Link 1

EPS

Mode

RPS Status of the Back

3 5

Status

PoE

Tmp

LED

Mode

Fan

Test

Act

FDx

Spd *

PoE

Usr

Reset Clear

Link

2

Mode

4 6

*

Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps

7 9 11 Link 13 Mode 15

8 10 12

Link

14

Mode

16

17

PoE-Integrated 10/100/1000Base-T Ports (1 - 48T) — Ports are IEEE Auto MDI/MDI-X

19 21 23 Link 25 Mode 27 29 31 33 35

18 20 22 24

Link

26

Mode

28 30 32 34 36

Link 37 Mode 39 41 43

Dual-Personality Ports: 10/100/1000-T (T) or Mini-GBIC (M)

45

T

47

T

Link 45

M

Mode 47

M

Link

38

Mode

40 42 44 46

T

48

T Link

46

M Mode

48

M

Reset and Clear buttons

Port LED Mode select button and indicator LEDs

10/100Base-TX RJ-45 ports*

Dual-personality ports

(1000Base-T* or mini-GBIC)

1-3

Introducing the Switch

Front of the Switch

Power,

Fault, and locator

LEDs

Temp, Fan, and Test

Status LEDs

Module and RPS

Status LEDs

Auxiliary port and LED

ProCurve Switch 6200yl-24G

Switch port LEDs

Power

Fault

Locator

1-4

Console port

Reset and Clear buttons

Port LED Mode select button and indicator LEDs

Mini-GBIC ports

Network Ports

24 or 48 auto-sensing 10/100/1000Base-T ports.

All these ports have the “HP Auto MDIX” feature, which means you can use either straight-through or crossover twisted-pair cables to connect any network devices to the switch.

On the Series 3500yl devices there are four dual-personality ports. Use either the 10/100/1000Base-T RJ-45 connector, or install a supported

ProCurve mini-GBIC for fiber-optic connections.

The RJ-45 connectors support the IEEE Auto MDI/MDI-X feature, which means you can use either straight-through or crossover twisted-pair cables to connect any network device to the switch.

Dual-Personality Port Operation.

By default, the RJ-45 connectors are enabled. If a mini-GBIC is installed in a slot, it is enabled and the associated RJ-45 connector is disabled and cannot be used. If the mini-GBIC is removed, the associated RJ-45 port is automatically re-enabled.

The RJ-45 connector also supplies PoE power until a mini-GBIC is installed. The PoE power is turned off when a mini-GBIC is plugged in.

One, 10 gigabit expansion slot. These switches provide a single slot in the back of the device that can accept a 4 x 10 gigabit transceiver module. The module provides four 10 gigabit ports. The module provides either copper or fiber optic media that conforms to the gigabit Ethernet standard as well as dual 10 gigabit copper or uplink ports.

Introducing the Switch

Front of the Switch

Switch LEDs

Power

(green)

Fault

(orange)

Locator (Blue)

Test

(green)

Off

On

Port LEDs

(green – Link and Mode)

State

On

Off

Off blinking*

On blinking*

Link

Mode

LEDs

Table 1-1.

Switch LEDs

Meaning

The switch is receiving power.

The switch is NOT receiving power.

The normal state; indicates there are no fault conditions on the switch.

A fault has occurred on the switch, one of the switch ports, module in the rear of the switch, or the fan. The Status LED for the component with the fault will blink simultaneously.

On briefly after the switch is powered on or reset, at the beginning of switch self test.

If this LED is on for a prolonged time, the switch has encountered a fatal hardware failure, or has failed its self test. See chapter 4, “Troubleshooting” for more information.

Reserved for future development

The normal operational state; the switch is not undergoing self test.

The switch self test and initialization are in progress after the switch has been power cycled or reset. The switch is not operational until this LED goes off. The Self Test LED also comes on briefly when you “hot swap” a mini-GBIC into the switch; the mini-GBIC is self tested when it is hot swapped.

A component of the switch has failed its self test. The status LED for that component, for example an RJ-45 port, and the switch Fault LED will blink simultaneously.

Indicates the port LEDs are displaying link information:

• if the port LED is on, the port is enabled and receiving a link indication from the connected device.

• if the port LED is off, the port has no active network cable connected, or is not receiving link beat or sufficient light. Otherwise, the port may have been disabled through the switch console, the web browser interface, or ProCurve Manager.

if the port LED is blinking* (orange) simultaneously with the Fault LED, the corresponding port has failed its self test.

The operation of the Mode LED is controlled by the LED Mode select button, and the current setting is indicated by the LED Mode indicator LEDs near the button. Press the button to step from one view mode to the next. The default view is Activity (Act).

1-5

Introducing the Switch

Front of the Switch

Switch LEDs

LED Mode

View (green

LEDs)

State

Act

FDx

Spd

Meaning

Indicates the port LEDs are displaying network activity information.

Indicates port LEDs are lit for ports in Full Duplex Mode. Off indicates ½ duplex.

Indicates the port LEDs are displaying the connection speed at which each port is operating:

• if the port LED is off, the port is operating at 10 Mbps.

• if the port LED is blinking**, the port is operating at 100 Mbps.

• if the port LED is on continuously, the port is operating at 1000 Mbps.

PoE • If the Mode LED is on the port is providing PoE power.

• If the Mode LED is off the port is not providing PoE power.

• If the Link LED is on the port is enabled for PoE.

• If the Link LED is off the port is disabled for PoE.

• If the Link LED is blinking, the port has an error or the port is denied power due to insufficient power.

Reserved for future development

Mdl (Module

Status, green)

RPS Status

(green)

Usr

On blinking

Off

On

Expansion module is plugged into expansion slot and operating correctly

Expansion module is plugged into expansion slot but has experienced a fault

Expansion module is not plugged into expansion slot

Normal operation. RPS is connected and operating correctly. RPS could be powering the unit.

RPS is connected but has experienced a fault.

RPS is not connected or is not powered on.

EPS Status

(green)

Fan Status

(green)

PoE Status

Temp

(green/

Orange)

Auxiliary

(green) blinking

Off

On blinking

Off

On blinking*

On

Off

Blinking*

Blinking

**

Off

Blinking

1

Connected to an External Power Supply, and receiving power.

The External Power Supply is connected but has experienced a fault or is unplugged.

The switch is not connected to an EPS.

Normal operation, all fans are ok.

One of the unit’s fans has failed. The switch Fault LED will be blinking simultaneously.

If any ports are supplying PoE power.

If no ports are supplying PoE power. Should be off only during the boot process.

If any port has a internal hardware failure

If any port is denied PoE power or detecting an external PD fault

Switch temperature is normal.

An over temperature condition has been detected.

Reserved for future development

* The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.

** The blinking behavior is an on/off cycle once every 0.5 seconds, approximately.

1-6

Introducing the Switch

Front of the Switch

LED Mode Select Button and Indicator LEDs

The operation of the Mode LED is controlled by the LED Mode select button, and the current setting is indicated by the LED Mode indicator LEDs near the button. Press the button to step from one view mode to the next.

Expansion Module LED

Port LEDs Link and Mode

ProCurve Switch 3500yl-24G

Power

Fault

Locator

Status

PoE

Tmp

Fan

Test

ProCurve Switch

3500yl-24G

J8692A

PoE

Reset

Act

FDx

Spd

PoE

*

Usr

Clear

Mdl EPS RPS Status of the Back

Console

*

Spd mode: off = 10 Mbps

flash = 100 Mbps

on = 1000 Mbps

Link

1

Mode

3

Auxiliary Port Link

2

Mode

4

LED Mode select button and indicator LEDs

5

6

7

PoE-Integrated 10/100/1000Base-T Ports (1

9 11

8 10 12

Expansion Module LEDs

Port LEDs Link and Mode

Power

Fault

Locator

ProCurve Switch

3500yl-48G

J8692A

PoE

Mdl

Link 1

EPS

Mode

RPS Status of the Back

3 5

Status

PoE

Tmp

Fan

Test

Reset

Act

FDx

Spd *

PoE

Usr

Clear

Link

2

Mode

4 6

*

Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps

7 9 11 Link 13 Mode 15

8 10 12

Link

14

Mode

16

LED Mode select button and indicator LEDs

ProCurve Switch 3500yl-48G

17

18

PoE-Integrated 10/100/1000Base-T P

19 21 23

20 22 24

Expansion Module LEDs

ProCurve Switch 6200yl-24G

Power

Fault

Locator

LED Mode select button and indicator LEDs

Port LEDs Link and Mode

Each port has a Link LED. If it is lit, the port has a link. If the Link LED is blinking, the port has failed its self test. The Fault and Self Test LEDs will be blinking simultaneously.

1-7

Introducing the Switch

Front of the Switch

If the Activity (Act) indicator LED is lit, each port LED displays activity information for the associated port—it flickers as network traffic is received and transmitted through the port.

If the Full Duplex (FDx) indicator LED is lit, the port LEDs light for those ports that are operating in full duplex.

If the Speed (Spd) indicator LED is lit, the port LEDs behave as follows to indicate the connection speed for the port:

• Off = 10 Mbps

• blinking = 100 Mbps (the blinking behavior is a repeated on/off cycle once every 0.5 sec.)

• On = 1000 Mbps

The Usr Mode LED is reserved for future development

If the PoE indicator LED is lit, the Link and Mode LEDs indicate PoE status:

Link LED:

• On = PoE is enabled on this port

• Off = PoE is disabled on this port.

• Slow Blinking = Internal PoE fault on this port. or has been denied power

• Fast Blinking = This port is denied PoE power or has an external load fault.

Mode LED:

• On = PoE power is be supplied on this port

• Off = PoE is not being supplied on this port.

Reset Button

This button is used to reset the switch while it is powered on. This action clears any temporary error conditions that may have occurred and executes the switch self test.

1-8

Introducing the Switch

Front of the Switch

Clear Button

This button is used for these purposes:

Deleting Passwords

- When pressed by itself for at least one second, the button deletes any switch console access passwords that you may have configured. Use this feature if you have misplaced the password and need console access.

This button is provided for your convenience, but its presence means that if you are concerned with the security of the switch configuration and operation, you should make sure the switch is installed in a secure location, such as a locked wiring closet.

Restoring Factory Default Configuration

- When pressed with the

Reset button in a specific pattern, any configuration changes you may have made through the switch console, the web browser interface, and

SNMP management are removed, and the factory default configuration is restored to the switch. For the specific method to restore the factory default configuration, see

“Restoring the Factory Default Configuration” on page 11 , in chapter 4, “Troubleshooting” of this manual.

Expansion Module LEDs

“Expansion Module” LEDs refer to the LEDs specific to the expansion module.

These LEDs are located on the physical expansion module bulkhead. These

LEDs are only viewable in the rear of the Switch 3500yl-48G product on the

Expansion Slot Module itself. These LEDs are duplicated on the front panel of the Switch 3500yl-24G and 6200yl-24G devices.

1-9

Introducing the Switch

Front of the Switch

Table 1-2.

Expansion Module LEDs

Description Name Color Mode

Expansion Module LEDs per module

Module

(Mdl) Power

Green On

Off

Expansion module is plugged into expansion slot and operating correctly

Expansion module's power has been turned OFF, and the card can be removed from the box if necessary.

Module

(Mdl) Fault

Orange On

Expansion module is plugged into expansion slot but has experienced a fault

Expansion Module LEDs per port

Link Green On

Act Green

Off blinking

Indicates that the port LEDs are displaying link information:

• if the port LED is on, the port is enabled and receiving a link indication from the connected device.

• if the port LED is off, the port has no active network cable connected, or is not receiving link beat or sufficient light. Otherwise, the port may have been disabled through the switch console, the web browser interface, or ProCurve Manager.

• if the port LED is blinking* simultaneously with the Fault LED, the corresponding port has failed its self test.

Indicates the port LEDs are displaying network activity information.

On

Expansion module LEDs operate in modes for Link and Activity. FDx and Spd modes have no meaning for the 10-GbE ports on the expansion module.

C a u t i o n

It is required the switch be powered down before inserting or extracting the

Expansion Module.

1-10

Introducing the Switch

Back of the Switch

Serial No.

System MAC

Address

SG12345678

123456 yl module slot

Back of the Switch

EPS Input Port

ProCurve Switch 3500yl-24G

CAUTION: MULTIPLE POWER SOURCES

Disconnect all AC power cords, and EPS and RPS cables to completely remove power from the unit.

12V System Power (RPS) Input

PoE

50V PoE (EPS) Input

Connect ProCurve 620 EPS only

Line: 50/60 Hz.

100-127 V~ 10 A

200-240 V~ 5 A

RPS Input Port AC power connector

ProCurve Switch 3500yl-48G

EPS Input Port

Serial No.

System MAC

Address

SG12345678

123456

Console

Auxiliary Port

CAUTION: MULTIPLE POWER SOURCES

Disconnect all AC power cords, and EPS and RPS cables to completely remove power from the unit.

12V System Power (RPS) Input PoE 50V PoE (EPS) Input

Connect ProCurve 620 EPS only

Line: 50/60 Hz.

100-127 V~ 10 A

200-240 V~ 5 A

Serial No.

System MAC

Address

SG12345678

123456 yl module slot

Console Port

Auxiliary Port and LED RPS Input Port AC power connector

ProCurve Switch 6200yl-24G

CAUTION: MULTIPLE POWER SOURCES

Disconnect all AC power cords, and EPS and RPS cables to completely remove power from the unit.

12V System Power (RPS) Input

Line: 50/60 Hz.

100-127 V~ 10 A

200-240 V~ 5 A yl module slot

RPS Input Port

AC power connector

1-11

Introducing the Switch

Back of the Switch

yl Module Slot

These switches support one yl module. The yl module provides 4 ports:

■ two 10-GbE CX4 fixed copper ports

■ two 10-GbE flexible media slots that support a number of different transceivers. See the ProCurve Switch yl Module Installation Guide for more information on supported transceivers.

RPS and EPS Input Port

The Series 3500yl and 6200yl Switches support connectivity to a redundant power supply. The “ProCurve Redundant and External Power Supply (RPS/

EPS) is an accessory product for these Switches. The RPS/EPS provides redundant power to the switch products to back up the power supply in the switch in case of loss of AC power. The RPS and EPS Input Ports are reserved for use with a future product.

Console Port

This port is used to connect a console to the switch by using the serial cable supplied with the switch. This connection is described under “Connect a

Console to the Switch” in chapter 2, “Installing the Switch.” The console can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal. The console port is located on the front of the 3500yl-24G and 6200yl-

24G, and on the back of the 3500yl-48G.

Power Connector

The Series 3500yl and 6200yl Switches do not have a power switch; they are powered on when connected to an active AC power source. These switches automatically adjust to any voltage between 100--240 volts and either 50 or 60

Hz. There are no voltage range settings required.

1-12

Introducing the Switch

Switch Features

Switch Features

The features of the Series 3500yl and 6200yl Switches include:

24 or 48 auto-sensing 10/100/1000Base-T RJ-45 ports with HP Auto-MDIX.

Four dual-personality ports—either the auto sensing 10/100/1000Base-T

RJ-45 or the mini-GBIC can be used for each port.

The 6200yl provides 24 mini-GBIC ports.

One slot (optional yl module slot) is provided in the back of the device to support a series of transceivers to provide connectivity to other switch boxes, to a 10 Gig concentrator or to any Ethernet compatible uplink.

The auxiliary port is reserved for future development.

The Switches can be connected to a ProCurve RPS/EPS and receive redundant power from that unit. If the internal power supply in the switch fails, the RPS/EPS unit will immediately provide all the power necessary to keep the switch running.

Plug-and-play networking—all ports are enabled—just connect the network cables to active network devices and your switched network is operational.

IEEE 802.3ab Auto MDI/MDI-X on all 10/100/1000 twisted-pair ports, meaning that all connections can be made using straight-through

twisted-pair cables

. Cross-over cables are not required, although they will also work. The pin operation of each port is automatically adjusted for the attached device: if the switch detects that another switch or hub is connected to the port, it configures the port as MDI; if the switch detects that an end-node device is connected to the port, it configures the port as

MDI-X.

Automatic learning of the network addresses in each switch’s 8000address forwarding table, (with configurable address aging value).

Automatically negotiated full-duplex operation for the 10/100/1000 RJ-45 ports when connected to other auto-negotiating devices—the mini-GBIC ports always operate at full duplex.

Easy management of the switch through several available interfaces:

console interface

—a full featured, easy to use, VT-100 terminal interface that is especially good for out-of-band switch management or for Telnet access to the switch.

web browser interface

—an easy to use built-in graphical interface that can be accessed from common web browsers.

1-13

Introducing the Switch

Switch Features

ProCurve Manager

—an SNMP-based, graphical network management tool that you can use to manage your entire network. This product is included with your new switch.

Support for the Spanning Tree Protocol to eliminate network loops

Support for up to 2048 IEEE 802.1Q-compliant VLANs so you can divide the attached end nodes into logical groupings that fit your business needs.

Support for many advanced features to enhance network performance— for a description, see the Management and Configuration Guide, which is on the Documentation CD-ROM that is included with your switch.

Download of new switch software for product enhancements or bug fixes.

Support for IEEE 802.3af Standard and Pre-standard PoE devices.

1-14

2

Installing the Switch

The ProCurve Series 3500yl and 6200yl Switches come with an accessory kit that includes the brackets for mounting the switch in a standard 19-inch telco rack, in an equipment cabinet, and with rubber feet that can be attached so the switch can be securely located on a horizontal surface. The brackets are designed to allow mounting the switch in a variety of locations and orientations. For other mounting options contact your local ProCurve authorized network reseller or ProCurve representative. This chapter shows how to install the switch.

Included Parts

The Series 3500yl and 6200yl Switches have the following components shipped with them:

ProCurve Series 3500yl and 6200yl Switches Installation and Getting

Started Guide

, this manual

ProCurve Product Documentation CD ROM

(contains PDF file copies of the documentation for the Series 3500yl

Switches, including the Management and Configuration Guide, and for most other ProCurve switches)

ProCurve Manager

- CD ROM and booklet

Read Me First

Customer Support/Warranty booklet

Console cable

Accessory kit

(5069-5705) for both the Series

3500yl and 6200yl Switches

two mounting brackets eight 8-mm M4 screws to attach the mounting brackets to the switch four 5/8-inch number 12-24 screws to attach the switch to a rack four rubber feet

2-1

Installing the Switch

Included Parts

Power cord, one of the following:

Australia/New Zealand

China

Continental Europe

Denmark

Japan

Switzerland

United Kingdom/Hong Kong/Singapore

United States/Canada/Mexico

South Africa and India

Argentina

Brazil and Thailand

Chile

Taiwan

Israel

8120-5335

8121-1034

8120-5336

8120-5340

8120-5342

8120-5339

8120-5334

8121-0973

8120-5341

8120-8375

8121-0671

8120-8389

8121-0941

8121-1009

J a p a n P o w e r

C o r d W a r n i n g

Please use the power cord supplied with your product. This power cord is not to be used with other products.

2-2

Installing the Switch

Installation Procedures

Installation Procedures

Summary

1.

Prepare the installation site (

page 2-5

).

Ensure the physical environment is properly prepared, including having the correct network cabling ready to connect to the switch and having an appropriate location for the

switch. See page 2-4

for some installation precautions.

2.

Install or remove a yl module

(optional—

page 2-7

).

3.

Install or remove a transceiver

(optional—( page 2-8

). If you have installed a yl module, you can now install one or two transceivers.

4.

Install or remove mini-GBICs (optional—

page 2-9

).

The switch has four slots for installing mini-GBICs. Depending on where you will mount the switch, it may be easier to install the mini-GBICs first. Mini-GBICs can be installed or removed while the switch is powered on.

5.

Verify the switch passes self test (

page 2-11

).

Plug the switch into a power source and observe that the LEDs on the switch’s front panel indicate correct switch operation. When self test is complete, unplug the switch.

6.

Mount the switch (

page 2-13

).

The Switch can be mounted in a 19-inch telco rack, in an equipment cabinet, or on a horizontal surface.

7.

Connect the switch to a power source (

page 2-15

).

Once the switch is mounted, plug it into the nearby main power source.

8.

Connect the network cables (

page 2-16

).

Using the appropriate network cables, connect the network devices to the switch ports.

9.

Connect a console to the switch (optional

page 2-18

).

You may wish to modify the switch’s configuration, for example, to configure an IP address so it can be managed using a web browser, from an SNMP network management station, or through a Telnet session. Configuration changes can be made easily by using the included console cable to connect a PC to the switch’s console port.

At this point, the switch is fully installed. See the rest of this chapter if you need more detailed information on any of these installation steps.

2-3

Installing the Switch

Installation Procedures

W A R N I N G

Installation Precautions:

Follow these precautions when installing the Series 3500yl or 6200yl Switches.

The rack or cabinet should be adequately secured to prevent it from becoming unstable and/or falling over.

Devices installed in a rack or cabinet should be mounted as low as possible, with the heaviest devices at the bottom and progressively lighter devices installed above.

Neither the Right or Left sides of the switch can be placed downward. (That is, the right or left side of the unit while facing the front.)

C a u t i o n s

Ensure the power source circuits are properly grounded, then use the power cord supplied with the switch to connect it to the power source.

If your installation requires a different power cord than the one supplied with the switch and power supply, be sure the cord is adequately sized for the switch’s current requirements. In addition, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the switch and power supply.

When installing the switch, the AC outlet should be near the switch and should be easily accessible in case the switch must be powered off.

Ensure the switch does not overload the power circuits, wiring, and overcurrent protection. To determine the possibility of overloading the supply circuits, add together the ampere ratings of all devices installed on the same circuit as the switch and compare the total with the rating limit for the circuit. The maximum ampere ratings are usually printed on the devices near the AC power connectors.

Do not install the switch in an environment where the operating ambient temperature might exceed 55

°C (131°F)

1

.

Ensure the air flow around the sides and back of the switch is not restricted.

1

If you are installing either of the Series 3500yl or 6200yl Switches with an X2 transceiver installed, the operating ambient temperature should not exceed 40

°C (104°F). See transceiver specifications in the ProCurve Switch yl Module Installation Guide.

2-4

Installing the Switch

Installation Procedures

1. Prepare the Installation Site

Cabling Infrastructure

- Ensure the cabling infrastructure meets the necessary network specifications. The copper ports accept CX4 cable with

Infiniband-style connectors or fiber cable using a CX4 optical media converter

(OMC). The fiber ports accept single-mode fiber optic cable with SC connectors. See the following table for cable types and lengths, and see

Appendix B

“Switch Ports and Network Cables”

for more information:

Table 2-1.

Summary of Cable Types to Use With the Switch

Port Type Cable Type

Twisted-Pair Cables

10/100/1000Base-T

For either 10, 100 Mbps, or 1000 Mbps operation:

Category 5 or better, 100-ohm UTP or shielded twisted-pair (STP) balanced cable. For

1000 Mbps (gigabit) operation, Category 5e cabling or better is recommended.

Length Limits

100 meters

Note: The Series 3500yl and 6200yl Switches are compatible with the IEEE 802.3ab standard including the “Auto MDI/MDI-X” feature, which allows use of either straight-through or crossover twisted-pair cables for connecting to any network devices including end nodes, such as computers, or to other switches, hubs, and routers.

Note: For 1000 Mbps operation, all four wire pairs are used for data transmission.

CX4

OMC CX4 Fiber

(Optical Media

Converter)

Copper Cables

Speed 3.125Gbx4

(Cables compatible with the 802.1ak standard)

12 fiber 50/125

µm (core/cladding) diameter, multimode Fiber ribbon cable. 12 fiber 62.5/125

µm (core/cladding) diameter, multimode Fiber ribbon cable is also supported.

0.5-15 meters

150 Mhz/km = 1-50 meters

500 Mhz/km = 1-100 meters

2000 Mhz/km = 1-300 meters

2-5

Installing the Switch

Installation Procedures

Port Type

Gigabit-SX

(on Gigabit-SX-LC mini-GBIC)

Gigabit-LX

(on Gigabit-LX-LC mini-GBIC)

Gigabit-LH

(on Gigabit-LH-LC mini-GBIC)

10-GbE SR

Cable Type

Fiber Optic Cables

Multimode fiber-optic cables designed for

Gigabit Ethernet: 62.5/125

µm or 50/125 µm

(core/cladding) diameter, 850 nm, low metal content, graded-index cables, fitted with LC connectors. The cables must comply with the

ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a standards.

Single-mode fiber-optic cables designed for

Gigabit Ethernet: 9/125

µm (core/cladding) diameter, 1310 nm, low metal content cables, fitted with LC connectors. The cables must comply with the ITU-T G.652 and ISO/IEC 793-2

Type B1 standards.

The multimode cables specified for the Gigabit-

SX mini-GBIC may also be used, but a modeconditioning patch cord may be needed — see

“Mode Conditioning Patch Cord for Gigabit-LX” on page B-3

for more information.

Single-mode fiber-optic cables designed for

Gigabit Ethernet and fitted with LC connectors.

Length Limits

• 62.5

µm cable:

– 160 MHz/km = 220 meters

– 200 MHz/km = 275 meters

• 50

µm cable:

– 400 MHz/km = 500 meters

– 500 MHz/km = 550 meters

• single-mode cable = 5 kilometers

• multimode cable = 550 meters

• single-mode cable = 70 kilometers

10-GbE LR

10-GbE ER

Multimode fiber-optic cable designed for

Gigabit Ethernet: 62.5/125

µm (core/cladding) diameter or 50/125

µm, 850 nm, low metal content, complying with the ITU-T G.652 and

ISO/IEC 793-2 Type B1 standards.

62.5

µm cable:

• 160 Mhz/km = 2-26 meters

• 200 Mhz/km = 2-33 meters

50

µm cable:

• 400 Mhz/km = 2-66 meters

• 500 Mhz/km = 2-82 meters

• 2000 Mhz/km = 2-300 meters single-mode cable: 2-10 kilometers 9/125

µm (core/cladding) diameter, 1310 nm, low metal content, single mode fiber-optic cables, complying with the ITU-T G.652 and

ISO/IEC 793-2 Type B1 standards.

9/125

µm (core/cladding) diameter, 1550 nm, low metal content, single mode fiber-optic cables, complying with the ITU-T G.652 and

ISO/IEC 793-2 Type B1 standards.

single-mode cable: 2-30 kilometers (40 kilometers, on an engineered fiber optic link that meets standards in the specification).

Note: Conditioning patch cord cables are not supported on 10-GbE speeds.

2-6

N o t e

Installing the Switch

Installation Procedures

Installation Location

- Before installing the switch, plan its location and orientation relative to other devices and equipment:

• In the front of the switch, leave at least 7.6 cm (3 inches) of space for the twisted-pair and fiber-optic cabling.

• In the back of the switch, leave at least 3.8 cm (1 1/2 inches) of space for the power cord.

• On the sides of the switch, leave at least 7.6 cm (3 inches) for cooling, except if the switch is installed in an open EIA/TIA rack.

2. (Optional) Install or Remove a yl Module

Hot swapping modules is not supported. If a module is installed or removed with the switch powered on, a reset will occur. Only insert or remove a module during scheduled downtime with the switch powered off.

1.

Remove the cover plate

2.

Insert the module aligning with the guides in the slot.

3.

Once the contacts have engaged, use the extractor handles to seat the module completely.

4.

Tighten the captive screws. Refer to the yl Module Installation Guide for more details.

Align the edges of the board with guides

C a u t i o n

For proper cooling and reduction of electromagnetic emissions, ensure a slot cover is installed on any unused slot.

2-7

Installing the Switch

Installation Procedures

N o t e

3. (Optional) Install or Remove a Transceiver

Hot swapping transceivers is supported. You can install or remove a transceiver with the switch powered on, a reset will not occur.

a.

Slide the transceiver in until it stops.

1

N o t e

1

If you are installing either of the Series 3500yl or 6200yl Switches with an X2 transceiver installed, the operating ambient temperature should not exceed 40

°C (104°F). See transceiver specifications in the ProCurve Switch yl Module Installation Guide.

b.

Push firmly until the gasket seats against the bulkhead.

Bail

When switch power is on, the Link and Activity LEDs will come on for approximately two seconds and then go off. This is confirmation the transceiver is completely seated.

c.

If your transceiver has a bail, move the bail up, if not your transceiver is now completely installed.

Refer to the ProCurve Switch yl Module Installation Guide for more details.

To remove the transceiver:

If your transceiver has a bail, lower the bail until it is approximately horizontal, and then using the bail, pull the transceiver from the slot. If your transceiver does not have a bail, pull the transceiver straight out.

2-8

N o t e s

C a u t i o n

W A R N I N G

Installing the Switch

Installation Procedures

4. (Optional) Install or Remove mini-GBICs

You can install or remove a mini-GBIC from a mini-GBIC slot without having to power off the switch. Use only ProCurve mini-GBICs.

The mini-GBIC slots are shared with the four 10/100/1000Base-T RJ-45 ports. If a mini-GBIC is installed in a slot, the associated RJ-45 port is disabled and cannot be used.

The mini-GBIC ports operate only at full duplex. Half duplex operation is not supported.

Ensure the network cable is NOT connected when you install or remove a mini-GBIC.

When this manual was printed, the supported mini-GBICs include the following:

ProCurve Gigabit-SX-LC mini-GBIC (J4858B)

ProCurve Gigabit-LX-LC mini-GBIC (J4859B)

ProCurve Gigabit-LH-LC mini-GBIC (J4860B)

Use only supported genuine ProCurve mini-GBICs with your switch. Non-

ProCurve mini-GBICs are not supported, and their use may result in product malfunction. Should you require additional ProCurve mini-GBICs, contact your ProCurve Networking Sales and Service Office or authorized dealer.

Installing the mini-GBICs:

Hold the mini-GBIC by its sides and gently insert it into either of the slots on the switch until the mini-GBIC clicks into place.

The ProCurve mini-GBICs are Class 1 laser devices. Avoid direct eye exposure to the beam coming from the transmit port.

2-9

Installing the Switch

Installation Procedures

N o t e

Removing the mini-GBICs:

You should disconnect the network cable from the mini-GBIC before removing it from the switch.

Depending on when you purchased your ProCurve mini-GBIC, it may have either of three different release mechanisms: a plastic tab on the bottom of the mini-GBIC, a plastic collar around the mini-GBIC, or a wire bail.

To remove the mini-GBICs that have the plastic tab or plastic collar, push the tab or collar toward the switch until you see the mini-GBIC release from the switch (you can see it move outward slightly), and then pull it from the slot.

To remove the mini-GBICs that have the wire bail, lower the bail until it is approximately horizontal, and then using the bail, pull the mini-GBIC from the slot.

2-10

Installing the Switch

Installation Procedures

5. Verify the Switch Passes Self Test

Before mounting the switch in its network location, you should first verify it is working properly by plugging it into a power source and verifying it passes self test.

1.

Connect the power cord supplied with the switch to the power connector on the back of the switch, and then into a properly grounded electrical outlet.

N o t e

The Series 3500yl and 6200yl Switches do not have a power switch. They are powered on when the power cord is connected to the switch and to a power source. For safety, the power outlet should be located near the switch installation.

The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz. No voltage range settings are required.

If your installation requires a different power cord than the one supplied with the switch, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the switch.

2-11

Installing the Switch

Installation Procedures

2.

Check the LEDs on the switch as described below.

Switch port LEDs

ProCurve Switch 3500yl-24G

Power

Fault

Locator

ProCurve Switch

3500yl-24G

J8692A

PoE

Status

PoE

Tmp

Fan

Test

LED

Mode

Act

FDx

Spd

PoE

*

Usr

Reset Clear

Mdl EPS RPS Status of the Back

Console

*

Spd mode: off = 10 Mbps

flash = 100 Mbps

on = 1000 Mbps

Link 1 Mode 3

Auxiliary Port Link 2 Mode 4

5

6

7

PoE-Integrated 10/100/1000Base-T Ports (1 - 24T) — Ports are IEEE Auto MDI/MDI-X

9 11 Link 13 Mode 15 17

8 10 12 Link 14 Mode 16 18

Power and

Fault LEDs

Test LED

Switch port LEDs

ProCurve Switch 3500yl-48G

Power and

Fault LEDs

Power

Fault

Locator

ProCurve Switch

3500yl-48G

J8692A

PoE

Mdl

Link

EPS

1 Mode

RPS Status of the Back

3 5

Status

PoE

LED

Mode

Tmp

Fan

Test

Reset

Act

FDx

Spd

*

PoE

Usr

Clear

Link 2 Mode 4 6

*

Spd mode: off = 10 Mbps, flash = 100 Mbps, on = 1000 Mbps

7 9 11 Link 13 Mode 15

8 10 12 Link 14 Mode 16

17

PoE-Integrated 10/100/1000Base-T Ports (1 - 48T) — Ports are IEEE Auto MDI/MDI-X

19 21 23 Link 25 Mode 27 29

18 20 22 24 Link 26 Mode 28 30

Test LED

Switch port LEDs

ProCurve Switch 6200yl-24G

Power and

Fault LEDs

Power

Fault

Locator

Test LED

When the switch is powered on, it performs its diagnostic self test. Self test takes approximately 50 seconds to complete.

2-12

Installing the Switch

Installation Procedures

LED Behavior:

During the self test:

• Initially, all the status, LED Mode and port LEDs are on for most of the duration of the test.

• Most of the LEDs go off and then may come on again during phases of the self test. For the duration of the self test, the Test LED stays on.

When the self test completes successfully:

• The

Power and Fan Status LEDs remain on.

• The

Fault and Test LEDs go off.

• The port LEDs on the front of the switch go into their normal operational mode:

– If the ports are connected to active network devices, the LEDs behave according to the LED Mode selected. In the default view mode (Link), the LEDs should be on.

– If the ports are not connected to active network devices, the LEDs will stay off.

If the LED display is different than what is described above, especially if the

Fault and Test LEDs stay on for more than 60 seconds or they start

blinking, the self test has not completed correctly. Refer to chapter 4,

“Troubleshooting” for diagnostic help.

6. Mount the Switch

After the switch passes self test, you are ready to mount the switch in a stable location. The Series 3500yl and 6200yl Switches can be mounted in these ways: in a rack or cabinet on a horizontal surface

For other mounting options contact your local ProCurve authorized network reseller or ProCurve representative.

Rack or Cabinet Mounting

These switches are designed to be mounted in any EIA-standard 19-inch telco rack or communication equipment cabinet.

2-13

Installing the Switch

Installation Procedures

W A R N I N G

E q u i p m e n t

C a b i n e t

N o t e

For safe operation, please read the mounting precautions on

page 2-4

, before mounting a switch.

The 12-24 screws supplied with the switch are the correct threading for standard EIA/TIA open 19-inch racks. If you are installing the switch in an equipment cabinet such as a server cabinet, use the clips and screws that came with the cabinet in place of the 12-24 screws that are supplied with the switch.

Complete step 1, and plan which four holes you will be using in the cabinet and install all four clips. Then proceed to step 2.

Rack Mounting the Switch 3500yl-

24G

1.

Use a #1 Phillips (cross-head) screwdriver and attach the mounting brackets to the switch with the included 8-mm M4 screws.

8 mm

M4 screws

N o t e

The mounting brackets have multiple mounting holes and can be rotated allowing for a wide variety of mounting options. These include mounting the switch so its front face is flush with the face of the rack, or mounting it in a more balanced position as shown in the illustration.

2-14

Installing the Switch

Installation Procedures

2.

Hold the switch with attached brackets up to the rack and move it vertically until rack holes line up with the bracket holes, then insert and tighten the four number 12-24 screws holding the brackets to the rack.

C a u t i o n

Horizontal Surface Mounting

Place the switch on a table or other horizontal surface. The switch comes with rubber feet in the accessory kit that can be used to help keep the switch from sliding on the surface.

Attach the rubber feet to the four corners on the bottom of the switch within the embossed angled lines. Use a sturdy surface in an uncluttered area. You may want to secure the networking cables and switch power cord to the table leg or other part of the surface structure to help prevent tripping over the cords.

Make sure the air flow is not restricted around the sides and back of the switch.

7. Connect the Switch to a Power Source

1.

Plug the included power cord into the switch’s power connector and into a nearby AC power source.

2.

Re-check the LEDs during self test. See “LED Behavior” on

page 2-13 .

2-15

Installing the Switch

Installation Procedures

N o t e

8. Connect the Network Cables

Connect the network cables, described under “Cabling Infrastructure” (

page

2-5

), from the network devices or your patch panels to the fixed RJ-45 ports on the switch or to any mini-GBICs you have installed in the switch.

Using the RJ-45 Connectors

To connect:

Push the RJ-45 plug into the RJ-45 jack until the tab on the plug clicks into place. When power is on for the switch and for the connected device, the Link

LED for the port should light to confirm a powered-on device (for example, an end node) is at the other end of the cable.

off = 10 Mbps flash = 100 Mbps

Link 1

Mode

3

Link 2 Mode 4

5

6

PoE-Int egrated 10/1 00/1 000Base-T P orts (1 - 24T) — Ports are IEEE A uto MDI/M

7 9 11

Link

13

Mode

15

8 10 12 Link 14 Mode 16

RJ-45 connector

If the Link LED does not go on when the network cable is connected to the port, see

“Diagnosing with the LEDs” on page 5-4

, in chapter 5, “Troubleshooting”.

To disconnect:

Press the small tab on the plug and pull the plug out of the jack

.

Unshielded twisted-pair cable:

• Category 3, 4, or 5 for 10 Mbps ports

• Category 5 or better for 100 Mbps ports

• Category 5e or better for 1000 Mbps ports

Maximum distance: 100 meters

Connecting Cables to mini-GBICs

Each of the four mini-GBIC slots is shared with the associated 10/100/

1000Base-T RJ-45 port. If a mini-GBIC is installed in a slot, the associated RJ-

45 port is disabled.

If you have any mini-GBICs installed in the switch, the type of network connections you will need to use depends on the type of mini-GBICs you have installed. See the table on page 2-6 , and appendix B,

“Switch Ports”

, for the

mini-GBIC cabling information.

For mini-GBICs ports, and in general for all the switch ports, when a network cable from an active network device is connected to the port, the port LED for that port should go on. If the port LED does not go on when the network cable is connected to the port, see

“Diagnosing with the LEDs” on page 5-4

in chapter 5, “Troubleshooting”.

2-16

Installing the Switch

Installation Procedures

Connecting a fiber cable

To connect:

1. Remove the dust covers from

the cable connectors and the

port.

2. Aligning the notches on the

cable connectors with the slots

of the port, press the cable

connector into the port until it

snaps into place.

1

2

If the Link LED does not go on when the network cable is connected to the port, see

“Diagnosing with the LEDs” on page 5-4 , in chapter 5, “Troubleshooting”.

To disconnect:

Pull the cable connector straight out.

Connecting a copper cable

To connect:

1. Push the copper cable

connector into the copper port.

Ensure the locking device locks

the cable connector into place.

To disconnect:

Pull the cable connector straight out.

When a network cable from an active network device is connected to the port, the port LED for that port should go on. If the port LED does not go on when the network cable is connected to the port, see

“Diagnosing with the LEDs” on page 5-4 in chapter 5, “Troubleshooting”.

2-17

Installing the Switch

Installation Procedures

9.(Optional) Connect a Console to the Switch

The switch has a full-featured, easy to use console interface for performing switch management tasks including the following:

■ monitor switch and port status and observe network activity statistics modify the switch’s configuration to optimize switch performance, enhance network traffic control, and improve network security

■ read the event log and access diagnostic tools to help in troubleshooting download new software to the switch add passwords to control access to the switch from the console, web browser interface, and network management stations

The console can be accessed through these methods:

Out-of-band:

The switch comes with a serial cable for connecting a PC or VT-100 terminal, to be used as a console, directly to the switch.

In-Band:

Access the console using Telnet from a PC or UNIX station on the network, and a VT-100 terminal emulator. This method requires that you first configure the switch with an IP address and subnet mask by using either out-of-band console access or through DHCP/Bootp. For more information on IP addressing and on starting a Telnet session, see

chapter 3,

“Getting Started With Switch Configuration”

, and the Man-

agement and Configuration Guide,

which is on the Documentation

CD-ROM that came with your switch.

The Switch can simultaneously support one out-of-band console session through the Console Port and one in-band Telnet console session.

Terminal Configuration

To connect a console to the switch, configure the PC terminal emulator as a

DEC VT-100 (ANSI) terminal or use a VT-100 terminal, and configure either one to operate with these settings:

■ any baud rate from 1200 to 115200 (the switch senses the speed)

8 data bits, 1 stop bit, no parity, and flow control set to Xon/Xoff for the Windows Terminal program, also disable (uncheck) the “Use

Function, Arrow, and Ctrl Keys for Windows” option for the Hilgraeve HyperTerminal program, select the “Terminal keys” option for the “Function, Arrow, and Ctrl Keys act as” parameter

2-18

Installing the Switch

Installation Procedures

If you want to operate the console using a different configuration, make sure you change the settings on both the terminal and on the switch so they are compatible. Change the switch settings first, save your changes, then change the terminal settings, then reboot the switch and reestablish the console session.

Direct Console Access

To connect a console to the switch, follow these steps:

1.

Connect the PC or terminal to the switch’s

Console Port using the console cable included with the Switch. (If your

PC or terminal has a 25-pin serial connector, first attach a 9-pin to 25-pin

Console port

Console cable supplied with the switch

Power

Fault

Locator

ProC ur ve

Switc h 3500y l

J8692A

P oE

S tatus

PoE

Tmp

LED

Mode

Fan

Test

Act

FDx

Spd

PoE

Usr

*

Mdl EPS RPS S tatus of the Back

Reset Clear

Console

* Spd mode: off = 10 Mbps flash = 100 Mbps

Auxiliar y P or t

Link 1 Mode

Link 2 Mode

3

4

5

6 straight-through adapter at one end of the console cable.)

2.

Turn on the terminal or

PC’s power and, if using a

PC, start the PC terminal program.

PC running a terminal emulator program, or a VT-100 terminal

3.

Press

[Enter]

two or three times and you will see the

This picture demonstrates the Switch

3500yl-24G. Remember the console port on the Switch 3500yl-48G is in back.

copyright page and the message “Press any key to continue”. Press a key, and you will then see the switch console command (CLI) prompt, for example:

ProCurve Switch 3500yl-24G#

If you want to continue with console management of the switch at this time, see chapter 3,

“Getting Started With Switch Configuration”

for some basic

configuration steps. For more detailed information, refer to the Management

and Configuration Guide,

which is on the Documentation CD-ROM that came with the switch.

2-19

Installing the Switch

Sample Network Topologies

Sample Network Topologies

This section shows a few sample network topologies in which the switch is implemented. For more topology information, see the ProCurve network products Web site,

http://www.procurve.com

.

As a Desktop Switch

Server with Gigabit

Ethernet NIC

ProCurve Switch 3500yl-24G

Power

Fault

Locator

ProC ur ve

Switc h 3500y l

J8692A

P oE

Mdl EPS

S tatus

PoE

Tmp

LED

Mode

Fan

Test

Reset Clear

Act

FDx

Spd *

PoE

Usr

RPS S tatus of the Back

Console

* Spd mode: off = 10 Mbps flash = 100 Mbps Link

1

Mode

3

Auxiliar y P or t

Link

2

Mode

4

5 7

PoE-Int egrated 10/1 00/1 000Base-T P orts (1 - 24T) — Ports are IEEE A uto MDI/MDI- X

9 11

Link

13

Mode

15 17 19

Dual-Personality P orts: 1 0/1 00/1 000-T (T) o r Mini-GBIC (M)

21T 23T

Link

21M

Mode

23M

6 8 10 12

Link

14

Mode

16 18 20 22T 24T

Link

22M

Mode

24M

Fast Ethernet cable

Gigabit Ethernet cable

PCs, local servers, and peripherals

Figure 2-1. Topology one.

The Switch is designed to be used primarily as a desktop switch to which end nodes, printers and other peripherals, and servers are directly connected, as shown in the above illustration. Notice that the end node devices are connected to the switch by straight-through or crossover twisted-pair cables.

Either cable type can be used because of the “IEEE Auto MDI/MDI-X” features on the Switch.

2-20

As a Segment Switch

Server with Gigabit

Ethernet NIC

Power

Fault

Locator

ProC ur ve

Switc h 3500y l

J8692A

P oE

S tatus

PoE

Tmp

LED

Mode

Act

FDx

Spd *

Fan

Test

PoE

Usr

Mdl EPS RPS S tatus of the Back

Console

Reset Clear

* Spd mode: off = 10 Mbps flash = 100 Mbps on = 1 000 Mbps

Link 1 Mode 3

Auxiliar y P or t Link 2 Mode 4

5

PoE-Int egrated 10/1 00/1 000Base-T P orts (1 - 24T) — Ports are IEEE A uto MDI/MDI- X

7 9 11 Link 13 Mode 15 17 19

Dual-Personality P orts: 1 0/1 00/1 000-T (T) o r Mini-GBIC (M)

21T 23T Link 21M Mode 23M

6 8 10 12 Link 14 Mode 16 18 20 22T 24T Link 22M Mode 24M

ProCurve Switch 3500yl-24G

P ower

F ault hp pr ocur ve s w itch 2650

J 4899A

A ct

F Dx

Max

Fast Ethernet Switch

P ower

F ault hp pr ocur ve s w itch 2650

J 4899A

A ct

F Dx

Max

Installing the Switch

Sample Network Topologies

To Backbone

PCs, local servers, and peripherals

LEGEND:

Fast Ethernet cable

Gigabit Ethernet cable

Fiber cable

PCs, local servers, and peripherals

Server with Gigabit

Ethernet NIC

Figure 2-2. Topology two.

The Switch also works well as a segment switch. That is, with its high performance, it can be used for interconnecting network segments—simply connect the network hubs that form those segments to the switch, or you can also connect other switches.

2-21

Installing the Switch

Sample Network Topologies

In the illustration above, two “Fast” Ethernet hubs with PCs, printers, and local servers attached, are both connected to a Switch. The devices attached to the two hubs can now communicate with each other through the switch. They can also all communicate with the server that is connected to a 1000Base-T port on the switch.

Because the Switch has the “IEEE Auto MDI/MDI-X” features, the connections between the switch and the hubs, and between the switch and end nodes or servers can be through category 5 straight-through or crossover twisted-pair cable. Category 3 or 4 cable can also be used if the connection is 10 Mbps only.

In all cases, the device ports must be configured to auto negotiate the link characteristics for this feature to work.

The switch, in turn, can be connected to a network backbone through fiberoptic cabling connected to a Gigabit-SX, -LX, or -LH mini-GBIC installed in the switch. Now, all the devices on these network segments can access other network resources that are connected elsewhere on the network backbone.

2-22

Installing the Switch

Sample Network Topologies

ProCurve Switch 5406zl

Servers with Gigabit

Ethernet NIC

Connecting to a Backbone Switch

To IT or Data Center

PCs, local servers, and peripherals

Servers with Gigabit

Ethernet NIC

ProCurve Switch 3500yl-24G

Gigabit link (use fiber if over 100 meters)

ProCurve Switch 3500yl-48G

Servers with Gigabit

Ethernet NIC

Fast Ethernet Switch Fast Ethernet Switch

LEGEND:

Fast Ethernet cable

Gigabit Ethernet cable

Fiber cable

PCs, local servers, and peripherals

Servers with Gigabit

Ethernet NIC

Figure 2-3. Topology three.

The simpler desktop and segment networks shown in the previous two examples can easily be combined and expanded. For example, you could use an ProCurve Switch 5304xl to interconnect each of your smaller switched workgroups to form a larger switched network. All the devices in this network can communicate with each other. With a Gigabit-SX Module, for example, in the Switch 5304xl, the entire switched topology could be connected to a campus backbone, as shown in figure 2-3.

2-23

Installing the Switch

Sample Network Topologies

N o t e

In the Backbone Switch illustration, the 1000 Mbps fiber-optic connection between the Switch 3500yl-24G and the Switch 5304xl is by way of a Gigabit-

SX mini-GBIC installed in the Switch 3500yl-24G and connected to a Gigabit-

SX Module in the Switch 5304xl.

Stacking the Switch

The Series 3500yl Switches can be connected together, through standard network connections, and managed through a single IP address. Up to 16 switches can be connected together in such a “virtual stack”.

You identify the switch as the “Commander” and give that switch an IP address.

Up to 15 other switches in the network can then easily be configured as

Members of the stack and managed through the Commander’s IP address. The management includes Telnet access and web browser interface access to the

Commander and to each Member switch through the Commander.

For more information on stacking Switches, please see the Management and

Configuration Guide

, which is on the Documentation CD-ROM that came with the switch.

LEGEND:

Gigabit Ethernet cable

To Gigabit-Ethernet Backbone

(Use fiber if over 100 meters)

ProCurve Switch 3500yl-48G

ProCurve Switch 3500yl-24G

Power

Fault

Locator

ProC ur ve

Switc h 3500y l

J8692A P oE

Mdl

Link

EPS

1

Mode

RPS S tatus of the Back

3 5

* Spd mode:

7

PoE

Tmp

Fan

Test

S tatus

LED

Mode

Act

FDx

Spd *

PoE

Usr

Reset Clear

Link 2 Mode 4 6 8

9

10

11

12

Link 13 Mode 15 17

P oE-Int egrated 10/1 00/1 000Base-T P orts (1 - 48T) — Ports are IEEE A uto MDI/MDI- X

19 21 23 Link 25 Mode 27 29 31 33 35 Link 37 Mode 39 41 43

Dual-Personality P orts: 1 0/1 00/1 000-T (T) o r Mini-GBIC (M)

45T 47T Link 45M Mode 47M

Link 14 Mode 16 18 20 22 24 Link 26 Mode 28 30 32 34 36 Link 38 Mode 40 42 44 46T 48T Link 46M Mode 48M

Power

Fault

Locator

ProC ur ve

Switc h 3500y l

J8692A P oE

Mdl

Link

EPS

1

Mode

RPS S tatus of the Back

3 5

* Spd mode:

7

PoE

Tmp

Fan

Test

S tatus

LED

Mode

Act

FDx

Spd *

PoE

Usr

Reset Clear

Link 2 Mode 4 6 8

9

10

11

12

Link 13 Mode 15 17

P oE-Int egrated 10/1 00/1 000Base-T P orts (1 - 48T) — Ports are IEEE A uto MDI/MDI- X

19 21 23 Link 25 Mode 27 29 31 33 35 Link 37 Mode 39 41 43

Dual-Personality P orts: 1 0/1 00/1 000-T (T) o r Mini-GBIC (M)

45T 47T Link 45M Mode 47M

Link 14 Mode 16 18 20 22 24 Link 26 Mode 28 30 32 34 36 Link 38 Mode 40 42 44 46T 48T Link 46M Mode 48M

Power

Fault

Locator

ProC ur ve

Switc h 3500y l

J8692A P oE

S tatus

PoE

Tmp

Fan

Test

LED

Mode

Act

FDx

Spd *

Reset

PoE

Usr

Clear

Mdl EPS RPS S tatus of the Back

Console

*

Spd mode: off = 10 Mbps flash = 100 Mbps

Link 1 Mode 3

Auxiliar y P or t Link 2 Mode 4

5

PoE-Int egrated 10/1 00/1 000Base-T P orts (1 - 24T) — Ports are IEEE A uto MDI/MDI- X

7 9 11 Link 13 Mode 15 17 19

Dual-Personality P orts: 1 0/1 00/1 000-T (T) o r Mini-GBIC (M)

21T 23T Link 21M Mode 23M

6 8 10 12 Link 14 Mode 16 18 20 22T 24T Link 22M Mode 24M

Power

Fault

Locator

ProC ur ve

Switc h 3500y l

J8692A

P oE

S tatus

PoE

Tmp

Fan

Test

LED

Mode

Act

FDx

Spd

PoE

Usr

*

Mdl EPS RPS S tatus of the Back

Console

Reset Clear

* Spd mode: off = 10 Mbps flash = 100 Mbps

Auxiliar y P or t

Link 1 Mode 3

Link 2 Mode 4

5 7

PoE-Int egrated 10/1 00/1 000Base-T P orts (1 - 24T) — Ports are IEEE A uto MDI/MDI- X

9 11 Link 13 Mode 15 17 19

Dual-Personality P orts: 1 0/1 00/1 000-T (T) o r Mini-GBIC (M)

21T 23T Link 21M Mode 23M

6 8 10 12 Link 14 Mode 16 18 20 22T 24T Link 22M Mode 24M

Figure 2-4. Topology four.

2-24

3

Getting Started With Switch Configuration

This chapter is a guide for using the console Switch Setup screen to quickly assign an IP (Internet Protocol) address and subnet mask to the switch, set a

Manager password, and, optionally, configure other basic features.

For more information on using the switch console and the other switch management interfaces: the web browser interface and the SNMP management tool, ProCurve Manager, please see the Management and Configuration

Guide,

which is on the Documentation CD-ROM that came with your switch.

Recommended Minimal Configuration

In the factory default configuration, the switch has no IP (Internet Protocol) address and subnet mask, and no passwords. In this state, it can be managed only through a direct console connection. To manage the switch through inband (networked) access, you should configure the switch with an IP address and subnet mask compatible with your network. Also, you should configure a Manager password to control access privileges from the console and web browser interface. Other parameters in the Switch Setup screen can be left at their default settings or you can configure them with values you enter.

Many other features can be configured through the switch’s console interface, to optimize the switch’s performance, to enhance your control of the network traffic, and to improve network security. Once an IP address has been configured on the switch, these features can be accessed more conveniently through a remote Telnet session, through the switch’s web browser interface, and from an SNMP network management station running a network management program, such as ProCurve Manager. For a listing of switch features available with and without an IP address, refer to “How IP Addressing Affects Switch

Operation” in the Management and Configuration Guide, which is on the

Documentation CD-ROM that came with your switch.

For more information on IP addressing, refer to “IP Configuration” in the

Management and Configuration Guide

.

3-1

Getting Started With Switch Configuration

Using the Console Setup Screen

N o t e

By default, the switch is configured to acquire an IP address configuration from a DHCP or Bootp server. To use DHCP/Bootp instead of the manual method described in this chapter, see “DHCP/Bootp Operation” in the

Management and Configuration Guide,

which is on the Documentation

CD-ROM that came with your switch.

Using the Console Setup Screen

The quickest and easiest way to minimally configure the switch for management and password protection in your network is to use a direct console connection to the switch, start a console session, and access the Switch Setup screen.

1.

Using the method described in the preceding section, connect a terminal device to the switch and display the switch console command (CLI) prompt (the default display).

The CLI prompt appears displaying the switch model number:

ProCurve Switch 3500yl-48G#

2.

At the prompt, enter the

setup command to display the Switch Setup

screen. The following illustration shows the Setup screen with the default settings.

3500yl-48G 5

3500yl-48G

3-2

3.

Use the

[Tab]

key to select the

Manager Password field and enter a manager

password of up to 16 characters.

Getting Started With Switch Configuration

Using the Console Setup Screen

4.

[Tab]

to the

IP Config (DHCP/Bootp) field and use the Space bar to select the

Manual option.

5.

[Tab]

to the

IP Address field and enter the IP address that is compatible with

your network.

6.

[Tab]

to the

Subnet Mask field and enter the subnet mask used for your

network.

7.

Press [

Enter]

, then

[S]

(for

Save).

Here is some information on the fields in the Setup screen. For more information on these fields, see the Management and Configuration Guide, which is on the Documentation CD-ROM that came with your switch:

Parameter

System Name

System Contact

Manager Password

Logon Default

Time Zone

Community Name

Spanning Tree Enabled

Default Gateway

Default

blank blank blank

CLI

0 (none) public

No blank

Optional; up to 25 characters, including spaces

Optional; up to 48 characters, including spaces

Recommended; up to 16 characters (no blank spaces)

The default setting selects the command line interface for console access.

The alternative is the menu interface.

Optional; 1440 to -1440. The number of minutes your location is to the West (-) or East (+) of GMT.

Default setting recommended.

Default setting recommended unless STP is already running on your network or the switch will be used in complex network topologies.

Optional; Enter the IP address of the next-hop gateway node if network traffic needs to be able to reach off-subnet destinations.

Time Sync Method None Optional; The protocol the switch uses to acquire a time signal. The options are SNTP and TimeP.

Optional; The method the switch uses to acquire the TimeP server address.

TimeP Mode

IP Config (DHCP/Bootp)

IP Address

Disabled

DHCP/Bootp Set to Manual unless a DHCP/Bootp server is used on your network to configure IP addressing.

xxx.xxx.xxx.xxx Recommended; If you set IP Config to Manual, then enter an IP address compatible with your network.

Note: The IP address and subnet mask assigned for the switch must be compatible with the IP addressing used in your network. For more information on IP addressing, see the Management and Configuration Guide, which is on the

Documentation CD-ROM that came with your switch.

Subnet Mask xxx.xxx.xxx.xxx Recommended; If you entered an IP address, then enter a subnet mask compatible with your network.

3-3

Getting Started With Switch Configuration

Where to Go From Here

Where to Go From Here

The above procedure configures your switch with a Manager password, IP address, and subnet mask. As a result, with the proper network connections, you can now manage the switch from a PC equipped with Telnet, a web browser interface, or from an SNMP-based network management station using a tool such as ProCurve Manager.

Some basic information on managing your switch is included in the next section. For more information on the console, web browser, and SNMP management interfaces and all the features that can be configured on the yl switches, see the Management and Configuration Guide, which is on the

Documentation CD-ROM that came with your switch.

To Recover from a Lost Manager Password

If you cannot start a console session at the manager level because of a lost

Manager password, you can clear all passwords and user names by getting physical access to the switch and pressing and holding the Clear button for a full second.

3-4

Getting Started With Switch Configuration

Using the IP Address for Remote Switch Management

Using the IP Address for Remote Switch

Management

With your yl switch, you can use the switch’s IP address to manage the switch from any PC that is on the same subnet as the switch. You can use either a

Telnet session or a standard web browser to manage the switch.

Starting a Telnet Session

To access the switch through a Telnet session, follow these steps:

1.

Make sure the switch is configured with an IP address and that the switch is reachable from the PC that is running the Telnet session (for example, by using a Ping command to the switch’s IP address).

2.

Start the Telnet program on a PC that is on the same subnet as the switch and connect to the switch’s IP address.

3.

You will see the copyright page and the message “Press any key to continue”. Press a key, and you will then see the switch console command

(CLI) prompt, for example:

ProCurve Switch 3500yl-48G#

Enter

help or ? to see a list of commands that can be executed at the

prompt. Entering any command followed by

help provides more detailed

context help information about the command. Entering any command followed by

? displays a list of options that are available at that point in

the command entry.

Starting a Web Browser Session

Your yl Switch can be managed through a graphical interface that you can access from any PC or workstation on the network by running your web browser and typing in the switch’s IP address as the URL. No additional software installation is required to make this interface available; it is included in the switch’s onboard software.

3-5

Getting Started With Switch Configuration

Using the IP Address for Remote Switch Management

The operating systems, web browsers, and Java support required to manage the switch through the browser interface are listed in the following table:

Operating System

Windows 2000 SP4

Internet Explorer

5.5 SP2, 6.0 SP1

Windows XP SP1a 6.0 SP1

Windows Server 2003 6.0 SP1

Java Version

1.3.1_12 and 1.4.2_05

1.3.1_12 and 1.4.2_05

1.3.1_12 and 1.4.2_05

The following illustration shows a typical web browser interface screen.

xl

xl

PoE Status

3-6

For more information on using the web browser interface, see the Manage-

ment and Configuration Guide,

which is on the Documentation CD-ROM that came with your switch.

An extensive help system is also available for the web browser interface. To access the help system though, the subnet on which the switch is installed must have access to the internet, or ProCurve Manager needs to be installed on a network management station that is on the subnet.

4

Replacing Components

This chapter shows you how to remove and install the following components:

Fan tray (see page 4-1

)

Battery (see page 4-3 )

H o t S w a p p i n g

These components can not be hot swapped. The switch must be powered off to replace both of these components.

C a u t i o n

The ProCurve 3500yl and 6200yl Switches and its components are sensitive to static discharge. Use an antistatic wrist strap and observe all static precautions when replacing components.

W A R N I N G

Replacing the fan tray

The fan tray is not hot swappable. Replacing the fan try must be done during scheduled downtime. When a fan fails the Fan Status LED on the switch will blink simultaneously with the switch Fault LED. In this case, the entire fan tray needs to be replaced. Individual fans cannot be replaced.

To avoid the possibility of electric shock, all power cords must be disconnected from the switch before starting this procedure.

To replace a fan tray:

1.

Disconnect the power cables from the switch.

2.

Using a Torx T-10 screwdriver remove all the screws securing the top of the switch and remove the top.

4-1

Replacing Components

Replacing the fan tray

3.

Remove the retaining screw securing the fan tray, disconnect the fan tray cable connector, and lift the fan tray assembly out.

Retaining

Screw

Cable

Connector

4.

Install the new fan tray assembly, reconnect the fan tray cable connector, reinstall and tighten the retaining screw.

5.

Reinstall the top of the switch. Align the top cover pin with the hole.

Top Cover Pin

Alignment

Hole

6.

Reinstall and tighten all the screws securing the top.

7.

Reconnect the power cable to the switch.

4-2

W A R N I N G

W A R N I N G

Replacing Components

Replacing the Battery

Replacing the Battery

The battery is used to keep time for the internal switch clock. There is not

LED indicator for when the battery no longer has sufficient power. The only indication will be the internal clock will not keep the correct time. The battery is not hot swappable. Replacing the battery must be done during scheduled downtime.

The battery requires special handling at end-of-life. The battery can explode or cause burns if disassembled, charged, or exposed to water, fire or high temperature. After replacing the battery, properly dispose of used battery according to instructions.

There is a risk of explosion if the battery is replaced by an incorrect type. Ensure to replace the battery with the same type.

Installing a New Battery

To avoid the possibility of electric shock, all power cords must be disconnected from the switch before starting this procedure.

To install (or replace) a Battery:

1.

Disconnect the power cable from the switch.

2.

Using a Torx T-10 screwdriver remove all the screws securing the top of the switch and remove the top.

3.

Remove the used battery and dispose of properly.

Battery

4-3

Replacing Components

Replacing the Battery

4.

Insert a new battery with the lettering and the plus “+” sign facing up.

Be sure to replace with the same type of battery.

5.

Reinstall the top of the switch. Ensure you correctly align the top cover pin.

Top Cover Pin

Alignment

Hole

AT T E N T I O N

6.

Reinstall and tighten all the screws securing the top.

7.

Reconnect the power cable to the switch.

ll y a danger d'explosion s'il y a remplacement incorrect de la batterie.

Remplacer uniquement avec une batterie du même type ou d'un type

équivalent recommandé par le constructeur.

Mettre au rebut les batteries usagées conformément aux instructions du fabricant.

4-4

5

Troubleshooting

This chapter describes how to troubleshoot your switch. This document describes troubleshooting mostly from a hardware perspective. You can perform more in-depth troubleshooting on the switch using the software tools available with the switch, including the full-featured console interface, the built-in web browser interface, and ProCurve Manager, the SNMP-based network management tool. For more information, see the chapter “Troubleshooting” in the Management and Configuration Guide, which is on the

Documentation CD-ROM that came with your switch.

This chapter describes the following:

Basic Troubleshooting Tips ( page 5-1 )

Diagnosing with the LEDs (

page 5-4

)

Proactive Networking Tools (

page 5-8 )

Hardware Diagnostic Tests (

page 5-9

)

Restoring the Factory Default Configuration (

page 5-11 )

Downloading New Switch Software ( page 5-12 )

HP Customer Support Services ( page 5-13 )

Basic Troubleshooting Tips

Most problems are caused by the following situations. Check for these items first when starting your troubleshooting:

Connecting to devices that have a fixed full-duplex configuration.

The RJ-45 ports are configured as “Auto”. That is, when connecting to attached devices, the switch will operate in one of two ways to determine the link speed and the communication mode (half duplex or full duplex):

• If the connected device is also configured to Auto, the switch will automatically negotiate both link speed and communication mode.

• If the connected device has a fixed configuration, for example

100 Mbps, at half or full duplex, the switch will automatically sense the link speed, but will default to a communication mode of half duplex.

5-1

Troubleshooting

Basic Troubleshooting Tips

Because the switch behaves in this way (in compliance with the IEEE

802.3 standard)

, if a device connected to the switch has a fixed configuration at full duplex, the device will not connect correctly to the switch.

The result will be high error rates and very inefficient communications between the switch and the device.

Make sure that all devices connected to the switch are configured to auto negotiate, or are configured to connect at half duplex (all hubs are configured this way, for example).

Faulty or loose cables.

Look for loose or obviously faulty connections.

If they appear to be OK, make sure the connections are snug. If that does not correct the problem, try a different cable.

Non-standard cables.

Non-standard and miswired cables may cause network collisions and other network problems, and can seriously impair network performance. Use a new correctly-wired cable or compare your cable to the cable in appendix B, “Cables and Connectors” for pinouts and correct cable wiring. A category 5 cable tester is a recommended tool for every 100Base-TX and 1000Base-T network installation.

Improper Network Topologies.

It is important to make sure you have a valid network topology. Common topology faults include excessive cable length and excessive repeater delays between end nodes. If you have network problems after recent changes to the network, change back to the previous topology. If you no longer experience the problems, the new topology is probably at fault. Sample topologies are shown at the end of chapter 2 in this book, and some topology configuration guidelines can be found online at the ProCurve web site,

http://www.procurve.com

.

In addition, you should make sure that your network topology contains

no data path loops

. Between any two end nodes, there should be only one active cabling path at any time. Data path loops will cause broadcast storms that will severely impact your network performance.

For your switch, if you wish to build redundant paths between important nodes in your network to provide some fault tolerance, you should enable

Spanning Tree Protocol

support on the switch. This ensures only one of the redundant paths is active at any time, thus avoiding data path loops.

Spanning Tree can be enabled through the switch console, the web browser interface, or ProCurve Manager.

The Series 3500yl Switch devices also support Trunking, which allows multiple network cables to be used for a single network connection without causing a data path loop. For more information on Spanning Tree and Trunking, see the Management and Configuration Guide, which is on the Documentation CD-ROM that came with your switch.

5-2

Troubleshooting

Basic Troubleshooting Tips

Check the port configuration.

A port on your switch may not be operating as you expect because it has been put into a “blocking” state by

Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking).

(Note that the normal operation of the Spanning Tree, GVRP, and LACP features may put the port in a blocking state.) Or, the port just may have been configured as disabled through software.

Use the switch console to determine the port’s configuration and verify that there is not an improper or undesired configuration of any of the switch features that may be affecting the port. For more information, see the Management and Configuration Guide, which is on the Documentation CD-ROM that came with your switch.

For more information on possible network problems and their solutions, refer to the technical note “Troubleshooting LAN Performance and Intermittent

Connectivity Problems”, which can be found on the ProCurve Web site,

http://www.procurve.com

, in the Information Library section.

5-3

Troubleshooting

Diagnosing with the LEDs

Diagnosing with the LEDs

Table 4-1 shows LED patterns on the switch and the switch modules that indicate problem conditions.

1.

Check in the table for the LED pattern you see on your switch.

2.

Refer to the corresponding diagnostic tip on the next few pages.

Table 5-1.

LED Error Indicators

Power

Off with power cord plugged in

On

*

Prolonged On

On

On

On

On

On

Fault

blinking blinking

† blinking

Off

Off

LED Pattern Indicating Problems

Module

(Mdl)

Status**

RPS

Status

EPS

Status Test

* * *

*

*

*

See tip 5

*

*

*

*

*

*

*

*

Prolonged

On blinking

*

* blinking

Off blinking

*

Off *

Off

Fan

Status

*

*

On blinking

* blinking

* blinking

*

* blinking

*

On

On blinking

F

1

blinking

B

2

blinking

*

* blinking

* This LED is not important for the diagnosis.

The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.

** The Module Status LED is located on the module in the rear of the switch.

1

F - Front

2

B - Back

*

*

*

Port LED

(in Link view mode)

*

*

*

* blinking

Off with cable connected

On, but the port is not communicating

*

*

*

Diag

Tips

5-4

Troubleshooting

Diagnosing with the LEDs

Tip Problem

The switch is not plugged into an active AC power source, or the switch’s power supply may have failed. The switch will not power up if the top is off.

A switch hardware failure has occurred. All the LEDs will stay on indefinitely.

The switch has experienced a software failure during self test.

Diagnostic Tips:

Solution

1. Verify the power cord is plugged into an active power source and to the switch. Make sure these connections are snug.

2. Try power cycling the switch by unplugging and plugging the power cord back in.

3. If the Power LED is still not on, verify that the AC power source works by plugging another device into the outlet. Or try plugging the switch into a different outlet or try a different power cord.

If the power source and power cord are OK and this condition persists, the switch power supply may have failed. Call your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer Support/Warranty booklet for more information.

Try power cycling the switch. If the fault indication reoccurs, the switch may have failed.

Call your ProCurve authorized LAN dealer, or use the electronic support services from HP to get assistance. See the Customer Support/Warranty booklet for more information.

One or both of the switch cooling fans may have failed.

The network port for which the LED is blinking has experienced a self test or initialization failure.

If the Mdl Status

LED is blinking, the affected port is on the yl

Module.

1. Try resetting the switch by pressing the Reset button on the front of the switch, or by power cycling the switch.

2. If the fault indication reoccurs, attach a console to the switch (as indicated in chapter

2) and configure it to operate at 9600 baud. Then, reset the switch. Messages should appear on the console screen and in the console log identifying the error condition.

You can view the console log at that point by selecting it from the console Main Menu.

If necessary to resolve the problem, contact your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer

Support/Warranty booklet for more information.

Try disconnecting power from the switch and wait a few moments. Then reconnect the power to the switch and check the LEDs again. If the error indication reoccurs, one or both of the fans has failed. The switch has two fans and may continue to operate under this condition if the ambient temperature does not exceed normal room temperature, but for best operation, the switch should be replaced. Contact your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the

Customer Support/Warranty booklet for more information.

Try power cycling the switch. If the fault indication reoccurs, the switch port may have failed. Call your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer Support/Warranty booklet for more information.

If the port is a pluggable, verify it is one of the pluggables supported by the switch.

Unsupported pluggables will be identified with this fault condition. The supported mini-

GBICs are listed in Chapter 2, “Installing the Switch” on page 2-1 , supported transceivers

are listed in the ProCurve Switch yl Module Installation Guide. The mini-GBICs are also tested when they are “hot-swapped”—installed or changed while the switch is powered on.

To verify the port has failed, try removing and reinstalling the mini-GBIC without having to power off the switch. If the port fault indication reoccurs, you will have to replace the mini-GBIC.

continued on the next page

5-5

Troubleshooting

Diagnosing with the LEDs

Tip Problem

The network connection is not working properly.

Solution

Try the following procedures:

• For the indicated port, verify both ends of the cabling, at the switch and the connected device, are connected properly.

• Verify the connected device and switch are both powered on and operating correctly.

• Verify you have used the correct cable type for the connection:

– For twisted-pair connections to the fixed 10/100 or 10/100/1000 ports, if the port is configured to “Auto” (auto negotiate), either straight-through or crossover cables can be used because of the switch’s “HP Auto-MDIX” feature and the Auto MDI/

MDI-X feature of the 10/100/1000-T port.

Note: If the switch port configuration is changed to one of the fixed configuration options (for example, 100 Mbps/Full Duplex), then the port operates as MDI-X only and you must use the correct type of cable for the connection. In general, for connecting an end node (MDI port) to the switch, use straight-through cable; for connecting to MDI-X ports on hubs, other switches, and routers, use crossover cable.

– For fiber-optic connections, verify the transmit port on the switch is connected to the receive port on the connected device, and the switch receive port is connected to the transmit port on the connected device.

• For the dual-personality 10/100/1000-T ports, be sure a mini-GBIC is not installed in the associated slot.

• For 1000Base-T connections, verify that the network cabling complies with the IEEE

802.3ab standard. the cable should be installed according to the ANSI/TIA/EIA-568-

A-5 specifications. Cable testing should comply with the stated limitations for Attenuation, Near-End Crosstalk, Far-End Crosstalk, Equal-Level Far-End Crosstalk (ELFEXT),

Multiple Disturber ELFEXT, and Return Loss.

The cable verification process must include all patch cables from any end devices, including the switch, to any patch panels in the cabling path.

• Verify the port has not been disabled through a switch configuration change.

You can use the console interface, or, if you have configured an IP address on the switch, use the web browser interface, or ProCurve Manager network management software to determine the state of the port and re-enable the port if necessary.

• Verify the switch port configuration matches the configuration of the attached device.

For example, if the switch port is configured as “Auto”, the port on the attached device also MUST be configured as “Auto”. Depending on the port type, twisted-pair or fiberoptic, if the configurations don’t match, the results could be a very unreliable connection, or no link at all.

• If the other procedures don’t resolve the problem, try using a different port or a different cable.

5-6

Troubleshooting

Diagnosing with the LEDs

Tip Problem

The port may be improperly configured, or the port may be in a “blocking” state by the normal operation of the Spanning

Tree, LACP, or

IGMP features.

Solution

Use the switch console to see if the port is part of a dynamic trunk (through the LACP feature) or to see if Spanning Tree is enabled on the switch, and to see if the port may have been put into a “blocking” state by those features. The show lacp command displays the port status for the LACP feature; the show spanning-tree command displays the port status for Spanning Tree.

Also check the Port Status screen using the show interfaces command to see if the port has been configured as “disabled”.

Other switch features that may affect the port operation include VLANs and IGMP. Use the switch console to see how the port is configured for these features.

For software troubleshooting tips, see the chapter “Troubleshooting” in the Management

and Configuration Guide, which is on the Documentation CD-ROM that came with your switch.

Make sure also, the device at the other end of the connection is indicating a good link to the switch. If it is not, the problem may be with the cabling between the devices or the connectors on the cable.

Reserved for future release.

An RPS is connected but the switch has experienced a fault.

An EPS is connected but the switch has experienced a fault.

Expansion yl module is plugged in but has experienced a fault.

Reserved for future release.

Check the rear of the switch. Check the module LEDs for indications. This will only occur during an initialization self test.

5-7

Troubleshooting

Proactive Networking

Proactive Networking

The ProCurve Series 3500yl and 6200yl Switches have built-in management capabilities that proactively help you manage your network including:

■ finding and helping you fix the most common network error conditions

(for example, faulty network cabling, and non-standard network topologies)

■ informing you of the problem with clear, easy-to-understand messages recommending network configuration changes to enhance the performance of your network

The following interfaces provide tests, indicators, and an event log that can be used to monitor the switch and its network connections and to help you take advantage of these proactive networking features:

ProCurve Manager - an SNMP-based network management tool that is included with your switch.

A graphical web browser interface that you can use to manage your switch from a PC running a supported web browser, for example Microsoft

Internet Explorer, and Netscape Communicator.

A full-featured easy-to-use console interface that you can access by connecting a standard terminal or PC running a terminal emulator to the switch’s console port. The cable to make that connection is provided with your switch. The console interface is also accessible through a Telnet connection.

For more information on using these software tools to diagnose and manage your switch, see the “Troubleshooting” chapter in the Management and

Configuration Guide

, which is on the Documentation CD-ROM that came with your switch.

5-8

Troubleshooting

Hardware Diagnostic Tests

Hardware Diagnostic Tests

Testing the Switch by Resetting It

If you believe the switch is not operating correctly, you can reset the switch to test its circuitry and operating code. To reset a switch, either:

■ unplug and plug in the power cord (power cycling)

■ press the Reset button on the front of the switch

Power cycling the switch and pressing the Reset button both cause the switch to perform its power-on self test, which almost always will resolve any temporary operational problems. These reset processes also cause any network traffic counters to be reset to zero, and cause the System Up Time timer to reset to zero.

Checking the Switch LEDs

The self test passes if the Fault and Self Test LEDs on the front of the switch go off after approximately 50 seconds. If these LEDs stay on longer than 60 seconds or begin blinking, there may be a problem with the switch.

See “Diagnosing With the LEDs” on

page 5-4 for information on interpreting

the LED patterns and LED behaviors in chapter one.

Checking Console Messages

Useful diagnostic messages may be displayed on the console screen when the switch is reset. As described in chapter 2 under step 7, “Connect a Console to the Switch”, connect a PC running a VT-100 terminal emulator program or a standard VT-100 terminal to the switch’s Console Port and configure it to run at 9600 baud, and with the other terminal communication settings shown on

page 2-18

. Then, when you reset the switch, note the messages that are displayed. Additionally, you can check the switch event log, which can be accessed from the console using the

show log command, or from the console

Main Menu.

5-9

Troubleshooting

Hardware Diagnostic Tests

Testing Twisted-Pair Cabling

Network cables that fail to provide a link or provide an unreliable link between the switch and the connected network device may not be compatible with the

IEEE 802.3 Type 10Base-T, 100Base-TX, or 1000Base-T standards. The twistedpair cables attached to the Switch must be compatible with the appropriate standards. To verify your cable is compatible with these standards, use a qualified cable test device.

Testing Switch-to-Device Network Communications

You can perform the following communication tests to verify the network is operating correctly between the switch and any connected device that can respond correctly to the communication test.

Link Test -- a physical layer test that sends IEEE 802.2 test packets to any device identified by its MAC address.

Ping Test -- a network layer test used on IP networks that sends test packets to any device identified by its IP address.

These tests can be performed through the switch console interface from a terminal connected to the switch or through a Telnet connection, or from the switch’s web browser interface. For more information, see the Management

and Configuration Guide,

which is on the Documentation CD-ROM that came with your switch.

These tests can also be performed from an SNMP network management station running a program that can manage the switch, for example, ProCurve

Manager.

Testing End-to-End Network Communications

Both the switch and the cabling can be tested by running an end-to-end communications test -- a test that sends known data from one network device to another through the switch. For example, if you have two PCs on the network that have LAN adapters between which you can run a link-level test or Ping test through the switch, you can use this test to verify that the entire communication path between the two PCs is functioning correctly. See your

LAN adapter documentation for more information on running a link test or

Ping test.

5-10

N o t e

Troubleshooting

Restoring the Factory Default Configuration

Restoring the Factory Default

Configuration

As part of your troubleshooting process on the switch, it may become necessary to return the switch configuration to the factory default settings. This process momentarily interrupts the switch operation, clears any passwords, clears the console event log, resets the network counters to zero, performs a complete self test, and reboots the switch into its factory default configuration including deleting the IP address, if one is configured.

This process removes all switch configuration changes you have made from the factory default settings. This includes, for example, configuration of

VLANs, Spanning Tree, trunks, and stacking. Returning the configuration of these features to their factory default settings (usually disabling them) may result in network connectivity issues.

If the switch has a valid configuration, and you are restoring the factory default settings for a reason other than configuration problems, you should save the switch configuration prior to performing the factory default reset. Then, after the reset and resolution of the original problem, you can restore the saved configuration to the switch. For both the save and restore processes, you can use the console

copy command. For more information on this command, see

the Management and Configuration Guide, which is on the Documentation

CD-ROM that came with your switch.

You can restore the factory default configuration either on the switch itself, or through the switch console.

To execute the factory default reset on the switch, perform these steps:

1.

Using pointed objects, simultaneously press both the Reset and Clear buttons on the front of the switch.

2.

Continue to press the Clear button while releasing the Reset button.

3.

When the Self Test LED begins to blink, release the Clear button.

The switch will then complete its self test and begin operating with its configuration restored to the factory default settings.

To restore the factory default configuration using the console, execute the

erase startup-config command from the console command prompt.

5-11

Troubleshooting

Downloading New Switch Software

Downloading New Switch Software

When product enhancements occur for the switch, new software can be downloaded to the switch through several methods, for product enhancements and new features. For more information, see the Management and

Configuration Guide,

which is on the Documentation CD-ROM that came with your switch.

The new switch software would be available on the ProCurve Web site,

http://www.procurve.com

.

5-12

Troubleshooting

HP Customer Support Services

HP Customer Support Services

If you are still having trouble with your switch, Hewlett-Packard offers support

24 hours a day, seven days a week through the use of a number of automated electronic services. See the Customer Support/Warranty booklet that came with your switch for information on how to use these services to get technical support. The ProCurve Web site,

http://www.procurve.com

also provides upto-date support information.

Additionally, your ProCurve authorized network reseller can provide you with assistance, both with services that they offer and with services offered by

ProCurve.

Before Calling Support

Before calling your networking dealer or ProCurve Support, to make the support process most efficient, you first should have retrieved the following information:

Information Item

• product identification, including mini-

GBICs

• details about the switch’s status including the software (OS) version, a copy of the switch configuration, a copy of the switch Event Log, and a copy of the switch status and counters information

• copy of your network topology map, including network addresses assigned to the relevant devices

Information Location

the front of the switch and on labels on the mini-GBICs switch console: show tech command your network records

5-13

A

Specifications

Physical

Width:

Depth:

Height:

Weight:

3500yl-24G (J8692A) and

6200yl-24G(J8992A)

44.3 cm (17.42 in)

39.2 cm (15.43 in)

4.4 cm (1.7 in)

6.4 kg (14.10 lbs)

3500yl-48G (J8693A)

44.3 cm (17.42 in)

43.0 cm (16.9 in)

4.4 cm (1.7 in)

7.3 kg (16.1 lbs)

Electrical

The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz.

3500yl-24G-PWR

(J8692A)

6200yl-24G

(J8992A)

3500yl-48G-PWR

(J8693A)

AC voltage:

Maximum current:

Frequency range:

100-127/200-240 volts 100-127/200-240 volts 100-127/200-240 volts

10.0A/5.0A

4.0A/2.0A

10.0A/5.0A

50/60 Hz 50/60 Hz 50/60 Hz

Environmental

Temperature:

Relative humidity:

(non-condensing)

Operating

0

°C to 55°C (32°F to 131°F)

15% to 95% at 40

°C (104°F)

1

Non-Operating

-40

°C to 70°C (-40°F to 158°F)

15% to 90% at 65

°C (149°F)

Maximum altitude:

4.6 km (15,000 ft) 4.6 km (15,000 ft)

1

If you are installing either the Series 3500yl or 6200yl Switches using any of the X2

transceivers, the operating ambient temperature should not exceed 40

°C (104°F).

See transceiver specifications.

A-1

Specifications

Acoustic

ProCurve Switch 3500yl-24G-PWR (J8692A) and ProCurve Switch 6200yl-24G-mGBIC

(J8992A)

Geraeuschemission LpA=

49.3 dB am fiktiven Arbeitsplatz nach

DIN 45635 T.19

Noise Emission LpA=

49.3 dB at virtual workspace according to

DIN 45635 T.19

ProCurve Switch 3500yl-48G-PWR (J8692A)

Geraeuschemission LpA=5

2 dB am fiktiven Arbeitsplatz nach

DIN 45635 T.19

Noise Emission LpA=5

2 dB at virtual workspace according to

DIN 45635 T.19

Connectors

The 10/100/1000 Mbps RJ-45 twisted-pair ports are compatible with the following standards:

• IEEE 802.3ab 1000Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3 10Base-T

The 1000 Mbps LC fiber-optic ports on the Gigabit-SX and Gigabit-LX mini-

GBIC transceivers are compatible with the IEEE 802.3z Gigabit-SX and

Gigabit-LX standards.

Safety

Complies with:

EN60950

CSA 22.2 No. 60950

UL 60950

IEC 60950

A-2

Lasers

The following products are Class 1 Laser Products.

Laser Klasse 1:

The 10-GbE X2-SC SR transceiver

The 10-GbE X2-SC LR transceiver

The 10-GbE X2-SC ER transceiver

The following products are Class 1m Laser Products.

Laser Klasse 1m:

The 10-GbE X2 SR-SC transceiver

The transceivers comply with IEC 60825.

Running H/F 1

A-3

B

Switch Ports and Network Cables

N o t e

This appendix includes switch connector information and network cable information for cables that should be used with the Switch 3500, including minimum pin-out information and specifications for twisted-pair cables.

Incorrectly wired cabling is the most common cause of problems for LAN communications. ProCurve recommends that you work with a qualified LAN cable installer for assistance with your cabling requirements.

Switch Ports

The fixed RJ-45 10/100Base-TX and 10/100/1000Base-T ports on the switch accept 100-ohm unshielded and shielded twisted-pair cable with RJ-45 connectors as described on the next page.

Twisted-Pair Cables

10 Mbps Operation

Category 3, 4, or 5 100-ohm unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable, complying with IEEE

802.3 Type 10Base-T specifications, fitted with RJ-45 connectors

100 Mbps Operation

Category 5 100-ohm UTP or STP cable, complying with

IEEE 802.3u 100Base-TX specifications, fitted with RJ-45 connectors

1000 Mbps Operation

Category 5 100-ohm 4-pair UTP or STP cable, complying with IEEE 802.3ab 1000Base-T specifications, fitted with

RJ-45 connectors—Category 5e or better is recommended

(please see “Note on 1000Base-T Cable Requirements”, below)

Note on 1000Base-T Cable Requirements.

The Category 5 networking cables that work for 100Base-TX connections should also work for

1000Base-T, as long as all four-pairs are connected. But, for the most robust connections you should use cabling that complies with the Category 5e specifications, as described in Addendum 5 to the TIA-568-A standard (ANSI/

TIA/EIA-568-A-5).

B-1

Switch Ports and Network Cables

Because of the increased speed provided by 1000Base-T (Gigabit-T), network cable quality is more important than for either 10Base-T or 100Base-TX.

Cabling plants being used to carry 1000Base-T networking must comply with the IEEE 802.3ab standards. In particular, the cabling must pass tests for

Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT).

Additionally, unlike the cables for 100Base-TX, the 1000Base-T cables must pass tests for Equal-Level Far-End Crosstalk (ELFEXT) and Return Loss.

When testing your cabling, be sure to include the patch cables that connect the switch and other end devices to the patch panels on your site. The patch cables are frequently overlooked when testing cable and they must also comply with the cabling standards.

Fiber-Optic

1000Base-SX

1000Base-LX

1000Base-LH

10-GbE SR

62.5/125

µm or 50/125 µm (core/cladding) diameter, gradedindex, multimode fiber-optic cables, complying with the

ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a respectively, fitted with LC connectors.

single mode fiber-optic cables, complying with the ITU-T

G.652 and ISO/IEC 793-2 Type B1 standards, fitted with LC connectors

OR

62.5/125

µm or 50/125 µm (core/cladding) diameter, gradedindex, multimode fiber-optic cables, complying with the

ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a respectively, fitted with LC connectors

Note:

Multimode fiber-optic cabling may be used for a

1000Base-LX application, but a mode conditioning patch

cord

may be needed. See

“Mode Conditioning Patch Cord for Gigabit-LX” on page B-3

for more information.

single mode fiber-optic cables, complying with the ITU-T

G.652 and ISO/IEC 793-2 Type B1 standards, fitted with LC connectors

Multimode fiber-optic cable designed for Gigabit Ethernet: 62.5/

125

µm (core/cladding) diameter or 50/125 µm, 850 nm, low metal content, complying with the ITU-T G.652 and ISO/IEC 793-2 Type

B1 standards.

10-GbE LR

10-GbE ER

9/125

µm (core/cladding) diameter, 1310 nm, low metal content, single mode fiber-optic cables, complying with the ITU-T G.652 and ISO/IEC 793-2 Type B1 standards.

9/125

µm (core/cladding) diameter, 1550 nm, low metal content, single mode fiber-optic cables, complying with the ITU-T G.652 and ISO/IEC 793-2 Type B1 standards.

Note: Conditioning patch cord cables are not supported on 10-GbE speeds.

B-2

N o t e

N o t e

Switch Ports and Network Cables

Mode Conditioning Patch Cord for Gigabit-LX

Mode Conditioning Patch Cord for

Gigabit-LX

The following information applies to installations in which multimode fiberoptic cables are connected to a Gigabit-LX port.

Mode Conditioning Patch Cord cables only apply to one Gigabit operation.

Mode Conditioning Patch Cord cables are not supported for 10 Gigabit operation.

Unlike Gigabit-SX, which connects to only multimode fiber-optic cabling,

Gigabit-LX can use either single-mode or multimode cable. Multimode cable has a design characteristic called “Differential Mode Delay”, which requires that the transmission signals be “conditioned” to compensate for the cable design and thus prevent resulting transmission errors. Since Gigabit-SX is designed to operate only with multimode cable, Gigabit-SX mini-GBICs can provide that transmission conditioning internally.

Gigabit-LX mini-GBICs, since they are designed to operate with both singlemode and multimode cable, do not provide the transmission conditioning internally. Thus, under certain circumstances, depending on the cable used and the lengths of the cable runs, an external Mode Conditioning Patch

Cord

may need to be installed between the Gigabit-LX transmitting device and the multimode network cable to provide the transmission conditioning.

If you experience a high number of transmission errors on the Gigabit-LX ports, usually CRC or FCS errors, you may need to install one of these patch cords between the Gigabit-LX port in your switch and your multimode fiberoptic network cabling, and between the Gigabit-LX transmission device and the network cabling at the other end of the multimode fiber-optic cable run.

A patch cord must be installed at both ends.

The patch cord consists of a short length of single-mode fiber cable coupled to graded-index multimode fiber cable on the transmit side, and only multimode cable on the receive side. The section of single-mode fiber is connected in such a way that it minimizes the effects of the differential mode delay in the multimode cable.

If you are using good quality graded-index multimode fiber cable that adheres to the standards listed on

page 2-5

, there should not be a need to use mode conditioning patch cords. This is especially true if the fiber runs in your network are relatively short. If you are using single-mode fiber-optic cabling, there is no need to use mode conditioning patch cords. Connect the singlemode network cable directly to the Gigabit-LX mini-GBIC.

B-3

Switch Ports and Network Cables

Mode Conditioning Patch Cord for Gigabit-LX

Installing the Patch Cord

As shown in the illustration below, connect the patch cord to the Gigabit-LX mini-GBIC with the section of single-mode fiber plugged in to the Tx (transmit) port. Then, connect the other end of the patch cord to your network cabling patch panel, or directly to the network multimode fiber.

If you connect the patch cord directly to the network cabling, you may need to install a female-to-female adapter to allow the cables to be connected together.

Gigabit-LX port

To network multimode cabling

Mode Conditioning

Patch Cord

The multimode cable in the patch cord must match the characteristics of your network cable

Single-mode section plugs into Tx port on Gigabit-LX Transceiver or

Gigabit-LX mini-GBIC

Make sure you purchase a patch cord that has LC connectors on the end that connects to the Gigabit-LX mini-GBIC, and has multimode fibers that match the characteristics of the multimode fiber in your network.

Recommended Patch Cords

ProCurve maintains a list of recommended Mode Conditioning Patch Cords that have been tested and verified to operate correctly with the ProCurve

Gigabit-LX Transceiver and ProCurve Gigabit-LX LC mini-GBIC.

The list is on the ProCurve Web site,

http://www.procurve.com

, in the

Technical Support section.

B-4

Switch Ports and Network Cables

Twisted-Pair Cable/Connector Pin-Outs

Twisted-Pair Cable/Connector Pin-Outs

Auto-MDIX Feature:

The 10/100/1000-T ports support the IEEE 802.3ab standard, which includes the “Auto MDI/MDI-X” feature. In the default configuration, “Auto”, the ports on the Switch 3500 all automatically detect the type of port on the connected device and operate as either an MDI or MDI-

X port, whichever is appropriate. So for any connection, a straight-through twisted-pair cable can be used -- you no longer have to use crossover cables, although crossover cables can also be used for any of the connections.

If you connect a Switch 3500 twisted-pair port to another switch or hub, which typically have MDI-X ports, the Switch 3500 port automatically operates as an

MDI port. If you connect it to an end node, such as a server or PC, which typically have MDI ports, the Switch 3500 port operates as an MDI-X port. In all cases, you can use standard straight-through cables or crossover cables.

If you happen to use a correctly wired crossover cable, though, the switch will still be able to automatically detect the MDI/MDI-X operation and link correctly to the connected device.

Other Wiring Rules:

All twisted-pair wires used for 10 Mbps, and 100 Mbps operation must be twisted through the entire length of the cable. The wiring sequence must conform to EIA/TIA 568-B (not USOC). See “Twisted-Pair Cable Pin

Assignments” later in this appendix for a listing of the signals used on each pin.

For 1000Base-T connections, all four pairs of wires in the cable must be available for data transmission. See

“Note on 1000Base-T Cable Requirements” on page B-1 for more information on 1000Base-T cabling.

For 10 Mbps connections to the ports, you can use Category 3, 4, or 5 unshielded twisted-pair cable, as supported by the IEEE 802.3 Type

10Base-T standard.

For 100 Mbps connections to the ports, use 100-ohm Category 5 UTP or

STP cable only, as supported by the IEEE 802.3u Type 100Base-TX standard.

For 1000 Mbps connections, 100-ohm Category 5e or better cabling is recommended.

B-5

Switch Ports and Network Cables

Twisted-Pair Cable/Connector Pin-Outs

Straight-Through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections

Because of the HP Auto-MDIX operation of the 10/100 ports on the switch, for all network connections, to PCs, servers or other end nodes, or to hubs or other switches, you can use straight-through cables.

If any of these ports are given a fixed configuration, for example 100 Mbps/

Full Duplex, the ports operate as MDI-X ports, and straight-through cables must be then used for connections to PC NICs and other MDI ports.

Cable Diagram

.

N o t e

Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.

Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.

Pins 4, 5, 7, and 8 are not used in this application, although they may be wired in the cable.

Pin Assignments

Switch End (MDI-X)

Signal

receive + receive transmit + transmit -

Pins

3

6

1

2

3

6

1

2

Computer, Transceiver, or

Other End

Pins Signal

transmit + transmit receive + receive -

B-6

Switch Ports and Network Cables

Twisted-Pair Cable/Connector Pin-Outs

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection

The HP Auto-MDIX operation of the 10/100 ports on the switch also allows you to use crossover cables for all network connections, to PCs, servers or other end nodes, or to hubs or other switches.

If any of these ports are given a fixed configuration, for example 100 Mbps/

Full Duplex, the ports operate as MDI-X ports, and crossover cables must be then used for connections to hubs or switches or other MDI-X network devices.

Cable Diagram

.

N o t e

Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.

Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.

Pins 4, 5, 7, and 8 are not used in this application, although they may be wired in the cable.

Pin Assignments

Switch End (MDI-X)

Signal

receive + receive transmit + transmit -

Pins

3

6

1

2

2

1

6

3

Hub or Switch Port, or Other

MDI-X Port End

Pins Signal

transmit transmit + receive receive +

B-7

Switch Ports and Network Cables

Twisted-Pair Cable/Connector Pin-Outs

Straight-Through Twisted-Pair Cable for

1000 Mbps Network Connections

1000Base-T connections require that all four pairs or wires be connected.

Cable Diagram

.

N o t e

Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”.

Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”.

Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5 on connector “B”.

Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8 on connector “B”.

Pin Assignments

For 1000Base-T operation, all four pairs of wires are used for both transmit and receive.

B-8

C

Safety and EMC Regulatory Statements

Safety Information

!

WARNING

Caution

Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product.

A WARNING in the manual denotes a hazard that can cause injury or death.

A Caution in the manual denotes a hazard that can damage equipment.

Do not proceed beyond a WARNING or Caution notice until you have understood the hazardous conditions and have taken appropriate steps.

Grounding

These are safety class I products and have protective earthing terminals. There must be an uninterruptible safety earth ground from the main power source to the product's input wiring terminals, power cord, or supplied power cord set. Whenever it is likely that the protection has been impaired, disconnect the power cord until the ground has been restored.

For LAN cable grounding:

If your LAN covers an area served by more than one power distribution system, be sure their safety grounds are securely interconnected.

LAN cables may occasionally be subject to hazardous transient voltages (such as lightning or disturbances in the electrical utilities power grid). Handle exposed metal components of the network with caution.

Servicing

There are no user-serviceable parts inside these products. Any servicing, adjustment, maintenance, or repair must be performed only by service-trained personnel.

These products do not have a power switch; they are powered on when the power cord is plugged in.

C-1

Safety and EMC Regulatory Statements

Informations concernant la sécurité

Informations concernant la sécurité

!

WARNING

Caution

Symbole de référence à la documentation. Si le produit est marqué de ce symbole, reportez-vous à la documentation du produit afin d'obtenir des informations plus détaillées.

Dans la documentation, un WARNING indique un danger susceptible d'entraîner des dommages corporels ou la mort.

Un texte de mise en garde intitulé Caution indique un danger susceptible de causer des dommages à l'équipement.

Ne continuez pas au-delà d'une rubrique WARNING ou Caution avant d'avoir bien compris les conditions présentant un danger et pris les mesures appropriées.

Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement fourni avec le produit. Lorsque cette protection semble avoir été endommagée, débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.

Mise à la terre du câble de réseau local:

■ si votre réseau local s'étend sur une zone desservie par plus d'un système de distribution de puissance, assurez-vous que les prises de terre de sécurité soient convenablement interconnectées.

Les câbles de réseaux locaux peuvent occasionnellement être soumis à des surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le réseau d'alimentation public). Manipulez les composants métalliques du réseau avec précautions.

Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur.

Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un personnel qualifié.

Cet appareil ne comporte pas de commutateur principal ; la mise sous tension est effectuée par branchement du cordon d'alimentation.

C-2

Safety and EMC Regulatory Statements

Hinweise zur Sicherheit

Hinweise zur Sicherheit

!

WARNING

Caution

Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem

Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation nach, um mehr Informationen über das Produkt zu erhalten.

Eine WARNING in der Dokumentation symbolisiert eine Gefahr, die

Verletzungen oder sogar Todesfälle verursachen kann.

Caution in der Dokumentation symbolisiert eine Gefahr, die dis Gerät beschädigen kann.

Fahren Sie nach dem Hinweis WARNING oder Caution erst fort, nachdem Sie den Gefahrenzustand verstanden und die entsprechenden Maßnahmen ergriffen haben.

Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose herausziehen, bis die Erdung wiederhergestellt ist.

Für LAN-Kabelerdung:

Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungssystem beliefert wird, müssen Sie sich vergewissern, daß die

Sicherheitserdungen fest untereinander verbunden sind.

LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausgesetzt werden (beispielsweise durch Blitz oder Störungen in dem

Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter

Metallbestandteile des Netzwerkes Vorsicht walten lassen.

Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,

Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem

Bedienungspersonal durchgeführt werden.

Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels eingeschaltet.

C-3

Safety and EMC Regulatory Statements

Considerazioni sulla sicurezza

Considerazioni sulla sicurezza

!

WARNING

Caution

Simbolo di riferimento alla documentazione. Se il prodotto è contrassegnato da questo simbolo, fare riferimento alla documentazione sul prodotto per ulteriori informazioni su di esso.

La dicitura WARNINGdenota un pericolo che può causare lesioni o morte.

La dicituraCaution denota un pericolo che può danneggiare le attrezzature.

Non procedere oltre un avviso di WARNING o di Cautionprima di aver compreso le condizioni di rischio e aver provveduto alle misure del caso.

Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata, al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto.

Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.

Per la messa a terra dei cavi LAN:

■ se la vostra LAN copre un'area servita da più di un sistema di distribuzione elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati fra loro; i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimentazione della società elettrica); siate cauti nel toccare parti esposte in metallo della rete.

Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale specializzato.

Questo apparato non possiede un commutatore principale; si mette scotto tensione all'inserirsi il cavo d'alimentazione.

C-4

Safety and EMC Regulatory Statements

Consideraciones sobre seguridad

Consideraciones sobre seguridad

!

WARNING

Caution

Símbolo de referencia a la documentación. Si el producto va marcado con este símbolo, consultar la documentación del producto a fin de obtener mayor información sobre el producto.

Una WARNING en la documentación señala un riesgo que podría resultar en lesiones o la muerte.

Una Caution en la documentación señala un riesgo que podría resultar en averías al equipo.

No proseguir después de un símbolo de WARNING o Caution hasta no haber entendido las condiciones peligrosas y haber tomado las medidas apropiadas.

Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato, el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el cable de alimentación hasta haberse subsanado el problema.

Puesta a tierra del cable de la red local (LAN):

Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una red de distribución de electricidad, cerciorarse de que las puestas a tierra estén conectadas entre sí de modo seguro.

Es posible que los cables de la LAN se vean sometidos de vez en cuando a voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red de energía eléctrica). Manejar con precaución los componentes de metal de la LAN que estén al descubierto.

Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario.

Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.

Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable de alimentación.

C-5

Safety and EMC Regulatory Statements

Safety Information (Japan)

Safety Information (Japan)

J a p a n P o w e r

C o r d W a r n i n g

C-6

Safety and EMC Regulatory Statements

Safety Information (China)

Safety Information (China)

C-7

Safety and EMC Regulatory Statements

EMC Regulatory Statements

EMC Regulatory Statements

U.S.A.

FCC Class A

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Operation of this equipment in a residential area may cause interference in which case the user will be required to correct the interference at his own expense.

Canada

This product complies with Class A Canadian EMC requirements.

Australia/New Zealand

This product complies with Australia/New Zealand EMC Class A requirements.

Japan

VCCI Class A

C-8

Korea

Taiwan

Safety and EMC Regulatory Statements

EMC Regulatory Statements

C-9

Safety and EMC Regulatory Statements

EMC Regulatory Statements

European Community

DECLARATION OF CONFORMITY

according to ISO/IEC Guide 22 and EN 45014

______________________________________________________________________

Manufacturer's Address: 8000 Foothills Blvd.

Roseville, CA 95747-5502

U.S.A.

declares, that the product

Product Name: ProCurve Switch 3500yl-24G-PWR,

ProCurve Switch 3500yl-48G-PWR,

ProCurve Switch 6200yl-24G mGBIC

Product Number(s): J8692A, J8693A, J8992A

RSVLC-0508

Regulatory Model:

Product Options: J4858B, J4859B, J4860B, J8117B, J8436A, J8437A, J8438A,

J8439A, J8440A, J8694A

conforms to the following Product Specifications:

Safety: EN 60950:2001 / IEC 60950-1:2001

EN 60825-1:1994 +A1+A2

EMC: EN 55022:1998 / CISPR 22:1997 Class A

EN 55024:1998 +A1+A2 (2003) / CISPR 24:1997 +A1+A2

EN 61000-3-2:2000 / IEC 61000-3-2:2001

EN 61000-3-3:1995 +A1(2001) / IEC 61000-3-3:1994 +A1(2001)

Supplementary Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC and carries the CE marking accordingly.

The product was tested with Hewlett-Packard branded products only.

Roseville, 19 December 2005

European Contact: Your local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department HQ-

TRE, Herrenberger Straße 140, D-71034 Böblingen (FAX: + 49-7031-14-3143)

C-10

D

Recycle Statements

Waste Electrical and Electronic

Equipment (WEEE) Statements

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Likvidace zařízení soukromými domácími uživateli v Evropské unii

Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s ostatním domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené sběrné místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v obchodě, kde jste produkt zakoupili.

Bortskaffelse af affald fra husstande i den Europæiske Union

Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke må bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af kasseret elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i forbindelse med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret genvindes på en måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i den butik, hvor du købte produktet.

Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus

See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada, et ringlussev-

õtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta, kuhu oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.

D-1

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella

Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana.

Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen.

Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.

Élimination des appareils mis au rebut par les ménages dans l'Union européenne

Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être jeté avec les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils en les déposant dans les centres de collecte publique désignés pour le recyclage des équipements électriques et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment du reste des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils seront recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus d'informations sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous avez acheté ce produit.

Entsorgung von Altgeräten aus privaten Haushalten in der EU

Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und garantiert eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen

Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben

Απόρριψη άχρηστου εξοπλισµού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή

Ένωση

Το σύµβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριµένο προϊόν δεν

πρέπει να διατίθεται µαζί µε τα άλλα οικιακά σας απορρίµµατα. Αντίθετα, είναι δική σας ευθύνη να

απορρίψετε τον άχρηστο εξοπλισµό σας παραδίδοντάς τον σε καθορισµένο σηµείο συλλογής για την

ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισµού. Η ξεχωριστή συλλογή και

ανακύκλωση του άχρηστου εξοπλισµού σας κατά την απόρριψη θα συµβάλει στη διατήρηση των

φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται µε τρόπο που προστατεύει την

ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά µε το πού µπορείτε να

παραδώσετε τον άχρηστο εξοπλισµό σας για ανακύκλωση, επικοινωνήστε µε το αρµόδιο τοπικό

γραφείο, την τοπική υπηρεσία διάθεσης οικιακών απορριµµάτων ή το κατάστηµα όπου αγοράσατε το

προϊόν.

Készülékek magánháztartásban történő selejtezése az Európai Unió területén

A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál, hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.

A begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.

D-2

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea

Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire permette di proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti di raccolta delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il negozio presso il quale è stato acquistato il prodotto.

Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās mājsaimniecībās

Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest kopā ar citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai pārstrādei.

Atsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku veselību.

Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves vietas pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.

Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje

Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų ūkio atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą elektros ir elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos atliekos padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia žmonių sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę, kurioje įsigijote gaminį.

Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie

Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden gedeponeerd bij het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en elektronische apparatuur.

Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen natuurlijke bronnen worden behouden en kan het materiaal worden hergebruikt op een manier waarmee de volksgezondheid en het milieu worden beschermd. Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel waar u het product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur kunt aanbieden voor recycling.

Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach domowych w Unii Europejskiej

Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do zwykłych pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem, w którym zakupiono produkt.

D-3

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Descarte de Lixo Elétrico na Comunidade Européia

Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo elétrico), encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de uma forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre locais que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi adquirido.

Likvidácia vyradených zariadení v domácnostiach v Európskej únii

Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s domovým odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste, ktoré je určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.

Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji

Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.

Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la

Unión Europea

Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida y el reciclado selectivos de los residuos de aparatos eléctricos en el momento de su eliminación contribuirá a conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que se proteja el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de residuos eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el servicio de eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.

Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen

Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att

överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten för att få mer information om var du kan lämna ditt avfall för återvinning.

D-4

Index

Numerics

10/100Base-TX ports

location on switch … 1-3

1000Base-LH

connections, length limitations … 2-6 ports, cables used with … 2-6, B-2

1000Base-LX

connections, length limitations … 2-6 ports, cables used with … 2-6, B-2

1000Base-SX

connections, length limitations … 2-6 ports, cables used with … 2-6, B-2

1000Base-T

connections, length limitations … 2-5 ports, cables used with … 2-5

A

AC power connector

location on back of switch … 1-10

Act LED … 1-6, 1-8–1-9

auto MDI/MDI-X operation … B-6, B-8

HP Auto-MDIX feature … B-5

B

back of switch

description … 1-10

power connector … 1-11

RPS input port … 1-11 yl module slot … 1-11

backbone switch

topology with … 2-23

basic switch configuration

IP address … 3-3

manager password … 3-2

subnet mask … 3-3

switch setup screen … 3-2

basic troubleshooting tips … 5-1

battery

replacing battery … 4-3

blinking LEDs

error indications … 5-4

Bootp

automatic switch configuration … 3-2

for in-band access … 2-18

buttons

clear button … 1-8

port LED view select button … 1-7

reset button … 1-8

C

cabinet

mounting the switch in … 2-13

cables

1000Base-LH

connections … 2-6

fiber-optic cable specifications … B-2

1000Base-LX

connections … 2-6

fiber-optic cable specifications … B-2

1000Base-SX

connections … 2-6

fiber-optic cable specifications … B-2

1000Base-T connections … 2-5

connecting cables to switch ports … 2-16

effects of non-standard cables … 5-2

fiber-optic, specifications … B-2

infrastructure requirements … 2-5 length limitations … 2-5 required types … 2-5

serial, for direct console connection … 2-19

cables, twisted pair

category 3, 4, 5 … B-5

cross-over cable pin-out … B-7

MDI-X to MDI connections … B-6, B-8

MDI-X to MDI-X connections … B-7

pin-outs … B-6, B-8 straight-through cable pin-out … B-6, B-8 switch-to-computer connection … B-6, B-8

switch-to-switch or hub connection … B-7

cables, twisted-pair

HP Auto-MDIX feature … B-5 wiring rules … B-5 cables, twisted-pair connector pin-outs … B-5

cabling infrastructure … 2-5

Index – 1

Clear button

deleting passwords … 1-8

location on switch … 1-3

restoring factory default configuration … 1-8,

5-11

to delete password protection … 3-4

clear button

description … 1-8 location on switch … 1-8

CLI prompt, console

displaying … 2-19

configuration

checking when troubleshooting … 5-3

DHCP/Bootp … 3-2

full duplex only for mini-GBICs … 2-9

IP address … 3-3

IP address, manually … 3-2 manager password … 3-2

restoring factory defaults … 1-8, 5-11

subnet mask … 3-3

switch setup screen … 3-2

connecting the switch to a power source … 2-15

connector specifications … A-2

console

checking messages during troubleshooting … 5-9

displaying the CLI prompt … 2-19

features … 2-18 how to connect in-band … 2-18 how to connect out-of-band … 2-18

serial cable connection … 2-19

switch setup screen … 3-2

telnet access … 3-5

terminal configuration … 2-18

console port

location on switch … 1-3

cross-over cable

pin-out … B-7

D

deleting passwords … 1-8

description

back of switch … 1-10

front of switch … 1-3

LEDs … 1-5

switch … 1-1

desktop switch

sample topology … 2-20

DHCP

automatic switch configuration … 3-2

for in-band access … 2-18

diagnostic tests … 5-9 checking the console messages … 5-9 checking the LEDs … 5-9

end-to-end connectivity … 5-10

testing the switch only … 5-9

testing twisted-pair cabling … 5-10

downloading new switch software … 5-12

dual-personality ports

location on switch … 1-4 operation description … 1-4

E

electrical specifications, switch … A-1

EMC regulatory statements … C-8

environmental specifications, switch … A-1

EPS input port … 1-11

F

factory default configuration, restoring … 1-8, 5-11

Fan Status LED … 1-6 fan Status LED … 1-6

fans

replacing fan trays … 4-1

Fault LED

behavior during self test … 2-13

location on switch … 1-3

showing error conditions … 5-4

fault LED … 1-5 behaviors … 1-5

blinking definition … 1-6

FDx LED … 1-6, 1-8

features

console … 2-18

switch … 1-12

fiber-optic cables … B-2

1000Base-LH … B-2

1000Base-LX … B-2

1000Base-SX … B-2

2 – Index

front of switch … 1-3

10/100Base-TX ports … 1-3

clear button … 1-8

description … 1-3

dual-personality ports … 1-4

LEDs … 1-5

network ports … 1-4

port LED view select button and LEDs … 1-7

reset button … 1-8

full-duplex fixed configuration

effects on network connections … 5-1

full-duplex operation of mini-GBICs … 2-9

H

horizontal surface

mounting switch on … 2-15

hot swapping … 4-1

HP Auto-MDIX

feature description … B-5

I

in-band … 3-1

in-band console access

types of … 2-18

included parts … 2-1

installation

connecting the switch to a power source … 2-15 horizontal surface mounting … 2-15

location considerations … 2-7

network cable requirements … 2-5

precautions … 2-4

rack or cabinet mounting … 2-13

site preparation … 2-5

summary of steps … 2-3

transceiver … 2-8

yl module … 2-7

IP address

configuring … 3-3

L

LEDs

Act … 1-6, 1-8–1-9

behavior during self test … 2-13

blinking definition … 1-6

checking during troubleshooting … 5-9

descriptions of … 1-5

error indications … 5-4

Fan Status … 1-6 fan status … 1-6

Fault

behavior during self test … 2-13

showing error conditions … 5-4

fault … 1-5

FDx … 1-6, 1-8

Link … 1-5, 1-9

location on switch … 1-3

on switch … 1-5

PoE … 1-6

port

description … 1-5

Port LED View select indicators … 1-6

Port View

selecting the display … 1-7

Power … 1-5

behavior during self test … 2-13

Self Test … 1-5

behavior during self test … 2-13

Spd … 1-6

Usr … 1-6

length limitations

1000Base-LH connections … 2-6

1000Base-LX connections … 2-6

1000Base-SX connections … 2-6

1000Base-T connections … 2-5

Link LEDs … 1-5, 1-9

link test … 5-10

location for the switch, considerations … 2-7

M

MDI-X to MDI network cable … B-6, B-8

MDI-X to MDI-X network cable … B-7

mini-GBICs

full-duplex operation … 2-9

slot, location on switch … 1-3

mounting the switch

in a rack or cabinet … 2-13

Index – 3

precautions … 2-4

on a horizontal surface … 2-15

N

network cables

1000Base-LH connections … 2-6

1000Base-LX connections … 2-6

1000Base-SX connections … 2-6

1000Base-T connections … 2-5

fiber-optic, specifications … B-2

HP Auto-MDIX feature … B-5

required types … 2-5

twisted-pair connector pin-outs … B-5 twisted-pair, wiring rules … B-5

network devices

connecting to the switch … 2-16

network ports

connecting to … 2-16

location on switch … 1-4

standards compliance … A-2

types of … 1-4, 2-5

non-standard network cables, effects … 5-2

O

out-of-band console access … 3-5

P

parts, included with the switch … 2-1

password

configuring … 3-2

passwords

deleting with the Clear button … 3-4 if you lose the password … 3-4

passwords, deleting … 1-8

physical specifications, switch … A-1

Ping test … 5-10

pin-outs

twisted-pair cables … B-5

PoE LEDs … 1-6

port configuration

checking when troubleshooting … 5-3

Port LED View

indicator LEDs … 1-7 select button … 1-7 selecting the display … 1-7

4 – Index port LEDs

description … 1-5

ports

Link … 1-5, 1-9

normal operation … 2-13

10/100Base-TX, location on switch … 1-3–1-4

connecting to … 2-16

console … 2-18

HP Auto-MDIX feature … B-5

network connections … 2-16

power connector … 1-11

Power LED … 1-5

behavior during self test … 2-13

behaviors … 1-5

location on switch … 1-3

power source

connecting the switch to … 2-15

precautions

mounting the switch … 2-4 power requirements … 2-4

preparing the installation site … 2-5

pre-standard PoE devices … 1-2

Proactive Network tools

diagnostics with … 5-8

R

rack

mounting precautions … 2-4

mounting the switch in … 2-13

recycle statements … D-1

regulatory statements … C-8

replacing components

management module battery … 4-3

replacing hardware

fans … 4-1

Reset button

location on switch … 1-3

restoring factory default configuration … 5-11

reset button

description … 1-8 location on switch … 1-8

resetting the switch

factory default reset … 5-11

location of reset button … 1-8

troubleshooting procedure … 5-9

S

safety and regulatory statements … C-1

safety specifications … A-2

segment switch

sample topology … 2-21

selecting the Port LED View display … 1-7

self test

Fault LED behavior … 2-13

LED behavior during … 2-13

Power LED behavior … 2-13

Self Test LED … 1-5

behavior during factory default reset … 5-11

serial cable

for direct console connection … 2-19

slots for mini-GBICs

location on switch … 1-3

Spd LEDs … 1-6

specifications

connectors … A-2

electrical … A-1 environmental … A-1 physical … A-1

safety … A-2

straight-through cable

pin-out … B-6, B-8

subnet mask

configuring … 3-3

summary

of cables used with the switch … 2-5

of switch installation … 2-3

switch

connecting to a power source … 2-15

description … 1-1

downloading new software … 5-12

electrical specifications … A-1 environmental specifications … A-1

features … 1-12

front panel description … 1-3

included parts … 2-1

LED descriptions … 1-5

mounting in a rack or cabinet … 2-13

mounting on horizontal surface … 2-15

physical specifications … A-1

switch operation

verifying after installation … 2-11

Switch Setup screen

configuring a subnet mask … 3-3 configuring an IP address … 3-3 field descriptions … 3-3

switch setup screen … 3-2

T

telnet access to the console … 3-5

terminal configuration … 2-18

Test LED

behavior during self test … 2-13

testing

checking the console messages … 5-9 checking the LEDs … 5-9 diagnostic tests … 5-9

end-to-end communications … 5-10 link test … 5-10

Ping test … 5-10

switch operation … 5-9

switch-to-device communications … 5-10 twisted-pair cabling … 5-10

tips for troubleshooting … 5-1

topologies

effects of improper topology … 5-2

samples of … 2-20

transceiver

install or remove … 2-8

Index – 5

troubleshooting … 5-1 basic tips … 5-1

checking port configuration … 5-3

checking the console messages … 5-9 checking the LEDs … 5-9

common network problems … 5-1 connecting to fixed full-duplex devices … 5-1

diagnostic tests … 5-9

effects of improper topology … 5-2 effects of non-standard cables … 5-2

link test … 5-10

Ping test … 5-10

Proactive Network tools … 5-8

restoring factory default configuration … 5-11

testing connections to other devices … 5-10 testing end-to-end communications … 5-10

testing the switch … 5-9

testing the twisted-pair cables … 5-10

twisted-pair cable

cross-over cable pin-out … B-7

pin-outs … B-5–B-6, B-8

straight-through cable pin-out … B-6, B-8 switch-to-computer connection … B-6, B-8

switch-to-switch or hub connection … B-7

testing … 5-10

twisted-pair ports

HP Auto-MDIX feature … B-5

U

Usr LEDs … 1-6

V

VT-100 terminal

serial cable connection for … 2-19

W

wiring rules for twisted-pair cables … B-5

Y

yl module

install or remove … 2-7

yl module slot … 1-11

6 – Index

Technical information in this document is subject to change without notice.

© Copyright 2005

Hewlett-Packard Development Company, L.P.

Reproduction, adaptation, or translation without prior written permission is prohibited except as allowed under the copyright laws.

Printed in Singapore

December 2005

Manual Part Number

5991-3781

*5991-3781*
