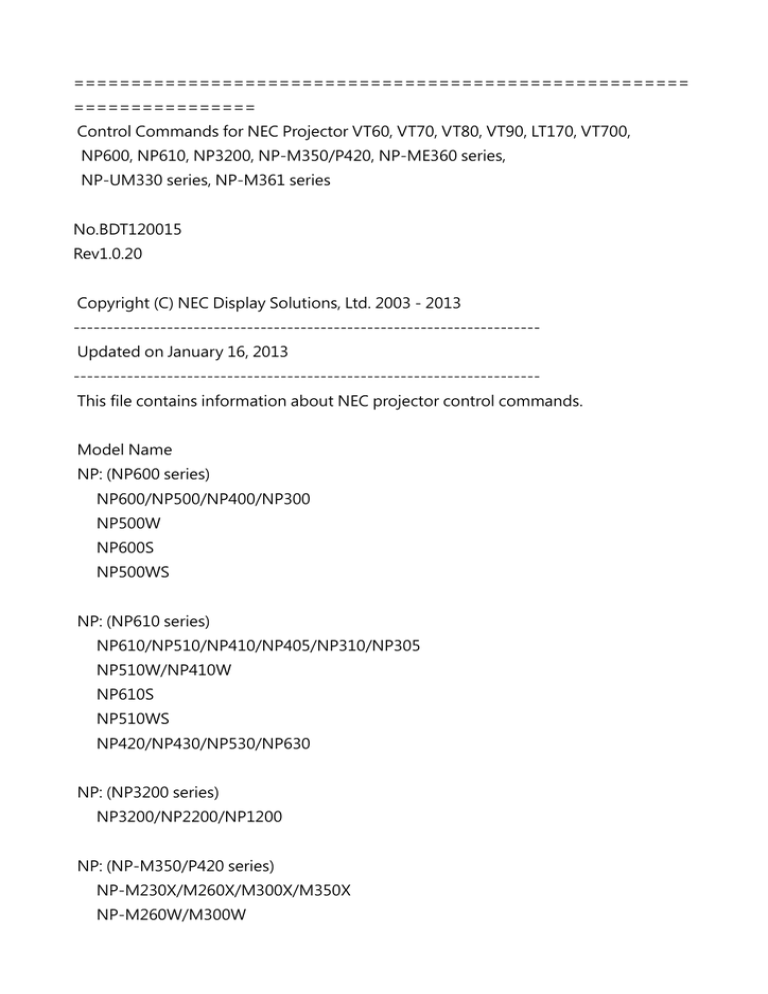

Control Commands for NEC Projector VT60, VT70, VT80, VT90, LT170, VT700,
NP600, NP610, NP3200, NP-M350/P420, NP-ME360 series,
NP-UM330 series, NP-M361 series
No.BDT120015
Rev1.0.20
Copyright (C) NEC Display Solutions, Ltd. 2003 - 2013
---------------------------------------------------------------------Updated on January 16, 2013
---------------------------------------------------------------------This file contains information about NEC projector control commands.
Model Name
NP: (NP600 series)
NP600/NP500/NP400/NP300
NP500W
NP600S
NP500WS
NP: (NP610 series)
NP610/NP510/NP410/NP405/NP310/NP305
NP510W/NP410W
NP610S
NP510WS
NP420/NP430/NP530/NP630
NP: (NP3200 series)
NP3200/NP2200/NP1200
NP: (NP-M350/P420 series)
NP-M230X/M260X/M300X/M350X
NP-M260W/M300W
NP-M260XS/M300XS/M350XS
NP-M260WS/M300WS
NP-M420XV/M420X
NP-P350X/P420X/P350W
NP: (NP-ME360 series)
NP-ME270X/ME310X/ME360X
NP: (NP-UM330 series)
NP-UM330X/UM280X/UM280W/UM330W
NP: (NP-M361 series)
NP-M361X/M311W/M271X/M311X/M271W
VT: (VT60 series)
VT460/VT560/VT660
VT465/VT460K/VT660K
GS40/GX50/GX60
VT46
GS45/VT46RU
(VT70 series)
VT47/VT470/VT470JY/VT570/VT670/VT575/VT676/VT37
(VT80 series)
VT48/VT480/VT58/VT580
(VT90 series)
VT49/VT59/VT490/VT491/VT590/VT595/VT695
(VT700 series)
VT700
LT: LT170
======================================================
================
Contents
1. Projector Control
2. Connection Method
3. Interface Conditions
4. List of Commands
5. Command Descriptions
6. Response
7. Table of Response Error Codes
======================================================
================
1. Projector Control
---------------------------------------------------------------------NEC projector control commands allow you to control the functions of
the projector via connection with a personal computer or another device.
======================================================
================
2. Connection Method
---------------------------------------------------------------------The following 2 kinds of connection methods are available for sending
and receiving control commands.
1. Serial connection using the serial port on the projector
A serial cable is required.
2. LAN connection
2-1. LAN connection using the LAN port on the projector
A LAN cable is required.
2-2.LAN connection using a wireless LAN unit
A wireless LAN unit is required.
Status of supported connection
+-----------------------+---------+---------+---------+
|
| (1) | (2-1) | (2-2) |
|
| Serial | Wired | Wireless|
|
| port | LAN port| LAN port|
+-----------------------+---------+---------+---------+
| LT170
| Yes | No
| No
|
+-----------------------+---------+---------+---------+
| VT60 series
| Yes | No
| No
|
+-----------------------+---------+---------+---------+
| VT70 series
| Yes | No
| No
|
+-----------------------+---------+---------+---------+
| VT80 series
| Yes | No
| No
|
+-----------------------+---------+---------+---------+
| VT90 series
| Yes | No
| No
|
+-----------------------+---------+---------+---------+
| VT700 series
| Yes | No
| No
|
+-----------------------+---------+---------+---------+
| NP600 series
| Yes | Yes | No
|
+-----------------------+---------+---------+---------+
| NP610 series
| Yes | Yes | No
|
+-----------------------+---------+---------+---------+
| NP3200 series
| Yes | Yes | No |
+-----------------------+---------+---------+---------+
| NP-M350/P420 series | Yes | Yes | Yes |
+-----------------------+---------+---------+---------+
| NP-ME360 series
| Yes | No | No
|
+-----------------------+---------+---------+---------+
| NP-UM330 series
| Yes | Yes | Yes |
+-----------------------+---------+---------+---------+
| NP-M361 series
| Yes | Yes | Yes |
+-----------------------+---------+---------+---------+
Yes: Supported
No : Not supported
* The serial cable and LAN cable are separately sold.
( CAUTION ) (!1)
Before making connections, be sure to select [NORMAL] for [STANDBY MODE].
Setting method : From the projector's menu, select [SETUP] --> [OPTIONS(2)] -->
[STANDBY MODE]--> [NORMAL].
( CAUTION ) (!2)
The projector accept the "POWER ON" command during [POWER-SAVING] mode for
[STANDBY MODE].
Supplement:
(!1) Only the NP600/NP610/NP3200 series is compatible.
(!2) Only the NP-M350/P420 series is compatible.
(!2) Only the NP-ME360 series is compatible.
(!2) Only the NP-UM330 series is compatible.
(!2) Only the NP-M361 series is compatible.
======================================================
================
3. Interface Conditions
---------------------------------------------------------------------Serial connection
---------------------------------------------------------------------The communications method conforms to the RS-232C standard.
Baud rate:
38400(!1)/19200/9600/4800bps
Data length:
8 bits
Parity bit:
No parity
Stop bits:
1 bit
Communications mode: Full duplex
(!1) Only the NP-M350/NP-P420/NP-UM330/NP-M361 series is compatible.
The control connector is described below.
[ VT60/VT70/VT80/VT90/LT170/VT700 series ]
The PC CONTROL connector is a mini DIN 8-pin connector.
1 To TxD of PC
2
3
4 To GND of PC
5
6
7 To RxD of PC
8
* 2, 3, 5, 6, and 8 are used inside the projector.
[ NP600/NP610/NP3200/NP-M350/NP-P420/NP-ME360/NP-UM330/NP-M361 series
]
The PC CONTROL connector is a D-SUB 9-pin connector.
1
2 To TxD of PC
3 To RxD of PC
4
5 To GND of PC
6
7 To CTS of PC
8 To RTS of PC
9
LAN connection(!1)
---------------------------------------------------------------------[ Wired LAN port ]
LAN interface
Communication speed : Auto setting (10/100Mbps)
Certified standard : IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX, Auto-Negotiation)
A LAN connector (8 male RJ-45 connector)
1 TD+
Transmit data (+)
2 TD-
Transmit data (-)
3 RD+
Receive data (+)
4
Not used
5
Not used
6 RD-
Receive data (-)
7
Not used
8
Not used
[Port Number]
The TCP port number used is "7142".
Supplement:
(!1) Only the NP600/NP610/NP3200/NP-M350/NP-P420/NP-UM330/NP-M361 series
is compatible.
======================================================
================
4. List of Commands
---------------------------------------------------------------------* Example for command
---------------------------------------------------------------------Command name
Example
---------------------------------------------------------------------001. POWER ON
02H 00H 00H 00H 00H 02H
002. POWER OFF
02H 01H 00H 00H 00H 03H
003. INPUT SW CHANGE(*5)
02H 03H 00H 00H 02H 01H <DATA> CKS
006. PICTURE MUTE ON
02H 10H 00H 00H 00H 12H
007. PICTURE MUTE OFF
02H 11H 00H 00H 00H 13H
008. SOUND MUTE ON
02H 12H 00H 00H 00H 14H
009. SOUND MUTE OFF
02H 13H 00H 00H 00H 15H
010. ONSCREEN MUTE ON
02H 14H 00H 00H 00H 16H
011. LAMP INFORMATION REQUEST
03H 8CH 00H 00H 00H 8FH
012. MUTE CONTROL
02H 1AH 00H 00H 02H <DATA> CKS
013. VOLUME ADJUST
03H 10H 00H 00H 05H 05H <DATA> CKS
014. BASE MODEL TYPE REQUEST
00H BFH 00H 00H 01H 00H CKS
015. PROJECTOR INFORMATION REQUEST
00H BFH 00H 00H 01H 02H CKS
016. ERROR STATUS REQUEST
00H 88H 00H 00H 00H 88H
017. INFORMATION REQUEST
03H 8AH 00H 00H 00H 8DH
018. FILTER USAGE INFORMATION REQUEST
019. LAMP INFORMATION REQUEST 3
020. TEMP INFORMATION REQUEST
021. REMOTE KEY CODE
03H 95H 00H 00H 00H 98H
03H 96H 00H 00H 02H <DATA> CKS
03H 99H 00H 00H 01H <DATA> CKS
02H 0FH 00H 00H 02H <DATA> CKS
022. FREEZE CONTROL
01H 98H 00H 00H 01H <DATA> CKS
023. ORIENTATION SET
03H B1H 00H 00H 02H 0AH 00H C0H
024. AUTO ADJUST EXECUTE2
025. RUNNING SENSE
026. COMMON DATA REQUEST
027. PICTURE ADJUST
028. KEYSTONE ADJUST
03H BAH 00H 00H 01H <DATA> CKS
00H 81H 00H 00H 00H 81H
00H C0H 00H 00H 00H C0H
03H 10H 00H 00H 05H DATA1 to 5 CKS
03H 10H 00H 00H 05H 15H FFH DATA3 to 5
CKS
029. IMAGE MODE ADJUST
03H 10H 00H 00H 05H DATA1 to 5 CKS
030. LAMP INFORMATION REQUEST 2
03H 94H 00H 00H 00H 97H
031. GAIN PARAMETER REQUEST 2
03H 04H 00H 00H 03H DATA1 to 3 CKS
032. SETTING REQUEST
00H 85H 00H 00H 01H 00H CKS
033. RUNNING STATUS REQUEST
00H 85H 00H 00H 01H 01H CKS
034. INPUT STATUS REQUEST
00H 85H 00H 00H 01H 02H CKS
035. MUTE STATUS REQUEST
00H 85H 00H 00H 01H 03H CKS
036. MODEL NAME REQUEST
00H 85H 00H 00H 01H 04H CKS
037. INFORMATION STRING REQUEST
00H D0H 00H 00H 03H 00H 00H 00H
CKS
038. LAMP MODE REQUEST
039. LAMP MODE SET
03H B0H 00H 00H 01H 07H BBH
03H B1H 00H 00H 02H 07H 00H BDH
040. POWER MANAGEMENT SET
03H B1H 00H 00H 02H 17H 00H CDH
041. KEYSTONE SELECT SET
042. OTHER ADJUST
03H B1H 00H 00H 01H 93H DATA02 CKS
03H 10H 00H 00H 05H DATA1 to 5 CKS
043. SET PROJECTOR NAME
03H 8BH 00H 00H 32H DATA1 to 50 CKS
044. CLOSED CAPTION REQUEST
03H B0H 00H 00H 01H DATA1 CKS
045. FAN MODE REQUEST
03H B0H 00H 00H 01H DATA1 CKS
046. WXGA MODE SETTING REQUEST
047. CLOSED CAPTION SET
048. FAN MODE SET
03H B0H 00H 00H 01H DATA1 CKS
03H B1H 00H 00H 02H DATA1 to 2 CKS
03H B1H 00H 00H 02H DATA1 DATA2 CKS
049. WXGA MODE SETTING SET
050. LAMP INFORMATION REQUEST 4
03H B1H 00H 00H 02H DATA1 DATA2 CKS
03H 9BH 00H 00H 03H DATA1 DATA2
DATA3 CKS
051. CARBON SAVINGS INFORMATION REQUEST
03H 9AH 00H 00H 01H DATA1
CKS
052. COVER STATUS REQUEST
053. VERSION INFORMATION REQUEST
00H 85H 00H 00H 01H 05H CKS
00H BFH 00H 00H 02H 01H <DATA>
CKS
* Availability by Model
----------------------------------------------------------------------
Model No.
Meaning of Symbol
------------------------- ----------------------------01 : LT170
* : Supported
02 : VT60 series
! : Is available depending on the model's version
03 : VT70 series
- : Not supported
04 : VT80 series
05 : VT90 series
06 : VT700 series
07 : NP600 series
08 : NP610 series
09 : NP3200 series
10 : NP-M350/P420 series
11 : NP-ME360 series
12 : NP-UM330 series
13 : NP-M361 series
Availability by Model
-------------------------------------------------------------------------------------Command Name
01 02 03 04 05 06 07 08 09 10 11 12 13
-------------------------------------------------------------------------------------001. POWER ON
* * * * * * * * * * * * *
002. POWER OFF
* * * * * * * * * * * * *
003. INPUT SW CHANGE(*5)
* * * * * * * * * * * * *
006. PICTURE MUTE ON
* * * * * * * * * * * * *
007. PICTURE MUTE OFF
* * * * * * * * * * * * *
008. SOUND MUTE ON
* * * * * * * * * * * * *
009. SOUND MUTE OFF
* * * * * * * * * * * * *
010. ONSCREEN MUTE ON
* * * * * * * * * * * * *
011. LAMP INFORMATION REQUEST
* * * * * * * * * * * * *
012. MUTE CONTROL
* * * * * * * * * * * * *
013. VOLUME ADJUST
- - - * * * * * * * * * *
Volume
- - - * * * * * * * * * *
Bass
- - - - - - - - * - - - -
Treble
- - - - - - - - * - - - -
Balance
- - - - - - - - * - - - -
014. BASE MODEL TYPE REQUEST
- - - * * * * * * * * * *
015. PROJECTOR INFORMATION REQUEST
- - - * * * * * * * * * *
016. ERROR STATUS REQUEST
- - - - * * * * * * * * *
017. INFORMATION REQUEST
- - - - * * * * * * * * *
018. FILTER USAGE INFORMATION REQUEST
019. LAMP INFORMATION REQUEST 3
020. TEMP INFORMATION REQUEST
- - - - * * * * * * * * *
- - - - * * * * * * * * *
- - - - * * * * * * * * *
021. REMOTE KEY CODE
- - - * * * * * * * * * *
022. FREEZE CONTROL
- - - ! * * * * * * * * *
023. ORIENTATION SET
- - - - * * * * * * * * *
024. AUTO ADJUST EXECUTE2
025. RUNNING SENSE
- - - - ! * * * * * * * *
- - - - - * * * * * * * *
026. COMMON DATA REQUEST
027. PICTURE ADJUST
- - - - - * * * * * * * *
- - - - - * * * * * * * *
028. KEYSTONE ADJUST
- - - - - * * * * * * * *
029. IMAGE MODE ADJUST
- - - - - * * * * * * * *
030. LAMP INFORMATION REQUEST 2
031. GAIN PARAMETER REQUEST 2
- - - - - * * * * * * * *
- - - - - * * * * * * * *
032. SETTING REQUEST
- - - - - * * * * * * * *
033. RUNNING STATUS REQUEST
- - - - - * * * * * * * *
034. INPUT STATUS REQUEST
- - - - - * * * * * * * *
035. MUTE STATUS REQUEST
- - - - - * * * * * * * *
036. MODEL NAME REQUEST
- - - - - * * * * * * * *
037. INFORMATION STRING REQUEST
038. LAMP MODE REQUEST
039. LAMP MODE SET
- - - - - * * * * * * * *
- - - - - * * * * * * * *
040. POWER MANAGEMENT SET
- - - - - * * * * * * * *
041. KEYSTONE SELECT SET
042. OTHER ADJUST
- - - - - * * * * * * - *
- - - - - - * * * * * * *
043. SET PROJECTOR NAME
- - - - - - * * * * * * *
044. CLOSED CAPTION REQUEST
- - - - - - * * * * - * *
045. FAN MODE REQUEST
- - - - - - * * * * * * *
046. WXGA MODE SETTING REQUEST
047. CLOSED CAPTION SET
048. FAN MODE SET
- - - - - * * * * * * * *
- - - - - - * * * * * * *
- - - - - - * * * * - * *
- - - - - - * * * * * * *
049. WXGA MODE SETTING SET
- - - - - - * * * * * * *
050. LAMP INFORMATION REQUEST 4
- - - - - - - * * * * * *
051. CARBON SAVINGS INFORMATION REQUEST
052. COVER STATUS REQUEST
- - - - - - - * * * * * *
- - - - - - - - - * - * *
053. VERSION INFORMATION REQUEST
- - - - * * * * * * * * *
======================================================
================
5. Command Descriptions
---------------------------------------------------------------------Description of Terms:
(*1) Control ID
This refers to the Control ID.
(*2) Model code : "xxH" inscription
This will differ depending on the projector.
In case of LT series
20H
In case of VT series
40H
In case of NP600 series
40H
In case of NP610 series
40H
In case of NP3200 series
40H
In case of NP-M350 series 40H
In case of NP-P420 series 40H
In case of NP-ME360 series 40H
In case of NP-UM330 series 70H
In case of NP-M361 series 40H
(*3) Checksum : "CKS" inscription
This is the value of the lower 1 byte (8 bits) of the resulting amount
from adding all the data up to the immediately preceding data in terms
of bytes.
Example)
20H 81H 01H 60H 01H 00H CKS
20H + 81H + 01H + 60H + 01H + 00H = 103H
CKS = 03H
(*4) Response error number
This is the value of the error number at the time of an error.
See "NAK" of "6. Table of Response Error Codes".
(*5) Term "COMPUTER" and "RGB"
On the VT60 series the term "computer"for the connector is represented by "RGB".
001. POWER ON
**********************************************************************
Function:
This command switches on the main power of the projector.
Command:
02H 00H 00H 00H 00H 02H
Response: At the time of a success
22H 00H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A2H 00H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
The projector does not accept the other command during power on processing.
002. POWER OFF
**********************************************************************
Function:
This command switches off the main power of the projector.
Command:
02H 01H 00H 00H 00H 03H
Response: At the time of a success
22H 01H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A2H 01H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
* The projector doesn't accept the other command during power
off processing.( It contains a cooling period.)
003. INPUT SW CHANGE (*5)
**********************************************************************
Function:
This command switches the input terminal list.
Command:
02H 03H 00H 00H 02H 01H DATA01 CKS
(*3)
Data Portion
Contents
------------------------------------------------------------------DATA01
Terminal number
+----------+--------------------------------+------+------+------+------+-----+------+
| Terminal | Terminal
| (1) | (2) | (3) | (4) | (5) | (6) |
| number | name
|
|
|
|
|
|
|
+----------+--------------------------------+------+------+------+------+-----+------+
|
01H | Computer/Computer1
| * | * | * | * | * | * |
|
02H | Computer2(Analog)
|
1AH | Computer2(Digital)/HDMI/HDMI1 | x | * | x | * | x | * |
|
1BH | HDMI2
|
06H | Video
|
0BH | S-Video
|
1FH | Viewer
|
20H | Network
|
22H | USB Display
| * | * | x | * | * | x |
| x | x | x | x | x | * |
| * | * | * | * | * | * |
| * | * | * | * | x | * |
| x | x | x | * | x | * |
| x | x | x | * | x | * |
| x | x | x | * | x | * |
+----------+--------------------------------+------+------+------+------+-----+------+
* : Supported
x : Not supported
(1) VT470/VT470JY/VT570/VT670/VT575/VT676/VT480/VT580/VT490/VT491
NP405/NP305 series
(2) VT595/VT695/VT700/NP600/NP500/NP500W/NP400/NP300/NP600S/NP500WS
NP610/NP510/NP410/NP310/NP510W/NP410W/NP610S/NP510WS/NP3200/NP220
0/NP1200
NP420/NP430/NP530/NP630
(3)
GS40/GX50/GX60/GS45/VT460/VT560/VT660/VT465/VT460K/VT660K/VT46/VT46RU
VT47/VT37/VT48/VT58/VT49/VT59/VT590/LT170
(4) NP-M350/NP-P420/NP-M361 series
(5) NP-ME360 series
(6) NP-UM330 series
Response: At the time of a success
22H 03H 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Results
00H : Normal
FFH : Error (Signal select was not executed)
Response: At the time of a failure
A2H 03H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Command example:
* When switch to the Video connector
02H 03H 00H 00H 02H 01H 06H 0EH
006. PICTURE MUTE ON
**********************************************************************
Function:
This command mutes a picture.
Command:
02H 10H 00H 00H 00H 12H
Response: At the time of a success
22H 10H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A2H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
* Picture mute is cancelled for the following:
Input connector switching
Video signal switching
007. PICTURE MUTE OFF
**********************************************************************
Function:
This command cancels the picture muting.
Command:
02H 11H 00H 00H 00H 13H
Response: At the time of a success
22H 11H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A2H 11H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
008. SOUND MUTE ON(!1)
**********************************************************************
Function:
This command mutes the sound.
Command:
02H 12H 00H 00H 00H 14H
Response: At the time of a success
22H 12H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A2H 12H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
* Sound mute is cancelled for the following:
Input connector switching
Video signal switching
Volume adjustment
(!1) NP-M420XV : This function is not supported.
009. SOUND MUTE OFF(!1)
**********************************************************************
Function:
This command cancels the sound muting.
Command:
02H 13H 00H 00H 00H 15H
Response: At the time of a success
22H 13H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A2H 13H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
(!1) NP-M420XV : This function is not supported.
010. ONSCREEN MUTE ON
**********************************************************************
Function:
This command mutes the on-screen display.
Command:
02H 14H 00H 00H 00H 16H
Response: At the time of a success
22H 14H 01H xxH 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A2H 14H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
* This is available only during on-screen display.
011. LAMP INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the lamp information (in terms of Normal mode
values) of projector.
Command:
03H 8CH 00H 00H 00H 8FH
Response: At the time of a success
23H 8CH 01H xxH 10H DATA01 to DATA16 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01 to 04 Lamp Hour Meter(Normal mode) (second)
DATA05 to 08 Reserved
DATA09 to 12 Lamp Use Warning Starting Time(Normal mode) (second)
DATA13 to 16 Lamp Use Prohibited Time(Normal mode) (second)
Response: At the time of a failure
A3H 8CH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
Example for acquiring remaining lamp time
(in terms of Normal mode values)
: Lamp Hour Meter (Normal mode)
DATA01 DATA02 DATA03 DATA04
30H
2AH
00H
00H : 10800 second
: Starting time for lamp usage warning message
(in terms of Normal mode values)
DATA09 DATA10 DATA11 DATA12
00H
DDH
6DH
00H : 7200000 second
Lamp remaining time (in terms of Normal mode values)
= (7200000 - 10800) / 3600 = 1997 hour
012. MUTE CONTROL
**********************************************************************
Function:
This command controls the mute of picture, sound and on-screen.
Command:
02H 1AH 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Setting Items
00H : Picture
01H : Sound (!1)
02H : On-Screen (DATA2 can be specified only for "On")
DATA02
Setting Value
00H : OFF
01H : ON
Response: At the time of a success
22H 1AH 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Results
00H : Normal
01H : Error
Response: At the time of a failure
A2H 1AH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
* Sound mute is cancelled in the following cases:
Input connector switching
Video signal switching
Volume adjustment
(!1) NP-M420XV : This function is not supported.
013. VOLUME ADJUST(!1)
**********************************************************************
Function:
This command sets the volume.
Command:
03H 10H 00H 00H 05H DATA01 to DATA05 CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
05H fixed
DATA02
Setting items
00H : Volume
01H : Bass
02H : Treble
03H : Balance
DATA03
Setting mode
00H : Absolute value specification
01H : Relative value specification
DATA04
Setting Value ( Lower ranking 8 bits )
DATA05
Setting Value ( Upper ranking 8 bits )
Response: At the time of a success
23H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01 to 02 Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
Command example:
* Setting Volume to "10"
03H 10H 00H 00H 05H 05H 00H 00H 0AH 00H 27H
(!1) NP-M420XV : This function is not supported.
014. BASE MODEL TYPE REQUEST
**********************************************************************
Function:
This command acquires the projector type.
Command:
00H BFH 00H 00H 01H 00H C0H
Response: At the time of a success
20H BFH 01H xxH 10H DATA01 to DATA16 CKS
(*1) (*2)
Data Portion
(*3)
Contents
------------------------------------------------------------------DATA01
00H fixed
DATA02 to 03
Projector type
See DATA13 to 14
DATA04 to 12
Model name (NULL termination character string)
DATA13 to 14
Projector type
+--------+--------+--------+--------+--------------+
| DATA02 | DATA03 | DATA13 | DATA14 |
|
+--------+--------+--------+--------+--------------+
|
01H | 03H | 00H | 06H | VT80 series |
+--------+--------+--------+--------+--------------+
|
01H | 03H | 00H | 07H | VT90 series |
+--------+--------+--------+--------+--------------+
|
01H | 10H | 00H | 08H | VT700 series |
+--------+--------+--------+--------+--------------+
|
FFH | 10H | 00H | 09H | NP600
|
|
FFH | 10H | 01H | 09H | NP500
|
|
FFH | 10H | 02H | 09H | NP500W
|
FFH | 10H | 03H | 09H | NP400
|
|
FFH | 10H | 04H | 09H | NP300
|
|
FFH | 10H | 09H | 09H | NP600S
|
FFH | 10H | 0AH |
|
|
09H | NP500WS
|
+--------+--------+--------+--------+--------------+
|
FFH | 10H | 00H | 10H | NP610
|
|
FFH | 10H | 01H | 10H | NP510
|
|
FFH | 10H | 02H | 10H | NP510W
|
FFH | 10H | 03H | 10H | NP410
|
|
FFH | 10H | 04H | 10H | NP405
|
|
FFH | 10H | 05H | 10H | NP310
|
|
FFH | 10H | 06H | 10H | NP305
|
|
FFH | 10H | 07H | 10H | NP610S
|
FFH | 10H | 08H | 10H | NP610WS
|
FFH | 10H | 09H | 10H | NP410W
|
|
|
|
+--------+--------+--------+--------+--------------+
|
FFH | 10H | 00H | 11H | NP3200
|
|
FFH | 10H | 01H | 11H | NP2200
|
|
FFH | 10H | 02H | 11H | NP1200
|
+--------+--------+--------+--------+--------------+
|
FFH | 13H | 00H | 10H | NP-M350X
|
|
FFH | 13H | 01H | 10H | NP-M300X
|
|
FFH | 13H | 02H | 10H | NP-M300W
|
|
FFH | 13H | 03H | 10H | NP-M300XS
|
|
FFH | 13H | 04H | 10H | NP-M300WS
|
FFH | 13H | 05H | 10H | NP-M260X
|
FFH | 13H | 06H | 10H | NP-M260W
|
|
FFH | 13H | 07H | 10H | NP-M260XS
|
|
FFH | 13H | 08H | 10H | NP-M260WS
|
FFH | 13H | 09H | 10H | NP-M230X
|
|
FFH | 13H | 0AH |
|
10H | NP-M420X
|
|
|
|
FFH | 13H | 0BH | 10H | NP-M420XV
|
|
FFH | 13H | 0CH |
|
10H | NP-M350XS
+--------+--------+--------+--------+--------------+
|
FFH | 10H | 00H | 12H | NP420
|
|
FFH | 10H | 01H | 12H | NP430
|
|
FFH | 10H | 02H | 12H | NP530
|
|
FFH | 10H | 03H | 12H | NP630
|
+--------+--------+--------+--------+--------------+
|
FFH | 10H | 00H | 13H | NP-ME360X
|
|
FFH | 10H | 01H | 13H | NP-ME310X
|
|
FFH | 10H | 02H | 13H | NP-ME270X
|
+--------+--------+--------+--------+--------------+
|
FFH | 13H | 00H | 11H | NP-P420X
|
|
FFH | 13H | 01H | 11H | NP-P350X
|
|
FFH | 13H | 02H | 11H | NP-P350W
|
+--------+--------+--------+--------+--------------+
|
FFH | 13H | 00H | 12H | NP-UM330X
|
|
FFH | 13H | 01H | 12H | NP-UM280X
|
|
FFH | 13H | 02H | 12H | NP-UM280W |
|
FFH | 13H | 03H | 12H | NP-UM330W |
+--------+--------+--------+--------+--------------+
|
FFH | 13H | 00H | 13H | NP-M361X
|
|
FFH | 13H | 01H | 13H | NP-M311W
|
FFH | 13H | 02H | 13H | NP-M271X
|
|
FFH | 13H | 03H | 13H | NP-M311X
|
|
FFH | 13H | 04H | 13H | NP-M271W
|
|
+--------+--------+--------+--------+--------------+
DATA15 to 16
Reserved
Response: At the time of a failure
A0H BFH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
015. PROJECTOR INFORMATION REQUEST
**********************************************************************
Function:
This command acquires basic operation states of projector.
Command:
00H BFH 00H 00H 01H 02H C2H
Response: At the time of a success
20H BFH 01H xxH 10H DATA01 to DATA16 CKS
(*1) (*2)
Data Portion
(*3)
Contents
------------------------------------------------------------------DATA01
02H fixed
DATA02
Projector Processing Status
00H : Idle
04H : Power On
05H : Cooling
06H : Idle(Error Standby)
0FH : Power-Saving(!2)
Other : Not Supported
Other than above : (nondisclosure)
internal use of code during a state transition period
DATA03
Indicate Contents
00H : Picture signal displaying
01H : No Signal
02H : Viewer displaying
03H : Test Pattern displaying
04H : LAN displaying
05H : Test Pattern (User) displaying
10H : Signal selection in progress
Other : Not Supported
DATA04
Select source input type 1
01H : 1
02H : 2
03H : 3
04H : 4
05H : 5
Other : Not Supported
DATA05
Select source input type 2
01H : COMPUTER (*5)
02H : VIDEO
03H : S-VIDEO
04H : COMPONENT
05H : Reserved
06H : DIGITAL
07H : VIEWER
08H : SLOT1
09H : SLOT2
0AH : SLOT3
0BH : SLOT4
0CH : DIGITAL2
0DH : SCART
10H : AUTO
FFH : Not Source Input
Other : Not Supported
DATA06
Indication signal type
(Effective only when Select source input type 2 is 02H or 03H)
x0H : NTSC3.58
x1H : NTSC4.43
x2H : PAL
x3H : PAL60
x4H : SECAM
x5H : B/W60
x6H : B/W50
x7H : PALNM
x8H : NTSC3.58 LBX
x9H : NTSC3.58 SQZ
xAH : COMPONENT(60Hz)
xBH : COMPONENT(50Hz)
xCH : Un known
xDH : NTSC
xEH : PAL-M
xFH : PAL-N
FFH : Not Video Input
Other : Not Supported
* "x" means indefinite
DATA07
Picture Mute
00H : OFF
01H : ON
DATA08
Sound Mute(!3)
00H : OFF
01H : ON
DATA09
On-screen mute
00H : OFF
01H : ON
DATA10
Freeze Status(!1)
00H : OFF
01H : ON
DATA11 to DATA16 Reserved
Response: At the time of a failure
A0H BFH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
(!1) Only the NP600/NP610/NP-M350/NP-P420/NP-ME360/NP-UM330/NP-M361
series is compatible.
(!2) Only the NP-M350/NP-P420/NP-ME360/NP-UM330/NP-M361 series is
compatible.
(!3) Only the NP-M420XV, this parameter becomes FFH .
016. ERROR STATUS REQUEST
**********************************************************************
Function:
This command acquires the error information occurring with the
projector.
Command:
00H 88H 00H 00H 00H 88H
Response: At the time of a success
20H 88H 01H xxH 0CH DATA01 to DATA12 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------* A "0" bit means normal and "1" means error.
* "None" means the bit is fixed to "0".
DATA01
Error Status(1)
bit0 : Lamp cover error
bit1 : Temperature error(Bimetal)
bit2 : None
bit3 : Fan error
bit4 : Fan error
bit5 : Power error
bit6 : Lamp(or Lamp1) error
bit7 : Lamp(or Lamp1) has reached its end of life
DATA02
Error Status(2)
bit0 : Lamp(or Lamp1) has been used beyond its limit
bit1 : Formatter error
bit2 : Lamp2 error
bit3 : None
bit4 : None
bit5 : None
bit6 : None
bit7 : None
DATA03
Error Status(3)
bit0 : None
bit1 : FPGA error
bit2 : Temperature error(Sensor)
bit3 : Lamp(or Lamp1) housing error (!)
bit4 : Lamp(or Lamp1) data error (!)
bit5 : Mirror cover error
bit6 : Lamp2 has reached its end of life
bit7 : Lamp2 has been used beyond its limit
DATA04
Error Status(4)
bit0 : Lamp2 housing error
bit1 : Lamp2 data error
bit2 : High temperature due to dust pile-up
bit3 : A foreign object sensor error
bit4 : None
bit5 : Ballast Communication Error
bit6 : Iris Calibration Error
bit7 : None
DATA05 to 12 Reserved
Response: At the time of a failure
A0H 88H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
017. INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the projector information.
Command:
03H 8AH 00H 00H 00H 8DH
Response: At the time of a success
23H 8AH 01H xxH 62H DATA01 to DATA98 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01 to 49 Projector name (NULL termination character string)
DATA50 to 82 Reserved
DATA83 to 86 Lamp Hour Meter (second) (!)
DATA87 to 90 Filter Usage
DATA91 to 94 Panel Usage
(second)
(second)
DATA95 to 98 Projector Usage (second)
Response: At the time of a failure
A3H 8AH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
(!) Lamp Hour Meter
This is the timer for normal lamp mode conversion.
Lamp Timer Acquisition Examples
DATA83 DATA84 DATA85 DATA86 : Lamp Timer
00H
00H
00H
00H : Total 0 seconds
C0H
65H
52H
00H : Total 5400000 seconds = 1500 hours
00H
E4H
57H
00H : Total 5760000 seconds = 1600 hours
* The projector's hours of use is not converted to Normal mode values.
The projector's hours of use is truncated after decimal point.
018. FILTER USAGE INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the information about the projector's filter.
Command:
03H 95H 00H 00H 00H 98H
Response: At the time of a success
23H 95H 01H xxH 08H DATA01 to DATA08 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 04
Filter usage time (second)
DATA05 to 08
Starting time for filter usage warning message (second)(!)
Response: At the time of a failure
A3H 95H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
(!) If the model does not have filter, "-1" will be sent.
019. LAMP INFORMATION REQUEST 3
**********************************************************************
Function:
This command acquires the information on the projector lamp.
Command:
03H 96H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Target
00H : Lamp1
01H : Lamp2
DATA02
Item
00H : Lamp Hour Meter (second)(!3)
01H : Lamp usage time (second)(!4)
04H : lamp remaining amount until lamp warning message
( 100% to -X%(!2) )
05H : Lamp usage time (Normal mode)(second)
06H : Lamp usage time (Eco mode)(second)
07H : Lamp usage time (Eco2 mode)(second)(!5)
08H : Remaining time until lamp warning message starts
to appear (in terms of specified values)
09H : Remaining time until lamp warning message starts
to appear (in terms of Normal mode values)
0AH : Remaining time until lamp warning message starts
to appear (in terms of Eco mode values)
0BH : Remaining time until lamp warning message starts
to appear (in terms of Eco2 mode values)(!5)
10H : Remaining time until inhibition of lamp usage
(in terms of specified values)
11H : Remaining time until inhibition of lamp usage
(in terms of Normal mode values)
12H : Remaining time until inhibition of lamp usage
(in terms of Eco mode values)
13H : Remaining time until inhibition of lamp usage
(in terms of Eco2 mode values)(!5)
14H : Lamp usage time (Auto mode)(second)(!6)
15H : Remaining time until lamp warning message starts
to appear (in terms of Auto mode values)(!6)
16H : Remaining time until inhibition of lamp usage
(in terms of Auto mode values)(!6)
Response: At the time of a success
23H 96H 01H xxH 06H DATA01 to DATA06 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
same values as DATA01 of the command
DATA02
same values as DATA02 of the command
DATA03 to 06
Acquired information(!1)
Response: At the time of a failure
A3H 96H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
* In case of acquiring lamp's use of hours
03H 96H 00H 00H 02H 00H 01H 9CH
Example of acquisition
DATA03 DATA04 DATA05 DATA06 : lamp's use of hours
50H
46H
00H
00H
: 18000 seconds
Lamp Usage = 18000 / 3600 = 5 hour
* In case of acquiring the remaining time until lamp warning
message starts to appear (in terms of specified values)
03H 96H 00H 00H 02H 00H 08H A3H
Example of acquisition
DATA03 DATA04 DATA05 DATA06 : Remaining time
40H
7EH
05H
00H
: 360000 seconds
Remaining time until lamp warning message starts to appear
= 360000/ 3600 = 100 hours
(!1) If "time" is specifed for "Options for acquisition",
values in seconds will be returned.
But, the value to acquire is updated only by the minute unit.
(!2) X = 100 - ((Lamp Use Prohibited Time * 100) / Lamp Use Warning Starting Time)
Example) The case of Lamp Use Prohibited Time 2100[H]
Lamp Use Warning Starting Time 2000[H] Model.
X = 100 - ((2100 * 100) / 2000) = -5[%]
(!3) Lamp Hour Meter
This is the timer for normal lamp mode conversion.
(!4) Lamp usage time
This is the lamp total usage. It is displayed in the projector's menu.
(!5) Only the NP-M300X and NP-M260X are compatible.
(!6) Only the NP-M350/NP-P420/NP-UM330/NP-M361 series is compatible.
020. TEMP INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the information about temperature inside
the projector.
Command
03H 99H 00H 00H 01H DATA01 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Target sensor
00H : Intake (outside air) temperature
01H : Exhaust (Lamp) temperature
Response: At the time of a success
23H 99H 01H xxH 05H DATA01 to DATA05 CKS
(*1) (*2)
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Setting Items
( Same as DATA01 of the transmit data )
DATA02 to 05
Temperature information
(long type unit: 0.1 degree Celsius/32.18 degrees
Fahrenheit: 0 degree Celsius/32 degrees Fahrenheit
or less will be returned as 0 degree Celsius/32
degrees Fahrenheit)
Response: At the time of a failure
A3H 99H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
Example for Temp
DATA02 DATA03 DATA04 DATA05
CBH
01H
00H
00H
: 45.9 degrees Celsius/
114.6 degrees Fahrenheit
021. REMOTE KEY CODE
**********************************************************************
Function:
This command sends remote control key codes of projector.
Command:
02H 0FH 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01 to 02 Remote control key code (Word type)
Key number DATA01 DATA02
Key name
-------------------------------------------1
01H
00H
POWER(!1)
2
02H
00H
POWER ON(!1)
3
03H
00H
POWER OFF(!1)
4
04H
00H
SOURCE (AUTO)(!1)
5
05H
00H
AUTO
6
06H
00H
MENU
7
07H
00H
UP
8
08H
00H
DOWN
9
09H
00H
RIGHT
10
0AH
00H
LEFT
11
0BH
00H
ENTER
12
0CH
00H
CANCEL
13
0DH
00H
HELP
15
0FH
00H
MAGNIFY UP(!1)
16
10H
00H
MAGNIFY DOWN(!1)
19
13H
00H
MUTE(!1)
22
16H
00H
ZOOM UP(!2)
23
17H
00H
ZOOM DOWN(!2)
41
29H
00H
PICTURE(!1)
59
3BH
00H
KEYSTONE(!1)
75
4BH
00H
COMPUTER1(*5)(!1)
76
4CH
00H
COMPUTER2(*5)(!1)
79
4FH
00H
VIDEO1(!1)
81
51H
00H
S-VIDEO1(!1)
132
84H
00H
VOLUME UP(!1)
133
85H
00H
VOLUME DOWN(!1)
134
86H
00H
KEYSTONE UP(!1)
135
87H
00H
KEYSTONE DOWN(!1)
138
8AH
00H
FREEZE(!1)
163
A3H
00H
ASPECT(!1)
200
C8H
00H
ZOOM(!2)
215
D7H
00H
SEQSOURCE(source select)(!1)(!3)
232
E8H
00H
D ZOOM UP(WT)(!2)
233
E9H
00H
D ZOOM DOWN(WT)(!2)
238
EEH
00H
LAMP MODE(ECO)
263
07H
01H
CD_FOCUS_ZOOM(!2)
Response: At the time of a success
22H 0FH 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Results
00H : Normal
FFH : Error
Response: At the time of a failure
A2H 0FH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Example:
Example for acquiring AUTO key code
02H 0FH 00H 00H 02H 05H 00H 18H
Supplement:
(!1) Only the NP600/NP610/NP3200/NP-M350/NP-P420/NP-ME360/NP-UM330/NPM361 series is compatible.
(!2) Only the NP600S/NP500WS/NP610S/NP510WS is compatible.NP-ME360 series is
compatible.
(!3) For NP-M350/NP-P420/NP-ME360/NP-UM330/NP-M361 series only,
SEQSOURCE(source select) acts as same as SOURCE (AUTO).
022. FREEZE CONTROL
**********************************************************************
Function:
This command controls the freeze.
Command:
01H 98H 00H 00H 01H DATA01 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Target
01H : Freeze ON
02H : Freeze OFF
Response: At the time of a success
21H 98H 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Results
00H : Normal
01H : Error
Response: At the time of a failure
A1H 98H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
023. ORIENTATION SET
**********************************************************************
Function:
This command sets the orientation of projector.
Command:
03H B1H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
0AH fixed
DATA02
Setting Value
00H : Desktop Front
01H : Ceiling Rear
02H : Desktop Rear
03H : Ceiling Front
Response: At the time of a success
23H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
0AH fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
024. AUTO ADJUST EXECUTE2
**********************************************************************
Function:
This command executes the Auto Adjust.
Command:
03H BAH 00H 00H 01H 00H BEH
Response: At the time of a success
23H BAH 01H xxH 01H 00H CKS
(*1) (*2)
(*3)
Response: At the time of a failure
A3H BAH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
025. RUNNING SENSE
**********************************************************************
Function:
This command acquires the operation mode of the projector.
Command:
00H 81H 00H 00H 00H 81H
Response: At the time of a success
20H 81H 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Status of operation
Bit 7 : Power On/Off processing
0 = No execution(Normal condition)
1 = During execution
Bit 6 : Selecting signal processing
0 = No execution(Normal condition)
1 = During execution
Bit 5 : Cooling processing
0 = No execution(Normal condition)
1 = During execution
Bit 4 : Reserved
Bit 3 : No power-off period
0 = Power-off possible (Normal condition)
1 = Power-off Impossible
Bit 2 : Reserved
Bit 1 : Projector status
0 = Idling
1 = Power On
Bit 0 : Reserved
Response: At the time of a failure
A0H 81H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
026. COMMON DATA REQUEST
**********************************************************************
Function:
This command acquisition of the detailed conditions of the projector.
Command:
00H C0H 00H 00H 00H C0H
Response: At the time of a success
20H C0H 01H xxH 80H DATA01 to DATA128 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
Projector type
See DATA70 to 71
DATA02
Control ID
1 to 254
FFH : Not Support
DATA03
Reserved
DATA04
Projector status
00H : Idling
01H : Power On
FFH : Not Support
DATA05
Cooling processing
00H : No execution(Normal condition)
01H : During execution
FFH : Not Support
DATA06
Indication signal number(Entry list number - 1)
FFH : Not Support
DATA07
Type 1 of input terminal to be selected (!1)
01H : 1
02H : 2
03H : 3
04H : 4
05H : 5
FFH : Not Support
DATA08
Type 2 of input terminal to be selected (!1)
01H : COMPUTER (*5)
02H : VIDEO
03H : S-VIDEO
04H : COMPONENT
05H : Reserved
06H : DIGITAL
07H : VIEWER
08H : SLOT1
09H : SLOT2
FFH : Not Support
DATA09
Indication signal type
* Valid only when Type 2 of input terminal is 02H or 03H
x0H : NTSC3.58
x1H : NTSC4.43
x2H : PAL
x3H : PAL60
x4H : SECAM
x5H : B/W60
x6H : B/W50
x7H : PALNM
x8H : NTSC3.58 LBX
x9H : NTSC3.58 SQZ
xDH : NTSC
xEH : PAL-M
xFH : PAL-N
* x: undefined
DATA10 to 12
Reserved (undefined)
DATA13 to 20
Horizontal frequency of the indication signal(string)
( "000" kHz + NULL(0)+ NULL(0))
All NULL(0) : Not Support
DATA21 to 28
Vertical frequency of the indication signal(string)
( "000" Hz + NULL(0)+ NULL(0))
All NULL(0) : Not Support
DATA29
Picture mute
00H : OFF
01H : ON
FFH : Not Support
DATA30
Sound mute
00H : OFF
01H : ON
FFH : Not Support
DATA31
Reserved
DATA32
Freeze Status(!2)
00H : OFF
01H : ON
FFH : Not Support
DATA33 to 34
Test pattern display
DATA33 : Test pattern display 1
00H : No display(Normal condition)
DATA34 : Test pattern display 2
Bit 2 : BLUE pattern
FFH = No display
Bit 1 : GREEN pattern
FFH = No display
Bit 0 : RED pattern
FFH = No display
DATA35 to 50
Reserved
DATA51 to 65
User registration name ( 14 characters + NULL )
All NULL(0) : Not Support
DATA66
Forced On-screen mute
FFH : Not Support
DATA67
On-screen display
FFH : Not Support
DATA68
Selecting signal processing
00H : No execution(Normal condition)
01H : During execution
DATA69
Status of operation
00H : Idling
04H : Power On
05H : Cooling
06H : Idling(Error occurrence)
FFH : Not Support
Other than above : (nondisclosure)
internal use of code during a state transition period
DATA70 to 71
Projector type
--------++--------+--------+-----------------DATA01 || DATA70 | DATA71 |
--------++--------+--------+-----------------03H || 00H | 06H | VT80 series
03H || 00H | 07H | VT90 series
10H || 00H | 08H | VT700 series
10H || 00H | 09H | NP600
10H || 01H | 09H | NP500
10H || 02H | 09H | NP500W
10H || 03H | 09H | NP400
10H || 04H | 09H | NP300
10H || 09H | 09H | NP600S
10H || 0AH | 09H | NP500WS
10H || 00H | 10H | NP610
10H || 01H | 10H | NP510
10H || 02H | 10H | NP510W
10H || 03H | 10H | NP410
10H || 04H | 10H | NP405
10H || 05H | 10H | NP310
10H || 06H | 10H | NP305
10H || 07H | 10H | NP610S
10H || 08H | 10H | NP610WS
10H || 09H | 10H | NP410W
10H || 00H | 11H | NP3200
10H || 01H | 11H | NP2200
10H || 02H | 11H | NP1200
13H || 00H | 10H | NP-M350X
13H || 01H | 10H | NP-M300X
13H || 02H | 10H | NP-M300W
13H || 03H | 10H | NP-M300XS
13H || 04H | 10H | NP-M300WS
13H || 05H | 10H | NP-M260X
13H || 06H | 10H | NP-M260W
13H || 07H | 10H | NP-M260XS
13H || 08H | 10H | NP-M260WS
13H || 09H | 10H | NP-M230X
13H || 0AH | 10H | NP-M420X
13H || 0BH |
10H | NP-M420XV
13H || 0CH | 10H | NP-M350XS
10H || 00H | 12H | NP420
10H || 01H | 12H | NP430
10H || 02H | 12H | NP530
10H || 03H | 12H | NP630
10H || 00H | 13H | NP-ME360X
10H || 01H | 13H | NP-ME310X
10H || 02H | 13H | NP-ME270X
13H || 00H | 11H | NP-P420X
13H || 01H | 11H | NP-P350X
13H || 02H | 11H | NP-P350W
13H || 00H | 12H | NP-UM330X
13H || 01H | 12H | NP-UM280X
13H || 02H | 12H | NP-UM280W
13H || 03H | 12H | NP-UM330W
13H || 00H | 13H | NP-M361X
13H || 01H | 13H | NP-M311W
13H || 02H | 13H | NP-M271X
13H || 03H | 13H | NP-M311X
13H || 04H | 13H | NP-M271W
DATA72
PC Card insertion
FFH : Not Support
DATA73
USB Mouse connection
FFH : Not Support
DATA74
Entry list type
FFH : Not Support
DATA75 to 82
DATA83
Reserved
On-screen mute
FFH : Not Support
DATA84
Reserved
DATA85
Indicate Contents
00H : Picture signal displaying
01H : No Signal
02H : Viewr displaying
03H : Test pattern displaying
04H : LAN displaying
10H : Signal selection in progress
FFH : Not Support
DATA86 to 128
Reserved
Response: At the time of a failure
A0H C0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Supplement:
(*4)
(*3)
(!1)
VT700/NP600/NP610 series
+-------------------------+-----------+----------------+
| Selected input terminal | DATA07 |
DATA08
|
+-------------------------+-----------+----------------+
| Computer1
| 1 (01H) | COMPUTER (01H)|
| Computer2(Analog)
| Computer2(Digital)
| Video
| S-Video
| 2 (02H) | COMPUTER (01H)|
| 1 (01H) | COMPUTER (06H)|
| 1 (01H) | VIDEO
(02H)|
| 1 (01H) | S-VIDEO (03H)|
+-------------------------+-----------+----------------+
NP-M350/NP-P420/NP-M361 series
+-------------------------+-----------+----------------+
| Selected input terminal | DATA07 |
DATA08
|
+-------------------------+-----------+----------------+
| Computer1
| 1 (01H) | COMPUTER (01H) |
| Computer2
| 2 (02H) | COMPUTER (01H) |
| HDMI
| 1 (01H) | COMPUTER (06H) |
| Video
| 1 (01H) | VIDEO
| S-Video
| Viewer
| Network
| USB Display
(02H) |
| 1 (01H) | S-VIDEO (03H) |
| 1 (01H) | VIEWER (07H) |
| 2 (02H) | VIEWER (07H) |
| 4 (04H) | VIEWER (07H) |
+-------------------------+-----------+----------------+
NP-ME360 series
+-------------------------+-----------+----------------+
| Selected input terminal | DATA07 |
DATA08
|
+-------------------------+-----------+----------------+
| Computer1
| 1 (01H) | COMPUTER (01H) |
| Computer2
| 2 (02H) | COMPUTER (01H) |
| Video
| 1 (01H) | VIDEO
(02H) |
+-------------------------+-----------+----------------+
NP-UM330 series
+-------------------------+-----------+----------------+
| Selected input terminal | DATA07 |
DATA08
|
+-------------------------+-----------+----------------+
| Computer
| 1 (01H) | COMPUTER (01H) |
| HDMI1
| 1 (01H) | DIGITAL (06H) |
| HDMI2
| 2 (02H) | DIGITAL (06H) |
| Video
| 1 (01H) | VIDEO
| S-Video
(02H) |
| 1 (01H) | S-VIDEO (03H) |
| Viewer
| 1 (01H) | VIEWER (07H) |
| Network
| 2 (02H) | VIEWER (07H) |
| USB Display
| 4 (04H) | VIEWER (07H) |
+-------------------------+-----------+----------------+
Supplement:
(!2) Only the NP600/NP610/NP3200/NP-M350/NP-P420/NP-ME360/NP-UM330/NPM361 series is compatible.
027. PICTURE ADJUST
**********************************************************************
Function:
This command adjusts the Picture.
Command:
03H 10H 00H 00H 05H DATA01 to DATA05 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Adjustment items
00H : Brightness
01H : Contrast
02H : Color
03H : Hue
04H : Sharpness
DATA02
FFH fixed
DATA03
Adjustment mode
00H : Absolute value specification
01H : Relative value specification
DATA04
Adjustment value ( Lower ranking 8 bits )
DATA05
Adjustment value ( Upper ranking 8 bits )
Response: At the time of a success
23H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 02 Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
Command example:
* Setting Brightness to 10
03H 10H 00H 00H 05H 00H FFH 00H 0AH 00H 21H
* Setting Brightness to -10
03H 10H 00H 00H 05H 00H FFH 00H F6H FFH 0CH
028. KEYSTONE ADJUST
**********************************************************************
Function:
This command adjusts the Keystone.
Command:
03H 10H 00H 00H 05H 15H 01H DATA03 to DATA05 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
15H fixed
DATA02
01H fixed
DATA03
Adjustment mode
00H : Absolute value specification
01H : Relative value specification
DATA04
Adjustment value ( Lower ranking 8 bits )
DATA05
Adjustment value ( Upper ranking 8 bits )
Response: At the time of a success
23H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 02
Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
Supplement:
Command example:
* Setting Keystone to 10
(*3)
03H 10H 00H 00H 05H 15H 01H 00H 0AH 00H 38H
* Setting Keystone to -10
03H 10H 00H 00H 05H 15H 01H 00H F6H FFH 23H
029. IMAGE MODE ADJUST
**********************************************************************
Function:
This command adjusts the Image Mode.
Command:
03H 10H 00H 00H 05H DATA01 to DATA05 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02 Adjustment items
+--------+--------+---------------------------+
| DATA01 | DATA02 | Adjustment items
|
+--------+--------+---------------------------+
|
18H | 00H | Aspect Ratio
|
+--------+--------+---------------------------+
DATA03
Adjustment mode
00H fixed(Only absolute value specification)
DATA04
Adjustment value (Lower ranking 8 bits)
DATA05
Adjustment value (Upper ranking 8 bits)
Response: At the time of a success
23H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
-----------------------------------------------------------------
DATA01 to 02
Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
Command example:
* Setting the Aspect Ratio to Wide Zoom
03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H
Adjustment items Adjustment value
Aspect Ratio
0000H : Normal / Auto
0001H : Wide Zoom
0002H : Cinema / 16:9
0003H : Native
0004H : 4:3
0005H : 15:9
0006H : 16:10
0007H : Letter Box
030. LAMP INFORMATION REQUEST 2
**********************************************************************
Function:
This command acquires lamp remaining amount.
Command:
03H 94H 00H 00H 00H 97H
Response: At the time of a success
23H 94H 01H xxH 05H DATA01 to DATA05 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 04
DATA05
Reserved
lamp remaining amount (100% to -X%)(!1)
Response: At the time of a failure
A3H 94H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
(!1) X = 100 - ((Lamp Use Prohibited Time * 100) / Lamp Use Warning Starting Time)
Example) The case of Lamp Use Prohibited Time 2100[H]
Lamp Use Warning Starting Time 2000[H] Model.
X = 100 - ((2100 * 100) / 2000) = -5[%]
031. GAIN PARAMETER REQUEST 2
**********************************************************************
Function:
This command acquires the adjustment values.
Command:
03H 04H 00H 00H 03H DATA01 to DATA03 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01 to 02
DATA03
Acquirement items (!)
00H fixed
Response: At the time of a success
23H 04H 01H xxH 0DH DATA01 to DATA13 CKS
(*1) (*2)
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Adjustment status
00H : Displaying impossible
01H : Adjustment impossible
02H : Adjustment possible
FFH : Selected gain is not available.
DATA02
Maximum adjustment value (Lower ranking 8 bits)
DATA03
Maximum adjustment value (Upper ranking 8 bits)
DATA04
Minimum adjustment value (Lower ranking 8 bits)
DATA05
Minimum adjustment value (Upper ranking 8 bits)
DATA06
Default adjustment value (Lower ranking 8 bits)
DATA07
Default adjustment value (Upper ranking 8 bits)
DATA08
Current value (Lower ranking 8 bits)
DATA09
Current value (Upper ranking 8 bits)
DATA10 to 13
Reserved
Response: At the time of a failure
A3H 04H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
(!1) See the "Acquirement items" for further information about Acquirement items.
[Acquirement items]
+--------+--------+--------------------------------------+
| DATA01 | DATA02 | Acquirement name
|
+--------+--------+--------------------------------------+
|
00H | 00H | Picture / Brightness
|
|
01H | 00H | Picture / Contrast
|
02H | 00H | Picture / Color
|
|
03H | 00H | Picture / Hue
|
|
04H | 00H | Picture / Sharpness
|
05H | 00H | Volume
|
|
|
|
05H | 01H | Sound / Bass
|
|
05H | 02H | Sound / Treble
|
05H | 03H | Sound / Balance
|
15H | 01H | Keystone V
|
18H | 00H | Aspect Ratio / Input Signal
|
62H | 00H | Digital Zoom / Zoom
|
97H | 00H | Wall Color
|
9FH | 00H | Dynamic Contrast
|
|
|
|
|(!1)
|
|(!2)
+--------+--------+--------------------------------------+
Command example:
In case of acquiring Picture Brightness.
03H 04H 00H 00H 03H 00H 00H 00H 0AH
(!1) Only the NP600S/NP500WS/NP610S/NP510WS is compatible. NP-ME360 series is
compatible.
(!2) Only the NP-M350/NP-P420/NP-ME360/NP-UM330/NP-M361 series,
NP410/NP310 is compatible.
032. SETTING REQUEST
**********************************************************************
Function:
This command acquires the function information of projector.
Command:
00H 85H 00H 00H 01H 00H 86H
Response: At the time of a success
20H 85H 01H xxH 20H DATA01 to DATA32 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 03
Projector type
--------++--------+--------+-----------------DATA01 || DATA02 | DATA03 |
--------++--------+--------+-----------------03H || 00H | 06H | VT80 series
03H || 00H | 07H | VT90 series
10H || 00H | 08H | VT700 series
10H || 00H | 09H | NP600
10H || 01H | 09H | NP500
10H || 02H | 09H | NP500W
10H || 03H | 09H | NP400
10H || 04H | 09H | NP300
10H || 09H | 09H | NP600S
10H || 0AH | 09H | NP500WS
10H || 00H | 10H | NP610
10H || 01H | 10H | NP510
10H || 02H | 10H | NP510W
10H || 03H | 10H | NP410
10H || 04H | 10H | NP405
10H || 05H | 10H | NP310
10H || 06H | 10H | NP305
10H || 07H | 10H | NP610S
10H || 08H | 10H | NP610WS
10H || 09H | 10H | NP410W
10H || 00H | 11H | NP3200
10H || 01H | 11H | NP2200
10H || 02H | 11H | NP1200
13H || 00H | 10H | NP-M350X
13H || 01H | 10H | NP-M300X
13H || 02H | 10H | NP-M300W
13H || 03H | 10H | NP-M300XS
13H || 04H | 10H | NP-M300WS
13H || 05H | 10H | NP-M260X
13H || 06H | 10H | NP-M260W
13H || 07H | 10H | NP-M260XS
13H || 08H | 10H | NP-M260WS
13H || 09H | 10H | NP-M230X
13H || 0AH | 10H | NP-M420X
13H || 0BH |
10H | NP-M420XV
13H || 0CH | 10H | NP-M350XS
10H || 00H | 12H | NP420
10H || 01H | 12H | NP430
10H || 02H | 12H | NP530
10H || 03H | 12H | NP630
10H || 00H | 13H | NP-ME360X
10H || 01H | 13H | NP-ME310X
10H || 02H | 13H | NP-ME270X
13H || 00H | 11H | NP-P420X
13H || 01H | 11H | NP-P350X
13H || 02H | 11H | NP-P350W
13H || 00H | 12H | NP-UM330X
13H || 01H | 12H | NP-UM280X
13H || 02H | 12H | NP-UM280W
13H || 03H | 12H | NP-UM330W
13H || 00H | 13H | NP-M361X
13H || 01H | 13H | NP-M311W
13H || 02H | 13H | NP-M271X
13H || 03H | 13H | NP-M311X
13H || 04H | 13H | NP-M271W
--------++--------+--------+-----------------DATA04
Sound function
00H : Not available
01H : Available
DATA05
Calender function
00H
: No function
01H or 03H : Timer function, sleep timer function
function
02H
DATA06 to 32
: Sleep timer function
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
033. RUNNING STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of the projector operation.
Command:
00H 85H 00H 00H 01H 01H 87H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 to DATA16 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 02
DATA03
Reserved
Projector status
00H : Idling
01H : Power On
FFH : Not Support
DATA04
Cooling processing
00H : No execution(Normal condition)
01H : During execution
FFH : Not Support
DATA05
Power On/Off processing
00H = No execution(Normal condition)
01H = During execution
FFH : Not Support
DATA06
Status of operation
00H : Idling
04H : Power On
05H : Cooling
06H : Idling(Error occurrence)
0FH : Power-Saving(!1)
FFH : Not Support
Other than above : (nondisclosure)
internal use of code during a state transition period
DATA07
PC Card insertion
FFH : Not Support
DATA08
USB Mouse connection
FFH : Not Support
DATA09 to 16
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
(!1) Only the NP-M350/NP-P420/NP-UM330/NP-M361 series is compatible.
034. INPUT STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of input signal of the projector.
Command:
00H 85H 00H 00H 01H 02H 88H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 to DATA16 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
Selecting signal processing
00H : No execution(Normal condition)
01H : During execution
FFH : Not Support
DATA02
Signal number(Entry list number - 1)
FFH : Not Support
DATA03 to 04
Selected input terminal
+---------------------+--------+--------+
| Terminal name
| DATA03 | DATA04 |
+---------------------+--------+--------+
| Computer1
| 01H | 01H |
| Computer2(Analog) |
02H |
01H |
| Computer2(Digital) | 01H | 06H |
| HDMI/HDMI1
| 01H | 06H |
| HDMI2
| Video
| 02H | 06H |
| 01H | 02H |
| S-Video
| Viewer
|
01H |
03H |
| 01H | 07H |
| Network
| 02H | 07H |
| USB Display
| 04H | 07H |
+---------------------+--------+--------+
DATA05
Entry list type
FFH : Not Support
DATA06
Test pattern display
00H : No display(Normal condition)
01H : Displaying
FFH : Not Support
DATA07 to 08
DATA09
Reserved
Indicate Contents
00H : Picture signal displaying
01H : No signal
02H : Viewr displaying
03H : Test pattern displaying
04H : LAN displaying
FFH : Not Support
DATA10 to 16
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
035. MUTE STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of the mute of projector.
Command:
00H 85H 00H 00H 01H 03H 89H
Response: At the time of a success
20H 85H 01H xxH 10H DATA01 to DATA16 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
Picture mute
00H : OFF
01H : ON
FFH : Not Support
DATA02
Sound mute
00H : OFF
01H : ON
FFH : Not Support
DATA03
On-screen mute
FFH : Not Support
DATA04
Forced on-screen mute
FFH : Not Support
DATA05
On-screen display
FFH : Not Support
DATA06 to 16
Reserved
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
036. MODEL NAME REQUEST
**********************************************************************
Function:
This command acquires the model name of the projector.
Command:
00H 85H 00H 00H 01H 04H 8AH
Response: At the time of a success
20H 85H 01H xxH 20H DATA01 to DATA32 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 32
Model name (NULL termination character string)
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
037. INFORMATION STRING REQUEST
**********************************************************************
Function:
This command acquires information character string displayed from
projector.
Command:
00H D0H 00H 00H 03H DATA01 to DATA03 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Resource language selection
00H : English fixed
DATA02
Classification by information type (!1)
DATA03
Selection for character string to be acquired
01H : Acquisition of information character string
Response: At the time of a success
20H D0H 01H xxH ??H DATA01 to DATA?? CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
Classification by information type (!1)
( Same as DATA02 of the transmit data )
DATA02
Character string types
( Same as DATA03 of the transmit data )
DATA03
String length of label / information
( not including NULL character )
DATA04 to DATAxx Character string of label / information
( NULL termination character string )
Response: At the time of a failure
A0H D0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
(!1)Information
type Number Title
Description
-----------------------------------------------------------------
3 (03H)
Horizontal Frequency
4 (04H)
Vertical Frequency
038. LAMP MODE REQUEST
**********************************************************************
Function:
This command acquires the setting of the lamp mode of projector.
Command:
03H B0H 00H 00H 01H 07H BBH
Response: At the time of a success
23H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
07H fixed
DATA02
Setting Value
+--------------+--------+--------+--------+------------+
|Setting Value | (1) | (2) | (3) |
(4)
|
+--------------+--------+--------+--------+------------+
|
00H | Normal l Off | Off | Off
|
01H | Eco | Auto | Auto | Auto Eco |
|
02H | x
| Eco1 | Eco1 | Normal |
|
03H | x
| x
| Eco2 | Eco
|
|
+--------------+--------+--------+--------+------------+
x : Not supported
(1) VT60 series, VT70 series, VT80 series, VT90 series, VT700 series, LT170,
NP600 series , NP610, NP-ME360X series and NP3200 series.
(2) NP-M230X, NP-M350X, NP-M260W and NP-M300W.
(3) NP-M300X and NP-260X.
(4) NP-UM330/NP-M361 series
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
039. LAMP MODE SET
**********************************************************************
Function:
This command sets the lamp mode of projector.
Command:
03H B1H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
07H fixed
DATA02
Setting Value
+--------------+--------+--------+--------+------------+
|Setting Value | (1) | (2) | (3) |
(4)
|
+--------------+--------+--------+--------+------------+
|
00H | Normal l Off | Off | Off
|
01H | Eco | Auto | Auto | Auto Eco |
|
02H | x
| Eco1 | Eco1 | Normal |
|
03H | x
| x
| Eco2 | Eco
|
|
+--------------+--------+--------+--------+------------+
x : Not supported
(1) VT60 series, VT70 series, VT80 series, VT90 series, VT700 series, LT170,
NP600 series , NP610, NP-ME360X series and NP3200 series.
(2) NP-M230X, NP-M350X, NP-M260W and NP-M300W.
(3) NP-M300X and NP-260X.
(4) NP-UM330/NP-M361 series
Response: At the time of a success
23H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
07H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
040. POWER MANAGEMENT SET
**********************************************************************
Function:
This command sets the power management(!1) of projector.
Command:
03H B1H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
17H fixed
DATA02
Setting Value
00H : OFF
01H : 0:05
02H : 0:10
03H : 0:20
04H : 0:30
Response: At the time of a success
23H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
17H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
(!1) After the NP600 series, "PowerManagement" has been changed to "Auto Power
Off".
041. KEYSTONE SELECT SET
**********************************************************************
Function:
This command sets the Keystone Select.
Command:
03H B1H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
93H fixed
DATA02
Setting Value
00H : Auto
01H : Manual
Response: At the time of a success
23H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
93H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
042. OTHER ADJUST
**********************************************************************
Function:
This command adjusts the various gains.
Command:
03H 10H 00H 00H 05H DATA01 to DATA05 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Target gain
53H : Picture Management
53H : Preset
(!1)
(!2)
62H : Digital Zoom / Zoom
(!3)
97H : Wall Color
9FH : Dynamic Contrast
(!4)
DATA02
FFH fixed
DATA03
Adjustment mode specification
00H fixed(Only absolute value specification)
DATA04
Adjustment value (Lower ranking 8 bits)
DATA05
Adjustment value (Upper ranking 8 bits)
Response: At the time of a success
23H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01 to 02
Results
0000H : Normal
0000H Other : Error
Response: At the time of a failure
A3H 10H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
Command example:
Target gain
Adjustment value
-----------------------------------
Picture Management 0000H : Presentation
0001H : sRGB
0002H : Graphic
0003H : Video
0004H : Movie
0005H : User
Preset
0000H : Preset1
0001H : Preset2
0002H : Preset3
0003H : Preset4
0004H : Preset5
0005H : Preset6
Digital Zoom
Wall Color
0000H : Zoom
0000H : Off
0001H : Light blue
0002H : Pink
0003H : Light rose
0004H : Light yellow
0005H : Light green
0006H : Sky blue
0007H : Blackboard
0008H : Blackboard(Gray)
0009H : Whiteboard
(!1) Only the LT170/VT60/VT70/NP-ME360 series is compatible.
(!2) Only the VT80/VT90/VT700/NP600/NP610/NP3200/NP-M350/NP-P420/NPME360/NP-UM330/NP-M361 series is compatible.
(!3) Only the NP600S/NP500WS/NP610S/NP510WS is compatible.
(!4) Only the NP-M350/NP-P420/NP-ME360/NP-UM330/NP-M361 series,
NP410/NP310 is compatible.
043. SET PROJECTOR NAME
**********************************************************************
Function:
This command sets projector name.
Command:
03H 8BH 00H 00H 32H 00H DATA01 to DATA49 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01 to 16
Projector name (NULL termination character string)
DATA17 to 49
Reserved
Response: At the time of a success
23H 8BH 01H xxH 02H 00H DATA01 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
Results
00H : Normal
01H : Error
02H : Error( Length over )
Response: At the time of a failure
A3H 8BH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
044. CLOSED CAPTION REQUEST
**********************************************************************
Function:
This command acquires the setting of the closed caption of projector.
Command:
03H B0H 00H 00H 01H 09H BDH
Response: At the time of a success
23H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
DATA02
09H fixed
Setting Value
00H : OFF
01H : Caption 1
02H : Caption 2
03H : Caption 3
04H : Caption 4
05H : Text 1
06H : Text 2
07H : Text 3
08H : Text 4
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
045. FAN MODE REQUEST
**********************************************************************
Function:
This command acquires the setting of the fan mode of projector.
Command:
03H B0H 00H 00H 01H 1AH CEH
Response: At the time of a success
23H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
DATA02
1AH fixed
Setting Value
00H : AUTO
01H : HIGH SPEED
02H : HIGH ALTITUDE
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
046. WXGA MODE SETTING REQUEST
**********************************************************************
Function:
This command acquires the setting of the WXGA Mode of projector.
Command:
03H B0H 00H 00H 01H C3H 77H
Response: At the time of a success
23H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
C3H fixed
DATA02
Setting Value
00H : OFF
01H : ON
Response: At the time of a failure
A3H B0H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
047. CLOSED CAPTION SET
**********************************************************************
Function:
This command sets the closed caption of projector.
Command:
03H B1H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
09H fixed
DATA02
Setting Value
00H : OFF
01H : Caption 1
02H : Caption 2
03H : Caption 3
04H : Caption 4
05H : Text 1
06H : Text 2
07H : Text 3
08H : Text 4
Response: At the time of a success
23H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
09H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
048. FAN MODE SET
**********************************************************************
Function:
This command sets the fan mode of projector.
Command:
03H B1H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
1AH fixed
DATA02
Setting Value
00H : AUTO
01H : HIGH SPEED
02H : HIGH ALTITUDE
Response: At the time of a success
23H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
1AH fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
049. WXGA MODE SETTING SET
**********************************************************************
Function:
This command sets the WXGA Mode of projector.
Command:
03H B1H 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
C3H fixed
DATA02
Setting Value
00H : OFF
01H : ON
Response: At the time of a success
23H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
C3H fixed
DATA02
Results
00H : Normal
01H : Error
Response: At the time of a failure
A3H B1H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
050. LAMP INFORMATION REQUEST 4
**********************************************************************
Function:
This command acquires the information on the projector lamp.
Command:
03H 9BH 00H 00H 03H DATA01 DATA02 DATA03 CKS
(*3)
Data Portion
Contents
----------------------------------------------------------------DATA01
Target
00H : Lamp1
01H : Lamp2
DATA02
Unit(!4)
00H : Second
01H : Reserved
02H : Hour
DATA03
Item
00H : Lamp Hour Meter (second)(!2)
01H : Lamp usage time (second)(!3)
04H : lamp remaining amount until lamp warning message
( 100% to -X%(!1) )
05H : Lamp usage time (Normal mode)(second)
06H : Lamp usage time (Eco mode)(second)
07H : Lamp usage time (Eco2 mode)(second)(!5)
08H : Remaining time until lamp warning message starts
to appear (in terms of specified values)
09H : Remaining time until lamp warning message starts
to appear (in terms of Normal mode values)
0AH : Remaining time until lamp warning message starts
to appear (in terms of Eco mode values)
0BH : Remaining time until lamp warning message starts
to appear (in terms of Eco2 mode values)(!5)
10H : Remaining time until inhibition of lamp usage
(in terms of specified values)
11H : Remaining time until inhibition of lamp usage
(in terms of Normal mode values)
12H : Remaining time until inhibition of lamp usage
(in terms of Eco mode values)
13H : Remaining time until inhibition of lamp usage
(in terms of Eco2 mode values)(!5)
14H : Lamp usage time (Auto mode)(second)(!6)
15H : Remaining time until lamp warning message starts
to appear (in terms of Auto mode values)(!6)
16H : Remaining time until inhibition of lamp usage
(in terms of Auto mode values)(!6)
Response: At the time of a success
23H 9BH 01H xxH 07H DATA01 to DATA07 CKS
(*1) (*2)
Data Portion
(*3)
Contents
----------------------------------------------------------------DATA01
same values as DATA01 of the command
DATA02
same values as DATA02 of the command
DATA03
same values as DATA03 of the command
DATA04 to 07
Acquired information
Response: At the time of a failure
A3H 9BH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
* In case of acquiring lamp's use of hours
03H 9BH 00H 00H 03H 00H 00H 01H CKS
Example of acquisition
DATA04 DATA05 DATA06 DATA07 : lamp's use of hours
50H
46H
00H
00H
: 18000 seconds
Lamp Usage = 18000 / 3600 = 5 hour
(!1) X = 100 - ((Lamp Use Prohibited Time * 100) / Lamp Use Warning Starting Time)
Example) The case of Lamp Use Prohibited Time 2100[H]
Lamp Use Warning Starting Time 2000[H] Model.
X = 100 - ((2100 * 100) / 2000) = -5[%]
(!2) Lamp Hour Meter
This is the timer for normal lamp mode conversion.
(!3) Lamp usage time
This is the lamp total usage. It is displayed in the projector's menu.
(!4) This setting is ignored, if the Item's unit is not time.
(!5) Only the NP-M300X and NP-260X are compatible.
(!6) Only the NP-M350/NP-P420/NP-UM330/NP-M361 series is compatible.
051. CARBON SAVINGS INFORMATION REQUEST
**********************************************************************
Function:
This command acquires the Carbon Saving values on the projector.
Command:
03H 9AH 00H 00H 01H DATA01 CKS
(*3)
Data Portion
Contents
------------------------------------------------------------------DATA01
Acquirement items
00H : Total Carbon Savings
01H : Carbon Savings during operation
Response: At the time of a success
23H 9AH 01H xxH 09H DATA01 to DATA09 CKS
(*1) (*2)
Data Portion
(*3)
Contents
-------------------------------------------------------------------
DATA01
Same as DATA01 of the transmit data
DATA02 to 05
Carbon Savings (Kilogram Maximum: 99999[kg])
DATA06 to 09
Carbon Savings (Milligram Maximum:999999[mg])
Response: At the time of a failure
A3H 9AH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
Supplement:
Example for Total Carbon Savings
DATA02 DATA03 DATA04 DATA05 : Kilogram
9CH
09H
00H
00H : 2460 [kg]
DATA06 DATA07 DATA08 DATA09 : Milligram
06H
F9H
00H
00H : 63750 [mg]
Total Carbon Savings
= (2460 * 1000) + (63750 / 1000) = 2460063.75 [g]
= 2460 + (63750 / 1000 / 1000) = 2460.06375 [kg]
052. MIRROR COVER STATUS REQUEST
**********************************************************************
Function:
This command acquires the status of the mirror or lens cover of projector.
Command:
00H 85H 00H 00H 01H 05H 8BH
Response: At the time of a success
20H 85H 01H xxH 01H DATA01 CKS
(*1) (*2)
(*3)
Data Portion Contents
------------------------------------------------------------------DATA01
Mirror cover
00H : Normal
01H : Mirror or Lens Cover Close
Response: At the time of a failure
A0H 85H 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
053. VERSION INFORMATION REQUEST
**********************************************************************
Function:
This command acquires imformations of projector.
Command:
00H BFH 00H 00H 02H DATA01 DATA02 CKS
(*3)
Data Portion
Contents
------------------------------------------------------------------DATA01
01H : Version Information
DATA02
06H : Serial Number
Response: At the time of a success
20H BFH 01H xxH 12H DATA01  DATA12 CKS
(*1) (*2)
Data Portion
(*3)
Contents
------------------------------------------------------------------DATA01
Same as DATA01 of the transmit data
DATA02
Same as DATA02 of the transmit data
DATA03-DATA18
Serial Number (NULL termination character string)
Response: At the time of a failure
A0H BFH 01H xxH 02H DATA01 DATA02 CKS
(*1) (*2)
(*4)
(*3)
======================================================
================
6. Response
---------------------------------------------------------------------* At the time of a success( ACK )
This returns ACK without adding data portion to the command that does
not request data.
This returns ACK with adding data to the data portion for the command
that requests data.
* At the time of a failure( NAK )
This adds a cause of not accepting the command to data portion to
return it.
(Example) Power On
Command:
02H 00H 00H 00H 00H CKS
Response:
A2H 00H 01H 40H 02H DATA01 DATA02 CKS
======================================================
================
7. Table of Response Error Codes
---------------------------------------------------------------------+------------+------------+--------------------------------------+
| DATA01
|
| DATA02
| Error
|
|
|
|
| Error types| description| Error contents
|
+------------+------------+--------------------------------------+
|
00H
| 00H
| Unknown command
|
00H
| 01H
| Unsupported command
|
01H
| 00H
| Invalid values specified.
|
01H
| 01H
| Specified terminal is unavailable or |
|
|
| cannot be selected
|
|
|
|
|
02H
| 03H
| Setting not possible
|
|
02H
| 0DH
| Power Off inhibited
|
+------------+------------+--------------------------------------+
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
