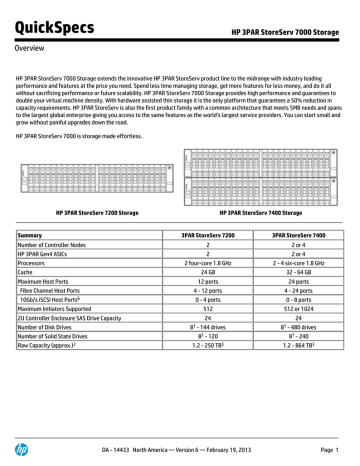

HP 3PAR StoreServ 7000 Storage
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Overview
HP 3PAR StoreServ 7000 Storage extends the innovative HP 3PAR StoreServ product line to the midrange with industry leading
performance and features at the price you need. Spend less time managing storage, get more features for less money, and do it all
without sacrificing performance or future scalability. HP 3PAR StoreServ 7000 Storage provides high performance and guarantees to
double your virtual machine density. With hardware assisted thin storage it is the only platform that guarantees a 50% reduction in
capacity requirements. HP 3PAR StoreServ is also the first product family with a common architecture that meets SMB needs and spans
to the largest global enterprise giving you access to the same features as the world's largest service providers. You can start small and
grow without painful upgrades down the road.
HP 3PAR StoreServ 7000 is storage made effortless.
HP 3PAR StoreServ 7200 Storage
Summary
Number of Controller Nodes
HP 3PAR Gen4 ASICs
Processors
Cache
Maximum Host Ports
Fibre Channel Host Ports
10Gb/s iSCSI Host Ports6
Maximum Initiators Supported
2U Controller Enclosure SAS Drive Capacity
Number of Disk Drives
Number of Solid State Drives
Raw Capacity (approx.)2
HP 3PAR StoreServ 7400 Storage
3PAR StoreServ 7200
3PAR StoreServ 7400
2
2
2 four-core 1.8 GHz
24 GB
12 ports
4 - 12 ports
0 - 4 ports
512
24
1
8 - 144 drives
81 - 120
1.2 - 250 TB3
2 or 4
2 or 4
2 - 4 six-core 1.8 GHz
32 - 64 GB
24 ports
4 - 24 ports
0 - 8 ports
512 or 1024
24
1
8 - 480 drives
81 - 240
1.2 - 864 TB3
DA - 14433 North America — Version 6 — February 19, 2013
Page 1
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Overview
Capacity Details
RAID Levels
RAID 5 Data to Parity Ratios
RAID 6 Data to Parity Ratios
Drive Capacities (approximate GB3)
(RAID levels, parity ratios, and drive capacities all mixable
within the same Storage System)
Number of Add-on Drive Enclosures
(Each Drive Enclosure holds up to 24 drives in 2U for small
form factor drives and 4U for large form factor drives)
3PAR StoreServ 7200
3PAR StoreServ 7400
RAID 0, 1, 5, 6
2:1 - 8:1
4:2, 6:2, 8:2, 10:2, 14:2
100 SSD4, 200 SSD4,
300 SAS, 450 SAS, 900 SAS, 2000
NL5,3000 NL5
0 - 5 enclosures
RAID 0, 1, 5, 6
2:1 - 8:1
4:2, 6:2, 8:2, 10:2, 14:2
100 SSD4, 200 SSD4,
300 SAS, 450 SAS, 900 SAS, 2000
NL5,3000 NL5
0 - 18 enclosures
1 The minimum drive quantity is permitted as long as the total raw capacity is at least 1.2 TB.
2 Maximum raw capacity currently supported with any and all drive types.
3 For storage capacity, 1 GB = 1,000,000,000 bytes and 1 TB = 1,000 GB.
4 SSDs are Solid State Drives.
5 NL drives are 7200 RPM Enterprise SAS drives.
6 Ports are FCoE ready. FCoE support will be available in a later release.
NOTE: Specifications are subject to change without notice.
Host OS Support
Citrix® XenServer® | HP-UX® | IBM® AIX®
Microsoft® Windows® Server, including Microsoft® Hyper-V™
Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris
Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization
SUSE® Linux Enterprise | VMware vSphere™
For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HP Storage Products
(SPOCK): http://www.hp.com/storage/spock
DA - 14433 North America — Version 6 — February 19, 2013
Page 2
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Features
Efficient
Get thin and stay thin - Thin technologies unique to the HP 3PAR StoreServ family can reduce capacity
requirements by 50%. Purchase only what you need, as you need it so you can focus resources on growing
your business, not maintaining your storage. Additionally, the HP 3PAR ASIC with Thin Built In features an
efficient, silicon-based zero-detection mechanism. This unique hardware capability gives HP 3PAR
StoreServ Storage the power to remove allocated but unused space without impacting performance.
Data center virtualization - Increase virtualization return on investment. Double virtual machine density on
your physical servers, spend up to 90 percent less time managing your storage, and support your
virtualization deployment with 50 percent less storage capacity. HP 3PAR StoreServ is built from the
ground up to deliver performance that exceeds the demands of virtualized data centers along with
transformative levels of simplicity, agility, and efficiency.
Service levels - With policy-based autonomic sub-LUN tiering, you can balance the cost of capacity and the
cost of performance and put the right data on the right storage tier at the right time.
Do more with less - With HP 3PAR StoreServ Storage you can purchase up to 75 percent less capacitymeaning less equipment to house, fewer disks to power and cool, less hardware to retire after it has
reached its end of life, and a reduced carbon footprint.
Autonomic
It's like breathing-you don't even have to think about it. Simplify, automate, and expedite storage
management by handling storage provisioning, tiering, and change management autonomicallyintelligently, at a sub-system level, and without administrator intervention.
SmartStart Software - software designed to get you off to a quick start with your new HP 3PAR StoreServ
7000 system.
Common architecture - Access the same features as the world's largest service providers with a common
architecture that meets SMB needs and spans to the largest global enterprise.
Resilient
Secure multi-tenancy - Consolidate with confidence. Achieve higher service levels for more users and
applications with less infrastructure. HP 3PAR StoreServ Storage is designed to support massive
consolidation by supporting mixed workloads and secure administrative segregation of users, hosts, and
application data. Deliver higher performance levels, greater availability, and next-generation functionality
to multiple user groups and applications from a single storage system.
Scalable - HP 3PAR StoreServ 7000 provides affordable entry pricing and unique, non-disruptive scalability
to four nodes.
High Availability - Featuring the same mesh-active architecture as all HP 3PAR StoreServ products, HP
3PAR StoreServ 7000 offers the highest levels of data availability and protection for the midrange.
Intelligent data striping across all available enclosures provides HA Cage, the ability to maintain
availability even when a whole drive enclosure fails. HP 3PAR Persistent Cache in four node configurations
eliminates performance impacts that result from unplanned component failures, making it a must-have
for maintaining service levels in the virtual data center-a feature that you can't get from any other
midrange storage platform.
Storage federation - Meet the needs of today's data center with the ability to move data and workloads
between arrays without impact to applications, users, or services. Simply and non-disruptively shift data
between any model HP 3PAR StoreServ system without additional management layers or appliances.
DA - 14433 North America — Version 6 — February 19, 2013
Page 3
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Features
Storage federation on HP 3PAR StoreServ Storage can also help you improve availability in clustered
VMware environments.
Mixed workload - Mixed workload support serves transactional and throughput-intensive workloads from
a single device. The purpose-built HP 3PAR ASIC delivers mixed workload support to alleviate performance
concerns and cut traditional array costs. Transaction- and throughput-intensive workloads run on the
same storage resources without contention, thereby cutting array purchases in half.
DA - 14433 North America — Version 6 — February 19, 2013
Page 4
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
Warranty
3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response
HP 3PAR StoreServ 7000 drive (SSD, SAS performance and Nearline) warranty is 3 years, parts only.
HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days
from delivery.
For more information about HP's Global Limited Warranty and Technical Support, visit:
http://www.hp.com/products/storageworks/warranty
Service and Support
Technology Services for increased uptime, productivity and ROI
Trust HP storage technology experts for every level of service and support. Our integrated portfolio of
services for storage help customers reduce costs, optimize data, streamline storage management, and
improve backup and recovery. Capitalizing on HP Storage Systems' capabilities requires a service partner
who understands your increasingly complex environment. Team with the people who know HP
infrastructure hardware and software best-the experienced professionals at HP Services.
Protect your business beyond warranty
Warranty protects against manufacturer defects, however warranty uplifts, such as HP Care Pack Services
protect the business-by reducing downtime risks and providing operational consistency for missioncritical and standard business computing.
What HP Storage Technology Services can do for you
HP Storage Technology Services can help you design, deploy, test, integrate, support, and manage IT and
infrastructure solutions. HP storage lifecycle support services offers a full spectrum of customer carefrom technology support to complex migrations to complete managed services.
Choose the right level of support, deployment and integration services
HP support recommendations are designed to help you enhance technology operations and lower risk-and
make it easier for you to seek the right balance between affordability and service-level commitments.
Depending on your individual support needs, choose from three levels of care that cover the entire
lifecycle to better address your needs-Optimized Care, Standard Care, and Basic Care. If none of our
support recommendations meet your needs, we can tailor a service solution for your unique support
requirements. Only HP brings together deep expertise, proactive and business critical support and a strong
partner network-together with, a full set of infrastructure services designed to power a Converged
Infrastructure
Optimized Care - delivers
best performance and
stability through
deployment and proactive
management practices
HP Critical Service - This service delivers 24x7 monitoring of your environment, making it the right choice
when uninterrupted uptime is essential. We implement improvement projects to mitigate risks and reduce
incidents to maximize uptime. If outages do occur, they will be addressed immediately through access to
our dedicated critical support escalation resources, with a six-hour call-to-repair commitment from our
mission-critical call center.
Additional Option:
10 Proactive Select credits per year per array - HP Proactive Select is a flexible way to purchase services
to fit your particular environment or situation. Working with an HP Account Support Manager, you select a
package of services in the form of services credits that include proactive services spanning many
technologies and processes, such as on-site firmware upgrades, health checks, assessments, and
education. You tailor the service delivery to improve time to production, optimize performance, or build in
DA - 14433 North America — Version 6 — February 19, 2013
Page 5
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
continuous improvements.
Standard Care - maintains
high level of uptime, along
with expert help to cut the
cost and complexity of
implementation and
support
HP Proactive Care 24x7- for a higher return on your storage investment, Proactive Care delivers hardware
and software support services designed specifically for your technology; rapid access to Advanced
Solution Center Specialists plus, Firmware/Software management and best practice advice. Customers can
optimize the return on their IT investment and realize the advantage of running their business critical
applications on virtualized infrastructure. Plus, HP Proactive Select 20 credits per year, select from an
extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks,
assessments, and education.
Additional Option:
HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for
an increased personalization of the Proactive Care support experience through the assignment of an
Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.
The ASM will develop an annual support plan, provide four days of operational and technical advice, and
conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the
customer's priorities. This option is only available for Proactive Care customers and may be purchased
once per environment.
HP Personalized Support Additional Day - Customers who require more time than is provided by the
Personalized Support option can elect to purchase additional days through the Personalized Support
Additional Day option. The time may be used to provide extra support reviews and/or more operational &
technical advice.
Basic Care - Minimum
recommended support
HP Proactive Care 24x7 - for a higher return on your storage investment, Proactive Care delivers hardware
and software support services designed specifically for your technology; rapid access to Advanced
Solution Center Specialists plus, Firmware/Software management and best practice advice. Customers can
optimize the return on their IT investment and realize the advantage of running their business critical
applications on virtualized infrastructure. Plus, 10 credits per year, select from an extensive menu of
consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and
education.
Additional Option:
HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for
an increased personalization of the Proactive Care support experience through the assignment of an
Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.
The ASM will develop an annual support plan, provide four days of operational and technical advice, and
conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the
customer's IT priorities. This option is only available for Proactive Care customers and may be purchased
once per environment.
HP Personalized Support Additional Day - Customers who require more time than is provided by the
Personalized Support option can elect to purchase additional days through the Personalized Support
Additional Day option. The time may be used to provide extra support reviews and/or more operational &
technical advice.
Implementation
Installation:
Whichever level of care you select, consider our Installation and Startup Services for a smooth
implementation.
DA - 14433 North America — Version 6 — February 19, 2013
Page 6
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
HP 3PAR StoreServ 7000 Storage Installation and Startup Service - For smooth startup, this service
provides you with deployment of your HP 3PAR StoreServ 7000 Storage, ensuring proper installation into
your storage environment and helping you realize the maximum benefit from your storage investment.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2568ENW.pdf
Related Services
HP Storage Data Migration Service- HP expertise and tools help you migrate data across your data center
or around the globe. Take the burden of migration off your shoulders and put it in the capable hands of
expert HP storage migration consultants. Our proven approach helps orchestrate the complete data
migration and consolidation process while maintaining consistent data availability during the transfer
process.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf
HP Enhanced Implementation Service for SANs - HP delivers complete design and implementation
services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI storage area network (SAN) connectivity
components. This service includes three levels of support based on the type of environment, ranging from
simple to more complex. A trained service specialist guides the implementation of the storage switches in
the SAN environment according to HP quality standards.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-8527EN.pdf
HP Data Replication Solution Service for 3PAR Virtual Copy- HP Data Replication Solution Service for HP
3PAR Virtual Copy Software helps create, manage and configure local replication data mirroring and
snapshot capabilities of 3PAR storage systems. This service enables snapshots and mirroring to facilitate
data restores, minimize downtime for backups, perform application testing, support data mining use with
decision-support tools.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0217ENW.pdf
HP Data Replication Solution Service for 3PAR Remote Copy- HP Data Replication Solution Service for
3PAR Remote Copy Software configures real-time data mirroring between local and remote 3PAR storage
systems to safeguard critical business information. Provides scalable deployment of HP Remote Copy
Software real-time data mirroring between a local and a remote 3PAR storage system.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-9431ENW.pdf
HP 3PAR 7000 Replication Software Suite Installation and Startup Service - Provides implementation
of the HP 3PAR 7000 Replication Software Suite product. Replication Suite includes 3PAR Remote Copy,
3PAR Virtual Copy, and 3PAR Peer Persistence. The service is designed to help get HP 3PAR 7000
Replication Software Suite up and running quickly and to provide a demonstration of the product's key
features using sample or test data only.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2570ENW.pdf
HP 3PAR Peer Persistence Software Installation and Startup Service - Provides implementation of the
HP 3PAR Peer Persistence Software product. The service is designed to help get HP 3PAR Peer Persistence
up and running quickly and to provide a demonstration of the product's key features using sample or test
data only.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2772ENW.pdf
HP 3PAR Adaptive Optimization Policy Implementation Service - HP 3PAR Adaptive Optimization Policy
Implementation Service provides analysis, recommendations, and implementation of HP 3PAR Adaptive
Optimization policies to enable storage tiering using data collected from the HP 3PAR Storage system over
time. With the assistance of a designated IT storage administrator, a service specialist works with the
DA - 14433 North America — Version 6 — February 19, 2013
Page 7
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
customer to implement Adaptive Optimization policies on the HP 3PAR Storage system to help deliver
service level optimization for virtual and cloud data centers while reducing cost, increasing agility and
minimizing risk.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf
HP Storage Virtual Volume Design and Implementation Service- When redeploying an HP StorageWorks
Disk Array, the HP Virtual Volume Design and Implementation Service provides the necessary activities
required to design and implement a new virtual volume configuration.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3764ENN.pdf
HP Thin Volume Conversion Service - Provides evaluation and execution of conversion from standard to
thin provisioned virtual volumes for HP 3PAR Storage. A service specialist advises the customer on HP thin
provisioning best practices, provides evaluation of potential disk capacity savings if target virtual volumes
are converted, and plans and implements thin conversion processing. The service leverages 3PAR thin
provisioning capabilities to help optimize storage capacity, reduce cost, increase agility and maintain
performance.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf
HP Performance Analysis Service for HP Disk Arrays - The service provides data collection, detailed I/O
analysis and enhancement recommendations for HP 3PAR StoreServ Storage disk arrays, HP EVA P6000
Storage disk arrays and HP XP P9000 Storage disk arrays. HP Performance Analysis Service for HP Storage
Disk Arrays provides a single engagement concerning the performance of a single HP 3PAR StoreServ
Storage disk array, HP EVA P6000 Storage disk array and HP XP P9000 Storage disk array
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6668EN.pdf
HP 3PAR Health Check Service- The HP 3PAR Health Check service is delivered as a single engagement,
providing data collection, analysis, report creation, and a briefing session concerning the performance of a
single HP 3PAR StoreServ Storage System. This health check service is best for HP 3PAR StoreServ Storage
Systems that have been installed and are in normal production mode. It can also be used to establish a
baseline for future reference to improve the effective use of your storage system.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-3225ENW.pdf
HP 3PAR Storage Assessment Service- The HP 3PAR Assessment Service is delivered remotely for a
single HP 3PAR StoreServ Storage System and does not include performance analysis, testing, or
modeling. The service requires that remote monitoring be enabled on the HP 3PAR StoreServ Storage
System being assessed. The assessment findings are compared to HP best practices and a summary
report is provided that includes recommendations intended to improve availability and ongoing
management of your HP 3PAR StoreServ Storage System.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-2346ENW.pdf
HP 3PAR Storage Rebalance Service- The HP 3PAR Rebalance Service helps balance data across your HP
3PAR StoreServ Storage to take advantage of the capabilities of the array architecture. The service
provides analysis, planning, and implementation of data movement and/or physical movement of drive
magazines within the array.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf
HP EVA to 3PAR Acceleration Service - The HP EVA to 3PAR Acceleration Service can help guide you or
even execute data migration activities on your behalf that can not only optimize, but provide OPEX and
CAPEX savings as a result of your journey from EVA to 3PAR. This service provides customers with an
alternative DIY ("do-it-yourself") data migration option with guidance from TS Storage migration
specialists. With the help of migration experts, this service allows customers to execute an EVA to 3PAR
data migration at their own pace and lowered cost.
DA - 14433 North America — Version 6 — February 19, 2013
Page 8
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Service and Support, HP Care Pack, and Warranty Information
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-4234ENW.pdf
HP 3PAR Adaptive Optimization I&S -For Adaptive Optimization, design, creation, and implementation of
Adaptive Optimization policies; policy design, creation, and implementation can be accommodated using
the HP 3PAR Adaptive Optimization Policy Implementation Service, which is available via HP Proactive
Select.
The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service
Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf
HP 3PAR Dynamic Optimization I&S - For Dynamic Optimization, implementation by HP of tasks required
to balance the HP 3PAR storage system; the service provides the Customer with a product overview,
advice, and suggested strategies for use of Dynamic Optimization, and extended/ongoing analysis and/or
implementation of Dynamic Optimization strategies can be accommodated at additional cost
The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service
Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf
For more information
www.hp.com/services/storage
To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized
Channel Partner
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at:
www.hp.com/go/lookuptool
DA - 14433 North America — Version 6 — February 19, 2013
Page 9
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
Step 1 - Choose a Base configuration
HP 3PAR StoreServ 7000 configurations start with the selection of the Base. The Base includes controller nodes, bays for small form
factor drives, and PCIe slots for host adapter cards. SAN Kits are also considered base configurations. The SAN Kits simplify ordering
for SAN configurations with the array and extend the switch warranty to 3-years by including switches with an HP 3PAR StoreServ
7000 Storage Base.
HP 3PAR StoreServ 7000 Base Configurations
HP 3PAR StoreServ 7200 2-node Storage Base
HP 3PAR StoreServ 7400 2-node Storage Base
QR482A
QR483A
HP 3PAR StoreServ 7400 4-node Storage Base
HP 3PAR StoreServ 7200 8Gb H-Series Base System SAN Kit
HP 3PAR StoreServ 7200 16Gb Virtualization Base System SAN Kit
HP 3PAR StoreServ 7400 16Gb Virtualization Base System SAN Kit
A minimum of one (1) configuration base must be ordered.
The HP 3PAR StoreServ 7200 base configuration includes (2) controller nodes, 24
GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4)
8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot
per node, (4) 2m SAS cables, (1) mounting rail kit, and power cords.
The HP 3PAR StoreServ 7400 2-node base configuration includes (2) controller
nodes, 32 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC
ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards one slot per node, (4) 2m SAS cables, (2) 1U rack filler panels to reserve 2U of
rack space above the 2-node Storage Base for a future upgrade to a 4-node
configuration, (1) mounting rail kit, and power cords.
The HP 3PAR StoreServ 7400 4-node base configuration includes (4) controller
nodes, 64 GB of cache, (48) small form factor drive bays, (8) built-in 8 Gb/sec FC
ports, (8) 8Gb shortwave FC SFP, (4) PCIe adapter slots for host adapter cards one slot per node, (8) 2m SAS cables, (4) node link cables, (2) mounting rail kits,
and power cords.
The HP 3PAR StoreServ 7200 8Gb H-Series Base System SAN Kit includes the
QR482A HP 3PAR StoreServ 7200 2-node Storage Base, (2) BK780B HP SN6000
Stackable 8 Gb/s 8 Active Port Single Power Supply FC Switches and (4) TA821A
4-port FC Switch Upgrade LTUs. Each switch comes with serial cable, mounting
rail kits, power cords, and SAN Connection Manager software entitlement. Also
included is a 3 year warranty for the switches.
NOTE: Requires optical transceivers and switch cabling which must be supplied
separately.
The HP 3PAR StoreServ 7200 16Gb Virtualization Base System SAN Kit includes
the HP 3PAR StoreServ 7200 2-node Storage Base and (2) QK753B HP SN6000B
16 Gb/s 48-port/24-port Active FC Switches - dual power. Each switch comes
with rack mount kit (including rails, mounting hardware, and plenum), RJ-45
serial cable with adaptor for RJ-45 to DB9, power cords, and SAN Network
Advisor DVD. Also included is a 3 year warranty for the switches.
NOTE: Requires optical transceivers and switch cabling which must be supplied
separately.
The HP 3PAR StoreServ 7400 16Gb Virtualization Base System SAN Kit includes
QR485A
QR488A
QR489A
QR510A
DA - 14433 North America — Version 6 — February 19, 2013
Page 10
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
the HP 3PAR StoreServ 7400 2-node Storage Base and (2) QK753B HP SN6000B
16 Gb/s 48-port/24-port Active FC Switches -dual power. Each switch comes with
rack mount kit (including rails, mounting hardware, and plenum), RJ-45 serial
cable with adaptor for RJ-45 to DB9, power cords, and SAN Network Advisor DVD.
Also included is a 3 year warranty for the switches.
NOTE: Requires optical transceivers and switch cabling which must be supplied
separately.
All base configurations include built-in Gigabit Ethernet ports for management
and Remote Copy over IP.
HP 3PAR StoreServ 7400 Upgrade Controller Node Pair
Use the HP 3PAR StoreServ 7400 Upgrade Node Pair to convert an existing previously installed HP 3PAR StoreServ 7400 2-node
Storage Base into a 4-node configuration.
HP 3PAR StoreServ 7400 Upgrade Node Pair
QR484A
Used to upgrade the QR483A HP 3PAR StoreServ 7400 2-node Storage Base to a
4-node configuration.
One (1) pair of controller nodes beyond the base configuration is supported on
the 3PAR StoreServ 7400.
The 3PAR StoreServ 7400 Upgrade Node Pair includes (2) controller nodes, 32 GB
of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb
shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per
node, (4) 2m SAS cables, (4) node link cables, (1) mounting rail kit, and power
cords
The upgrade node pair includes built-in Gigabit Ethernet ports for management
and Remote Copy over IP.
Step 2 - Choose Host Adapter
Host adapters can be ordered separately to be installed in the field or they can be factory configured into controller nodes. Host adapter
cards provide the array with additional FC ports or with 10Gb/sec iSCSI/FCoE ports. The additional FC ports can be used for connection to
hosts or used to connect to other HP 3PAR StoreServ Storage systems in a Remote Copy relationship. The iSCSI/FCoE ports permit host
connection in iSCSI and FCoE environments.
NOTE: FCoE functionality will be enabled in a later release.
HP 3PAR StoreServ 7000 Host Adapters
HP 3PAR StoreServ 7000 4-port 8Gb/sec Fibre Channel Adapter
HP 3PAR StoreServ 7000 2-port 10Gb/sec iSCSI/FCoE Adapter
Used in the Storage Base products (QR482A, QR483A, and QR485A) and the
Upgrade Node Pair (QR484A).
Because the Storage Base products and the Upgrade Node Pair include built-in FC
ports, the host adapter cards are optional.
QR486A and QR487A include one adapter card each. Adapters must be purchased
in pairs.
The QR486A includes (4) 8 Gb/s shortwave FC SFPs and the QR487A includes (2) 10
Gb/s SFPs.
Each node in a node pair (a node pair is composed of the two controller nodes in a
single 2U enclosure) must have the same number and type of adapters. FC and
DA - 14433 North America — Version 6 — February 19, 2013
QR486A
QR487A
Page 11
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
iSCSI/FCoE adapters may not be intermixed in a node pair.
The 4 ports of the FC adapter can be individually configured to connect to a host or
to a remote array in an RC configuration.
The two ports of the iSCSI/FCoE adapter can be individually configured by the user
as iSCSI or FCoE (NOTE: FCoE functionality will be enabled in a later release).
Permitted Adapter Configurations
Product
QR482A
Nodes
A*
B*
C*
D
E
F*
G
H*
I*
Node 0
Empty
FC
iSCSI/FCoE
Node 1
Empty
FC
iSCSI/FCoE
Node 0
Empty
FC
iSCSI/FCoE
QR483A
Node 1
Empty
FC
iSCSI/FCoE
Node 2
Empty
FC
iSCSI/FCoE
QR484A
Node 3
Empty
FC
iSCSI/FCoE
Node 0
Empty
FC
iSCSI/FCoE Empty
Empty
FC
iSCSI/FCoE FC
iSCSI/FCoE
Node 1
Empty
FC
iSCSI/FCoE Empty
Empty
FC
iSCSI/FCoE FC
iSCSI/FCoE
QR485A
Node 2
Empty
Empty
Empty
FC
iSCSI/FCoE iSCSI/FCoE FC
FC
iSCSI/FCoE
Node 3
Empty
Empty
Empty
FC
iSCSI/FCoE iSCSI/FCoE FC
FC
iSCSI/FCoE
* Factory default configurations for given quantities of adapters.
NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are
purchased as the built in ports will not offer sufficient connectivity.
Step 3 - Choose Drive Enclosures
Add drive enclosures to expand the configuration and to add large form factor drives to the configuration. Drive enclosures can be
ordered separately for installation in the field, or they can be factory configured in a rack. Drive enclosures are optional. Because the
Storage Base products and the Upgrade Node Pair include small form factor drive bays, the minimum configuration does not require
any additional drive enclosures. For larger configurations, attach drive enclosures. Each drive enclosure includes 24 drive bays. The HP
3PAR StoreServ 7200 supports up to five (5) added drive enclosures. The HP 3PAR StoreServ 7400 supports up to nine (9) added drive
enclosures per node pair. The two drive enclosure types can be intermixed in a single array.
HP M6710 2.5 inch 2U SAS Drive Enclosure
HP M6720 3.5 inch 4U SAS Drive Enclosure
Drive Enclosures
HP M6710 2.5 inch 2U SAS Drive Enclosure
HP M6720 3.5 inch 4U SAS Drive Enclosure
Each drive enclosure includes 24 drive bays, (2) IO modules, (2) 1m SAS cables,
(1) mounting rail kit, and power cables.
The M6710 2U drive enclosure provides 24 SFF drive bays arranged in a single
row.
The M6720 4U drive enclosure provides 24 LFF drive bays, arranged in four (4)
columns of six (6) slots each.
Minimum of zero (0) drive enclosures, maximum of five (5) attached to QR482A.
DA - 14433 North America — Version 6 — February 19, 2013
QR490A
QR491A
Page 12
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
Minimum of zero (0) drive enclosures, maximum of nine (9) attached to QR483A.
Minimum of zero (0) drive enclosures, maximum of (18) attached to QR485A.
Drive enclosures are connected in daisy chains from the SAS ports of the
controller nodes.
The best practice is to balance the drive enclosures across the SAS ports,
remembering that the controller node enclosures include (24) drives attached to
the SAS port labeled DP-1.
The best practice when including LFF and SFF drive enclosures in the same array
is to arrange them in the rack so that all of the 2U enclosures that belong to one
node pair are together and all of the 4U enclosures for that node pair are
together. When connecting the backend SAS cables, intermix the M6710 and
M6720 enclosures on each SAS port.
With a four node configuration, the best practice is to attach the same number of
drive enclosures to each node pair.
To achieve highest availability in multi-enclosure configurations, configure a
minimum of two (2) enclosures per node pair for RAID 1, a minimum of four (4)
enclosures per node pair if RAID 5 is included, and a minimum of three (3)
enclosures per node pair if RAID 6 is included. Include enclosures containing node
pairs in the count with the M6710 enclosures.
Drive bays that are not filled with a drive must be covered with a drive blank to
preserve proper air flow.
If future capacity upgrades are expected, include enough Drive Enclosures so
that there are some empty bays in each enclosure after all drives are added.
Step 4 - Choose Drives
Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Unlike other
HP 3PAR StoreServ Storage systems where drives are sold in magazines of four, HP 3PAR StoreServ 7000 drives are sold as single
drives. Note that these drives are only compatible with the M6710 and M6720 drive enclosures.
HP 3PAR StoreServ 7000 SAS Drives
HP 3PAR SSDs
HP M6710 100GB 6G SAS 2.5in SLC SSD (small form factor)
HP M6710 200GB 6G SAS 2.5in SLC SSD (small form factor)
HP M6720 100GB 6G SAS 3.5in SLC SSD (large form factor)
HP M6720 200GB 6G SAS 3.5in SLC SSD (large form factor)
QR502A
QR503A
QR506A
QR507A
HP 3PAR SAS HDDs
(Performance HDDs)
HP M6710 300GB 6G SAS 15K 2.5in HDD
HP M6710 450GB 6G SAS 10K 2.5in HDD
HP M6710 900GB 6G SAS 10K 2.5in HDD
QR492A
QR494A
QR496A
HP 3PAR NL SAS HDDs
HP M6720 2TB 6G SAS 7.2K 3.5in NL HDD
HP M6720 3TB 6G SAS 7.2K 3.5in NL HDD
For each drive type installed in the array, the minimum recommended initial
quantity is
SSD and SAS performance HDDs - eight (8) drives* per node pair
Nearline HDDs - twelve (12) drives per node pair
Minimum upgrade quantity is 4 drives per node pair or 2 drives per enclosure,
QR499A
QR500A
DA - 14433 North America — Version 6 — February 19, 2013
Page 13
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
whichever is larger. Best practice is to run Autonomic Rebalance (also known as
tunesys) after adding the drives.
RAID 6 is strongly recommended for Nearline drives.
All node enclosures must contain either zero (0) or an even number of drives. All
drive enclosures must contain an even number of drives, with a minimum of two.
Minimum raw capacity is 1.2TB per node pair.
A best practice is to add equal numbers of drives to all enclosures compatible
with the drive type being added.
With a four node configuration, the best practice is to attach the same number
and type of drives to each node pair.
Small Form Factor (SFF)-specific configuration practices
SFF drives may be loaded into the Storage Base enclosures, the Upgrade
Node Pair enclosure and the M6710 drive enclosure.
SFF drives must be loaded in pairs of identical drives, beginning with the
leftmost slot, slot 0, and filling to the right, leaving no empty slots
between drives.
Large Form Factor (LFF)-specific configuration practices
LFF drives may be loaded into the M6720 drive enclosure.
LFF drives must be loaded in pairs of identical drives starting at the
bottom of a column, leaving no empty slots between drives in the column.
Columns of drives in the M6720 enclosure must be of the same type (SSD
or NL) and, for HDDs, the same rotational speed. Drives of different types
may not be mixed in a single column. It is permitted to have empty
columns between columns containing drives. Different columns do not
have to contain the same number of drives.
An all LFF drive configuration is permitted, leaving the Storage Base
Enclosure empty.
SSD specific configuration practices
SSD-only configurations are permitted.
Maximum of 120 SSDs per node pair.
The SFF and LFF SSDs allow the user to create SSD volumes that stripe
across SFF and LFF enclosures.
* 8 drives support RAID 1 and RAID 5. For RAID 6 choose 12 drives.
DA - 14433 North America — Version 6 — February 19, 2013
Page 14
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
Step 5 - Choose Service Processor Implementation
The HP 3PAR Service Processor monitors the HP 3PAR StoreServ 7000 and enables remote monitoring and remote servicing of the
array. A virtual Service Processor is included free with the 3PAR Base Operating System. Each HP 3PAR StoreServ 7000 requires its own
Service Processor. The Service Processor can be installed on a VMware system (or Hyper-V system in a later release), provided by the
customer, meeting the following specifications.
VMware vSphere 4.1, 5.0, or 5.1
Server listed in VMware Compatibility Guide and with the following features
2GB RAM (minimum)
320GB free disk space (NOTE: Virtual SP storage must not reside on the array it is managing.)
DVD ROM or DVD RW
1Gb Ethernet port
If a hardware Service Processor is desired, order the following product.
Service Processor
HP 3PAR 7000 Service Processor
QR516A
Step 6 - Choose Cables for host connection and remote copy connection
The optical cables listed below support 8 Gb/s FC and 10 Gb/s iSCSI/FCoE for host connect (FC and iSCSI/FCoE) and for Remote Copy
connections (FC only). The copper1GbE cables are used for Remote Copy over IP and for connection to the Management Port.
Cables
FC and 10GbE
1GbE
HP 3PAR 4m 50/125 (LC-LC) Fiber Cable
HP P10000 V-Class 3PAR 6m 50/125 (LC-LC) Fiber Cable
HP 3PAR 10m 50/125 (LC-LC) Fiber Cable
HP P10000 V-Class 3PAR 25m 50/125 (LC-LC) Fiber Cable
HP 3PAR 50m 50/125 (LC-LC) Fiber Cable
HP 3PAR 100m 50/125 (LC-LC) Fiber Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
HP Premier Flex LC/LC Multi-mode OM4 5 fiber 5m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
HP Ethernet 4.3m (14 ft) CAT5e RJ45 M/M Cable
HP Ethernet 7.6m (25 ft) CAT5e RJ45 M/M Cable
HP Ethernet 15.2m (50 ft) CAT5e RJ45 M/M Cable
QL281B
QR631A
QL266B
QR593A
QL267B
QL268B
QK732A
QK733A
QK734A
QK735A
QK736A
QK737A
C7536A
C7537A
C7542A
Step 7 - Choose Racking Options
DA - 14433 North America — Version 6 — February 19, 2013
Page 15
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
The HP 3PAR StoreServ 7000 is compatible with most industry standard 4-post EIA 19 inch racks with square mounting holes, including
the HP Intelligent Series Rack and the HP 10000 G2 Series Rack. The HP 3PAR StoreServ 7000 can be factory configured and shipped in
a rack or shipped without a rack for field integration into an existing rack. The rack used for factory integration is the HP Intelligent
Series Rack.
HP Rack and Rack Options
Factory Integration
Primary Configuration
Rules
HP Intelligent Series
Racks
HP PDU Pivot Kit
Performance Optimized
Data Centers
Select a rack to house your HP 3PAR StoreServ 7000.
NOTE: The HP Intelligent Series Rack is the only series supported for factory
configuration.
The HP 3PAR StoreServ 7000 will be configured into an HP Intelligent Series Rack with
the appropriate power distribution units (PDUs). If other products such as servers or
back-up products are included in the cab, a different PDU will be added (if required) or
can be chosen from a list of appropriate offerings shown in the configuration tool. The
HP Intelligent Series Rack must be purchased for factory configuration. Additional 3PAR
StoreServ 7000 controller node enclosures and drive enclosures may be ordered for
multiple subsystem integration at the factory.
The 3PAR StoreServ 7000 is also supported in HP 10000 G2 Series racks for field
installation.
When calculating available U-space, assume that no space will be placed between the
mounted components. For redundancy, order PDUs in quantities of two. Refer to the
Configuration and User Guide in the Information Library at the Rack Solutions webpage.
NOTE: The number of components that will fit in a rack varies and is determined by the
interior U-space of the rack.
HP 647 1075mm Shock Intelligent Series Rack
HP 47U 1075mm Side Panel Kit
HP 642 1075mm Shock Intelligent Series Rack
HP 42U 1075mm Side Panel Kit
HP 636 1075mm Shock Intelligent Series Rack
HP 36U 1075mm Side Panel Kit
HP 622 1075mm Pallet Intelligent Series Rack (22U) (available in a later release)
For more information on the HP rack offerings, please see the following URL:
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html.
For more information on rack options, see: http://www.hp.com/products/rackoptions.
For more information on PDUs, see:
http://h18004.www1.hp.com/products/servers/proliantstorage/powerprotection/pdu.html.
Used to reclaim 2U of space in an HP Intelligent Series Rack with HP 3PAR StoreServ
7000 configurations. This kit allows the PDUs to be placed in the back of the rack
without requiring any rack U space.
NOTE: The use of the PDU Pivot Kit is strongly recommended and is the default option
when orders are configured, as it will save 2U of valuable rack space.
NOTE: 0D1 will appear after this part number to indicate factory integration where
appropriate.
HP 3PAR StoreServ 7000 Storage is qualified for use in HP Performance Optimized Data
Centers. Go to www.hp.com/go/POD for more information.
DA - 14433 North America — Version 6 — February 19, 2013
BW912A
BW915A
BW904A
BW906A
BW896A
BW898A
BW893A
AG730A
Page 16
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
Non-HP rack and power
requirements
The Storage Bases, the Upgrade Node Pair, and the Drive Enclosures include mounting
rails that are compatible with industry standard 4-post EIA 19 inch racks with square
mounting holes. For detailed information on determining compatibility of a non-HP
rack, please review the information included in the HP 3PAR StoreServ 7000 User Guide.
Expansion Options
HP provides a variety of SAS cable kits to allow expansion of the HP3PAR StoreServ 7000. Note that the Storage Base products, the
Upgrade Node Pair and the Drive Enclosures all include SAS cables. Most configurations will not require a SAS expansion cable kit.
SAS expansion cable kit 6 meter SAS expansion cable kit
AP879A
If an HP 3PAR StoreServ 7000 needs to be expanded into an adjacent rack, one 6 meter
SAS expansion cable kit is required for every node pair that must access drive
enclosures in the expansion rack. Each 6 meter SAS expansion cable kit contains four 6
meter SAS cables.
HP 2m Expansion Cable Kit
AW566A
If an HP 3PAR StoreServ 7000 needs to be expanded within the same rack, but the new
drive enclosure must be located some distance from the nearest existing drive
enclosure within the same rack, one or two 2 meter SAS expansion cable kits is needed,
depending on configuration. Each 2 meter SAS expansion cable kit contains two 2 meter
SAS cables.
1 meter SAS expansion cable kit
QR514A
The 1 meter SAS expansion cable kit is provided for cases where a shorter SAS cable is
required. Each 1 meter SAS expansion cable kit contains two 1 meter SAS cables.
NOTE: The 2-node Storage Bases and Upgrade Node Pair come with four 2 meter SAS
cables each and the 4-node Storage Base comes with eight 2 meter SAS cables. The
Drive Enclosures come with two 1 meter SAS cables each.
Step 8 - Choose Software
HP provides an extensive selection of features for HP 3PAR StoreServ Storage. All of the features available on the HP 3PAR StoreServ
10000 Storage system are also available on the HP 3PAR StoreServ 7000 Storage system, the result of a common architecture that
spans from small and medium businesses to the largest global enterprise. For convenient ordering, the 3PAR StoreServ 7000 provides
the features in Suites.
Two types of software licensing methods are employed with the HP 3PAR StoreServ 7000. Some software titles are licensed per
system; other titles are licensed by drive. With system-based licensing one license covers the whole array, independent of
configuration or capacity. Drive-based licensing, in contrast, is licensed per installed drive. A software title with drive-based licensing
includes two Licenses to Use (LTU), a Base LTU that enables the software feature for the system and a Drive LTU that licenses the use
of one drive. For each software title, purchase one Base LTU per title per array, and one Drive LTU, up to a cap, for every drive, that is
installed in the array, independent of drive type. For the HP 3PAR StoreServ 7200 the Drive LTUs cap at 48. For the HP 3PAR StoreServ
7400 the Drive LTUs cap at 168. After reaching the cap, you do not need to purchase any more Drive LTUs for that title.
For more information regarding HP 3PAR software see http://h18006.www1.hp.com/storage/solutions/3par/software.html.
HP 3PAR 7000 Operating System Software Suite (Required)
HP 3PAR OS SW Suite 3PAR Operating System,
HP 3PAR 7000 Operating System Software Suite is the foundation software of HP 3PAR
StoreServ 7000 Storage, combining advanced virtualization capabilities with simple
DA - 14433 North America — Version 6 — February 19, 2013
Page 17
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
System Setup, and
Management Software
storage management, high efficiency, and world class performance. The included
comprehensive thin provisioning capabilities allow your storage to start thin, get thin
and stay thin. System Tuner and Autonomic Rebalance help maintain high performance
over time. Migrating your existing data from HP EVA and 3PAR systems to HP 3PAR
StoreServ 7000 is easy with the included 180 day Online Import license. HP 3PAR
SmartStart Software, included in the suite, guides you through the configuration of the
service processor, HP 3PAR StoreServ Storage and the application hosts - making
storage setup quick and easy. HP 3PAR 7000 Operating System Software Suite is a
required purchase. It uses drive-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/oss/index.html.
HP 3PAR 7200 OS Suite Base LTU
HP 3PAR 7200 OS Suite Base E-LTU
HP 3PAR 7200 OS Suite Drive LTU
HP 3PAR 7200 OS Suite Drive E-LTU
HP 3PAR 7400 OS Suite Base LTU
HP 3PAR 7400 OS Suite Base E-LTU
HP 3PAR 7400 OS Suite Drive LTU
HP 3PAR 7400 OS Suite Drive E-LTU
BC745A
BC745AAE
BC746A
BC746AAE
BC773A
BC773AAE
BC774A
BC774AAE
HP 3PAR 7000 Replication Software Suite
HP 3PAR 7000 Replication
Software Suite - Local
Replication, Remote
Replication and
Transparent Failover
The HP 3PAR Replication Software Suite offers automatic replication, transparent
failover and Point-in-Time (PIT) copies enabling seamless disaster recovery for critical
data. These features provide an agile, efficient and simple solution to protect against
the unpredictable. This suite is ideal for virtualized data centers demanding data
availability and business continuity 24x7. HP 3PAR 7000 Replication Software Suite
consists of HP 3PAR Remote Copy Software, HP 3PAR Peer Persistence Software and
HP 3PAR Virtual Copy Software, which are also available separately. Replication
Software Suite uses drive-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/drs/index.html.
NOTE: The Peer Persistence feature provides transparent failover in VMware cluster
environments and requires the Remote Copy feature as a prerequisite.
HP 3PAR 7200 Replication Suite Base LTU
HP 3PAR 7200 Replication Suite Base E-LTU
HP 3PAR 7200 Replication Suite Drive LTU
HP 3PAR 7200 Replication Suite Drive E-LTU
HP 3PAR 7400 Replication Suite Base LTU
HP 3PAR 7400 Replication Suite Base E-LTU
HP 3PAR 7400 Replication Suite Drive LTU
HP 3PAR 7400 Replication Suite Drive E-LTU
BC747A
BC747AAE
BC748A
BC748AAE
BC775A
BC775AAE
BC776A
BC776AAE
NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are
purchased as the built in ports will not offer sufficient connectivity
HP 3PAR 7000 Security Software Suite
HP 3PAR 7000 Security
Software Suite
HP 3PAR 7000 Security Software Suite provides secure administrative segregation of
users and hosts, allowing individual user groups and applications to confidently share a
DA - 14433 North America — Version 6 — February 19, 2013
Page 18
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
3PAR StoreServ 7000 system. It also allows you to secure volumes and copies so they
cannot be deleted, even by a 3PAR StoreServ 7000 user with the highest level
privileges. When coupled with reservationless, non-duplicative, read-only virtual copies
(snapshots), the Virtual Lock feature enables you to retain frozen, point-in-time copies
of your data to assist internal data retention and simplify compliance with internal
governance procedures. HP 3PAR 7000 Security Software Suite consists of HP 3PAR
Virtual Domains Software and HP 3PAR Virtual Lock Software, which are also available
separately. Security Software Suite uses drive-based licensing. For more information
see http://h18006.www1.hp.com/storage/software/3par7000/ss/index.html.
HP 3PAR 7200 Security Suite Base LTU
HP 3PAR 7200 Security Suite Base E-LTU
HP 3PAR 7200 Security Suite Drive LTU
HP 3PAR 7200 Security Suite Drive E-LTU
HP 3PAR 7400 Security Suite Base LTU
HP 3PAR 7400 Security Suite Base E-LTU
HP 3PAR 7400 Security Suite Drive LTU
HP 3PAR 7400 Security Suite Drive E-LTU
BC751A
BC751AAE
BC752A
BC752AAE
BC779A
BC779AAE
BC780A
BC780AAE
HP 3PAR 7000 Data Optimization Software Suite
HP 3PAR 7000 Data
Optimization Software
Suite - Rebalance,
Redistribute, and Refresh
The HP 3PAR 7000 Data Optimization Software Suite makes sure that data is on the
right storage asset at the right time. This suite rebalances, redistributes and refreshes
storage non-disruptively with features that provide autonomic storage tiering and
dynamic data mobility, reducing cost and increasing agility. HP 3PAR 7000 Data
Optimization Software Suite consists of HP 3PAR Dynamic Optimization Software, HP
3PAR Adaptive Optimization Software and HP 3PAR Peer Motion Software (providing
federation capability for data mobility), which are also available separately. Data
Optimization Software Suite uses drive-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/dos/index.html.
NOTE: The Adaptive Optimization feature requires HP 3PAR Reporting Software Suite as
a prerequisite.
HP 3PAR 7200 Data Opt Suite Base LTU
HP 3PAR 7200 Data Opt Suite Base E-LTU
HP 3PAR 7200 Data Opt Suite Drive LTU
HP 3PAR 7200 Data Opt Suite Drive E-LTU
HP 3PAR 7400 Data Opt Suite Base LTU
HP 3PAR 7400 Data Opt Suite Base E-LTU
HP 3PAR 7400 Data Opt Suite Drive LTU
HP 3PAR 7400 Data Opt Suite Drive E-LTU
BC749A
BC749AAE
BC750A
BC750AAE
BC777A
BC777AAE
BC778A
BC778AAE
HP 3PAR Reporting Software Suite
DA - 14433 North America — Version 6 — February 19, 2013
Page 19
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
HP 3PAR Reporting
Software Suite Historical Performance
and Capacity
Management Tool
The HP 3PAR Reporting Software Suite includes System Reporter, a historical
performance and capacity management tool for storage reporting, monitoring, and
troubleshooting. Also included is 3PARInfo, a command line tool that allows you to view
HP 3PAR StoreServ Storage configuration information. Reporting Software Suite uses
system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/rs/index.html.
HP 3PAR 7200 Reporting Suite LTU
HP 3PAR 7200 Reporting Suite E-LTU
HP 3PAR 7400 Reporting Suite LTU
HP 3PAR 7400 Reporting Suite E-LTU
BC767A
BC767AAE
BC795A
BC795AAE
HP 3PAR Application Software Suite for Oracle
HP 3PAR Application
The HP 3PAR Application Software Suite for Oracle provides everything you need for
Software Suite for Oracle protecting Oracle databases, including Recovery Manager for Oracle and Oracle Space
- Application Protection Reclamation capabilities. Recovery Manager for Oracle is an extension to 3PAR Virtual
Copy that intelligently creates, manages, and presents time-consistent snapshot
images of Oracle® databases for rapid application recovery, near-continuous data
protection, data sharing, and non-disruptive backup. Application Software Suite for
Oracle uses system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-oracle/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 App Suite for Oracle LTU
HP 3PAR 7200 App Suite for Oracle E-LTU
HP 3PAR 7400 App Suite for Oracle LTU
HP 3PAR 7400 App Suite for Oracle E-LTU
BC771A
BC771AAE
BC799A
BC799AAE
HP 3PAR Application Software Suite for SQL
HP 3PAR Application
Software Suite for SQL Application Protection
The HP 3PAR Application Software Suite for SQL protects Microsoft® SQL databases
with Recovery Manager for Microsoft® SQL and the 3PAR VSS Provider software. 3PAR
Recovery Manager for Microsoft® SQL Server is an extension to 3PAR Virtual Copy that
eases costs and administration by providing rapid, affordable online recovery of
Microsoft® SQL Server databases from multiple, highly granular point-in-time
snapshots. Quickly recover a database to a known point in time, speeding up a variety
of operations including rapid recovery of the production SQL server. Application
Software Suite for SQL uses system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-sql/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 App Suite for SQL LTU
HP 3PAR 7200 App Suite for SQL E-LTU
HP 3PAR 7400 App Suite for SQL LTU
HP 3PAR 7400 App Suite for SQL E-LTU
BC770A
BC770AAE
BC798A
BC798AAE
HP 3PAR Application Software Suite for Exchange
HP 3PAR Application
The HP 3PAR Application Software Suite for Exchange provides you the essentials for
DA - 14433 North America — Version 6 — February 19, 2013
Page 20
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
Software Suite for
Exchange - Application
Protection
protecting your Microsoft Exchange data, including Recovery Manager for Exchange and
the VSS Provider software. Recovery Manager for Exchange is an extension to 3PAR
Virtual Copy that intelligently creates and manages snapshots that can be used to
quickly restore Exchange instances or databases (or non-disruptively back them up to
tape) for near-continuous data protection. Application Software Suite for Exchange
uses system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-exchange/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 App Suite for Exchange LTU
HP 3PAR 7200 App Suite for Exchange E-LTU
HP 3PAR 7400 App Suite for Exchange LTU
HP 3PAR 7400 App Suite for Exchange E-LTU
BC769A
BC769AAE
BC797A
BC797AAE
HP 3PAR Application Software Suite for VMware
HP 3PAR Application
Software Suite for
VMware - Application
Protection
The HP 3PAR Application Software Suite for VMware provides everything you need to
make your VMware environment more agile and efficient-including Recovery Manager
for VMware, Host Explorer for VMware, VASA support, and three essential plug-ins: the
VMware Site Replication Manager (SRM) Adapter, the 3PAR VAAI plug-in, and the 3PAR
management plug-in for VMware View. Application Software Suite for VMware uses
system-based licensing. For more information see
http://h18006.www1.hp.com/storage/software/3par7000/as-vmware/index.html.
NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in
the HP 3PAR Replication Software Suite.
HP 3PAR 7200 App Suite for VMware LTU
HP 3PAR 7200 App Suite for VMware E-LTU
HP 3PAR 7400 App Suite for VMware LTU
HP 3PAR 7400 App Suite for VMware E-LTU
BC768A
BC768AAE
BC796A
BC796AAE
HP Cluster Extension Software
HP Cluster Extension
Software- High
Availability
HP Cluster Extension Software (CLX) offers protection against application downtime
from fault, failure, or site disaster by extending a local cluster between data centers
over metropolitan distance. CLX reinstates critical applications at a remote site within
minutes or seconds after an adverse event. CLX integrates with the OS clustering
software (such as MS Cluster Service in Windows) and the remote mirroring software on
storage (such as HP Continuous Access software on P6000 EVA/P9000 and HP 3PAR
Remote Copy Software on HP 3PAR systems) to automate failover and failback
between sites. This dual integration enables the cluster service to verify the status of
the storage as well as the server cluster; thus allowing the correct failover and failback
decisions to be made which minimize downtime, and accelerates recovery without
human intervention. Thus the Cluster Extension Software can help customers achieve
'zero' RPO and RTO in minutes or seconds. For more information, including how Cluster
Extension Software is licensed, see
http://h18006.www1.hp.com/storage/software/ces/index.html.
DA - 14433 North America — Version 6 — February 19, 2013
Page 21
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
Step 9 - Choose Options for Storage Networking
HP's comprehensive portfolio of Storage Area Network infrastructure products and solutions are designed to meet a range of storage
networking needs from small and midsized businesses to the largest corporate enterprises. HP StoreFabric storage networking SAN
Solutions deliver scalability, performance, and broad interoperability required for critical data and applications.
For additional details on SAN infrastructure components and options and storage compatibility information, please visit:
http://hp.com/go/san or select from the part numbers below.
Fibre Channel
Brocade Fibre Channel HBAs
Host Bus Adapters
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AP769B
Fibre Channel Switches
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP 41B 4Gb 1-port PCIe Fibre Channel Host Bus Adapter
HP 42B 4Gb 2-port PCIe Fibre Channel Host Bus Adapter
Emulex Fibre Channel HBAs
AP770B
AP767B
AP768B
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP FC2142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter
HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter
QLogic Fibre Channel HBAs
AJ762B
AJ763B
A8002B
A8003B
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP FC1142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter
HP FC1242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter
HP B-series
AK344A
AJ764A
AE311A
AE312A
8 Gb Fibre Channel Switches
HP 8/8 Base SAN Switch
HP 8/8 SAN Switch
HP 8/24 SAN Switch
HP 8/40 SAN Switch
HP 8/40 Power Pack SAN Switch
HP 8/80 SAN Switch
HP 8/80 Power Pack SAN Switch
16 Gb Fibre Channel Switches
AM866B
AM867B
AM868B
AM869B
AM870B
AM871B
AM872B
HP SN3000B 16Gb 24/12 FC Switch
HP SN3000B 16Gb 24/24 FC Switch
HP SN6000B 16Gb 48/24 FC Switch
HP SN6000B 16Gb 48/48 FC Switch
HP SN6000B 16Gb 48/24 Power Pack+ FC Switch
HP SN6000B 16 Gb 48/48 Power Pack+ FC SWitch
8 Gb and 16 Gb Director Switches
QW937A
QW938A
QK753B
QR480B
QK754B
QR481B
HP SN8000B 8-Slot Power Pack+ SAN Backbone Director
HP SN8000B 4-slot Power Pack+SAN Director
HP SN8000B 4-slot SAN Director
QK710B
QK711B
QK712B
DA - 14433 North America — Version 6 — February 19, 2013
Page 22
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
HP DC SAN Backbone Director Power Pack+
HP DC04 SAN Director
HP DC04 SAN Director, Power Pack+
FCoE, Extension and Embedded Switches
HP 1606 Extension SAN Base Switch
HP 1606 Extension SAN Power Pack+ Switch
HP 2408 FCoE Converged Network Switch
HP 2408 Power Pack+ Converged Network Switch
Brocade 8/12c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class
Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+
HP H-series
HP Intelligent
Infrastructure
Analyzer Software (IIAS)
AK857C
AR478B
AR479B
AP862B, AP863B
AP864B
AP801B
AP802B
AJ820B
AJ821B
AJ822B
HP 8/20q Fibre Channel 8-ports Active Switch
NOTE: 8 device ports active, upgradeable to 20 device ports active
AQ233B
HP 8Gb Simple SAN Connection Kit
NOTE: 8 device ports active, upgradeable to 20 device ports active
AK241B
HP 8/20q Fibre Channel Switch
NOTE: 16 switch ports active, upgradeable to 20 device ports active
AK242B
HP SN6000 Stackable 8Gb 24-port single power Fibre Channel Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active
AW575B
HP SN6000 Stackable 8Gb 24-port dual power Fibre Channel Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active
AW576B
HP SN6000 Stackable 8 Gb 12-port Single Power Fibre Channel Switch
NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports
active
HP C-series
BK780B
HP SN8000C 13-Slot Supervisor 2A Fabric 3 Director Switch
HP SN8000C 6-Slot Supervisor 2A Director Switch - MDS 9506
HP SN8000C 9-Slot Supervisor 2A Director Switch - MDS 9509
HP SN6000C Fibre Channel Switch - MDS 9148
Cisco MDS 8Gb Fabric Switch for HP BladeSystem c-Class
Cisco MDS 9124 8-Ports Active Fabric Switch
Cisco MDS9124 16-Ports Active Fabric Switch
Cisco MDS 9222i Multiservice Fabric Switch
HP Intelligent Infrastructure Analyzer Software LTU
HP Intelligent Infrastructure Analyzer Software E-LTU
QW927A
AE388C
AE389C
AW585A,AW586A
AW563A,AW564A
AG646A
AG647A
AG851B
TC400A
TC400AAE
An online monitoring and diagnostic solution intended to manage the physical layer of a
Storage Area Network (SAN) consisting of HP B-series and/or H-series Fibre Channel
switches and directors. It uses industry-standard protocols (such as SNMP, SMI-S,
Telnet) to monitor the physical layer across the SAN and to diagnose changes/events in
Small Form-factor Pluggable (SFP) transceiver states/characteristics. It also presents
the SAN topology, inventory and diagnostic information to the user in real-time.
DA - 14433 North America — Version 6 — February 19, 2013
Page 23
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Configuration
HP Virtual Connect
PremierFlexOM4 cable
options
OM3 FC LC-LC cables
options
HP 3PAR StoreServ 7000 Storage supports direct attach with HP Virtual Connect
FlexFabric. Please refer to SPOCK for HP Virtual Connect information.
http://h20272.www2.hp.com/index.aspx
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable
HP Premier Flex LC/LC Multi-mode OM4 5 fiber 5m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable
HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable
QK732A
QK733A
QK734A
QK735A
QK736A
QK737A
AJ833A
AJ834A
HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable
HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable
AJ835A
AJ836A
AJ837A
AJ838A
AJ839A
Step 10 - Data Migration
HP provides several ways to migrate your data from older arrays. Peer Motion provides federation with other 3PAR arrays, which
includes the ability to migrate data to HP 3PAR StoreServ 7000 Storage. Online Import allows you to easily migrate data from EVA
arrays to the HP 3PAR StoreServ 7000. In addition HP supports the MPX200.
HP MPX200 Multi-protocol and Heterogeneous Data Migration
The HP MPX200 Multiprotocol Router provides support for HP 3PAR StoreServ 7000 and 10000 as well as 3PAR F/T, including 1GbE
iSCSI and 10GbE iSCSI and FCoE target support. MPX200 iSCSI provides an alternative option for HP 3PAR storage systems if you don't
want to dedicate native iSCSI ports on your array. The MPX200 also facilitates the sharing of iSCSI/FCoE connectivity simultaneously
for HP 3PAR storage systems from the same MPX200. For Data Migration the MPX200 provides high performance migration from
P6000/EVA to HP 3PAR storage systems and simplifies Data Migration from third party storage such as IBM and EMC to HP 3PAR.The
MPX200 is an ideal solution enabler for HP 3PAR customers. http://www.hp.com/go/mpx200
MPX200 Multifunction
HP MPX200 Multifunction Router 1 GbE Base Chassis
AP771B
Router
HP MPX200 Multifunction Router 1 GbE Upgrade Blade
AP772B
HP MPX200 Multifunction Router 10GbE - 1 GbE Base Chassis
AP773B
HP MPX200 Multifunction Router 10GbE - 1 GbE Upgrade Blade
AP774B
HP 42B 4Gb Dual-Port PCI-e FC HBA
AP768B
FCIP Software
HP MPX200 Half Chassis or single blade FCIP License
HP MPX200 Full Chassis or dual blades FCIP License
Data Migration Software HP MPX200 1TB Full Chassis Data Migration License
HP MPX200 5TB Full Chassis Data Migration License
HP MPX200 Full Chassis 1 Array Data Migration License
DA - 14433 North America — Version 6 — February 19, 2013
TA766A
TA767A
TA762A
TA763A
TA764A
Page 24
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
HP 3PAR StoreServ 7000 Product Dimensions, and Weight
Physical Dimensions
42U Intelligent Series
Rack
HP 3PAR StoreServ 7200
2-node Storage Base (no
host adapters, no drives)
HP 3PAR StoreServ 7200
2-node Storage Base
(with two host adapters,
no drives)
HP 3PAR StoreServ 7400
2-node Storage Base (no
host adapters, no drives)
HP 3PAR StoreServ 7400
2-node Storage Base
(with two host adapters,
no drives)
HP 3PAR StoreServ 7400
4-node Storage Base (no
host adapters, no drives)
HP 3PAR StoreServ 7400
4-node Storage Base
(with four host adapters,
no drives)
HP M6710 2.5 inch 2U SAS
Drive Enclosures (without
drives)
HP M6720 3.5 inch 4U SAS
Drive Enclosures (without
drives)
SFF SAS drive with carrier
LFF SAS drive with carrier
Height in/mm/U
Width in/mm
Depth in/mm
Max Weight lb/kg
79.0/2006.6
23.5/597.8
42.7/1125.2
243/110 (empty)
3.46/87.95/2
19/483
26.6/676.1*
47.7/21.6
3.46/87.95/2
19/483
26.6/676.1*
48.7/22.1
3.46/87.95/2
19/483
26.6/676.1*
47.7/21.6
3.46/87.95/2
19/483
26.6/676.1*
48.7/22.1
6.925/175.9/4
19/483
26.6/676.1*
97.8/44.4
6.925/175.9/4
19/483
26.6/676.1*
99.8/45.3
3.46/87.95/2
19/483
24.8/630.7
33.5/15.2
6.89/175/4
19/483
24.9/631.4
42.9/19.5
3.42/86.85**
0.78/19.9**
896/227.7
1.18/30.0**
4.36/110.84**
8.67/220.26
0.7/0.32
(varies by type)
1.9/0.86
(varies by type)
* includes length of ejector handles
** includes RFI clips
DA - 14433 North America — Version 6 — February 19, 2013
Page 25
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
Power Requirements
Input Voltage (VAC)
Frequency (Hz)
100 - 240 VAC
50 - 60
Component
Idle
(watts / BTU/hr)
Transactional
(watts / BTU/hr)
Node Pair (7200 or 7400), no drives, no
add-on host adapters
236 / 803
398 / 1357
4-port 8Gb/sec Fibre Channel Adapter
24 / 81.7
32.6 / 111
2-port 10Gb/sec iSCSI/FCoE Adapter
34 / 115.8
40 / 136.4
HP M6710 2.5 inch 2U SAS Drive Enclosure, 150 / 512 (average)
no drives
150 / 512 (average)
HP M6720 3.5 inch 4U SAS Drive Enclosure, 164 / 559 (average)
no drives
164 / 559 (average)
300GB 15K Small Form Factor HDD
6.2 / 21.1
8.0 / 27.3
450GB 10K Small Form Factor HDD
3.7 / 12.6
6.3 / 21.5
900GB 10K Small Form Factor HDD
4.8 / 16.4
6.2 / 21.1
2TB 7.2K Large Form Factor NL HDD
7.5 / 25.6
10.6 / 36.1
3TB 7.2K Large Form Factor NL NDD
8.5 / 28.9
11.8 / 40.2
100GB SLC SSD
1.4 / 4.8
3.9 / 13.3
200GB SLC SSD
1.4 / 4.8
3.9 / 13.3
Environmental Specifications
Operating Temperature
Shipping Temperature
Altitude (ft/m) max.
Shipping Altitude (ft/m) max.
Humidity
Shipping Humidity
Operating Vibration
Non-operating Vibration
Operating Shock
Non-operating Shock
Maximum Air Flow
Electromagnetic Compatibility
41° to 104° F (5° to 40° C) - Reduce rating by 1° F for each 1000 ft altitude
(1.8° C/1,000 m)
32° to 140° F (0° to 60° C)
10,000 ft / 3,048 m
40,000ft/ 12,192 m
10% to 90% non condensing
10% to 90% non condensing
0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz
0.5 G, 5 - 500 Hz, Sine
2 G, 11ms, half-sine
10 G, 11ms, half-sine
Storage Base and Upgrade Node Pair - 109 CFM per enclosure
M6710 Drive Enclosure - 105 CFM
M6720 Drive Enclosure - 109 CFM
CISPR 22:2008/ EN55022:2010 Class A
CISPR 24:2010/ EN 55024:2010
IEC 61000-3-2:2005/ EN 61000-3-2:2006 +A1:2009 +A2:2009
IEC/ EN 61000-3-3:2008
AS/NZS CIPSR 22: 2009 Class A
CNS 13438:2006 Class A
DA - 14433 North America — Version 6 — February 19, 2013
Page 26
QuickSpecs
HP 3PAR StoreServ 7000 Storage
Technical Specifications
47 CFR Part 15 Subpart b Class A
ICES-003 Issue 4 Class A
V-3/2012.04 Class A
RRA Notice No. 2011-24 (2011.12.23) Class A
RRA Notice No. 2011-25 (2011.12.23)
IEC 60950-1:2005 (2nd Edition)
EN 60950-1:2006 +A11:2009
EN 62479:2010
CNS 14336-1 2nd Edition
UL 60950-1 2nd Ed.
CAN/CSA C22.2 No. 60950-1
cTUVus Mark
TUV T-mark (EN 60950)
CE Mark
FCC Class A
IC Class A
VCCI Class A
BSMI Class A
KCC
GOST-R
C-Tick
WEEE
China RoHS
EU RoHS
Safety
Certifications / Markings
NOTE: Specifications are subject to change without notice.
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For drives, 1 TB = 1 trillion bytes. Actual formatted capacity is less.
DA - 14433 North America — Version 6 — February 19, 2013
Page 27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
