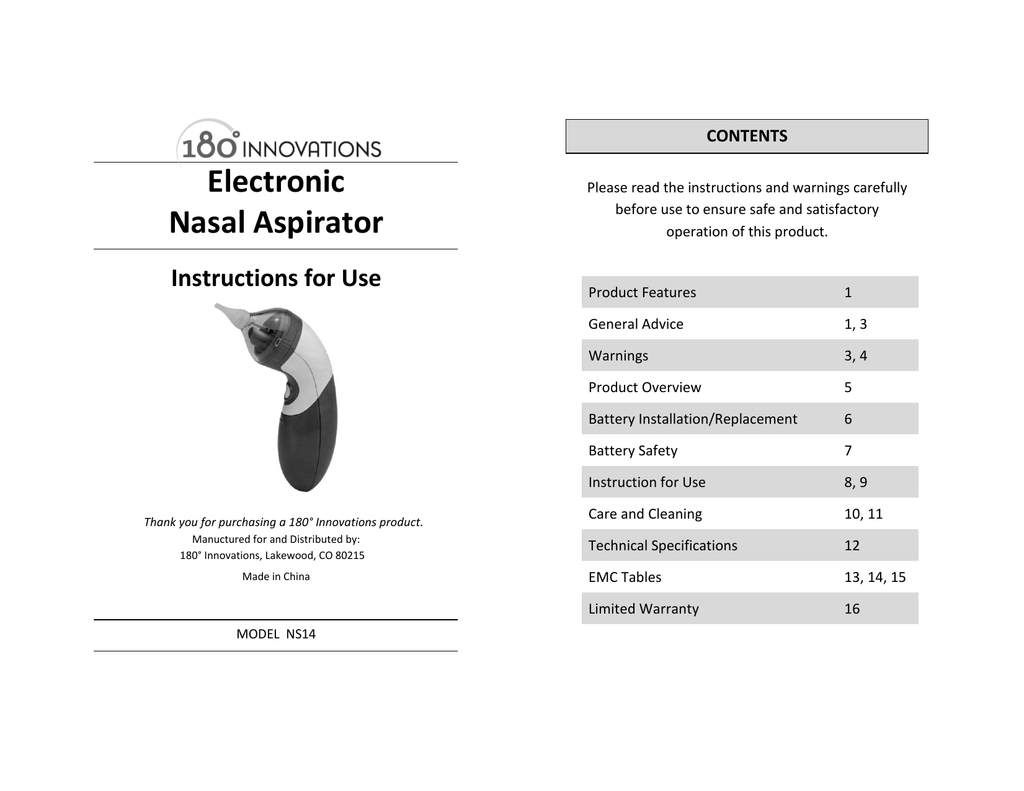

Electronic
Nasal Aspirator
Instructions for Use
Thank you for purchasing a ϭϴϬΣ/ŶŶŽǀĂƚŝŽŶƐ product.
Manuctured for and Distributed by:
180° Innovations, Lakewood, CO 80215
Made in China
MODEL NS14
Please read the instructions and warnings carefully
before use to ensure safe and satisfactory
operation of this product.
Product Features
1
General Advice
1, 3
Warnings
3, 4
Product Overview
5
Battery Installation/Replacement
6
Battery Safety
7
Instruction for Use
8, 9
Care and Cleaning
10, 11
Technical Specifications
12
EMC Tables
13, 14, 15
Limited Warranty
16
PRODUCT FEATURES
1. Powerful Suction: Place aspiration tip into nostril to
gently, yet powerfully remove nasal secretions.
2. Safe: The soft aspiration tips are made from comfortable,
latex-free, soft hygienic silicone to help prevent the
possibility of injury when using the device. The tips are
also dishwasher safe.
3. Compact & Easy Design: This device is compact, easy to
hold and operate and is safe and comfortable for use with
infants or children.
4. Washable Head Module Design: Tips, collection cup &
removable head piece can be removed from the device
and washed. (Collection cup can also be disinfected in
boiling water.)
5. Easy to Use: Simple operation.
6. Battery Operated: This device uses two 1.5V AA batteries
(included).
General Advice
The device is designed for using suction to remove nasal
secretions and mucus in Children (age newborn to 12 years
old) in your home environment.
1
General Advice CONTINUED
1. Do not expose the device to extreme temperature, very
high humidity level, or direct sunlight.
2. Avoid extreme shock, stress on or dropping of the device.
It is not shock proof.
3. Replace the batteries when the power and/or the sound of
the pump weakens during the use of the device.
4. It is recommended that you remove the batteries if the
device will not be used for a period of time.
5. Pressing and holding the power button starts the device
and generates vacuum for the removal of nasal secretions
and mucus. To stop the suction, simply release the power
button to turn it off.
6. Only a few seconds of suction at a time are necessary.
7. This Nasal Aspirator is for cleaning/removal of nasal
secretions only. Do not use this device other than for its
intended purposes.
8. During the use of the device, the baby/child should not
hold their breath, close their mouth or swallow. This will
help to avoid vacuum pressure resulting in an eardrum
pressure imbalance.
9. If the baby/child does not feel well when using the device,
stop and consult a doctor immediately.
10. Do not apply excessive force when placing the aspiration
tip into the nasal cavity.
11. This device is for home use only. Please consult a doctor in
case of nasal diseases.
12. The aspirator tips should be cleaned after each and every
use.
2
13. The operators of this device shall be adults or individuals
who can follow the instructions and notices outlined in this
user’s manual. This device is not intended for use by
children themselves. Keep the nasal aspirator stored
away from children. Children should NEVER operate the
device themselves.
14. DO NOT use the Nasal Aspirator when the baby/child has
the following contraindications:
Nasal bleeding
Acute head, facial, or neck injury
Coagulopathy or bleeding disorder
15. Before using the device, please read this User’s Manual
carefully. Incorrect use of the device may cause the
following hazards/complications:
Mechanical trauma
Nasal irritation/bleeding
Mucosal hemorrhage
Discomfort and pain
NOTE: This Nasal Aspirator must only be used with the tips
supplied with the device.
WARNINGS
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
Modifications not authorized by the manufacturer may
void user’s authority to operate this device.
3
WARNINGS CONTINUED
WARNING: This product is not a toy. Do not allow
children to play with it. Individual parts may present a
choking hazard.
Keep Nasal Aspirator away from heat sources, such as
fireplaces, radiators, stoves, and TVs or other appliances.
Heat can damage the case or electrical parts.
DO NOT use the Nasal Aspirator Unit if it has been
dropped or is damaged.
DO NOT OPEN THE NASAL ASPIRATOR. There are NO
user-serviceable parts inside the unit. Risk of electrical
shock, fire or death.
Do not drop the device! Protect it from severe impact
and shock.
Keep out of the reach of children when not in use.
NOTE: Do not microwave.
CAUTION: Never insert the aspirator too far into the
nostril. Never place the tip firmly against the inside wall
of the nostril. This aspirator is for cleaning congestion in
nasal passages. Do not use this device for anything other
than its intended purpose.
Do not modify this device in any way.
NEVER use on ears, mouth, or eyes.
NOTE: Please consult with your physician on when and
how often you should aspirate your baby/child’s nasal
passages.
4
Battery Installation/Replacement
Product Overview
Recommended battery type – alkaline, size AA 1.5 VDC.
Change batteries when product ceases to operate satisfactorily.
Silicone Nasal Tip
1.
Removable
Head Piece
2.
3.
4.
Collection Cup
5.
6.
Base Unit
Loosen Battery Cover Screw and remove the battery
cover as shown below.
Requires two 1.5V alkaline AA size batteries (included).
Clean the battery ends as well as the contacts in the
device prior to installing or re-installing batteries (use a
cotton swab slightly dampened with rubbing alcohol).
Insert two new batteries being careful to match the
correct polarities (+ and -).
Firmly press the batteries to make sure they are
completely inserted.
Replace the battery cover making sure to insert Tab into
Notch and then press until the cover clicks into place.
Tighten the screw.
Battery Cover
Tab and Notch
Battery Cover
Battery Cover Screw
5
6
Battery Safety
When changing the batteries, use batteries of the same
type, make and capacity.
Always replace both batteries at the same time.
Never mix alkaline, standard carbon-zinc or rechargeable
batteries in the same device. Do not mix old and new
batteries.
Use batteries free of heavy metals.
Dispose of used batteries in accordance to your state and
local regulations. Never dispose of batteries in the normal
household waste.
Keep the batteries out of children’s reach.
Batteries may leak battery acid; if mixed with a different
battery type, if inserted incorrectly (put in backwards) or
if all batteries are not replaced or recharged at the same
time.
Batteries may explode or leak battery acid if disposed of in
fire or when charging a battery that is not specifically made
to be recharged. Never recharge a cell of one type in a
recharger made for a cell of another type.
Discard leaky batteries immediately. They can cause skin
burns or other injury. When discarding batteries, be sure to
dispose of them in the proper manner, according to your
state and local regulations.
Always remove batteries before storing or if product will
not be used for a prolonged period of time. Batteries left in
the unit may leak and cause damage.
7
Instruction for Use
1. There are two Tips to choose from. The large tip is
recommended for use when the mucus is in a thicker,
more solid form. The narrow tip is recommended for use
when the mucus is loose and in a liquid form or when
nostril opening is smaller.
Large Tip
Narrow Tip
2. Be sure to place the tip securely on the aspirator. The Tip
must completely cover the rib before using.
NOT ALL THE
WAY ON
8
3.
4.
Hold the baby/child upright and insert the tip into the
nostril until the tip seals the nostril. Be careful not to
place the tip too far into the nostril or press against the
inside wall of the nostril.
Press and hold the power
button to activate and
allow the suction to clear
the mucus. Only a few
seconds of suction at a
time are necessary.
Repeat in the other
nostril or as needed.
Care and Cleaning
1. Separate the suction portion from the base of the aspirator
by gently pulling it apart.
2. Unscrew collection cup by turning it counter clockwise.
3. Remove white rubber ring located where collection cup
screws in.
DISASSEMBLING YOUR ASPIRATOR
BASE
HELPFUL HINTS:
If needed, block the opposite nostril for more effective
suctioning.
A small amount of saline mist may help to loosen thicker
mucus.
Opening the baby/child’s mouth will help reduce ear
pressure discomfort.
Note: The mucus may not immediately appear in the
collection cup. After each use we recommend a quick
cleaning of the used tip by removing it from the unit
and thoroughly rinsing under warm tap.
9
SUCTION PORTION
MUCUS
NON-RETURN
TUBE
Removable
Head Piece
Aspirator Tip
Collection Cup
Silicone Ring
10
4. Cleaning the Base: Wipe the unit with a clean soft dry
cloth.
NEVER WASH THE BASE WITH WATER OR ANY LIQUID
Technical Specifications
Effective Vacuum Pressure:
400 mm Hg (53.3 kpa)
Sound Pressure Level: 75 – 80 dB
Motor: 3V/DC
95°F
5. Cleaning the Suction Portion: Wash the collection cup,
silicone ring and aspirator tips with mild soap and water and
rinse thoroughly with running hot tap water for 3 minutes.
6. Rinse the Removable Head Piece with running hot tap
water only for 3 minutes.
7. Let all pieces thoroughly air dry before re-assembling.
Operating environment:
60.8°F – 95°F (16°C – 35°C)
60.8°F
Storage/Transportation environment:
-13°F ~ +131°F (-25°C ~ +55°C)
With relative humidity up to 85% (non condensing).
+131°F
-13°F
Aspiration Tip: Soft Silicone (Latex-free)
NOTES:
 Never use any cleaners or solutions other than mild soap
and water.
 After cleaning, the collection cup and silicone ring may be
disinfected by boiling in water.
 NEVER boil the Removable Head Piece or the Non-return
Tube. They may be damaged if overheated.
 Nasal Tips ONLY are dishwasher safe.
Battery: Two 1.5 VDC alkaline AA Size
Dimensions: 50.6mm x 92.7mm x 170.8mm (L x W x H)
Weight: 136g (without Batteries)
Type BF
equipment
Refer to
instructions
11
12
This device shall be
disposed of, after its useful
life, in accordance with
local and national laws.
EMC Tables
EMC Tables
Guide and manufacturer’s declaration-electromagnetic emissions
The NS14 Nasal Aspirator is intended for use in the electromagnetic environment
specified below. The customer or the user of the NS14 Nasal Aspirator should assure
that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment-guidance
RF emissions
CISPR 11
Group 1
The NS14 Nasal Aspirator uses RF energy only for
its internal function. Therefore, its RF emissions
are very low and are not likely to cause any
interference in nearby electronic equipment.
RF emissions
CISPR 11
Harmonic
emissions
IEC 61000-3-2
Class B
The NS14 Nasal Aspirator is suitable for use in all
establishments, including domestic establishments
and those directly connected to the public lowvoltage power supply network that supplies
buildings used for domestic purposes.
Not applicable
Guidance and manufacturer’s declaration – electromagnetic immunity
The NS14 Nasal Aspirator is intended for use in the electromagnetic environment
specified below. The customer or the user of the NS14 Nasal Aspirator should
assure that it is used in such an environment.
Immunity test
IEC 60601
test level
Electrostatic ± g kV contact
discharge (ESD) ± 8kV air
IEC 61000-4-2
Power
frequency
(50/50 Hz)
Magnetic field
IEC 61000-4-8
3 A/m
Compliance
level
Electromagnetic Environmentguidance
± g kV contact
± 8kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be
at least 30%
3 A/m
13
Power frequency magnetic fields
should be at levels characteristic
of a typical location in a typical
commercial or hospital
environment.
Guidance and manufacturer’s declaration-electromagnetic immunity
The NS14 Nasal Aspirator is intended for use in the electromagnetic environment
specified below. The customer or the user of the NS14 Nasal Aspirator should
assure that it is used in such an environment.
Immunity IEC 60601 Compliance Electromagnetic environment- guidance
test
test level
level
Portable and mobile RF communications
equipment should be used no closer to any
part of the NS14 Nasal Aspirator, including
cables, than the recommended separation
distance calculated from the equation
applicable to the frequency of the
transmitter.
Recommended separation distance
Radiated
RF IEC
61000-4-3
3 V/m
80 MHz to
2.5 GHz
d=1.2 P
d=1.2 P 80 MHz to 800 MHZ
d=2.3 P 800 MHZ to 2,5 GHz
3 V/m
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site
survey³, should be less than the compliance
level in each frequency rangeb.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects and
people.
14
a. Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM
radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength
in the location in which the NS14 Nasal Aspirator is used exceeds the applicable
RF compliance level above, the NS14 Nasal Aspirator should be observed to verify
normal operation. If abnormal performance is observed, additional measures may
be necessary, such as reorienting or relocating the NS14 Nasal Aspirator.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3
V/m.
Recommended separation distances between portable and mobile RF
communications equipment and the NS14 Nasal Aspirator
The NS14 Nasal Aspirator is intended for use in an electromagnetic environment in
which radiated RF disturbances are controlled. The customer or the user of the NS14
Nasal Aspirator can help prevent electromagnetic interference by maintaining a
minimum distance between portable and mobile RF communications equipment
(transmitters) and the NS14 Nasal Aspirator as recommended below, according to
the maximum output power of the communications equipment.
Rated maximum
Output power of
Transmitter
W
Separation distance according to frequency of transmitter m
150 kHz to
80 MHz to 800 MHz
800 MHz to
80 MHz
2.5 GHz
d=1.2 P
d=1.2 P
d=2.3 P
0.01
0.12
0.12
0.23
0.1
0.38
0.38
0.73
1
1.2
1.2
2.3
10
3.8
3.8
7.3
100
12
12
23
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in meters (m) can be estimated using the
equation applicable to the frequency of the transmitter, where P is the maximum
output power rating of the transmitter in watts (W) according to the transmitter
manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency
range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation
is affected by absorption and reflection from structures, objects and people.
15
Limited Warranty
This NS14 Nasal Aspirator (batteries excluded) is guaranteed for one year
from the date of purchase against manufacturer’s defect under normal,
household use and without evidence of tampering.
WARRANTY EXCLUSIONS:
Device shows any signs of tampering or attempted modification.
Evidence of improper handling or storing, such as dropping, heat, liquid
or cleaner damage.
Damage caused by natural disasters (fire, flood, earthquake, lightening).
No receipt or proof of purchase showing date of purchase.
Following the directions closely will ensure years of dependable operation. If
the NS14 Nasal Aspirator does not function properly, first check the
batteries (see battery installation/replacement instructions). Replace the
batteries if necessary. If the NS14 Nasal Aspirator still does not function
properly, please contact 180° Innovations at:
Email: ŝŶĨŽΛϭϴϬŝŶŶŽǀĂƚŝŽŶƐ͘ĐŽŵ
Toll free: 1-877-299-6700
Mail: 11100 West 8th Ave, Lakewood, CO 80215
Our representative will provide further instruction on how to correct the
trouble or will ask you to return it for repair or replacement.
ϭϴϬ/ŶŶŽǀĂƚŝŽŶƐ͘ĐŽŵ
Distributed by: 180° Innovations
11100 West 8th Ave, Lakewood, CO 80215
Made in China
REV. 20151104
16

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
