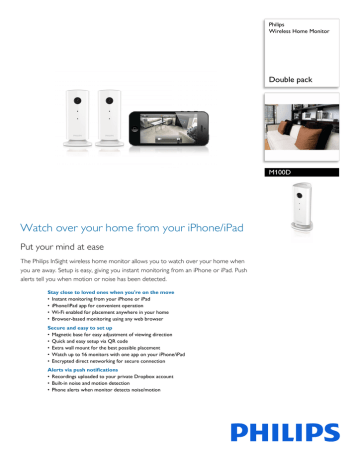

Philips
Wireless Home Monitor
Double pack
M100D
Watch over your home from your iPhone/iPad
Put your mind at ease
The Philips InSight wireless home monitor allows you to watch over your home when
you are away. Setup is easy, giving you instant monitoring from an iPhone or iPad. Push
alerts tell you when motion or noise has been detected.
Stay close to loved ones when you're on the move
• Instant monitoring from your iPhone or iPad
• iPhone/iPad app for convenient operation
• Wi-Fi enabled for placement anywhere in your home
• Browser-based monitoring using any web browser
Secure and easy to set up
• Magnetic base for easy adjustment of viewing direction
• Quick and easy setup via QR code
• Extra wall mount for the best possible placement
• Watch up to 16 monitors with one app on your iPhone/iPad
• Encrypted direct networking for secure connection
Alerts via push notifications
• Recordings uploaded to your private Dropbox account
• Built-in noise and motion detection
• Phone alerts when monitor detects noise/motion
M100D/05
Wireless Home Monitor
Double pack
Highlights
Wi-Fi enabled
Browser-based monitoring
The InSight wireless home monitor also allows
you to find out what's going on at home in real
time from your favourite web browser, be it
Chrome, Internet Explorer, Safari or Firefox,
on a PC or Mac.
allowing you to rotate and adjust your monitor
to any angle.
Extra wall mount
Easy setup
The In.Sight wireless home monitor is a Wi-Fi
enabled monitor, it uses your home wireless
network to stream live video and audio with
monitors that you can set up anywhere you
like.
Instant monitoring
Quick and easy set-up allows you to pair the
InSight wireless home monitor with an iPhone
or iPad. Place the QR code image in front of
the monitor lens to activate the InSight app.
The monitor is ready to use when the light
turns solid green.
In.Sight wireless home monitor comes with a
wall mounting bracket. Use it to easily mount
your monitor to any wall or ceiling. The base
itself pivots and turns, so you can still
reposition the In.Sight wireless home monitor
when it is mounted.
Encrypted direct networking
Watch up to 16 monitors
Once you have set up your InSight wireless
home monitor on your local network, you can
access the video stream from your iPhone or
iPad anywhere in the world over Edge, 3G and
wireless networks instantly. There's no limit to
where and how you view your video.
InSight app for Apple
With one app, you can watch up to 16 Philips
InSight wireless home monitors. Place as many
monitors as you like, anywhere you like.
Philips In.Sight wireless home monitor uses
highly secure encryption to provide you with
privacy at all times. In.Sight wireless home
monitor uses a unique encryption key each
time it makes a connection.
Noise and motion detection
Direction adjustable
The Philips InSight wireless home monitor is a
cutting-edge app-based wireless video monitor
that lets you see and hear what's happening at
home, from anywhere in the world.
Completely free, the dedicated InSight app can
be downloaded from the App Store directly
from your iPhone or iPad.
The Philips InSight wireless home monitor has
a magnetic base that holds the monitor,
It's impossible to predict when something
might happen. The InSight wireless home
monitor keeps watch with adjustable noise and
motion detection. You will be alerted any time
noise or motion is detected.
M100D/05
Wireless Home Monitor
Double pack
Specifications
Lens and Sensor
• Sensor: VGA
• Focus mode: Fixed
• Focus range: 0.4 M to infinity
Video Quality
•
•
•
•
VGA streaming
Formats: H.264 video compression
White Balance: Automatic white balance
Exposure: Automatic exposure control
Features
• Wi-Fi: 802.11 b/ g/ n (2.4 GHz), 802.11 a (5 GHz)
not supported
• Motion detection
• Noise detection
• LED indicator
• Magnetic base: Direction adjustable
• Reset button
• Screw holes: Yes, 1
Software
•
•
•
•
•
Installation: via App
Automatic App update
Web browser support
System supported: iOS4.3 or above
iPad compatibility: iPad, iPad 2, New iPad, iPad with
Retina display, iPad mini
• iPhone compatibility: iPhone 3GS, iPhone 4, iPhone
4S, iPhone 5
• iPod compatibility: iPod Touch 4th generation and
up
Accessories included
•
•
•
•
•
Extra wall mount: 2
USB power adapter: 2
USB cable: 2, 2.5 m each
Screws/wall anchors: 6
Quick Start Guide
Input and Output
• Microphone: Highly sensitive, Mono
• USB: Mini-USB port
Minimum Requirements
• Windows: Windows XP, Windows Vista,
Windows 7, Internet Explorer 6.0, PENTIUM 4 2.8 GHz processor, 1 GB RAM and 64 MB Video
RAM
• MAC: MACINTOSH 10.4, MACINTOSH 10.5,
MACINTOSH 10.6, MAC 1.66 GHz Intel Core
Duo, Safari 1.1
Dimensions
• Packaging dimensions (W x H x D):
158 x 175 x 76 mm
• Product dimensions (W x H x D):
45 x 95 x 45 mm
•
Issue date 2013-11-18
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Version: 8.1.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 93523
EAN: 87 12581 65532 7
www.philips.com
* Viewing live video over your home Wi-Fi network using the In.Sight
wireless home monitor is free and unrestricted. Viewing live video
remotely (either over an external Wi-Fi network or 3G network) is
also free for unlimited sessions, but subject to a limit of 5 minutes
per session.
* Longer remote viewing session times and other premium features
are available for purchase from the App. These conditions are
subject to change.
