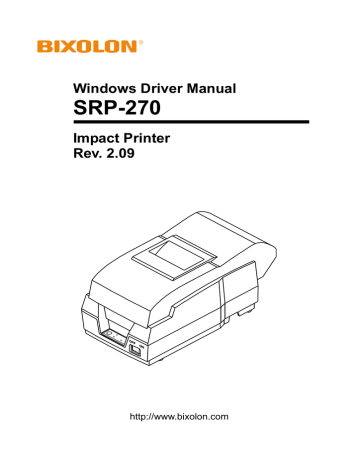

Windows Driver Manual

SRP-270

Impact Printer

Rev. 2.09

http://www.bixolon.com

SRP-270

Table of Contents

1. Manual Information ........................................................................................................ 3

2. Operating System (OS) Environment ........................................................................... 3

3. Windows Driver Preparation ......................................................................................... 3

4. Windows Driver Installation .......................................................................................... 4

4-1 Installing on Windows XP / Server 2003 ..................................................................... 4

4-1-1 Via Serial Port or Parallel Port .............................................................................. 4

4-1-2 Via USB Port ........................................................................................................ 8

4-2 Installing on Windows VISTA / Server 2008 / 7 / 8 .................................................... 13

4-2-1 Via Serial Port or Parallel Port ............................................................................ 13

4-2-2 Via USB Port ...................................................................................................... 17

5. Windows Driver Settings ............................................................................................. 20

5-1 Paper ........................................................................................................................ 20

5-1-1 Paper Size .......................................................................................................... 21

5-1-2 Paper Type ......................................................................................................... 22

5-1-3 Resolution .......................................................................................................... 23

5-1-4 Copies ................................................................................................................ 23

5-1-5 Color ................................................................................................................... 23

5-2 Document Settings ................................................................................................... 24

5-2-1 Send Commands ................................................................................................ 24

5-2-2 Cash Drawer....................................................................................................... 25

5-2-3 Line Feed ........................................................................................................... 25

5-2-4 Cut ...................................................................................................................... 25

6. Windows Driver Specifications ................................................................................... 26

6-1 Fonts ......................................................................................................................... 26

6-2 Special Functions...................................................................................................... 27

7. Use of Windows Driver ................................................................................................ 28

7-1 Use of Visual Basic ................................................................................................... 28

7-1-1 Windows Driver Selection ................................................................................... 28

7-1-2 Test Printing ........................................................................................................ 28

7-2 Use of WordPad ....................................................................................................... 29

7-2-1 WordPad Environment Settings .......................................................................... 29

7-2-2 Text Printing ........................................................................................................ 29

Rev. 2.09

- 2 -

SRP-270

1. Manual Information

This Windows Driver Installation Manual provides information on installation, detailed specifications, and usage of the printer’s Windows Driver according to PC operating system (OS).

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

2. Operating System (OS) Environment

The following operating systems are supported for usage.

- Microsoft Windows XP (32bit/64bit)

- Microsoft Windows Server 2003 (32bit/64bit)

- Microsoft Windows VISTA (32bit/64bit)

- Microsoft Windows Server 2008 (32bit/64bit)

- Microsoft Windows Server 2008R2 (64bit)

- Microsoft Windows 7 (32bit/64bit)

- Microsoft Windows 8 (32bit/64bit)

3. Windows Driver Preparation

The Windows Driver is included in the enclosed CD, and Latest file versions can be downloaded from the Bixolon website. (

www.bixolon.com

)

Rev. 2.09

- 3 -

4. Windows Driver Installation

4-1 Installing on Windows XP / Server 2003

4-1-1 Via Serial Port or Parallel Port

1) Double-click the Windows Driver installation file.

2) Click

“Next”.

SRP-270

3) Select a COM port or LPT port to be used and then click

“Next”

Rev. 2.09

- 4 -

4) When the following message box appears, click

“Continue Anyway”.

SRP-270

5)

Click “Yes” to reboot the PC.

Rev. 2.09

- 5 -

SRP-270

6) Open the printer properties window in the Windows OS.

※ Control Panel – Printers and Faxes.

7) I n the “Ports” tab, click “Configure Port…”

※ Pass this step if you are using a parallel port.

8) Match the communication settings to those of the printer. The communication settings of the printer can be performed by conducting a self-test.

※ Pass this step if you are using a parallel port.

Rev. 2.09

- 6 -

SRP-270

9)

Click “Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally.

Rev. 2.09

- 7 -

4-1-2 Via USB Port

1) Double-click the Windows Driver installation file.

2) Click “Next”.

SRP-270

3) Select

“USB” and then click “Next”.

Rev. 2.09

- 8 -

4) When the following message box appears, click

“Continue Anyway”.

SRP-270

5) Click the

“OK”.

6) Turn off the printer and then turn it on.

Rev. 2.09

- 9 -

SRP-270

7) When the New Hardware Wizard appears for the installation of the Windows Driver, select the option a s shown below and click “Next”.

8

) Click “Next”.

Rev. 2.09

- 10 -

9) When the following message box appears, click

“Continue Anyway”.

SRP-270

10) Click

“Finish”.

Rev. 2.09

- 11 -

SRP-270

11) Open the printer properties window in the Windows OS.

※ Control Panel – Printers and Faxes.

12) Click

“Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally.

Rev. 2.09

- 12 -

4-2 Installing on Windows VISTA / Server 2008 / 7 / 8

4-2-1 Via Serial Port or Parallel Port

1) Double-click the Windows Driver installation file.

2) Click

“Next”.

SRP-270

3) Select a COM port or LPT port to be used and then click

“Next”.

Rev. 2.09

- 13 -

4) When the following message box appears, click

“Install”.

SRP-270

5) Click

“Yes” to reboot the PC.

Rev. 2.09

- 14 -

SRP-270

6) Open the printer properties window in the Windows OS.

※ Control Panel – Hardware and Sound – Device and Printers.

7) I n the “Ports” tab, click “Configure Port…”

※ Pass this step if you are using a parallel port.

8) Match the communication settings to those of the printer. The communication settings of the printer can be performed by conducting a self-test.

※ Pass this step if you are using a parallel port.

Rev. 2.09

- 15 -

SRP-270

9

) Click “Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally.

Rev. 2.09

- 16 -

4-2-2 Via USB Port

1) Double-click the Windows Driver installation file.

2) Click

“Next”.

SRP-270

3) Select

“USB” and then click “Next”.

Rev. 2.09

- 17 -

4) When the following message box appears, click

“Install”.

SRP-270

5) Click the “OK”.

Rev. 2.09

- 18 -

SRP-270

6) Turn off the printer and then turn it on. The printer driver will be installed automatically.

7) Open the printer properties window in the Windows OS.

※ Control Panel

– Hardware and Sound – Device and Printers.

8

) Click “Print Test Page” and check printing status. Proper installation of the driver is indicated if the test page is printed normally.

Rev. 2.09

- 19 -

5. Windows Driver Settings

The following functions can be configured after installing the Windows driver.

5-1 Paper

SRP-270

1) Open the Printer Properties window for the corresponding OS.

2) Click the “Preferences” button in the “General” tab.

3) Click “Paper” Tab.

Rev. 2.09

- 20 -

SRP-270

5-1-1 Paper Size

Paper size of 76 x 297 mm is selected by default, and the following sizes can be selected.

76

297 mm 76

3276 mm

If a custom paper size is required, click the “…” button to add or update a custom paper size and then, click the

“Save” button after specifying the paper width/length and a paper name. If the specified paper name already exists on the system, you can update the paper width/length.

Valid Paper Width : 25.4 mm ~ 63.5 mm

Valid Paper Length : 25.4 mm ~ 3276 mm

You can choose the new paper size on the

“Paper Size” combo-box after adding a paper size.

Delete button: Deletes the paper size selected in the list.

Save button: Adds a new paper size or update the paper size selected in the list if the paper name already exists on the system.

Rev. 2.09

- 21 -

SRP-270

5-1-2 Paper Type

You can choose Receipt or Ticket as paper types. Receipt allows flexible paper length according to the data length. Ticket print in fixed length even the print data is short. Default setting is

“Receipt”.

Receipt : Receipt allows flexible paper length according to the data length.

Ticket : Ticket print in fixed length even the print data is short.

Rev. 2.09

- 22 -

SRP-270

5-1-3 Resolution

The print resolution supported by this printer driver are 160 x 144 dots per inch, 160 x 72 dots per inch and 80 x 72 dots per inch. It is recommended to select 160 x 144 dots per inch which is the highest resolution in the printer driver.

5-1-4 Copies

Copies are printed by specifying the copy count. The copy count is set to 1 by default. Set this value bigger than 1 to set the number of copies to print. The value should be within the range of 1 to 255.

5-1-5 Color

The printer can print by using black and red, or by using black only. Select Monochrome if you want to set the printer printing by using black only.

Rev. 2.09

- 23 -

5-2 Document Settings

SRP-270

1) Open the Printer Properties window for the corresponding OS.

2) Click the “Preferences” or “Printing Preferences” button in the “General” tab.

3) Click “Document Settings” Tab.

5-2-1 Send Commands

The Windows driver serves to receive the content for print from an application and send it to the printer. The

“Send Commands” function allows for the addition of desired commands at the start or end of the print content.

Start Doc : Addition of command at the beginning of the document.

Start Page : Addition of command at the beginning of the page.

End Page

End Doc

: Addition of command at the end of the page.

: Addition of command at the end of the document.

For more information on the hexadecima ls that can be entered in “Start Doc”, “Start Page”,

“End Page” and “End Doc”, refer to the Control Commands Manual.

Rev. 2.09

- 24 -

SRP-270

5-2-2 Cash Drawer

To open a cash-drawer before printing, tick

“Open before printing #1” or “Open before printing #2

” in the “Cash Drawer” and then click “OK”.

To open a cash-drawer after printing, tick

“Open after printing #1” or “Open after printing

#2

” in the “Cash Drawer” and then click “OK”.

5-2-3 Line Feed

Enter the number between 0 and 99 for adding blank lines at the end of printing.

5-2-4 Cut

Paper can be cut at the end of each page or each document (job).

Page/Job : No Cut / No Cut : Paper is not cut after printing.

Page/Job : No Cut / Partial Cut : Paper is cut at the end of each document (Job).

Page/Job : Partial Cut / Partial Cut : Paper is cut at the end of each page.

Rev. 2.09

- 25 -

SRP-270

6. Windows Driver Specifications

6-1 Fonts

The Windows Driver of the printer supports the fonts listed below. Printing is done at faster speed when using the fonts below as opposed to the Windows fonts of the OS.

Printer Fonts Character size(dot)

Sizes

(point)

FontA1x1 FontA1x1[Ext.] FontA1x1[255] FontA1x1(9x9) 9

FontA1x2

FontA2x1

FontA2x2

FontB1x1

FontB1x2

FontB2x1

FontB2x2

FontA1x2[Ext.]

FontA2x1[Ext.]

FontA2x2[Ext.]

FontB1x1[Ext.]

FontB1x2[Ext.]

FontB2x1[Ext.]

FontB2x2[Ext.]

FontA1x2[255]

FontA2x1[255]

FontA2x2[255]

FontB1x1[255]

FontB1x2[255]

FontB2x1[255]

FontB2x2[255]

FontA1x2(9x18)

FontA2x1(18x9)

FontA2x2(18x18)

FontB1x1(7x9)

FontB1x2(7x18)

FontB2x1(14x9)

FontB2x2(14x18)

18

9

18

9

18

9

18

Printer Fonts

Chinese2312_1x1

Character size(dot)

Chinese2312_1x1(16x16)

Sizes

(point)

16

Chinese2312_1x2

Chinese2312_2x1

Chinese2312_2x2

ChineseBIG5_1x1

Chinese BIG5_1x2

Chinese BIG5_2x1

Chinese2312_1x2(16x32)

Chinese2312_1x1(32x16)

Chinese2312_1x2(32x32)

Chinese BIG5_1x1(16x16)

Chinese BIG5_1x2(16x32)

Chinese BIG5_1x1(32x16)

Chinese BIG5_2x2 Chinese BIG5_1x2(32x32)

Printer Fonts are defined as follows.

1) FontA1x2

- ANSI Character code support (Code Page 1252)

- Character size (dot): 9 x 18 (double height)

- Sizes (point): 18

2) FontA1x2[Ext]

- IBM expansion Character code support (Code Page 437)

- Character size (dot): 9 x 18 (double height)

- Sizes (point): 18

3) FontA1x2[255]

- Buyer exclusive code support (User Code Page)

- Character size (dot): 9 x 18 (double height)

- Sizes (point): 18

32

16

32

16

32

16

32

Rev. 2.09

- 26 -

SRP-270

G

H

I

J

K

C

D

E

F w x y

A

B d e f g

6-2 Special Functions

This Windows driver supports the special functions as shown in the following table.

Select the “FontControl” font first and use the characters in the table to use the special functions. Take care as this function is not for printing general texts.

This function is not an ordinary character printing function. Take special care.

Character Special Function

5

6

7 a b c

HT is output

LF is output

CR is output

Open Cash drawer 2 (50ms drive pulse width)

Open Cash drawer 2 (100ms drive pulse width)

Open Cash drawer 2 (150ms drive pulse width)

Open Cash drawer 2 (200ms drive pulse width)

Open Cash drawer 2 (250ms drive pulse width)

Open Cash drawer 2 (50ms drive pulse width) without feeding

Cut Receipt (partial cut) without paper feeding

Aligns text to the left

Aligns text to the center

Aligns text to the right

Open Cash drawer 1 (50ms drive pulse width)

Open Cash drawer 1 (100ms drive pulse width)

Open Cash drawer 1 (150ms drive pulse width)

Open Cash drawer 1 (200ms drive pulse width)

Open Cash drawer 1 (250ms drive pulse width)

Open Cash drawer 1 (50ms drive pulse width) without feeding

Print NV 1 st


Print NV 2 nd


Print NV 3 rd


Print NV 4 th


Print NV 5 th


P Cut Receipt (partial cut)

1) Sample Use

If the “FontControl” font is selected and 6 is entered, the “LF” (Line Feeding) operation is activated. (does not entail the printing of the character “6)

2)

“FontControl” Font Function

Printer Font for

Special Function

Function Size (point/dot)

FontControl

Justification (Left/Center/Right)

Output HT, Output LF, Output CR

Barcode Printing

Print NV Graphic Data

( 9 / 9x9 )

Rev. 2.09

- 27 -

SRP-270

7. Use of Windows Driver

7-1 Use of Visual Basic

This section contains example codes to control the printer using Windows driver with

Visual Basic. Sample codes contained in the CD.

7-1-1 Windows Driver Selection

The following code is an example of the selection of the

“BIXOLON SRP-270” Windows

Driver.

For Each prnPrinter In Printers

If prnPrinter.DeviceName = “BIXOLON SRP-270” Then

Set Printer = prnPrinter

Exit For

End If

Next

7-1-2 Test Printing

The following code is an example of the printing of Arial Test via the Windows font, and

FontA1x1Test via the printer font.

‘Print in Windows font

Printer.FontSize = 9

Printer.FontName = “Arial”

Printer.Print “Arial Test”

‘Print in printer font

Printer.FontSize = 9.5

Printer.FontName = “FontA1x1”

Printer.Print “FontA1x1Test”

Printer.EndDoc

Rev. 2.09

- 28 -

SRP-270

7-2 Use of WordPad

7-2-1 WordPad Environment Settings

After running WordPad and setting the following conditions, conduct a test.

- Select Printer

After selecting “Print” from the “File” menu, select the printer (BIXOLON SRP-270).

- Select Paper Size, Orientation, and Margins

After selecting “Page Setup” from the “File” menu, select the paper size, orientation, and margins.

7-2-2 Text Printing

Use the Windows Driver of the printer to run a test.

1) Select the desired font from the Font menu (FontA1x1).

2) Select the desired font size (9).

3) Enter the text to be printed in WordPad.

4) Click the Print button in the toolbar to print.

Rev. 2.09

- 29 -

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
