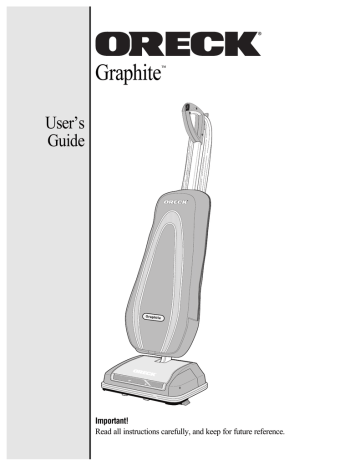

Graphite
™
User’s
Guide
Important!
Read all instructions carefully, and keep for future reference.
E
Safety
N
G
L
I
S
H
General Warnings
IMPORTANT SAFETY INSTRUCTIONS!
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
WARNING To reduce the risk of fire, electric shock, or injury:
• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not operate the unit while in the upright and locked position.
• Do not let the unit run while in any one stationary position for any period of time. Keep the unit moving while
in operation.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged,
left outdoors, or dropped into water, return it to a service center or call customer service at:
US: 1-800-989-3535 Canada: 1-888-676-7325
• Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges
or corners.
• Keep cord away from heated surfaces.
• Do not run appliance over cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair
and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filter bag assembly in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline or lighter fluid, or use in areas where
they may be present.
• Do not use appliance in an enclosed space where flammable, explosive or toxic vapors are given off by oil base
paint, paint thinner, some mothproofing substances, or in an area where flammable dust is present.
• Do not pick up toxic material such as chlorine bleach, drain cleaner, gasoline, etc. with this appliance.
• Use caution when vacuuming over area rug edges and fringe.
• WARNING!: Product contains chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
SAVE THESE INSTRUCTIONS
Household Use Only
A polarized plug has one rounded prong and one straight prong.
The rounded end goes into the longest socket slot.
To reduce the risk of electric shock, this equipment has a polarized plug
(one blade is wider than the other). This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact qualified personnel to install the proper outlet.
Do not alter the plug in any way.
Enjoy
Call
Click
Thank you for purchasing the Oreck U4300 Graphite series upright vacuum cleaner. The U4300 Graphite features a 6-year limited warranty, high speed for cleaning carpet and low speed for cleaning bare floors and the
HEPA Filtration Odor Fighting Bag captures dust & dirt that goes in the bag so it doesn’t blow back into the air.
To speak with an Oreck representative call:
USA: 1-800-989-3535 Canada: 1-888-676-7325
On the web, point and click at: www.oreck.com
2
E
Contents
Total Cleaning System
N
G
L
I
S
H
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembling the Handle Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating the Vacuum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Replacing the HEPA Filtration Odor Fighting Bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Simple Operation Tips and Vacuum Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
HEPA Filtration Odor Fighting Bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
The Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Replacing Worn Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting or Replacing Brushroll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Replacing Edge Brush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Replacing Light Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Stuffing or Blockage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Accessories & Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Español Guía Del Usuario . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Guide D’utilisation Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1
Operation
To assist you in
identifying your
vacuum’s components,
the parts have been
numbered as follows.
Parts List
3
2
1 Handle
2 On/Off Switch
3 Cord Hook
4 Handle Tube
5 Zipper
6 Bumper
7 Edge Brush
8 Belt Door
9 Power Cord
10 Connector Deflector Assembly
11 Collars
12 Lower Tube
13 Fan Housing
14 Bag Spring
15 Outer Bag
16 Power Head
17 HEPA Filtration Odor Fighting Bag
18 Fascia
19 Housing
4
5
10
17
15
12
11
9
18
13
14
19
6
16
3
7
8
E
Operation
N
G
L
I
S
H
Assembling the Handle Tube
1 Before assembling appliance, remove two screws from the connector assembly. Remove insert by pulling
upward.
2 Slide upper handle section over the matching section of the connector assembly. Insert short screw into
top hole and long screw into the bottom hole then tighten firmly until handle is no longer loose.
Snap
cord assembly into the cord clip located on the left side of the collar. Leave excess cord at the power head
3
to allow movement.
Upper
Handle
Connector
Assembly
1
3
2
Operating the Vacuum
Make sure the HEPA Filtration Odor Fighting Bag is in place. DO NOT operate the cleaner without a dust bag.
Plug the power cord into an electrical outlet and press the On ( l ) - OFF ( O ) switch on handle assembly when
ready to operate.
4
5
Up-Position Lock - Place foot on power head and lean handle back gently to release lock for vacuum use.
Return handle to the full upright position to engage lock. Note: Do not operate the unit while in the upright and
locked position. Do not let the unit run while in any one stationary position for any period of time.
Keep the unit moving while in operation.
Easy Power Cord Storage - Wrap power cord around cord hook on handle and cord hook on connector. Secure
to “U” shaped part on plug.
4
5
Replacing the HEPA Filtration Odor Fighting Bag
WARNING: Unplug cord from electrical outlet before servicing.
BAG REMOVAL:
6 Unzip outer bag completely.
7 Pull bag cardboard collar to release bag dock door from connector. Bag dock door will hinge downward.
®
8 Gently pull bag cardboard collar upward out of the bag dock. Saniseal dust seal will close automatically.
BAG INSTALLATION:
9 Slide the cardboard collar completely onto bag dock door.
10 Firmly push bag dock door with both thumbs on indication point until it snaps.
6
7
8
4
9
10
E
Operation
General
Information
N
G
L
I
S
H
Simple Operation Tips and Vacuum Care
This new ORECK Upright is one of the finest, fastest, and strongest units in its class. You’ll love the way it cleans,
gets under things, and it’s SO lightweight and easy to use.
The following are a few simple suggestions regarding its operation:
1. When inserting a new HEPA Filtration Odor Fighting Inner Bag -FIRST PUFF OUT and OPEN THE BAG.
2. When the HEPA Filtration Odor Fighting Inner Bag is full, REPLACE IT.
3. If at any time the machine does not pick up properly or makes an unusual noise, STOP OPERATION and service.
4. Although your upright will pick up pins, paper clips, and other small objects, it is recommended that these be
removed from the floor before you vacuum. Failure to do so may result in permanent damage to the motor
suction fan and its housing.
5. WARNING: Do not use your vacuum cleaner on damp or wet surfaces. This will cause damage to the vacuum
cleaner and is dangerous to the user. Damage caused by use on wet or damp surfaces is not covered under warranty.
6. For optimal performance, replace the belt every 6 months.
7. Check the disposable filter dust bag at least once a month.
8. DO NOT run the vacuum cleaner over the cord. The revolving brush could damage the cord.
9. Use caution when vacuuming over area rug edges and fringe.
The performance of your new cleaner greatly depends upon care and maintenance. The instructions in this manual
will guide you in performing basic care and maintenance. To obtain the most satisfying years of service read the
instructions and keep them handy for future reference.
LLUP
HEPA Filtration Odor Fighting Bags
Your Oreck includes a HEPA Filtration Odor Fighting Bag. The disposable inner bag plays a very
important role in the efficiency of your ORECK vacuum. The purpose of the disposable inner bag
is to trap dirt, but at the same time it must be porous enough to allow air to pass through. If the disposable inner bag becomes clogged, no air can pass through the vacuum and cleaning cannot take
place, regardless of the vacuum’s power.
To keep your Upright vacuum operating at maximum efficiency, change the disposable inner bag
frequently.
DO NOT FILL ABOVE THE LINE INDICATED ON THE DISPOSABLE INNER BAG.
Be sure the disposable inner bag is instal properly. Note: All disposable inner bags are not the
same. Oreck offers HEPA and non-HEPA inner bags. Your Oreck HEPA or non-HEPA inner
bags have been designed to be used with the ORECK Upright vacuum. Using bags other than genuine Oreck HEPA or non-HEPA disposable inner bags will affect the cleaning ability of your vacuum and could cause damage to it.
The Belt
The belt on your vacuum cleaner controls the speed of the revolving brush and is very important for the effective
operation of the cleaner. If the belt becomes stretched or cut, it will cause the revolving brush to stop completely or
slow down. See instructions in the manual for replacing belt.
5
E
General
Information
N
G
L
I
S
H
Lubrication
The vacuum cleaner motor bearings are factory lubricated and sealed. Further lubrication is not required.
CAUTION
Wood Floors, Soft (Vinyl, Asphalt Tile, etc.) Floor Surfaces and Polished Floor Finishes
Use floor and floor finish manufacturer’s recommended methods of cleaning. The
roller brush may also scuff very soft finishes. Do not operate the unit while in the
upright and locked position. Do not let the unit run while in any one stationary position for any period of time. Keep the unit moving while in operation.
Note: At least once a month, check for and remove excessive lint, string or hair from
revolving brush. Patented cleaning grooves on brush roll will allow easier cleaning.
Wipe the outside of the cleaner with a damp cloth. Also clean the connector deflector
assembly area, base of cleaner and fan housing area. If there is dust in the outer bag,
vacuum it or shake it out.
A little preventative maintenance will keep your cleaner looking new and will ensure
continued cleaning effectiveness.
Maintenance
Replacing Worn Belt
WARNING: Unplug cord from electrical outlet before servicing.
11 Remove the door by removing the hold down screw located on side of power head.
12 Fold door away from the power head and lift it away.
13 Remove the belt from the motor drive shaft and brush roll pulley.
14 Loop the new belt over the brush roll pulley. Place the opposite end of the belt on the motor drive shaft.
12 Replace the door by placing the bottom tab on door into slots located inside power head and pressing the
door closed.
11 Replace the hold down screw and tighten.
11
12
6
13
14
E
N
G
L
I
S
H
Adjusting or Replacing Brushroll
15
16
17
15
WARNING: Unplug cord from electrical outlet before servicing.
Your Oreck Vacuum has a brushroll that can be replaced after heavy use for improved performance.
Remove the baseplate by removing 5 screws. Then, remove the belt and brushroll from the housing.
Snap the new brushroll into place.
Reassemble the belt.
Reassemble the baseplate.
If a previous adjustment has already been made and bristle height does not extend above the baseplate, a new brush assembly should be ordered.
16
15
17
Replacing Edge Brush
WARNING: Unplug cord from electrical outlet before servicing.
Turn the power head over. With baseplate facing up, remove the screw located in the center of each edge brush.
Remove both edge brushes and replace with new ones. Replace both screws and tighten.
Replacing Light Bulbs
18 Remove the baseplate by removing 5 screws.
19 Remove the belt from the brushroll pulley. Then, remove the brushroll from the housing.
20 Remove the fascia by removing 2 screws.
21 Rotate fascia away from the power head and lift it away.
22 Pull burned out bulb from holder and replace with new bulb.
21 Reassemble the fascia.
19 Reassemble the brushroll and belt.
18 Reassemble the baseplate.
18
19
20
21
7
22
E
Maintenance
19
20
21
22
20
23
L
I
S
H
IMPORTANT: On plush and new carpets, stuffing may occur inside the intake tube and the lower tube
assembly. This is due to excessive fuzz and loose cuttings in the carpet. Stuffing could occur for the first few
cleanings until all the loose material is removed. Due to the high efficiency of the cleaner, many older carpets
will cause stuffing when the cleaner is first used on them. If your vacuum cleaner does not pick up properly,
or makes unusual noise and the outer bag does not fluff up or balloon open, follow these steps:
WARNING: Unplug cord from electrical outlet before servicing.
Check for blockage at the mouth of the intake opening. If there is blockage, remove it with long-nose pliers,
a screwdriver or coat hanger. If you can not reach the blockage, remove baseplate. Remove the baseplate by
removing 5 screws (see “Adjusting or Replacing Brushroll”).
If the blockage is not at the base, remove lower tube. Unhook bag spring, releasing bottom of bag.
Twist lower collar counterclockwise to slide up. Pull tube out of base.
Check for blockage. If blockage is in the tube, remove with a coat hanger.
If tube is not blocked, look into fan housing. Remove debris with long-nose pliers, a screwdriver or coat hanger.
To reassemble, check O-ring on tube, and replace if damaged. Replace tube by first lining up slot at base of
tube with tab inside fan housing. Insert tube and push down until the tube is seated. Make sure O-ring is in
place against fan housing opening. Replace and tighten collar until collar locking tabs are locked in place.
Reattach bag spring.
Many times blockage occurs due to a full dust bag causing dirt to back down the air flow system. When that
happens, the blockage will be at the top of the system, starting in the area where the dust bag connects to the
connector assembly.
Note: If the above actions do not correct the problem, contact an Oreck authorized service center or call the
customer service center. US: 1-800-989-3535 Canada: 1-888-676-7325
18
19
20
21
22
Problem
Check
Cleaner will not run.
•Not plugged in properly.
• Be sure cleaner is firmly plugged into wall outlet.
•No electricity in wall outlet. • Check electrical source – fuse or circuit breaker.
Cleaner does not pick up.
•Inner Bag is full.
Service problems that
appear to be major can
often be solved easily.
You can be your own
troubleshooter by
reviewing this guide.
All other servicing
should be done by an
Oreck authorized
service center.
G
Stuffing or Blockage
18
Troubleshooting
N
What to do
•Nozzle or intake pivot
clogged.
•Belt is broken or stretched.
•Brush is worn.
•Bag tube clogged.
•Bag pores are clogged
with fine dust.
•Impeller fan is broken.
Unit still does not
operate properly.
•Check all the
above points.
8
• Replace filter bag. See “Replacing the HEPA
Filtration Odor Fighting Inner Bag”.
• Clear obstruction.
• Replace belt.
• See “Adjusting or Replacing Brush roll”.
• Clear obstruction.
• Change bag.
• Return to Service Center for repair.
• Contact Oreck for service.
23
E
Parts
N
G
L
I
S
H
All accessories and replacement parts are sold separately. To order, call our customer service group or visit our
website. Please have your model number from the data label on the bottom of the unit.
Accessories
Item
Part Number
Crystal Aroma Carpet and Room Freshener
Oreck Dry Carpet® Cleaning System
®
AROMAII
303088
Replacement Parts
Item
Part Number
Inner Bag, 8 Pack, HEPA Filtration Odor Fighting
Inner Bag, 8 Pack, Saniseal Paper
Belts, 3 Pack
Light Bulb
CCPK8OH
CCPK8DW
0300604
77051-01
Customer Service Hotline
USA: 1-800-989-3535 Canada: 1-888-676-7325
website: www.oreck.com
Warranty
ORECK MANUFACTURING COMPANY: (Oreck Manufacturing Company gives you the following limited
warranty for this product only if it was originally purchased for residential use, not resale, from Oreck or an Oreck
Authorized Retail Dealer.)
Oreck will repair or replace, free of charge, to the original purchaser, any part that is found to be defective in
material or workmanship within six (6) years of the date of purchase. This limited warranty applies to normal
domestic use. Any commercial use of this product will void this limited warranty. This limited warranty covers the
revolving roller brush for one (1) year for residential use only.
This limited warranty does not cover the replacement of expendable or consumable parts such as carbon motor
brushes, edge brushes, drive belts, brushes, bulbs, disposable bags and other parts subject to normal wear unless
they are defective in material or workmanship.
Total Cleaning System
This limited warranty does not apply to any part subjected to accident, abuse, commercial use, alteration, misuse,
damage caused by act of God, the use of voltages other than indicated on the serial number displayed on this
product or service of this product by other than Oreck or a participating Factory Authorized Service Center. Oreck
does not authorize any person or representative to assume or grant any other warranty obligation with the sale of
this product.
Oreck’s limited warranty is valid only if you retain proof of purchase from Oreck or an Oreck Authorized Retail
Dealer for this product. If you purchase this product from any other source, your purchase is “AS IS,” which
means Oreck grants you no warranty, and that you, not Oreck, assume the entire risk of the quality and performance of this product, including the entire cost of any necessary servicing or repairs of any defects.
Oreck’s liability for damages to you for any costs whatsoever arising out of this statement of limited warranty shall
be limited to the amount paid for this product at the time of original purchase, and Oreck shall not be liable for any
direct, indirect, consequential or incidental damages arising out of the use or inability to use this product.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD, AND NO WARRANTIES, WHETHER EXPRESS OR
IMPLIED, WILL APPLY AFTER THIS PERIOD.
Some states do not allow limitations on the duration of implied warranties, so the above limitation may not apply
to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
If appropriate, see additional information for extended warranty.
9
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
