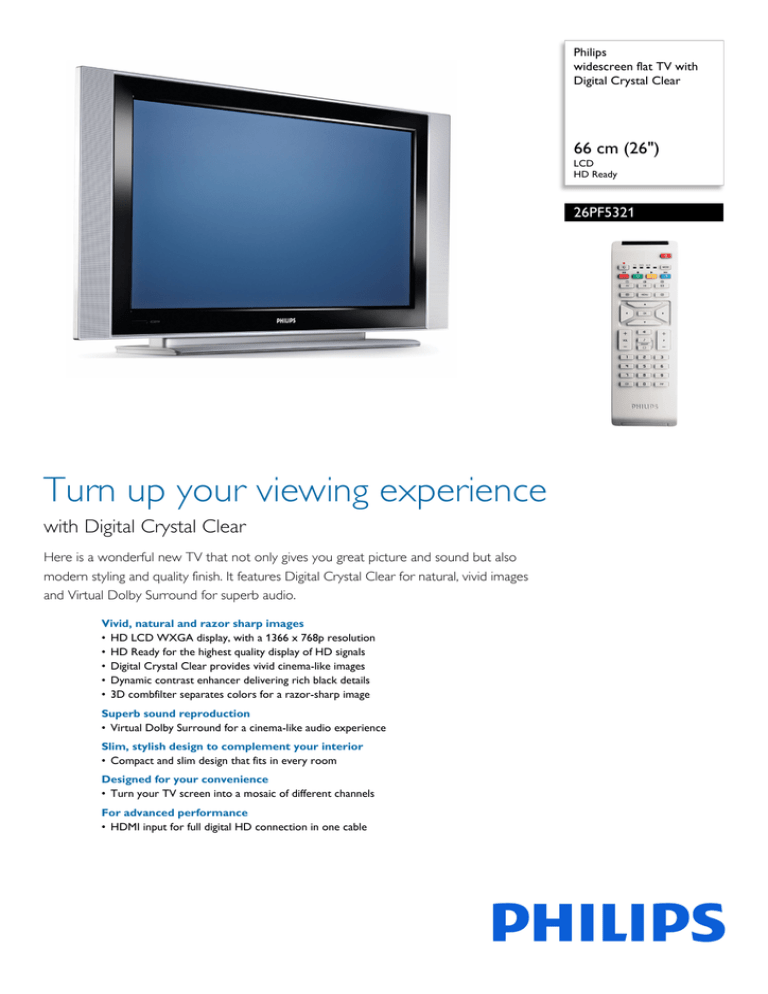

26PF5321/10 Philips widescreen flat TV with Digital Crystal Clear

26PF5321/10 Philips widescreen flat TV with Digital Crystal Clear
Philips
widescreen flat TV with
Digital Crystal Clear
66 cm (26")
LCD
HD Ready
26PF5321
Turn up your viewing experience
with Digital Crystal Clear
Here is a wonderful new TV that not only gives you great picture and sound but also
modern styling and quality finish. It features Digital Crystal Clear for natural, vivid images
and Virtual Dolby Surround for superb audio.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Digital Crystal Clear provides vivid cinema-like images
• Dynamic contrast enhancer delivering rich black details
• 3D combfilter separates colors for a razor-sharp image
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• Turn your TV screen into a mosaic of different channels
For advanced performance
• HDMI input for full digital HD connection in one cable
Widescreen flat TV with Digital Crystal Clear
26PF5321/10
66 cm (26") LCD, HD Ready
Highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
screen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High
Definition pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Digital Crystal Clear
Digital Crystal Clear is a package of picture
innovations that digitally adjusts and optimizes
picture quality to optimal contrast, color and
sharpness levels. It's like watching vivid cinemalike images.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast and most vibrant images even at wide
viewing angle. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colors,
(* factor between 2 and 5, screen type and
picture content dependant).
3D Combfilter
The 3D comb filter separates brightness and
color signals better in 3D domain to eliminate
cross-color, cross-luminance and dot-crawl
distortion - all of which detract from your
viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the
television image to accurately separate the
color from the black-and-white information
and remove both horizontally and vertically
hanging dots, as well as dot crawl. The result is
a razor sharp image.
Virtual Dolby Surround
Virtual Dolby Surround is a processing
technology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
Compact and slim design
This design style emphasizes a slim, compact
look that saves space and fits in anywhere.
Multiple PiP Modes
Multiple Picture-in-Picture modes allow you to
simultaneously watch two video sources either
picture-in-picture, side by side, or in a mosaicview with still images.
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
26PF5321/10
Widescreen flat TV with Digital Crystal Clear
66 cm (26") LCD, HD Ready
Specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
•
Aspect ratio: 16:9, Widescreen
Brightness: 500 cd/m²
Dynamic screen contrast: 1200:1
Response time (typical): 8 ms
Viewing angle (H / V): 178 / 178 degree
Diagonal screen size: 26 inch / 66 cm
Display screen type: LCD WXGA Active Matrix
TFT
Panel resolution: 1366 x 768p
Picture enhancement: 3/2 - 2/2 motion pull down,
3D Combfilter, Active Control, Contrast Plus,
Digital Crystal Clear, Digital Noise Reduction,
Jagged Line Suppression, Progressive scan
Screen enhancement: Anti-Reflection coated
screen
Color cabinet: Bicolour Black and Silver Frost
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60, 70, 75Hz
• Video Formats
Resolution
Refresh rate
640 x 480p
2Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
• Equalizer: 5-bands
• Output power (RMS): 2 x 5 W
• Sound Enhancement: Auto Volume Leveller,
Dynamic Bass Enhancement
• Sound System: Stereo, Virtual Dolby Surround
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic Tuning
System (ATS), Autostore, Fine Tuning, Plug & Play,
Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), Program
List, Side Control, Smart Picture, Smart Sound
• Remote Control: TV, DVD, Multi-functional
• Remote control type: RCFE06SPS00
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Picture in Picture: Twin page text
• Teletext: 10 page Smart Text
• Teletext enhancements: 4 favourite pages,
Program information Line
• VESA Mount: 200 x 100 mm
Tuner/Reception/Transmission
•
•
•
•
•
•
Aerial Input: 75 ohm coaxial (IEC75)
TV system: PAL, SECAM
Video Playback: NTSC, SECAM, PAL
Tuner bands: Hyperband, S-Channel, UHF, VHF
Number of Preset Channels: 100
Tuner Display: PLL
Connectivity
•
•
•
•
•
•
•
Ext 1 Scart: Audio L/R, CVBS in/out, RGB
Ext 2 Scart: Audio L/R, CVBS in/out, S-video in
Number of Scarts: 2
Ext 4: YPbPr
Ext 5: HDMI
Ext 6: HDMI
Front / Side connections: Audio L/R in, CVBS in,
Headphone Out, S-video in
• Other connections: Antenna IEC75
Power
• Built-in speakers: 2
• Number of Loudspeakers: 0
•
•
•
•
Convenience
Dimensions
Loudspeakers
• Clock: Sleep Timer, Wake up Clock
Ambient temperature: 5 °C to 40 °C
Mains power: 110 - 240V, 50/60Hz
Power consumption: 100 W Normal Operation W
Standby power consumption: < 1 W
• Dimensions (with base) (W x H x D):
Issue date 2015-04-14
© 2015 Koninklijke Philips N.V.
All Rights reserved.
Version: 5.1.20
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 23104
EAN: 87 10895 94036 8
www.philips.com
804.5 x 477 x 222 mm
• Weight incl. Packaging: 17 kg
• Product weight: 13.3 kg
• Box dimensions (W x H x D):
876 x 209 x 601 mm
• Dimensions (without base) (W x H x D):
804.5 x 438 x 114 mm
Accessories
• Included accessories: Table top stand, Power cord,
Quick start guide, User Manual, Registration card,
Warranty certificate, Remote Control, Batteries
for remote control
• Optional accessories: Floor stand
•
