Sherwood RD-6504 Owner's manual

Sherwood RD-6504 Owner's manual

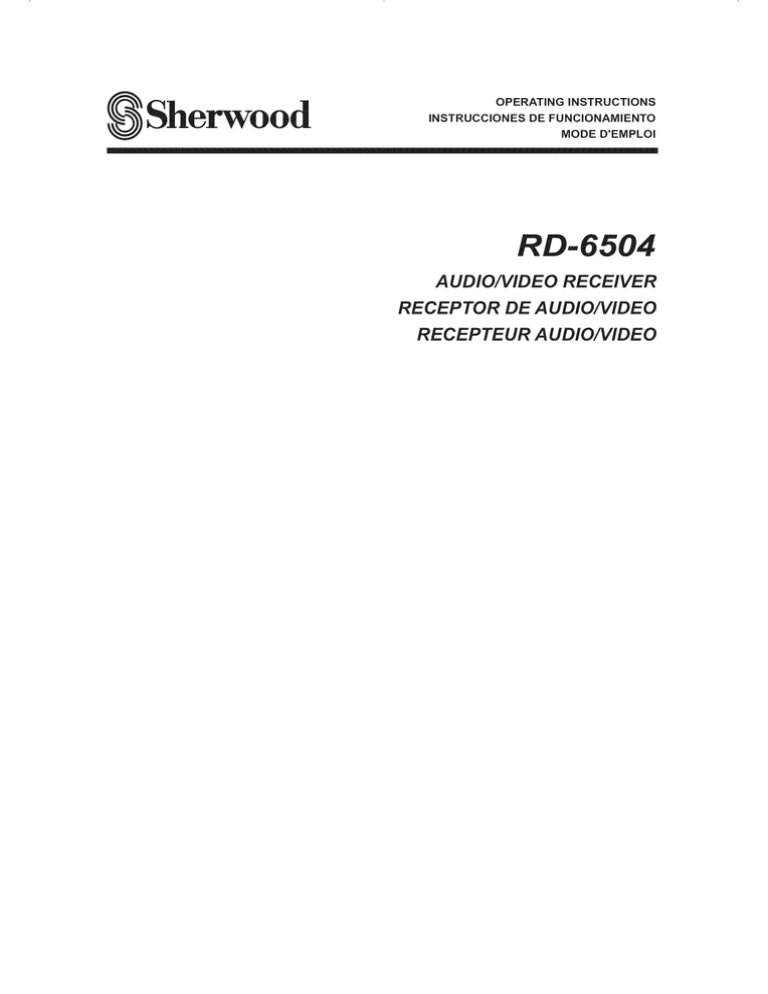

Sherwood

OPERATING

iNSTRUCTiONS

INSTRUCCIONES

DE FUNCIONAMIENTO

MODE D'EMPLOI

RD-6504

AUDIONIDEO

RECEIVER

RECEPTOR DE A UDiONIDEO

RECEPTEUR A UDIONIDEO

iMPORTANT SAFETY iNSTRUCTiONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer's

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit

into your outlet, consult an electrician for replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.

Only use attachments accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart!apparatus

combination to avoid injury from tip-over.

PORTABLE

CART WARNING

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus have been

exposed

to rain or moisture, does not operate normally, or has been dropped.

Introduction

READ THIS BEFORE OPERATING YOUR UNiT

///_

uninsulated "dangerous voltage" within the product's

This symbol is intended to alert the user to the presence of a risk of electric shock to persons.

CAUTION

:TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK).

NO USER-SERVICEABLE

INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

PARTS

This symbol is intended to alert the user to the presence of instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RNN OR IVlOISTURE.

Caution regarding

installation

Note : For heat dispersal, do not install this unit in a confined space such as a bookcase or similar enclosure.

._/'_/_/"/'//"///"////////// I _ Note _

.j/__/

Do not

block

ventilation

openings or stack

other equipment on the top.

Note to CATV System

Installer :

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC

iNFORMATiON

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation, if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la Classe Best conforme a. la norme NMB-003 du Canada.

U.S.A

CANADA

120 V

Units shipped to the U.S.A and CANADA are designed for operation on 120 V AC only.

Safety precaution with use of a polarized AC plug.

However, some products may be supplied with a nonpolarized plug.

CAUTION:

TO prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION:

Pour eviter chocs electriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu' au fond.

ENERGY S'I'AR _"_is a U.S. registered mark. As an

ENERGY S'['AR _"_PaIrner, Sherwood has detem_ined that this product meets the ENERGY

STAR guidelines for energy efficiency.

Leave a space around the unit for sufficient ventilation.

Avoid installation in extremely hot or cold locations, or in an area that is exposed to direct sunlight or heating equipment.

Keep the unit free from moisture, water, and dust.

Do not let foreign objects in the unit.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

No naked flame sources, such as lighted candles, should be placed on the unit.

Please be care the environmental aspects of battery disposal.

The unit shall not be exposed to dripping or splashing for use.

No objects filled with liquids, such as vases, shall be placed on the unit.

Do not let insecticides, benzene, and thinner come in contact with the set.

Never disassemble or modify the unit in any way.

INotes on the AC power cord and the wall outlet.

The unit is not disconnected from the AC power source(mains) as long as it is connected to the wall outlet, even if the unit has been turned off.

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.

When setting up this product, make sure that the AC outlet you are using is easily acceptable.

Disconnect the plug from the wall outlet when not using the unit for Ion( periods of time.

CONTENTS

,iMPORTANT

SAFETY

iNSTRUCTiONS

...............................................................................................................................

Introduction

o READ THiS BEFORE OPERATING YOUR UNiT .................................................................................................................

2

3

System Connections ......................................................................................................................................................... 5

Front Panel Controls ....................................................................................................................................................... 11

Remote Controls ...............................................................................................................................................................

o REMOTE CONTROL OPERATION RANGE .......................................................................................................................

o LOADING BATTERIES .......................................................................................................................................................

Operations

o LISTENING TO A PROGRAM SOURCE ............................................................................................................................

o SURROUND SOUND ..........................................................................................................................................................

o ENJOYING SURROUND SOUND ......................................................................................................................................

o LISTENING TO RADIO BROADCASTS .............................................................................................................................

o RECORDING .......................................................................................................................................................................

o OTHER FUNCTIONS ..........................................................................................................................................................

13

14

14

15

18

19

24

26

28

System Setup ....................................................................................................................................................................

o SETTING THE SYSTEM ....................................................................................................................................................

o SETTING THE INPUT .........................................................................................................................................................

o SETTING THE SPEAKER SETUP ......................................................................................................................................

o SETTING THE CH LEVEL ..................................................................................................................................................

o SETTING THE PARAMETER .............................................................................................................................................

Troubleshooting

Guide ................................................................................................................................................... 42

Specifications .................................................................................................................................................................... 43

29

31

33

34

38

40

System Connections

o Please be certain that this unit is unplugged from the AC outlet before making any connections.

o Since different components often have different terminal names, carefully read the operating instructions of the component connected.

o Be sure to observe the color coding when connecting audio, video and speaker cords.

o Make connections firmly and correctly.

If not, it can cause loss of sound, noise or damage to the receiver.

3 4 2 8

/

p, l/

7

I : _ISaUE

SN0CK

I' 'J

__

........

_l_

1.

CONNECTING ANTENNAS

FM Indoor Antenna

FM Outdoor Antenna

GND 75_) o Change the position of the FM indoor antenna until you get the best reception of your favorite FM stations.

GND 75_

, A 75Q outdoor FM antenna may be used to further improve the reception, Disconnect the indoor antenna before replacing it with the outdoor one.

AM Outdoor Antenna

2, CONNECTING VIDEO COMPONENTS

/!

o The jacks of VIDEO 1 may also be connected to a DVD recorder or other digital video recording component.

For details, refer to the operating instructions of the component to be connected.

o The jacks of VIDEO 2 can also be connected to an additional video component such as a cable TV tuner or satellite system.

o There are two types of video jacks (COMPONENT, (composite) VIDEO) for analog video connections and the HDMI connectors for digital video and audio connections.

Connect them to the corresponding video jacks according to their capability.

o For your reference, the excellence in picture quality is as follows : "HDMI" > "COMPONENT" > "(composite) VIDEO".

o When making COMPONENT VIDEO connections, connect "Y" to "Y", "PBiCB" to "CB"(or "B-Y", "PB") and "PR/CR" to "CR"(or

"R-Y", "PR").

o When recording video program sources through VIDEO 1 OUT jack or viewing video program sources through MONITOR

OUT jack, you must use the same type of video jacks that you did connect to video playback components such as DVD player, cable TV tuner, etc.

(*)

_'---_ I

VIDEO 1 VCR, DVD .....

tier, etc.

HDMI

(*)

0 _ 0

4},

MONITOR

TV, Projector, etc.

I

.J

Continued mHDMI (High Definition

Multimedia interface) connection

: (-k)

. You can connect the source component (DVD player, etc.) to the display component (TV, projector, etc.) through this receiver with using a commercially available HDMI cord.

* The HDMI connection can carry uncompressed digital video signals and digital audio signals.

* The HDMI video stream signals (video signals) are theoretically compatible with DVI-D. When connecting to a TV monitor, etc., equipped with DVI-D connector, it is possible to connect using a commercially available HDMI-DVl converter cord.

Since the HDMI-to-DVl connection cannot carry any audio signals, set the HDMI to OFF to hear the HDMI digital audio signals on this receiver. (For details, refer to "When selecting the HDMI" on page 32.) mCopyright protection system

. This unit supports HDCP (High-bandwidth Digital Contents Protection), technology to protect copyright of digital video signals against illegal duplication.

HDCP must also be supported on the components connected to this unit.

° This unit is HDMI Vet. 1.3 compatible.

° HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing

LLC.

mNotes :

. For stable signal transfer, we recommend using HDMI cords that are a maximum of 5 meters in length.

* Among the components that support HDMI, some components can control other components via the HDMI connector.

However, this unit cannot be controlled by another component via the HDMI connector.

* The audio signals from the HDMI connector (including the sampling frequency and bit length) may be limited by the component that is connected.

* The video signals will not be output properly if a component incompatible with HDCP is connected.

* If the resolutions of the video signals which are output from the MONITOR OUTs and your monitor TV are not matched, the picture is not clear, natural or displayed.

In this case, change the setting of the resolution on the source component (DVD player, etc.) to one which the monitor TV can handle. (For details, refer to the operating instructions of the source component.)

* When you want to enjoy only the picture on your TV, not the sound, you should set the HDMI to OFF not to output the digital audio signal from the HDMI MONITOR OUT of this receiver. (For details, refer to "When selecting the HDMI" on page 32.)

3,

CONNECTING AUDIO COMPONENTS

. The TAPE IN/OUT jacks can be connected to audio recording equipment such as a tape deck, an MD recorder, etc.

. The AUX IN jacks can be connected to an additional components such as CD player, a tape deck, etc.

CD CD player [

AUDIO

AUX CD[ player, tape deck

I RD-6504(A)_ENG:RD-6504(A) 2009-02-12 £ 9:03

_tlolml 8 _---_

o

Use these jacks to connect the corresponding analog outputs of 6 CH decoder or DVD player with 6 CH output for Dolby Digital or DTS, etc.

(For details, see the operator's manual of the component to be connected.)

CENTER

,@ i l

Decoder with 6 channel outputs

5, CONNECTING DIGITAL INs

.

The OPTICAL and the COAXIAL DIGITAL OUTs of the components that are connected to CD and VIDEO 1 ~

VIDEO 2 of this unit can be connected to these DIGITAL iNs.

. A digital input should be connected to the components such as a CD player, LD player, DVD player, etc. capable of outputting DTS Digital Surround, Dolby Digital or PCM format digital signals, etc.

. For details, refer to the operating instructions of the component connected.

. When making the COAXIAL DIGITAL connection, be sure to use a 75 O COAXIAL cord, not a conventional AUDIO cord.

. Some of the commercially available optical fiber cords cannot be used for the equipment.

If there is an optical fiber cord which cannot be connected to your equipment, consult your dealer or nearest service organization.

[]Note :

. Be sure to make either a OPTICAL or a COAXIAL

DIGITAL connection on each component.

(You don't need to do both.)

I Component with

[ COAXIAL DIGITAL OUT

1

I Component with

I COAXIAL DIGITAL OUT

I Component with

I OPTICAL DIGITAL OUT

I RD-6504(A)_ENG:RD-6504(A) 2009-02-12 £ 9:03

_tlolml 9 _---_

_, CONNECTING SUBWOOFER PRE OUT

o To emphasize the deep bass sounds, connect a powered subwoofer.

7.

CONNECTING SPEAKERS

o Be sure to connect speakers firmly and correctly according to the channel(left and right) and the polarity(+ and -). If the connections are faulty, no sound will be heard from the speakers, and if the polarity of the speaker connection is incorrect, the sound will be unnatural and lack bass.

o For installing the speakers, refer to "Speaker placement" on page 10.

o After installing the speakers, first adjust the speaker settings according to your environment and speaker layout.

(For details, refer to "SETTING THE SPEAKER SETUP" on page 34.)

Caution

:

o Be sure to use the speakers with the impedance of 6 ohms or above.

o Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit and/or the speakers.

o Never touch the speaker terminals while the AC input cord is connected to the wall AC outlet. Doing so could result in electric shocks.

.

Front right Front left

SPEAKERS

SURROUND

(6P)

--ii'

Powered subwoofer

,/J

Center

@ reConnecting

speaker wire

1. Strip away approx. 10 mm

(3/8 inch) of wire insulation, then twist the wire ends tight.

2. Push the terminal lever, then keep this condition.

Surround Surround right left

3. Insert the bare part of the wire into the hole.

4. Put the terminal lever back, then make sure it is fastened securely by pulling the wire lightly.

8,

AC INPUT CORD

o Plug the cord into a wall AC outlet.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

10 _t _

Speaker placement

Ideal speaker placement varies depending on the size of your room and the wall coverings, etc, The typical example of speaker placement and recommendations are as follows :

/!

IIFront left and right speakers and center

speaker

. Place the front speakers with their front surfaces as flush with

TV or monitor screen as possible.

. Place the center speaker between the front left and right speakers and no further from the listening position than the front speakers.

. Place each speaker so that sound is aimed at the location of the listener's ears when at the main listening position.

IISurround left and right

speakers

. Place the surround speakers approximately 1 meter (40 inches) above the ear level of a seated listener on the direct left and right of them or slightly behind.

IISubwoofer

. The subwoofer reproduces powerful deep bass sounds.

Place a subwoofer anywhere in the front as desired.

[]Notes :

. When using a conventional TV, to avoid interference with the

TV picture, use only magnetically shielded front left and right and center speakers.

* To obtain the best surround effects, the speakers except the subwoofer should be full range speakers.

/ ................................................................

1. TV or screen

2. Front left speaker

3. Front right speaker

4. Center speaker

5. Subwoofer

6. Surround left speaker

7. Surround right speaker

IRD-6504(A)_ENG:RD-6504(A) 9:03

qolJq

11 --_---_

Front Pane! Controls

13

32

10

/

L

4 56 7

8

9

11 121415 16 17 18 19

1. POWER switch

2. POWER ON/STANDBY button

3. STANDBY indicator

4. FLUORESCENT DISPLAY

For details, see below.

5. VIDEO INPUT SELECTOR button

6. AUDIO INPUT SELECTOR button

7. EXT.IN SELECTOR button

8. BAND button

9. MASTER VOLUME CONTROL knob

20

10. MULTI CONTROL

11. HEADPHONE jack

18. SETUP button

21 22 knob (4/_)

12. SPEAKER button/indicator

13. REMOTE SENSOR

14. SURROUND MODE button

15. STEREO button

16. DISPLAY button

17. DGITAL/ANALOG MODE button

23

24

25

19. CHANNEL LEVEL button

20. CONTROL UP/DOWN (A/_') buttons

21. MEMORY/ENTER button

22. TUNING UP/DOWN (+/-) buttons

23. PRESET UP/DOWN (+/-) buttons

24. FRONT AUX jack

For details, see next page.

25. Bluetooth IN connector

For details, see next page.

ff

IIFLUORESCENT

DISPLAY

1. Input, frequency, volume level, operating information, etc.

2. Surround mode indicators

3. AUTO indicator

4. DIGITAL INPUT indicator

5. DIRECT indicator

6. HDMI indicator

7. Preset number, sleep time display

8. MEMORY indicator

9. PRESET indicator

10. SLEEP indicator

11. TUNED indicator

12. STEREO indicator

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

12 _

/!

FAUX 81uetoott_ IN

........

........

otc

OUT i

mBluetooth IN CONNECTOR

o If the Bluetooth IN connector is connected to Sherwood Audio

Receiver BT-R7(sold separately) with Bluetooth wireless technology, you can enjoy music wirelessly with a music player featuring

Bluetooth wireless technology such as MP3 player, mobile phone, etc..

(For information on Sherwood Audio Receiver BT-R7, contact your dealer.) o The Bluetooth word mark and Iogos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sherwood

Corporation is under license. Other trademarks and trade names are those of their respective owners.

FAUX

<o

--

[] Note :

o

For safe operation, turn the power off before connecting or disconnecting the Audio Receiver BT-R7.

_k etooth IN

0

Biuetooth

o

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

13 _

Remote Controls

STANDBY

POWER ON button r_POWER ON

STANDBY button

TUNING UP/DOWN(+/-) buttons PRESET UP/DOWN(+/-) buttons

NUMERIC(0~9) buttons ~ ~ _

ICB CC_ CBi

H

"

II ............

_ II

O © ® @ II

II

TESTTONE button _ "" .......

" _

DISPLAY button

SOUND PARAMETER button

SURROUND MODE UP/DOWN(>I<) buttons

DIGITAL/ANALOG MODE button-

MUTE button

VOLUME UP/DOWN(A/v) buttons

SETUP button

CURSOR CONTROL(,A,Y,4 ,_), ENTER

</SEARCH MODE, SELECT 4/)'> buttons

*The functionsin "<>" are regionaloption for Europe,etc.

DIMMER button

STEREO ER -SURROUND

©©@©

-jCD C:_ C:}_

--INPUT

STEREO button

SELECTOR buttons

_D

Sherwood

REMOTE CONTROL UNIT RC-125

REpF_J*T

/RANDOM

--USB TRANSPORT buttons

REPEAT/RANDOM)

[] Note : o "VIDEO 3", "USB" and USB transport buttons are not available for this receiver.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

14 _t_,_

REMOTE

CONTROL OPERATION

RANGE

© © © © © © ©

LOADING BATTERIES

1= Remove the cover.

o Use the remote control unit within a range of about 7 meters (23 feet) and angles of up to 30 degrees aiming at the remote sensor.

2 = Load two batteries ("AAA" size, 1.5 V) matching the polarity.

o Remove the batteries when they are not used for a long time.

o Do not use the rechargeable batteries (Ni-Cd type).

IRD-6504(A)_ENG:RD-6504(A) 9:03

qolml

15 _t _

Operations

IINote : Before operating this receiver, first set this unit as desired for optimum performance, doing the system setup procedures.

(For details, refer to "System Setup" on page 29.)

_ LISTEN|NG TO A PROGRAM SOURCE

Before operation o Enter the standby mode.

o The STANDBY indicator lights up.

This means that the receiver is not disconnected from the AC mains and a small amount of current is retained to support the operation readiness.

o To switch the power off, push the POWER switch again.

o Then the power is cut off and the STANDBY indicator goes off.

_ON

0

POWER re.OFF

j

3.

Select the desired input source.

VIDO AUDIO

© ©

INPU] SE_ CTOR

E) I"

BAND

@

1.

In the standby mode, turn the power on.

000

CD

CDC?

ON/STANDBY

©

o1"

o Each time the POWER ON/STANDBY button on the front panel is pressed, the receiver is turned on to enter the operating mode or off to enter the standby mode.

o On the remote control, press the POWER ON button to enter the operating mode or press the STANDBY button to enter the standby mode.

o In the standby mode, if the INPUT SELECTOR button is pressed, the receiver is turned on automatically and the desired input is selected.

o Each time the "VIDEO" button on the front panel is pressed, the input source changes as follows:

VIDEO 1 n VIDEO 2

o

Each time the "AUDIO" button on the front panel is

I pressed, the input source changes as follows:

CD- IN

/ o Each time the "BAND" button is pressed, the band

| changes as follows:

,_

FMST-_ FMMONO-_ AM --1

1

IlWhen selecting the EXTERNAL IN as desired,

2.

Switch the speakers on.

0

SPEAKER

©

ON/OFF o Then the SPEAKER indicator lights up and the sound can be heard from the speakers connected to the speaker terminals.

o When using the headphone for private listening, press the SPEAKER button again to switch the speakers off.

o "EXT IN" is displayed and 6 separate analog signals from the component connected to this input pass through the tone and the volume circuits only and can be heard from your speakers, o Select the desired input source to cancel the external in function, o These analog signals can be heard only, not recorded,

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

16 _

When CD, VIDEO 1~ 2 is selected as an input source

/!

4= Select the digital or the analog input connected as desired.

O/A MOD or

7= To mute the sound.

.

Each time this button is pressed, the corresponding input is selected as follows: r o(pfical) -_ c(oaxial)l-_ c(oaxial) 2 -_ H(HDMI audio)*

I.

A(nalog) _ --]

* • When VIDEO 1 or VIDEO 2 is selected, the HDMI audio input can be selected.

[]Notes :

.

When AUX, F. AUX, TAPE, BT IN, EXT IN or tuner is selected as an input source, the digital input cannot be selected.

. When the selected digital input is not connected, the

"DIGITAL" indicator flickers and the analog input is automatically selected.

. The selected digital or analog input is automatically assigned to the corresponding input source on the INPUT setup menu. (For details, refer to "SETTING THE INPUT " on page 33.)

. The sound from the component connected to the selected digital input can be heard regardless of the selected input source.

5, Operate the selected component for playback.

.

When playing back the program sources with surround sound, refer to "ENJOYING SURROUND SOUND" on page 19.

6= Adjust the (overall) volume.

MAS [ER VOLUME

, "MUTE" will flicker.

, To resume the previous sound level, press it again.

6= To listen with the headphones.

PHONES

©

, Be sure to switch the speakers off.

, When listening to a DTS or Dolby Digital program source, if the headphones are plugged in and the SPEAKER button is set to off, it enters the 2CH downmix mode automatically.

(For details, refer to "2CH downmix mode" on page 19.)

[] Note :

, Be careful not to set the volume too high when using headphones.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

17 _

Adjusting the tone (bass and treble)

9= Enter the tone mode,

IlWhen the TONE is set to ON to adjust the tone

(bass and treble).

4 4

/h Press the CURSOR UP(A)/DOWN(T) select the desired tone.

buttons to

!/

E23

E23

%..'( _:,=..

o The tone mode is displayed for several seconds.

4

/U, Press the CURSOR LEFT(4)/RIGHT(_') select the desired tone mode.

buttons to

o Each time these buttons are pressed, the tone is selected as follows • i-_ BASS _ TRBL(treble)_ TONE: ON_ I

1 2, Press the CURSOR LEFT( 4)/RIGHT(_" ) buttons to adjust the selected tone as desired.

o Each time these buttons are pressed, the tone mode is selected as follows •

OFF : To listen to a program source without the tone

$ effect. ("DIR" indicator lights up.)

ON • To adjust the tone for your taste.

("DIR" indicator goes off.)

[] Note : o When the EXTERNAL IN is selected as an input source, the TONE cannot be set to ON.

o The tone level can be adjusted within the range of -12 ~

+12 dB.

o In general, we recommend the bass and treble to be adjusted to 0 dB (flat level).

o Extreme settings at high volume may damage your speakers.

o To complete tone adjustment, repeat the above steps 11 and 12.

o

If the tone display disappears, start from the step 9 again.

I RD-6504(A)_ENG:RD-6504(A) 2009-02-12 £ 9:03

_tlolJ<l

18 _t _

SURROUND SOUND

1

o This receiver incorporates a sophisticated Digital Signal Processor that allows you to create optimum sound quality and sound atmosphere in your personal Home Theater.

Surround modes

/!

mDTS Digital Surround

DTS Digital Surround(also called simply DTS) is a multichannel digital signal format which can handle higher data rates. Discs bearing the DTS logo include the recording of up to 5.1 channels of digital signals, which can be generally thought to provide better sound quality due to the lower audio compression required.

It also provides wide dynamic range and separation, resulting in magnificent sound.

[] DTS 96/24

This is high resolution DTS with a 96 kHz sampling rate and 24 bit resolution, providing superior fidelity. Use it with

DVDs bearing the DTS 96/24 logo.

Manufactured under license under U.S. Patent #'s: 5,451,942;

5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S.

and worldwide patents issued & pending. DTS and DTS Digital

Surround are registered trademarks and the DTS Iogos, Symbol and

DTS 96/24 are trademarks of DTS, Inc. (C 1996-2008 DTS, Inc. All

Rights Reserved.

•Dolby Digital

Dolby Digital is the multi-channel digital signal format developed by Dolby Laboratories.

Discs bearing the Dolby

Digital logo includes the recording of up to 5.1 channels of digital signals, which can reproduce much better sound quality, spatial expansion and dynamic range characteristics than the previous Dolby Surround effect.

•Dolby

Pro Logic

II surround

This mode applies conventional 2-channel signals such as digital PCM or analog stereo signals as well as Dolby

Surround signals, etc. to surround processing to offer improvements over conventional Dolby Pro Logic circuits.

Dolby Pro Logic II surround includes 3 modes as follows:

Dolby Pro Logic II MOVIE

When enjoying movies, this mode allows you to further enhance the cinematic quality by adding processing that emphasizes the sounds of the action special effects.

Dolby Pro Logic II MUSIC

When listening to music, this mode allows you to further enhance the sound quality by adding processing that emphasizes the musical effects,

Dolby Pro Logic II Emulation

This mode expands any 2-channel sources(, including

Dolby Surround sources) for 4 channel(front left, center, front right and surround) playback.

The surround channel is monaural, but is played through two surround speakers.

Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.

o The following modes apply conventional 2-channel signals such as digital PCM or analog stereo signals to high performance Digital Signal Processor to recreate sound fields artificially,

•Virtual Surround 2 Speaker

This mode creates a virtual surround sound field using as few as two front speakers, allowing you to experience listening from 5.1 channel speakers.

This mode is effective not only for 5.1 channel sources but also for 2 channel sources.

[]Virtual Surround 3 Speaker

This mode creates a virtual surround sound field using two front and one center speakers, allowing you to experience listening from 5.1 channel speakers.

This mode is effective only for 5.1 channel sources.

•Big Hall/Bright Hall/Dark Hall

These modes provide the ambience of a concert hall for classical music sources such as orchestral, chamber music, or an instrumental solo,

[]Cathedral

This mode provides the ambience of a cathedral for baroque, string orchestral or choral group music.

[]Club/Bright Club/Smoky Club

These modes provide the ambience of a live house for jazz music, vocals and acoustical instrumental sounds.

[]Bright Stadium

This mode provides the expansive sound field to achieve the true stadium effect when watching baseball or soccer games.

•Arena

This mode provides a dynamic and broad sound space to heighten the overall impact of the sound track.

•Vo× Cinema/Music Cinema

When listening to movie, select the Vox Cinema mode to enhance the clarity of the dialog or select the Music

Cinema mode to enhance the musical effects.

•5CH Stereo

This mode is for enjoying stereo sound from all speakers.

[]Virtual Surround

Headphone

This mode simulates 5.1 channel surround sound, which allows you to enjoy 5.1 channel surround sound through 2 channel headphone, just like listening from 5.1 channel speakers.

This mode effective not only 5.1 channel sources but also for 2 channel sources.

o When the EXTERNAL INs is connected to the 6CH decoder for a surround sound such as Dolby Digital, etc., you can enjoy the corresponding surround sound, too. (For details, see the operator's manual of the component to be connected.)

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

19 _t _

ENJOYING SURROUND SOUND

[]Notes: o Before surround playback, first perform the speaker setup procedure, etc. on the SETUP menu for optimum performance.

(For details, refer to "SETTING THE SPEAKER SETUP" on page 34.) o When the EXTERNAL IN is selected as an input source, the surround modes cannot be selected.

mWhen CD or VIDEO 1 ~ 2 is selected as an input source

Select the auto surround mode or the manual surround mode depending on how to select a surround mode.

SURROUND

©

• Each time this button is pressed, the mode changes as follows :

Auto surround mode : The optimum surround mode will be automatically

("AUTO"indicator lights up.) selected depending on the signal format being input.

Manual surround mode : You can select the desired of different surround

("AUTO"indicator goesoff.) modes selectable for the signal being input with using the MULTI CONTROL knob or the

SURROUND MODE UP/DOWN (>/<) buttons.

[]Notes : o When the input source other than CD and VIDEO 1 ~ 2 is selected, you cannot select the auto surround mode and can select the surround mode as desired (the manual surround mode).

o When the auto surround mode is selected, the surround modes other than the optimum surround mode cannot be selected.

mSelect the desired

surround

mode

'when selecting the manual surround mode in case of CD, VIDEO 1 ~ 2) or o Each time the MULTI CONTROL knob is rotated or the

SURROUND UP/DOWN (>/<) buttons are pressed, the surround mode changes depending on the input signal format as follows :

Signal format being input

Dolby Digital 6.1 channel sources

Dolby Digital 2 channel sources

DTS sources, DTS 96/24 sources

PCM (2channel) sources,

Analog stereo sources

96 kHz PCM(2 channel) sources,

Selectable surround mode

DOLBY DIGITAL, VS 2 SPK, VS 3 SPK

DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII EMULATION, VS 2 SPK corresponding DTS mode, VS 2 SPK, VS 3 SPK

DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII EMULATION, VS 2 SPK, BIG HALL,

BRIGHT HALL, DARK HALL, CATHEDRAL, CLUB, BRIGHT CLUB, SMOKY CLUB, BRIGHT

STADIUM, ARENA, VOX CINEMA, MUSIC CINEMA, 5CH STEREO

DOLBY PLII MOVIE, DOLBY PLII MUSIC, DOLBY PLII EMULATION inTo cancel the surround mode for stereo playback

SiEREO

©

o Depending on the signal format which is being input, either the stereo mode or the 2CH downmix mode is selected.

o To cancel either the stereo mode or the 2CH downmix mode, select the surround mode with using the MULTI

CONTROL knob on the front panel or the SURROUND

MODE UP/DOWN (>/<) buttons on the remote control.

m2CH downmix mode

o This mode allows the multi-channel signals encoded in DTS or Dolby Digital format to be mixed down into 2 front channels and to be reproduced through only two front speakers or through headphones.

o When the SPEAKER button is set to off to listen with headphones while playing the multi-channel digital signals from DTS or

Dolby Digital sources, it can enter the 2CH downmix mode automatically.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

20 _

Listening in Virtual Surround Headphone mode

o The Virtual Surround Headphone mode simulates 5.1 channel surround, which allows you to enjoy 5.1 channel surround sound through 2 channel hedphones, just like listening from 5.1 channel speakers.

[]Note : o Only when the SPEAKER button is set to off, the Virtual Surround Headphone mode can be selected.

/!

o Select the Virtual Surround Headphone mode.

o Then "VS HP" is displayed and the Virtual Surround

Headphone mode is selected.

o To cancel the Virtual Surround Headphone mode, press the STEREO button.

or

When adjusting the sound parameters

oWhile playing digital signals from Dolby Digital or DTS program source or listening in Dolby Pro Logic II Music mode, you can adjust their parameters for optimum surround effect.

1= Press the SOUND PARAMETER button.

SOUND

PARAMETER o Then "DRC : ~ " (or "PANO • ~ ") is displayed for several seconds.

o If the parameter mode disappears, press this button again.

2.

Press the CURSOR UP(A)/DOWN(v) buttons to select the desired parameter.

D _-_,D

;:_j ;:j#_

o Each time these buttons are pressed, the parameter mode changes as follows:

"DRC" _ "PANO"_

Dynam c Range Compress on Panorama mode

"C.WIDTH"_

Center w dth contro

"DIMEN" *-

D mens on contro J o "DRC" can be selected only while playing digital signals from Dolby Digital or DTS source.

o "PANO", "C.WIDTH" and "DIMEN" can be selected only while listening in Dolby Pro Logic II Music mode.

3, Press the CURSOR LEFT(_1i)/RIGHT(I_) buttons to adjust the selected parameter as desired.

[]When selecting the "DRC (Dynamic Range Compression

Night

mode)"

This function compresses the dynamic range of previously

: specified parts of Dolby Digital or DTS sound track (with extremely high volume) to minimize the difference in volume between the specified and non-specified parts. This makes it easy to hear all of the sound track when watching movies at night at low levels. The night mode can be set in 11 steps from OFF(0.0) to MAX(1.0)

(default value : OFF(0.0)).

[]Note :

o In some Dolby Digital or DTS softwares, the night mode may not be valid.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

21 _ continued

[]When selecting the "PANO (Panorama)" mode

This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.

Select "OFF" or "ON"(default value: OFF).

[]When

selecting

the "C. WIDTH (Center width)"

control

This adjusts the center image so it may be heard only from the center speaker, only from the left!right speakers as a phantom image, or from all three front speakers to varying degrees.

The control can be set in 8 steps from 0 to 7(default value : 3).

[]When

selecting

the "DIMEN

(Dimension)"

control

This gradually adjusts the soundfield either towards the front or towards the rear. The control can be set in 7 steps from -3 to

+3 (default value • 0).

4, Repeat the above steps 2 and 3 to adjust other parameters.

Adjusting each channel level with test tone

oThe volume level of each channel can be adjusted easily with the test tone function.

1, Enter the test tone mode.

o The test tone mode is displayed and will be heard from the speaker of each channel for 2 seconds as follows: c F. S. S,

IF

ront Left Center Front Right Surround Right Surround Left Subwo lof er

o

When the speaker setting is "N (None or No)", the test tone of the corresponding channel is not available,

[] Notes :

The test tone function does not work as expected if :

. The SPEAKER button is set to off.

. EXTERNAL IN is selected as an input source.

. It is in the stereo or the 2CH downmix mode.

2, At each channel, adjust the level as desired until the sound level of each speaker is heard to be equally loud.

o You can select the desired channel with the CONTROL

UP(A)/DOWN(v)

DOWN(v) buttons.

buttons or the CURSOR UP(A)/

3, Cancel the test tone function.

I RD 6504(A)_ENG:RD 6504(A) 20090212 £ 9:03

qolml

22 _

Adjusting the current channel level

/!

o After adjusting each channel level with test tone, adjust the channel levels either according to the program sources or to suit you r tastes.

o You can adjust the current channel levels as desired. These adjusted levels are just memorized into user's memory ("CAL"), not into preset memory("REF 1 ", "REF 2").

1, Press the CHANNEL LEVEL button.

:w., _ t { . L_ .%. --.

or o Then the memory mode ("REF 1", etc.) is displayed for several seconds.

o When the memory mode or channel level disappears, press this button again.

2, Select the desired channel.

C_3 'i_{bJ_:JiLJ

I v CONTROL A

II I

\ o Each time these buttons are pressed, the corresponding channel is selected as follows:

DTSor DD>

F, C FR

SW _ SL _ SR

< >: Only when the digital signals from Dolby Digital or DTS program sources that include LFE signal are input, LFE level can be displayed.

,, Depending on the speaker settings ("N (None or No)") and surround mode, etc., some channels cannot be selected.

o When the SPEAKER button is set to off, only the Front

Left and Front Right channels can be selected.

3, Adjust the level of the selected channel as desired.

or o The LFE level can be adjusted within the range of -10~0 dB and other channel levels within the range of -15 ~ +15 dB o In general, we recommend the LFE level to be adjusted to 0 dB (However, the recommended LFE level for some early DTS software is -10 dB) If the recommended levels seem too high, lower the setting as necessary

4, Repeat the above steps 2 and 3 to adjust each channel level.

I RD-6504(A)_ENG:RD-6504(A) 2009-02-12 £ 9:03

_tlolml

23 _

Memorizing the adjusted channel Jevels o You can memorize the adjusted channel levels into preset memorYCREF 1 .... REF 2") and recall the memorized whenever you want.

1. After performing the steps 1 - 4 in "Adjusting the current channel level" procedure on page 22, press the

(MEMORY/)ENTER button.

!/

MEMO/ENTER

......

T..'GO'-C_

\ I

/

s _

I or o Then "1" of "REF 1" indication flickers for several seconds.

2, Select the desired one of REF 1 and REF 2.

o If the preset memory disappears, perform the above step 1 again, or

......'J"

i

iCx _ C)

3, Confirm your selection.

MEMO/ N fE_ or o The adjusted channel levels have now been memorized into the selected memory.

Recalling the memorized channel levels

1, Press the CHANNEL LEVEL button.

CH.

LEVEL or o "CAL " (or "REF 1", etc.) is displayed for several seconds.

o If the channel level mode display disappears, press this button again.

2, Select the desired one of REF 1 and REF 2.

o Then the channel levels memorized into the selected preset memory are recalled.

or i c

/

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

24 _

LISTENING TO PJ_DIO BROADCASTS

1

Auto

tuning

/!

1= Select the desired band.

BAND

Manual tuning o Manual tuning is useful when you already know the frequency of the desired station.

o After selecting the desired band, press the TUNING

UP(+) / DOWN(-) buttons repeatedly until the right frequency has been reached.

I

@

II

+

I

or

-TUNING -I _ _*_

I cb,*id;

--I

BAND

I

FREQUENCY

o

Each time this button is pressed, the band changes as follows ;

F FMST _ FMMONO

("ST" lights up) ("ST" goes off)

_ AM q o When FM stereo broadcasts are poor because of weak broadcast signals, select the FM mono mode to reduce the noise, then FM broadcasts are reproduced in monaural sound.

2, Press the TUNING UP(+)/DOWN(-) buttons for more than 0.5 second.

Auto presetting

o Auto presetting function automatically searches for FM stations only and stores them in the memory.

o While listening to FM radio broadcasts, press and hold down the (MEMORY/) ENTER button for more than 2 seconds.

or

I

@

II

+

I or

-TUNING --

TUNE o Then "AUTO MEM" flickers and this receiver starts auto presetting.

o To stop auto presetting, press this button again.

o Up to 30 FM stations can be stored.

[] Notes: o FM stations of weak strength cannot be memorized.

o To memorize AM stations or weak stations, preform

"Manual presetting" procedure with using "Manual tuning" operation.

o The tuner will now search until a station of sufficient strength has been found. The display shows the tuned frequency and "TUNE".

o If the station found is not the desired one, simply repeat this operation.

o Weak stations are skipped during auto tuning.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolxl

25 --_---_

Manual

presetting

. You can store up to 30 preferred stations in the memory.

1= Tune in the desired station with auto or manual tuning.

button.

2.

Press the (MEMORY/)ENTER

MEMO/ENTER

Tuning

to preset stations

* After selecting the tuner as an input source, select the desired preset number.

-PRESET --

I II I or

. When using the NUMERIC buttons on the remote control.

Examples) For "3":

For"15": [_

For

"30" : _ within 2 seconds within 2 seconds

, "MEM" is flickering for several seconds.

BIB

3, Select the desired preset number (1-30) and press the (MEMORY/)ENTER button.

I II I

M_MO/_NIER

I II I

. When using the NUMERIC buttons on the remote control.

Examples) For"3": [_

For "15" (_

For "30" _ within 2 seconds

. The station has now been stored in the memory.

. When using the NUMERIC buttons, the station is stored automatically without pressing the (MEMORY/)ENTER button.

* A stored frequency is erased from the memory by storing another frequency in its place.

* If "MEM" goes off, start again from the above step 2.

4.

Repeat the above steps1 to 3 to memorize other stations.

mMEMORY BACKUP FUNCTION

The following items, set before the receiver is turned off, are memorized.

° INPUT SELECTOR settings

° Surround mode settings

* Preset stations,etc.

I RD-6504(A)_ENG:RD-6504(A) 2009-02-12 £ 9:03

qolml

26 _

/!

ECORDING

1

o The analog signals from the EXTERNAL INs as well as the digital signals from the coaxial, optical digital input or HDMI IN can be heard but cannot be recorded, oWhen recording the analog signals from CD, VIDEO 1 ~ 2, be sure to select th analog input,

(For details, refer to "When CD, VIDEO 1 ~ 2 is selected as an input source" on page 16,) o The volume and tone (bass, treble) settings have no effect on the recording signals,

Recording

with TAPE

1, Select the desired input as a recording source except for TAPE.

VIDEO

@@

AUDIO

INPUT SELECTOR

BAND

@ or

227 C3

/

2, Start recording on the TAPE.

3, Start play on the desired input.

Dubbing from video components onto VIDEO 1

1, Select VIDEO 2 as a recording source.

VIDEO

t

or

2, Start recording on the VIDEO 1.

3, Start play on the VIDEO 2.

o The audio and video signals from the VIDEO 2 will be dubbed onto the VIDEO 1 and you can enjoy them on the TV set and from the speakers.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

27 --_----_

Dubbing the audio and video signals separately onto VIDEO 1

Example) When dubbing the VIDEO 2 video signal and the CD audio signal separately onto VIDEO 1.

1, Select VIDEO 2 as a video recording source.

2, Select CD as an audio recording source.

AUDIO

©

or

3,

Start recording on the VIDEO 1.

4, Start play on the VIDEO 2 and the CD respectively.

o The audio signal from the CD and the video signal from the VIDEO 2 will be dubbed and you can enjoy them on the TV set and from the speakers,

II Note : o Be sure to observe the order of the above steps 1 and 2.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

28 _t _

I OTHER

FUNCTIONS

/!

Operating the sleep timer o The sleep timer allows the system to continue to operate for a specified period of time before automatically shutting off.

o To set the receiver to automatically turn off after the specified period of time.

o Each time this button is pressed, the sleep time changes as follows:

10_20_30 ....

_90_OFF-]

Unit : minutes

/

o While operating the sleep timer, " *]t " lights up.

o When the sleep time is selected, the fluorescent display is dimly lit.

Adjusting the brightness of the fluorescent

display

o Each time this button is pressed, the brightness of the fluorescent display changes as follows:

F

OFF-

/

o

In the display OFF mode, pressing any button will restore the display ON mode.

Displaying the operation status

During playback, o Each time this button is pressed, the display mode changes as follows: o When the EXTERNAL IN is selected as an input source, the surround mode is not displayed.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_flolml

29 _

System Setup

oThe setup menu is displayed on the fluorescent display and allows you to perform the setup procedures easily. In most situations, you will only need to set this once during the installation and layout of your home theater, and it rarely needs to be changed later.

The setup menu consists of 5 main menus ; system, input, speaker setup, CH level and parameter. These menus are then divided up into various sub-menus.

IlNavigating through the setup menu

o

The explanations here assume you are using the buttons on the remote control when performing the setup menu operation.

However, you can use the buttons on the front panel as well.

The buttons on the front panel correspond to those on the remote control as shown below.

!/

Button on the remote control

SETUP @

Button on the front panel

1. Turn the setup menu on.

"_ 7

• The setup menu will be shown.

• To turn the menu off, press this button again.

2.

Select the desired menu using the CURSOR UP(A)/DOWN(v)

CL3 :T£3:1::£'_

gQ :' I

buttons.

3, Confirm your selection.

• When selecting "SYSTEM", see "SETTING THE

SYSTEM" on page 31.

• When selecting "INPUT", see "SETTING THE

INPUT" on page 33.

• When selecting "SPK SET", see "SETTING THE

SPEAKER SETUP" on page 34.

• When selecting "CH LEVEL", see "SETTING

THE CH LEVEL" on page 38.

• When selecting "PARAMTR", see "SETTING

THE PARAMETER" on page 40.

• When selecting "EXIT", the setup menu will be turned off.

I RD-6504(A)_ENG:RD-6504(A) 2009-02-12 £ 9:03 _*:,

/!

[]Setup menu flow

• The setup menu flow is as follows :

if

• INPUT

• SPK SET

O CH LEVEL -m m

--

--

--

/

SW +

TONE:

/

HDMI: / ON

ON

RETURN BASS

/ -12-+12

RETURN

VID I CFG _

VID2CFG

CD CFG

//

COX1

AUTO / ON

RETURN

|

D.IN:OPT

_'-AUTO :ME

RETURN

D,IN:OPT

/

COX1

/ ON

RETURN L

/

ON

CONFIG _

AUTO

RETURN

FRONT

CENTER

SURR

SUB-W

RETURN

/

S

/

S

/

N

/

S

/

N

/

N

/

COX2

/

/

COX2

/

HDMI

/

ANL

/

HDMI

/

ANL

/

ANL

DISTANCE --

--

--

FL :@FT

C :_FT

ER :_FT

SR :_FT

SL :_FT

RETURN

/

1_30

/

1_30

/

1-30

/

1-30

/

1_30

X-OVER L__ Fc :so_z/ 4o_2oo

RETURN RETURN

MODE : CAL

-

FL ;i0 dB /-15~+15

C O:dB

/-15_+15

FR :9 dB /-15-+15

SR 0 dB /-15~+15

SL ,0; dB /-15 ~+15

SW _0 dB /-15_+15

- DD _edB/-10_0

- DTS,0dB /-10_0

RETURN

/

FL

C

FR

:O:dB

/-15~+15

:O dB /-15 ~ +15 iO dB /-15-+15

SR :(_ dB //-15_+15

SL _0 dB /-15_+15

SW _i dB /-15~+15

DD !!O dB /-10_0

DTS _O dB /-10~0

RETURN

/

REF 2

FL

C

FR

:O_dB /-15_+15

::#: dB

/-15

_+15

:_dB /-15_+15

SR iQ dB

/-15_+15

SL (0::dB

/-15~+15

SW 10_dB /-15~+15

DD :0 dB

/-10~0

DTS :0 dB

/-10_0

RETURN

NIGHT M T DRC

RETURN

:

/

0.1-0.9

/

MAX

RETURN

PLII

MSC "_

C.WIDTH

PANO :O N

RETURN

/ 0 _ 7

/

ON

• EXIT

° When "RETURN" is selected on a sub-menu, it will returns to the previous menu.

[] Note : o During setup menu operation, only the (POWER ON/) STANDBY button and the buttons required for system setup will function.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlo1_:1

_e _

_ SETT|NG

THE SYSTEM

0 SYSTEM sw:

TONE:

HDMI:

RETURN

J

/

/ sw+

// ON

ON

--

[ t

--BASS O / -12-+12

TRBL :0

/

=12~+12

RETURN

" SW (SUBWOOFER) : To select the desired subwoofer mode.

, TONE : To adjust the tone (bass and treble) as desired.

, HDMI : To output the digital audio signals from the HDMI MONITOR OUT connector.

, RETURN : To return to the previous menu.

1, Press CURSOR UP(A)/DOWN(v) buttons to select the desired item.

2, Press the CURSOR LEFT( 4)/RIGHT(I_ ) buttons to set the selected item as desired.

When selecting the SUBWOOFER mode

° "SW + " mode is effective only when "FRONT" is set to "L" and "SUB- W" is set to "Y" on the SPK SET menu. (For details, refer to "SETTING THE SPEAKER SETUP" on page 34.)

NORM : When the low frequency signals of channels set to "L" are reproduced from those channels only.

I signals of LFE (from the multi-channel sources that contains LFE (Low Frequency Effects) channel, also called the

In this mode, the low frequency signals that are reproduced from the subwoofer channel is only the low frequency

".1" channel) and the channels set to "S".

SW + : When the low frequency signals of channels set to "L" are reproduced simultaneously from those channels and the subwoofer channel.

In this mode, the low frequency range expands more uniformly through the room, but depending on the size and shape of the room, interference may result in a decrease of the actual volume of the low frequency range.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolxl

32 _

When selecting the TONE

OFF : To listen to a program source without the tone effect. ("DIR" indicator lights up.)

/!

ON : To adjust the tone for your taste. ("DIR" indicator goes off.)

[] Note :

* When the EXTERNAL IN is selected as an input source, the TONE cannot be set to ON.

•When the TONE is set to ON to adjust the tone (bass and treble)

(1] Press the ENTER button to enter the tone adjustment.

E]E]_/) _" '-" :-'-

.-'-

@,Press the CURSOR UP(A)/DOWN(v) buttons to select the desired tone.

(3>Press the CURSOR LEFT( 4)/RIGHT(_ ) buttons to adjust the selected tone as desired.

* The tone level can be adjusted within the range of -12 ~ +12 dB.

* In general, we recommend the bass and treble to be adjusted to 0 dB (flat leve().

* Extreme settings at high volume may damage your speakers.

* To complete tone adjustment, repeat the above steps (2_and (3).

When selecting the ND_l

* The HDMI connection can carry uncompressed digital video signals and digital audio signals.

Depending on whether the digital audio signals input into the HDMI IN are output from the HDMI MONITOR OUT of this receiver or not, you should set the HDMI correctly.

OFF : Not to output the HDMI digital audio signals from the HDMI MONITOR OUT of this receiver, meaning these signals

:_ are heard from the speakers connected to this receiver.

ON : To output the HDMI digital audio signals from the HDMI MONITOR OUT, meaning these signals are heard from the

[]Note: speakers of your TV.

* When the HDMI is set to ON, the HDMI digital audio signals will not be heard from the speakers connected to this receiver even though the HDMI audio input CH") is selected for VIDEO 1 or VIDEO 2.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

33 _

I SETTING THE INPUT

i

• INPUT VlD 1 CFG

ANL

VID 2 CFG

L

AUTO:

/

/ ON

RETURN

-[ D.IN : OPT

/

COX1

L

AUTO:_:F : / ON

RETURN

/

/

COX2

/

HDMI*/

/

HDMI*/ ANL m m

COX2

/

ANL

CD CFG L D.IN: OPT

RETURN

/

i,/

ON

• : The HDMI audio input can be selected on the VIDEO 1 or VIDEO 2 configuration menu only.

o D.IN (DIGITAL IN) : To assign the connected DIGITAL INs to the desired input, o AUTO (AUTO SURROUND) : To select the auto surround mode or the manual surround mode, o RETURN : To return to the previous menu,

IINote : o In such a case that the HDMI IN is connected to your video component at the very first, the HDMI audio input is automatically assigned to the input source (VIDEO 1 or VIDEO 2).

1, Press the CURSOR UP(A)/DOWN(v) button.

buttons to select the desired input source, then press the ENTER cc: :t_J EZJJ

/

Example) When selecting the CD

[]D/X,Iv2

I_NN NI

2, Press the CURSOR UP(A)/DOWN(v) buttons to select the desired item.

DD_

3.

Press the CURSOR LEFT( _)/RIGHT(_,) buttons to set the selected item as desired.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

34 _

/!

When selecting the DIGITAL IN

o You should assign the connected DIGITAL INs to the desired of CD and VIDEO 1 ~ VIDEO 2.

(For details, refer to "CONNECTING DIGITAL INs" on page 8.)

o You can select the desired of OPT (optical), COX 1(coaxial 1), COX 2(coaxial 2) (, HDMI) and ANL (analog).

[]Note :

o In such a case that a DIGITAL IN is assigned to two input sources or more, when these input sources are selected, the digital audio signals can be heard from the same DIGITAL IN.

When selecting the AUTO SURROUND

o

Depending on how to select a surround mode, you can select the auto surround mode or the manual surround mode.

OFF : You can select the desired of different surround modes selectable for the signal being input with

(Manual surround mode)

$ using the MULTI CONTROL knob or the SURROUND

(For details, refer to "ENJOYING SURROUND

MODE UP/DOWN

SOUND" on page 19.)

(>/<) buttons.

ON

(Auto surround mode)

[] Notes :

: The optimum surround mode will be automatically selected depending on the signal format being input.

o When the input source other than CD and VIDEO 1 ~ 2 is selected, you cannot select the auto surround mode and can select the surround mode as desired(the manual surround mode).

o When the auto surround mode is selected, the surround modes other than the optimum surround mode cannot be selected.

SETTIN6

THE SPEAKER SETUP

/

o

After you have installed this receiver and connected all the components, you should adjust the speaker settings for the optimum sound acoustics according to your environment and speaker layout.

o Even when you change speakers, speaker positions, or the layout of your listening environment, you should adjust the speaker settings, too.

0 SPK SET CONFIG

FRONT :_

/

S

CENTER :_

/

S / N

SURR s / N suB-w

/ N

RETURN

DISTANCE

X=OVER

RETURN

-m

--

--

FL :_FT

C :_FT

FR :_FT

/

/

1~30

1~30

/

1~30

S R :

SL :_FT

RETURN

FT

/

1~30

/

1~30

FC ::8_HZ

/

40-200

RETURN

o CONFIG (CONFIGURATION) : To select the sizes of the speakers that are connected.

o DISTANCE: To enter the distance between the listening position and each speaker to set the delay time automatically for optimum surround playback.

o X-OVER (CROSSOVER) : To select the desired crossover frequency.

o RETURN : To return to the previous menu.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolJ<l

35 _

When selecting the CONFIGURATION

1, Press the CURSOR UP(A)/DOWN(v) buttons to select the "CONFIG', then press the ENTER button.

!/

2, Press the CURSOR UP(A)/DOWN(v) buttons to select the desired speaker.

3, Press the CURSOR LEFT(_1i)/RIGHT(I_) buttons to set the selected speaker as desired.

o Depending on your speaker type, you can select one of these following speaker types.

O O,

L(Large): Select this when connecting speakers that can fully reproduce sounds below crossover frequency.

S(Small) : Select this when connecting speakers that can not fully reproduce sounds below crossover frequency. When this is selected, sounds below crossover frequency are sent to the subwoofer or speakers which are set to "L

(Large)" (when not using a subwoofer)

N(None): Select this when no speakers are connected.

When this is selected, sounds are sent to the speakers which are not set to "N (None)".

Y(Yes)/N(No): Select the desired depending on whether a subwoofer is connected or not.

II Notes :

o When speakers are set to "S (Small)", you should set their crossover frequency correctly according to their frequency characteristics.

(For details, refer to "When selecting the CROSSOVER" on page 37.) o When "SUB-W" is set to "N (No)", "FRONT" is automatically set to "L (Large)".

o When the "FRONT" is set to "S (Small)", "CENTER" and "SURR" cannot be set to "L (Large)".

4, Repeat the above steps 2 and 3 until the speakers are all set to the desired mode.

_About the speaker size

o Select "L (Large)" or "S (Small)" not according to the actual size of the speaker but according to the speaker's capacity for playing low frequency (bass sound below frequency set on the "X-OVER" menu) signals.

o If you do not know, try comparing the sound at both settings (setting the volume to a level low enough so as not to damage the speakers) to determine the proper setting.

IRD-6504(A)_ENG:RD-6504(A) 9:03

_tlolml

36 _t _

/!

When selecting the DISTANCE

1, Press the CURSOR UP(A)/DOWN(v) buttons to select the DISTANCE, then press the ENTER button.

E]E][_ a.

2, Press the CURSOR UP(A)/DOWN(v) buttons to select the desired speaker.

[]Note : o You cannot select the speakers set to "N (None)".

3,

Press the CURSOR LEFT(_t)/RIGHT(I_) buttons to set the selected speaker as desired.

o You can set the distance within the range of 1 ~ 30 feet

in 1 feet intervals.

4, Repeat the above steps 2 and 3 until the distances are all set as desired.

[]About the speaker distance

When enjoying multi-channel surround playback with Dolby Digital and DTS sources, etc., it is ideal that the center and surround speakers should be the same distance from the main listening position as the front speakers. By entering the distance between the listening position and each speaker, the delay times of center and surround speakers are automatically adjusted to create an

ideal listening environment virtually as if the center and surround speakers were at their ideal locations respectively.

When selecting the CROSSOVER

° When speakers are set to "S (Small)", be sure to set their crossover frequency correctly according to their frequency characteristics.

1.

Press the CURSOR UP(A)/DOWN(v) buttons to select the "X-OVER", then press the ENTER button.

FIFI ..........

2 • Press the CURSOR LEFT( _)/RIGHT( _, ) buttons to set the crossover frequency as desired.

.

You can adjust the crossover frequency within the range of 40 ~ 200 Hz in 10 Hz intervals. mAhout the crossover frequency

. When speakers are set to "S (Small)", low frequencies in those channels that are below the crossover frequency are to output from subwoofer or front speakers which are set to "L (Large)" (when not using a subwoofer).

. Refer to the operating instructions of the speakers to be connected.

If the frequency range of your speaker is 100 Hz~20 kHz, the crossover frequency should be set to 100 Hz(or slightly higher).

ETTING

THE CH LEVEL

!1

0 CH LEVEL

MODE :CAL

FL

C

FR

SR

SL

!0 dB /-15~+15

!5dB/-15~+12

_:_B/-15~+15

_odB/-15 _ +12

_0 dB /-15 ~ +15

SW _: dB /-15 ~ +15

DD dB / -10 ~ 0

- DTS_ _B/-10~o

RETURN

L FL #_dB/-_5-+_5

-- C _'dB

/'15_+15

- FR !e_B/-_s-+15

- SR _dB /-15-+15

- sL _B/-_-+15

SW ;_ dB /-15~+15

' DD :_ dB /'10-0

/ REF 2

F FL

C

FR

SR

SL

:4 dB /-15~+15 i(_ dB /-t5 ~ +15

'_dB/-15_+15

:Q_dB

/-15

~ +15

SW 0_dB /-15~+15

-- DTS ;!_ dB /-10~0

RETURN

DTS :O'dB /-10-0

RETURN

INote : Depending on the speaker settings ("N (None or No)"), some channels cannot be selected.

Adjusting the current channel level

* You can adjust the current channel levels as desired. These adjusted levels are just memorized into user's memory("CAL")

* After adjusting each channel level with test tone, adjust the channel levels either according to the program sources or to suit your tastes. (For details, refer to "Adjusting each channel level with test tone" on page 21 .)

1, Press the CURSOR UP(_.)/DOWN(v) buttons to select the desired channel.

[i::1 _3 [:; "J

Example) When selecting Dolby Digital source's LFE

r_! _,', )_x: I .L" l.s

-J LJ J[;

2.

Press the CURSOR LEFT(_)/RtGHT(t_) source's LFE as desired.

buttons to adjust the level of the selected channel or program

'

_5 C;'Z,

III_ _

3, Repeat the above steps 1 and 2 to adjust each channel level.

. The LFE level can be adjusted within the range of -10 ~ 0 dB and other channel levels within the range of -15 ~ +15 dB

. In general, we recommend the LFE level to be adjusted to

0 dB. (However, the rcommended LFE level for some early DTS software is -10 dB.) If the recommended levels seem too high, lower setting as necessary.

Memorizing

the adjusted channel levels

, You can memorize the adjusted channel levels into preset memory("REF 1.... REF 2") and recall the memorized whenever you want.

1, After performing the steps 1 - 3 in "Adjusting the current channel level" procedure on page 38, press the

ENTER button.

i_ _W_ ¸ nnC>

/

\

. Then "1" of "REF 1" indication flickers.

2, Press the CURSOR LEFT(_t)/RIGHT(t_) buttons to select the desired preset memory, then press the

ENTER button.

i:p,it>, ?._

I

, Each time the CURSOR LEFT(_) or RIGHT(I_) button is pressed, "REF 1" or "REF 2" is selected.

. The adjusted channel levels have now been memorized into the selected memory.

Recalling the memorized channel levels

1, Press the CURSOR UP(A)/DOWN(v) buttons to select the "MODE - "

" =.-.,=,_,-L. " _ ....

. "CAL" may be displayed instead of "REF 1" or "REF 2".

2, Press the CURSOR LEFT(_Ii)/RIGHT(I_) buttons to select the desired one of REF 1 and REF 2.

, Then the channel levels memorized into the selected preset memory are recalled.

I SETTING THE PARAMETER

• PARAMTR

NIGHT M L DRC

RETURN

/

0.1 ~ 0.9

/

MAX

/!

RETURN

PLII MSC "_

C.WIDTH

:_/0 ~ 7

PANO ::

:_/=3~+3

ON

RETURN

o NIGHT M (NIGHT MODE) : To adjust the dynamic range compression that makes faint sound easier to hear at low volume levels•

o PLII MSC (DOLBY PLII MUSIC) : To adjust the various surround parameters for optimum surround effect•

o RETURN : To return to the previous menu.

When selecting the NIGHT MODE

o This function compresses the dynamic range of previously specified parts of Dolby Digital or DTS sound track (with extremely high volume) to minimize the difference in volume between the specified and non-specified parts.

This makes it easy to hear all of the sound track when watching movies at night at low levels.

[] Notes:

o The night mode setting is valid only when the digital signals from Dolby Digital or DTS program source are being input. o In some Dolby Digital or DTS softwares, the night mode setting may not be valid.

1, Press the CURSOR UP(A)/DOWN(v) buttons to select the "NIGHT M", then press the ENTER button.

fx

_\l_v2

'-"' ...."-"

2, Press the CURSOR LEFT(4)/RIGHT(_) buttons to adjust the dynamic range compression as desired.

©,0®=8

OFF (0.0)

0.15

0.2

l

Lower compression o19 1

Higher compression

MAX (1.9)

When selecting the DOLBY PLII MUSIC

* You can adjust the various surround parameters for optimum surround effect.

[]Note: The parameter settings are valid only when listeningin Dolby Pro Logic NMusic mode.

1, Press the CURSOR UP(A)/DOWN(v) buttons to select the "PLH MSC", then press the ENTER button.

E]E]0

._....m......

,---z_..-.,:i ..,,--3.

_m -.m

--.: _-.-_-.

2, Press the CURSOR UP(A)/DOWN(v) buttons to select the desired parameter.

D_

3,

Press the CURSOR LEFT(_I)/RIGHT(I_ ) buttons to adjust the selected parameter as desired.

[]When

selecting

the "PANO (Panorama)" mode

This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.

Select "OFF" or "ON"(default value:OFF).

[]When

selecting

the "C. WIDTH (Center width)"

control

This adjusts the center image so it may be heard only from the center speaker, only from the left/right speakers as a phantom

image, or from all three front speakers to varying degrees. The control can be set in 8 steps from 0 to 7 (default value : 3).

[]When

selecting

the "DIMEN (Dimension)" control

This gradually adjusts the soundfield either towards the front or towards the rear. The control can be set in 7 steps from -3 to +3

(default value : 0).

4, Repeat the above steps 2 and 3 to adjust other parameters.

Troubleshooting Guide

If a fault occurs, run through the table below before taking your receiver for repair.

If the fault persists, attempt to solve it by switching the receiver off and on again. If this fails to resolve the situation, consult your dealer. Under no circumstances should you attempt to repair the receiver yourself. This could void the warranty.

PROBLEM POSSIBLE CAUSE REMEDY

No power * The AC input cord is disconnected.

• Poor connection at AC wall outlet or the outlet is inactive,

° Connect the cord securely.

° Check the outlet using a lamp or another appliance.

No sound

* The speaker cords are disconnected.

* The master volume is adjusted too low.

* The MUTE button on the remote control is pressed to ON.

* Speakers are not switched on.

° Incorrect selection of the input source.

° Incorrect connections between the components.

°

Check the speaker connections.

°

Adjust the master volume.

* Press the MUTE button to cancel the muting effect.

* Press the SPEAKER button to ON.

* Select the desired input source correctly.

* Make connections correctly.

No sound from the surround speakers o Select a surround mode.

No sound from the center speaker

Stations cannot be received

* Surround mode is switched off(stereo mode).

* Master volume and surround level are too low.

° A monaural source is used.

° Surround speaker setting is "N".

• Surround mode is switched off(stereo mode).

° Center speaker setting is "N".

° Master volume and center level are too low.

°

No antenna is connected.

°

The desired station frequency is not tuned in.

* The antenna is in wrong position.

* Adjust master volume and surround level.

* Select a stereo or surround source.

* Select the desired surround speaker setting.

* Select the desired surround.

* Select the desired center speaker setting.

* Adjust master volume and center level.

° Connect an antenna.

° Tune in the desired station frequency.

° Move the antenna and retry tuning.

Preset stations cannot be received

* An incorrect station frequency has been memorized.

° The memorized stations are cleared.

° Memorize the correct station frequency.

Poor FM reception

°

No antenna is connected.

°

The antenna is not positioned for the best reception.

° Memorize the stations again.

o Connect an antenna.

° Change the position of the antenna.

°

Change the position of the antenna.

°

Install an outdoor FM antenna.

Continuous hissing noise during FM reception, especially when a stereo broadcast is received.

°

Weak signals.

Continuous or intermittent hissing noise during AM reception, especially at night.

° Noise is caused by motors, fluorescent lamps or lightning, etc.

°

Keep the receiver away from noise sources.

* Install an outdoor AM antenna.

Remote control unit does not operate.

° Batteries are not loaded or exhausted.

° The remote sensor is obstructed.

* Replace the batteries.

° Remove the obstacle.

Specifications

[]

AMPLIFIER SECTION

o Power output, stereo mode, 6 _, THD 0.7%, 40 Hz~20 kHz ......................................................................................

o Total harmonic distortion, 6 _, 100 W, 1 kHz .................................................................................................................

o Intermodulation distortion

60 Hz : 7 kHz= 4 : 1 SMPTE, 6 _, 100 W ...................................................................................................................

o Input sensitivity, 47 k(3

Line (CD, TAPE, VIDEO) ........................................................................................................................................

o Signal to noise ratio, IHF "A" weighted

Line (CD, TAPE, VIDEO) ..........................................................................................................................................

o Frequency response

Line (CD, TAPE, VIDEO), 10 Hz~75 kHz ......................................................................................................

o Output level

2x 100 W

0.03 %

0.1%

200 rnV

95 dB

+0 riB, -3 dB

TAPE REC, 2.2 k(3 ..................................................................................................................................................

PRE OUT (Subwoofer), 1 k(3 ........................................................................................................................................

o Bass/Treble control, 100 Hz/lO kHz ...............................................................................................................................

o Surround mode, only channel driven

200 mV

1.0 V

_+12dB

Front power output, 6 [Q, 1 kHz, THD 0.7 % ................................................................................................

Center power output, 6 (3, 1 kHz, THD 0.7 % ..........................................................................................................

110 W/110 W

110W

Surround power output, 6 Q, 1 kHz, THD 0.7 % ..........................................................................................

110 W/110 W

[] DNGITAL

AUDIO

SECTION o Sampling frequency ..................................................................................................................................

o Digital input level

Coaxial, 75 _ ..........................................................................................................................................................

Optical, 660 nm ..........................................................................................................................................

32, 44.1, 48, 96 kHz

0.5 Vp-p

=15 ~ =21 dBm

[] VIDEO SECTION o Video format ....................................................................................................................................................................

o Input sensitivity (=Output level), 75

Video (Composite (normal)) ......................................................................................................................................

Component video (R-Y signal) ...............................................................................................................................

(B-Y signal) ...............................................................................................................................

(Y signal) ......................................................................................................................................

o HDMI connector ................................................................................................................................................................

NTSC

1 Vp-p

0.5 Vp-p

0.5 Vp-p

1 Vp-p

19 pin

[] FM TUNER SECTION o Tuning frequency range ..................................................................................................................................

o Usable sensitivity, THD 3%, S/N 30 dB ......................................................................................................................

o 50 dB quieting sensitivity, mono/stereo ...........................................................................................................

o Signal to noise ratio, 65 dBf, mono/stereo ...............................................................................................................

o Total harmonic distortion, 65 dBf,1 kHz, mono/stereo ..............................................................................................

o Frequency response, 30 Hz~12 kHz ............................................................................................................................

o Stereo separation, 1 kHz ................................................................................................................................................

o Capture ratio ......................................................................................................................................................................

o IF rejection ratio ...............................................................................................................................................................

87.5 ~ 108 MHz

12.8 dBf

20.2 / 45.3 dBf

55 / 50 dB

0.5 / 1.0 %

_+3.0dB

30 dB

4 dB

80 dB

[] AM TUNER SECTION o Tuning frequency range ...................................................................................................................................

o Usable sensitivity .......................................................................................................................................................

o Signal to noise ratio .........................................................................................................................................................

o Selectivity ..........................................................................................................................................................................

520 ~ 1710 kHz

500 pV/m

40 dB

25 dB

[] GENERAL o Power supply ......................................................................................................................................................

o Power consumption .........................................................................................................................................................

120 V ~ 60 Hz

3.8 A o Dimensions (Wx Hx D, including protruding parts) ..............................

440x 141 x 370 mm (17-3/8x 5-1/2x 14-1/2 inches) o Weight (Net) ....................................................................................................................................................

8.8 kg (19.4 Ibs)

Note: Design and specifications are subject to change without notice for improvements.

RD-6504

AUDIO/VIDEO RECEIVER

RECEPTOR DE AUDIO/VIDEO

RECEPTEUR AUDIO/VIDEO

_Sherwood

5707-00000_199-0S

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
