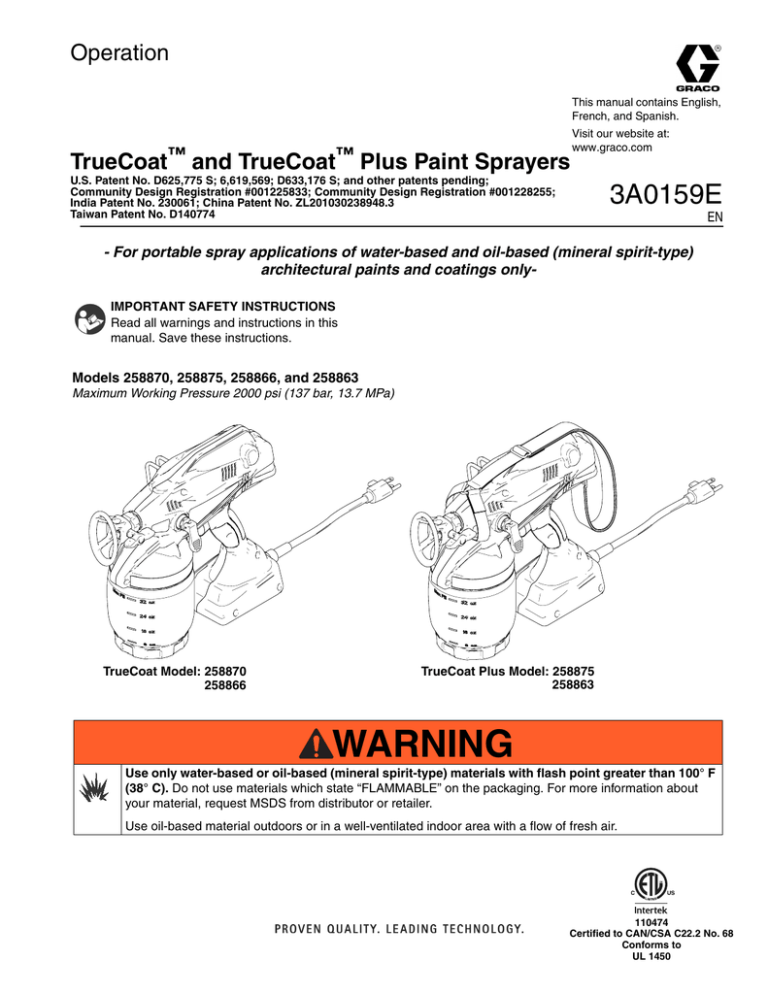

Operation

This manual contains English,

French, and Spanish.

Visit our website at:

TrueCoat

and TrueCoat

Plus Paint Sprayers

www.graco.com

U.S. Patent No. D625,775 S; 6,619,569; D633,176 S; and other patents pending;

Community Design Registration #001225833; Community Design Registration #001228255;

India Patent No. 230061; China Patent No. ZL201030238948.3

Taiwan Patent No. D140774

3A0159E

EN

- For portable spray applications of water-based and oil-based (mineral spirit-type) architectural paints and coatings only-

IMPORTANT SAFETY INSTRUCTIONS

Read all warnings and instructions in this manual. Save these instructions.

Models 258870, 258875, 258866, and 258863

Maximum Working Pressure 2000 psi (137 bar, 13.7 MPa)

ti14773a

TrueCoat Model: 258870

258866

TrueCoat Plus Model: 258875

258863

Use only water-based or oil-based (mineral spirit-type) materials with flash point greater than 100° F

(38° C). Do not use materials which state “FLAMMABLE” on the packaging. For more information about

your material, request MSDS from distributor or retailer.

Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.

110474

Certified to CAN/CSA C22.2 No. 68

Conforms to

UL 1450

2

Table of Contents

Table of Contents

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TrueCoat

Component Identification . . . . . . . . . . . . . . . 6

TrueCoat

Plus Component Identification . . . . . . . . . . . 7

Using Electrical Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Grounding and Electrical Requirements . . . . . . . . . . . 8

Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Extension Cord Requirements . . . . . . . . . . . . . . . . . . . 8

Common Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . 9

Trigger Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Spray Tip Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Control Lever Position . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Overheating Protection . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing Suction Tube . . . . . . . . . . . . . . . . . . . . . . . . 10

Spraying Stains or Clear Coats

(Fine-Finish Optimizer) . . . . . . . . . . . . . . . . . . . . 10

Sprayer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Install Tip/Guard Assembly

(if not installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Shoulder Strap Installation . . . . . . . . . . . . . . . . . . . . . 13

Basic Spraying Techniques . . . . . . . . . . . . . . . . . . . . . . 14

Triggering Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Unclogging Spray Tip/Guard Assembly . . . . . . . . . . . . 15

Shutdown and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 16

Flushing Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning Sprayer Exterior . . . . . . . . . . . . . . . . . . . . . 18

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Replacement Parts and Kits . . . . . . . . . . . . . . . . . . . . . . 19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Alternate Priming Method . . . . . . . . . . . . . . . . . . . . . . . . 23

Inlet Valve Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . 28

Important User Information

Read this before using your sprayer. See the Operation Manual provided with your sprayer for complete instructions on proper use and safety warnings.

DO NOT RETURN THIS SPRAYER TO THE STORE!

If you experience problems call Graco Customer Service at 1-888-541-9788.

Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc. This sprayer is designed to provide superior spray performance with water-based and oil-based (mineral spirit-type) architectural paints and coatings. This user information sheet is intended to help you understand the types of materials that can and cannot be used with your sprayer.

Before using this equipment, be sure to read and follow the information on your container label and ask for a Material

Safety Data Sheet (MSDS). The container label and MSDS will explain the contents of the material and the specific precautions related to it.

Paints, coatings and clean-up materials generally fit into one of the following 3 basic categories:

WATER-BASED: The container label should indicate that the material can be cleaned up with soap and water. Your sprayer is compatible with this type of material. Your sprayer is NOT compatible with harsh cleaners such as chlorine bleach.

OIL-BASED: The container label should indicate that the material is combustible and can be cleaned up with mineral spirits or paint thinner. The MSDS must indicate that the flash point of the material is above 100° F.

Your sprayer is compatible with this type of material. Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air. See the safety warnings in your Operation Manual.

FLAMMABLE: This type of material contains flammable solvents such as xylene, toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, and turpentine. The container label should indicate that this material is FLAMMABLE. This type of material is NOT compatible with your sprayer and CANNOT be used.

3A0159E

Warnings

Warnings

The following warnings are for the setup, use, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.

GROUNDING

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

• Improper installation of the grounding plug is able to result in a risk of electric shock.

• When repair or replacement of the cord or plug is required, do not connect the grounding wire to either flat blade terminal.

• The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire.

• Check with a qualified electrician or serviceman when the grounding instructions are not completely understood, or when in doubt as to whether the product is properly grounded.

• Do not modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a qualified electrician.

• This product is for use on a nominal 120V circuit and has a grounding plug similar to the plug illustrated in the figure below.

3A0159E

• Only connect the product to an outlet having the same configuration as the plug.

• Do not use an adapter with this product.

Extension Cords:

• Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that accepts the plug on the product.

• Make sure your extension cord is not damaged. When using an extension cord, be sure to use a cord heavy enough to carry the current that your sprayer draws. See chart for appropriate sizes and lengths:

Extension Cord Gauge

(AWG Minimum)

Extension Cord Length

(Maximum)

18

16

14

50 ft (15 m)

100 ft (30 m)

200 ft (60m)

• An undersized extension cord will result in a drop in line voltage and loss of power, overheating, and possible damage to equipment.

3

Warnings

4

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:

• Sprayer generates sparks. Do not spray or flush with flammable liquids.

• Use only water-based or oil-based (mineral spirit-type) materials with a flash point greater than

100° F (38° C).

• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.

• Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.

• Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity creates a risk of fire or explosion in the presence of paint or solvent fumes. All parts of the spray system and objects in and around the spray area shall be properly grounded to protect against static discharge and sparks.

• Verify that all containers and collection systems are grounded to prevent static discharge.

• Connect to a grounded outlet and use grounded extensions cords. Do not use a 3-to-2 adapter.

• Do not spray or flush with combustible materials near an open flame or sources of ignition.

• Do not smoke in the spray area.

• Do not operate light switches, engines, or similar spark producing products in the spray area.

• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.

• Know the contents of the paints and solvents being sprayed. Read all Material Safety Data Sheets

(MSDS) and container labels provided with the paints and solvents. Follow the paint and solvents manufacturer’s safety instructions.

• Fire extinguisher equipment shall be present and working.

ELECTRIC SHOCK HAZARD

This equipment must be grounded .

Improper grounding, setup, or usage of the system can cause electric shock.

• Turn off and disconnect power cord before servicing equipment.

• Use only grounded electrical outlets.

• Use only 3-wire extension cords.

• Ensure ground prongs are intact on power and extension cords.

• Do not expose to rain. Store indoors.

SKIN INJECTION HAZARD

High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that injection occurs, get immediate surgical treatment.

• Do not aim the sprayer at, or spray any person or animal.

• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.

• Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.

• Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.

• Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before removing the nozzle tip to clean.

• Do not leave the unit energized or under pressure while unattended. When the unit is not in use, turn off the unit and follow the Pressure Relief Procedure for turning off the unit.

• Check parts for signs of damage. Replace any damaged parts.

• This system is capable of producing 2000 psi. Use replacement parts or accessories that are rated a minimum of 2000 psi.

• Do not carry the tool with a finger on the trigger.

• Verify that all connections are secure before operating the unit.

• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.

3A0159E

Warnings

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.

• Do not operate or spray near children. Keep children away from equipment at all times.

• Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.

• Stay alert and watch what you are doing.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Use only in dry locations. Do not expose to water or rain.

• Use in well-lit areas.

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.

• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.

• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility.

MOVING PARTS HAZARD

Moving parts can pinch or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure in this manual. Disconnect power.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.

• Read MSDS’s to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

3A0159E 5

6

TrueCoat

Component Identification

A

B

D

R

P

TrueCoat

Component Identification

S

E

F M ti15479a

K

G

H

N

A

B

TrueCoat Paint Sprayer

Sprayer Hook

D TrueCoat Spray Tip/Guard Assembly (517 included)

E Tip Filter (*Reverse Threaded)

F Suction Tube

G Pump Armor Concentrate (4 oz.)

H Fine-Finish Optimizer with Storage/Cleaning Tool

R

S

T

K

M

N

P

Material Cup (32 oz)

Control Lever

Material Cup Liners (3 included)

Sprayer Trigger

Sprayer Trigger Lock

Circuit Reset Button

TrueCoat Case

*NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to tighten,

turn right (or clockwise) to loosen.

T

3A0159E

TrueCoat

Plus Component Identification

TrueCoat

Plus Component Identification

A

T

B

D

S

R

P

E

M

F

D

K ti15479a

G

J

H

A

B

D

TrueCoat Plus Paint Sprayer

Sprayer Hook

TrueCoat Spray Tip/Guard Assembly

(311, 517 included)

E

F

Tip Filter (*Reverse Threaded)

Suction Tube

G Pump Armor Concentrate (4 oz.)

H Fine-Finish Optimizer with Storage/Cleaning Tool

J Material Cup Cover and Seal

N

K Material Cup (32 oz)

M Control Lever

N Material Cup Liners (3 included)

S

T

P

R

Circuit Reset Button

Sprayer Trigger

Sprayer Trigger Lock

Shoulder Strap

W TrueCoat Case

*NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to tighten,

turn right (or clockwise) to loosen.

W

3A0159E 7

8

Using Electrical Cords

Using Electrical Cords

Grounding and Electrical

Requirements

Extension Cord Requirements

Sprayer must be grounded. Grounding reduces the risk of static and electric shock by providing an escape wire for electrical current due to static build up or in the event of a short circuit.

This 120 Vac sprayer requires a 120 Vac, 60 Hz, 15A circuit with a grounding receptacle.

Never use an outlet that is not grounded or an adapter.

Do not use the sprayer if the electrical cord has a damaged ground prong.

Only use an extension cord with an undamaged

3-prong plug.

When operating sprayer outdoors, use an extension cord suitable for outdoor use.

NOTE: When using an extension cord, always use a

cord coupler or an extension cord with locking plugs to ensure that your sprayer maintains power during operation.

Your extension cord must have an adequate wire size

(AWG or American Wire Gauge) to be able to carry the current that your sprayer draws. A smaller gauge number has a greater capacity than a large one. For example, 14 gauge wire has a greater capacity than 16 gauge wire. An undersized extension cord will result in a drop in line voltage and loss of power, overheating, and possible damage to equipment.

When using more than one extension cord, make sure each individual cord contains at least the minimum wire size needed. The table below shows the correct size to use depending on extension cord size and gauge. If you are unsure, it is better to use a heavier gauge than needed. Remember, a smaller number indicates a larger gauge wire.

Power Cord

Extension Cord Gauge

(AWG Minimum)

18

16

14

Extension Cord Length

(Maximum)

50 ft (15 m)

100 ft (30 m)

200 ft (60m)

Damaged or entangled cords increase the risk of electric shock.

Do not abuse the sprayer cord.

Do NOT use the cord for carrying, pulling, or unplugging the sprayer.

Keep the cord away from heat, oil, sharp edges, and moving parts.

Do not operate the sprayer with a damaged cord.

3A0159E

Common Procedures

Common Procedures

Pressure Relief Procedure Spray Tip Position

Do not operate or spray near children. Do not aim the sprayer at, or spray any person or animal. Keep hands and other body parts away from the front of the sprayer.

For example, do not try to stop the paint flow with any part of the body.

This sprayer builds up an internal pressure of 2,000 psi during use. Follow this Pressure Relief Procedure whenever you stop spraying and before cleaning, checking, servicing, or transporting equipment to prevent serious injury.

1.

Engage trigger lock.

Always perform Pressure Relief Procedure before adjusting spray tip position.

This sprayer comes with reversible spray tips. Tips can be rotated to two positions: SPRAY and UNCLOG.

ti14985a

Tip Forward

(SPRAY position)

ti14991a

Tip Reversed

(UNCLOG position)

Control Lever Position

ti15510a

2.

Put control lever UP to release pressure.

ti14999a

Trigger Lock

Always engage the trigger lock when you stop spraying to prevent the sprayer from being triggered accidentally by hand, or if dropped or bumped. ti14999a

UP position

(Releases pump pressure)

ti15425a

DOWN position

(Ready to spray)

ti14994a

Trigger Locked

ti14995a

Trigger Unlocked

(red ring is visible)

3A0159E 9

10

Setup

Setup

Use only water-based or oil-based (mineral spirit-type) materials with flash point greater than

100° F (38° C). Do not use materials which state

“FLAMMABLE” on the packaging. For more information about your material, request MSDS from distributor or retailer.

Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.

Keep spray area well-ventilated. Keep a good supply

of fresh air moving through the area.

Spraying Stains or Clear Coats

(Fine-Finish Optimizer)

The Fine-Finish Optimizer must be installed and used when spraying thin material (similar to water) such as stain or clear coats. The Fine-Finish Optimizer restricts the material flow resulting in a finer quality finish.

NOTICE

Failure to install the Fine-Finish Optimizer when using the NAR311 tip or when spraying thin materials will cause the motor to overheat and shutdown until it cools.

Installation

1.

Remove material cup and suction tube.

NOTICE

Your sprayer is NOT compatible with harsh cleaners such as chlorine bleach. Using these cleaners will cause damage to the sprayer.

Overheating Protection

This sprayer has a built-in protective device to prevent damage from overheating. The sprayer may automatically shut down after heavy use. If this happens, allow the sprayer to cool down for 20-30 minutes and resume spraying.

2.

Remove the cleaning tool before installing the

Fine-finish Optimizer into the sprayer.

3.

Push Fine-Finish Optimizer into pump inlet until completely engaged and re-install suction tube.

Installing Suction Tube

Aim the inlet of the suction tube at the front of the material cup (towards Spray Tip/Guard Assembly) during installation.

Cleanup/Storage

Be sure to remove and clean the Fine-Finish Optimizer immediately after use. Store the Fine-Finish Optimizer on the Storage/cleaning Tool supplied to keep the hole clear of dried material.

3A0159E

Setup

Sprayer Setup

This sprayer arrives from the factory with a small amount of test material in the system. It is important

that you flush this material or any storage fluid from the sprayer before using it.

1.

Plug sprayer into a properly-grounded outlet.

2.

Fill material cup with water and thread onto sprayer.

6.

Engage trigger lock and put control lever UP to release pressure. ti14994a ti14999a

7.

Unscrew and remove material cup.

ti14992a

3.

Put control lever to UP position, then hold trigger in for 10 seconds.

8.

Disengage trigger lock, put control lever DOWN, hold sprayer slightly above material cup, and pull trigger to discharge fluid from pump.

ti14999a

4.

Put control lever DOWN to spray position.

ti15425a

5.

Reverse spray tip to UNCLOG position and trigger sprayer into a waste area.

ti15478a

9.

Discard material in the cup.

ti14991a ti15491a

3A0159E 11

Setup

Materials

3.

Install material cup liner, fill with material, and thread onto sprayer.

ti15474a

Use only water-based or oil-based (mineral spirit-type) materials with flash point greater than

100° F (38° C). Do not use materials which state

“FLAMMABLE” on the packaging. For more information about your material, request MSDS from distributor or retailer.

Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.

Keep spray area well-ventilated. Keep a good supply

of fresh air moving through the area.

4.

To begin using, disengage trigger lock and trigger sprayer for 5-10 seconds. Then release trigger and put control lever DOWN to spray position.

• When spraying water-based materials, flush the sprayer thoroughly with water.

• When spraying non-water-based materials, flush the sprayer thoroughly with mineral spirits or compatible, oil-based flushing fluid.

Starting a New Job (or Refilling the Cup)

1.

Engage trigger lock and put control lever UP to release pressure. ti14995a ti15418a ti15425a

5.

Reverse spray tip to UNCLOG position and spray into waste area for 5 seconds. Then rotate tip back to SPRAY position. NOTE: Failure to perform this operation could result in poor spray pattern.

ti14994a ti14999a

2.

Use your Fine-Finish Optimizer cleaning tool to lightly push on inlet valve to make sure it moves up and down freely.

ti14991a ti15491a ti14985a

You are now ready to spray! If sprayer fails to

prime, follow the Alternative Priming Method

(page 23) and/or Inlet Valve Cleaning (page 24).

NOTE: If the sprayer is angled or tilted too far, the

suction tube will lose contact with the material and the sprayer will stop spraying. ti15511a

12 3A0159E

Install Tip/Guard Assembly (if not installed)

Install Tip/Guard Assembly

(if not installed)

Reversible Tip Selection Chart

MATERIALS

*Thin

Thin stains, semi-transparent stains

Medium

Enamels, solid stains, thin latex

Heavy

Heavy latex

311 315, 515 517

*For thin materials install Fine-Finish Optimizer, page 10.

NOTE: Spraying thicker materials with a 311 tip may cause the motor to overheat. Use the Reversible Tip Chart to determine the correct tip for your application. If motor does overheat, allow sprayer to cool for 20-30 minutes before operating.

NOTICE

The tip is a permanently attached to the guard.

Removing the tip from the guard will result in damage to tip assembly.

Shoulder Strap Installation

1.

Attach the metal eyelet to the back of the sprayer.

1.

Engage trigger lock and put control lever UP to release pressure in the sprayer.

2.

Open the velcro end of the strap, then route it through the slot under the tip of the sprayer.

ti14999a ti14994a

2.

Install filter to Spray Tip/Guard Assembly. Make sure filter is fully installed into sprayer. NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to install. Turn right (or clockwise) to remove.

3.

Route velcro up through the metal triangle, then fold

down and attach velcro to strap.

ti14775a

NOTICE

Make sure filter is completely screwed into the Tip/Guard

Assembly to avoid splattering material or damage to the filter.

3.

Firmly screw Tip/Guard Assembly onto sprayer.

Tighten retaining nut until completely engaged with sprayer. If Tip/Guard Assembly is not fully tightened, poor spray results and possible damage to the sprayer could occur.

ti14997a

3A0159E 13

Basic Spraying Techniques

Basic Spraying Techniques

NOTE: Use a piece of scrap cardboard to practice these

basic spraying techniques before you begin spraying the surface. Anything you don’t want painted that is in

the area of your spraying surface should be covered or removed.

Hold sprayer at least 10 in. (25 cm) from surface and adjust accordingly to achieve desired results. Aim sprayer straight at surface. Tilting sprayer to direct spray angle causes an uneven finish.

(25 cm)

10 in.

thick even finish ti14780a uneven finish thin

Flex your wrist while moving your arm to keep the sprayer pointed straight. Tilting the sprayer or spraying at an angle causes an uneven finish.

Even Finish Thin Thick Thin

Triggering Sprayer

To achieve even spraying, pull trigger after starting the stroke. Release trigger before the end of the stroke.

Sprayer must be moving when trigger is pulled and released.

Start Moving Pull Trigger ti14988a

Release Trigger

Aiming Sprayer

Aim tip of sprayer at bottom edge of previous stroke, overlapping each stroke by half.

ti14986a ti14987a ti14782a

NOTE: How fast you move the sprayer will affect spray

application. If material is pulsating, you are moving too fast. If material drips, you are moving too slow. See

Troubleshooting, page 20.

14 3A0159E

Unclogging Spray Tip/Guard Assembly

Unclogging Spray

Tip/Guard Assembly

4.

Engage trigger lock. Put control lever UP to release pressure and rotate spray tip back to SPRAY position.

Do not operate or spray near children. Do not aim the sprayer at, or spray any person or animal. Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.

ti14994a ti14999a ti14985a

5.

Disengage trigger lock, put control lever DOWN to spray position, and resume spraying.

Occasionally, debris from material can accumulate and clog the spray tip. Perform the following steps to unclog the tip.

1.

To unclog tip obstruction, engage trigger lock and pull control lever UP to release pressure.

ti14995a ti15425a

6.

If tip is still clogged, you may have to repeat steps

1 - 5 and rotate the tip from SPRAY to UNCLOG several times. Repeat step 1 to release pressure, remove and clean filter, or replace with new tip assembly. ti14994a ti14999a

2.

Reverse spray tip to UNCLOG position.

ti14989a ti14991a

3.

Aim sprayer at waste area, disengage trigger lock, and put control lever DOWN to spray position. Pull trigger to clear clog.

NOTE: Filter assembly is reverse-threaded:

Turn left (or counter-clockwise) to install.

Turn right (or clockwise) to remove.

7.

If obstruction is cleared, engage trigger lock and rotate arrow-shaped handle back to SPRAY position.

ti14995a ti15425a ti14985a ti14994a

3A0159E 15

Shutdown and Cleaning

Shutdown and Cleaning

NOTICE

Failure to properly clean sprayer after each use will result in hardened materials, damage to the sprayer, and the warranty will no longer be valid.

Flushing Sprayer

3.

Remove and clean sprayer intake tube and screen with water (or flushing fluid) and a brush every time you flush the sprayer. Reconnect intake tube.

ti15002a

Use only water-based or oil-based (mineral spirit-type) materials with flash point greater than

100° F (38° C). Do not use materials which state

“FLAMMABLE” on the packaging. For more information about your material, request MSDS from distributor or retailer.

Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.

Keep spray area well-ventilated. Keep a good supply

of fresh air moving through the area.

4.

Clean cup if not using a liner, and fill with water or appropriate flushing fluid.

ti15001a

5.

Reconnect material cup and shake sprayer to move clean water around and clean all areas inside of cup and underside of sprayer.

NOTICE

Protect the internal parts of this sprayer from water.

Do not submerge the sprayer in cleaning fluid. Openings in shroud allow cooling of mechanical parts and electronics inside. If water gets into these openings, the sprayer could malfunction or become permanently damaged.

1.

Engage trigger lock and pull control lever UP to release pressure.

ti14994a ti14999a

2.

Remove material cup and properly dispose cup liner or excess material. ti15441a

6.

Disengage trigger lock and trigger sprayer for approximately 15 seconds. Engage trigger lock.

ti14994a

16 3A0159E

Shutdown and Cleaning

7.

Discard contaminated fluid and refill with appropriate flushing fluid.

8.

Disengage trigger lock, reverse tip to UNCLOG position, and pull trigger for 5 seconds to prepare sprayer.

11. Remove material cup and discard used fluid.

12. Use a soft brush to clean the black rubber inlet seal.

If the vent holes become clogged, use the Fine Finish Optimizer cleaning tool or a paper clip to clear the holes. ti14995a ti14991a

9.

Put control lever DOWN to spray position.

Trigger sprayer into waste area until no paint appears in water or flushing fluid.

ti15425a ti15491a

To avoid serious injury or damage to equipment, do not expose the sprayer electronics to flushing solvents.

Keep sprayer at least 10 in. above the rim of the container when flushing.

13. Remove Spray Tip/Guard Assembly and clean with water or flushing fluid. A soft brush can be used to loosen and remove dried material if needed. Run underwater and use a soft brush to clean the filter.

ti15003a ti15529a

Keep spray area well-ventilated. Keep a good supply

of fresh air moving through the area.

10. Engage trigger lock and put control lever UP to release pressure.

NOTICE

The tip is a permanently attached to the guard.

Removing the tip from the guard will result in damage to tip assembly.

14. Replace tip assembly.

15. If you used the Fine-Finish Optimizer, remove and clean optimizer with water (or flushing fluid) and a brush. Reconnect intake tube.

ti14994a ti14999a

3A0159E 17

Storage

Cleaning Sprayer Exterior

• Wipe paint off outside of sprayer using a soft cloth moistened with water or flushing fluid.

Do NOT submerge the sprayer.

2.

Thread cup into sprayer, put control lever to UP position and squeeze sprayer trigger for approximately 10 seconds.

ti14999a

3.

Reverse spray tip to UNCLOG position, put control lever DOWN to spray position, and aim sprayer into waste area. Pull trigger for 1-2 seconds.

Tips

• Tips will require replacement depending on abrasiveness of paint.

• Do not spray with worn tip. See Troubleshooting,

page 20.

ti14991a ti15425a ti15418a

4.

Properly dispose of used Pump Armor mixture from material cup and rinse cup with water.

Storage

NOTICE

Failure to store with sprayer with Pump Armor will result in operational problems the next time you spray.

Always circulate Pump Armor through the sprayer after cleaning. Water left in the sprayer will corrode and damage the pump.

1.

Dilute 4 oz. bottle of Pump Armor Concentrate with an additional 4 oz. of water in material cup.

ti15001a

5.

Store sprayer indoors in a cool, dry place. Store storage case in an upright position only.

4 oz ti15442a

18

ti15438a

3A0159E

Replacement Parts and Kits

Replacement Parts and Kits

1

15

2

16

14

17

10

11

11a

12

7

5

4

3

8

9

11

11a

13

6

Ref.

Part Description

1

2

24E377 Shoulder Strap

24F045 Fine Finish Optimizer (with Cleaning Tool)

3

8

9

2-Pack

TrueCoat Tip/Guard Assembly

NAR311 311

NAR315 315

XWD515 515

XWD517 517

24F078 Storage Case 4

5 Tip Filter

24E376 Kit, 1-pack

24F039 Kit, 3-pack

6

24E609 Warning Labels, replacement kit

7 24F076 Suction Tube with screens and o-rings

16E403 Sprayer Cup Seal

16D562 Liner, replacement (10 pack) ti15497a

Ref.

Part Description

10 243103 Pump Armor (32 oz.)

11 24D425 Cover with seal (included in 12 and 13)

11a 16C650 Material Cup Cover Seal

12

13

14

15

16

17

(included 12 and 13)

24E375 Material Cup (48 oz) cover and seal

24E374 Material Cup (32 oz) cover and seal

106553 Suction Tube o-ring (not shown)

262460 SPRAYER, replacement, TrueCoat

262459 SPRAYER, replacement, TrueCoat Plus

262602 Inlet Valve Kit

262438 Needle Assembly Kit

262601 Prime Valve Handle

Replacement Danger and Warning labels, tags, and

cards are available at no cost.

3A0159E 19

Troubleshooting

Troubleshooting

Check everything in this Troubleshooting Table before you bring the sprayer to an authorized service center.

Problem

Sprayer makes no sound when trigger is pulled

Cause

Trigger is locked.

Sprayer is not receiving power.

Sprayer motor is overheated.

Sprayer circuit breaker has tripped.

Sprayer makes sound but no material is sprayed when trigger is pulled

Sprayer has not been Setup.

Control lever is in UP position.

Suction Tube is missing or improperly installed.

Inlet valve is stuck from material residue left in sprayer.

Tip is not in SPRAY position.

Tip is clogged.

Solution

Disengage trigger lock. See page 9.

Plug in sprayer or check outlet for power.

Wait 20-30 minutes for motor to cool.

Push and hold circuit reset button (see

pages 6 and 7).

Setup the sprayer. See Starting a new

Job (or Refilling the Cup), page 12. If sprayer fails to prime, follow the Alterna-

tive Priming Method (page 23) and/or

Inlet Valve Cleaning (page 24).

Pull control lever DOWN to spray position.

Make sure Suction Tube is properly installed.

Use a pencil or thin rod to lightly push on inlet valve to make sure it moves up and down freely, see page 12. Inlet valve may need to be removed and cleaned.

See Inlet Valve Cleaning, page 24.

Turn tip to SPRAY position.

See Unclogging Tip/Guard

Assembly, page 15.

See Shutdown and Cleaning, page 16.

Suction Tube screen is clogged or vent holes in black rubber inlet seal are clogged.

Sprayer has been tilted too far and suction tube has lost contact with material.

No or low material in cup.

Tip filter is clogged.

Fine Finish Optimizer is installed while using an incompatible material.

Make sure cup is filled with material. Do not tilt the cup too far. Setup the sprayer.

See Starting a new Job (or Refilling the

Cup), page 12.

Refill cup with material.

Remove and clean tip filter. See Unclog-

ging Tip/Guard Assembly, page 15.

Make sure compatible material is being used. See Reversible Tip Selection

Chart, page 13.

Replace Suction Tube and o-rings.

Suction Tube o-rings are damaged or missing.

Pump is clogged, frozen, or has debris inside.

Sprayer has reached maximum life.

Material is leaking from hole in front of sprayer.

Flush the pump. See Setup, page 10.

Replace sprayer.

Replace sprayer.

20 3A0159E

Troubleshooting

Problem Cause Solution

Sprayer sprays with poor results Tip is partially clogged

Tip is not in correct position

Incorrect tip for application of material.

Tip filter is partially clogged

Suction Tube screen is partially clogged.

Fine Finish Optimizer is partially clogged.

Fine Finish Optimizer is installed while using an incompatible material.

Tip is worn or damaged

Inlet or Outlet Valves are worn.

Sprayer is pulsating while spraying water.

Paint leaks from sprayer trigger area. Sprayer has reached its maximum life.

See Unclogging Tip/Guard

Assembly, page 15.

Rotate tip to SPRAY position.

See Reversible Tip Selection

Chart, page 13.

Clean or replace filter. See page 15.

Clean or replace Suction Tube. See

page 16.

Clean or replace Fine Finish Opti-

mizer. See page 10.

Make sure compatible material is being used. See Reversible Tip

Selection Chart, page 13.

Replace tip. See Install Tip/Guard

Assembly, page 13.

Replace sprayer.

Fine-Finish Optimizer is not installed.

See page 10.

Replace sprayer.

Spray Pattern Diagnostics

Problem

Spray pattern is pulsating:

Cause

The Fine-Finish Optimizer is installed while using thick material.

Operator is moving too fast while spraying.

Solution

Make sure material and tip are compatible. See Reversible Tip Selection Chart,

page 13.

ti15524a

Slow speed of movement.

Spray pattern has tails: ti15526a

Fine Finish Optimizer is installed while using an incompatible material.

Fine Finish Optimizer is partially clogged.

Material not compatible with sprayer.

Inlet or Outlet Valves are worn.

Make sure compatible material is being used. See Reversible Tip Selection

Chart, page 13.

Clean or replace Fine Finish Optimizer.

See page 10.

Switch material.

Replace sprayer.

3A0159E 21

Troubleshooting

Problem

Spray pattern has dripping:

Cause

Sprayer is moving too slow for material.

Sprayer is too close to target surface.

Holding trigger while changing spray direction.

ti15522a

Incorrect tip for application of material.

Tip is worn or damaged.

Spray pattern is too narrow: Sprayer is too close to target surface.

Incorrect tip for application of material.

ti15523a

Tip is worn or damaged.

Solution

Move sprayer faster while spraying.

Move sprayer away from surface (10 in).

Release trigger when changing directions.

See Reversible Tip Selection Chart,

page 13.

Replace tip. See Install Tip/Guard

Assembly, page 13.

Move sprayer away from surface (10 in).

See Reversible Tip Selection Chart,

page 13.

Replace tip. See Install Tip/Guard

Assembly, page 13.

Spray pattern is too wide: Sprayer is too far away from target surface.

Incorrect tip for application of material.

Move sprayer closer to surface.

See Reversible Tip Selection Chart,

page 13.

ti15527a

Spray pattern “spits” at the end:

Excess material has accumulated on

Spray Tip/Guard Assembly.

See Shutdown and Cleaning, page 16.

Tip filter is partially clogged.

Tip/Guard Assembly not threaded completely onto sprayer.

ti15525a

Tip continues to drip or ooze material after trigger is released:

Seat is worn.

Sprayer is worn out.

Tip/Guard Assembly not threaded completely onto sprayer.

Clean or replace filter. See page 15.

See Install Tip/Guard Assembly, page

13.

Replace Spray tip.

Replace sprayer.

See Install Tip/Guard Assembly, page

13.

ti15528a

Spray pattern does not adequately cover target surface

Fine Finish Optimizer is installed while using an incompatible material.

Sprayer is worn out.

Make sure compatible material is being used. See Reversible Tip Selection

Chart, page 13.

Replace sprayer.

22 3A0159E

Alternate Priming Method

Alternate Priming Method

4.

Hold sprayer above sink or waste area, disengage the trigger lock, and quickly trigger sprayer until material comes out of the drain tube.

1.

Engage trigger lock and put prime/relief valve UP to release pressure.

ti14995a ti14991a ti14994a ti14999a

2.

Remove material cup and fill with flushing material.

NOTE: Material can shoot out of the drain tube

when performing this procedure. Be sure to wear appropriate safety equipment and point drain tube away from yourself when pulling the trigger,

5.

Thread the material cup back onto sprayer.

3.

With sprayer in prime mode, turn sprayer upside-down, remove strainer and slowly pour flushing material into the intake tube until full.

6.

Trigger the gun for 10 seconds then release the trigger and put the prime/relief valve DOWN to spray position. ti15425a

7.

Reverse spray tip to UNCLOG position and spray into waste area for five seconds to ensure sprayer has primed.

3A0159E

ti14995a ti14991a

8.

Sprayer is now ready to spray. Follow Starting New

Job instructions on page 12.

23

Inlet Valve Cleaning

Inlet Valve Cleaning

Removal

1.

Engage trigger lock and pull relief valve UP to release pressure.

ti14994a ti14999a

2.

Remove material cup and suction tube.

4.

Clean as much excess material from pump cavity as possible. Make sure you also clean spring (a), o-ring

(c), and top of inlet fitting (d).

Installation

NOTE: Before installing, make sure o-ring (c) is installed

on inlet valve (b).

1.

Place inlet valve (b) with spring (a) on top of inlet fitting (d). Push inlet fitting up into pump cavity. a b c ti15504a

3.

Hold sprayer upside-down and use wrench or socket to loosen and remove inlet fitting, inlet valve, and spring. d ti15502a

2.

Hold inlet in place and turn sprayer upside-down.

Remove inlet fitting and visually check to see that inlet valve has seated correctly.

24

3.

Replace inlet fitting and use wrench and socket to tighten to 10 ft-lb.

NOTICE

Do NOT over-tighten inlet fitting. Damage to the equipment will occur.

ti15505a

NOTE: Make sure the spring also comes out. Use

needle-nose pliers to remove if needed. Inlet cavity should be completely empty (as shown below).

ti15530a

4.

Use your Fine-Finish Optimizer cleaning tool to lightly push on inlet valve to make sure it moves up and down freely.

ti15509a

3A0159E

Technical Data

Technical Data

Sprayer:

Maximum working pressure

Maximum amperage

Weight

Dimensions:

Duty Cycle

Power Cord

Length

Width

Height

Storage temperature range

◆❖

Operating temperature range

Storage Humidity Range

Electrical Power Requirement

2000 psi (137.8 bar, 13.7 MPa)

4 amps

5.89 lb (2.67 kg)

13.25 in. (33.6 cm)

5.0 in. (12.7 cm)

10.75 in. (27.3 cm)

32° to 122°F (0° to 50°C)

40° to 90° F (4° to 32°C)

0% to 95% relative humidity, non-condensing

50%

18 AWG, 3-wire, 18 in. (46 cm)

120 Vac, 60 Hz, 15A, 1 phase

◆ Pump damage will occur if fluid freezes in pump.

❖ Damage to plastic parts may result if impact occurs in low temperature conditions.

✔ Changes in paint viscosity at very low or very high temperatures can affect sprayer performance.

3A0159E 25

Notes

Technical Data

26 3A0159E

Technical Data

Notes

3A0159E 27

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by

Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy

(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT

MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com.

Contact Graco Customer Service at 1-888-541-9788.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 3A0159

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 2011, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

www.graco.com

Revised 11/2011

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
