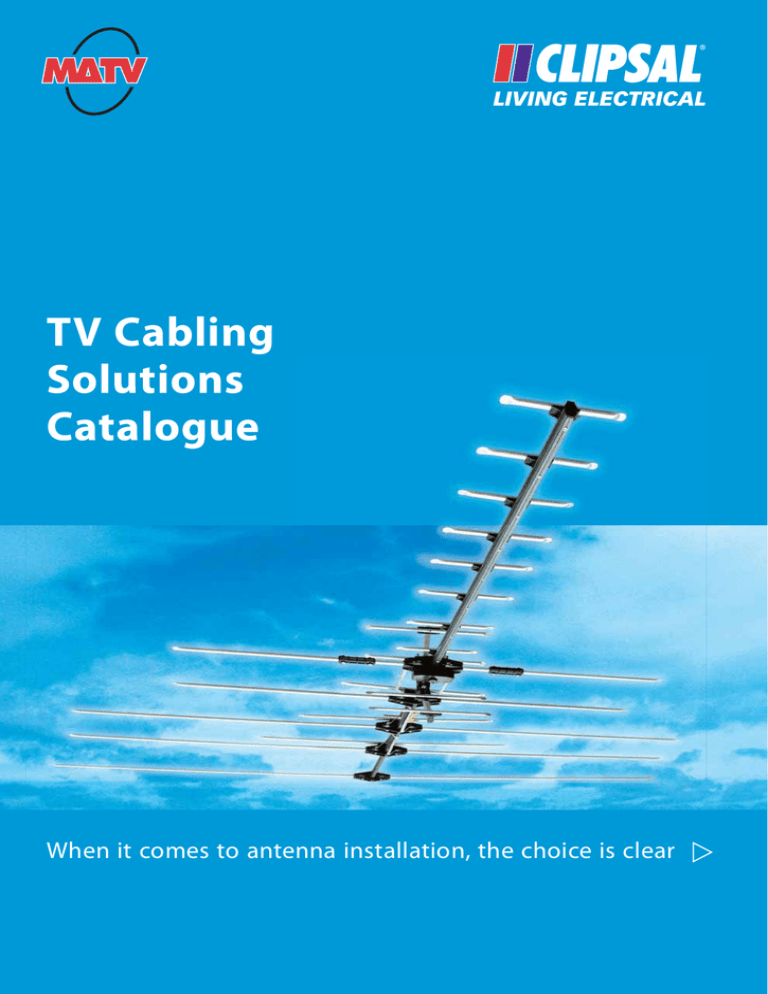

TV Cabling

Solutions

Catalogue

When it comes to antenna installation, the choice is clear

Choosing the Right Antenna

The new version of TV Across Australia will include the most up to date planning and implementation of all analogue and digital broadcast TV services throughout the country.

It will also include an antenna selection for each transmitter making choosing the right antenna a very simple exercise. You cannot afford to be without this great reference guide.

What frequencies are being broadcast in the location of the installation?

• Every TV transmitter Across Australia

• Clipsal Antenna part number for every

• Location maps for every TV transmitter

• Analogue and Digital TV channels broadcast from every TV transmitter

Contents

4 Terminology

6 MATV basics

10 Antennas

26 Mounting Accessories

38 Splitters

43 Diplexers

44 Drop Taps

46 Coaxial Cable

50 Coaxial Cable Connectors

54 Installation Tips

56 Installation Tools

59 MATV Adaptors

63 Fly Leads

65 TV Mechs

66 Wall Plates

69 Location Guides

Terminology

Amplification

The increase of signal strength. Amplification does not improve the signal quality received but can improve the picture quality viewed on TV due to low signal strength.

Attenuation

The loss of signal strength. To Attenuate the signal strength is to decrease the level of the signal strength. Attenuation occurs naturally over a length of cable. Refer to cable losses on page 8 for values.

BER

Bit Error Ratio is the number of errors in a Video Broadcast. Typically 2 errors in every 1,000,000 will be acceptable.

Forward Gain

The amount an antenna increases the signal strength in the air.

Front to Back ratio

The difference in signal level received from the front of the antenna verses the back of the antenna.

Antennas are designed to reject signals received from the back of the antenna. Good Front to Back ratio reduces the chance of ghosting.

Ghosting

Two images of the same source on the one TV Screen caused by two signals received by the same

Antenna from two different directions. Often there is the main signal source and a secondary source reflected off a building or mountain.

Losses

The signal strength is decreased over cable, splitters and connectors. Compensation for losses must be made when designing a MATV system.

RF

Radio Frequency.

Skin effect

TV frequencies travel around the circumference of the copper conductor in a coax cable. It is important to make sure that when terminating coax cable for MATV or Satellite TV applications that a properly designed stripping tool is used. Avoid scoring or ringing the copper conductor as TV frequencies travel on the outside circumference of the copper conductor.

UHF

Ultra High Frequency.

UHF channels are broadcast from channel 21-69. Digital and analogue frequencies.

VHF

Very High Frequency.

VHF Low are channels 0-5A. analogue frequencies.

VHF High are channels 6-12. Digital and Analogue frequencies.

Digital TV will only be broadcast on VHF channels 6 and above as well as all UHF channels.

4 Clipsal TV Cabling Solutions

Terminology

Amplifier

An amplifier will increase the signal strength. Amplifiers DO NOT improve the signal quality.

Antenna

Antennas receive TV frequencies broadcast from TV Transmission Towers. They need to be mounted in a location that will receive a good quality signal. There are different types of antennas that are designed for receiving different types of frequencies. Refer to TV Across Australia reference guide for your needs.

Cable

Quality Television Coax Cable is designed to carry the television frequencies from the antenna to the television without any interference to the signal and resultant picture quality. You should only use a good quality cable.

Diplexer

Diplexers combine TV signals fom 2 antennas through 1 coax cable.

Drop Tap

A Drop Tap will decrease the signal level by a set amount over the Tap Leg. If the signal is too high the use of a Drop Tap is an easy way to get the signal to the ideal level.

Fly Lead

A Fly Lead connects the outlet to the television or recording device such as a

Digital Video Recorder. A good quality Fly Lead should always be used as it is under the most stress from bending behind television cabinets and induced voltage from cords behind the television.

Mounts

There are various antenna mounts for different applications such as roof mounts, wall mounts, masts and extensions. Get the best possible signal by mounting the antenna properly.

Splitter

A splitter will enable the connection of multiple outlets to 1 antenna. Splitters have losses associated with them. The more splits the greater the losses will be.

Television Outlet

Television outlets are part of the cabling infrastructure and should be of a high quality for sustained signal distribution. F-Type outlets are the industry preferred television outlet due to the quality of connection and performance.

5

TV Signal Strength

TV signal strength is measured in decibel Micro

Volts (dBuV) more commonly known as dB.

The ideal signal strength at the television outlet is 69dBuV. The ideal Signal Range is between

65-72dBuV.

Low signals need to be increased. This can be achieved by using a larger antenna with more gain or by the use of an amplifier.

High signals need to be decreased. This can be achieved by using a drop tap or splitter.

The closer the antenna is to the television transmitter the higher the signal strength is going to be.

The prime reception area is a location that an antenna with minimal gain can be installed to get the ideal signal range or above at the television outlet.

An outer fringe reception area is a location that an antenna with maximum amount of gain must be installed to provide an ideal signal range at the outlet. It is also likely that an amplifier may need to be installed to increase the signal level.

MATV Outlet - 69dBuV Standard Outlet - 240V

62dBuV 65dBuV

Low Signal

Acceptable Signal

69dBuV

72dBuV 75dBuV

Acceptable Signal

High Signal

By using the same antenna and 20m of RG6 Quad

Shield Coax Cable we can classify the Prime,

Fringe and Outer Fringe areas by the level of signal received at the outlet.

If in a Prime reception area the signal strength will be greater than 69dBuV at the outlet.

If in a Fringe reception area the signal strength will be greater than 66dBuV at the outlet.

If in a Outer Fringe Area the signal will be lower than 66dBuV.

To compensate for a Fringe Area reception we can use an antenna with more forward gain to increase the signal strength at the outlet.

6 Clipsal TV Cabling Solutions

PRIME

69dBuV

FRINGE

66dBuV

OUTER FRINGE

Signal Quality

Signal quality is more important than signal strength.

Pixilation or blocking are the result of poor quality digital television signal. When an antenna is installed it must be in a location that has a good quality Digital Television Signal. The difference between quality television reception and annoying pixilation/blocking can be a matter of a few metres. A site survey can be done prior to antenna installation to make sure that the location of the antenna is suitable for high quality digital television reception.

Take a few minutes to walk along the roof with the antenna and field strength meter to find the ultimate location to mount the antenna.

PIXILATION

QUALITY PICTURE

7

Signal Loss - Cable

Losses are a part of any MATV System. You may start out with an acceptable signal level at the antenna but due to losses in the cable or splitter may not be acceptable when at the outlet.

Signal Strength is lost over a length of cable. The losses are easy to calculate as losses are consistent per meter.

Losses are calculated separately for VHF and UHF frequencies. The golden rule is the higher the frequency the higher the loss. We need to calculate losses for both VHF and UHF in every TV design to ensure that we have a balanced system.

VHF = Very High Frequency - losses are low.

(0.053dB per meter RG6 Quad Shield).

UHF = Ultra High Frequency - losses are high

(0.21dB per meter RG6 Quad Shield).

As a general rule of thumb cable runs of up to

50m can be done in RG6. If longer cable runs are required then you would change the cable size to RG11 as the losses on RG11 are much lower.

VHF and UHF losses are an average to cover all frequencies of the VHF and UHF range. This is a guide only. See pages 46-49 for cable losses for frequency ranges.

RG6 Cable Losses

RG11 Cable Losses

Frequency

VHF (0-12)

UHF (21-69)

1m

0.053dB

0.21dB

10m

0.53dB

2.1dB

20m

1.06dB

4.2dB

30m

1.59dB

6.3dB

40m

2.12dB

8.4dB

50m

2.65dB

10.4dB

Frequency

VHF (0-12)

UHF (21-69)

1m

0.032dB

0.131dB

10m

0.32dB

1.31dB

20m

0.64dB

2.62dB

30m

0.96dB

3.93dB

40m

1.28dB

5.24dB

50m

1.6dB

6.55dB

8 Clipsal TV Cabling Solutions

VHF = 69.47dB

UHF = 67.9dB

VHF = 68.94dB

UHF = 65.8dB

VHF = 68.41dB

UHF = 63.7dB

VHF = 67.88dB

UHF = 61.6dB

VHF = 67.35dB

UHF = 59.6dB

Signal Loss - Splitters

All passive splitters have losses. The signal strength is reduced every time you split the signal.

The more ways the signal is split the higher the losses.

When installing or adding to an antenna, the losses for splitters must be taken into account as well as losses over cable.

The example below shows that changing a 2 way splitter for a 4 way splitter can change the signal strength at the outlet and result in poor picture.

The example below shows the UHF losses only because these are the highest losses.

62dBuV 65dBuV

Low Signal

Acceptable Signal

69dBuV

72dBuV 75dBuV

Acceptable Signal

High Signal

20m RG6

Splitter Loss

4.4 dB

Cable Loss

4.2dB

20m RG6 20m RG6 20m RG6

Splitter Loss

7.8 dB

20m RG6

Cable Loss

4.2 dB

20m RG6

Lounge

65.4 dB

Master Bedroom

65.4 dB

Lounge

62 dB

Master Bedroom

62 dB

Bedroom 2

62 dB

Bedroom 3

62 dB

Low Ideal

LOSSES FOR CLIPSAL TERRESTRIAL SPLITTER RANGE

Frequency

46-470MHz VHF

2 Way

<3.5dB

471-860MHz UHF <4.4dB

3 Way

<6.1dB

<6.3dB

4 Way

<7.5dB

<7.8dB

6 Way 8 Way

<10.2dB

<10.7d

B

<11.2dB

<11.8dB

9

HIGH PERFORMANCE

13 Element Combination

13 Element Combination

2ANCOM3

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

1-12

8dB

>12dB

F-Type

High Perform. PCB

UHF

28-50

12dB

>14dB

Snap out

Assembled

Prime

2ANCOM3WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

1-12

8dB

>12dB

F-Type

High Perf. PCB

Snap out

Assembled

Prime

UHF

28-69

12dB

>14dB

10 Clipsal TV Cabling Solutions

17 Element Combination

28 Element Combination

HIGH PERFORMANCE

2ANCOM4

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

2-12

9dB

>12dB

F-Type

High Perform. PCB

Snap out

Assembled

Fringe

UHF

28-40

12dB

>14dB

2ANCOM6

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

2-12

10dB

>16dB

F-Type

High Perform. PCB

UHF

28-40

15dB

>16dB

Snap out

Assembled

Outer Fringe

11

HIGH PERFORMANCE

Newcastle Antenna

Bunbury Antenna

2ANCOM2NEW

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

3 & 5A

5dB

>17dB

F-Type

High Perform. PCB

Snap out

Assembled

Prime/Fringe

UHF

28-57

13dB

>20dB

2ANCOM2SW

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

3 & 5A

5dB

>11.5dB

F-Type

High Perform. PCB

UHF

30-40

13dB

>18dB

Snap out

Assembled

Prime/ Fringe

12 Clipsal TV Cabling Solutions

14 Element Combination

14 Element Combination

24 Element Combination

HIGH PERFORMANCE

2ANCOMD14

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

7.5dB

>16dB

F-Type

High Perform. PCB

UHF

28-50

12dB

>16dB

Snap out

Assembled

Prime/Fringe

2ANCOMD14WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

7.5dB

>16dB

F-Type

High Perform. PCB

UHF

28-69

12dB

>16dB

Snap out

Assembled

Prime/Fringe

2ANCOMD24

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

1-12

8dB

>16dB

F-Type

High Perform. PCB

UHF

28-69

15dB

>16dB

Snap out

Assembled

Fringe

13

CARAVAN ANTENNA

Caravan Antenna

2ANCOMCAR

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

0-12

4dB

>10dB

F-Type

F-Type Ferrite Balun

None

Assembled

Prime

UHF

28-69

8dB

>14dB

VHF Horizontal

UHF Vertical

VHF Horizontal

UHF Horizontal

VHF Vertical

UHF Horizontal

VHF Vertical

UHF Horizontal

14 Clipsal TV Cabling Solutions

13 Element Combination Economy

17 Element Combination Economy

32 Element Combination Economy

ECONOMY MODELS

2ANCOMA13

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

2-12

5dB

>8dB

F-Type

Ferrite Balun

None

Assembled

Prime

UHF

28-36

7.5dB

>20dB

2ANCOMA17

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

2-12

6dB

>10dB

F-Type

Ferrite Balun

Snap Out

Assembled

Prime/Fringe

UHF

28-36

10dB

>20dB

2ANVULP2

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

8dB

>20dB

F-Type

None

None

Assembled

Prime/Fringe

UHF

28-69

11dB

>20dB

15

HIGH PERFORMANCE CROSS POLARITY

13 Element Cross Polarity Combination

14 Element Cross Polarity Combination

2ANUV13WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

7dB

>12dB

F-Type

High Perform. PCB

UHF

50-69

12dB

>14dB

Snap Out

Assembled

Prime/Fringe

2ANUV14

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

7dB

>12dB

F-Type

High Perform. PCB

UHF

28-50

11dB

>16dB

Snap Out

Assembled

Prime/Fringe

All vertically mounted antennas will require a 2ANVB15 bracket.

Refer to page 31.

16 Clipsal TV Cabling Solutions

HIGH PERFORMANCE CROSS POLARITY

16 Element Cross Polarity Combination

2ANUV16

19 Element Cross Polarity Combination

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

2-12

7dB

>12dB

F-Type

High Perform. PCB

UHF

28-50

12dB

>14dB

Snap Out

Assembled

Prime/Fringe

2ANUV19

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

1-12

7dB

>12dB

F-Type

High Perform. PCB

UHF

28-69

12dB

>16dB

Snap Out

Assembled

Prime/Fringe

17

UHF YAGI

12 Element Yagi

20 Element Yagi

2ANUY12WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

28-69

12.5dB

>14dB

F-Type

High Perform. PCB

Snap Out

Elevat. Tilt Bracket

Prime/Fringe

2ANUY20WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

28-69

14.5dB

>20dB

F-Type

High Perform. PCB

Snap Out

Elevat. Tilt Bracket

Fringe/Outer Fringe

18 Clipsal TV Cabling Solutions

Tilt bracket supplied for UHF Antennas

10 Element Yagi Band 4

18 Element Yagi Band 4

18 Element Yagi Band 5

UHF YAGI

2ANUY10/4

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

28-35

12.5dB

>16dB

F-Type

High Perform. PCB

Snap Out

Elevat. Tilt Bracket

Prime

2ANUY18/4

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

28-35

13.5dB

>20dB

F-Type

High Perform. PCB

Snap Out

Elevat. Tilt Bracket

Fringe

2ANUY18/5

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

35-69

14dB

>20dB

F-Type

High Perform. PCB

Snap Out

Elevat. Tilt Bracket

Fringe/Outer Fringe

19

UHF PHASED ARRAY

8 Element Phased Array

16 Element Phased Array

2ANUPA1

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

21-69

8-11dB

>15dB

F-Type

None

Rear X Type

Assembled

Prime

2ANUPA2

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

21-69

13.5dB

>20dB

F-Type

None

Rear X Type

Assembled

Outer Fringe

20 Clipsal TV Cabling Solutions

23 Element X Style

43 Element X Style

91 Element X Style

UHF X TYPE

2ANUX23

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

21-69

10dB

>17dB

F-Type

High Perform. PCB

Bolt on

Elevat. Tilt Bracket

Prime

2ANUX43

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

21-69

13dB

>20dB

F-Type

High Perform. PCB

Bolt On

Elevat. Tilt Bracket

Fringe

2ANUX91

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

UHF

21-69

15dB

>20dB

F-Type

High Perform. PCB

Bolt On

Elevat. Tilt Bracket

Outer Fringe

21

VHF YAGI

7 Element Yagi

10 Element Yagi

18 Element Yagi

2ANVY7

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

8.8dB

>16dB

F-Type

High Perform. PCB

Snap Out

Assembled

Prime

2ANVY10

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

11-12dB

>16dB

F-Type

High Perform. PCB

Snap Out

Assembled

Fringe

2ANVY18

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

14dB

>20dB

F-Type

High Perform. PCB

Snap Out

Assembled

Prime

22 Clipsal TV Cabling Solutions

8 Element Log Periodic

9 Element Log Periodic

12 Element Log Periodic

VHF LOG PERIODIC

2ANV2WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

0-12

4-8dB

>12dB

F-Type

High Perform. PCB

None

Assembled

Prime

2ANV3WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

0-12

5-11dB

>15dB

F-Type

High Perform. PCB

None

Assembled

Fringe

2ANV4WB

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

0-12

6-12dB

>15dB

F-Type

High Perform. PCB

None

Assembled

Outer Fringe

23

VHF PHASED ARRAY

8 Element Phased Array

16 Element Phased Array

2ANVPA1

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

7-9.5dB

>16dB

F-Type

None

None

Assembled

Prime/Fringe

2ANVPA2

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

6-12

12dB

>16dB

F-Type

None

None

Assembled

Fringe/Outer Fringe

24 Clipsal TV Cabling Solutions

3 Element FM

8 Element FM

FM

2ANFM3

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

88-108Mhz

5dB

>15dB

F-Type

High Perform. PCB

None

Assembled

Prime

2ANFM8

Channels

Forward Gain

F/B Ratio

Connection

Balun

Reflectors

U bolt

Reception Area

VHF

88-108Mhz

10dB

>17dB

F-Type

High Perform. PCB

None

Assembled

Fringe/Outer Fringe

25

Curved Fascia Brackets

Curved Fascia Brackets

1.2m used for smaller antennas - 2ANCFB12

1.5m used for small to medium antennas - 2ANCFB15

1.8m used for small to medium antennas - 2ANCFB18

1.5m used for larger antennas - 2ANCFBHD

• Mounted to the fascia or wall

• Generally used when height of the antenna is not a issue

• Used for small to medium sized antennas

• Stay bars can be used to support the antenna if required.

26 Clipsal TV Cabling Solutions

Stay Bars

Stay Bar

Stay Bar Collar

Stay bar set of 2 x 1200mm (4 foot) - 2ANSB4

Stay bar set of 2 x 1800mm (6 foot) - 2ANSB6

Stay bar set of 2 x 2400mm (8 foot) - 2ANSB8

Stay bar collar - 2ANSBC

All stay bars require a stay bar collar for mounting.

One end of the stay bar is fixed to the stay bar collar.

The other end of the stay bar is fixed to the roof.

(Drill through tile to screw to baton for tiled roof)

Used to support • Antenna mounts

• Curved fascia brackets

• Tripod roof mounts

• Rafter mounts

27

Tripod Roof Mounts

Tripod Roof Mount - TILE - 2ANTRPT

The easiest way to mount an antenna

2ANTRPT

• Drill through tile to baton for fixing with appropriate anchors

• Bend the supports to adjust for any roof angle

2ANTRPM

• Use existing roof screws to fix mount in place

• Bend the supports to adjust for any roof angle

Tripod Roof Mount - METAL - 2ANTRPM

28 Clipsal TV Cabling Solutions

Rafter Mounts

Lead Flashing Kit

Pipe Rubber Roof Seal

Rafter Mount

Rafter Mount - 2ANRM25 - 2ANRM32

Roof Seal - Metal - 2ANPFK

Rafter Mount 1.8m x 25mm - 2ANRM25

Rafter Mount 1.8m x 32mm - 2ANRM32

Lead Flashing Kit (tiled roofs) - 2ANLFK

Pipe Rubber Roof Seal (metal Roofs) - 2ANPFK

Smaller antennas use the 2ANRM25

Medium to larger antennas use the 2ANRM32

Tiled roof must use a 2ANLFK

Metal roof use the 2ANPFK

Lead Flashing Kit - 2ANLFK

29

Wall Mounts/Masts

Mast

Wall Mount

Wall Mount 230mm (9inch) - 2ANWB09

Wall Mount 280mm (11inch) - 2ANWB11

Wall Mount 690mm (27inch) - 2ANWB27

Wall Mount 1020mm (40inch) - 2ANWB40

Wall Mount 1400mm (55inch) - 2ANWB55

Wall Mount kit (2ANWB9 + 2ANWB27) - 2ANWB17K

Mast 3.0m x 32mm - 2ANGM3032

Mast 4.5m x 32mm - 2ANGM4532

Mast 4.5m x 38mm - 2ANGM4538

V Block offset (used to mount horizontal and vertical poles together) 2ANVBO

Bolt for V Block - 2ANVB

Used to gain extra height required for better TV reception

Mast extensions available for extra height if required.

V Block offset

30 Clipsal TV Cabling Solutions

Vertical Stand Off Bracket

Vertical

Stand off Bracket

Vertical Stand off Bracket 375mm (15 inch) - 2ANVB15

Used to mount an antenna vertically

All antennas mounted vertically need a stand off bracket

If a stand off bracket is not used signal problems may be encountered.

All vertically mounted antennas will require a 2ANVB15 bracket.

31

Guy Wire Fixing

Guy ring plate

Lock ring collar

2ANIRM

Iron Roof Mount

Mast

Guy Wire

Turnbuckle

2ANGWC

Guy Wire

Clamp/Grip

2ANTBS

Thimble

32 Clipsal TV Cabling Solutions

Guy Wire Fixing

Guy Wire 180m reel -2ANGWR

Guy Wire Spool (Coiled) - 2ANGW

Guy ring plate x 32mm (suites 32mm mast) - 2ANGR32

Guy ring plate x 38mm (suites 38mm mast) - 2ANGR38

Lock ring collar x 32mm (suites 32mm mast) - 2ANLR32

Lock ring collar x 38mm (suites 38mm mast) - 2ANLR38

Guy Wire Cleat - 2ANGC

Guy Wire Clamp - 2ANGWC

Turnbuckle x 6mm (1/4 inch) - 2ANTBK6

Turnbuckle x 8mm (5/16 inch) - 2ANTBK8

Thimble - 2ANTBS

Mast Extension

Mount fixing points on roof 3m from base of mast

Mount guy ring 3m above the base of the mast for 4.5m masts

Mount guy ring 2.5m above the base of the mast for 3m masts

Use thimbles to stop the guy wire rubbing against the mount

Use turnbuckles to tighten the guy wire.

33

Mast Extensions

Mast

Mast Extension - 2ANME

Mast Extension Kit - 2ANMEK

Mast 3.0m x 32mm - 2ANGM3032

Mast 4.5m x 32mm - 2ANGM4532

Mast 4.5m x 38mm - 2ANGM4538

V Block offset (used to mount horizontal and vertical poles together) - 2ANVBO

V Block offset

Wall Mounts/Masts

Used to get extra height required for better TV reception

May require some form of support • Guy wire support

• Stay bar support

34 Clipsal TV Cabling Solutions

Mast Extension Kit

Mast Extension Kit - 2ANMEK

Mast Extension

V Block clamps two poles together such as a mast to a wall/eave bracket.

Mast Extension- 2ANME

35

Flat Wall Mount

Wall Bracket

Flat Wall Mount Bracket - 2ANFWM

Metal Fascia

Mast

Metal Fascia - 2ANMFB

36 Clipsal TV Cabling Solutions

V Block

2ANVB

Block

2ANUBM or 2ANUBL

U Mount

V Block clamps at 90 degrees to the mast. This is ideal for horizontal mounting of antennas.

V Block - 2ANVB

U Bolt 5 inches - 2ANUBM

U Bolt 7 inches - 2ANUBL

V Offset Block

V Offset Block - 2ANVBO

U Bolt 5 inches - 2ANUBM

U Bolt 7 inches - 2ANUBL

37

2 Way Terrestrial Splitter 5-1000MHz

3 Way Terrestrial Splitter 5-1000MHz

4 Way Terrestrial Splitter 5-1000MHz

3105SPF2

Not suitable for Satellite Television Transmission

Losses VHF 46-470MHz

Losses UHF 471-860MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

<3.5dB

<4.4dB

1 port

F-Type

2

1

3105SPF3

Not suitable for Satellite Television Transmission

Losses VHF 46-470MHz

Losses UHF 471-860MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

<6.1dB

<6.3dB

1 port

F-Type

2

1

3105SPF4

Not suitable for Satellite Television Transmission

Losses VHF 46-470MHz

Losses UHF 471-860MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

<7.5dB

<7.8dB

1 port

F-Type

2

1

38 Clipsal TV Cabling Solutions

6 Way Terrestrial Splitter 5-1000MHz

Power Pass

3105SPF6

Not suitable for Satellite Television Transmission

Losses VHF 46-470MHz

Losses UHF 471-860MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

<10.2dB

<10.7dB

1 port

F-Type

2

1

3105SPF8

8 Way Terrestrial Splitter 5-1000MHz

Power Pass

70dB

Not suitable for Satellite Television Transmission

Losses VHF 46-470MHz

Losses UHF 471-860MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

<11.2dB

<11.8dB

1 port

F-Type

2

1

Only UHF losses are shown for illustration purposes

11.8dB Splitter Loss

4.2dB 20m Cable Loss

54dBuV

39

4.2dB

20m Cable Loss

Powered Splitter 37-860MHz

Powered Splitter 37-860MHz

70dB

3105VDU24T

Frequency Range

Output Ports

Input Ports

Power Supply

3 Power Options

Variable Gain Control

IR Pass Back

IR Expansion Port

37-860Mhz

All Free to Air Channels

4

1x Antenna Input

1x Modulated Input

12VDC

·Local

·Remote via Modulator

·Remote via Power Injector

Antenna Input only

+3dB Gain

-15dB Attenuation

No

No

3105VDU38IRT

Frequency Range

Output Ports

Input Ports

Power Supply

3 Power Options

Variable Gain Control

IR Pass Back

IR Expansion Port

37-860Mhz

All Free to Air Channels

8

1x Antenna Input

2x Modulated Inputs

12VDC

·Local

·Remote via Modulator

·Remote via Power Injector

Antenna Input only

+3dB Gain

-15dB Attenuation

Yes

Yes

72dB

Gain Control + 2dB

67.8dBuV

40 Clipsal TV Cabling Solutions

6 Way Powered Splitter 37-860MHz

8072/6VHP

Frequency Range

Output Ports

Input Ports

Power Supply

3 Power Options

Variable Gain Control

IR Pass Back

IR Expansion Port

37-860Mhz

All Free to Air Channels

6

1x Antenna Input

1x Modulated Input

12VDC

·Local

·Remote via Modulator

·Remote via Power Injector

Antenna Input only

+3dB Gain

-15dB Attenuation

No

No

8 Way Powered Splitter 37-860MHz

70dB

8073/8VHPIR

Frequency Range

Output Ports

Input Ports

Power Supply

3 Power Options

Variable Gain Control

IR Pass Back

IR Expansion Port

37-860Mhz

All Free to Air Channels

8

1x Antenna Input

2x Modulated Inputs

12VDC

·Local

·Remote via Modulator

·Remote via Power Injector

Antenna Input only

+3dB Gain

-15dB Attenuation

Yes

Yes

72dB

Gain Control + 2dB

4.2dB

20m Cable Loss

67.8dBuV

41

2 Way Satellite Splitter 5-2400MHz

3 Way Satellite Splitter 5-2400MHz

4 Way Satellite Splitter 5-2400MHz

3105SPFP2

Losses 40-1000MHz

Losses 1000-1750MHz

Losses 1751-2050MHz

Power Pass

Connection Type

Mounting Holes

<4.6dB

<5.3dB

<6.3dB

All ports

F-Type

2

Earthing Connection

Approval Number

Foxtel

Austar

Select TV

1

F10082/C

A01564

N/A

3105SPFP3

Losses 40-1000MHz

Losses 1000-1750MHz

Losses 1751-2050MHz

Power Pass

Connection Type

Mounting Holes

<7.5dB

<9dB

<11.5dB

All ports

F-Type

2

Earthing Connection

Approval Number

Foxtel

Austar

Select TV

1

F10082/C

N/A

N/A

3105SPFP4

Losses 40-1000MHz

Losses 1000-1750MHz

Losses 1751-2050MHz

Power Pass

Connection Type

Mounting Holes

<8.5dB

<10.5dB

<11.5dB

All ports

F-Type

2

Earthing Connection

Approval Number

Foxtel

Austar

Select TV

1

F10082/C

A01592

N/A

42 Clipsal TV Cabling Solutions

Indoor Diplexer

3105DPUV

Outdoor Diplexer

Diplexers combine TV signals from 2 antennas through 1 coax cable.

3105DPOUV

43

1 Way Drop Tap 5-2400MHz

3105T1/XX

2 Way Drop Tap 5-2400MHz

Tap Loss

Through Loss 5-950MHz

Through Loss 951-2400MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

Foxtel

Austar

Select TV

3105T1/10

10dB

<2dB

<3dB

1 Port

F-Type

3105T1/12

12dB

<1.9dB

<2.7dB

1 Port

F-Type

2

1

2

1

Approval Number

F10082-85/C F10082-85/C

A01536

Yes

A01537

Yes

3105T1/15

15dB

<1.3dB

<2.2dB

1 Port

F-Type

2

1

3105T1/20

20dB

<0.9dB

<1.7dB

1 Port

F-Type

2

1

F10082-85/C

A01538

Yes

F10082-85/C

A01539

Yes

3105T2/XX

4 Way Drop Tap 5-2400MHz

Tap Loss

Through Loss 5-950MHz

Through Loss 951-2400MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

Foxtel

Austar

Select TV

3105T2/10

10dB

<2dB

<3dB

1 Port

F-Type

3105T2/12

12dB

<1.9dB

<2.7dB

1 Port

F-Type

2

1

2

1

Approval Number

F10082-85/C F10082-85/C

N/A A01541

Yes Yes

3105T2/15

15dB

<1.5dB

<2.3dB

1 Port

F-Type

2

1

3105T2/20

20dB

<1dB

<1.9dB

1 Port

F-Type

2

1

F10082-85/C

A01542

Yes

F10082-85/C

A01543

Yes

3105T4/XX

Tap Loss

Through Loss 5-950MHz

Through Loss 951-2400MHz

Power Pass

Connection Type

Mounting Holes

Earthing Connection

Foxtel

Austar

Select TV

3105T4/10

10dB

<6.5dB

<9dB

1 Port

F-Type

2

3105T4/12

12dB

<4dB

<4.5dB

1 Port

F-Type

2

1 1

Approval Number

F10082-85/C

A01544

Yes

F10082-85/C

N/A

Yes

3105T4/15

15dB

<3dB

<4.1dB

1 Port

F-Type

2

1

3105T4/20

20dB

<1.8dB

<1.1dB

1 Port

F-Type

2

1

F10082-85/C

A01545

Yes

F10082-85/C

A01546

Yes

44 Clipsal TV Cabling Solutions

75 Ohm Terminator

All unused ports of a Drop Tap or Splitter should be terminated with a 75 Ohm Terminator to stop electrical reflections interfering with TVs connected to the system.

Pack of 10.

3105FTER

45

RG6

RG6 Coaxial Tri Shield Cable

Foil Tape

3105RG6T3B

AWG Conductor

Gas injected Foam

PVC Jacket Aluminium Braid

Catalogue

Number

3105RG6T3B

Description

RG6 Coax Tri Shield Box

Pack Size

305m Box

Foxtel

Approval No.

Austar

Approval No.

F10176 N/A

Conductor Size

(mm)

1.02 0.03

AWG

18

Cond. Type

Solid

Shield Type

60% Aluminium

Braids

Nom. O.D

(mm)

Insl. & Core

O.D (mm)

4.78 0.13

5

MHz

55

MHz

211

MHz

250

MHz

270

MHz

300

MHz

330

MHz

350

MHz

400

MHz

450

MHz

500

MHz

550

MHz

600

MHz

750

MHz

870

MHz

1000

MHz

1450

MHz

1750

MHz

2050

MHz

1.90

5.25

10.00

10.82

11.04

11.64

12.26

12.63

13.61

14.43

15.29

16.08

16.73

18.54

20.04

21.49

26.25

28.67

31.04

Attenuation @ 20˚C (dB/100m)

46 Clipsal TV Cabling Solutions

RG6 Coaxial Quad Shield Cable

RG6

3105RG6Qxxx

Siamese Quad Shield

Catalogue

Number

3105RG6Q3R

3105RG6Q3B

3105RG6Q1R

3105RG6Q3RF

3105RG6QS15R

Description

RG6 Coax Quad Shield

RG6 Coax Quad Shield

RG6 Coax Quad Shield Box

RG6 Coax Quad Shield Flooded

RG6 Coax Quad Shield Siamese

Pack Size

Foxtel

Approval No.

Austar

Approval No.

305m Reel F10129 P07982

305m Box F10129 P07982

P07982 100m Reel F10129

305m Reel F30059

152.5m Reel F30432

P07985

P07984

Conductor Size

(mm)

1.02 0.03

AWG

18

Cond. Type

Solid

BCCS

Shield Type

60% & 40%

Aluminium

Braids

Nom. O.D

(mm)

7.54 0.02

Insl. & Core

O.D (mm)

4.78 0.13

5

MHz

55

MHz

211

MHz

250

MHz

270

MHz

300

MHz

330

MHz

350

MHz

400

MHz

450

MHz

500

MHz

550

MHz

600

MHz

750

MHz

870

MHz

1000

MHz

1450

MHz

1750

MHz

2050

MHz

1.90

5.25

10.00

10.82

11.04

11.64

12.26

12.63

13.61

14.43

15.29

16.08

16.73

18.54

20.04

21.49

26.25

28.67

31.04

Attenuation @ 20˚C (dB/100m)

47

RG11

RG11 Coaxial Quad Shield Cable

3105RG11Q3R, 3105RG11Q3RF

Catalogue

Number

3105RG11Q3R

Description

RG11 Coax Quad Shield Reel

3105RG11Q3RF RG11 Coax Quad Shield Flooded Reel

Pack Size

Foxtel

Approval No.

Austar

Approval No.

305m Reel F10175 A02629

305m Reel F30060 P07986

Conductor Size

(mm)

1.63 0.03

AWG

14

Cond. Type Shield Type

Solid BCCS

60% & 40%

Aluminium Braids

Reel Length

(m)

305

Nom. O.D

(mm)

Insl. & Core

O.D (mm)

10.34 0.25

7.32 0.15

5

MHz

55

MHz

211

MHz

250

MHz

270

MHz

300

MHz

330

MHz

350

MHz

400

MHz

450

MHz

500

MHz

550

MHz

600

MHz

750

MHz

870

MHz

1000

MHz

1300

MHz

1550

MHz

1770

MHz

2150

MHz

1.25

3.15

6.23

6.72

7.00

7.38

7.71

7.94

8.53

9.02

9.51

9.97

10.43

11.97

13.31

14.27

16.00

17.42

19.58

21.61

Attenuation @ 20˚C (dB/100m)

48 Clipsal TV Cabling Solutions

RG59 Coaxial Dual Shield Cable

RG59

3105RG59D1R, 3105RG59D3B

Catalogue

Number

3105RG59D1R

3105RG59D3B

Description

RG59 Coax Dual Shield

RG59 Coax Dual Shield Box

Pack Size

Foxtel

Approval No.

Austar

Approval No.

100m Reel N/A N/A

305m Box N/A N/A

Conductor Size

(mm)

0.81 1

AWG

20

Cond. Type Shield Type

Nom. O.D

(mm)

Insl. & Core O.D

(mm)

Solid BCCS

60% Aluminium

Braids

6.10 0.2

3.86 0.13

5

MHz

55

MHz

211

MHz

250

MHz

270

MHz

300

MHz

330

MHz

350

MHz

400

MHz

450

MHz

500

MHz

550

MHz

600

MHz

750

MHz

870

MHz

1000

MHz

2.82

6.73

12.47

13.45

13.85

14.6

15.29

15.75

16.73

17.72

18.70

19.52

20.34

22.87

24.85

26.64

Attenuation @ 20˚C (dB/100m)

49

RG6 COMPRESSION

RG6 Compression Tool

3105CT611C

Easy to use

Swivel Head for RG6 and RG11

For use with the following connectors:

3105RG6FC50 - RG6 (Packet of 50)

3105RG11FC2 - RG11 (Packet of 2)

RG6 Compression Connector

3105RG6FC50

RG6 & RG59 Cable Stripper

3105RG6FC50 (Packet of 50)

Approval Number

Foxtel

Austar

Select TV

F30029

A06948

Not Required

3105CS6

Easy to use - Termination techniques on pages 54-55

Suits RG6 and RG59 cables

50 Clipsal TV Cabling Solutions

RG11 COMPRESSION

3105CT611C

RG11 Compression Tool

RG11 Compression Connector

3105RG11FC2 - RG11

3105RG11FC2

Approval Number

F30360

A06949

Not Required

3105CS11

Easy to use

Suits RG11 Coax Cables

51

RG6 RADIAL CRIMP

RG6 Radial Crimp Tool

3105CT611

RG6 Crimp Connector

RG6 Cable Stripper

Easy to use

For use with the following connectors:

3105RG59F, 3105BNC6, 3105BNC59

3105RG6F, 3105RG6PM, 3105RG6PF

3105RG6F

3105RG6F (Packet of 10)

For use with Radial Crimp Tool

Approval Number

Foxtel

Austar

Select TV

F10179/C

A01509

Not Required

3105CS6

Easy to use

Suits RG6 and RG59 Cables

52 Clipsal TV Cabling Solutions

RG59 RADIAL CRIMP

3105CT611

RG59 Radial Crimp Tool

RG59 Compression Connector

Easy to use

For use with the following connectors:

3105RG59F, 3105BNC6, 3105BNC59

3105RG6F, 3105RG6PM, 3105RG6PF

3105RG59F

3105RG59F

Packet of 10

For use with radial Crimp Tool

RG59 Cable Stripper

3105CS6

Easy to use

Suits RG6 and RG59 Cables

53

Do’s and Don’ts

Insert coax cable into the stripping tool with the end of the coax level with the lip on the right hand side. Hold the cable close to the tool and spin around a few times. Not enough spins of the stripping tool will leave the coax jacket on and too many spins will cut away the shielding. Hold the stripping tool by the jaws and pull away from cable without opening the jaws of the stripping tool.

The stripped cable will look like the following diagram.

54 Clipsal TV Cabling Solutions

Fold back the first braid then fold back the first foil. Fold back the second braid but DO

NOT remove the last foil as this is bonded to the Dielectric. Fold back braid and foil evenly in each direction to ensure the connector slides on easily. A good preparation should look like the following diagram.

Do’s and Don’ts

Slide the connector on straight. DO NOT slide connector at an angle because it will damage the cable. Look at the front of the connector. If the cable is damaged then remove the connector and start again.

DO NOT terminate connector.

Slide the cable up to the base of the connector. A good termination should be level with the base of the connector.

When the cable is inside the connector it will look like the following diagram.

55

Digital Terrestrial Meter

2ANDTM

Features and Benefits

Displays RF level and post BER together with S/N on large display in real time. Run time in excess of five hours on a full charge. Built-in charger with rechargeable NiMH battery.

Specifications

VHF 6-12 UHF 21-69

VHF Band 3 and UHF e.g. 167-862 MHz 7 M Bandwidth

Automatic Constellation and transmitter offset

C/N up to 32dB in 0.5dB steps accuracy +-1dB

RF level 25dBuV to 75dBuV accuracy +-1dB over all bandwidth and under indication

Input range -72dBm-20dBm

Charger 100-240V Ac or 12V Dc

Battery 2.4 Ah NiMH 7.2V 6 cell

BCN - PAL + BCN F-Type adaptors included

2x 10dB attenuators included

56 Clipsal TV Cabling Solutions

This meter is a Digital Field Strength Meter and will not measure any channel below VHF 6.

Digital Field Strength Meter

Step Through V 6

RF Level 72dBuV

IIIIIIIIIIIIIIIIIIIII------------------------

DVB-T

RF Screen

Step Through

Use the arrow buttons to scroll through VHF and UHF channels.

RF Level

Shows the level of signal strength numerically.

IIIIIIIIIIIIIII

Bar reading of signal strength.

DVB-T

This will appear if the signal is a digital video broadcast terrestrial. If this appears then press the ON button to change to the BER page. If this does not appear the signal is an analogue signal.

Step Through V 6

BER 0.00E7 **** PASS

IIIIIIIIIIIIIIIIIIIII------------------------

SN 29dB

BER Screen

Measures the Bit Error Ratio.

Step Through

Use the arrow buttons to scroll through the VHF and UHF channels.

BER

Shows the number of errors within the signal. Use to measure the quality of the digital signal only.

PASS

PASS or FAIL will appear dependant on the number of errors.

IIIIIIIIIIIIIII

Bar reading of signal strength.

SN 29dB

Signal to Noise Ratio. Measures the amount of signal versus electrical noise within the cable.

The higher the number the better.

57

MATV Tool Box

3105TOOLBOX

Clipsal Australia have provided a MATV tool box that has the essentials required to carry out MATV installations. Refer to chart below for the great range of products included.

58 Clipsal TV Cabling Solutions

Product

Compression Tool

Hex Crimp Tool

Coax Cable Stripper

Hex Nut Spanner

Coax Cable Cutters

UTP Cable Stripper

2 Way Splitter Terrestrial

3 Way Splitter Terrestrial

4 Way Splitter Terrestrial

2 Way Splitter Satellite

3 Way Splitter Satellite

4 Way Splitter Satellite

F-Type Compression Connectors

F-Type Radial Crimp Connectors

PAL Crimp Connectors

F-Type to F-Type Adaptors

3105CT611C

3105CS6

-

-

-

3105SPF2

3105SPF3

3105SPF4

3105SPFP2

3105SPFP3

3105SPFP4

3105RG6FC50

3105RG6F

3105RG6PM

-

4

4

4

4

4

4

50 Connectors

50 Connectors

50 Connectors

20 Adaptors

1

1

1

1

1

Right Angle Adaptor

Rated to 3GHz

Pack of 10

Foxtel approval number: F30356

Wall mounted Plasma/LCD scenario with right angle adaptor.

3105FF-FMRA

59

F-TYPE ADAPTORS

F-Type to RCA Adaptor

Pack of 1

F-Type to RCA Adaptor

Pack of 1

F-Type Female to Female Coax Joiner

Pack of 10

60 Clipsal TV Cabling Solutions

3105FF-RCA

3105FF-BNC

3105FF-FF

F-Type Female to PAL Male Adaptor

F-TYPE TO PAL ADAPTORS

3105PM-FF

Pack of 10

F-Type Female to PAL Female Adaptor

Pack of 10

3105PF-FF

F-Type Male to PAL Female Adaptor

Pack of 10

3105PF-FM

61

PAL ADAPTORS

PAL Male to PAL Male

Pack of 10

PAL Female to PAL Female Adaptor

Pack of 10

3105PM-PM

3105PF-PF

62 Clipsal TV Cabling Solutions

F-type to PAL Male Fly Lead - RG6 Quad Shield White 1.8m

3105FL318MWQ

F-type to PAL Male Fly Lead - RG6 Quad Shield Black 1.8m

3105FL318MBQ

PAL Male to PAL Male - RG59 white 1.8m

PAL Male to PAL Male - RG59 white 5m

3105FL118MW

3105FL150MW

PAL Male to PAL Female - RG59 white 1.8m

3105FL118FW

63

3RCA to 3RCA Lead 1.8m

3RCA to 3RCA High Quality Lead 1.8m

Scart - 6 RCA Lead 1.8m

Scart - Scart Lead 1.8m

3105AVL318

3105AVL318HQ

3105SC-6RCA

3105SC-SC

64 Clipsal TV Cabling Solutions

F-Type to F-Type TV Outlet

Pay TV approved outlet rated to 3GHz.

Foxtel approval number: G135

F-Type to PAL TV Outlet Straight

To be released late 2007.

Not suitable for satellite TV applications

F-Type to PAL TV Outlet Angled

Not suitable for satellite TV applications

F-Type to PAL TV Outlet AC Isolation

Not suitable for satellite TV applications

Screw Termination to PAL

Not suitable for satellite TV applications

30PFM

30FFPFMS

30TV75MF

30TV75MACF

30TV75MS

65

Single Gang Wall Plate

This wall plate contains the Clipsal 30PFM TV Mech

C2000 Series C2031/1F

2000 Series 2031/1F

C2031/1F

Single Gang Wall Plate

This wall plate contains the Clipsal 30TV75MF TV Mech

Screw style

C2000 Series C2031VTV75F

2000 Series 2031VTV75F

Single Gang Wall Plate

This wall plate contains the Clipsal 30TV75MS TV Mech

2031VTV75F

C2000 Series C2031VTV75

2000 Series 2031VTV75

2031VTV75

66 Clipsal TV Cabling Solutions

StarServe Wall Plate

This wall plate is the minimum requirement for

Star Serve main entertainment areas.

This wall plate can be made up of the following

Clipsal products:

3x 30PFM

1x C2033VH

F-Type TV Mech

3 Gang Wall Plate

StarServe Wall Plate

This wall plate can be made up of the following

Clipsal products:

3x 30PFM F-Type TV Mech

1x 30RJ88SMA5 Cat 5e data outlets

1x C2034VH 4 Gang Wall Plate

StarServe Wall Plate

This smart wired wall plate can be made up of the following Clipsal products:

2x 30PFM F-Type TV Mech

2x 30RJ88SMA5 Cat 5e data outlets

1x C2034VH 4 Gang Wall Plate

C2033/3F

2033/3F

C2033/3F

C2034RJA5/3F

2034RJA5/3F

C2034RJA5/3F

C2034RJA5/2F

2034RJA5/2F

C2034RJA5/2F

67

StarServe Wall Plate

Suggested minimum cabling to all bedrooms.

This wall plate can be made up of the following

Clipsal products:

1x 30PFM F-Type TV Mech

1x 30RJ88SMA5 Cat 5e data outlets

1x C2032VH 2 Gang Wall Plate

StarServe Wall Plate

Suggested minimum cabling to all bedrooms.

This wall plate can be made up of the following

Clipsal products:

1x 30PFM F-Type TV Mech

2x 30RJ88SMA5 Cat 5e data outlets

1x C2033VH 3 Gang Wall Plate

StarServe Wall Plate

This wall plate is ideal for the study.

This wall plate can be made up of the following

Clipsal products:

1x 30PFM F-Type TV Mech

3x 30RJ88SMA5 Cat 5e data outlets

1x C2034VH 4 Gang Wall Plate

C032RJA5/1F

2032RJA5/1F

C032RJA5/1F

C033RJA5/1F

2033RJA5/1F

C033RJA5/1F

C034RJA5/1F

2034RJA5/1F

C034RJA5/1F

68 Clipsal TV Cabling Solutions

ADELAIDE

Port Gawler

Virginia

Williamstown

Yattalunga

Penfield

Elizabeth

One Tree Hill

St Kilda

Salisbury

Outer Harbour

Parafield

Largs Bay

Ethelton

Port Adelaide

Enfield

Adelaide

Paradise

Greenwith

Upper Hermitage

Houghton

Montacute

Lobethal

Skye

Woodside

Glenelg

Malvern

Lynton

Stirling

Brighton

Marino

Hahndorf

Cherry Gardens

Hallett Cove

Reynella

Morphett Vale

Port Noarlunga

Clarendon

Echunga

Maslin Beach

McLaren Vale

The Range

2ANCOM3

2ANCOM4 or

2ANCOM6

2AN 2ANUY12WB or

2ANUY20WB

(Multiple Outlets)

2ANV2WB +

2ANUY12WB

(Requires Diplexer refer to page 43)

69

MELBOURNE

2ANCOM3

2ANCOM4

2ANUPA2

2ANUY18/5

70 Clipsal TV Cabling Solutions

SYDNEY

2ANCOM3

Inner city Kings Cross translator line-of-sight use

2ANUPA1 or 2ANUX43

2ANCOM4 or

2ANYV10 +2ANUY20WB

(Requires Diplexer refer to page 43)

2ANCOM6 or

2ANVY10 + 2ANUX91

(Requires Diplexer refer to page 43)

2ANUY20WB

2ANUPA2

71

NEWCASTLE

2ANCOMD14WB

2ANCOMD14WB

+ Masthead Amplifier

2ANCOM2NEW

For Nelson Bay, call Clipsal for options

2ANUY12WB

2ANUY20WB

2ANUPA2

72 Clipsal TV Cabling Solutions

BRISBANE

2ANCOM3

2ANCOM4

2ANCOM6

73

SOUTH QUEENSLAND

2ANCOM3 or

2ANCOM4

(Multiple Outlets)

2ANUY12WB or

2ANUY20WB

(Multiple Outlets)

2ANUPA2

2ANCOMD14WB or

2ANVY10 + 2ANUY20WB

(Requires Diplexer refer to page 43)

74 Clipsal TV Cabling Solutions

PERTH

Two Rocks

Scarborough

Mt Claremont

Peppermint Grove

Fremantle

Quinns Rocks

Joondalup

Bullsbrook

Malaga

Red Hill

Chidlow

Midland

Piesse Brook

Kalamunda

Reservoir

Canning Mills

Garden Island

Rockingham

Wungong

Cardup

Oldbury

2ANCOM3

2ANCOM4

2ANCOM6

Dawesville

Mandurah

Blythewood

75

When it comes to antenna installation, the choice is clear

Product of Clipsal Australia Pty Ltd

A member of the Schneider Electric Group

Head Offi ce

12 Park Terrace, Bowden

South Australia 5007

Telephone (08) 8269 0511

Facsimile (08) 8340 1724

Internet clipsal.com

E-Mail [email protected]

National Customer Service Enquiries:

1300 2025 25

National Customer Service Facsimile:

1300 2025 56

CLIPCOM 11954 Aug 2007

International Enquiries

International Sales and Marketing

Telephone + 61 8 8269 0587

Facsimile + 61 8 8340 7350

E-Mail [email protected]

New Zealand

Clipsal Industries (NZ) Ltd

Telephone (09) 576 3403

Facsimile (09) 576 1015

E-Mail headoffi [email protected]

Customer Service

Free Fax (0508) 250 305

Auckland/Mobile Phone (09) 572 0014

Free Phone (0508) CLIPSAL

2 5 4 7 7 2 5

You can fi nd this brochure and many others online in PDF format at:

clipsal.com

Follow the links off the home page or access the following page directly:

clipsal.com/wat_lib_pdf.cfm

Clipsal Australia Pty Ltd reserves the right to change specifi cations, modify designs and dis con tin ue items without incurring obligation and whilst every effort is made to ensure that descriptions, specifi cations and other in for ma tion in this catalogue are correct, no warranty is given in respect thereof and the company shall not be liable for any error therein.

© Clipsal Australia Pty Ltd.

The identified trademarks and copyrights are the property of Clipsal Australia Pty Ltd unless otherwise noted.

O/N 11954

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
