TM
DLP PROJECTOR

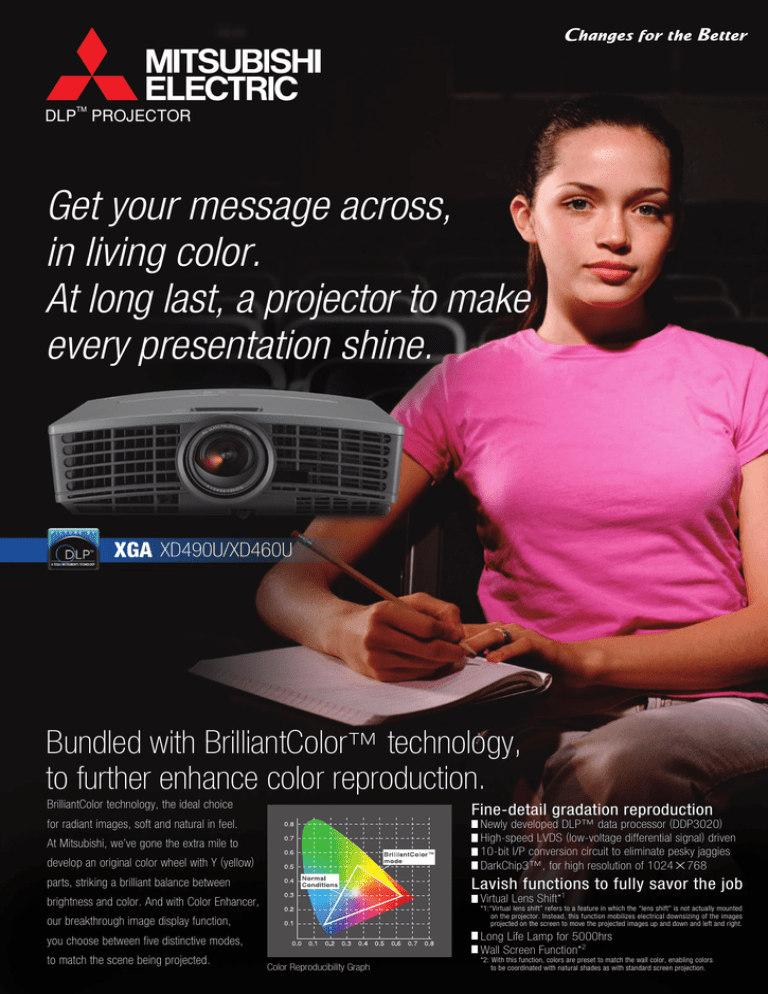

Get your message across,
in living color.
At long last, a projector to make
every presentation shine.
XGA XD490U/XD460U
Bundled with BrilliantColor™ technology,
to further enhance color reproduction.
BrilliantColor technology, the ideal choice
Fine-detail gradation reproduction
Newly developed DLP™ data processor (DDP3020)
High-speed LVDS (low-voltage differential signal) driven
10-bit I/P conversion circuit to eliminate pesky jaggies
DarkChip3™, for high resolution of 1024 768
for radiant images, soft and natural in feel.
At Mitsubishi, we’ve gone the extra mile to
develop an original color wheel with Y (yellow)
Lavish functions to fully savor the job
parts, striking a brilliant balance between
Virtual Lens Shift*1
brightness and color. And with Color Enhancer,
*1:“Virtual lens shift” refers to a feature in which the “lens shift” is not actually mounted
on the projector. Instead, this function mobilizes electrical downsizing of the images
projected on the screen to move the projected images up and down and left and right.
our breakthrough image display function,
Long Life Lamp for 5000hrs
Wall Screen Function*2
you choose between five distinctive modes,
to match the scene being projected.
Color Reproducibility Graph
*2: With this function, colors are preset to match the wall color, enabling colors
to be coordinated with natural shades as with standard screen projection.
XD490U
Model
XD460U
0.7”1-chip DMD chip, 12deg. LVDS, DarkChip3TM with DDP3020
Display technology
Resolution
768 (total 786,432 pixels ), 600 video lines
1024
3000 lm
Brightness (Maximum)
2600 lm
2500 : 1 (on / off)
Contrast
40” ~ 300” (100” = 3.3m)
Picture size
250W (Shut Off Time 2000Hrs) with Low Mode (200W: Shut Off Time 5000Hrs)
Source lamp**
Computer compatibility
640
Video compatibility
NTSC / NTSC 4.43 / PAL (including PAL - M, N ) / SECAM / PAL - 60
Component Video : 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz),
1080i (1125i 60Hz), 1080i (1125i 50Hz), 1080i (1250i 50Hz ),
SCART (RGB + 1Vcomp)
480 ~ 1280
1024, True: 1024
DVI-D (with HDCP) 1, RGB: mini D-sub 15 pin
Audio: Stereo mini jack
1 (ø3.5 mm)
PC input terminals
Video input terminals
1 + S - video
Video: RCA
Output terminals
RGB: mini D-sub 15 pin
Communication terminals
RS - 232C; 8pin
1, Mouse ; USB
1
32dBA (Lamp low mode )
Dimensions (W
D)
H
310
30dBA (Lamp low mode )
245 mm (excluding height adjustment )
100
Weight
Composite Video
RS-232C
USB
2
1 (¿ 3.5 mm), DC(5V)
2 W mono
Fan noise
Audio Out
Remote IR
S-Video
2
1, Audio: RCA (L,R)
1, Audio: Stereo mini jack
Audio speaker
DVI-D input
RGB In
2
RGB Out
1
Audio In
768, Sync on green available
2.9kg / 6.5lbs
Power supply
AC100 ~ 120V / 220 - 240V / ±10%, 50 / 60Hz
*All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
*DLP (Digital Light Processing), BrilliantColour,DarkChip3 are trademarks of Texas Instruments.
**Approximate figure representing average operational lifecycle.
As seen from the side
HOLES FOR HANGER(3PLACES)
243
4.4
ø1
20.2
24
25.2
115
15
HOLE FOR OTHER PART
68.3
(Hd)
112
34.9
XD490U
XD460U
20.4
200
205
245
21
6.9
Height
41
77.1
4.
1
270
135
ø1
ø16.8
Projection Distance (L)
ø 87
310
15 26
49
Screen size chart (4:3 aspect ratio)
Screen
Diagonal Size
100
inch
40
60
80
100
150
200
250
300
5
56
(56)
Unit:mm
cm
102
152
203
254
381
508
635
762
Width
inch
32
48
64
80
120
160
200
240
cm
81
122
163
203
305
406
508
610
Distance from screen (L)/(approximate)
Height
inch
24
36
48
60
90
120
150
180
cm
61
91
122
152
229
305
381
457
Max. Zoom
inch
51
77
103
130
196
262
327
393
m
1.3
2.0
2.6
3.3
5.0
6.6
8.3
10.0
Min. Zoom
inch
62
94
125
157
237
316
-
m
1.6
2.4
3.2
4.0
6.0
8.0
-
Distance from
lens axis
(Hd)
inch
2.8
4.3
5.7
7.1
10.7
14.2
17.8
21.4
cm
7.2
10.9
14.5
18.1
27.1
36.2
45.2
54.3
The above numbers are approximate, and may be slightly different from the actual measurements.
