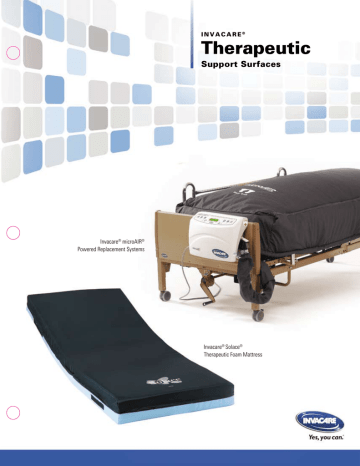

Therapeutic

Therapeutic

I N V A C A R E

®

Therapeutic

Support Surfaces

Invacare

®

microAIR

®

Powered Replacement Systems

Invacare

®

Solace

®

Therapeutic Foam Mattress

2

Table of Contents

Understanding Pressure Ulcers .......................................................... 3-5

Solace Foam Mattress Therapeutic Support Surfaces ................. 6-12

The microAir

®

Difference ................................................................ 13-15

MA50, MA51, MA55 Overlay & Alternating Pressure .................. 16-17

MA60, MA65 Alternating Pressure ................................................. 18-19

MA80, MA85 True Low Air Loss ..................................................... 20-21

MA90Z, MA95Z Lateral rotation...................................................... 22-23

Group i and Group ii Medicare Criteria ...............................................24

Group i Therapeutic Support Surfaces Chart .....................................25

Group ii Therapeutic Support Surfaces Chart .............................. 26-27

Educational Training & Selling Tools ...................................................28

I

nvacare has a complete line of easy to understand and user-friendly Invacare

®

Solace

®

and microAIr

®

therapeutic support surfaces. The innovative designs help in the prevention and treatment of pressure ulcers.

Pressure Ulcers:

Understanding what they are and how to prevent them

Joining the Effort in Pressure Ulcer Prevention

There is a national focus on pressure ulcer prevention. In fact, the goal of the Institute for Healthcare Improvement was to reduce incidence by December 2008 and focus on “getting to zero.”

The Healthy People Initiative 2010 set forth two goals: increase the quality and years of healthy life and eliminate health disparities. In support of these goals, one specific objective is to cut the incidence of pressure ulcers in nursing home residents 50% by 2010.

Six key interventions aimed at reducing pressure ulcer incidence are:

1. Assess pressure ulcer risk upon admission for all patients in all care environments: acute care, long term care and home care

2. Reassess risk daily through skin inspection

3. Manage moisture by keeping the patient dry

4. Optimize nutrition

5. Minimize pressure through use of pressure-relieving surfaces

6. Turn every 2 hours

The statistics are worth noting: There are 1.8 million new pressure ulcer cases each year, with 70% of those occurring in persons age

70 or older at an overall treatment cost of $1.3 billion. 24% of skilled nursing r esidents develop pressure ulcers at some time. That number increases to 60% in individuals with hip fractures.

Invacare has joined the effort with a full range of comfort solutions designed to prevent and remediate pressure ulcers.

The microAIR and Solace innovative technology solutions offer the patient increased relief and comfort while providing the caregiver a product that is easy to setup, use and maintain.

The focus on more effective prevention and quicker healing is driven, and even mandated, by many government and medical associations. It’s what you’d expect from the leading manufacturer of medical equipment in the world – Invacare.

But age, obesity, diabetes and other illnesses can all lead to pressure ulcers…and Americans are increasing in age, weight and diabetes occurrences. The goal of pressure ulcer reduction sounds like an impossible feat.

This information is not medical advice. Each individual should always consult with his/her physician.

3

4

Understanding Pressure Ulcers

What are pressure ulcers?

Pressure ulcers, sometimes called bed sores or decubitus (lying in bed) ulcers, are typically located in the areas where the body has less protective covering on weight bearing points. Those areas are typically heels, elbows, shoulders and the sacral regions in the supine, semi-recumbent and seated positions.

Ankles, knees, hips and ears are additional areas of concern in the lateral position. (See Fig. A) When blood pressure inside the dermis is blocked or above 32mm/Hg, capillaries begin to close. (See Fig. B on page 5)

Without the nutrients in the blood and the removal of waste products, the area begins to break down. The first sign is redness and warmth to the touch. In severe stages, extensive tissue destruction can lead to tissue necrosis (death), and damage to supporting muscle and bone.

Fig. A

Toes

Heel

SHEARING

FORCE

SURFACE OF BED

FRICTION

Semi-Recumbent

Position

Occiput

Shoulder Blades

Elbows

Sacrum ischial Tuberosity

Seated Position

Shoulder Blades

Spinal Protrusion

Elbows

Sacrum ischial Tuberosity

Heels

Toes

Supine Position

Who is at risk for a pressure ulcer?

A person who sits or lies in one position for an extended period of time might be at risk for pressure sores. Patients are more likely to get pressure sores if they are paralyzed, use a wheelchair or spend most of their time in bed.

How is patient risk assessed?

Patient risk is assessed on a number of factors standardized in assessments such as the Norton or Braden scales. it is recommended that patients be assessed as soon as possible upon entering into care.

This information is not medical advice. Each individual should always consult with his/her physician to determine proper product selection.

What are the risk factors?

1. Patient is immobile or inactive

The lack of movement results in loss of blood flow to the skin.

2. Body size and shape

Very thin or very obese patients are at a higher risk. Very thin

people lack cushioning between the skin and bony prominences

such as heels and elbows. Overweight patients have fewer

blood vessels to the skin and require body movement to get the

blood flow to the susceptible areas.

3. Skin condition and hygiene regimens

Thinning skin, which naturally occurs with age, as well as with

the use of some medications, may make the patient more

susceptible.

4. Nutrition

A balanced diet and proper calorie consumption are important in

maintaining skin thickness and elasticity.

5. Incontinence and infection

Urine and fecal matter or increases in body temperature and

subsequent perspiration can cause maceration (the skin to

soften). The skin is therefore more susceptible to tearing.

6. Circulation

Edema or swelling due to poor blood circulation makes the

susceptible areas less resistant to pressure.

Heels Sacrum Elbows Shoulder

Blades

Back of Head

Lateral Position

Ankle Knee Hip Shoulder Ear

Fig. B

Pre Stage I

Suspected Deep Tissue Injury

– Localized area of discolored

(purple or maroon) intact skin or blood-filled blister due to damage of underlying soft tissue from pressure and/ or shear. The tissue may be painful, firm, mushy, warmer or cooler compared to adjacent tissue.

I

Stage

Non-blanchable erythema of intact skin.

(Skin that does not turn white when depressed).

II

Stage

Partial thickness skin loss involving epidermis, dermis or both.

III

Stage

Full thickness skin loss involving damage or necrosis of subcutaneous tissue that may extend down to, but not through, underlying fascia.

IV

Full thickness skin loss with extensive destruction, tissue necrosis or damage to muscle, bone or supporting structures.

Unstageable

Full thickness tissue loss in which the base of the ulcer is covered by slough (yellow, tan, gray, green or brown) and/or eschar

(tan, brown or black) in the wound bed.

Epidermis

Dermis

Adipose Tissue

Muscle

Bone

How do pressure ulcers form?

Any individual or combination of the above factors, combined with environmental skin factors below, can result in a pressure ulcer. If the outer layer of skin (epidermis) is rubbed away, the more vulnerable dermis layer is exposed to bacteria and infection.

1. Pressure

When the capillary blood pressure is cut off from the skin by

pressure on the area for an extended time.

2. Moisture

Over-hydrated (macerated) skin is at higher risk of tearing or

breaking down from moving or friction.

3. Shear

Capillaries stretch and tear, reducing the blood flow when the skin

remains stationary against the bed linens as the skeletal structure

moves with the surface.

4. Friction

When the skin is pulled across a coarse surface and the outer

protective layer (epidermis) is rubbed away.

What are support surfaces?

Support surfaces are the special mattresses, mattress overlays, seat cushions and specialty beds that support a patient’s body in bed or in a chair. Specifically, these support surfaces are used to reduce or relieve pressure that the weight of the body, and especially the bones, exert on the skin as it presses against the surface of a bed or seat of a chair. By relieving or reducing this pressure, existing pressure ulcers can heal and the chance that new pressure ulcers will develop can be reduced.

Types

• Nonpowered surfaces that include air, foam, gel mattresses

and overlays

• Powered and nonpowered surfaces that include dynamic air

overlays, low-air-loss systems, alternating pressure systems

and lateral rotation systems

Which support surface to choose?

Support surfaces may be static (non-powered, reactive) or dynamic

(movable, active surface). A static surface is recommended if a patient can assume varying positions without bearing weight on a pressure ulcer, generally a Group I surface. Dynamic surfaces are required if the patient cannot change positions without bearing weight on the pressure ulcer or if the patient fully compresses the static support surface, generally a Group II surface. Choosing the corrrect surface depends on the requirements listed under the Medicare criteria. See page 24.

5

6

Group I:

Invacare

®

Solace

®

Foam Mattresses, Gel Overlays and

Alternating Pressure Pad Systems

Simple to use and easy to maintain, these products include an alternating pressure pad system, gel overlay and foam mattress replacements.

Invacare

®

Solace

®

Therapeutic Foam Mattresses

Solace mattresses are unique single, dual- and tri-layered foam formulations. They are designed to minimize the risk of pressure ulcers by distributing weight as uniformly as possible and allowing blood to flow through the capillaries in areas prone to lesion development.*

The Prevention, Therapy and Resolution mattress systems offer good, better and best solutions in static support surfaces. Within each category, the products also reflect increasing treatment efficacy.

The unique and patented designs combine comfort and technology for patient and caregiver confidence.

The mattresses are available in standard

80" lengths with the ability to special order 76" and 84" lengths, and raised side rail models. Also available are 42" and 48" bariatric sizes in the Prevention and Therapy Series.

Solace mattress.

Raised side rail design shown.

* Many support surfaces have been shown to improve pressure ulcers, however there is no compelling evidence that one performs better than all others in all circumstances. It is best to consider the therapeutic benefits of the products when determining which to use.

7

Invacare

®

Solace

®

Prevention Series

Cost effective, single and dual-layer design lowers interface pressure for the low-medium risk patient.

Invacare

®

Solace

®

Prevention 0080 Mattress

Model no. SPS0080

The Solace SPS0080 mattress is an economical foam mattress which features a single layer of foam specially fabricated to provide three zones of pressure reduction. It is designed to reduce patient interface pressure across the surface.

Soft head and heel

SPS0080

8

Invacare

®

Solace

®

Prevention 1080 Mattress

Model no. SPS1080

SPS 1080.fsa

Zoned top layer relieves pressure in the important susceptible body zones. The convoluted “fortress” cut design offers more

Bed surface area for patient support and relief. Two layers of high quality foam include softer head and heel sections.

110 lbs

Friday, September 18, 2009 3:36:13.281 PM

SPS1080 Pressure Map: Female, 5’5”, 110 lbs.

75

70

65

60

85

80

100

95

90

55

50

45

40

35

30

25

20

15

10

5

0 mmHg

1

Report created by FSA - www.pressuremapping.com

Soft head and heel

SPS1080

Invacare

®

Solace

®

Prevention 2080 Mattress

Model no. SPS2080

Added to the design are built-in side supports.The head and heel-soft sections add comfort and protection, while the side supports provide stability and durability. Also available in bariatric sizes; SPS2080B42, SPS2080B48

(400 lb. weight capacity on bariatric models).

Soft head section

Soft heel section

Invacare

®

Solace

®

Prevention 3080 Mattress

Model no. SPS3080

The soft heel section is upgraded to visco-elastic foam to cradle the sensitive area. This product provides comfort and support with built-in side supports and dual layer “fortress” cut foam.

Soft head section

Visco-elastic foam heel

Built-in side supports

SPS3080

Built-in side supports

SPS2080

Visco layer

9

10

Invacare

®

Solace

®

Therapy Series

Multiple layered mattresses to provide pressure relief and comfort for medium to high risk patients.

STS 1080.fsa

Invacare

®

Solace

®

Therapy 1080 Mattress

Model no. STS1080

Precision three-layered mattress of die-cut foams provides pressure relief around bones, increases air flow to reduce surrounding temperature and provides uniform weight distribution

Bed for increased patient comfort. Included in the STS1080 mattress are side supports to provide stability and durability.

110 lbs

Friday, September 18, 2009 3:56:04.186 PM

STS1080 Pressure Map: Female, 5’5”, 110 lbs.

80

75

70

65

60

55

50

90

85

100

95

35

30

25

20

45

40

15

10

5

0 mmHg

1

Report created by FSA - www.pressuremapping.com

Tri-layer fortress cut

Built-in side supports

Invacare

®

Solace

®

Therapy 2080 Mattress

Model no. STS2080

Added to the design is a visco heel section to add comfort and protection. Also available in bariatric sizes; STS2080B42,

STS2080B48 (650 lb. weight capacity on bariatric models).

STS1080

Visco-elastic foam heel

Built-in side supports

STS2080

Visco-elastic foam top

Invacare

®

Solace

®

Therapy 3080 Mattress

Model no. STS3080

Building more into the therapy mattress is a specially designed visco-elastic foam top to cradle the entire body in foam. This series provides comfort and support and includes the side supports and three layers of “fortress” cut style foam.

STS3080

Invacare

®

Solace

®

Resolution Series

The Resolution series is the best Invacare ® foam mattress solution for high risk patients and for pressure redistribution.

SRS 1080.fsa

Invacare

®

Solace

®

Resolution 1080 Mattress

Model no. SRS1080

Our most advanced foam mattress is designed for those patients who require the highest degree of pressure relief. The dual layer design incorporates two different types of foam to provide not only a therapeutic pressure-relieving surface but also one that is supportive and comfortable using high-density foam. In addition, the mattress has a heel slope to alleviate pressure along with built in side supports. The convoluted fortress cut design offers more surface area for patient support and relief.

Bed

Female

5' 5"

110 lbs

SRS1080 Pressure Map: Female, 5’5”, 110 lbs.

Friday, September 18, 2009 4:01:15.937 PM

100

95

90

85

80

75

70

65

60

55

50

45

40

35

30

25

20

15

10

5

0 mmHg

1

Report created by FSA - www.pressuremapping.com

Heel slope

Built-in side supports

SrS1080

11

12

Invacare

®

Mattress Overlays

Invacare

®

Gel Overlay Mattress

Model no. IVCGFMO2

Standard gel overlays often suffer from the same problem – gel migration, the process of squeezing the gel out from under pressure points thereby reducing the effectiveness of the overlay. Invacare’s gel overlay addresses this concern through a specific set of features.

Features

• Specially designed bladders run across the surface and

minimize the migration of the gel

• Each cell works independently to provide support and

minimize pressure points

• Flame Retardancy: (Meets flamability standards

16CFR1633, 16CFR1632)

• Optimal prevention/treatment of pressure sores

• One piece construction requires no assembly

• Elastic corner straps secure overlay to mattress

• Encased in a highly resilient foam base

• Gel is nontoxic

• Cover is constructed from a 70 denier nylon top, vinyl

bottom which is fluid resistant and vapor permeable

Invacare

®

CareGuard

Alternating

Pressure Pad System

Model no. CG9701

Invacare CareGuard Alternating Pressure Pad (APP) system has mattress flaps to secure the product. The advanced technology pump inflates and deflates the air cells for patient relief.

Variable pressure settings provide patient comfort.

CG9701 iVCGFMO2

Group II:

Invacare

®

microAIR

®

Therapeutic Support Mattress

Replacement Systems

Advanced series of powered mattress replacement systems and an alternating pressure overlay. includes innovative features to give the ultimate pressure relief. Three modes of action include alternating pressure, low air loss and lateral rotation.

13

14

The Invacare

®

microAIR

®

Difference: Security in Design

Patient Safety and Caregiver Confidence

Constant Pressure Monitoring

The touch pad allows you to set the appropriate pressure using patient weight. Once set, the computer technology inside monitors the pressure. Solenoid valves open and close to regulate the air inside the mattress and maintain the pressure at or below 32mm/

Hg to avoid capillary occlusion. On compressor models (MA50,

MA51, MA55, MA60, MA65 and MA90Z), the compressor will turn off while in maintenance mode for a quieter, energy saving environment.

Secure magnetic connector on blower models MA85 and MA95Z

On Demand Low Air Loss

microAIR compressor models (MA55, MA65, MA90Z) all include the on-demand low air loss feature. When activated at the push of the button, air is sent inside the mattress to keep the mattress environment cooler for the patient, as well as help with moisture management. When not in use, the compressor will go into quiet energy saving mode for an improved sleep environment.

Ease of Set Up and Connection*

Unroll the mattress and hook the power unit to the end of the bed.

Snap the mattress hose onto the plugged-in power unit and the mattress is ready to inflate.

*Always read the product owner’s manual before use.

Convenient snap on connections for compressor models

MA60, MA65 and

MA90Z.

Wireless Auto Fowler

microAIR models MA60, MA65, MA80,

MA85, MA90Z, MA95Z include this feature.

A transmitter in the head section of the bed sends a signal to the power unit when that section is raised to add 25% more air into the center section of the bed, preventing the patient from bottoming out. A caregiver no longer needs to push the fowler button and the patient can raise the bed without calling for assistance.

Ease of Transport

Removal of the mattress is simplified by rolling it up beginning at the head section and putting the power unit inside the mattress for protection. Once rolled, attached over-the-shoulder carrying handles allow for easy transport.

Power Outage Safety

In the event of a power outage, compressor models (MA50, MA51, MA55, MA60, MA65 and

MA90Z) remain inflated as long as the mattress air hose remains connected to the compressor.

Once the power is returned, the memory inside the power unit returns to the programmed settings. Blower models (MA80, MA85 and

MA95Z) also return to the pre-power outage settings once the power returns. The safety mat inside the mattress prevents the patient from bottoming out. Lateral rotation must be reprogrammed in MA90Z and MA95Z as a safety precaution.

Whenever bed rails are used as part of any hospital or home care bed system, the potential for bed rail entrapment exists. To reduce this risk, a patient must always be assessed regarding their risk of entrapment before any product is used. Routine patient monitoring is also required once a product is in use. To learn more about the risk of bed rail entrapment please visit the US

FDA's website at http://www.fda.gov and search for "Bed Rail Entrapment.

Additional Safety Features

All microAIR therapeutic support systems include additional safety features: 2" safety foam mat (except the MA50 alternating pressure mattress overlay), low pressure and power outage audio and visual alarms and a lock out button to avoid accidental adjustments. microAIR therapeutic support systems are compliant with federal fire regulation 16CFR1632 and 16CFR1633 standards by including a sewn in fire sock on each model.

Sewn in Fire Sock.

15

16

Invacare

®

microAIR

®

Alternating Pressure Therapeutic

Support Mattress Replacement System

Model nos. MA50, MA51 and MA55

Invacare

®

microAIR

®

MA50 Alternating Pressure Overlay

Model no. MA50

The microAIR MA50 overlay is a full-featured alternating pressure overlay powered by a 10 LPM compressor with four alternating pressure cycles of

5, 10, 15 and 20 minutes.

Invacare

®

microAIR

®

MA51 Alternating Pressure Therapeutic

Support Mattresses System and 10 LPM Compressor

Model no. MA51

MA 55.fsa

The Invacare MA51 is an alternating pressure mattress replacement which reduces interface pressure to aid in the prevention and treatment of Stage I to IV pressure ulcers.

Invacare

®

microAIR

®

MA55 Alternating Pressure with

On-Demand Low Air Loss and 10 LPM Compressor

Model no. MA55

In addition to all the features of the MA51 alternating pressure mattress, the MA55 model improves air circulation and cools the body temperature with a unique system of air released into the mattress.

Female

5' 5"

110 lbs

MA55 Pressure Map: Female, 5’5”, 110 lbs.

Friday, September 18, 2009 4:28:17.905 PM

85

80

75

70

65

60

55

100

95

90

50

45

40

35

30

25

20

15

10

5

0 mmHg

1

Low Pressure

Report created by FSA - www.pressuremapping.com

Bed

Features: microAIR MA50/MA51/MA55 Cover

• Dual quilted cover guards against friction and shear

• Fluid resistant

• Vapor permeable

• Anti-microbial

Features: microAIR MA50/MA51/MA55 Control Unit

• 10 LPM compressor continually monitors the air pressure in the mattress to maintain the appropiate pressure (generally below 32 mm/Hg)

• Solenoid valve system opens and closes to maintain air pressure in case of a power outage or to release air to maintain the appropriate surface pressure for the patient

• Four alternating pressure cycle times available at 5, 10, 15, 20 minutes to eliminate the pressure against the ulcer and to promote circulation to the entire body

• Up and down arrows with LED display allow adjustment for patient comfort and pressure relief

• Choice of alternating pressure or static therapy

• Max inflate

• Lock out button

• Visible and audible power warning signal

• Manual fowler

• Energy saving compressor turns off when not needed during pressure maintanence periods

• Ninety degree, quick hose connector simplifies set up

• Lightweight and easy to use power unit with holder easily attaches to bed ends

• No air filter to clean

• 2 year warranty

Features: microAIR MA51/MA55 Mattress

• 8" mattress

• 2" foam added as safety measure

• Quick connect air cells make for easy replacement if needed

• CPR release built into mattress

• Attached carrying straps for easy transportation

• Buckle straps to secure mattress to bed deck

• 1 year warranty

Specifications for MA50, MA51 and MA55

Electrical Power: 90V, 60Hz, 1A

Dimensions:

Mattress: MA50 - 6" x 36" x 80", MA51 and MA55 - 8" x 36" x 80"

Power Unit: 9.5" x 5" x 5", 10 LPM

Power Cord: 14 ft.

Weight Capacity: 350 lb.

Safety Code: 16 CFR 1632, 16 CFR 1633 compliant

Materials:

Mattress Cover: Dual-layer, quilted, anti-microbial, fluid-proof, vapor permeable cover. Bottom cover is 1000 denier nylon

Air cells: 70 denier urethane coated nylon

Limited Warranty:

Mattress: 1 year

Power Unit: 2 years

MA50/MA51

MA55

17

Invacare

®

microAIR

®

Alternating Pressure Therapeutic

Support Mattress Replacement System

Model nos. MA60 and MA65

Invacare

®

microAIR

®

MA60

Alternating Pressure Mattress Replacement System and 50 LPM Compressor

Model no. MA60

The Invacare microAIR 60 mattress is an alternating pressure mattress that reduces interface pressure to aid in the prevention and the treatment of Stage I to Stage IV pressure ulcers. This state-of-the-art 50 LPM compressor inflates the mattress within 5-10 minutes and provides faster, more efficient and complete therapy cycles.

18

Features: microAIR MA60/MA65 Mattress

• Deep 10" mattress

• 2" foam as added safety measure

• Quick connect air cells make for easy replacement if needed

• Built in carrying straps

• Buckle straps to secure mattress to bed deck

• CPR release built into mattress

• 1 year warranty

Features: microAIR MA60/MA65 Cover

• Dual quilted cover guards against friction and shear

• Fluid resistant

• Vapor permeable

• Anti-microbial

Features: microAIR MA60/MA65 Control Unit

• 50 LPM compressor continually monitors the air pressure in the mattress to maintain the appropriate pressure at or below 32 mm/Hg

• Alternating pressure button with 4 therapy cycles to eliminate the pressure against the ulcer and to promote blood circulation to the entire body

• Up and down arrows with LED/display allow adjustment for patient comfort and pressure relief

• Efficient real time monitoring for correct pressure relief

• Wireless automatic fowler adds 25% more air to prevent bottoming out when bed is articulated

• Energy saving compressor turns “off” when not needed during pressure maintenance periods

• Efficient solenoid air valves open and close as required to maintain proper interface pressures

• Power outage recovery - air will remain in mattress to prevent bottoming out

• Lock out button

• Digital display

• Max inflate

• Visible and audible power warning signal

• Lightweight and easy to use with holder for bed ends

• 2 year warranty

Invacare

®

microAIR

®

MA65

Alternating Pressure with

On-Demand Low Air Loss and 50 LPM Compressor

Model no. MA65

In addition to all the features of the MA60 alternating pressure mattress, the MA65 model improves air circulation and cools the body temperature with a unique system of air released into the mattress.

MA 65.fsa

Specifications

Electrical Power: 90V, 60Hz, 1A

Dimensions:

Mattress: 10" x 36" x 80" Standard, 10" x 42" x 80" Bariatric 42",

10" x 48" x 80" Bariatric 48", 12" x 42" x 80" Raised Side Rail

Power Unit: 15" x 16" x 11", 50 LPM

Power Cord: 14 ft.

Weight Capacity: 350 lb. – 1,000 lb.

Safety Code: 16 CFR 1632, 16 CFR 1633 compliant, TB129

Materials:

Mattress Cover: Dual-layer, quilted, anti-microbial, fluid-proof, vapor permeable cover. Bottom cover is 1000 denier nylon

Female

5' 5"

110 lbs.

Air cells: 70 denier urethane coated nylon

Limited Warranty:

Mattress: 1 year

Power Unit: 2 years

Friday, September 18, 2009 3:42:49.484 PM

Bed

MA55 Pressure Map: Female, 5’5”, 110 lbs.

Low Pressure

75

70

65

60

85

80

100

95

90

55

50

45

40

35

30

25

20

15

10

5

0 mmHg

1

Report created by FSA - www.pressuremapping.com

19

20

Invacare

®

microAIR

®

True Low Air Loss Therapeutic

Support Mattress Replacement

Model nos. MA80 and MA85

Invacare ® microAIR ® MA80

True Low Air Loss Mattress Replacement System and 1275 LPM Blower

Model no. MA80

maceration and maintain a dryer environment for pressure ulcer healing in the treatment of Stage I to Stage

Female

IV pressure ulcers. The mattress and blower system automatically maintains five different pressure zones for softer head and heel sections and firmer torso pressure interfaces. Pulse settings are available on the

MA80 unit.

Features: microAIR MA80/MA85 Control Unit

• Efficient real time monitoring for correct pressure relief

• Up and down arrows with LED display allow adjustment

for patient comfort and pressure relief

• Digital display of pressure setting

• Max inflate

• Lock out button

• Wireless auto fowler automatically adds 25% more air to

prevent bottoming out when bed is articulated

• Static setting button

• Settings retained during a power outage and will resume

once power is resumed

• MA80 version – Pulse setting

• MA85 version – AP time button with alternating pressure cycle times

available at 5,10,15, 20 minutes

• Lightweight power unit attaches easily to bed ends

• 2 year warranty

MA85 Pressure Map: Female, 5'5", 110 lbs.

Low Pressure

Report created by FSA - www.pressuremapping.com

Features: microAIR MA80/MA85 Mattress

• Deep 10" mattress

• 2" safety foam as added safety measure

• Quick connect air cells make for easy replacement if needed

• Built in carrying straps

• Buckle straps to secure mattress to bed deck

• CPR release built into mattress

• Ninety degree, magnetic hose connector simplifies set up (on MA85)

• 1 year warranty

Features: microAIR MA80/MA85 Cover

• Unique dual quilted cover guards against friction and shear

• Fluid resistant

• Vapor permeable

• Anti-microbial

Monday, September 21, 2009 11:15:43.375 AM

40

35

30

25

55

50

45

20

15

10

5

0 mmHg

100

95

90

85

80

75

70

65

60

1

Bed

Invacare

®

microAIR

®

MA85 True Low Air Loss with Alternating Pressure and 1275 LPM Blower

Model no. MA85

Building on the true low air loss model benefits of improved air circulation, body temperature cooling and skin moisture management, the microAIR MA85 model increases the therapy with the addition of alternating pressure to reduce surface interface and offer pressure relief. Alternating pressure settings of 5, 10, 15, 20 minutes are available on the MA85 unit.

Specifications

Electrical Power: 90V, 60Hz, 1A

Dimensions:

Mattress: 10" x 36" x 80" Standard, 10" x 42" x 80" Bariatric 42",

10" x 48" x 80" Bariatric 48", 12" x 42" x 80" Raised Side Rail

Power Unit: 14.5" x 11" x 6", 1275 LPM

Power Cord: 14 ft.

Weight Capacity: 350 lb. – 1,000 lb.

Safety Code: 16 CFR 1632, 16 CFR 1633 compliant, TB129

Materials:

MA80: Breathable 70 denier quilted nylon with 1000 denier nylon bottom

MA85: Urethane four way stretch quilted top cover with 1000 denier nylon bottom

Air cells: 70 denier urethane coated nylon

Limited Warranty:

Mattress: 1 year

Power Unit: 2 years

Connector.

Quilted cover.

MA85 True low air loss with alternating pressure

21

22

Invacare

®

microAIR

®

Lateral Rotation Therapeutic Support

Mattress Replacement Systems

Model nos. MA90Z and MA95Z

Invacare ® microAIR ® lateral rotation mattresses provide pressure relief and moisture maintenance for patients who need to be turned for pressure relief or other health indications. Inherent in the design of the patented z-cell design is alternating pressure as the mattress turns.

As with the other microAIR mattresses, these therapeutic systems offer relief for pressure ulcers from stages I through IV.

Another protective measure of the MA90 Series for patient safety is that the mattress recenters the patient between rotations. Also, the lateral rotation mode will automatically be stopped when the bed is in the fowler or upright mode.

Invacare

®

microAIR

®

MA90Z Lateral Rotation with

Alternating Pressure and On-Demand Low Air Loss with 50 LPM Compressor

Model no. MA90Z

The turn is offered to angles up to 30° for pulmonary therapy requirements with options for ¼, ½ and ¾ turns. Turn times available are 10, 20, 30 and 60 minutes with options to turn right or left only as well as both sides.

Specifications

Electrical Power: 90V, 60Hz, 1A

Dimensions:

Mattress: 12" x 36" x 80" Standard, 12" x 42" x 80" Bariatric 42",

12" x 48" x 80" Bariatric 48"

Power Unit: 14.5" x 11" x 6", 50 LPM (on MA90Z) or 1275 LPM (on MA95Z)

Power Cord: 14 ft.

Weight Capacity: 350 lb. – 1,000 lb.

Safety Code: 16 CFR 1632, 16 CFR 1633 compliant, TB129

Materials:

Mattress Cover: Urethane four way stretch quilted navy cover is

antimicrobial, fluid-resistant, vapor permeable.

Bottom cover is 1000 denier nylon

Air cells: 70 denier urethane coated nylon

Limited Warranty:

MA95.fsa

Mattress: 1 year

Power Unit: 2 years

Invacare

®

microAIR

®

MA95Z Lateral Rotation with

Alternating Pressure and True Low Air Loss with

1275 LPM Blower

Model no. MA95Z

This model allows for customization of patient therapy settings including up to 45° of turn, time and pressure. Alternating, static and pulse therapies are available in addition to the lateral rotation and continuous true low air loss relief.

Female

5' 5"

110 lbs

MA95Z Pressure Map: Female, 5’5”, 110 lbs.

Low Pressure

Monday, September 21, 2009 10:48:45.937 AM

70

65

60

55

50

45

40

35

30

25

20

15

10

5

0 mmHg

85

80

75

100

95

90

1

Bed

Report created by FSA - www.pressuremapping.com

Features: microAIR MA90Z/MA95Z Control Unit

• MA90Z – Energy saving compressor turns off to maintain

pressure setting

• MA90Z – Efficient solenoid air valves open and close to maintain

proper interface pressure

• MA90Z – Power outage safety with mattress hose connected

to the compressor

• MA95Z – Large LCD display with pulse, static, upright/fowler

and allows for angle and pressure adjustment

• MA95Z – Ninety degree, magnetic hose connector simplifies

set up and provides quick CPR deflate

• Efficient real time monitoring for correct pressure relief

• Wireless auto fowler automatically adds 25% more air to prevent

bottoming out when bed is articulated

• Settings retained during a power outage and will resume once

power is returned

• Up and down arrows allow adjustment for patient comfort and

pressure relief

• Max inflate with 30 minute safety feature

• Lock out button

• Static setting

• Visible and audible warning signal button

• Lightweight power unit attaches easily to bed ends

• 2 year warranty

Features: microAIR MA90Z/MA95Z Mattress

• Patented z-cell air cell design

• Constant air pressure side bolsters

• 2" safety foam added as safety measure

• Quick connect air cells

• CPR release

• Ninety degree magnetic connector simplifies set up (on MA95)

• Built-in carrying straps for easy transportation

• Buckle straps to secure mattress to bed deck

• Inflates quickly

• 1 year warranty

Features: microAIR MA90Z/MA95Z Cover

• Urethane four way stretch quilted navy cover

• Anti-microbial

• Fluid resistant

• Vapor permeable

MA90Z Lateral Rotation with Alternating Pressure and On-Demand

Low Air Loss

MA95Z Lateral Rotation with Alternating Pressure and True Low Air Loss

23

24

Therapeutic Support Surfaces

Group I and Group II Medicare Criteria

MEDICARE CRITERIA*

Support surfaces may be static (non-powered, reactive) or dynamic (moveable active surface). A static surface is recommended if a patient can assume varying positions without bearing weight on a pressure ulcer, generally a Group i surface. Dynamic surfaces are required if the patient cannot change positions without bearing weight on the pressure ulcer Or if the patient fully compresses the static support surface (usually Group ii) .**

GROUP I TREATMENT

Group i surfaces may be covered if the patient meets the following criteria:

1. Completely immobile (patient cannot move around without assistance).

OR

2. Limited mobility (patient cannot make changes in body positions significant enough to alleviate pressure) PLUS one of Number 4-7.

OR

3. Any stage pressure ulcer on the trunk or pelvis

PLUS one of Numbers 4-7.

AND

4. impaired nutritional status.

5. Fecal or urinary incontinence.

6. Altered sensory perception.

7. Compromised circulatory status.

GROUP II TREATMENT

Group ii surfaces may be covered if the patient meets the following criteria:

1. Multiple stage ii pressure ulcers located on the trunk or pelvis.

AND

2. Patient has been on a comprehensive ulcer treatment program*** for at least the past month which has included the use of a Group i support surface, and ulcers have worsened or remained the same over the past month.

OR

3. Large or multiple stage iii or iV pressure ulcer(s) on the trunk or pelvis.

OR

4. recent myocutaneous flap or skin graft for a pressure ulcer on the trunk or pelvis (surgery within the past 60 days).

AND

5. The patient has been on a Group ii or iii support surface immediately prior to a recent discharge from a hospital or nursing facility (discharge within the past 30 days).

* Medicare Criteria: This information is not intended to be, nor should it be considered, billing or legal advice. Providers are responsible for determining the appropriate billing codes when submitting claims to the Medicare program, and should consult an attorney or other advisor to discuss specific situations in further detail.

** This information is not medical advice. Each individual should always consult with his/her physician to determine proper product selection.

*** Documented comprehensive care plan/treatment program should generally include: education for patient and caregiver on prevention/management of pressure ulcers; regular assessment by a licensed practitioner (weekly if stage 3 or 4, monthly if stage 1 or 2); turning and positioning schedule; appropriate wound care (stage 3 or 4); appropriate management of moisture/ incontinence; nutritional assessment and intervention.

Group I

Therapeutic Support Surfaces

Model Name

Gel Overlay

Gel Foam

Mattress Overlay

IVCGFMO2

Alternating

Pressure

Invacare

®

CareGuard

Alternating Pressure Pad

System

CG9701

Invacare

®

Solace

®

Prevention Single Layer

Foam Mattresses

SPS0080

SPS0084

Model Number

Non-Powered

Invacare

®

Solace

®

Prevention Dual- Layer

Foam Mattresses

Invacare

®

Solace

®

Therapy Tri-Layer

Foam Mattresses

SPS1080

SPS2080

SPS3080

SPS2080B42

SPS2080B48

STS1080

STS2080

STS3080

STS2080B42

STS2080B48

HCPCS Code

Patient Risk Level

Medicare Reimbursement Range

Features

E0185 (IN)

Low

$285.47 - $335.85

E0181 (CR)

Low

$23.26 - $27.36

E0184 (IN)

Low - Medium

$173.77-$204.77

E0184 (IN)

Low - Medium

$173.77-$204.77

E0184 (IN)

Medium - High

$173.77-$204.77

Built-in Side Supports

SPS2080

SPS3080 n n

Comfort Settings/

Therapy Time Settings (min)

Adjustable

Cover

70 Denier nylon top

9 oz. tri-laminate vinyl bottom fluid resistant, vapor permeable

Latex free vinyl

70 Denier nylon top 11 oz. tri-laminate vinyl bottom fluid resistant, vapor permeable

Raised Side Rail Design Available

Quick CPR Release

Fortress Cut Convoluted Foam

Mattress Construction

Mattress Dimensions

Weight Capacity

CFR Fire Safety Testing

16 CFR 1632, 16 CFR 1633

Limited Warranty

Mattress

Power Unit

Cover

Gel

34" x 78" x 3.5"

275 lb.

n

6 months

6 months n

Pads

34" x 118" x 2.5"

250 lb.

Not required

30 days

1 year n

Foam

36" x 80" x 6"

350 lb. n

2 years

1 year n n

Foam

36" x 80" x 6"

350 lb. / 400 lb. n

5 years

1 year n n

Foam

36" x 80" x 6"

350 lb. / 650 lb. n

5 years

1 year

Solace

®

Resolution

Mattresses

SRS1080

E0184 (IN)

High Risk & Therapy

$173.77-$204.77

n n n

Foam

36" x 80" x 6"

350 lb.

n

5 years

1 year

25

26

Group II

Therapeutic Support Surfaces

Model Name

Model Number

Alternating Pressure

Invacare

® microAIR ® MA50

- 5" Overlay

Invacare

® microAIR ® MA51

Mattress

MA50 MA51

Invacare

® microAIR ® MA60

10" AP Mattress

MA60

Invacare

®

microAIR ® MA55

AP/LAL

MA55

Alternating Pressure

Low Air Loss

Invacare

® microAIR ® MA65

AP/LAL

Invacare

® microAIR ® MA85

True Low Air Loss AP

MA65

MA65RSR

MA65B42

MA65B48

MA85

MA85RSR

MA85B42

MA85B48

E0372 (CR)

Therapy

E0277 (CR)

Therapy

E0277 (CR)

Therapy

E0277 (CR)

Therapy

E0277 (CR)

Therapy

$414.89 - $488.10 $584.14 - $636.64

$584.14 - $636.64

$584.14 - $636.64 $584.14 - $636.64

E0277 (CR)

Therapy

$584.14 - $636.64

HCPCS Code

Patient Risk Level

Medicare Reimbursement Range

Type of Therapy

Alternating Pressure

Low Air Loss

Lateral Rotation

Compressor Features

State of the Art Compressor

Blower

Therapy Time Settings (min)

Comfort Settings

Fowler Indicator

Wireless Fowler

Power Failure/Low Pressure Alarm

Alarm Silence

Quick Connect Coupler

Mattress Features n

10 LPM

5, 10, 15, 20 n n n n n n

10 LPM

5, 10, 15, 20 n n n n n n

50 LPM

5, 10, 15, 20 n n n n n n n

On-demand

10 LPM

5, 10, 15, 20 n n n

­­­n n n

On-demand

50 LPM

5, 10, 15, 20 n n n n n n n

True

1275 LPM

5, 10, 15, 20 n n n n n n­ magnetic

Mattress Dimensions

Mattress Construction

Safety Mat 2" Foam

Built-in Side Supports

36" x 80" x 6" 36" x 80" x 8"

16 - Bladders 16 - Bladders n

36" x 80" x 10"

20 - Bladders n

36" x 80" x 8"

16 - Bladders n

36" x 80" x 10"

36" x 80" x 12"

42" x 80" x 10"

48" x 80" x 10"

20 - Bladders n

36" x 80" x 10"

36" x 80" x 12"

42" x 80" x 10"

48" x 80" x 10"

20 - Bladders n

Cover

70 Denier quilted nylon

600 Denier nylon bottom

70 Denier quilted nylon

600 Denier nylon bottom n n

350 lb.

350 lb.

Dual quilted slip layer cover

1000 Denier nylon bottom n

350 lb.

70 Denier quilted nylon

1000 Denier nylon bottom

Dual quilted slip layer cover

1000 Denier nylon bottom n n

350 lb.

350 lb.

1,000 lb.

Dual quilted slip layer cover

1000 Denier nylon bottom n

350 lb.

1,000 lb.

Quick CPR Release

Weight Capacity

Bariatric Weight Capacity

Z Cell

CFR Fire Safety Testing

16 CFR 1632, 16 CFR 1633

Limited Warranty

Mattress

Power Unit

Cover

Not required

1 year

2 year

1 year n

1 year

2 year

1 year n

1 year

2 year

1 year n

1 year

2 year

1 year n

1 year

2 year

1 year n

1 year

2 year

1 year

Model Name

Model Number

HCPCS Code

Patient Risk Level

Medicare Reimbursement Range

Type of Therapy

Alternating Pressure

Low Air Loss

Lateral Rotation

Compressor Features

State of the Art Compressor

Blower

Therapy Time Settings (min)

Comfort Settings

Fowler Indicator

Wireless Fowler

Power Failure/Low Pressure Alarm

Alarm Silence

Quick Connect Coupler

Mattress Features

Mattress Dimensions

Mattress Construction

Safety Mat 2" Foam

Built-in Side Supports

Cover

Quick CPR Release

Weight Capacity

Bariatric Weight Capacity

Z Cell

CFR Fire Safety Testing

16 CFR 1632, 16 CFR 1633, TB129

Limited Warranty

Mattress

Power Unit

Cover

Group II

Therapeutic Support Surfaces

Invacare

® microAIR ® MA80

True Low Air Loss

MA80

MA80RSR

MA80B42

MA80B48

Invacare

® microAIR ® MA90Z

Turn/LAL/AP

MA90Z

MA90ZB42

MA90ZB48

Invacare

® microAIR ® MA95Z

Turn/LAL/AP

MA95Z

MA95ZB42

MA95ZB48

E0277 (CR)

Therapy

$584.14 - $636.64

E0277 (CR)

Therapy

$584.14 - $636.64

E0277 (CR)

Therapy

$584.14 - $636.64

True n

On-demand

30° cell n

True

45° cell

50 LPM

1275 LPM

N/A n n n n n n­

10, 20, 30, 60 n n­ on-display n n n n

1275 LPM

Custom n n­ on-display n n n n­ magnetic

36" x 80" x 10"

36" x 80" x 12"

42" x 80" x 10"

48" x 80" x 10"

20 - Bladders n

Dual quilted slip layer cover

1000 Denier nylon bottom n

36" x 80" x 12"

42" x 80" x 12"

48" x 80" x 12"

24 - Bladders n

12" Side bolsters

Urethane with honey comb layer cover

1000 Denier nylon bottom n

350 lb.

1,000 lb.

350 lb.

1,000 lb.

n

36" x 80" x 12"

42" x 80" x 12"

48" x 80" x 12"

24 - Bladders n

12" Side bolsters

Urethane 4-way stretch quilted top cover n

350 lb.

1,000 lb.

n n

1 year

2 year

1 year n

1 year

2 year

1 year n

1 year

2 year

1 year

27

Invacare

®

Therapeutic Support Surfaces

Educational Training & Selling Tools

Case Study

A study of Invacare

® microAIR

®

modules in prevention, healing and palliative condition.

• Form number 09-019

Provider Presentation Folder

Kit contains Therapeutic Support Surfaces catalog,

Medicare trifold, DVD and Case Study Brochure.

• Form number 08-069

Medicare Tri-fold

• Form number 06-081 (included in folder)

Product Information DVD

Case Study

Invacare ® microAIR ® and Solace ® Therapeutic

Mattress product information DVD (included in folder)

• English version 08-055

• Spanish version 09-015

Marketing Brochure

Homecare Products catalog

• Form number 09-009

CEU Program

Contact your Territory Business Manager.

Horizontal gift:Vertical 11/13/09 1:28 PM Page 6

microAIR

® and Solace

®

Therapeutic Mattresses

The new line of Therapeutic Support

Surfaces includes the Invacare ® Solace ®

Foam and Invacare

® mircoAir

®

Powered

TSS Products. These products offer unique enhancements resulting in a TSS line that blends technology with comfort.

Your company

is the right solution to helping you find

Peace of Mind.

One Invacare Way

Elyria, Ohio

44035-4190

(800) 333-6900

Horizontal

Call today

xxx.xxx.xxxx

xxx.xxx.xxx

or visit our website at www.zzzzzzzzzzzz.com

Peace of

For more information, contact your Invacare

Territory Business Manager at 1-800-333-6900 or visit our website at www.

invacare.com

All references to HCPCS codes: Providers are responsible for determining the appropriate billing codes when submitting claims to the Medicare program and should consult an attorney or other advisor to discuss specific situations in further detail.

Invacare Corporation www.invacare.com

USA

One Invacare Way

Elyria, Ohio

44035-4190

(800) 333-6900

Canada

570 Matheson Blvd. E.

Unit 8

Mississauga, Ontario

L4Z 4G4 Canada

(800) 668-5324

Dealer Presentation Folder

Product Information DVD

The Marketing Toolbox

Direct Mail Post Cards

The Marketing Toolbox is located within Invacare

Pro. The Marketing Toolbox contains many customizable templates to help grow your business.

All you need to do is pay for the cost of printing and advertising with your choice of vendors.

© 2011

Invacare Corporation.

All rights reserved.

Trademarks are identified by the symbols ™ and ®.

All trademarks are owned by or licensed to

Invacare Corporation unless otherwise noted.

Specifications are subject to change without notification.

Form No. 08-047

Rev. 02/11

110223

Direct Mail Post Cards

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
