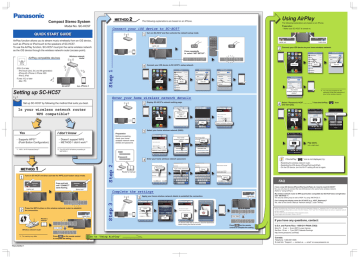

SC-HC57(Network Setup Sheet for AirPlay)

SC-HC57(Network Setup Sheet for AirPlay)
Compact Stereo System
Model No. SC-HC57
METHOD 2
The following explanations are based on an iPhone.
Preparation
- Make sure SC-HC57 is turned on.
Connect your iOS device to SC-HC57
QUICK START GUIDE
1
Turn on SC-HC57 and then activate the network setup mode.
AirPlay function allows you to stream music wirelessly from an iOS device,
such as iPhone or iPod touch to the speakers of SC-HC57.
To use the AirPlay function, SC-HC57 must join the same wireless network
as the iOS device through the wireless network router (access point).
AirPlay compatible devices
Using AirPlay
The following explanations are based on an iPhone.
Lights red
Lights red
1
Press repeatedly
to select “NET SETUP”.
e.g., iPhone 4
Setting up SC-HC57
“Wi-Fi”
“Settings”
“Wi-Fi”
“Settings”
Connect your iOS device to SC-HC57’s setup network.
Step 1
2
SC-HC57
Turn on
Turn on
“Setup _ _ _ _ _ _”
Your home
wireless network name
(SSID)*4
*4 : You may be prompted for the
password. Enter the password of
your home wireless network.
Enter your home wireless network details
1
Set up SC-HC57 by following the method that suits you best.
Is your wireless network router
WPS compatible?
Display SC-HC57’s network setting page.
2
I don’t know
- Doesn’t support WPS
- METHOD 1 didn’t work*2
Select “Panasonic HC57 _ _ _ _ _ _” from the AirPlay “
and start play.
Address bar :
Type in
“192.168.1.12”
“Safari”
2
Preparation
Before proceeding,
check your home
wireless network name
(SSID) and password.
” icon
“Panasonic HC57 _ _ _ _ _ _ ”
“Music”
“Go”
- Supports WPS*1
(Push Button Configuration)
Connect your iOS device to your home wireless network.
Wireless network
router
iOS 4.2 or later
- iPod touch (2nd, 3rd, and 4th generation)
- iPhone 4S, iPhone 4, iPhone 3GS
- iPad 2, iPad
iTunes 10.2 or later
- Mac / PC
Yes
Lights blue
“
”
“Search wireless network”
Select your home wireless network (SSID).
Your home
wireless network name
(SSID)
“Done”
“
”
Play starts.
(with a slight delay)
*2 : Turn SC-HC57 off before proceeding to
METHOD 2.
*1 : WPS : Wi-Fi Protected SetupTM
“Network name (SSID)”
SSID:
XXXXXXXXXXXX
METHOD 1
1
Turn on SC-HC57 and then activate the WPS push button setup mode.
Press and hold
until “CONNECT”
starts flashing.
Lights red
Blinks blue
Step 2
Password:
XXXXXXXXXXXX
3
“Password”
Router
Router’s manual
*
3
Lights blue
Router’s
manual
Type in the password
“Done”
FAQ
I have a new iOS device (iPhone/iPod touch/iPad), do I need to reset SC-HC57?
No, you only have to connect the new iOS device to the same home wireless network.
(Refer to “Using AirPlay”)
Apply your home wireless network details to establish the connection.
Lights blue
Wireless network router
*3 : The marking may differ.
RQCA2062-1
Press
on the remote control
to complete the setting.
Go to “Using AirPlay”
My wireless network router is WPS push button compatible but SC-HC57 does not light blue
with “METHOD 1”.
The security setting may be set to WEP. Try using “METHOD 2”.
Can I change the display name for SC-HC57 (e.g., HC57_Bedroom)?
Yes, refer to the Owner’s Manual “Network settings”, under “AirPlay”.
AirPlay, the AirPlay logo, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance. "Wi-Fi" and "Wi-Fi Protected Setup" are marks or registered marks of
the Wi-Fi Alliance.
All other trademarks are trademarks of their respective owners.
Screen images used in this sheet : iPhone 4, iOS 5.0.1
“JOIN”
“
“
”
”
“OK”
On devices other than an iPhone, close the tab/window
before closing the Internet browser.
2 min. (Max)
” icon is not displayed, try:
- Restarting the wireless network router.
- Restarting the iOS deviсe (iPhone/iPod touch/iPad).
- On the iOS device, turn the Wi-Fi® setting off and on again.
Complete the settings
Step 3
Press the WPS button on the wireless network router to establish
the connection.
If the AirPlay “
“NEXT”
1
2
Enter your home wireless network password.
2 min. (Max)
If you have any questions, contact:
Press
on the remote
control to complete the setting.
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Mon-Fri: 9 am  9 pm (EST) Lunes-Viernes
Sat-Sun: 10 am  7 pm (EST) Sabado-Domingo
http://www.panasonic.com/help
Canada:
Telephone: 1-800-561-5505
E-mail link: “Support  contact us  email” on www.panasonic.ca
