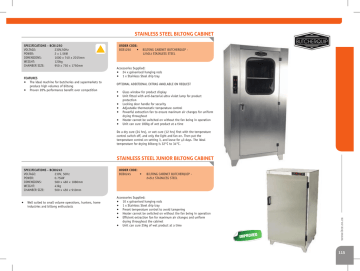

STAINLESS STEEL JUNIOR BILTONG CABINET

STAINLESS STEEL JUNIOR BILTONG CABINET

SPECIFICATIONS - BCB1250

VOLTAGE: 230V,50Hz

POWER: 2 x 1.5kW

DIMENSIONS:

WEIGHT:

CHAMBER SIZE:

1000 x 740 x 2015mm

120kg

950 x 730 x 1750mm

The ideal machine for butcheries and supermarkets to produce high volumes of biltong

Proven 20% performance benefi t over competition

STAINLESS STEEL BILTONG CABINET

ORDER CODE:

BCB1250 • BILTONG CABINET BUTCHERQUIP -

24 x galvanised hanging rods

1 x Stainless Steel drip tray

OPTIONAL ADDITIONAL EXTRAS AVAILABLE ON REQUEST

• Glass window for product display

Unit fi tted with anti-bacterial ultra violet lamp for product protection

Locking door handle for security

Adjustable thermostatic temperature control

Powerful extraction fan to ensure maximum air changes for uniform

• drying throughout

Heater cannot be switched on without the fan being in operation

Unit can cure 100kg of wet product at a time

Do a dry cure (24 hrs), or wet cure (12 hrs) fi rst with the temperature control switch off, and only the light and fan on. Then put the temperature control on setting 3, and leave for ±3 days. The ideal temperature for drying biltong is 32°C to 34°C.

STAINLESS STEEL JUNIOR BILTONG CABINET

ORDER CODE:

BCB0245 • BILTONG CABINET BUTCHERQUIP -

STAINLESS STEEL

SPECIFICATIONS - BCB0245

VOLTAGE:

POWER:

230V, 50Hz

0.75kW

DIMENSIONS:

WEIGHT:

CHAMBER SIZE:

580 x 460 x 1080mm

43kg

500 x 450 x 910mm

Well suited to small volume operations, hunters, home industries and biltong enthusiasts

10 x galvanised hanging rods

1 x Stainless Steel drip tray

Preset temperature control to avoid tampering

Heater cannot be switched on without the fan being in operation

Effi cient extraction fan for maximum air changes and uniform drying throughout the cabinet

Unit can cure 25kg of wet product at a time

IMPROVED

115

116

03

THE SOUS VIDE TECHNIQUE

SOUS VIDE also known as low temperature cooking, was developed in 1974 to reduce shrinkage when preparing foie gras. Development of the technique resulted in an unexpected low shrinkage of less than 5% compared to the 40% seen with conventional cooking methods.

Souse Vide cooking has been proven to reduce consistent, high quality results every time: retaining vitamins, micro nutrients, and mineral salts fat compositions are not altered - resulting in a noticeably better taste and texture.

Due to a temperature consistency of ±0.01°C chefs are able to prepare fish, meat or vegetables exactly as desired. Once the preferred temperature is reached, it can be kept constant for hours - making it virtually impossible to over cook any type of food. Using water as the heating medium guarantees that the temperature is the same at every point in the bath/vessel.

Consider all of these advantages Sous Vide cooking provided a real alternative to conventional cooking methods. Maximize kitchen efficiency, save on overhead expenses, and increase menu quality.

BENEFITS OF SOUS VIDE COOKING

• Retains all nutrients

• Highest possible food quality

• Improves kitchen time management and efficiency

• Reduces shrinkage loss to max. 5%

• Preserves the natural flavor of the food

• Saves money due to more efficient cooking and reduces spoilage

• Freshness, color and appearance remain unchanged until serving

• Constantly reliable results due to ±0.01°C temperature

• No moisture loss, minimal shrinkage

• No more over cooking

SPECIFICATIONS

WIDTH:

HEIGHT:

DEPTH:

310mm

260mm

345mm

SPECIFICATIONS

WIDTH:

HEIGHT:

DEPTH:

640mm

260mm

345mm

SPECIFICATIONS

POWER:

VOLTAGE:

MAXIMUM TEMPERATURE:

DIMENSIONS:

WEIGHT:

1.4 kW

230V, 50Hz

100°C at sea level

120 x 300 x 370mm

4kgs

SOUS VIDE WATER BATH

ORDER CODE:

SVD0014 • SOUS VIDE BATH 14Lt

All bodies are constructed from Stainless Steel

Inner tanks are manufactured from grade 304 Stainless Steel for exceptional corrosion resistance

Specially designed gable lid to ensure no direct dripping of condensate

NEW PRODUCT

ORDER CODE:

SVD0034 • SOUS VIDE BATH 34Lt

All bodies are constructed from Stainless Steel

Inner tanks are manufactured from grade 304 Stainless Steel for exceptional corrosion resistance

Specially designed gable lid to ensure no direct dripping of condensate

SOUS VIDE CIRCULATOR

ORDER CODE:

SVD0001 • SOUS VIDE CIRCULATOR

Powerful circulation pump to ensure uniform temperature

• distribution within the bath

High quality, incolloy immersion heating element

Electronic temperature control with digital indication of set and process value

High accuracy pt 100 temperature sensor

Solid state control relay for optimum reliability

NEW PRODUCT

117

118

04

PRoceSSinG

Want to prepare, convert, mix or preserve? Our comprehensive range of processing equipment will assist you in bringing about the desired result. Whether you are looking for bandsaws, mixers or cutters you are bound to find the ideal piece of equipment for every step in the food preparation procedure.

Be sure to take a look at our exclusive range of Rheninghaus meat slicers and

Orved vacuum pack machines.

SECTION INDEX

Argenta Slicer

Bandsaw

Bar Blender

Bermixer

Beta Steak Slicer

Biltong Slicer

Bowl Cutter

Cheese Slicer

Chipper

Citrus Extractor

Deli Slicer

Deluxe Polony Slicer

Dough Mixer

Food Blender

Food Liquidiser

Funnels

Hand Mincer

Ice Crusher

Ice Shaver

Immersion Mixer

Juice Extractor

Mandoline Slicer

Milk Shake Mixer

Mincer - Hand

Mincer - Electric

Mincer Knives

Mincer Plates

Mixer

Multi Juicer

Patty Machine

Planetary Mixer

Potato Chipper

Potato Peeler

Sausage Filler

Start Slicer

Stellina Slicer

Strip Cutter

Summit Blender

Tenderiser

Tomato Slicer

Vacuum Pack Machine

Vegetable Cutter

Vegetable Mill

Wrapping Machine

119

120

04

“The Robot Coupe is a piece of equipment that I have used in every kitchen I have worked in over the last 10 years. It is an incredibly versatile product – it can be used for so many different preparations! But I am most impressed by its durability. It is a product that can withstand every requirement of tough industry use. There are similar products on the market, but the Robot

Coupe is the only one I would recommend. Along with BCE

Foodservice Equipment’s excellent service, it has truly stood the test of time.”

Andrew Atkinson, Executive Chef

121

122

04

IMMERSION MIXER

SPECIFICATIONS - MINI MIXER

LENGTH OF TUBE: 230mm

MOTOR POWER: 0.175kW, 220V, 50Hz

WEIGHT:

SIZE:

1.72kg

440 x 600 x 700mm

ORDER CODE:

MMH1000 • HAMILTON BEACH IMMERSION MIXER -

HAND HELD

Fully portable, ideal to mix soups or salsas directly in the bowl.

Suitable for small restaurants, coffee shops or any other light duty application.

POWER MIXER

Through the dedication and hard work of Robot Coupe’s staff, the company has become the foodservice industry leader in the development and refi nement of food processors, vegetable preparation units, and combination processing units. For the Healthcare sector, the Blixer produces the smoothest and creamiest of purees and patés in just seconds. Robot Coupe has introduced its new line of Power Mixers, which is distinguished from its competition by its superior cleanability, power, ease of use and enhanced sanitation.

SPECIFICATIONS - MINI MP 160 V.V. VARIABLE SPEED - IDEAL FOR SMALL QUANTITIES

LENGTH OF TUBE: 160mm - Ø 78mm TOTAL LENGTH: 430mm

VARIABLE SPEED: from 2000 to 12500rpm

MOTOR POWER: 220W - SINGLE PHASE - 230 V 50Hz

SPECIFICATIONS - MINI MP 190 V.V. - IDEAL FOR SMALL QUANTITIES

LENGTH OF TUBE: 190mm - Ø 78mm TOTAL LENGTH: 470mm

VARIABLE SPEED: from 2000 to 12500rpm

MOTOR POWER: 250W - SINGLE PHASE - 230 V 50Hz

NEW PRODUCT

A

B

C

D

SPECIFICATIONS - MINI MP 240 Combi (WHISK AND KNIFE)

LENGTH OF TUBE: 240mm - Ø 78mm TOTAL LENGTH: 520mm

TOTAL LENGTH WITH WHISK: 585mm

VARIABLE SPEED: from 2000 to 12500rpm (mixer function)

MOTOR POWER: from 350 to 1560rpm (whisk function)

270W - SINGLE PHASE - 230 V 50Hz

SPECIFICATIONS - CMP 300 V.V.

LENGTH OF TUBE: 300mm- Ø 94mm TOTAL LENGTH: 660mm

VARIABLE SPEED: from 2300 to 9600rpm

MOTOR POWER: 350W - SINGLE PHASE - 230 V 50Hz

SPECIFICATIONS - MP 450 Ultra

LENGTH OF TUBE: 450mm - Ø 125mm TOTAL LENGTH: 825mm

SINGLE SPEED:

MOTOR POWER:

9500rpm

500W - SINGLE PHASE - 230 V 50Hz

SPECIFICATIONS - MP 450 Combi Ultra (WHISK AND KNIFE)

LENGTH OF TUBE: 450mm - Ø 125mm TOTAL LENGTH: 890mm

TOTAL LENGTH WITH WHISK: 840mm

VARIABLE SPEED: from 1500 to 9000rpm (mixer function)

MOTOR POWER: from 250 to 1500rpm (whisk function)

500W - SINGLE PHASE - 230 V 50Hz

ORDER CODES:

PMM0160 A POWER MIXER MINI MP 160V.V (Knife and emulsifying disc included)

PMM0190 B POWER MIXER MINI MP 190 V.V. (Knife and emulsifying disc included)

PMC1240 C POWER MIXER MINI 240 Combi (Whisk and knife included)

PMC0300 D POWER MIXER CMP 300 V.V. (Knife included)

PML0450 E POWER MIXER MP 450 Ultra (Knife included)

PML1450 F POWER MIXER MP 450 Combi Ultra (Whisk and knife included)

PMC0001 G UNIVERSAL PAN SUPPORT

FEATURES

• Stainless Steel knife, bell and tube.

• Removable foot and knife, a robot-coupe exclusive patented system.

• Delivered with 1 stainless steel wall support.

• MP 240 combi: metal gearbox even more resistant when processing pan cakes or fresh mashed potatoes

• Removable knife, a Robot-Coupe exclusive patented system.

• Foot equipped with a 3 level watertightness system.

• MP450 Ultra and MP450 Combi Ultra supplied with

Stainless Steel motor base.

E

G

F

123

04

DISCS COLLECTION

124

1 mm

2 mm

3 mm

4 mm

5 mm

6 mm

8 mm

DISCS

R 201 Ultra - R 301 Ultra

CL 30 Bistro

R 502

CL 50 - CL 60

SLICERS

almonds 0,6 mm UPR0006

0,8 mm UPR1008

FPR0001

FPR0002

FPR0003

FPR0004

FPR0005

FPR0006

UPR0001

UPR0002

UPR0003

UPR0004

UPR0005

UPR2006

UPR0008

10 mm

14 mm

4 mm for cooked potatoes

UPR0010

UPR0014

UPR1014

6 mm for cooked potatoes UPR1006

RIPPLE CUT SLICERS

2 mm

3 mm

5 mm

GRATERS

1,5 mm

2 mm

3 mm

4 mm

5 mm

6 mm

7 mm

9 mm

Parmesan

Röstis potatoes

0,7 mm for horseradish paste

1 mm for horseradish paste

1,3mm for horseradish paste

FPR1002

FPR2015**

FPR2002**

FPR2003**

FPR2006

FPR2009

FPR3001

FPR3002

FPR3004

FPR3005

FPR3006

UPR2002

UPR2003

UPR2005

UPR3015

UPR3002

UPR3003

UPR3004

UPR3005

UPR3007

UPR3009

UPR4001

UPR4002

UPR4003

DISCS

R 201 Ultra - R 301 Ultra

CL 30 Bistro

R 502

CL 50 - CL 60

JULIENNE

1 x 8 mm

1 x 30 Onions/Cabbage

2 x 2 mm

2.5 x 2.5 mm

2 x 4 mm

2 x 6 mm

2 x 8 mm

2 x 10 mm

3 x 3 mm

4 x 4 mm

6 x 6 mm

8 x 8 mm

FPR4002

FPR4004

FPR4006

FPR5004

FPR5006

FPR5008

UPR4008

UPR4030

UPR5002

UPR5025

UPR5004

UPR5006

UPR5008

UPR5010

UPR6003

UPR6004

UPR6006

UPR6008

R 502

CL 50 - CL 60

DISCS

DICING EQUIPMENTS (1 dicing grid + 1 slicer)

5 x 5 x 5 mm

8 x 8 x 8 mm

FPR8008

10 x 10 x 10 mm

12 x 12 x 12 mm

14 x 14 x 14 mm

14 x 14 x 5 mm (mozzarella)

FPR8010

FPR8012

14 x 14 x 10 mm

20 x 20 x 20 mm

25 x 25 x 25 mm

50 x 70 x 25 mm

CL 30 Bistro

UPR6005

UPR6018

UPR6010

UPR6014

UPR6015

UPR6111

UPR6020

UPR6025

UPR6050

FRENCH FRIES EQUIPMENTS*

8 x 8 mm

10 x 10 mm

10 x 16 mm

FPR9008

FPR9010

UPR7008

UPR7010

UPR7016

* Not available for CL 60 with pusher feed head

** Available only for R 201 Ultra - R 301 Ultra

NB: FRENCH FRY AND CUBING DISCS MUST BE USED WITH DEDICATED BLADE SUPPLIED

WITH CUBER

SLICERS

RIPPLE CUT SLICERS

GRATERS

JULIENNE

DICING EQUIPMENTS

FRENCH FRIES EQUIPMENTS

2 MACHINES IN 1 !

A cutter bowl and a vegetable preparation attachment on the same motor base.

They easily chop, grind, knead, mix and thanks to their complete selection of discs, grate, slice, julienne and for R502 dice and make French fries to perfection. They can perform any number of tasks, which you will gradually discover as you use them.

ORDER CODE:

FPR0201 A FOOD PROCESSOR COMBO R201 ULTRA

SPECIFICATIONS - R201 ULTRA (10 TO 30 SERVINGS)

POWER: 550W - SINGLE PHASE - 230 V 50Hz

SINGLE SPEED: 1500rpm - PULSE FUNCTION

DIMENSIONS: 495 x 220 x 280mm

DELIVERED WITH:

• 2.9 LITRE STAINLESS STEEL CUTTER BOWL WITH ERGONOMIC HANDLE.

• SMOOTH BLADE

LID EQUIPPED WITH TWO HOPPERS :

A LARGE HOPPER FOR LARGE VEG AND A CYLINDRICAL HOPPER FOR LONG OR FRAGILE VEG

(CARROTS, CUCUMBERS...)

2 DISCS: SLICER 2mm AND GRATER 2mm.

CUTTING DISCS SEE PG 124

ORDER CODE:

FPR0301 B FOOD PROCESSOR COMBO R301 ULTRA

SPECIFICATIONS - R301 ULTRA (10 to 70 SERVINGS)

POWER: 650W - SINGLE PHASE - 230 V 50Hz

SINGLE SPEED: 1500rpm - PULSE FUNCTION

DIMENSIONS: 550 x 325 x 300mm

DELIVERED WITH:

• 3.7 LITRE STAINLESS STEEL CUTTER BOWL WITH BRUSHED FINISH AND ERGONOMIC

HANDLE.

• SMOOTH BLADE

VEGETABLE SLICER WITH EJECTION EQUIPPED WITH TWO HOPPERS:

1 HALF-MOON HOPPER (AREA : 104cm2) AND ONE CYLINDRICAL HOPPER (Ø:58mm).

4 DISCS: SLICER 2mm, 4mm; GRATER 2mm and Julienne 2x2mm

CUTTING DISCS SEE PG 124

FEATURES

• Induction motor

• Mechanical safety system for R201 Ultra and magnetic safety system for R301 Ultra and motor brake.

• Complete selection of Stainless Steel discs available

FOOD PROCESSORS: CUTTERS AND VEGETABLE SLICERS

10 to 20 servings

A

2.9 LITRE BOWL

10 to 70 servings

B

3.7 LITRE BOWL

C

30 to 300 servings

5.5 LITRE BOWL

ORDER CODE:

FPR0502 C FOOD PROCESSOR COMBO R502

SPECIFICATIONS - R502 (30 TO 300 SERVINGS)

POWER:

2 SPEEDS:

1000W - 3-PHASE - 400 V 50Hz

750 and 1500rpm - PULSE FUNCTION

DIMENSIONS: 665 x 380 x 350mm

DELIVERED WITH:

• 5.5 LITRE STAINLESS STEEL BOWL WITH HANDLE

• SMOOTH BLADE

VEGETABLE SLICER WITH EJECTION EQUIPPED WITH TWO

HOPPERS :

LARGE HOPPER OF 139cm2 AND CYLINDRICAL HOPPER (Ø: 58mm)

NO DISCS INCLUDED - CUTTING DISCS SEE PG 124

125

126

04

A

VEGETABLE PREPARATION MACHINES

Today, we are encouraged to eat at least 5 portions of fresh fruit and vegetables each day. As variety is the spice of life, your Robot Coupe vegetable preparation machine can be fi tted with a large range of discs and cutting sets for slicing, grating, julienne and dicing any fruit or vegetable you wish. Let your imagination and creativity go.

20 to 80 servings

C

D

ALL STAINLESS

STEEL

EXCEPT FEED HEAD

BASE (ALUMINIUM)

20 to 300 servings

E

(TROLLEY SOLD SEPARATELY- EXCLUDES CONTAINER)

300 to 3000 servings

B

ORDER CODE:

VPR0030 A VEGETABLE PREPARATION MACHINE CL30 Bistro

SPECIFICATIONS - VEGETABLE PREPARATION MACHINE CL30 Bistro

(20 TO 80 SERVINGS)

POWER: 500W - SINGLE PHASE - 250 V 50Hz

SINGLE SPEED: 375rpm

DIMENSIONS: 590 x 320 x 304mm

OUTPUT PER HOUR: UP TO 80kg/h

DELIVERED WITH:

REMOVABLE BOWL AND LID IN ABS EQUIPPED WITH A LARGE HOPPER

(AREA:104cm

2

) AND A CYLINDRICAL HOPPER (Ø :58mm).

ORDER CODE:

VPR0050 B VEGETABLE PREPARATION MACHINE CL50

SPECIFICATIONS - VEGETABLE PREPARATION MACHINE CL50

(20 TO OVER 300 SERVINGS)

POWER: 550W - SINGLE PHASE - 250 V 50Hz

SINGLE SPEED: 375rpm

DIMENSIONS: 590 x 350 x 320mm

OPERATING TIME : UP TO 250kg/h

DELIVERED WITH:

REMOVABLE LID EQUIPPED WITH A LARGE HALF MOON

HOPPER (AREA:139cm

2

) AND A CYLINDRICAL HOPPER (Ø :58mm).

FEATURES

• Industrial induction motor for heavy duty use guarantees durability and reliability.

• Magnetic safety system and motor brake

• Automatic restart of the machine with the pusher.

• Complete selection of 28 discs for CL 30 Bistro and 50 discs available for CL50 - see pg 124

ORDER CODES:

VPR0060 • CL60 VEG PREPARATION MACHINE WITH PUSHER FEED HEAD

VPR1060 • CL60 AUTOMATIC FEED HEAD ONLY

VPR2060 C CL60 VEG PREPARATION MACHINE WITH AUTOMATIC FEED HEAD

VPR3060 D CL60 PUSHER FEED HEAD

VPR4060 E CL60 TROLLEY

SPECIFICATIONS - VEGETABLE PREPARATION MACHINE CL60 WITH PUSHER FEED HEAD -

300 TO 600 SERVINGS (300 TO OVER 3000 SERVINGS WITH AUTO FEED HEAD)

POWER: 1500W - 3-PHASE - 400 V 50Hz

2 SPEEDS:

DIMENSIONS:

375 and 750rpm

1260 x 404 x 545mm

OPERATING TIME : UP TO 900kg/h

ORDER CODE:

BCR0002 A BOWL CUTTER R2 A - 2.9Lt

SPECIFICATIONS - BOWL CUTTER R2 A

(10 TO 20 SERVINGS)

POWER: 550W - SINGLE PHASE - 250 V 50Hz

SINGLE SPEED: 1500rpm - PULSE FUNCTION

DIMENSIONS: 350 x 200 x 280mm

DELIVERED WITH: STAINLESS STEEL BOWL WITH HANDLE, 2.9 LITRE

CAPACITY AND SMOOTH BLADE

BOWL CUTTERS

Robot-Coupe Table Top Cutters have been designed to process all types of food and will mix, grind, chop, knead and puree with speed and effi ciency, giving consistent righ quality end-products in a couple of minutes for the longest preparation.

2.9 LITRE BOWL

A

ORDER CODE:

BCR0003 B BOWL CUTTER R3-1500 - 3.7Lt

SPECIFICATIONS - BOWL CUTTER R3 - 1500

(10 TO 30 SERVINGS)

POWER: 650W - SINGLE PHASE - 250 V 50Hz

SINGLE SPEED: 1500rpm - PULSE FUNCTION

DIMENSIONS: 400 x 210 x 320mm

DELIVERED WITH: STAINLESS STEEL BOWL WITH ERGONOMIC HANDLE,

3.7 LITRE CAPACITY AND SMOOTH BLADE

B

3.7 LITRE BOWL

10 to 30 servings

ORDER CODE:

BCR0004 C BOWL CUTTER R4–1500 - 4.5Lt

SPECIFICATIONS - BOWL CUTTER R4 1500

(10 TO 50 SERVINGS)

POWER: 700W - SINGLE PHASE - 250 V 50Hz

SINGLE SPEED: 1500rpm - PULSE FUNCTION

DIMENSIONS: 440 x 226 x 304mm

DELIVERED WITH: STAINLESS STEEL BOWL WITH HANDLE, 4.5 LITRE

CAPACITY AND SMOOTH BLADE

FEATURES

• Pulse function

• Industrial induction motor for heavy duty use guarantees durability and reliability

• Magnetic safety system (except for R2 which has a mechanical safety) and motor brake

10 to 20 servings

C

4.5 LITRE BOWL

10 to 50 servings

127

128

04

D

BOWL CUTTER

SPECIFICATIONS - BOWL CUTTER R10

(50 TO 200 SERVINGS)

POWER: 2200W - 3-PHASE - 400 V 50Hz

2 SPEEDS: 1500 and 3000rpm - PULSE FUNCTION

DIMENSIONS: 660 x 345 x 560mm

DELIVERED WITH:

STAINLESS STEEL BOWL WITH HANDLES,

11.5 LITRE CAPACITY AND STAINLESS STEEL 3 SMOOTH

BLADE ASSEMBLY. REMOVABLE BLADE FOR CLEANING.

ORDER CODE:

BCR0010 D BOWL CUTTER R10 - 11.5Lt

FEATURES

• Pulse function

• Industrial induction motor for heavy duty use guarantees durability and reliability

• Magnetic safety system (except for R2 which has a mechanical safety) and motor brake

50 to 200 servings

BLIXER

®

THE FUNCTIONS OF A CUTTER + A BLENDER IN 1 MACHINE

• Since 1991, Robot-Coupe has always been improving the Blixers to chew and swallow.

® concept in close partnership with healthcare and catering specialists, in order to process food for people who have problems

• With a Blixer®, preparing healthy, well balanced and tasty food is simplicity itself, due to it’s ability to blend raw ingredients.

• Robot-Coupe Blixers® allow you to make any starter,main dish or dessert you choose with a modifi ed texture for the health sector.

• Handy polycarbonate lid equipped with a watertight seal and with a bowl and lid scraper.

• All parts that are in food contact can be easily removed for cleaning.

• With a spefi c blade to process batches from 300gr to 2 kg, the Blixer® has incredible small portion control

• High liquid capacity bowl.

Blixer

®

is the essential tool for the trendy cuisine in gourmet bistros, top level restaurants, caterers, banquets and for health care facilities.

›› ››

ORDER CODE:

BLX0003 • BLIXER 3 - ROBOT COUPE (BLENDER/MIXER)

SPECIFICATIONS - BLIXER 3 - ROBOT COUPE 3.7 Lt

(BLENDER/MIXER)

POWER: 750W - SINGLE PHASE - 250 V 50Hz

SINGLE SPEED: 3000rpm - PULSE FUNCTION

DIMENSIONS: 420 x 210 x 330mm

DELIVERED WITH: STAINLESS STEEL 3.7 LITRE CAPACITY BOWL WITH HANDLE

AND FINE SERRATED BLADE

FEATURES

• Stainless steel motor shaft

• Pulse function

• Induction motor

• Magnetic safety system and motor brake

• High liquid capacity bowl (2 litres)

• Sealed lid

• Bowl and lid scraper made in two parts easy to dismantle and to clean.

Delivered with a fi ne serrated blade assembly.

Bowl and lid scraper.

A

SPECIFICATIONS - FIMAR VEG CUTTER

POWER:

VOLTAGE:

0.37kW

230V

DIMENSIONS: 220 x 610 x 520mm

WEIGHT: 23kg

The ideal machine to slice, dice or grate vegetables or fruit, chips and cheese required for low volume operations. Ideal for small pizzerias and restaurants. Results are perfect for toppings and salads.

B

C

ORDER CODES:

VCF0001 • VEGETABLE CUTTER FIMAR – (WITHOUT BLADES)

VCF1001 • VEGETABLE CUTTER FIMAR – (WITH 5 BLADES)

ORDER CODES:

VPE1001 • VEG / CUT FIMAR – EJECTOR NORMAL (LOW)

VPC3002 A VEG / CUT PLATE FIMAR – SLICING 2mm (E2)

VPC3003 A VEG / CUT PLATE FIMAR – SLICING 3mm (E3)

VPC3010 A VEG / CUT PLATE FIMAR – SLICING 10mm (E10)

VPC3005 B VEG / CUT PLATE FIMAR – SERRATED 5mm (E5)

VPC5010 C VEG / CUT PLATE FIMAR – CHIPPER 10mm (B10)

VPC7010 D VEG / CUT PLATE FIMAR – CUBING 10mm (D10)

VPC6006 E VEG / CUT PLATE FIMAR – JULIENNE 6mm (H6)

VPC6008 E VEG / CUT PLATE FIMAR – JULIENNE 8mm (H8)

VPC8003 F VEG / CUT PLATE FIMAR – GRATING 4mm (Z3)

VPC8004 F VEG / CUT PLATE FIMAR – GRATING 4mm (Z4)

VPC8007 F VEG / CUT PLATE FIMAR – GRATING 7mm (Z7)

D

E

F

SPECIFICATIONS - SKYMSEN VEG CUTTER

POWER:

VOLTAGE:

0.36kW

230V

DIMENSIONS: 440 x 250 x 590mm

WEIGHT: 24.5kg

ORDER CODES:

VCA0001 • VEGETABLE CUTTER SKYMSEN – (WITHOUT BLADES)

VCA1001 • VEGETABLE CUTTER SKYMSEN – (WITH 5 BLADES)

The ideal machine to slice, dice or grate vegetables or fruit, chips and cheese required for low volume operations. Ideal for small pizzerias and restaurants.

ORDER CODES:

VPE2001 VEG / CUT PLATE SKYMSEN – EJECTOR NORMAL (LOW)

VPC1103 A VEG / CUT PLATE SKYMSEN – SLICING 3mm (E3)

VPC1105 A VEG / CUT PLATE

SKYMSEN – SLICING 5mm (E5)

VPC1110 A VEG / CUT PLATE SKYMSEN – SLICING 10mm (E10)

VPC1703 B VEG / CUT PLATE

SKYMSEN – SERRATED 3mm (E3)

VPC1310 C VEG / CUT PLATE SKYMSEN – CHIPPER 10mm (B10)

VPC1212 D VEG / CUT PLATE SKYMSEN – CUBING 12mm (GC12)

VPC1403 E VEG / CUT PLATE

SKYMSEN – JULIENNE 3mm (H3)

VPC1603 F VEG / CUT PLATE SKYMSEN – GRATING 3mm (Z3)

VPC1608 F VEG / CUT PLATE

SKYMSEN – GRATING 8mm (Z8)

VEGETABLE CUTTER

129

130

04

NEW PRODUCT

MONDIAL EVO SLICER - QUANTANIUM

NEW PRODUCT

QuanTanium with Titanium particles reinforced three-layer-non-stick coating will allow:

• Smoothness - diffi cult products like cheese or fresh meat do not stick and products slide smoothly and frictionless

• Higher resistance to abrasion

• Resistance to most aggressive detergents

Cut requires a lot less effort, it is more accurate and cleaning is very rapid; furthermore your QuanTanium Slicers will remain as new for many years without undergoing the typical deterioration of the anodized aluminium.

SPECIFICATIONS - MONDIAL EVO SLICER

CUT CAPACITY:

CUT THICKNESS:

285 x 190mm

1 – 30mm

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

0.25kW, 230V, 50Hz

625 x 430 x 415mm

350mm

34kg

START 300 SBR - QUANTANIUM

SPECIFICATIONS - START 300 SBR - QUANTANIUM

CUT CAPACITY:

CUT THICKNESS:

280 x 165mm

1 – 30mm

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

0.25kW, 230V, 50Hz

690 x 570 x 450mm

300mm

30kg

ORDER CODE:

SLM1350 - SLICER RHENINGHAUS MONDIAL [QUANT] - 350mm

ON REQUEST ONLY

ORDER CODE:

SLS7300 - SLICER RHENINGHAUS START [QUANT] - 300mm

ON REQUEST ONLY

MONDIAL DELI SLICERS

• Rheninghaus is a leading Italian manufacturing company since 1950

• Rheninghaus specializes in the design & manufacture of machines for the food service industry

• Rheninghaus is internationally recognized and distributes it’s products worldwide.

• All products are designed and manufactured at Rheninghaus’ factory and are supported by a guarantee.

• Extensive time is spent at Rheninghaus on Research and Development to characterize machines applying high standards of innovation technologies.

• All Rheninghaus products are fully supported with spare parts, technical and sales support.

ORDER CODES:

SLM0300 • SLICER RHENINGHAUS MONDIAL – 300mm

SLM0350 • SLICER RHENINGHAUS MONDIAL – 350mm

SPECIFICATIONS - DELI SLICER 300mm

CUT CAPACITY:

CUT THICKNESS:

290 x 140mm

1 – 30mm

CUT LENGTH:

CUT HEIGHT:

POWER:

290mm

140mm

0.25Kw, 230V, 50Hz

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

650 x 540 x 460mm

300mm

30kg

SPECIFICATIONS - DELI SLICER 350mm

CUT CAPACITY:

CUT THICKNESS:

285 x 190mm

1 – 30mm

CUT LENGTH:

CUT HEIGHT:

POWER:

285mm

190mm

0.26kW, 230V, 50Hz

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

700 x 540 x 500mm

350mm

34kg

SPECIFICATIONS - AUTO SLICER

CUT CAPACITY:

CUT THICKNESS:

POWER:

280 x 160mm

1 – 30mm

0.4kW, 230V, 50Hz

DIMENSIONS:

BLADE DIAMETER:

VARIABLE SPEED:

WEIGHT:

660 x 665 x 595mm

300mm

0 – 60 SLICES P/MIN

43kg

START SEMI - AUTO SLICER

ORDER CODE:

SLS1300 • SLICER RHENINGHAUS START (AUTO) – 300mm

• BUILT-IN BLADE SHARPENER

Operates automatically, operator can do other work while machine cuts automatically. Ideal for polonies in high volume mass catering establishments. Automatic carriage return saves time and effort

Best Choice

131

BETA SLICER

SPECIFICATIONS - BETA SLICER 350mm

CUT CAPACITY:

CUT THICKNESS:

270x 205mm

1 – 30mm

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

0.25kW, 230V, 50Hz

840 x 690 x 555mm

350mm

36kg

ORDER CODES:

SLB0350 • SLICER RHENINGHAUS BETA – 350mm

• BUILT-IN BLADE SHARPENER

Double platform designed for high production outputs in butcheries and supermarkets, perfect for slicing raw meat for steaks. Adjustable cut thickness from 1 to 30mm

132

The unique Safe Blade Removal System of the Deluxe Slicer models allows for quick and safe removal of the blade during slicer cleaning, allowing multiple product processing with very little down time.

NEW ENERGY SAVE

• Energy Saver is a device that reduces the average electric consumption thus contributing in reducing the environmental impact.

• Energy/ electricity usage is halved

• When an Energy Saver device is installed the motor supplies its maximum power only during cutting stroke; the supplied power is automatically reduced during the other working phases when the blade rotates but is not cutting, or when the cut is soft thus demanding low power.

• A pilot light shows the consumption level by changing its colours is totally automatic, no adjustments are required by the operator as the slicer works exactly like the normal slicer.

• Energy Saver is placed in a water-proof box located inside the machine. It doesn’t need any maintenance.

• Energy Saver needs to work in low tension, so only slicers equipped with low tension controls can use it.

SPECIFICATIONS - DELUXE POLONY SLICER

CUT CAPACITY:

CUT THICKNESS:

250 x 210mm

1 – 30mm

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

0.22kW 230V, 50Hz

650 x 500 x 450mm

300mm

29kg

START DELUXE POLONY SLICER (SBR)

ORDER CODES:

SLS3300 • SLICER RHENINGHAUS (DELUXE) – 300mm

• BUILT-IN BLADE SHARPENER

SLS9300 • FROZEN SLICING BLADE ONLY – 300mm

(OPTIONAL)

Ideal for cold cuts in medium sized establishments with some extra unique features: Safe blade removal device to facilitate easy cleaning of the unit, Stainless Steel bearings to prolong the life of the blade drive.

Promotes a smooth sliding motion. Safe Blade Removal feature (SBR)

SPECIFICATIONS - AUTO DELUXE SLICER

CUT CAPACITY:

CUT THICKNESS:

280 x 160mm

1 – 30mm

POWER:

DIMENSIONS:

BLADE DIAMETER:

VARIABLE:

WEIGHT:

0.4kW, 230V, 50Hz

660 x 665 x 595mm

300mm

0 – 60 SLICES P/ MINUTE

43kg

START AUTO DELUXE SLICER

ORDER CODE:

SLS4300 • SLICER RHENINGHAUS START (AUTO DELUXE) – 300mm

• BUILT-IN BLADE SHARPENER

Ideal for cold cuts in medium sized establishments with some extra unique features: Safe blade removal device to facilitate easy cleaning of the unit, Stainless Steel bearings to prolong the life of the gear driven motor. Promotes a smooth sliding motion. Safe Blade Removal feature

133

134

04

START CHEESE SLICER

SPECIFICATIONS - CHEESE SLICER 300mm

CUT CAPACITY:

CUT THICKNESS:

280 x 165mm

1 – 30mm

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

0.25kW 230V, 50Hz

690 x 500 x 450mm

300mm

29kg

ORDER CODE:

SLS2300 • SLICER RHENINGHAUS START (CHEESE) – 300mm

Designed to slice the perfect piece of cheese, QuanTanium coated surface prevents sticking and makes using and cleaning a pleasure.

Avoid cross contamination of your dairy and meat products by using this dedicated cheese slicer for all your cheese requirements

START POLONY AND MEAT SLICER

SPECIFICATIONS - POLONY AND MEAT SLICER

CUT CAPACITY:

CUT THICKNESS:

POWER:

250 x 210mm

1 – 30mm

0.22kW 230V, 50Hz

DIMENSIONS:

BLADE DIAMETER:

650 x 500 x 450mm

300mm

ORDER CODES:

SLS0300 • SLICER RHENINGHAUS START – 300mm

SLS9300 • FROZEN SLICING BLADE ONLY – 300mm

Ideal for cold cuts and processed meats in medium size establishments

PRIMA RESTAURANT SLICER

SPECIFICATIONS - PRIMA SLICER

CUT CAPACITY:

CUT THICKNESS:

POWER:

245 x 175mm

1 – 15mm

0.22kW, 230V, 50Hz

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

625 x 430 x 415mm

300mm

25kg

ORDER CODE:

SLP0300 • SLICER RHENINGHAUS PRIMA – 300mm

Not suited for supermarket or institutional use. Multipurpose slicer ideal to slice bread, processed meats, parma ham and carppaccio in coffee shops, small restaurants and take-aways. Motor is situated below the blade which allows for larger moving area and larger cuts

SPECIFICATIONS - STELLINA SLICER 220mm

CUT CAPACITY:

CUT THICKNESS:

180 x 160mm

1 – 15mm

CUT LENGTH:

CUT HEIGHT:

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

180mm

160mm

0.15kW, , 230V, 50Hz

470 x 420 x 340mm

220mm

15kg

STELLINA SLICER

ORDER CODE:

SLS0220 • SLICER STELLINA - 220mm

- BUILT-IN BLADE SHARPENER

Ideal for medium size workloads in small restaurants and take-away operations

SPECIFICATIONS - ARGENTA SLICER 250mm

CUT CAPACITY:

CUT THICKNESS:

CUT LENGTH:

220 x 175mm

1 – 15mm

220mm

CUT HEIGHT:

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

175mm

0.19kW, , 230V, 50Hz

530 x 430 x 375mm

250mm

18kg

SPECIFICATIONS - ARGENTA SLICER 280mm

CUT CAPACITY:

CUT THICKNESS:

CUT LENGTH:

235 x 190mm

1 – 15mm

235mm

CUT HEIGHT:

POWER:

DIMENSIONS:

BLADE DIAMETER:

WEIGHT:

190mm

0.19kW, 230V, 50Hz

550 x 430 x 390mm

280mm

20kg

ARGENTA SLICERS

ORDER CODES:

SLA0250

SLA0280

• SLICER RHENINGHAUS ARGENTA – 250mm

• SLICER RHENINGHAUS ARGENTA – 280mm

- BUILT-IN BLADE SHARPENER

Ideal for medium size workloads in small restaurants and take-away operations

135

04

NEW PRODUCT

136

IMPROVED

JUNIOR BANDSAW

SPECIFICATIONS - JUNIOR BANDSAW

CUT CAPACITY:

CUT WIDTH:

CUT HEIGHT:

210 x 250mm

210mm

250mm

POWER:

VOLTAGE:

1.1kW

230V

DIMENSIONS: 610 x 650 x 1130mm

WEIGHT: 92kg

ORDER CODE:

BSB6001 • BUTCHERQUIP JUNIOR BANDSAW - SINGLE PHASE

FEATURES

• Ideal for cutting frozen and fresh meat, poultry and fi sh

• Safety switch on access doors

• Cast aluminium body easy to clean

• Electronic motor brake. Blade stops instantly when door is

• opened or unit is switched off

• All work surfaces that touch food are stainless steel

MILD STEEL BANDSAW

SPECIFICATIONS - MILD STEEL BANDSAW

POWER:

VOLTAGE:

1.5kW

380V - 3 phase/ 230V

DIMENSIONS:

BLADE:

WEIGHT: single phase

855 x 870 x 1800mm

2845 x 16mm

220kg

SPECIAL FEATURES –

• Heavy base with levelling feet

• Cast iron saw wheels

• Heavy duty scrapers on both wheels

• Metal guides support blades

• Tension scraper assemblies keep blade free from debris

• Spring loaded blade tensioning system

SAFETY FEATURES –

• Brake motor fi tted to ensure the blade stops immediately when unit is switched off.

• Brake motor will stop automatically when doors are opened

ORDER CODES:

BSB5003 • BUTCHERQUIP BANDSAW - MILD STEEL - 3 PHASE

BSB5001 • BUTCHERQUIP BANDSAW - MILD STEEL -

SINGLE PHASE

BSB0112 • BUTCHERQUIP BANDSAW - SPARE BLADE -

2845 x 16mm

FEATURES

• Commercial Equipment – Ideal for use in supermarkets, butcheries, and commercial meat processing applications

• Uses – use the 4 teeth per inch blade for meat or the 6 teeth per inch blade for fi sh

• Food safe – 304 Stainless Steel for food contact points

• Easy slide system – a smooth moving table reduces effort and increases productivity

• Easy Cleaning – all parts are easily removable for easy cleaning

SPECIFICATIONS – MINCER NO. 12

OUTPUT:

POWER:

WORM SPEED: up to 100kg per hour

0.48kW – 240 V 50Hz

160 rpm

DIMENSIONS:

WEIGHT:

PACKED DIMENSIONS: 370 x 270 x 390mm

PACKED WEIGHT: 15kg

SUPPLIED STANDARD WITH 1 x MINCER KNIFE AND 1 x 6mm

MINCER PLATE

240 x 470 x 390mm

13 kg

SPECIFICATIONS - MINCER NO. 22

OUTPUT:

POWER: up to 150kg per hour

0.56kW – 240 V 50Hz

WORM SPEED:

DIMENSIONS:

WEIGHT:

80rpm

575 x 270 x 390mm

18.5kg

SUPPLIED STANDARD WITH 1 x MINCER KNIFE AND 1 x 8mm

MINCER PLATE

SPECIFICATIONS - MINCER NO. 32 EL

OUTPUT: up to 250kg per hour

POWER:

WORM SPEED:

DIMENSIONS:

1.2kW – 240 V 50Hz

80rpm

610 x 270 x 400mm

WEIGHT: 35kg

SUPPLIED STANDARD WITH 1 x MINCER KNIFE AND 1 x 8mm

MINCER PLATE

SPECIFICATIONS - MINCER NO. 32 -

SINGLE PHASE

POWER:

VOLTAGE:

WORM SPEED:

1.5kW

230V single phase

206rpm

DIMENSIONS:

WEIGHT:

670 x 1150 x 680mm

78kg

SPECIFICATIONS - MINCER NO. 32 -

THREE PHASE

POWER: 2.2kW

VOLTAGE:

WORM SPEED:

DIMENSIONS:

WEIGHT:

380V 3 phase

206rpm

670 x 1150 x 680mm

78kg

ELECTRIC MINCER

ORDER CODES:

MNT0012 A MINCER TRESPADE PROFESSIONAL – No. 12

MNT0022 B MINCER TRESPADE PROFESSIONAL – No. 22

MNT0032 C MINCER TRESPADE PROFESSIONAL – No. 32 EL

FEATURES

The ideal mincer for farmers, hunters, game lodges, home industries, etc.

Well suited as a backup unit in large butcheries

• Includes a bearing to reduce the worming of the Machine

(32 only)

• Stainless Steel base

• Stainless Steel motor cover

MINCER NO. 32

ORDER CODES:

MNB0032 • MINCER NO. 32 - BUTCHERQUIP - 3 PHASE

MNB2032 • MINCER NO. 32 - BUTCHERQUIP - SINGLE PHASE

MNB4032 • MINCER STAND - OPTIONAL EXTRA

FEATURES

• Ideal for use in large supermarkets, butcheries and any other large commercial meat processing application

• Comes standard with 1 stomper, 1 splash paddle, 1 knife,

2 plates (1 x 4.5mm and 1 x 13mm)

• The body and tray is made of high quality Stainless Steel

• Heavy duty gearbox (New and Improved)

• Fitted with rubber feet to prevent slipping

• Fitted with hand guard

• Stainless steel mincer head and worm

B

A

NEW PRODUCT

IMPROVED

C

137

138

04

MINCER KNIVES ELECTRIC

ORDER CODES (STAINLESS STEEL):

MKE5008 • MINCER KNIVES STAINLESS STEEL ELECTRIC - No 8 - TRESPADE

MKE5010 • MINCER KNIVES STAINLESS STEEL ELECTRIC - No 10/12 - TRESPADE

MKE5022 • MINCER KNIVES S/STEEL ELECTRIC - No 22

MKE5032 • MINCER KNIVES S/STEEL ELECTRIC - No 32

- TRESPADE

- TRESPADE

MINCER PLATES NO.22

ORDER CODES (STAINLESS STEEL):

MPE4204 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 12x4.5mm - TRESPADE

MPE4206 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 12x6mm - TRESPADE

MPE4208 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 12x8mm - TRESPADE

MPE4210 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 12x10mm - TRESPADE

MPE4212 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 12x12mm - TRESPADE

MPE5204 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 22x4.5mm - TRESPADE

MPE5206 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 22x6mm - TRESPADE

MPE5208 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 22x8mm - TRESPADE

MPE5210 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 22x10mm - TRESPADE

MPE5212 • MINCER PLATESTAINLESS STEEL ELECTRIC - No 22x12mm - TRESPADE

MPE6204 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 32x4.5mm - TRESPADE

MPE6206 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 32x6mm - TRESPADE

MPE6208 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 32x8mm - TRESPADE

MPE6210 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 32x10mm - TRESPADE

MPE6212 • MINCER PLATE STAINLESS STEEL ELECTRIC - No 32x12mm - TRESPADE

MINCER PLATES NO.32

ORDER CODES:

MPB3204 • MINCER PLATE ELECTRIC No.32 – 4.5mm

MPB3208 • MINCER PLATE ELECTRIC No.32 – 8.0mm

MPB3212 • MINCER PLATE ELECTRIC No.32 – 12mm

SPECIFICATIONS - BILTONG SLICER

POWER: 0.75kW

SPEED: 1440rpm

WEIGHT: 14kg

Perfect for small bars, clubs or restaurants

BILTONG SLICER

ORDER CODES:

BSB2001 • BILTONG SLICER – BUTCHERQUIP

XBSV0002 • BILTONG SLICER – REPLACEMENT BLADE ONLY

BSW2001 • BILTONG SLICER WALL MOUNTED BRACKET (BSB2001)

FEATURES

• The cutting discs are dynamically balanced with the blade for vibration free operation

• Hinged door facilitating easy access for cleaning

• Hooks fi tted for holding packet in position while slicing

• Machine designed to be bolted to a table or stand

HAND OPERATED BILTONG SLICER - CHUNKS

ORDER CODE:

BSH2005 • HAND OPERATED BILTONG SLICER - CHUNKS - TABLE MOUNTED

Perfect for small bars, clubs or restaurants

HAND OPERATED BILTONG SLICER - TABLE MOUNTED

ORDER CODE:

BSH2002 • HAND OPERATED BILTONG SLICER - TABLE MOUNTED

Perfect for small bars, clubs or restaurants

BILTONG CUTTER MANUAL

ORDER CODE:

BCM0001 • BILTONG CUTTER MANUAL - VARIABLE CUTTING THICKNESS

139

140

04

NEW PRODUCT

A

(Excludes Container)

B

CHIPPER

Use a chipper bridge to mount the potato chipper safely on the vegetable sink. This allows hygenic collection of the raw chips in the bowl. The chipper is spring loaded and therefore cannot be operated as a free standing unit.

It must be attached to the chipper bridge. Nuts and bolts supplied. Chipper can be permanently mounted

FRENCH FRY CHIPPER

ORDER CODES:

CHA0006 A CHIPPER 6 x 6 HOLE (14mm SQUARE CHIP)

CHA0007 A CHIPPER 7 x 7 HOLE (12mm SQUARE CHIP)

CBA0001 B CHIPPER BRIDGE 550mm - 500mm INNER

(PERFECT FOR 510mm SINK)

Use for American-style french fries.

VEGETABLE MILL

ORDER CODE:

DESCRIPTION OF MEASUREMENTS - TOP DIAMETER

VMI0320 • VEGETABLE MILL INDUSTRIAL STAINLESS STEEL - 200mm

ORDER CODES:

CHF0010 • CHIPPER FRENCH FRY CUTTER - 10mm

XCHH1006 • FRENCH FRY CUTTER - PUSH BLOCK 6mm

XCHH1010 • FRENCH FRY CUTTER - PUSH BLOCK 10mm

XCHH1012 • FRENCH FRY CUTTER - PUSH BLOCK 12mm

XCHH3006 • FRENCH FRY CUTTER - BLADE FRAME 6mm

XCHH3010 • FRENCH FRY CUTTER - BLADE FRAME 10mm

XCHH3012 • FRENCH FRY CUTTER - BLADE FRAME 12mm

TOMATO SLICER

FEATURES

• Cleanly slices even over-ripe tomatoes

• Consistent cut size for portion control

• Easily replaceable cartridge blade assembly

• Compact, portable and simple to use

• NSF Listed

VOLLRATH REDCO INSTACUT

Slice, dice and wedge with simple pop-in, pop-out blade accessories that make switching from dicing onions to wedging potatoes a fast an effi cient process in your kitchen.

ORDER CODE:

DESCRIPTION OF MEASUREMENTS - THICKNESS OF SLICE

TSN0001 • TOMATO SLICER NEMCO - 7kg -

510 x 240 x 240 mm

ORDER CODES:

RIC0001 A INSTACUT 5.0 TABLE TOP UNIT - 6mm DICE

RIC0002 B INSTACUT 5.0 - 6mm SLICING BLADE

RIC0003 C INSTACUT 5.0 - 8 SECTION WEDGER BLADE ASSY

RIC0004 • INSTACUT 5.0 - 8 SECTION WEDGER PUSHER ONLY

C

FEATURES

• Tall base designed to fi t containers up to 15.2 cm high

• Sled-leg base design offers superior resistance to breakage

• Pop-in pop-out blade assembly for easy cleaning and maintenance

• Thermoset blade frames never need adjustment and will not corrode

• Full 12.7 cm square cutting area fi ts large fruits and vegetables

CHEESE CUTTER MANUAL

ORDER CODES:

CCM0400 • CHEESE CUTTER MANUAL - 400mm

XCCM0001 • CHEESE CUTTER REPLACEMENT WIRE (PACK OF 6)

SPECIFICATIONS - WRAPPING MACHINE 380mm

POWER:

DIMENSIONS:

0.175kW, 230V

463 x 670 x 158mm

WEIGHT:

MAX ROLL SIZE:

6kg

380mm

SPECIFICATIONS - WRAPPING MACHINE 500mm

POWER:

DIMENSIONS:

WEIGHT:

0.21kW, 230V

583 x 670 x 158mm

7kg

MAX ROLL SIZE: 500mm

SPECIFICATIONS - HSM0200

SEALING BAR:

POWER:

HEATING TIME:

200mm

0.26kW

0 - 1.5sec

DIMENSIONS:

WEIGHT:

320 x 80 x 215mm

2.3kg

SPECIFICATIONS - HSM0300

SEALING BAR:

POWER:

HEATING TIME:

300mm

0.38kW

0 - 1.5sec

DIMENSIONS:

WEIGHT:

430 x 80 x 255mm

3.3kg

SPECIFICATIONS - HSM0400

SEALING BAR:

POWER:

HEATING TIME:

400mm

0.52kW

0 - 1.5sec

DIMENSIONS:

WEIGHT:

530 x 90 x 270mm

4.8kg

WRAPPING MACHINES

ORDER CODES:

WMW1380 • WRAPPING MACHINE WRAPMASTER -

STAINLESS STEEL 380mm

WMW1500 • WRAPPING MACHINE WRAPMASTER -

STAINLESS STEEL 500mm

(excludes plastic wrapping)

IMPROVED

Now fi tted with water resistant, long lasting pad element

HEAT SEALING MACHINES

ORDER CODES:

HSM0200 • HEAT SEALING MACHINE - 200mm

HSM0300 • HEAT SEALING MACHINE - 300mm

HSM0400 • HEAT SEALING MACHINE - 400mm

HSM0500 • HEAT SEALING MACHINE - 500mm

SPECIFICATIONS - HSM0500

SEALING BAR:

POWER:

HEATING TIME:

500mm

0.65kW

0.2 - 3sec

DIMENSIONS:

WEIGHT:

707 x 105 x 195mm

5.5kg

Great for storage, portion control and packaging of nuts, biltong and sweets etc

Adjustable timer to allow for various packet thicknesses

IMPROVED

141

142

04

• The ORVED Company was founded in Verona, north Italy, in 1984 and it is today considered to be the leading Italian company for vacuum pack machines.

• Orved manufactures the widest range of vacuum packing machines compared to its competitors, but BCE has only selected the most representative ones for its catalogue.

• The company is also involved in many technical projects which involve all sort of vacuum applications.

• Orved also produces the consumable materials (vacuum pouches) which are needed when using a vacuum pack machine.

• Orved carries out live demonstrations of its machines’ technology (particularly the vacuum cooking technology) during the most important exhibitions throughout the world.

• A very modern and dedicated spare parts area is available for the use of all our distributors. It allows them to trace any Orved existing machines and their specific spare parts.

OUT OF CHAMBER VACUUM MACHINE

SPECIFICATIONS - VM98

SEALING BAR:

VOLTAGE:

420mm

230V

POWER:

DIMENSIONS:

WEIGHT:

1kW

490 x 415 x 195mm

20kg

- VACUUM PUMP SELF – LUBRICATING

ORDER CODE:

VPM0098 • VACUUM PACK MACHINE – VM98

With unique patented probe system allowing for any bag to be used with no special folding of bag required. Suitable for use with dry product only.

For small volume applications

MULTIPLE VACUUM PACK MACHINE

SPECIFICATIONS - VM315

SEALING BAR: 305mm

VOLTAGE:

POWER:

CHAMBER SIZE:

230V

0.35kW

330 x 335 x 100mm

DIMENSIONS:

WEIGHT:

435 x 420 x 325mm

32kg

VACUUM PUMP: 4m³h OIL LUBRICATING

ORDER CODE:

VPM0315 • VACUUM PACK MACHINE – VM315

Multiple 315 is Orved’s entry level for chamber vacuum packing machine.

Compact and fully digital with up to 10 adjustable programs is suitable for small cafés and restaurants or any small vacuum pack applications

PLEASE NOTE:

Gas flush optional - machine needs to be ordered with gas flush option to be factory fitted.

IN CHAMBER VACUUM PACK MACHINE

SPECIFICATIONS - VM12

SEALING BAR:

VOLTAGE:

270mm

230V

POWER:

CHAMBER SIZE:

DIMENSIONS:

WEIGHT:

VACUUM PUMP:

0.45kW

290 x 400 x 160mm

375 x 485 x 370mm

36kg

8m³h OIL LUBRICATING

ORDER CODE:

VPM0012 • VACUUM-PACK MACHINE – VM12

Ideal vac-pack machine for cafés or small restaurants. It is also suitable for deli shops and small supermarkets. It can vacuum pack wet or dry products

SPECIFICATIONS - VM16

SEALING BAR:

VOLTAGE:

POWER:

CHAMBER SIZE:

DIMENSIONS:

WEIGHT:

VACUUM PUMP:

315mm

230V

0.75kW

337 x 430 x 165mm

439 x 533 x 430mm

51kg

12m³ / hr OIL LUBRICATING

IN CHAMBER VACUUM PACK MACHINE

ORDER CODE:

VPM0016 • VACUUM-PACK MACHINE – VM16

Recently restyled, VM16 has now a larger in chamber size. It is the perfect commercial vac-pack machine for all applications in the food industry

SPECIFICATIONS - VM18

SEALING BAR:

POWER:

VOLTAGE:

415mm

1.2kW

230V

CHANBER SIZE:

DIMENSIONS:

WEIGHT:

VACUUM PUMP:

435 x 435 x 210mm

545 x 590 x 510mm

80kg

25m³ / hr OIL LUBRICATING

ORDER CODE:

VPM0018 • VACUUM-PACK MACHINE – VM18

This unique commercial vac pack machine has an upsize vacuum pump of

25m³. VM18 is the perfect butcher’s choice. Its very deep inner chamber allows packing butchery meat cuts

SPECIFICATIONS - VM20

SEALING BAR: 2 x 620mm

POWER:

VOLTAGE:

CHAMBER SIZE:

1.5kW

400V

650 x 535 x 200mm

DIMENSIONS:

WEIGHT:

VACUUM PUMP:

765 x 710 x 1050mm

167kg

60m³ / hr OIL LUBRICATING

ORDER CODE:

VPM4020 • VACUUM-PACK MACHINE – VM20

(ON REQUEST ONLY)

VM20 is particularly suitable for large butchers shops, supermarkets, catering or food processing companies

143

144

04

C

FF

A

DD

SAUSAGE FILLERS - HAND DRIVEN

Best Choice

SPECIFICATIONS - 3Lt MINI

DIMENSIONS:

WEIGHT:

360 x 180 x 170mm

4.5kg

- THREADED SHAFT

- SINGLE SPEED

B

SPECIFICATIONS - 5Lt LUCY

DIMENSIONS: 530 x 200 x 200mm

WEIGHT: 8kg

- THREADED SHAFT

- SINGLE SPEED

SPECIFICATIONS - 5Lt QUICK RELEASE

DIMENSIONS:

WEIGHT:

520 x 200 x 170mm

6.5kg

- QUICK RELEASE OF NOZZLE SAVES TIME

- QUICK RELEASE GEARBOX

SPECIFICATIONS - 5Lt FLAT / GEAR

DIMENSIONS:

WEIGHT:

520 x 230 x 220mm

10.5kg

- TWO SPEED GEARBOX

- EASIER TO USE WITH TWICE THE SPEED

ORDER CODES:

SFT0003

SFT1005

A SAUSAGE FILLER TRESPADE – 3Lt MINI

B SAUSAGE FILLER TRESPADE – 5Lt LUCY

SFT2005

SFT0005

SFT0007

SFT0010

SFT0015

C

D

SAUSAGE FILLER TRESPADE – 5Lt QUICK RELEASE

SAUSAGE FILLER TRESPADE – 5Lt FLAT / GEAR

E SAUSAGE FILLER TRESPADE – 7Lt VERTICAL

F SAUSAGE FILLER TRESPADE – 10Lt FLAT

G SAUSAGE FILLER TRESPADE – 15Lt VERTICAL

SPECIFICATIONS - 7Lt VERTICAL

DIMENSIONS:

WEIGHT:

440 x 270 x 680mm

21kg

- TWO SPEED GEARBOX

SPECIFICATIONS - 10Lt FLAT

DIMENSIONS: 730 x 240 x 220mm

WEIGHT: 20kg

- TWO SPEED GEARBOX

SPECIFICATIONS - 15Lt VERTICAL

DIMENSIONS:

WEIGHT:

380 x 340 x 840mm

34.5kg

- TWO SPEED GEARBOX

All models (except the 3Lt and 5Lt quick release, which come with 3) comes standard with a set of four funnel nozzles for different diameter sausages. Well suited as a backup for making speciality fl avoured sausages for your customers

• Exceptionally strong, easy to use. Suitable for producing any kind of sausage

• 3Lt and 5Lt fi llers are ideal for hunters, home industries, etc

• Larger models are suitable for higher volume demands

• Upright fi llers are great for saving space

• Fillers with gears save time and labour

• Stainless Steel cylinders - easily removable to clean

• Various size funnels are available

• To avoid damage when using the 12mm or smaller nozzles ensure that the product has been processed fi rst through 8mm plate, then a 4.5mm plate

EE

G

SPECIFICATIONS - SFB0003

CAPACITY:

DIMENSIONS:

3Lt

540 x 310 x 270mm

WEIGHT: 8.5kg

SPECIFICATIONS - SFB0005

CAPACITY:

DIMENSIONS:

5Lt

660 x 310 x 270mm

WEIGHT: 10.5kg

SPECIFICATIONS - SFB0007

CAPACITY:

DIMENSIONS:

7Lt

810 x 310 x 270mm

WEIGHT: 14kg

SPECIFICATIONS - SFB1015

CAPACITY:

DIMENSIONS:

15Lt

300 x 330 x 710mm

WEIGHT: 19kg

SAUSAGE FILLERS - HAND DRIVEN

ORDER CODES:

SFB0003

SFB0005

SFB0007

SFB1015

• SAUSAGE FILLER BUTCHERQUIP - 3LT S/STEEL HORIZONTAL

• SAUSAGE FILLER BUTCHERQUIP - 5LT S/STEEL HORIZONTAL

• SAUSAGE FILLER BUTCHERQUIP - 7LT S/STEEL HORIZONTAL

• SAUSAGE FILLER BUTCHERQUIP - 15LT S/STEEL VERTICAL

All models come standard with a set of four funnel nozzles for different diameter sausages. Well suited as a backup for making speciality sausages for your customers

Exceptionally strong, easy to use. Suitable for producing any kind of sausage. All fi llers are fi tted with a two speed gearbox for fast release of the plunger for quicker refi lling

All Stainless Steel construction with easily removable cylinders for cleaning. Funnel sizes 20, 25, 35 and 40mm

TWO SPEED

GEARBOX

HEAVY DUTY

PLUNGER

145

146

MINCER FUNNELS - PLASTIC

ORDER CODES:

MFP0510 • MINCER FUNNEL PLASTIC - No. 5 - 10mm

MFP0520 • MINCER FUNNEL PLASTIC - No. 5 - 20mm

MFP0810 • MINCER FUNNEL PLASTIC - No. 8 - 10mm

MFP0820 • MINCER FUNNEL PLASTIC - No. 8 - 20mm

MFP1010 • MINCER FUNNEL PLASTIC - No. 10 - 10mm

MFP1020 • MINCER FUNNEL PLASTIC - No. 10 - 20mm

MFP2212 • MINCER FUNNEL PLASTIC - No. 22 - 12mm

MFP2220 • MINCER FUNNEL PLASTIC - No. 22 - 20mm

MFP3212 • MINCER FUNNEL PLASTIC - No. 32 - 12mm

MFP3220 • MINCER FUNNEL PLASTIC - No. 32 - 20mm

SAUSAGE FILLER FUNNELS - ALUMINIUM

ORDER CODES:

SFA0012 • SAUSAGE FILLER FUNNEL ALUMINIUM - 12mm

SFA0020 • SAUSAGE FILLER FUNNEL ALUMINIUM - 20mm

For sausage fi llers with a screw-on funnel holder. (Not for quick release)

SAUSAGE FILLER FUNNELS - PLASTIC

ORDER CODES:

SFP0010 • SAUSAGE FILLER FUNNEL PLASTIC - 10mm

SFP0020 • SAUSAGE FILLER FUNNEL PLASTIC - 20mm

SFP0030 • SAUSAGE FILLER FUNNEL PLASTIC - 30mm

SFP0035 • SAUSAGE FILLER FUNNEL PLASTIC - 35mm

For sausage fi llers with a screw-on funnel holder. (Not for quick release)

SAUSAGE FILLER FUNNELS - QUICK RELEASE - PLASTIC

ORDER CODES:

SFP1010 • SAUSAGE FILLER FUNNEL PLASTIC - 10mm (CLIP ON)

SFP1020 • SAUSAGE FILLER FUNNEL PLASTIC - 20mm (CLIP ON)

Not suited for supermarket or institutional use. Multipurpose slicer ideal to slice bread, processed meats, parma ham and carppaccio in coffee shops and small restaurants and take-aways. Motor is situated below the the blade which allows for larger moving area and larger cuts. (suitable for quick release)

ORDER CODES:

MHP0008 • MINCER HAND - No.8

MHP0010 • MINCER HAND - No.10

MHP0022 • MINCER HAND - No.22

MHP0032 • MINCER HAND - No.32

All hand mincers include a 4.5mm mincer plate and knife

ORDER CODES:

MKH0008 • MINCER KNIFE HAND No.8

MKH0010 • MINCER KNIFE HAND No.10

MKH0022 • MINCER KNIFE HAND No.22

MKH0032 • MINCER KNIFE HAND No.32

ORDER CODES:

MPH0804 • MINCER PLATE HAND No.8 - 4.5mm

MPH0806 • MINCER PLATE HAND No.8 - 6mm

MPH0808 • MINCER PLATE HAND No.8 - 8mm

MPH0810 • MINCER PLATE HAND No.8 - 10mm

MPH1004 • MINCER PLATE HAND No.10 - 4.5mm

MPH1006 • MINCER PLATE HAND No.10 - 6mm

MPH1008 • MINCER PLATE HAND No.10 - 8mm

MPH1010 • MINCER PLATE HAND No.10 - 10mm

MPH1012 • MINCER PLATE HAND No.10 - 12mm

MPH2204 • MINCER PLATE HAND No.22 - 4.5mm

MPH2206 • MINCER PLATE HAND No.22 - 6mm

MPH2208 • MINCER PLATE HAND No.22 - 8mm

MPH2210 • MINCER PLATE HAND No.22 - 10mm

MPH2212 • MINCER PLATE HAND No.22 - 12mm

MPH3204 • MINCER PLATE HAND No.32 - 4.5mm

MPH3206 • MINCER PLATE HAND No.32 - 6mm

MPH3208 • MINCER PLATE HAND No.32 - 8mm

MPH3210 • MINCER PLATE HAND No.32 - 10mm

MPH3212 • MINCER PLATE HAND No.32 - 12mm

HAND MINCERS

HAND MINCER KNIVES

HAND MINCER PLATES

147

148

04

TENDERISER

SPECIFICATIONS - SKYMSEN TENDERISER

POWER:

DIMENSIONS:

0.37kW, 220V, 50Hz

530 x 470 x 220mm

WEIGHT: 29kg

ORDER CODES:

TDS1001 • SKYMSEN TENDERISER - STAINLESS STEEL

TDS0008 • SKYMSEN TENDERISER - STRIP CUTTER

ATTACHMENT - 8mm

TDS0012 • SKYMSEN TENDERISER - STRIP CUTTER

ATTACHMENT - 12mm

Use for tenderised steak in restaurants, supermarkets, retirement villages, prisons etc. Ideal for mass catering and butcheries. Has a safety switch and easy to clean

HAND OPERATED PATTY MACHINES

ORDER CODES:

DESCRIPTION OF MEASUREMENTS – DIAMETER OF PATTY

PMD0100 • PATTY MACHINE DAMPA – 100mm

PMD0130 • PATTY MACHINE DAMPA – 130mm

Makes the perfect hamburger patty. Twice the production and speed of anything else. Manually driven

ORDER CODES:

PMB0100 • PATTY MACHINE BUTCHERQUIP – 100mm

PMB0130 • PATTY MACHINE BUTCHERQUIP – 130mm

FEATURES

• Robust heavy duty

• Cast aluminium construction

squeezed!

Freshly squeezed juice, squeezed from real oranges, right in front of your customers...

FRESHLY SQUEEZED

If this sounds like a good idea but conjures up images of a sticky mess which is more hassle than it’s worth, don’t give up hope just yet!

BCE, Southern Africa’s leading supplier of kitchen utensils, industrial cookware and commercial kitchen appliances to the hospitality and foodservice industries, is now the sole distributor of Zumex – a product that has revolutionised the market due to its quality and reliability. As the leading manufacturer of automatic citrus juicers, Zumex combines innovation, quality and the latest technology to ensure that juicing need never be a hassle again!

BCE stocks a full range of spare parts and guarantees to provide full back-up and after-sale services on your machine!

Just some of the features and benefits of investing in a Zumex juicer include:

• There is a Zumex model to suit every establishment, depending on your type of operation and demand for orange juice. This means that guest houses with a low demand for orange juice will not need to invest in the same size machine as large hotels and restaurants that require constant and large quantities of juice.

• The Zumex is available in a range of sizes and colours, meaning that it can be as inconspicuous or as eye-catching as you want it to be!

• The Zumex is quick and easy to operate, allowing guests to help themselves.

• Zumex products offer maximum quality and safety, fulfi lling the most demanding certifi cations worldwide!

ORIGINAL SYSTEM

A UNIQUE SQUEEZING SYSTEM.

The fi rst squeezing system for the hotel business revolutionised the market thanks to its quality and reliability.

There is no contact between the juice and the peel. The peel is extracted from the drum using a wedge, in such a way that acids and oils from the skin are prevented from going into the juice, ensuring its best fl avour and hygiene.

ASP

THE FIRST GENERATION OF ORANGE JUICERS WITH EXCLUSIVE ANTIBACTERIAL TECHNOLOGY.

Because hygiene comes fi rst we are committed to the latest in technology. The injection of liquid glass into our machine parts allows the total removal of any bacteria which can be generated by use. ASP releases silver ions which, in a humid environment, are attracted by the bacteria, entering its enzymatic membrane and removing it.

149

150

04

NEW PRODUCT

ORANGE JUICER ZUMEX

SPECIFICATIONS

FRUITS PER MINUTE: 13

FEEDER CAPACITY: 6/7 fruits

FRUIT DIAMETER: up to 80mm

DIMENSIONS:

(recommended size between 65 - 78mm)

360 x 365 x 720mm

NET WEIGHT: 21.5kg

CONSUMPTION:

VOLTAGE:

JAR CAPACITY:

0.044kW

240 V 50Hz

750ml

ORDER CODE:

OJZ0001 • ORANGE JUICER ZUMEX - MINEX [SILVER]

FEATURES

• Small and compact

• Equipped with integrated pitcher, orange counter and anti-drip system

• Perfect for traditional catering

• Wide range of colors

• Safety dectectors and electronic motor protection

SPECIFICATIONS

FRUITS PER MINUTE: 13

FEEDER CAPACITY: 6/7 fruits

FRUIT DIAMETER: up to 80mm

DIMENSIONS:

(recommended size between 65 - 78mm)

360 x 365 x 720mm

NET WEIGHT: 21.5kg

CONSUMPTION:

VOLTAGE:

JAR CAPACITY:

0.044kW

240 V 50Hz

750ml

ORDER CODE:

OJZ0002 • ORANGE JUICER ZUMEX - MINEX [ORANGE]

FEATURES

• Small and compact

• Equipped with integrated pitcher, orange counter and anti-drip system

• Perfect for traditional catering

• Wide range of colors

• Safety dectectors and electronic motor protection

SPECIFICATIONS

FRUITS PER MINUTE: 18

FEEDER CAPACITY: 5 oranges

FRUIT DIAMETER: up to 81mm

(recommended size between 65 - 81mm)

DIMENSIONS:

NET WEIGHT:

CONSUMPTION:

VOLTAGE:

470 x 500 x 750mm

45kg

0.28kW

240 V 50Hz

ORANGE JUICER ZUMEX

ORDER CODES:

OJZ1000 • ORANGE JUICER ZUMEX - ESSENTIAL PRO [ORANGE]

OJZ1001 • ORANGE JUICER ZUMEX - ESSENTIAL PRO [SILVER]

OJZ1002 • ORANGE JUICER ZUMEX - ESSENTIAL PRO [GRAPHITE]

FEATURES

• Programmable according to the location of use

• Self-Service: The juicer starts up by pressing the new tap

• Professional: To programme the number of oranges to be squeezed every time

• Touch Control Button Panel with an interface that shows the user the status of the machine at all times, and with a menu with many options that enable total control of the service and programmable in 23 languages

• New drip-free tap system

• New easily removable base

• Double magnetic safety dectectors and motor protection

SPECIFICATIONS

FRUITS PER MINUTE: 22

FEEDER CAPACITY: 10kg

FRUIT DIAMETER: up to 81mm

(recommended size between 65 - 81mm)

DIMENSIONS:

NET WEIGHT:

CONSUMPTION:

VOLTAGE:

470 x 550 x 850mm

54kg

0.28kW

240 V 50Hz

ORANGE JUICER ZUMEX

ORDER CODES:

OJZ2000 • ORANGE JUICER ZUMEX - VERSATILE PRO [ORANGE]

OJZ2001 • ORANGE JUICER ZUMEX - VERSATILE PRO [SILVER]

OJZ2002 • ORANGE JUICER ZUMEX - VERSATILE PRO [GRAPHITE]

FEATURES

• Programmable according to the location of use

• Self-Service: The juicer starts up by pressing the new tap

• Professional: To programme the number of oranges to be squeezed every time

• Touch Control Button Panel with an interface that shows the user the status of the machine at all times, and with a menu with many options that enable total control of the service and programmable in 23 languages

• New drip-free tap system

• New easily removable base

• Double magnetic safety dectectors and motor protection

NEW PRODUCT

151

152

04

NEW PRODUCT

ORANGE JUICER ZUMEX

SPECIFICATIONS

FRUITS PER MINUTE: 22

FEEDER CAPACITY: 10kg

FRUIT DIAMETER: up to 81mm

(recommended size between 65 - 81mm)

DIMENSIONS:

NET WEIGHT:

CONSUMPTION:

VOLTAGE:

475 x 580 x 1650mm

87kg

0.28kW

240 V 50Hz

ORDER CODES:

OJZ2003 • ORANGE JUICER ZUMEX - VERS PRO PODIUM

[SILVER]

OJZ2004 • ORANGE JUICER ZUMEX - VERS PRO PODIUM

[ORANGE]

OJZ2005 • ORANGE JUICER ZUMEX - VERS PRO PODIUM

[GRAPHITE]

FEATURES

• Programmable according to the location of use

• Self-Service: The juicer starts up by pressing the new tap

• Professional: To programme the number of oranges to be squeezed every time

• Touch Control Button Panel with an interface that shows the user the status of the machine at all times, and with a menu with many options that enable total control of the service and programmable in 23 languages

• New drip-free tap system

• Available in three colours: Orange, Silver and Graphite

• New easily removable base

• With integrated podium for peel waste

• Removable basket with wheels to take waste easily and hygienically

• Double magnetic safety dectectors and motor protection

ORANGE JUICER ZUMEX

SPECIFICATIONS

FRUITS PER MINUTE: 38

FEEDER CAPACITY: 15kg

FRUIT DIAMETER: up to 81mm

DIMENSIONS:

(recommended size between 65 - 81mm)

680 x 720 x 1760mm

NET WEIGHT:

CONSUMPTION:

VOLTAGE:

104kg

0.28kW

240 V 50Hz

ORDER CODES:

OJZ3000 • ORANGE JUICER ZUMEX - SPEED SELF SERVICE

PODIUM

OJZ4000 • ORANGE JUICER ZUMEX - BOTTLE RACK KIT PRO

OJZ5000 • ORANGE JUICER ZUMEX - BOTTLE KIT

FEATURES

• Fitted with an automatic startup/shutdown system by simply applying pressure on the tap

• Very simple operation. It can be operated by the attendant of the business or directly by the consumer preparing his/her own fruit juice

• Stainless steel fi tting with wheels and a large-capacity waste bucket

• Fast and robust

• Double magnetic safety dectectors and motor protection

NEW PRODUCT

153

154

04

CITRUS EXTRACTOR EZP

SPECIFICATIONS - EXTRACTOR EZP

OUTPUT:

POWER:

APPROX 200 ORANGES AN HOUR

0.3kW, 230V, 50Hz

SPEED:

DIMENSIONS:

WEIGHT:

1410rpm

200 x 310 x 390mm

9KG

ORDER CODE:

CES0001 • CITRUS EXTRACTOR SAMMIC EZP

MULTI JUICER

SPECIFICATIONS - SUMMIT JUICER

POWER:

SPEED:

DIMENSIONS:

0.24kW, 220V, 50Hz

6300rpm

210 x 310 x 370mm

WEIGHT: 5kg

ORDER CODE:

JES0001 • MULTI JUICER SUMMIT

Ideal to obtain perfect juice straight from fresh fruit or vegetables.

Simple and easy to use. For small volume restaurants or juice bars.

Suitable for fruit or vegetables. Enhance your menu for extra profi t.

Product to be processed must be pitless

SPECIFICATIONS - J 80 Ultra -

AUTOMATIC CENTRIFUGAL JUICER

OUTPUT:

POWER:

UP TO 120Lt PER HOUR

700W - SINGLE PHASE - 230 V 50Hz

SINGLE SPEED: 3000rpm

DIMENSIONS: 505 x 235 x 420mm

JUICE EXTRACTOR

ORDER CODE:

JER0001 • JUICE EXTRACTOR - J80 ULTRA

FEATURES

• Induction motor

• Patented automatic feed system, ø 79mm

• High clearance juice spout - 162mm

• Continuous pulp ejection

• 6.5-Litre container slots neatly under the ejector

• Easy removable Stainless Steel bowl and basket for fast cleaning

• Drip tray

SPECIFICATIONS - J 100 Ultra -

AUTOMATIC CENTRIFUGAL JUICER

OUTPUT: UP TO 160Lt PER HOUR

POWER:

SINGLE SPEED:

DIMENSIONS:

1000W - SINGLE PHASE - 230 V 50Hz

3000rpm

595 x 235 x 438mm

FEATURES

• Induction motor

• Patented automatic feed system, ø 79mm

• High clearance juice spout - up to 250mm

• Ejection chute sends a continous fl ow of pulp straight into a bin

• 7.2-Litre container slots neatly under the ejector

• Easy removable Stainless Steel bowl and basket for fast cleaning

• Drip tray

• Extra heavy duty - high yield machine

JUICE EXTRACTOR

ORDER CODE:

JER0002 • JUICE EXTRACTOR - J100 ULTRA

Best Choice

NEW PRODUCT

155

156

04

A

B

MATT GREY

FOOD LIQUIDISERS

SPECIFICATIONS - 4Lt LIQUIDISER

POWER: 0.7kW, 220V, 50Hz

SPEED:

DIMENSIONS:

3410rpm

210 x 240 x 600mm -

REMOVABLE JUG

SPECIFICATIONS - 25Lt LIQUIDISER

POWER:

SPEED:

1.9kW, 220V, 50Hz

2890rpm

DIMENSIONS: 450 x 570 x 1360mm -

TILTING JUG

ORDER CODES:

LQS1004 A LIQUIDISER SKYMSEN – 4.0Lt

LQS1025 B LIQUIDISER SKYMSEN – 25Lt

Ideal for blending soups and sauces. Use specifi cally for chilli sauce, salad dressings, juices

PLANETARY MIXER

SPECIFICATIONS - PMK0005

MOTOR:

DIMENSIONS:

0.32kW, 220-240V, 50-60Hz

410 x 260 x 340mm

WEIGHT: 12.3kg

ORDER CODES:

PMK0005 • PLANETARY MIXER KITCHENAID – 5Lt - WHITE

PMK0007 • PLANETARY MIXER KITCHENAID – 5Lt - MATT GREY

What sets the KitchenAid mixer apart from domestic mixers?

• Professional mixer designed for commercial use.

• All metal construction.

• Driven by gears not, a belt - therefore maintains constant speed even when large quantities are added to the bowl.

• Machine has chip and stain resistant fi nish.

• Uses a lift system i.e. mixer’s head does not tilt, promoting mixer stability.

A must for any professional kitchen; reliable, quiet and durable with unsurpassed performance. Comes standard with Stainless Steel mixing bowl, whisk, dough hook and beater attachment

SPECIFICATIONS - DRM0001

DIMENSIONS [MM]: 530 x 450 x 800

NETT WEIGHT [KG]: 44

WATTS: 370

VOLTAGE: 220/240V 50 Hz

DOUGH ROLLER MACHINE

ORDER CODES:

DRM0001 • DOUGH ROLLER MACHINE – ANKOR

Convenient, reliable and simple operation. This precision engineered machine is maintenance free.

In only a few seconds it will create fl at dough up to 400 mm wide and

1 to 5 mm thick for pizza or any other use. (Now with safety guard)

Mixers must be stopped before gear change. Do not overload machine. All mixers come standard with safety guard, dough hook, whisk and fl at beater. Ideal for small bakeries and home industries.

SPECIFICATIONS - DMA0020

CAPACITY: 20Lt (Dry fl our 12kg)

VOLTAGE:

POWER:

380V – 3 PHASE – 50hz

1.5kw

DIMENSIONS:

BOWL SIZE:

WEIGHT:

800 x 390 x 730mm

360 x 210mm

125kg

ROTATION SPEED: 26/178 R.P.M

SPECIFICATIONS - DMA0030

CAPACITY:

VOLTAGE:

POWER:

30Lt (Dry fl our 17kg)

380V – 3 PHASE – 50hz

1.5kw

DIMENSIONS:

BOWL SIZE:

830 x 450 x 800mm

380 x 260mm

WEIGHT: 136kg

ROTATION SPEED: 26/178 R.P.M

SPECIFICATIONS - DMA0040

CAPACITY: 40Lt (Dry fl our 25kg)

VOLTAGE:

POWER:

380V – 3 PHASE – 50hz

2.2kw

DIMENSIONS:

BOWL SIZE:

WEIGHT:

870 x 480 x 920mm

450 x 270mm

170kg

ROTATION SPEED: 26/178 R.P.M

DOUGH MIXER

ORDER CODES:

DMA0020

DMA0030

DMA0040

DMA0050

• DOUGH MIXER ANKOR - 20Lt

• DOUGH MIXER ANKOR - 30Lt

• DOUGH MIXER ANKOR - 40Lt

• DOUGH MIXER ANKOR - 50Lt

SPECIFICATIONS - DMA0050

CAPACITY: 50Lt (Dry fl our 30kg)

VOLTAGE:

POWER:

380V – 3 PHASE – 50hz

3.0kw

DIMENSIONS:

BOWL SIZE:

WEIGHT:

ROTATION SPEED:

900 x 510 x 920mm

500 x 270mm

180kg

26/178 R.P.M

Ideal for small bakeries and pizzerias. All units are supplied with castors for easy cleaning and manoeuvrability

• Mixers have a fi xed head and mixing bowl

• The shape of the spiral ensures a perfectly mixed dough is achieved in a few minutes

• Silent transmission system

• Stainless Steel protection grid for increased safety

• All units fi tted with an electronic timer and 2 speed motor

157

158

04

10LT PLANETARY MIXER - NO HUB - WITH SAFETY GRID

SPECIFICATIONS - PMK5010

TOTAL VOLUMETRIC CAPACITY: 10Lt

VOLTAGE: 220V 50Hz

POWER:

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

0.60kW

460 x 380 x 680mm

480 / 244 / 148rpm

68kg

ORDER CODES

PMK5010 • PLANETARY MIXER - 10Lt

Unit must be stopped before gear change. All mixers come standard with dough hook, whisk and fl at beater. Ideal for small bakeries and home industries

FLOOR STANDING PLANETARY MIXER - NO HUB - WITH SAFETY GRID

SPECIFICATIONS - PMF7020

TOTAL VOLUMETRIC CAPACITY: 20Lt

VOLTAGE:

POWER:

220V 50Hz

0.375kW

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

520 x 480 x 810mm

110 / 225 / 475rpm

90kg

ORDER CODES:

PMF7020 •

PMF5020 •

PMF7040 •

PMF7060 •

PLANETARY MIXER FLOOR STANDING – 20Lt

(NO HUB)

PLANETARY MIXER FLOOR STANDING – 20Lt

(NO HUB) - ECONO

PLANETARY MIXER FLOOR STANDING – 40Lt

(NO HUB)

PLANETARY MIXER FLOOR STANDING – 60Lt

(NO HUB)

SPECIFICATIONS - PMF5020 (ECONO)

TOTAL VOLUMETRIC CAPACITY: 20Lt

VOLTAGE: 220V 50Hz

POWER:

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

1.1kW

550 x 410 x 860mm

197 / 317 / 462rpm

93kg

SPECIFICATIONS - PMF7060

TOTAL VOLUMETRIC CAPACITY: 60Lt

VOLTAGE: 380V - 3 phase - 50Hz

POWER:

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

1.5kW

1010 x 708 x 1350mm

116 / 217 / 366rpm

405kg

SPECIFICATIONS - PMF7040

TOTAL VOLUMETRIC CAPACITY: 40Lt

VOLTAGE: 220V 50Hz

POWER:

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

0.75kW

560 x 590 x 1060mm

80 / 166 / 316rpm

180kg

FLOOR STANDING PLANETARY MIXER - WITH HUB - WITH SAFETY GRID

SPECIFICATIONS - PMF1020

CAPACITY: 20Lt

VOLTAGE:

POWER:

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

220V 50hz

0.375kW

516 x 456 x 850mm

142 / 264 / 482rpm

98kg

SPECIFICATIONS - PMF1030

CAPACITY: 30Lt

VOLTAGE: 220V 50hz

POWER: 0.75kW

DIMENSIONS: 576 x 575 x 1163mm

PLANETARY SPEED:

WEIGHT:

97 / 176 / 368rpm

150kg

ORDER CODES:

PMF1020 A

PMF1030 B

PMF1040 C

PMF1060 D

PMF2001 •

PLANETARY MIXER FLOOR STANDING – 20Lt

(WITH HUB)

PLANETARY MIXER FLOOR STANDING – 30Lt

(WITH HUB)

PLANETARY MIXER FLOOR STANDING – 40Lt

(WITH HUB)

PLANETARY MIXER FLOOR STANDING – 60Lt

(WITH HUB)

PLANETARY MIXER FLOOR STANDING MINCER

STEEL PLATES)

PMF2007 • PLANETARY MIXER FLOOR STANDING VEG CUTTER

ATTACHMENT

5mm SHREDDER)

SPECIFICATIONS - PMF1040

CAPACITY: 40Lt

VOLTAGE:

POWER:

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

220V 50hz

1.125kW

630 x 650 x 1110mm

109 / 225 / 412rpm

250kg

All mixers come standard with dough hook, whisk, fl at beater and safety guard

• Mixers are coated with long lasting enamel which make them easy to clean and toxin free

• Offers noiseless operation and high torque motors

• Hardened steel alloy gears with 3-speed transmission

• Mincer and vegetable cutter attachments are optional extras

SPECIFICATIONS - PMF1060

CAPACITY:

VOLTAGE:

60Lt

380V – 3 PHASE – 50hz

POWER:

DIMENSIONS:

PLANETARY SPEED:

WEIGHT:

1.5kw

1010 x 708 x 1350mm

116 / 217 / 366rpm

405kg

159

160

04

Best Choice

A

MILKSHAKE MIXER

SPECIFICATIONS - MMA0001

POWER: 0.35kW, 220V

DIMENSIONS: 165 x 158 x 498mm

WEIGHT: 4.5kg

- SUPPLIED WITH ONE MILKSHAKE CUP

(800ml)

Rugged construction. Ideal for vending areas, fastfood outlets, cafes, tuck shops and canteens.

• Available in various trendy colours to suit every application

• Comes standard with a Stainless Steel mixing cup

• Attractive and modular

ORDER CODES:

MMA0001 • MILKSHAKE MACHINE SUMMIT (BLACK) -

SINGLE HEAD (INCL CUP)

MMA0004 • MILKSHAKE MACHINE SUMMIT (RED) -

SINGLE HEAD (INCL CUP)

MMA0007 • MILKSHAKE MACHINE SUMMIT (SILVER) -

SINGLE HEAD (INCL CUP)

MSC0001 • MILKSHAKE CUP STAINLESS STEEL - 750ml

B

MILKSHAKE MIXER

smoothie. Choose the triple head unit for busy high volume establishments. Fitted with unique patented Stainless Steel

ORDER CODES:

MMH0200 A MILKSHAKE MIXER HAMILTON BEACH – SINGLE

MMH0400 B MILKSHAKE MIXER HAMILTON BEACH – TRIPLE

XMMH9135 C M/MIX HB [ALL] AGITATOR (OPTIONAL)

MSC0001 D MILKSHAKE CUP STAINLESS STEEL – 750ml

MSC0003 E STAINLESS STEEL MILKSHAKE CUP WITH

HANDLE - 880ml - IDEAL FOR HOT PRODUCT

C

D

E

SPECIFICATIONS - MMH0200

POWER: 0.24kW, 220-240V, 50-60Hz

DIMENSIONS: 165 x 171 x 520mm

WEIGHT: 6.5kg

- SUPPLIED WITH 1 x 750ml MILKSHAKE CUP

SPECIFICATIONS - MMH0400

POWER: 0.9kW, 50-60Hz

DIMENSIONS: 317 x 228 x 520mm

WEIGHT: 17kg

- SUPPLIED WITH 3 x 750ml MILKSHAKE CUPS

- 3 SPEED ROCKER SWITCH

- UNIQUE PULSE SWITCHES

SPECIFICATIONS - CBH0990

JUG CAPACITY: 3.8Lt

MOTOR POWER: 3/4HP WITH PULSE, 230V, 50-60Hz

SPEED: 2 SPEED

DIMENSIONS: 228 x 241 x 317mm

WEIGHT: 10.5kg

- DURABLE STAINLESS STEEL BLADES AND

CONTAINER

COMMERCIAL BLENDER

ORDER CODE:

CBH0990 • COMMERCIAL BLENDER HAMILTON BEACH – 990

Enough power and durability for any hotel, restaurant, canteen or hospital. Stainless Steel jug. Designed for heavy duty industrial use. Has pulse function

FEATURES

• 3-WIRE GROUNDED PLUG Designed with safety in mind.

• SURE GRIP FEET Prevents skidding—won’t mark countertops.

• SELF-ALIGNING COLLAR Container easily fi ts into place.

- DURABLE STAINLESS STEEL BLADES AND CONTAINER

SPECIFICATIONS - CBH0400

JUG CAPACITY: 1.9Lt

MOTOR POWER: 1HP WITH PULSE, 230V, 50-60Hz

DIMENSIONS: 178 x 203 x 457mm

WEIGHT: 4.29 kg

- TWO-SPEED

- DURABLE STAINLESS STEEL BLADES AND

CONTAINER

COMMERCIAL BLENDER

ORDER CODE:

CBH0400 • COMMERCIAL BLENDER HAMILTON BEACH

Enough power and durability for any hotel, restaurant, canteen or hospital. Stainless Steel jug.

Designed for heavy duty industrial use. Has pulse function

All-metal drive coupling offers long-lasting performance

Stainless Steel blades quickly cut through ingredients

161

162

04

FOOD BLENDER

SPECIFICATIONS - FBH6000

JUG CAPACITY: 1.8Lt

MOTOR POWER:

DIMENSIONS:

3HP, 230V, 50-60Hz

178 x 203 x 467mm

ORDER CODE:

FBH6000 • FOOD BLENDER HAMILTON BEACH

FEATURES

• 3HP motor (maximum output power) lets chefs puree soups, emulsify dressings, grind fl ours, and chop salsas & compotes

• Offers chefs commercial-quality results

• Patented design keeps ingredients circulating through the blades to ensure that contents are well-emulsifi ed

• Adjustable speed dial offers chef variable speed options

• Unique one-touch chopping function thoroughly chops solid ingredients

• Temperature gauge alerts chef if motor overheats to help prevent unnecessary burnout

• Jar pad sensor helps prevent “wear & tear”

Jar pad sensor with four magnetic connections to prevent blending unless container is on correctly

High speed, pulse, variable speed dial, and operator-adjustable chopping function maximize blending control

Patented design keeps ingredients circulating through the blades to ensure that contents are well-emulsifi ed

Temperature gauge alerts operator if motor overheats to help prevent unnecessary burnout while blending back-to-back batches

BAR BLENDER

SPECIFICATIONS - BBH0908

JUG CAPACITY:

MOTOR POWER:

1.25Lt

3/8HP, 220-240V, 50-60Hz

DIMENSIONS:

WEIGHT:

165 x 203 x 387mm

4.1kg

ORDER CODE:

BBH0908 • BAR BLENDER HAMILTON BEACH – 908 POLYCARBONATE JUG

The world’s favourite blender, a must for any bar or restaurant kitchen. Perfect for cocktails, smoothies. Separate On / Off and High / Low pulse switches. Break resistant polycarbonate jug. Fitted with patented rubber clutch system to prevent motor damage

SPECIFICATIONS - RIO

JUG CAPACITY:

MOTOR POWER:

950ml (STAINLESS STEEL JUG)

1/2HP WITH PULSE, 220-240V,

50-60Hz

DIMENSIONS:

WEIGHT:

165 x 203 x 406mm

3.6kg

SPECIFICATIONS - TANGO

JUG CAPACITY:

MOTOR POWER:

1.4Lt

1/2HP WITH PULSE, 220-240V,

50-60Hz

DIMENSIONS: 165 x 228 x 431mm

WEIGHT: 5kg

BAR BLENDERS

ORDER CODES:

BBH2001 A BAR BLENDER HAMILTON BEACH – RIO -

STAINLESS STEEL JUG

BBH2002 B BAR BLENDER HAMILTON BEACH – TANGO

Multipurpose blender suitable for any bar or restaurant. Perfect for salsas, dips, soups, cocktails and more. Separate On / Off and High /

Low pulse switches

TEMPEST BLENDER

Hamilton Beach Tempest Blender

• Perfect for a variety of uses, including smoothies, marguaritas, daiquris, sauces, soups, salsas and more.

• Provides the power and durability to handle the professional demands of hotels, bars, restaurants, hospitals and nursing homes.

• Two-speed versatility with pulse option provides precise blending every time.

• Patented quad-angle designed, Stainless Steel cutting and mixing blades ensure perfectly smooth drinks without unwanted ice or fruit chunks.

• Powerful blending performance for fast paced high volume businesses.

SPECIFICATIONS - TBH0915

JUG CAPACITY:

MOTOR POWER:

1.8Lt

3HP WITH PULSE, 220-240V,

50-60Hz

DIMENSIONS: 158 x 228 x 520mm

WEIGHT: 4.4kg

ORDER CODES:

TBH0915 • TEMPEST BLENDER HAMILTON BEACH

TBH1516 • H/BEACH TEMPEST / SUMMIT / REVOLUTION

BLENDER - COMPLETE JUG (NEW IMPROVED)

TBH1915 • TEMPEST BLENDER H/BEACH - COUNTER

INSTALLATION KIT

Best Choice

NEW PRODUCT

163

164

04

Best Choice

SUMMIT BLENDER

FEATURES

• Auto blend stops blender when drink reaches the perfect consistency

• Wave action system continually forces mixture down into the blades

• 3hp motor with all-metal drive coupling

• Jar pad sensor helps prevent “wear and tear”

• Unique airfl ow baffl e keeps unit cool

• Easy to clean controls

• Timer with auto shut off

• Stackable 1.8 Lt poly carbonate container

• Usb port for future program updates

• Quiet shield™ sound enclosure

SPECIFICATIONS - SBH1916

JUG CAPACITY:

MOTOR POWER:

1.8Lt

3HP WITH PULSE, 220-240V,

50-60Hz

DIMENSIONS: 254 x 304 x 590mm

WEIGHT: 13.25kg

Hamilton Beach Summit Blender

• Quiet Shield™ sound enclosure reduces the sound of the operating blender and maintains the lowest height profi le in its class, even when open.

• The quietest blender in its class offering consistent preparation results.

ORDER CODES:

SBH1916 • SUMMIT BLENDER HAMILTON BEACH

TBH1516 • H/BEACH TEMPEST / SUMMIT / REVOLUTION

BLENDER-COMPLETE JUG (NEW)

REVOLUTION ICE SHAVER

SPECIFICATIONS - RBH0001

JUG CAPACITY:

MOTOR POWER:

1.8Lt

3HP, 220V, 50-60Hz

SHAVER: 0.18kW

DIMENSIONS: 158 x 228 x 520mm

WEIGHT: 25kg

ORDER CODES:

RBH0001

TBH1516

• REVOLUTION ICE SHAVER HAMILTON BEACH

• H/BEACH TEMPEST / SUMMIT / REVOLUTION

BLENDER-COMPLETE JUG (NEW)

FEATURES

• Insulated double-wall hopper reduces noise and keeps ice cold

• Hopper sensor prevents operation when lid is not in place

• Drain sensor indicates if water is backed up in the drain

• This alerts the operator to check the drain line before a messy water backup

• Automatic cycle buttons lets operator select serving size and number of servings for precise results

• Wave action systems continually forces mixture down into the blades for smooth results every time

• Powerful heavy duty motor and built to satisfy the demands of the busiest bars

• Revolution ice shaver - Get the right portion every time with the revolution portion system

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
