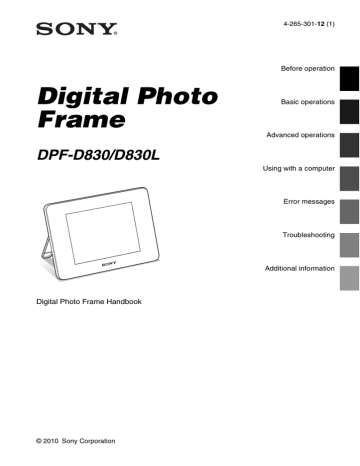

Digital Photo Frame

4-265-301-12 (1)

Digital Photo

Frame

DPF-D830/D830L

Before operation

Basic operations

Advanced operations

Using with a computer

Error messages

Troubleshooting

Additional information

Digital Photo Frame Handbook

© 2010 Sony Corporation

Table of Contents

Before operation

Enjoying your photo frame in various ways ...............................................4

Features ..........................................5

Identifying the parts .......................7

x

Digital photo frame ..................... 7

x Remote control ............................ 8

Basic operations

Preparing the remote control ..........9

Turning the photo frame on ..........10

Setting the current time ................11

Inserting a memory card ..............12

Changing the display ....................14

Slideshow display .........................15

Clock and Calendar display ...........16

Single view mode (single image display) .........................................17

Index image display ......................18

Playing a video file ........................20

Advanced operations

Enjoying a slideshow ....................21

Changing the settings of the slideshow ...................................... 21

Playing a slideshow with background music ...........................................24

Importing a music file .................... 24

Selecting a music file to play ..........24

Playing background music with a slideshow .......................................25

Refresh mode ...............................26

Importing images to the internal memory ........................................26

Specifying the playback device .....28

Exporting an image from the internal memory ........................................29

Deleting an image .........................30

Registering a mark ......................31

Sorting images (Filtering) .............33

Adjusting image size and orientation ....................................34

Enlarging/reducing an image ..........34

Rotating an image ...........................34

Changing the settings of the auto power on/off function ...................35

Changing the settings ...................37

Setting procedure ...........................37

Items to set .....................................39

Displaying an image stored in a USB memory device .............................41

Using with a computer

Connecting to a computer ............42

System requirements ......................42

Connecting to a computer to exchange images ............................................42

Disconnecting your computer .........43

Error messages

If an error message appears .........44

2

GB

Troubleshooting

If trouble occurs ...........................46

Additional information

About memory cards ....................51

“Memory Stick” ..............................51

SD memory card ............................52

Notes on using a memory card .......52

Index ............................................53

On the illustrations and screen shots used in this manual

The illustrations and screen shots used in this manual may not be identical to those actually used or displayed.

3

GB

Before operation

Enjoying your photo frame in various ways

This Sony digital photo frame allows you to easily display images taken with a digital camera or other devices without using a computer.

4

GB

Features

x Various display functions

You can enjoy various viewing modes, such as the Slideshow display, Clock and

Calendar display, Single view mode, and

Index image display. (page 14)

x Displaying memory card images and

importing them to the internal memory

Just insert a memory card, such as a

“Memory Stick” and SD memory card, removed from a digital camera or other device, and you will be able to view the images immediately.

You can import and save the memory card

images in the internal memory. (page 26)

x Various Slideshow styles

The displayed image can be switched automatically as though you are turning the pages of an album yourself. You can select from various slideshow styles, including the ones displaying a clock or calendar. You can also change playback settings such as the

playback order. (page 21)

* When using a miniSD/miniSDHC 1, microSD/microSDHC 2 or “Memory

Stick Micro” media 3, be sure to insert it in an appropriate adaptor.

x The built-in battery enables you to

enjoy the photo frame anywhere in the house.

Continued

5

GB

x Exporting images

You can export images in the internal

memory to your memory card. (page 29)

x Automatic rotation of images

The photo frame automatically rotates images to their proper orientation. Images are also automatically rotated when the photo frame is set in either the portrait or landscape position*. (supplied Operating

Instructions – “Stand”)

* A video file is not rotated automatically even if you change the orientation of the photo frame.

* When using a miniSD/miniSDHC 1, microSD/microSDHC 2 or “Memory

Stick Micro” media 3, be sure to insert it in an appropriate adaptor.

x Playback of video files/playback of

background music (BGM) with photos

You can enjoy viewing a video file shot with your digital camera as well as photos and also add background music to the images

(pages 20, 24).

x Sorting function

You can sort images by the date, folder, image orientation, mark and videos/photos

(page 33).

6

GB

Identifying the parts

x

Digital photo frame

Front

LCD screen

Remote sensor

Sony logo (page 10)

Rear

VIEW MODE button (page 14)

RESET switch

B/b/v/V (Direction)/

MENU button

(Enter) buttons

BACK button

1 (on/standby) button/Standby Indicator

Access lamp

Memory card slot (page 12)

EXT INTERFACE (USB A) connector

USB mini B connector (page 42)

I/O cover

Speaker

DC IN 12V jack

Stand

Continued

7

GB

x

Remote control

SLIDE-SHOW ( ) button

CLOCK ( ) button

MENU button

MARKING (

BACK button

) button

SORT button

SELECT DEVICE button

VIEW MODE buttons

1 (on/standby) button

SINGLE button

INDEX ( ) button

Zoom in ( ) button

Direction ( B/b/v/V) buttons

ENTER ( ) button

Zoom out ( ) button

IMPORT ( ) button

DELETE ( ) button

ROTATE ( ) button

About descriptions in this manual

The operations described in this manual are based on those with the buttons on the photo frame.

When an operation is performed differently, for example, with the remote control and the buttons on the photo frame, it will be explained in a tip.

8

GB

Basic operations

Preparing the remote control

The supplied lithium battery (CR2025) has already been inserted into the remote control.

Pull out the protective sheet before use as shown in the figure.

Replacing the battery of the remote control

If the remote control does not operate, replace the battery (CR2025 lithium battery) with a new one.

1

Press the tab in.

Protective sheet

Using the remote control

Point the top end of the remote control towards the remote sensor on the photo frame.

2

Pull the battery holder out.

Remote sensor

Note

The 1 (standby) button on the remote control cannot be used when the photo frame is powered only by the built-in battery pack. Use the 1 (standby) button on the photo frame.

3

Insert a new battery and slide the battery holder back into the remote control.

Insert the battery so that “+” is facing upwards.

Notes

• Using a battery other than the specified one may result in the battery rupturing.

• Dispose of used batteries as specified by the local authorities.

• Do not leave the remote control in a very hot and humid place.

• Take care that no foreign objects get inside the remote control when you, for example, replace the battery.

• Incorrect use of the battery may cause leaking and corrosion.

– Do not recharge the battery.

Continued

9

GB

– When the remote control will not be used for a long period of time, remove the battery from the remote control to prevent leaking and corrosion.

– Incorrectly inserting, shorting, dismantling, or heating the battery, or throwing it into a fire may cause the battery to rupture or leak.

Turning the photo frame on

Turning on the power

Press 1 (on/standby) on the photo frame to turn on the power. The standby indicator turns to green from red. The Sony logo on the front panel lights up.

Using the remote control

You can turn on/off the photo frame with the 1

(on/standby) button on the remote control.

When using the photo frame with the built-in battery pack

Turn on the photo frame with the 1 (standby) button on the photo frame.

If the photo frame is powered only by the builtin battery pack, the 1 (standby) button on the remote control does not operate.

Turning off the power

Hold 1 (on/standby) on the photo frame until the power turns off. The standby indicator turns to red from green.

Note

Do not turn the photo frame off or disconnect the AC adaptor from an AC outlet or the photo frame. Doing so may damage the photo frame.

10

GB

Operations in an initial state

When the photo frame is turned on, the initial display below appears on the screen.

Setting the current time

1

Press MENU.

2

Press B/b to select the

(Settings) tab.

3

Press v/V to select [Date/time

Settings] and press ENTER.

If the photo frame is not operated for 10 seconds, the demo mode is displayed. If any other button than the power button is pressed, the screen returns to the initial display.

First, press MENU during the initial display, and then set the date and time.

4

Adjust the date.

1

Press v/V to select [Date] and press

ENTER.

2

Press B/b to select month, day and year, press v/V to select a value, then press ENTER.

5

Adjust the time.

1

Press v/V to select [Time] and press

ENTER.

2

Press B/b to select hour, minute and second, press v/V to select a value, then press ENTER.

6

Select the format of the date.

1

Press v/V to select [Date Display Order], and press ENTER.

2

Press v

/ V to select a format and press

ENTER.

• Y-M-D

• M-D-Y

• D-M-Y

7

Set the day to start the week for the calendar.

You can set the day of the week that appears on the very left when the calendar is displayed.

Continued

11

GB

1

Press v/V to select [First day of the week] and press ENTER.

2

Press v/V to select [Sunday] or

[Monday] and press ENTER.

8

Select the time display.

1

Press v/V to select [12hr/24hr display] and press ENTER.

2

Press v/V to select [12 hours] or

[24 hours] and press ENTER.

9

Press MENU.

The menu screen is closed.

Inserting a memory card

1

Open the I/O cover.

2

Insert the memory card firmly into the corresponding slot with its label side facing toward you (when you are facing the back side of the photo frame).

The access lamp flashes when the memory card is inserted correctly. Reinsert the memory card after checking the label side of the memory card if the access lamp does not flash.

Access lamp

SD memory

Card

(Slot A)

“Memory

Stick”

(Slot A)

“Memory

Stick Duo”

(Slot B)

I/O cover

12

GB

Note

When using a miniSD/miniSDHC 1, microSD/ microSDHC 2 or “Memory Stick Micro” media 3, be sure to insert it in an appropriate adaptor.

1

Tip

• S-Frame fails to auto rotate if:

– An image file has been shot with a DSC which doesn’t support Exif rotate tag recording.

– An image file is retouched and saved with retouching software which breaks the Exif rotate tag.

2

3

For details on compatible memory cards, see

“About memory cards” (page 51). For

supported file formats, see the Operating

Instructions.

When you insert a memory card

When you insert a memory card, the images on it are automatically displayed. If you switch off the power while they are being displayed and then switch the power back on, the same images continue to be displayed.

To change the playback device

See “Specifying the playback device”

(page 28).

To remove a memory card

Remove the memory card from its slot in the opposite direction from which it was inserted.

Do not remove the memory card while the access lamp is flashing.

Notes

• The slot is both a “Memory Stick” standard and

Duo size compatible slot, so you do not need a

“Memory Stick” adaptor.

• The “Memory Stick” (Standard/Duo)/SD memory card/MMC multi-purpose slot automatically detects the card type.

• Do not insert multiple memory cards into A, B slots simultaneously. If multiple memory cards are inserted, the photo frame will not work properly.

13

GB

.

Changing the display

You can change the view style by pressing the

VIEW MODE buttons.

1

Press VIEW MODE repeatedly to select the view mode you want to display.

Single image display

(page 17)

Index

(page 18)

Using the remote control

Press the VIEW MODE button corresponding to the view mode you want to display.

VIEW MODE buttons

The view mode screen is displayed.

Display selection area

Style selection area

Slideshow

(page 15)

Clock and

Calendar

(page 16)

The selected view mode screen is displayed.

2

Select a style with B/b/v/V and press ENTER.

The display changes to the selected view style.

Tips

• When the cursor is in the display selection area, move it to the style selection area by pressing v.

• You can move the cursor in the style selection area by pressing the VIEW

MODE button on the remote control corresponding to the currently selected view mode ( , , or

), or pressing VIEW MODE on the photo frame repeatedly.

Note

If you have not operated the photo frame for an extended period of time, the style the cursor is on will be selected automatically.

14

GB

Slideshow display

Display Style Description

Displayes a single screen, one after another.

Slideshow

Single view

Displays multiple images at the same time.

For a video file only the first frame of the file is displayed.

Multi image view

Displays images, one after another, while showing the current date and time.

Clock view

Displays images, one after another, while showing a calendar.

The current date and time are also displayed.

Calendar view

Displays images, one after another, while showing the shooting date and time. The current date and time are not displayed.

Time Machine

Random view

Displays images while randomly switching between a number of different slideshow styles and effects.

When displaying images randomly

This is available when [Shuffle] of [Slideshow Settings] is set to

[ON] (page 22).

Tips

• You can set the interval, effect, listing order, or color effect when you select the Slideshow display. See

“Changing the settings of the slideshow” (page 21).

• If you press ENTER during slideshow, the display changes to the Single image display.

• If you turn the photo frame off during slideshow and back on with the 1 (on/standby) button, the slideshow restarts from the last image viewed.

15

GB

Clock and Calendar display

Clock1 Clock2 Clock3 Clock4 Clock5

Clock6 Clock7 Clock8 Clock9 Clock10

Clock11

Calendar1 Calendar2 Calendar3

Lunar

Calendar

(when you select

[Simplified

Chinese] in

[Language

Setting])

Arabic

Calendar

(when you select [Arabic] in [Language

Setting])

Farsi Calendar

(when you select

[Persian] in

[Language

Setting])

Note

You can select only the (Settings) tab when the Clock and Calendar are displayed.

16

GB

Single view mode (single image display)

Display Style Description

Displays an entire image in the screen.

You can switch the images to be displayed by pressing B/b.

Entire image

Displays an image over the whole screen.

(Depending on the aspect ratio of the recorded image, the border of the image may only be partially displayed.)

You can switch the images to be displayed by pressing B/b.

Fit to screen

Entire image (with

Exif)

Displays image information, such as the image number, file name, and shooting date while displaying the entire image.

You can switch the images to be displayed by pressing B/b.

See “About the information displayed on the LCD screen”

(page 19) for details on the image information.

Fit to screen (with

Exif)

Displays image information, such as the image number, file name, and shooting date in fit to screen mode.

(Depending on the aspect ratio of the recorded image, the border of the image may only be partially displayed.)

You can switch the images to be displayed by pressing B/b.

See “About the information displayed on the LCD screen”

(page 19) for details on the image information.

17

GB

Index image display

Display Style Description

Displays a list of large thumbnails. Move the cursor to select an image by pressing B/b/v/V.

Index

Index 1

Displays a list of thumbnails. Move the cursor to select an image by pressing

B/b/v/V.

Index 2

Displays a list of small thumbnails. Move the cursor to select an image by pressing B/b/v/V.

Index 3

Tips

• Thumbnails are small-sized images for index use that are recorded in a file of the pictures taken by a digital camera.

• On the index image display, you can select an image by pressing

B/b/v/V then ENTER. The display changes to the Single view mode.

18

GB

About the information displayed on the LCD screen

The following information is displayed.

1

Display type (In the Single view mode)

– Entire image

– Fit to screen

– Entire image (with Exif)

– Fit to screen (with Exif)

2

Ordinal number of the displayed image/Total number of images

Input media indication for the displayed image is shown as follows:.

Icons Meaning

Internal memory

“Memory Stick” input

SD Memory Card input

USB External device input

3

Image details

x When the photo is displayed

– File format (JPEG(4:4:4), JPEG(4:2:2),

JPEG(4:2:0), BMP, TIFF, RAW)

– Number of pixels (width × height)

– Manufacturer name of image input device

– Model name of image input device

– Shutter speed (e.g.: 1/8)

– Aperture value (e.g.: F2.8)

– Exposure value (e.g.: +0.0EV)

– Rotation information x When the video file is played

– File format (AVI, MOV)

– Number of pixels (width × height)

– Playback duration

– Video file size

4

Setting information

Icons Meaning

Protect indication

Associated file indication

(Displayed when there is an associated file such as a motion file or a miniature e-mail image file.)

Displays when you have registered a mark.

Displays a video file.

5

Image number (folder-file number)

This is displayed if the image is DCF compliant.

If the image does not comply with DCF, its file name is displayed.

If you named or renamed the file on your computer and the file name includes characters other than alphanumeric characters, the file name may not be displayed properly on the photo frame. Also, for a file created on a computer or other device, a maximum of 10 characters from the beginning of the file name can be displayed.

Note

Only alphanumeric characters can be displayed.

6

Shooting date/time

7

Battery remaining indicator

The remaining battery level is indicated.

If the battery indicator is not displayed on the screen, press MENU. It will be displayed on the upper right of the menu screen.

19

GB

Playing a video file

The operations described in this section are based on those with the buttons on the supplied remote control.

1

Select a video file.

1

Press SINGLE.

2

Press

B/b to select the desired style and press ENTER.

3

Press

B/b to advance/reverse the files to select a video file you want to play.

Using the Index display

1

2

Press B/b/v/V to select a video file you want to play.

2

Press ENTER.

The selected video file starts playback.

To adjust the volume

Press v/V during playback or playback pause of the video file.

To pause playback

Press ENTER during playback of the video file.

To resume playback, press ENTER again.

Fast forward/backward playback

Press B/b during playback of the video file.

The file is played forward or backward at high speed while you hold down the b or B button.

When you release the button, normal playback starts from that point.

Depending on the video file, fast forward/ backward playback may not be available with the photo frame.

To stop playback

Press BACK while a video file is being played.

Notes

• You cannot play the following type of video file:

– Video files processed with other video codec than Motion JPEG

– Video files that exceed maximum number of pixels either in width or height

(We cannot guarantee operation with video files not mentioned above.)

• Fast forward/backward playback and playback pause are not available during Slideshow display.

• Video paused during fast forward/reverse playback.

20

GB

Advanced operations

Enjoying a slideshow

1

Press VIEW MODE repeatedly to select (Slideshow) in the display selection area.

(Slideshow)

Display selection area

See “Slideshow display” (page 15) for

details on the slideshow styles.

Changing the settings of the slideshow

1

Press MENU.

2

Press B/b to select the

(Settings) tab.

3

Press v/V to select [Slideshow

Settings] and press ENTER.

Style selection area

Using the remote contro)

2

Press B/b/v/V to select the desired style and press ENTER.

Tips

• When the cursor is in the display selection area, move it to the style selection area by pressing v.

• You can move the cursor in the style selection area by pressing the VIEW

MODE button on the remote control corresponding to the currently selected view mode ( , , or ), or pressing VIEW MODE on the photo frame repeatedly.

4

Press v/V to select the item you want to change and press ENTER.

See the tables on the next page for details on the setting items.

Notes

• Note the following when you select a slideshow using the image stored on the memory card.

– Due to the characteristics of memory card devices, images may be subject to data error when read too often.

– Do not run a slideshow for a long time with a small number of images. This may cause data error.

– We recommend you back up images on the memory card often.

• When the photo frame is, for instance, displaying a slideshow, changes to the settings of some items are unavailable. These items are shown in gray and cannot be selected.

• The slideshow does not start from the point you stopped if you turn off the photo frame, or if you reset the photo frame.

Continued

21

GB

• When the screen is too bright, it may make you feel nauseous. Be careful that you do not make the brightness settings too bright when you use the photo frame.

Item

Slideshow

Settings

Setting Description

Photo Interval Set a value from 3 sec., 7 sec.*, 20 sec., 1 min., 5 min., 30 min., 1 hour,

3 hours, 12 hours, 24 hours for the interval between images.

Video Duration Set the interval based on playback time from the beginning of the file.

Set a value from among First 10 sec., First 15 sec., First 30 sec., First 1 min., First 3 min., or Full Playback*

Note

An image may not switch at the intervals you set on the menu, depending on the style of the slideshow, color effect, or image size.

Effect Center cross Transitions to the next image as though the previous image is being pushed from the center to the four corners.

Vert. blinds

Horiz. blinds

Fade*

Wipe

Transitions to the next image as though blinds are being lowered vertically.

Transitions to the next image as though blinds are being pulled horizontally.

Transitions to the next image by fading out the current image and fading in the next image.

Transitions to the next image as though the current image is being wiped off the screen to reveal the next image.

Shuffle

Color effect

Random

ON

OFF*

Color*

Sepia

Monochrome

Uses the above five effects randomly.

Displays images randomly.

Displays images according to the [Listing Order] setting of [General Settings].

Displays an image in color.

Displays an image in a sepia color.

Displays an image in monochrome.

*: Factory default settings

22

GB

Item

Slideshow

Settings

Setting

Display Mode

Description

Select the desired display size from the following:

Notes

• The original image data will not change.

• While the video file is played, the video image is always displayed in

Entire image mode.

Entire image*

Fit to screen

Displays an entire image enlarged to proper size. (An image may be displayed with margins on the top, bottom, left and right.)

Enlarges an image to fill the whole screen without changing the aspect ratio.

Note

An image may not be displayed with the display size you set on the menu, depending on the style of the slideshow.

*: Factory default settings

23

GB

Playing a slideshow with background music

Importing a music file

1

Insert a memory card or connect a

USB external device that contains a music file into the photo frame.

2

Press MENU, select the

(Settings) tab with

B/b, then press v/V to select [Slideshow BGM

Settings].

3

Press v/V to select [Import BGM] and press ENTER.

4

Press v/V to select the memory card inserted or the USB external device connected in step 1.

5

Select a music file you want to import from the music file list with v/

V and press ENTER.

A check mark (

✔) is displayed next to the selected file.

6

Repeat step 5 when you want to select two or more files.

Tip

To clear the selection, select the file to be cleared then press ENTER. The check mark (

✔) next to the selected file disappears.

7

Press MENU after you finish selecting the music file(s).

8

Press ENTER when the confirmation screen is displayed.

The selected music file is imported to internal memory of the photo frame.

Tip

To delete a music file imported to internal memory, select [Delete BGM] on the [Slideshow Settings] screen in step 2 then press ENTER. Press v/V to

24

GB

select the music file you want to delete from the music file list and press ENTER. A check mark will be displayed next to the selected file. Press MENU then press ENTER when

the confirmation screen appears.

The file will be deleted from the music file list.

Notes

• Playback of the imported music file is enabled only as BGM on a slideshow.

• Only music files imported to internal memory can be played as BGM.

• Up to 40 music files can be imported to internal memory of the photo frame.

• Up to 200 music files in the inserted memory card can be displayed.

• A music file shows only the file name. A music title and artist’s name cannot be shown.

Selecting a music file to play

1

Press MENU, select the

(Settings) tab with B/b, then press v/V to select [Slideshow BGM

Settings].

2

Press v/V to select [Select BGM] and press ENTER.

3

Select a music file you want to play from the imported music file list with v/V and press ENTER.

A check mark (

✔) is displayed next to the selected file.

4

Repeat step 3 if you want to select two or more music files.

5

Press MENU.

When you select (Slideshow) on the view mode screen, the music file with a check mark (

✔) is played.

Playing background music with a slideshow

Proceed as follows when you play the music file imported to internal memory as BGM with a slideshow using photos.

1

Press MENU, select the

(Settings) tab with

B/b, then press v/V to select [Slideshow BGM

Settings].

2

Press v/V to select [BGM ON/OFF] and press ENTER.

[ON]: Background music is played while a slideshow is run.

[OFF]: Background music is not played while a slideshow is run.

To adjust the volume

The volume adjustment screen appears on the right of the screen if you press v/V.

To increase the volume, press V. To decrease the volume, press v.

Tip

You can adjust the volume on the initial display or single image display.

Notes

• Fast forward/backward playback of background music is not available. Also, you cannot change the playback order of background music files.

• Background music cannot be played during playback of the video. The sound of the video file is played with the video. The background music for the photo displayed after playback of the video will start playback from the beginning of the next music file.

• If a music file to play is not selected from the imported music file list even if [BGM ON/OFF] is set to [ON], background music will not be played.

• The music files registered in internal memory at the factory BGM1, BGM2, and BGM3 cannot be deleted.

Item

Slideshow

BGM Settings

Setting Description

BGM ON/

OFF

ON* BGM is played while a slideshow is run.

OFF BGM is not played while a slideshow is run.

Select BGM Displays the list of music files in internal memory and you can select a BGM.(BGM1*, BGM2*, BGM3*)

Import BGM Imports music files for BGM stored on a “Memory Stick”, SD memory card or USB external device to internal memory.

Delete BGM Deletes music files imported to internal memory.

*: Factory default settings

25

GB

Refresh mode

Due to one of the characteristics of the device, images stored for a long time or read many times may be subject to data error.

The photo frame refreshes the internal memory automatically to prevent these errors, depending on the status of the internal memory.

The confirmation screen for refreshing the internal memory is displayed automatically when the refresh is needed.

The refresh starts automatically when you select [Yes] or when no operation is attempted for 30 seconds. If you select [No], the confirmation screen for refreshing is displayed again when the refresh is needed.

Do not turn off the photo frame while the internal memory is being refreshed. It may cause a malfunction.

It may take approximately 5 minutes to refresh the internal memory.

Notes

• We recommend that you perform a backup of your data periodically to avoid losing it.

• Avoid running a slideshow continuously with fewer than 10 images with the interval set to 3 sec. Doing so could corrupt image data in internal memory.

Importing images to the internal memory

You can use the photo frame as a digital album by saving important images in the internal memory.

Tips

• When saving images to the internal memory, you can use [Image import size] in the menu to preset whether to resize images to the optimum size or save them as they are without compressing them

(page 40).

• When [Image import size] is set to [Resize], up to approximately 4000 images can be saved in the internal memory. When set to [Original], the number of images that can be saved may vary, depending on the original image file size.

1

Press MENU when an image stored in the memory card or USB external device is displayed on the screen.

The menu screen is displayed.

Using the remote control

Press (IMPORT) when an image stored in the memory card or USB external device is displayed on the screen.

The [Import] screen described in step 2 below is displayed. Go to step 3.

2

Press B/b to select the (Editing) tab, select [Import] with v/V, and press ENTER.

Single view mode

(Single image display)

26

GB

Slideshow display

Index image display

If you want to clear the selection, select the image and press

ENTER

. “

✔” disappears from the image.

5

Press MENU.

The folder selection screen is displayed.

6

Press v/V to select the folder where you want to save and press ENTER.

The confirmation screen for importing image to the internal memory is displayed.

3

Press v/V to select [Import this image], [Import multiple images] or

[Import all images] and press

ENTER.

If you select [Import this image], the image currently displayed is imported to the internal memory. Go to step 6. (This item cannot be selected on the Slideshow display.)

If you select [Import multiple images], you can select the image you want to import from the image list. Go to step 4.

If you select [Import all images], an image list with check marks in the check boxes for all the images is displayed. Go to step

5.

4

Press B / b/v/V to select the image to be imported from the image list and press ENTER.

✔” is added to the selected image.

If you want to import multiple images at a time, repeat this step.

Tip

A new folder is created automatically when you select [New folder].

7

Press v/V to select [Yes] and press

ENTER.

The image is saved in the specified folder in the internal memory.

8

Press ENTER when the confirmation screen is displayed.

Notes

• “Import to the internal memory” is not available for images in the internal memory.

• Avoid doing the following while an image is being imported to the internal memory. Doing so may damage the photo frame, memory card, USB external device, or data:

Continued

27

GB

– Turning off the power

– Removing an memory card

– Removing an USB external device

– Inserting another memory card

• Importing video files to internal memory using the buttons on the photo frame is not available. To import a video file, connect a computer to the photo frame and copy a video file on the computer to internal memory on the photo frame. For details, see

“Connecting to a computer” (page 42).

Tip

You can change the thumbnail size for the image list using [

/

] on the remote control.

Specifying the playback device

You can specify whether to display a memory card, USB external device, or the internal memory.

1

Press MENU then select the

(Select device) tab with

B/b.

Using the remote control

Press SELECT DEVICE.

Tips

• If the memory card you want to select is not inserted, insert it now.

• If the USB external device you want to select is not connected, connect it now.

Note

During Clock and Calendar display, you cannot select the (Select device) tab.

2

Press v/V to select the device you want to display and press ENTER.

The images of the selected device are displayed.

28

GB

Exporting an image from the internal memory

You can export the images in the internal memory to a memory card or USB external device.

1

Press MENU when an image stored on the internal memory is displayed on the screen.

2

Press B/b to select the (Editing) tab.

3

Press v/V to select [Export] and press ENTER.

Single view mode

(Single image display)

5

Press B / b/v/V to select the image to be exported from the image list, and press ENTER.

✔” is added to the selected image.

If you want to export multiple images at a time, repeat this step.

If you want to clear the selection, select the image and press ENTER. “

✔” disappears from the image.

6

Press MENU.

The screen for selecting the memory card or USB external device to which the image is exported is displayed.

7

Press v/V to select a memory card to which the image is exported, and press ENTER.

4

Press v/V to select [Export this image], [Export multiple images] or

[Export all images] and press

ENTER.

If you select [Export this image], the image currently displayed is exported to the device. Go to step 7. (This item cannot be selected on the Slideshow display.)

If you select [Export multiple images], you can select the image you want to export from the image list. Go to step 5.

If you select [Export all images], the image list with check marks in the check boxes for all the images is displayed. Go to step 6.

8

Press v/V to select a destination folder and press ENTER.

The confirmation screen for exporting the image is displayed.

Tip

A new folder is created automatically when you select [New folder].

Continued

29

GB

9

Press v/V to select [Yes] and press

ENTER.

The image is exported.

10

Press ENTER when the confirmation screen is displayed.

The image is copied to the specified memory card or USB external device.

Note

Avoid doing the following while an image is being exported. Doing so may damage the photo frame, memory card,

USB external device

, or data:

– Turning off the power

– Removing an memory card

– Removing an USB external device

– Inserting another memory card

Tips

• You can change the thumbnail size in the image list using [

/

] on the remote control.

• Any memory card or USB external device that is not recognized by this photo frame is listed in gray and cannot be selected.

Deleting an image

1

Press MENU when an image you want to delete is displayed on the screen.

Using the remote control

Press (DELETE) when an image you want to delete is displayed on the screen.

The screen for deleting an image described in step 2 below is displayed. Go to step 3.

2

Press

B/b to select the

(Editing) tab, select [Delete] with v/V, and press ENTER.

3

Press v/V to select [Delete this image], [Delete multiple images] or

[Delete all images] and press

ENTER.

If you select [Delete this image], the image currently displayed is deleted. Go to step 6. (This item cannot be selected on the Slideshow display.)

If you select [Delete multiple images], you can select the image you want to delete from the image list. Go to step 4.

If you select [Delete all images], an image list with check marks in the check boxes for all the images is displayed. Go to step

5.

4

Press B / b/v/V to select the image to be deleted from the image list, and press ENTER.

✔” is added to the selected image.

If you want to delete multiple images at a time, repeat this step.

If you want to clear the selection, select the image and press ENTER. “

✔” disappears from the image.

5

Press MENU.

The delete confirmation screen is displayed.

30

GB

6

Press v/V to select [Yes] and press

ENTER.

The image is deleted.

7

Press ENTER when the confirmation screen is displayed.

Notes

• Avoid doing the following while an image is being deleted. Doing so may damage the photo frame, memory card,

USB external device, or data:

– Turning off the power

– Removing an memory card

– Removing an USB external device

– Inserting another memory card

• When the message [Cannot delete a protected file.] appears on the screen, the image file was set to

“Read Only” on a computer. In this case, connect the photo frame to a computer, and delete this file using the computer.

• The total capacity of the internal memory is not equal to the remaining capacity even immediately after initialization.

• Once deletion has started, the deleted image cannot be recovered even if you stop deletion. Delete images only after confirming you actually want to delete them.

Tip

You can change the thumbnail size in the image list using [

/

] on the remote control

.

To format the internal memory

1

Press MENU.

2

Press

B/b to select the

(Settings) tab.

3

Press v/V to select [Initialize] and press

ENTER.

4

Press v/V to select [Format internal memory] and press ENTER.

The confirmation screen for initializing the internal memory is displayed.

5

Press v/V to select [Yes] and press

ENTER.

Registering a mark

You can produce a slideshow only with images which have been selected beforehand and have been marked. You can easily check for images with marks using the index image display or single view mode.

1

Press MENU when an image is displayed on the screen.

Using the remote control

Press (MARKING) when an image is displayed on the screen. The Marking screen described in step 2 below is displayed. Go to step 3.

2

Press B/b to select the (Editing) tab, select [Marking] with v/V, and press ENTER.

3

Press v/V to select the mark you want and press ENTER.

4

Press v/V to select [Mark this image], [Mark/Unmark multiple images] or [Mark all images] and press ENTER.

If you select [Mark this image], the image currently displayed will be marked and showed in the future. (This item cannot be selected on the slideshow display.)

If you select [Mark/Unmark multiple images], you can select the image to which you want to attach a mark from the image list. Go to step 4.

Continued

31

GB

If you select [Mark all images], the image list is displayed. A check mark is attached to the check box of all the images. Go to step 5.

5

Press B / b/v/V to select the image from the image list to be marked, and press ENTER.

✔” is added to the selected image.

If you want to mark multiple images at a time, repeat this step.

If you want to clear the selection, select the image and press ENTER. “

✔” disappears from the image.

About image sorting in the image list

During a sort:

Lists all images that meet the sorting criteria.

Not during a sort:

Lists all images in the device that contains the image currently displayed.

Refer to “Sorting images (Filtering)”

(page 33).

6

Press MENU.

The confirmation screen appears.

7

Press v/V to select [Yes] and press

ENTER.

The mark is attached to the selected image.

To delete the registration of a mark

Select [Unmark this image] or [Unmark all images] and press ENTER in step 3. You can also cancel the selection when you remove the check mark from the check box.

• [Unmark this image]:

Removes a mark from the image currently displayed. (This item cannot be selected on the slideshow display.)

• [Unmark all images]:

Unmark all images in the device that contains the image currently displayed.

During a sort:

32

GB

Unmarks all images that meet the sorting criteria.

Note

A mark is saved only when it is registered with an image in the internal memory. A mark registered with an image on a memory card or a USB external device is removed when the power is turned off, or if you change the device being displayed.

Tips

• You can select a mark from among 3 types.

• You can change the thumbnail size in the image list using [

/

] on the remote control.

Sorting images

(Filtering)

You can sort for images stored in the internal memory, in the external device or on a memory card according to date, folder, image orientation, marks or videos/photos.

1

Press MENU when an image is displayed on the screen.

Using the remote control

Press SORT when an image is displayed on the screen. The Sort screen described in step 2 below is displayed. Go to step 3.

2

Press B/b to select the (Editing) tab, select [Sort] with v/V, and press

ENTER.

3

Select a sort style using v/V and press ENTER.

4

Press

B/b/v/V to select the item you want and then press ENTER.

5

When you want to sort images in another sort style, press MENU then repeat steps 3 and 4.

To cancel the sort

Press MENU while the sorted images are displayed, select [Exit sort (show all photos)] and press ENTER.

To change the sort style

Press BACK while the sorted images are displayed then select [Reselect].

Notes

• Do not turn the photo frame off, remove the memory card, or disconnect the USB external device during sort. Doing so may damage the photo frame or the memory card or corrupt the data.

• Sort is automatically canceled in the following cases:

– When the playback device is changed

– When images on a memory card are sorted and the memory card is removed.

– When images on an USB external device are sorted and the USB external devices removed.

• [Sort by date]:

Filters by the shooting date.

• [Sort by folder]:

Filters by the folder.

• [Sort by vertical/horizontal]:

Filters by the image orientation.

• [Sort by mark]:

Filters by the mark.

• [Sort by videos/photos]:

Filters according to files that contain videos or photos.

Either the video files or photos are sorted.

33

GB

Adjusting image size and orientation

Enlarging/reducing an image

You can enlarge or reduce an image in Single view mode.

1

Press MENU in Single view mode.

2

Press B/b to select the (Editing) tab.

3

Press v/V to select [Zoom] and press ENTER.

4

Press v/V to select the enlargement factor and press ENTER.

You can enlarge an image from 1.5 times to 5 times (maximum) the original scale.

You can move an enlarged image up, down, left and right.

Using the remote control

To enlarge an image, press (zoom in) on the remote control in Single view mode. To reduce an enlarged image, press (zoom out).

To save an enlarged or reduced image

(Crop and save)

1

Press MENU while the enlarged or reduced image is displayed.

2

Press v/V to select the saving method.

If you select [Save as new image], a copy of the image is saved. Go to step

3

.

If you select [Overwrite], the new image overwrites the old image. Go to step

5

.

3

Press v/V to select the device on which the image is saved and press ENTER.

4

Press v/V to select a destination folder and press ENTER.

5

Press v/V to select [Yes] and press ENTER.

The image is saved.

6

When the confirmation screen appears, press

ENTER.

34

GB

Tip

If you move the enlarged image with

B

/ b/v/V and press MENU in step 1, the image is trimmed into the displayed image size and saved.

Notes

• You cannot overwrite files except for a JPEG file

(extension: .jpg).

• Enlarging an image may reduce the quality depending on the image size.

• A video file cannot be enlarged or reduced.

Rotating an image

You can rotate an image during Single view mode.

1

Press MENU in Single view mode.

2

Press B/b to select the (Editing) tab.

3

Press v/V to select [Rotate] and press ENTER.

4

Press v/V to select the angle of rotation and press ENTER.

You can select an angle of rotation from among 90 degrees, 180 degrees, and 270 degrees clockwise.

Using the remote control

You can also rotate an image with

(ROTATE) on the remote control. The image rotates 90 degrees counterclockwise every time you press the button.

Tips

• For an internal memory image, image rotation data will be retained even after the power is turned off.

• You can also rotate the index image display.

Note

You cannot rotate a video file.

Changing the settings of the auto power on/off function

You can use the timer function to turn the photo frame on or off automatically when the photo frame is turned on.

1

Press MENU.

2

Press

B/b to select the

(Settings) tab.

3

Press v/V to select [Auto Power ON/

OFF] and press ENTER.

The [Auto Power ON/OFF] screen is displayed.

4

Press v/V to select [Setup method] and press ENTER. Press v/V to select [Simple], [Advanced] or [Auto off] and press ENTER.

[Simple]:

Sets the auto power on/off function in one minute increments.

[Advanced]:

Sets the auto power on/off function according to a day of the week in one hour increments.

[Auto off]:

Sets the auto power off time when the specified time has elapsed with no operation after the photo frame is turned on. You can specify two or four hours as an elapsed time.

Continued

35

GB

[Advanced]

Note

The auto power on function is disabled when the photo frame operates on the built-in battery.

5

Press v/V to select [Time Setting] and press ENTER.

[Simple]

1

Select an item for which you want to set the time.

Press v

/

V to select [Power-ON timer] or [Power-OFF timer] and press

ENTER. Press v

/ V to select [Enable] and press ENTER

.

2

Set the time at which you want to activate the Power-ON timer or Power-

OFF timer.

Press v

/ V to select [Auto ON time] or

[Auto OFF time] and press ENTER.

Press

B

/ b to select the hour or minute, press v

/

V to set the hour or minute, and press ENTER.

3

Set the day of the week on which you want to activate the timer.

Press v

/ V to select [Auto ON day] or

[Auto OFF day] and press ENTER.

Press v

/

V to select the day of the week on which you want to activate the timer and press ENTER. The select day of the week is checked.

Press v

/ V to move the cursor to [OK] and press ENTER.

1

Press B/b/v/V to select the time you want to use the auto power on/off function.

You can set this function according to a day of the week by one hour units.

The color of the selected time zone changes to blue after you press ENTER.

The power supply of the photo frame will be turned on when the blue time zone time occurs. The color of the selected time zone changes to gray, after you select the blue time zone and then press ENTER. The power supply of the photo frame is turned off while it is in the gray time zone.

Tip

The power is turned off automatically at the time you set for [Power-OFF timer] when you are using the photo frame.

The power is turned on automatically at the time you set for [Power-ON timer] during the standby mode.

2

Press B/b/v/V to select [OK] and then press ENTER.

[Auto off]

36

GB

Press v/V to select an elapsed time which you want to turn off the photo frame automatically: 2 hours, 4 hours or Disable.

Then press ENTER.

6

Press MENU.

Changing the settings

You can change the following settings.

• Slideshow Settings

• Slideshow BGM Settings

• Auto Power ON/OFF

• Date/time Settings

• General Settings (Listing Order, Sony logo

ON/OFF etc,.)

• Language Setting

• Initialize

Setting procedure

1

Press MENU.

2

Press B/b to select the

(Settings) tab.

3

Press v/V to select the item you want to change and press ENTER.

The setting screen of the selected item is displayed.

For example, when [Slideshow Settings] is selected.

Continued

37

GB

4

Press v/V to select the item you want to change and press ENTER.

This enables you to set each of the items

(page 39).

Note

When the photo frame is, for instance, displaying a slideshow, some settings of some items cannot be changed. They are displayed in gray and cannot be selected.

5

Press v/V to select a setting value and press ENTER.

Each time you press v/V, the setting value changes. In the case of a numerical value, press

V to increase the value and press v to decrease it.

If you press

ENTER

, the setting is executed.

6

Press MENU.

The menu closes.

To reset to factory default settings

1

Press MENU, and select the (Settings) tab by pressing

B/b.

2

Press v/V to select [Initialize] and press

ENTER.

3

Press v/V to select [Initialize settings] and press ENTER.

All adjusted values, except for the date/ time settings, are reset to the default settings.

38

GB

Items to set

Item

Slideshow

Settings

Slideshow

BGM Settings

Auto Power

ON/OFF

Setting Description

See “Enjoying a slideshow” (page 21).

See “Playing a slideshow with background music” (page 24).

Advanced*

Simple

Sets the auto power on/off function according to a day of the week by one hour units.

OK Returns to the previous screen after confirming the operation.

Cancel Returns to the previous screen after cancelling the operation.

Deletes all the selected times.

Reset all

Sets the timer which turns the power of the photo frame on or off automatically. You can set the Auto Power ON/OFF time in one-minute

increments. (page 35)

Power-ON timer

You can set the timer (time/day of the week) when the power is to be turned on automatically.

Auto off

Power-OFF timer

You can set the timer (time/day of the week) when the power is to be turned off automatically.

Sets the timer that turns the power of the photo frame off automatically at a certain elapsed time with no operation after the photo frame is turned on.

When you select [Disable], the Auto off function is not activated.

Sets the date, time, First day of the week, etc. (page 11)

Date/time

Settings

General

Settings

Listing Order

Auto display orientation

Sets the display order of images. This setting affects the order in

[Slideshow Settings].

Shoot. Date Displays images in order of the shooting date.

Number Order* Displays images in order of file number.

ON*/OFF: You can rotate the orientation of images automatically according to the orientation of the photo frame.

LCD backlight Sets the brightness of the backlight of the LCD screen to a level from 1 to

10*.

*: Factory default settings

Continued

39

GB

Item

General

Settings

System

Information

Language

Setting

Setting Description

Image import size

Resize* Resizes the images and saves them to internal memory when importing images from a memory card. You can save more images. However, when the images are displayed on a large monitor via a computer, etc., image quality is deteriorated compared with the original.

Original Saves images to the internal memory without compressing them. There is no deterioration, but you can save fewer images.

ON*/OFF: You can set whether the photo frame’s Sony logo lights or not.

Sony logo ON/

OFF

Version

Internal memory

Displays the version of the firmware of the photo frame.

Memory capacity

Indicates the maximum amount of space available in internal memory in the initial state.

Remaining capacity

Indicates the amount of free space currently available in internal memory.

Sets the display language on the LCD screen.

Japanese, English*, French, Spanish, German, Italian, Russian, Korean, Simplified Chinese,

Traditional Chinese, Dutch, Portuguese, Arabic, Persian, Hungarian, Polish, Czech, Thai,

Greek, Turkish, Malay, Swedish, Norwegian, Danish, Finnish

Initialize

Note

Default language setting may vary in some regions.

Format internal memory

You can format the internal memory.

Notes

• All the images added to the internal memory will be deleted.

• Do not format the internal memory by using a connection to a computer.

Initialize settings

*: Factory default settings

Returns all settings to their factory defaults except for the current date and time setting of [Date/time Settings].

40

GB

Displaying an image stored in a USB memory device

You can display images stored in a USB memory device on the screen of the photo frame.

Notes

• We cannot guarantee connection with all types of

USB memory devices.

• The playback device will be switched to the USB external device if you connect the USB memory to the USB A connector during playback of the image in the internal memory.

1

Connect the AC power adaptor to the photo frame and connect the AC power adaptor to an AC outlet.

(supplied Operating instructions –

“Turning the photo frame on”).

2

Turn on the photo frame (page 10).

3

Open the I/O cover.

4

Connect the USB memory device to the EXT INTERFACE (USB A) connector on the photo frame.

USB memory

5

Select the [USB] External Device in

Select device (page 28).

An image in the USB memory device is displayed on the screen.

For details on the slideshow, see page 21.

For details on adding images to the

internal memory, see page 26.

Notes

• Do not disconnect the USB memory, or turn off the photo frame while the access lamp on the photo frame is flashing. Doing so may damage the data stored in the USB memory.

Sony assumes no responsibility for any damage or loss of data.

• The photo frame cannot use USB memory data that has been encrypted or compressed using, for instance, fingerprint authentication or a password.

• Do not connect a computer to the USB mini B connector on the photo frame simultaneously when a USB memory is connected to the EXT

INTERFACE (USB A) connector.

• The photo frame may not be able to access files normally from a USB hub or USB device with a built-in USB hub may not operate properly.

• The I/O cover cannot be closed with a USB memory device inserted.

41

GB

Using with a computer

Connecting to a computer

Connecting to a computer allows you to view images in the internal memory of the photo frame with a computer and copy them to a computer and to copy images from a computer to the photo frame.

System requirements

To connect a computer to the photo frame, your computer must satisfy the following recommended system requirements.

x Windows

Recommended OS: Microsoft Windows 7/

Windows Vista SP2 /Windows XP SP3

Port: USB port

x Macintosh

Recommended OS: Mac OS X (v10.4 or later)

Port: USB port

Notes

• If multiple USB devices are connected to a computer or if a hub is used, a problem may occur.

In such a case, simplify the connections.

• You cannot operate the photo frame from another

USB device being used simultaneously.

• Do not disconnect the USB cable during data communication.

• Operation with all computers that satisfy the recommended system requirements is not guaranteed.

• The photo frame has been demonstrated as operable when connected to a computer or Sony digital photo printer. When other devices are connected to the photo frame, these devices may not recognize the internal memory of the photo frame.

• Do not connect a computer to the USB mini B connector on the photo frame simultaneously when a USB memory or external device is connected to the EXT INTERFACE (USB A) connector.

Connecting to a computer to exchange images

Note

This section shows an example for a connection for

Windows Vista. Depending on the OS you use, the screen display and procedures may vary.

1

Connect the AC power adaptor to the photo frame and connect the AC power adaptor to an AC outlet.

(supplied Operating Instructions –

“Turning the photo frame on”)

2

Open the I/O cover.

3

Connect the computer and photo frame with a commercially available

USB cable.

To USB mini B connector

To USB connector

Computer

Note

Use a B-Type USB cable that is less than 3 meters long.

4

Turn the photo frame on. (page 10)

42

GB

5

When the [AutoPlay] window appears on the computer display, click [Open folder to view files].

If the [AutoPlay] window does not appear, click [Computer (My Computer)] in the

Start menu, then open the removable disc.

6

Move the cursor in this window and right-click, then click [New] -

[Folder].

Name this new folder. In this manual, the folder name “sony” is used as an example.

• Image files made or edited on a computer may not be displayed. Image files set to “Read Only” on a computer cannot be deleted on the photo frame.

Cancel “Read Only” before saving image files from a computer on the photo frame.

• The I/O cover cannot be closed with the USB cable connected.

Disconnecting your computer

Disconnect the USB cable or turn the photo frame off after disconnecting the photo frame from your computer.

1

Double-click on the Task Tray.

2

Click (USB Mass Storage

Device) - [Stop].

3

Click [OK] after checking the drive you want to remove.

7

Double-click to open this “sony” folder.

8

Open the folder that contains the image files you want to copy, and copy the image files by using dragand-drop.

Notes

• When saving images from a computer in the internal memory, make a folder in the internal memory and save the images in this folder. If you do not make a folder, you can only save up to 512 images. In addition, the number of images may be reduced depending on the file name length or character type.

• If you edit or save an image file on a computer, the shooting date of the file may be changed or erased.

In this case, images may not be displayed in order of the shooting date on the index image display.

• When images from the computer are saved in the internal memory of the photo frame, the image files are saved without being compressed. As a result, fewer images may be able to be saved to the internal memory of the photo frame.

43

GB

Error messages

If an error message appears

If an error occurs, one of the following error messages may be displayed on the LCD screen of the photo frame. Follow the corresponding solution below to solve the problem.

Error message

No Memory Stick. / No SD

Memory Card. / No External

Device.

An incompatible Memory Stick is inserted. / An incompatible SD

Memory Card is inserted. / An incompatible External Device is inserted.

No images on file.

Cannot delete a protected file.

Memory card is protected. Remove protection then try again.

The Memory Stick is full. / The SD

Memory Card is full. / The

External Device is full./ The internal memory is full.

Error reading the Memory Stick. /

Error reading the SD Memory

Card. / Error reading the External

Device. / Error reading the internal memory.

Write error on the Memory Stick. /

Write error on the SD Memory

Card. / Write error in the External

Device. / Write error on the internal memory.

Meaning/Solutions

• A memory card is not inserted in a slot. Or, an external device is not connected to the EXT INTERFACE connector.

Insert a memory card in the corresponding slot (page 12).

Or, connect an external device (page 41).

• An unsupported memory card is inserted. Or, an unsupported external device is connected to the EXT

INTERFACE connector. Use a memory card or external device that is supported by the photo frame.

• There is no image file that can be displayed on the screen of the photo frame on the memory card. Use a memory card containing image files that can be displayed with the photo frame.

• To delete a protected file, cancel the protection on your digital camera or computer.

• The memory card is write-protected. Slide the write-

protect switch to the enable position. (page 51)

• No more data can be saved because the memory card, the external device, or the internal memory is full. Delete images, or use a memory card or external device with free space available.

For a memory card:

An error has occurred. Check that the memory card is inserted correctly. If this error message is displayed frequently, check the status of the memory card with a device other than the photo frame.

For an external device:

The external device may be write-protected. Cancel the write-protection setting for the device you are using.

• For the internal memory:

Initialize the internal memory.

The Memory Stick is read only.

Note

When you initialize the internal memory, please note that all the image files imported to the internal memory are deleted.

• A “Memory Stick-ROM” is inserted. To save the images, use the “Memory Stick” recommended.

44

GB

Error message

The Memory Stick is protected.

Meaning/Solutions

• A protected “Memory Stick” is inserted. To edit and save the images with the photo frame, use some device to remove protection.

Memory card format not supported. • For a memory card, use your digital camera or other device to format the memory card.

• Use the photo frame to initialize the internal memory.

Cannot open the image.

Incompatible USB device. Check device’s USB settings.

Note

When you initialize the memory card, all the files on the memory card will be deleted.

• The photo frame cannot display or open an image file whose format is not supported.

• Connect a device with support for mass storage. If the USB setting of your device is incorrect, set the mass storage mode in the USB setting.

45

GB

Troubleshooting

If trouble occurs

Before submitting the photo frame for repair, try using the following guidance to solve the problem.

If the problem persists, consult with your Sony dealer or Sony service facilities.

Power supply

Symptom

The power is not turned on.

Check item

• Is the AC power plug inserted correctly?

• Is the built-in battery pack out of charge?

Cause/Solutions

c Connect the AC adaptor properly.

Displaying images

If the power is turned on but images are not displayed or the settings of the operation screen cannot be configured, confirm the following check items.

Symptom

No images are displayed on the screen.

Images are not played back in the order of shooting date.

Check item

• Is a memory card inserted or an external device connected properly?

• Does the memory card contain images saved with a digital camera or other device?

• Are images stored on the external device?

• Is the file format compatible with DCF?

• Were these images saved from a computer?

• Were these images edited on a computer?

Cause/Solutions

c Insert a memory card (page 12) or connect

an external device (page 41) properly.

c Insert a memory card containing images or connect an external device containing images.

c Check the file formats that can be displayed. (See Operating Instructions –

“Specifications”) c A file that is not compatible with DCF may not be able to be displayed with the photo frame, even if it can be displayed with a computer.

c If you edit or save an image file on a computer, the date of the file was modified. Images are thus displayed in order of the modified date instead of the shooting date.

46

GB

Symptom

Some images are not displayed.

Check item

• Are the images displayed in the index view?

• Does the mark displayed below appear in the index view?

• Were the images created with an application on a computer?

• Does the mark displayed below appear in the index view?

Cause/Solutions

c If the image is displayed in the index view but cannot be displayed as single image, the image file may be damaged even though its thumbnail preview data is fine.

c A file that is not compatible with DCF may not be able to be displayed with the photo frame, even if it can be displayed with a computer.

c If the mark shown on the left is displayed, the image file may not be supported by the photo frame because, for example, it is a

JPEG file that was created with your computer. Also, the image file may be supported, but may not contain thumbnail data. Select the mark and press ENTER to change the screen to the single image display. If the mark on the left is displayed again, the image cannot be displayed because the image file is not supported by the photo frame.

c If the mark shown on the left is displayed, the image file is supported by the photo frame, but the thumbnail data or image itself cannot be opened. Select the mark and press ENTER. If the mark shown on the left is displayed again, the image cannot be displayed.

c The photo frame can play, save, delete, etc. up to 4,999 image files.

• Are there more than 4,999 images in the internal memory, memory card, or external device?

• Did you rename the file with a computer or other device?

• Is there a folder with more than 8 levels in its hierarchy on the memory card or in the external device?

c If you named or renamed the file on your computer and the file name includes characters other than alphanumeric characters, the image may not be able to be displayed on the photo frame.

c The photo frame cannot display images saved in a folder that is more than 8 levels deep.

Continued

47

GB

Symptom

The file name is not displayed properly.

Check item

• Did you rename the file with a computer or other device?

Cause/Solutions

c If you named or renamed the file on your computer and the file name includes characters other than alphanumeric characters, the file name may not be able to be displayed properly on the photo frame. Also, for a file created on a computer or other device, a maximum of

10 characters from the beginning of the file name can be displayed.

Note

Only alphanumeric characters can be displayed.

Playing a video file

Symptom

A video file is not played.

Check item

• Does the mark displayed below appear in the index or single view display?

Cause/Solutions

c If the mark shown on the left is displayed, the video file may not supported by the photo frame. For video files that cannot be played, see “Playing a video file”

(page 20).

Fast forward/ backward playback is not available.

– c Fast forward/backward playback of some video files may not be available with the photo frame.

Saving and deleting images

Symptom

Cannot save an image.

Check item

• Is the memory card writeprotected?

• Is the write-protect switch of the memory card in the

[LOCK] position?

Cause/Solutions

c Cancel write-protection and try saving again.

c Slide the write-protect switch to the enable position.

• Is the memory card full?

c Replace the memory card with one with sufficient free space. Or, delete any

unwanted images. (page 30)

• Is the internal memory full?

c Delete any unwanted images. (page 30)

48

GB

Symptom

Cannot save an image.

Cannot delete an image.

An image was deleted accidentally.

Check item

• Did you save images from a computer to the internal memory without making a folder in the internal memory?

• Is the memory card writeprotected?

• Is the write-protect switch of the memory card in the

[LOCK] position?

• Are you using a “Memory

Stick-ROM”?

• Is this image protected?

Cause/Solutions

c If you do not make a folder, you can only save up to 512 images. In addition, the number of images to be saved may be reduced depending on the file name length or character type. When you save images in the internal memory from a computer, be sure to make a folder in the internal memory and save the images in this folder.

c Use the device you are using to cancel write-protection and try deleting again.

c Slide the write-protect switch to the enable position.

c It is not possible to delete an image from or format a “Memory Stick-ROM”.

c Check the image information displayed in

Single view mode. (page 19)

c An image with a mark is set to “Read

Only”. You cannot delete it on the photo frame.

c An image cannot be recovered once it is deleted.

Photo frame

Symptom

Nothing happens even if you operate the photo frame.

Check item

Cause/Solutions

c Turn off the power (page 10) and turn it

on again.

c Push the RESET switch with a thin object,

such as a ballpoint pen. (page 7)

Note

If you push the RESET switch while the photo frame is in operation, the data in its internal memory may be erased or the settings may be reset.

Continued

49

GB

Remote control

Symptom

Nothing happens even if you operate the remote control.

Check item

• Is the battery inserted in the remote control properly?

Cause/Solutions

c Replace the battery. (page 9) c Insert a battery. (page 9)

c Insert a battery in the proper orientation.

(page 9)

c Point the top end of the remote control towards the remote sensor on the photo

frame. (page 9)

c Remove any obstruction between the remote control and the remote sensor.

c Remove the protective sheet. (page 9)

• Is there a protective sheet inserted?

• Is the AC adaptor connected correctly?

c The 1 (standby) button on the remote control cannot be used when the photo frame is powered only by the built-in battery pack. Use the 1 (standby) button on the photo frame.

Built-in battery pack

Symptom

Cannot charge the built-in battery pack.

Check item Cause/Solutions

• Is the standby indicator lit?

c If an internal temperature of the photo frame rises owing to direct sunlight, etc., battery charging becomes disabled. In such a case, the standby indicator does not light, but this is not a malfunction of the photo frame.

50

GB

Additional information

About memory cards

“Memory Stick”

Types of “Memory Stick” that the photo frame can use

With the photo frame, you can use the following types of “Memory Stick” *1 :

Displaying Deleting/

Saving

Type of

“Memory Stick”

“Memory Stick”

*2

(Not compatible with

“MagicGate”)

“Memory Stick”

*2

(Compatible with

“MagicGate”)

“MagicGate

Memory Stick”

*2

“Memory Stick

PRO”

*2

“Memory Stick

PRO-HG”

*2

“Memory Stick

Micro”

*3

(“M2” *4 )

OK

OK *5

OK

*5

OK *5

OK

*5*6

OK *5

OK

OK *5

OK

*5

OK *5

OK

*5*6

OK *5

*1 The photo frame supports FAT32. The photo frame has been demonstrated as operable with a

“Memory Stick” with a capacity of 32 GB or less manufactured by Sony Corporation. However, we do not guarantee the operations of all the “Memory

Stick” media.

*2 The photo frame is equipped with a slot compatible with both standard-size and Duo-size media.

Without a “Memory Stick Duo” adaptor, you can use both a standard-size “Memory Stick” and the compact-size “Memory Stick Duo”.

*3

When using a “Memory Stick Micro” with the photo frame, always insert it into an M2 adaptor.

*4 “M2” is an abbreviation for “Memory Stick

Micro”. In this section, “M2” is used to describe a

“Memory Stick Micro”.

*5 Data reading/recording that requires “MagicGate” copyright protection cannot be performed.

“MagicGate” is the general name of a copyright protection technology developed by Sony using authentication and encryption.

*6 The photo frame does not support 8 bit parallel data transfer.

Notes on use

• For the latest information on the “Memory

Stick” types that the photo frame supports, see the “Memory Stick” compatibility information on the Sony web site: http://www.memorystick.com/en/support/ support.html

(Select the area where you use your photo frame, and then select “Digital Photo Frame” from each area page.)

• Do not insert more than one “Memory Stick” at the same time, or this may cause trouble with the photo frame.

• If you use a “Memory Stick Micro” with the photo frame, the “Memory Stick Micro” needs to be inserted into an “M2” adaptor.

• If you insert a “Memory Stick Micro” into the photo frame without an “M2” adaptor, you may be unable to remove the “Memory

Stick Micro”.

• If you insert a “Memory Stick Micro” into an

“M2” adaptor, and insert the “M2” adaptor into a “Memory Stick Duo” adaptor, the photo frame may not operate properly.

• When you initialize a “Memory Stick”, use the initialization function of your digital camera. If you initialize it with your computer, images may not be displayed properly.

• When you perform initialization, all the protected images are erased. To avoid erasing important data by accident, make sure to check the contents of the “Memory

Stick” before initialization.

• You cannot record, edit, or delete data if you slide the write-protect switch to LOCK.

• Do not attach any other material than the supplied label on the labelling position.

When you attach the supplied label, be sure to attach it to the labelling position. Be careful that the label does not stick out.

Continued

51

GB

SD memory card

The SD memory card slot of the photo frame allows you to use the following:

• SD memory card *1

• miniSD card, microSD card

(An adaptor is necessary.) *2

• SDHC memory card

*3

• miniSDHC card, microSDHC card

(An adaptor is necessary.) *2

• MMC standard memory card *4

We do not guarantee proper operations for all types of SD memory cards and MMC standard memory cards.

*1

The photo frame has been demonstrated as operable with an SD memory card with a capacity of 2 GB or less.

*2

Some commercially available card adaptors have projected terminals on the back. This type of adaptor may not work properly with the photo frame.

*3 The photo frame has been demonstrated as operable with an SDHC memory card with a capacity of 32 GB or less.

*4 The photo frame has been demonstrated as operable with an MMC standard memory card with a capacity of 2 GB or less.

Notes on use

• Data reading/recording that requires copyright protection cannot be performed.

• SDXC memory cards are not supported.

Notes on using a memory card

• When using a card, make sure to check the correct insertion direction of the card.

Incorrect insertion may cause damage to the photo frame.

• When inserting the memory card, it will only insert part of the way, so do not try to force it, as this could damage the memory card and/or photo frame.

• Do not remove a memory card or turn off the photo frame while the photo frame is reading or writing data, or the access indicator is flashing. Otherwise, data may be rendered unreadable or be erased.

• We recommend that you back up of important data.

• Data processed with the computer may not be displayed with the photo frame.

• When you carry or store a card, put it in the case supplied with it.

• Do not touch the terminal of a card with your hand or a metal object.

• Do not strike, bend or drop a card.

• Do not disassemble or modify a card.

• Do not expose a card to water.

• Do not use or store a card under the following conditions:

– Locations beyond the required operational conditions including locations such as the hot interior of a car parked in the sun and/ or in summer, the outdoors exposed to direct sunlight, or a place near a heater

– Humid locations or locations with corrosive substances present

– Locations subject to static electricity or electrical noise

52

GB

Index

A

Access lamp 7, 12

Associated file 19

Auto Power ON/OFF 35, 39

Advanced 35, 39

Auto off 35, 39

Simple 35, 39

C

Changing the settings 37

Clock and Calendar display

16

Connecting

Computer 42

External device 41

USB memory device 41

D

Date/time settings 11, 39

Deleting an image 30

E

Enlarge and reducing an image size 34

Error messages 44

Exporting an image 29

EXT INTERFACE connector 7, 41

F

Factory default settings 38,

39, 40

Features 5

Format internal memory 31,

40

G

General Settings 39

I

Image import size 40

Importing to the internal memory 26

Index image display 18

Information display 19

Initialize 40

Initialize settings 40

L

Language setting 40

Listing Order 39

M

Marking 31

Memory card slot 12

Memory cards 12, 51

“Memory Stick” 51

Notes on use 52

SD memory card 52

P

Playback device 28

Playing a slideshow with background music 24

Playing a video file 20

Power on/off 10

R

Refresh mode 26

Registering a mark 31

Remote control 8, 9

Removing a memory card 13

Replacing the battery of the remote control 9

RESET switch 7, 49

Rotating an image 34

S

Single view mode 17

Slideshow BGM Settings 39

Slideshow display 15

Slideshow Settings 22, 39

Color effect 22

Display Mode 23

Effect 22

Photo Interval 22

Shuffle 22

Video Duration 22

Sorting images 33

System Information 40

System requirements

Macintosh 42

Windows 42

T

Troubleshooting 46

U

USB A connector 7, 41

USB mini B connector 7, 42

W

Write-protect switch 49, 51

53

GB

Sony Corporation

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
