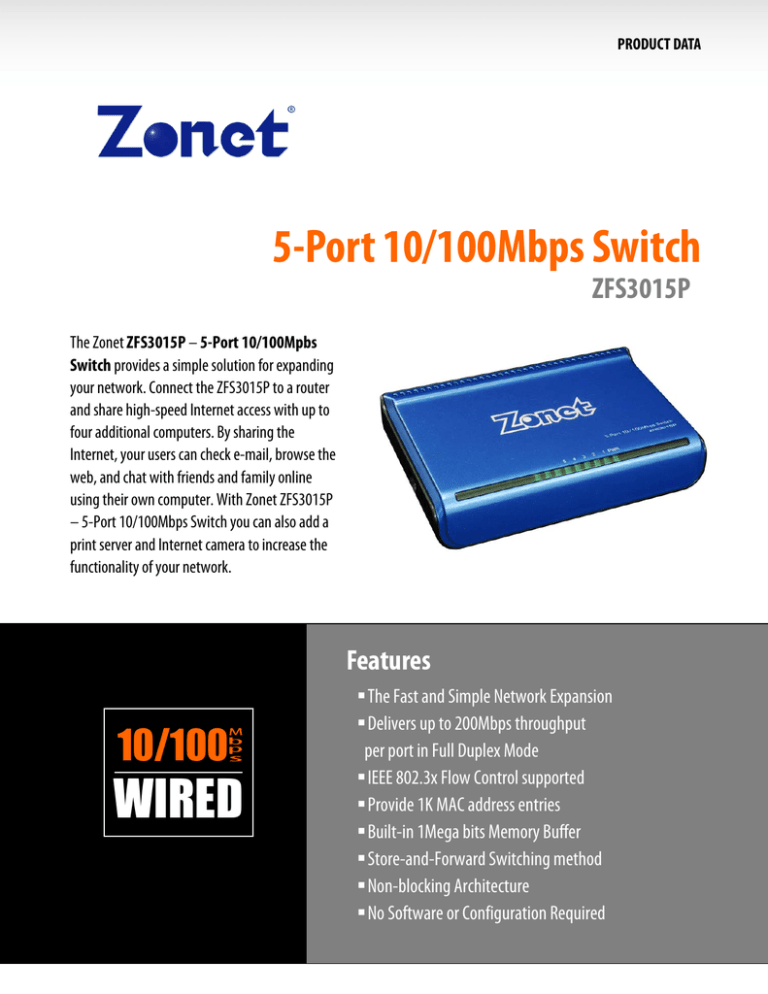

PRODUCT DATA
5-Port 10/100Mbps Switch
ZFS3015P
The Zonet ZFS3015P – 5-Port 10/100Mpbs
Switch provides a simple solution for expanding
your network. Connect the ZFS3015P to a router
and share high-speed Internet access with up to
four additional computers. By sharing the
Internet, your users can check e-mail, browse the
web, and chat with friends and family online
using their own computer. With Zonet ZFS3015P
– 5-Port 10/100Mbps Switch you can also add a
print server and Internet camera to increase the
functionality of your network.
Features
10/100
WIRED
ƒ The Fast and Simple Network Expansion
ƒ Delivers up to 200Mbps throughput
per port in Full Duplex Mode
ƒ IEEE 802.3x Flow Control supported
ƒ Provide 1K MAC address entries
ƒ Built-in 1Mega bits Memory Buffer
ƒ Store-and-Forward Switching method
ƒ Non-blocking Architecture
ƒ No Software or Configuration Required
PRODUCT DATA
5-Port 10/100Mbps Switch
ZFS3015P
Specifications
Standard
Ports
Network Media
Performance
Switching Mode
LED Indicator
Dimension
Temperature
Humidity
Power output
Warranty
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
5 x 10/100Mbps RJ45 ports, Auto MDI/MDI-X
10Base-T: Cat. 3 or above UTP
100Base-TX: Cat. 5 UTP
Bandwidth: 1.6 Gbps (Non-blocking)
Packet transferring rate:
-100Mbps port: 1,480,000Mpps
-10Mbps port: 1,480,000Mpps
Store-and-Forward, On-chip packet buffering
Link/ACT, PWR
140mm x 90mm x 30mm
Operating: 0ºC ~ 40 ºC (32º ~ 103ºF)
Storage: -40ºC ~ 70ºC (-40º ~ 157ºF)
Operating: 10% ~ 90% RH
Storage: 5% ~90% RH (Non-condensing)
9V / 600mA
3 years Manufacturer Warranty
Zonet USA Corporation
19929 Harrison Ave, Walnut, CA 91789
Tel: 909.594.3338 Fax: 909.594.3336
Toll Free: 1.888.883.8880
E-mail:
[email protected]
[email protected]
Web:
www.zonetusa.com
Zonet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information
provided in this document pertains to Zonet products and is subject to change at any time, without notice. For the most recent
product information please visit http://www.www.zonetusa.com.
Copyright © Zonet. All Rights Reserved.
Package Contents
• One ZFS3105P
• One Quick Install. Guide
• One AC Power Adapter
Related Products
ZSR0104CP
ZFS3124
ZFS3016B
ZFS3018P
Cable/DSL Broadband Router
24pt 10/100Mbps Switch
16pt 10/100Mbps Switch
8pt 10/100Mbps Switch
ZEN3200
Ethernet PCI Adapter
10/100
WIRED
