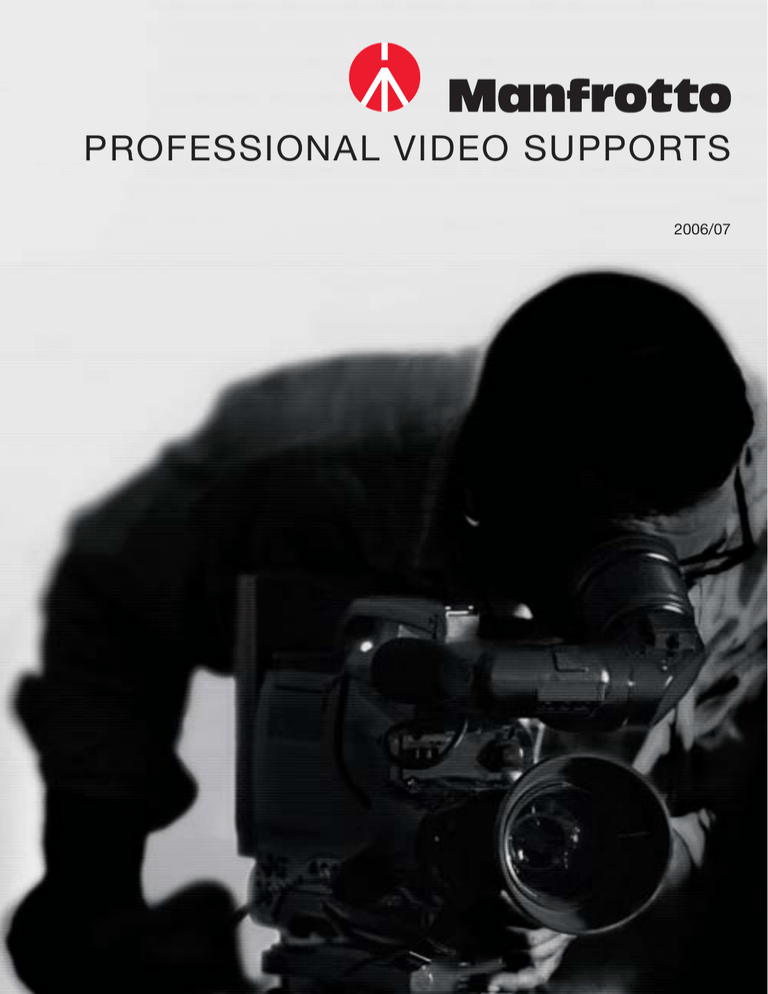

PROFESSIONAL VIDEO SUPPORTS

2006/07

Designing supports for video cameras means fi nding a graceful balance between stillness and movement freedom and control.

Our range of video tripods, heads, monopods, arms, remote controls and accessories is growing steadily and is sure to provide you with exactly that balance. We have rock-solid tripods for heavy ENG setups and lightweight, easy-to-carry models for compact Micro DV and Mini DV cameras, fl uid heads to let you track, frame and lock on to your subject, video monopods and hydrostatic arms to get you into and out of tight corners with quality footage, remote control units to put total command of the camera and lens at your fi ngertips even when the camera and lens are out of arm’s reach, and every accessory we could think of to help you get your job done as comfortably and professionally as possible.

KEY TO SYMBOLS

Closed

Length

Minimum

Height

Maximum

Height

Maximum

Height with extended centre column

Footprint

Diamete r

Weight Maximum

Load

Capacity

Head

Height

Plate

Supplied with the

Head

Bowl Suggested

Mid Level

Spreader

Suggested

Spreader

Suggested

Dolly

2 video

FREEDOM

WHEN YOU

WANT IT;

CONTROL

WHEN YOU

NEED IT.

CONTENTS

Introduction

Video Heads

Video Tripods

Video Monopods

Dollies & Spreader

Fig Rig system

Video Remote Controller

Lenses Remote Controller

Bags

Carrying system

Straps

Accessories

System Guide

Index

2_3

4_21

22_32

33

34_35

36_39

40_45

46_47

48_49

50_51

52

54_55

56_57

59

video 3

4 video

VIDEO

HEADS

Our two-way “pan & tilt” heads for video cover a range of camera equipment from Micro DV through Mini DV up to professional ENG DV-Cams and HDV. All heads are built to be used “open” with movements unlocked, with a range of friction and counterbalance systems to help regulate the weight shift of mounted equipment during pan and tilt movements. Head features such as fl uid cartridges (which provide resistance to jarring and shake transmitted from the operator to the camera via the pan bar) keep camera motion as controlled and smooth as possible.

WHY FLUID HEAD?

Manfrotto’s “pan & tilt movement” technology used for its complete range of semi-professional and professional video head is based on a system of cartridges fi lled with a specifi c “silicone fl uid”. This technology provide the smooth and constant movement behavior, needed to achieve “shake free” images while panning and tilting during all type of video shooting sessions.

WHAT DO WE MEAN BY LOAD CAPACITY?

This is a technical specifi cation that sometime has been confused with the counterbalance load capacity of our heads so we feel is important to draw a distinction. The value we claim as the “load capacity” refers to the capability of the head locking brakes to hold the weight of the camera at any tilt or pan angles needed to lock the camcorder in position.

WHAT DO WE MEAN BY COUNTERBALANCE?

Counterbalance is achieved using a system of springs inside the head, which help to keep the camera from rolling forwards or backwards under its own weight when the video head is tilted. This system facilitates the cameraman to achieve smoother tilt movements. Manfrotto Video heads are supplied, depending on the models; with fi xed or variable counter spring balance. When it is fi xed the spring is set to a specifi c counterbalance weight. When variable; the spring can be adjusted in order to operate from a minimum to a maximum value.

MANFROTTO DRAG SYSTEM

Manfrotto drag technology provides accurate camera control in all conditions. Depending on the model of heads it is possible to choose between fi xed and continuous adjustment. The fi xed drag provides a constant friction action.

The continuous drag adjustment allows you to select the level of drag you need and to work the way you choose, rather than having to select from predetermined levels as with stepped drag systems. This solution does not oblige you to accept compromise on rapid and repeatable set-up but will help you to achieve always perfect framing and control.

MANFROTTO INTERCHANGEABLE SLIDING PLATES

All Manfrotto heads are equipped with sliding and interchangeable camera plates. The possibility to adjust the camera plate by sliding it allows balancing the camera on the head and reduces to a minimum the effort while tilting it forward and backward. The interchangeable mechanism allows you to replace the camera with another one very fast or after having removed it from the head; to hold it with your hands, mount it on a monopod, mount it on a crane or with a shoulder mount system by using the quick release mount adapter.

VIDEO HEADS

The following chart gives suggestions on how to combine our heads with your camcorder depending the different type/format of camcorder you use.

DIGITAL CAMCORDER MODELS

Format

Number and size of CCD

Camcorder

Weight

End User

DV - DV cam - DVC Pro

DIGI Beta - Betacam SP

Betacam SX

Three 1/2” or 2/3”

DV - DV cam - DVC Pro

DIGI Beta - Betacam SP

Betacam SX

Three 1/2” or 2/3”

DV - DV cam - DVC Pro

DIGI Beta - Betacam SP

Betacam SX

Three 1/2” or 2/3”

From 8.8 to 23.1 lb

From 8.8 to 23.1 lb

From 8.8 to 23.1 lb

Professional ENG

Professional ENG

Professional ENG

HEAD MODELS

526

519

516

Load Capacity in lb

35.3

22

22

Mini DV Three 1/3” From 4.4 to 17.6 lb Professionel

3460

17.6

Mini DV

Micro DV, Mini DV

DVD

Micro DV, Mini DV

DVD

Three 1/3”

One 1/4”

One 1/4”

From 4.4 to 17.6 lb Professional

From 2.2 to 6.6 lb

From 2.2 to 5.5 lb

Prosumer

Prosumer

501HDV

701RC2

700RC2

13.2

8.8

4.4

HEAD SPECIFICATIONS

Counter

Balance in lb

Tilt

Range

Type of drag

-

Variable interchangeable from 2.2 to 19.8

Fixed 16.5

+75° -75°

+90° -90°

+90° -60°

Continuous variable

Continuous variable

Continuous variable

Fixed 5.5

Fixed 5.5

+90° -60°

+90° -60°

Head to tripod attach

100 mm half bowl

75 mm half bowl

3/8” female thread

Continuous variable

3/8” female thread

Fixed plus variable

Tefl on friction

3/8” female thread

Fixed 16.5

-

+90° -60°

+90° -75°

Fixed

Fixed

3/8” female thread

3/8” female thread video 5

VIDEO

HEADS

PRO FLUID VIDEO HEAD 526

5.9in

7.9lb

35.3lb

3272 Ideal for PRO ENG camcorder

The new 526 Pro Video head directly addresses the heavy-duty, high-end ENG and EFP video market by offering a feature-packed fl uid video head that borrows all the combined benefi ts of our 500 series heads with the ability to support top weight loads of 35.3lb. The 526 features a replaceable and removable pan arm rosette so if any damage occurs to the side castings, only a small part needs to be replaced; large rubber padded knobs for better grip and all the controls (tilt and pan lock, tilt drag) are located on the left side so they can be easily found. The 526 offers our most precise fl uid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus the additional no-drag setting (number 0) for such occasions as snap-pans/tilts. Counterbalance is achieved through an adjustable spring for camera weights between 17.6 and 33.1lb. The built-in 100mm half-ball adapts to a number of our tripods with a 100mm receiver, allowing the quick levelling of the camera with the aid of the bright levelling bubble. The 526 comes with one pan arm and the long 3272 plate.

FEATURES

1

Pan Locking Knob

2

Pan Drag Control

3

Spirit Level

4

Tilt Locking Knob

5

Tilt Drag Knob

6

Counterbalance Adjustment Knob

7

Sliding Quick Release Plate

8

Sliding Quick Release Knob

9

Sliding Plate Safety Release Button

10

Interchangeable Pan Bar Rosette

1

2

3

4

5

6

9

7

8

10

TECHNICAL SPECIFICATION

Tilt

Tilt Drag

Independent Tilt Lock

Pan

Pan Drag

Independent Pan Lock

Variable Balance Control

Head Bowl

Levelling Bubble

+75° -70°

ø plus 3 step

Yes

360°

ø plus 3 step

Yes

Yes

100 mm

Yes

Telescopic Pan Handle

Additional Pan Handle

1

519LV (available as an optional)

Sliding Quick Release Plate

Supplied with: 2x3/8” and 2x1/4” camera screws

Sliding Travel of Plate

80 mm

Temperature Range

14°F 140°F

6 video

To correctly position a camera on a video head it is important to know its balance point (also known as center of gravity or “CoG”). All Manfrotto video head counterbalance systems take into consideration a camera center of gravity of 125mm.

Minimum

Maximum

COUNTERBALANCE GRAPH

300

275

250

225

200

175

150

125

100

75

50

8.8

11 13.2

15.4

17.6

19.8

22 24.3

26.5

28.7

30.9

33.1

35.3

Payload lb

VIDEO KITS WITH 526 HEAD

KIT

526MVBKIT

65.4in

41.3in

18.7lb

35.3lb

Comprising:

526 Head, 3193 Tripod, 3195 Spreader, MBAG120P Bag

KIT

526,528XBK

64.1in

34.6in

24.3lb

35.3lb

Comprising:

526 Head, 528XB Tripod, MBAG120P Bag video 7

PRO FLUID VIDEO HEAD 519

5.9in

6.4lb

22lb 3433PL Ideal for PRO ENG camcorder

It’s a fact, not all cameras weigh the same. Some mini DV cameras may weigh only a 2lb while professional grade DV cameras can weigh up to of 22lb. Professionals have as many equipment options as they do shooting styles, utilizing a wide range of different cameras including MINI DV, DVCAM, HD, ENG.

When using numerous accessories, many of these setups can quickly overload video heads above the maximum recommended weight. Understanding the problem that professional Videographers face, Manfrotto has developed the 519, a compact, yet heavy duty fl uid video head capable of accommodating a counterbalance payload from 3.3lb up to 19.8lb. This is a revolutionary breakthrough from Manfrotto, as the 519 will be the only video head on the market encompassing both interchangeable and adjustable counter-balance springs. Combining both features will allow Videographers to easily interchange a vast array of cameras of various weights as well as quickly fi ne tune the perfect balance point of whatever camera being used, all with just one head! In addition, fl uid drag is easily controlled with a large click-stop numbered knob in seven increments. Drag can be adjusted from the highest possible setting to nearly zero drag, allowing for the fi nest control through 360° pan and +90° to -90° tilt.

FEATURES

1

Pan Locking Knob

2

Pan Drag Control

3

Spirit Level

4

Tilt Locking Knob

5

Tilt Drag Knob

6

Counterbalance Adjustment Knob

7

Sliding Quick Release Plate

8

Sliding Quick Release Knob

9

Sliding Plate Safety Release Button

10

Interchangeable Pan Bar Rosette

2

3

4

5

6

9

7

8

10

1

BALANCE SPRING SUPPLIED WITH HEAD

Blue spring - minimum

Blue spring - MAXIMUM

Yellow spring - minimum

Yellow spring - MAXIMUM

COUNTERBALANCE GRAPH

11lb 19.8lb

TECHNICAL SPECIFICATION

Tilt

Tilt Drag

Independent Tilt Lock

Pan

Pan Drag

Independent Pan Lock

Variable Balance Control

+90° -90°

Variable (7 steps)

Yes

360°

Variable (7 steps)

Yes

Yes (Operated by two interchangeable and adjustable springs, the blue one from 3.3 to 11lb and the yellow one

Head Bowl

Levelling Bubble

Telescopic Pan Handle

from 11 to 19.8lb @ 125 mm CG and 60° from tilt inclination)

75 mm

Yes

1

Additional Pan Handle

519LV (available as an optional)

Sliding Quick Release Plate Supplied with: 3/8” and 1/4” camera screws

Sliding Travel of Plate

Temperature Range

58 mm

14°F - 140°F

8 video

2.2

4.4

6.6

8.8

11 13.2 15.4 17.6 19.8 22 24.3 26.5 28.7 30.9 33.1

Payload lb

VIDEO KITS WITH 519 HEAD

KIT

519,351MVCFK

64.7in

21.6in

14.6lb

22lb

Comprising:

519 Head, 351MVCF Tripod, 3189 Spreader

265 Feet, MBAG120P Bag

KIT

519,525PKIT

66.7in

17.8in

14.1lb

22lb

Comprising:

519 Head, 525MVB Tripod, MBAG100P Bag

KIT

519,542ART

65.1in

21in 15.2lb

22lb

Comprising:

519 Head, 542ART Tripod, MBAG100P Bag

KIT

519,532ART

Same as 519, 542ART but with 532ART Tripod

KIT

519MVBKIT

66.3in

38.3in

16.4lb

22lb

Comprising:

519 Head, 3182 Tripod, 3138 Spreader, MBAG120P Bag video 9

PRO FLUID VIDEO HEAD 516

4.9in

4.4lb

22lb 3272 Ideal for PRO ENG camcorder

Specifi cally designed for the latest DV camcorders used by documentary and industrial videographers.The 516 head is very compact and light but can support cameras up to 22lb. The 516 is a cost effective high performance head equipped with fl uid cartridges that provide continuous adjustable drag control. This system gives quite a wide range of friction control down to “zero drag” and operates on both pan and tilt axis. Other important features of the head are: separate tilt and pan locking mechanism; a fi xed counter balance spring of 16.5lb load capacity at a center of gravity of 125mm; two telescopic pan handles; a bubble level. The head has been designed so it can be mounted on a fl at base tripod with a 3/8” female thread attachment or by attaching the ART 3141BALL to the head base, allowing it to fi t a 100mm bowl.

FEATURES

1

Pan Lock

2

Pan Friction

3

Spirit Level

4 Tilt Locking Lever

5

Tilt Friction

6

Sliding Plate Safety Release Button

7

Sliding Quick Release Plate

2

1

4

5

6

10

7

3

TECHNICAL SPECIFICATION

Tilt

Tilt Drag

Independent Tilt Lock

Pan

Pan Drag

Independent Pan Lock

Balance control

+90° -60°

continuously adjustable from 0 to max level

Yes

360°

continuously adjustable from 0 to max level

Yes one fi x spring for 16.5lb camera weight

Flat Base

Levelling Bubble

3/8” female thread to mount on 75 mm ball or on fl at top tripod

Yes

Telescopic Pan Handle

2

Sliding Quick Release Plate

Supplied with: 2 x 3/8” camera screws and 2 x 1/4” camera screws

Sliding Travel of Plate

Temperature Range

80mm

14°F - 140°F

10 video

COUNTERBALANCE GRAPH

100

90

80

70

140

130

120

110

50

200

190

180

170

160

150

1.1

2.2

4.4

6.6

8.8

11 13.2 15.4 17.6 19.8 22 24.3 26.5 28.7 30.9

Payload lb

VIDEO KITS WITH 516 HEAD

KIT

516-3193

64.4in

40.4in

17.2lb

22lb

Comprising: 516 Head, 3193 Tripod, 3138 Spreader, MBAG120P Bag

KIT

516,351MVCFK

63.8in

20.6in

12.6lb

22lb

Comprising: 516 Head, 351MVCF Tripod, 3189 Spreader,

565 Feet, MBAG120P Bag

KIT

516,515PKIT

66.3in

17.5in

13.4lb

22lb

Comprising: 516 Head, 515MVB Tripod, 3141BALL Half Ball, MBAG100P

Bag

KIT

516,542ART

64.8in

20.7in

15.4lb

22lb

Comprising: 516 Head, 542ART Tripod, 3141BALL Half Ball, MBAG100P

Bag

KIT

516,532ART

Same as 516, 542ART but with 532ART Tripod video 11

PRO FLUID VIDEO HEAD 3460 (503)

4.1in

3.5lb

17.6lb

3433PL Ideal for PROFESSIONAL camcorder

The 3460 is designed to support the latest professional digital video cameras.

Particular care has been taken to achieve the best fl uid control, the smoothest possible pan and tilt movements and the most customisable performance using a manually adjustable drag variation mechanism. Additionally, the 3460 is equipped with a built-in balance spring (set for an ideal load of approx. 5.5lb) to maintain camera positioning during tilt movements. The 3460 head has the best price/performance ratio of any fl uid head on the market today. Designed for payloads up to an ample 17.6lb, its light but positive fl uid movement provides exceptionally smooth control, thanks also to its new fi ne-control drag device, which offers continuous adjustment from nearly 0 drag to maximum. The 3460 has a quick-release sliding plate with VHS pin, a single telescopic pan handle and fl at base with 3/8” tripod socket.

FEATURES

1

Pan Lock

2

Pan Friction Control

3

Spirit Level

4

Tilt Friction Control

5

Sliding Quick Release Plate

6

Sliding Plate Safety Release Button

7

Tilt Lock

1

2

4

5

6

7

3

TECHNICAL SPECIFICATION

Tilt

Tilt Drag

Independent Tilt Lock

Pan

Pan Drag

Independent Pan Lock

Balance control

Flat Base

Levelling Bubble

Telescopic Pan Handle

Additional Pan Handle

Sliding Quick Release Plate

Sliding Travel of Plate

Temperature Range

+90° -60°

Continuously adjustable from 0 to max level

Yes

360°

Continuosly adjustable from 0 to max level

Yes

One fi x spring for 2.5 kg camera weight

3/8” female thread to mount on 75 mm fl at top Tripod

Yes

1

3460HK (available as an optional)

Supplied with: 3/8” and 1/4” camera screws

58 mm

14°F - 140°F

12 video

COUNTERBALANCE GRAPH

100

90

80

70

140

130

120

110

50

200

190

180

170

160

150

1.1

2.2

4.4

6.6

8.8

11 13.2 15.4 17.6 19.8 22 24.3 26.5 28.7 30.9

Payload lb

VIDEO KITS WITH 3460 HEAD

KIT

503,745BK

58.5in

12.8in

8.8lb

Comprising:

3460 Head, 745B Tripod,

MBAG80P Bag

11.9lb

KIT

503,745MF3K

56.7in

12.8in

7.9lb

Comprising:

3460 Head, 745MF3 Tripod,

MBAG80P Bag

9.7lb

KIT

503,755MF3K

68.3in

23.2in

9.7lb

11.9lb

Comprising:

3460 Head, 755MF3 Tripod,

MBAG80P Bag

KIT

503,755BK

68.3in

23.2in

9.7lb

Comprising:

3460 Head, 755B Tripod,

MBAG80P Bag

11.9lb

KIT

503,525PKIT

65.6in

16.7in

12.2lb

17.6lb

Comprising:

3460 Head, 525MVB Tripod,

3284 Half Ball, MBAG90P Bag

KIT

503,351MVCFK

63in 19.9in

11.7lb

17.6lb

Comprising:

3460 Head, 351MVCF Tripod,

3189 Spreader,

565 Feet, MBAG90P Bag

KIT

503,351MVB2K

63.1in

28.9in

12.5lb

17.6lb

Comprising:

3460 Head, 351MVCF Tripod,

MBAG90P Bag video 13

PRO VIDEO HEAD 501HDV

4.5in

3.5lb

13.2lb

3433PL Ideal for PROFESSIONAL camcorder

Inside the 501HDV is a powerful new feature that takes its inspiration from our top professional video head models – a fi xed counterbalance spring (set for a typical weight of camera + accessories of 5.5lb) that helps ensure both smoother tilt movements and greater equipment safety even when tilt locks are inadvertently left off. The easy-to-reach on/off switch allows the counterbalance system to be disengaged or re-engaged for different fi lming setups. But from the outside, the fi rst thing that you’ll notice about the new 501HDV video head is its updated design – completely retuned for much improved ergonomics with locks and knobs that allow a more solid grip and better fi ngertip control. The 501HDV inherits its separate pan and tilt locks, gradual tilt friction adjustment system, fl at base

(with standard 3/8” thread), quick release camera plate and repositionable pan bar from its succesful predecessor.

FEATURES

1

Pan Lock

2

Pan Friction Control

3

Spirit Level

4

Spring loaded

counter balance (ON/OFF)

5

Tilt Friction Knob

6

Tilt Lock

7

Sliding Plate Safety

Release Button

8

Sliding Quick Release Plate

2

1

3

4

5

7

6

8

TECHNICAL SPECIFICATION

Tilt

Tilt Drag

Independent Tilt Lock

Pan

Pan Drag

+90°-60°

1 step plus variable Tefl on friction

Yes

360°

1 step plus variable Tefl on friction

Independent Pan Lock

Flat Base

Pan Handle

Additional Pan Handle

Yes

3/8” female thread to mount on 75 mm fl at top tripod

1

501HLV (available as an optional)

Sliding Quick Release Plate Supplied with: 3/8” and 1/4” camera screws

Sliding Travel of Plate

58 mm

Temperature Range

4°F - 140°F

14 video

COUNTERBALANCE GRAPH

100

90

80

70

140

130

120

110

50

200

190

180

170

160

150

1.1

2.2

4.4

6.6

8.8

11 13.2 15.4 17.6 19.8 22 24.3 26.5 28.7 30.9

Payload lb

VIDEO KITS WITH 501HDV HEAD

KIT

501HDV,745BK

58.5in

12.8in

8.8lb

12.1lb

Comprising:

501HDV Head, 745B Tripod,

MBAG80P Bag

KIT

501HDV,745MF3K

KIT

501HDV,755MF3K

KIT

501HDV,755BK

56.7in

12.8in

7.9lb

9.9lb

Comprising:

501HDV Head, 745MF3 Tripod,

MBAG80P Bag

68.3in

23.2in

9.7lb

12.1lb

Comprising:

501HDV Head, 755MF3 Tripod,

MBAG80P Bag

68.3in

23.2in

9.7lb

12.1lb

Comprising:

501HDV Head, 755B Tripod,

MBAG80P Bag

KIT

501HDV,525PKIT

KIT

501HDV,351MVCFK

KIT

501HDV,351MVB2K

65.5in

16.7in

12.2lb

13.2lb

Comprising:

501HDV Head, 525MVB Tripod,

3284 Half Ball, MBAG90P Bag

63in 19.9in

11.7lb

13.2lb

Comprising:

501HDV Head, 351MVCF Tripod,

3189 Spreader,

565 Feet, MBAG90P Bag

63.1in

28.9in

12.5lb

13.2lb

Comprising:

501HDV Head, 351MVCF Tripod,

MBAG90P Bag video 15

MINI VIDEO HEAD 701RC2

4in 1.8lb

8.8lb

3157N Ideal for Digital camcorder

Small and lightweight, this fl uid video head is capable of accommodating a payload of up to 8.8lb, and is ideal for set-ups such as a fully equipped 3 CCD mini DV camcorder or a spotting scope combined with a digital still or video camera for digiscoping purposes.

The 701RC2 is one of the most compact and lightweight two way heads found on the market and was designed principally to support the latest digital video equipment, including Mini DV and the latest prosumer/ professional compact HI DEFINITION camcorders.

It is equipped with a fi xed 3.3lb counterbalance spring which combined with a camera plate attachment made of a touch and go/sliding plate who can shift from

+15mm to -15mm from the 0 point to optimize the position of the counterbalance spring and deliver a wide range of balancing positions. Fluid drag on the 701RC2 is fi xed. The 701RC2 has a fi xed length pan bar with a soft handle and separate locking mechanisms to the head to adjust it as you like, the sliding quick-release video plate system is based on the 3157N equipped with the usual VHS pin.

FEATURES

1

Tilt Locking Knob

2

Pan Locking Knob

3

Spirit Level

4

Plate Release Lever

5

Quick Release Plate

6

Sliding Top

7

Graduated Scale for Sliding Top

8

Sliding Top Knob

1

2

3

4

5

6

7

8

TECHNICAL SPECIFICATION

Tilt

Tilt Drag

Independent Tilt Lock

Pan

Pan Drag

Independent Pan Lock

Counterbalance

Flat Base

Levelling Bubble

Pan Handle

Quick Release Plate

Temperature Range

+90° -60°

1 Fixed

Yes

360°

1 Fixed

Yes

Yes

3/8” female thread to mount on 75 mm ball or fl at top tripod

Yes

1

Supplied with: 1/4” camera screws

4°F - 140°F

16 video

COUNTERBALANCE GRAPH

175

150

125

100

75

50

25

300

275

250

225

200

1.1

2.2

3.3

4.4

5.5

6.6

7.7

8.8

Payload lb

VIDEO KITS WITH 701RC2 HEAD

KIT

701RC2,745BK

58.3in

12.6in

7.1lb

8.8lb

Comprising:

701RC2 Head, 745B Tripod, MBAG80 Bag

KIT

701RC2,745MF3K

56.5in

12.6in

6.2lb

8.8lb

Comprising:

701RC2 Head, 745MF3 Tripod, MBAG80P Bag

KIT

701RC2,755MF3K

68.1in

23.1in

7.9lb

8.8lb

Comprising:

701RC2 Head, 755MF3 Tripod, MBAG80 Bag

KIT

701RC2,755BK

68.1in

23.1in

7.9lb

8.8lb

Comprising:

701RC2 Head, 755B Tripod, MBAG80 Bag

KIT

701RC2,3221BWN

75.2in

10.7in

7.9lb

8.8lb

Comprising:

701RC2 Head, 3221WN Tripod, MBAG80 Bag video 17

MINI VIDEO HEAD 700RC2

3.8in

1.1lb

5.5lb

3157N Ideal for Digital camcorder

A compact and lightweight 2-movement video head designed principally to support the latest digital video equipment but also suited to still photography cameras with medium and long tele lenses.

The 700RC2 has a fi xed length pan bar with soft handle and separate locking mechanisms for the 360° pan and the +90°/-75° tilt. Smooth and constant movements on both axes are assured by a fi xed system of fl uid cartridges.

Equipped with quick release 3157N video plate system with VHS PIN and a secondary safety catch.

Head to tripod attachment is 3/8” female.

FEATURES

1

Tilt Locking Knob

2

Pan Locking Knob

3

Plate Safety Release Knob

4

Quick Release Plate

3

4

1

2

TECHNICAL SPECIFICATION

Tilt

Tilt Drag

Independent Tilt Lock

Pan

Pan Drag

Independent Pan Lock

Flat Base

Pan Handle

Quick Release Plate

Temperature Range

+90° -75°

1 fi xed

Yes

360°

1 fi xed

Yes

3/8” female thread to mount on fl at top tripod

1

Supplied with: 1/4” camera screws

4°F - 140°F

18 video

VIDEO KITS WITH 700RC2 HEAD

KIT

700RC2,756XBK

60.1in

21.5in

6lb

5.5lb

Comprising:

700RC2 Head, 756XB Tripod, MBAG70 Bag

KIT

700RC2,756MF3K

60.1in

21.5in

5.1lb

5.5lb

Comprising:

700RC2 Head, 756MF3 Tripod, MBAG70 Bag video 19

20 video

COMPATIBLE PLATES

Range of additional plates for either fi xed or sliding quick release assembly.

VIDEO CAMERA PLATE

357PLONG

This long version of the standard plate allows perfect balance for camcorders with unusual weight distribution caused by long tele lenses or heavy batteries.

The plate has a laser engraved scale to help identify and record optimal position. In order to free the maximum range of possible balance positions

(5.1in), the VHS location pin is able to slide along the length of the plate.

Supplied with 2 x 1/4” and 2 x 3/8” camera screws.

VIDEO CAMERA PLATE

501PLONG

This long version of the standard plate allows perfect balance for camcorders with unusual weight distribution caused by long tele lenses or heavy batteries.

The plate has a laser engraved scale to help identify the optimal positions

(4.3in). In order to have the max range of balance positions, the VHS location pin can be moved along the length of the plate.

Supplied with 2 x 1/4” and 2 x 3/8” camera fi xing screws.

COMPATIBLE QUICK RELEASE ADAPTERS

Use to convert a non quick release camera platform into one of the three quick release systems used on all Manfrotto video heads or convert a variety of supports

(jib arms, booms, monopods, brackets) compatible with the same camera plate attachment.

PRO VIDEO QUICK RELEASE

ADAPTER

3273

Compatible with the 3272 camera plate (supplied with the 516 and 526 Video

Heads) and the special 357PLONG accessory plate. This Quick Release adapter gives you the freedom to remove the camera from the head and put it on any other support. Supplied with 2 x 1/4” and 2 x 3/8” camera screw.

Sliding travel of plate: 3.1in.

VIDEO QUICK RELEASE

ADAPTER

577

Compatible with the 3433PL camera plated (supplied with the head 501HDV,

3460 and 519 Video Heads) and the special 501PLONG accessory plate. This

Quick Release adapter gives you the freedom to remove the camera from the head without detaching it from the plate and put it on any other support.

Supplied with 1/4” and 3/8” camera screws. Sliding travel of plate: 1.96in

RECTANGULAR VIDEO QUICK RELEASE

ADAPTER

3299

Compatible with the 3157N camera plated (supplied with the head 700RC2 and 701RC2 Video Heads). This Quick Release adapter gives you the freedom to remove the camera from the head without detaching it from the plate and put it on any other support. Supplied with 1/4” camera screw.

COMPATIBLE ADDITIONAL PAN BARS

Additional Pan Bars to be used as a second or replacement pan bar on Manfrotto Video heads.

PAN BAR

501HLV

Fixed pan bar for the 501HDV video head.

PAN BAR

3460HK

Telescopic pan bar for the 3460 video head.

PAN BAR

519LV

Telescopic pan bar for the 519 video head.

video 21

22 video

VIDEO

TRIPODS

Traditionally, video tripods have double leg tubes which though thin, give the tripod more structural resistance to twisting and torsion. This is vital when using heavy video cameras with pan and tilt heads. Without this extra reinforcement every pan movement risks bringing unwanted juddering and shake into your shoot.

We offer a range of double-tube tripods in strong aluminium alloy and in extra-rigid, lightweight carbon fi bre for video equipment up to ENG requirements. For the new generation of ever-shrinking Mini DV and Micro DV cameras which are light enough not to require an over-performing tripod we developed the MDeVe family of hybrid photo/video tripods. These have the lighter, more compact single leg tube structure of the photo tripod combined with the levelling half-ball of the video support allowing perfectly horizontal pans.

WHAT IS THE TORSION RIGIDITY

Maximum torsion rigidity is the fi rst feature all Videographers want from their video tripod.

A professional video tripod has to provide a rock solid base insensible to the mechanical stress induced by the tilt and pan movement that makes the tripod not stable enough for a smooth in motion shooting session.

Last but not least the weight, the max and minimum working height are important factor too, which needs to be taken in serious consideration while choosing your video tripod.

Manfrotto has been the fi rst manufacturer in the world that has placed side by side to the traditional twin leg design video tripod, a single leg tube concept which do not sacrifi ce the weight and working height of a tripod for its torsion rigidity performance.

The balance achieved with the MDEVE tripod and the traditional photographic design ones make now available the best tripod solution for the latest professional MINI DV and DV camcorder.

VIDEO TRIPODS LEGS STRUCTURE & MATERIALS

Video tripods can be divided into two groups based on their leg types: those with single legs throughout, and those with twin parallel legs in the top sections. Most use circular profi le tubes, while the MDEVE series rapid centre column and the carbon fi bre legs of the the 755MF3 and 756MF3 use a three-faceted profi le which helps to eliminate all unwanted rotation and which (in the case of carbon fi bre tripods) means that the legs can be clamped into the tripod top crown rather than glued in.

VIDEO TRIPODS

In the chart we suggest how to combine our tripods with your camcorder depending the different type/format of camcorder you use.

Format

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

DIGITAL CAMCORDER MODELS

Number and size of CCD

Three 1/2” or 2/3”

Three 1/2” or 2/3”

Camcorder

Weight

From 22 to 44.1 lb

From 22 to 44.1 lb

Mini DV Three 1/3” From 15.4 to 33.1 lb

Mini DV

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

One 1/3”

Three 1/2” or 2/3”

Three 1/2” or 2/3”

Three 1/2” or 2/3”

Three 1/2” or 2/3”

Three 1/2” or 2/3”

From 15.4 to 33.1 lb

From 22 to 44.1 lb

From 22 to 44.1 lb

From 22 to 44.1 lb

From 22 to 44.1 lb

From 22 to 44.1 lb

Micro DV - Mini DV - DVD

DV-DV cam-DVC Pro-DIGI Beta

Betacam SP - Betacam SX

Micro DV - Mini DV - DVD

Micro DV - Mini DV - DVD

Micro DV - Mini DV - DVD

Micro DV - Mini DV - DVD

Micro DV - Mini DV - DVD

Micro DV - Mini DV - DVD

Micro DV - Mini DV - DVD

One 1/4”

Three 1/2” or 2/3”

One 1/4”

One 1/4”

One 1/4”

One 1/4”

One 1/4”

One 1/4”

One 1/4”

From 2.2 to 13.2 lb

Over 44.1lb

From 2.2 to 13.2 lb

From 2.2 to 13.2 lb

From 2.2 to 13.2 lb

From 2.2 to 13.2 lb

From 2.2 to 13.2 lb

From 2.2 to 13.2 lb

From 2.2 to 13.2 lb

TRIPOD MODELS

TWIN LEG

542ART

532ART

525MVB

515MVB

3193

3186

3182

351MVCF

351MVB2

SINGLE LEG

3068

528XB

3221WN

745MF3

755MF3

756MF3

745B

755B

756XB

2

2

2

2

2

2

2

2

2

1

1

1

1

2

Number of stage

2

2

2

2

TRIPOD SPECIFICATIONS

Tripod to tripod attachment

75mm + 100mm bowl

75mm + 100mm bowl

75mm bowl

100mm bowl

100mm bowl

100mm bowl

75mm bowl

75mm bowl

75mm bowl

Material

Carbon fi ber

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Carbon fi ber

Aluminum

3/8” Male thread

3/8” Male thread

3/8” Male thread

3/8” Male thread

3/8” Male thread

3/8” Male thread

3/8” Male thread

3/8” Male thread

3/8” Male thread

Aluminum

Aluminum

Aluminum

Carbon fi ber

Carbon fi ber

Carbon fi ber

Carbon fi ber

Aluminum

Aluminum video 23

Convenient padded handle for rapid tripod opening:

Button rapidly unlocks top leg sections for subsequent fi ne-positioning

ART PRO

VIDEO

TRIPODS

For the A.R.T. (Advanced Release Technology – world wide pat pending) tripod series, Manfrotto’s target has been to break the 4 second limit – from securely closed to fully open in under 4 seconds without a single lever, button or knob; A challenge we’re extremely proud to say we matched and surpassed, creating the world’s fastest video tripod. But we would never forget that speed without stamina is only half the equation; agility without strength is little more than a gimmick. Try the

ART tripods in a head to head confrontation with any other video tripods, and the difference in speed and practicality will astound you, the performance in use will reassure you that A.R.T. is the perfect tool for your fi lming! The future? The future is your work... your art...

our A.R.T.

“Squid” mid level spreader locks the spreader brace inclination for

improved tripod stability even with a smaller footprint

Included pull-on/off rubber feet give fi rm grip on smooth fl oors, double stainless steel spikes are perfect on uneven terrain at all leg angles

FEATURES

1

75mm bowl screw-in adapter allows the A.R.T. to hold

industry standard 100mm or 75mm half-ball video heads

2

Lever unlocks lower leg sections for fi ne positioning

– simply release the lever to re-lock the section

3

To open the spreader, press the ratchet pin and pull

the leg outwards to the desired click stop

4

To close, simply push the tripod leg inwards;

the telescopic spreader will retract automatically

24 video

1 2 3

Each leg can be individually set quickly and precisely.

Positioning the tripod anywhere between minimum and maximum height can be done in four seconds.

The tripod can be opened to any height or inclination from fully closed position in a matter of seconds

4

ART CARBON FIBER PRO VIDEO TRIPOD

542ART

28.7in

15.7in

59.8in

8.8lb

33.1lb

75/100mm

Use of carbon fi ber tubing makes this two-stage video tripod one of the lightest in its class. The 542 uses our patented A.R.T. (Advanced Release

Technology) mechanism for the fastest opening, positioning and closing of any video tripod in the world, ideal for fi lming under pressure. Comes with

100mm-75mm bowl adapter for compatibility with all industry-standard half-ball video heads. Included mid level “squid” spreader offers improved anti-torsion resistance and keeps legs locked safely in position even when space is cramped and tripod footprint is necessarily smaller. Double stainless steel spiked feet also come with quick-on/off rubber shoes for better grip on smooth fl oors. No protruding parts, levers or knobs to catch or damage.

When closed, tripod legs interlock without additional clips, straps or hooks to ensure compactness and prevent damage. Leg lock mechanism can be adjusted for increased or reduced tightness.

PAT. PENDING

ART ALUMINUM PRO VIDEO TRIPOD

532ART

28.7in

15.7in

59.8in

9.7lb

33.1lb

75/100mm

Exactly the same as the 542ART but with aluminum leg tubes.

PAT. PENDING video 25

515MVB

525MVB

LIGHTWEIGHT VIDEO TRIPOD

515MVB

28.3in

12.6in

61.4in

7.7lb

33.1lb

100mm 530SPRB-531SPR 3198 -3156

A two stage, lightweight, high tensile aluminum tripod that is extremely rigid and stable. The 515MV has a die-cast aluminum crown with a built-in 100mm interface bowl, adjustable leg clamp levers for reliability and safety in the fi eld and a fl oor-level spreader which aids tripod leg angle setting adjustment. Lowest leg section has twin spiked metal feet. The tripod can also be equipped with spiked feet shoes, different types of dollies and two models of mid level spreader.

LIGHTWEIGHT VIDEO TRIPOD

525MVB

28.3in

12.6in

61.4in

7.7lb

33.1lb

75mm 530SPRB-531SPR 3198 -3156

A two stage, lightweight, high tensile aluminum tripod that is extremely rigid and stable. The 525MVB has a die-cast aluminum crown with a built-in 75mm interface bowl, adjustable leg clamp levers for reliability and safety in the fi eld and a fl oor-level spreader which aids tripod leg angle setting adjustment. Lowest leg section has twin spiked metal feet. The tripod can also be equipped with spiked feet shoes, different types of dollies and two models of mid level spreader.

26 video

3193

3186

VIDEO PRO TRIPOD

3193

37.4in

35.4in

59.4in

10.9lb

44.1lb

100mm 3189 / 530SPRB 3138 3198 / 3156

Tandem aluminium legs combine with a 100 mm half bowl attachment. Features include high tensile tubular aluminium legs with one step leg angle positioning system

(21°). Legs can be adjusted within a 180° arc to other angle by using a mid level spreader 531SPRB and 530SPRB combined with a set of spike foot shoes 565 in case of unlevelled ground or by using a fl oor spreader code 3138. Legs can be locked to any height by a quick lever leg locks and stainless steel fi ttings. Twin spiked feet are standard.

SHORT VIDEO PRO TRIPOD

3186

20.5in

19.3in

26.8in

Short version of 3193

9.3lb

44.1lb

100mm

3189 / 530SPRB 3138 3198 / 3156 video 27

3182

351MVB2 351MVCF

LIGHTWEIGHT VIDEO TRIPOD

3182

36.6in

33.1in

44.1lb

75mm

3189 / 530SPRB 3138 3198 / 3156

59.4in

7.9lb

Designed with tandem upper legs and single lower legs with variable angle adjustment and twin spiked feet. Tripod is supplied with a 75 mm half bowl attachment.

Tripod top spider has a two steps (18° -28°) leg angle positioning system. Legs can be adjusted within a 180° arc to other angle by using a mid level spreader 531SPRB and 530SPRB combined with a set of spike foot shoes 565 in case of unlevelled ground or by using a fl oor spreader code 3138. Leg locks by a quick lever and stainless steel fi ttings make this product extremly versatile and easy to use.

LIGHTWEIGHT VIDEO TRIPOD

351MVB2

27.7in

24.8in

59in 7.7lb

28.6lb

75mm

3189 / 530SPRB 3138 3198 / 3156

Equipped with a 75mm bowl combined with upper twin-leg design for greater rigidity, the 351MVB2 has a built-in shoulder spreader allowing you to adjust the legs at two different angles. To complete the package are twin-spiked feet to accommodate any of our accessories such as our range of dollies. The result is an extremely portable, light and affordable professional video tripod.

CARBON FIBER LIGHTWEIGHT VIDEO TRIPOD

351MVCF

27.9in

24.2in

58in 6.8lb

28.6lb

75mm

3189 / 530SPRB 3138 3198 / 3156

The fi rst two stage carbon fi bre video tripod from Manfrotto, equipped with a 75 mm half bowl, which combine together a twin leg design for the fi rst stage and a single leg design for the second stage of the tripod, all completed with a double spiked feet. Legs have two angles adjustment while if they have to be adjusted at any angle of 180° the tripod needs to be equipped with a mid level spreader 3189. These technical solutions offer a tripod with a unrivalled torsion rigidity with substantial weight saving comparing his competitors. All above listed features plus the use of composite materials like aluminum, magnesium, carbon fi bre and reinforced nylon plastic has generated the most innovative support solutions for DV and MINI DV and compact ENG cameras.

28 video

3068

528XB

3221WN

VIDEO TRIPOD

3068

37in 18.1in

57.9in

68.1in

12.6lb

39.7lb

3067 / 3156

Stainless steel extension legs and extra sturdy leg locks make this the robust choice for video crews around the world. Features built-in spirit level at the shoulder and telescopic mid level spreader. Comes complete with rubber feet and retractable metal spike.

VIDEO/MOVIE HEAVY TRIPOD

528XB

39in 28.7in

58.3in

16.3lb

110lb 100mm 3067

The 528XB is the ideal location tripod, with a massive 110lb load capacity. It is a sturdy single-stage tripod with a single-tube leg structure. Tubes are made of stainless steel for strength under heavy loads, and aluminium for weight saving. The leg spread is fully adjustable, but also incorporates a 30° locked position for faster set up and greater strength. A 100mm bowl accepts industry-standard half-ball video heads and allows you to level the head quickly for accurate panoramic shots. The included claw ball allows you to use it with heads not equipped with a half ball. The 528XB includes a versatile mid-level spreader, which has telescopic “ratchet” braces that click into place in each of the preset positions for faster deployment. Each brace can be individually set, allowing each tripod leg to be separately positioned.

VIDEO TRIPOD

3221WN

25.6in

3.1in

54.3in

71.3in

6.2lb

15.4lb

3155 3127 / 3137

Lightweight sturdy and portable the 3221WN is one of the Manfrotto easiest tripod to operate. Four position legs spread, long center column for extra adjustment, three legs warmers, quick fl ip lever locks and retractable rubber feet with steel spikes are all incorporated into the tripod. Ideal for DV and MINI DV camcorders.

video 29

Center column with built-in 50mm half ball locked using the rotating grip located at the bottom of the center column.

Tilt range: +15°/-15°

Quick action lever leg lock system

(45° run)

MDEVE

TRIPODS

The much-heralded arrival of the digital era has brought with it a drastic reduction in terms of weight and size of video camera equipment, matched by enormous advances in the picture quality achievable with the most minuscule of systems. Naturally enough, those working in the video sector are increasingly demanding camera supports that are tailored to these small new cameras but that make no compromises in key areas such as rigidity which could jeopardize the fl uidity and smoothness of camera movements. It is out of these demands that Manfrotto’s MDeVe series was born

Aimed at the DV, Mini DV and Micro DV markets, this family of tripods provides high performance in an extremely compact and lightweight structure. The series is made up of fi ve tripods; three are entirely in aluminum and two have carbon fi ber leg sections with magnesium castings. All fi ve are two-stage tripods and are supplied with quick release leg locking levers, asymmetric leg angle presets and, most signifi cantly, our patentpending, World First rapid centre column with built-in levelling half ball. The fact that the 50mm diameter ball with bubble spirit level is attached not to the tripod top spider but to the top of the centre column allows you to level the top plate (and consequently the head and camera) and even adjust the camera height without needing to make micro adjustments to the tripod legs, representing a massive time saving and giving you considerable added convenience. Manfrotto MDeVe tripods - avant-garde digital video camera support.

Rubber feet

Model shown: 755B

FEATURES

1

Tripod to head connection via a disc with 3/8” male thread,

built-in spirit level and three grub screws for secure

locking mountings.

2

Mounted on a built-in 50mm half bowl levelling system

(on 745B and 745MF3 tripods).

3

Single tube leg profi le made of round-section aluminium

or carbon fi ber.

4

Four different leg angle settings.

30 video

1

2

3

4

756MF3

755MF3

745MF3

MDEVE MAGFIBER VIDEO TRIPOD

756MF3

23.4in

21.5in

46.9in

54.5in

4lb 8.8lb

3127/3137 3155

The 756MF3 is the most innovative tripod of the MDEVE series due to the combination of low weight (Carbon Fiber for the legs/Magnesium die casting) and high load capacity materials used for its construction. Its unique, patent-pending aluminum center column construction and precision-machined red anodized aluminum includes a built 50mm leveling ball system locked by a detachable rotating grip built at the bottom of the center column, which allows the camera operator to level the camera and even adjust its height without needing to make micro adjustments to each individual tripod leg. The castings of the 756MF3 are constructed of Magnesium to reduce the weight. The crown design also allows the center column to be horizontally mounted.

MDEVE MAGFIBER VIDEO TRIPOD

755MF3

3127/3137 3155 26.6in

24.6in

54.7in

63.2in

4.6lb

15.4lb

Same as 756MF3 but with a higher load capacity.

MDEVE MAGFIBER VIDEO TRIPOD

745MF3

24.8in

8.7in

52.5in

4.4lb

13.2lb

3127/3137 3155

Two stage tripod made made using locking collars in magnesium and legs tubes in carbon fi ber to provide better torsion rigidity and less weight during transportation.

Compatible accessories:

LEVELLING CENTER COLUMN ANGLE BRACKET

553

Working with the center column in the horizontal position on Manfrotto tripod models MDEVE tripod family has always caused a slight diffi culty, in that the head remains at 90° to the ground making it more diffi cult to position the camera correctly for shooting. Now this simple but had the most stable platform possible for fi lming, and that we could use ever-lighter materials, from aluminum to carbon fi ber, to keep equipment weight to the bare minimum.

Single tube leg profi le madeof round-section aluminum or carbon fi ber.

video 31

745B

755B

756XB

MDEVE ALUMINIUM VIDEO TRIPOD

745B

24.8in

8.7in

54.3in

5.3lb

15.4lb

3127/3137 3155

Two stage aluminum tripod specifi cally geared towards the “on-the-go” Videographers looking for a simple, straightforward, and affordable tripod without sacrifi cing the key virtue of stability. With a maximum load capacity of 13.2lb, the new Manfrotto 745B video tripod is designed to handle payloads commonly associated with Mini

DV or DVCAM. An integrated 50mm leveling ball allows for quick set up with ±15° of leveling capability.

The 745B is ideal for travel, quickly folding up to a compact 24.8in and weighing only 5.3lb. For applications that demand full extension, the 745B has a maximum working height of 54.3in and for any situation where the shot is low, the 745B can provide support as low as 8.7in with all three legs opened to a full 90°.

MDEVE ALUMINIUM VIDEO TRIPOD

755B

26.6in

19.1in

58.3in

64.2in

6.2lb

15.4lb

3127/3137 3155

Designed for the professional videographers, this is an extremely versatile tripod, ideal for MINI DV camcorders. It is entirely made from aluminum, and has a removable centre column with built-in 50 mm leveling ball and bubble spirit level that can easily be re-fi tted as a lateral arm. Not only does this allow the camera to be offset from the leg position, it is also the simplest possible way to shoot a subject from directly overhead.

MDEVE ALUMINIUM VIDEO TRIPOD

756XB

21.9in

16in 47.4in

57in 4.4lb

8.8lb

3127/3137

Professionals will love this extremely compact and light aluminum video tripod.

The tripod has an easily removed centre column provided with a 50mm leveling ball and spirit level. Perfectly supports most MINI DV camcorders.

3155

32 video

560B

557B

558B

559B

MONOPODS

The monopod is an important part of every videographer’s support equipment.

Besides the tripod, the monopod is the best way to hold a camcorder in situations where space is limited, the quantity and weight of the equipment carried on location needs to be kept to a minimum, or set-up speed is needed.

FLUID VIDEO MONOPOD

560B

24.4in

65.7in

1.9lb

4.4lb

3157N

The 560B Fluid Monopod for lightweight MiniDV and HDV cameras is another world-fi rst product from Manfrotto designed to help videographers get superior images.

We’ve incorporated a fl uid cartridge into the base of the monopod for incredibly smooth, jump-free panning actions. The three pivoting, retractable feet ensure a fi rm footing while the quick release tilt top with angle lock knob lets you frame more creatively. All of this in a compact support ideal for use in tight spaces or environments where a tripod may not be allowed, such as sports stadiums, conferences and museums.

VIDEO MONOPOD

557B

26.4in

64.6in

2.2lb

26.5lb

3272

Solid and stable three-section professional monopod featuring sure rubber grip, suction cup foot, quick-action leg locks, wrist strap and 3273 sliding camera plate adapter to adjust the camera’s center of balance. Ideal for ENG style camcorders.

VIDEO MONOPOD

558B

25.6in

62.6in

2.2lb

17.6lb

3433PL

Light and compact three-section professional monopod featuring sure rubber grip, suction cup foot, quick-action leg locks, wrist strap and 3273 sliding camera plate adapter to adjust the camera’s center of balance. Ideal for DVCAM and MINI DV camcorders.

VIDEO MONOPOD

559B

21.7in

63.4in

1.3lb

9.9lb

3157N

Four section video monopod featuring, quick action leg locks, rubber grip, wrist strap, suction cup foot and touch and go 3299 camera plate adapter. Ideal to support small and very compact MINI DV camcorders.

video 33

FOLDING AUTODOLLY

3156

9.9lb

50in

Single lever braking system controls all three 3.1in wheels. Includes 3/8” attachment which allows you to fi x a head for low angle shooting.

It folds legs for transporting and storage.

Designed for Manfrotto’s 3068, 3193, 3185, 3182, 351MVB2, 351MVCF,

515MVB, 525MVB, 532ART, 542ART.

ACCESSORIES

DOLLIES

AND SPREADERS

Manfrotto dollies and spreaders maintain a tripod at a secure spread. Dollies provide instant manoeuvrability around the studio or on location and all have fast action foot controlled braking systems.

VIDEO DOLLY

3067

17.6lb

44.1in

Heavy duty, super sturdy dollies are designed for use with large still and video tripods. They feature large 5in individually braked wheels with cable guards.

Folds for transporting.

Designed for Manfrotto’s 3068.

PORTABLE DOLLY

3198

13.7lb

44.1in

Same as 3067 Dolly with ability to accept spiked tip tripods.

Designed for Manfrotto’s 3182, 351MVB2, 351MVCF.

VIDEO DOLLY

3127

5.3lb

43.3in

Designed for light and medium weight tripods. The 3in wheels have a sure-lock feature that raises the wheels free of the ground so that the dolly rests on separate feet.

Designed for Manfrotto’s 3221WN, 745B, 745MF3, 755B, 755MF, 756XB,

756MF3.

34 video

BASIC DOLLY

3137

7.5lb

30.7in to 44.9in

Everything that the 3127 has with the addition of variable spread to the legs.

Suitable for standard and spiked feet.

Designed for Manfrotto’s 3221WN, 745B, 745MF3, 755B, 755MF, 756XB,

756MF3.

TRIPOD SPREADER FOR

SPIKED FEET

3138

1.4lb

31.5in to 51.2in

Universal tripod spreader with variable diameter width controls from

31.5in to

51.2in

. It accepts spiked tip tripod.

Designed for Manfrotto’s 3193, 3185, 3182, 351MVCF.

TRIPOD SPREADER

3155

1.4lb

31.5in to 51.2in

Universal tripod spreaser with variable diameter width controls from

31.5in to 51.2in

. Designed for Manfrotto’s 3221WN, 745B, 745MF3, 755B, 755MF,

756XB, 756MF3.

LOW ANGLE STABILISER

3427

Designed to increase stability only for “fl oor-level” working positions. Quickly fi tted between the 3138/3155 spreader and the head locking system, it gives total rigidity with minimal torque movement even on fast pans. Designed for

Manfrotto’s 515MVB and 525MVB Tripods.

MID LEVER SPREADER

3189

3182, 351MVB2, 351MVCF tripods to provide additional rigidity and structural support.

MID LEVER SPREADER

531SPRB

Designed to fi t the mid level leg joint casting of the 515MVB and 525MVB tripods to provide additional rigidity and structural support.

The spreader braces are telescopic.

SQUID MID LEVER SPREADER

530SPRB

Built to fi t the mid level leg joint casting to provide additional rigidity and structural support, this innovative spreader is called the “SQUID” because of its peculiar design. Unlike most spreaders, it lets you fi ne tune the spreader brace angle to perfectly suit your working position. In combination with this continuous angle adjustment, you can use the quick click-stop arm length presets for rapid, precise operation. Technology used on this product is pat-pending.

video 35

Supplied with 4 cable clips to keep all your wires wrapped cleanly around the rig and out of your shot

FIG RIG

SYSTEM

The Fig Rig is more than just a steady support. It is a frame on which to build your system. Your camera has only one hot-shoe for accessories, limiting you to one light or one monitor. With the Fig Rig, you can mount any number of accessories that are necessary for today’s cameras.

Customize the Fig Rig to your liking. Manfrotto provides the canvas to allow you to create your masterpiece.

Hand Pads for a comfortable and secure grip even in the most extreme environments

FEATURES

1

SLIDING QUICK RELEASE PLATE

Supplied with a 3433PL sliding QR plate allowing you

to position and balance your camera. The plate system

can be switched out with a variety of Manfrotto plate

assemblies to best match your camera.

2

CROSSBAR

Each side of the camera bar is threaded with one 1/4”,

3/8” and 5/8” hole for additional accessory mounting.

3

RUBBER BASE PADDING

A non-slip rubber pad provides stability when using

the Fig Rig on a fl at surface such as a table, fl oor or railing.

36 video

1 2 3

If, like world-class fi lm director Mike Figgis, you’re daydreaming of a DV camera support that offers the shake-free stability of a tripod with the framing fl exibility of hand-held, at a price that has steady-cams quivering in fear... look no further than the Fig Rig.

“I needed to design a piece of equipment that could be used with the new generation of DV cameras. Something that could support

the camera and eradicate the instability that is synonymous with small camera use. And Manfrotto seemed to be the ideal company to take it to. They have a world wide profi le and a keenly competitive ambition to be at the forefront of the new generation of fi lm technique and innovation.”

video 37

FIG RIG

595B

After years of using the Fig Rig on his award-winning fi lms, Mike Figgis brought his idea to Manfrotto. An idea that is non-traditional in design, but purely simple and effective. The only modular system in the world to smoothly support the DV camera and act as a frame to mount all the accessories – including zoom controllers, mics, mixers, lights, monitors, arms...

A circular frame with a crossbar to mount most mini DV cameras, the Fig

Rig becomes part of the body to produce smooth, steady travelling shots.

It is this very fact which is the secret to the Fig Rig. As the operator walks, his/her muscles and tendons absorb all the shocks, transferring only fl uid movements to the camera. As there are no straps or harnesses attached to the Fig Rig, quick and wide movements can be made within the same shot

– from ground-level to overhead, in one smooth movement. The camera, accessories and operator become one, allowing you to fi lm scenes quickly and unobtrusively. With the Fig Rig your creativity is virtually limitless.

COMPATIBLE VIDEO REMOTE CONTROLS

With Manfrotto’s 521 series remote controls you can control zoom and focus (for Sony and Canon). With the Fig Rig you have complete control of your camera without ever removing your hands from the Rig.

POWER ON/OFF

FOCUS IN

REC/STOP

FOCUS OUT

WHEEL ZOOM

BASIC REMOTE CONTROL

FOR SONY & CANON

521

Built onto a small clamp that suits a wide range of applications, the 521 uses the LANC protocol adopted by Sony and Canon Mini DV, and Hi8 cameras.

Controls Power On/Standby, Record/Stop function, zoom in and out and focus in and out. Zoom wheel direction can be reversed. Supplied with 522SCA connector coiled cord cable measuring 9.8in (extendable to 19.7in) long.

REC/STOP

WHEEL ZOOM

BASIC REMOTE CONTROL

FOR PANASONIC

521P

Built onto a small clamp that suits a wide range of applications, the 521P is designed to work with Panasonic cameras AG-DVC-30, AG-DVC80, AG-

DVX100A, AG-DVX100B and AG-HVX200 and controls Record/Stop and zoom in/out functions of the camera. Supplied with 522SCA connector cable measuring 9.8in (extendable to 19.7in) long.

POWER ON/OFF

ZOOM SPEED BUTTON

REC/STOP

PUSH AUTO FOCUS

WHEEL ZOOM/WHEEL FOCUS

FOCUS IN/OUT

BASIC PRO REMOTE CONTROL FOR

SONY & CANON

521PRO

The 521PRO is the top opf the range for LANC enabled cameras. Key features include the ability to use the zoom wheel for either focus (in/out) or zoom

(in/out) and an added push-button auto focus feature.

REMOTE CONTROL SPLITTER BOX

521SB

The 521SB allows you to plug in two 521 series remotes to control the camera with both hands. For example, plug two 521PRO remotes into the 521SB and use the zoom wheel of one 521PRO to control zoom and the other to control focus. The 521SB is threaded with a 3/8” and 1/4” socket and supplied with a thumbscrew to mount directly to the Fig Rig crossbar.

38 video

COMPATIBLE MICROPHONE HOLDERS

MICROPHONE CLIP

MICC1

Standard type microphone clip.

MICROPHONE SPRING CLIP

MICC2

Universal type microphone clip.

Grabs microphones from diameter 20mm to 35mm.

UNIVERSAL SHOCK MOUNT

MICROPHONE HOLDER

MICC4

Rubber dampening system to absorb vibrations.

Swiveling yoke has 3/8” threaded hole.

COMPATIBLE CLAMPS

FIG RIG CLAMP

595CLA

Clamp specifi cally designed for the Fig Rig. Supplied with 1/4” and 3/8” screws, and female 1/4”-3/8” adapter.

On-camera lights and monitors: position your light or monitor anywhere around your camera, freeing you up to take it off your hot-shoe.

Microphones: mount your shotgun mic anywhere around the camera.

Mount to a tripod: need to go from hand held to a tripod/monopod? No problem, simply mount the entire Fig Rig quickly to a tripod/monopod.

Product shown: Video head and 595CLA Clamp.

Hang it up: hang the Fig Rig on a light stand between shots. Product shown: 039 Hook and 035C Super

Clamp mounted on light stand.

Low-angle stability: quickly mount the Fig Rig to any 5/8” stud for either temporary storage of stable low-angle shots.

Product shown: 003 Backlite stand, 014-38 Adapter and 595CLA Clamp.

COMPATIBLE QUICK RELEASE ADAPTERS

PRO VIDEO QUICK

RELEASE ADAPTER

3273

Extra long plate system for larger cameras.

Supplied with 2 x 1/4” and 2 x 3/8” camera screws.

Sliding travel of plate: 3.15in.

RECTANGULAR VIDEO QUICK

RELEASE ADAPTER

3299

Quick ‘touch-and-go’ plate system for smaller cameras.

Supplied with 1/4” camera screw.

video 39

Camcorder

SONY

DCR-PC330

DCR-TRV950

DCR-VX1000

DCR-VX2000

DCR-VX2100

DSR-200

DSR-250

DSR-PD150

DSR-PD170

DSR-PDX10

HVR-A1U

HVR-FX1

HVR-Z1U

CANON

GL-1

GL-2

XL1

XL1s

XL2

XL-H1

XM-1

XM-2

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

***

¤

¤

***

***

***

***

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

***

***

***

***

¤

¤

*** no PAF - no Push Auto Focus function

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

***

40 video

Camcorder

PANASONIC

AG-DVC 30

AG-DVC 80

AG-DVX 100A

AG-DVX 100B

AG-DVX 100BE

AG-DVX 100E

AG-HVX 200

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

¤

VIDEO

REMOTE

CONTROL

Our video camera remote control units put the essential commands of market-leading video cameras from Sony, Canon and Panasonic at your fi ngertips.

Appropriate for use with a video tripod & head, monopod, Fig Rig, jib arm, crane or alternative support system. Pan bar versions (which integrate directly with your video head) offer the advantage of allowing you to operate both camera movement and recording/zoom functions with the same hand without having to touch the camera itself; helping eliminate shake and unwanted vibration from your shooting. Clamp versions reduce the number of buttons and controls to the bare minimum, but where you use them is limited only by your imagination. They can be attached to anything from tubes, pipes, table tops, Fig Rigs, steering wheels, handlebars, hang-gliders or almost anything else.

FOR SONY/CANON

REMOTE CONTROL PRO

523PRO

The 523PRO remote control works with both Sony and Canon LANC-enabled video cameras. The remote control features a record/stop button, a power on/ standby button, three different zoom speed control buttons (slow, medium and fast) and a push auto focus button. The zoom wheel can be used to control one of the three preset, maximum zoom speeds or a customisable maximum speed which you can set to exactly the level you want. For all zoom speeds you can choose between progressive zoom speed (the further you rotate the zoom wheel, the faster the zoom) or fi xed zoom speed (irrespective of the rotation applied to the wheel, zoom speed remains constant) by pressing the button once (progressive) or twice (fi xed). The LED shows you which speed you have selected.

To set a “custom” zoom speed, simply use the wheel to set your speed and hold the zoom speed button until the LED fl ashes. The setting remains in the unit’s memory until you decide to change it. Whether you choose a limited progressive zoom range or a single fi xed speed, the features of the 523PRO mean you can easily repeat zooms precisely in subsequent takes of the same shot. The 523PRO also allows you to set left- and right-handed operation by changing zoom wheel direction.

The push auto focus button makes it very easy to achieve in focus images when working in manual focus mode. You can also use the manual focus in and out buttons and change the focus direction. 523PRO does not come with any parts to fi t to the head, but instead utilizes the pan bar clamp that comes with all Manfrotto heads.

The 523PRO is the only semi-professional video remote system available on the market today that uses a professional-type “wheel” zoom for fi ner adjustment and smoother progressions

FEATURES

1

Zoom wheel direction and focus direction

can be inverted (left – right or right – left)

2

Telescopic pan bar allows you to choose

the most comfortable working position

3

Incorporation of the remote controller with

the video head pan bar ensures sturdy

attachment and eliminates mechanical problems

4

Only system with jack connector rather than built-in

cable means the camera cable can be easily substituted

5

Waterproof cover supplied with a crystal clear vinyl

panel to allow to view the remote control button

during the shooting session. The cover slips quickly

over the remote pan bar to protect it from rain

or sudden showers.

COMMANDS

POWER ON/STANDBY

PUSH AUTO FOCUS

ZOOM SET SPEED 1

F=fi xed speed zoom

P=progressive speed zoom

ZOOM PRESET SPEED 2

F=fi xed speed zoom

P=progressive speed zoom

ZOOM PRESET SPEED 3

F=fi xed speed zoom

P=progressive speed zoom

REC/STOP

FOCUS IN

FOCUS OUT

WHEEL ZOOM

1

2

3

4

5

video 41

FOR SONY/CANON

BASIC REMOTE CONTROL

521

Built onto a small clamp that suits a wide range of applications, the 521 uses the LANC protocol adopted by Sony and Canon Mini DV, and Hi8 cameras. Controls Power

On/Standby, Record/Stop function, zoom in and out and focus in and out. Zoom wheel direction can be reversed. Supplied with 522SCA connector coiled cord cable measuring 9.8in (extendable to 19.7in) long. Rain cover available as accessory (523RC).

BASIC PRO REMOTE CONTROL

521PRO

Built onto a small clamp that suits a wide range of applications, the 521PRO is the top of the range of this compact remote control. It uses the LANC protocol adopted by Sony and Canon Mini DV, and Hi8 cameras. Supplied with 522SCA connector coiled cord cable measuring 9.8in (extendable to 19.7in). Rain cover available as accessory (523RC).

CLAMP RANGE

Round tube/pipe/bar: 0.47in to 1.38in diameter

CLAMP RANGE

Square tube or fl at surfaces:

0.19in – 1.18in height

CLAMP RANGE

Rectangular tube or fl at surfaces:

0.19in – 1.18in height

2

Only on 521PRO: invertible focus direction

FEATURES

1

WHEEL ZOOM: Professional “wheel” zoom for fi ner

adjustments and smoother progressions

INVERTIBLE ZOOM DIRECTION:

Zoom in/out direction can be inverted

(left to right, or right to left) be easily substituted

2

JACK CONNECTOR: 2.5 mm jack connector instead

of built-in cable means you can easily change the length

of the camera cable for different set-up requirements

COMMANDS 521

POWER ON/OFF

FOCUS IN

REC/STOP

FOCUS OUT

WHEEL ZOOM

COMMANDS 521PRO

POWER ON/OFF

ZOOM SPEED BUTTON

REC/STOP

PUSH AUTO FOCUS

WHEEL ZOOM

FOCUS IN/OUT

1

42 video

FOR SONY/CANON

REMOTE PAN BAR ADAPTER

It seemed too much of a shame to keep this to ourselves, so we’ve also made available a pan bar adapter kit that connects the Manfrotto remote control to video heads from other manufactures:

SUPPLEMENTARY ADAPTER CODE

522PB 12

522PB 13

522PB 14

522PB 16

522PB 18

522PB 22

522PB 25

522PB 30

BAR DIAMETER

0.47in

0.51in

0.55in

0.62in

0.70in

0.86in

0.98in

1.18in

RAIN COVER FOR REMOTE CONTROL

523RC

Waterproof cover for Manfrotto remote control series 521 and 521PRO supplied with a crystal clear vinyl panel to allow to view the remote control button during the shooting session. The cover slips quickly over the remote pan bar to protect it from rain or sudden showers.

OPTIONAL CABLES

The following cables of different length are available as accessories:

REMOTE CONTROL CABLE

STANDARD

522SCA

2.5mm male/male jack coiled cord cable measuring 9.8in (extendable to

19.7in) supplied as standard with all the units.

REMOTE CONTROL CABLE

EXTENSION

522EXTC

2.5mm male/female jack and plug, straight cable, measuring 35.4in in length can be fi tted to all units.

REMOTE CONTROL CABLE

SUPER EXTENSION

522EXTC30

2.5mm male/female jack and plug, straight cable, measuring 98ft in length can be fi tted to all units.

video 43

FOR PANASONIC

REMOTE CONTROL

522P

The 522P is a dual circuit, progressive zoom remote control unit for the Panasonic AG-DVC-30, AG-DVC80, AG-DVX100A, AG-DVX100B and AG-HVX200. Built into a video head pan bar suitable for Manfrotto models 501HDV, 503, 516, 519 and 526. The dual circuit allows you to choose between a zero power consumption “analog” mode for basic functions (record/stop and progressive min-max zoom via a professional zoom wheel) and a 3 AA (1.5 volt) battery-powered, advanced, customisable

“digital” mode. The digital mode gives you the record/stop function, and the zoom wheel can be used to control one of three preset maximum zoom speeds or a customisable maximum speed which you can set to exactly the level you want. The “custom” zoom speed setting remains in the unit’s memory even when batteries run down, until you decide to change it. In addition, for all options except the slowest preset speed, you can choose between progressive zoom speed (the further you rotate the zoom wheel, the faster the zoom) and fi xed zoom speed (irrespective of the rotation applied to the wheel, zoom speed remains constant) by pressing the button once (progressive) or twice (fi xed). An LED shows you which speed you have selected. The 522P also allows you to set left- or right handed operation by changing zoom wheel direction. 522P does not come with any parts to fi t to the head, but instead utilizes the pan bar clamp that comes with all Manfrotto heads.

Only control unit on the market that not only has the standard basic “Analog” mode, but also a full-featured “Digital” mode with 3 zoom speed presets, a fourth “personal” speed setting, and progressive or fi xed speed zooming

FEATURES

1

522P is mounted on a telescopic video head pan bar for sturdy

attachment, comfortable positioning and fi ngertip control

2

Incorporation of the remote controller with the video

head pan bar ensures sturdy attachment and eliminates

3

Professional zoom wheel with excellent build quality gives

fi ner control over progressive zoom speeds

Zoom wheel direction can be inverted (left – right or right – left)

4

Battery compartment located in handle of pan bar.

Batteries not included

5

Only system with jack connector instead of built-in cable,

so it can easily be substituted, lengthened or shortened.

COMMANDS

MINIMUM ZOOM SPEED

preset, fi xed speed only

MEDIUM ZOOM SPEED

preset, fi xed or progressive speed

MAXIMUM ZOOM SPEED

preset, fi xed speed only

DIGITAL MODE

Switch to digital mode for access to advanced zoom functions

REC/STOP

ANALOG MODE

Switch back to Analog mode to save battery life

CUSTOM

Customisable zoom speed, fi xed or progressive speed

WHEEL ZOOM

44 video

1

2

3

4

4

5

FOR PANASONIC

BASIC REMOTE CONTROL FOR PANASONIC

521P

Built onto a small clamp that suits a wide range of applications, the 521P is designed to work with Panasonic cameras AG-DVC-30, AG-DVC80, AG-DVX100A, AG-

DVX100B and AG-HVX200 and controls Record/Stop and zoom in/out functions of the camera. Supplied with 522SCA connector cable measuring 9.8in (extendable to 19.7in) long.

CLAMP RANGE

Round tube/pipe/bar: 0.47in to 1.38in diameter

CLAMP RANGE

Square tube or fl at surfaces:

0.19in - 1.18in height

FEATURES

1

WHEEL ZOOM: Professional “wheel” zoom for fi ner

adjustments and smoother progressions

2

JACK CONNECTOR: 2.5 mm jack connector instead

of built-in cable means you can easily change the length

of the camera cable for different set-up requirements

COMMANDS 521P

REC/STOP

WHEEL ZOOM

1

CLAMP RANGE

Rectangular tube or fl at surfaces:

0.19in - 1.18in height

2

FOR PANASONIC

REMOTE PAN BAR ADAPTER

It seemed too much of a shame to keep this to ourselves, so we’ve also made available a pan bar adapter kit that connects the Manfrotto remote control to video heads from other manufactures:

OPTIONAL CABLES

The following cables of different length are available as accessories:

SUPPLEMENTARY

ADAPTER CODE

522PB 12P

522PB 13P

522PB 14P

522PB 16P

522PB 18P

522PB 22P

BAR DIAMETER

0.47in

0.51in

0.55in

0.62in

0.70in

0.86in

RAIN COVER FOR REMOTE CONTROL

523RC

Waterproof cover for Manfrotto remote control 521P supplied with a crystal clear vinyl panel to allow to view the remote control button during the shooting session. The cover slips quickly over the remote pan bar to protect it from rain or sudden showers.

REMOTE CONTROL CABLE

STANDARD

522SCA

2.5mm male/male jack coiled cord cable measuring 9.8in (extendable to 19.7in) supplied as standard with all the units.

REMOTE CONTROL CABLE

EXTENSION

522EXTC

2.5mm male/female jack and plug, straight cable, measuring 35.4in in length can be fi tted to all units.

REMOTE CONTROL CABLE

SUPER EXTENSION

522EXTC30

2.5mm male/female jack and plug, straight cable, measuring 98ft in length can be fi tted to all units.

video 45

ZOOM

REMOTE CONTROL

Manfrotto is the fi rst company to offer a single unit that will control both Fujinon and Canon lenses. Building on the success of our Camcorder

Remote Controls and Lens-specifi c Controllers; our new Lens Controls are designed to command both the Fujinon and Canon interchangeable lenses used by professional camcorders. The Intelligent embedded system that allows the controller to automatically recognise and communicate with the lens you connect it to is what sets Manfrotto’s

Lens Controls head and shoulders above the rest.

In other words: more fl exibility at a lower investment for you, less gear to carry around, less to go wrong and all backed up by Manfrotto’s truly worldwide service and support network.

BASIC INTELLIGENT ZOOM REMOTE CONTROL FOR ENG LENS

521CFi

A brand new addition to the Lens Control range; the 521CFi puts all the functions of the 524CFi in a smaller clamp control suitable for use with the 595B Fig Rig, with jib arms and in a wide variety of other shooting setups. This allows the video operator to take full advantage of the latest compact HD camcorders with interchangeable lenses. The 521CFi offers an easy to operate progressive zoom, record/stop and RET (return - plays back last 3 seconds of footage then stops at the last recorded frame ready to record again). A small side-mounted dial allows you to quickly and easily limit the maximum zoom speed to avoid too-fast transitions while the zoom direction switch (also on the side of the unit) lets you change from left-right to right-left zooming. A rain cover is available as accessory (523RC).

46 video

ZOOM REMOTE CONTROL FOR ANGENIEUX ENG LENSES

524AX

Professional DV cameras continue to evolve and borrow many of the features found on the very high-end ENG cameras including removable manual lenses. Manfrotto is proud to introduce a new range of zoom remote controls dedicated to the professional ENG lens market. Using the same popular pan-handle design of the 523PRO and 522P remotes, Manfrotto offers a zoom remote controls 524AX for Angenieux ENG lens. It comes with a built-in 35.4in 8-pin cable to automatically adapt to the

8-pin connection found on most analog ENG lenses. Just like our 522P and 523PRO remotes, the 524 series is built into the pan handle which automatically adapts to the Manfrotto 500 series pro video heads. As with all our pan-handle remotes, various diameter adapter bars are available to attach the remotes to any video head.

INTELLIGENT ZOOM REMOTE CONTROL FOR ENG LENSES

524CFi

The 524CFi is a pan bar-mounted remote control unit for Canon and Fujinon video camera lenses with intelligent circuitry and programming to differentiate between the two. The 521CFi offers an easy to operate progressive zoom, record/stop and RET (return - plays back last 3 seconds of footage then stops at the last recorded frame ready to record again). The red dial allows you to quickly and easily limit the maximum zoom speed to avoid too-fast transitions while the zoom direction switch lets you change from left-right to right-left zooming.

FEATURES

1

Telescopic pan bar allows you to

choose the most comfortable working position

2

Incorporation of the remote controller with the video head pan bar

ensures sturdy attachment and eliminates mechanical problems

3

Professional-type “wheel” zoom for fi ner adjustment

and smoother progressions. Zoom wheel direction

can be inverted (left – right or right – left)

4

Waterproof cover supplied with a crystal clear vinyl panel

to allow to view the remote control button during the shooting

session. The cover slips quickly over the remote pan bar

to protect it from rain or sudden showers.

1

2

3

COMMANDS

Professional thumb zoom wheel that comfortably and naturally fi ts the hand to produce smooth zooms

Raised record start/stop button to easily locate as you’re looking through the viewfi nder

RET Return Video Function that allows you to play back the last 5 seconds of recorded material with the camera automatically cueing up the tape to the last frame so as not to break timecode

Stepless zoom control speed dial allowing you to pre-select a zoom speed and/or changing the zoom speed mid-shot

Illuminated power indicator. No batteries are required to operate the remote as all power is pulled from the camera.

4

2

ADAPTER CABLE

524ADAPT

This optional 10cm adapter cable allows you to convert the 8-pin 524FN Fujinon Remote Control cable to a 12-pin confi guration found on some Fujinon ENG lenses.

video 47

TRIPODS BAGS AND

CARRYING SYSTEM

A tripod is a wonderful thing. Carrying one never has been...until now. At Manfrotto, we know more than most about how the subject, so it was in our own interests as much as it was in yours to develop a complete range of carrying and transportation solutions designed around the one piece of photo or video kit that most bag manufacturers conveniently choose to ignore... our own beloved tripod. With our new carrying systems, we’ve worked from the inside out to invent new contoured bag shapes that fi t your kit and offer convenient ways of setting up and breaking down faster, a “space pad” that lets you shoulder carry your tripod without risking bangs and bruises, an open backpack that keeps your hands free, your tripod protected and weight to a minimum.

Whether you want a handle or strap that doesn’t even have to be removed from your tripod when you set up a shoot, or whether you need a protective shell to get your kit safely through baggage hall hell, we’re pleased to say we’ve got the solution. With innovative technical features, prime materials and fi rst class construction methods, the quality of all our bags and carrying solutions is up to the high standards you expect from Manfrotto.

Central handle

(on models MBAG120P).

Easy-grip zip opening

Padded end protects tripod head

Shoulder strap

FEATURES

1

End opening allows for faster “quiver”-

style extraction and insertion of the tripod.

2

High quality, durable ballistic nylon

3

End handle (on models MBAG120P,

MBAG100P, MAGB90P, MBAGB80).

4

Adjustable carrying handle for better balance during

transportation heavy heads mounted on the tripod

5

Internal pocket holds video head pan bar

1

48 video

1

3

2

4

5

PADDED TRIPOD BAG 47.2in

MBAG120P

The largest bag in the range, the MBAG120P is padded to protect your equipment and has the following features:

• Asymmetric tapered shape allows you to store the tripod with the head attached.

Tripod legs fi t comfortably in the narrower end (diameter 7.8in) and extra space is allowed for the larger volume of the head at the wider end (diameter 9in).

• Zip extends down the length of the bag, but also fully opens the top end of the bag.

• Thermoform padding holds the tripod in place in the bag and protects it, especially the head, during transport.

• Inner pocket holds accessories (such as video head pan bars).

• Innovative design and style; ballistic nylon, zips and other materials used are of top quality.

• Can be hand-carried horizontally by the side handle, vertically by the end handle (also useful for storage), or shoulder-carried using the included strap.

PADDED TRIPOD BAG 39.4in

MBAG100P

Same design of MBAG120P different size and without the double positioning carrying handle.

PADDED TRIPOD BAG 35.4in

MBAG90P

Same design of MBAG120P different size and without the double positioning carrying handle.

PADDED TRIPOD BAG 31.5in

MBAG80P

Basically the same as MBAG120P, but smaller, and without the side handle or inner accessory pocket. The MBAG80P is also narrower that the other padded bags.

The narrow end measures 13cm diameter, the wide end measures 15cm.

UNPADDED TRIPOD BAG 31.5in

MBAG80

The MBAG80 is an unpadded tripod bag.

• Slightly tapered to provide a better fi t for your tripod with attached head. The wider end of the bag accommodates the head without requiring all levers to be removed.

• Zip extends down the length of the bag, but also fully opens the top end of the bag.

• Logo end cap is padded to offer protection to the tripod head, the rest of the bag is unpadded.

• Shoulder strap included (the MBAG80 doesn’t have either end or side handle).

• Innovative design and style; ballistic nylon, zips and other materials used are of top quality.

UNPADDED TRIPOD BAG 27.6in

MBAG70

Same as MBAG80, but slightly smaller.

Tripod Model

3221WN

3068

3193

3186

3182

351MVB2

351MVCF

515MVB

525MVB

528XB

542ART

532ART

745B

745MF3

755B

755MF3

MBAG80P MBAG80P

MBAG120P MBAG120P MBAG100P

MBAG120P

MBAG90P

MBAG120P

MBAG120P MBAG120P

MBAG120P

MBAG90P

MBAG90P

MBAG80P

MBAG80P

MBAG80P

MBAG80P

MBAG90P

MBAG90P

MBAG120P MBAG120P

MBAG100P

MBAG100P

MBAG120P MBAG120P

MBAG100P MBAG100P

MBAG100P MBAG100P

MBAG80P

MBAG80P

MBAG80P

MBAG80P

756XB

756MF3

MBAG70P

MBAG70P

MBAG80P

MBAG80

MBAG80P

MBAG80

MBAG80

MBAG70

MBAG100P

MBAG100P

MBAG90P

MBAG100P

MBAG100P

MBAG100P

MBAG120P

MBAG120P

MBAG100P

MBAG120P

MBAG120P

MBAG70

MBAG70

MBAG70

MBAG70

MBAG70

MBAG70 video 49

BUCKET BACKPACK

540BB

Faster to use than a traditional back pack; more convenient than having to carry your tripod in your hand or under your arm - the bucket back pack is especially useful on longer journeys or on wilder terrain, where you still need to know that you can release the tripod, set up and shoot in seconds. It’s designed to hold any of our tripods with any video head attached: the head is placed in the lower “bucket” where its weight is better supported and less likely to swing off balance and hurt you, the legs extend up your back and are fi rmly tied in position. For birdwatchers, aeroplane enthusiasts and other users of spotting scopes, the bucket backpack will also let you transport your whole kit, with scope attached - as shown, the scope is cradled in the lower part of the back pack, and the tripod legs extend up your back.

HAND A LONG

458HL

Provide a more comfortable carrying system for MDEVE and 3221WN, this carrying handle, can be adjusted in length to better balance the tripod during transportation.

HAND A LONG

540HL

The hand-a-long is a padded bar that encloses a short hand-carry strap which attaches to the built-in rings at either end of the fi rst leg section of the 542ART/532ART pro video tripods. Because it’s compact and attaches to one leg section only, you don’t need to take it off the tripod while shooting so it’s fast and convenient in the fi eld.

And it won’t get in the way of tripod positioning or fi lming. The grip is long enough to allow hand position to be moved to match centre of balance of tripod/head. Can be combined with strap 540STRAP.

50 video

SPACE PAD

540SP

Suitable for use with tripod models 542ART/532ART, the 540SP wraps quickly around the closed tripod legs, snaps securely in place and can be positioned to match the centre of balance of any tripod/head combination. The space pad offers three distinct ways of carrying the tripod – hand-hold by your side (so it stops the tripod banging against your legs); fi reman-carry on your shoulder (where the padding makes carrying the tripod a less awkward and painful task) or, in combination with strap 540STRAP, like a shoulder bag (protecting your legs and hips from bangs and bruises).

Our special rubberised

“bubble” fi nish guarantees a secure non-slip grip on the product

The special ergonomic closure of the

540SP stays locked shut however loose or tight you set it, while the curved contour avoids sharp edges and protects both pad and contents

QUICK ACTION STRAP

401N

A quick and easy accessory for carrying your tripod when walking, hiking, cycling or just getting from shoot to shoot. Use the shorter straps to fasten the padded 401N to one of the legs of your tripod, bind the remaining legs together using the longer adjustable quick release straps, sliding the tripod over your shoulder and you’re ready to go, with your hands free to grab those vital last minute items. The padding helps hold the tripod in place and protects your back from bruises and chaffi ng. The 401N even stays attached to your tripod when shooting (all you need to do is release the longer quick release straps so you can manoeuvre and position all three legs), so you’re always ready to capture the images you want, but also always ready to move off again to the next location.

Straps can be removed and custom-positioned to better match the size of your tripod

The strap stays attached to your tripod when shooting video 51

LONG STRAP

3044

The 3044 strap is a basic but convenient way to carry your kit. It has a spring clip that fastens quickly to the steel ring at the shoulder of the tripod, and a closed loop that goes around the feet of the tripod and tightens to grip them securely. Features an adapter for compatibility with all Manfrotto tripods and rubberised fabric for comfort and to avoid the tripod slipping on your shoulder.

LONG STRAP

3044NAR

Same as 3044, but made with a narrower black rubberised fabric (1.57in width instead of 1.97in).

SHORT STRAP

3044TSB

The 3044TSB is a simple loop strap, with a single spring clip that attaches quickly to the steel ring at the shoulder of your tripod. Features an adapter for compatibility with all Manfrotto tripods. Strap is in grey rubberised fabric for comfort and to avoid the tripod slipping on your shoulder.

SHORT STRAP

3447

Same as 3044TSB, but made with a narrower black rubberised fabric (1.57in width instead of 1.97in).

STRAP

540STRAP

Made to measure for the 542ART and 532ART pro video tripods, the 540STRAP attaches to the built-in rings present at either end of the tripod’s top leg section to keep the load evenly balanced while carrying. The ergonomically contoured strap has a rubber “tread” for comfort and to avoid the tripod slipping on our shoulder.

52 video

video 53

REVERSIBLE SPIKED FEET

055SPK2

REVERSIBLE SPIKED FEET

190SPK2N

REVERSIBLE SPIKED FEET

440SPK2

REVERSIBLE SPIKED FEET

441SPK2

REVERSIBLE SPIKED FEET

449SP2

REVERSIBLE SPIKED FEET

676SP2

Reversible rubber/metal spiked feet (set of 3) supplied with a dedicated fi xing tool. The spike is made of a special hard anodised aluminium alloy extremely resistant to corrosion.

055SPK2 for tripod: 3221WN, 745B, 745MF3, 755B

190SPK2N for tripod: 756XB

440SPK2 for tripod: 756MF3

441SPK2 for tripod: 755MF3

449SP2 one foot for monopod: 559B

676SP2 one foot for monopod: 558B

SUCTION CUP/ RETRACTABLE SPIKE FEET

055SCK2

SUCTION CUP/ RETRACTABLE SPIKE FEET

190SCK2N

SUCTION CUP/ RETRACTABLE SPIKE FEET

440SCK2

SUCTION CUP/ RETRACTABLE SPIKE FEET

441SCK2

A rubber section cup feet (set of 3) with retractable stainless steel spike.

The suction cup increases the footprint of the monopod by almost 20 times, giving much greater stability when needed.

055SCK2 for tripod: 3221WN, 745B, 745MF3, 755B

190SCK2N for tripod: 756XB

440SCK2 for tripod: 756MF3

441SCK2 for tripod: 755MF3

SPIKE FOOT SHOES

565

Set of 3.

For tripod: 3186, 3193, 3182, 351MVB2, 351MVCF, 515MVB, 525MVB

RUBBER/SPIKED FOOT

677SP

Rubber foot for with retractable metal spike. For monopod: 557B

MONITOR HOLDER

3152

Designed to hold a monitor mounted on a tripod by using a standard 16mm stud.

Straps hold monitor securely in place.

MINI BALL HEAD LCD

482LCD

2.5in

0.26lb

4.4lb

The 482LCD ball head is a swivel mounting accessory than can be attached to the bottom of LCD or TFT monitors so you can mount the monitor to the top of the camera by using the “hot shoe” located on the top of the most camcorders.

SUPER CLAMP

035C

0.55lb

This universal clamp can be securely mounted on any tube from 0.51in to

1.77in. Attachment is 5/8” hexagonal socket.

54 video

3141BALL

3284

500BALLSH

520BALLSH

HI HAT

529B

5.7in

7.7in

8.1in

5.5lb

44.1lb

100mm

Manfrotto’s new Hi-Hat enables you to get shots from the dog’s perspective.

The 529B has adjustable leg angles to mount the camera in the tightest or lowest of locations - and thanks to the built - in spreader you can simply use the 529B on any even surface. The feet are rubber-padded to protect delicate surfaces and have a hole so that the 529B can be screwed to a ladder, apple-box or a sheet of wood. Recommended Heads:

526

519 (with 3426 adapter)

516 (with 500BALLSH adapter)

3460 (with 500BALLSH adapter)

501HDV (with 500BALLSH adapter)

100MM HALF BALL

3141BALL

Half ball for levelling video heads on Video tripods provided with 100mm bowl.

75MM HALF BALL

3284

Half ball for levelling video heads on Video tripods provided with 75mm bowl.

100MM HALF BALL SHORT

500BALLSH

The 500BALLSH comes complete with a short locking handle to mount all

Manfrotto fl at-base heads to the 529B Hi-Hat.

75MM HALF BALL SHORT

520BALLSH

The 520BALLSH comes complete with a short locking handle to mount all

Manfrotto fl at-base heads to any 75mm bowl tripod including the 529B Hi-Hat

(with optional adapter 3426).

100MM TO 75MM ADAPTER

3426

Converts all Manfrotto 100mm bowl tripods into a 75mm bowl.

823 819 814

VIDEO HEAD ADAPTER BOWL

3114

Adaptor kit to connect a 75 or 100 mm half bowl video head to a fl at base tripod.

MEDIUM HYDROSTATIC ARM

823

4.48in

9.25in

1.2lb

8.8lb

This is the fi rst arm that features 5/8” and 1/4” pins to support larger and heavier items. One of the two pins is hex shaped to merry perfectly with our superclamp. With a total length of 9.25in, the 823 is ideal to position lighting fi xtures or cameras virtually anywhere.To ensure that all three feet make contact with the ground on any terrain.

SMALL HYDROSTATIC ARM

819

4.52in

7in 0.4lb

4.85lb

This arm spans 7in and can support up to 4.85lb. The 819 is the ideal companion for attaching a video monitor to a camera or using as a fl ag support. Like the 814, the pivoting pins are 1⁄4-20” and 3/8” threaded with one side offering a platform to provide a larger footprint for the equipment being supported by the arm.

MINI HYDROSTATIC ARM

814

3.5in

5.1in

0.35lb

7.7lbs

The shortest arm at 5.1in is also the most powerful. The pivoting pin is threaded with 1⁄4-20” and 3/8” studs so it can be attached to the top of a video camera to support a small monitor or other video accessory with an exceptional load of 7.7lbs. video 55

SYSTEM GUIDE

The chart below gives an overview of compatibility among of all the tripods, heads and relevant accessories depending of the type of camera you want to support.

PRO ENG CAMCORDER

DV _ DV CAM _ DVD PRO _ DIGI BETA _ BETACAM SP _ BETACAM SX

Number of CCD: One

Size of CCD: 1/2” or 2/3”

526 519

3141BALL

500BALLSH

3141BALL

500BALLSH

516

3193

3186

528XB 3182

351MVB2

351MVCF

525MVB 532ART

542ART

532ART

542ART

515MVB 3068 528XB 3193

3186

3189

530SPRB

3189

530SPRB

3138

3189

530SPRB

3189

530SPRB

3138

3189

530SPRB

3138

3156

3198

3067 3156

3198

3156

3198

3156

3198

3156

3198

3156

3198

3156

3067

3067 3156

3198

PROFESSIONAL CAMCORDER

MINI DV

Number of CCD: Three

Size of CCD: 1/3”

501HDV and 3460

3141BALL

500BALLSH

3141BALL

500BALLSH

DIGITAL PROSUMER CAMCORDER

MICRO DV _ MINI DV _ DVD

Number of CCD: One

Size of CCD: 1/4”

701RC2 700RC2

525MVB 3221WN

745B

755B

745MF3

755MF3 3068 532ART

542ART

3189

530SPRB

3155 3155

3127

3137

3127

3137

3127

3137

3156

3067

3156

3198

756XB 756MF3 3221WN

745B

755B

745MF3

755MF3

3155

3127

3137

3155

3127

3137

3155

3127

3137

3155

3127

3137 video 57

58 video

Art. N° Description

503,745BK

503,745MF3K

503,755BK

503,755MF3K

503,351MVB2K

515MVB

516

516-3193

516,351MVCFK

516,515PKIT

516,532ART

516,542ART

519

519,351MVCFK

519,525PKIT

519,532ART

519,542ART

519LV

519MVBKIT

520BALLSH

521

521CFi

521P

3141BALL

3144

3152

3155

3156

3182

3186

3189

3193

3198

3221WN

3273

3284

035C

055SCK2

055SPK2

190SCK2N

190SPK2N

3044

3044NAR

3044TSB

3067

3068

3127

3137

3138

SUPER CLAMP

SUCTION CUP/RETRACTABLE SPIKE FEET

REVERSIBLE SPIKE FEET-STAINLESS STEEL

SUCTION CUP/RETRACTABLE SPIKE FEET

REVERSIBLE SPIKE FEET-STAINLESS STEEL

LONG STRAP

LONG STRAP

SHORT STRAP

VIDEO DOLLY

VIDEO TRIPOD

VIDEO DOLLY

BASIC DOLLY

TRIPOD SPREADER FOR SPIKED FEET

100 MM HALF BALL

VIDEO HEAD ADAPTER BOWL

MONITOR HOLDER

TRIPOD SPREADER

FOLDING AUTODOLLY

LIGHTWEIGHT VIDEO TRIPOD

SHORT VIDEO PRO TRIPOD

MID LEVEL SPREADER

VIDEO PRO TRIPOD

PORTABLE DOLLY

VIDEO TRIPOD

PRO VIDEO QUICK RELEASE ADAPTER

3299

3426

3427

3447

3460

3460HK

351MVB2

351MVCF

357PLONG

401N

441SCK2

441SPK2

75 MM HALF BALL

RECTANGULAR VIDEO QUICK RELEASE ADAPTER

100 MM TO 75 MM ADAPTER

LOW ANGLE STABILISER

SHORT STRAP

PRO FLUID VIDEO HEAD

PAN BAR

LIGHTWEIGHT VIDEO TRIPOD

CARBON FIBER LIGHTWEIGHT VIDEO TRIPOD

PRO VIDEO CAMERA PLATE LONG

QUICK ACTION STRAP

SUCTION CUP/RETRACTABLE SPIKE FEET

RETRACTABLE SPIKE FEET

449SP2

458HL

REVERSIBLE SPIKED FOOT

HAND A LONG

482LCD

500BALLSH

501HDV

MINI BALL HEAD LCD

100 MM HALF BALL SHORT

PRO VIDEO HEAD

501HDV,351MVB2K VIDEO KIT

501HDV,351MVCFK VIDEO KIT

501HDV,525PKIT

501HDV,745BK

501HDV,745MF3K

VIDEO KIT

VIDEO KIT

VIDEO KIT

501HDV,755BK

501HDV,755MF3K

501HLV

501PLONG

503,351MVCFK

503,525PKIT

VIDEO KIT

VIDEO KIT

PAN BAR

VIDEO CAMERA PLATE

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

SHORT VIDEO PRO TRIPOD KIT

LIGHTWEIGHT VIDEO TRIPOD

PRO FLUID VIDEO HEAD

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

PRO FLUID VIDEO HEAD

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

PAN BAR

VIDEO KIT

75 MM HALF BALL SHORT

BASIC REMOTE CONTROL FOR SONY/CANON

BASIC INTELLIGENT ZOOM REMOTE CONTROL FOR ENG LENS

BASIC REMOTE CONTROL FOR PANASONIC

Page

15

15

15

15

15

15

55

14

15

54

50

54

21

51

54

54

21

28

28

35

52

12

55

21

55

34

29

21

28

27

35

27

54

35

34

35

55

55

29

34

34

52

52

34

54

54

54

54

54

52

55

38-42

46

21

9

9

9

38-45

8

9

9

11

11

11

10

11

11

13

13

26

13

13

13

13

21

21

13

Description

REMOTE CONTROL PRO FOR SONY/CANON

REMOTE CONTROL SPLITTER BOX

REMOTE CONTROL CABLE EXTENSION

REMOTE CONTROL CABLE SUPER EXTENSION

REMOTE CONTROL FOR PANASONIC

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE PAN BAR ADAPTER

REMOTE CONTROL CABLE STANDARD

REMOTE CONTROL PRO FOR SONY/CANON

RAIN COVER FOR REMOTE CONTROL

ADAPTER CABLE

ZOOM REMOTE CONTROL FOR ANGENIEUX ENG LENSES

INTELLIGENT ZOOM REMOTE CONTROL FOR ENG LENSES

LIGHTWEIGHT VIDEO TRIPOD

PRO FLUID VIDEO HEAD

KIT

KIT

VIDEO/MOVIE HEAVY TRIPOD

HI HAT

“SQUID” MID LEVEL SPREADER

MID LEVEL SPREADER

ART PRO ALUMINUM VIDEO TRIPOD

BUCKET BACKPACK

HAND A LONG

SPACE PAD

TRIPOD STRAP

ART PRO CARBON FIBER VIDEO TRIPOD

LEVELLING CENTER COLUMN ANGLE BRACKET

VIDEO MONOPOD

VIDEO MONOPOD

VIDEO MONOPOD

VIDEO FLUID MONOPOD

SPIKE FOOT SHOES

VIDEO QUICK RELEASE ADAPTER

FIG RIG

FIG RIG CLAMP

RETRACTABLE SPIKE FOOT

RUBBER SPIKE FOOT

MINI VIDEO HEAD

VIDEO KIT

VIDEO KIT

MINI VIDEO HEAD

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

VIDEO KIT

MDEVE ALUMINIUM VIDEO TRIPOD

MDEVE MAGFIBER VIDEO TRIPOD

MDEVE ALUMINIUM VIDEO TRIPOD

MDEVE MAGFIBER VIDEO TRIPO

MDEVE ALUMINIUM VIDEO TRIPOD

MDEVE MAGFIBER VIDEO TRIPO

MINI HYDROSTATIC ARM

SMALL HYDROSTATIC ARM

MEDIUM HYDROSTATIC ARM

PADDED TRIPOD BAG 100CM

PADDED TRIPOD BAG 120CM

UNPADDED TRIPOD BAG 70CM

UNPADDED TRIPOD BAG 80CM

PADDED TRIPOD BAG 80 CM

PADDED TRIPOD BAG 90 CM

MICROPHONE HOLDER

MICROPHONE HOLDER

MICROPHONE HOLDER

Art. N°

542ART

553

557B

558B

559B

560B

565

577

595B

595CLA

676SP2

677SP

700RC2

526

526,528XBK

526MVBKIT

528XB

529B

530SPRB

531SPRB

532ART

540BB

540HL

540SP

540STRAP

522PB18

522PB18P

522PB22

522PB22P

522PB25

522PB30

522SCA

523PRO

523RC

524ADAPT

524AX

524CFI

525MVB

521PRO

521SB

522EXTC

522EXTC30

522P

522PB12

522PB12P

522PB13

522PB13P

522PB14

522PB14P

522PB16

522PB16P

756MF3

814

819

823

MBAG100P

MBAG120P

MBAG70

MBAG80

MBAG80P

MBAG90P

MICC1

MICC2

MICC4

700RC2,756XBK

700RC2,756MF3K

701RC2

701RC2,055BK

701RC2,745BK

701RC2,745MF3K

701RC2,755BK

701RC2,755MF3K

745B

745MF3

755B

755MF3

756XB

Page

39

54

54

54

21

36

33

33

33

25

31

33

50

50

51

52

35

35

25

7

29

55

26

6

7

43

43-45

41

43-45

43-45

47

47

43

45

43

45

43

45

43

45

43

45

43

45

38-42

38

43-45

43-45

44

43

49

39

39

49

49

49

49

39

55

55

49

32

31

55

31

32

31

17

17

32

16

17

17

17

18

19

19 video 59

Bogen Imaging Inc

565 East Crescent Avenue, Ramsey NJ 07446

Tel (201) 818-9500 - Fax (201) 818-9177

Service only: (201) 818-0060 www.bogenimaging.us - E-mail: [email protected]

Product photography: Roberto Bigano/Multistudio

Concept: Claim adv

© Gruppo Manfrotto 2006

Whilst every effort has been made to ensure that the information contained within this catalogue is correct, Gruppo Manfrotto srl accepts no liability for errors or omissions. Technical specifi cations and data are provided for guidance only. All rights are strictly reserved, Products shown in this catalogue are protected by international patents, while this publication (in whole or in part) without written consent from Gruppo Manfrotto srl is strictly forbidden and punishable by law. Because we constantly aim to improve our products, we reserve the right to amend or alter at any time and without prior notice the specifi cations of any item detailed in this publication.

LNORDV06,L - ISSUE NUMBER N°1 - 10/06

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
