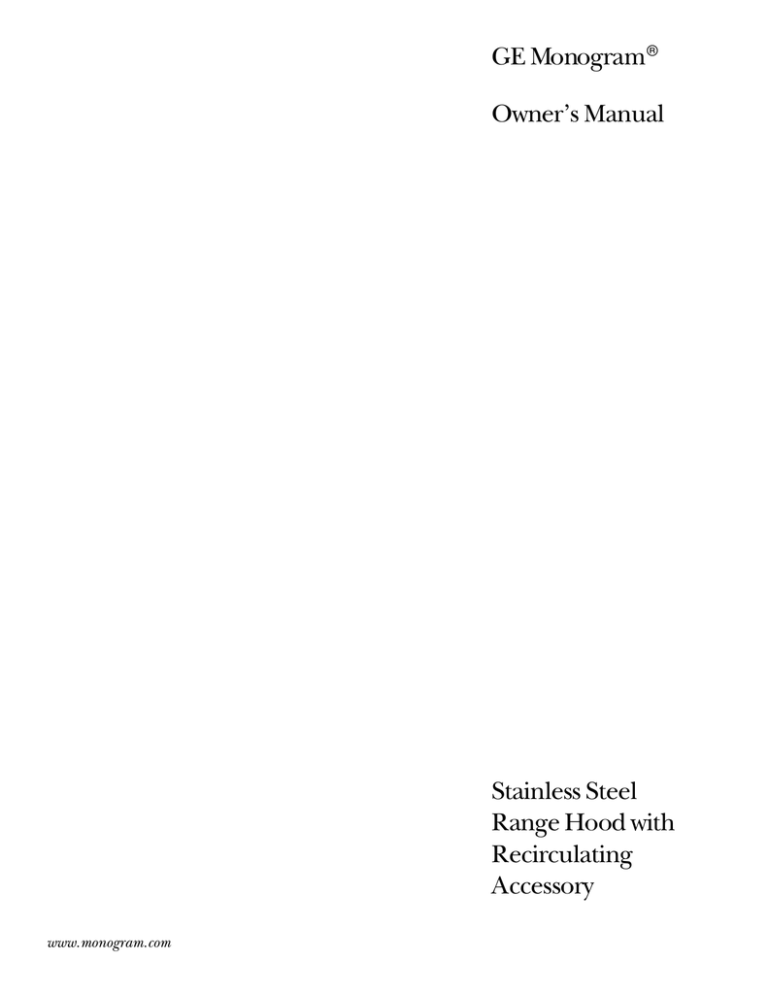

GE Monogram

®

Owner’s Manual

www.monogram.com

Stainless Steel

Range Hood with

Recirculating

Accessory

Introduction

Consumer Information

Stainless Steel Hood

Your new Monogram stainless steel hood makes an eloquent statement of style, convenience and kitchen planning flexibility. Whether you chose it for its purity of design, assiduous attention to detail—or for both of these reasons—you’ll find that your Monogram stainless steel hood’s superior blend of form and function will delight you for years to come.

Your Monogram stainless steel hood was designed to provide the flexibility to blend in with your kitchen cabinetry. Its sleek design can be beautifully integrated into the kitchen.

The information on the following pages will help you operate and maintain your stainless steel hood properly.

Contents

Consumer Information

. . . . . . . . . . . . 2, 3, 9–12

Important Phone Numbers . . . . . . . . . . . . . . . . 9

Model and Serial Numbers . . . . . . . . . . . . . . . . 2

Problem Solver . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Product Registration . . . . . . . . . . . . . . . . . 11, 12

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . 4, 5

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Controls and Features

. . . . . . . . . . . . . . . . . . . . 5

Care and Cleaning

Charcoal Filters . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Light Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Metal Grease Filter . . . . . . . . . . . . . . . . . . . . . . . 6

Stainless Steel Surfaces . . . . . . . . . . . . . . . . . . . .7

Before using your stainless steel hood

Read this manual carefully. It is intended to help you operate and maintain your new stainless steel hood properly.

Keep it handy for answers to your questions.

If you don’t understand something or need more help, there is a list of toll-free consumer service numbers included in the back section of this manual.

OR

Visit our Website at: www.monogram.com

Write down the model

& serial numbers

You’ll find them on a label on the hood.

These numbers are also on the Consumer

Product Ownership Registration Card packed separately with your hood.

Before sending in this card, please write these numbers here:

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your hood.

Immediately contact the dealer (or builder) that sold you the hood.

2

If you received a damaged hood

Save time

& money

If you need service

Before you request service, check the Problem

Solver in the back of this manual.

It lists causes of minor operating problems that you can correct yourself.

To obtain service, see the Consumer Services page in the back of this manual.

We’re proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further help.

FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details—including your phone number—to:

Manager, Customer Relations

GE Appliances

Appliance Park

Louisville, KY 40225

3

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING

4

SAFETY PRECAUTIONS

WARNING

—TO REDUCE THE

RISK OF FIRE, ELECTRIC SHOCK OR

INJURY TO PERSONS, OBSERVE THE

FOLLOWING:

A.

Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

B.

Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally.

When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

C.

Do not use this unit with any solid-state speed control device.

D.

This unit must be grounded.

CAUTION

—FOR GENERAL

VENTILATING USE ONLY. DO NOT USE

TO EXHAUST HAZARDOUS OR

EXPLOSIVE MATERIALS AND VAPORS.

WARNING

—TO REDUCE THE

RISK OF INJURY TO PERSONS IN THE

EVENT OF A RANGE TOP GREASE FIRE,

OBSERVE THE FOLLOWING*:

A.

SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT

BURNS. If the flames do not go out immediately, EVACUATE AND CALL

THE FIRE DEPARTMENT.

B.

NEVER PICK UP A FLAMING PAN—

You may be burned.

C.

DO NOT USE WATER, including wet dishcloths or towels–a violent steam explosion will result.

D.

Use an extinguisher ONLY if:

1.

You know you have a Class ABC extinguisher, and you already know how to operate it.

2.

The fire is small and contained in the area where it started.

3.

The fire department is being called.

4.

You can fight the fire with your back to an exit.

*Based on “Kitchen Firesafety Tips” published by NFPA.

WARNING

—TO REDUCE THE

RISK OF A RANGE TOP GREASE FIRE:

A.

Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

B.

Always turn hood ON when cooking at high heat or when cooking flaming foods.

C.

Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

D.

Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING

—TO REDUCE THE

RISK OF FIRE, ELECTRIC SHOCK OR

INJURY TO PERSONS, OBSERVE THE

FOLLOWING:

A.

Installation work and electrical wiring must be done by qualified person(s)in accordance with all applicable codes and standards, including fire-related construction.

B.

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection

Association (NFPA), and the American

Society for Heating, Refrigeration and

Air Conditioning Engineers (ASHRAE), and the local code authorities.

C.

When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

D.

Ducted fans must always be vented to the outdoors.

WARNING

—TO REDUCE

THE RISK OF FIRE, USE ONLY METAL

DUCTWORK.

Do not attempt to repair or replace any part of your hood unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

READ AND SAVE THESE INSTRUCTIONS.

Controls

NOTE:

Avoid using food products that produce flames under the range hood.

1

ON/OFF. It remembers the last fan speed used. (Four speed fan.)

2

Lowers the speed.

3

Increases the speed.

4

High speed “instant on.”

5

Delayed fan shut-off. Choose 5, 10 or 20 minutes by pushing this button.

6

Light ON/OFF. It remembers the last light level used. (Six light levels.)

7

Dims the light.

8

Brightens the light.

9

Lights after 30 hours of “on” time to remind you to clean the metal grease filters. The light blinks until the filters are replaced. If the lights are blinking and the filters are in, adjust them in place. Then the timer resets automatically.

10

Indicates the time the fan is set to run, before automatically shutting off. (5, 10 or 20 minutes.)

11

Fan indicator.

Controls and Features

Stainless Steel Hood

5

6

Care and Cleaning

Stainless Steel Hood

For your safety

Before servicing or cleaning the unit, switch power off at the service panel and lock the service panel to prevent power from being switched on accidentally. If the service panel cannot be locked, fasten a tag or prominent warning label to the panel.

Metal grease filters

Clean the grease filter after 30 hours of “on” time. A signal light will alert you when 30 hours has passed.

Remove the grease filters and wash them either by hand or in the dishwasher using non-abrasive soap.

To clean, swish the filters in hot soapy water or wash them in the dishwasher. Do not use abrasive cleansers.

Front

Note: To remove filters push them back and down using the knob.

For proper operation, be sure to use the lower set of filter holders.

Charcoal filters

(on some models)

If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that help remove smoke and odors.

The charcoal filters should be replaced when they are noticeably dirty or discolored (usually after 6 to 12 months, depending on hood usage).

NOTE:

DO NOT rinse, or put charcoal filters in an automatic dishwasher.

The charcoal filters cannot be cleaned.

They must be replaced.

Order Charcoal Filter Kit (3 filters) WB02X10731.

This kit can be ordered from your GE Supplier.

Note: To remove the metal filters, push them back and down using the knob. Push the charcoal filters back and down using the tab.

Charcoal Filters

Front

Metal Filters

For proper operation, be sure to use the charcoal filters in the upper set of filter holders and metal filters in the lower set of filter holders.

Light bulbs

To change the light bulbs:

1.

Remove the trim ring by turning it counterclockwise.

2.

Grasp the bulb on the edges and pull it straight out.

3.

Replace with the same size bulb.

These 12 volt, 20 watt halogen bulbs are available at specialty lighting stores. Ask for GE bulb or equivalent: Q20MR16/C/CG40–BAB.

Stainless steel surfaces

Do not use a steel-wool pad; it will scratch the surface.

To clean the stainless steel surface, use a hot, damp cloth with a mild detergent suitable for stainless steel surfaces. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.

If food soil remains, try a general kitchen cleaner, such as Fantastik®, Simple Green®, or Formula 409®.

For hard-to-clean soil, use a standard stainless steel cleaner, such as Bon-Ami® or Cameo®.

Apply cleaner with a damp sponge. Use a clean, hot, damp cloth to remove cleaner. Dry with a dry, clean cloth. Always scrub lightly in the direction of the grain.

After cleaning, use a stainless steel polish, such as Stainless Steel Magic®, Revere Copper and

Stainless Steel Cleaner®, or Wenol All Purpose

Metal Polish®. Follow the product instructions for cleaning the stainless steel surface.

7

8

Questions?

Use this problem solver!

The Problem Solver

Stainless Steel Hood

PROBLEM POSSIBLE CAUSE

FAN DOES NOT

OPERATE WHEN

THE SWITCH IS ON

• A fuse may be blown or a circuit breaker tripped. Replace fuse or reset circuit breaker.

FAN FAILS TO

CIRCULATE AIR

• Fan blade striking the hood shell.

• Excessively soiled filter should be checked and corrected before using the hood again.

FAN OPERATES BUT

• Check to be sure the filter is clean. If replacing the filter does not

MOVES AIR SLOWER correct the problem, call for service.

THAN NORMAL

FAN KEEPS GOING

• The motor is probably overheating and turning itself off. This can

OFF AND ON be harmful to the motor. Check to be sure the filter is clean. If off and on cycling continues, call for service.

FAN FILTER LIGHT IS

• Filters are not in place or not properly seated. Replace the filters

ON OR IS BLINKING or if the filters are in, adjust them in place.

Consumer Services

With the purchase of your new Monogram appliance, receive the assurance that if you ever need information or assistance from GE, we’ll be there. All you have to do is call—toll- free!

GE Answer

Center®

800.626.2000

Whatever your question about any Monogram major appliance, GE Answer Center® information service is available to help. Your call—and your question—will be answered promptly and courteously. And you can call any time. GE Answer Center® service is open

24 hours a day, 7 days a week.

OR

Visit our Website at: www.monogram.com

In-Home Repair

Service

800.444.1845

A GE consumer service professional will provide expert repair service, scheduled at a time that’s convenient for you. Many GE Consumer Service company-operated locations offer you service today or tomorrow, or at your convenience (7:00 a.m. to 7:00 p.m. weekdays, 9:00 a.m.

to 2:00 p.m. Saturdays). Our factory-trained technicians know your appliance inside and out— so most repairs can be handled in just one visit.

For Customers

With Special

Needs…

800.626.2000

GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons with limited mobility.

Consumers with impaired hearing or speech who have access to a

TDD or a conventional teletypewriter may call 800.TDD.GEAC

(800.833.4322) to request information or service.

Service Contracts

800.626.2224

You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect and you’ll receive a substantial discount. With a multiple-year contract, you’re assured of future service at today’s prices.

Parts and

Accessories

800.626.2002

Individuals qualified to service their own appliances can have parts or accessories sent directly to their home. The GE parts system provides access to over 47,000 parts…and all GE Genuine

Renewal Parts are fully warranted. VISA, MasterCard and Discover cards are accepted.

User maintenance instructions contained in this manual cover procedures intended to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

9

WARRANTY

YOUR MONOGRAM HOOD WARRANTY

Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS

COVERED

FULL ONE-YEAR WARRANTY

For one year from date of original purchase, we will provide, free of charge, parts and service labor in your home to repair or replace any part of the hood that fails because of a manufacturing defect.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for ordinary home use in the 48 mainland states, Hawaii and Washington, D.C.

In Alaska the warranty is the same except that it is LIMITED because you must pay to ship the product to the service shop or for the service technician’s travel costs to your home.

All warranty service will be provided by our Factory Service Centers or by our authorized

Customer Care® servicers during normal working hours.

Should your appliance need service, during warranty period or beyond, call 800.444.1845.

WHAT IS NOT

COVERED

Service trips to your home to teach you how to use the product.

Replacement of house fuses or resetting of circuit breakers.

Replacement of the replaceable filters.

Damage to the product caused by accident, fire, floods or acts of God.

Failure of the product if it is used for other than its intended purpose or used commercially.

Improper installation.

If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, gas, exhausting and other connecting facilities as described in the Installation Instructions provided with the product.

Incidental or consequential damage caused by possible defects with this appliance.

WARRANTOR IS NOT RESPONSIBLE

FOR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

ZV750 ZV850

10

Consumer Product

Mail T oday

Important

Ownership Registration

GE Appliances

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Place

1st Class

Letter

Stamp

Here

11

12

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1

Complete and mail your Consumer

Product Ownership

Registration today.

Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.

2

After completing this registration, write your model and serial numbers in this manual.

You will need this information should you require service.

Our service number is

800.444.1845.

3

Read your Owner’s

Manual carefully.

It will help you operate your new appliance properly.

Important:

To ensure that your product is registered, mail the separate product registration card.

If the separate product registration card is missing, fold and mail the form below. No envelope is needed.

FOLD HERE

Consumer Product Ownership Registration

Model Serial

Important

Mail

Today!

Product

Range Hood

Mr. l Ms. l Mrs. l Miss l

First

Name

Street

Address

Last

Name

Apt. #

City

Date Placed

In Use

Month Day Year

Phone

Number

State

Zip

Code

Monogram®

General Electric Company

Louisville, KY 40225 www.monogram.com

TAPE CLOSED

Part No. 164D4290P012

Pub No. 49-80043

9-00 JR

Printed in Italy

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
