CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

TRACK/

CHANNEL

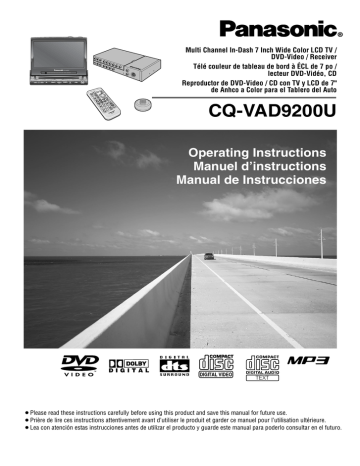

Multi Channel In-Dash 7 Inch Wide Color LCD TV /

DVD-Video / Receiver

Télé couleur de tableau de bord à ÉCL de 7 po / lecteur DVD-Vidéo, CD

Reproductor de DVD-Video / CD con TV y LCD de 7" de Anhco a Color para el Tablero del Auto

®

CQ-VAD9200U

Operating Instructions

Manuel d’instructions

Manual de Instrucciones

TEXT

¡Please read these instructions carefully before using this product and save this manual for future use.

¡Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.

¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

I

S

H

E

N

G

L

Safety Information

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE

THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING

OR MOISTURE.

WARNING:

NOT FOR USE WHERE VIDEO MONITOR IS VISIBLE

TO DRIVER TO AVOID RISK OF SERIOUS INJURY

OR POSSIBLE VIOLATION OF STATE LAWS.

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PER-

FORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

Laser products:

Wave length: 780 nm

Laser power: No hazardous radiation is emitted with safety protection.

CAUTION:

PLEASE FOLLOW THE LAWS AND REGULATIONS

OF YOUR STATE, PROVINCE OR COUNTRY FOR

INSTALLATION OF THE UNIT.

Label Indication and Location

Display Unit

Model No.

N

° De Modèle

CQ-VAD9200U

1 2 V 8

5 A F M 7 5

Manufactured by Matsushita Communication

Industrial Co., Ltd.

Yokohama Japan Made in Japan

Serial No.

N

° De Série

This device complies with Part 15 of the

FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Hide-away Unit

Model No.

N

° De Modèle

YEPOFX4854

(CQ-VAD7200U)

(CQ-VAD9200U)

1 2 V

Manufactured by Matsushita Communication

Industrial Co., Ltd.

Yokohama Japan Made in Japan

Model No.

N

° De Modèle

YEPOFX4852

(CQ-VAD9200U)

1 2 V 4

1 5 A

Manufactured by Matsushita Communication

Industrial Co., Ltd.

Yokohama Japan Made in Japan

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

Part 15 of the FCC Rules

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

2

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.

MODEL NUMBER

DATE PURCHASED

CQ-VAD9200U

SERIAL NUMBER

FROM

CQ-VAD9200U

Consignes de sécurité

AVERTISSEMENT:

AFIN DE LIMITER LES RISQUES D’INCENDIE OU

D’ÉLECTROCUTION OU ENCORE D’ENDOMMAGE-

MENT DE L’APPAREIL, N’EXPOSEZ PAS CET

APPAREIL À LA PLUIE, AUX ÉCLABOUSSURES

D’EAU OU À L’HUMIDITÉ.

AVERTISSEMENT:

POUR RÉDUIRE LES RISQUES D’INCENDIE OU

D’ÉLECTROCUTION, N’EXPOSEZ PAS CET

APPAREIL À LA PLUIE OU À L’HUMIDITÉ.

ATTENTION!

CET APPAREIL EST DOTÉ D’UN LECTEUR AU

LASER. L’UTILISATION DE COMMANDES OU LE

RECOURS À DES RÉGLAGES AUTRES QUE CEUX

INDIQUÉS DANS CE MANUEL PEUVENT PRÉSENTER

DES RISQUES D’EXPOSITION À DES RADIATIONS.

NE PAS OUVRIR LE BOÎTIER. TOUTE RÉPARATION

DOIT ÊTRE FAITE PAR UN PERSONNEL QUALIFIÉ ET

NON PAR L’USAGER.

Produits laser:

Longueur d’onde: 780 nm

Puissance du laser: Aucune radiation dangereuse n’est émise avec la protection de sécurité.

ATTENTION:

OBSERVEZ LES LOIS ET RÉGLEMENTS DE VOTRE

DÉPARTEMENT, PROVINCE OU PAYS POUR

L’INSTALLATION DE L’APPAREIL.

Información para su seguridad

ADVERTENCIA:

PARA REDUCIR EL PELIGRO DE INCENDIOS Y DE

DESCARGAS ELÉCTRICAS ASÍ COMO DE DAÑOS

DEL PRODUCTO, NO LO EXPONGA A LA LLUVIA, A

SALPICADURAS, CONDENSACIÓN DE AGUA NI

HUMEDAD.

ADVERTENCIA:

ESTE APARATO NO DEBE UTILIZARSE DONDE EL

CONDUCTOR PUEDA VER EL MONITOR DE VÍDEO,

PARA EVITAR ACCIDENTES GRAVES O POSIBLES

VIOLACIONES DE LAS LEYES ESTATALES.

¡PRECAUCIÓN!

ESTE APARATO UTILIZA RAYOS LÁSER.

LA UTILIZACIÓN DE CONTROLES Y LOS PROCED-

IMIENTOS QUE NO ESTÉN ESPECIFICADOS EN

ESTE MANUAL, PUEDEN OCASIONAR UNA EXPOSI-

CIÓN PELIGROSA A LA RADIACIÓN.

NO ABRA LAS CUBIERTAS Y NO EFECTÚE NINGU-

NA REPARACIÓN USTED MISMO. SOLICITE EL

SERVICIO A PERSONAL CUALIFICADO.

Productos láser:

Longitud de onda: 780 nm

Potencia láser: Con protección de seguridad no se emite radiación peligrosa.

F

R

A

N

Ç

A

I

S

E

S

P

A

Ñ

O

L

PRECAUCIÓN:

RESPETE LAS LEYES Y REGULACIONES DE SU

ESTADO, PROVINCIA O PAÍS PARA LA INSTA-

LACIÓN DEL APARATO.

Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits soit à l’arrière soit sous le fond de l’appareil, et de conserver ce manuel comme mémorandum de l’achat afin de permettre l’identification de l’appareil en cas de vol.

CQ-VAD9200U

NUMÉRO DE MODÈLE

NUMÉRO DE SÉRIE

DATE DE L’ACHAT

VENDEUR

Busque el número del modelo y el número de serie ya sea en la parte trasera o en el fondo de la unidad.

Sírvase anotar dichos números en el espacio siguiente, y mantenga este librete como una anotación permanente de su compra para ayudar en la identificación en el caso de robo.

NÚMERO DEL MODELO

NÚMERO DE SERIE

FECHA DE COMPRA

NOMBRE DE LA TIENDA

CQ-VAD9200U

CQ-VAD9200U

3

I

S

H

E

N

G

L

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work.

Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Features

Integration of the monitor, TV tuner, FM/AM radio, DVD/Video CD player, and

CD/MP3 player

¡A CD-R and a CD-RW that hold CD-DA data can be reproduced.

¡A CD-ROM, a CD-R and a CD-RW that hold MP3 data can be reproduced.

¡MP3 ID3Tag is supported.

Built-in Dolby Digital decoder / DTS decoder, Dolby Pro Logic decoder

Optical digital input connector (Optical fiber cable is supplied)

You can enjoy a powerful 5.1 channel surround system by connecting optional center speaker, power amplifier and sub-woofer.

Built-in DSP

8 sound field (space) and 7 band graphic equalizer.

7-inch wide LCD (Liquid Crystal Display) display

Delivers images of high quality and superb color reproduction.

Fully powered display positioning mechanism (except for lateral angle)

Positioning of the display unit is fully power driven. This includes extending the unit, raising it to upright position, adjusting its vertical (tilt) angle and moving it to the front and rear.

The lateral angle to the right and left can be adjusted manually.

GUI (Graphic User Interface)

GUI displays various indications with colorful symbols to enhance visibility, enjoyment, and operability.

Image capture function

Images can be imported from TV, VTR, DVD or Video CD for a wall paper.

Built-in automatic dimmer

The brightness of the screen is automatically adjusted in response to surrounding brightness.

ID code

4-digit ID code for increased security.

External extension terminal

¡Two video input (on the hide-away unit side)

You can connect a car navigation system, VCR, camcorder and rear view camera with this unit if they have video output type terminal.

¡One video output (on the hide-away unit side)

You can connect optional monitor for passengers in the rear seat. For example, you can enjoy a map of the car navigation on the front monitor, and passengers in the rear seat can enjoy DVD movie on the rear monitor at the same time. Moreover, different sounds can be played in the front seat and rear seat in the private mode.

CD changer control function

An optional CD changer can be connected.

Note:

This book explains how to connect to Panasonic Car Navigation System that will be in the market.

Descriptions regarding the car navigation system are boxed with dotted line.

4

CQ-VAD9200U

Contents

¢ Safety Information..............................

2

¢ Features ................................................ 4

¢ Use This Product Safely ...................... 10

¢ Components / Remote Control Unit

Preparation ........................................... 12

Components, battery installation and battery notes

¢ Name of Controls and Functions........ 13

Name of buttons and its functions

¢ Indications on the Screen.................... 16

The state of the current output appears, OSD (On

Screen Display) on / off

¢ Discs that can be Played Back............ 17

¢

System Upgrade

................................... 18

¢ General .................................................. 20

Power, mode change, volume, mute, display open/close and monitor position adjustment

¢ TV Tuner................................................ 22

TV mode, channel setting, direct channel selection, preset channels

¢ VTR ........................................................ 24

VTR1/VTR2 mode, connectable external devices

¢ DVD / Video CD Player ......................... 26

Disc insert/eject, basic operation, chapter title selection, useful function

¢ CD / MP3 Player .................................... 30

Disc insert/eject, track/file selection, folder selection (MP3), fast forward / fast reverse (CD), sequential transition from one file to the next

(MP3), title scroll, direct folder selection (MP3), repeat, random, points to remember when recording an MP3 disc

¢ Radio ..................................................... 34

Radio mode, band, tuning, preset station

¢ CD Changer Control............................. 36

CD changer mode, disc selection, track selection, fast forward / fast reverse, random, scan, repeat

¢ SET-UP : User Settings........................ 38

Monitor position, navigation set up, rear view camera set up, ID code setting, button operation sound, video control setting, memory clearance

¢ SET-UP : Display (Screen) Settings.... 44

Dimmer, display adjustment

¢ SET-UP : DVD Settings ........................ 46

Language setting, display aspect and DVD software mode

¢ SET-UP : Clock / Date Settings ........... 48

Clock and date setting, calendar display

¢ SET-UP : Capture Function ................. 50

Image capture

¢ SET-UP : Sound Settings..................... 52

Setting the VTR (VTR1/VTR2) input level, digital input setting, setting the absence/presence and size of each speaker, adjusting the output balance of each speaker, adjusting the timing with which the audio from each speaker reaches the listener's position, maintaining the ambience even while listening at a low volume level, adjusting the level for each of the frequency bands, audio channel setting, dynamic range compression, sound field setting

(space)

¢ SET-UP : Other Settings ...................... 64

Display change, aspect ratio, rear monitor set up, private mode

¢ Installation Guide ................................. 68

Step-by-step procedures

¢ Electrical Connections......................... 78

Cautions and cable wiring diagram

¢ Troubleshooting ................................... 86

Where to get service help, troubleshooting tips, error display messages and reset switch

¢ Maintenance.......................................... 94

Care of the unit, notes on Discs, Notes on

CD-Rs/CD-RWs

¢ Definition of Terms............................... 96

¢ Language Code List ............................. 97

¢ Specifications ....................................... 98

I

S

H

E

N

G

L

CQ-VAD9200U

5

E

N

G

L

I

S

H

1

Use This Product Safely

WARNING:

TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF LAWS, NOT FOR USE WHERE

VISIBLE TO DRIVER FOR ANY PURPOSE OTHER THAN NAVIGATION OR USE WITH REAR VIEW

CAMERA.

When Driving

¡The driver must not operate the color LCD (liquid crystal display) monitor. Operating the color LCD monitor may lead to carelessness and cause an accident. Stop your car in a safe location when operating the unit.

¡The driver must not watch videos while driving. It may lead to carelessness and cause an accident.

¡Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds outside and around the car may cause an accident.

When Car Washing

Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North

American car.)

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Protect the DVD Software

When you leave the car, be sure to eject the disc from this unit and bring it out.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product for service assistance.

For Installation

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.

The user should bear in mind that in some areas there may be restrictions on how and where this unit must be installed.

Consult your dealer for further details.

NOTICE: Language for Manuals of Products Using LCD

This product has a fluorescent lamp that contains a small amount of mercury. It also contains lead in some components.

Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: <http://www.eiae.org.>

10

CQ-VAD9200U

This system is designed so that you cannot see the moving picture while you are driving.

¡Park your car in a safe place with pulling the side brake (parking brake) lever before watching the monitor.

¡A rear monitor (option) displays moving picture while driving.

Note:

Be sure to connect the side brake (parking brake) connection lead. ( a page 82)

Cautions:

¡Picture might not be displayed, or it might take more time than usual to display picture in low temperature.

Also, movement of picture might become labored, or picture quality might deteriorate in low temperature.

[practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]

¡Do not touch the LCD (liquid crystal display).

If you touch the LCD, your fingerprints are conspicuous because the surface of the LCD was specially processed.

¡In some cases, noise is generated. It depends on the position or direction of a mobile phone and a CB transiever, etc. Change the position or direction of the mobile phone and a CB transiever, etc. or keep them away from the unit.

ID Code

Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use four digits for ID code.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person to whom the unit belongs.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery). For the ID code setting procedures, see pages 40 to 41.

Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. If you cannot operate the unit because you forget the ID code, please consult your nearest Panasonic

Servicenter.

ID Code Input

Enter the ID code after turning on the power and activating the display.

E

N

G

L

I

S

H

2

Success

Note: When you fail in entering the ID code, a screen on the right is displayed and the unit beeps three times. Enter a correct ID code.

If you fail to enter the correct ID code three times consecutively, the power is turned off. Turn on the power again and enter a correct ID code in this case.

CQ-VAD9200U

E

N

G

L

I

S

H

3

Components / Remote Control Unit Preparation

Components

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

1. Display Unit

1

2. Hide-away Unit

1

3. Remote Control

Unit

1

4. Lithium Battery

(CR2025)

1

5. TV Antenna

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

2

6. Speaker*

*Do not use it for a center speaker.

1

7. Wiping Cloth

1

8. Operating

Instructions

10. Installation Hardware (screws, cords, etc.) ( a page 68)

1

9. Warranty Card, etc.

Remote Control Unit Preparation

Battery Installation (Inserting / Replacing the Battery)

q Remove the battery holder.

Pull the holder by the position B while pushing position A

Back side in the direction indicated by the arrow.

w Install the battery on the battery holder.

Set a new battery properly with its (+) side facing up as shown in the figure.

e Insert the battery holder.

Push the battery holder back into its original position.

Lithium battery

(supplied)

Position B

Battery Notes

Remove and dispose of the old battery immediately.

Battery Information:

¡Battery Type: Panasonic lithium battery (CR2025) (supplied)

Battery holder

¡Battery Life: Approximately 6 months with normal use (at room temperature)

Position A

Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. Battery leakage may damage the unit.

¡Do not disassemble or short the battery. Do not throw a battery into a fire.

¡Keep batteries away from children to avoid the risk of accidents.

¡Be careful to observe proper local disposal rules when you dispose of batteries.

12

CQ-VAD9200U

Name of Controls and Functions

Display Unit

Dimmer sensor

( a page 44)

Disc slot

Remote control sensor

[}] [{] (VOLUME)

¡Adjusts the sound volume.

( a page 20)

[MUTE]

¡Mutes the sound temporarily.

( a page 20)

[MENU]

¡Shows the menu screen.

( a page 38)

¡Shows the rear monitor setting menu. ( a page 66)

VOLUME

[MODE] (POWER)

¡Switches on/off the power. ( a page 20)

¡Changes the modes such as sound and picture. ( a page 20)

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[ ] (OPEN/CLOSE)

¡Opens/closes the monitor.

( a page 20)

[TILT]

¡Shows the monitor position setting menu. ( a page 21)

¡Tilts the monitor forward temporarily. ( a page 21)

ENTER

DISC

TRACK/

CHANNEL

[}] [{] (DISC)

¡Searches for TV stations

ENTER

and memorizes them automatically. ( a page 23)

¡Selects a folder or a disc.

( a page 30, 36)

¡Selects (vertically) or adjusts an operation or item.

[]] [[] (TRACK/CHANNEL)

¡Selects or searches

ENTER

a channel, track, file or frequency.

( a page 22, 30, 34, 36)

¡Sequential transition from one file to the next. ( a page 30)

¡Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡Selects a band.

ENTER

( a page 34)

¡Searches for broadcast stations and memorizes them automatically. ( a page 35)

¡Determines an operation or item.

[u]

¡Ejects/reloads a disc. ( a page 26, 30)

[ASP] (ASPECT) (P • MODE)

¡Selects the aspect ratio. ( a page 65)

¡Activates/inactivates the private mode.

( a page 67)

[NAVI] (NAVIGATION)

¡Activates/inactivates the car navigation. ( a page 25, 38)

E

N

G

L

I

S

H

4

Note: Refer to “Electrical Connections” for names on the rear of the hide-away unit. ( a page 81)

13

CQ-VAD9200U

E

N

G

L

I

S

H

5

Name of Controls and Functions

Remote Control

Aim the remote control at the remote control sensor of the display unit and operate it.

(continued)

[NAVI] (NAVIGATION)

¡Activates/inactivates the car navigation. ( a page 25, 38)

[PWR]

¡Switches on/off the power.

( a page 20)

[}] [{]

¡Searches for TV stations and memorizes them automatically.

( a page 23)

¡Selects a disc. ( a page 36)

¡Selects (vertically) or adjusts an operation or item.

[]] [[]

¡Selects or searches a channel, frequency or track.

( a page 22, 34, 36)

¡Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡Selects a band. ( a page 34)

¡Searches for broadcast stations and memorizes them automatically.

( a page 35)

¡Determines an operation or item.

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

TRACK/

CHANNEL

[MODE]

¡Switches on/off the power. ( a page 20)

¡Changes the modes such as sound and picture. ( a page 20)

[MENU]

¡Shows the menu screen. ( a page 38)

¡Shows the rear monitor setting menu. ( a page 66)

[OSD] (CAPTURE)

¡Displays information about each source on the screen. ( a page 16)

¡Saves your favorite part of playing picture as a freeze-frame picture. ( a page 51)

[DISP]

¡Changes the display. ( a page 64)

[SPACE]

¡Setting the sound field.

( a page 63)

[}] [{] (VOLUME)

¡Adjusts the sound volume.

( a page 20)

[A] (ASPECT) (P • MODE)

¡Selects the aspect ratio. ( a page 65)

¡Activates/inactivates the private mode.

( a page 67)

[0] to [9]

¡Selects a TV channel directly. ( a page 22)

¡Memorizes and recalls broadcast stations. ( a page 35)

¡Random [4], scan [5], repeat [6] for the CD changer mode.

( a page 37)

¡Sets the ID code. ( a page 40)

[MUTE]

¡Mutes the sound temporarily.

( a page 20)

14

CQ-VAD9200U

Remote Control Unit of the DVD/Video CD/CD/MP3 Playback

(Operation only for the remote control)

Meaning of symbols

DVD

VIDEO

VIDEO

CD

CD MP3

Indicates the compatible types of disc.

E

N

G

L

I

S

H

6

[MODE]

DVD

VIDEO

VIDEO

CD

CD

¡Changes the modes such as sound and picture. ( a page 20)

MP3

[DVD] (DVD MENU)

DVD

VIDEO

V

¡Displays the DVD menu. (Operations vary according to the disc.) ( a page 28)

[TITLE] (TITLE/CHAPTER)

¡Selects the title/chapter. ( a page 28)

[RET] (RETURN)

DVD

VIDEO

VIDEO

CD

¡Returns to the previous display.

( a page 28)

¡Inputs the number again.

( a page 28)

¡Displays the video CD's menu.

( a page 28)

[}] [{] []] [[]

DVD

VIDEO

¡Selects an operation or item.

VIDEO

CD

[ENTER]

¡Determines an operation or item.

[ENTER]

MP3

¡Changes to the Direct Folder Selection mode. ( a page 31)

[}] [{]

¡Selects a folder. ( a page 30)

[]] [[]

CD

MP3

¡Selects a track or file. ( a page 30)

¡Fast forward / fast reverse ( a page 30)

¡Sequential transition from one file to the next. ( a page 30)

[SCRL] (SCROLL)

CD

¡Title scroll. ( a page 30)

MP3

[SUB] (SUB TITLE)

DVD

VIDEO

¡Switching the subtitle language. ( a page 29)

[ANGLE]

¡Switching the angle. ( a page 29)

[AUDIO]

¡Switching the audio language. ( a page 29)

[AUDIO] (ST/MONO)

VIDEO

CD

¡Switches between stereo or monaural sound.

( a page 29)

[

] (STOP)

DVD

VIDEO

VIDEO

CD

¡Stop playback. ( a page 27)

[

❚❚] (PAUSE)

¡Pause. ( a page 27)

[B] (PLAY)

¡Playback. ( a page 27)

[s] [d]

¡Go to beginning. ( a page 27)

¡Fast forward / fast reverse.

( a page 27)

¡Slow playback [d]. ( a page 27)

DVD

VIDEO

VIDEO

CD

[REP] (REPEAT)

CD MP3

¡Repeats a playback. ( a page 27, 31)

[0] to [9]

DVD

VIDEO

VIDEO

CD

¡Selects an item on the menu.

( a page 28)

[0] to [9]

DVD

VIDEO

¡Selects a title or chapter.

( a page 28)

[4] (RANDOM)

CD

¡Random play. ( a page 31)

MP3

[DRC] (PRO LOGIC) (DOWN MIX)

¡Selecting the audio channel.

( a page 62)

¡Compresses the range of the playback level. ( a page 63)

DVD

VIDEO

15

CQ-VAD9200U

E

N

G

L

I

S

H

7

Indications on the Screen

The state of the current output appears

Note: Displaying contents and their positions partly vary with each mode. Refer to the description of each mode for details.

Example:

DVD Mode

(OSD on a see below)

When the car navigation mode is set to ON.

Image•Sound/Mode Display

The current mode appears.

: Image and sound (TV / VTR1•2 / DVD / Video CD (VCD))

: Sound (Radio (AM/FM) / CD / MP3 / Changer (CH-C))

Disc Indicator

Clock Time

Default: off

( a page 48)

Volume Display

MUTE

blinks when the MUTE function is set to ON.

Prohibition

Input is not possible because a soundtrack, subtitle language or angle number which was not recorded on the disc has been selected or because the user has attempted to perform an operation which is not supported by the unit.

Mode Display

OSD (On-Screen Display) on / off

You can switch between OSD-ON and OSD-OFF regarding the mode information when watching a picture.

OSD on OSD off

Additional

Information

Channel, source type, various settings, etc.

Information of

Each Mode

Playing elapsed time, title, preset list, etc.

(During playback)

Press [OSD] on the Remote

Control.

Notes:

¡On-Screen Display also appears when operation is made (for 4 seconds).

¡On-Screen Display cannot be cleared in the following modes where only audio is available: CD, MP3, radio (AM/FM) and

CD changer (CH-C) modes.

16

CQ-VAD9200U

Discs that can be Played Back

Disc

DVD video

Video CD

CD

CD-R/RW

Mark (logo)

TEXT

Disc size Video format Audio format

LPCM, MPEG1,

MPEG2, dts,

Dolby Digital

NTSC

LPCM, MPEG1

5" (12 cm)

LPCM (CD-DA), dts

Region No.

1

ALL

LPCM (CD-DA),

MP3

Recordable ReWritable

Note: About CD-Rs and CD-RWs, refer to “Notes on CD-Rs/RWs”. ( a page 95)

E

N

G

L

I

S

H

8

Example:

1

1 2

4 6

ALL

Region Management Information

This product is designed and manufactured to respond to the Region Management

Information that is recorded on a DVD disc. If the Region number described on the

DVD disc does not correspond to the Region number of this product, this product cannot play the disc.

The Region number for this product is “1” and “ALL”.

Symbols used on jackets

(Examples of such symbols include)

¡

Number of subtitle languages

2

Screen size (H:V aspect ratio)

¡

4:3 standard size

4:3

¡ Number of audio tracks

2

¡ Letterbox

LB

(

➡ page 96)

¡ Number of angles

3

¡

16:9 wide size

16:9 LB

: Play back in letterbox format on a standard screen (4:3).

The numbers indicate the number of languages, tracks, angles, etc., recorded on the disc.

16:9 PS

: Play back in “Pan & Scan” ( a page

96) format on a standard screen (4:3).

Note: The size of the image that is displayed on the screen

depends on the screen mode (“Aspect Ratio”

➡ page 65), and on the screen size for the content on the disc.

The following discs cannot be played back on this product.

¡

DVD-Audio

¡ DVD-ROM

¡ VSD

¡ DVD-R

¡ CVD

¡ DVD-RAM

¡ CD-G

¡ DVD+RW ¡ DVD-RW

¡ CD-ROM (except MP3)

¡ SVCD

¡ CD-RW (except MP3 and CD-DA) ¡ CD-R (except MP3 and CD-DA) ¡ SACD

¡ CDV ¡ Divx Video Discs ¡

¡ photo CD

CD-EXTRA (audio-only playback possible)

¡ Discs recorded in PAL format, others

¡ DVDs with a region number other than “1” or “ALL”

¡

Playing back a photo CD disc with this unit could damage the data that is recorded on the disc.

17

CQ-VAD9200U

E

N

G

L

I

S

H

9

System Upgrade

Recommended system: 5.1-channel Surround System

This unit has a built-in 5-channel amplifier. The procedure for setting up a 5.1-channel surround system in order to play DVD software in a way that creates a “you are there” feel in a car is described below.

Be sure to connect the display unit and hide-away unit with optical fiber cable.

Front Speakers: CJ-DVD177

Use the left and right front speakers (such as speakers that are built into the front door).

Subwoofer: CJ-HD302

Because the audio imaging is not nearly as dependent on the position where the subwoofer is installed as it is with the other speakers, the subwoofer can be installed anywhere that is convenient. (A separate power amplifier for the subwoofer is needed.)

¡Details on wiring: a page 80-81

¡Speaker settings: a page 54-59

Panasonic

CQ-VAD9200U

Power amplifier

18

Center Speaker: EAB-CF2

Install in the middle of the dashboard, near the monitor.

¡The supplied speaker cannot be used as the

center speaker.

Surround Speakers: CJ-SS162

Use the left and right rear speakers (such as speakers that are built into the rear door or the rear deck)

Note: Even if you are using this unit without installing a center speaker, surround speakers, or a subwoofer, it is still necessary to make the speaker settings in order to adjust the sound balance.

About Rear Monitor (

a

page 66)

You can have different picture and sound at the front monitor and rear monitor at the same time.

¡You can mute the sounds from the rear speakers if necessary.

(Private Mode a page 67)

Main Unit Monitor

Rear Monitor

CQ-VAD9200U

Advanced system

Connecting devices shown below allows you to enjoy a wonderful world consisting of wide variety of pictures and sounds.

Comecorder VCR

Refer to “VTR”

( a page 24).

Rear View

Camera

Panasonic

Refer to “VTR”

( a page 24)

INTELLIGENT SYSTEM

POWER

BS G-CODE

E

N

G

L

I

S

H

10

¡Details on wiring: a page 83-85

Panasonic

CQ-VAD9200U

CD Changer: CX-DP88U

Refer to “CD

Changer

Control”

( a page 36).

TV

Rear Monitor: CY-VMX6800U

VTR1 / VTR2 DVD (VCD, CD, MP3) Radio

Refer to “Rear

Monitor Set Up”

( a page 66)

CD Changer

TV

The rear monitor does not display television picture when the main unit is in the radio mode.

VTR1 / VTR2

( )

Different types of discs cannot be played back at the same time.

For a CD and

MP3, the screen becomes blue.

DVD (VCD, CD, MP3)

CQ-VAD9200U

19

E

N

G

L

I

S

H

11

General

Power

Turn your car's ignition key to ACC or ON position.

ON : Press [MODE] (POWER) on the display unit.

Press [PWR] or [MODE] on the remote control.

OFF : Press [MODE] (POWER) again for more than

2 seconds on the display unit.

Press [PWR] again or [MODE] again for more than 2 seconds on the remote control.

[ ] (OPEN/CLOSE)

TILT

OPEN/CLOSE

VOLUME

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

MENU

MODE

POW

ER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

MUTE

[MODE] (POWER)

[MUTE]

[}] [{] (VOLUME)

DISC

TRACK/

CHANNEL

ENTER

[PWR]

(POWER)

[MODE]

[}] [{]

(VOLUME)

[MUTE]

Display Open / Close

OPEN

: Press [

]

(OPEN/CLOSE).

CLOSE

: Press [

]

(OPEN/CLOSE) again.

(After returning the lateral angle to the neutral position.)

Notes:

¡When the display unit is opened or closed, a loud beep sounds three times.

¡If the unit stops halfway, press [

] (OPEN/CLOSE)

again and draw it all the way in.

¡Opening/closing the display can be done when the power is off.

Warning: Do not touch the unit while the display is moving. Inserting hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.

Mode

Press [MODE] to change the mode.

TV

VTR1

( a page 22)

( a page 24)

VTR2

( a page 24)

DVD / VCD (Video CD) / CD / MP3

( a page 26, 30)

AM / FM (Radio)

( a page 34)

CH-C (CD Changer Control)*

* Selectable only when a CD changer is connected.

( a page 36)

Volume

[}] (VOLUME) : Up

[{] (VOLUME) : Down

Setting Range : -82 dB to 0 dB

Note: The sound level for each source is stored in memory.

Mute

MUTE ON : Press [MUTE].

MUTE OFF : Press [MUTE] again.

20

CQ-VAD9200U

Monitor Position Adjustment

Cautions:

¡For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.

¡Avoid physical shock on the monitor.

VOLUME

[TILT]

Tilt Angle / Front-Rear Position

1

Press and hold [TILT] on the display unit for more than 1 second.

2

Press [}], [{], []] or [[] to adjust.

The setup is the same way as the one from MENU. Refer to

“SET-UP : User Setting” for details. ( a page 38)

MUTE

MENU

MODE

POWER

CQ-V

AD9

200U

TILT

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

NAV

IGAT

ION

NAVI

ASPECT

ASP

P.MODE

DISC

ENTE

R

Notes:

¡Vertical angle (TILT) and front-rear position data are saved in the memory, so when the display unit is drawn out next, it is automatically set at the angle and in the position adjusted before.

¡After adjusting its angle, also adjust the brightness to make it easy for you to

[}] [{]

[]] [[] (Adjust) watch. ( a page 44)

¡The car model and installation condition may impose some restrictions on the adjustment of the monitor's angle and position.

Caution: Do not interfere with the movement of the monitor. Do not change the position of the unit forcibly.

[}] [{]

[]] [[] (Adjust)

Display Unit Lateral Angle Adjustment

Hold the display unit by the non-slip part in the upper half of it, and adjust its lateral angle.

View from above

E

N

G

L

I

S

H

12

TILT

Caution: There is the danger of your fingers being pinched if you hold the unit by the lower part. Hold the unit by the upper half, and move it carefully without applying undue force.

Folding Down the Display Temporarily

Fold Down : Press [TILT] on the display unit.

Raise : Press [TILT] again on the display unit.

Note: Even when the unit is power off, you can fold down the display temporarily.

Caution: Do not place any object on the display unit, or subject it to undue force.

CQ-VAD9200U

21

E

N

G

L

I

S

H

13

TV Tuner

Mode Display

It is required to install the supplied antenna to receive TV broadcasts. Refer to the description of

mounting the TV antenna. ( a page 76)

Channel Number

[0] to [9]

(Direct Channel

Selection)

Preset Channels

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MODE]

DISC

TRACK/

CHANNEL

[]] [[] (CHANNEL)

[}] [{] (Preset memory)

[MODE]

[]] [[] (Channel)

[}] [{] (Preset memory)

1

TV Mode

Press [MODE] to change to TV mode.

2

Channel Setting

[[] (CHANNEL) : Up

[]] (CHANNEL) : Down

Press and hold [[] (CHANNEL) or

[]] (CHANNEL) for more than 0.5 seconds.

Seeking will start.

Direct Channel Selection

(Only for remote control)

Enter a channel number by pressing [0] to [9].

Example : Channel Number 17

Press [1] and [7].

22

CQ-VAD9200U

Preset Channels

This function can search for channels automatically. Up to 18 channels can be stored.

Press and hold [}] or [{] for more than 2 seconds.

[}] : The search starts from ch. 2 successively.

[{] : The search starts from ch. 69 in reverse successively.

Auto Preset

Memory

* See below

¡A stored channel can be renewed every time you store another channel.

¡The unit may receive a channel that has poor-quality images depending on broadcasting conditions.

¡The search returns to the start position if there is no receivable channel.

* “–” appears if the number of receivable channels is less than 18.

Preset Channel

Calling

Press [}] or [{] to select the channel.

E

N

G

L

I

S

H

14

CQ-VAD9200U

23

E

N

G

L

I

S

H

15

VTR

Mode Display

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

VOLUME

MUTE MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MODE]

ENTER

DISC

TRACK/

CHANNEL

You can view the images and listen to the sounds from the connected external devices in the VTR1 mode and VTR2 mode respectively.

Example :

VTR1

VTR2

VTR1-IN

CQ-VAD9200U

Hide-away Unit

: Camcorder

: Rear View Camera

VTR2-IN

[MODE]

Camcorder

Rear View Camera

VTR1 / VTR2 Mode

Press [MODE] to change to VTR1 or VTR2 mode.

24

CQ-VAD9200U

External Devices Connectable to VTR1 / VTR2

Refer to “Electrical Connections” for each external device connection. ( a page 84-85)

E

N

G

L

I

S

H

16

VCR / Camcorder

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a VCR or Camcorder (VTR1-IN or VTR2-IN).

Note: Adjust the VTR input level if sound do not comes out normally with

“OVER” displayed. ( a page 52)

Rear View

Camera

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a rear view camera (VTR1-IN or VTR2-IN).

Note: It can also be set to switch to an image through the rear view camera automatically if the shift lever is put into the reverse position.

( a page 40)

Car Navigation

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a car navigation system (VTR1-IN or VTR2-IN).

Note: It can also be set to switch to an image and sound through the car navigation system only by pressing [NAVI] (NAVIGATION). ( a page 38)

Note: VTR1 and VTR2 terminals are not used for the Panasonic car navigation system (available in future). Refer to

“Electrical Connections” for connection ( a page 78-81) and “Navigation Set Up” for setting. ( a page 38)

CQ-VAD9200U

25

I I

S

H

E

N

DVD / Video CD Player

[MODE]

[3] (STOP)

[5] (PLAY)

[s] [d]

(

➡ page 27)

VOLU

ME

CQ-V

AD9

200U

TILT

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

NAVIGATION

NAVI

ASPECT

ASP

P.MODE

MOD

E

POWER

MENU

MUTE

[MODE]

[y] (PAUSE)

DVD mode display

Mode Display

Disc Indicator

DISC

ENTER

[u] (Eject)

(Lights when a disc is in the deck)

[]] [[]

(

➡ page 27)

Label side

[REP] (REPEAT)

Disc Insert

¡The mode that supports the disc is selected, and playback starts.

¡The audio format is automatically identified.

(

➡ page 96)

¡When the menu screen appears, see “DVD Menu /

Video CD Menu” on page 28.

When DVD or Video CD is in the player, press

[MODE] to change to DVD or Video CD player mode and playback starts.

Notes:

¡Do not insert a disc when disc indicator

or eject button lights because a disc is already loaded.

¡The power will be turned on automatically when a disc is loaded.

¡You can play a disc even if the monitor is closed.

¡The sound may be interrupted for a few moments while the audio format is being identified.

Disc Eject

Press [u] to stop playback and eject the disc.

(Press [u] again to reload the disc.)

Note: If you leave a disc in the slot for more than 30 seconds after its ejection, the disc will be automatically reloaded after loud beep is energized three times.

Cautions:

¡Do not use irregularly shaped discs.

¡Do not insert foreign matter into the disc slot.

Notes:

¡Due to limitations of certain discs, some DVD video and Video CD discs may not operate as described in these Operating Instructions. Refer to the disc jacket for further details.

¡This unit does not support DVD and Video CD karaoke functions.

Video CD mode display

Mode Display

Disc Indicator

26

Subtitle Language / Audio Language / Angle

Audio Format

(

➡ page 96)

Play Setting

Playing Time

Chapter Number

Title Number

Playing Time

Sound Setting (Stereo/monaural)

Play Setting

DVD

VIDEO

VIDEO

CD

Indicates the compatible types of disc.

Perform these operations (page 27-29) with the remote control.

Operations vary according to the disc. For details, refer to the guide provided with the disc.

Basic Operation

Go to Beginning

DVD

VIDEO

VIDEO

CD

Fast Forward /

Fast Reverse

DVD

VIDEO

VIDEO

CD

Stop

DVD

VIDEO

VIDEO

CD

[d]: Next track (chapter)

[s]: Beginning of the current track (chapter)

Previous track (chapter) (Press twice.)

Note: When playing a DVD video, there are cases where it is not possible to return to the start of a chapter that spans 2 titles. (

➡ page 96)

Press and hold

[d]: Fast forward

[s]: Fast reverse

Release to resume playback.

The speed changes if the button is held down as follows.

Regular speed / 1.5 times /10 times / 20 times

Press [3] (STOP).

Press [5] (PLAY) again, and play will resume from the point where [3]

(STOP) is pressed. (Continued playback function)

To cancel continued playback, press [3] (STOP) again in the stop mode.

Pause

DVD

VIDEO

VIDEO

CD

Slow Playback

DVD

VIDEO

VIDEO

CD

Press [y] (PAUSE).

To resume playback, [5] (PLAY) or [y] (PAUSE) again.

Press and hold [d] in the pause mode.

Playback is at about 1/3 normal speed.

To resume normal playback, press [5] (PLAY).

To pause, press [y] (PAUSE) again.

Note: Reverse slow playback is not possible.

E

N

I I

S

H

Repeat

DVD

VIDEO

VIDEO

CD

Press [REP] (REPEAT).

Press [REP] (REPEAT) again to cancel.

Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control. ( [[] on the display unit cannot be used in place of [d] that is used for slow playback.)

CQ-VAD9200U

27

I I

S

H

E

N

DVD / Video CD Player

(continued)

Chapter / Title Selection

DVD Menu /

Video CD Menu

Use this menu during playback to select content, audio, subtitle, etc., from a menu (the DVD / Video CD menu) that is unique to each disc.

DVD

VIDEO

VIDEO

CD

Title Menu

If the DVD has multiple titles recorded on it, it is possible to select the preferred title from the title menu to start playback.

DVD

VIDEO

q Press [DVD] (DVD MENU) during DVD playback.

(For the Video CD menu, press [RET]

(RETURN) during playback.)

Example:

DVD MENU

w Press []], [[], [}] or [{] to select the preferred menu.

For the DVD / Video CD with playback control (

➡ page 96), press [0] to [9] on the remote control.

e Press [ENTER].

1. SUBTITLE

2. AUDIO

3. ANGLE

Select your favorite music.

1. Love Supremes

2. Impressions

3. In a Sentimental Mood

Number :

To return the previous display, press [RET] (RETURN).

q Press and hold [DVD] (DVD MENU) for more than 2 seconds during playback.

w Press []], [[], [}] or [{] to select the preferred title.

For the DVD with playback control

(

➡ page 96), press [0] to [9] on the remote control.

e Press [ENTER].

Example:

TITLE MENU

Rivers

Lovers

Castles

Woods

To return the previous display, press [RET] (RETURN).

Starting Playback from a Specific

Title / Chapter

DVD

VIDEO

q Press [TITLE] (TITLE/CHAPTER) to select the input mode.

w Press [0] to [9] to input preferred title/chapter number.

To input the number again, press

[RET] (RETURN).

e Press [TITLE] (TITLE/CHAPTER).

Playback will start automatically.

If no operation is performed, the display returns to the regular mode.

Regular Mode

Chapter Number Input Mode

Title Number Input Mode

"5" lights on pink.

[DVD]

(DVD MENU)

[TITLE]

(TITLE/CHAPTER)

[RET] (RETURN)

[0] to [9]

(Title/Chapter Number)

[]] [[]

[}] [{] (Select)

[ENTER]

28

DVD

VIDEO

VIDEO

CD

Indicates the compatible types of disc.

Useful Function

Switching the

Subtitle

Language

DVD

VIDEO

Press [SUB] (SUB TITLE) during playback.

It is possible to change the subtitle language during play if the multiple languages are recorded on the disc.

Note: There may be a brief delay before the subtitles appear.

Switching the

Audio

Language

DVD

VIDEO

Press [AUDIO] during playback.

It is possible to change the audio language during play if multiple audio languages are recorded on the disc.

Switching the

Angle

DVD

VIDEO

Press [ANGLE] during playback.

For DVDs which contain scenes which have been shot simultaneously from a number of different angles the same scene can be viewed from each of these different angles during play.

Notes:

¡If no operation is performed for 5 seconds, the display returns to the regular mode.

¡It may not be possible to switch the language unless the unit is at the DVD menu (

➡ page 28) or is at the DVD settings

(

➡ page 46).

¡The language on the DVD settings has a priority over when the power is turned on or the disc is loaded. (

➡ page 46)

¡The number of languages depends on the disc. Some discs have only one language or have no language.

Switching between

Stereo and

Monaural

VIDEO

CD

Press [AUDIO] (ST/MONO).

It is possible to switch the audio between stereo sound and monaural sound (L or R).

STEREO

: Stereo sound

MONO Lch

MONO Rch

: The left channel audio is output on both the left and right speakers.

: The right channel audio is output on both the left and right speakers.

E

N

I I

S

H

[SUB]

(SUB TITLE)

[ANGLE]

[AUDIO]

(ST/MONO)

29

CQ-VAD9200U

I I

S

H

E

N

CD / MP3 Player

VOLUM

E

CQ-V

AD9

200U

TILT

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

NAVIG

ATION

NAVI

ASPECT

ASP

P.MODE

MODE

POWER

MENU

MUTE

[MODE]

CD / MP3 mode display

Mode Display

Disc Indicator

DISC

ENTER

[u] (Eject)

(Lights when a disc is in the deck)

[]] [[]

(Track/File)

[}] [{]

(Folder)

[ENTER]

Label side

Total Track

Disc Insert

The mode that supports the disc is selected, and playback starts.

When a disc is in the player, press [MODE] to change to CD or MP3 player mode and playback starts.

Notes:

¡Do not insert a disc when disc indicator

eject button lights because a disc is already loaded.

or

¡The power will be turned on automatically when a disc is loaded.

¡You can play a disc even if the monitor is closed.

Disc Eject

Press [u] to stop playback and eject the disc.

(Press [u] again to reload the disc.)

Note: If you leave a disc in the slot for more than 30 seconds after its ejection, the disc will be automatically reloaded after loud beep is energized three times.

Cautions:

¡Do not use irregularly shaped discs.

¡Do not insert foreign matter into the disc slots.

30

Disc Title

Track Title

Play Setting Track Number

[MODE]

Play Time

[]] [[]

(Track/File)

[}] [{] (Folder)

[ENTER]

[4] (RANDOM)

[SCRL] (SCROLL)

[REP] (REPEAT)

Track / File Selection

[[] : Next track / file

[]] : Beginning of the current track / file

Previous track / file (Press twice.)

CD

MP3

Folder Selection

[}] : Next folder

[{] : Previous folder

MP3

Fast Forward / Fast Reverse

Press and hold.

[[] : Fast forward

[]] : Fast reverse

Release to resume playback.

Sequential transition from

MP3

one file to the next

Press and hold.

[[] : Forward

[]] : Backward

Title Scroll

CD

MP3

(Only for remote control)

Press [SCRL] (SCROLL).

CD

CD

MP3

Indicates the compatible types of disc.

Folder selection order / MP3 file playback order (Example)

MP3

1

Root

2

3

4

Tree 1

5

Root Folder

(Root Directory) q

Folder Selection

In the order

1

~

6 e w

File Selection

In the order

6

~ q r r

Tree 2 Tree 3

Notes:

¡This unit counts the number of folders irrespective of the presence or absence of MP3 file.

¡If the selected folder does not contain any MP3 files, the nearest MP3 files in the order of playback will be played.

¡Playback order may be different from other MP3 players even if the same disc is used.

¡“ROOT” appears when displaying the root folder’s folder name.

Direct Folder Selection

q Press [ENTER] during playback.

MP3

w Press []], [[], [}] or [{] to select a folder.

[]] [[] : Movement among different levels of trees

[}][{]: Movement in the same tree e Press [ENTER].

1

2

3

Movement in the same tree

5

Root Folder

Current Folder

Folder in the next lower level tree

4

Root

Tree 1

Tree 2

Movement among different levels of trees

Note: It is not possible to display the whole trees and a file list in a folder.

: MP3 fils are included

: No MP3 files

Various Way of Listening

Perform these operations with the remote control.

CD

Press [REP] (REPEAT).

Press [REP] (REPEAT) again to cancel.

Repeat

Play

MP3

Current

File

Press [REP] (REPEAT).

Press [REP] (REPEAT) again to cancel.

Current

Folder

Press and hold [REP] (REPEAT) for more than 2 seconds.

Press and hold [REP] (REPEAT) again to cancel.

Random

Play

CD

MP3

Press [4] (RANDOM).

Press [4] (RANDOM) again to cancel.

All

Files

Press [4] (RANDOM).

Press [4] (RANDOM) again to cancel.

All Files in the

Current Folder

Press and hold [4] (RANDOM) for more than 2 seconds.

Press and hold [4] (RANDOM) again to cancel.

CQ-VAD9200U

31

I I

S

H

E

N

I I

S

H

E

N

CD / MP3 Player

(continued)

This player allows you to play MP3 files recorded on CD-ROMs, CD-Rs

(Recordable) and CD-RWs (Rewritable).

What is MP3

MP3, short for MPEG-1 Audio Layer 3, MPEG-2 Audio Layer 3 LSF (Low Sampling Frequency), is a standard for compressing digital video data adopted for video CDs and similar media. It is one of the audio compression systems covered by

MPEG's (Motion Picture Experts Group) digital audio compression standards. What it does is reduce the number of bytes in a song without detracting from the sound quality by eliminating big sound waves within the sound range that is imperceptible to the human ear. This compression allows you to reduce the contents of a conventional music CD by a factor of around 10. This means that you can record the contents of 10 music CDs on a single CD-R or CD-RW. (The figures refer to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.)

Points to remember when recording an MP3 disc

Converting (encoding) audio data to an MP3 file

¡It is recommended that you set the bit rate to “128 kbps or more” and “Fixed”.

¡Bit rate 8 kbps of MPEG-2 and sampling frequency 16 kHz of MPEG-2 can not be reproduced.

¡VBR (Variable Bit Rate) is not supported.

¡The playback sound quality differs depending on the encoding software and the bit rate. For details refer to the user manual of your encoding software.

Recording MP3 files on a CD-R/RW

¡Do not record files other than MP3s or unnecessary folders on a disc. If many folders or files other than MP3s are recorded on a disc, it may take some time before playback starts.

¡Use ISO 9660 file system (Extension of the ISO 9660 file systems are included.) ( a

page 33). APPLE HFS file

system is not supported. If they do not conform to ISO 9660 file system, the file may not play normally, or the file or folder names may not be displayed correctly.

¡Make sure to add the “.mp3” extension to each MP3 file name. A file with a different file name extension or none at all will not play.

¡Although Multi session recording is supported, the use of Disc-at-Once is recommended. Make sure to close the session when you finished recording on a disc.

¡A disc recorded by the packet writing software are not supported.

¡A playlist function is not supported. Record files and folders in the order in which you want them to be played.

Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the file name. For details refer to the user manual of your writing software.

Notes:

¡You may encounter trouble in playing MP3s or displaying the information of MP3 files recorded with certain writing softwares or CD recorders (CD-R/RW drives).

¡If a disc contains both MP3 and CD-DA, only CD-DA data is reproduced properly. (MP3 files are played but no sound is output).

Warning: Never assign the “.mp3” file name extension to a file that is not in the MP3 format. This may produce noise from the speakers and cause speaker damage and can damage your hearing.

32

Maximum number of files / folders

¡Maximum number of trees: 8

¡Maximum number of folders: 254 (Root folder is not included.)

¡Maximum number of files: 512

Note: If the number of files and folders exceeds the number mentioned above, successful playback may not be performed.

Supported file systems and file names

Displayable folder names and file names Supported file system

ISO 9660 Level 1

ISO 9660 Level 2

Joliet*

Romeo

Name files and folders in accordance with the standard of each file system.

Refer to the instructions of writing software for details.

¡This player can display file names of up to 31 ASCII character set in scroll mode.

* Up to 15 letters can be displayed when scrolling in the Joliet system.

According to the standard, “á”, “ç”, etc. can be used. However, this unit can not display those letters.

¡The unit recognizes only ASCII character set (see the glossary below).

Chinese characters, accented French characters and accented Spanish characters will be converted into an asterisk (C).

Apple Extension to ISO 9660

ISO 9660

The most common international standard for the logical format for files and directories.

APPLE HFS

The file system used by the Macintosh operating system to organize data. (Not supported)

Multi-session

A method of adding data incrementally to a CD-R or

CD-RW in more than one recording session.

Disc-at-Once

A method of writing data in a media by just one operation.

Glossary

ID3Tag

A function that allows character information (title, artist, album title, date, etc.) to be written onto the disc.

Packet writing

A method of writing data on a CD media in small increments. (Not supported)

ASCII character set

ASCII character set consisting of A to Z, a to z, digits 0 to 9, and the following symbols: (space) ! ” # $ % & ’ (

) * + , - . / : ; < = > ? @ [ \ ] ˆ _ ` { | } ~

Note: MP3 encode software and writing software are not supplied to this model.

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval of copyright holder except for personal use.

CQ-VAD9200U

33

E

N

I I

S

H

E

N

G

L

I

S

H

25

Radio

Mode Display

34

Band

Frequency

Stereo Indicator

Band List

Preset Memory

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

VOLUME

MUTE

MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MODE]

[]] [[] (Tuning)

[ENTER] (Band)

[1] to [6]

(Preset memory)

[MODE]

1

Radio Mode

Press [MODE] to change to radio mode.

[]] [[]

(Tuning)

[ENTER]

(Band)

2

Band

Press [ENTER] to change the bands.

FM1

FM2

AM1

AM2

Note: The stereo indicator lights during reception of an FM stereo broadcast.

3

Tuning

[[] : Up

[]] : Down

Press and hold [[] or []] for more than 0.5 seconds, then release. Seeking will start and stops at next available station.

CQ-VAD9200U

One-touch selection of a station

Up to 6 stations each can be saved in the FM1, FM2, AM1 and AM2 preset station memories.

Manual Preset

Memory

Select a band and frequency. (step w and e on the previous page)

Press and hold [1] to [6] on the remote control for more than 2 seconds.

The frequency blinks once, and a receiving station is saved in the memory.

E

N

G

L

I

S

H

26

Select a band. (step w on the previous page)

Press and hold [ENTER] for more than 2 seconds.

Auto Preset

Memory

¡The 6 strongest available stations will be automatically saved in the memory under preset numbers 1 to 6.

¡Once set, the preset stations are sequentially scanned for 5 seconds each.

¡To stop the scanning, press [1] to [6] on the remote control.

Note: New stations overwrite existing saved stations after following this procedure.

Preset Station

Calling

Select a band. (step w on the previous page)

Press [1] to [6] on the remote control.

CQ-VAD9200U

35

E

N

G

L

I

S

H

27

CD Changer Control

Mode Display

Play

Setting

Disc

Number

Track

Number

CD changer functions are designed for an optional

Panasonic CD changer unit.

Read the operating instructions for CD changer as well.

Preparation: Connect the CD changer ( a page 83), and load a magazine (disc).

Play Time

Total Time

Total Track

Disc List

VOLUME

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

MUTE MENU

POWER

[MODE]

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC

TRACK/

CHANNEL

[]] [[] (TRACK)

[}] [{] (DISC)

Notes:

¡The power will be turned on automatically when a magazine is loaded.

¡Load a magazine with CDs when "NO MAGAZINE" is displayed.

¡CD text is not supported in CD changer mode.

¡CD changer cannot play MP3 data recoded CD-

R/RW discs.

Caution: Do not use irregularly shaped CDs.

[4] (RANDOM)

[5] (SCAN)

[6] (CH REPEAT)

(Changer repeat)

[MODE]

1

CD Changer Mode

Press [MODE] to change to CD changer mode and playback starts.

[]] [[] (Track)

[}] [{] (Disc)

2

Disc Selection

[}] (DISC) : Next disc

[{] (DISC) : Previous disc

3

Track Selection

[[] (TRACK) : Next track

[]] (TRACK) : Beginning of the current track

Previous track (Press twice.)

Fast Forward / Fast Reverse

Press and hold.

[[] (TRACK) : Fast forward

[]] (TRACK) : Fast reverse

Release to resume playback.

36

CQ-VAD9200U

Various Way of Listening

Perform these operations with the remote control.

All Tracks

Press [4] (RANDOM).

Press [4] (RANDOM) again to cancel.

Random Play

All Tracks on the Current Disc

Press and hold [4] (RANDOM) for more than 2 seconds.

Press and hold [4] (RANDOM) again to cancel.

E

N

G

L

I

S

H

28

Scan Play

The first 10 seconds of each track will be played.

All Tracks

Press [5] (SCAN).

Press [5] (SCAN) again to cancel.

1st Track on

Each Disc

Press and hold [5] (SCAN) for more than 2 seconds.

Press and hold [5] (SCAN) again to cancel.

Repeat Play

Current Track

Press [6] (CH REPEAT).

Press [6] (CH REPEAT) again to cancel.

Current Disc

Press and hold [6] (CH REPEAT) for more than 2 seconds.

Press and hold [6] (CH REPEAT) again to cancel.

CQ-VAD9200U

37

E

N

G

L

I

S

H

29

SET-UP : User Settings

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select)

[ENTER]

1

Menu

Monitor Position

TILT (Tilting angle adjustment)

Default : 3

Setting range : 1 to 5

SLIDE (Front-rear position)

Default : Front

Setting range : Front, Rear

Navigation Set Up

NAVI INPUT (Navigation input)

Selection of the terminal that connects to the car navigation system allows you to switch to images and sounds of the car navigation system by pressing [NAVI] (NAVIGATION).

Default : RGB

NAVI VOLUME (Navigation volume)

Volume adjustment of the car navigation system is executed.

Default : 4

NAVI MUTE (Navigation mute level)

Select the mute level of this unit during the voice guidance from the Panasonic car navigation system (available in future).

Preparation: Connect the navi mute lead.

Note: You can set the navigation mute level when “RGB” is selected on navigation input.

Default : –10 dB

2

Submenu

q Press [MENU] to display the “MENU 1”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “TILT/SLIDE”.

w Press [ENTER] to set.

TILT/SLIDE

w Press [[] or []] to select “USER”.

USER

SCREEN

DVD

q Press [}] or [{] to select “NAVI SETUP”.

w Press [ENTER] to set.

NAVI SETUP

38

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

30

3

Setting

TILT

Tilting angle adjustment

Press [{] or [}] to select the setting.

1 2 3 4 5

[{] [}]

SLIDE

Front-rear position

Press []] or [[] to select the setting.

Front Rear

[]] [[]

FRONT REAR

Notes:

¡For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.

¡Front-rear position “REAR” and tilt angle “5” cannot be selected at the same time.

¡The monitor position setting menu can also be displayed by pressing the [TILT] button on the display unit for more than 1 second. ( a page 21) q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

NAVI INPUT

Navigation input

RGB

VTR1

VTR2

: Connected to the RGB input cord, or a car navigation system not connected

: Connected to the VTR1-IN

: Connected to the VTR2-IN

Note: Make sure to select “RGB” when no car navigation is connected.

NAVI VOLUME

Navigation volume

0

1

: The sound that a car navigation system generates does not come out.

2 3 4 5 : Volume level

Low High

NAVI MUTE (dB)

Navigation mute level

0

–10

: Unchanged

: Decrease 10 dB

–20

: Decrease 20 dB

: No sound

CQ-VAD9200U

39

E

N

G

L

I

S

H

31

SET-UP : User Settings

(continued)

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/Adjust)

[ENTER]

1

Menu

Rear View Camera Set up

CAMERA INPUT (Rear view camera input)

Selection of the terminal that connects to the rear view camera allows you to view images through the rear view camera automatically when you put the shift lever into the reverse position.

Preparation: Connect the reverse lead.

( a page 85)

Default : OFF

SCALE (Rear view camera scale display)

Images through the rear view camera can be shown in the scale display mode.

Default : OFF

SCALE ADJUST (Scale adjustment)

Default : 0 (width / angle) q Press [MENU] to display the “MENU 1”.

MENU 1

MENU 2

MENU 3

2

Submenu

q Press [}] or [{] to select “CAMERA SETUP”.

w Press [ENTER] to set.

CAMERA SETUP

ID Code setting

Prior to operating this unit, it is advisable to assign your 4-digit ID code for security.

(Make sure to use four digits for ID code.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person whom the unit belongs to.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery).

w Press [[] or []] to select “USER”.

USER

SCREEN

DVD

q Press [}] or [{] to select “ID-CODE”.

w Press [ENTER] to set.

ID-CODE

40

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select/Adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

32

[0] to [9]

3

Setting

q Press [}] or [{] to select an item.

w Press [[] , []] , [}] or

[{] to select or adjust the setting.

e Press [ENTER] to set.

CAMERA INPUT

Rear view camera input

OFF

VTR1

: Unconnected

: Connected to the VTR1-IN

VTR2 : Connected to the VTR2-IN

Note: Make sure to select “OFF” when no rear view camera is connected.

SCALE

OFF

ON

Rear view camera scale display

: Scale display off

: Scale display on

SCALE ADJUST

Scale adjustment

Press [[] or []] to adjust the width.

Press [}] or [{] to adjust the angle.

Press [0] to [9] on the remote control to input the ID code.

Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. In case you forget the ID code, please consult your nearest Panasonic Servicenter.

How to set your ID code (for the first time)

q Enter an 4 digit ID code.

w Enter the same 4 digit ID code again.

How to change your ID code

q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, a new ID code cannot be registered.

w Enter a new 4 digit ID code.

e Enter the new 4 digit ID code again.

How to cancel the known ID code

Note: Should your unit ever require service, cancel your ID code before sending for repair.

q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, it is not possible to cancel the ID code function.

w Press and hold [ENTER] until “Complete!” is displayed. The ID code cancelling procedure is completed. The unit now works without an ID code.

Note: Refer to ID Code Input regarding how to enter the ID code. ( a page 11)

CQ-VAD9200U

41

E

N

G

L

I

S

H

33

SET-UP : User Settings

(continued)

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select)

[ENTER]

1

Menu

2

Submenu

Button Operation Sound

Default : ON

Video Control Setting

This “Video Control Setting” is required when you connect a Panasonic car navigation system with a built-in DVD player

(available in future).

Default : VTR1

42

Memory Clearance

The state of all of the current memories are returned to default settings.

Caution: Be aware that this setting restores the unit to default settings, so that all the memories and settings that you have set will be eliminated.

CQ-VAD9200U

q Press [MENU] to display the “MENU 1”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “etc”.

w Press [ENTER] to set.

etc

w Press [[] or []] to select “USER”.

USER

SCREEN

DVD

q Press [}] or [{] to select “MEMORY CLEAR”.

w Press [ENTER] to set.

MEMORY CLEAR

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

34

3

Setting

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

BEEP

Beep setting

OFF : Operation sound (Beep) OFF

ON : Operation sound (Beep) ON

Note: The loud beep is energized when opening or closing the display unit even if you select OFF for the beep setting.

VIDEO-CNT

Video control setting

VTR1

VTR2

: Connected to the VTR1-IN

: Connected to the VTR2-IN

Notes:

¡Select a terminal connected to the DVD output terminal of a Panasonic car navigation system with a built-in DVD player (available in future) through an RCA cord.

¡When you connect a Panasonic car navigation system with a built-in DVD player, connect a video control lead as well. ( a page 78) q Press [[] or []] to select

NO or YES.

w Press [ENTER] to set.

NO

YES

: No memory clear.

The display returns to the previous one.

: Default settings

CQ-VAD9200U

43

E

N

G

L

I

S

H

35

SET-UP : Display (Screen) Settings

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/Adjust)

[ENTER]

1

Menu

2

Submenu

Dimmer

Default : AUTO

Display Adjustment

Default : ±0

Setting range : –15 to +15 q Press [MENU] to display the “MENU 1”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “DIMMER”.

w Press [ENTER] to set.

DIMMER

w Press [[] or []] to select “SCREEN”.

USER

SCREEN

DVD

q Press [}] or [{] to select “PICTURE”.

w Press [ENTER] to set.


44

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

36

3

Setting

q Press [[] or []] to select the setting.

w Press [ENTER] to set.

AUTO : Automatically adjusted according to ambient light intensity.

1

Darker

2 3 4

Brighter

CONTRAST

Adjust the image contrast

q Press [}] or [{] to select an item.

w Press [[] or []] to adjust.

BRIGHT

Decrease the contrast between black and white

Adjust the image brightness

Increase the contrast between black and white

Lighten

COLOR

Darken

Adjust the image color depth

TINT

Lighten the depth of color on the display

Adjust the image tone or tint

Deepen the depth of color on the display

Emphasize red in the color image

Emphasize green in the color image

CQ-VAD9200U

45

E

N

G

L

I

S

H

37

SET-UP : DVD Settings

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select)

[ENTER]

1

Menu

2

Submenu

46

Language Setting

Default : ENGLISH

Note: This operation allows you to select a language for DVD software on the precondition that the DVD software supports your selecting language.

Display Aspect and DVD

Software Mode

Default : DVD ASPECT...WIDE

LETTERBOX...PAN & SCAN

Note: Screen aspect of the display unit is changed according to the aspect ratio setting

( a page 65) and DVD software's aspect.

CQ-VAD9200U

q Press [MENU] to display the “MENU 1”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “LANGUAGE”.

w Press [ENTER] to set.

LANGUAGE

w Press [[] or []] to select “DVD”.

USER

SCREEN

DVD

q Press [}] or [{] to select “DISPLAY”.

w Press [ENTER] to set.

DISPLAY

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

38

[0] to [9]

3

Setting

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

Language code input

q Input the four digit language code pressing the buttons [0] to [9] on the remote control.

w Press [ENTER] to set.

(Language code list a page 97)

MENU

ENG

SPA

DVD menu language

: English

FRE

: Spanish

OTHER

: French

: Other language

Input the language code.

SUB TITLE

ENG

SPA

Subtitle language

: English

: Spanish

FRE

OTHER

: French

: Other language

Input the language code.

DISP OFF

: Subtitle are not displayed.

Note: A disc supporting closed captioning and subtitles may overlap each other on the screen. In this case, turn the subtitle off.

AUDIO

ENG

Audio language

: English

SPA

: Spanish

FRE

OTHER

: French

: Other language

Input the language code.

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

DVD ASPECT

WIDE

Display aspect setting

: Plays a video in wide screen (16:9).

NARROW

: Plays a video in 4:3 screen.

LETTERBOX

DVD software mode

PAN & SCAN

LETTERBOX

: Plays wide-screen video in Pan & Scan mode (in which the left and right edges of the screen are cut off).

: Plays wide-screen video in letterbox mode (in which black bands appear at the top and bottom of the screen).

Notes:

¡Set the software setting according to the symbol used on jackets. ( a page 17)

¡DVD software mode setting is ignored if “PAN & SCAN” or “LETTERBOX” is already set in the software.

CQ-VAD9200U

47

E

N

G

L

I

S

H

39

SET-UP : Clock / Date Settings

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/Adjust)

[ENTER]

1

Menu

2

Submenu

48

Clock and Date Setting

Default : DISPLAY...OFF

YEAR ADJUST...2002

MONTH ADJUST...1

DAY ADJUST...1

HOUR ADJUST...AM 12

MINUTE ADJUST...00

Notes:

¡The clock starts after the unit returns to the regular mode by pressing [MODE].

¡Perform the setup of Daylight Saving Time manually.

Calendar Display

Note: The calendar is not editable. (e.g.

Holidays cannot be marked.) q Press [MENU] to display the “MENU 2”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “CLOCK”.

w Press [ENTER] to set.

CLOCK

w Press [[] or []] to select “DATE”.

DATE

CAPTURE

q Press [}] or [{] to select “CALENDAR”.

w Press [ENTER] to set.

CALENDAR

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select/Adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

40

3

Setting

DISPLAY

OFF

Clock display

: Clock display OFF

ON : Clock display ON ([12:00] is displayed before adjusting the clock.)

YEAR ADJUST

Year adjustment

q Press [}] or [{] to select an item.

w Press [[] or []] to select or adjust the setting.

e Press [ENTER] to set.

MONTH ADJUST

Month adjustment

DAY ADJUST

Day adjustment

HOUR ADJUST

Hour adjustment

MINUTE ADJUST

Minute adjustment

Press [}] : Calendar from the current year to years in future successively

Press [{] : Calendar from the current year to years in the past successively

Press []] : Calendar from the current month to months in the past successively

Press [[] : Calendar from the current month to months in future successively

CQ-VAD9200U

49

E

N

G

L

I

S

H

41

SET-UP : Capture Function

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[]] [[]

(Select)

[ENTER]

1

Menu

2

Submenu

Image Capture

Up to three images can be imported from TV,

VTR, DVD or Video CD (VCD) for a wall paper.

Note: Refer to “Display Change” in the

“SET-UP : Other Settings” page to display the imported image on the screen. ( a page 64) q Press [MENU] to display the “MENU 2”.

MENU 1

MENU 2

MENU 3

Press [ENTER] to set.

CAPTURE

w Press [[] or []] to select “CAPTURE”.

DATE

CAPTURE

50

Copyright

It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as commercial DVDs / Video

CDs, other published or broadcast material without the approval of copyright holder except for personal use.

Note: A captured image may have some distortion or be otherwise different from the original image due to compression.

CQ-VAD9200U

[MODE]

(End)

[MENU]

[]] [[]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

42

3

Setting

q Press [ENTER] to import the image.

w Press [[] or []] to select a place where the image is stored.

e Press [ENTER] to save the image.

¡You can store three images at maximum.

¡Three pictures are pre-stored as default images but those are over-written if you capture and save new images.

Notes:

¡Do not turn off the unit while saving an image.

¡To capture an image from TV, the broadcasting condition should be fairly well.

¡You can recall default images only by clearing memories so that images that you have stored are cleared as well. ( a page 42)

[OSD]

(CAPTURE)

Direct Image Capture

(Only for remote control)

If you would like to capture a picture, press and hold [OSD] (CAPTURE) for more than 2 seconds.

Subsequent steps are the same as the steps w described above.

CQ-VAD9200U

51

E

N

G

L

I

S

H

43

SET-UP : Sound Settings

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[}] [{]

(VOLUME)

[MENU] [MODE]

(End)

[]] [[]

(Select/Adjust)

[ENTER]

1

Menu

Setting the VTR (VTR1 /

VTR2) Input Level

Make this setting if it is not possible to adjust the volume through the connected device (on the output side).

Note: This setting is serviceable for an external device that is connected to VTR1 or VTR2 without an optical fiber cable. (e.g. VCR)

Default : ±0 dB

Digital Input Setting

This allows you to set up a mode where an optical fiber cable is used.

Default : DVD

2

Submenu

Press [MENU] to display the “MENU 3”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “VTR LEVEL”.

w Press [ENTER] to set.

VTR LEVEL

“ AUDIO” appears.

AUDIO

q Press [}] or [{] to select “DIGITAL IN”.

w Press [ENTER] to set.

DIGITAL IN

52

CQ-VAD9200U

[MODE]

(End)

[}] [{]

[]] [[]

(Select/Adjust)

[ENTER]

3

Setting

[MENU]

[}] [{]

(VOLUME)

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

44

Press []] or [[] to adjust the input level.

-18 dB -15 dB -12 dB -9 dB -6 dB -3 dB

±0 dB

: Input level

Normal

Lower

Notes:

¡If the input level from VTR1 / VTR2 is too high, the audio will not be output normally.

Adjust the input level so that “OVER” does not appear.

¡After setting the input level

The volume can be adjusted by pressing the [}] or [{] (VOLUME) on the display unit or the remote control.

q Press [[] or []] to select the setting.

w Press [ENTER] to set.

OFF

DVD

VTR1

VTR2

: Optical fiber cable is not used.

: Optical fiber cable is used for the DVD player of the unit.

: Optical fiber cable is used for an external device that is connected to VTR1.

: Optical fiber cable is used for an external device that is connected to VTR2.

CQ-VAD9200U

53

E

N

G

L

I

S

H

45

SET-UP : Sound Settings

(continued)

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select)

[ENTER]

1

Menu

2

Submenu

Setting the absence / presence and size of each speaker

Default : FRONT (Front L/R)...LARGE

CENTER (Center)*...SMALL

SURROUND (Surround L/R)...LARGE

SUB • W (Subwoofer)**...YES

* A center speaker (option, EAB-CF2 recommended) is required. Supplied speaker can not be used for a center speaker.

** A subwoofer (option, CJ-HD302 recommended) is required. A power amplifier

(option) is also required for connecting a subwoofer.

Press [MENU] to display the “MENU 3”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “SP SETUP”.

w Press [ENTER] to set.

SP SETUP

“ AUDIO” appears.

AUDIO

54

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

46

3

Setting

q Press [}] or [{] to select an item.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

FRONT

LARGE

SMALL

Front speaker setting

: For large speakers, when bass playback is possible (at least

100 Hz or lower)

: For small speakers, or when bass playback is not possible

CENTER

LARGE

SMALL

Center speaker setting

: For large speakers, when bass playback is possible (at least

100 Hz or lower)

: For small speakers, or when bass playback is not possible

NONE : When not using a center speaker

SURROUND

LARGE

SMALL

NONE

Surround speaker setting

: For large speakers, when bass playback is possible (at least

100 Hz or lower)

: For small speakers, or when bass playback is not possible

: When not using surround speakers

SUB • W

YES

NO

Subwoofer speaker setting

: When using a subwoofer

: When not using a subwoofer

CQ-VAD9200U

55

E

N

G

L

I

S

H

47

SET-UP : Sound Settings

(continued)

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[}] [{]

(VOLUME)

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/Adjust)

[ENTER]

1

Menu

2

Submenu

Adjusting the output balance of each speaker

Default : ±0 dB for all speakers

Setting range : –12 dB to +12 dB (1 dB steps)

Press [MENU] to display the “MENU 3”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “SP LEVEL”.

w Press [ENTER] to set.

SP LEVEL

“ AUDIO” appears.

AUDIO

56

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

(VOLUME)

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

48

[}] [{]

[]] [[]

(Select/Adjust)

[ENTER]

3

Setting

FRONT L

Left front speaker output balance

q Press [}] or [{] to select an item.

w Press [[] or []] to adjust.

CENTER

Center speaker output balance

FRONT R

Right front speaker output balance

R

¡

SUR

Right surround speaker output balance

L

¡

SUR

Left surround speaker output balance

SUB

¡

W

Subwoofer speaker output balance

A test signal (a continuous tone) is output from each speaker for approximately two seconds.

Adjust the output balance so that the tone appears to have the same volume from each speaker.

Adjusting the output balance:

Adjust the volume of all of the other speakers to the volume level of the speaker from which the test signal appears to be the quietest.

¡If the speaker setting is “NONE” or “NO” for a speaker, the test signal is not output and that speaker cannot be selected. ( a page 54)

¡Press [}] or [{] (VOLUME) to adjust the volume of the test signal.

CQ-VAD9200U

57

E

N

G

L

I

S

H

49

SET-UP : Sound Settings

(continued)

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/Adjust)

[ENTER]

1

Menu

2

Submenu

Adjusting the Timing with which the Audio from Each Speaker

Reaches the Listener’s

Position

(Delay time setting)

Default : 0 ms for all speakers

Setting range :

Center speaker...0 ms to 5 ms (1 ms steps)

Surround speakers...0 ms to 15 ms

(1 ms steps)

1 ms = 0.001 seconds

Press [MENU] to display the “MENU 3”.

MENU 1

MENU 2

q Press [}] or [{] to select “SP DELAY”.

w Press [ENTER] to set.

SP DELAY

MENU 3

Maintaining the

Ambience Even while

Listening at a Low

Volume Level

(Dynamic range compression rate adjustment)

Default : 1.0 (Level recommended by those involved in program and software production)

Setting range : 0.0 to 1.0 (in 0.1 increments)

Note: This adjustment takes effect when “STD” is selected as the DR COMP setting. ( a page 63)

“ AUDIO” appears.

AUDIO

q Press [}] or [{] to select “DR COMP”.

w Press [ENTER] to set.

DR COMP

58

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select/Adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

50

3

Setting

CENTER

Center speaker delay time setting

SURROUND

Surround speaker delay time setting

q Press [}] or [{] to select an item.

w Press [[] or []] to adjust.

Adjust the delay time so that output from the center and surround speakers reaches the listener’s ears at the same time as the output from the front speakers.

¡Make this adjustment while listening to sound.

¡If the speaker setting is “NONE” for a speaker, that speaker cannot be selected. ( a page 54)

¡When “PRO LOGIC” is displayed, 15 ms are automatically added to the delay time setting for the surround speakers.

H CUT

High-level cut

This adjusts the compression rate in the treble (high-frequency) range.

q Press [}] or [{] to select an item.

w Press [[] or []] to adjust.

L BOOST

Low-level boosting

This adjusts the compression rate in the bass (low-frequency) range.

Note: The 0.0 setting is the same as the DR COMP OFF setting.

59

CQ-VAD9200U

E

N

G

L

I

S

H

51

SET-UP : Sound Settings

(continued)

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

TRACK/

CHANNEL

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[}] [{] []] [[]

(Select/Adjust)

[ENTER]

1

Menu

2

Submenu

Adjusting the Level for

Each of the Frequency

Bands

(Graphic equalizer)

Default : ±0 dB for each band

Adjustment range : –12 dB to +12 dB

(in 2 dB steps)

Press [MENU] to display the “MENU 3”.

MENU 1

MENU 2

MENU 3

q Press [}] or [{] to select “GRAPHIC-EQ”.

w Press [ENTER] to set.

GRAPHIC-EQ

“ AUDIO” appears.

AUDIO

60

CQ-VAD9200U

[MODE]

(End)

[MENU]

[}] [{]

[]] [[]

(Select/Adjust)

[ENTER]

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting menu.

E

N

G

L

I

S

H

52

[1] to [6]

(Preset memory)

3

Setting

Preset number

Frequency band (Hz) q Press [[] or []] to select frequency band.

w Press [}] or [{] to adjust the level.

The level of each of the 7 frequency bands can be adjusted, and up to 6 different levels can be stored in the memory.

Level (dB)

Frequency band

80 Hz 160 Hz 320 Hz 640 Hz 1.6 kHz 4 kHz 10 kHz

To store a level adjustment in the memory (preset memory):

Press and hold the corresponding preset button [1] to [6] for more than 2 seconds.

¡When a level adjustment has been stored in a preset button, a preset number will appear.

(The new level adjustment will overwrite the previous level adjustment, erasing it in the process.)

To recall a level adjustment:

On the GRAPHIC-EQ adjustment display, press the corresponding preset button [1] to [6].

Note: Effective for 2-channel audio (LPCM, Dolby Digital/dts 2channel) and analog audio (TV, VTR, radio, CD changer).

CQ-VAD9200U

61

E

N

SET-UP : Sound Settings

(continued)

I I

S

H

Audio Channel Setting

Change audio channels as shown below by pressing [DRC] (PRO LOGIC) (DOWN MIX) for more than 2 seconds.

Changing Dolby Digital

/ dts audio to 2-channel stereo playback

(Down mix)

Select down mix for easier listening if audio is too low to be heard.

¡Dolby Digital

DVD

VIDEO

¡dts

DVD

VIDEO

CD

5.1-channel surround playback

(Number of channels: 1 to 5.1)

(R)

(RS)

(C)

(S.W)

Down mix

2-channel stereo playback

(R)

(

(L)

(LS)

(L)

¡When down mix is selected, center (C) and surround (RS) (LS) signals are mixed with the signals of the two channels (stereo) of right front (R) and left front (L) to be output. There will be no audio output from the center (C), surround (RS), (LS) and subwoofer (SW), while the output audio from the fronts (R) and (L) will be a little greater.

¡ If “FRONT” is set to “SMALL” in speaker setting (

➡ page 54) after selecting down mix, there will also be audio output from the subwoofer (SW).

Changing 2-channel

Dolby Surround audio to

4-channel surround playback (Pro Logic)

Effective for Dolby Surround DVD playback

¡Dolby Surround (Dolby Pro Logic)

P R O • L O G I C

DVD

VIDEO

Changing 2-channel audio / analog audio to

4-channel surround playback (Pro Logic)

Even 2-channel audio / analog audio not recorded in Dolby

Surround audio can be switched to

4-channel surround playback.

¡LPCM / MP3

DVD

VIDEO

VIDEO

CD

CD

MP3

¡Dolby Digital/dts 2-channel

¡Analog audio (VTR, CD changer)

2-channel Dolby Surround audio

(R)

(

Pro Logic

4-channel surround playback

(R)

(RS)

(C)

(L) (L)

(LS)

¡When Pro Logic (4-channel surround playback) is selected, 2-channel Dolby

Surround audio is output after conversion to a 4-channel output from the center (C), front (R), (L) and surround (RS), (LS). (The same audio from

(RS) and (LS).)

2-channel audio / analog audio

(R)

(RS)

Pro Logic

4-channel surround playback

(R)

(RS)

(

(C)

(L)

(LS)

(R) and (RS), (L) and (LS) are same audio (except for Dolby Digital / dts

2-channel).

(L)

(LS)

¡When Pro Logic (4-channel surround playback) is selected, 2-channel audio

/ analog audio is output after conversion to a 4-channel output from the center (C), front (R), (L) and surround (RS), (LS). (The same audio from

(RS) and (LS).)

Note: Pro Logic (4-channel surround playback) selection does not apply to

TV and radio.

Note: For each audio recording system (Dolby Digital / dts / Dolby Surround (Dolby Pro Logic) / LPCM), refer to the

Definition of Terms. (

➡ page 96)

62

DVD

VIDEO

VIDEO

CD

CD MP3

Indicates the compatible types of disc.

[SPACE]

Producing Audio

That Is Audible at

Low Volumes

(Dynamic Range

Compression)

This function is effective for playback of Dolby Digital /

Dolby Surround DVD video.

The words of an actor hardly audible during playback at a low volume, for example, will become easier to listen to by selecting DR COMP

MIN.

Sound Field

Settings (Space)

Effective for 2-channel audio

(LPCM, Dolby Digital/dts 2channel) and analog audio

(TV, VTR, radio, CD changer).

Pro Logic (4-channel surround playback) selection is automatically invalid after this setting. (

➡ page 62)

Default: OFF (no indicator)

Setting range: 8 types + “OFF”

[DRC]

(Dynamic Range

Compression)

(PRO LOGIC)

(DOWN MIX)

Press [DRC] to change the setting.

DR COMP OFF

DR COMP STD

DR COMP MIN

Movie theater mode with no compression.

Mode recommended by the software manufacturer for listening at low volume.

¡It is possible to adjust the Dynamic Range

Compression rate. (

➡ page 58)

Mode with the greatest compression, roughly equivalent to a TV broadcast.

OFF STD MIN

Conversation level

Press [SPACE] to change the setting.

OFF (No

Indicator)

MULTI-CH

LIVE

No sound field effect

2-channel audio is distributed to be a 5.1channel output.

Sound field effect as if in a live house

HALL

Sound field effect as if in a concert hall

Sound field effect suited to listening to jazz

JAZZ

STADIUM

Sound field effect as if in a stadium

Sound field effect as if in a disco

DISCO

VOCAL

CATHEDRAL

Sound field effect suited to listening to vocals

Sound field effect as if in a church

Notes:

¡Not effective for Dolby Surround audio recordings and down-mixed

2-channel audio

¡No audio output from the subwoofer if “OFF” or “VOCAL” is set.

¡This function can be set individually for each mode.

CQ-VAD9200U

63

E

N

I I

S

H

E

N

G

L

I

S

H

55

SET-UP : Other Settings

Display Change

Press [DISP] on the remote control to change the display as follows.

Display is changeable only in the CD, MP3, radio and CD changer modes.

Default : Standard display

Standard display

Captured display 3 (default)

The following display is also available only in the MP3 mode.

ID3Tag information display

[DISP]

Captured display 2 (default) Folder/file lists display

64

Note: Captured images are displayed as shown at right.

CQ-VAD9200U

Captured display 1 (default)

Clock / Calendar display

Aspect Ratio

Default : NORMAL

Mode : 4 types

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

ENTER

DISC

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

P·MODE

[ASP] (ASPECT)

Press [ASP] (ASPECT) on the display unit or press [A] (ASPECT) on the remote control to change the aspect ratio as follows.

NORMAL

¡The conventional display image has a 4 to 3 ratio of horizontal to vertical.

¡In this case, a blank area remains on the right and left sides of the display.

FULL

¡The screen is extended horizontally as a whole to the aspect ratio of 16 to 9.

¡The extension ratio is the same at any point of the screen.

ZOOM

¡The screen is fully extended at the normal aspect ratio of 4 to 3.

¡The top and bottom of the screen are slightly cut.

E

N

G

L

I

S

H

56

[A] (ASPECT)

JUST

¡The screen is extended horizontally to the aspect ratio of 16 to 9.

¡The extension ratio increases toward the right and left ends of the screen.

Notes:

¡This adjustment is common to TV, VTR1, VTR2, DVD and video CD mode.

¡You cannot change the aspect in the menu screen and a screen in the CD, MP3, radio and CD changer mode.

These are fixed to “FULL”.

¡The “ZOOM” and “JUST” screens do not apply to car navigation images.

¡When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is shown on the “FULL” screen only.

¡In some cases, the picture looks different from the original one due to your selection of aspect.

Cautions:

¡This is to remind you that compression or extension of the screen using the aspect ratio (screen mode) changing function of this product for commercial purpose of profit making or viewing / listening by the public could infringe on the rights of the author protected by the copyright law.

¡If you expand normal picture (4 to 3) by using “JUST”, “ZOOM” or “FULL” aspect to the full of the screen, you might not see the periphery of the picture, or you might see a distored picture. Therefore, use the “NORMAL” mode to see the original picture as the author intended it.

65

CQ-VAD9200U

E

N

G

L

I

S

H

57

SET-UP : Other Settings

(continued)

Rear Monitor Set Up

You can have different picture and sound at the front monitor and rear monitor at the same time.

Default : AUTO

Preparation: Connect another optional rear monitor. (e.g. CY-

VMX6800U) ( a page 84)

Rear monitor setting menu q Press and hold [MENU] for more than

2 seconds.

w Press [[] or []] to select the setting.

e Press [ENTER] to set.

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

DISC

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

(End)

[]] [[]

[MODE] (End)

[MENU]

[]] [[]

AUTO

TV

DVD

: Picture and sound come out. These are in the same mode as the front monitor.

: Picture and sound in the TV mode always come out.

: Picture and sound in the DVD player mode (disc in the DVD player) always come out.

Only sound in the CD, MP3 player mode.

: Picture and sound in the VTR1 mode always come out.

: Picture and sound in the VTR2 mode always come out.

VTR1

VTR2

Notes:

¡Press [MODE] to return to the regular mode.

¡The display returns to the previous one with no operation for 60 seconds after changing to the rear monitor setting menu.

¡Picture and sound from the car navigation system connected to an RGB input cord are not available at the rear monitor.

¡You can mute the sound from the rear speakers connected to this unit, so that you can have different sound of modes at the front and rear monitor.

( a

See Private Mode on next page)

TV VTR1 / VTR2 DVD (VCD, CD, MP3) Radio CD Changer

66

Main Unit Monitor

Rear Monitor

TV

The rear monitor does not display television picture when the main unit is in the radio mode.

VTR1 / VTR2

( )

Different types of discs cannot be played back at the same time.

For a CD and

MP3, the screen becomes blue.

DVD (VCD, CD, MP3)

CQ-VAD9200U

Private Mode

You can mute the sounds from the rear speakers if necessary.

Activation of the private mode allows you to enjoy the front monitor and rear monitor (e.g.

CY-VMX6800U) independently with different sources at the same time.

Default : OFF

Press and hold [ASP] (P • MODE) on the display unit or [A] (P • MODE) on the remote control for more than 2 seconds to activate the private mode function or inactivate it in turn.

“P • MODE” indicator lights when the Private Mode is activated.

E

N

G

L

I

S

H

58

CQ-VAD9200U

IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

ENTER

DISC

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

P·MODE

[ASP] (P • MODE)

Private Mode OFF

Private Mode ON

Radio

Radio

[A] (P • MODE)

DVD

Radio

DVD

Mute

It is recommended to use optional Over-head Monitor

(CY-VMX6800U) and supplied headphones to separate rear sound from front sound completely.

Notes:

¡Be sure to set to OFF when you do not use the private mode.

¡It is not possible to choose and set the SP DELAY on the sound setting menu while private mode is active.

( a page 58)

67

CQ-VAD9200U

E

N

G

L

I

S

H

59

Installation Guide

WARNING

This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

Overview

This product should be installed by a professional.

However, if you plan to install this product yourself, your first step is to decide where to install it. The instructions in these pages will guide you through the remaining steps:

(Please refer to the “WARNING” statement above).

¡Identify and label the car wires.

¡Connect the car wires to the wires of the power connector.

¡Install the unit.

¡Check the operation of the unit.

If you encounter problems, please consult your nearest professional installer.

Caution: This unit operates with a 12 volt DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage.

Installation Hardware (For Installation)

No.

Item Diagram Qty

q

Trim Plate 1 w Mounting Collar e

Mounting Spring r

Rubber Pad t Mounting Bolt (M5)

1

2

1

1

1

No.

!4

!5

Item

Double-Faced Adhesive Tape

(for spacer)

Double-Faced Adhesive Tape

(for speaker)

!6

Clamp (for speaker)

!7

!8

Binding-Head Screw

(M5 x 8 mm)

Tapping Screw

(ø 6 x 20 mm)

!9

Hex. Nut (M5) y Flange Nut (M6) u i

Washer Assembling Hex.Bolt

(M5 x 10 mm)

Washer Assembling Hex.Bolt

(M6 x 20 mm) o

Rear Support Strap

!0

!1

!2

Binding-Head Screw

(M5 x 6 mm)

Flat-Head Screw

(M5 x 6 mm)

Binding-Head Screw

(M4 x 3 mm)

!3

Spacer

1

1

1

2

4

4

2

@0 Mounting Bracket

@1 Base Bracket

@2

Double-Faced Adhesive Tape

(for hide-away unit)

@3 Velcro Tape

@4 Antenna Clamp

@5

Cord Clamp (for antenna)

Diagram Qty

1 set

1

2

4

4

4

2

2

2

2

4

4

68

CQ-VAD9200U

Installation Hardware (For Wiring)

No.

Diagram Qty

@6

@7

Item

Power Connector

(for display unit)

Reverse Extension Cord

(for rear view camera)

1

1

@8 Clip Connector 1

@9

Display Unit / Hide-away Unit

Connecting Cord

#0

Optical Fiber Cable

1

1

#1

#2

Power Connector

(for hide-away unit)

Ground Lead

#3

Radio Antenna Extension

Cord

#4 Center Speaker Lead

#5

Center Speaker Extension

Lead

1

1

1

1

1

Before you begin installation, look for the following items which are packed with your unit.

¡Warranty Card …… Fill this out promptly.

¡Panasonic Servicenter for Service Directory ……

Keep for future reference in case the product needs servicing.

¡Installation Hardware …… Needed for installation.

Before Installation

Warning

¡Do not install the monitor in a location which

obstructs driving, visibility or which is prohibited by

applicable laws and regulations. If the monitor is installed in a location which obstructs forward visibility or operation of the air bag or other safety equipment or which interferes with operation of the car, it may cause an accident.

¡Never use bolts or nuts from the car's safety devices for installation. If bolts or nuts from the steering wheel, brakes or other safety devices are used for installation of the monitor, it may cause an accident.

¡Attach the wires correctly. If the wiring is not correctly performed, it may cause a fire or an accident. In particular, be sure to run and secure the lead wire so that it does not get tangled with a screw or the moving portion of a seat rail.

¡Use with 12 volt DC negative ground car. This unit is only for use with a 12 volt DC negative ground car. It cannot be used in large trucks or diesel cars which are

24 volt DC cars. If it is used in the wrong type of car, it may cause a fire or an accident.

Cautions:

¡Use the specified fuse. Be sure to always use the specified fuse. If a fuse other than the specified fuse is used, it may cause a fire or an accident.

¡Do not damage the cord by pinching or pulling it. Do not pull or damage the cord. If the cord is not treated properly, it will short out or be severed and may cause a fire or an accident.

E

N

G

L

I

S

H

60

Required Tools

You’ll need a screwdriver and the following:

12 V DC

Test Bulb

Electrical

Tape

Side-Cut

Pliers

Dashboard Specifications

THICKNESS

MIN. 3/16" (4.75 mm)

MAX. 7/32" (5.56 mm)

2-3/32" (53 mm)

7-5/32" (182 mm)

Identify All Leads

The first step in installation is to identify all the car wires you’ll use when hooking up your LCD monitor.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker. This will help avoid confusion when making connections later.

Note: Do not connect the power connector to the display unit until you have made all connections. If there are no plastic caps on the hooking wires, insulate all exposed leads with electrical tape until you are ready to use them.

Identify the leads in the following order.

CQ-VAD9200U

69

E

N

G

L

I

S

H

61

Installation Guide

(continued)

Power Lead

If your car has a radio or is pre-wired for one :

Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work with individual leads. Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

ready to begin connecting them to the LCD monitor wires.

The wiring diagram ( a page 78-85) shows the proper connections and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

Important: Connect the red power lead last, after you have made and insulated all other connections.

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug. Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit :

Go to the fuse block and find the fuse port for radio

(RADIO) accessory (ACC) or ignition (IGN).

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock or other functions.)

If your car has a radio or is pre-wired for one:

With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

If your car is not wired for an audio unit :

Go to the fuse block and find the fuse port for the battery, usually marked BAT.

Speakers (not supplied speaker)

Identify the car speaker leads. There are two leads for each speaker, usually color coded.

A handy way to identify the speaker leads and the speaker they are connected with is to test the leads using a 1.5 V

AA battery as follows.

Hold one lead against one pole of the battery and stroke the other lead across the other pole. You will hear a scraping sound in a speaker if you are holding a speaker lead.

If not, keep testing different lead combinations until you have located all the speaker leads. When you label them, include the speaker location for each.

Connect All Leads

Now that you have identified all the wires in the car, you're

Ground

Connect the black ground lead of the power connector to the metal car chassis.

Speakers (not supplied speaker)

Connect the speaker wires. See the wiring diagram for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo unit.

The speakers used must be able to handle more than 45 W of audio power. If using an optional audio power, the speakers should be able to handle the maximum amplifier output power. Speakers with low input ratings can be damaged.

Speaker impedance should measure 4–8

Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.

Caution: Never ground the speaker cords. For example, do not use a chassis ground system or a three-wire speaker common system. Each speaker must be connected separately using parallel insulated wires. If in doubt about how your car’s speakers are wired, please consult with your nearest professional installer.

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Equipment

Connect any optional equipment according to the instructions furnished with the equipment. Read the operating and installation instructions of any equipment you will connect to this unit.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the LCD monitor functions properly with all these connections made, disconnect the wires and proceed to the final installation.

70

CQ-VAD9200U

Final Installation

Lead Connections

Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires and fasten them with tape so they will not fall down later. Now insert the LCD monitor into the mounting collar.

Congratulations! After making a few final checks, you’re ready to enjoy your new LCD monitor.

Final Checks

1. Make sure that all wires are properly connected and insulated.

2. Make sure that the LCD monitor is securely held in the mounting collar.

3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

Precautions

Cautions:

¡We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

¡When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

¡Disconnect the cable from the negative (–) battery terminal (see caution at right).

¡Unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than

30°.

less than 30°

Caution: Do not disconnect the battery terminals of a car with trip or navigational computer since all user settings stored in memory will be lost. Instead take extra care with installing the unit to prevent shorts.

This unit should be professionally installed. In case of difficulty, please consult with your nearest professional installer.

1. This unit only operates in a 12-volt DC negative ground system.

2. Follow the electrical connections carefully ( a page 78-

85). Failure to do so may result in damage to the unit.

3. Connect the power lead after all other connections are made.

4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.

5. Insulate all exposed wires to prevent short circuiting.

6. Secure all loose wires after installing the unit.

7. Please carefully read the operating and installation instructions of the respective equipment before connecting it to this unit.

Caution: Please follow the laws and regulations of your state, province or country for installation of the unit.

E

N

G

L

I

S

H

62

Transportation bracket removal

Be sure to remove the transportation brackets before use (installation).

Use Binding-Head Screws (M5 x 6 mm) for installation. ( a page 74)

Be careful not to lose these Binding-Head Screws.

Transportation

Bracket

Display Unit

Binding-Head

Screws

(M5 x 6 mm)

Transportation

Bracket

Binding-Head

Screws

(M5 x 6 mm)

71

CQ-VAD9200U

72

E

N

G

L

I

S

H

63

Installation Guide

(continued)

Mounting the Display Unit

Installation Procedures

(When using Mounting Collar w)

Note: The car model, installation conditions and combination of the units used may impose some restrictions on opening and closing the monitor as well as on the angle and position to which the monitor can be adjusted.

1

Insert the Mounting Collar w into the dashboard, and

bend the mounting tabs out with a screwdriver.

Fastening the Mounting Collar

The tabs to bent vary depending on the car. Bend them with a screwdriver to fasten the Mounting Collar w securely in the dashboard.

Dashboard

Tab w Mounting Collar

@6

Power Connector

#0

Optical Fiber Cable

@ 9 Display Unit / Hide-away

Unit Connecting Cord t Mounting Bolt (M5) e Mounting Spring

2

Attach the Mounting Springs e to the display unit.

!1 Flat-Head Screw

(M5 x 6 mm)

3

Establish the rear connection of the unit.

After fixing Power Connector

@6

, Display Unit / Hide-away

Unit Connecting Cord

@9 and Optical Fiber Cable #0, fix the rear of the unit to the car body by either method (a) or

(b) shown at right.

4

Insert the unit into Mounting Collar w

Secure the clamp plate of Mounting Collar w to the hook of Mounting Spring e

.

Clamp plate

Insert Trim Plate q.

5

6

After installation reconnect the negative

(–) battery terminal.

CQ-VAD9200U

Method for Fixing the Rear of the Unit

(a) Using the Rear Support Strap o

Drill a hole 6.5 to 7 mm in diameter.

i Washer Assembling Hex.

Bolt (M6 x 20 mm) y Flange Nut

(M6)

Fire wall of car o Rear Support Strap u Washer

Assembling

Hex. Bolt

(M5 x 10 mm)*1

Display Unit

*1: Use M5 x 8 mm size bolt (optional) if bolts other than the supplied ones are to be used.

(b) Using the Rubber Pad r r Rubber Pad t Mounting Bolt (M5)

Display Unit

Bracket

(On car)

E

N

G

L

I

S

H

64

To Remove the Display Unit

q Push the right and left clamp plates outward, one at a time, and pull the display unit toward yourself.

w After removing the right and left clamp plates, pull the unit with both hands till it comes off.

q w

Push here to remove the clamp plates.

CQ-VAD9200U

73

E

N

G

L

I

S

H

65

Installation Guide

(continued)

Installation Procedures (When not using Mounting Collar w)

Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method vary with car manufacturers, car types and manufacturing year. Please consult your nearest dealer or installer.

Select mounting screws according to the hole positions and hole shape of the bracket.

!

Binding-Head Screw (M5 x 6 mm) 2 pieces

Recycle the Binding-Head Screws that fixed the transportation brackets for two more positions.

!

Binding-Head Screw (M4 x 3 mm)

4 pieces

When using these mounting holes

!

Flat-Head Screw (M5 x 6 mm) 4 pieces

Use the supplied Spacer !3 if mounting hole of your car is shaped like below.

Display Unit

Not used

Mounting Hole of a Bracket

(in section)

!3 Spacer

Bracket

!0 Binding-Head Screw

(M5 x 6 mm)

!0 Binding-Head Screw

(M5 x 6 mm)

Existing Bracket (R)

!4 Double-Faced

Adhesive Tape

Existing Bracket (L)

(Bracket originally attached to the car)

!3 Spacer

!4 Double-Faced Adhesive Tape

Mounting the Speaker

Before mounting the speaker, wipe water, dust and oil stains off from the place where the speaker should be mounted to enhance adhesive strength.

!5 Double-Faced

Adhesive Tape

Speaker

!6 Clamp

Cautions:

¡Do not install the speaker in a location which obstructs operation of the air bag or other safety equipment.

¡Do not leave a credit card or other magnetic cards near the speaker to avoid damaging the cards.

74

CQ-VAD9200U

Mounting the Hide-away Unit

Cautions:

¡Never mount the unit in any of the following locations to avoid damage due to overheating;

1. Near the heater port.

2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.

¡Do not mount the unit near the door, where it could be exposed to rain.

¡Do not separate the hide-away unit.

Mount the unit on the car carpet by using Velcro Tape @3.

Attach the seal side of the Velcro Tape

@3 to the hide-away unit, then mount the unit on the carpet.

Note: Some carpet materials may not be suitable for this mounting method. In this case, please contact your nearest

Panasonic Servicenter for installation.

@3 Velcro Tape

Unit installation by using the Mounting Brackets @0 and the Base Brackets @1.

!9 Hex. Nut (M5)

@0 Mounting Bracket

!7 Binding-Head Screw

(M5 x 8 mm)

Carpet

Let the bolts of the base bracket pass the carpet.

!8 Tapping Screw (ø 6 x 20 mm)

@1

Base Bracket

@2 Double-Faced Adhesive Tape

Make cuts by using cutter.

Drill for 4.8 mm diameter holes to the chassis.

* Put the tape and the base bracket together with each hole of the tape and bracket connected so that the screw goes in at two positions.

Note: Apply an anticorrosive to the holes and tapping screws.

Caution: You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring harness, or other component.

CQ-VAD9200U

75

E

N

G

L

I

S

H

66

E

N

G

L

I

S

H

67

Installation Guide

(continued)

Mounting the TV Antenna

Cautions:

¡Be sure to install the TV antenna on the inner side of the rear window.

¡Be sure to connect the power lead of the TV antenna to ACC power DC 12 V.

¡Keep the antenna away from the external amplifier and the rear speaker cord as much as possible.

1

Straighten the bent antenna element.

Confirm the adhering positions.

Shorter one

Longer one

Preparations:

Remove the upholstery at the both sides of the rear window to establish a ground.

Affix the antenna temporarily with adhesive tape after confirming the antenna position.

Remove the upholstery.

Observe the following to enhance adherability.

¡Wipe the inner surface of the rear window with a wet and soft cloth along the heating wire. But do not leave water droplets on the glass.

¡When the outside-air temperature is less than 68

°F (20 °C) , switch on the rear window defogger or the car heater to warm the surface of the rear window for approx. 5 minutes.

For a hatchback type:

76

Stick the grounding plate skillfully and hold the loose antenna element with the Antenna Clamp

@4 so that the element will not become caught in the hatchback door. Adjust the cord length so that the cord does not interfere with the movement of the hatchback door, and secure the cord with Cord Clamp

@5

.

5

Antenna cable identification

To TV antenna connector on the hide-away unit.

Antenna Cord

Power Lead

To ACC power,

+12 V DC.

Ground Lead

To a clean, bare metallic part of the car chassis.

ACC 0.5A

(Fuse 0.5 A)

0.5A

(Red)

(Black)

CQ-VAD9200U

2

Insert the grounding plate into the antenna body and hold the antenna element with the Antenna Clamp

@4

.

Screw points

Select a suitable screw point for the grounding plate to adhere to a metal part and remove the screw and the terminal cover.

q

Follow the steps below to install the grounding plate.

q Insert the grounding plate into the antenna body.

w Hold the grounding plate with the terminal cover.

e Screw the grounding plate.

r Hold the antenna element with the Antenna Clamp

@4

.

Insert

Grounding

Plate r w e

Screw

Terminal cover r

Caution: Be sure to connect the grounding plate. Otherwise, desensitization will be caused.

3

Peel the sheet from the back of antenna body and affix it. Then, affix the grounding plate on a metal part.

Follow the steps below to affix the antenna securely.

q Affix the antenna body.

w Straighten the antenna element and affix it.

e Put the Antenna Clamp

@4 on the center of the antenna element.

r Adjust the angle and position of the grounding plate and affix it.

E

N

G

L

I

S

H

68

Adjust r q e w

Some models restrict the installation of the TV antenna due to rear window size or open/close of the hatch.

Contact your dealer.

4

Cord routing

Hold the cord with a Cord Clamp

@5

.

Route the cord behind the rear seat and affix it with adhesive tape.

Route the cord inside the upholstery and under the carpet.

e w

For some models, you cannot straighten the longer element.

No bending

Comfortably curving

Cautions:

¡Avoid contacting the adhesive surface.

¡Do not re-adhere to avoid weakening adherability.

¡Avoid adhering on the heating wire as much as possible.

CQ-VAD9200U

77

E

N

G

L

I

S

H

69

Electrical Connections

Wiring Diagram

Accessory used for wiring

No.

Item

@6 Power Connector (for display unit)

1

@7

Reverse Extension Cord (for rear view camera) 1

@8 Clip Connector 1

@9

Display Unit / Hide-away Unit

Connecting Cord

#0 Optical Fiber Cable

Q'ty

1

1

No.

#1

#2

#3

#4

#5

Item

Power Connector (for hide-away unit)

Ground Lead

Radio Antenna Extension Cord

Center Speaker Lead

Center Speaker Extension Lead

@9

Display Unit / Hide-away Unit Connecting Cord

Q'ty

1

1

1

1

1

RGB Input Cord

To the RGB Connector of the Panasonic car navigation system (available in future).

Video Control Lead

To the Video Control Lead of the

Panasonic car navigation system

(available in future).

Side Brake (Parking Brake) Connection

Lead

Be sure to wire the side brake (parking brake) for safety and preventing accidents.

( a page 82)

Reverse Lead

When connecting the rear view camera, use the reverse lead. ( a page 85)

Note: Use a Reverse Extension Cord

@7 if needed.

Power Lead

To ACC power, +12 V DC.

Display Unit

(Rear)

Digital Audio Output

Connector (optical)

#0

Optical Fiber Cable

VIDEO-CONT

(Green/yellow stripe)

SIDE BRAKE

(Blue/yellow stripe)

REVERSE

(Violet/white stripe)

Battery Lead

To the car battery, continuous +12 V DC.

78

Ground Lead

To a clean, bare metallic part of the car chassis.

CQ-VAD9200U

ACC

(Resistor 220

)

(Red)

BATTERY 5A

(Fuse 5 A)

(Yellow)

(Black)

@6

Power Connector

SPEAKER

Speaker Lead

(Black)

!

@

(Black/green stripe)

Cautions:

¡This unit is designed to operate off a 12 V DC, negative ground battery system.

¡To prevent damage to the unit, be sure to follow the connection diagram below.

¡Remove approximately 1/4" (5 mm) of protective covering from the ends of the leads before connecting.

¡Do not insert the power connector into the unit until the wiring is completed.

¡Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.

¡Note that if your car has a driving computer or a navigation computer, disconnecting the battery cables may cause the contents of memory for these computers to be lost.

¡The side brake (parking brake) connection lead should be connected by a professional installer. In case of difficulty, please consult your nearest authorized Panasonic Servicenter.

¡All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or your dealer if other methods are required.

E

N

G

L

I

S

H

70

Notes:

¡Be sure to fully plug in the connector.

¡Install the cord to avoid high-temperature spots and secure with clamps and tape.

¡When game devices are connected, the image may be unstable.

¡When removing the DIN plug, be sure to press the clip.

(Front)

Notes on handling optical fiber cable:

¡Do not allow the cable to be damaged by getting it caught in the door, placing a heavy object on it, etc.

¡Make sure that the cable is not strained when it is connected.

¡Do not bend the cable sharply.

Hide-away Unit

25 mm or more

(Black)

(Rear)

Note: See next page for hide-away unit electrical connection.

Panasonic

(Black/green stripe)

Speaker

Note: Supplied only for the operation sound such as beep.

Do not use it for a center speaker.

Caution: Do not use the supplied speaker for some other units or components.

CQ-VAD9200U

79

E

N

G

L

I

S

H

71

Electrical Connections

(continued)

Hide-away Unit

(Rear)

@9

Display Unit / Hide-away

Unit Connecting Cord

TV Antenna

Refer to “Mounting the TV Antenna” for TV antenna connection.

( a page 76)

#2 Ground Lead

To a clean, bare metallic part of the car chassis

#4 Center Speaker Lead

CENTER

Navi Mute Lead

Connect to the Navi Mute Lead of the Panasonic car navigation system. (available in future)

#1 Power Connector

NAVI MUTE

(Orange)

Motor Antenna Relay Control Lead

(To motor antenna) (Max. 0.1 A)

This lead is not intended for use with a switch actuated power antenna.

ANT-CONT MAX 0.1A

Note: The power antenna extends automatically

when the radio mode is selected.

(Blue)

Dual CD Changer Control Lead

(not used)

TWIN CD C-CONT

(Brown/white stripe)

(Black)

(Black/green stripe)

Front Speaker Lead (Left)

Front Speaker Lead (Right)

Rear Speaker Lead (Left)

Rear Speaker Lead (Right)

80

External Amplifier Control

Power Lead

To an external amplifier.

Battery Lead

To the car battery, continuous

+12 V DC.

Power Lead

To ACC power, +12 V DC.

Ground Lead

To a clean, bare metallic part of the car chassis

CQ-VAD9200U

AMP-CONT MAX 0.1A

(Blue/white stripe)

BATTERY 15A

(Yellow)

(Fuse 15 A)

ACC

(Red)

(Resistor 220

)

(Black)

#0

Optical Fiber Cable

Make sure to use the one that is supplied specially for this unit.

Optical Digital

Input Connector

(DIGITAL IN)

Dust cap

Remove the dust cap before use.

#5 Center Speaker Extension Lead

CENTER

FRONT L

FRONT R

REAR L

REAR R

(Black)

(Black/green stripe)

(White)

(White/black stripe)

(Gray)

(Gray/black stripe)

(Green)

(Green/black stripe)

(Violet)

(Violet/black stripe)

!

@

!

@

!

@

!

@

!

@

To Center Speaker

(EAB-CF2 recommended)

(Left)

To Front Speaker

(Right)

(Left)

To Rear Speaker

(Right)

Display Unit / Hide-away Unit Connector

TV Antenna Connector

(TV ANT IN)

E

N

G

L

I

S

H

72

(Rear)

Ground Terminal

Power Connector

Center Speaker Output Connector

(CENTER SP OUT)

Video Input Terminal 1 (VTR1-IN)

Video Input Terminal 2 (VTR2-IN)

Connect a VCR, camcorder, rear view camera, other brand’s car navigation system, etc. ( a page 84-85)

Video Output Terminal (VIDEO-OUT)

Connect the rear monitor. ( a page 84)

Radio Antenna Connector (RADIO ANT IN)

Note: Use the Radio Antenna Extension

Cord

#3 if necessary.

(Front)

CD Changer Control Connector (CD¥C-IN)

( a page 83)

Pre-Out Connector (Front)

Pre-Out Connector (Rear)

Pre-Out Connector (Center)

Subwoofer Output Connector

To external amplifier

CQ-VAD9200U

81

E

N

G

L

I

S

H

73

Electrical Connections

(continued)

Connecting the Side Brake (Parking Brake) Connection Lead

Caution: For safety, be sure to ask your nearest professional installer to do this connection.

Side brake (Parking brake)

Foot brake

Side brake (parking brake) switch

The side brake (parking brake) switch position varies with the car model.

For details on the exact location of the side brake (parking brake) switch in your car, contact your dealer.

SIDE BRAKE

Side Brake (Parking Brake) Connection

Lead (Blue/yellow stripe)

When the side brake (parking brake) lever is engaged, the unit is grounded by the chassis.

@8

Clip Connector

Brake light

Battery

+ —

Car chassis q Attach a Clip Connector

@8 to the end of the side brake (parking brake) connection lead.

Comes up to this point.

w The Clip Connector

@8 is connected to the power source side lead of the side brake (parking brake) lever.

Side Brake (Parking Brake)

Connection Lead

(Blue/yellow stripe)

Power source side lead

82

CQ-VAD9200U

Connection with CD Changer (CX-DP88U)

Note: Refer to the operating instructions for the connected devices, in addition.

Ground Lead (Black)

CD Changer

CX-DP88U

Power Connector

(Supplied to CX-DP88U)

E

N

G

L

I

S

H

74

CQ-VAD9200U

Hide-away Unit

(Front)

(L) (White)

RCA Cord

(R) (Red)

Battery Lead (Yellow)

(Fuse 3 A)

CD Changer

Control Connector

DIN Cord

CQ-VAD9200U

83

E

N

G

L

I

S

H

75

Electrical Connections

(continued)

Connection with VCR or Camcorder

Note: Refer to the operating instructions for the connected devices, in addition.

CQ-VAD9200U

Hide-away Unit

(Front)

Camcorder

Video output

Audio

Left Right

(R)

(Red)

(Video)

(Yellow)

(R)

(Red)

(Video)

(L)

(White)

(Yellow)

POWER

INTELLIGENT SYSTEM

BS G-CODE

VCR

(L)

(White)

RCA Cord (Option)

Connection with Rear Monitor

Note: Refer to the operating instructions for the connected devices, in addition.

CQ-VAD9200U

Hide-away Unit

(Front)

84

(R)

(Red)

(L)

(White)

(Video)

(Yellow)

(R)

(Red)

RCA Cord (Option)

(L)

(White)

(Video)

(Yellow)

Over-head Monitor

CY-VMX6800U

CQ-VAD9200U

Connection with Rear View Camera

Note: Refer to the operating instructions for the connected devices, in addition.

CQ-VAD9200U

Display Unit (Rear)

Rear View Camera

Control Unit

Camera Input

(Video)

(Yellow)

Rear View Camera

Panasonic

@6

Power Connector

E

N

G

L

I

S

H

76

Hide-away Unit

(Front)

RCA Cord (Option)

(Video)

(Yellow)

Connecting the Reverse Lead

If using an optional rear view camera, the reverse lead must be connected.

Connect the reverse lead (violet/white stripe) to the positive (+) lead of the reverse lamp (the lamp with a clear lens that lights when the transmission gear is shifted into the reverse position).

Notes:

¡Connect the reverse lead after cutting the terminal at the end.

¡Use a Reverse Extension Cord @7 if needed.

Reverse lamp

Clip connector

Check the reverse lamp.

Take it out of the back of the tail lamp mount.

Battery

Car chassis

REVERSE

Reverse Lead (Violet/white stripe)

Cut here.

P

R

N

D

2

L

Transmission gear

CQ-VAD9200U

85

E

N

G

L

I

S

H

77

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.

Disconnect the power cable and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit yourself because it is dangerous to do so.

Common

Trouble

No power

No sound

Cautions:

¡Do not use the unit if it malfunctions or is something wrong.

¡Do not use the unit in an irregular condition, for example, without sound, or with smoke or foul smell, can cause ignition or electric shock. Immediately stop using it and call the store where you purchased it.

Cause / Step

Car’s ignition switch is not on.

a

Turn your car’s ignition switch to ACC or ON.

Cables are not correctly connected.

a

Connect cables correctly.

Battery cable is not correctly connected.

a

Connect the battery cable to the terminal that is always live.

Accessory cable is not correctly connected.

a

Connect the accessory cable to your car's ACC source.

Grounding wire is not correctly connected.

a

Connect the grounding wire to a metal part of your car.

Fuse is burnt.

a

Call the store where you purchased the unit, or your nearest Panasonic

Servicenter (see the attached sheet) and ask for fuse replacement.

The volume is adjusted to zero.

a

Raise the volume.

Mute is set to ON.

a

Set it to OFF.

Cables are not correctly connected.

a

Connect cables correctly.

Speakers setting is set to “NO” or “NONE”.

a

Set it to other than “NO” or “NONE”.

Condensation (dew) a

Wait for a while before use.

86

CQ-VAD9200U

Trouble

Only sound, no picture.

Noise

Picture is not clear.

Monitor

Trouble

The tilt angle or the front-rear position of the display is not adjustable.

The monitor does not go back into the unit.

Remote Control

Trouble

Buttons are invalid for operation.

Cause / Step

Side brake (parking brake) lead is not correctly connected.

a

Connect the side brake connection lead correctly.

You did not pull the side brake (parking brake) lever.

a

Pull the side brake (parking brake) lever.

A mobile phone is used near the unit.

a

Keep the mobile phone away from the unit.

Cause / Step

There is an obstacle.

a

Install the unit where the unit moves freely.

The monitor direction is not proper.

a

Change the monitor direction to the center.

The monitor stops on the way to the home position.

a

Raise the monitor a little and press [ ] (OPEN/CLOSE).

Cause / Step

Battery poles (+) (–) are reversed.

a

Insert the battery correctly.

Wrong battery.

a

Check the battery.

Battery has run down.

a

Replace the battery.

Remote control is in the wrong direction.

a

Direct the remote control at remote control sensor on the display unit.

E

N

G

L

I

S

H

78

TV

Trouble

Unclear image due to noise

Cause / Step

The intensity of the radio wave is too low.

a

Change the broadcast station.

Connection or installation of the TV antenna has not been performed correctly.

a

Check the connection or installation.

CQ-VAD9200U

87

E

N

G

L

I

S

H

79

Troubleshooting

(continued)

DVD video, Video CD, CD, CD-R, CD-RW

Trouble Cause / Step

The disc is upside down.

a

Place the disc in the correction direction, the label side up.

The disc is inside but no sound.

The disc is ejected automatically.

The disc is dirty.

a

Clean the disc, referring to the section on “Notes on Discs” (

a page 95).

The unit can only play the following types of discs: DVD video, video CD, music

CD and MP3.

Connect the optical fiber cable.

CD sound skips, tone quality is low.

Sound skip due to vibration.

The buttons do not work.

The disc is not ejected.

The disc is dirty.

a

Clean the disc, referring to the section on “Notes on Discs” (

a

page 95).

Mounting angle is over 30°.

a

Adjust mounting angle to less than 30°.

Unstable mounting.

a

Mount the unit securely with the mounting parts, referring to the section on installation.

Some operations are not permitted with certain discs.

(Refer to the guide provided with your disc.)

¡Disc is defective.

¡Mechanical trouble.

a

Press [u]. If failure persists, press the reset switch. If normal operation

is not restored, call the store where you purchased the unit or the nearest

Panasonic Servicenter to ask for repairs.

88

DVD video

Trouble

Cannot switch the audio language / subtitle language / angle.

The audio / subtitle language selected in the

DVD settings is not used.

Cause / Step

¡It is not possible to switch if the disc does not have multiple audio languages

/ subtitle languages / angles recorded on it. (Refer to the guide provided with your disc.)

¡Some discs permit switching through a menu screen.

¡Sometimes, switching angles is possible only with certain scenes.

If audio or subtitles in the languages are not recorded on the disc, the audio or subtitles do not switch to that language. (Some discs permit switching through a menu screen. Refer to the guide provided with your disc.)

CQ-VAD9200U

CD

Trouble

CD text is not displayed normally.

Time is counted but no sound comes out.

Cause / Step

Disc is dirty, or has scratches.

a

Clean the disc, referring to the section on “Notes on Discs” (

a

page 95).

The 1st track of a mix mode disc was reproduced. (Mix mode is a format in which data, except music, is recorded on the 1st track and music data is recorded on other than the 1st track in a session.) a

Play back music data recorded on other than the 1st track.

E

N

G

L

I

S

H

80

MP3

Trouble

No playback.

It takes too long for playback to start.

Poor recording quality, sound skipping

Files are not played in the desired order.

Folder/file name is not displayed correctly.

Cause / Step

The disc does not conform to any of the file systems supported by this player.

a

Insert a disc that conforms to the file systems supported by this player.

(

a page 33).

The MP3 file is missing the “.mp3” file name extension.

a

Make sure to add the “.mp3” extension to each MP3 file name.

The folders and files recorded on the disc are layered too much.

a

As checking of files takes longer in this case, do not record any unnecessary folders or files other than MP3s on the disc.

(If there are many hierarchies of files and folders, it may take up to 150 seconds to start playback.)

a

The recording quality differs depending on the encoding software used, and on settings such as the bit rate. Set the bit rate within the range specified in the specifications chart (

a

page 98).

It is recommended to set the bit rate to “128 kbps or more” and “Fixed”.

High-speed writing was executed when MP3 data was recorded on the disc.

a

Decrease writing speed as low as possible.

Files or folders are not recorded in the desired playback order.

a

Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the file name. For details refer to the user manual of your writing software.

The disc does not conform to the file systems supported by this player.

a

Insert a disc that conforms to the file systems supported by this player.

(

a

page 33).

a

There may be a problem with your writing software or CD recorder (CD-

R/RW drive). For details refer to the user manual of your writing software.

CQ-VAD9200U

89

E

N

G

L

I

S

H

81

Troubleshooting

MP3 (Continued)

Trouble

(continued)

Cause / Step

You turned off the ignition switch of the car during playback.

a

Playing another file will return the file playing time to normal.

File playing time is not displayed correctly.

You played a file in which character information had been recorded by use of

ID3Tag 2.0 or later version.

a

A file in which character information was recorded by use of ID3Tag 2.0

or later version may not be reproduced normally. For example, the file playing time may not be displayed correctly.

Radio

Trouble

Poor reception of FM stereo and monaural broadcasts.

Cause / Step

Station is too far, or signals are too weak.

a

Select other stations of higher signal level.

The motor antenna relay control lead is not connected correctly.

a

If there is a motor antenna in the car, connect the motor antenna relay control lead to the motor antenna lead that is installed in the car correctly.

The radio antenna is not extended enough.

a

Fully extend the radio antenna.

90

Car Navigation, VCR, Camcorder, Rear View Camera, Rear Monitor

Trouble Cause / Step

The picture from a car navigation system is not displayed.

The connection of a car navigation system is not correct.

a

Connect it correctly.

Input setting of a car navigation system is not correct.

a

Make the input setting correct.

The picture from a VCR or a camcorder is not displayed.

A VCR or Camcorder is not connected correctly.

a

Connect a VCR or Camcorder correctly.

No sound from a VCR or a camcorder.

The picture from a rear view camera is not displayed.

The picture or the sound of the rear monitor is not switchable.

The VTR1-IN and/or VTR2-IN level is excessively high. (The “OVER” display appears.) a

Adjust the VTR Input level.

Rear view camera is not connected correctly.

a

Connect a rear view camera correctly.

Input setting of a camera is not correct.

a

Make the input setting correct.

“AUTO” is not selected for the setting of a rear monitor.

a

Select “AUTO” for the setting.

CQ-VAD9200U

Display Settings

Trouble

The brightness of the screen is not stable.

The picture is dark.

The picture is whitish.

Something is wrong with the picture. The picture is light in color.

Red, blue, or green spots appears.

Sound Settings

Trouble

No sound from left, right, front, or rear speaker.

Left and right sounds are reversed.

No sound on the speaker.

No sound from the subwoofer

Cause / Step

“AUTO” dimmer is selected.

a

Select one of the dimmer levels from among 1 to 4 to make the dimmer adjustment become free from light intensity.

The screen is not adjusted properly.

a

Make every adjustment of the screen.

E

N

G

L

I

S

H

82

This is a characteristic of liquid crystal panels and is not a problem.

Cause / Step

Cables are not correctly connected.

a

Connect the cables correctly.

The speaker leads are connected in reverse between right and left.

a

Connect the speaker wires to the correct one.

The speaker setting is “NO” or “NONE”.

a

Set it correctly.

Playing back a disc having a subwoofer channel

¡Subwoofer is set to “NO” in the speaker setting.

a

Set subwoofer to “YES”.

¡Down mix a

No technical trouble. Cancel the down mix.

¡Private mode is set to “ON”.

a

Set private mode to “OFF”.

A disc without subwoofer channel is played back, or analog audio is played back

¡Subwoofer is set to “NO” in the speaker setting.

a

Set subwoofer to “YES”.

¡Sound field is set to “OFF” or “VOCAL”.

a

No technical trouble. Set it to other than “OFF” or “VOCAL”.

¡A disc recorded on 1 ch, 3 ch, 4 ch, or 5 ch is played back.

a

No technical trouble. No audio is output from the subwoofer when such a disc is played back.

CQ-VAD9200U

91

E

N

G

L

I

S

H

83

Troubleshooting

Error Display Messages

(continued)

Common messages in CD/MP3/DVD/Video CD/CD Changer

Display Cause / Step

- E1 -

Disc is dirty, or is upside down.

a

Check disc.

- E2 -

- E3 -

Disc has scratches.

a

Check disc.

No operation by some cause.

a Press [u]. If failure persists, press the reset switch. (Press the reset

switch in the CD changer). If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic Servicenter to ask for repairs.

NO DISC

No disc is in the player.

a

Insert disc into the disc slot.

Notes:

¡There may be cases when the disc numbers affected by an error are displayed before E1 and E2.

¡Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating

Instructions for the changer used.

MP3

- E4 -

CD Changer

NO MAGAZINE

DVD

PAL/NTSC ERROR

REGION ERROR

The type of the file that is selected is not supported.

a

Check disc.

No magazine is in the changer.

a

Load the changer with CD-loaded magazine.

An attempt was made to play a PAL disc.

a

Press [u] and check the disc.

An attempt was made to play a disc with a region number other than "1" or

"ALL".

a

Press [u] and check the disc.

92

CQ-VAD9200U

Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized

Panasonic Servicenter. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (5 A for display unit, 15 A for hide-away unit). Using different substitutes or fuses with a higher rating, or connecting the product directly without a fuse, could cause fire or damage to this unit.

If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

E

N

G

L

I

S

H

84

If the Unit Begins to Operate Malfunctionally...

Reset switch

Insert a hard, slender stick into the hole and push the switch.

Important

Push the switch only when the unit fails to operate with any buttons. (Stored settings and adjustments are not cleared.)

If the unit fails to return to normal condition, call the nearest Panasonic Servicenter and ask for repairs.

Display Unit Hide-away Unit

CQ-VAD9200U

7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER

RESET

MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC

TRACK/

CHANNEL

Reset switch

Notes:

¡We recommend that you press both of the reset switches on the Display Unit and the Hide-away Unit one by one in any order.

¡If the ID-CODE has been already set, you will be asked to enter the ID-CODE right after the unit is restarted.

CQ-VAD9200U

93

E

N

G

L

I

S

H

85

Maintenance

To prevent damage to the system exterior

Do not apply pesticides, benzine, thinner or other volatile substances to the unit.

The cabinet surface primarily consists of plastic materials.

Do not wipe with benzine, thinner or similar substances because this will result in discoloration or removal of the paint.

When a cloth with a cleansing chemical is used, follow the caution points.

Do not leave the unit in contact with rubber or vinyl products for long periods of time.

Do not use cleansers which have polishing granules because this could damage the surface of the unit.

Alcohol

Thinner

Pesticide

Wax

Tape

Benzine

Adhesive

Tape

Clean dirt by wiping lightly with a soft cloth

When the unit is dirty, wipe the surface of the display using the Wiping Cloth (supplied).

Without a Wiping Cloth

When the unit is dirty, wipe with a well-wrung cloth dipped in liquid dish washing detergent (neutral) diluted with water and then go over the same surface with a dry cloth.

(Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.)

Wring well.

Wipe lightly.

Go over the same surface with a dry cloth.

a a

94

Dish washing soap diluted with water

Note: Do not scratch the screen with your nails or other hard objects. The resulting scratches or marks will obscure the images.

Caution: If water drops or similar wet substances get inside the monitor, it may cause a malfunction.

CQ-VAD9200U

Notes on Discs

How to hold the disc

¡Do not touch the underside of the disc.

¡Do not scratch the disc.

¡Do not bend disc.

¡When not in use, keep disc in the case.

Do not use irregularly shaped discs.

Do not leave discs in the following places:

¡Direct sunlight

¡Near car heaters

¡Dirty, dusty and damp areas

¡On seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Do not attach any seals or labels to your discs.

Do not write on the disc label in a heavy pen or ballpoint pen.

<Right>

Label side

Do not use irregularly shaped discs.

<Wrong>

E

N

G

L

I

S

H

86

Notes on CD-Rs/RWs

¡You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.

¡CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside a car for extended periods may damage and make playback impossible.

¡The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD recorder (CD-R/RW drive) and a disc if they are incompatible with one another.

¡This player cannot play CD-R/RW discs if the session is not closed.

¡This player cannot play CD-R/RW discs which contain other than CD-DA or MP3 data (Video CD, etc.).

¡Be sure to observe the handling instructions of CD-R/RW discs.

CQ-VAD9200U

95

E

N

G

L

I

S

H

87

Definition of Terms

Digital audio output connector (Optical)

The digital audio output connector (optical) converts electrical signals into optical signals and transfers them to the amplifier. Consequently, it has a number of features including its immunity from electrical interference from external sources and its ability to prevent the generation of noise and its minimal effect on the external environment.

Dolby Digital

This fully discrete format divides the music signals into 5.1 channels: Front Left (L), Front Right (R),

Center (C), Left Surround (LS), Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback. The number of channels that are recorded depends on the software. (1 to 5.1 channels)

Manufactured under license from Dolby

Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Confidential unpublished works. Copyright

1992 – 1997 Dolby Laboratories. All rights reserved.

Dolby Pro Logic

This format records signals from four channels [Front

Left (L), Front Right (R), Center (C), and Monaural

Surround (S)] in two channels, decodes those channels through a Dolby Pro Logic decoder, and then outputs the resulting signals in four channels.

dts

This format requires more data than Dolby Digital, and provides higher quality surround playback.

Similar to Dolby Digital, this fully discrete format divides the music signals into 5.1 channels: Front Left

(L), Front Right (R), Center (C), Left Surround (LS),

Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback.

Manufactured under license from Digital

Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issues and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.

©

1996 Digital Theater Systems, Inc. All rights reserved.

Interactive DVD

An interactive DVD is DVD software which includes multiple angles, multiple plot endings, etc.

Letterbox screen

This refers to a screen on which the playback picture of wide-screen DVDs or Video CDs appears with black bands running along the top and bottom.

LPCM (Linear PCM audio)

In this format, the audio signal is converted to digital data and recorded in two channels without compression. Because the capacity of a DVD video disc is large, it can store more data with better accuracy than a CD.

Pan & Scan screen

This refers to a screen on which the playback picture of wide-screen DVDs or Video CDs is cut off at the left and right sides.

Playback control (Video CD)

If the Video CD has “With Playback Control” or others written on the disc surface or on the jacket, the scenes or information to be viewed (or listened to) can be selected interactively with the screen by looking at the menu shown on the screen.

In these instructions, playback using the menu screen is referred to as the “menu play” for video CDs. This player supports Video CDs with playback control.

Title, Chapter (DVD)

DVDs are divided into some large sections (titles) or some small sections (chapters). Each section is numbered; these numbers are called “Title number” or

“Chapter number”.

Title 1 Title 2

Chapter 1 Chapter 2 …… Chapter 1 ……

Track (Video CD/CD)

Video CDs or CDs are divided into some sections

(tracks). Each section is numbered; these numbers are called “Track number”.

Track 1 Track 2 Track 3 Track

……

96

CQ-VAD9200U

Language Code List

Code Language Name

6565 Afar

6566 Abkhazian

6570 Afrikaans

6577 Ameharic

6582 Arabic

6583 Assamese

6588 Aymara

6590 Azerbaijani

6665 Bashkir

6669 Byelorussian

6671 Bulgarian

6672 Bihari

6678 Bengali; Bangla

6679 Tibetan

6682 Breton

6765 Catalan

6779 Corsican

6783 Czech

6789 Welsh

6865 Danish

6869 German

6890 Bhutani

6976 Greek

6978 English

6979 Esperanto

6983 Spanish

6984 Estonian

6985 Basque

7065 Persian

7073 Finnish

7074 Fiji

7079 Faroese

7082 French

7089 Frisian

7165 Irish

7168 Scots Gaelic

7176 Galician

7178 Guarani

7185 Gujarati

7265 Hausa

7273 Hindi

7282 Croatian

7285 Hungarian

How to input the language code, refer to page 47.

Code Language Name

7289 Armenian

7365 Interlingua

7378 Indonesian

7383 Icelandic

7384 Italian

7387 Hebrew

7465 Japanese

7473 Yiddish

7487 Javanese

7565 Georgian

7575 Kazakh

7576 Greenlandic

7577 Cambodian

7578 Kannada

7579 Korean

7583 Kashmiri

7585 Kurdish

7589 Kirghiz

7665 Latin

7678 Lingala

7679 Laothian

7684 Lithuanian

7686 Latvian, Lettish

7771 Malagasy

7773 Maori

7775 Macedonian

7776 Malayalam

7778 Mongolian

7779 Moldavian

7782 Marathi

7783 Malay

7784 Maltese

7789 Burmese

7865 Nauru

7869 Nepali

7876 Dutch

7879 Norwegian

7982 Oriya

8065 Panjabi

8076 Polish

8083 Pashto, Pushto

8084 Portuguese

8185 Quechua

Code Language Name

8277 Rhaeto-Romance

8279 Romanian

8285 Russian

8365 Sanskrit

8368 Sindhi

8372 Serbo-Croatian

8373 Singhalese

8375 Slovak

8376 Slovenian

8377 Samoan

8378 Shona

8379 Somali

8381 Albanian

8382 Serbian

8385 Sundanese

8386 Swedish

8387 Swahili

8465 Tamil

8469 Telugu

8471 Tajik

8472 Thai

8473 Tigrinya

8475 Turkmen

8476 Tagalog

8479 Tonga

8482 Turkish

8484 Tatar

8487 Twi

8575 Ukrainian

8582 Urdu

8590 Uzbek

8673 Vietnamese

8679 Volapük

8779 Wolof

8872 Xhosa

8979 Yoruba

9072 Chinese

9085 Zulu

CQ-VAD9200U

97

E

N

G

L

I

S

H

88

E

N

G

L

I

S

H

89

Specifications

Display Unit

General

Power supply

Current consumption

Maximum power output (external speaker)

Compatible speaker impedance

Dimensions (W x H x D)

Weight

: 12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground

: Less than 1.5 A

: 0.7 W

: 8

: 7” x 1-15/16” x 6-5/16” (178 x 50 x 160 mm)

: 5 lbs. 1 oz. (2.3 kg)

Monitor

Liquid crystal panel

Screen dimensions (W x H x D)

Number of pixels

Valid pixel ratio

Display method

Drive method

Light source

Supplied speaker

Impedance

Maximum power input

: 7" wide

: 6-1/16" x 3-7/16" x 6-15/16" (154 x 87 x 177 mm)

: 336,960 pixels (234 vertical x 480 horizontal x 3)

: Over 99.99%

: Transparent color filter format

: TFT (Thin Film Transistor) active matrix format

: Internal light (Built-in small fluorescent lamp)

: 8

: 2 W

Digital audio output

Disc

DVD

Video CD

CD

MP3

Sound recording format

Dolby Digital

DTS*

Linear PCM

(48 kHz 16/20/24 bit)

MPEG 1

Linear PCM

Linear PCM

DTS*

MP3

Optical digital audio output from connector

Dolby Digital bitstream (1 – 5.1 ch)

DTS bitstream (1 – 5.1 ch)

(The analog portion is not output.)

Linear PCM (2 ch)

(48 kHz sampling/16 bit only)

MPEG 1 bitstream

Linear PCM (2 ch)

(44.1 kHz sampling/16 bit)

Linear PCM (2 ch)

(44.1 kHz sampling/16 bit)

DTS bitstream (1 – 5.1 ch)

(The analog portion is not output.)

Linear PCM (2 ch)

(32 kHz/44.1 kHz/48 kHz sampling/16 bit)

*DTS only works with optical outputs.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

98

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CQ-VAD9200U

Hide-away Unit

General

Power supply

Current consumption

Maximum power output

Compatible speaker impedance

Video input signal

Audio input sensitivity

Video output signal

Pre-Amp output voltage

Pre-Amp output impedance

Dimensions (W x H x D)

Weight

: 12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground

: Less than 10 A (during disc playback)

: 45 W x 4 ch + 35 W (at 16 V)

: 4

: Composite video signal, 1.0 Vp-p (75

Ω)

: 2 Vrms

: Composite video signal, 1.0 Vp-p (75

Ω)

: 4 Vrms

: Less than 60

: 9-5/8” x 1-5/8” x 5-7/8” (245 x 42 x 150 mm)

: 3 lbs. 16 oz. (1.8 kg)

FM stereo radio

Frequency range

Usable sensitivity

Stereo separation

S/N ratio

: 87.9 - 107.9 MHz

: 12 dBf

: 35 dB (1 kHz)

: 70 dB

AM stereo radio

Frequency range

Usable sensitivity

Image rejection ratio

Video section

Signal format

Video output

Region number

: 530 - 1 710 kHz

: 28 dB/µV

: 50 dB

: NTSC (Standard signal format in U.S and Japan)

: 75

Ω, 1 Vp-p

: 1 and ALL

Audio section

Output voltage/Impedance

Frequency characteristics

: 4 Vrms / 60

(when “LARGE” is selected)

Front L/R, Center, Rear (surround) L/R : 20 Hz - 20 kHz (±1 dB)

Delay time

Dolby Digital

Center

Rear (surround) L/R

Dolby Pro Logic

: 0 - 5 ms

: 0 - 15 ms

Rear (surround) L/R

Distortion

: 15 - 30 ms

Front L/R (1 kHz, 0 dB, PCM input) : 0.01 %

Dynamic range

S/N ratio

: 96 dB (during CD playback and connected with optical fiber cable)

: 100 dB (during CD playback and connected with optical fiber cable)

Above specifications comply with EIA standards.

Note: Specifications and the design are subject to modification without notice due to improvements in technology.
