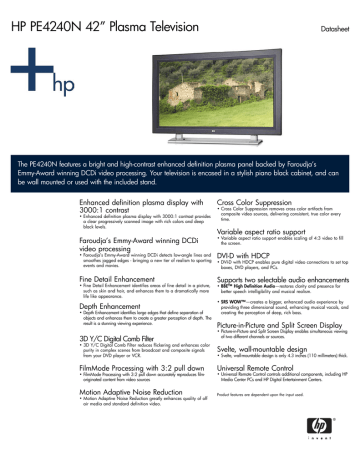

HP PE4240N 42” Plasma Television

HP PE4240N 42” Plasma Television
HP PE4240N 42” Plasma Television
Datasheet
The PE4240N features a bright and high-contrast enhanced definition plasma panel backed by Faroudja’s
Emmy-Award winning DCDi video processing. Your television is encased in a stylish piano black cabinet, and can
be wall mounted or used with the included stand.
Enhanced definition plasma display with
3000:1 contrast
• Enhanced definition plasma display with 3000:1 contrast provides
a clear progressively scanned image with rich colors and deep
black levels.
Faroudja’s Emmy-Award winning DCDi
video processing
Cross Color Suppression
• Cross Color Suppression removes cross color artifacts from
composite video sources, delivering consistent, true color every
time.
Variable aspect ratio support
• Variable aspect ratio support enables scaling of 4:3 video to fill
the screen.
• Faroudja’s Emmy-Award winning DCDi detects low-angle lines and
smoothes jagged edges - bringing a new tier of realism to sporting
events and movies.
DVI-D with HDCP
Fine Detail Enhancement
Supports two selectable audio enhancements
Depth Enhancement
• SRS WOW™—creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass.
• Fine Detail Enhancement identifies areas of fine detail in a picture,
such as skin and hair, and enhances them to a dramatically more
life like appearance.
• Depth Enhancement identifies large edges that define separation of
objects and enhances them to create a greater perception of depth. The
result is a stunning viewing experience.
3D Y/C Digital Comb Filter
• DVI-D with HDCP enables pure digital video connections to set top
boxes, DVD players, and PCs.
• BBE™ High Definition Audio—restores clarity and presence for
better speech intelligibility and musical realism.
Picture-in-Picture and Split Screen Display
• Picture-in-Picture and Split Screen Display enables simultaneous viewing
of two different channels or sources.
• 3D Y/C Digital Comb Filter reduces flickering and enhances color
purity in complex scenes from broadcast and composite signals
from your DVD player or VCR.
Svelte, wall-mountable design
FilmMode Processing with 3:2 pull down
Universal Remote Control
Motion Adaptive Noise Reduction
Product features are dependent upon the input used.
• FilmMode Processing with 3:2 pull down accurately reproduces filmoriginated content from video sources
• Motion Adaptive Noise Reduction greatly enhances quality of off
air media and standard definition video.
• Svelte, wall-mountable design is only 4.3 inches (110 millimeters) thick.
• Universal Remote Control controls additional components, including HP
Media Center PCs and HP Digital Entertainment Centers.
HP PE4240N 42” Plasma Television
Datasheet
Key Television Specifications
Panel System
Enhanced Definition Plasma Display
Displayable Colors
Up to 16.7 Million
Video Format
Accepts RGB, NTSC, 480i, 480p, 720p, 1080i Converts all video
signals to 480p enhanced definition video
Pixel Pitch
0.043 in. (H) × 0.043 in. (V) 1.08 (H) × 1.08 (V) mm
Anti-reflective Coating
Yes
Diagonal Screen Size
(inches)
42 in. (1066.8mm )
Life1
Up to 60,000 Hrs
Viewable Image (W x H)
36.3 in. x 20.4 in (921 mm X 518 mm)
Contrast (typical)
3000 : 1
Aspect Ratio
16:9 Widescreen
Brightness (typical before filter)
Up to 1000 cd/m2
Native Resolution
852 (H) × 480 (V) pixels
Tuner Specifications
TV Tuner
Built-in NTSC TV Tuner
Cable Tuning System
Standard, HRC, IRC
Tuning options
Automatic channel scan
Automatic Fine Tuning
Favorite channel edit
A/B hot channel buttons
Closed Caption
Yes
MTS Sound Processing
Stereo, mono, SAP
V-Chip
Password protect viewing according to Age and Content Rating,
TV Rating, and MPAA Rating TV System
HDTV supported inputs
Component Input (YPbPr): 1080i/720p/480p/480i
DVI: 1080i/720p/480p2
Front Controls
Power, Input, Menu, Setting, Adjust/Volume Up, Adjust/Volume
Down, Channel Up, and Channel Down
Channel Coverage
VHF 2 – 13
UHF 14 – 69
CATV 1 – 125
Antenna
75 Ohm External
Television Control Specifications
Universal Remote Control
Programmable universal remote controls TV and additional devices,
including HP Digital Entertainment Centers and HP Media Center PCs.
Additional Features
Television Connections Specifications
Auto Channel Program
Antenna Input (75 Ohm F connector)
Channel Skip/Add
High Definition Component Input (YPbPr)
1
Favorite Channel A & B
Standard Definition Component Input (YPbPr)
1
Aspect Modes – 4:3, 16:9, Zoom 1, Zoom 2
Composite Video Input (AV)
2
Sleep timer
S-Video Input
2
Closed Caption
PC Input (RGB-VGA)
1
V-Chip Parental Control
DVI-HDCP Interface
1 (with HDCP support)
A/V Audio Inputs
6
1
1
PC Audio Inputs
2
Audio Out - RCA Pair
1
RS-232 (for service)
1
The life is determined as the time at which luminance is 50% compared to that of initial value at the typical lamp current on condition of continuous operating at 25 ± °C.
HP PE4240N 42” Plasma Television
Datasheet
Television Power Specifications
Input Power
120/240V
Average
380 watts
Nominal Current
3.5 A maximum
Integrated Power Supply
Yes
Frequency
50 Hz ~ 60 Hz
Power Cable Length
70 in (1.8 m); Detachable
Speakers
Integrated 5W x 2, rear firing
MTS / SAP
Yes – Stereo, Mono, SAP
Sound modes
SRS WOW: Creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass without the need for a
subwoofer
Audio out
1 (RCA Pair)
Audio Controls
Bass/Treble/Volume/Balance
Key Audio Specifications
BBE™ High Definition Audio: Restores clarity and presence for
better speech intelligibility and musical realism.
Television Weights and Dimensions
Environmental Specifications
Dimensions
Panel w/ stand (h x w x d)
27.78 in x 40.8 in x 9.68 in (708.5 mm x 1038 mm x 245.9 mm)
Humidity – Operating
20% to 80% (no condensation)
Humidity – Non-operating
5% to 80% (38.7°C maximum wet bulb temperature)
Panel without stand (h x w x d)
25.2 in x 40.8 in x 4.3 in (640 mm x 1038 mm x 110 mm)
Altitude – Operating
0 to 6,562 ft. (0 to 2,000 m)
Altitude – Non-operating
0 to 9843 ft. (0 to 3,000 m)
Quick Start Guide
Wall Mountable
Yes - with optional Wall Mount (Wall Mount sold separately)
Instruction Manual
Certification and Compliance FCC Approval
UL Approval
Stand Footprint (h x d x w)
7.1 in x 28.2 in x 9.68 in (180 mm x 716 mm x 245.9mm)
Packaged (h x d x w)
37.4 in x 17.9 in x 38.0 in (950 mm x 455 mm x 1220 mm)
Weight
Panel (Display head)
77.1 lbs (35 kg)
Stand
6.6 lbs (3kg)
Packaged
108 lbs (49 kg)
Base
Ships attached and is removable
Temparature - Operating
41°F to 95°F (5°C to 35°C)
Temperature – Non-operating -4°F to 140°F (-20°C to 60°C)
Accessories, Warranty and Agency Approvals
Accessories Included
Remote Control
75 Ohm Coaxial Cable
Warranty
Power Cable
Recommended Solution
Additions
HP High Definition Tuner
HP Digital Entertainment Center
HP Media Center PC
SRS WOW and the
symbol are trademarks of SRS Labs, Inc.
BBE and the BBE logo are registered trademarks or trademarks of BBE Sound, Inc.
DCDi™ is a trademark of Faroudja, a division of Genesis Microchip Inc.
Product Number: P8719AA#ABA 09/04
Actual product may vary from image shown on datasheet. HP shall not be liable for technical or editorial errors or omissions contained herein. All hardware
and software specifications are subject to change without notice. Copyright © 2004 Hewlett-Packard Development Company, L.P. SRS WOW and the
symbol are trademarks of SRS Labs, Inc. BBE and the BBE logo are registered trademarks of BBE Sound, Inc. DCDi® by Faroudja is a registered
trademark of Genesis Microchip Inc.
Questions about the HP PL4245N 42” HD-Ready Plasma Television?
Look us up online at http://www.hp.com
1 year, parts and labor
