HP Wireless Display Adapter

HP Wireless Display Adapter

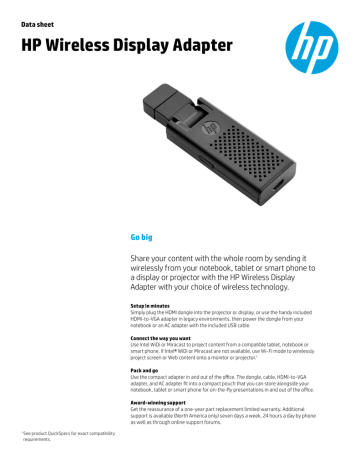

Data sheet
HP Wireless Display Adapter
Go big
Share your content with the whole room by sending it
wirelessly from your notebook, tablet or smart phone to
a display or projector with the HP Wireless Display
Adapter with your choice of wireless technology.
Setup in minutes
Simply plug the HDMI dongle into the projector or display, or use the handy included
HDMI-to-VGA adapter in legacy environments, then power the dongle from your
notebook or an AC adapter with the included USB cable.
Connect the way you want
Use Intel WiDi or Miracast to project content from a compatible tablet, notebook or
smart phone. If Intel® WiDi or Miracast are not available, use Wi-Fi mode to wirelessly
project screen or Web content onto a monitor or projector.1
Pack and go
Use the compact adapter in and out of the office. The dongle, cable, HDMI-to-VGA
adapter, and AC adapter fit into a compact pouch that you can store alongside your
notebook, tablet or smart phone for on-the-fly presentations in and out of the office.
Award-winning support
Get the reassurance of a one-year part replacement limited warranty. Additional
support is available (North America only) seven days a week, 24 hours a day by phone
as well as through online support forums.
See product QuickSpecs for exact compatibility
requirements.
1
Data sheet | HP Wireless Display Adapter
Specifications
Part number
J1V25AA
Interface
Wi-Fi
HDMI V1.3a
Micro USB power port
Technology/Operating bands
Dual band 2.4G / 5G radio
IEEE 802.1 a/b/g/n
Wireless protocol standards
Programmable Access Point (AP) or Station (STA) functionality
Intel Wireless Display (WiDi)
Miracast
Maximum power consumption
Around 600 mA
Antenna type
PIFA antenna, Dipole Antenna
Weight
Around 28 g
0.9 oz
Dimensions
94.1 x 30.5 x 14.2 mm
3.7 x 1.2 x .55 in
Voltage, Operating
4.75V~5.25V (5V recommended)
Temperature, operating
10° to 50° C (Normal operation)
0° to °65 C (Extended operation)
Temperature, storage
-30° to 60° C
Humidity
Up to 85% (Operating)
Up to 60% (Storage)
Configuration utilities
Web server running on dongle
Kit contents
HP Wireless Display Adapter and cap
HDMI-to-VGA adapter
Micro USB-to-USB cable
Localized power adapter
Carrying bag
Operating system connection type
Windows® XP and higher
Intel® WiDi 3.5 and higher, Miracast using WiFi 802.11n or higher, AP WiFi Using 802.11g or higher
Android 4.2 and higher
Intel® WiDi 3.5 and higher, Miracast enable devices
Linux ubuntu LTS version V12.04 and higher
WiFi 802.11n
Mac OS Mac V.10.6.8 and higher
iOS is not supported
WiFi 802.11n
Certifications
Intel® Pro WiDi Gen 4 certified
Intel® WiDi certified
WiFi Certified Miracast™
WiFi Certified™
Sign up for updates
hp.com/go/getupdated
Share with colleagues
Rate this document
© Copyright 2015 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Intel, Pentium, Intel Inside and the Intel Inside logo are trademarks of Intel Corporation in the U.S. and other countries.
4AA5-8660ENW, May 2015
