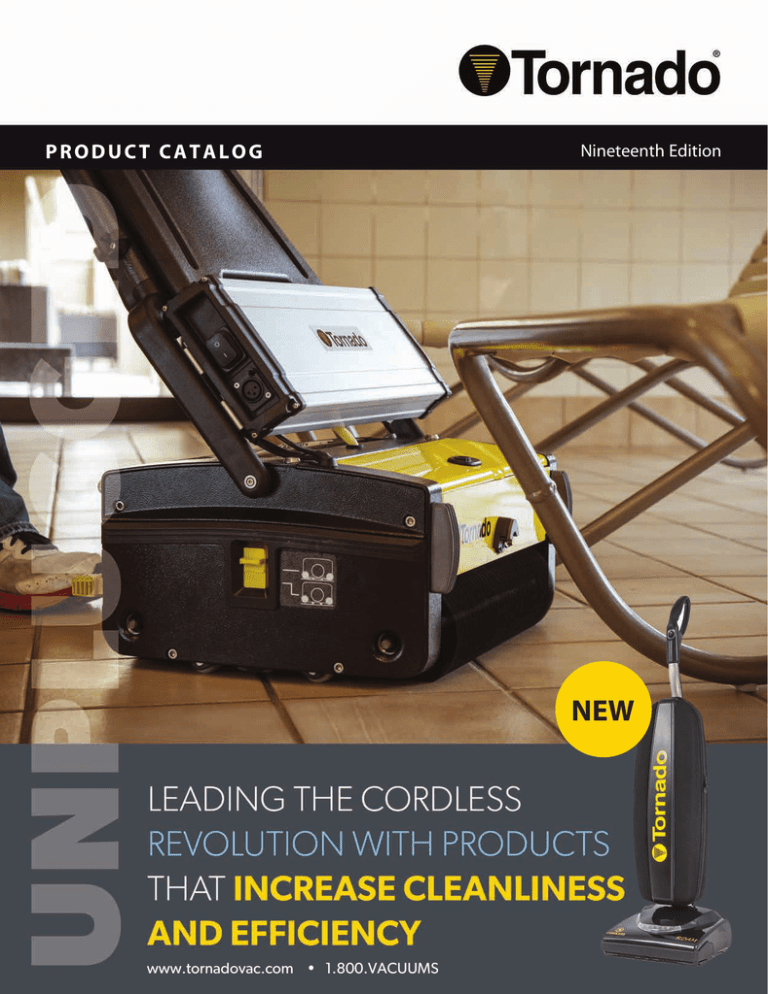

PRODUCT CATALOG

Nineteenth Edition

www.tornadovac.com • 1.800.VACUUMS

NEW

End-Users!

See Your Local

Tornado Dealers to Buy

Table of Contents

CARPET CARE 4

3 EASY WAYS FOR

TORNADO® DEALERS TO

PLACE AN ORDER:

8

By Internet:

Email your order to

[email protected] or directly to one of our Inside

Sales Representatives

2

1 - 8 0 0 - VAC U U M S

FLOOR MACHINES 24

By Phone:

Call 1-800-VACUUMS and ask for an Inside Sales Representative

SWEEPERS 32

AUTOMATIC SCRUBBERS 35

COMMERCIAL TANK VACUUMS 48

JUMBO INDUSTRIAL VACUUMS 51

SPECIALTY UNITS 55

By Fax:

Fax your purchase order to

817-551-6507 to the attention of our Inside Sales Department

If you should have an inquiry regarding a current order you have with Tornado just call 1-800-VACUUMS and ask for an

Inside Sales Representative (Please have the order number available).

For product literature, specifications, performance data, the latest pricing, or your local Tornado Representative’s contact information, just visit us on the web at: www.tornadovac.com

When placing an order with Tornado please make available your:

• Company Name or

Account number

• Purchase Order (PO) number

• Part number/s

• Shipping Address

This information will allow us to process your order quickly and efficiently.

W W W. TO R N A D OVAC . CO M

THE CK LW 13/1 ROAM

CORDLESS

LIGHTWEIGHT

WHISPER-QUIET

THE PAC-VAC® 6 ROAM

The Tornado

®

Roam Series

Designed to Deliver . . .

Enjoy the Tremendous Productivity

Gains and Convenience Afforded by

Cordless Operation.

Less is More. Cut the Cord.

• With almost one hour of run time in both of our Roam units, clean more square footage per hour than a corded unit.

• Stop waiting on batteries. Our Samsung Lithium Ion batteries charge in under two hours.

• Don’t sacrifice comfort and safety for productivity. Not only do our Roam units meet ISSA standards for productivity, but they’re also light weight, user friendly and eliminate STFs caused by power cords.

• Clean any facility, anytime. The Pac-Vac® 6 Roam and the CK LW 13/1

Roam operate under 70dBs.

• Cordless machines lower service costs since damaged power cords are one of the leading repairs on corded upright vacuums.

1 - 8 0 0 - VAC U U M S

BR MW 13/1 BAT

W W W. TO R N A D OVAC . CO M

3

Only 8

Pounds!

INNOVATIVE

Wooden brush roll with 10 mm non-crimped brushes and easy change belt.

CONVENIENT ON/OFF SWITCH

LOCATION

Ergonomic handle with easy to use switch and convenient cord lock.

4

CONVENIENT

Low profile lays completely flat to reach under beds and other furniture.

1 - 8 0 0 - VAC U U M S

A perfect blend of durability, price and performance.

At only 8 pounds, the Tornado® CK LW 13/1 has the power to deliver heavyweight commercial cleaning results with an incredible 160 CFM. Tackling even the toughest commercial cleaning tasks, the CK LW 13/1 will not only maximize cleaning speed and results, it will help minimize on-the-job injuries due to its light weight.

Featuring dual fan technology for better cleaning, a huge top-loading filter bag, and a low-profile design that lays completely flat to reach underneath beds and other furniture, the CK LW 13/1 has what it takes to get the job done. Built with tough polypropylene materials and aluminum, this vacuum will outlast other commercial lightweight vacuums of its kind.

The CK LW 13/1 incorporates a motor exhaust filter for facilities that require containment of dust and fine particles. The result is improved indoor air quality

(IAQ), while also ensuring maximum airflow, which is required for deep down carpet cleaning.

The 3-stage filtration system includes a unique, antimicrobial CleanBreeze disposable filter bag, a cloth outer filter bag, and a HEPA motor exhaust filter cartridge as standard. The disposable CleanBreeze collection filter is an intricate web of randomly spun polymer fibers capturing up to 60% more particles and allergens than conventional paper bags.

P R O D U C T S P E C I F I C AT I O N S

Model

Catalog Number

CK LW 13/1

97130

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Recovery Bag Capacity

Cord Type / Length

D E S I G N C H A R AC T E R I S T I C S

Cord Strain Relief

10” x 13.75” x 49”

8 Lbs.

432 cubic inches

50’, 18 gauge, 3-wire SJT, Black

Handle Design

Housing Bumper

Easy Debris Access

Belt Type / Design

C L E A N I N G S YS T E M

CFM

Yes

Anodized aluminum, Injection-molded comfort grip

Non-marking, front and side protection

Yes

Single, flat

Cleaning Path

Brush Roll

Bag Types

Filtration System

Easy Access Throat / Hoses

On Board Tools

160

13” with edge cleaning

Wood core with 10 mm bristles

Cloth / Microfiber / Paper

3-Stage System

Yes

No

M OTO R S

Vacuum Motor

Sound Level

1 hp/6 amps

82 dB

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

CleanBreeze Disposable Filter Bag (6 pack) D211-5500

Roller Bar for CK LW 13/1

HEPA Filter Cartridge

Outer Cloth Bag

Light

Foam filter in lieu of HEPA exhaust filter

B012-3000

B051-0700B

D431-0700

A350-0000

B015-0200

Paper Collection Bag (6 pack)

259PB

Belt

B014-0814B

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

A highly portable unit that is redefining effective, convenient cleaning for an entire industry

With the CK LW 13/1 Roam, you have the ability to clean anywhere anytime. With a dB rating below 70, the Roam is extremely quiet allowing you to vacuum even noise sensitive facilities such as schools, hospitals, retail stores and more! In addition, the

13” cleaning path along with cordless operation gives you the ability to clean hard-to reach places with ease!

Features and Benefits of the CK LW 13/1 Roam

• Battery operation provides up to 50 minutes of run time

• 13” cleaning path

• LED headlight for better sight under objects

• Ultra light at 11 pounds for easy transport and portability

• Circuit breaker motor protection

• Whisper-quiet at less than 70 dB

• Quick charge time at less than 2 hours

• Ergonomic handle design

• Simple on/off switch located on handle

• Can clean over 3,100 sqft of space on a single charge

NEW!

Lightweight

Cordless

Vacuuming

P R O D U C T S P E C I F I C AT I O N S

Model

Catalog Number

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Cleaning Path

CK LW 13/1 Roam

97300

13”x 10”x 44.5”

11 Lbs.

13”

P E R F O R M A N C E

Motor

Filtration

CFM

Productivity

Decibel Rating

480 Watt

Cleanbreeze Filter Bags

50-60

3,177 sqft/charge

<70 dB(A)

B AT T E RY

Power Source

Interchangeable Battery Pack

Run Time

Charge Time

44 V 2.9 Ah Lithium Ion Battery

Yes

Up to 50 minutes

<2 Hours

CO N S T R U C T I O N

Bottom Plate

Brush Roll

Wheels

Headlight

Carry Handle

Auto Height Adjustment

Polycarbonate w/Squeegee

Metal

6 Rubber Wheels

Ultra-Bright LED Headlight

Yes

Yes

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

Battery C223-1800

Charger

CleanBreeze Disposable Filter Bag

(10 pack)

Vacuum Belt

C223-2000

90039

B014-0814B

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

FRONT BUMPER PROTECTION

The CK LW 13/1 Roam features a front bumper to protect furniture.

LED HEADLIGHT

Ultra-bright LED headlight provides users with the ability to see under tight, dark spaces.

ERGONOMIC AND LIGHTWEIGHT

The ergonomic handle of the CK LW

13/1 Roam minimizes vibration as well as includes the on/off switch for simple, straightforward cleaning.

INTERCHANGEABLE BATTERY

For quick, convenient productivity, the CK 13/1 LW Roam has interchangeable batteries, allowing you to swap your drained battery with a fully charged one so you can clean your space with minimal downtime.

W W W. TO R N A D OVAC . CO M

5

14-inch commercial upright vacuum with HEPA filter.

The all new CK 14/1 Pro adds price, performance, and proven durability to

Tornado’s already impressive lineup of industry leading commercial upright carpet vacuums. Combining affordability, superior airflow, the benefits of an enclosed bag system, onboard tools, and a HEPA cartridge filter, the CK 14/1 Pro is a great combination of value and performance. LEED qualifying at less than

70 dbA, and the Carpet and Rug Institute (CRI) Seal of Approval, Silver Level, the

CK 14/1 Pro features a 14 inch cleaning path. Constructed with extremely durable

polypropylene and metal construction materials, the unit tackles tough cleaning tasks, with tested and certified performance.

With on-board tools, the CK 14/1 Pro’s powerful suction is ready at your fingertips for above-floor cleaning. The CK 14/1 Pro is flexible, reliable, and perfect for use in a variety of indoor environments including hospitals, healthcare facilities, schools and universities, hotels, resorts, restaurants, commercial office buildings, retail stores and shopping malls, and more.

The three-stage filtration system includes a unique CleanBreeze disposable filter bag, an intake filter, and a HEPA filter cartridge as standard. The CleanBreeze filter is an intricate web of randomly spun polymer fibers capturing up to 60% more particles and allergens than conventional paper bags.

Equipped with a HEPA exhaust cartridge filter, the CK 14/1 Pro is designed to help contain fine particulate and dust, contributing to improving indoor air quality

(IAQ) and reducing risks associated with the redistribution of potentially harmful particles and allergens.

Affordably Priced to Reduce Vacuum

Operating Costs!

CK 14/1 PRO

6

NEW ERGONOMIC HANDLE

FOR SUPREME COMFORT

With an all-new design for unmatched comfort, the CK 14/1 Pro delivers highend performance, productivity and comfort at a modest price, reducing your operating costs.

INSTALLING THE FILTER IS A

BREEZE

The CK 14/1 Pro comes standard with a

HEPA Filter cartridge for added indoor air quality protection. The easy access location of the HEPA cartridge makes changing it a breeze, but we didn’t stop there. Any operator will tell you that installing the collection filter bag without tearing them on most vacuums is a difficult task. Designed by professionals for professionals, the Tornado CK 14/1 Pro features a simple slide-in design, making torn collection filters a thing of the past.

PRODUCTIVITY SOARS WITH

ON-BOARD TOOLS

Increase cleaning productivity and coverage with on-board crevice and upholstery tools. Plus, with the help of the wand you’ll increase cleaning reach up to 30%!

1 - 8 0 0 - VAC U U M S

P R O D U C T S P E C I F I C AT I O N S

Model CK 14/1 Pro

Catalog Number

Cleaning Path

Productivity per Hour

Airflow

Capacity

Sound Level

Filtration System

Vac Motor

Power Cord Length

Power

Weight

Dimensions (L x W x H) (in. / mm)

98147

14 in / 350 mm

2,857 sq. ft. / 265 sq. m

120 cfm / 3.4 m3/h

3.8 qt / 3.6 L

69.9 dB(A)

3-Stage, including HEPA cartridge Exhaust filter

1200 W / 10 A

50 ft / 15 m

120 V / 60 Hz

20.6 Lbs / 9.36 kg

12.5 in x 14.75 in. x 44 in

320 mm x 370 mm x 1120 mm

R E P L AC E M E N T I T E M S

HEPA Filter

Brush Belt

Crevice Tool

Dusting Brush

Roller Bar

Telescopic Wand

Vacuum Motor Intake Filter

CleanBreeze Bag (10 pack)

90144

9.104

90142

90143

33574

36000

90145

90141

O P T I O N A L I T E M S

Paper Collection Bags (10 pack)

Foam Filter in Lieu of HEPA Filter

90147

90146

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

14-inch commercial upright vacuum with HEPA filter.

Effortless operation, versatility, innovative features, ergonomic design, and unmatched performance.

The Tornado® CV 30 and CV 38 are the most distinctive single motor uprights in their class. Some of the largest consumers of upright vacuums in the market helped us design these units from the ground up. The Tornado® CV 30 and CV 38 provide effortless operation, versatility, innovative features, ergonomic design, quiet operation, and HEPA filtration. A lightweight handle, brushassisted movement, on-board tools, quiet operation, and HEPA cartridge filter make the Tornado® CV 30 and CV 38 the choice of cleaning professionals. And it’s available in 12” and 15” models for all your cleaning needs.

The 3-stage filtration system includes a unique CleanBreeze disposable filter bag, an intake filter, and a HEPA filter cartridge all as standard. The CleanBreeze disposable filter is an intricate web of randomly spun polymer fibers capturing far more particles and allergens than conventional paper bags. Dust emissions are reduced up to 60% over traditional paper filters.

CV 38 15”

CV 30 12”

Both the CV 30 and CV 38 are CRI Gold level certified

P R O D U C T S P E C I F I C AT I O N S

Model CV 30

91449

Catalog Number

M AC H I N E D I M E N S I O N S

Dimensions (L X W X H)

Weight

Recovery Bag Capacity

12.75” X 12” X 45”

17.4 Lbs

5.51 liter/1.72 gal

CV 38

91451

12.75” X 15” X 45”

18 Lbs

5.51 liter/1.72 gal

D E S I G N C H A R AC T E R I S T I C S

CFM

Water Lift

Power Cord Type

Sound Level

Vac Motor

102

81.5”

40’, 18 gauge, 3-wire SJT, safety yellow

66 dB

9 AMP

102

81.5”

40’, 18 gauge, 3-wire SJT, safety yellow

66 dB

9 AMP

S TA N D A R D ACC E S S O R I E S

Crevice Tool

K69062400

K69002330

Upholstery/Utility Tool

CleanBreeze Disposable

Collection Bag (10 pack)

Roller Bar

HEPA Filter Cartridge

Vacuum Motor Intake Filter

K69043050**

K69066410

K64147600

K57316110

O P T I O N A L ACC E S S O R I E S

Foam Filter in Lieu of HEPA Filter

(3 pack)

K64147610

Cloth Reusable Filter Bag

K69043010

Paper Collection Bags (10 pack)

Foam Filter Frame

K69042940

K57316140

K69062400

K69002330

K69043050**

K69066440

K64147600

K57316110

K64147610

K69043010

K69042940

K57316140

VERSATILITY

The Tornado use in many different environments including:

®

CV 30 and CV 38 for

• Hospitals and Healthcare Facilities

• Schools and Universities

• Hotels and Resorts

• Restaurants

• Commercial Office Buildings

• Retail Stores and Shopping Malls

• Industrial Facilities, large and small

EASY TO CLEAN

The vacuum hose and throat can be easily accessed to clean out debris that is trapped inside.

INSTALLING THE BAGS AND

FILTERS

IS A BREEZE

Any operator will tell you that installing filter bags without tearing them is difficult. The units feature a patented design making torn bags a thing of the past. Simply slide the bag in, turn a lever, and you’re done.

See Page 59 for warranty information. ** One bag included with unit.

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

7

Dual motor vacuums with unmatched performance.

8

More

Streamlined

Design

CV 38 DUAL

CV 48 DUAL

3-STAGE FILTRATION

The filtration system includes a disposable filter bag, an intake filter, and a HEPA filter cartridge.

FILTER INSTALLATION IS

A BREEZE

Removal-system allows a nearly dust free filter bag change and opens with an easy to operate pivoted lever.

1 - 8 0 0 - VAC U U M S

Tornado’s CV 38 and CV 48 Dual Motor upright vacuums offer optimum power through increased rpms and brush speeds, tackling the most challenging cleaning environments. Individual vacuum and brush roll motors increase soil recovery, prolong brush-motor life, and improve carpet appearance and longevity.

In addition, these units offer ergonomic operator comfort and whisper-quiet operation which is perfect for noise-sensitive facilities such as hotels, schools and libraries.

The filter system is designed to help contain fine particulate and dust, contributing towards improving indoor air quality and reducing the risk associated with the redistribution of potentially harmful particles and allergens.

The 3-stage filtration system includes a unique CleanBreeze disposable filter bag, an intake filter, and a HEPA filter cartridge all as standard. The CleanBreeze disposable filter is an intricate web of randomly spun polymer fibers that captures up to 60% more particles and allergens than conventional paper bags.

The CV 38 Dual and CV 48 Dual provide effortless operation, versatility, innovative features, ergonomic design, quiet operation, and HEPA filtration for use in many different industries including, healthcare, education, hospitality, retail and industrial facilities.

CHANGEABLE ROLLER BRUSH

Requires no tools and allows hairs, threads, etc. to be removed quickly and easily.

EASY TO CLEAN

The vacuum hose and throat can be easily accessed to clean out debris that is trapped inside.

LOW PROFILE

With a handle that lowers flat to the ground, the CV Dual vacuums reach areas under furniture comfortably.

P R O D U C T S P E C I F I C AT I O N S

MODEL CV 38 DUAL

Catalog Number

91415

M AC H I N E D I M E N S I O N S

Dimensions (L X W X H)

14” x 15” x 45”

Net Weight

Shipping Weight

Recovery Bag Capacity

21 Lbs.

25 Lbs.

6 quarts

D E S I G N C H A R AC T E R I S T I C S

Cord Type

40’, 18 gauge, 3-wire SJT, safety yellow

Cord Strain Relief

Yes

Body Construction

Handle Design

Housing Bumper

Easy Debris Access

Belt Type / Design

Standard Bag Type

Polypropylene

Ergonomic

Non-Marking

Yes

Non-slip toothed

CleanBreeze

C L E A N I N G S YS T E M

CFM

Water Lift

Cleaning Productivity

Sound Level

Cleaning Path

Brush Design

Filtration System

On Board Tools

102

100”

3,433

67 dB

15”

Plastic Brush Roll

3-Stage System

Yes

M OTO R S

Vacuum Motor

Brush Motor

R E P L AC E M E N T I T E M S

Crevice Tool

Upholstery/ Utility Tool

CleanBreeze Disposable

Collection Bag (10 Pk)

Brush Roller Bar

Hepa Filter Cartridge

Vac Motor Intake Filter

O P T I O N A L I T E M S

Foam Filter (Used In Lieu

Of Hepa) (3 Pk)

Cloth Reusable Filter Bag

Paper Collection Bag (10 Pk)

Foam Filter Frame

1.6 hp / 12 amps

150 watts

K69062400

K69002330

K69043050

K69066440

K64147600

K57316110

K64147610

K69043010

K69042940

K57316140

CV 48 DUAL

91419

14” x 19” x 45”

21 Lbs.

26 Lbs.

6 quarts

40’, 18 gauge, 3-wire SJT, safety yellow

Yes

Polypropylene

Ergonomic

Non-Marking

Yes

Non-slip toothed

CleanBreeze

100

97”

4,085

67 dB

19”

Plastic Brush Roll

3-Stage System

Yes

1.3 hp / 8.3 amps

150 watts

K69062400

K69002330

K69043050

K47624880

K64147600

K57316110

K64147610

K69043010

K69042940

K57316140

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

CK 3030 WIDE-AREA

VACUUM

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

M AC H I N E D I M E N S I O N S

Base Dimensions (H X W X D)

Weight (Net/Shipping)

Recovery Bag Capacity

Power Cord

CK 3030 WIDE-AREA VACUUM

93030

20” X 30” X 36”

103 Lbs.

51 Quarts / 1.6 Bushels

75’, 18 gauge, 3 wire, safety yellow

D E S I G N C H A R AC T E R I S T I C S

Base Construction

Handle

Rear Wheels

Front Wheels (Dia.)

C L E A N I N G S YS T E M

CFM

Static Waterlift

Cleaning Path

Brush

Filtration

Brush Dimensions (W X Dia.)

Brush Speed

Brush Height Adjustment

Drive Belt

Overload Protection

M OTO R S

Vac Motor (2)

Brush Motor

Rotationally-molded polyethylene

Steel tubing, fully adjustable

10” non-marking

2” non-marking swivel casters

224 CFM

30”

30”

4-row nylon brush

4-Stage System

28” X 3”

1,170 RPM

5 pile settings

6-groove, poly-v

15 amp reset breaker

1 HP, 115V/60 Hz

.25hp / 186 watt

R E P L AC E M E N T F I LT E R S A N D B AG S

(Unit comes standard with each of the below items.)

Disposable Paper Filter Bags

90701

19816

Outer Cloth Filter Bag

Vac. Motor Exhaust Filter

(2 Required)

Clean-Air Exhaust Filter

Hepa Bag (10 Pk)

19834

19855

90701A

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

Outstanding clean-air performance, in a durable operator-friendly machine

If you are challenged with maintaining large carpeted areas, the 30”

CK 3030 Wide Area Vacuum delivers unmatched vacuuming

performance. High efficiency cleaning performance, clean-air filtration, and a host of operator-friendly features make this the perfect unit for malls, airports, hotels, convention centers, department stores, and hospitals.

The CK 3030 delivers uncompromising cleaning power in a truly user friendly package. Two high-efficiency vac motors provide 224 cfm, while a four-stage clean-air filtration system removes the finest of particles.

The 1,170 rpm brush loosens deep down dirt and revives carpet pile that gets compressed in high traffic areas. Robustly designed and constructed of rotationally-molded plastic, the CK 3030 stands up to the everyday rigors faced by today’s cleaning and maintenance professional. Features include five-position brush height adjustment, stainless steel brush shoe, deadman’s safety switch, and large rear wheels for effortless transport.

STORAGE MADE SIMPLE

The CK 3030’s handle folds down and the unit can be stood on end for storage.

EASE OF USE

The CK 3030 tackles large area vacuuming projects with ease. The handle can be adjusted for operator comfort. A 75-foot power cord minimizes interruptions for outlet changes.

BRUSH HEIGHT ADJUSTMENT

The CK 3030 has five pile height adjustment settings. The user may change settings with a simple foot pedal.

OPERATOR-FRIENDLY

An ergonomically-designed handle with cushioned grips and safety switch are standard.

FOUR STAGE CLEAN-AIR FILTRATION

Stage 1: Enclosed within the rotationally molded housing is a disposable paper filter bag, making disposal and replacement clean and efficient.

Stage 2: For added filtration Tornado

®

used a bag-in-bag design. The paper filter is enclosed within a durable, reusable cloth filter bag.

Stage 3: Each of the two vac motors is fitted with an intake filter for a third stage of filtration.

Stage 4: A high-performance filter cartridge is located at the motor exhaust, ensuring clean-air performance.

The combined efficiency of these four stages of filtration delivers clean-air performance that will reward you with cleaner carpets and healthier environment.

W W W. TO R N A D OVAC . CO M

9

Featuring a harness system designed by Deuter, the world’s leader in professional hiking equipment

Partnering with Deuter, the world leader in hiking and mountain climbing backpacks, Tornado® has finally made backpack vacuuming practical. The marriage of Tornado’s innovative vacuum technology with Deuter’s stateof-the-art harness, results in a unit we’re confident you’ll agree is the most comfortable backpack vacuum on the market today!

Standard, closed-back backpack vacuums can result in heat buildup on the operator’s back, which can cause discomfort and decrease cleaning productivity. The specially designed and patented Aircomfort System from Deuter with a 5-point adjustable harness and breathable back panel is truly a game-changer, keeping a layer of air between the operator and machine on Tornado’s Pac-Vac® Series. The result? Operators are up to

25% cooler compared to a normal closed back system.

Tornado’s Pac-Vac® 6 and 10 Aircomfort Backpack Vacuums

provide users with a fast and cost-effective alternative to traditional upright vacuums. Designed for performance, superior operator comfort, and increased productivity, these super-quiet units eliminate the need for multiple machines for different surfaces. Carpet, hard floors, upholstery, and above head cleaning become a breeze to clean, with productivity reaching 7,000 or more square feet per hour.

Revolutionary

Comfort!

PAC-VAC® 6 AND PAC-VAC® 10

10

ERGONOMIC

With the Vari-Quick system, users have the ability to adjust the unit to fit the exact length of their torso. There are also five points of adjustment for the harness straps, delivering a truly customized fit unmatched by other backpacks on the market.

PACKAGED COMPLETE

Standard attachments include a crush-proof hose, double bend wand, carpet and floor tools, a dust brush, upholstery tool and crevice tool.

1 - 8 0 0 - VAC U U M S

ACCESSORIES

Standard accessories are located on the belt for quick, hands-free convenient access. This facilitates above ground cleaning in hard-toreach areas.

FOUR-STAGE FILTRATION

The filtration system includes a disposable filter bag, an intake filter, and a HEPA filter cartridge to meet the needs of facilities that are striving for improved indoor air quality (IAQ).

P R O D U C T S P E C I F I C AT I O N S

Model

Catalog Number

Pac-Vac® 6 Aircomfort

93012B

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Recovery Bag Capacity

Cord Type

7.5 in x 9.5 in x 20.5 in

19 cm x 24 cm x 52 cm

13 Lbs. / 6 kg

6 qt. / 5.69 l

Kettle Type

Pac-Vac® 10 Aircomfort

93014B

7.5 in x 9.5 in x 25.25 in

19 cm x 24 cm x 64 cm

14 Lbs. / 6 kg.

10 qt. / 9.46 l

Kettle Type

C L E A N I N G S YS T E M

Approvals

Airflow

Waterlift

Productivity Per Hour

Filtration System

Sound Level

CRI Gold Level

110 CFM / 3.11 m3/h

CRI Gold Level

110 CFM / 3.11 m3/h

110 in. / 279 cm

7,407 sq. feet per hour

688 sq. meters per hour

110 in. / 279 cm

7,407 sq. feet per hour

688 sq. meters per hour

4-Stage with HEPA cartridge 4-Stage with HEPA cartridge

69.5 dB(A) 69.5 dB(A)

M OTO R S

Vacuum Motor

Power

8.5 A

120 V / 60 Hz

8.5 A

120 V / 60 Hz

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

Paper Collection Bags

(Set of 10)

C352-2500 B352-7800

Outer Cloth Bag

C352-1400 C352-1500

HEPA Filter

Motor Exhaust Filter

Hose

Double Bend Wand

17" Crevice Tool

5" Upholstery Tool

B352-2401

B352-2400

J1006

CT171

CT176

B352-2401

B352-2400

J1006

CT171

CT176

3" Dusting Tool

14" Easy Glide Carpet Tool

14" Carpet Tool

14" Hard Floor Tool

CT188

CT184

CT194

B352-PF10

C352-PF20

CT188

CT184

CT194

B352-PF10

C352-PF20

O P T I O N A L I T E M S

Aluminum Telescoping Wand CT170

Wand Adapter

Foam Exhaust Filter

(in lieu of HEPA)

2 ft. - 6 ft. Strech Hose

J1007

B352-5200

J1005

CT170

J1007

B352-5200

J1005

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

Taking speed and comfort to the next level

NEW!

With the Pac-Vac® 6 Roam from Tornado® we are able to offer cleaning professionals something they have been looking for, a battery operated back pack vacuum with unrivaled comfort. No longer tied to a power cord, team members can clean larger spaces quicker and more efficiently than traditional back-pack vacuums.

Powered by Samsung® lithium-ion battery technology, the Pac-Vac® 6 Roam:

• Runs continuously for up to an hour on a single charge.

• Provides a color-coded display indicating the battery status.

• Batteries can be easily changed without taking the unit off of the operators back.

• Allows for opportunity charging and provides a full charge in just 2 ½ hours!

The patented Aircomfort system includes: a lightweight, rounded frame and mesh back that creates a layer of flowing air between the wearer and the pack for ultimate cooling; a padded, contoured shoulder straps covered with wide airmesh, allowing the wearer’s body to breathe; and an ergonomic and anatomically shaped stable hip fins and waist belt, proven to balance pack weight, setting the wearer free to roam comfortably.

P R O D U C T S P E C I F I C AT I O N S

MODEL PAC-VAC® 6 ROAM

Catalog Number

93016

M AC H I N E D I M E N S I O N S

L X W X H

7.5 in x 13 in x 20.5 in

19 cm x 33 cm x 52 cm

Net Weight (with harness)

19 Lbs. / 9 kg

Capacity

6 qt. / 5.69 l

C L E A N I N G S YS T E M

Approvals

Airflow

Waterlift

Productivity Per Hour

Filtration System

Sound Level

cETLus

70 CFM / 118 m3/h

65 in. / 165 cm

10,582 sq. feet per hour

982 sq. meters per hour

4-Stage with HEPA cartridge

63 dba

M OTO R S

Vacuum Motor

Power

13 A

36 V / 10.0 Ah

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

Paper Collection Bags

(Set Of 10)

C352-2500

Outer Cloth Bag

C352-1400

Hepa Filter

Motor Exhaust Filter

Hose

Double Bend Wand

17" Crevice Tool

5" Upholstery Tool

3" Dusting Tool

14" Easy Glide Carpet Tool

14" Carpet Tool

14" Hard Floor Tool

Lithium Battery

Charger

B352-2401

B352-2400

J1006

CT171

CT176

CT188

CT184

CT194

B352-PF10

C352-PF20

X1200

X1194

O P T I O N A L I T E M S

Aluminum Telescoping Wand

Wand Adapter

Foam Exhaust Filter

(in lieu of HEPA)

2 ft. - 6 ft. Strech Hose

CT170

J1007

B352-5200

J1005

See Page 59 for warranty information.

EASILY SWITCHED BATTERY

State-of-the-art lithium ion battery can be easily switched out without taking the backpack off

PAC-VAC® 6 ROAM

5-POINT

ADJUSTABLE

HARNESS

Ergonomically designed back support and 5-point adjustable harness, designed by Deuter, the world’s leader in professional hiking equipment.

ACCESSORIES

Standard accessories are located on the belt for quick, hands-free convenient access. This facilitates above-ground cleaning in hard-toreach areas.

PACKAGED COMPLETE

Standard attachments include a crush-proof hose, double bend wand, carpet and floor tools, a dust brush, upholstery tool and crevice tool.

MAXIMUM PRODUCTIVITY AND SAVINGS

Cleaning at over 10,000 square feet per hour and a battery run time of almost an hour not only maximizes work productivity, but shows huge savings!

VACUUM TYPE DAILY VACUUM TIME

(based upon ISSA 612 cleaning times)

14” UPRIGHT

Pac-Vac® 6 Aircomfort (CORDED)

Pac-Vac® 6 Roam (Battery)

5.3 HOURS

2 HOURS

1.4 HOURS

ANNUAL SAVINGS OVER 14” UPRIGHT:

ANNUAL LABOR COST

(@ $10/hour)

$13,860

$5,368

$3,740

$10,120

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

11

When power and effciency meets quiet operation, you get a canister vacuum that separates itself from the competition.

Powerful, compact, and efficient, the TV 2 SS Dry Canister

Vacuum from Tornado® is the perfect alternative to upright or

backpack vacuums. The TV 2 SS is designed to accommodate noise-sensitive environments such as hotels,restaurants, retail outlets, offices, schools, and applications where silent day cleaning is a necessity. With a sound level of 63 dB, at its highest, the TV 2 SS is whisper quiet in its operation. Lightweight, the TV 2 SS is highly maneuverable and can be lifted with ease. Its streamlined profile also makes storage a breeze.

The multi-stage filtration system incorporates a CleanBreeze microfiber filter bag, a permanent main filter and motor protection filter, plus a HEPA exhaust filter for optimum indoor air quality

(IAQ). This standard HEPA filtration system helps improve IAQ by containing dust and fine particulate matter that causes discomfort for building occupants. The microber bags are made from a tearresistant material reducing the TV 2 SS’s maintenance costs while improving run time.

A new, ergonomically designed handle provides the utmost comfort for the operator. The unit is light and easy to transport, and includes a large foot-operated on/off switch and incorporates a dedicated “parking spot” for the wand when not in use. When the job is complete, an integrated mount allows the user to store the power cord quickly and easily.

Great

Alternative to Upright or Backpack

Vacuums!

NEW!

TV2 SS CANISTER VACUUM

12

INNOVATIVE STORAGE

The TV 2 SS features a unique “parking spot for the wand when not in use. Simply place the wand in this convenient spot whenever downtime is involved.

EASY ACTIVATION

With operator comfort and convenience in mind, the TV 2 SS incorporates a large, easy to access on/off foot switch.

TOOLS AND WAND STORAGE

Easy tool and wand storage located on the back of the unit.

1 - 8 0 0 - VAC U U M S

MAXIMUM POWER FILTRATION

The TV 2 SS incorporates a multi-stage filtration system that includes a three layer fleece filter bag, a permanent main filter, and motor protection filter plus a built in HEPA exhaust filter for optimum recovery.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

Voltage/Frequency

Vac Motor

Variable Airflow

Variable Waterlift

Dust Bag Capacity

Hose Length

Power Cord Length

Dimensions (L x W x H)

Variable Sound Level

Weight

TV 2 SS

93282

120/60

1200 W

63-70 CFM

72-80”

2 Gal

8’

40’

16” x 15” x 13”

49-63 dbA

14 Lbs

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

CleanBreeze Filter Bag 90025

Hose 90028

Two-Piece Wand

Floor Tool

Crevice Tool

Dusting Brush

HEPA 12 Filter

90027

90029

90030

90031

90030

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

Compact size, low amp draw and lightweight with new “Driven Air” technology for fast drying

When time is money, you get more drying productivity and profits with the new Windshear™ Storm! Utilizing all-new “Driven Air” technology, this compact unit is changing the blower/dryer market as we know it today.

The Windshear™ Storm is dramatically lighter and smaller, offering high airflow volume with velocity of 3,400 feet per minute. What’s more, with a compact and light “briefcase-style” profile and maximum running amps of only 2.8, this unit creates the perfect Storm of drying performance, size and affordability.

Available in standard or deluxe models, the upgraded version allows you to daisy chain up to five units on one circuit for energy-efficient drying, while reducing storage concerns in transport vehicles by stacking. Professional carpet cleaners and restoration professionals can take twice as many units to the job site, compared to traditional blowers. The Windshear™ Storm truly takes drying to a whole new level!

The Windshear™ Storm is made of durable poly materials for years of continuous use. Weighing up to 45% less than traditional blowers at just

17.75 pounds, the compact design delivers increased power in a lighter, slimmer profile and offers easier transport and storage.

AIRFLOW

Half the Size of a

Traditional Blower!

WINDSHEAR™ STORM

MULTIPLE POSITION SETTINGS

If you’re looking for greater drying flexibility, the deluxe unit can be placed horizontally, vertically, on its side against the wall, or at a 20 degree angle with the kick-stand, directing airflow exactly where you need it most. The standard model offers two operating positions.

DAISY-CHAINABLE

The deluxe model offers an integrated power outlet, enabling you to connect up to five air movers together at one time for whole-room drying in large spaces.

TWO MODELS AVAILABLE

Chose the standard model, or for even greater flexibility, opt for the addition of a kick-stand and circuit breaker to daisy chain up to five units together simultaneously.

P R O D U C T S P E C I F I C AT I O N S

MODEL WINDSHEAR™ STORM

Catalog Number

Dimensions (L X W X H )

Net Weight

Running AMPS

Power

Air Velocity

Air-Flow Direction

Kickstand

Daisy Chain Capable

Stackable

Power Cord

98778

22 in x 16.5 in x 11.5 in

56 cm x 42 cm x 29 cm

17.75 Lbs. / 8 kg

2.8 max

120V

3,400 FPM

0° / 90°

No

No

Yes

20 ft. / 6 m

WINDSHEAR™ STORM

DELUXE

98780

22 in x 16.5 in x 11.5 in

56 cm x 42 cm x 29 cm

18 Lbs. / 8.2 kg

2.8 max

120V

3,400 FPM

0° / 5° / 90°

Yes

Yes

Yes

20 ft. / 6 m

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

STACK TWICE AS MANY UNITS IN THE SAME SPACE

Now with the compact size of the Windshear Storm, you can store and transport twice as many blowers than before!

QUIETER THAN CONVENTIONAL AIR MOVERS

If noise is an issue, the Windshear Storm measures 66.5 dB at its lowest setting, and is perfect for noise-sensitive indoor environments such as schools, libraries, hospitals, hotels and more.

W W W. TO R N A D OVAC . CO M

13

Delivering powerful air movement to dry your facility faster than ever before

The Tornado® Windshear™ 3200 Dryer Series is built with an injection molded polypropylene copolymer housing to withstand the harsh, everyday use of contract cleaners, restoration professionals and more. In addition, this material is much lighter than other molded housings making this unit not only durable, but lightweight as well.

Due to its lightweight, durable construction, our fan will outlast other competitive models on the market today.

The Tornado® Windshear™ 3200 Dryers are built for power and speed. Equipped with a .6 HP motor, the units can produce 3758 FPM of air movement, beating out the competition and drying your facility faster!

The Windshear™ 3200 Dryer Series includes a standard model and a

Safety Blower. The safety model comes standard in bright safety yellow and includes a transport dolly and safety sign that stands out in your space to ensure people know your floors are wet, ultimately helping to reduce the chance for personal injury from slip and falls.

The possibilities are endless with Tornado’s® Windshear™ 3200 Dryer

Series. With three different speed settings and operating positions,

you can determine the correct air flow and velocity for maximum performance. Use the Windshear™ 3200 Series to dry carpets, rugs,door mats, hard floors, padding, cabinets, dry-wall, paint, closets, baseboards, attics, furniture, draperie s, or just about anything you need to dry. These machines increases air flow, cleaning efficiency, safety, and minimizes down-time in a room or large facility.

NEW!

VARIABLE SPEED SETTINGS

The Windshear™ 3200 Area Dryer has 3 different speed setting that can be used to clean your facility any time of day. Whether you are in a noise sensitive area or are in a larger facility, each setting can cater to your space and the drying tasks that need to be done to quickly dry your space!

WINDSHEAR™ 3200

SAFETY BLOWER MODEL

The safety model comes standard in bright safety yellow and includes a transport dolly and safety sign

14

1 - 8 0 0 - VAC U U M S

P R O D U C T S P E C I F I C AT I O N S

MODEL WINDSHEAR™ 3200

Catalog Number

Dimensions (L x W x H)

Weight

P E R F O R M A N C E

Motor (HP, Watt, Amp)

Voltage

Max Velocity (FPM)

CO N S T R U C T I O N

Housing Material

Speed

Power Cord Length

98774

18.74” x 15.4” x 18.93”

21.1 lbs

.6, 522, 4.35

120

3758

Injection Molded

Polypropylene Copolymer

30 Lbs.

18.5’

See Page 59 for warranty information.

WINDSHEAR™ 3200

SAFETY DRYER

98786

18.74” x 15.4” x 18.93”

22.5 lbs

.6, 522, 4.35

120

3758

Injection Molded

Polypropylene Copolymer

30 Lbs.

18.5’

W W W. TO R N A D OVAC . CO M

An Axial Fan at an affordable price.

Tornado’s® Windshear™ Sidedraft is built with patented, rotationally molded material to withstand the harsh, everyday use of contract cleaners, restoration professionals and more. Due to its durable construction, the Sidedraft will outlast other competitive models on the market today.

The possibilities are endless with Tornado’s® Windshear™

Sidedraft. You can use it to dry carpets, rugs, padding,

subfloors, cabinets, dry-wall, paint, closets, baseboards, attics, furniture, draperies, or just about anything you need to dry. The

Windshear™ Sidedraft increases air-flow, cleaning efficiency,

safety, and minimizes down-time in a room or large facility.

Also perfect as a box fan, the Sidedraft can be used for general cooling and air circulation in any commercial or industrial setting.

Key Features

• 3000 CFM airflow

• Six position versatility, 2 speed

• Plug up to 6 Sidedraft Dryers together into one 15 amp circuit

• Stack up to 5 high for efficient storage and transport

WINDSHEAR™ SIDEDRAFT

P R O D U C T S P E C I F I C AT I O N S

MODEL WINDSHEAR™ SIDEDRAFT

Catalog Number

L X W X H

Net Weight

Power

Speeds

98782

24” X 24” X 21”

37 Lbs

115V/60 Hz

Air-Flow (CFM)

Air-Flow Direction

Motor

Housing

3

3000+

-15º / 0º / 15º / 90º

.25 HP

Handle

Stackable

Power Cord

Polyethylene

Molded In

Yes

20’ (18/3)

O P T I O N A L I T E M S A N D ACC E S S O R I E S

Caster Kit

PDF5C

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

PROFESSIONAL FEATURES

Multiple position versatility for optimum drying.

BUILT-IN GFCI OUTLET

A built-in GFCI outlet allows you to daisy chain up to 5 units together.

STACKABLE

The Windshear™ Sidedraft is stackable, making for easy transport and storage.

W W W. TO R N A D OVAC . CO M

15

Whole room drying innovation.

Dry an average size room in just minutes with the new Tornado®

Windshear™ Downdraft drying technology. This new air mover from

Tornado® pulls drier, warmer air from above, driving it down and out across the entire surface of the floor. One Downdraft will dry an entire room in as little as 15 minutes. Drying rooms one section at a time is a thing of the past with the Windshear™ Downdraft.

Angle adjustment is a built-in feature of the Downdraft. The unit’s contours are designed to permit operation at four angles. You have the flexibility to place the Downdraft flat for drying floors or at 15,30, or 90-degree angles for drying walls or to provide general air circulation. What’s more is the easy-to-see yellow housing helps identify potential physical hazards, such as falling or tripping, as recommended by ANSI Standards Z53.1.

Additional Key Features

• 6-blade precision pitched fan with high velocity motor for fast drying

• 3500 CFM 2 speed motor rated for continuos duty

• Variable angle operation

• 360-degree directed air flow

• Built-in cord wrap

• Durable and rugged design

• Stackable up to 4 high for easy transport and space-efficient storage

• Expandable transport handle and built in wheels for easy transportation come standard

WINDSHEAR™ DOWNDRAFT

Works in

15 minutes or less!

Air Flow

WHOLE ROOM DRYING IN JUST MINUTES

The Downdraft fan pulls warmer, drier air down from the ceiling, blowing it across the entire floor for fast, complete drying.

16

1 - 8 0 0 - VAC U U M S

P R O D U C T S P E C I F I C AT I O N S

Model WindShear™ Downdraft

Catalog Number

L X W X H

Net Weight

Power

Speeds

Air-Flow (CFM)

Air-Flow Direction

Motor

Housing

Handle

Stackable

Power Cord

98784

22” x 18” x 23”

52 Lbs.

115V/60 Hz

2

2500 - 3500 CFM

360 degree

.25 HP

Polyethylene

Molded in / Telescoping

Yes

20’ (18/3)

R E P L AC E M E N T I T E M S A N D O P T I O N A L ACC E S S O R I E S

Caster Kit

PDF5C

Optional Transport Cart

X8990N

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

PS 8220

PS 8220

(shown with optional handle)

Mobility, portability and uncompromised extracting power.

From Tornado® comes one of the most effective weapons you can have in the war against spots. The PS Series of

Professional Spotters features light, compact units that

come complete with molded-in Lift Grip handle, transport wheels, quick-disconnect hose, and all-purpose clear-view utility tool. PS Spotters perform exceptionally well on carpets, automobile, boat and RV interiors, and upholstery.

With a compact design and quiet operation, the units are favorites in health care and educational facilities as well as commercial buildings, restaurants, and retail stores. The user simply sprays solution through the jet-spray pump and recovers the dirty solution through the included clear-view tool. A steel transport handle kit can be ordered as an optional accessory and is installed by the user.

P R O D U C T S P E C I F I C AT I O N S

Model Name PS Spotter

Catalog Number

98220

Power

Solution

Recovery

Pump

Vacuum

Static Waterlift

Motor

Handle

Transport

Hose

Size

Weight

115V / 60Hz

2 GAL

2 GAL

55 PSI

94 CFM

84”

1.2 HP

Molded Lift-Grip

6” Wheels

8’ Sol./Vac

21” X 12.5” X 12.5”

20 Lbs

O P T I O N A L ACC E S S O R I E S / R E P L AC E M E N T I T E M S

8’ Vac Pressure Hose**

95560

PS Dragwand with 8” Head

18” Crevice Detailer

98347

98342

4” Upholstery Tool

6” Utility/Stair Tool

Steel Transport Handle Kit

98343

98344

31215

See Page 59 for warranty information.

** 95560 required for use with optional accessories.

1 - 8 0 0 - VAC U U M S

MOBILITY AND PORTABILITY

The unit comes standard with a molded-in Lift Grip handle and fits easily in any car trunk or broom closet. The steel handle for pulling the unit from room to room or upstairs can be ordered as an option.

CONVENIENT OPERATION

The 2-gallon recovery tank lifts off for easy dumping when full.

A large opening on the 2-gallon solution tank makes rinsing and refilling simple. Both units have a quick-disconnect valve for use with attachments.

VERSATILE

The PS Series is perfect for today’s fiber-based office furniture, as well as auto interiors, carpeted stairs, and tight areas where walk-behind extractors can’t go.

PS DRAGWAND

The PS dragwand and 8’ vac pressure hose are optional attachments for added reach under furniture and other obstacles.

W W W. TO R N A D OVAC . CO M

17

Go-anywhere design, professional extraction performance

Tackle upholstery, staircases, drapes, and other challenging cleaning applications with the Marathon 350 spray extraction cleaner. Move from room to room with ease with this highly mobile electric unit. This compact unit is perfect for cleaning auto interiors and for spot cleaning office areas and retail sales floors. The unit can even handle your spray extraction needs for small carpeted areas. The Marathon

350 sprays solution deep down into carpet, dissolves dirt, and recovers the dirty solution w i t h

ease and efficiency.

With a compact design and quiet operation, the units are favorites with health care and educational facilities as well as commercial buildings, restaurants and retail stores. The user simply sprays solution through the jet-sprayed pump and recovers the dirty solution through the included clear-view tool.

The Marathon 350’s solution tank has a filter for pump protection.

The recovery tank doubles as a removable bucket that is easy to carry and dump when full. The Marathon 350 includes a spray suction hose, floor tool, and utility hand tool. Accessories are storable in the separate accessories holder, and two large transport wheels and two front castors allow the unit to smoothly follow the operator’s movements during use.

MARATHON 350

CARPET SPOTTER

18

1 - 8 0 0 - VAC U U M S

VERSATILE

The Marathon 350 is perfect for hotel rooms, offices, auto interiors and a variety of other applications.

CONVENIENT

A separate accessories holder and the unit’s mobility are among several features that make for ease of operation.

EASE OF USE

Solution and recovery tanks are removable for easy transport and disposal.

P R O D U C T S P E C I F I C AT I O N S

MODEL

MARATHON 350

Catalog Number

98132

M AC H I N E D I M E N S I O N S

Dimensions (Lxwxh)

21 In X 15 In X 17 In

533 Mm X 381 Mm X 432 Mm

Net Weight

22 Lbs. / 10 Kg

Cord Length

15 Ft / 5 M

C L E A N I N G S YS T E M

Solution Tank

Recovery Tank

Waterlift

Pump Pressure

Sound Level

1.5 Gal / 6 L

1.5 Gal / 6 L

79 In / 2,000 Mm

58 P.s.i / 4 Bar

79 Db (A)

M OTO R

Pump Motor

Vacuum Motor

50 W

1,100 W / 9 amps

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

8’ Vacuum Hose

35306M-07

Upholstery Tool

Floor Tool

Wand (2 pcs)

35306M-06

35306M-05

3530PU-04

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

Effortless operation and maximum productivity with tank-less operation

Designed specifically for use in apartments, hotel rooms, or similar applications,

Tornado’s Room-Mate portable carpet extractors are perfect for everything from interim maintenance to deep restoration cleaning. Whether you’re a certified carpet technician, carpet cleaning specialist, or a member of the maintenance team, you will appreciate the smart features and convenience this units offers.

Constructed of durable rotationally molded polyethylene, this unit reflects

Tornado’s commitment to design standards that will endure the rigors of daily usage. This unit has a compact vertical design, allowing ease of storage, mobility and operation. With simple, user-friendly controls the Room-Mate can be operated with minimal training.

Without a built-in solution tank, Tornado’s Room-Mate allows operators to use a bath tub, sink, or even a bucket as the solution / water source. With the unit designed to sit in place as a cleaning station, the operator is handling only the hose and wand as they clean, affording the convenience of a truck-mount, but in a portable unit.

Plus, the dump valve on the recovery tank is set to ADA height standards and allows the recovered solution to be drained in a standard toilet.

The Room-Mate gives operators the ability to quickly set-up, extract and move onto the next cleaning site with ease. Tank-less operation improves productivity and reduces costs.

MARATHON ROOM-MATE

NEW!

P R O D U C T S P E C I F I C AT I O N S

MODEL:

ROOM-MATE

Part Number:

98262

M AC H I N E D I M E N S I O N S

Dimensions (L x W x H)

Weight

Recovery Tank

D E S I G N C H A R AC T E R I S T I C S

24 in x 19 in x 41 in

61 cm x 48 cm x 104 cm

65 Lbs. / 29 kg

13 gal / 49 l

Cord Type

Cord Length

Tank Construction

Solution Hose Length

Peak Airwatts

PSI

Sound Level

Vacuum Motor

R E P L AC E M E N T I T E M S

50 ft. Vac / Solution Hose

14/3 Yellow

20 ft. / 6 m

Roto-mold

50 ft. / 15 m

673

220

67 dB(A)

Airwatt

X1213T

O P T I O N A L ACC E S S O R I E S

12 in. Professional Wand

98398

Utility Hand Tool

Crevice Detail Tool

Upholstery Tool

Stair Tool

98340

98342

98343

98344

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

EASY SOLUTION DRAIN

The dump valve on the recovery tank is set to ADA height standards and allows the recovered solution to be drained in a standard toilet.

1

CONVENIENT CONTROLS

1. Vac Hose Attachment

2. Solution Hose Attachment

3. Control Panel

4. Solution Line Attachment

2

4

3

W W W. TO R N A D OVAC . CO M

19

20

EASE OF USE

The control panel and hose hook-ups are conveniently located at the top of each model. All switches are fitted with molded vinyl covers to protect them from moisture.

SMART DESIGN

The recovery and solution tanks are both accessed at the top of the units and feature large openings for ease of fill and rinsing. The recovery tank features a float that cuts off suction when the tank reaches capacity to protect the vac motors. The large center-pull drain valve is located at the rear of the unit, which allows rapid removal of soiled solution into a floor drain or bucket.

SIMPLE ACCESS TO

PUMP AND HEATER

For fast and easy maintenance and increased machine uptime, the clam shell design allows quick access to the pump and heater

1 - 8 0 0 - VAC U U M S

Power, efficiency, mobility and value in a portable extractor.

Marathon 2-100

Marathon 2-200

Marathon 2-400 with Perfect Heat

Whether you’re a certified carpet technician or a carpet cleaning specialist, you will appreciate the features of Tornado’s® complete line of professional grade portable carpet extractors designed for daily, interim or deep restoration cleaning. The

Marathon Carpetrinser Upright Extractors are available in 100 p.s.i. without heat,

200 p.s.i. with heat and 400 p.s.i. with Perfect Heat.

Constructed of durable rotationally molded polyethylene, these units reflect

Tornado’s® commitment to design standards that will endure the rigors of daily usage.

Because of their compact vertical design, ease of storage, mobility and operation,

Tornado® Marathon Upright Extractors are well-suited for use by in-house cleaning crews, carpet technicians, contractors, schools, hotels, and restaurants. All models are lightweight with a low-center-of-gravity and include user-friendly, waisthigh control switches to accommodate operators of all sizes.

All three powerful units are designed with 13 gallon solution and 11 gallon recovery tanks and twin, 2-stage 1.6 hp vacuum motors that generate anywhere between

107” to 160” of static waterlift, delivering faster dry-times and a safer, drier indoor environment. Tornado’s® innovative design features a hinged, clam shell design that allows easy access to the pump and heater for simple maintenance and increased machine up-time.

With the highest portable temperatures in the industry, Tornado’s® patented Perfect

Heat™ technology takes advantage of the heat generated by the vacuum motors to heat the water and solution for deep cleaning.

EASY TO TRANSPORT

The dolly-type design makes transporting a breeze. With large non-marking rubberized wheels and durable front-mounted swivel castors, the units can be easily transported from one job to another or taken up a flight of stairs.

P R O D U C T S P E C I F I C AT I O N S

MODEL MARATHON 2-100

Catalog Number

98250

M OTO R S

Motor Type

Sound Level

Dual 2-stage 1.6 HP

82 dB

O P T I O N A L ACC E S S O R I E S

12” Deluxe Drag Wand for 100

PSI or more

12” Professional Drag Wand for 101 PSI or more

98397

N/A

20’ Vac Hose

1504WDSI

Standard Utility

Hand Tool

Crevice Detailer Extraction

Tool

Upholstery Hand Tool

98340

98342

98343

Utility Stair Tool

98344

MARATHON 2-200

98252H

MARATHON 2-400

98255PH

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Solution Tank

Recovery Tank

Cord

34.5” x 22” x 45”

108 Lbs.

13 gallon

11 gallon

Pig Tail

34.5” x 22” x 45”

108 Lbs.

13 gallon

11 gallon

Pig Tail

34.5” x 22” x 45”

110 Lbs.

13 gallon

11 gallon

Pig Tail

D E S I G N C H A R AC T E R I S T I C S

Body Construction

Sol. / Vac. Hose

Wheel Dimensions

Transport Handle

Dump System

Corrosion Proof Components

Polyethylene Polyethylene Polyethylene

1.5” x 20’ Hose 1.5” x 20’ Hose 1.5” x 20’ Hose

8” non-scuff soft rear / 3” swivel casters

8” non-scuff soft rear / 3” swivel casters

8” non-scuff soft rear / 3” swivel casters

Standard Standard Standard

Hose on back of unit Hose on back of unit Hose on back of unit

* MEK type front and rear wheel *PE material

* MEK type front and rear wheel *PE material

* MEK type front and rear wheel *PE material

C L E A N I N G S YS T E M

Vacuum Head Type

CFM

Sound insulated

97

Sound insulated

97

Sound insulated

97

Water Lift

PSI

150”

100

150”

50-200

150”

50-400

Dual 2-stage 1.6 HP

82 dB

N/A

98398

1504WDSI

98340

98342

98343

98344

Dual 2-stage 1.6 HP

82 dB

N/A

98398

1504WDSI for

2-400 p.s.i.+

98340

98342

98343

98344

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

Quiet, lightweight self-contained carpet extractor to clean small areas faster and easier.

Whether you are a certified carpet technician or a residential home owner,

Tornado’s® Mini-Marathon 425 delivers professional carpet cleaning results in a small, easy-to-use package. You can productively clean and freshen up your carpet surfaces in less time with this powerful, lightweight and easy-tomaneuver four gallon extractor.

Made of rugged rotationally molded polyethylene tanks and frame, the Mini-

Marathon 425 is built to withstand the rigors of harsh cleaning environments

in both commercial and residential settings. With a 2-stage, 1.6 hp motor, the

Mini-Marathon delivers a powerful 112 CFM and 107” waterlift.

You can add optional hoses and hand tools to the Mini-Marathon , ideal for cleaning upholstery, stairs, car interiors, boats and just about any small space.

The Mini-Marathon 425 is easy to use, featuring a lift-off recovery tank for trouble-free emptying and rinsing. The 4.25 solution and 4 gallon recovery tank are the perfect sizes for cleaning small carpeted areas or for use in the home.

For enhanced operator comfort, the handle is fully adjustable to fit the height of the operator and provides simple one-button solution activation. The handle also folds over the machine for compact storage and easy transport in any type of vehicle. What’s more, the Mini-Marathon 425 has large 8” non-marking wheels for easy transport and maneuverability and can be used in a variety of environments including: Commercial buildings, hospitals, residential homes or buildings, automobiles, and more.

MINI-MARATHON 425

P R O D U C T S P E C I F I C AT I O N S

MODEL MINI-MARATHON 425

Catalog Number

98150

M AC H I N E D I M E N S I O N S

Size (L x W x H)

22.75” x 13.25” x 40.25”

Storage Size (H x W x D)

27.75 x 13.25” x 22.75”

Net Weight

Extension Cord

68 Lbs.

20’

C L E A N I N G S YS T E M

Solution/Recovery Tank

Tank Construction

CFM

Waterlift

Cleaning Path

Brush Width

Brush Speed

Pump

4.25 / 4 gal.

Rotationally molded polyethylene

112

107

13”

10”

1800 RPM

60 psi

M OTO R

Vacuum Motor

20’ Vacuum pressure hose

PS Series drag wand with

8” head

Standard Utility Hand Tool

1.6 HP - 2 stages (1200 watts)

O P T I O N A L ACC E S S O R I E S A N D AT TAC H M E N T S

8’ Vacuum pressure hose

95560

95569

98347

98340

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

EASY ACCESS TO RECOVERY TANK

Wide opening and easy-pour access to the tank makes cleaning the machine a breeze!

SITE TUBE

The site tube at the rear of the machine allows the operator to easily see how much clean water/solution remains. The tube also allows for easy evacuation of any remaining unused water/solution.

PRE-FILTER SCREEN

Pre-filter screen provides enhanced protection with a filtration rate at 75 microns, protecting the machine from debris and clogs.

W W W. TO R N A D OVAC . CO M

21

22

MARATHON 800

MARATHON 1200

An award-winning patented design, setting new standards for the industry in carpet extraction.

From their numerous design and engineering awards to  their performance on carpets across the world, the Marathon 800 and

1200 portable, self-contained carpet extractors are a tried-and-true

industry favorite. These brush-assisted units lay solution in the carpet, agitate with a cleaning brush, and vacuum-recover the resulting dirty water thoroughly in one pass.

Choose from the Marathon 800 (8-gallon solution tank and 10-gallon recovery tank) and the Marathon 1200 (12-gallon solution tank and

14-gallon recovery tank).

These electric units utilize a patented internal bladder design that maintains optimal brush pressure throughout operation regardless of solution level. This bladder design requires less space and allows a sleeker exterior with improved sight lines for the operator. A 2 h.p. vac motor, 900 rpm brush speed, and 100 psi solution pump combine for maximum extraction power. A variety of optional accessories and attachments can be used for flexibility.

EASY-VIEW SOLUTION AND

RECOVERY TANKS

Clear tank lids permit monitoring of solution and recovery levels.

Molded-in finger-grips allow quick removal and replacement of covers for refilling or cleaning the tanks.

VERSATILE AND EASY TO USE

Whether used in an office or classroom, hallway or lobby, the

Marathon 800 and 1200 leave behind clean carpets. The unit was designed with ease of use in mind and is an operator favorite.

CONVENIENT DRAIN SYSTEM

The solution drain hose is located at the rear of the unit for easy access.

PATENTED BLADDER DESIGN

The Marathon bladder system maintains a constant level of brush pressure for optimal extracting performance at all fluid levels.

SERVICE-FRIENDLY

The Marathon 800 and 1200 are easily accessible for service and maintenance operations by qualified personnel.

The Marathons employ a unique water delivery system minimizing complexity and virtually eliminating the need for tools to service. Their state-of-the-art engineering is what separates these units from the competition!

1 - 8 0 0 - VAC U U M S

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

M AC H I N E D I M E N S I O N S

Size (H X W X D)

Weight

Extension Cord

C L E A N I N G S YS T E M

Power (Also Available In 230V Configurations)

Coverage Per Filling

Supply Capacity

Recovery Capacity

Solution Pump

Solution Flow

Vacuum

Static Waterlift

Brush Speed

Brush Size

M OTO R

Vacuum Motor

R E P L AC E M E N T I T E M S

50 Ft Extension Cord 14-3 (For 98166, 98168)

O P T I O N A L ACC E S S O R I E S

12” Drag Wand (2 jets)

Utility Stair Tool

Upholstery Hand Tool

20’ Vac/Pressure Hose For Optional Tools

Crevice Detailer Extraction Tool

Standard Metal Hand Tool

Standard Utility Hand Tool

98397

98344

98343

95567A

98342

98350

98340

MARATHON 800 MARATHON 1200

98166 98168

36” X 20” X 38.5” 36” X 20” X 38.5”

100 Lbs

50’

100 Lbs

50’

115V / 60Hz

600 sq. ft.

8 GAL

10 GAL

100 PSI

1.1 GPM

99 CFM

117”

900 RPM

17”

2 Hp

115V / 60Hz

900 sq. ft.

12 GAL

14 GAL

100 PSI

1.1 GPM

99 CFM

117”

900 RPM

17”

2 Hp

98397

98344

98343

95567A

98342

98350

98340

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

Rugged intelligent design, setting new standards for self-propelled carpet extractors.

Coming from Tornado, the innovative leader in carpet care is a carpet extractor with features, performance, and a price that are quite simply unsurpassed by the competition. This 20-gallon, self-propelled, forward-operation unit sets a new standard among self-contained carpet extractors. This rotationally-molded unit truly stands up to the rigors of daily use. Its 22” recovery shoe, 20-gallon solution tank, and

20-gallon recovery tank clean in the forward mode and handle large area extraction jobs with ease and efficiency.

The all new variable solution pump allows the operator to control the flow of solution to the carpet. Clean light or heavy soak, it’s up to you. A 100 psi solution pump penetrates carpets deep-down and a three-stage vac motor with 135” waterlift ensures optimal cleaning performance. A sealed transaxle drive system, two large wheels, and twin front swivel casters provide easy transport over even the heaviest of carpet. The Marathon 2000 can cover up to 8,500 sq. ft. per hour, has variable, operator-controlled speed, and comes complete with a

22” vac shoe, pre-spray wand, and detachable 75-foot power cord.

* Productivity based on ISSA Standard Cleaning times.

Actual productivity may vary.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

M AC H I N E D I M E N S I O N S

Size (L X W X H)

Weight

Power Cord

MARATHON 2000

98190

51” X 22” X 38”

190 Lbs

75 Ft Detachable

C L E A N I N G S YS T E M

Solution Capacity

Recovery Capacity

Brush Size

Cleaning Rate (Sq. Ft. / Hour)*

Adjustable Brush

Vac Shoe Size

Brush Motor

Cfm/Waterlift

Variable Solution Pump Psi

Jets

Drive System

Drive Motor

Self-Propelled And Speed

20 Gal

20 Gal

19”

4,193

Yes

22”

1/4 Hp

95/135”

100

4

Sealed Transaxle

1/4 Hp

Yes / Variable

M OTO R

3 Stage Vac Motor

2 Hp

O P T I O N A L ACC E S S O R I E S A N D AT TAC H M E N T S

12” Deluxe Wand

98397

20’ Vac Pressure Hose

95567

Standard Utility Tool

18” Crevice Detailer

4” Upholstery Tool

6” Utility/Stair Tool

75 Ft Extention Cord 12-3

98340

98342

98343

98344

72314A

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

HIGH-PERFORMANCE CAR-

PET EXTRACTION

An adjustable brush, 100 psi solution pump, and 22” vac shoe provide deepdown cleaning in one pass.

MARATHON 2000

SERVICE-FRIENDLY

The Marathon 2000 is easily and quickly accessible for service and maintenance operations.

PROFESSIONAL DESIGN

A 22” vac shoe, easy-access drain hoses, and detachable 75-foot power cord are standard features on the Marathon 2000.

QUICK-FILL SOLUTION TANK

The 20-gallon solution tank permits long periods of uninterrupted operation between refills.

LARGE-CAPACITY RECOVERY

A 20-gallon recovery tank has a clear cover for monitoring the tank level. The cover is sealed with a heavy-duty gasket for optimal recovery performance.

BUILT-IN SPRAY WAND

The unit comes standard with a pre-spray hose and wand for handling edges, corners, and spotting operations.

OPERATOR-FRIENDLY

A simple, easy-to-use control panel allows the operator to control speed, solution, and recovery functions. The handle continues Tornado’s

®

excellence in ergonomic design and commitment to operator comfort.

W W W. TO R N A D OVAC . CO M

23

Superior value, engineering and cleaning performance.

Rugged Design!

Certain environments can exact a heavy toll on even the most ruggedly designed cleaning equipment. Tornado’s® M Series

of Floor Machines have it all when it comes to heavy-duty

applications including rolled steel bases with non-marking soft bumper guards, a triple planetary gear system, and cast aluminum

Start Guard I handle for safety, added strength and operator comfort. The M Series features our heavy-duty, dual-capacitor, 1.5

HP motor with a high torque configuration and low-amp draw for the ultimate in power.

From daily polishing to heavy scrubbing or stripping, the

M Series of Floor Machines from Tornado® have what it takes

for the cleaning and maintenance professional. These units will increase your cleaning team’s efficiency and minimize equipment downtime, all at a price that runs circles around the competition.

M 17” 175 RPM FLOOR MACHINE

M 20” 175 RPM FLOOR MACHINE

24

VARIABLE HEIGHT

An adjustable cam-lever allows height to be set at the operator’s comfort level.

SOLUTION TANK

This optional accessory permits the dispensing of solution onto hard floors or carpets. Solution can be released at variable rates for scrubbing or bonnet cleaning.

SMART DESIGN

The Start Guard I handle is built of cast aluminum for added strength and has cushioned rubber grips to reduce operator fatigue.

DISC BRUSHES

The M Series can be fitted with an assortment of optional scrub brushes for a variety of applications on hard floors, from scrubbing to stripping. A shampoo brush can be used for carpet.

P R O D U C T S P E C I F I C AT I O N S

MODEL M 17” 175 RPM

Catalog Number

97590

M AC H I N E D I M E N S I O N S

L X W X H

23” x 17” x 49”

Net Weight

Motor Height

100 Lbs.

16”

D E S I G N C H A R AC T E R I S T I C S

Housing Construction

Rolled Steel

Power System

115V

Wheel Type / Dimensions

Handle Design / Safety

C L E A N I N G S YS T E M

Brush Design / Type

5” Non-Marking Self Lubricating

Cast aluminum Start Guard I

Rotary Diameter

Disc RPM

Solution Tank

Cleaning Path

Rotary Disc

17”

175

3 gal. (optional)

17”

M OTO R S

Machine motor

1.5 HP

R E P L AC E M E N T I T E M S

Pad Retainers

F44P

17” Pad Holder

20” Pad Holder

TL16

NA

O P T I O N A L I T E M S A N D ACC E S S O R I E S

Poly Scrub Brush

98118

Shampoo Brush

4 Gallon Solution Tank

94717

FM90P

See Page 59 for warranty information..

1 - 8 0 0 - VAC U U M S

M 20” 175 RPM

97595

26” x 20” x 49”

105 Lbs.

16”

Rolled Steel

115V

5” Non-Marking Self Lubricating

Cast aluminum Start Guard I

Rotary Disc

20”

175

3 gal. (optional)

20”

1.5 HP

F44P

NA

TL19

98538

94917

FM90P

W W W. TO R N A D OVAC . CO M

Value, high-performance and smooth operation.

NEW!

Rugged Design!

17” 175 RPM FLOOR MACHINE

20” 175 RPM FLOOR MACHINE

Certain environments can exact a heavy toll on even the most ruggedly designed cleaning equipment. Tornado’s® Brute Force Series has it all when it comes to heavy-duty applications and are built for years of

trouble-free operation and long-lasting performance.

Our patented, non-conductive one piece rotationally molded body is designed to absorb the torque and vibration normally felt when operating a floor machine. The one piece base and motor housing ensures that wires and capacitors are completely enclosed, enhancing the machine’s durability, longevity and safety. These units are so ruggedly built, they out weigh most metal machines in the industry today.

All Brute Force Series rotary floor machines have a triple planetary gear system for years of trouble-free use and a 1.5 HP motor to handle the most demanding jobs. Available in both 17” and 20” models, Tornado’s® Brute

Force Series of Floor Machines are establishing the new benchmark for

performance and quality in the commercial cleaning industry.

From daily polishing to heavy scrubbing or stripping, the Brute Force

Series from Tornado

®

has what it takes for the cleaning and maintenance professional. These units will maximize cleaning efficiency, minimize equipment downtime and are offered at a price that runs circles around the competition.

P R O D U C T S P E C I F I C AT I O N S

MODEL

BRUTE FORCE 17”

FLOOR MACHINE

Catalog Number

97562B

M AC H I N E D I M E N S I O N S

L X W X H

31” X 20.5” X 44.5”

Net Weight

Motor Height

103.5 lbs.

19.5”

BRUTE FORCE 20”

FLOOR MACHINE

97564B

31” X 20.5” X 44.5”

104.5 lbs.

19.5”

D E S I G N C H A R AC T E R I S T I C S

Housing Construction

Power System

Wheel Type / Dimensions

Handle Design / Safety

High Density Polyethylene High Density Polyethylene

115V 115V

5” Non-Marking-Self Lubricating 5” Non-Marking-Self Lubricating

All Metal, Positive Lock All Metal, Positive Lock

C L E A N I N G S YS T E M

Brush Design / Type

Rotary Diameter

Disc RPM

Rotary Disc

17”

175

Solution Tank

Cleaning Path

M OTO R S

Machine motor

3 gal. (Optional)

17”

1.5 HP 1.5 HP

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

17” Pad Holder

TL16 N/A

20” Pad Holder

N/A TL19

3 Gallon Solution Tank

Pad Retainer

F91P

F44P

F91P

F44P

Rotary Disc

20”

175

3 gal. (Optional)

20”

See Page 59 for warranty information..

1 - 8 0 0 - VAC U U M S

EASY PAD CHANGE

Tilt up position allows easy access for changing pads.

PATENTED DESIGN

Keeps motor running COOL, and provides a longer life.

SAFETY AND DURABILITY

Sturdy metal handle has safety lock-out features.

RUGGED DESIGN

Triple planetary all steel gears for smooth power!

EASY ACCESS

One-piece motor housing features easy access.

OPTIONAL ACCESSORIES

3 gallon solution tank attaches for solution dispensing.

W W W. TO R N A D OVAC . CO M

25

26

A new generation of floor machines that strips floors without the use of chemicals

The OB 20 from Tornado takes traditional floor machine operation to the next generation.

This unit moves away from the traditional disc style to a square pad with high-end features including a durable ¾ inch think epoxy coated steel frame, 180 Lbs. of down pressure, 3,530

RPM running speed and an extremely low decibel level the. All of this allows our OB 20 to excel at cleaning multiple hard floor types in a wide range of cleaning applications.

In a time when conserving resources is on the front of everyone’s mind, the OB 20 allows operators to strip a floor without the use of chemicals. This keeps not only your chemical costs down, but allows you to help meet growing environmental standards.

Adding the optional weight kit and vacuum system helps you increase the productivity of your stripping process while simultaneously protecting the health of building occupants.

With a handle mounted vacuum, the active dust control system keeps the dust and small debris created during the stripping process contained within the cleaning path. The multiple layers of filtrations, including a HEPA cartridge, ensure that harmful dust is kept to a minimum.

Don’t limit yourself to one task with one machine, use one machine for all of your different cleaning tasks! Simply by switching out the pads the OB 20 can be used for a variety of different cleaning tasks including standard cleaning, surface prep, stripping, polishing and buffing. The OB 20 features various optional kits to augment the already impressive machine and ensure a best clean possible. These kits will range from weight, dust control, and even a solution tank, making the OB 20 one of the most versatile floor machines on the market.

NEW!

OB 20

as shown with the optional weight kit and dust control kit**

.

HOW DOES ORBITAL SCRUBBING WORK?

Orbital floor cleaning machines have pads that vibrate at high speeds of between 2,250 and 3,500 RPMs, which greatly increases efficiency and provides a more concentrated cleaning.

Rather than having a pad that turns in one direction like a rotary machine, the orbital machine cleans forward, backward, and sideto-side all at the same time.

Orbital scrubbers use specialized “surface prep” pads and small amounts of water to do a one-pass, chemical-free finish removal process.

WHAT ARE THE BENEFITS OF ORBITAL SCRUBBING?

The square shape of orbital machines makes edge work and detail work easier and more efficient.

With the design and operation speed the unit you eliminate the need for chemicals in the stripping process, providing cost savings and a more sustainable method of cleaning.

Chemical free stripping helps to provide increased worker safety with a decreased risk of slips and falls, as well as removing the requirement of cleaning with and disposing of harmful stripping chemicals. Labor costs can also be reduced versus traditional floor stripping methods.

1 - 8 0 0 - VAC U U M S

P R O D U C T S P E C I F I C AT I O N S

MODEL

Cataloge Number

OB 20

97600

M AC H I N E D I M E N S I O N S

L x W x H

Net Weight

20 in x 20 in x 46 in /

51 cm x 51 cm x 117 cm

180 Lbs/82 kg (w/weight kit)

D E S I G N C H A R AC T E R I S T I C S

Housing Construction

Power System

Epoxy Coated

Handle Design/Safety

Sound Level

115V Corded

Welded w/Safety Interlock Triggers

<64 dBA

C L E A N I N G S YS T E M

Brush Type

RPM

Cleaning Path

Dust Control System (Optional)

Orbital

3530

20”/51cm

1.5 gal/6 qt Vacuum w/HEPA Filtration

PA D D R I V E S YS T E M

Horsepower

Motor Type

Head/Pad Dimensions

Productivity per Hour

1.5 HP/1118 Watts

182TCZ Continuous duty TENV

20 in x 14 in/51cm x 36cm

7,920 f2/736 m2 at 1 MPH (scrubbing) /

3,960 f2/368 m2 at .5 MPH (finish removal)

O P T I O N A L ACC E S S O R I E S

Maroon Surface Prep Pad (case of 10)

ECO1420

Black, Stripping Pad (case of 5)

Red, Buffing and Cleaning Pad

(case of 5)

White, Polishing Pad (case of 5)

BK1420

RD1420

WT1420

40 lb Weight Kit

Dust Control Kit

90048

90047

Solution Tank Kit

90052

See Page 59 for warranty information..

**Dust control kit includes a dust skirt which is not shown in the above picture

W W W. TO R N A D OVAC . CO M

Tackle Uneven

Floor Surfaces

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

M AC H I N E D I M E N S I O N S

L x W x H

Net Weight

Shipping Weight

D E S I G N C H A R AC T E R I S T I C S

Housing construction

Wheel Type/Dimensions

Handle Design

Cord Type

Cord Strain Relief

C L E A N I N G S YS T E M

Brush Type

Disc RPM

Cleaning Path

M OTO R S

Brush Motor

Power

R E P L AC E M E N T I T E M S

50 Ft. Extension Cord (14-3 Gauge)

O P T I O N A L I T E M S

Soft Scrub Brush (2 Req.)

Medium Scrub Brush (2 Req.)

Hi-Low Grout (2 Req.)

Grit Heavy Scrub Brush (2 Req.)

Horse Hair Brushes (2 Req.)

Cylindrical Pad Shaft (2 Req.)

20-Pc. Light Scrub/Polishing Pack (2 Packs Req.)

20-Pc. Heavy Scrubbing Pad Pack (2 Packs Req.)

20-Pc. Extra Heavy Scrubbing Pad Pack (2 Packs Req.)

20-Pc. Polishing Pad Pack (2 Packs Req.)

See Page 59 for warranty information..

1 - 8 0 0 - VAC U U M S

32217

K47622500

K47622490

K47622510

K47622520

K47622740

K47622280

K63694530

K63694510

K63694520

K636993880

BR VARIO II

97607

20” X 19” X 6.7”

58 Lbs.

69 Lbs.

Polypropylene

Removable 7” wheels

Ergonomic Plastic

14/3 50’

Yes

Cylindrical

650 RPM

16”

1.5 HP

120V

BR VARIO II

Compact, powerful and eco-friendly.

A breakthrough cleaning alternative.

Imagine an environmentally-preferred, compact, lightweight floor machine with

650 rpm of cleaning power. Even better, imagine a machine that utilizes cuttingedge cylindrical brush technology to tackle floor surfaces from tile and cement to paver bricks, raised rubber disc, quarry tile, and other challenging applications. Add a solution tank, collapsible handle, and contact pressure six times greater than that of a single disc machine and you have the BR Vario II, the latest in commercial floor machine technology.

A unique feature of the BR Vario II is that it can strip and scrub without the normal slinging of water seen in traditional rotary floor machines. The BR Vario

II provides unmatched speed and efficiency for large areas, while allowing close

edge cleaning along walls and other obstacles. The BR Vario II’s handle turns

90 degrees allowing the operator multi-dimensional cleaning performance in all directions: left, right, forwards, and backwards.

Tornado’s BR Vario II cylindrical brush machine is designed for environmental sustainability. The use of cylindrical brushes conserves natural resources including water, solution and source materials. This unit is perfect for use in any facility with porous, or uneven hard floor cleaning challenges such as hospitals, schools, resorts, restaurants, retail shops, and much more. Cylindrical brush technology delivers low moisture deep scrubbing through concentrated brush speeds of 650 RPM — over six times higher than the speed of comparable rotary brush automatic scrubbers, digging deeper into uneven flooring surfaces to remove dirt that a disc unit can’t reach. Cylindrical brushes also provide 4-6 times more contact pressure than rotary brush scrubbing, handling any flat or structured floor surface with ease.

MULTI-DIMENSIONAL CLEANING

The handle of the BR Vario II can be unlocked, pivoted up to 90 degrees, and re-locked, allowing cleaning in all directions.

CONVENIENT

The unit folds down for easy transport and storage.

NEW TRANSPORT WHEEL STORAGE

Large non-marking wheels make transport easy. Wheels are conveniently stowed on the handle during cleaning.

CYLINDRICAL BRUSHES OR PADS

A variety of cylindrical brushes are available for high performance on

structured flooring.

The unit can be fitted with a unique roller shaft that accepts individual pads. Each pad can be changed if damaged without the need to replace an entire single pad.

W W W. TO R N A D OVAC . CO M

27

The ultimate value and choice in high-speed burnishing power.

Tornado’s® Brute Force Series of High-Speed electric burnishers are expertly balanced for ideal pad-to-floor pressure and sustained RPMs. Unlike other burnishers, you get total pad-to-floor contact, which means greater efficiency, speed and overall cost-savings. The Brute Force Series of High Speed Glazers™ provide excellence in design, operator comfort, and unsurpassed burnishing performance.

The Tornado® Brute Force Series of commercial high speed Glazers™ offer a specially patented design combined with precision balanced weight distribution which eliminates the need for a compensating center or front mount caster. This unique design provides full pad-to-floor contact, resulting in a smooth, even gloss.

Tornado’s® Glazers™ provide exceptionally smooth operation with a flexible, selfadjusting pad driver that burnish uneven surface areas easily and efficiently.

The Brute Force Series feature a unique, one piece rotationally molded housing designed to absorb the torque and vibration normally felt when operating a high speed. They also boast a one piece all metal tube and switch housing which improves operator control and safety. Ruggedly built for years of trouble-free operation, they make it easy to restore and maintain hard floor surfaces.

With a 20” burnishing path, flex pad holder, lock-in retainer, 1.5 HP motor, and

Tornado’s® one piece all metal tube and switch housing, the Brute Force Series of High-Speed Glazer’s™ can handle the most demanding of floor care needs. The

Brute Force Glazer Series is offered in 3 models, including a new and convenient

2000 rpm version featuring “Dust Control”that meets LEED and CIMS-GB standards by controlling dust generated by the burnishing process. To top it off, we offer these machines at unmatched price points, making the Brute Force Series of burnishers a must-have for any cleaning professional.

NEW!

1600 RPM GLAZER

2000 RPM GLAZER

2000 RPM DUST

CONTROL GLAZER

DESIGNED TO PROTECT

Easy access to motor and internal components. The completely enclosed motor means lasting durability and quick access for maintenance purposes.

FLOATING HANDLE

Floating handle provides great maneuverability with no “flutter” or pull.

PATENTED DESIGN

Keeps motor running COOL, and provides a longer life.

28

1 - 8 0 0 - VAC U U M S

P R O D U C T S P E C I F I C AT I O N S

MODEL

BRUTE FORCE 1600

GLAZER

BRUTE FORCE 2000

GLAZER

BRUTE FORCE 2000

GLAZER

Catalog Number

98458B 98482B 98486

M AC H I N E D I M E N S I O N S

L X W X H

35.5” X 23” X 44.5” 35.5” X 23” X 44.5” 35.5” X 23” X 44.5”

Net Weight

Motor Height

89 Lbs.

22”

89 Lbs.

22”

89 Lbs.

22”

D E S I G N C H A R AC T E R I S T I C S

Housing Construction

Power System

High Density

Polyethylene

PM DC Rectified

Motor

Handle Design / Safety

All Metal, Positive

Lock

C L E A N I N G S YS T E M

Brush Design / Type

Rotary Disc

Rotary Diameter

Disc RPM

Disc Pressure

Cleaning Path

Dust-Free

20”

1600

15 Lbs.

20”

No

M OTO R S

Machine motor

1.5 HP

High Density

Polyethylene

PM DC Rectified

Motor

4” Non-Marking

Self Lubricating

All Metal, Positive

Lock

Rotary Disc

20”

2000

16 Lbs.

20”

No

1.5 HP

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

Pad Retainer For All

Glazer Models

F44P F44P

Pad Holder

919DP 919DP

High Density

Polyethylene

PM DC Rectified Motor

4” Non-Marking

Self Lubricating

All Metal, Positive

Lock

Rotary Disc

20”

2000

16 Lbs.

20”

Yes

1.5 HP

F44P

919DP

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

A battery operated ultra high-speed burnisher makes daytime cleaning a breeze.

The Battery Glazer 17 floor machine from Tornado® is a one of a kind burnisher that operates on AGM batteries instead of a standard power cord. Delivering two hours of run time, the

Battery Glazer 17 greatly increases your cleaning productivity,

saving you time and money. In order to recharge, simply plug the on-board charger into the wall and you are done in no time!

The Battery Glazer 17 has minimal impact on the environment and comes standard with rechargeable, maintenance-free batteries with an on-board charger. The Battery Glazer 17’s environmentally prefered features will meet any LEEDS–EB standard in your work place or facility. Tornado® has also included a dust control feature on this unit that will also pick up any dust or small dirt particles in its path, to ensure healthier indoor air quality

(IAQ).

Operating at an incredibly low 59 dBA, the Battery Glazer 17 is so quiet, you barely notice it running. The silent operating decibel level makes this unit perfect for day time cleaning in hospitals, hotels or any facility where noise sensitivity is an issue.

Anyone on your cleaning staff will appreciate the Battery Glazer

17 thanks to its superior smooth maneuverability. Unlike other

traditional burnishers, this unit operates with a simple push, allowing the operator full and total control.

Cleaning more than 7,500 sq. ft. per hour, the Battery Glazer 17 will increase your cleaning productivity. With a two hour runtime, you clean 15,000 sq. ft. on just one battery charge. Need to get under countertops and maneuver in small healthcare or retail settings? The Battery Glazer 17 is the perfect solution for you!

BATTERY GLAZER 17

Perfect for

Day Cleaning!

ON-BOARD CHARGER

The built-in on-board battery charger is so simple to use and delivers two hours of run time per charge.

HEALTHY IAQ

Dust control feature on this unit to ensure healthier indoor air quality (IAQ).

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

BATTERY GLAZER 17

98494

M AC H I N E D I M E N S I O N S

L x W x H

26” x 18” x 39”

Net Weight

141 Lbs.

D E S I G N C H A R AC T E R I S T I C S

Housing construction

Polypropylene

Power System

Sealed Batteries

C L E A N I N G S YS T E M

Brush Design / Type

Rotary Diameter

Disc RPM

Disc Pressure

Integrated Filtration System

Cleaning Path

Sound Level

Rotary Disc

17”

1500

6 Lbs.

Dust Control System

17”

59 dB

M OTO R S

Motor Horse Power (HP)

R E P L AC E M E N T I T E M S

Pad Retainer

O P T I O N A L I T E M S

Optional Spray Kit

0.6

90600

90602

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

SIMPLE BATTERY INDICATOR

Battery charge indicator allows the operator to know exactly run time is left.

ECO-FRIENDLY BATTERIES

Rechargeable, maintenance free batteries with an on board charger.

COMPACT STORAGE

Easy storage with collapsible handle and transport wheel on back on the unit.

DUST CONTROL

Integrated dust control system is in constant contact with the floor during operation dramatically reducing airborne dust and contaminants.

W W W. TO R N A D OVAC . CO M

29

The ultimate in high-speed burnishers, clean-air performance, durable, easy to use, and long-lasting

Tornado’s 2500 B Series of Clean-Air Glazers are the industry’s premiere burnishing machines, boasting 2500 rpm of burnishing speed, rugged roto-molded housing, adjustable pad pressure, and a high-strength steel linkage mounted with a 2.5 HP motor. Simple to use and even easier to maintain, the 2500 B far outperforms the competition’s comparable units. Available with an optional maintenance-free, sealed traction-drive model.

The sloped battery housing is designed with operator sightlines in mind, allowing  an unobstructed view of approaching obstacles. Safety switches prevent operation when the cover housing is removed or the pad holder raised. The units come complete with batteries, charger, and 20” pad holder.

Best yet, the 2500 B is a “Clean-Air” machine. Twin filters allow virtually dust-free burnishing, a significant factor when operating in sensitive environments such as schools, healthcare facilities, and retail stores. The filters are easy to remove for when the need to wash or replace them arises.

2500 B CLEAN-AIR GLAZER

2500 B W/

TRACTION DRIVE

30

EASY OPERATION

Speed and direction can be changed during operation via an easy-to-use, dual-function control knob.

CLEAN-AIR FILTRATION

The 2500 B has a clean-air filtering system that allows dust free operation, an important consideration when working in an area with IAQ (indoor air quality) concerns.

CONVENIENT

The double-walled, roto-molded battery cover housing is durable and easy to remove for battery maintenance.

A COMPLETE PACKAGE

The unit comes standard with batteries, charger, and pad holder.

SMART DESIGN

The unit’s sleek profile and contoured housing provide optimal sight lines for safe operation and an unobstructed view of the burnishing path.

1 - 8 0 0 - VAC U U M S

EASE OF USE

The 2500 B tips back and rests on a specially-designed rear bumper.

This permits easy pad holder access, pad replacement, and filter maintenance.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

Pad Size

Glazing Speed

Pad Pressure

Drive Power

P.m. Motor

Size (L X W X H)

Weight W/Batteries

Traction Drive

Digital Controls

2500 B

2500 B W/

TRACTION DRIVE

98499 98498

20”

2500 rpm

Adj. to 30 Lbs.

N/A

2.5 HP/36V

20”

2500 rpm

Adj. to 30 Lbs.

.5 HP

2.5 HP/36V

48” X 22” X 37” 48” X 22” X 37”

565 Lbs 585 Lbs

N/A

Standard

Standard

Standard

R E P L AC E M E N T PA R T S A N D ACC E S S O R I E S

Dust-Free Filter Replacement (2 Required)

19069 19069

Dust-Skirt Shroud Assembly

Pad Retainer

31152

90599

31152

90599

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

28” KAWASAKI

PROGLAZER®

P R O D U C T S P E C I F I C AT I O N S

MODEL 24” PROGLAZER® 17HP 28” PROGLAZER® 17HP

Catalog Number

Engine

Pad Deck Size

Min. Brush/Pad Speed

Handle Position

Hour Meter

97570T

603 CC V Twin

24”

1850 RPM

Fixed

Standard

97575T

603 CC V Twin

28”

1880 RPM

Fixed

Standard

R E P L AC E M E N T I T E M S

Pad Retainer

F44P PB119

O P T I O N A L ACC E S S O R I E S

(All Units Include One Steel Tank And One Of Each Filter)

Bonnet Filter

Carburetor Filter

33887

99550

Oil Filter

99553

Clutch**

Steel Propane Tank

W/Gauge

30714

30396

See Page 59 for warranty information.

** Factory-installed options.

33887

99550

99553

30714

30396

1 - 8 0 0 - VAC U U M S

24” KAWASAKI

PROGLAZER®

Built to last, ruggedly constructed, with 1850 RPM burnishing power.

Some facilities and cleaning applications demand more than what electric and battery units can provide, and, when it comes to maintaining a high gloss appearance for large floor areas, controlling costs is key. Speed and efficiency are an absolute must. Tornado’s® Kawasaki ProGlazer Propane-

Powered Floor Machines have it all when it comes to

meeting maintenance demands while making the most of your investment in floor care equipment. Our ProGlazer® propane burnishers set new standards for quality and performance in the floor maintenance industry. Ease of operation, durability, and reliability make these units the propane-powered cleaning product of choice for floor care professionals.

With 1850 RPM at your fingertips, as well as all units featuring the latest in engine technology from Kawasaki, ensuring maximum operational efficiency while maintaining exceptionally high standards in emission control. These premium engines provide superior levels of power for any burnishing job while offering reduced noise and vibration for  added operator comfort and minimizes disruption to others in the area. In addition to a rugged cast aluminum deck, all  units come complete with burnishing pad, ready-to-fill painted steel propane tank, and

12V battery/key start.

POWERFUL AND VERSATILE

Tornado’s propane burnishers are found in educational, retail, and professional contracting applications where high gloss floors are a requirement of floor cleaning and maintenance programs.

EFFICIENT

These burnishers offer a quick return on your investment with high productivity and ease of service. A 24” unit can cover up to 32,000 sq.ft. per hour, while the 28” machine increases coverage to 48,000 sq.ft. per hour**. Meanwhile, a maintenance-free drive system and bearing assembly make these units extremely reliable and make service hassle-free. With the quick change fuel tank allowing nearly continuous operation, even the smaller model (24”) can out perform six workers each using a 20” traditional low-speed floor machine.

**  Performance statistics or claims contained in this brochure are estimates. Actual results may vary based upon conditions of the application and surface being cleaned.

PROFESSIONAL QUALITY

The units feature a Kawasaki 603 CC V

Twin engine. They are available in 24” and

28” models. Electronic shut-off and low oil pressure shut-off are standard features on these units. Rugged and virtually maintenance free, our propane burnishers have excellent oil control, high torque, and cold starting capacity.

ENVIRONMENTALLY FRIENDLY

The engines are EPA and C.A.R.B. approved.

SAFETY

The machines are built with a catalytic converter to help reduce emissions.

DISC PADS

The propanes can be fitted with appropriate pads for all high-speed operations.

W W W. TO R N A D OVAC . CO M

31

The battery-powered electric broom for flexible, interim cleaning.

Having a dependable sweeper is crucial for your business, so it only makes sense to have a superior, easy to use sweeper. The battery operated, motorized EB 30 Mini-Sweeper from Tornado is a unit that can easily tackle your sweeping needs. At 56 dBa (lower than the volume level of normal conversation), the EB 30 can successfully be used in hotels, restaurants, retail stores, dressing rooms, movie theaters, cafeterias, waiting rooms, and building lobbies where quiet operation is a necessity.

At 12” wide, it has a nicely sized cleaning path while remaining maneuverable.

At just a shade over 4 pounds, it’s extremely lightweight, thereby lessening operator fatigue and allowing it to be taken just about anywhere. The handle is adjustable with an ergonomic grip, and it can also be locked into an upright position for easy storage.

The EB 30 Mini-Sweeper comes with a removable 7.2-volt rechargeable

Ni-Mh battery. and a single battery charger that provides a full charge in about 12 hours. As an option, you can purchase a 50-minute quick-charger.

When a quick charger is combined with multiple batteries, you’ll get the ability to clean in a virtually continuous manner.

The powerful brush head sweeps debris into an easily removable 1-liter

(0.26-gallon) bin. Finally, its polypropylene base with built-in injection molded rubber bumper makes the EB 30 incredibly durable.

Make sweeping chores quick and quiet with the EB 30 Mini-Sweeper; quicker than a vacuum cleaner, more effective than a broom.

Quicker than a

Vacuum Cleaner.

More Effective

Than a Broom.

EB 30 MINI-SWEEPER

32

CHANGEABLE ROLLER BRUSH

Requires no tools and allows hairs, threads, etc. to be removed quickly and easily

FLEXIBLE, UNIVERSAL JOINT

Handle articulates, providing superior maneuverability

EASY TO REMOVE DUSTPAN

Provides convenient rear access with large capacity

1 - 8 0 0 - VAC U U M S

EASILY INSTALLED BATTERY

Changing batteries is a breeze

P R O D U C T S P E C I F I C AT I O N S

MODEL EB30/1

CATALOG NUMBER

Charging Time

93220

12 hours

Working Width

Container Capacity

Noise Level

Weight

Dimensions

12”

.26 Gallons

56 dBa

4.4 Lbs.

9.8” x 11.8” x 43.3”

S TA N D A R D ACC E S S O R I E S

Roller Brush (Black)

K47624000

Battery

Charger

K46542590

K66466700

O P T I O N A L ACC E S S O R I E S

Red Stiff Roller Brush

K47624010

Quick Charger

K66541970

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

Superior sweeping performance and value in a compact, light weight design.

Clean hallways, workshops, retail shops, warehouses and sidewalks up to ten times faster with the Tornado® SWM 31/9 Manual

Sweeper. Pick up everything including metal shavings, nails,

paper, leaves, and even packaging material. Light and compact, you can move from area to area with ease with this highly mobile unit.

The SWM 31/9 offers outstanding sweeping performance through the use of a main roller brush that is driven by both wheels, ensuring effective cleaning during right or left-hand turns. Effective indoors and outdoors, this compact unit easily sweeps hard-to-reach areas such as curbs, corners and crevices with the help of a durable sidebroom, and offers a convenient hopper-grip handle for portability and emptying debris. The ergonomic handle suits operators of all sizes.

You can expect years of service from the SWM

31/9 Manual Sweeper thanks to its tough

polyethylene hopper and base, which are made to resist dents and cracks. The unit features a large 9 gallon hopper that easily collects dirt and debris, is simple to remove and empty, and has an ergonomic handle. The side brush arm is swivel-mounted and can be easily disengaged.

Sweeps up to

28,000 sq. ft. per hour!

SWM 31/9 MANUAL SWEEPER

VERSATILE

The SWM 31/9 can be used in small warehouses, machine shops, workshops, gas stations, retail stores, sidewalks, for indoor or outdoor areas including parking lots.

P R O D U C T S P E C I F I C AT I O N S

MODEL SWM 31/9 MANUAL SWEEPER

Catalog number

Drive

Sweeping system

Cleaning Path

Capacity

Work Rating (in ft2/h)

Dimensions (L x W x H)

Weight

96190

Manual forward and reverse belt drive system

Single Brush and Side Brush

31 in / 79 cm

9 gal. / 40 lit

Up to 28,000 sqft/hr @ 2.5mph /

2,600 sq. mtr/hr @4kph

31.5 in x 28.5 in x 40 in /

80 cm x 72 cm x 102 cm

57 Lbs. / 26 kg

S TA N D A R D ACC E S S O R I E S

(Included with unit)

Main Brush Kit

552180067

Side Brush

923783

See Page 59 for warranty information.

EASE OF USE

This easy-to-push manual sweeper is hard working, lightweight and fast, delivering up to 28,000 sq. ft. per hour of sweeping productivity! And the variable height adjustment allows for efficient cleaning on a variety of terrains.

UNIQUE SIDE BROOM

The side broom sweeps dirt out of corners and away from walls, directly into the cleaning path of the main brooms, which then flips up debris into the large 9 gallon hopper.

GO-ANYWHERE CONVENIENCE

With large, rear mounted wheels, this unit will go anywhere easily and can even climb steps. A fold-up handle makes this unit perfect for small, compact storage spaces.

SWB 26/8

Fast, efficient sweeping for hard and soft floors

Eco-Friendly

Sealed

Batteries!

The Tornado SWB 26/8 Battery Sweeper moves effortlessly between carpet and hard floors. In any application where a wide-area corded vacuum isn’t practical, the SWB 26/8 Walk-Behind Battery Sweeper is the perfect solution. Faster and quieter than wide-area vacuums, the

SWB 26/8 is perfect for schools, hospitals, airports, commercial office

buildings, theaters, retail, stores, casinos, sports facilities, and arenas.

With a 26” wide cleaning path and easy maneuverability, the SWB

26/8 picks up all types of debris even hard-to-pick-up items such as

sand, popcorn, packaging material, tags, and clips.

What’s more, you can move easily from carpeted spaces onto hard floors without changing the broom with this super-flexible unit, resulting in maximum cleaning efficiency. As an added bonus, since the Tornado SWB 26/8 is bag-less and collects into a hopper, you’re not spending money on bags, while also avoiding downtime.

The SWB 26/8 Walk-Behind Sweeper is ideal for cleaning areas both large and small, running on eco-friendly, sealed AGM 24-volt-batteries which eliminates the worry of tripping over a power cord. The SWB

26/8 offers a convenient on-board battery charger, plus whisper-quiet

operation that is perfect for day-cleaning on any floor type.

The SWB 26/8 uses overthrow sweeping technology to guarantee optimum utilization of waste container capacity. The main broom has chevron bristles and is height-adjustable for professional sweeping results on all kinds of surfaces with a variety of debris.

The side-mounted brush is protected by a bump guard and is raised and lowered easily by the hand controls. A high-efficiency filter and dust control system reduces dust for improved air quality.

34

INDOOR AND OUTDOOR USE

Ideal for sweeping indoors and outdoors, the SWB 26/8 Battery Sweeper easily picks up debris including paper, dust, sand, popcorn, packaging material, tags, clips and plastic.

EASY ACCESS

Gain easy access to batteries and motor.

Includes rechargeable, maintenance-free

AGM batteries with on-board charger.

WASTE CONTAINER

Rugged, corrosion-proof 9-gallon

40 liters debris bin has handle for easy dumping.

UNIQUE SIDE BRUSH

The side brush sweeps dirt out of corners and away from walls, directly into the cleaning path of the main broom.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

Batteries

Cleaning Path

Capacity

Dust Control

Filtration

Work Rating

(Ft

2

Per Hr. / M

2

Per Hr.)

Dimensions (L X W X H)(In./Cm)

Sound Level

Weight (With Batteries)

SWB 26/8

96210

24 V

26 in / 66 cm

9 gal / 40 liters

Filter

Single-stage filtration

26,000 ft

2

per hr.

2,400 m

2

per hr.

32 in x 28 in x 24 in

80 cm x 70 cm x 60 cm

67 dB (A)

124 Lbs. / 56 kg

S TA N D A R D ACC E S S O R I E S A N D

R E P L AC E M E N T I T E M S

Main Broom

39122

Sidebrush

Filter

39167

90100

1 - 8 0 0 - VAC U U M S

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

Low-moisture, multi-purpose floor cleaning machine for a healthier and safer indoor environment.

Environmentally preferred, the BR 13/1 Scrubbers offer the latest cleaning innovation — cylindrical brush technology. The use of cylindrical brush technology reduces water consumption by 30% thanks to a low-moisture cleaning design and deep scrubbing through concentrated brush speeds of 650 RPMs — over three times higher than the speed of comparable rotary brush automatic scrubbers. Cylindrical brushes provide 4-6 times more contact pressure than rotary brush scrubbing, handling any flat floor surface with ease, as well as structured surfaces such as quarry tile, paver bricks, and raised rubber disc flooring. These scrubbers can also be used for cleaning escalators and moving walkways. For even greater flexibility, the BR 13/1 Scrubbers can be used on entrance matting and commercial-grade carpeting in conjunction with low-moisture, carpet mill approved encapsulation carpet cleaning. Producing minimal impact to the environment, waste is minimized as cylindrical brushes far outlast rotary pads, using on average one set of brushes for every 100 floor pads.

Less time is spent on pad replacement and maintenance, dramatically increasing worker productivity, safety, and cleaning speed.

The BR 13/1 BAT runs on sealed, maintenance free, Lithium-Iron

Phosphate (LifePO4) batteries. There are many types of Lithium-Iron

(cobalt, magnesium, polymer, etc.) batteries on the market. The BR 13/1

BAT uses the latest, most advanced, lithium technology on the market

today.

These batteries not only meet LEED EB Green Building Standards, they also: deliver up to 2,000 charging cycles to boost productivity, stay cooler than other batteries on the market, can be rapidly recharged, have an extremely low self discharge rate, and do not suffer from “thermal runaway”.

BR 13/1 MW

BR 13/1 BAT

Less moisture, mold, bacteria and allergens

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

Machine Dimensions (LxWxH)

Net Weight

Solution / Recovery Tank

BR 13/1 MW

99410

15 x 17 x 44 in /

38 x 44 x 111 cm

55 Lbs. / 25 kg.

1 gal / .4 gal.

4 liters / 1.5 liters

D E S I G N C H A R AC T E R I S T I C S

Tank construction

Polyethylene

Brush Type

2, counter-rotating cylindrical

BR 13/1 BAT

99412

15 x 17 x 44 in /

38 x 44 x 111 cm

49 Lbs. / 22 kg.

1 gal / .4 gal.

4 liters / 1.5 liters

Brush Width

Brush RPM

Cleaning Path

Cleaning Rate

Sound Level

Cord Length

Brush Motor

Charger

Battery Voltage

12 in / 30 cm

650 rpm

13 in / 33 cm

3,775 sq. ft./hr.

351 sq. m/hr.

69 db (A)

40 ft. / 12 m

1 hp / 600 W

N/A

N/A

Polyethylene

2, counter-rotating cylindrical

12 in / 30 cm

400 rpm

13 in / 33 cm

3,775 sq. ft./hr.

351 sq. m/hr.

66 db (A)

N/A

.4 hp / 300 W

On-Board

24 V

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

Standard Brush

Soft Brush

Hard Brush

Escalator Brush

Carpet Brush

Side Brush

Transport Trolley

33855

33856

33857

33859

33926

33858

05-3395-0000

33855

33856

33857

33859

33926

33858

05-3395-0000

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

DUAL CLEANING APPLICATIONS

Excellent results on both hard and soft floor coverings including vinyl tile, hardwood, concrete, short nap commercial carpeting, diamond plate, quarry tile, brick, slate, mosaic, studded rubber, granite, marble, rubber floors, and even escalators! For eco-friendly encapsulation carpet cleaning, cylindrical brushes

“lift” and revitalize the carpet fibers, while low-moisture solution atomization minimizes the moisture, allergens and bacteria in carpets..

TRANSPORT EASILY

For fast and simple transport, an optional trolley is available.

OPTIONAL SIDE BRUSH

Providing superior edge-cleaning capability, optional side-brushes are available to widen your cleaning path even further, delivering access to tightcorners and hard-to-reach spaces.

SOLUTION ATOMIZATION

Cleaning solution is atomized into a fine mist and dispersed through the cylindrical brushes, so less moisture is consumed during the hard floor or carpet cleaning process.

W W W. TO R N A D OVAC . CO M

35

Powerful, automatic floor scrubbing in a compact package.

The BR 16/3 puts the power of automatic scrubbing in a compact package ready for virtually any hard floor surface. This corded electric unit, operates in forward and reverse with a 16” scrubbing path at 660 RPMs. Cleaning approximately 3,200 square feet per hour, your small and congested spaces are clean, healthy and ready for use in no time.

The BR 16/3 comes standard with brushes, allowing you to replace your standard floor cleaning methods out of the box. Tornado® also offers a wide selection of versatile brushes allowing the BR 16/3 to clean multiple hard floor types including ceramic tile, quarry tile, paver brick, raised rubber disc floors and other challenging surfaces

Tornado’s BR 16/3 cylindrical brush machine is designed for environmental sustainability.

The use of cylindrical brushes conserves natural resources including water, solution and source materials. Cylindrical brush technology delivers low moisture deep-clean scrubbing through concentrated brush speeds of 660 RPMs — three times faster than the speed of comparable rotary brush automatic scrubbers, digging deeper into uneven flooring surfaces to remove dirt that a disc unit can’t reach. Cylindrical brushes also provide 4-6 times more contact pressure than rotary brush scrubbing, handling any flat or structured floor surface with ease.

BR 16/3

PROFESSIONAL PERFORMANCE

Brush pressure adjustment allows variable contact pressure with the floor surface.

SIMPLE TO USE

Removable solution and recovery tanks are easily emptied, rinsed, and re-filled.

CYLINDRICAL BRUSHES

The BR 16/3 unit comes standard with brushes for daily cleaning operations. A variety of brushes are available for high performance on structured flooring.

1 - 8 0 0 - VAC U U M S

VERSATILE AND COMPACT

The BR 16/3 takes automatic scrubbing technology into confined areas where bigger units can’t go.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

M AC H I N E D I M E N S I O N S

Dimensions (L X W X H)

Net Weight

Solution Tank

Recovery Tank

C L E A N I N G S YS T E M S

Productivity

Brush Type

Brush Width

Brush Rpm

Cleaning Path

Sound Level

M OTO R

Brush Motor

Vacuum Motor

R E P L AC E M E N T I T E M S

Soft Scrub Brush (2 Req.)

Squeegee Set (2 Included)

50 Ft. Extension Cord (14-3 Gauge)

BR 16/3

99406

21 in x 19 in x 15 in

520 mm x 470 mm x 380 mm

67 Lbs. / 33 kg.

3 gal / 10 l

3 gal / 10 l

3200 f² per hour 300 m² per hour

Cylindrical

16 in / 400 mm

660 RPM

16 in / 400 mm

71 dB (A)

1.5 HP / 1100 W / 14 A

0.67 HP / 500 W / 4 A

K47622500

K47773230

32217

O P T I O N A L ACC E S S O R I E S

Oil Resistant Squeegee Set (2 Req.)

Medium Scrub Brush (2 Req.)

K47773220

K47622490

Hi-Low Grout (2 Req.)

K47622510

Grit Heavy Scrub Brush (2 Req.)

Horse Hair Brushes (2 Req.)

Cylindrical Pad Shaft (2 Req.)

20-Pc. Light Scrub/Polishing Pack

(2 Packs Req.)

20-Pc. Heavy Scrubbing Pad Pack

(2 Packs Req.)

20-Pc. Extra Heavy Scrubbing Pad Pack (2 Packs

Req.)

20-Pc. Polishing Pad Pack (2 Packs Req.)

K47622520

K47622740

K47622280

K63694530

K63694510

K63694520

K636993880

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

World-class scrubber delivering versatility and enhanced productivity.

Designed to scrub hard-to-clean areas where a traditional mop and bucket are used, the new, eco-friendly BD 14/4 battery operated scrubber from Tornado® is compact, powerful, versatile and perfect for small or confined spaces. Cleaning approximately 11,300 square feet per hour, your small and congested spaces are clean, dry, healthy and safe in no time.

The BD 14/4’s low-moisture design includes an integrated parabolic squeegee system, mounted just 1” behind the pad.

Solution is contained within the cleaning path and instantly recovered, even around 180 degree turns! Floors are left amazingly dry, avoiding touch-up work that is often required on competitive models.

Say goodbye to corded electric units that can cause trips and falls. The BD 14/4’s eco-friendly, maintenance-free AGM battery eliminates the danger of a power cord and periodic maintenance.

What’s more, the ergonomic handle minimizes worker fatigue and injuries.

Great for

Hard-to-Reach

Areas!

P R O D U C T S P E C I F I C AT I O N S

MODEL BD 14/4

Part Number

99414

M AC H I N E D I M E N S I O N S

Dimensions (Lxwxh)

Net Weight (W/O Batteries)

Shipping Weight

Solution Tank

Recovery Tank

Squeegee Width

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

Polyethylene

C L E A N I N G S YS T E M

Productivity

Brush Type

Brush Width

Brush Rpm

Cleaning Path

Sound Level

M OTO R

Vacuum Motor

Brush Motor

13,342 (Sq. Ft. Per Hour)

Disc

14”

180

14”

69 Db

0.8 Hp

0.3 Hp

B AT T E RY

Voltage

R E P L AC E M E N T I T E M S

Standard Poly Scrub Brush

Rear Squeegee

38” X 15” X 22”

132 Lbs.

185 Lbs.

3.5 Gal.

4 Gal.

16”

24

48903020

48410070

48410090

Front Squeegee

O P T I O N A L I T E M S

Soft Poly Scrub Brush

Medium Poly Scrub Brush

5-Mix Brush

Rear Squeegee

Front Squeegee

Linatex Rear Squeegee

13” Pad Holder Green Center Lock

48903010

48903030

48903050

48410060

48410010

48410080

48803030

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

BD 14/4 COMPACT AUTO-SCRUBBER

FITS IN NARROW SPACES

Now clean narrow, congested isles or stalls with this compact unit. The 14” cleaning path and adjustable, collapsible handle makes getting under partitions and counters so easy.

COMPACT LOW-PROFILE

This highly maneuverable unit reaches difficult areas previously cleaned by a mop and bucket. With an adjustable handle, the unit fits operators of any height.

REDUCE TRAINING TIME

The unit is so simple to use, you’ll save time and money by reducing training time required for your staff. With an ergonomic handle and control system plus easy-to-fill, empty and remove tanks, the BD 14/4 delivers easy and safe operation.

EASY ACCESS TO TANKS AND

BATTERIES

For easy maintenance, and access to batteries, simply remove the solution tank for filling and dumping purposes.

COMPACT STORAGE

The collapsible handle and wheels on the back of the unit make storage easy.

Stand on end to store in small closets or spaces.

W W W. TO R N A D OVAC . CO M

37

38

World-class scrubber delivering versatility and enhanced productivity.

Designed to scrub and dry underneath countertops and small, hard-toreach areas where a mop is traditionally used, the BD 17/6 Compact

Scrubber is battery operated and designed to easily tackle these hard-

to-clean areas. The BD 17/6’s design includes a 180 degree rotating integrated parabolic squeegee system. This squeegee is mounted just 1” behind the pad to allow for immediate solution pick-up going both forwards and backwards. Pairing that with a 6 gallon solution and recovery tank, this machine makes your most difficult cleaning tasks no problem at all!

The BD 17/6’s eco-friendly, maintenance-free AGM battery provides long run-times, eliminating the danger of a power cord, and reduces periodic maintenance. What’s more, the ergonomic handle is adjustable to accommodate a variety of user-heights, and minimizes worker fatigue and injuries as a result.

Maintenance and access to the brush deck and squeegee on the BD

17/6 is simple! When the unit is upright in storage position, your staff

can easily access the brush deck and squeegee to check parts to ensure they are in top working condition. What’s more, you have easy access to the tanks and batteries by simply removing the solution tank for filling and dumping purposes, or to recharge the 24 Volt AGM batteries.

FITS IN NARROW SPACES

Now clean narrow, congested isles or stalls with this compact unit. The 17” cleaning path and adjustable, collapsible handle makes getting under partitions and counters so easy!

1 - 8 0 0 - VAC U U M S

REDUCE TRAINING TIME

The unit is so simple to use, you’ll save time and money by reducing training time required for your staff. With an ergonomic handle and control system plus easy-to-fill, empty and remove tanks, the BD 17/6 delivers easy and safe operation.

COMPACT LOW-PROFILE

This highly maneuverable unit reaches difficult areas previously cleaned by a mop and bucket. With an adjustable handle, the unit fits operators of any height.

EASY ACCESS TO TANKS AND

BATTERIES

For easy maintenance, and access to batteries, simply remove the solution tank for filling and dumping purposes.

Great for

Hard-to-Reach

Areas!

BD 17/6 COMPACT

AUTO-SCRUBBER

180° Rotating

Squeegee!

P R O D U C T S P E C I F I C AT I O N S

MODEL BD 17/6

Part Number

99617

M AC H I N E D I M E N S I O N S

Dimensions (Lxwxh)

Net Weight

Solution Tank

Recovery Tank

Squeegee Width

31 in x 24 in x 21 in

793 mm x 603 mm x 518 mm

191 Lbs. / 86.5 kg

6 gal.

6 gal.

20 in / 510 mm

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

Polyethylene

C L E A N I N G S YS T E M

Productivity (Per Hour)

Brush Type

Brush Width

Brush Rpm

16,200 sq. ft. / 1,505 sq. m

Disc

17 in / 430 mm

Cleaning Path

Sound Level

190

17 in / 430 mm less than 70 dB

M OTO R

Vacuum Motor

Brush Motor

B AT T E RY

Voltage

340 W / 14 amp

340 W / 14 amp

24

R E P L AC E M E N T I T E M S

Standard Scrub Brush

Rear Squeegee

Front Squeegee

O P T I O N A L I T E M S

Medium Poly Scrub Brush

5-Mix Brush

Grit Scrub Brush

Front Squeegee

Rear Squeegee

Rear Squeegee Para

17” Pad Holder

48903120

48413040

48413030

48903130

48903150

48903140

48413030

48413040

48413050

48803050

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

World-class scrubber delivering versatility and enhanced productivity.

Less Solution and Water

BR 18/11

P R O D U C T S P E C I F I C AT I O N S

MODEL* BR 18/11

Catalog Number

99685

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Solution / Recovery Tank

Squeegee Width

43” X 21” X 41”

157 Lbs.

11 gal. / 12 gal.

31”

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

Polyethylene

C L E A N I N G S YS T E M

Brush Type

Brush Width

Brush RPM

Brush Pressure

Cleaning Path

Cylindrical

18”

1,300

50 Lbs.

18”

P R O D U C T I V I T Y

Cleaning Rate (Sq. Ft Per Hour)

M OTO R S

Vacuum Motor

Brush Motor

Sound Level

B AT T E RY

Voltage

R E P L AC E M E N T I T E M S

20” Pad Holder

Soft Scrub Brush (2 required)

Reg Scrub Brush

Standard - Rear Squeegee

Standard - Front Squeegee

O P T I O N A L I T E M S

Super Soft Scrub Brush (2 required)

Soft Scrub Brush

Scrub Brush (2 required)

Med Scrub Brush

Grit Scrub Brush

5 mix Brush

Hi-Low Grout Brush (2 required)

Pad holder w/ center lock

Oil Resistant - Rear Squeegee (before seial#: 10003331. N/A for 20/11T)

Rear Squeegee

Oil Resistant - Rear Squeegee (after serial#: 10003331)

17,969

.6 hp

.8 hp

66 dB

24

NA

48901230

NA

48903120

48405010

48901230

K57620080

K57621710

K57621700

48401040

48405030

48405040

See Page 59 for warranty information * Also available in traction model.

BD 20/11

99680

43” X 21” X 41”

157 Lbs.

11 gal. / 12 gal.

31”

Polyethylene

Disk

20”

182

50 Lbs.

20”

18,830

.6 hp

.8 hp

66 dB

24

48802020

NA

48902010

48802020

48902010

48902010

48902030

48902040

48902060

48802010

48401040

48405030

48405040

World-class scrubbers delivering leading edge innovation, durability, and versatility.

The BR and BD Small Walk-behind Scrubber Family is perfect for smaller spaces and is offered in your choice of disc or cylindrical brush for hard floor scrubbing. These small scrubbers meet rigorous global user standards for durability and productivity, offering enhanced features, benefits and a sleek look that clearly outmatches the competition.

Designed for environmental sustainability, these units conserve water, solution and source materials, and also operate at a whisper-quiet 67 dB, which is perfect for use in noise-sensitive facilities such as hospitals, schools, libraries, restaurants, and more. The BR 18/11 features cylindrical brush technology which delivers low moisture deep scrubbing through concentrated brush speeds of 1300 RPM, and provides 4-6 times more contact pressure than rotary brush scrubbing, handling any flat floor surface with ease, as well as structured surfaces such as quarry tile, paver bricks, and raised rubber disc flooring.

Our small walk-behind scrubbers feature a tough, no-hassle, quick-change parabolic squeegee system delivering 100% solution recovery — even on

180 degree turns. Constructed with a tough roto-molded polyethylene body, you’ll get years of maximum performance and reliability, while experiencing minimal machine down-time.

BD 20/11

EASY TO CLEAN

Quick release recovery tank lid for easy tank rinsing and filling.

VACUUM MOTOR PROTECTION

Automatic recovery tank float shut off device to avoid foam and water from damaging vacuum motors.

ON-BOARD CHARGER

The BR 18/11 cylindrical brush scrubber comes standard with a built-in on-board charger to ensure quick and easy charging.

PARABOLIC SQUEEGEE

Heavy duty assembly featuring a four-sided rear blade with quick release lever to facilitate squeegee changes in 10 seconds or less!

This ensures a lower cost of ownership.

SILENT SUPERVISOR

Ergonomic handle and easy-to-read control panel displays battery run time and charge indicator, maximizing your team’s cleaning efficiency and protecting your investment.

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

39

The EZ Floorkeeper® Series: Value, performance, and one of the industry’s most popular walk-behind scrubbers.

Each of the units in the EZ Floorkeeper® Series of automatic scrubbers are perfect for a wide range of flooring services from tile, linoleum and rubberized surfaces to marble and concrete. Ruggedly constructed with rotationally-molded plastic, these machines are a fundamental component in a hard-floor maintenance program. In a single pass, an

EZ Floorkeeper® lays solution, scrubs, and recovers dirty water, leaving

a clean, dry floor behind. Thanks to their quiet operation, compact size, and front-mounted warning light, they can be used in any setting where customers are shopping.

Tornado

®

EZs are in use worldwide in retail store chains, grocery stores, and discount stores. EZs are also appropriate for commercial and healthcare applications as well as detail cleaning projects in industrial facilities.

EZ Floorkeepers® are available in a 20” brush-assisted model, a 20”

traction drive unit, and a 24” traction drive unit. All units feature 200 rpm brush speed, 3-stage vac motor, speed control, 13-gallon solution tank and 13-gallon recovery tank. All models come standard with swing squeegee, pad holder, batteries, and charger.

40

20” EZ BRUSH DRIVE

20” EZ TRACTION DRIVE

24” EZ TRACTION DRIVE

COMMON SENSE FEATURES

A see-through lid on the recovery tank allows the operator to monitor recovery tank level for optimal machine performance.

PROFESSIONAL

PERFORMANCE

The EZs leave behind a clean, dry floor. Easy-to-use controls make the unit an operator favorite the world over.

BUILT-IN CHARGER

Built-in battery charger on back of unit allows for quick charging when the unit is not in operation, or opportunity charging when unit is resting between jobs.

THE EZ TRACTION DRIVE: QUIET,

POWERFUL, RELIABLE OPERA-

TION

The 20” EZ-TD and the 24” EZ-TD feature a traction drive system for the unit’s forward motion. The traction drive is a sealed gear unit, a significant reduction in part number compared to competitive units. The traction drive requires no maintenance, has no lube points, and is extremely quiet.

SERVICE MADE SIMPLE

The battery compartment is easily accessible for maintenance and service operations by qualified personnel.

P R O D U C T S P E C I F I C AT I O N S

MODEL 20” EZ BRUSH DRIVE

20” EZ TRACTION

DRIVE

99125B

Catalog Number

99105B

M AC H I N E D I M E N S I O N S

Dimensions (L X W X H)

49” X 22” X 37”

Weight W/Out Batteries

Solution Tank

Recovery Tank

C L E A N I N G S YS T E M

Cleaning Path

Swing Squeegee

151 Lbs

13 Gal

13 Gal

Brush/Pad Size

Brush/Pad Speed

Brush/Pad Pressure

Cfm

Waterlift

20”

28”

20”

200 Rpm

67 Lbs

65

71”

M OTO R S

3-Stage Vac Motor

Brush Motor

Drive

Forward Speed

Reverse Speed

.75 Hp

1.0 Hp

Brush Assist

0 To 150 Fpm

N/A

B AT T E RY

Voltage

24 V System

R E P L AC E M E N T I T E M S

Pad Holder

(1 Included W/ Unit)

Squeegee Replacement

Kit

99262

18709

49” X 22” X 37”

166 Lbs

13 Gal

13 Gal

20”

28”

20”

200 Rpm

65-85 Lbs

65

71”

.75 Hp

1.0 Hp

Traction Drive

0 To 200 Fpm

150 Fpm

24 V System

99262

18709

O P T I O N A L ACC E S S O R I E S A N D AT TAC H M E N T S

Poly Scrub Brush (1 Req.)

99260 99260

Grit Brush (1 Required)

99263 99263

1.5” Wet Attachment Set

90676 90676

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

24” EZ TRACTION

DRIVE

99130

53” X 28” X 37”

172 Lbs

13 Gal

13 Gal

24”

32”

24”

200 Rpm

72 Lbs

65

71”

.75 Hp

1.0 Hp

Traction Drive

0 To 200 Fpm

150 Fpm

24 V System

99272

18710

99270

N/A

90676

W W W. TO R N A D OVAC . CO M

World-class scrubbers delivering leading edge innovation, durability, and versatility.

Tornado’s BR 22/14T and BD 26/14 Medium Walk-Behind

Scrubbers are designed for use in moderately spaced interiors, and

deliver world class scrubbing performance, amazing durability, and environmental sustainability. With Tornado’s world class medium walkbehind auto scrubbers, you’ll get enhanced cleaning performance, drier floors and increased building and occupant safety.

Rigorously tested in the field, the BR and BD family of medium walkbehind scrubbers are constructed with a tough rotomold polyethylene body, ensuring years of maximum performance and reliability. Service down-time is significantly reduced with its wide-open design for fast and easy access to tanks, batteries and motor. When it comes to longevity, Tornado’s BR and BD medium walk-behind scrubbers come standard with a 10 year warranty on the body and tanks for years of hassle-free use and reliability.

The environmentally preferred BR units offer cylindrical brush technology which delivers low moisture cleaning design and deep scrubbing through concentrated brush speeds of 1300 RPM—over six times higher than the speed of comparable rotary brush automatic scrubbers. Cylindrical brushes provide 4-6 times more contact pressure than rotary brush scrubbing, handling flat and structured floor surface with ease. Source reduction and environmental waste are minimized as cylindrical brushes far outlast rotary pads, using on average, one set of brushes for every 100 floor pads. This also means increased worker productivity, safety, cleaning speed, and significantly less time spent on pad replacement and maintenance.

Whisper-Quiet

67 dB

P R O D U C T S P E C I F I C AT I O N S

MODEL

BR 22/14T

Catalog Number

99695T

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Solution / Recovery Tank

50” X 24” X 42”

223 Lbs.

14 / 15 gal.

Squeegee Width

33”

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

Polyethylene

C L E A N I N G S YS T E M

Brush Type

Brush Width

Brush RPM

Brush Pressure

Cleaning Path

Cylindrical

22”

1300

79 Lbs.

22”

P R O D U C T I V I T Y

Cleaning Rate (Sq. Ft Per Hour)

22,000

M OTO R S

Vacuum Motor

Brush Motor

Traction Drive

Sound Level

.6 hp

.6 hp

Yes

67 dB

B AT T E RY

Voltage

On-Board Charger

24

Yes

R E P L AC E M E N T A N D O P T I O N A L I T E M S

Standard Rear Squeegee

48402010

Poly/Oil Resistant Front Squeegee

48402020

Oil Resistant Rear Squeegee

Extra Soft Scrub Brush (2 required)

13 “ Pad Holder (2 required)

Medium Scrub Brush (2 Req.)

13”Medium Scrub Brush (2 Req.)

Grit Scrub Brush (2 req.)

13” Grit Scrub Brush (2 req.)

Soft Scrub Brush (2 req.)

Hi-Low Grout Brush (2 req.)

48402040

48902140

NA

K5762296

NA

K5762300

NA

K5762297

K5762298

BD 26/14

99720

53” X 28” X 42”

244 Lbs.

14 / 15 gal.

33”

Polyethylene

Twin Disk

26”

345

110 Lbs. max.

26”

29,225

.8 hp

1.0 hp

Yes

67 dB

24

Yes

48402010

48402020

48402040

NA

48803030

NA

48903020

NA

48903040

NA

NA

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

DISC PADS AND BRUSHES

The BD units come standard with pad holders. When used with the appropriate pad, this is the ideal solution to daily maintenance cleaning.

The BD machines can be fitted with a variety of optional scrub brushes, a time-proven solution for smooth floors.

QUICK BRUSH CHANGE

Deck shroud peals back allowing easy access to change brushes.

BD 26/14

ON-BOARD CHARGER

The BR 22/14T cylindrical brush scrubber comes standard with a built-in on-board charger to ensure quick and easy charging.

EASY MAINTENANCE

A sturdy hood strut keeps lid open during maintenance, allowing easy access to batteries, vacuum motors and hoses.

CYLINDRICAL BRUSHES

The BR unit comes standard with white brushes for daily cleaning operations. A variety of brushes are available for high performance on structured flooring.

MANUAL LEVERS FOR

GREATER RELIABILITY

Our walk-behind models feature long lasting, all-manual levers that raise and lower decks.

W W W. TO R N A D OVAC . CO M

41

42

World-class scrubber delivering superior productivity and durablity

Tornado’s BD 28/20 walk-behind scrubber offers world class scrubbing with a narrow profile and wide cleaning path. This unit is perfect for use in grocery stores, retail facilities, hospitals, and warehouses. The BD 28/20 lays down cleaning solution, scrubs, then vacuums away dirty solution, leaving floors clean and dry in just one pass, even around 180 degree turns. Clean over 29,493 square feet per hour while increasing your building’s occupant health and safety.

Rigorously tested in the field, the BD 28/20 walk-behind scrubber is constructed with a tough roto-mold polyethylene body, ensuring years of maximum performance and reliability. Service down-time is significantly reduced with its wide open clam shell design for fast and easy access to tanks, batteries and motor. For application flexibility and easy maintenance, there are no tools required when changing disc brushes. When it comes to longevity, Tornado’s BD 28/20 walkbehind scrubber will outlast the competition, and comes standard with a 10 year warranty on the body and tanks for years of hassle-free use and reliability.

Meet LEED EB Green Building Standards with the BD 28/20 optional eco-friendly, maintenance-free AGM batteries. With Tornado’s ecofriendly AGM batteries, you can say good-bye to dangerous battery maintenance, risk of work-related injury, and hello to increased worker safety. This also results in increased worker productivity and reduced machine down time.

QUICK PAD CHANGE

Deck shroud peals back for easy access to change disc pads.

1 - 8 0 0 - VAC U U M S

PARABOLIC SQUEEGEE

The parabolic squeegee ensures 100% solution recovery, even around 180 degree turns. Heavy duty assembly features a four-sided rear blade with quick-release lever to facilitate squeegee changes in just 10 seconds or less!

DISC PADS AND BRUSHES

The BD 28/20 comes standard with pad holders. When used with the appropriate pad, this is the ideal solution to daily maintenance cleaning. The unit can be fitted with a variety of optional scrub brushes, a time-proven solution for smooth floors.

BD 28/20

P R O D U C T S P E C I F I C AT I O N S

MODEL BD 28/20

Part Number

M AC H I N E D I M E N S I O N S

99728

Dimensions (Lxwxh)

Net Weight (W/O Batteries)

Solution Tank

Recovery Tank

Squeegee Width

59 in x 30 in x 41 in /

1490 mm x 760 mm x 1045 mm

320 Lbs. / 145 kg.

20 gal / 75 l

22 gal / 85 l

33 in / 835 mm

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

Polyethylene

C L E A N I N G S YS T E M

Productivity

Brush Type

Brush/Pad Diameter (2 Brushes)

Brush Rpm

Brush/Pad Pressure

Cleaning Path

Maximum Speed

M OTO R

Vacuum Motor

Brush Motor

Traction Motor

29,493 f2 per hour

2,740 m2 per hour

Disc

2 x 14 in / 2 x 355 mm

160 up to 110 Lbs. / 50 kg.

28 in / 685 mm

2.5 miles per hour / 4 km per hour

570 Watts / 23.75 Amps

700 Watts / 29 Amps

300 Watts / 12.5 Amps

B AT T E RY

Battery

R E P L AC E M E N T I T E M S

13” Pad Holder (2 Required)

Standard Rear Squeegee

Standard Front Squeegee

O P T I O N A L I T E M S

14” Poly Scrub Brush .6 (2 Required)

14” Poly Scrub Brush .9 (2 Required)

Tynex Scrub Brush (2 Required)

5 Mix Brush (2 Required)

24 v

48803030

48406190

48406210

48914030

48914040

48914050

48914060

See Page 59 for warranty information.

W W W. TO R N A D OVAC . CO M

World-class scrubber delivering superior productivity, durability and improved health

Tornado’s new BD 32/26 walk-behind scrubber offers world class scrubbing, a wide cleaning path and large capacity solution and recovery tanks. This unit is perfect for use in grocery stores, retail facilities,hospitals,and warehouses.The BD 32/26 lays down cleaning solution, scrubs, then vacuums away dirty solution, leaving floors clean and dry in just one pass, even around 180 degree turns. Clean over 32,300 square feet per hour while increasing your building’s occupant health and safety.

Rigorously tested in the field, the BD 32/26 walk-behind scrubber is constructed with a tough roto-molded polyethylene body, ensuring years of maximum performance and reliability.

Service down-time is significantly reduced with its wide-open clam shell design for fast and easy access to tanks, batteries and motor. For application flexibility and easy maintenance, there are no tools required when changing disc brushes. When it comes to longevity, Tornado’s BD 32/26 walk-behind scrubber will outlast the competition, and comes standard with a 10 year warranty on the body and tanks for years of hassle-free use and reliability.

The BD 32/26 improves the health of your facility by offering a choice of traditional wet or eco-friendly, maintenance-free AGM batteries. With Tornado’s eco-friendly AGM batteries, you can say good-bye to dangerous battery maintenance that can lead to a work-related injury, and hello to increased worker safety.

This also results in increased worker productivity and cleaning speed. With a sound level of only 67 dB, the BD 32/26 can clean any space quietly. Less noise results in reduced distractions and ensures improved working conditions for your staff.

BD 32/26

DISC PADS AND BRUSHES

The BD 32/26 comes standard with pad holders.

When used with the appropriate pad, this is the ideal solution for daily maintenance cleaning. The unit can be fitted with a variety of optional scrub brushes, all of which are a time-proven solution for smooth floors.

EASY MAINTENANCE

A locking hood strut keeps the lid open during maintenance for safe and easy access to batteries, vacuum motors and hoses.

The clam shell design allows the batteries to breathe during the charging process, preventing moisture and corrosion build-up of the battery posts.

P R O D U C T S P E C I F I C AT I O N S

MODEL BD 32/26

Part Number

99732

M AC H I N E D I M E N S I O N S

Dimensions (Lxwxh)

Net Weight (W/O Batteries)

Shipping Weight

Solution Tank

Recovery Tank

Squeegee Width

66 in x 29 in x 47 in

1676 mm x 737 mm x 1194 mm

700 Lbs./318 kg

800 Lbs./ 363 kg

26 gal. /98 I

28 gal. / 110 i

39 in / 99 mm

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

Polyethylene

C L E A N I N G S YS T E M

Productivity (Ft

2

Per Hour)

Brush Type

Brush Width (2 Brushes)

Brush Rpm

Brush Pressure

Cleaning Path

Sound Level

M OTO R

Vacuum Motor

Brush Motor

B AT T E RY

Battery

R E P L AC E M E N T I T E M S

16” Pad Holder (2 Required)

Standard Rear Squeegee

Standard Front Squeegee

32,280 f2/hr / 2999 m2/hr

Disc

16 in / 406 mm

190 up to 133 Lbs. / 60 kg

32 in / 813 mm

67 dB

0.8 hp / 588 Watts

1.1 hp / 809 Watts

24 v

48803050

48406100

48403020

See Page 59 for warranty information.

SILENT SUPERVISOR

Ergonomic handle and easy-to-read control panel displays battery run time and charge indicator, maximizing your team’s cleaning efficiency and protecting your investment.

QUICK PAD CHANGE

Deck shroud peals back for easy access to change disc pads.

PARABOLIC SQUEEGEE

The parabolic squeegee ensures 100% solution recovery, even around 180 degree turns. Heavy duty assembly features a four-sided rear blade with quick-release lever to facilitate squeegee changes in just 10 seconds or less!

1 - 8 0 0 - VAC U U M S

W W W. TO R N A D OVAC . CO M

43

44

World-class scrubbers delivering increased productivity, durability, health and safety.

Maintain and renew hard floor surfaces faster than ever before.

Tornado’s BD 26/27 and BR 28/27 Ride-on Automatic Scrubbers increase cleaning productivity in areas where walk-behind scrubbers were used in the past, thanks to their compact footprint and great maneuverability. The BD 26/27 and BR 28/27 are the perfect units for supermarkets, schools, health care, warehouses, and more. Operating at an incredibly low 69 dB the units are also perfect for daytime cleaning needs.

For effortless operation, Tornado’s ride-on BD 26/27 and BR 28/27 offers an automatic mode which starts all of the necessary operations of the scrubber once turned on. This system constantly controls the operation parameters to guarantee longer runtime and reliability. When an operator places the unit in reverse the unit intuitively retracts the squeegee. The BD 26/27

and BR 28/27 are paramount units in Tornado’s family of scrubbers, which

are recognized throughout the industry as market leaders and world-class products!

BD 26/27

Tornado’s BD 26/27 and BR 28/27 Ride-on Automatic Scrubbers are perfect for use in many different environments including:

EASY ACCESS TO TANKS AND

BATTERIES

For easy maintenance, gain access to batteries by simply lifting the seat.

SILENT SUPERVISOR

DISC PADS AND BRUSHES

The BD units come standard with pad holders. When used with the appropriate pad, this is the ideal solution to daily maintenance cleaning. The BD machines can be fitted with a variety of optional scrub brushes, a time-proven solution for smooth floors.

COMPACT LOW-PROFILE

This highly maneuverable unit reaches difficult areas previously cleaned by larger ride-on scrubbers.

Easy-to-read control panel displays battery run time and charge indicator, maximizing your team’s cleaning efficiency and protecting your investment.

CYLINDRICAL BRUSHES

The BR unit comes standard with brushes for daily cleaning operations. A variety of brushes are available for high performance on structured flooring.

Note: Brushes shown above are examples.

Actual brushes colors may vary.

• Supermarkets

• Warehouses

• Schools

• Health Clubs

• Hospitals, and more.

P R O D U C T S P E C I F I C AT I O N S

MODEL BD 26/27

Part Number

99772

M AC H I N E D I M E N S I O N S

Dimensions (Lxwxh)

Net Weight (W/O Batteries)

Shipping Weight

Solution Tank

Recovery Tank

Squeegee Width

62” x 28” x 52”

573 Lbs.

672 Lbs.

27 gal.

27 gal.

33”

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

Polyethylene

C L E A N I N G S YS T E M

Productivity

Brush Type

Brush Width

Brush Rpm

Brush Pressure

Cleaning Path

Sound Level

M OTO R

Vacuum Motor

Brush Motor

B AT T E RY

Battery

35,508 (Ft2 Per Hour)

Disc

26”

190

132 Lbs. max

26”

69 dB

580 W

650 W

24 v

R E P L AC E M E N T I T E M S

13” Pad Holder

Standard Front Squeegee

Standard Rear Squeegee

Poly Scrub Brush

O P T I O N A L I T E M S

Extra Soft Scrub Brush

Medium Scrub Brush

Hi-Low Scrub Brush

Grit Scrub Brush

13” Medium Scrub Brush

13” Grit Scrub Brush

48803030

48408020

48408010

N/A

N/A

N/A

N/A

N/A

48903020

48903040

BR 28/27

99775

62” x 31” x 52”

578 Lbs.

677 Lbs.

27 gal.

28 gal.

38.5”

Polyethylene

37,673 (Ft2 Per Hour)

Cylindrical

28”

785

320 Lbs. max

28”

69 dB

580 W two 600 W

24 v

N/A

48408020

48408010

48906020

48906100

48906060

48906040

48906080

N/A

N/A

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

World-class ride-on automatic scrubbers — attractive design, advanced engineering, unsurpassed performance.

Renew hard floor surfaces in large, unobstructed spaces faster than ever before. Tornado’s ride-on automatic scrubbers increase cleaning productivity in areas including supermarkets, manufacturing plants, airports, exhibit halls and much more.

For effortless operation, Tornado’s Ride-On BR/BD 33/30 units offer an automatic mode which will start all necessary operations of the scrubber once it is turned on. This system also gradually starts all of the motors and constantly controls the operation parameters to guarantee longer run-time and reliability. When in reverse, this machine also includes an automatic squeegee retraction feature.

Features of the BR 33/30 and BD 33/30

• Both units have a 33” cleaning path

• BR unit comes standard with a stainless steel pre-sweep function

• 30 gallon solution tank

• Automatic operation control mode

• Automatic squeegee retraction when in reverse

• Steering radius of only 6 feet for maneuvering tight corners

• Simple operator interface

• Exceptionally durable Roto-molded polyethylene construction

• Ergonomic design

• Multiple brush pressure settings

BR 33/30

PRODUCT S P E C I F I C AT I O N S

MODEL

Catalog Number

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Solution / Recovery Tank

Squeegee Width

D E S I G N C H A R AC T E R I S T I C S

Tank Construction

BD 33/30

99780

65” X 35” X 67” 65” X 36” X 51”

690 Lbs.

739 Lbs.

30 / 32 gal.

45”

30 / 32 gal.

45”

Polyethylene

BR 33/30

99785

Polyethylene

C L E A N I N G S YS T E M

Brush Type

Brush Width

Brush RPM

Brush Pressure

Cleaning Path

P R O D U C T I V I T Y

Cleaning Rate (Sq. Ft Per Hour)

Twin Disk

33”

Cylindrical

33”

162 785

187 Lbs. (max) 176 Lbs. (max)

33” 33”

55,952

M OTO R S

Vacuum Motor

Brush Motor

Sound Level

B AT T E RY

Voltage

.7 hp

1.5 hp

70 dB

36

R E P L AC E M E N T A N D O P T I O N A L I T E M S

Standard Rear Squeegee

48406100

Poly / Oil Resistant Front Squeegee

Oil Resistant Rear Squeegee

Medium Scrub Brush

Hi-Low Grout Brush

48403110

48406030

NA

Grit Scrub Brush

16” Pad Holder (2 req.)

16” Soft Brush (2 Req.)

16” Medium Scrub Brush (2 req.)

16” Grit Scrub Brush (2 req.)

NA

NA

48803050

NA

48903120

48903140

55,952

.8 hp

.9 hp

70 dB

36

48406100

48403110

48406030

48906050

48906030

48906070

NA

48906010

48903130

NA

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

PARABOLIC SQUEEGEE

Heavy duty assembly featuring a four-sided rear blade with quick release lever to facilitate squeegee changes in 10 seconds or less! This ensures a lower cost of ownership.

SAFETY FEATURES:

To ensure worker safety, the machine includes a roll-bar for greater operator protection.

QUICK BRUSH CHANGE

Deck shroud peals back allowing easy access to change brushes.

CYLINDRICAL BRUSHES

The BR unit comes standard with white brushes for daily cleaning operations. A variety of brushes are available for high performance on structured flooring.

Note: Brushes shown above are examples. Actual brush colors may vary.

DISC PADS AND BRUSHES

The BD unit comes standard with pad holders. When used with the appropriate pad, this is the ideal solution to daily maintenance cleaning.

The BD machine can be fitted with a variety of optional scrub brushes, a time-proven solution for smooth floors.

W W W. TO R N A D OVAC . CO M

45

Heavy-duty design, advanced engineering and unsurpassed performance

Tornado’s new BD 40/66 and BR 40/66 ride-on scrubbers not only further extends our auto-scrubber offering, but is designed to meet the toughest cleaning applications. Available in disc and cylindrical options, with 66 gallon solution tanks and heavy-duty body design these scrubbers have numerous features to solve your toughest cleaning challenges.

For effortless operation, Tornado’s ride-on BD 40/66 and BR 40/66 units offer an automatic mode which will start all necessary operations of the scrubber This system gradually starts all of the motors and constantly controls the operation parameters to guarantee longer run-time and reliability. When in reverse, this machine includes an automatic squeegee retraction feature.

The environmentally preferred BR 40/66 offers the latest modern enhancement—cylindrical brush technology. Cylindrical brushes provide

4-6 times more contact pressure than rotary brush scrubbing, handling any flat floor surface with ease, as well as structured surfaces such as quarry tile, paver bricks, and raised rubber disc flooring. Source reduction and environmental waste are minimized as cylindrical brushes far outlast rotary pads, using, on average, one set of brushes for every 100 floor pads.

This also means increased worker productivity, safety, cleaning speed, and significantly less time spent on pad replacement and maintenance.

BD 40/66

46

DUAL-VACUUM MOTORS

These units incorporates dual-vacuum motors to ensure complete solution recovery.

AUTOMATIC MODE

Automatic mode starts all necessary operations of the scrubber once the gas pedal is pressed, making operation effortless.

LARGE CLEAN OUT

A large evacuation plate ensure operators can easily clean out the recovery tank.

INTEGRATED BUMPER

Integrated bumper keeps walls and other sensitive areas from being damaged.

PRODUCT S P E C I F I C AT I O N S

MODEL

BD 40/66

Catalog Number

99790

M AC H I N E D I M E N S I O N S

L X W X H

80 in x 41 in x 77 in

203 cm x 104 cm x 196 cm

Unit Weight (W/O Batteries)

Solution Tank

Recovery Tank

Squeegee Width

1,323 Lbs. / 600 kg

62 gal / 235 l

66 gal / 250 l

51 in / 130 cm

C L E A N I N G S YS T E M

Brush Type

Cleaning Path

Brush Rpm

Brush Pressure

P R O D U C T I V I T Y

Cleaning Rate

Disc

40 in / 102 cm

162

353 Lbs. / 160 kg max

75,347 sq. ft. per hour

7,000 sq. m per hour

M OTO R S

Traction Motor

Vacuum Motor (Dual)

Brush Motor

B AT T E RY

Voltage

33 A / 1,200 W

16 A / 570 W

42 A / 1,500 W

36 V

R E P L AC E M E N T I T E M S

Pad Holder

Standard Front Brush

48802010

N/A

Standard Rear Brush

Standard Front Squeegee

Standard Rear Squeegee

N/A

48407130

48407120

O P T I O N A L I T E M S

Medium Brush

Grit Brush

Side Brush

Standard Brush

Medium Brush

Grit Brush

5-Mix Brush

Linatex Rear Squeegee

Pu Rear Squeegee

N/A

N/A

N/A

48902050

48902030

48902040

48902060

48407140

48407160

See Page 59 for warranty information.

BR 40/66

99795

80 in x 46 in x 77 in

203 cm x 117 cm x 196 cm

1,477 Lbs. / 670 kg

62 gal / 235 l

66 gal / 250 l

51 in / 130 cm

Cylindrical

40 in / 102 cm

933

243 Lbs. / 110 kg

75,347 sq. ft. per hour

7,000 sq. m per hour

33 A / 1,200 W

16 A / 570 W

42 A / 1,500 W

36 V

N/A

48907050

48907060

48407020

48407010

48907070

48907080

48907100

N/A

N/A

N/A

N/A

48407030

48407040

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

A complete range of wet-dry vacuums, designed to work in any environment and tackle any cleaning challenge.

Tornado’s Taskforce® Series of Wet/Dry Vacuums are some of the toughest, most versatile, and cost-effective tank vacuums on the market. Available in your choice of either a polyethylene or stainless steel body and in sizes ranging from ten, fifteen, seventeen and twenty gallon capacities, these vacuums offer a 1.61

HP vac motor and generate 114 cfm and 90” of waterlift. The Taskforce® series effectively handles general dry debris pick up in commercial environments, as well as liquids such as water, scrubbing solutions, and stripping solutions. These vacuums are perfect not only for general maintenance and cleaning, but also to manage soil and moisture in high-traffic areas, and can be paired with floor machines and other mopping and scrubbing operations as well.

The Taskforce® series comes complete with an attachment and accessory set, including hose, wand, carpet tool, squeegee tool, crevice tool, and dusting tool.

The swivel hose connector allows 360-degree hose rotation, letting you move the vacuum without fear of disconnects.The tools and accessories can be used for a variety of applications and debris types.

You can count on Tornado’s wet-dry vacuums to get the job done, whether being used for construction site clean-up, around the shop, or for emergency wet pickup around busy entryways. Tornado has been proudly producing world-class vacuums since 1927, and as always, our wet-dry vacuums stand for quality and superior durability.

4.

3.

Great

Value!

2.

1.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

TASKFORCE® 10

94234

TASKFORCE® 15

94232 94230 94236

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

19In X 16In X 28In

48Cm X 41Cm X 71Cm

29 Lbs / 13 Kg

Tank Size

10 Gal / 38 Liters

Wet Working Capacity

5 Gal / 19 Liters

Cord Length

30 Ft / 9 M

28In X 21In X 37 In

71Cm X 53Cm X 94Cm

52 Lbs / 24 Kg

15 Gal / 57 Liters

10 Gal / 38 Liters

30 Ft / 9 M

24in x 18in x 36in

61cm x 46cm x 91cm

36 Lbs / 16 kg

17 gal / 64 liters

12 gal / 45 liters

30 ft / 9 m

22in x 24in x 38in**

56cm x 61cm x 97cm**

63 Lbs / 29 kg

20 gal / 76 liters

15 gal / 57 liters

30 ft / 9 m

D E S I G N C H A R AC T E R I S T I C S

Body Construction

Hose

Wheel Dimension

Dump System

Polyethylene

1.5” X 10’ Hose With

Swivel Connector/Cuff

Lock

18 Gauge Stainless

Steel

1.5” X 10’ Hose With

Swivel Connector/Cuff

Lock

Polyethylene

1.5” x 10’ Hose with swivel connector/ cuff lock

18 Gauge Stainless Steel

1.5” x 10’ Hose with swivel connector/cuff lock

7” Non-Scuff Soft Rear

/ 3” Swivel Casters

Lift-And-Pour Tank

8” Non-Scuff Soft Rear

/ 3” Swivel Casters

Tilt-And-Pour Tank

7” non-scuff soft rear

/ 3” swivel casters

9.5” non-scuff rear

Rear drain hose Tilt-and-Pour tank

C L E A N I N G S YS T E M

Cfm

Water Lift

Filtration

114

90”

Cloth Filter For Dry

Recovery

114

90”

Cloth Filter For Dry

Recovery

M OTO R S

Motor Type

Motor Power

Motor Hp

One-2 Stage Motor

120 V / 1200 Watts

1.6 Hp

One-2 Stage Motor

120 V / 1200 Watts

1.6 Hp

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

Paper Filter

WD36 WD36

Filter Assembly

Extension Wand

WD3

WD29

WD3

WD29

Brush Nozzle Assembly WD31 WD31

114

90”

Cloth filter for dry recovery

One-2 stage motor One-2 stage motor

120 V / 1200 watts 120 V / 1200 watts

1.6 hp 1.6 hp

WD36

WD3

WD29

WD31

114

90”

Cloth filter for dry recovery

WD36

WD3

WD29

WD31

Crevice Tool

Round Brush

WD32

WD33

Front Mount Squeegee N/A

WD32

WD33

FM100

WD32

WD33

FM100H

See Page 59 for warranty information.

** Dimensions with handle and Trot-Mop: 36 in x 26 in x 38 in / 91 cm x 66 cm x 97 cm

WD32

WD33

FM100 standard

1 - 8 0 0 - VAC U U M S

1. TASKFORCE® 10 (94234)

2. TASKFORCE® 17 (94230)

3. TASKFORCE® 15 (94232)

4. TASKFORCE® 20 (94236)

CONVENIENT

Dispose of waste water easily with the tip-and-pour tank.

PACKAGED

COMPLETE

Standard attachments include a crush proof hose, two-piece wand, hard floor tool, squeegee attachment, dust brush and crevice tool.

WASHABLE FILTER

The filter is easily removed from the float cage for washing and re-use.

W W W. TO R N A D OVAC . CO M

47

Simultaneous wet and dry recovery, with a rugged design that withstands demanding applications.

It’s simple physics. Recovering heavier debris efficiently requires increased airflow when using a vacuum. The Taskforce® External

Filter Wet/Dry Vacuum creates powerful air flow beyond that

found in traditional wet/dry vacuums. As a result, the unit is perfect for maintenance departments and industrial applications where the recovery of  heavier debris is an everyday part of the job. Dry wall dust, sawdust, cement dust, water, and powder are no match for its recovery power. This electric unit can be easily moved from the tool shop to the factory floor or building site or other places where rapid pick-up of heavy debris is a must.

The Taskforce® External Filter Wet/Dry Vacuum can recover wet

and dry material without the need to stop and change or clean an internal filter. That means added efficiency, reduced work stoppage, and no more guesswork when it comes to choosing the right filter for debris recovery. A 2.25 HP powerhead with 184 CFM of airflow is fitted on a 16-gallon T-Lite thermoplastic tank. The tank is crack and corrosion resistant and sits on a convenient tip-and-pour carrier with four wheels for easy transport. An external filter comes standard with the unit. A true 2” intake can be fitted with 1.5” and 2” hoses and attachments. A wide selection of optional tools and attachments (see below) are available for a variety of applications.

EXTERNAL FILTER VAC

48

OPERATOR-FRIENDLY

The tip-and-pour tank and carrier makes transport and disposal of a full tank easy and hassle-free. A tool caddy is mounted on the back for optional tools and attachments, spray bottles, and other cleaning supplies.

SIMPLE AND EFFECTIVE

The unit can be broken down easily. Shown here: The 16-gallon

T-Lite thermoplastic tank and the detachable 2.25 HP powerhead.

The powerhead can be removed from the cover and used separately with an optional blowing nozzle for air blowing/sweeping. A large poly external filter comes standard with the unit as well.

MOBILE

4” front swivel casters and 10” rear wheels permit easy transport, stability and control regardless of how full the tank is.

POWERFUL

A 2.25 HP powerhead provides the needed power to tackle many aggressive industrial vacuuming applications. The powerhead is fitted on the tank cover with a locking collar. It can easily be removed for service, transport, or blowing applications.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

Vac Hp

Power Cord

Cfm

Waterlift

T-Lite Tank

Wet/Dry Capacity

Filter Area

Size (L X W X H)

Weight

TASKFORCE® EXTERNAL FILTER VAC

98995

2.25

14/3 50’ long

184

51”

16 gal

12 gal/1.3 bshl.

1268 Sq. In.

24” X 20” X 38”

65 Lbs.

S TA N D A R D ACC E S S O R I E S A N D R E P L AC E M E N T PA R T S

(Included with unit)

External Filter

90377

O P T I O N A L ACC E S S O R I E S A N D AT TAC H M E N T S

Liquid Shut-Off For External Filter Vacs

90573

Blowing Nozzle

90010

1.5” Wet/Dry Industrial Tank Vac Attachment Set

90660*

*90660 Includes All Of The Following, Which May Also Be Ordered Individually:

15’ X 1.5” Urethane Static Conductive Hose W/ Sleeve

90684

Double-Curved 1.5” Wand

14” X 1.5” Squeegee Floor Tool

14” X 1.5” Fiber Floor Tool

18” X 1.5” Round Nozzle

90286

90644

90642

90414

See Page 59 for warranty information.

*This is the recommended attachment set for this unit. Other sets may be used and are found in the

Tornado

®

Buyers Guide.

E X T E R N A L F I LT E R VAC A P P L I C AT I O N P E R F O R M A N C E G U I D E

(

H

= Excellent;

3

= Good)

WATER

CUTTING OIL

MACHINE OIL

LIGHT SOLID DEBRIS

HEAVY SOLID DEBRIS

SAWDUST

3

H

3

H

3

H

POWDER

ULTRA FINE POWDER

SAND

OIL DRY

METAL SHAVINGS

AND CHIPS

H

H

3

3

3

1 - 8 0 0 - VAC U U M S

W W W. TO R N A D OVAC . CO M

Simultaneous wet and dry recovery, powered by compressed air for maximum performance.

Powered by compressed air, the Taskforce® External Filter Air Vacuum creates waterlift substantially beyond that found in traditional wet/dry vacuums.

The unit is ideal for heavy-duty applications requiring extremely aggressive suction power. This machine is perfect for rapid high-volume recovery of wet material, and with its external filter, can recover dry material as well.

From the tool shop to the factory floor, this unit handles such challenges as water, oil, powder, metal shavings, oil, and a variety of other common types of debris in an industrial environment. In addition, the Taskforce® can recover wet and dry material without the need to stop and change or clean an internal filter.

That means minimal stoppages and no more operator guesswork on choosing the right filter for the right application. It should be noted that an air compressor, airline, and line couplings are required for operation and are not available from

Tornado

®

.

For the 95953, the priority is power. A patented Venturi powerhead with incredible

242” waterlift is fitted on a 18-gallon stainless tank. Furthermore, the machine has no moving parts and is spark-free. The tank sits on a convenient tip-and-pour carrier with four wheels for easy transport. An external filter comes standard with the unit. A wide selection of optional tools and attachments are available for a

variety of applications.

P R O D U C T S P E C I F I C AT I O N S

MODEL

Catalog Number

Venturi Powerhead (Cfm W/2” Orifice)

Waterlift

Stainless Tank

Wet/Dry Capacity

Filter Area

Compressor Line Cfm

Size (L X W X H)

Weight

TASKFORCE® EXTERNAL FILTER

AIR VAC

95953

83

242”

18 gal

14 gal/1.5 bshl.

1268 Sq. In.

[email protected] 90 PSI

24” X 20” X 41”

54 Lbs.

S TA N D A R D ACC E S S O R I E S A N D R E P L AC E M E N T PA R T S

(Included with unit)

External Poly Filter

Support Rod

90377

95996

O P T I O N A L ACC E S S O R I E S A N D AT TAC H M E N T S

Liquid Shut-Off For External Filter Vacs

90573

1.5” Wet/Dry Industrial Tank Vac Attachment Set

90660*

**90660 Includes all of the following, which may also be ordered individually:

15’ X 1.5” Urethane Static Conductive Hose W/

Sleeve

Double-Curved 1.5” Wand

14” X 1.5” Squeegee Floor Tool

14” X 1.5” Fiber Floor Tool

18” X 1.5” Round Nozzle

90684

90286

90240

90242

90414

A P P L I C AT I O N P E R F O R M A N C E W I T H

R E CO M M E N D E D A I R J E T * *

Water

Cutting Oil

Machine Oil

HEAVY OIL

SOLVENT

Powder

3/16”

3/16”

7/32”

1/4”

3/16”

3/16”

** Unit ships standard with 3/16” jet installed in the Venturi powerhead.

7/32” and 1/4” jets are supplied in the unit and can be installed by the user.

Larger jets increase performance in recovery of heavier materials, although the smallest air jet possible to do the job is strongly recommended to conserve plant air.

REQUIRED FOR OPERATION

(NOT available from Tornado

®

)

Minimum Recommended Air Compressor

15 HP

Recommended Air Line

Recommended Line Couplings

Required Air Line Psi For Light Debris

Required Air Line Psi For Heavy Debris

1/2” Diameter

Straight-thru

30-60*

60-100*

See Page 59 for warranty information.

* This is the recommended attachment set for this unit. Other sets may be used and are found in the Tornado

Buyers Guide.

®

95953 EXTERNAL

FILTER AIR VAC

VERSATILE

The 95953 can be fitted with a number of tools and attachments to suit a host of applications. The intake is a true 2” and can be fitted with 1.5” or 2” hoses and attachments.

OPERATIONAL REQUIREMENTS

The unit comes equipped with fitting and in-line pressure gauge.

Air compressor, air line, and line couplings are required for operation.

A minimum 15-HP air compressor

system is required that can maintain

30 to 60 psi at the vacuum gauge

(with the vacuum valve open) for light wet/dry recovery and 60 psi to

100 psi for maximum pick-up power for materials such as heavy liquids, slurries, sludge, and heavy debris.

CONVENIENT AND HASSLE-FREE

The tip-and-pour function makes debris disposal simple for the operator.

A built-in tool caddy in the back of the machine holds attachments, spray bottles, or other cleaning supplies.

When HEPA filtration is a must, order the air powered Critical Filter model

98624. The Taskforce Air-Powered

CFV comes standard with a 5-stage

HEPA filtration system providing the ultimate in environmental waste pick up.

1 - 8 0 0 - VAC U U M S

W W W. TO R N A D OVAC . CO M

49

Compact and portable, with uncompromised HEPA filtration

The Taskforce® CFV vacuums from Tornado® proves that power and performance need not be sacrificed for portability and easeof-operation. Four-stage HEPA filtration takes dry debris recovery to new levels for situations where the containment of recovered dry debris is critical. The Taskforce® CFVs are excellent for applications ranging from health care, abatement and industrial. These units employ a multi-stage filtration process and uses a certified HEPA filter to capture particles down to .03 microns, resulting in a 99.97% efficiency rating. This makes Tornado’s Taskforce® CFV vacuums the answer for containing environmental waste in accordance with strict safety standards, such as the Renovation, Repair and Painting

(RRP) Lead Safe Program.

The Taskforce® CFV Vacuums are available in 10 and 17 gallon sizes, meeting the needs of any size job. When it comes to critical filtration recovery, Tornado has you covered!

The Taskforce® CFV series comes complete with an attachment and accessory set, including hose, wand, floor tool, crevice tool, and dusting tool. The swivel hose connector allows 360-degree hose rotation, letting you move the vacuum without fear of disconnects.

The tools and accessories can be used for a variety of applications and debris types to meet all of your cleaning needs.

TASKFORCE® CFV 17

TASKFORCE® CFV 10

50

A

D

FOUR-STAGE FILTRATION

CERTIFIED HEPA FILTER

A certified HEPA filter captures particles down to 0.3 microns with 99.97% efficiency.

PACKAGED COMPLETE

Standard attachments include a hose, two-piece wand, floor tool, dust brush and crevice tool.

B

The (A) paper collection bag, (B) primary paper filter, (C) cloth filter, and (D) main certified HEPA filter comprise a four-stage filtration process for the Taskforce® CFV Vacuums.

C

PRODUCT SPECIFICATIONS

MODEL TASKFORCE® CFV 10

Catalog Number

97060

M AC H I N E D I M E N S I O N S

Dimensions (L X W X H) (In / Cm)

Net Weight

Tank Size

19” x 16” x 28”

48cm x 41cm x 71 cm

31 Lbs. / 14 kg

10 gal / 38 l

30 ft / 9 m

Cord Length

C L E A N I N G S YS T E M

Cfm

Waterlift

Filtration

114

90 inches

4 Stage filtration with certified HEPA filter

M OTO R S

Motor Type

One-two stage motor

Motor Power

115 V / 10 Amps

TASKFORCE® CFV 17

97090

24 in x 18 in x 36 in

61 cm x 46 cm x 91 cm

35 Lbs. / 16 kg

17 gal / 64 l

30 ft / 9 m

114

90 inches

4 Stage filtration with certified HEPA filter

One-two stage motor

115 V / 10 Amps

R E P L AC E M E N T I T E M S A N D ACC E S S O R I E S

Collection Bag (3 Pack)

90032 90034

Paper Bag (12 Pack)

98588 90353

Cloth Bag (1 Pack)

98595 98596

Hepa Filter (1 Pack)

Wand

Crevice Tool

Round Brush

Floor Tool

10’ Hose

90616

WD29

WD32

WD33

WD112

WD25YLW

90621

WD29

WD32

WD33

WD112

WD25YLW

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

High-speed bulk recovery, with 55-gallon steel drums for industrial applications.

It is a simple principle: the higher the CFM a vacuum generates, the better suited it is for recovering dry debris and bulk material. Tornado’s® electric powered jumbo vacuum systems are designed to face the rigors of industrial applications. The Single Electric Jumbo has a 2.25 HP powerhead mounted on a steel, rolled-top 55-gallon drum.

An external poly bag is mounted on a support rod and serves as a final filter. The majority of the debris, including small particles, is actually recovered in the steel drum. The Dual

Electric has an additional powerhead for added CFM and two external poly filter bags.

Both the Single and the Dual Electric Jumbo come standard with a drum and a four-wheeled steel dolly with a convenient transport handle.

Electric Jumbo Vac Systems are appropriate for use in recovering heavy solid debris such as metal shavings, chips, sand, sawdust, and powder. The units are also effective in recovering water and cutting oil. A liquid shut-off float can be added to either unit. Attachment sets are required for operation and are sold separately.

CFM VS. WATERLIFT

Many competitive vacuum systems use waterlift as the primary measure of effectiveness and power. In a heavy industrial application, however, such vacs may lack sufficient airflow (measured as cubic feet per minute, or

CFM) to meet requirements. A unit’s CFM tells the true story of its capability in bulk recovery environments. With high-levels of airflow (up to 340 CFM on the Dual Jumbo), a Tornado® Electric Jumbo Vac System is ideal for rapid, efficient high-volume debris recovery.

95960 DUAL ELECTRIC JUMBO

Features an additional 2.25 HP

powerhead and poly bag for recovery of heavier debris such as heavy machine oil and metal shavings and chips.

E L E C T R I C J U M B O W E T / D RY

A P P L I C AT I O N G U I D E

(

H

= Excellent;

3

= Good)

MODEL SE JUMBO DE JUMBO

Catalog Number

Water

Cutting Oil

Machine Oil

Heavy Machine Oil

Light Solid Debris

Heavy Solid Debris

Sawdust

Powder

Ultra Fine Powder

Sand

Oil Dry

Metal Shavings

And Chips

95954

3

H

3

H

3

H

H

H

3

3

3

95960

3

H

H

3

H

H

H

H

H

H

H

H

DUAL ELECTRIC JUMBO

SINGLE ELECTRIC JUMBO

P R O D U C T S P E C I F I C AT I O N S

MODEL SE JUMBO

Catalog Number

95954

DE JUMBO

95960

M AC H I N E D I M E N S I O N S

L X W X H

Net Weight

Shipping Weight

24”x 25”x 72”

162 Lbs.

173 Lbs.

24”x 25”x 72”

182 Lbs.

202 Lbs.

55 gal.

Recovery Tank

55 gal.

D E S I G N C H A R AC T E R I S T I C S

Body Construction

Dump System

Double Reinforced

Steel

Double Reinforced

Steel

Drain Valve Drain Valve

C L E A N I N G S YS T E M

Vacuum Head Type

Cfm

Static Water Lift

Effective Horizontal Reach

Sound Level

M OTO R S

Number Of Powerheads

R E P L AC E M E N T I T E M S

55-Gallon Drum

Large Poly Filter

Support Rods

4-Wheel Dolly

Adapter

See Page 59 for warranty information.

Sngl. Electric Air Dbl. Electric Air

184 (2”) 243 (2”) / 340 (3”)

51”

30’

83 dB

51”

50’

85 dB

One

95944

90378 (1 req.)

98049 (1 Req.)

98088

90331

Two

95944

90378 (2 req.)

98049 (2 Req.)

98088

90332

RUGGED

The 55-gallon, rolled-top, ribbed steel drum is superior to plastic or stainless steel tanks for heavy duty applications.

The drum also features an industrial gate valve for easily draining liquids.

MOBILE

Despite their size and power,

Tornado

®

Jumbo vacs are highly portable, thanks to a standard fourwheeled dolly.

1 - 8 0 0 - VAC U U M S

O P T I O N A L I T E M S A N D ACC E S S O R I E S

F O R S I N G L E E L E C T R I C J U M B O

Muffler*

90447

Liquid Shut-Off Float

1.5” Wet/Dry Attachment Set W/Static Hose

1.5” X 15’ Neoprene Hose

90569

90637**

90191

90637 Includes The Below Items.

1.5” X 15’ Urethane Static Conductive

Hose W/O Sleeve

Double Curved 1.5” Wand

14” X 1.5” Squeegee Floor Tool

14” X 1.5” Fibre Floor Tool

18” X 1.5” Round Nozzle

1.5” Hose Adapter

90688

90286

90240

90242

90414

90331

O P T I O N A L I T E M S A N D ACC E S S O R I E S

F O R D UA L E L E C T R I C J U M B O

Muffler*

90447

Liquid Shut-Off Float (2 Req.)

2” Wet/Dry Attachment Set W/Poly Hose

2” X 16’ Neoprene Hose

90569

90633**

90324

90633 Includes The Below Items.

2” X 10’ Urethane Poly

Hose W/O Sleeve***

2” Double Curved Wand

12” X 2” Floor Gulper Tool

22” X 2” Squeegee Floor Tool

18” X 2” Round Nozzle

2” Hose Adapter

90312

90327

90320

90317

90444

90332

* Eliminates need for external filter in wet pick-up. Should not be used for dry recovery.

** Other attachment sets are also available in the Tornado® Buyers Guide.

*** Please note: poly hoses are not oil resistant. When recovering oils, and additional Neoprene hose, which is oil and abrasive resistant, should be purchased.

W W W. TO R N A D OVAC . CO M

51

Simultaneous bulk wet and dry recovery, powered by compressed air for maximum performance.

Powered by compressed air, the External Filter Wet/Dry Jumbo

Air Vacuums create waterlift substantially beyond that found in

traditional wet/dry vacuums. These units are designed for industrial applications requiring extremely aggressive pick-up power. The main role of these machines are for rapid, high-volume recovery of wet and dry debris. Available units are Single, Dual, and Quad Air

Jumbos.

From the assembly line to the tool shop, these units handle challenges such as water, oil, solvent, and a variety of other common types of debris in an industrial environment. In addition, the units can recover wet and dry material without the need to stop and change/clean an internal filter. That means minimal stoppages and the elimination of operator guesswork on choosing the right filter for the right application. It should be noted that an air compressor, airline, and line couplings are required for operation and are not available from Tornado®.

For a Tornado® jumbo vac system, the priority is power and capacity.

Patented Venturi powerheads with incredible waterlift are fitted on a 55-gallon steel drum. The drum sits on a four-wheel steel dolly for easy transport. Large external filters and support rods come standard with the unit. A wide selection of optional tools and attachments are available for a variety of applications.

SINGLE AIR JUMBO

95955 SINGLE AIR JUMBO

EXTERNAL FILTER WET/DRY VACUUM

The unit comes packaged complete with drum, powerhead, filter, support rod, and dolly. This unit is appropriate for water, cutting oil, machine oil, solvent, and powder.

DUAL AIR JUMBO

95962 DUAL AIR JUMBO

EXTERNAL FILTER WET/DRY VACUUM

The unit includes drum, two powerheads, two filters, two support rods, and a dolly. It is intended for recovery of heavy oil, paint stripper, sawdust, powder, sand, and general plant debris.

UNCOMPROMISING POWER

The External Air Jumbos utilize

Venturi powerheads that generate powerful waterlift. Liquid shut-off floats come standard with the quad vac, shown here. Floats can be ordered as an option on the Single and Dual.

QUAD AIR JUMBO

98451 QUAD AIR JUMBO

EXTERNAL FILTER WET/DRY VACUUM

This model is packaged standard with drum, four powerheads, two filters, two support rods, and a dolly.

The Quad Air Jumbo is suitable for heavy oils and sludges as well as shot and slag. This is one of the most powerful portable vacuums available in the industry today. This unit is intended for large manufacturing facilities and heavy industrial plants that can handle the compressed air requirements necessary to run this unit.

OPERATIONAL REQUIREMENTS

The units come equipped with the fitting and in-line pressure gauge like that pictured here. Simply connect your airline to this fitting to begin operating the vacuum. An air compressor, airline, and line couplings are required for operation.*

*Not available from Tornado®

52

1 - 8 0 0 - VAC U U M S

W W W. TO R N A D OVAC . CO M

S I N G L E A I R J U M B O E X T E R N A L F I LT E R W E T /

D RY VAC U U M A P P L I C AT I O N G U I D E

DEBRIS/MATERIAL

EXCELLENT

PERFORMANCE

GOOD

PERFORMANCE

RECOMMENDED

AIR JET*

Water

Cutting Oil

Machine Oil

3

3

3

3/16”

3/16”

7/32”

Heavy Oil

3 1/4”

Solvent

3

3/16”

Powder

3

3/16”

* The unit is shipped standard with a 3/16” jet installed in the Venturi powerhead. A 7/32” and a 1/4” jet are supplied with the unit and can be installed by the user. These larger jets are used to increase performance for the recovery of heavier materials although the smallest air jet possible to do the job is strongly recommended to conserve plant air.

Q UA D A I R J U M B O E X T E R N A L F I LT E R W E T / D RY

VAC U U M A P P L I C AT I O N G U I D E

DEBRIS/MATERIAL

Heavy Oils

Sludge

EXCELLENT

PERFORMANCE

3

3

GOOD

PERFORMANCE

RECOMMENDED

AIR JET*

7/32”

1/4”

Iron Dust And Chips

Sand Blasting

Recovery

Pellet Recovery

Shot Blast

Slag And Scale

3

3

3

3

3

1/4”

1/4”

3/16”

1/4”

1/4”

* The unit is shipped standard with a 1/4” jet installed in the Venturi powerhead. A

3/16” and a 7/32” jet are supplied with the unit and can be installed by the user.

The larger jet is used to increase performance for the recovery of heavier materials although the smallest air jet possible to do the job is strongly recommended to conserve plant air.

P R O D U C T S P E C I F I C AT I O N S

MODEL

SINGLE AIR

JUMBO VACUUM

Catalog Number

Venturi Powerheads/Cfm

Waterlift

Steel Tank

Vertical Lift/Horizontal Reach

95955

One/82

242”

55 Gal.

15’/30’

DUAL AIR JUMBO

VACUUM

QUAD AIR JUMBO

VACUUM

95962

Two/160

98451

Four/258

239”

55 Gal.

200”

55 Gal.

25’/50’ 50’/100’

Poly External Filters

Filter Area

One

1874 sq. in.

Two

3748 sq. in.

Two

3748 sq. in.

S TA N D A R D R E P L AC E M E N T CO M P O N E N T PA R T S

55-Gallon Drum

95944 95944 95944

Large Poly Filter

Support Rod

90378 (1 Req.)

98049 (1)

90378 (2 Req.)

98049 (2)

90488 (2 Req.)

98049 (2)

4-Wheel Dolly

Adapter

98088

90331 (1.5”)

98088

90332 (2”)

Liquid Shut-Off Float

90569 90569 (2 req.)

R E Q U I R E D F O R O P E R AT I O N (Not Available From Tornado ®

)

Minimum Recommended Air

Compressor

15 HP 25 HP

Recommended Airline

1/2” Diameter 3/4” Diameter

98088

90332 (2”)

90569 (2 req.)

50 HP

Recommended Line Couplings

Required Air Line

Required Air Line Psi For Light

Debris

Straight-Thru

30-60*

60-100*

Straight-Thru

30-60*

60-90*

1” Diameter

Straight-Thru

50-75*

75-100*

* Measured at the vacuum air line gauge with valve open and unit operating.

*See Page 59 for warranty information..

D UA L A I R J U M B O E X T E R N A L F I LT E R W E T / D RY

VAC U U M A P P L I C AT I O N G U I D E

DEBRIS/MATERIAL

Machine Oil

EXCELLENT

PERFORMANCE

3

GOOD

PERFORMANCE

RECOMMENDED

AIR JET*

3/16”

Heavy Oil

Paint Stripper

3

3

7/32”

1/4”

General Debris

3

3/16”

Sawdust

3

3/16”

Powder

3

3/16”

Sand

Metal Grindings And

Chips

3

3

7/32”

7/32”

* The unit is shipped standard with a 3/16” jet installed in the Venturi powerhead. A 7/32” and a 1/4” jet are supplied in the unit and can be installed by the user. The larger jet is used to increase performance for the recovery of heavier materials although the smallest air jet possible to do the job is strongly recommended to conserve plant air.

SINGLE AIR JUMBO

A minimum 15-HP air compressor system is required that can maintain 30 to 60 psi at the vacuum gauge (with the vacuum valve open) for light wet/dry recovery and 60 psi to 100 psi for maximum pick-up power for materials such as heavy liquids, slurries, sludge, and heavy debris.

DUAL AIR JUMBO

A minimum 25-HP air compressor system is required that can maintain 30 to 60 psi at the vacuum gauge (with the vacuum valve open) for light wet/dry recovery and 60 psi to 90 psi for maximum pick-up power for materials such as heavy liquids, slurries, sludge, and heavy debris.

QUAD AIR JUMBO

A minimum 50-HP air compressor system is required that can maintain 50 to 75 psi at the vacuum gauge (with the vacuum valve open) for general wet/dry recovery and 75 psi to 100 psi for maximum pick-up power for materials such as heavy liquids, slurries, sludge, and heavy debris.

O P T I O N A L I T E M S A N D ACC E S S O R I E S

F O R S I N G L E A I R J U M B O VAC

Catalog Number

95955

90637*

1.5” Wet/Dry Attachment

90637 Includes The Below Items.

1.5” X 15’ Urethane Static Conductive

Hose W/O Sleeve

Double Curved 1.5” Wand

14” X 1.5” Squeegee Tool

14” X 1.5” Floor Tool

18” X 1.5” Round Nozzle

1.5” Hose Adapter

18752

90286

90644

90642

90414

90331

* Other attachment sets are also available in the Tornado

®

Buyers Guide.

O P T I O N A L I T E M S A N D ACC E S S O R I E S

F O R D UA L A N D Q UA D E L E C T R I C J U M B O

Catalog Number

95962

90633**

2” Wet/Dry Attachment Set

90633 Includes The Below Items.

2” X 10’ Urethane Poly

Hose W/O Sleeve***

2” Aluminum Wand

12” X 2” Floor Gulper Tool W/ Brass Shoes

22” X 2” Squeegee Floor Tool

18” X 2” Round Nozzle

2” Jumbo Hose Adapter

90312

90327

90320

90317

90444

90332

98451

90633**

90312

90327

90320

90317

90444

90332

* Other attachment sets are also available in the Tornado® Buyers Guide.

** Note: Poly hoses are not oil resistant. When recovering oils, an additional Neoprene hose, which is oil and abrasive resistant, should be purchased.

RUGGED

The 55-gallon, rolled-top, ribbed steel drum is superior to plastic or stainless steel tanks for heavy duty applications. The drum also features an industrial gate valve for ease in emptying liquids.

MOBILE

Despite their size and power,

Tornado

®

Jumbo vacs are highly portable, thanks to a standard four-wheeled dolly.

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

53

Aggressive recovery, powered by compressed air for maximum performance.

54

DUAL WET JUMBO AIR

95961 INTERNAL DUAL WET

JUMBO AIR VACUUM

The unit comes packaged complete with drum, two internal Venturi powerheads, and dolly. This unit is appropriate for machine oil, heavy oil, and ink.

QUAD WET JUMBO AIR

98450 INTERNAL QUAD

AIR JUMBO VACUUM

The unit includes drum, four internal Venturi powerheads, and dolly. It is intended for the recovery of heavy oils and industrial sludge.

This is one of the most powerful portable vacuums available in the industry today.

This unit is intended for large manufacturing facilities and heavy industrial plants that can handle the compressed air requirements necessary to run this unit.

Powered by compressed air, the Internal Wet Jumbo Air Vacuums create waterlift substantially beyond that found in traditional wet vacuums. The units are designed for wet recovery applications requiring extremely aggressive pick-up power. The main role of these machines are for rapid, high-volume recovery of liquids.

Available units are Dual and Quad Air Jumbos.

From the assembly line to the tool shop, these unitss handle challenges such as heavy oil, machine oil, ink, sludge, and a variety of other common types of liquid debris in an industrial environment.

It should be noted that an air compressor, airline, and line couplings are required for operation and are not available from Tornado®.

For a Tornado® jumbo vac system, the priority is power and capacity.

Patented Venturi powerheads with incredible waterlift are fitted on a ribbed, 55-gallon steel drum. The drum sits on a four-wheel steel dolly for easy transport. A wide selection of optional tools and attachments are available for a variety of applications.

P R O D U C T S P E C I F I C AT I O N S

MODEL

DUAL WET-ONLY

JUMBO AIR VACUUM

Catalog Number

Venturi Powerheads/Cfm

Cfm (2” Orifice)

95961

Two

160

QUAD WET-ONLY

JUMBO AIR VACUUM

98450

Four

258

Waterlift

Steel Tank

Vertical Lift/Horizontal Reach

242”

55 Gal.

25’/50’

200”

55 Gal.

50’/100’

S TA N D A R D R E P L AC E M E N T CO M P O N E N T PA R T S

55-Gallon Drum

95944 95944

Liquid Shut-Offs

4-Wheel Dolly

90569 (2 Included)

98088

90569 (4 Included)

98088

2” Hose Adapter

90332 90332

R E Q U I R E D F O R O P E R A T I O N

(NOT available from Tornado

®

)

Minimum Recommended Air

Compressor

Recommended Airline

25 HP

3/4” Diameter

50 HP

1” Diameter

Recommended Line Couplings

Required Air Line

Straight-Thru

30-60**

Required Air Line Psi For Light

Debris

60-100**

O P T I O N A L I T E M S A N D ACC E S S O R I E S

2” Wet/Dry Attachment Set

90633***

Straight-Thru

50-75**

100**

90633***

90633 Includes The Below Items.

2” X 10’ Urethane Polyhose***

2” Aluminum Wand

90312•••*

90327

12” X 2” Floor Gulper Tool W/ Brass

Shoes

22” X 2” Aluminum Squeegee Floor

Tool

18” X 2” Round Nozzle

90320

90317

90444

2” Hose Adapter

90332

90312•••*

90327

90320

90317

90444

90332

See Page 59 for warranty information.

** Measured at the vacuum air line gauge with valve open and unit operating.

*** Other attachment sets are also available in the Tornado® Buyers Guide.

**** Note: Poly hoses are not oil resistant. When recovering oils, an additional Neoprene hose, which is oil and abrasive resistant, should be purchased.

1 - 8 0 0 - VAC U U M S

UNCOMPROMISING POWER

The Internal Air Jumbos utilize Venturi powerheads that generate powerful waterlift. Liquid shut-off floats come standard with the quad vac, shown here.

OPERATIONAL REQUIREMENTS

The units come equipped with the fitting and in-line pressure gauge like that pictured here. Simply connect your airline to this fitting to ready the vacuum for operation. An air compressor, airline, and line couplings are required for operation.*

*not offered from Tornado®

RUGGED

The 55-gallon, rolled-top, ribbed steel drum is superior to plastic or stainless steel tanks for heavy duty applications. The drum also features an industrial gate valve for ease in emptying liquids.

MOBILE

Despite their size and power,

Tornado

®

Jumbo vacs are highly portable, thanks to a four-wheeled dolly, included standard.

D UA L A I R J U M B O W E T - O N LY I N T E R N A L

VAC U U M A P P L I C AT I O N G U I D E

DEBRIS/MATERIAL

Machine Oil

Heavy Oil

Ink

Sludge

EXCELLENT

PERFORMANCE

3

3

3

GOOD

PERFORMANCE

3

RECOMMENDED

AIR JET*

3/16”

7/32”

1/4”

7/32”

* The unit is shipped standard with a 3/16” jet installed in the Venturi powerhead.

A 7/32” and 1/4” jets are supplied in the unit and can be installed by the user. These larger jets are used to increase performance for the recovery of heavier materials although the smallest air jet possible to do the job is strongly recommended to conserve plant air.

Q UA D A I R J U M B O W E T - O N LY I N T E R N A L

VAC U U M A P P L I C AT I O N G U I D E

DEBRIS/MATERIAL

Heavy Oils

Sludge

EXCELLENT

PERFORMANCE

3

3

GOOD

PERFORMANCE

RECOMMENDED

AIR JET*

1/4”

1/4”

* The unit is shipped standard with a 1/4” jet installed in the Venturi powerhead.

A 3/16” and 7/32” jet is supplied in the unit and can be installed by the user. The

1/4” jet is used to increase performance for the recovery of heavier materials although the smalle st air jet possible to do the job is strongly recommended to conserve plant air.

W W W. TO R N A D OVAC . CO M

Superior escalator cleaning combined with simple operation

The Tornado® BR 460 ESC Escalator Cleaner delivers fast, thorough cleaning results in an easy to operate design. Ideal for airports, shopping malls, retail stores, subway stations and hotels, the BR 460 ESC incorporates an integrated vacuum motor, ensuring that dust and heavier debris is moved off of treads and into the vacuum bag. Furthermore, with multiple brush types available you can tackle even the toughest of cleaning challenges.

The BR 460 ESC is very easy to use and requires minimal

training for increased efficiency. The unit features powerful rotating brushes for fast, effective cleaning, automatic brush height adjustment for uniform performance, and easy to change disposable bags.

The BR 460 ESC offers your choice of nylon or Tynex brushes to suit your unique cleaning requirements, making brush changing quick and easy.

Integrated Vacuum for Increased

Escalator Safety!

P R O D U C T S P E C I F I C AT I O N S

MODEL

BR 460 ESC

Catalog Number

M AC H I N E D I M E N S I O N S

96180

Dimensions (L X W X H)

Net Weight

Power Cord Length

38 in x 18 in x 9 in

89 cm x 46 cm x 23 cm

97 Lbs. / 44 kg.

50 ft. / 15 m

C L E A N I N G S YS T E M S

Productivity (24” - 36” Stair)

Productivity (37”+ Stair)

Brush Type

Brush Width

Brush Rpm

Sound Level

Bag Capacity

M OTO R / P O W E R

Motor

Voltage

1,800 stairs per hour

1,200 stairs per hour

Cylindrical

18 in / 46 cm

290 RPM

60 dB (A)

1.3 gal / 5 liter

0.3 hp

150 V/60 Hz

R E P L AC E M E N T I T E M S

Nylon Brush Set (left and right)

05-4096-0000

O P T I O N A L I T E M S A N D ACC E S S O R I E S

Tynex Brush Set (left and right)

05-4097-0000

See Page 59 for warranty information.

1 - 8 0 0 - VAC U U M S

EASE OF USE

Easy to change disposable paper bags.

TWIN VACUUM MOTORS

The unit features twin vacuum motors which instantly suck up the dirt, leaving the escalator surface clean and ready for use.

ROTATING BRUSHES

Featuring powerful rotating brushes which loosen any dirt, stains or grime to deliver escalators that are clean and safe for pedestrians.

MULTIPLE BRUSHES

Nylon brushes for routine cleaning and Tynex brushes for aggressive cleaning.

W W W. TO R N A D OVAC . CO M

55

Chemical-free, deep steam cleaning without harsh detergents

The VS4 is a compact and robust steam cleaner which offers outstanding power and sanitizing benefits. Optimal cleaning results are achieved thanks to 87 P.S.I. of steam pressure which helps remove dirt from hard-to-reach, close quarter areas. Continuously variable steam volume control and the VapoHydro function (continuous regulation of the water-steam ratio) means the machine can adapt perfectly to any cleaning task. The water tank can be refilled at any time, and when the water reaches the steam tank it rapidly heats up to ensure uninterrupted operation of the VS4. The temperature indicator clearly highlights the operating range by including a highlighted range area in green; once the yellow temperature needle is in the green highlighted range, the VS4 will be ready for use! The VS4 is extremely versatile since it can clean without the use of chemicals, and it comes with two floor nozzles (for abrasive and hygienic cleaning). Also included is a dedicated wand storage area, an integrated compartment for additional accessories, and a cord hook which all contribute to saving space so you can conveniently store the VS4 when not in use.

NEW!

VS4

Attacks Bed Bugs with

Chemical-Free Steam!

Download the FREE White Paper

Effective Treatment of Bed Bug Infestations at http://tornadovac.com/knowledge/ whitepapers.aspx

56

VERSATILITY

The VS4 is appropriate for showers, medical equipment, kitchen fixtures, and more.

CONVENIENCE

Power cord and accessories are stored onboard the unit. A handle and transport wheels make the unit mobile from job to job.

CONTINUOUS FILL FEATURE

The control panel has an improved design from earlier models that allows for easy refilling and steam control.

ACCESSORY STORAGE

The unit comes with a mesh storage bag for additional accessories

P R O D U C T S P E C I F I C AT I O N S

MODEL VS4

Catalog Number

97102

M AC H I N E D I M E N S I O N S

Dimensions (L X W X H)

18.5” x 12.5” x 11”

475 mm x 320 mm x 275 mm

Weight

Steam Tank

Reserve Tank

17.6 Lbs. / 8 kg

0.6 gal / 2.4 l

0.5 gal / 2 l

D E S I G N C H A R AC T E R I S T I C S

Power

120 V / 60Hz

Max Pressure

87 psi / 0.6 MPa

Max Temperature

Steam Quantity

293° F / 145° C

2.6 oz per minute

75 g per minute

S TA N D A R D ACC E S S O R I E S

Steam Hose And Gun

K43220390

Extension Tubes

Hand Tool

Long Detail Nozzle

K41270240

K51303490

Short Detail Nozzle

Power Nozzle

Floor Nozzle

K41304310

K28842810

K28842820

K41304330

Brass Bristle Brush Set

(3 Pack)

K28630750

1 - 8 0 0 - VAC U U M S W W W. TO R N A D OVAC . CO M

Tornado’s Line of Enviromentally Preferred Cleaning Equipment

Carpet Care Line

CK LW

13/1 Roam

(97300)

CV 30

Upright with

HEPA (91449)

CV 38

(91415) and CV 48

(91419) Dual

Vacs with

HEPA

CK LW 13/1

Upright with HEPA

(97130)

CK 14/1 Pro with HEPA

(98147)

Pac-Vac® 6 and Pac-Vac®

10 Aircomfort

Backpack

Vacuum with

HEPA (93012)

(93014)

Pac-Vac®

6 Roam

(93016)

Marathon

Carpetrinser

Upright

Extractor

(98250)

Mini-

Marathon

425 Carpet

Extractor

(98150)

Family of Automatic Scrubbers

BD 14/4

Cordless

Automatic

Scrubber

(99414)

BD 17/6

Compact

Scrubber

(99617)

BR 13/1

Scrubbers

(99410 &

99412)

Small Walk-

Behind

Scrubbers

BD 20/11

(996800) BR

18/11 (996850)

Medium

Walk-Behind

Scrubbers

BR 22/14

(99695) BD

26/14 (99720)

BD 32/26

Walk-Behind

Automatic

Scrubber

(99732)

BR 28/27 and

BD 26/27

(99772,

99775)

Ride-on

Automatic

Scrubber

BR and BD

33/30 (99785,

99780)

Ride-on

Automatic

Scrubber

Hard Floor Care Line

Battery

Glazer 17

(98494)

BR Vario II

Floor Machine

(97605)

OB 20 Orbital

Floor Machine

(97600)

LEGEND

CRI Certified

Solution Control

Eco Batteries

Air Quality

Increased Safety

Whisper-Quiet

1 - 8 0 0 - VAC U U M S

ECO-Friendly AGM Batteries vs.

Wet Acid-Cell Batteries?

Say good-bye to batteries containing sulfuric acid which requires maintenance by your staff, and hello to increased worker safety, productivity and facility health!

Tornado® auto scrubbers are available in your choice of traditional flooded (wet) batteries or new, eco-friendly EV Dry Cell, maintenance-free batteries.

W W W. TO R N A D OVAC . CO M

57

Our Newest Products

See what we’ve added to our product line-up

Brute Force Series

Tankless operation improves productivity and reduces costs

CK LW 13/1 Roam

Redefining effective, convenient cleaning for an entire industry

PAGE 5

PAGE 56

TV 2 SS Canister Vacuum

Power and efficiency meets quiet operation.

PAGE 12

The Windshear™ 3200 Dryer

Fast and Powerful Area Dryer

PAGE 14

PAGE 25

PAGE 28

VS4 Steam Cleaner

Outstanding power and sanitizing benefits.

2017 Warranty Statement

Long Term Buyer Protection Limited Warranty

Tornado Industries, LLC. (Tornado®) warrants to the end/user customer that the Tornado® product(s) will be free from defects in material and workmanship for the duration(s) described below. This limited warranty DOES NOT cover machines and/or components subject to normal wear and tear, damage that occurs in shipping, failures resulting from modification, accident, unsuitable operating environment, misuse, abuse, neglect, or improper maintenance by you. For full details, contact your Authorized Tornado Distributor, Service Center, or the Tornado Technical Service

Department. Tornado sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations of Tornado under the warranty.

10 Years*

Plastic water tanks and Rotationally-molded bodies

2 Years*

Parts on all Tornado cleaning equipment

1 Year*

Labor on all Tornado cleaning equipment

1 Year*

Warranty on batteries, one year prorated

All battery warranties are handled directly by the battery manufacturer, on a one year prorated basis

Terms subject to change without notice

1. Except all Windshears™ Blowers, Storm, TV2SS, Side and Downdraft, Insulation Blowers, CV 30, CV 38, CK14/1

PRO, CK 14/2 PRO, SWM 31/9, CK LW13/1, CK LW 13/1 ROAM, CV 38/48 Dual, PV6, PV10, PV6 ROAM, Wall Mount

Vacuum and all chargers are warranted for 1 (one) year for both parts and labor.

2. All non-wear item parts purchased after warranty expiration are warranted for 90 days.

3. Warranty starts from the date of sale to the consumer or, at Tornado’s discretion, 6 months after the dealer purchased the unit from Tornado, whichever comes first.

4. The EB 30 is warranted for a period of 90 days for both parts and labor.

5. The warranty on engines used on propane powered equipment is limited to motor manufacturer’s warranty.

6. Ride-on Scrubbers are warranted for 24 months, parts, 6 months labor or 1,000 hours, whichever occurs first.

Note:

Tornado, The Latest Dirt, Floorkeeper, Carpetkeeper,

Carpetrinser, Carpetrinser/Dryer, Headmaster, Taskforce,

PAC-VAC, T-Lite, Glazer, Windshear, Max-Vac and Trot-Mop are trademarks of Tornado Industries

Website: www.tornadovac.com

Phone: 1-800-VACUUMS

Address: 3101 Wichita Court Fort Worth, TX 76140

1-800-VACUUMS 90 Years of Cleaning Innovation

A Tacony Company

www.tornadovac.com • 1.800.VACUUMS

CORPORATE HEADQUARTERS:

Tornado Industries

3101 Wichita Court

Fort Worth, TX 76140

Toll Free: 1-800-VACUUMS

Fax: (817) 551-6507 www.tornadovac.com

©2017 Tornado Industries. All rights reserved.

Form#: F6969 - 2/17 6M. Printed in the USA.

A Tacony Company

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
