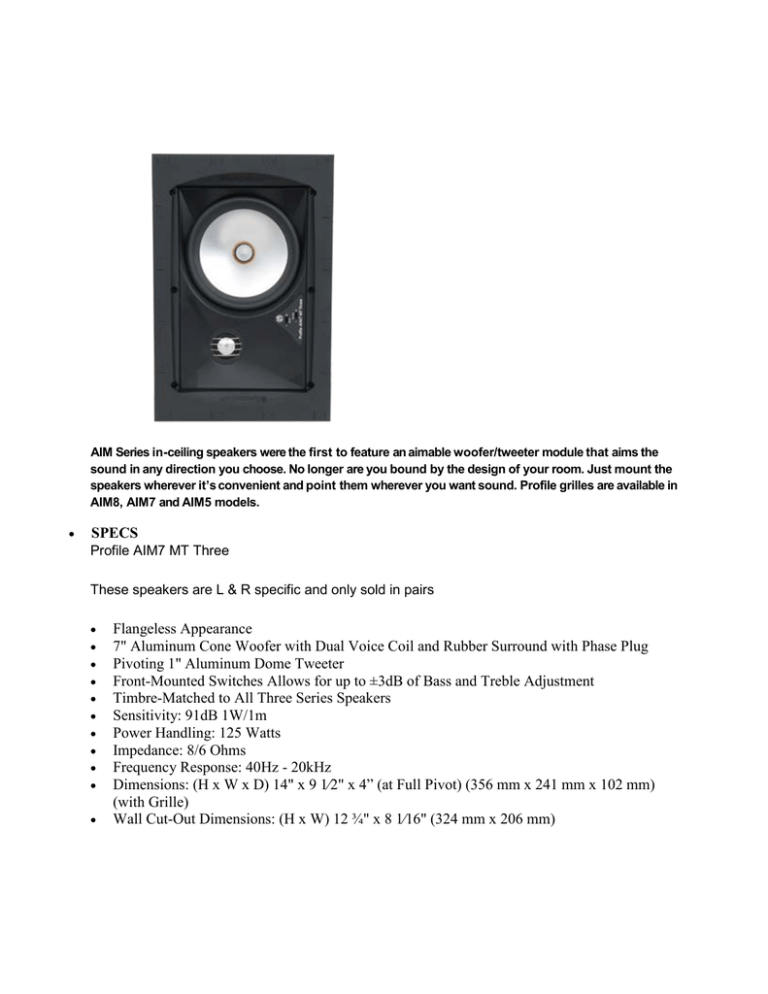

Profile AIM7 MT Three
Profile AIM7 MT Three
AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the
sound in any direction you choose. No longer are you bound by the design of your room. Just mount the
speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in
AIM8, AIM7 and AIM5 models.
•
SPECS
Profile AIM7 MT Three
These speakers are L & R specific and only sold in pairs
•
•
•
•
•
•
•
•
•
•
•
Flangeless Appearance
7" Aluminum Cone Woofer with Dual Voice Coil and Rubber Surround with Phase Plug
Pivoting 1" Aluminum Dome Tweeter
Front-Mounted Switches Allows for up to ±3dB of Bass and Treble Adjustment
Timbre-Matched to All Three Series Speakers
Sensitivity: 91dB 1W/1m
Power Handling: 125 Watts
Impedance: 8/6 Ohms
Frequency Response: 40Hz - 20kHz
Dimensions: (H x W x D) 14" x 9 1⁄2" x 4” (at Full Pivot) (356 mm x 241 mm x 102 mm)
(with Grille)
Wall Cut-Out Dimensions: (H x W) 12 ¾" x 8 1⁄16" (324 mm x 206 mm)
