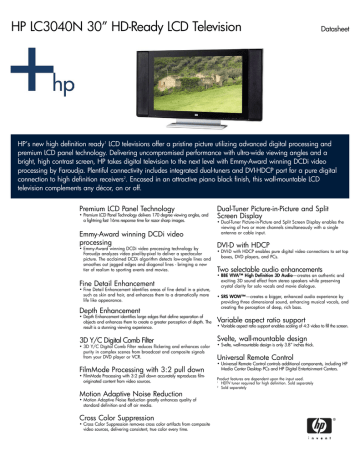

HP LC3040N 30” HD-Ready LCD Television

HP LC3040N 30” HD-Ready LCD Television
HP LC3040N 30” HD-Ready LCD Television
Datasheet
HP’s new high definition ready1 LCD televisions offer a pristine picture utilizing advanced digital processing and
premium LCD panel technology. Delivering uncompromised performance with ultra-wide viewing angles and a
bright, high contrast screen, HP takes digital television to the next level with Emmy-Award winning DCDi video
processing by Faroudja. Plentiful connectivity includes integrated dual-tuners and DVI-HDCP port for a pure digital
connection to high definition receivers2. Encased in an attractive piano black finish, this wall-mountable LCD
television complements any décor, on or off.
Premium LCD Panel Technology
• Premium LCD Panel Technology delivers 170 degree viewing angles, and
a lightning fast 16ms response time for razor sharp images.
Emmy-Award winning DCDi video
processing
• Emmy-Award winning DCDi video processing technology by
Faroudja analyzes video pixel-by-pixel to deliver a spectacular
picture. The acclaimed DCDi algorithm detects low-angle lines and
smoothes out jagged edges and diagonal lines - bringing a new
tier of realism to sporting events and movies.
Fine Detail Enhancement
• Fine Detail Enhancement identifies areas of fine detail in a picture,
such as skin and hair, and enhances them to a dramatically more
life like appearance.
Depth Enhancement
Dual-Tuner Picture-in-Picture and Split
Screen Display
• Dual-Tuner Picture-in-Picture and Split Screen Display enables the
viewing of two or more channels simultaneously with a single
antenna or cable input.
DVI-D with HDCP
• DVI-D with HDCP enables pure digital video connections to set top
boxes, DVD players, and PCs.
Two selectable audio enhancements
• BBE VIVA™ High Definition 3D Audio—creates an authentic and
exciting 3D sound effect from stereo speakers while preserving
crystal clarity for solo vocals and movie dialogue.
• SRS WOW™—creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass.
• Depth Enhancement identifies large edges that define separation of
objects and enhances them to create a greater perception of depth. The
result is a stunning viewing experience.
Variable aspect ratio support
3D Y/C Digital Comb Filter
Svelte, wall-mountable design
• 3D Y/C Digital Comb Filter reduces flickering and enhances color
purity in complex scenes from broadcast and composite signals
from your DVD player or VCR.
FilmMode Processing with 3:2 pull down
• FilmMode Processing with 3:2 pull down accurately reproduces filmoriginated content from video sources.
Motion Adaptive Noise Reduction
• Motion Adaptive Noise Reduction greatly enhances quality of
standard definition and off air media.
Cross Color Suppression
• Cross Color Suppression removes cross color artifacts from composite
video sources, delivering consistent, true color every time.
• Variable aspect ratio support enables scaling of 4:3 video to fill the screen.
• Svelte, wall-mountable design is only 3.8” inches thick.
Universal Remote Control
• Universal Remote Control controls additional components, including HP
Media Center Desktop PCs and HP Digital Entertainment Centers.
Product features are dependent upon the input used.
1
HDTV tuner required for high definition. Sold separately
2
Sold separately
HP LC3040N 30” HD-Ready LCD Television
Datasheet
Key Television Specifications
Panel System
High Definition LCD Display
Brightness (typical)
Up to 500 cd/m2
Native Resolution
(Number of Pixels) (H x V)
Video Format
1280 x 768 pixels (WXGA)
Contrast (typical)
600 : 1
Viewing Angle (typical)
170 degrees horizontal
Displayable Colors
Up to 16.7 Million
Response Rate (typical)
<16 ms (Grey to Grey)
Diagonal Screen Size
29.6 in (75.1 cm)
Backlight life1
Up to 50,000 Hrs
Viewable Image Area
(diagonal)
29.53 in (75.0 cm)
Anti-reflective coating
Yes
Aspect Ratio
15:9 Widescreen
Built-in Dual NTSC TV Tuners with Picture-in-Picture and
Side-by-Side viewing capability
Closed Caption
Yes
MTS sound processing
Stereo, Mono, SAP
Channel Coverage
VHF 2 – 13
UHF 14 – 69
CATV 1 - 125
V-Chip
Password protect viewing according to Content Rating, TV Rating,
and MPAA Rating
Antenna
75 Ohm External
HDCP (on DVI)
Yes
Cable Tuning System
Standard, HRC, IRC
HDTV supported inputs
Component Input 1 & 2(YPbPr) : 1080i/720p/480p/480i
DVI -HDCP : 1080i/720p/480p/480i
Supported Input Signals
480i, 480p, 720p, 1080i
Front Controls
Input, Menu, Channel up, Channel Down, Volume Up,
Volume Down, Exit
Accepts RGB, NTSC, 480i, 480p, 720p, 1080i video formats.
Converts all video signals to 720p high definition video
170 degrees vertical
Tuner Specifications
TV Tuner
Television Control Specifications
Universal Remote Control
Programmable universal remote controls TV and 3 additional
devices, including HP Digital Entertainment Centers and HP Media
Center PCs.
Additional Features
Television Connections Specifications
Auto Channel Program
Antenna Input (75 Ohms F connector)
Channel Skip/Add
High Definition Component Input (Y, Pb, Pr)
2
Sleep timer (30-60-90-120 Minutes)
Composite Video Input
2
Closed Caption
S-Video Input
2
V-Chip Parental Control
PC Input (RGB-VGA)
1
Reset to Default
DVI (with HDCP) Interface
1
Audio modes
A/V Audio Inputs
5
MTS
PC Audio Input
1
PIP/PAP/Multi-PIP
Composite Video Out
1
Audio Out - RCA Pair
1
Subwoofer out
1
Headphone
1
RS-232 (for service)
1
Television Power Specifications
Power Supply
Integrated
Power Saving Mode
< 3 watts
Input Power
90 ~ 240 VAC, auto-ranging
Off Mode
< 3 watts (switch off)
Nominal Current
1.7 A maximum
Integrated Power Supply
Yes
Frequency
50 ~ 60 Hz
Power Power Cable Length
70 in (1.8 m); Detachable
Maximum
< 180 watts
1
1
The life is determined as the time at which luminance is 50% compared to that of initial value at the typical lamp current on condition of continuous operating at 25 ± °C.
HP LC3040N 30” HD-Ready LCD Television
Datasheet
Key Audio Specifications
Speakers
15W x 2 Detachable 2-way speakers
MTS / SAP
Yes
Sound Modes
Standard, BBE ViVA, SRS WOW
PC Audio Input (mini-jack)
1
Sound Enhancement
SRS WOW: creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass.
BBE ViVA High Definition 3D Audio: creates an authentic and
exciting 3D sound effect from stereo speakers while preserving
crystal clarity for solo vocals and movie dialogue.
Stereo Headphone Jack
1
Subwoofer Out
1
Audio out
1
Audio Controls
Bass, Treble, Balance, Volume, Subwoofer
Television Weights and Dimensions
Environmental Specifications
Dimensions
Unpacked w/ stand and speakers (h x w x d)
21.5 x 36.6 x 7.3 in 546 x 929 x 186.5 cm
Temperature – Operating
Panel without stand, with speakers (h x w x d)
19.4 x 29.7 x 3.8 in 491.9 x 546 x 97.2 cm
Humidity – Operating
20% to 80%
Humidity – Non-operating
5% to 95%
Recommended Solution
Additions
HP MR4000n HDTV ATSC Tuner
HP Media Center PC
HP Digital Entertainment Center
Yes—stand is shipped attached and must be removed for mounting
options. VESA External Mounting is Standard 6-hole pattern,
100 mm x 200mm
Panel without stand, without speakers (h x w x d)
19.36 x 29.67 x 3.83 in 491.68 x 753.6 x 97.2 cm
41° to 95° F 5° to 35° C
Temperature – Non-operating –4° to 140° F –20° to 60° C
Base Area (Footprint d x w)
7.3 x 15.7 in 186.5 x 400 cm
Packaged (h x w x d)
11.89 x 26.0 x 33.5 in 302 x 660 x 852 cm
Weight
Unpacked w/ stand and speakers
38.5 lbs 17.5 kg Weight
Packaged
48.40 lbs 22 cm
Base
Ships attached and is removable
Wall Mountable
Yes – VESA mount compatible (100 x 200mm) 6 holes (Wall Mount
sold separately)
Accessories, Warranty and Agency Approvals
Accessories Included
Cables included
Quick Start Guide
User Guide
Remote Control
Speakers
Stand (shipped attached)
Power Cord
Speaker Cables (2)
75 Ohm Coaxial Cable
VGA
DVI-D
S-Video
Component
Composite
PC Audio
L/R RCA audio
VESA Mounting
Certification and Compliance FCC Approval
UL
Warranty
SRS WOW and the
symbol are trademarks of SRS Labs, Inc.
BBE and the BBE logo are registered trademarks or trademarks of BBE Sound, Inc.
DCDi™ is a trademark of Faroudja, a division of Genesis Microchip Inc.
Product Number: P8724AA#ABA 09/04
Actual product may vary from image shown on datasheet. HP shall not be liable for technical or editorial errors or omissions contained herein. All hardware
and software specifications are subject to change without notice. Copyright © 2004 Hewlett-Packard Development Company, L.P. SRS WOW and the
symbol are trademarks of SRS Labs, Inc. BBE and the BBE logo are registered trademarks of BBE Sound, Inc. DCDi® by Faroudja is a registered
trademark of Genesis Microchip Inc.
Questions about the HP LC3040N 30” HD-Ready LCD Television?
Look us up online at www.hp.com
1 year, parts and labor
