Whirlpool WBC 4046 A+NFCW Fridge/freezer combination Program Chart

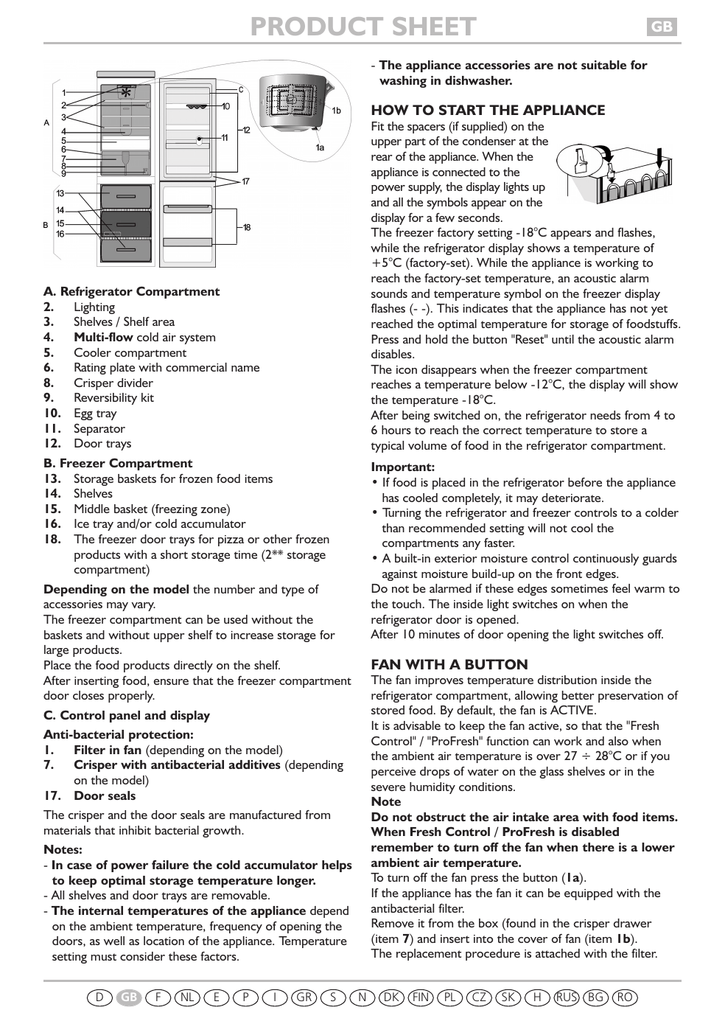

PRODUCT SHEET
GB
- The appliance accessories are not suitable for
washing in dishwasher.
HOW TO START THE APPLIANCE
Fit the spacers (if supplied) on the
upper part of the condenser at the
rear of the appliance. When the
appliance is connected to the
power supply, the display lights up
and all the symbols appear on the
display for a few seconds.
The freezer factory setting -18°C appears and flashes,
while the refrigerator display shows a temperature of
+5°C (factory-set). While the appliance is working to
reach the factory-set temperature, an acoustic alarm
sounds and temperature symbol on the freezer display
flashes (- -). This indicates that the appliance has not yet
reached the optimal temperature for storage of foodstuffs.
Press and hold the button "Reset" until the acoustic alarm
disables.
The icon disappears when the freezer compartment
reaches a temperature below -12°C, the display will show
the temperature -18°C.
After being switched on, the refrigerator needs from 4 to
6 hours to reach the correct temperature to store a
typical volume of food in the refrigerator compartment.
A. Refrigerator Compartment
2.
Lighting
3.
Shelves / Shelf area
4.
Multi-flow cold air system
5.
Cooler compartment
6.
Rating plate with commercial name
8.
Crisper divider
9.
Reversibility kit
10. Egg tray
11. Separator
12. Door trays
B. Freezer Compartment
13. Storage baskets for frozen food items
14. Shelves
15. Middle basket (freezing zone)
16. Ice tray and/or cold accumulator
18. The freezer door trays for pizza or other frozen
products with a short storage time (2** storage
compartment)
Depending on the model the number and type of
accessories may vary.
The freezer compartment can be used without the
baskets and without upper shelf to increase storage for
large products.
Place the food products directly on the shelf.
After inserting food, ensure that the freezer compartment
door closes properly.
C. Control panel and display
Anti-bacterial protection:
1.
Filter in fan (depending on the model)
7.
Crisper with antibacterial additives (depending
on the model)
17. Door seals
The crisper and the door seals are manufactured from
materials that inhibit bacterial growth.
Notes:
- In case of power failure the cold accumulator helps
to keep optimal storage temperature longer.
- All shelves and door trays are removable.
- The internal temperatures of the appliance depend
on the ambient temperature, frequency of opening the
doors, as well as location of the appliance. Temperature
setting must consider these factors.
D
GB
F
NL
E
P
I
GR
S
Important:
• If food is placed in the refrigerator before the appliance
has cooled completely, it may deteriorate.
• Turning the refrigerator and freezer controls to a colder
than recommended setting will not cool the
compartments any faster.
• A built-in exterior moisture control continuously guards
against moisture build-up on the front edges.
Do not be alarmed if these edges sometimes feel warm to
the touch. The inside light switches on when the
refrigerator door is opened.
After 10 minutes of door opening the light switches off.
FAN WITH A BUTTON
The fan improves temperature distribution inside the
refrigerator compartment, allowing better preservation of
stored food. By default, the fan is ACTIVE.
It is advisable to keep the fan active, so that the "Fresh
Control" / "ProFresh" function can work and also when
the ambient air temperature is over 27 ÷ 28°C or if you
perceive drops of water on the glass shelves or in the
severe humidity conditions.
Note
Do not obstruct the air intake area with food items.
When Fresh Control / ProFresh is disabled
remember to turn off the fan when there is a lower
ambient air temperature.
To turn off the fan press the button (1a).
If the appliance has the fan it can be equipped with the
antibacterial filter.
Remove it from the box (found in the crisper drawer
(item 7) and insert into the cover of fan (item 1b).
The replacement procedure is attached with the filter.
N
DK
FIN
PL
CZ
SK
H
RUS BG
RO
PRODUCT SHEET
appear on both display to indicate that the
appliance is in stand-by.
To switch the appliance on again, follow the same
procedure until the previously set temperature is
shown on the display.
When the appliance is in stand-by the light inside
the refrigerator compartment does not work.
Remember that this operation does not
disconnect the appliance from the power supply.
CONTROL PANEL DESCRIPTION
Buttons:
1. Options button
2. Setting temperature in freezer compartment button
3. Appliance On-Stand-by button
4. Confirmation button
5. Setting temperature in fridge compartment button
6. Reset button.
Switching on the appliance: Press & hold for 3 sec. the
"On-Stand-by" button to activate the product.
Switching off the appliance: Press & hold for 3 sec. the
"On-Stand-by" button again.
Adjusting the temperature: To change the temperature
inside the refrigerator or freezer compartment, press the
Freezer or Fridge button.
Displaying the refrigerator and freezer
compartment temperatures.
The temperature inside the refrigerator compartment can
be adjusted between +2°C and + 8°C. In the same way,
the freezer compartment temperature can be adjusted
between -16°C and -24°C.
Functions and settings for the freezer compartment
Freezer
Freezer compartment temperature setting.
Extra Load
The use of this function is recommended when
placing a very high quantity of food to be frozen in
the freezer compartment.
Activate this function 24 hours before freezing
fresh food. To select the function, press the
"Options" button just once, the Extra Load symbol
will blink, then press "OK" to confirm.
After 24 hours place the food to be frozen in the
upper basket of freezer compartment.
The function is automatically disabled after
48 hours, or can be manually disabled by
repeating the same procedure.
Party Mode
To select the function, press the "Options" button
several times, until the Party Mode symbol
will blink, then press "OK" to confirm. Use this
function to chill drinks inside the freezer
compartment.
30 minutes after selection (the time required to
chill a 0.75 l bottle without the glass breaking),
the symbol flashes, an acoustic alarm sounds and
the display lights up: remove the bottle from the
freezer compartment and press the "Reset"
button to disable the function.
Important: do not leave the bottle inside the
freezer compartment longer than the time
necessary for chilling.
GUIDE TO SELECTING FUNCTIONS
Functions and settings for the refrigerator
compartment.
Fridge
Refrigerator compartment temperature setting.
Vacation
This function turns the refrigerator compartment
to a warmer state if you are going away for some
time.
To select the function, press the "Options" button
several times, until the vacation symbol
will
blink, then press "OK" to confirm.
To turn the refrigerator back to setting point
repeat this procedure. When the function is active
fridge temperature display shows " - " symbol.
Important: after activating this function, remove
all perishable foodstuffs from the refrigerator
compartment and leave the door closed, since the
refrigerator maintains a suitable temperature to
prevent the formation of unpleasant odours.
The freezer compartment will keep on working
as usual also during the Vacation mode.
Appliance, alarm and malfunction symbols
"6th Sense" function
The 6th Sense function is automatically activated
when:
• a large amount of food is loaded into the
refrigerator and/or freezer
• the refrigerator and/or freezer door is left open
for a long time
• a prolonged power failure takes place, causing
the internal temperature of the appliance to
increase to values that cannot guarantee safe
storage of food.
The 6th Sense icon remains permanently lit.
On-Stand-by
This function turns off both the refrigerator and
freezer compartments.
To enable the stand-by function, press & hold the
"On-stand-by" button for 3 seconds, hyphens
D
GB
F
NL
E
P
I
GR
S
GB
N
DK
FIN
PL
CZ
SK
H
RUS BG
RO
PRODUCT SHEET
GB
"Key Lock" function
This function prevents anyone from inadvertently
changing settings or switching off the appliance.
To lock keys, press button "Options" for 3
seconds until the display shows the symbol
:
an acoustic signal confirms the function has been
selected. To disable the function, follow the same
procedure until the symbol
switches off.
• The freezer compartment temperature is too
high
• The quantity of foods loaded into the freezer
exceeds that indicated on the data plate
• The freezer door has been left open for a long
time
To mute alarm buzzer press "Reset" button just
once, and the acoustic alarm goes off.
Malfunction and After-sales Service symbol
(Call After-sales Service).
Power failure alarm "Black Out Alert"
In the event of an interruption in electricity, your
fridge-freezer is designed to automatically
monitor the temperature in the freezer when
electricity is resupplied. If the temperature in the
freezer rises above freezing level, the Black Out
Alert (icon and buzzer) is activated when
electricity is re-supplied. Freezer compartment
temperature display shows the highest
temperature reached during the Black Out.
To reset the alarm press the "Reset" button, the
acoustic alarm goes off and the icon
disengage.
If the Alarm is activated, the following actions are
recommended:
• If the food in the freezer is unfrozen but still
cold, all the food in the freezer should be
moved to the fridge compartment and eaten
within the next 24 hours.
• If the food in the freezer is frozen, this indicates
the food was thawed and then refrozen when
electricity was re-supplied which degrades
taste, quality and nutritional value and also
could be unsafe. It is recommended to not
consume the food but to dispose of the entire
content of the freezer.
The Black Out Alert system is designed to
provide guidance on food quality in the freezer in
the event of electricity black out.
This system does not guarantee food quality or
safety and consumers are advised to use their
own judgment in evaluating food quality in freezer
and refrigerator compartments.
Fresh Control / ProFresh
The Fresh Control / Profresh is activated by
default and is working only with Fan on. To
deactivate the function, press the "Options"
button several times, until the Fresh Control /
ProFresh symbol
will blink, then press "OK"
to confirm.
The function can be reactivated by repeating the
same procedure.
This function controls the fridge fan in order to
optimize food preservation in any ambient
temperature conditions.
To minimize the Energy consumption is suggested
to disable the Fresh Control / ProFresh function
and fan.
Function indicating the necessity
to replace the Anti-bacterial filter
The replacement of the filter is described on the
first page of this Product Sheet.
After 5 months of operation the icon appears,
indicating that filter shall be replace soon.
After 6 months of operation, the acoustic alarm
appears and icon
will blink, indicating that it is
necessary to replace the filter.
After replacing the filter, keep the "Reset" button
pressed for 3 seconds and the icon
disengage
permanently. It is possible to mute alarm until the
filter is replaced by pressing the "Reset" button
shortly.
The filter alarm will be visible till the reset of the
filter alarm by "Reset" button pressed for more
than 5 seconds. The filter can be replace at any
time and filter icon status can be refresh by the
User interface pressing "Reset" button for 3
seconds and the icon disengage
permanently.
Alarms
In the event of an alarm, the acoustic sound is
activated.
Refrigerator door open alarm
The refrigerator door symbol lights up blinking
and the acoustic alarm sounds.
The alarm is activated when the refrigerator's
door is left open for more than 2 minutes. Press
"Reset" to mute the acoustic alarm.
If the door is not closed, the acoustic alarm will
sound again after two minutes. To disengage the
door alarms close the fridge door.
Overtemperature alarm
The acoustic alarm sounds and the freezer
temperature indicator flashes "- -".
The alarm is activated when:
• The appliance is connected to the power supply
for the first time or after prolonged disuse
Operation alarms
In the event of operation alarms, other alarms will
also be displayed in the refrigerator or freezer
compartment, depending on the malfunction site,
(e.g. CF, AL01, AL02, AL03 etc...) call After-sales
Service and specify the alarm code.
D
GB
F
NL
E
P
I
GR
S
N
DK
FIN
PL
CZ
SK
H
RUS BG
RO
PRODUCT SHEET
GB
CLEANING
REPLACING THE LIGHT
Press the Stand-by button, which allows you to switch off
the appliance.
Remember that this operation does not disconnect the
appliance from the power supply.
The refrigerator / freezer compartment can now be
emptied and cleaned.
BULB's LIGHTING
Always disconnect the
refrigerator from the
power supply before
replacing any light bulb.
If the inside light is not working, it is necessary to:
1. Remove the light cover: put the fingers into the side
ventilation holes (1), stretch the cover gently and
move it upwards.
2. Check the bulb. If necessary unscrew the broken bulb
and replace it with the new one (use maximum 15W
bulb).
3. Put on the light cover.
Do not leave the bulb uncovered.
LED's LIGHTING
If the inside LED light is
not working, it must be
replace by service.
DEFROSTING THE FREEZER COMPARTMENT
No Frost freezers provide chilled air circulation around
the storage areas and prevent the formation of ice,
thereby completely eliminating the need for defrosting.
Frozen items don't stick to the walls, labeling stays legible
and storage space remains neat and clear.
In combination with
, not only does it control the
sensor, but directs the cooling power exactly where it is
needed, optimizing energy efficiency.
DEFROSTING THE REFRIGERATOR
COMPARTMENT
5019 637 01077
Printed in Poland
03/10
Refrigerator compartment defrosting is completely
automatic.
Droplets of water on the rear wall inside the refrigerator
compartment indicate that the automatic defrost phase is
in progress. The defrost water is automatically run into a
drain hole and collected in a container, where it
evaporates.
D
GB
F
NL
E
P
I
GR
S
N
DK
FIN
PL
CZ
SK
H
RUS BG
RO

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
