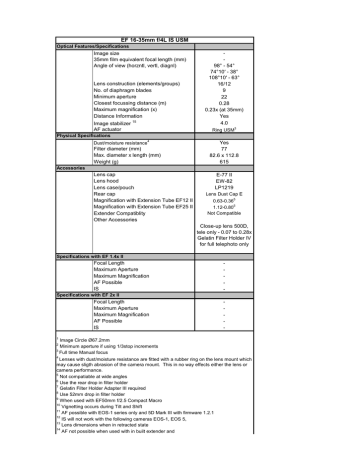

EF 16-35mm f/4L IS USM

Optical Features/Specifications

Image size

35mm film equivalent focal length (mm)

Angle of view (horzntl, vertl, diagnl)

Lens construction (elements/groups)

No. of diaphragm blades

Minimum aperture

Closest focussing distance (m)

Maximum magnification (x)

Distance Information

Image stabilizer

15

AF actuator

Physical Specifications

Dust/moisture resistance

4

Filter diameter (mm)

Max. diameter x length (mm)

Weight (g)

Accessories

Lens cap

Lens hood

Lens case/pouch

Rear cap

Magnification with Extension Tube EF12 II

Magnification with Extension Tube EF25 II

Extender Compatiblity

Other Accessories

-

-

98° - 54°

74°10′ - 38°

108°10′ - 63°

16/12

9

22

0.28

0.23x (at 35mm)

Yes

4.0

Ring USM

3

Yes

77

82.6 x 112.8

615

E-77 II

EW-82

LP1219

Lens Dust Cap E

0.63-0.36

5

1.12-0.80

5

Not Compatible

Close-up lens 500D, tele only - 0.07 to 0.28x

Gelatin Filter Holder IV for full telephoto only

Specifications with EF 1.4x II

Focal Length

Maximum Aperture

Maximum Magnification

AF Possible

IS

Specifications with EF 2x II

Focal Length

Maximum Aperture

Maximum Magnification

AF Possible

IS

-

-

-

-

-

-

-

-

-

-

1

Image Circle Ø67.2mm

2

Minimum aperture if using 1/3stop increments

3

Full time Manual focus

4

Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount. This in no way effects either the lens or camera performance.

5

Not compatiable at wide angles

6

Use the rear drop in filter holder

7

Gelatin Filter Holder Adapter III required

8

Use 52mm drop in filter holder

9

When used with EF50mm f/2.5 Compact Macro

10

Vignetting occurs during Tilt and Shift

11

AF possible with EOS-1 series only and 5D Mark III with firmware 1.2.1

12

IS will not work with the following cameras EOS-1, EOS 5,

13

Lens dimensions when in retracted state

14

AF not possible when used with in built extender and

15

Tested under CIPA standards
