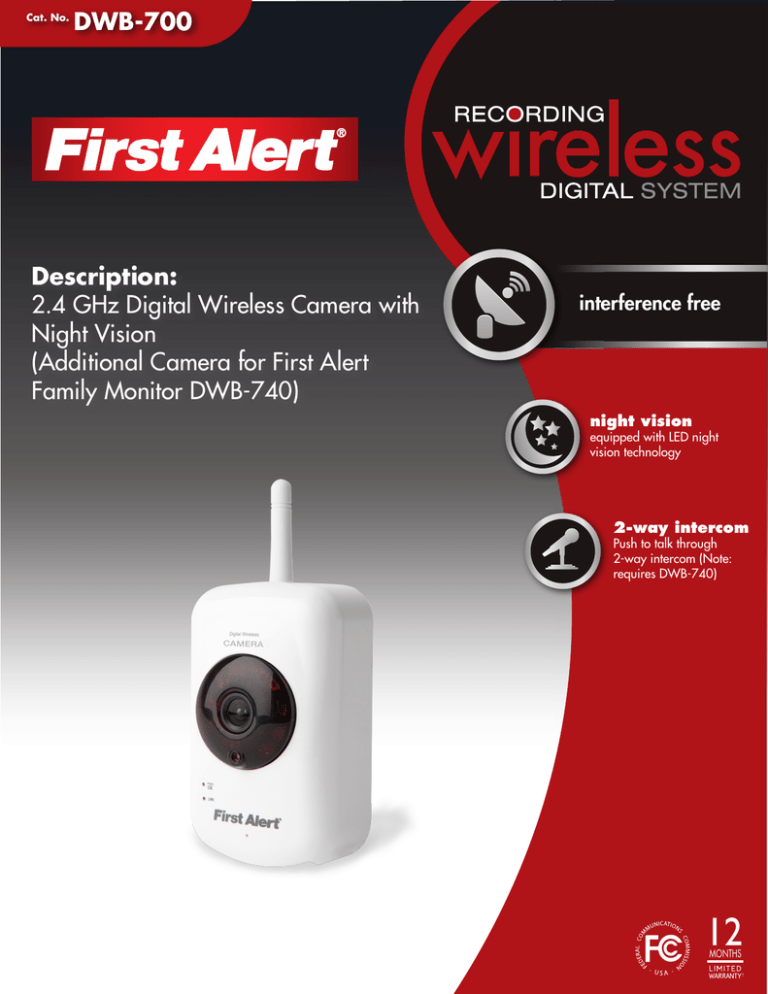

User manual | Description: 2.4 GHz Digital Wireless Camera with Night Vision

Cat. No.
DWB-700
Description:
2.4 GHz Digital Wireless Camera with
Night Vision
(Additional Camera for First Alert
Family Monitor DWB-740)
interference free
night vision
equipped with LED night
vision technology
2-way intercom
Push to talk through
2-way intercom (Note:
requires DWB-740)
12
MONTHS
Cat. No.
DWB-700
Contents
1 2.4 GHz Digital Wireless Indoor Camera
1 Power Supply
1 Camera Stand and Mounting Kit
1Manual
Product Specifications
General
Operating Power
DC 5V 1A
Operating Temp
14°F - 122°F
Dimensions (Camera & Stand)
2.52” x 2.44” x 3.9”
Audio1Vp-p/600ohm/1Vp-p/75ohm
Lullabies
Three: up to 7 minutes play time each
Night Light
Built-in
Intercom
Push to talk through 2-way intercom
(Note: must use DWB
Wireless Signal
2.4GHz Frequency Hopping Spread Spectrum (FHSS) Technology
Range
Up to 750 ft. line of sight
Camera
Image Sensor
1/5” CMOS
Video Quality
320x240 QVGA
White Balance
Auto
Signal/Noise Ratio
38dB
Gain Control
Auto
Backlight Compensation
No
Lens
3.6 mm
Viewing Angle
H:39° V:30°
Audio Range
15 ft.
ColorYes
Indoor/OutdoorIndoor
Microphone
Built in
VOX (Voice) Triggered
Yes with 3 levels of sensitivity
Night Vision
Number of infrared LED’s
Distance
10 IR LED’s/1 EDS
Up to 15 ft.
Shipping Specifications
Individual Carton
Dimensions Weight Cube UPC
4.33”L x 3.54”W x 6.1”H
0.43 lbs.
0.05 ft3
0 29054 00985 2
Inner Carton
Dimensions Inner Pack
Weight Cube I2of5
7.68”L x 4.73”W x 6.69”H
2
1.2 lbs.
0.14 ft3
200 29054 00985 6
Master Carton
Dimensions Master Pack
Weight Cube I2of5
15.16”L x 8.47”W x 14.37”H
12 (6 inner packs)
8.2 lbs.
1.1 ft3
500 29054 00985 7
Pallet Information
Cases per layer Number of Layers Cases per Pallet Units per Pallet
Cube
Weight
12
3
36
432
42.9 ft3
360 lbs.
©2012 BRK Brands, Inc.
a Jarden Corporation Company (NYSE:JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Phone: 630-851-7330 Tech Services: 800-323-9005
brkelectronics.com
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3122
